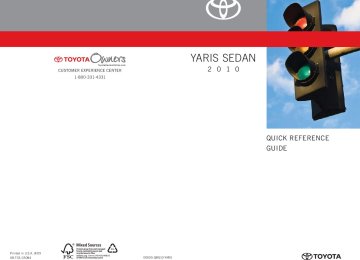

2010 Toyota Yaris Sedan Owners Manual

CUSTOMER EXPERIENCE CENTER

1-800-331-4331

YARIS SEDAN

2 0 1 0

QUICK REFERENCE GUIDE

Printed in U.S.A. 8/09
08-TCS-03084

10%

Cert no. SGS-COC-005612

00505-QRG10-YARS

2010

Yaris Sedan

Seatbelts-Shoulder belt anchor

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Yaris.

! A word about safe vehicle operations

This Quick Reference Guide is not a full description of Yaris operations. Every Yaris owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

Pull the lock release knob out to lower

Jack handle

Spare tire

Loosen and remove the bolt.

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

Spare tire & tools Tool location

Jack

Tool bag

Removing the spare tire

Trunk-Internal release

Pull up

17

INDEX

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1
Light control-Instrument panel

Air Conditioning/Heating Audio Automatic Transmission Bottle holders-Front seat Clock Cruise control Cup holders Lights & turn signals Parking brake Power outlet Seat adjustments-Front Seat adjustments-Rear Seats-Head restraints Tilt steering wheel Trunk release VSC OFF button Windows-Power Windshield wipers & washers

4-5
2-3

12-13

13

15
15
14
15
11
13
10
10
14
10

SAFETY AND EMERGENCY FEATURES

Door locks-Power Doors-Child safety locks Seatbelts Seatbelts-Shoulder belt anchor Spare tire & tools Trunk-Internal release Tire Pressure Monitoring (warning) System

16
16
16
17
17
17
16

1 Visit your Toyota dealer for information on this and other customizable options.

OVERVIEW

Instrument panel

Instrument panel light control Power rearview mirror controls* Headlight, turn signal and front fog light* controls Cruise control Ignition switch Wiper and washer controls Emergency flasher button Front passenger seatbelt reminder light Clock adjust button Odometer/Trip meter switch and trip meter reset button

O

“AIR BAG ON” and “AIR BAG OFF” indicator Audio system* Air Conditioning controls AUX adapter* Rear window/Outside rearview mirror defogger switch* Tilt steering lock release lever Hood release

* If equipped

OVERVIEW

Instrument cluster With optitron type meter

Without optitron type meter

Service indicator and reminder Gear shift position indicator (if equipped) Tachometer Speedometer Clock Odometer and two trip meters Fuel gauge

Indicator symbols For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.

Brake system warning1
Driver seatbelt reminder (alarm will sound if speed is over 12 mph) Front passenger seatbelt reminder (alarm will sound if speed is over 12 mph)

Charging system warning1

1 If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

2 For details, refer to “If your vehicle overheats,” Section 5-2, 2010 Owner’s Manual

Malfunction/Check Engine indicator1

Low engine oil pressure warning1

Open door warning

Airbag SRS warning1

Low windshield washer fluid level warning

Electric power steering system warning1

Low fuel level warning

Engine oil replacement reminder1

AIR BAG ON indicator

AIR BAG OFF indicator

Headlight low beam indicator

Headlight high beam indicator

Front fog light indicator

Turn signal indicator

High engine coolant temperature warning1

Low engine coolant temperature indicator2

Slip indicator1

Vehicle Stability Control OFF indicator1

Traction Control OFF indicator

Cruise control indicator3

Cruise control SET indicator

Anti-lock Brake System warning1

Low Tire Pressure Warning1

3 If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.

OVERVIEW

Fuel tank door release and cap

Driver seat

Pull up

Hang

Turn

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “

” indicator may illuminate.

Keyless entry (if equipped) Locking operation

Unlocking operation

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 30 seconds of unlocking, all doors will relock for safety.

Push

Panic button

Light control-Instrument panel

Push and hold

Brightness control

Hood release

Pull

Pull up latch and raise hood

Engine maintenance

Windshield washer fluid tank Engine oil filler cap Engine oil level dipstick Engine coolant reservoir

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”

FEATURES/OPERATIONS

Automatic Transmission (if equipped)

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

* The engine switch must be “ON” and the brake pedal depressed to shift

from Park.

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Tilt steering wheel

Angle

Lock release lever

Hold wheel, push lever down, set angle and return lever. NOTE: Do not attempt to adjust while the vehicle is in motion.

Trunk release

Driver seat

Pull up

Parking brake Set

Pull

Release

(2) Push

(3) Lower

(1) Pull slightly

Windows-Power (if equipped) Driver side

Window lock switch

Down

Up

Window operation Automatic down operation (driver side only) Push the switch completely down and release to fully open. To stop window at any point, lightly pull the switch up. Window lock switch Deactivates all passenger windows. Driver’s window remains operable. Seat adjustments-Front

Seat position (forward/backward) Height crank (driver side only) Seatback angle

FEATURES/OPERATIONS

Seat adjustments-Rear (fold-down type)

(2)

(1)

(3)

(4)

To fold down the rear seatback (1) Slide the seatback security lock to the right unlock position from the

trunk room.

(2) Lower the seat head restraints. (3) Pull the lock release knob up. (4) Fold the seatback down.

Refer to the Owner’s Manual for more details. Seats-Head restraints Front

Rear

Lock release button

Lock release button

Windshield wipers & washers With interval adjuster Adjust frequency*

Single wipe

Without interval adjuster

Single wipe

Interval wipe

Slow

Fast

Pull to wash and wipe

Interval wipe Slow

Pull to wash and wipe

Fast

* Intermittent windshield wiper

frequency adjustment Rotate to increase/decrease wipe frequency.

10

Lights & turn signals Headlights

Headlights

Parking lights

Low beam

High beam flasher

High beam

Daytime Running Light system (DRL)(if equipped) Automatically turns on the headlights at a reduced intensity.

Turn signals

Right turn

Lane change

Lane change

Left turn

Front fog lights (if equipped)

Turn

Front fog lights turn on only when the headlights are on low beam.

11

FEATURES/OPERATIONS

Audio (if equipped)

Type 1

Push to turn ON/OFF

Eject CD

Push to adjust tone & balance

Seek station/ CD track select

Mode

Push to skip up /down folder Mode

Station/CD track scan

Preset buttons - functions in other modes indicated beside number.

View CD text

Type 2

Push to turn ON/OFF

Seek station/ CD track select

Eject CD

Push to adjust tone & balance

Push to skip up/ down folder

Station/CD track scan

Mode

View CD text

Preset buttons - functions in other modes indicated above number.

CD PLAYER To scan tracks on a disc Push “SCAN.” Push again to hold selection. RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.

12

AUX audio jack (if equipped)

By inserting a mini plug of a commercially available component into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode. NOTE: An iPod®-dedicated port is standard on all S model sedans.

Air Conditioning/Heating

Fresh or recirculated cabin air Fan speed Air Conditioning ON/OFF Airflow vent In “ Temperature selector Rear defogger

” mode, use fresh air to reduce window fogging.

Power outlet

Designed for 12V car accessories. Key must be in the “ACC” or “ON” position to be used.

13

FEATURES/OPERATIONS

Cruise control (if equipped) Turning system ON/OFF

Functions

Cancel1

Resume2/Increase speed

System ON/OFF

Set/Decrease speed

1 The set speed may also be cancelled by depressing the brake pedal or

the clutch pedal (Manual Transmission).

2 Unless vehicle speed drops below 10 mph, the set speed may be resumed

once vehicle exceeds 25 mph.

Refer to the Owner’s Manual for more details.

VSC OFF button

VSC OFF button

The VSC OFF button is used to switch between modes related to the TRAC and VSC.

Refer to Section 2-4 of the Owner’s Manual for more information.

14

Clock

Clock adjust button

(1) Push and hold the CLOCK button to enter adjustment mode. (2) Press CLOCK button to adjust hours. (3) Wait five seconds to adjust the minutes. (4) Wait another five seconds for process to complete.

Cup holders Front

Rear Rear console box

Rear seat armrest (if equipped)

Bottle holders-Front seat

15

SAFETY AND EMERGENCY FEATURES

Door locks-Power (if equipped)

Lock

Unlock

Doors-Child safety locks Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside. Seatbelts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seatbelts, and how to install a child restraint system, refer to the Owner’s Manual.

Tire Pressure Monitoring (warning) System If tire pressure becomes critically low on any of the tires (excluding the spare), “ ” indicator will illuminate. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details.

16

Abbreviation list Abbreviation/Acronym list

ABBREVIATIONS

MEANING

ABS ACC ALR CRS ECU EDR ELR EPS GAWR GVWR

I/M

LATCH LED LT

M + S MMT MTBE OBD ODO RES SRS TIN TPMS TRAC TWI VIN VSC

368

Anti-Lock Brake System Accessory Automatic Locking Retractor Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Gross Axle Weight Ratings Gross Vehicle Weight Rating Emission inspection and maintenance Lower Anchors and Tethers for Children Light Emitting Diode Light truck Mud + Snow Methylcy clopentadienyl Manganese Tricarbonyl Methyl Tertiary Butyl Ether On Board Diagnostics Odometer Resume Supplemental Restraint System Tire Identification Number Tire Pressure Warning System Traction Control Treadwear Indicators Vehicle Identification Number Vehicle Stability Control

For your information

Main Owners Manual

Please note that this manual applies to all models explains and all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

is not responsible

these products and

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

for

18

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, cruise control system, anti-lock brake sys- tem, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

Scrapping your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.

19

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

n General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

20

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices. Indicates the outcome of an operation (e.g. a lid opens).

21

22

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior features

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual.

Pictorial index

Exterior

Windshield wipers P. 133

Hood P. 231

Outside rear view mirrors P. 53

Headlights (low and high beam) and daytime running lights P. 130, 131

Front side marker lights P. 130

Front turn signal / parking lights P. 117, 130

Front fog lights∗ P. 132

Fuel filler door P. 58

Rear window defogger∗ P. 170

Doors P. 28

Trunk P. 33

Tires l Rotation l Replacement l Inflation pressure l Information

P. 246
P. 307
P. 252
P. 346

License plate lights P. 130

Stop/tail and rear side marker lights P. 130

Rear turn signal lights P. 117

∗: If equipped

Pictorial index

Interior

Seat belts P. 44

Head restraints P. 41

Power window switches∗ P. 56

Cup holders∗ P. 203

Horn P. 120
SRS driver airbag P. 69

Shift lever P. 114, 116

Security indicator

P. 62, 64

SRS front passenger air- bag P. 69

Armrest∗ P. 212

Rear seats P. 38

Floor mats P. 213

SRS side airbags∗ P. 69

Front seats P. 37

Vanity mirrors P. 207

Sun visors P. 206

Personal lights P. 199

Interior light P. 199

Anti-glare inside rear view mirror P. 52

SRS curtain shield airbags∗ P. 69

∗: If equipped

Pictorial index

Interior

Window lock switch∗ P. 57

Power window switches∗ P. 56

Inside door lock button P. 30

Door lock switch∗ P. 30

10

Console box P. 201

Cup holder P. 203

Parking brake lever P. 118

Power outlet∗ Cigarette lighter∗

P. 211

P. 210

∗: If equipped

11

Pictorial index

Instrument panel

Headlight switch Turn signal lever Fog light switch∗

P. 130
P. 117
P. 132

Auxiliary box P. 204

Windshield wipers and washer switch P. 133

Gauges and meters P. 121

Audio system P. 172

Hood opener P. 231

Glove box P. 201

Bottle holder P. 204

Fuel filler door opener

P. 58

Shift lock override button∗ P. 320

Tilt steering lock release lever P. 51

Trunk opener P. 33

12

Emergency flasher switch P. 286

CLOCK button P. 121, 208

ODO/TRIP button P. 121

∗: If equipped

13

Pictorial index

Instrument panel

Air conditioning system P. 164

AUX adapter∗ P. 196

Rear window defogger switch∗/ Rear window defogger and outside rear view mirror defogger switch∗ P. 170

14

Cruise control switch∗ P. 136

Engine (ignition) switch P. 110

∗: If equipped

15

Pictorial index

Instrument panel

Cup holders P. 202

Outside rear view mirror switches∗ P. 53

Instrument panel light control dial P. 125

16

VSC OFF switch P. 140

∗: If equipped

17

1-1. Key information Keys

The following keys are provided with the vehicle.

Vehicles without engine immobilizer system (type A)

Master keys (with wireless remote control function) Operating the wireless remote control function (→P. 26) Valet key Key number plate

Vehicles without engine immobilizer system (type B)

Master keys Valet key Key number plate

Vehicles with engine immobilizer system (type A)

Master keys (with wireless remote control function) Operating the wireless remote control function (→P. 26) Valet key Key number plate

24

1-1. Key information

Vehicles with engine immobilizer system (type B) Master keys Valet key Key number plate

n When required to leave a key to the vehicle with a parking attendant

Turn the luggage security system on. (→P. 34) Carry the master key for your own use and leave the valet key only with the attendant.

n Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 321)

n When riding in an aircraft

When bringing a wireless remote control key onto an aircraft, make sure you do not press any buttons on the wireless remote control key while inside the aircraft cabin. If you are carrying a wireless remote control key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Press- ing a button may cause the wireless remote control key to emit radio waves that could interfere with the operation of the aircraft.

NOTICE

n To prevent key damage (vehicles with engine immobilizer system)

l Do not subject the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

l Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

25

1-2. Opening, closing and locking the doors Wireless remote control∗

The wireless remote control can be used to lock/unlock the vehicle from outside the vehicle.

Locks all doors Sounds alarm (push and hold) Unlocks all doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

n Operation signals

The emergency flashers flash to indicate that the doors have been locked/ unlocked. (Locked: Once; Unlocked: Twice)

n Panic mode

is pushed for longer than about When 1 second, an alarm will sound for about 60 seconds and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, push any button on the wireless remote control.

n Key battery depletion

The standard battery life is 1 to 2 years. (The battery becomes depleted even if the key is not used.) If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 261)

n Security feature

If a door is not opened within approximately 30 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

∗: If equipped

26

1-2. Opening, closing and locking the doors

n Conditions affecting operation

The wireless remote control function may not operate normally in the follow- ing situations. l Near a TV tower, radio station, electric power plant, airport or other facil-

ity that generates strong radio waves

l When carrying a portable radio, cellular phone or other wireless commu-

nication device

l When multiple wireless keys are in the vicinity l When the wireless key has come into contact with, or is covered by a

metallic object

l When a wireless key (that emits radio waves) is being used nearby l When the wireless key has been left near an electrical appliance such as

a personal computer

n Customization that can be configured at Toyota dealer

l Settings (e.g. wireless remote control system) can be changed.

(Customizable features →P. 359)

n Certification for wireless remote control

For vehicles sold in U.S.A. FCC ID:MOZB41TG FCC ID:MOZB21RG

NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

NOTE: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.

27

1-2. Opening, closing and locking the doors Doors

The vehicle can be locked/unlocked using the wireless remote con- trol, key or door lock switch. n Wireless remote control (if equipped)

→P. 26

n Key

Vehicles with power door lock

Locks all doors Unlocks all doors Turning the key a single time in the driver’s door unlocks the driver’s door, and turning the key again unlocks the other doors.

28

1-2. Opening, closing and locking the doors

Vehicles without power door lock

Locks the door Unlocks the door

29

1-2. Opening, closing and locking the doors

n Door lock switch (if equipped)

Driver’s door lock switch

Unlocks all doors Locks all doors

Passenger’s door lock switch

Locks all doors Unlocks all doors

n Inside door lock button

Locks the door Unlocks the door Pulling the inside handle can open the front door even if the lock button is in the lock posi- tion.

30

1

1-2. Opening, closing and locking the doors

Locking the front doors from the outside without a key

Move the inside door lock button to the lock position. Close the door.

Vehicles with power door lock The door cannot be locked if the driver’s door is open and the key is in the engine switch.

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the locks are set.

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

n Key reminder buzzer

A buzzer sounds if the driver’s door is opened, while the engine switch is in the ACC or LOCK position to remind you to remove the key. n Customization that can be configured at Toyota dealer

Settings (Customizable features →P. 359)

(e.g. unlocking

function using a key) can be changed.

31

1-2. Opening, closing and locking the doors

CAUTION

n To prevent an accident

Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. l Always use a seat belt. l Always lock all doors. l Ensure that all doors are properly closed. l Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehi- cle and it may result in serious injury or death. Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked position.

l Set the rear door child protector locks when children are seated in the rear

seat.

32

1-2. Opening, closing and locking the doors Trunk

The trunk can be opened using the key or trunk opener. n Key

Turn the master key clockwise to release the trunk lid.

n Trunk opener

Release the trunk lid.

33

1-2. Opening, closing and locking the doors

n Internal trunk release lever

The trunk lid can be opened by pulling up on the glow-in-the-dark lever located on the inside of trunk lid. The lever will continue to glow for some time after the trunk lid is closed.

Luggage security system

To protect luggage stored in the trunk against theft, do the following procedures.

Vehicles with split rear seats: Move the security lock levers to lock the rear seatbacks.

Turn the master key counter- clockwise to trunk opener feature.

lock

the

34

1

1-2. Opening, closing and locking the doors

CAUTION

n Caution while driving

l Keep the trunk lid closed while driving.

If the trunk lid is left open, it may hit near-by objects while driving or lug- gage in the trunk may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard. Make sure to close the trunk lid before driving.

l Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may open unexpectedly while driving, caus- ing an accident.

l Never let anyone sit in the trunk. In the event of sudden braking or a colli-

sion, they are susceptible to death or serious injury.

n When children are in the vehicle Observe the following precautions. Failure to do so may result in death or serious injury. l Do not allow children to enter the trunk.

If a child is accidentally locked in the trunk, they could have heat exhaus- tion or suffocate.

l Do not allow a child to open or close the trunk lid.

Doing so may cause the trunk lid to operate unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing trunk lid.

35

1-2. Opening, closing and locking the doors

CAUTION

n Using the trunk

Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in seri- ous injury. l Remove any heavy loads, such as snow and ice, from the trunk lid before opening it. Failure to do so may cause the trunk lid to fall closed again after it is opened.

l When opening or closing the trunk lid, thoroughly check to make sure the

surrounding area is safe. If anyone is in the vicinity, make sure they are safe and let them know that the trunk is about to open or close.

l Use caution when opening or closing the trunk lid in windy weather as it

may move abruptly in strong wind.

l The trunk lid may fall if it is not opened fully. It is more difficult to open or close the trunk lid on an incline than on a level surface, so beware of the trunk lid unexpectedly opening or closing by itself. Make sure that the trunk lid is fully open and secure before using the trunk.

l When closing the trunk lid, take extra care to prevent your fingers etc. from being caught.

l When closing the trunk lid, make sure to press it lightly on its outer surface. If the trunk handle is used to fully close the trunk lid, it may result in hands or arms being caught.

l Do not attach any accessories other than genuine Toyota parts to the trunk lid. Such additional weight on the trunk lid may cause the lid to fall closed again after it is opened.

36

1-3. Adjustable components (seats, mirrors, steering wheel) Front seats

Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (driver’s side only)

CAUTION

n Seat adjustment

l Do not recline the seat more than necessary when the vehicle is in motion

to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

l After adjusting the seat, make sure that the seat is locked in position.

37

1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats (split rear seats only)

The seatbacks of the rear seats can be folded down.

Insert the key into the hole on the center seat belt buckle to release tab (with hooked end), and allow the belt to retract.

Remove the seat belts from the seat belt guides.

Check that the security lock levers in the unlock position.

trunk are

in

38

1-3. Adjustable components (seats, mirrors, steering wheel)

Lower each head restraints while pushing the lock release button.

n Returning rear seatbacks

Fold the seatbacks down while pulling the seatback lock release knobs.

Tilt the rear seatback up until it locks, making sure that you hold the seat belt to prevent it from getting caught between the seatback and the inner side of the vehicle.

Make sure the shoulder belt passes through the guide and the seat belt is in the position before folding down the seat when returning the seatback up.

39

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

n After returning the seatback to the upright position

Observe the following precautions. Failure to do so may result in death or serious injury.

l Make sure

that

the seatback

is securely locked in position by lightly rocking it back and forth. If the seatback is not securely locked, the red marking will be visible on the seatback lock release knob. Make sure that the red marking is not visi- ble.

l Check that the seat belts are not twisted or caught under the seat.

40

1

1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints

Head restraints are provided for all seats.

Front seats

Vertical adjustment

Up Pull the head restraints up. Down Push the head restraints down while pushing the lock release button.

Vertical adjustment
