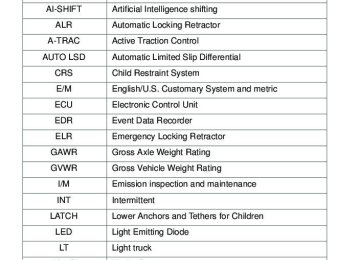

Abbreviation list Abbreviation/Acronym list

ABBREVIATIONS MEANING

2WD 4WD ABS ACC

AI-SHIFT

ALR

A-TRAC AUTO LSD

CRS E/M ECU EDR ELR GAWR GVWR

I/M INT

LATCH LED LT

M + S MMT MTBE OBD RES

RR DIFF LOCK

SRS

512

Two Wheel Drive Four Wheel Drive Anti-Lock Brake System Accessory Artificial Intelligence shifting Automatic Locking Retractor Active Traction Control Automatic Limited Slip Differential Child Restraint System English/U.S. Customary System and metric Electronic Control Unit Event Data Recorder Emergency Locking Retractor Gross Axle Weight Rating Gross Vehicle Weight Rating Emission inspection and maintenance Intermittent Lower Anchors and Tethers for Children Light Emitting Diode Light truck Mud + Snow Methylcy clopentadienyl Manganese Tricarbonyl Methyl Tertiary Butyl Ether On Board Diagnostics Resume Rear differential lock Supplemental Restraint System

ABBREVIATIONS MEANING

TIN TPMS

TRAC/TRC

TWI VIN VSC

Tire Identification Number Tire Pressure Warning System Traction Control Treadwear indicators Vehicle Identification Number Vehicle Stability Control

513

For your information

Main Owners Manual

Please note that this manual applies to all models explains and all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

is not responsible

these products and

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

for

21

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, cruise control system, anti-lock brake sys- tem, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

Scrapping your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.

22

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

n General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, or other features of the vehicle. In addi- tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

23

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices. Indicates the outcome of an operation (e.g. a lid opens).

24

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior features

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual.

Pictorial index

Exterior

Outside rear view mirror illumination lights∗ P. 143

Windshield wipers P. 145

Hood P. 366

Headlights and daytime running lights∗ P. 143, 144

Outside rear view mirrors

P. 66

Front turn signal/parking and front side marker lights P. 131, 143

Fuel filler door P. 71

Access doors P. 34

Stop/tail and rear side marker lights P. 143

Side doors P. 31

Tires l Rotation l Replacement l Inflation pressure l Information

P. 381
P. 440
P. 387
P. 482

Rear turn signal lights P. 131

∗: If equipped

Pictorial index

Exterior

Glass hatch P. 41

Rear window defogger P. 213

Rear window wiper∗ P. 147

Back door P. 36

License plate lights P. 143

∗: If equipped

Pictorial index

Interior

Seat belts P. 56

Head restraints P. 53

Bottle holders P. 323

SRS driver airbag P. 79

Horn P. 134

Auxiliary box P. 324

SRS front passenger airbag P. 79

Rear seats P. 47

Cup holders P. 322

Floor mats P. 337

Front seats P. 45

SRS side airbags P. 79

Pictorial index

Interior

Interior lights

P. 316

Sun visors P. 325

Vanity mirrors P. 326

SRS curtain shield airbags P. 79

Personal lights P. 317

Anti-glare inside rear view mirror P. 63
Rear view monitor system∗ P. 157

10

Inside door lock button P. 32

Door lock switch P. 31

Window lock switch P. 69

Power window switches P. 69

∗: If equipped

11

Pictorial index

Interior

Automatic transmission

Cup holders P. 319

Shift lever P. 127

Front-wheel drive control lever ∗ P. 164

Parking brake lever P. 132

Manual transmission

Shift lever P. 129

Shift lock override button P. 454

Cup holders P. 319

Four-wheel drive control lever P. 161

Cup holders P. 319

Parking brake lever P. 132

12

∗: If equipped

Pictorial index

Instrument panel

Headlight switch Turn signal lever

P. 143
P. 131

Gauges and meters P. 135

Windshield wipers and washer switch

P. 145
Rear window wiper and washer switch∗

P. 147
Accessory meter∗ P. 141

Glove box P. 319

Hood lock release lever P. 366

∗: If equipped

13

Pictorial index

Instrument panel

Clock P. 327

Emergency flasher switch P. 420

Audio system P. 214

Security indicator P. 74

Air conditioning system P. 206

Rear window defogger switch P. 213

14

VSC OFF switch P. 169, 176, 177

RR DIFF LOCK switch∗ P. 171

A-TRAC switch∗ P. 167

Power outlet P. 329

AUX port/USB port P. 240, 247, 258

Intuitive parking assist switch∗ P. 152

Power outlet main switch∗ P. 330

∗: If equipped

15

Pictorial index

Instrument panel

Engine (ignition) switch P. 124

16

Audio remote control switches P. 259

Telephone switch P. 283

Talk switch P. 283

Cruise control switch∗ P. 148

∗: If equipped

17

Pictorial index

Instrument panel

Instrument panel light control dial P. 136

Tilt steering lock release lever P. 62

RSCA OFF switch P. 90

CLUTCH START CANCEL switch∗ P. 174

Outside rear view mirror switches∗ P. 66

18

∗: If equipped

Pictorial index

Luggage compartment

Child restraint anchor brackets P. 101

Tie-down hooks P. 340

19

Pictorial index

Luggage compartment

Shopping bag hooks P. 342
Cargo net hooks P. 341

Jack P. 440

Tools P. 440

Shopping bag hooks* P. 342
Cargo net hooks* P. 341

Luggage storage box* P. 339

Power outlet∗ P. 330

∗: If equipped *: Vehicles without sub woofer

20

FJ CRUISER

20

1 1

QUICK REFERENCE GUIDE

2011

FJ Cruiser

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new FJ Cruiser.

! A word about safe vehicle operations

This Quick Reference Guide is not a full description of FJ Cruiser operations. Every FJ Cruiser owner should review the Owner’s Manual that accompanies this vehicle. Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction. All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

INDEX

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1

Accessory meter Air Conditioning/Heating Audio Automatic Transmission Bottle holders-Rear seat Clock Cruise control Cup holders Door-Back Four-wheel drive Intuitive parking assist Light control-Instrument panel Lights1 & turn signals Parking brake Power outlet-12V DC Power outlet-115V AC Seat adjustments-Front Seats-Folding rear seats Seats-Head restraints Seats-Removing rear seats Telephone controls (Bluetooth®)1
Tilt steering wheel VSC OFF button Windows Windshield wipers & washers

4-5
2-3

14-15

13
16

19
15
17
19
13
16
19
12
10
18
18
10
11
10
11
18
13
12

SAFETY AND EMERGENCY FEATURES

Door locks Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Monitoring (warning) System

20
20
20
21
20

1 Visit your Toyota dealer for information on this and other customizable options.

OVERVIEW

Instrument panel Steering wheel controls

Instrument panel light control Power outside rearview mirror controls1
Clutch start cancel switch1
Roll Sensing of Curtain shield Airbag OFF switch Tilt steering lock release Headlight and turn signal control Wiper and washer controls Ignition switch Emergency flasher button Clock Front passenger seat belt reminder light Audio system Engine immobilizer indicator Air Conditioning controls Rear window defogger button VSC OFF switch1

O

Rear differential lock button1
Active traction control switch1
Power outlet AUX or USB/AUX port Intuitive parking assist switch1
Power outlet main switch1
Cruise control1
Hood release Volume control switch (for audio) “ ” button (for audio) >> “MODE” button (for audio) Telephone controls Voice command button

1 If equipped 2 For details, refer to the “Navigation System Owner’s Manual.”

OVERVIEW

Instrument cluster

Tachometer Service indicators Speedometer Voltmeter Automatic Transmission indicator Engine coolant temperature Fuel gauge Trip meter reset knob Odometer and two trip meters

Indicator symbols

Brake system warning1

Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)

Battery warning1

Low engine oil pressure warning1

Malfunction/Check Engine indicator1

Maintenance/Service required indicator1

Low fuel level warning1

Open door warning1

1 For details, refer to “If a warning light turns on or a warning buzzer sounds” Section 5-2, 2011 Owner’s Manual. 2 For details, see “Rear differential lock system,” Section 2-4, 2011 Owner’s Manual.

Airbag SRS warning1

Automatic Transmission fluid temperature warning1

Unengaged Park warning1

Low Tire Pressure Warning1

Engine immobilizer system indicator

Front passenger occupant classification indicator

Headlight high beam indicator

Turn signal indicator

Automatic Transmission indicator

Rear differential lock indicator2

Center differential lock indicator3

Vehicle Stability Control OFF indicator

Four-wheel drive indicator3

Slip indicator1

AUTO Limited Slip Differential indicator

Active traction control system indicator

Roll Sensing of Curtain shield Airbag OFF indicator

Traction Control/OFF indicator

Cruise control indicator4

Anti-lock Brake System warning1

3 If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2011 Owner’s

Manual.

4 If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.

OVERVIEW

Fuel tank door release and cap

Pull

Turn to open

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Keyless entry (if equipped) Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more details. Locking operation

Unlocking operation

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety.

Panic button

Push

OL

KC

NU

OL

KC

CINAP

Push and hold

Pull up latch and raise hood

Hood release

Pull

Engine maintenance

Windshield washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”

FEATURES/OPERATIONS

Automatic Transmission (if equipped)

Park* Reverse Neutral Drive Fourth gear Third gear Second gear

First gear

* The key must be in the “ON” position and the brake pedal depressed

to shift from Park.

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position. Tilt steering wheel

Hold the steering wheel, pull the lock release lever, tilt to the desired angle and release the lever. NOTE: Do not attempt to adjust while the vehicle is in motion.

Four-wheel drive (if equipped) Part-time four-wheel drive models (Automatic Transmission)

H2
H4

L4

High speed (2WD) High speed (4WD) Shift to “H4” with speed below 50 mph. Low speed (4WD) Stop vehicle, shift to “N” position, then move the lever to “L4.”

NOTE: For best fuel economy and performance under normal driving conditions, shift vehicle into “H2” position. Full-time four-wheel drive models (Manual Transmission)

HL

LL

High speed High speed Center differential locked. Depress the clutch pedal to shift from “LL.” Low speed Center differential locked. Depress the clutch pedal to shift from “HL” when vehicle is stopped or when speed is below 5 mph.

NOTE: For best fuel economy and performance under normal driving conditions, shift vehicle into “H” position. Rear differential lock button

Before using the rear differential lock button: •Shift the lever into “L4” (Automatic Transmission) •Shift the lever into “LL” (Manual Transmission)

The following warning lights will illuminate when rear differential lock is engaged:

Rear differential lock/unlock

FEATURES/OPERATIONS

Parking brake Set

Pull

Seat adjustments-Front

Release (2) Push

(3) Lower

(1) Pull slightly

Seat position (forward/backward) Cushion angle (driver side only) Height crank (driver side only) Seatback angle

Seats-Head restraints

Lock release button

10

Seats-Folding rear seats

(2) Remove

(1) Push

(4) Pull up

(5) Push down

(3) Stow

(6) Fold-down

Seats-Removing rear seats

(1) Pull up

(2) Loosen

(3) Separate

(4) Fold

11

FEATURES/OPERATIONS

Lights & turn signals Headlights

Headlights

Parking lights

Low beam

High beam flasher

High beam

-Automatic light cutoff system Automatically turns lights off after 30 seconds when all doors are closed with the key in “ACC” or “LOCK.” Lights may also be turned off by pushing lock button on remote after locking. -Daytime Running Light system (DRL) (if equipped) Automatically turns on the headlights at a reduced intensity.

Turn signals

Right turn

Lane change

Lane change

Left turn

Windshield wipers & washers Front Adjust frequency*

Faster

Slower

Rear (if equipped)

Pull to wash and wipe

Interval wipe

Slow

Fast

Wash and wipe

Wipe

Interval wipe

Wash and wipe

* Intermittent windshield wiper

frequency adjustment Rotate to increase/decrease wipe frequency.

NOTE: Rear wiper and washer operate only when back window is fully closed.

12

Windows Driver side

Down

Up

Window lock switch

Automatic down operation (driver side only) Push the switch completely down and release to fully open. To stop window at any point, lightly pull the switch up. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

Door-Back Open/Close

Unlock

Lock

Lock in place

Unlock

Pull

Lock

Back door can be locked into place when it is fully open.

Accessory meter (if equipped)

Compass Outside temperature display Clinometer-vehicle slant Calibrating the compass setting Switch between Fahrenheit and Celsius

13

FEATURES/OPERATIONS

Audio Type 1

Eject CD

Preset buttons-functions in other modes indicated above number

Station/CD track scan

Push to turn ON/OFF

Mode

Type 2

Seek station/ CD track select

Push to skip up/down folder

View radio and CD information

Push to adjust tone & balance

Mute/playback /pause Menu

Setting preset button

Load CD(s)

CD player To scan tracks on a disc Push “SCAN.” Push again to hold selection. CD changer (Type 2) -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. -To select a file (MP3/WMA only) Turn “TUNE/SCROLL.” -To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.” Radio Preset buttons Tune in the desired station and press a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. “SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold selection.

14

Steering wheel switches

Volume control

“ ” >> Use to search within the selected audio medium (radio, CD, iPod®, etc.). “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn audio OFF.

AUX port/USB port

AUX port By inserting a mini plug into the AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode. USB port By connecting a USB-compatible portable audio device or USB memory to the USB port, you can listen to music from the portable audio device or USB memory through the vehicle’s speaker system while in USB mode. Clock

H- Hour set M- Minute set

15

FEATURES/OPERATIONS

Air Conditioning/Heating

” mode, use fresh air (“

Recirculated cabin air (fresh air when OFF) Air Conditioning ON/OFF Airflow vent In “ window fogging. “ Temperature selector Select for maximum cooling. Air intake will automatically be set to recirculate. Fan speed Rear window defogger

” mode uses fresh air only.

” indicator OFF) to reduce

Intuitive parking assist (if equipped)

ON/OFF switch

When vehicle is in reverse, a buzzer will sound to inform driver when nearing an obstacle. The system can only be used when the transmission is in the “R” position.

16

Telephone controls (Bluetooth®) Audio unit

Microphone

Steering wheel telephone switches

Start call

End call

Volume

Voice command button

Bluetooth® technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the compatible telephone and the system. Refer to “Using the hands-free phone system (for cellular phones),” Section 3-4 in the Owner’s Manual, or go to Toyota.LetsTalk.com for more information about phone connections and compatibility.

Cruise control (if equipped) Turning system ON/OFF

Functions

Resume2/Increase speed

System ON/OFF

Cancel1

Set/Decrease speed

1 The set speed may also be cancelled by depressing the brake pedal. 2 The set speed may be resumed once vehicle speed exceeds 25 mph.

17

FEATURES/OPERATIONS

VSC OFF button

VSC OFF button

The VSC OFF button is used to switch between modes related to the TRAC, VSC and Auto LSD functions.

Refer to Section 2-4 of the Owner’s Manual for more information. Power outlet-12V DC Instrument panel

Key must be in the “ACC” or “ON” position to be used.

Power outlet-115V AC (if equipped) ON/OFF switch

Luggage compartment

Green light Yellow light

Push

The illumination changes according to the maximum available capacity. •Green and Yellow 115V AC/400W •Yellow 115V AC/100W Engine must be running in order to use the 115V AC power outlet.

18

Light control-Instrument panel

Brightness control

Bottle holders-Rear seat

Cup holders Automatic Transmission models

Manual Transmission models

Rear console

19

SAFETY AND EMERGENCY FEATURES

Seat belts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual. Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

Door locks

Lock

Unlock

Tire Pressure Monitoring (warning) System If the Tire Pressure Warning indicator “ adjust tire pressures to factory-specified levels.* The light will turn off after a few minutes. The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer. Refer to the Owner’s Manual for more details.

” illuminates without blinking,

* Refer to load label on door jamb or the Owner’s Manual for tire inflation specifications.

20

Spare tire & tools Tool location

Jack

Tool bag

Removing the spare tire (vehicles without rear view monitor system)

Turn the hold-down nuts counterclockwise and remove. Removing the spare tire (vehicles with rear view monitor system)

(1)

(3)

(2)

(4)

(1) Remove the bolt cover. (2) Remove the bolt that fixes the spare wheel cover in place. (3) Remove the spare wheel cover. (4) Turn the hold-down nuts counterclockwise and remove.

Refer to the Owner’s Manual for jack positioning and tire changing procedures.

21

CUSTOMER EXPERIENCE CENTER

1-800-331-4331

Printed in U.S.A. 11/10
10-TCS-03976

10%

Cert no. SGSNA-COC-005612

00505-QRG11-FJ

1-1. Key information Keys

The following keys are provided with the vehicle. Vehicles with wireless remote control system

Master keys (with wireless remote control function) Operating the wireless remote control function (→P. 28) Valet key Key number plate

Vehicles without wireless remote control system Master keys Valet key Key number plate

n Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 455)

n When riding in an aircraft

When bringing a wireless remote control key onto an aircraft, make sure you do not press any buttons on the wireless remote control key while inside the aircraft cabin. If you are carrying a wireless remote control key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Press- ing a button may cause the wireless remote control key to emit radio waves that could interfere with the operation of the aircraft.

26

1-1. Key information

NOTICE

n To prevent key damage

l Do not subject the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

l Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

27

1-2. Opening, closing and locking the doors Wireless remote control∗

The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle.

Locks all doors Unlocks all doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors. Sounds alarm (push and hold)

n Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

n Panic mode

When PANIC button is pushed for longer than about one second, an alarm will sound for about 60 seconds and the vehi- cle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, push any button on the wireless remote control.

NL

NIC

n Door lock buzzer

If a door or glass hatch is not fully closed, a buzzer sounds for 10 seconds if an attempt to lock the door and glass hatch are made. Fully close the door and glass hatch to stop the buzzer, and lock the vehicle once more.

28

∗: If equipped

1-2. Opening, closing and locking the doors

n Key battery depletion

The standard battery life is 1 to 2 years. (The battery becomes depleted even if the key is not used.) If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 397)

n Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

n Conditions affecting operation

The wireless remote control function may not operate normally in the follow- ing situations. l Near a TV tower, radio station, electric power plant, airport or other facil-

ity that generates strong radio waves

l When carrying a portable radio, cellular phone or other wireless commu-

nication device

l When multiple wireless keys are in the vicinity l When the wireless key has come into contact with, or is covered by a

metallic object

l When a wireless key (that emits radio waves) is being used nearby l When the wireless key has been left near an electrical appliance such as

a personal computer

n Customization that can be configured at Toyota dealer

Settings (Customizable features →P. 493)

(e.g. wireless

remote control system) can be changed.

29

1-2. Opening, closing and locking the doors

n Certification for wireless remote control

For vehicles sold in U.S.A.

FCC ID: HYQ12BBT FCC ID: HYQ13BBL NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.

30

1-2. Opening, closing and locking the doors Side doors

The vehicle can be locked/unlocked using the wireless remote con- trol, key or door lock switch. n Wireless remote control (if equipped)

→P. 28

n Key

Locks all doors Unlocks all doors Turning the key a single time in the driver’s door unlocks the driver’s door, and turning the key again unlocks the other doors.

n Door lock switch

Driver’s door lock switch

Locks all doors Unlocks all doors

31

1-2. Opening, closing and locking the doors

Passenger’s door lock switch

Locks all doors Unlocks all doors

n Inside door lock button

Locks the door Unlocks the door Pulling the inside handle can open the front door even if the inside door lock button is in the lock position.

Locking the front doors from the outside without a key

Move the inside door lock button to the lock position. Close the door.

The door cannot be locked if a front door is open and the key is in the engine switch.

32

1-2. Opening, closing and locking the doors

n Key reminder buzzer

A buzzer sounds if the driver’s door is opened, while the engine switch is in the ACC or LOCK position to remind you to remove the key.

n Customization that can be configured at Toyota dealer

Settings (Customizable features →P. 493)

(e.g. unlocking

function using a key) can be changed.

CAUTION

n To prevent an accident
