Quick Reference Guide

Interactive Owner’s Guide

Have a question about the main features of your new Toyota? Find the answers quickly and easily in this Quick Reference Guide, which includes highlights from the Owner’s Manual. For more detailed information, and helpful interactive demonstrations and tips, visit www.Toyotaiguide.com. This user-friendly website makes learning all about your new vehicle fun and easy.

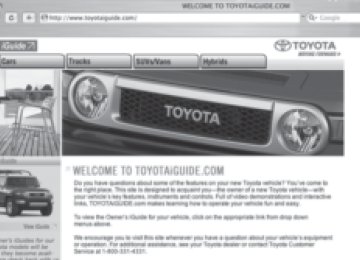

www.ToyotaiGuide.com

This iGuide is not intended as a substitute for the Owner’s Manual located in the vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of the vehicle’s capabilities and limitations. Important Cautions, to help you avoid injuries, and Notices, to help you avoid equipment damage or malfunction, can also be found in the Owner’s Manual.

7
4-5
2-3

14-15

13
16

18
19
16
17
18
13
17
17
12
10
19
19
10
11
10
11
13
12

20
20
20
21
21

INDEX

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Engine maintenance Fuel tank door release and cap Hood release Indicator symbols Instrument cluster Instrument panel Keyless entry1

Accessory meter Air Conditioning/Heating Audio Auto LSD (Limited Slip Differential) Automatic Transmission Bottle holders-Rear seat Clock Cruise control Cup holders Door-Back Four-wheel drive Intuitive parking assist Light control-Instrument panel Lights1 & turn signals Manual Transmission Parking brake Power outlet-12V DC Power outlet-115V AC Seat adjustments-Front Seats-Folding rear seats Seats-Head restraints Seats-Removing rear seats Tilt steering wheel Windows Windshield wipers & washers

Door locks Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Warning System

1 Visit your Toyota dealer for information on this and other customizable

options.

OVERVIEW

Instrument panel Steering wheel controls (if equipped)

Power rearview mirror controls* Instrument panel light control Headlight and turn signal control Wiper and washer controls Back window defogger button Emergency flasher button Audio system Clock Front passenger occupant classification indicator Front passenger seat belt reminder light Air Conditioning controls Rear differential lock button* Active traction control switch* Sub woofer ON-OFF button* Power outlet AUX audio jack

O

Intuitive parking assist switch* Power outlet main switch “AUTO LSD” button* Ignition Cruise control* Hood release Clutch start cancel switch* Volume control switch (for audio)* “ ” button (for audio)* >> “MODE” button (for audio)*

* If equipped

OVERVIEW

Instrument cluster

Tachometer Service indicators and reminder Speedometer Voltmeter Automatic Transmission indicator Engine coolant temperature Fuel gauge Trip meter reset knob Odometer and two trip meters

Indicator symbols

Brake system warning1

Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)

Battery warning1

Low engine oil pressure warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1
•Vehicle Stability Control warning1
•“AUTO LSD” warning1
•Traction Control warning1
•Active Traction Control warning1

1 For details, refer to “If a warning light turns on or a warning buzzer sounds” Section 5-2,

2008 Owner’s Manual.

2 For details, see “Rear differential lock system,” Section 2-4, 2008 Owner’s Manual.

Low fuel level warning1

Open door warning1

Airbag SRS warning1
Automatic Transmission fluid temperature warning1
Unengaged “Park” warning1

Low Tire Pressure Warning1

Engine immobilizer system indicator

Front passenger occupant classification indicator

Headlight high beam indicator

Turn signal indicator

Automatic Transmission indicator

Rear differential lock indicator2

Center differential lock indicator3

Vehicle Stability Control “OFF” indicator

Four-wheel drive indicator3

Slip indicator

“AUTO LSD” indicator

Active Traction Control System indicator

Cruise Control indicator4

Anti-lock Brake System warning1

3 If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2008 Owner’s Manual. 4 If this light flashes, refer to “Cruise control,” Section 2-4, 2008 Owner’s Manual.

OVERVIEW

Fuel tank door release and cap

Pull

Hang

Turn

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Keyless entry (if equipped) Beep sound can be switched “ON” or “OFF” by customer. Refer to the Owner’s Manual for more details. Locking operation

Unlocking operation

Push ONCE: Driver door

TWICE: All doors

NOTE: After unlocking, if a door is not opened within 60 seconds, all doors will relock for safety.

Panic button

Push

OL

KC

NU

OL

KC

CINAP

Push and hold

Hood release Pull

Pull up latch and raise hood

Engine maintenance

Windshield and back window washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”

FEATURES/OPERATIONS

Automatic Transmission

Park1
Reverse Neutral Drive Fourth gear Third gear Second gear

First gear

1 The key must be in the “ON” position and the brake pedal depressed

to shift from “Park.”

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Manual Transmission For safety, the engine will not start unless the clutch pedal is FULLY depressed. This function can be cancelled by pushing the “Clutch start cancel switch.”

Tilt steering wheel

Hold the steering wheel, pull the lock release lever, tilt to the desired angle and release the lever. Note: Do not attempt to adjust while the vehicle is in motion.

Four-wheel drive (if equipped) Part-time four-wheel drive models

H2
H4

L4

High speed (2WD) High speed (4WD) Shift to “H4” with speed below 50 mph. Low speed (4WD) Stop vehicle, shift to “N” position, then move the lever to “L4.”

NOTE: For best fuel economy and performance under normal driving conditions, shift vehicle into “H2” position. Full-time four-wheel drive models

HL

LL

High speed High speed Center differential locked. Depress the clutch pedal to shift from “LL.” Low speed Center differential locked. Depress the clutch pedal to shift from “HL” when vehicle is stopped or when speed is below 5 mph.

NOTE: For best fuel economy and performance under normal driving conditions, shift vehicle into “H” position. Rear differential lock button

Before using the rear differential lock button: •Shift the lever into “L4” (part-time 4WD models) •Shift the lever into “LL” (full-time 4WD models)

Rear differential lock/unlock

FEATURES/OPERATIONS

Parking brake Set

Pull

Seat adjustments-Front

Release

(1) Pull slightly

(2) Push

(3) Lower

Position Cushion angle (driver side only) Height crank (driver side only) Seatback angle

Seats-Head restraints Front

Rear

Lock release button

10

Seats-Folding rear seats

(2) Remove

(4) Push down

(1) Push

(5) Fold-down

(3) Pull up

Seats-Removing rear seats

(1) Pull up

(2) Loosen

(3) Separate

(4) Fold

11

FEATURES/OPERATIONS

Lights & turn signals Headlights

Headlights

Parking lights

High beam

Low beam

High beam flasher

-Automatic light cutoff system Automatically turns lights off after 30 seconds when all doors are closed with the key in “ACC” or “LOCK.” Lights may also be turned off by pushing lock button on remote twice. -Daytime Running Light system (DRL) (if equipped) Automatically turns on the headlights at a reduced intensity.

Turn signals

Right turn

Lane change

Lane change

Left turn

Windshield wipers & washers Front

Rear (if equipped)

Adjust interval

Pull to wash and wipe

Wash and wipe

Wipe Interval wipe

Wash and wipe

NOTE: Rear wiper and washer operate only when back window is fully closed.

Interval wipe

Slow

Fast

12

Windows Driver side

Up

Down

Up

Down

Windows lock switch

Automatic down operation (driver side only) Push the switch completely down and release to fully open. To stop window at any point, lightly pull the switch up. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

Door-Back Open/Close

Unlock

Lock

Lock in place

Pull

Unlock

Lock

* Back door can be locked into place

when it is fully open.

Accessory meter (if equipped)

Compass Outside temperature display Clinometer-vehicle slant Calibrating the compass setting Switching between Fahrenheit and Celcius of thermometer

13

FEATURES/OPERATIONS

Audio

Type 1

Eject CD

Preset buttons-functions in other modes indicated above number.

Push to turn ON/OFF

Seek station/ CD track select

Station/CD track scan

Type 2

Push to adjust tone & balance

Push to skip up/down folder

Mode

View radio and CD information

Eject CD

Mode

Load CD(s)

Push to turn ON/OFF

Station/CD track scan

Push to adjust tone & balance

View radio and CD information

Seek station/ CD track select

View genre/Push to skip up/down folder

Preset buttons-functions in other modes indicated above number.

CD PLAYER To scan tracks on a disc Push “SCAN.” Push again to hold selection. CD Changer (Type 2) -To load one disc Push “LOAD” and insert one disc. -To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc. -To select a file (MP3/WMA only) Turn “TUNE.FILE.” -To select a folder (MP3/WMA only) Push either side of “FOLDER” or “TYPE/FOLDER.”

14

RADIO Preset buttons Tune in the desired station and press a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. “SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold selection. Steering wheel switches (if equipped)

- + “ ” Volume control “ ” >> -In radio mode Push to select a preset station; push and hold to seek the next strong station. -In CD mode Push to skip up or down to the next or previous track. “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio “OFF.”

Subwoofer switch (if equipped)

AUX audio jack

ON/OFF

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system.

15

FEATURES/OPERATIONS

Air Conditioning/Heating

Fresh or recirculated cabin air Air Conditioning ON/OFF Airflow vent selector In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. Temperature Fan speed Rear defogger

Clock

H- Hour set M- Minute set

16

Cruise control (if equipped) Turning system ON/OFF

Functions

Cancel1

Resume2/Increase speed

System ON/OFF

Set/Decrease speed

1 The set speed may also be cancelled by depressing the brake pedal. 2 The set speed may be resumed once vehicle speed exceeds 25 mph.

Intuitive parking assist (if equipped)

ON/OFF switch

When vehicle is in reverse, a buzzer will sound to inform driver when nearing an obstacle. The system can only be used when the transmission is in the “R” position. Light control-Instrument panel

Brightness control

17

FEATURES/OPERATIONS

Auto LSD (Limited Slip Differential) (if equipped)

2WD only

Push the “AUTO LSD” switch when the vehicle is stopped. To deactivate, push the switch again. NOTE: This system should ONLY be used when wheel spinning occurs on

slippery or unpaved surfaces.

Refer to the Owner‘s Manual for complete details on this system before attempting to use it.

Cup holders Automatic Transmission models

Detachable adapter

Manual Transmission models

Detachable adapter

Rear console

18

Bottle holders-Rear seat

Power outlet-12V DC Instrument panel

Key must be in the “ACC” or “ON” position to be used.

Power outlet-115V AC (if equipped) ON/OFF switch

Push

Indicator

Luggage compartment

The illumination changes according to the maximum available capacity. •Green and Yellow 115V AC/400W •Yellow 115V AC/100W

Engine must be running in order to use the 115V AC power outlet.

19

SAFETY AND EMERGENCY FEATURES Seat belts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re- extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

Door locks

Lock

Unlock

20

Tire Pressure Warning System If tire pressure becomes critically low on any of the tires (including the spare), indicator light will come on. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details. Spare tire & tools Tool location

Jack

Tool bag

Removing the spare tire

Remove the wheel ornament (aluminum wheel only). Turn the hold-down nuts counterclockwise and remove.

Refer to the Owner’s Manual for jack positioning and tire changing procedures.

21

Customer Experience Center

1-800-331-4331

MN 00505-QRG08-FJC Printed in the USA 7/07

FJCRUISER_U.book Page 394 Wednesday, January 30, 2008 3:32 PM

Abbreviation list Abbreviation/Acronym list

ABBREVIATIONS MEANING

2WD 4WD ABS ACC

AI-SHIFT

ALR

A-TRAC AUTO LSD

CRS E/M ECU EDR ELR GAWR GVWR

I/M INT LED LT

M + S MMT MTBE OBD RES

RR DIFF LOCK

SRS TIN

394

Two Wheel Drive Four Wheel Drive Anti-Lock Brake System Accessory Artificial Intelligence shifting Automatic Locking Retractor Active Traction Control Automatic Limited Slip Differential Child Restraint System English/U.S. Customary System and metric Electronic Control Unit Event Data Recorder Emergency Locking Retractor Gross Axle Weight Rating Gross Vehicle Weight Rating Emission inspection and maintenance Intermittent Light Emitting Diode Light truck Mud + Snow Methylcy clopentadienyl Manganese Tricarbonyl Methyl Tertiary Butyl Ether On Board Diagnostics Resume Rear differential lock Supplemental Restraint System Tire Identification Number

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 395 Wednesday, January 30, 2008 3:32 PM

ABBREVIATIONS MEANING

TPMS TRAC TWI VIN VSC

Tire Pressure Warning System Traction Control Treadwear indicators Vehicle Identification Number Vehicle Stability Control

395

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 2 Wednesday, January 30, 2008 3:32 PM

TABLE OF CONTENTS

Index

1 Before driving

1-1. Key information.................. 28
Keys ..................................... 28

1-2. Opening, closing and

locking the doors ............. 30
Wireless remote control ....... 30
Side doors ............................ 33
Access doors........................ 36
Back door ............................. 38
Glass hatch .......................... 41

1-3. Adjustable components (seats, mirrors, steering wheel)................................ 43
Front seats ........................... 43
Rear seats............................ 44
Head restraints..................... 49
Seat belts ............................. 51
Steering wheel ..................... 57
Anti-glare inside rear view mirror.................................. 58
Outside rear view mirrors ..... 59

1-4. Opening and closing the

windows............................ 62
Power windows .................... 62

1-5. Refueling............................. 64
Opening the fuel tank cap .... 64

1-6. Theft deterrent system ...... 68

Engine immobilizer system................................ 68

Theft prevention labels (U.S.A.)............................... 70

1-7. Safety information .............. 71
Correct driving posture ......... 71
SRS airbags ......................... 73
Front passenger occupant classification system........... 85
Child restraint systems ......... 90
Installing child restraints ....... 93

2 When driving

2-1. Driving procedures........... 104
Driving the vehicle .............. 104
Engine (ignition) switch....... 114
Automatic Transmission ...... 117
Manual Transmission ......... 119
Turn signal lever ................. 121
Parking brake ..................... 122

2-2.

Instrument cluster ............ 124
Gauges and meters ............ 124
Indicators and warning lights ................................. 127
Accessory meter................. 130

2-3. Operating the lights and

wipers .............................. 131
Headlight switch ................. 131
Windshield wipers and washer.............................. 133
Rear window wiper and washer.............................. 135

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 3 Wednesday, January 30, 2008 3:32 PM

2-4. Using other driving

systems ........................... 136
Cruise control...................... 136
Intuitive parking assist......... 139
Four-wheel drive system (4WD models with a manual transmission) .................... 144
Four-wheel drive system (4WD models with an automatic transmission).... 146
Active traction control system .............................. 148
AUTO LSD system (2WD models) ............................. 150
Rear differential lock system .............................. 152
Clutch start cancel switch (vehicles with a manual transmission) .................... 155
Driving assist systems ........ 156

2-5. Driving information........... 160
Off-road precautions ........... 160
Cargo and luggage ............. 165
Vehicle load limits ............... 168
Winter driving tips ............... 169
Trailer towing ...................... 172
Dinghy towing ..................... 182

3 Interior features

3-1. Using the air conditioning

system and defogger...... 184
Air conditioning system....... 184
Rear window defogger........ 190

3-2. Using the audio system... 191
Audio system types ............ 191
Using the radio ................... 194
Using the CD player ........... 200
Playing back MP3 and WMA discs ....................... 208
Optimal use of the audio system.............................. 217
Operating the sub woofer... 220
Changing display color (type B only) ..................... 221
Using the AUX adapter....... 222
Using the steering wheel audio switches.................. 224

3-3. Using the interior lights... 226
Interior lights list ................. 226
• Interior lights..................... 227

3-4. Using the storage

features ........................... 228
List of storage features....... 228
• Glove box......................... 228
• Cup holders (front) ........... 229
• Cup holders (rear) ............ 232
• Bottle holders ................... 233
• Auxiliary box..................... 234

3-5. Other interior features ..... 235
Sun visors........................... 235
Vanity mirror....................... 236
Clock .................................. 237
Outside temperature display.............................. 238
Power outlet (12V DC) ....... 239
Power outlet (if 115V AC equipped)...... 240
Armrest............................... 246

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 4 Wednesday, January 30, 2008 3:32 PM

TABLE OF CONTENTS

Index

Floor mat ............................ 247
Luggage storage box (vehicles without sub woofer).......... 248
Luggage compartment features ............................ 249
Compass ............................ 252

4 Maintenance and care

4-1. Maintenance and care...... 258

Cleaning and protecting the vehicle exterior................. 258
Cleaning and protecting the vehicle interior.................. 260

4-2. Maintenance ..................... 263

Maintenance requirements .................... 263
General maintenance......... 265
Emission inspection and maintenance (I/M) programs.......................... 268

4-3. Do-it-yourself

maintenance ................... 269
Do-it-yourself service precautions ...................... 269
Hood................................... 273
Engine compartment .......... 274
Tires ................................... 287
Tire inflation pressure......... 292
Wheels ............................... 296
Air conditioning filter........... 298
Key battery ......................... 301
Checking and replacing fuses ................................ 303
Light bulbs.......................... 314

5 When trouble arises

5-1. Essential information ....... 322

If your vehicle needs to be towed................................ 322
If you think something is wrong................................ 327
Fuel pump shut off system .............................. 328
Event data recorder ............ 329

5-2. Steps to take in an

emergency ...................... 331
If a warning light turns on or a warning buzzer sounds.............................. 331
If you have a flat tire ........... 340
If the engine will not start.... 350
If the shift lever cannot be shifted from P ................... 351
If you lose your keys........... 352
If the vehicle battery is discharged........................ 353
If your vehicle overheats..... 356
If the vehicle becomes stuck ................................. 359

6 Vehicle specifications

6-1. Specifications ................... 362

Maintenance data (fuel, oil level, etc.) ........... 362
Fuel information.................. 372
Tire information................... 375

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 5 Wednesday, January 30, 2008 3:32 PM

6-2. Customization ................... 386
Customizable features ........ 386
Items to initialize ................. 388

7 For owners

Reporting safety defects for U.S. owners ...................... 390
Seat belt instructions for Canadian owners (in French) .........................391

Index

Abbreviation list ........................ 394

Alphabetical index..................... 396

What to do if............................... 404

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 22 Wednesday, January 30, 2008 3:32 PM

For your information

Main Owners Manual

Please note that this manual applies to all models explains and all equip- ment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Accessories, spare parts and modification of your Toyota

is not responsible

these products and

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

for

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequen- tial multiport fuel injection system, cruise control system, anti-lock brake sys- tem, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

22

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 23 Wednesday, January 30, 2008 3:32 PM

Scrapping your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbag, seat belt pretensioners, and wireless remote con- trol batteries.

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

23

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 24 Wednesday, January 30, 2008 3:32 PM

CAUTION

n General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, or other features of the vehicle. In addi- tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

24

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 25 Wednesday, January 30, 2008 3:32 PM

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Safety symbol

Throughout this manual, you will also see the symbol of a circle with a slash through it. This means “Do not”, “Do not do this”, or “Do not let this happen”.

25

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 26 Wednesday, January 30, 2008 3:32 PM

26

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 1 Wednesday, January 30, 2008 3:32 PM

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior features

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners and seat belt instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual.

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 6 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Exterior

Outside rear view mirror illumination lights∗ P. 131

Windshield wipers P. 133

Hood P. 273

Outside rear view mirrors

P. 59

Front turn signal/parking and front side marker lights P. 121, 131

Headlights P. 131

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 7 Wednesday, January 30, 2008 3:32 PM

Fuel filler door P. 64

Access doors P. 36

Stop/tail and rear side marker lights P. 131

Side doors P. 33

Tires l Rotation l Replacement l Inflation pressure l Information

P. 287
P. 340
P. 292
P. 375

FJ CRUISER_U_(L/O_0804)

Rear turn signal lights P. 121

∗: If equipped

FJCRUISER_U.book Page 8 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Exterior

Glass hatch P. 41

Rear window defogger P. 190

Rear window wiper∗ P. 135

Back door P. 38

License plate lights P. 131

∗: If equipped

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 9 Wednesday, January 30, 2008 3:32 PM

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 10 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Interior

Head restraints P. 49

Bottle holders P. 233

Seat belts P. 51

SRS driver airbag P. 73

Auxiliary box P. 234

SRS front passenger airbag P. 73

Rear seats P. 44

Cup holders P. 232

Floor mats P. 247

SRS side airbags P. 73

10

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 11 Wednesday, January 30, 2008 3:32 PM

Interior lights

P. 227

Sun visors P. 235

Vanity mirror P. 236

SRS curtain shield airbags P. 73

Anti-glare inside rear view mirror P. 58

11

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 12 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Interior

Inside door lock button P. 33

Door lock switch P. 33

Window lock switch P. 62

Power window switches P. 62

12

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 13 Wednesday, January 30, 2008 3:32 PM

Automatic transmission

Cup holders P. 229

Shift lever P. 117

Front-wheel drive control lever ∗ P. 146

Parking brake lever P. 122

Manual transmission

Shift lever P. 119

Shift lock override button P. 351

Cup holders P. 229

Four-wheel drive control lever P. 144

Cup holders P. 229

Parking brake lever P. 122

FJ CRUISER_U_(L/O_0804)

∗: If equipped

13

FJCRUISER_U.book Page 14 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Instrument panel

Headlight switch Turn signal lever

P. 131
P. 121

Gauges and meters P. 124

Windshield wipers and washer switch

P. 133 Rear window wiper and washer switch ∗ P. 135

Accessory meter ∗ P. 130

Glove box P. 228

Cruise control switch ∗ P. 136

Hood lock release lever P. 273

14

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 15 Wednesday, January 30, 2008 3:32 PM

Clock P. 237

Emergency flasher switch

Audio system P. 191

Air conditioning system P. 184

Rear window defogger switch P. 190

Security indicator

P. 68

∗: If equipped

15

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 16 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Instrument panel

AUTO LSD switch∗ P. 150

RR DIFF LOCK switch∗ P. 152

A-TRAC switch∗ P. 148

SUB WOOFER switch∗ P. 220

Power outlet P. 239

AUX adapter P. 222

Intuitive parking assist switch∗ P. 139

Power outlet main switch∗ P. 240

16

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 17 Wednesday, January 30, 2008 3:32 PM

Engine switch P. 114

∗: If equipped

17

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 18 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Instrument panel

Audio remote control switches∗ P. 224

18

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 19 Wednesday, January 30, 2008 3:32 PM

Instrument panel light control dial P. 125

Tilt steering lock release lever P. 57

CLUTCH START CANCEL switch∗ P. 155

Outside rear view mirror switches∗ P. 59

∗: If equipped

19

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 20 Wednesday, January 30, 2008 3:32 PM

Pictorial index

Luggage compartment

Child restraint anchor brackets P. 93

Tie-down hooks P. 249

20

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 21 Wednesday, January 30, 2008 3:32 PM

Shopping bag hooks P. 251
Cargo net hooks P. 250

Jack P. 340

Tools P. 340

Shopping bag hooks* P. 251
Cargo net hooks* P. 250

Luggage storage box* P. 248

Power outlet∗ P. 240

∗: If equipped *: Vehicles without sub woofer

21

FJ CRUISER_U_(L/O_0804)

FJCRUISER_U.book Page 28 Wednesday, January 30, 2008 3:32 PM

1-1. Key information Keys

The following keys are provided with the vehicle. Vehicles with wireless remote control system
