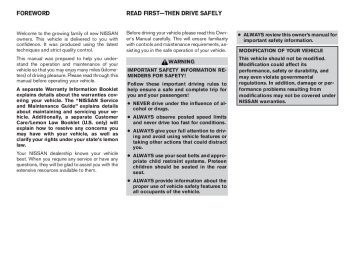

FOREWORD READ FIRST(cid:151)THEN DRIVE SAFELY Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you under- stand the operation and maintenance of your vehicle so that you may enjoy many miles (kilome- ters) of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Booklet explains details about the warranties cov- ering your vehicle. The (cid:147)NISSAN Service and Maintenance Guide(cid:148) explains details about maintaining and servicing your ve- hicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state(cid:146)s lemon law. Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them. Before driving your vehicle please read this Own- er(cid:146)s Manual carefully. This will ensure familiarity with controls and maintenance requirements, as- sisting you in the safe operation of your vehicle. WARNING IMPORTANT SAFETY INFORMATION RE- MINDERS FOR SAFETY! Follow these important driving rules to help ensure a safe and complete trip for you and your passengers! c NEVER drive under the influence of al- cohol or drugs. c ALWAYS observe posted speed limits and never drive too fast for conditions. c ALWAYS give your full attention to driv- ing and avoid using vehicle features or taking other actions that could distract you. c ALWAYS use your seat belts and appro- priate child restraint systems. Preteen children should be seated in the rear seat. c ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle. c ALWAYS review this owner(cid:146)s manual for important safety information. MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or per- formance problems resulting from modifications may not be covered under NISSAN warranties. Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X WHEN READING THE MANUAL This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle. All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and with- out obligation. IMPORTANT INFORMATION ABOUT THIS MANUAL You will see various symbols in this manual. They are used in the following ways: WARNING This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely. CAUTION This is used to indicate the presence of a hazard that could cause minor or moder- ate personal injury or damage to your ve- hicle. To avoid or reduce the risk, the pro- cedures must be followed carefully. CALIFORNIA PROPOSITION 65 WARNING WARNING Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth de- fects or other reproductive harm. In addi- tion, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. BLUETOOTHt is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licenced to Xanavi Informatics Corporation. APD1005 If you see this symbol, it means (cid:147)Do not do this(cid:148) or (cid:147)Do not let this happen.(cid:148) If you see a symbol similar to these in an illustra- tion, it means the arrow points to the front of the vehicle. Arrows in an illustration that are similar to these indicate movement or action. Arrows in an illustration that are similar to these call attention to an item in the illustration. ' 2006 NISSAN NORTH AMERICA, INC. All rights reserved. No part of this Owner(cid:146)s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc. Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X NISSAN CUSTOMER CARE PROGRAM NISSAN CARES . . . Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs. However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Con- sumer Affairs Department using our toll-free number: For U.S. customers 1-800-NISSAN-1 (1-800-647-7261) The Consumer Affairs Department will ask for the following information: (cid:150) Your name, address, and telephone number (cid:150) Vehicle identification number (attached to the top of the instrument panel on the driver(cid:146)s side) Nissan North America, Inc. Consumer Affairs Department P.O. Box 191 Gardena, California 90248-0191 You can write to NISSAN with the information at: For U.S. customers For Canadian customers Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5 For Canadian customers 1-800-387-0122 (cid:150) Date of purchase (cid:150) Current odometer reading (cid:150) Your NISSAN dealer(cid:146)s name (cid:150) Your comments or questions OR We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle. Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X Table of Contents Illustrated table of contents Safety(cid:151)Seats, seat belts and supplemental restraint system Instruments and controls Pre-driving checks and adjustments Display screen, heater, air conditioner, audio and phone systems Starting and driving In case of emergency Appearance and care Maintenance and do-it-yourself Technical and consumer information Index 10 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X 0 Illustrated table of contents Airbags, seat belts and child restraints . . . . . . . . . . . . . . . 0-2 Exterior front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-3 Exterior rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-4 Passenger compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-5 Instrument panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-6 Engine compartment check locations . . . . . . . . . . . . . . . . 0-8 Warning/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-9 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X AIRBAGS, SEAT BELTS AND CHILD RESTRAINTS 1. 2. 3. 4. 5. 6. 7. 3rd row bench center seat belt (P. 1-15) 3rd row bench seat belts (P. 1-15) Top tether strap anchor points (P. 1-30) 2nd row captain(cid:146)s chair seat belts (P. 1-15) Front seat belts (P. 1-15) Supplemental curtain side-impact air bag (P. 1-51) Supplemental front impact air bags (P. 1-51) Seats (P. 1-2) 8. 9. Occupant classification sensor (pressure sensor) (P.1-58) 10. Seat belt pretensioners (P. 1-64) 11. Top tether strap anchor for vehicles without 2nd or 3rd row seats (P. 1-30) 12. Supplemental side impact air bag (if so equipped) (P. 1-51) 13. LATCH (Lower Anchors and Tethers for CHildren) (P. 1-27) See the page number indicated in paren- theses for operating details. 0-2 Illustrated table of contents LII0073 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X EXTERIOR FRONT Engine hood (P. 3-14) 1. 2. Headlight and turn signal switch (P. 2-19) Replacing bulbs (P. 8-27) 3. 4. Windshield wiper and washer switch (P. 2-17) Tire pressure (P. 9-11) 5. Windshield (P. 8-17) 6. 7. Power windows (P. 2-38) Door locks, keyfob, keys (P. 3-3, 3-9, 3-2) 8. Mirrors (P. 3-23) 9. 10. Flat tire (P. 6-2) 11. Tire chains (P. 8-39) 12. Fog light switch (P. 2-23) 13. Tie down/towing hooks (P. 6-13) See the page number indicated in paren- theses for operating details. LII0074 Illustrated table of contents 0-3 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X EXTERIOR REAR 1. 2. 3. 4. 5. 6. 7. Rear window defroster switch (P. 2-18) Vehicle loading (P. 9-12) Lift gate (P. 3-14) Lift gate release (P. 3-18) Rear view monitor (if so equipped) (P.4-29) Replacing bulbs (P. 8-27) Fuel-filler cap, fuel recommendation (P. 3-19, P. 9-3) Fuel-filler door (P. 3-19) Sliding doors (P. 3-5, P. 3-6) 8. 9. See the page number indicated in paren- theses for operating details. 0-4 Illustrated table of contents LII0075 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X PASSENGER COMPARTMENT 1. DVD entertainment system (if so equipped) (P. 4-62) Personal lights (P. 2-44) 2. Skyview roof (if so equipped) (P. 2-41) 3. 4. Sunroof (if so equipped) (P. 2-41) 5. Map lights (P. 2-45), Console light P.2-45) Sun visors (P. 3-22) 6. 7. HomeLinkT (if so equipped) (P. 2-46) 8. Glove box (P. 2-31) 9. 10. Center tray table (if so equipped) Seats (P. 1-2) (P. 2-30) 11. Armrest (P.1-9) See the page number indicated in paren- theses for operating details. LII0076 Illustrated table of contents 0-5 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X INSTRUMENT PANEL 1. 2. 3. 4. Ventilators (P. 4-31) Headlight/fog light (if so equipped)/turn signal switch (P. 2-19) Steering wheel switch for audio control/BluetoothT hands-free phone system (if so equipped) (P. 4-59) Driver supplemental air bag/horn (P. 1-51, P. 2-25) 5. Meters and gauges (P. 2-3) 6. Cruise control main/set switches (P. 5-15) 7. Windshield wiper/washer switch and rear window wiper/washer switch (P. 2-17, 2-18) Display screen/Navigation system* (P. 4-2, P. 4-7, P. 4-17) Front passenger supplemental air bag (P. 1-51) 8. 9. 10. Glove box (P. 2-31) 11. Front passenger air bag status light (P. 1-59) 12. Hazard warning flasher switch (P. 2-24) 13. Climate controls (P. 4-31, 4-40) 14. Audio system controls (P. 4-43) 15. Display screen/Navigation system* controls (P. 4-2, P. 4-7, P. 4-17) 0-6 Illustrated table of contents LIC0928 16. Power outlets (P. 2-27) Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X Ignition switch (P. 5-8) 17. Shift selector lever (P. 5-10) 18. 19. Tilt steering wheel control (P. 3-21) 20. Rear sonar system off switch (if so equipped) (P. 2-26) 21. Vehicle dynamic control (VDC) off switch (if so equipped) or Traction con- trol system (TCS) off switch (if so equipped) (P. 2-26, P. 2-26) 22. Lights on demand switch (P. 2-43) *: Refer to the separate Navigation System Own- er(cid:146)s Manual (if so equipped). See the page number indicated in paren- theses for operating details. Illustrated table of contents 0-7 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X ENGINE COMPARTMENT CHECK LOCATIONS Power steering fluid reservoir (P. 8-11) Engine oil filler cap (P. 8-8) Air cleaner (P. 8-16) Brake fluid reservoir (P. 8-12) Battery (P. 8-13) Fuse/fusible link box (P. 8-20) Transmission dipstick (P. 8-11) Engine oil dipstick (P. 8-8) Radiator cap (P. 8-7) 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Drive belt location (P. 8-15) 11. Fuse block (P. 8-20) 12. Windshield washer fluid reservoir (P. 8-12) 13. Engine coolant reservoir (P. 8-7) See the page number indicated in paren- theses for operating details. 0-8 Illustrated table of contents WDI0515 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X WARNING/INDICATOR LIGHTS Warning light Name Page Warning light Name Page Indicator light Name or or Anti-lock brak- ing warning light Brake warning light Charge warning light Door open warning light Engine oil pres- sure warning light Low fuel warn- ing light 2-8 2-8 2-8 2-8 2-8 2-9 Low tire pres- sure warning light Low windshield washer fluid warning light Seat belt warn- ing light and chime Supplemental air bag warning light 2-9 2-11 2-11 2-11 Automatic transmission position indica- tor light Cruise main switch indicator light Cruise set switch indicator light High beam in- dicator light (blue) Malfunction indicator lamp (MIL) Overdrive off indicator light Page 2-11 2-12 2-12 2-12 2-12 2-12 Illustrated table of contents 0-9 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X Page 2-13 Indicator light Name Vehicle dy- namic control off indicator light (if so equipped) Indicator light Name Front passenger air bag status light Security indica- tor light Slip indicator light Traction control system off indi- cator light (if so equipped) Turn signal/hazard indicator lights Page 2-12 2-13 2-13 2-13 2-13 0-10 Illustrated table of contents Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X 1 Safety(cid:151)Seats, seat belts and supplemental restraint system Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Front manual seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Front power seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 2nd row captain(cid:146)s chair adjustment . . . . . . . . . . . . . . . 1-6 3rd row bench seat adjustment . . . . . . . . . . . . . . . . . . 1-7 Active head restraint (front seats). . . . . . . . . . . . . . . . . 1-7 Head restraint adjustment . . . . . . . . . . . . . . . . . . . . . . . 1-8 Armrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 Flexible seating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15 Precautions on seat belt usage. . . . . . . . . . . . . . . . . . 1-15 Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17 Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19 Injured persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19 Three-point type seat belt with retractor . . . . . . . . . . 1-19 Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25 Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 1-25 Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25 Precautions on child restraints . . . . . . . . . . . . . . . . . . 1-25 LATCH (Lower Anchors and Tethers for CHildren) system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27 Top tether strap child restraint . . . . . . . . . . . . . . . . . . 1-30 Child Restraint Installation Using LATCH-2nd row captain(cid:146)s chairs (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-33 Child Restraint Installation Using LATCH-3rd row bench seat (if so equipped). . . . . . . . . . . . . . . . . 1-37 Child Restraint Installation Using The Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-40 Booster seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-47 Precautions on booster seats . . . . . . . . . . . . . . . . . . . 1-47 Booster seat installation . . . . . . . . . . . . . . . . . . . . . . . . 1-49 Supplemental restraint system . . . . . . . . . . . . . . . . . . . . . 1-51 Precautions on supplemental restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-51 Supplemental air bag warning labels. . . . . . . . . . . . . 1-65 Supplemental air bag warning light . . . . . . . . . . . . . . 1-65 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X SEATS Seat Fold/Adjust Summary 1st row 2nd row Position: Operation/page: All (P. 1-2) Forward/backward adjust (P. 1-6) Recline (P. 1-6) Tip-up for 3rd row entry (P. 1-7) Folding for cargo (P. 1-10) Recline (P. 1-7) Folding (P.1-12) Stow (P.1-12) FRONT MANUAL SEAT ADJUSTMENT (if so equipped) 3rd row WARNING After adjustment, gently rock in the seat to make sure it is securely locked. WARNING c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries. ARS1152 c For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat properly. See (cid:147)Precau- tions on Seat Belt Usage(cid:148) later in this section. c After adjustment, gently rock in the seat to make sure it is securely locked. c Do not leave children unattended inside the vehicle. They could unknowingly ac- tivate switches or controls. Unattended children could become involved in seri- ous accidents. 1-2 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X WRS0520 WRS0521 WRS0131 Forward and backward Pull the lever up and hold it while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position. Seat lifter (if so equipped for driver(cid:146)s seat) Turn either dial to adjust the angle and height of the seat cushion to the desired position. Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position. The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. See (cid:147)Precautions on seat belt usage(cid:148) later in this section. Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-3 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X WRS0518 Lumbar support (driver(cid:146)s seat) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area. FRONT POWER SEAT ADJUSTMENT (if so equipped) Operating tips c The power seat motor has an auto-reset overload protection circuit. the motor stops during operation, wait 30 seconds, then reactivate the switch. If c Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery. See (cid:147)Automatic drive positioner (if so equipped)(cid:148) in (cid:147)Pre-driving checks and adjustments(cid:148) for auto- matic drive positioner operation. WRS0522 Forward and backward Moving the switch forward or backward will slide the seat forward or backward to the desired position. Reclining Move the recline switch backward until the de- sired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward. The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat 1-4 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be re- clined to allow occupants to rest when the ve- hicle is stopped. WRS0523 WRS0518 Seat lifter (if so equipped for driver(cid:146)s seat) Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion. Lumbar support (driver(cid:146)s seat) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-5 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X While seated, pull the levers1 and hold it while you slides2 the seat forward or backward to the desired position. Release the lever to lock the seat in position. WRS0705 2ND ROW CAPTAIN(cid:146)S CHAIR ADJUSTMENT Forward and backward WARNING c The 2nd row seats are heavy. Be careful when folding and unfolding. c To avoid injury to yourself and others, keep hands and body clear when folding. 1-6 Safety(cid:151)Seats, seat belts and supplemental restraint system LRS0625 Reclining To recline the seatback, pull up on the lever and lean back. The recline feature allows adjustment of the seat back for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped. Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X LRS0626 LRS0320 SPA1025 Tip up for easy entry to the 3rd row The 2nd row captain(cid:146)s chairs can be tipped for- ward for easy entry or exit from the 3rd row bench seat. To enter the 3rd row bench seat , lift up on the lever located on the lower base of the 2nd row captain(cid:146)s chair to tip the seat forward. To exit the 3rd row bench seat, pull back on the lever on the lower base of the 2nd row captain(cid:146)s chair and push the seat forward. 3RD ROW BENCH SEAT ADJUSTMENT Reclining Lift up on the latch in the center of the seatback to adjust the back of the seat. Release the latch to lock the seatback into position. ACTIVE HEAD RESTRAINT (front seats) WARNING c Always adjust the head restraints prop- erly as specified in the previous section. Failure to do so can reduce the effec- tiveness of the active head restraint. c Active head restraints are designed to supplement other safety systems. Al- ways wear seat belts. No system can prevent all injuries in any accident. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-7 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X c Do not attach anything to the head re- straint stalks. Doing so could impair active head restraint function. The head restraint moves forward utilizing the force that the seatback receives from the occu- pant in a rear-end collision. The movement of the head restraint helps support the occupant(cid:146)s head by reducing its backward movement and helping absorb some of the forces that may lead to whip- lash type injuries. Active head restraints are effective for collisions at low to medium speeds in which it is said that whiplash injury occurs most. Active head restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions. Properly adjust the active head restraints as de- scribed in this section. LRS0286 LRS0678 Type A (cid:151) Front HEAD RESTRAINT ADJUSTMENT To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down. To adjust the head restraint forward or backward (Type B only), push it in the direction required. The front seats and 2nd row captain(cid:146)s chairs head restraints are removable. See (cid:147)Head re- straint storage(cid:148) in the (cid:147)Instrument and controls(cid:148) section. The 3rd row bench seat head restraints are not removable. Type B (cid:151) 2nd row WARNING Head restraints should be adjusted prop- erly as they may provide significant pro- tection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat. 1-8 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X armrest to the stowed position, then pull it to the resting position and adjust to the desired height. FLEXIBLE SEATING WARNING c Never allow anyone to ride in the cargo area or on the rear seats when they are in the fold-down position. In a collision, people riding in these areas without proper restraints are more likely to be seriously injured or killed. c Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. Be sure everyone in your vehicle is in a seat and using a seat belt properly. c Do not fold down the rear seats when occupants are in the rear seat area or any luggage is on the rear seats. c Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Always replace and adjust them prop- erly if they have been removed for any reason. WRS0134 Adjust the head restraint so the center is level with the center of your ears. WRS0531 ARMRESTS To use the armrests, pull them down to the rest- ing position. sA Resting position sB Stowed position Adjustable front seat armrest(cid:146)s (if so equipped) To use the adjustable seat armrest, pull it down to the resting position. Adjust the armrest to the desired position by raising the armrest to the desired height and releasing the armrest. To re- adjust the armrest to a lower position, raise the Safety(cid:151)Seats, seat belts and supplemental restraint system 1-9 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X c If the head restraints are removed for any reason, they should be securely stored to prevent them from causing injury to passengers or damage to the vehicle in case of sudden braking or an accident. c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop. c Properly secure all cargo to help pre- vent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury. LRS0627 LRS0628 Folding To fold the seatback forward, for cargo hauling, lift up on the recline lever and fold the seatback over the seat base. Folding the 2nd row captain(cid:146)s chair 1-10 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X LRS0702 s1 Fold the 2nd row captain(cid:146)s chairs to the floor for maximum cargo hauling, move the head restraints forward before folding. Lift up on the recline lever to fold the seat- back forward on the seat base. s2 LRS0629 s3 Push down on the small knob on the back of the seat to release the base of the seat. LRS0630 s4 Then fold the entire seat forward into the stowed position in the floor. s5 Reverse this process to return the 2nd row captain(cid:146)s chairs to a seating position. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-11 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X 2. To fold the 3rd row bench seat flat into the floor, for maximum cargo hauling, pull the strap on the seatback to allow all three head restraints to fold forward. If the head re- straints are in the folded position, the seat may not be latched into the floor. LRS0675 LRS0676 Folding To fold the seatback forward, for cargo hauling, lift up on the latch in the center of the seatback to fold the seatback over the seat base. Folding the 3rd row bench seat WARNING c The 3rd row bench seat is heavy. Be careful when folding and unfolding. c To avoid injury to yourself or others, keep hands and body clear of floor opening when folding. 1. Disconnect and secure the center seat belt and tongues into the retractor base. See (cid:147)Stowing the 3rd row center seat belt(cid:148) later in this section. 1-12 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X LRS0677 3. Pull back on the pull strap to release the back of the seat. Rotate the seatback toward the back of the vehicle. WRS0706 4. Pull up on the lever located on the back of the seat base. This will fold the seat base toward the back of the vehicle. WRS0707 5. The entire seat will rotate toward you and stow in the floor. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-13 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X c When attaching the rear center seat belt connector, be certain that the seat- backs are completely secured in the latched position and the rear center seat belt connector is completely secured. c If the rear center seat belt connector and the seatbacks are not secured in the correct position, serious personal injury may result in an accident or sud- den stop. c When returning the seatbacks, be sure to attach the rear center seat belt connector. WRS0708 6. The rear seat anchors are spring loaded and can be folded into the side panels to maxi- mize cargo space. The anchors are held in the folded position by the items in the cargo area. When the load is removed from the cargo area, the rear seat anchors automati- cally return to the unfolded position. LRS0703 7. Reverse this process to return the bench seat to a seating position. Make sure to properly return the head restraints to the upright position, push the bench seat down into the floor, and pull back on the seatback until they latch into place. WARNING c Do not unfasten the rear center seat belt connector except when folding down the rear seat. 1-14 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X SEAT BELTS PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly ad- justed and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supple- mental air bag. Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven. SSS0136 Safety(cid:151)Seats, seat belts and supplemental restraint system 1-15 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X WARNING c Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be properly re- strained in the rear seat and, if appro- priate, in a child restraint. SSS0134 SSS0016 WARNING c The seat belt should be properly ad- justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an acci- dent. Serious injury or death can occur if the seat belt is not worn properly. 1-16 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X c Be sure the seat belt tongue is securely fastened to the proper buckle. c Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness. c Do not allow more than one person to use the same seat belt. c Never carry more people in the vehicle than there are seat belts. c If the seat belt warning light glows con- tinuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indicate a mal- function in the system. Have the system checked by a NISSAN dealer. c Once the pre-tensioner seat belt has activated, it cannot be reused and must be replaced together with the retractor. See your NISSAN dealer. c Removal and installation of the pre- tensioner seat belt system components should be done by a NISSAN dealer. SSS0014 WARNING c Always route the shoulder belt over your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder. c Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident. and attaching c All seat belt assemblies, including re- tractors hardware, should be inspected after any collision by a NISSAN dealer. NISSAN recom- mends that all seat belt assemblies in use during a collision be replaced un- less the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted. c All child restraints and attaching hard- ware should be inspected after any col- lision. Always follow the restraint manufacturer(cid:146)s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged. CHILD SAFETY Children need adults to help protect them. They need to be properly restrained. In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-17 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X There are three basic types of child restraint systems: c Rear facing child restraint c Front facing child restraint c Booster seat The proper restraint depends on the child(cid:146)s size. Generally, infants up to about 1 year and less than 20 pounds (9 kg) should be placed in rear facing child restraints. Front facing child re- straints are available for children who outgrow rear facing child restraints and are at least 1 year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a front facing child restraint. WARNING Infants and children need special protec- tion. The vehicle(cid:146)s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fit- ting seat belt could cause serious or fatal injury. Always use appropriate child restraints. for infants and small children. See (cid:147)Child Re- straints(cid:148) later in this section. Also, there are other types of child restraints available for larger children for additional protec- tion. NISSAN recommends that all pre-teens and children be restrained in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. This is especially important because your vehicle has a supplemental restraint sys- tem (Air bag system) for the front passen- ger. See (cid:147)Supplemental restraint system(cid:148) later in this section. Infants Infants up to at least 1 year old should be placed in a rear facing child restraint. NISSAN recom- mends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manu- facturer(cid:146)s instructions for installation and use. Small Children Children that are over one year old and weigh between 20 lbs (9 kg) and 40 lbs (18 kgs) can be placed in a forward facing child restraint. Refer to the manufacturer(cid:146)s instructions for minimum and maximum weight and height recommendations. NISSAN recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Mo- tor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer(cid:146)s instructions for instal- lation and use. Larger children Children who are too large for child restraints should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 feet 9 inches (142.5 cm) tall and weighs between 40 lbs (18 kg) and 80 lbs (36 kg). A booster seat should be used to obtain proper seat belt fit. NISSAN recommends that a child be placed in a commercially available booster seat if the shoul- der belt in the child(cid:146)s seating position fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle por- tion of the shoulder and the lap belt is low on the hips. A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and All U.S. states and Canadian provinces or terri- tories require the use of approved child restraints 1-18 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X THREE-POINT TYPE SEAT BELT WITH RETRACTOR WARNING c Every person who drives or rides in this vehicle should use a seat belt at all times. c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries. c For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat belt properly. have a label certifying that it complies with Fed- eral Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat. WARNING Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop. PREGNANT WOMEN NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as pos- sible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations. INJURED PERSONS NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations. LRS0607 Power front seat shown Fastening the seat belts 1. Adjust the seat. See (cid:147)Seats(cid:148) earlier in this section. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-19 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X fully retracted. Once retracted, the seat belt is in the emergency locking mode. See (cid:147)Child re- straints(cid:148) later in this section for more information. The automatic locking mode should be used only for child restraint installation. During normal seat belt use by a passen- ger, the locking mode should not be acti- vated. If it is activated it may cause uncom- fortable seat belt It can also change the operation of the front passen- ger air bag. See (cid:147)Front passenger air bag and status light(cid:148) later in this section. tension. WARNING When fastening the seat belts, be certain that the seatbacks are completely se- cured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop. WRS0137 s2 Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage. c The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat. c If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor. WRS0138 s3 Position the lap belt portion low and snug on the hips as shown. s4 Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest. The front passenger seat, 2nd row captain(cid:146)s chairs and the rear bench seat three-point seat belts have a locking mechanism for child restraint installation. It is referred to as the automatic lock- ing mode or child restraint mode. When automatic locking mechanism is activated the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and 1-20 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X To increase your confidence in the seat belts, check the operation as follows. c Grasp the shoulder belt and pull forward quickly. The retractor should lock and re- strict further belt movement. If the retractor does not lock during this check or if you have any questions about seat belt opera- tion, see a NISSAN dealer. WRS0139 Unfastening the seat belts s1 To unfasten the seat belt, press the button on the buckle. The seat belt automatically re- tracts. Checking seat belt operation Seat belt retractors are designed to lock seat belt movement by two separate methods: c When the seat belt is pulled quickly from the retractor. c When the vehicle slows down rapidly. SSS0240 Center of the 3rd row bench seat The 3rd row center seat belt has a connector tongue s1 and a seat belt tongue s2 . Both the connector tongue and the seat belt tongue must be securely latched for proper seat belt opera- tion. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-21 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X Stowing the 3rd row center seat belt When folding down the 3rd row seat, the 3rd row center seat belt can be retracted into a stowed position as follows: s1 Hold the connector tongue so that the seat belt does not retract suddenly when the tongue is released from the connector buckle. Release the connector tongue by inserting a suitable tool such as key into the connector buckle sA . s2 Retract the seat belt up to the retractor base. s3 Insert the seat belt tongue into the fabric sleeve so it will lay flat. Then secure the connector tongue into the retractor base. WARNING c Do not unfasten the rear center seat belt connector except when folding down the rear seat. c When attaching the rear center seat belt connector, be certain that the seat- backs are completely secured in the latched position and the rear center seat belt connector is completely secured. SSS0241 WARNING c Always fasten the connector tongue and the seat belt in the order shown. c Always make sure both the connector tongue and the seat belt tongue are secured when using the seat belt. Do not use it with only the seat belt tongue attached. This could result in serious personal injury in case of an accident or a sudden stop. 1-22 Safety(cid:151)Seats, seat belts and supplemental restraint system LRS0432 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X c If the rear center seat belt connector and the seatbacks are not secured in the correct position, serious personal injury may result in an accident or sud- den stop. Attaching the 3rd row center seat belt Always be sure the 3rd row center seat belt connector tongue and connector buckle are at- tached. Disconnect only when folding down the rear seat. To connect the buckle: s1 Pull out the connector tongue from the re- tractor base. s2 Pull out the seat belt tongue from the fabric sleeve. s3 Pull the seat belt and secure the receiver buckle until it clicks. The center seat belt connector tongue and re- ceiver buckle are indicated by the > and < mark. The center seat belt connector tongue can be attached only into the rear center seat belt con- nector buckle. To fasten the seat belt, see (cid:147)Fastening the seat belt(cid:148) earlier in this section. WARNING c Do not unfasten the rear center seat belt connector except when folding down the rear seat. LRS0433 Safety(cid:151)Seats, seat belts and supplemental restraint system 1-23 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X c When attaching the rear center seat belt connector, be certain that the seat- backs are completely secured in the latched position and the rear center seat belt connector is completely secured. c If the rear center seat belt connector and the seatbacks are not secured in the correct position, serious personal injury may result in an accident or sud- den stop. LRS0294 LRS0242 Front seats Shoulder belt height adjustment (Front and 2nd row seats) The shoulder belt anchor height should be ad- justed to the position best for you. (See (cid:147)Precau- tions on seat belt usage(cid:148) earlier in this section.) To adjust, push or pull outs1 the adjustment button and move the shoulder belt anchors2 to the desired position, so the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off your shoulder. Release the adjustment button to lock the shoulder belt anchor into position. 2nd row seats WARNING c After adjustment, release the adjust- ment button and try to move the shoul- der belt anchor up and down to make sure it is securely fixed in position. c The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effec- tiveness of the entire restraint system and increase the chance or severity of injury in an accident. 1-24 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X SEAT BELT EXTENDERS If, because of body size or driving position, it is not possible to properly fit the lap-shoulder belt and fasten it, an extender is available which is compatible with the installed seat belts. The ex- tender adds approximately 8 inches (200 mm) of length and may be used for either the driver or front passenger seating position. See a NISSAN dealer for assistance if an extender is required. WARNING c Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts. c Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident. c Never use seat belt extenders to install child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sud- den stop. SEAT BELT MAINTENANCE c To clean the seat belt webbing, apply a mild soap solution or any solution recom- mended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry. c If dirt builds up in the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth. c Periodically check to see that the seat belt and the metal components, such as buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt as- sembly should be replaced. CHILD RESTRAINTS PRECAUTIONS ON CHILD RESTRAINTS ARS1098 Safety(cid:151)Seats, seat belts and supplemental restraint system 1-25 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/24/06—debbie X c Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front seat. An in- flating supplemental front air bag could seriously injure or kill your child. A rear- facing child restraint must only be used in the rear seat. c NISSAN recommends that the child re- straint be installed in the rear seat. Ac- cording to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a front facing child re- straint in the front seat, see (cid:147)Child re- straint installation using the seat belts(cid:148) later in this section. c Improper use or improper installation of a child restraint can increase the risk or severity of injury for both the child and other occupants of the vehicle and can lead to serious injury or death in an accident. c Follow all of the child restraint manu- facturer(cid:146)s instructions for installation and use. When purchasing a child re- straint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle. c If the child restraint is not anchored properly, the risk of a child being in- jured in a collision or a sudden stop greatly increases. c Adjustable seatbacks should be posi- tioned to fit the child restraint, but as upright as possible. c After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the seat near the LATCH attachment or by the seat belt path. Try to tug it forward and check to see if the belt holds the re- straint in place. The child restraint should not move more than 1 inch (25 mm). If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles. c When your child restraint is not in use, keep it secured with the LATCH system or a seat belt to prevent it from being thrown around in case of a sudden stop or accident. WRS0256 WARNING c Infants and small children should al- ways be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can re- sult in serious injury or death. c Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself. 1-26 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X c Check the child restraint in your vehicle to be sure it is compatible with the vehicle(cid:146)s seat and seat belt system. c If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child(cid:146)s height and weight. Always follow all recommended procedures. All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated. CAUTION Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint. This vehicle is equipped with a universal child restraint lower anchor system, referred to as the LATCH (Lower Anchors and Tethers for CHil- dren) system. Some child restraints include two rigid or webbing-mounted attachments that can be connected to these lower anchors. For details, see the (cid:147)LATCH (Lower Anchors and Tethers for CHildren) system(cid:148) later in this section. If you do not have a LATCH compatible child restraint, the vehicle seat belts can be used. See (cid:147)Child restraint installed using the seat belts(cid:148) later in this section. In general, child restraints are also designed to be installed with the lap portion of a lap/shoulder seat belt. Several manufacturers offer child restraints for infants and small children of various sizes. When selecting any child restraint, keep the following points in mind: c Choose only a restraint with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213. WRS0315 LATCH system anchor locations LATCH (Lower Anchors and Tethers for CHildren) SYSTEM Your vehicle is equipped with special anchor points that are used with LATCH (Lower Anchors and Tethers for CHildren) system compatible child restraints. The LATCH anchor points are provided to install child restraints in the following positions only: c 2nd row captain(cid:146)s chairs (if so equipped). c 3rd row bench seat center position only (if so equipped). Safety(cid:151)Seats, seat belts and supplemental restraint system 1-27 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X LATCH lower anchor location WRS0700 LRS0631 LATCH label locations 2nd row captain(cid:146)s chairs (if so equipped) LATCH lower anchor point locations The LATCH system anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH system anchors. WRS0691 LATCH label locations 3rd row bench (if so equipped) WARNING c Attach LATCH system compatible child restraints only at the locations shown. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident. c The LATCH system anchors are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstance are they to be used for adult seat belts or harnesses. 1-28 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X installation using LATCH on 3rd row straint bench seat (if so equipped)(cid:148) in this section. LATCH webbing-mounted attachment LATCH rigid-mounted attachment LRS0661 LRS0662 Installing child restraint LATCH anchor attachments LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. This system is known as the LATCH system. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with the LATCH sys- tem. This information may also be in the instruc- tions provided by the child restraint manufac- turer. If you have such a child restraint, refer to the illustration for the seating positions equipped with LATCH system anchors which can be used to secure the child restraint. LATCH child restraints generally require the use of a top tether strap. See (cid:147)Top tether strap child restraint(cid:148) later in this section for installation in- structions. When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint. See (cid:147)Child restraint installation using LATCH on 2nd row captain(cid:146)s chairs (if so equipped)(cid:148) or (cid:147)Child re- Safety(cid:151)Seats, seat belts and supplemental restraint system 1-29 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X TOP TETHER STRAP CHILD RESTRAINT If the manufacturer of your child restraint requires the use of a top tether strap, it must be secured to the anchor point. WARNING Child restraint anchor points are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses. Top Tether Anchor Point Locations Anchor points are located in the following loca- tions: c On the floor behind the front passenger seat (2(cid:150)passenger cargo van only) as shown. c On the back of the 2nd row captain(cid:146)s chairs (if so equipped) as shown. c On the back of the 3rd row center seating position (if so equipped) as shown. If you have any questions when installing a top strap child restraint on the rear seat, consult your NISSAN dealer for details. WRS0210 Label The front passenger seat and 2nd row captain(cid:146)s chair anchor point locations are marked with the label shown. Installing top tether strap First, secure the child restraint with the seat belt or the LATCH system (2nd row captain(cid:146)s seating positions and center seating position only of the 3rd row bench seat), as applicable. LRS0322 Front passenger seat (2 passenger cargo van only) For the front passenger seat in the 2 passenger cargo van only, install the top tether strap as follows: 1. Adjust the head restraint to its highest posi- tion. 2. Route the top tether strap between the head restraint and the top of the seatback. 3. Secure the tether strap to the tether anchor point on the floor directly behind the seat. 1-30 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X 4. Tighten the tether strap according to the manufacturer(cid:146)s instructions to remove any slack. For best child restraint fit, see the child restraint installation instructions in this section and the child restraint manufacturer(cid:146)s instructions. 4. Tighten the tether strap according to the manufacturer(cid:146)s instructions to remove any slack. For best child restraint fit, see the child restraint installation instructions in this section and the child restraint manufacturer(cid:146)s instructions. 2nd row captain(cid:146)s chairs (if so equipped) LRS0307 1. Top tether strap 2. Anchor point For the 2nd row captain(cid:146)s chairs (if so equipped), install the top tether strap as follows: 1. Remove the head restraint. Store it in a secure location. 2. Position the top tether strap over the top of the seatback. 3. Secure the tether strap to the tether anchor point on the seat directly behind the child restraint. Safety(cid:151)Seats, seat belts and supplemental restraint system 1-31 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X The center position of the 3rd row bench seat is the seating position that can use a top tether strap. For the 3rd row bench seat (if so equipped), install the top tether strap as follows: 1. Position the top tether strap under the head restraint (TYPE A) or position the top tether strap around the side of the head restraint (TYPE B). 2. Secure the tether strap to the tether anchor point on the seat directly behind the child restraint. 3. Tighten the tether strap according to the manufacturer(cid:146)s instructions to remove any slack. For best child restraint fit, see the child restraint installation instructions in this section and the child restraint manufacturer(cid:146)s instructions. Type A WRS0687 WRS0688 3rd row bench seat (if so equipped) Type B 1. Top tether strap 2. Anchor point WARNING In the 3rd row bench seat, a child restraint with a top tether strap can only be used in the center position. Do not place in an outboard seating position and attempt to angle the tether strap to the center position. 1-32 Safety(cid:151)Seats, seat belts and supplemental restraint system Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X CHILD RESTRAINT INSTALLATION USING LATCH-2ND ROW CAPTAIN(cid:146)S CHAIRS (if so equipped) WARNING c Attach LATCH system compatible child restraints only at the locations shown. For the LATCH lower anchor locations see (cid:147)LATCH (Latch Anchors and Tethers for CHildren) system(cid:148). If a child restraint is not secured properly, your child could be seriously injured or killed in an accident. c The LATCH system anchors are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstance are they to be used for adult seat belts or harnesses. c Inspect the lower anchors by inserting your fingers into the lower anchor area and feeling to make sure there are no obstructions over the LATCH system an- chors, such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the LATCH system anchors are obstructed. Front-facing Follow these steps to install a front-facing child restraint in the 2nd row captain(cid:146)s chairs using LATCH: 1. Recline the seatback if the seatback is ad- justable to assist in attaching the child re- straint to the lower anchors. 2. Position the child restraint on the seat. Al- ways follow the child restraint manufactur- er(cid:146)s instructions. LRS0663 Front facing web-mounted (cid:150) step 3 3. Secure the child restraint anchor attach- ments to the LATCH lower anchors. 4. Return the seatback to its normal upright and locked position. The back of the child restraint should be secured against the vehicle seatback. If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. See (cid:147)Head restraint adjust- ment(cid:148) in this section. If the head restraint is re- moved, store it in a secure place. Be sure to install the head restraint when the child restraint is removed. If the seating position does not have an adjustable head restraint and it is interfering Safety(cid:151)Seats, seat belts and supplemental restraint system 1-33 Z REVIEW COPY—2007 Quest (van) Owners Manual—USA_English (nna) 02/27/06—debbie X 6.
