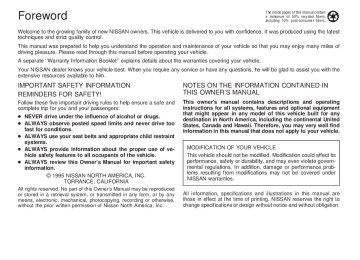

Foreword

The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many miles of driving pleasure. Please read through this manual before operating your vehicle. A separate ‘‘Warranty Information Booklet’’ explains details about the warranties covering your vehicle. Your NISSAN dealer knows your vehicle best. When you require any service or have any questions, he will be glad to assist you with the extensive resources available to him. IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY! Follow these five important driving rules to help ensure a safe and complete trip for you and your passengers: c NEVER drive under the influence of alcohol or drugs. c ALWAYS observe posted speed limits and never drive too

NOTES ON THE INFORMATION CONTAINED IN THIS OWNER’S MANUAL This owner’s manual contains descriptions and operating instructions for all systems, features and optional equipment that might appear in any model of this vehicle built for any destination in North America, including the continental United States, Canada and Hawaii. Therefore, you may very well find information in this manual that does not apply to your vehicle.

fast for conditions.

c ALWAYS use your seat belts and appropriate child restraint

systems.

c ALWAYS provide information about the proper use of ve-

hicle safety features to all occupants of the vehicle.

c ALWAYS review this Owner’s Manual for important safety

information.

© 1995 NISSAN NORTH AMERICA, INC.

TORRANCE, CALIFORNIA

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate govern- mental regulations. In addition, damage or performance prob- lems resulting from modifications may not be covered under NISSAN warranties.

All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc.

All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and without obligation.

Z X

Welcome To The World Of NISSAN

The inside pages of this manual contain a minimum of 50% recycled fibers, including 10% post-consumer fibers.

Your new Nissan is the result of our dedication to produce the finest in safe, reliable and economi- cal transportation. Your vehicle is the product of a successful worldwide company that manufac- tures cars and trucks in over 20 countries and distributes them in 150 nations. Nissan vehicles are designed and manufactured by Nissan Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and Nissan affiliates worldwide, collectively growing to become the fourth largest automaker in the world. In addition to cars and trucks, Nissan also makes textile machinery, forklift trucks, marine engines, boats and other products. Nissan has made a substantial and growing investment in North America, starting with the opening of Nissan Motor Corporation U.S.A. in 1960, continuing with the production of some cars and trucks at one of the world’s most

AFW0001


modern manufacturing facilities in Smyrna, Ten- nessee, vehicle styling at Nissan Design Interna- tional in San Diego, California, and engineering at Nissan Research and Development in Farm- ington Hills, Michigan. Nissan Motor Corporation U.S.A. and its dealers employ about 50,000 Americans. Nissan is also a substantial contributor to the Canadian economy. Nissan Canada Inc. and its 200 dealers and suppliers employ approximately 4,000 people. These include company employ- ees and the staffs of Nissan dealers all across Canada. In addition, many Canadians work for companies that supply Nissan and Nissan deal- ers with materials and services ranging from the operation of port facilities and transportation ser- vices, lubricants, parts and accessories.

to the supply of

Nissan pioneered the use of electronics and computers in automobiles, and has led the indus- try in improving both performance and fuel effi- ciency through new engine designs and the use of synthetic materials to reduce vehicle weight. The company has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and — most importantly — through an awareness that people are the cen- tral element in quality control.

From the time the parts arrived from our suppli- ers until you took delivery of your new Nissan, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. Nissan also takes great care to ensure that when you take your Nissan to your dealer for maintenance, the service techni- cian will perform his work according to the quality standards that have been established by the factory.

Safety has also been built into your Nissan. As you know, seat belts are an integral part of the safety systems that will help protect you and your passengers in the event of a sudden stop or an accident. We urge you to use the belts every time you drive the vehicle.

The Nissan story of growth and achievement reflects our major goal: to provide you, our customer, with a vehicle that is built with quality and craftsmanship — a product that we can be proud to build and you can be proud to own.

Z X

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES ... Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

if

However, there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact our (NISSAN’s) Consumer Affairs De- partment using our toll-free number: For U.S. mainland and Alaska customers

1-800-NISSAN-1 (1-800-647-7261)

For Hawaii customers

(808) 531-0231 (Oahu Number)

For Canada customers

1-800-387-0122


The Consumer Affairs Department will ask for the following infor- mation: — Your name, address, and telephone number — Vehicle identification number (on dashboard) — Date of purchase — Current odometer reading — Your NISSAN dealer’s name — Your comments or questions

OR you may write to NISSAN with the information on the left at: For U.S. mainland and Alaska customers

Nissan Motor Corporation in U.S.A. Consumer Affairs Department P.O. Box 191
Gardena, California 90247


For Hawaii customers

Nissan Motor Corporation in Hawaii 2880 Kilihau St. Honolulu, Hawaii 96819


For Canada customers Nissan Canada Inc. P.O. Box 1709, Station ‘‘B’’ Mississauga, Ontario L4Y 4H6


We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

Z X

Contents

Instruments and controls

Pre-driving checks and adjustments

Heater, air conditioner and audio system

Starting and driving

In case of emergency

Appearance and interior care

Do-it-yourself operations

Maintenance schedule

Technical and consumer information

Index

10


1 Instruments and controls

Meters and gauges .............................................. 1-3
Warning/indicator lights and chimes .................... 1-6
Theft warning........................................................ 1-9
Windshield wiper lever and washer switch ........ 1-10
Rear window wiper and washer switches.......... 1-11
Rear window defogger switch ............................ 1-12
Headlight control switch ..................................... 1-12
Autolamp switch ................................................. 1-13
Spotlights............................................................ 1-15
Turn signal switch .............................................. 1-15
Cornering light .................................................... 1-16
Instrument brightness control............................. 1-16
Hazard warning flasher switch ........................... 1-16


Cigarette lighter (accessory) and ashtray .......... 1-17
Rear power point................................................ 1-18
Coin tray ............................................................. 1-18
Compact disc and audio cassette storage compartment ......................................... 1-19
Power window .................................................... 1-19
Sunroof (If so equipped) .................................... 1-20
Manual rear windows ......................................... 1-21
Power rear windows........................................... 1-21
Clock................................................................... 1-22
Interior lights....................................................... 1-23


Z X

1-2


AIC0570


Z X

METERS AND GAUGES

1-3


AIC0571


Z X

AIC0003


AIC0110


AIC0004


SPEEDOMETER The speedometer indicates vehicle speed. ODOMETER The odometer records the total distance the vehicle has been driven. TRIP ODOMETER The trip odometer records the distance of individual trips. Before each trip, set the trip odometer to zero by pushing the RESET button.

TACHOMETER The tachometer indicates engine speed in revolutions per minute (RPM).

CAUTION

When engine speed approaches the red zone, shift to a higher gear. Engine speed in the red zone may cause seri- ous engine damage.

ENGINE COOLANT TEMPERATURE GAUGE This gauge indicates the coolant temperature. The coolant temperature varies with the out- side air temperature and driving conditions.

CAUTION

If the gauge indicates over the normal range, stop the vehicle as soon as safely possible. If the engine is over- heated, continued operation of the ve- hicle may seriously damage the engine. See ‘‘In case of emergency’’ section for immediate action required.

1-4


Z X

AIC0005


FUEL GAUGE This gauge indicates the APPROXIMATE fuel level in the tank. The gauge may move slightly during brak- ing, turning, acceleration, or when going up or down hills. The gauge needle is designed to remain in approximately the same position, even when the ignition key is turned OFF. Refill the fuel tank before the gauge registers at E (empty).

1-5


Z X

WARNING/INDICATOR LIGHTS AND CHIMES

Checking bulbs Apply the parking brake, fasten seat belts, and turn the ignition key to ON without starting the engine. The following lights come on and stay on until the engine is started:

The following lights come on briefly and then go off: ABS or

If any light fails to come on,

it may

indicate a burned-out bulb or an open circuit in the electrical system. Have the system repaired promptly.

Engine oil pressure warning light

This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call a NISSAN dealer or other authorized repair shop. Run- ning the engine with the oil pressure warning light on could cause serious damage to the engine. 1-6


AIC0583


The oil pressure warning light is not designed to indicate a low oil level. Use the dipstick to check the oil level. See ‘‘Engine oil’’ in the ‘‘Do-it-yourself opera- tions’’ section.

Charge warning light

If the light comes on while the engine is running, it may indicate something wrong with the charging system. Turn the engine off and check the generator belt. If the belt is loose, broken, missing, or if the light re- mains on, see your NISSAN dealer imme- diately.

Z X

CAUTION

Do not continue driving if the belt is loose, broken or missing.

Low fuel warning light

This light comes on when the fuel level in the fuel tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches E. There should be a small reserve of fuel in the tank when the fuel gauge needle reaches E.

Door open warning light

This light comes on when any of the doors are not closed securely while the ignition key is ON.

Seat belt warning light and chime

The light and chime remind you to fasten your seat belts. If the driver’s seat belt is NOT securely fastened when the ignition key is turned to ON or START, the chime sounds four times and the light illuminates. Refer to ‘‘Seat belts’’ in the ‘‘Pre-driving checks and adjustments’’ section for pre- cautions on seat belt usage.

Supplemental air bag warning light

When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the Air Bag Supplemental Restraint System is opera- tional. If any of the following conditions occur, the supplemental air bag system needs servic- ing and your vehicle should be taken to your nearest authorized NISSAN dealer as soon as practical: 1. The supplemental air bag warning light does not come on for 7 seconds and then go off as described above.

2. The supplemental air bag warning light

flashes intermittently or remains on.

3. The supplemental air bag warning light

does not come on at all.

Unless checked and repaired, the Air Bag Supplemental Restraint System may not function properly. For additional details, see ‘‘Supplemental restraint system’’ in the ‘‘Pre- driving checks and adjustments’’ section.

1-7


Low washer fluid warning light

This light comes on when the washer res- ervoir fluid is at a low level. Add washer fluid as necessary. See the ‘‘Do-it-yourself op- erations’’ section.

Brake warning light

functions for both the parking

This light brake and the foot brake systems. The light comes on when the parking brake is applied, and also warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following: 1. Check the brake fluid level. Add brake fluid as necessary. See ‘‘Brake fluid’’ in the ‘‘Do-it-yourself operations’’ section.

2. If the brake fluid level is correct, check

the warning system.

Z X

WARNING

c If you judge it to be safe, drive care- fully to the nearest service station for repairs. Otherwise, have your ve- hicle towed because driving it could be dangerous.

c Pressing the brake pedal with the engine stopped and/or low brake fluid level may increase your stop- ping distance and braking will re- quire greater pedal effort as well as pedal travel.

or ABS Anti-lock brake

warning light

If the light comes on while the engine is running, it may indicate something wrong with the anti-lock portion of the brake sys- tem. Have the system checked by your NISSAN dealer. If an abnormality occurs in the system, the anti-lock function ceases, but the brakes continue to operate normally. If the light comes on while you are driv- ing, contact your NISSAN dealer for re- pair.

Overdrive off indicator light This light comes on during driving when the overdrive switch is pressed to prevent over- drive operation. The O/D OFF indicator light comes on for two seconds each time the ignition key is turned ON. This shows the light is function- ing properly. the O/D OFF indicator light blinks for If approximately 8 seconds after coming on for 2 seconds, have your NISSAN dealer check the transmission and repair it if nec- essary. The automatic transmission is equipped with an electronic Fail-Safe mode. This sys- tem allows the vehicle to be driven even in the event of damage to the electrical cir- cuits. If this occurs, the gears automatically engage and lock into 3rd gear. NOTE: See the ‘‘Fail-safe’’ section in the ‘‘Starting and driving’’ section before visiting your NISSAN dealer.

1-8


Turn signal/hazard indicator lights

The appropriate light flashes when the turn signal lever is activated. Both lights flash when the hazard switch is turned on.

High beam indicator light

This light comes on when the headlight high beam is on and goes out when the low beam is selected.

Cruise indicator light

The light comes on while the vehicle speed is controlled by the cruise control system. If the CRUISE indicator blinks, have the sys- tem checked by your NISSAN dealer. Key reminder chime The chime sounds if the driver side door is opened while the key is left in the ignition switch. Remove the key and take it with you when leaving the vehicle. Light reminder chime A chime sounds when the driver side door is opened if the headlight control switch is

Z X

turned on (ignition switch is turned OFF). Turn the headlight control switch to OFF when you leave the vehicle. Brake pad wear warning The disc brake pads have audible wear warnings. When a brake pad requires re- placement, it makes a high pitched scraping sound when the vehicle is in motion whether or not the brake pedal is depressed. Have the brakes checked as soon as possible if the warning sound is heard.

Malfunction indicator lamp (emission system)

If this light comes on or blinks while the engine is running, it may indicate a po- tential emission control problem. Al- though the vehicle is still driveable, see your NISSAN dealer for service as soon as possible. Continued operation with- out having the emission control system checked and repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system which may affect your warranty coverage.

THEFT WARNING (If so equipped)

IC0005


The theft warning system provides audio and visual alarm signals if parts of the vehicle are disturbed. How to activate the theft warning system 1. Close all windows. 2. Remove the key from the ignition switch. 3. Close all doors and the hood. Lock all doors by pressing the button on the multi-remote controller. At this time, the parking lights blink and the horn chirps to indicate all doors are locked.

1-9


The system can be activated even if the windows are open. 4. Confirm that

the SECURITY indicator light, located under the hazard warning switch, illuminates.

c The SECURITY light stays on for about 30 seconds and then begins to flash once every three seconds. The system is now activated.

The theft warning system is NOT activated if one of the following occurs: c A door is unlocked or opened, the hood is opened, or the ignition key is turned to the ACC or ON position during the 30
seconds in which the SECURITY light stays on.

c The SECURITY light blinks at a steady 1/2 second on - 1/2 second off rate because a door or the hood is open and the key is not in the ACC or ON position. When the ignition key is turned to the ACC or ON position, the SECURITY light turns off.

Theft warning system operation The theft warning system emits the follow- ing alarm:

Z X

WINDSHIELD WIPER LEVER AND WASHER SWITCH

If the system does not operate as de- scribed above, have it checked by your NISSAN dealer.

AIC0561


To operate the wipers intermittently, adjust the knob between the S and F positions. For continuous operation, select LO or HI.

c The headlights and tail lights flash and the horn sounds intermittently. In addi- tion, the starter motor does not operate. c The alarm automatically turns off after two to three minutes. However, the alarm reactivates if the vehicle is tampered with again. The alarm can be shut off by unlocking a door with the key or by pressing the button on the multi- remote controller.

The alarm is activated when: c a door is unlocked or opened without using the key or the multi-remote control- ler. This includes unlocking the doors with the inside door lock switch.

c the hood is opened. c the ignition is placed into the ACC, ON, or START position without the key in the ignition.

How to stop the alarm The alarm stops only by unlocking a door with the key or by pressing the button on the multi-remote controller. The alarm does not stop if the ignition key is turned to the ACC or ON position.

1-10


Z X

REAR WINDOW WIPER AND WASHER SWITCHES

WARNING

In freezing temperatures the washer solution may freeze on the windshield and obscure your vision. Warm the windshield with the defroster before you wash the windshield.

AIC0559


To operate the washer, press on the end of the wiper knob. For more washer fluid, push and hold the end of the wiper knob. The wipers cycle a few times when the washer is activated. The washer operates in any of the wiper positions.

CAUTION

c Do not operate the washer continu-

ously for more than 30 seconds.

c Do not operate the washer if the

reservoir tank is empty.

AIC0572


Push and hold the rear washer switch to operate the rear washer. The wiper cycles continuously until the switch is released. Push the rear wiper switch to operate the wiper. The wiper cycles intermittently. Push again to cancel.

CAUTION

c Do not operate the washer continu-

ously for more than 30 seconds.

c Do not operate the washer if the

reservoir tank is empty.

1-11


Z X

REAR WINDOW DEFOGGER SWITCH

HEADLIGHT CONTROL SWITCH

CAUTION

When cleaning the inner side of the window, be careful not to scratch or damage the electrical conductors.

AIC0573


To defog the rear window glass, start the engine and push the switch on. The indica- tor light comes on. Push the switch again to turn the defogger off. The rear window defogger switch is also used to defrost, defog, or de-ice the power outside heated mirrors (if so equipped). It automatically turns off in approximately 15
minutes.

AIC0043


tail,

position:

Lighting Turn the dial to the The front clearance, side marker, li- cense plate and instrument lights come on. Turn the dial to the Headlights come on and all of the previously listed lights remain on. To select the high beam, push the turn signal lever away from you. The lever latches in place. Pull it back to select the low beam.

position:

1-12


Z X

Daytime light system (for Canada) Even if the headlight control dial is off, the headlight high beams come on after starting the engine. The headlights are a little dim- mer than they are with the light switch in the

position.

If the parking brake is applied before the engine is started, the daytime lights do not illuminate. The daytime light system illumi- nates once the parking brake is released. Thereafter, the daytime lights do not turn off when using the parking brake at stop sig- nals, etc.

WARNING

When the daytime light system is ac- tive, tail lights on your vehicle will not be on. It is necessary at dusk to turn on your headlights. Failure to do so could cause an accident injuring yourself and others.

AUTOLAMP SWITCH

AIC0041


The autolamp system allows the headlights to be set so they turn on and off automati- cally. The autolamp system can turn on the headlights automatically when it is dark, turn off the headlights when it is light, and keep the headlights on for up to three minutes after you turn the key to OFF. To set the autolamp system: 1. Make sure the headlight switch is in the OFF position. If the headlight switch is in the ON position, the autolamp system is canceled.

2. Turn the ignition key to ON.

1-13


3. Use the autolamp switch to activate the autolamp feature. It is to the left of the steering wheel.

4. Turn the switch to the right. A slight detent in the switch indicates it has been turned past the OFF position. After the switch is turned past the autolamp automatically turns the lamps on and off.

the detent,

Shut-off delay The length of time the autolamps stay on after the ignition is turned to OFF depends on how far the switch is turned to the right. If the switch is turned all the way to the right, the headlights stay on about three minutes after the ignition is turned to OFF. If the switch is turned only a little way to the right, the headlights may stay on for less than a minute. To turn the autolamp system OFF, turn the switch all the way to the left until the detent is felt.

Z X

Be sure you do not put anything on top of the photo sensor located in the top right side of the instrument panel. The photo sensor controls the autolamp; if it is covered, the photo sensor reacts as if it is dark out and the headlights will illuminate.

AIC0101


1-14


Z X

SPOTLIGHTS

TURN SIGNAL SWITCH

To turn on the spotlights, press the switches next to the lights. To turn them off, press the switches again.

AIC0049


AIC0560


Turn signal Move the lever up or down to signal the turning direction. When the turn is com- pleted, the turn signal cancels automati- cally. Lane change signal To indicate a lane change, move the lever up or down to the point where the light begins to flash, but the lever does not latch. Passing signal Pulling the lever toward you turns the head- light high beam on. Release it and the headlight high beam goes off.

1-15


Z X

CORNERING LIGHT

INSTRUMENT BRIGHTNESS CONTROL

HAZARD WARNING FLASHER SWITCH

AIC0102


AIC0011


AIC0574


The cornering light provides additional illu- mination toward the turning direction. The light on the turning direction side comes on when a turn is signaled with the headlights on.

The instrument brightness control operates when the light switch is in the or position, or when the autolamp system

is operating. Pressing the right side of the switch bright- ens the instrument panel lights; pressing the left side of the switch dims the instrument panel lights.

Push the switch to warn other drivers when you must stop or park under emergency conditions. All turn signal lights flash. Press the switch again to turn the hazard warning flashers off.

WARNING

c When stalled or stopped on the road- way under emergency conditions, move the vehicle well off the road.

c Do not use the switch while moving on the highway unless unusual cir- cumstances force you to drive so

1-16


Z X

CIGARETTE LIGHTER (ACCESSORY) AND ASHTRAY

slowly that your vehicle might be- come a hazard to other traffic.

c Some state laws may prohibit the use of the hazard warning flasher switch while driving.

c Turn signals do not work when the

switch is operating.

The flashers can be actuated with the igni- tion switch either OFF or ON.

Push the lighter in all the way. When the lighter is heated, it springs out. Return the lighter to its original position after use.

CAUTION

The cigarette lighter socket is a power source for the cigarette lighter element only. The use of the cigarette lighter socket as a power source for any other accessory is not recommended.

WARNING

The cigarette lighter should not be used while driving in order that full attention may be given to the driving operation.

AIC0579


The cigarette lighter element is an acces- sory. A genuine NISSAN Cigarette Lighter or equivalent can be purchased from your local NISSAN dealer. The cigarette lighter operates when the ignition switch is in the ACC or ON position.

1-17


Z X

REAR POWER POINT

COIN TRAY

The rear power point is located on the driver’s side trim panel of the second row seats. Open the cover to gain access to the power point. Use the power point to plug in electrical equipment such as a cellular telephone, CB radio, etc. Follow the installation instruc- tions included with your electrical equip- ment. When not in use, always close the power point cover.

AIC0581


CAUTION

When using the power point: c Maximum load of any electrical equipment should not exceed 10
amps.

c Be sure to turn off any electrical equipment when not in use. Leaving electrical equipment on for extended periods can drain your battery.

AIC0575


The slide-out coin tray is located in the instrument panel below the radio controls.

CAUTION

Do not place valuable items in the coin tray.

1-18


Z X

COMPACT DISC AND AUDIO CASSETTE STORAGE COMPARTMENT

POWER WINDOW

AHA0014


AIC0576


AIC0577


The audio cassette and compact disc stor- age compartment is located in the instru- ment panel below the ashtray and lighter. To open the storage compartment, pull out on the handle.

The main switch (on the driver side) opens or closes the driver’s or the passenger’s window. To open the window, press the switch down. To close the window, lift the switch up. The power windows operate when the igni- tion key is in the ON position, or for 15
minutes after the ignition key is turned to the OFF position. If the driver’s door is opened during this 15 minute period, delayed power to the windows is cancelled.

Automatic power window switch To fully open the driver side window, press down firmly on the switch and release it; you do not need to hold the switch down. The window automatically opens all the way. The automatic feature can be interrupted before the window is fully open by briefly lifting up on the switch as the window moves down.

1-19


Z X

Locking passenger’s window When the power window lock-out button is pushed in, the passenger side window can- not be opened or closed. Push the power window lock-out button again to cancel this feature.

SUNROOF (If so equipped)

AIC0578


AIC0018


The passenger side switch opens or closes the passenger window only. To open the window, press the switch down. To close the window, lift the switch up.

WARNING

c Make sure that all passengers have their hands, etc. inside the vehicle before closing the windows.

c Do not leave children unattended in- side the vehicle. They could un- knowingly activate switches.

The sunroof operates when the ignition key is in the ON position, or for 15 minutes after the ignition key is turned to the OFF posi- tion. If the driver’s door is opened during this 15 minute period, delayed power to the sunroof is cancelled. Sliding the sunroof To open the roof, push and hold the OPEN side of the switch. To close the roof, push and hold the CLOSE side.

1-20


Z X

Tilting the sunroof To tilt up, first close the sunroof, then push the UP side of the tilt switch. To close the sunroof, push the DOWN side of the tilt switch. Sun shade Open and close the sun shade by sliding it forward or backward. The shade opens when the sunroof opens, but it must be closed manually.

WARNING

c Be extremely careful not to have any part of your body in the sunroof opening while it is closing.

c Do not stand up or extend any por- tion of your body out of the opening while driving.

c Remove water drops, snow, ice or sunroof before

sand from the opening.

c Do not place any heavy object on the

sunroof or surrounding area.

MANUAL REAR WINDOWS

POWER REAR WINDOWS

AIC0111


AIC0042


To open the manual rear windows, pull the rear portion of the latch toward you until it releases. To lock the window in the open position, push the latch rearward until you hear it latch. To close the windows, pull the latch toward you and push the rear portion of the latch toward the rear of the vehicle until you feel it latch.

Use the vent buttons on the power sunroof controls to open and close the power rear windows. To open one of the rear power windows, press the indented side of switch. To close the window, press the raised side of the switch. The power rear windows operate when the ignition key is in the ON position, or for 15
minutes after the ignition key is turned to the OFF position. If the driver’s door is opened during this 15 minute period, delayed power to the rear windows is cancelled.

1-21


Z X

CLOCK

approximately ten seconds before changing back to the clock mode. How to set the clock 1. Turn the radio on. (Time is displayed

while the radio is off).

2. Push and hold the CLK button;

press the SEEK button either

then, or to adjust the hours, and press the to

or

TUNE button either adjust the minutes.

The digital clock displays time when the ignition key is in ACC or ON. If clock does not Readjust the time.

the power supply is disconnected,

indicate the correct

the time.

NOTE: The clock displays 12-hour time with no A.M./P.M. indications.

AIC0580


How to view the clock mode Push the CLK button to alternate the radio frequency and the time in the display. In the clock mode, press any radio function to automatically display the radio frequency for

1-22


Z X

c When the switch is in the ON position, the interior light illuminates, whether any door is open or closed.

NOTE: Leaving the interior light switch in the ON position for extended periods of time will result in a discharged battery. LUGGAGE COMPARTMENT LIGHTS When the back door is opened, the luggage compartment light and the rear interior light illuminate. When the back door is closed the lights go off.

INTERIOR LIGHTS

AIC0053


The interior lights operate regardless of ignition key position. One interior light is located overhead near the front seats and one is overhead near the rear seat. The interior switches: c When the switch is in the OFF position, the interior light does not illuminate, re- gardless of door position.

lights have three-position

c When the switch is in the center O posi- tion, the light illuminates when a door is opened.

AIC0582


PERSONAL READING LIGHT The driver’s side, second row seating posi- tion has a personal reading light located in the overhead trim panel. To turn the light on, press once on the right-hand side of the light cover. To turn the light off, press again on the right-hand side of the light cover.

1-23


Z X

Z X

2 Pre-driving checks and adjustments

Key ....................................................................... 2-2
Door locks ............................................................ 2-2
Multi-remote control system (If so equipped) ...... 2-7
Battery replacement ............................................. 2-8
Hood release ...................................................... 2-10
Rear door lock.................................................... 2-11
Cargo net............................................................ 2-13
Luggage rack...................................................... 2-14
Fuel filler lid and cap.......................................... 2-15
Seats/floor mats ................................................. 2-15
Floor mat positioning.......................................... 2-17
Seat positions..................................................... 2-21
Cup holder.......................................................... 2-31
Flexible seating .................................................. 2-33
Removing and installing the second row bench seat.......................................................... 2-33


Removing second row bucket seats .................. 2-35
Sliding three-passenger seat ............................. 2-39
Supplemental restraint system (air bag system) ................................................. 2-42
Warning labels.................................................... 2-45
Supplemental air bag warning light.................... 2-45
Seat belts ........................................................... 2-47
Child restraints for infants and small children .. 2-58
Child restraint with top tether strap.................... 2-62
Tilting steering wheel ......................................... 2-74
Outside mirror control......................................... 2-75
Outside mirrors................................................... 2-76
Inside mirror ....................................................... 2-76
Vanity mirror ....................................................... 2-76


Z X

KEY

DOOR LOCKS

MANUAL DOOR LOCK To lock the front doors or sliding door from the outside, turn the key toward the front of the vehicle. To unlock, turn it toward the rear.

APD0002


APD0142


Record the key number on the key number plate and keep it in a safe place (such as your wallet), NOT IN THE CAR. A key number plate is supplied with your key. Keep the plate in a safe place. NISSAN does not record key numbers so it is very important to keep track of your key number plate. A key number is necessary only when you have lost all vehicle keys and do not have one to duplicate from. If you still have a key, this key can be duplicated by your NISSAN dealer or locksmith shop. Two keys are supplied with your vehicle — one has a plastic head and one is all metal. Both keys perform the same functions.

2-2


Z X

Locking the doors without the key To lock the doors from the outside without a key, move the inside lock knob so LOCKED is visible, then close the door. When locking the door this way, be certain not to leave the key inside the vehicle.

APD0840


APD0810


Sliding door lock To lock the sliding door from inside the vehicle, press the door lock rocker switch on the side marked L. To unlock, press the rocker switch on the side marked U. Only the sliding door locks and unlocks by using the door lock rocker switch.

2-3


Z X

CAUTION

c Always have the doors locked while driving. Along with the use of seat belts, this provides greater safety in the event of an accident by helping to prevent persons from being thrown from the vehicle. This also helps keep children and others from unintentionally opening the doors, and will help keep out intruders.

c Before opening any door, always look for and avoid oncoming traffic. c Always use the door handle to open or close the sliding door. Do not attempt to open or close the door by merely placing your hand on the door edge or door slide roller, as this may cause injury.

c When opening the sliding door on a slope, ensure that it is fully open and that it does not close by itself.

CHILD SAFETY SLIDING DOOR LOCK Child safety locking helps prevent doors from being opened accidentally, especially when small children are in the vehicle. When the lever is in the lock position, the sliding door can be opened only from the outside.

2-4


APD0005


Z X

POWER DOOR LOCK The power door lock system allows you to lock or unlock all doors simultaneously. c Turning a door key to the front locks all doors. This function can be operated from the driver, passenger or sliding door.

c Pushing a front door lock knob in locks all doors. When locking the doors this way, be certain not to leave the key inside the vehicle. All doors automatically unlock with the key in the ignition.

APD0841


APD0828


Selective unlock (If so equipped) c Turning the door key one time to the rear of the vehicle unlocks the corresponding door. From that position, returning the key to Neutral (where the key can only be removed and inserted) and turning it to the rear again within 5 seconds unlocks all doors. This function can be operated from the driver, passenger or sliding door.

2-5


Z X

APD0842


APD0843


c Operating the lock-unlock switch locks or

unlocks all doors.

c If the power door lock switch is pressed when the sliding door is open, the sliding door automatically locks when it is closed.

WARNING

c Before opening any door, always look for and avoid oncoming traffic. c Do not leave children unattended in a locked vehicle. If an emergency occurs it may be more difficult to help them.

2-6


Z X

MULTI-REMOTE CONTROL SYSTEM (If so equipped)

It is possible to lock/unlock all doors, turn the interior lights on or off, and activate the panic alarm by using the remote controller from outside the vehicle. Be sure to remove the key from the vehicle before locking the doors and leaving it. The remote controller can operate at a distance of approximately 49 ft (15 m) from the vehicle. (The effective distance depends on the conditions around the vehicle.) As many as four remote controllers can be used with one vehicle. For more information concerning the purchase and use of addi- tional remote controllers, contact your NIS- SAN dealer.

CAUTION

Listed below are conditions or occur- rences which will damage the remote controller: c Do not allow the remote controller to

become wet.

c Do not drop the remote controller. c Do not strike the remote controller

sharply against another object.

c Do not place the remote controller for an extended period in an area where temperatures exceed 140°F (60°C).

Locking doors 1. Close all of the doors. 2. Push the controller.

button on the multi-remote

3. All of the doors lock. 4. The parking lights flash twice and the horn chirps to verify all the doors are locked.

Unlocking doors 1. Push the

button on the multi-remote controller. Only the driver side door un- locks.

2. The interior lights come on and stay on

for 30 seconds.

3. Push the

button on the multi-remote controller again within five seconds. The passenger doors and the rear door un- lock.

2-7


The interior lights can be turned off without waiting 30 seconds by either turning the ignition to ON or locking the doors with the multi-remote controller. Using the panic alarm If you are near your vehicle and feel threat- ened, you may activate the panic alarm to call attention as follows: 1. Push the

button on the remote con-

troller for at least one full second.

2. The theft warning alarm (horn) sounds and the headlights and tail lights flash for 30 seconds.

3. The panic alarm stops when: c it has run for 30 seconds, or c the c the

button are pressed, or button is released and re-pushed.

or the

Z X

BATTERY REPLACEMENT

Replace the two batteries as follows: 1. Remove the screw and open the lid. 2. Replace the batteries with new ones. Insert the batteries as illustrated above.

APD0623


Recommended batteries: Sanyo CR2016
or equivalent.

3. Close the lid securely and install

the

screw.

4. Press the

button, then the

button

2-8


two or three times to check the multi- remote controller operation.

If the batteries are removed for any rea- son other than replacement, perform step 4 above. c An improperly disposed battery can hurt the environment. Always confirm local regulations for battery disposal. c The multi-remote controller is water- resistant; however, if it does get wet, immediately wipe completely dry.

c The operational range of the multi- remote controller extends to approxi- mately 49 ft (15 m) from the vehicle. This range may vary with conditions.

FCC Notice: This device complies with FCC rules part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. The transmitter has been tested and complies with FCC and DOC/MDC rules. Changes or modifications not expressly

Z X

approved by the party responsible for compliance could void the user’s author- ity to operate the device. Illuminated entry system All models The interior lights, the cargo light, the step- well lights near the sliding door and on the front doors, and the footwell lights near the driver’s and front passenger’s feet illumi- nate when the front and sliding doors are opened. These lights gradually dim to off within 30 seconds or turn off immediately when the key is turned to ON. Battery saver If the vehicle doors are not fully closed and the interior lights remain illuminated, they eventually turn off automatically to prevent the battery from becoming discharged. Lights that illuminate when the front doors and/or the sliding door are open turn off after approximately 30 minutes. Lights that illuminate when the back door is open turn off after approximately 60 minutes. If the personal reading lamp is left on when the key is removed from the ignition, it turns off automatically in 30 minutes.

2-9


Z X

HOOD RELEASE

PD1336M

APD0141


1. Pull

the hood lock release handle s1
located below the instrument panel; the hood then springs up slightly.

2. Pull up on the lever s2 at the front of the

hood and raise the hood.

3. Insert the support rod s3 into the slot on

the underside of the hood.

4. When closing the hood, reset the support rod to its original position, then slowly close the hood and make sure it locks into place.

2-10


Z X

REAR DOOR LOCK

APD0824


WARNING

Do not drive with the rear door or glass open. This could allow dangerous ex- haust gases to be drawn into the ve- hicle.

Key operation To unlock the rear door, turn the key coun- terclockwise. To open the rear door, lift up on the opener handle near the license plate. To close, lower and push the rear door down securely. To lock the rear door without the key, set the lock lever to the lock position following the ‘‘Push to Lock’’ instructions near the latch, then close the rear door securely.

2-11


Z X

To lock the rear door with the key, turn the key clockwise as shown in the illustration. Turning the key fully clockwise unlocks the rear window on models equipped with the flip-up rear window. The rear wiper auto- matically lowers when the key is turned fully clockwise. Do not force the wiper to lower by hand. To close the rear window, firmly push on the window until it locks in place. The rear door cannot be opened if flip-up rear window is raised.

the

APD0802


2-12


Z X

CARGO NET

The cargo net keeps packages in the cargo area from moving around while your vehicle is driven. To install loops to the four retainers. To remove the cargo net, detach the four loops from the cargo net retainers.

the cargo net, attach the four

APD0037


WARNING

To prevent luggage or packages from sliding forward during braking, do not stack anything in the cargo area higher than the seatbacks. Be sure to secure all four loops onto the retainers. The cargo restrained in the net must not exceed 50 lbs. (22.7
kg) or the net may not stay secured.

2-13


Z X

LUGGAGE RACK

Always distribute the luggage evenly on the luggage rack. Do not load more than 100
pounds (45 kg). Be careful that your vehicle does not exceed the Gross Vehicle Weight Rating (GVWR) or its Gross Axle Weight Rating (GAWR front and rear). The GVWR and GAWR are located on the Safety Com- pliance Certification Label (located on the driver’s door pillar). For more information regarding GVWR and GAWR, refer to ‘‘Technical and Consumer Information’’. The front and rear cross-bars can be ad- justed forward and backward. Place your luggage between the bars, adjust the bars,

APD0158


and secure the luggage with rope to the bars. There are also adjustable loops on the side bars for the rope attachment.

WARNING

c Use care when placing or removing items from the luggage rack. If you cannot comfortably lift the items onto the luggage rack from the ground, use a ladder or stool.

2-14


Z X

FUEL FILLER LID AND CAP

SEATS/FLOOR MATS

CAUTION

c Gasoline is extremely flammable and highly explosive under certain con- ditions. Always stop the engine and do not smoke or allow open flames or sparks near the vehicle when refueling.

c Fuel may be under pressure. Turn the cap one-half turn, and wait for any ‘‘hissing’’ sound to stop to pre- vent fuel from spraying out and pos- sible personal injury. Then remove the cap.

c Use only a genuine NISSAN fuel filler cap as a replacement. It has a built-in safety valve needed for proper op- eration of the fuel system and emis- sion control system. An incorrect cap can result in a serious malfunc- tion and possible injury.

SEATING ARRANGEMENTS Many different arrangements for passenger seating or cargo hauling are available as you will see in the following illustrations. The second row seats may be removed and the third row seat may be moved forward to the second row seating position. The second and third row seats have an optional fold- down table-top feature. This offers a variety of uses for the vehicle when moving or stopped. The illustrations shown reflect the different seating positions available. Before you begin to arrange the seats in your vehicle, read all of the cautions and warnings in this chapter, including the following section on the removable floor mats. Also observe any labels that are in the vehicle.

APD0803


To open the fuel filler lid, grasp the right hand edge of the lid and pull. The fuel filler cap is a screw-on ratcheting type. Tighten the cap clockwise until ratch- eting clicks are heard. Ensure the plastic tether doesn’t get caught between the gas cap and the fuel filler neck.

2-15


Z X

c Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. c Be sure everyone in your vehicle is in a seat and using a seat belt prop- erly.

WARNING

c While the vehicle is in motion, pas- sengers should always be seated in a forward facing direction in a seat which is properly secured and ad- justed. Seat belts should always be used. Sitting without a seat belt in a seat that is not properly secured in one of the locations shown in this chapter, or in a place without a seat and seat belt can result in personal injury in a sudden stop or collision. c Do not place hard items such as coffee mugs or drinking glasses on the tabletop seats when the vehicle is moving. Any item can become a projectile inside a vehicle involved in a collision. To help prevent personal injury, never leave loose items on the fold-down tabletop seats when the vehicle is moving.

c It is extremely dangerous to ride in a cargo area inside of a vehicle. In a collision, people riding in these ar- eas are more likely to be seriously injured or killed.

2-16


Z X

FLOOR MAT POSITIONING

APD0143


APD0160


SEVEN PASSENGER SEATING Removable floor mats Whenever you remove the mats for any reason, the mats must be reinstalled before passengers ride in your vehicle. The floor mats are specifically designed to keep objects out of the seat tracks.

THREE-PASSENGER BENCH SEAT IN STORAGE POSITION

WARNING

It is important to replace the floor mats whenever they are removed for any reason. The floor mats are intended to help prevent the possibility that high heeled shoes or similar objects might become stuck in the seat tracks. Failure to replace the floor mats might result in personal injury.

Be sure to keep the seat tracks clear of debris by cleaning them periodically. Review the following illustrations so you will know the proper way to place the floor mats with the various seating arrangements available in your vehicle.

2-17


Z X

FIVE PASSENGER SEATING

APD0145


APD0057


FIVE PASSENGER SEATING WITH CARGO ROOM The step mat is not used in this seating configuration.

2-18


Z X

THREE-PASSENGER BENCH SEAT IN FULLY FORWARD POSITION The step mat is not used in this seating configuration.

APD0058


2-19


Z X

c Failure to follow proper seating in- structions in this section could re- sult in serious personal injury in an accident or during a sudden stop.

the floor mat positioning brackets located at the base of the front seats. Push the positioning pins into the seat tracks to ensure correct installation, then straighten the mats as necessary. The step mat has holes in addition to pins. When the mats are arranged properly, the positioning pins of the two mats on either side of the step mat should fit through the holes in the step mat and into the seat track.

WARNING

c No occupant should ride in a vehicle seat unless it is in a normal riding arrangement and the seat belts are properly used.

c While driving, never allow anyone to ride in the cargo area. It is not de- signed for passengers. They could be injured in sudden braking or collision.

c To prevent

luggage or packages from sliding forward during braking, do not stack anything in the cargo area higher than the seatbacks.

2-20


APD0083


FLOOR MAT POSITIONING PINS Positioning pins are attached to three of the floor mats. The cargo mat and front mats do not have pins. However, the front floor mats each have a grommet which is placed over

Z X

SEAT POSITIONS

APD0096


APD0097


APD0042


WITH SECOND ROW BENCH SEAT The most common seating arrangement for seven passengers is with the three- passenger bench seat in seating position #1. This provides more leg room for the passengers sitting in the third row.

When more cargo area room is necessary, the three-passenger sliding bench seat can be moved to seating position #2. This seat- ing arrangement provides less leg room for third row passengers, but more cargo area room.

The fold-down tabletop seats in the second and third rows provide a surface for eating or playing games on long trips.

2-21


Z X

APD0043


APD0049


APD0044


If a considerable amount of cargo area room is needed, the seat cushion of the three-passenger sliding bench seat can be flipped up and the seat can be moved up to storage position #2, just behind the second row seat.

When maximum cargo area is needed and there are no rear seat passengers, the second row seat can be removed and the three-passenger sliding bench seat can be moved up to storage position #1, just behind the front seats.

The second row bench seat can be folded down to serve as a tabletop for passengers sitting in the three-passenger bench seat.

2-22


Z X

APD0045


APD0046


APD0047


The second and third row bench seats can be folded down to tabletops.

To increase cargo area space, the second row bench seat can be removed and the three-passenger sliding seat can be moved up to the second row position.

The third seat can be folded down into a tabletop.

2-23


Z X

APD0048


APD0050


APD0128


With the third seat folded down and the second seat removed, cargo can be placed in between the front seats and the third row seat. People should not be allowed to ride in areas meant for cargo. Passen- gers should always be properly re- strained in seat belts.

The second row seat can be folded down and the third row seat can be moved just behind it in a storage position.

WITH SECOND ROW BUCKET SEATS The normal seating arrangement for seven passengers is with the three-passenger bench seat in seating position #1. This provides more leg room for the passengers sitting in the third row.

2-24


Z X

APD0052


APD0127


APD0053


When one passenger in the three- passenger bench seat would like more leg room, one of the second row bucket seats can be removed.

When more cargo area room is necessary, the three-passenger sliding bench seat can be moved to seating position #2. This seat- ing arrangement provides less leg room for third row passengers, but more cargo area room.

If passengers in the three-passenger bench seat would like more leg room, both second row bucket seats can be removed. The floor area should never be used by pas- sengers. Passengers should always be properly restrained by seat belts.

2-25


Z X

MANUAL FRONT SEAT ADJUSTMENT

WARNING

c Do not adjust the driver’s seat while driving. The seat may move sud- denly and could cause loss of con- trol of the vehicle.

c After adjustment, gently rock in the is securely

to make sure it

seat locked.

WARNING

The seatback should not be reclined any more than needed for comfort when the vehicle is moving. Seat belts are most effective when the passenger sits well back and straight up in the seat. If the seat is reclined, the risk of sliding under the lap belt and being injured is increased.

APD0119


Forward and backward

s1
Rotate the lever up while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in posi- tion. s2 Reclining Pull the lever up and lean back until the desired angle is obtained. To bring the seatback forward again, pull the lever and move your body forward. The seatback moves forward. Release the lever to lock the seatback in position. 2-26


Z X

APD0804


APD0555


POWER SUPPORT FRONT SEAT

WARNING

c Do not adjust the driver’s seat while

driving.

c The seatback should not be reclined any more than needed for comfort when the vehicle is moving. Seat belts are most effective when the passenger and straight up in the seat. If the seat is reclined, the risk of sliding under the lap belt and being injured is increased.

sits well back

c Do not leave children unattended in- side the vehicle. They may inadvert- ently activate switches.

Operating tips c The motor has an auto-reset overload protection circuit. If the motor stops dur- ing operation, wait 30 seconds, then re- activate the switch.

c Do not operate the power support seat for a long period of time when the engine is off. This discharges the battery.

2-27


The passenger seat only has the power slide switch and the power recliner switch. Forward and backward adjustment To move the seat forward, push the raised side of the power slide switch. To move the seat backward, push the indented side of the switch. Release the switch to stop the movement of the seat.

Z X

Reclining To recline the seat, push the indented side of the power recliner switch. To return to a more upright position, push the raised side of the switch. Release the switch to stop the movement of the seatback.

APD0805


APD0806


Seat height adjustment To raise the height of the seat, push the raised side of the power seat height switch and release it when the desired position has been reached. To lower the height of the seat, push the indented side of the switch and release it when the desired position has been reached.

Lumbar support To inflate the lumbar support, push the raised side of the power lumbar switch and release it when the desired position has been reached. To deflate the lumbar sup- port, push the indented side of the switch. The power lumbar pump motor continues to operate after the lumbar support is fully inflated. Release the switch when the lum- bar stops inflating.

2-28


Z X

WARNING

c Head restraints should be adjusted properly as they may provide signifi- cant protection against whiplash in- jury. Always replace and adjust them properly if they have been removed for any reason.

c If the head restraints are removed for any reason, they should be securely stored to prevent them from causing damage to passengers or the vehicle in case of sudden braking or colli- sion.

Some seat arrangements may require re- moval of the head restraints when the seat is in a storage position and not to be used by passengers.

APD0022


ARMRESTS To use the armrests on any seat, pull them down to the resting position.

PD1176M

HEAD RESTRAINTS Adjust the top of the head restraints level with the top of your ears. To raise the head restraint, pull it up. To lower, push in the release button and push the head restraint down. To remove the head restraint, push in the button and pull the head restraint up.

2-29


Z X

WARNING

c Never place hard items such as cof- fee mugs or drinking glasses on the tabletop seats when the vehicle is moving. Any item can become a pro- jectile inside a vehicle involved in a collision. To help prevent personal injury, never leave loose items on the folded-down tabletop seats when the vehicle is moving.

c Do not use the tabletop and cup holder feature while the vehicle is in motion unless you are properly seated with your seat belt on.

APD0811


UNDERSEAT STORAGE TRAY Some front passenger seats have an under- seat storage tray.

APD0129


TABLETOP SEATS The second and third row seats convert to tabletop with built-in cupholders. To use the tabletop seats, lift up on the seatback re- lease lever and fold the seatback forward.

2-30


Z X

CUP HOLDER

order that full attention may be given to the driving operation.

c Avoid abrupt starting and braking when the cup holder is being used to prevent spilling the drink. If the liq- uid is hot it can scald you or your passenger.

To use the cup holder, pull the cover away from the side of the front passenger seat. Pull the cup holder out of the cover. To store the cup holder, push it back into the cover and lift the cover to its original position against the side of the seat.

APD0087


WARNING

c The driver should not pull out the cup holder or remove or insert cups into the cup holder while driving in

2-31

Loading...
x
