Operator’s Manual


E-Class Wagon


Order No. 6515 1187 13 Part No. 211 584 09 97 USA Edition B 2007


2 1 1 5 8 4 0 9 9 7


E 350 4MATIC E 63 AMG


Our company and staff congratulate you on the purchase of your new Mercedes-Benz. Your selection of our product is a demon- stration of your trust in our company name. Furthermore, it exemplifies your de- sire to own an automobile that will be as easy as possible to operate and provide years of service. Your Mercedes-Benz represents the ef- forts of many skilled engineers and crafts- men. To help assure your driving pleasure, and also the safety of you and your passen- gers, we ask you to make a small invest- ment of time:


앫 Please read this manual carefully, then return it to your vehicle where it will be handy for your reference.


앫 Please follow the recommendations


contained in this manual. They are de- signed to acquaint you with the opera- tion of your Mercedes-Benz.


앫 Please pay attention to the warnings


and cautions contained in this manual. They are designed to help improve the safety of the vehicle operator and oc- cupants.


We extend our best wishes for many miles of safe, pleasurable driving. Mercedes-Benz USA, LLC A DaimlerChrysler Company


At a glance .......................................... 21
Exterior view......................................... 22

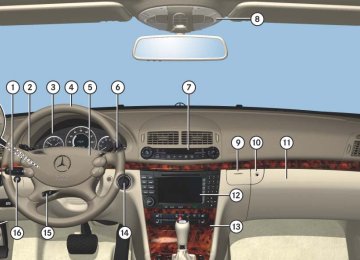

Cockpit................................................. 24
Instrument cluster ................................ 26
Multifunction steering wheel ................ 28
Center console ..................................... 29
Upper part ...................................... 29
Lower part ...................................... 30
Overhead control panel ........................ 31
Storage compartments......................... 32
Door control panel................................ 34


Introduction .......................................... 9
Product information................................ 9
Operator’s Manual............................... 10
Service and warranty information .. 10
Important notice for California retail buyers and lessees of Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the USA or Canada......................... 13
Where to find it.................................... 14
Symbols............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle.................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
Vehicle data recording......................... 19


Information regarding electronic recording devices........................... 19


Contents


Getting started................................... 35
Unlocking ............................................. 36
Unlocking with the SmartKey ......... 36
Unlocking with KEYLESS-GO*......... 37
Starter switch positions.................. 37
Adjusting.............................................. 41
Seats .............................................. 41
Steering wheel................................ 45
Mirrors............................................ 47
Driving.................................................. 49
Fastening the seat belts ................. 49
Starting the engine ......................... 52
Parking brake ................................. 54
Driving ............................................ 55
Switching on headlamps................. 56
Turn signals .................................... 56
Windshield wipers........................... 57
Rear window wiper/washer............ 59
Problems while driving.................... 60
Parking and locking.............................. 61
Parking brake ................................. 62
Switching off headlamps................. 63
Turning off engine........................... 63
Releasing seat belts........................ 64
Locking........................................... 64


Contents


Safety and Security ........................... 67
Occupant safety................................... 68
Air bags .......................................... 70
Occupant Classification System (USA only) ...................................... 75
BabySmartTM air bag deactivation system (Canada only)..................... 81
Seat belts ....................................... 82
Preventive occupant safety (PRE-SAFE®) ................................... 86
Active head restraints .................... 87
Children in the vehicle.................... 88
Blocking of rear door window operation........................................ 95
Panic alarm.......................................... 96
Activating ....................................... 96
Deactivating ................................... 96
Driving safety systems......................... 97
ABS ................................................ 97
BAS ................................................ 99
Adaptive Brake ............................... 99
EBP............................................... 100
ESP®............................................. 100
Four wheel electronic traction system (4MATIC) with the ESP® ... 104


Anti-theft systems ............................. 106
Immobilizer .................................. 106
Anti-theft alarm system................ 106


Controls in detail............................. 109
Locking and unlocking....................... 110
SmartKey ..................................... 110
SmartKey with KEYLESS-GO* ...... 113
Checking batteries in the SmartKey or SmartKey with KEYLESS-GO* .............................. 119
Loss of the SmartKey or SmartKey with KEYLESS-GO* ...... 119
Opening the doors from the inside ........................................... 120
Opening the tailgate..................... 121
Closing the tailgate ...................... 123
Automatic central locking ............ 126
Locking and unlocking from the inside ........................................... 127


Seats ................................................. 128
Front seat active head restraints . 128
Rear seat head restraints............. 128
Lumbar support ........................... 131
Multicontour seat*....................... 131
Seat heating*............................... 132
Seat ventilation*.......................... 133
Folding bench seat in cargo compartment (optional on E 63 AMG)................ 134
Memory function ............................... 138
Storing positions into memory..... 139
Recalling positions from memory. 139
Storing exterior rear view mirror parking position ........................... 140
Lighting ............................................. 141
Exterior lamp switch .................... 141
Combination switch ..................... 145
Corner-illuminating front fog lamps* ......................................... 146
Hazard warning flasher ................ 148
Interior lighting in the front.......... 149
Interior lighting in the rear ........... 150
Door entry lamps ......................... 151
Cargo compartment lamps .......... 151


Instrument cluster ............................. 152


Adjusting instrument cluster illumination .................................. 152
Coolant temperature indicator ..... 153
Trip odometer .............................. 153
Tachometer.................................. 153
Outside temperature indicator ..... 154
Control system .................................. 155
Multifunction display.................... 155
Multifunction steering wheel........ 156
Menus .......................................... 158
Standard display menu ................ 161
AMG menu ................................... 161
AUDIO menu ................................ 165
NAV* menu.................................. 167
Distronic* menu........................... 167
Vehicle status message memory menu.............................. 168
Settings menu.............................. 169
Trip computer menu..................... 183
TEL* menu ................................... 184
Automatic transmission..................... 187
Gear selector lever....................... 187
Shifting procedure ....................... 188
Gear selector lever positions ....... 189
Driving tips................................... 191


Gear ranges .................................. 192
Automatic shift program ............... 193
Gear selector lever one-touch gearshifting................................... 194
Steering wheel gearshift control one-touch gearshifting E 63 AMG . 195
Manual shift program E 63 AMG... 197
Emergency operation (Limp-Home Mode) ....................... 199
Good visibility..................................... 200
Headlamp cleaning system* ......... 200
Rear view mirrors.......................... 200
Sun visors ..................................... 203
Roller sunblind in the rear doors*. 204
Rear window defroster.................. 204
Dual-zone automatic climate control. 206


Deactivating the climate control system .......................................... 211
Operating the climate control system in automatic mode............ 211
Setting the temperature................ 212
Adjusting air distribution............... 213
Adjusting air volume ..................... 214
Front defroster.............................. 214
Maximum cooling MAX COOL (USA only)..................................... 216


Contents


Air recirculation mode .................. 216
Air conditioning ............................ 218
Residual heat and ventilation (Canada only)................................ 219
Rear passenger compartment adjustable air vents ...................... 220
4-zone automatic climate control....... 222


Deactivating the climate control system.......................................... 227
Operating the climate control system in automatic mode ........... 228
Setting the temperature ............... 229
Adjusting air distribution .............. 230
Adjusting air volume ..................... 231
Front defroster ............................. 231
Maximum cooling MAX COOL (USA only)..................................... 232
Air recirculation mode .................. 233
Air conditioning ............................ 235
Residual heat and ventilation (Canada only)................................ 236
Rear climate control ..................... 237


Contents


Power windows.................................. 239
Opening and closing the windows 239
Synchronizing power windows ..... 241
Summer opening feature.............. 241
Convenience closing feature ........ 242
Power tilt/sliding sunroof .................. 243


Opening and closing the power tilt/sliding sunroof ....................... 243
Synchronizing the power tilt/sliding sunroof ....................... 245
Driving systems ................................. 246
Cruise control............................... 246
Distronic*..................................... 249
Airmatic DC (Dual Control) (only available on E 63 AMG)........ 261
Loading.............................................. 266
Split rear bench seat .................... 266
Expanding the cargo compartment................................ 268
Loading instructions..................... 269
Cargo tie-down rings .................... 270
Cargo management system* (Canada only) ............................... 271
Storage box in cargo compartment (Canada only)......... 274
Twin roller blind............................ 275


Vehicles without a third seat bench (E 63 AMG only) - storage space under the cargo compartment floor ....................... 277
Useful features .................................. 280
Storage compartments ................ 280
Cup holders.................................. 282
Ashtrays....................................... 285
Cigarette lighter ........................... 286
Power outlet................................. 287
Heated steering wheel (Canada only) ............................... 288
Floormats..................................... 289
Telephone* .................................. 289
Tele Aid ........................................ 292
Garage door opener ..................... 300


Operation ......................................... 307
The first 1000 miles (1500 km) ........ 308
Driving instructions ........................... 309
Drive sensibly – save fuel............. 309
Drinking and driving..................... 309
Pedals .......................................... 309
Power assistance ......................... 310
Brakes.......................................... 310
Driving off .................................... 312
Parking......................................... 313
Tires............................................. 313
Hydroplaning................................ 314
Tire traction ................................. 314
Tire speed rating .......................... 315
Winter driving instructions ........... 316
Standing water............................. 317
Passenger compartment.............. 317
Driving abroad ............................. 317
Control and operation of radio transmitter................................... 318
Catalytic converter....................... 318
Emission control .......................... 319
Coolant temperature.................... 320


Maximum tire inflation pressure ... 355
Uniform Tire Quality Grading Standards (U.S. vehicles).............. 356
Tire ply material ............................ 358
Tire and loading terminology......... 358
Rotating tires ................................ 361
Winter driving ..................................... 363
Winter tires ................................... 363
Block heater* (Canada only) ......... 364
Snow chains.................................. 364
Maintenance....................................... 365


Maintenance service indicator message ....................................... 365
Calling up the maintenance service indicator display ............... 367
Resetting the maintenance service indicator ........................... 367
Vehicle care........................................ 368
Cleaning and care of vehicle ......... 368


At the gas station .............................. 321
Refueling...................................... 321
Check regularly and before a long trip........................................ 322
Engine compartment ......................... 324
Hood ............................................ 324
Engine oil ..................................... 326
Transmission fluid level................ 328
Coolant level ................................ 329
Battery ......................................... 330
Windshield/rear window washer system and headlamp cleaning system* ....................................... 331
Tires and wheels................................ 332
Important guidelines .................... 332
Tire care and maintenance........... 333
Direction of rotation..................... 335
Loading the vehicle ...................... 335
Recommended tire inflation pressure....................................... 340
Checking tire inflation pressure ... 341
Tire labeling.................................. 349
Load identification ....................... 353
DOT, Tire Identification Number (TIN) ............................................. 353
Maximum tire load ....................... 355


Contents


Practical hints .................................. 377
What to do if …................................... 378
Lamps in instrument cluster ......... 378
Lamp in center console ................ 391
Vehicle status messages in the multifunction display .................... 394
Where will I find ...? ............................ 430
First aid kit.................................... 430
Vehicle tool kit, jack and spare wheel ............................................ 430
Unlocking/locking in an emergency .. 435
Unlocking the vehicle ................... 435
Locking the vehicle....................... 436
Manually unlocking the gear selector lever................................ 437
Opening/closing in an emergency ..... 438
Power tilt/sliding sunroof............. 438
Resetting activated head restraints.... 439
Replacing SmartKey batteries ............ 440


SmartKey/SmartKey with KEYLESS-GO*............................... 440
Replacing bulbs.................................. 442
Bulbs............................................. 442
Replacing bulbs for front lamps .... 444
Replacing bulbs for rear lamps ..... 447


Contents


Replacing wiper blades ...................... 448


Placing front wiper arms in vertical position............................ 448
Removing front wiper blades........ 449
Installing front wiper blades ......... 449
Removing rear wiper blade........... 449
Installing rear wiper blade ............ 450
Flat tire .............................................. 451
Preparing the vehicle.................... 451
Sealing tires with TIREFIT ............. 451
Mounting the spare wheel............ 456
Battery ............................................... 462
Disconnecting the battery ............ 464
Removing the battery ................... 464
Charging and reinstalling the battery.......................................... 465
Reconnecting the battery ............. 465
Jump starting ..................................... 466
Towing the vehicle ............................. 468
Installing towing eye bolt.............. 470
Fuses ................................................. 471


Fuse box in passenger compartment................................ 472
Fuse box in cargo compartment... 472


Technical data ................................. 473
Parts service...................................... 474
Warranty coverage............................. 475


Loss of Service and Warranty Information Booklet ..................... 475
Identification labels ........................... 476
Layout of poly-V-belt drive................. 478
E 350 4MATIC .............................. 478
E 63 AMG..................................... 478
Engine................................................ 479
Rims and tires.................................... 480
Same size tires............................. 481
Mixed size tires ............................ 482
Spare wheel ................................. 483
Electrical system ............................... 484
Main dimensions and weight ............. 485
Main dimensions.......................... 485
Weight.......................................... 485


Fuels, coolants, lubricants etc........... 486
Capacities .................................... 486
Engine oils ................................... 489
Engine oil additives ...................... 489
Air conditioning refrigerant .......... 489
Brake fluid.................................... 489
Premium unleaded gasoline......... 490
Fuel requirements........................ 490
Gasoline additives........................ 491
Coolants ...................................... 491
Windshield washer system and headlamp cleaning system*......... 494


Index................................................. 495


Introduction Product information


Product information


왔 Please observe the following in your own best interest: We recommend using Genuine Mercedes-Benz Parts as well as conversion parts and accessories explicitly approved by us for your vehicle model. We have tested these parts to determine their reliability, safety and special suitability for Mercedes-Benz vehicles.


We are unable to make an assessment for other products and therefore cannot be held responsible for them, even if in indi- vidual cases an official approval or authori- zation by governmental or other agencies should exist. Use of such parts and acces- sories could adversely affect the safety, performance or reliability of your vehicle. Please do not use them.


Genuine Mercedes-Benz Parts as well as conversion parts and accessories approved by us are available at your authorized Mercedes-Benz Center where you will receive comprehensive informa- tion, also on permissible technical modifi- cations, and where proper installation will be performed.


Introduction Operator’s Manual


This Operator’s Manual contains a great deal of useful information. We urge you to read it carefully and familiarize yourself with the vehicle before driving. For your own safety and longer service life of the vehicle, we urge you to follow the in- structions and warnings contained in this manual. Ignoring them could result in dam- age to the vehicle or personal injury to you or others. Vehicle damage caused by fail- ure to follow instructions is not covered by the Mercedes-Benz Limited Warranty. Your vehicle may have some or all of the equipment described in this manual. Therefore, you may find explanations for optional equipment not installed in your vehicle. If you have any questions about the operation of any equipment, your au- thorized Mercedes-Benz Center will be glad to demonstrate the proper proce- dures.


We continuously strive to improve our product, and ask for your understanding that we reserve the right to make changes in design and equipment. Therefore, infor- mation, illustrations and descriptions in this Operator’s Manual might differ from your vehicle. Optional equipment is also described in this manual, including operating instruc- tions wherever necessary. Since they are special-order items, the descriptions and illustrations herein may vary slightly from the actual equipment of your vehicle. If there are any equipment details that are not shown or described in this Operator’s Manual, your authorized Mercedes-Benz Center will be glad to inform you of correct care and operating procedures. The Operator’s Manual and Maintenance Book- let are important documents and should be kept with the vehicle.


Service and warranty information


The Service and Warranty Information Booklet contains detailed information about the warranties covering your Mercedes-Benz, including: 앫 New Vehicle Limited Warranty 앫 Emission System Warranty 앫 Emission Performance Warranty 앫 California, Maine, Massachusetts, New York, and Vermont Emission Control System Warranty (California, Maine, Massachusetts, New York, and Vermont only)


앫 State Warranty Enforcement Laws


(Lemon Laws)


10


(1) the same substantial defect or mal-


function results in a condition that is likely to cause death or serious bodily injury if the vehicle is driven, that de- fect or malfunction has been subject to repair two or more times, and you have directly notified Mercedes-Benz USA, LLC in writing of the need for its repair,


(2) the same substantial defect or mal-


function of a less serious nature than category (1) has been subject to repair four or more times and you have direct- ly notified us in writing of the need for its repair, or


Important notice for California retail buyers and lessees of Mercedes-Benz automobiles


Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price or lease price, if Mercedes-Benz USA, LLC and/or its au- thorized repair or service facilities fail to fix one or more substantial defects or mal- functions in the vehicle that are covered by its express warranty after a reasonable number of repair attempts. During the pe- riod of 18 months from original delivery of the vehicle or the accumulation of 18000 miles (approximately 29000 km) on the odometer of the vehicle, whichever occurs first, a reasonable number of repair attempts is presumed for a retail buyer or lessee if one or more of the following oc- curs:


Introduction Operator’s Manual


(3) the vehicle is out of service by reason of repair of the same or different sub- stantial defects or malfunctions for a cumulative total of more than 30 calendar days.


Written notification should not be sent to a dealer, it should be addressed to Mercedes-Benz USA, LLC Customer Assistance Center One Mercedes Drive Montvale, NJ 07645-0350


11


Introduction Operator’s Manual


Maintenance


Roadside Assistance


Change of address or ownership


The Maintenance Booklet describes all the necessary maintenance work which should be performed at regular intervals. Always have the Maintenance Booklet with you when you take the vehicle to your au- thorized Mercedes-Benz Center for ser- vice. The service advisor will record each service in the booklet for you.


The Mercedes-Benz Roadside Assistance Program provides factory trained technical help in the event of a breakdown. Calls to the toll-free Roadside Assistance number 1-800-FOR-MERCedes (in the USA) 1-800-387-0100 (in Canada) will be answered by Mercedes-Benz Customer Assistance Representatives 24 hours a day, 365 days a year. For additional information refer to the Mercedes-Benz Roadside Assistance Pro- gram brochure in your vehicle literature portfolio.


If you change your address, be sure to send in the “Change of Address Notice” found in the Service and Warranty Informa- tion Booklet, or simply call the Mercedes-Benz Customer Assistance Center (in the USA) at 1-800-FOR-MERCedes, or Customer Ser- vice (in Canada) at 1-800-387-0100. It is in your own interest that we can contact you should the need arise. If you sell your Mercedes, please leave all literature with the vehicle to make it avail- able to the next operator. If you bought this vehicle used, be sure to send in the “Notice of Purchase of Used Car” found in the Service and Warranty In- formation Booklet, or call the Mercedes-Benz Customer Assistance Cen- ter (in the USA) at 1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100.


12


Operating your vehicle outside the USA or Canada


If you plan to operate your vehicle in for- eign countries, please be aware that: 앫 service facilities or replacement parts


may not be readily available,


앫 unleaded gasoline for vehicles with cat- alytic converters may not be available; the use of leaded fuels will damage the catalysts,


앫 gasoline may have a considerably low- er octane rating, and improper fuel can cause engine damage.


Certain Mercedes-Benz models are avail- able for delivery in Europe under our Euro- pean Delivery Program. For details, consult your authorized Mercedes-Benz Center or write to: In the USA: Mercedes-Benz USA, LLC European Delivery Department One Mercedes Drive Montvale, NJ 07645-0350
In Canada: Mercedes-Benz Canada, Inc. European Delivery Department 98 Vanderhoof Avenue Toronto, Ontario M4G 4C9


Introduction Operator’s Manual


13


Introduction Where to find it


This Operator’s Manual is designed to pro- vide comprehensive support information for you, the vehicle operator. Each section has its own reference color.


At a glance Here you will find an overview of all the controls that can be operated from the driver’s seat.


Getting started Here you will find all the information you need for your first drive. You should read this section first if this is your first Mercedes-Benz vehicle or if you are rent- ing or borrowing this vehicle.


Safety and Security Here you will find descriptions of the safety and security features of your vehicle.


14


Controls in detail Here you will find detailed information about the equipment installed in your vehi- cle. This section expands on the “Getting started” section and also describes techni- cal innovations. If you are already familiar with the basic functions of your vehicle, this section will be of particular interest to you.


Operation Here you will find all the information you need for the proper operation of your vehi- cle.


Practical hints This section provides fast assistance for dealing with problems you may encounter.


Technical data All important technical data for your vehi- cle can be found in this section.


Indexes The table of contents and the index are de- signed to help you find information quickly and easily. The following publications are part of your vehicle documentation: 앫 this Operator’s Manual 앫 the Maintenance Booklet Separate operating instructions will be provided as required depending on the equipment options installed in your vehi- cle.


왔 Symbols Registered trademarks®: 앫 ESP® is a registered trademark of


DaimlerChrysler.


앫 BabySmartTM is a trademark of


Siemens Automotive Corp.


앫 HomeLink® is a registered trademark of Prince, a Johnson Controls Compa- ny.


The following symbols are found in this Operator’s Manual:


Optional equipment is identified with an asterisk. Since standard equipment varies between models, the descriptions and illustrations in this manual may differ slightly from the actual equipment of your vehi- cle.


Warning!


컄 page


컄컄


컄컄


->


Warning notices draw your attention to haz- ards that may endanger your health or life, or the health or life of others.


! Highlights hazards that may result in dam- age to your vehicle.


i Helpful hints or further information you may find useful. 왘 This symbol points to instructions for


you to follow.


왘 A number of these symbols appearing in succession indicates a multiple-step procedure.


Introduction Symbols


This symbol tells you where to look for further information on a topic. This continuation symbol marks a warning which is continued on the next page. This continuation symbol marks a procedure which is continued on the next page. This symbol is used to indicate cross-references to term defini- tions.


Display Words appearing in the multi- function display are printed in the type shown here.


15


Introduction Operating safety


Warning!


Warning!


Proper use of the vehicle


Work improperly carried out on electronic components and associated software could cause them to cease functioning. Because the vehicle’s electronic components are in- terconnected, any modifications made may produce an undesired effect on other sys- tems. Electronic malfunctions could seri- ously impair the operating safety of your vehicle.


Contact your authorized Mercedes-Benz Center for repairs or modifications to elec- tronic components.


Other improper work or modifications on the vehicle could also have a negative impact on the operating safety of the vehicle.


Some safety systems only function while the engine is running. You should therefore nev- er turn off the engine while driving.


Heavy blows against the vehicle underbody or tires/wheels, for example when running over an obstacle, road debris or a pothole, may cause serious damage to and impair the operating safety of your vehicle. If you feel a sudden strong vibration or ride disturbance, or you suspect that damage to your vehicle has occurred, you should turn on your haz- ard warning flashers, carefully slow down, and drive with caution to an area which is a safe distance from the road.


Inspect the vehicle underbody and tires/wheels for possible damage. If the ve- hicle appears unsafe, have it towed to the nearest authorized Mercedes-Benz Center or other qualified maintenance or repair fa- cility for further inspection or repairs.


Proper use of the vehicle requires that you are familiar with the following information and rules: 앫 the safety precautions in this manual 앫 the “Technical data” section in this


manual


앫 traffic rules and regulations 앫 motor vehicle laws and safety stan-


dards


Warning!


Various warning labels are attached to your vehicle. These warning labels are intended to make you and others aware of various risks. You should not remove any of these warning labels unless explicitly instructed to do so by information on the label itself. Re- moval of any of these labels may cause you and others to be unaware of certain risks which may result in an accident and/or per- sonal injury.


16


Introduction Problems with your vehicle


왔 Problems with your vehicle If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to immediately contact an authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is not handled to your satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if necessary contact us at one of the following addresses: In the USA: Customer Assistance Center Mercedes-Benz USA, LLC One Mercedes Drive Montvale, NJ 07645-0350
In Canada: Customer Relations Department Mercedes-Benz Canada, Inc. 98 Vanderhoof Avenue Toronto, Ontario M4G 4C9


17


Introduction Reporting safety defects


For the USA only: The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the “National Traffic and Motor Vehicle Safety Act of 1966”.


Reporting safety defects


If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Mercedes-Benz USA, LLC. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://www.safercar.gov.


18


Introduction Vehicle data recording


왔 Vehicle data recording Information regarding electronic recording devices


(Including notice pursuant to California Code § 9951) Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system, may transmit some data in certain accidents. This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety. DaimlerChrysler may access the information and share it with others 앫 for safety research or vehicle diagnosis purposes 앫 with the consent of the vehicle owner or lessee 앫 in response to an official request by law enforcement or other government agency 앫 for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or 앫 as otherwise required or permitted by law. Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted via that system.


19


20


At a glance


Exterior view Cockpit Instrument cluster Multifunction steering wheel Center console Overhead control panel Storage compartments Door control panel


21


At a glance Exterior view


22


At a glance Exterior view


Item


1 Tailgate


앫 Unlocking 앫 Opening and closing


앫 Spare wheel 앫 Vehicle tool kit


2 Rear lamps 3 Rear window, defrosting 4 Fuel filler flap


Gasoline


5 Doors


앫 Locking and unlocking 앫 Opening and closing


Page


Item


6 Towing eye bolt


General information


7 Rims and tires


앫 Checking tire inflation


pressure


앫 Spare wheel 앫 Flat tire 8 Front lamps 9 Hood, opening


Engine oil Coolant


121
121, 123
433
431
443
204
321
490


110
120


Item


a Windshield wipers


Wiper blades, replacing Wiper blades, cleaning


b Window, cleaning c Roof


앫 Power tilt/sliding sun-


roof


d Exterior rear view mirror


Parking position


e Headlamp cleaning system*


Page 57
448
372
372


243


47
140
200


Page 470
468
480
341


433
451
442
324
326
329


23


At a glance Cockpit


24


Item


Page


Item


1 Combination switch


앫 Turn signals 앫 Windshield wipers 앫 Rear window wiper 앫 High beam


2 Cruise control lever


앫 Cruise control 앫 Distronic*


3 Instrument cluster


4 Multifunction steering


wheel 5 Horn 6 Lever for Voice Control System*, see separate operating instructions


56
57
59
56


246
249
26, 152
28, 156


7 Dual-zone automatic


climate control, USA only 4-zone automatic climate control*


8 Overhead control panel 9 Mobile phone/Glasses box a Glove box lid release, glove


box lock b Glove box c COMAND system, see sepa- rate operating instructions


d Center console e Starter switch


At a glance Cockpit


Page 206


222


31
280
280


280


29
38


Item


f Steering wheel adjustment


stalk Heated steering wheel (Canada only)


g Headlamp cleaning button* h Parking brake pedal j Hood lock release k Parking brake release l Door control panel m Exterior lamp switch n Steering wheel gearshift control (E 63 AMG only)


Page 45


288


200
54, 62
324
54
34
141
195


25


At a glance Instrument cluster


26


Item


Page


Item


Page


1 L Left turn signal indicator lamp


2 v ESP® warning lamp 3 Speedometer 4 Multifunction display 5 l Distance warning lamp Vehicles without Distronic*: Warning lamp without func- tion. It illuminates when the ignition is on. It should go out when the engine is running.


6 K Right turn signal


indicator lamp


7 Coolant temperature


indicator with: • Coolant temperature


153


384


warning lamp


379


155
385


8 Tachometer with:


1 Supplemental


388


Restraint System (SRS) indicator lamp


- Antilock Brake System


378


(ABS) indicator lamp


< Seat belt telltale B Low beam headlamp


386
56


indicator lamp


A High beam headlamp


56


indicator lamp 9 Main odometer with: 앫 Gear selector lever


position


앫 Program mode


a Clock with:


; Brake warning lamp,


USA only


3 Brake warning lamp,


Canada only


189


193
174
381


381


At a glance Instrument cluster


Item ú Engine malfunction


Page 382


indicator lamp, USA only


± Engine malfunction


382


indicator lamp, Canada only


H Low tire pressure tell-


389


tale*, Canada only


b Fuel display with:


A Fuel tank reserve


385


warning lamp


c Reset button for:


앫 Resetting trip odometer 앫 Adjusting instrument


cluster illumination


앫 Confirming new time


settings


153
152


174


27


At a glance Multifunction steering wheel


28


Page


Page 155


156


Item


4 Menu systems:


Press button è for next menu ÿ for previous menu


5 Moving within a menu:


Press button j for next display k for previous display


Item


1 Multifunction display in


speedometer Operating control system 2 Selecting the submenu or


setting the volume: Press button æ up/to increase ç down/to decrease


3 Telephone*: Press button s to take a call


to dial to redial


t to end a call


to reject an incoming call


왔 Center console Upper part


At a glance Center console


Page 127


Item


8 Central locking switch 9 Opening/closing button for


CD changer, see separate COMAND operating instruc- tions


a Seat ventilation*, driver’s


133


side


Item


1 Seat heating*, driver’s side 2 Hazard warning flasher


switch


Page 132
148


3 Front passenger front air


79, 81


bag off indicator lamp


4 Central unlocking switch 5 Electronic Stability Program


127
102


(ESP®) control switch


6 Seat heating*, front passen-


132


ger side


7 Seat ventilation*, front pas-


133


senger side


29


Item


1 Ashtray 2 KEYLESS-GO* start/stop


button


3 Gear selector lever for automatic transmission


4 Adaptive Damping System


(ADS) switch1


5 Vehicle level control switch1
1 Only available on E 63 AMG.


Page 285
39


52, 187
262


265


Item


6 Thumbwheel for setting distance for Distronic*


Page 257


7 Distance warning function*


258


on/off switch


8 Program mode selector


193


switch for automatic transmission


At a glance Center console


Lower part


30


왔 Overhead control panel


Item


1 Rear interior lighting on/off 2 Automatic interior lighting 3 Front interior lighting on/off 4 Right reading lamp on/off 5 Tilt/sliding sunroof 6 Tele Aid (emergency call


system) button 7 Rear view mirror


Page 150
149
149
149
243
295


200


At a glance Overhead control panel


Item


8 Front reading lamps 9 Garage door opener a Hands-free microphone for


Tele Aid (emergency call system), telephone*, and Voice Control System*, see separate operating instruc- tions


b Ambient lighting c Interior lighting d Left front reading lamp


on/off


Page 150
300


292
184


151


150


31


At a glance Storage compartments


32


Item


1 Glove box 2 Front passenger seat storage compartment with first aid kit


3 Door pocket 4 Ashtray 5 Ruffled storage bag 6 Door pocket 7 Door pocket 8 Ruffled storage bag 9 Ashtray a Door pocket b Driver’s seat storage compart-


Page 280
430


285
281


281
285


430


ment


c Sun visor card clip d CD changer


Item


e Ashtray with cigarette lighter f Mobile phone/Glasses box g Parcel net in front passenger


footwell


Page 286
280
282


h Storage compartment with


283


cup holders/telephone* com- partment


j Rear storage compartment in


280


the rear center console


283
281


274


k Cup holder in the rear armrest l Storage compartment in the


rear armrest


m Storage box, Canada only n Storage compartment* o Luggage box (Vehicles without foldable third row, E 63 AMG only)


p Storage compartment*


At a glance Storage compartments


33


Item


1 Inside door handle 2 Seat adjustment 3 Memory function (for stor-


ing seat, exterior mirror and steering wheel settings)


Page 120
43
138


4 Exterior rear view mirror ad-


47


justment


5 Switches for opening/clos- ing front and rear side win- dows, rear window override switch


239


6 Remote tailgate release


121


switch, tailgate opening sys- tem*


At a glance Door control panel


34


Getting started


Unlocking Adjusting Driving Parking and locking


35


Getting started Unlocking


The “Getting started” section provides an overview of the vehicle’s most basic functions. If you are already familiar with the basic functions described here, the “Controls in detail” section will provide you with further information. The corresponding page references are located at the end of each segment.


Unlocking with the SmartKey


SmartKey with remote control 1 ‹ Lock button 2 Š Opening button for tailgate* 3 Œ Unlock button 4  Panic button (컄 page 96)


36


Warning!


When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child’s un- supervised access to a vehicle could result in an accident and/or serious personal inju- ry.


왘 Press unlock button Œ on the


SmartKey. 앫 All turn signal lamps flash once. 앫 An acoustic signal sounds once. 앫 The locking knobs in the doors


move up.


앫 The anti-theft alarm system is dis-


armed.


왘 Get in the vehicle and insert the SmartKey in the starter switch.


For more information, see “Locking and unlocking” (컄 page 110).


Unlocking with KEYLESS-GO*


왘 Pull an outside door handle.


Starter switch positions


Getting started Unlocking


앫 All turn signal lamps flash once. 앫 An acoustic signal sounds once. 앫 The locking knobs in the doors


move up.


앫 The anti-theft alarm system is dis-


armed.


왘 Get in the vehicle. For more information, see “SmartKey with KEYLESS-GO*” (컄 page 113).


Warning!


When leaving the vehicle, always remove the SmartKey or SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised ac- cess to a vehicle could result in an accident and/or serious personal injury.


With the KEYLESS-GO function, you can lock and unlock the vehicle without using the remote control buttons on the SmartKey and start the engine without in- serting the SmartKey in the starter switch.


Warning!


When leaving the vehicle, always take the SmartKey with KEYLESS-GO with you, and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised ac- cess to a vehicle could result in an accident and/or serious personal injury.


i To unlock the vehicle, the SmartKey with KEYLESS-GO must be outside the vehicle, no fur- ther than approximately 3 feet (1 meter) away from the door.


37


Getting started Unlocking


SmartKey


Starter switch 0 For removing SmartKey 1 Power supply for some electrical con-


sumers, such as seat adjustment


38


2 Ignition (power supply for all electrical


consumers) and driving position. All lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indica- tor lamps unless activated) in the instrument cluster come on. If a lamp in the instrument cluster fails to come on when the ignition is switched on, have it checked and replaced if neces- sary. If a lamp in the instrument cluster remains on after starting the engine or comes on while driving, refer to “Lamps in instrument cluster” (컄 page 378).


3 Starting position


i When you switch on the ignition, the indica- tor and warning lamps (except low beam head- lamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless activated) in the instrument cluster come on. The indicator and warning lamps (except low beam headlamp indicator lamp, high beam head- lamp indicator lamp, and turn signal indicator lamps if activated) should go out when the en- gine is running. This indicates that the respective systems are operational.


i The SmartKey can only be removed from the starter switch with the gear selector lever in po- sition P.


i If the SmartKey is left in starter switch position 0 for an extended period of time, it can no longer be turned in the switch. In this case, the steering is locked. To unlock, remove SmartKey from the starter switch and reinsert.


! If the SmartKey cannot be turned in the starter switch, the battery may not be sufficient- ly charged. 앫 Check the battery and charge it if necessary


(컄 page 440).


앫 Get a jump start (컄 page 466). To prevent accelerated battery discharge or a completely discharged battery, always remove the SmartKey from the starter switch when the engine is not in operation.


For information on starting the engine using the SmartKey, see “Starting with the SmartKey” (컄 page 52).


SmartKey with KEYLESS-GO* If the SmartKey with KEYLESS-GO is inside the vehicle, pressing the KEYLESS-GO start/stop button on the gear selector le- ver corresponds to turning the SmartKey to the various starter switch positions. If you firmly depress the brake pedal dur- ing pressing the KEYLESS-GO start/stop button, the engine starts automatically.


i The function of the SmartKey overrules the KEYLESS-GO function.


KEYLESS-GO start/stop button 1 USA only 2 Canada only The SmartKey with KEYLESS-GO must be located in the vehicle. 왘 Make sure the gear selector lever is set


to P.


왘 Do not depress the brake pedal.


Getting started Unlocking


Position 0
Before you press the KEYLESS-GO start/ stop button, the vehicle’s on-board elec- tronics have status 0 (as with SmartKey removed).


Position 1
왘 Press KEYLESS-GO start/stop button


once. This supplies power for some electrical consumers, such as seat adjustment.


i If you now press the KEYLESS-GO start/stop button 앫 once again, the ignition (position 2) is


switched on


앫 twice, the power supply is again switched off


39


i When you switch on the ignition, the indica- tor and warning lamps (except low beam head- lamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless activated) in the instrument cluster come on. The indicator and warning lamps (except low beam headlamp indicator lamp, high beam head- lamp indicator lamp, and turn signal indicator lamps if activated) should go out when the en- gine is running. This indicates that the respective systems are operational.


For information on starting the engine us- ing the KEYLESS-GO start/stop button, see “Starting with KEYLESS-GO*” (컄 page 53).


Getting started Unlocking


Ignition (or position 2) 왘 Press KEYLESS-GO start/stop button


twice. This supplies power for all electrical consumers. All lamps in the instrument cluster (except low beam headlamp in- dicator lamp, high beam headlamp indicator lamp, and turn signal indica- tor lamps unless activated) come on. If a lamp in the instrument cluster fails to come on when the ignition is switched on, have it checked and replaced if nec- essary. If a lamp in the instrument clus- ter remains on after starting the engine or comes on while driving, see “Lamps in instrument cluster” (컄 page 378).


i If you now press the KEYLESS-GO start/stop button once, the power supply is again switched off.


40


왔 Adjusting


Warning!


Seats


All seat, head restraint, steering wheel, and rear view mirror adjustments, as well as fas- tening of seat belts, must be done before the vehicle is put into motion.


Warning!


Do not adjust the driver’s seat while driving. Adjusting the seat while driving could cause the driver to lose control of the vehicle.


Never ride in a moving vehicle with the seat backrest in an excessively reclined position as this can be dangerous. You could slide under the seat belt in a collision. If you slide under it, the seat belt would apply force at the abdomen or neck. That could cause se- rious or fatal injuries. The seat back and seat belts provide the best restraint when the wearer is in a nearly upright position and seat belts are properly positioned on the body.


Getting started Adjusting


Warning!


Your seat must be adjusted so that you can correctly fasten your seat belt (컄 page 49). Observe the following points: 앫 Adjust the backrest until your arms are slightly angled when holding the steer- ing wheel.


앫 Adjust the seat to a comfortable seating position that still allows you to reach the accelerator/brake pedal safely. The po- sition should be as far to the rear as pos- sible, consistent with ability to properly operate controls.


앫 Adjust the head restraint so that it is as


close to the head as possible and the center of the head restraint supports the back of the head at eye level.


앫 Never place hands under the seat or


near any moving parts while a seat is be- ing adjusted.


Failure to do so could result in an accident and/or serious personal injury.


41


A child’s risk of serious or fatal injuries is significantly increased if the child restraints are not properly secured in the vehicle and the child is not properly secured in the child restraint.


Getting started Adjusting


Warning!


Warning!


When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle.


Even with the SmartKey or the SmartKey with KEYLESS-GO* removed from the start- er switch or the SmartKey with KEYLESS-GO* removed from the vehicle, the power seats can be operated when the respective door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised access to a vehicle could re- sult in an accident and/or serious personal injury.


Canada only: Children 12 years old and un- der must never ride in the front seat, except in a Mercedes-Benz authorized BabySmartTM compatible child seat, which operates with the BabySmartTM system in- stalled in the vehicle to deactivate the front passenger front air bag when it is properly installed. Otherwise they will be struck by the air bag when it inflates in a crash. If this happens, serious or fatal injury will result.


According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats. Re- gardless of seating position, children 12 years old and under must be seated and properly secured in an appropriately sized infant restraint, toddler restraint, or booster seat recommended for the size and weight of the child. For additional information, see “Children in the vehicle” (컄 page 88).


42


Seat adjustment The seat adjustment switches are located on the front doors.


i The memory function (컄 page 138) lets you store the settings for the seat position together with the settings for the steering wheel and the exterior rear view mirrors.


Head restraint height 왘 Press the switch up or down in direc-


tion of arrow 5.


Getting started Adjusting


1 Seat fore and aft adjustment 2 Backrest tilt 3 Seat height 4 Seat cushion tilt 5 Head restraint height 왘 Switch on the ignition (컄 page 37). or 왘 Open the respective door.


i Adjust the head restraint in such a way that it is as close to the head as possible.


Warning!


For your protection, drive only with properly positioned head restraints.


Adjust head restraint so that the center of the head restraint supports the back of the head at eye level. This will reduce the poten- tial for injury to the head and neck in the event of an accident or similar situation.


Do not drive the vehicle without the seat head restraints. Head restraints are intend- ed to help reduce injuries during an acci- dent.


Seat fore and aft adjustment 왘 Press the switch forward or backward


in direction of arrow 1.


! When moving the seat, make sure there are no items in the footwell or behind the seats. Oth- erwise you could damage the seats.


Seat cushion tilt 왘 Press the switch up or down in direc- tion of arrow 4 until your upper legs are lightly supported.


Backrest tilt 왘 Press the switch forward or backward


in direction of arrow 2.


Seat height 왘 Press the switch up or down in direc-


tion of arrow 3.


43


To move the head restraint forward or backward: 왘 Pull or push head restraint in direction


of arrow 2.


i Adjust the head restraint in such a way that it is as close to the head as possible.


For more information on seats, see “Seats” (컄 page 128).


Getting started Adjusting


Head restraint adjusting


Comfort head restraint* adjusting


Manually adjust the head restraint. 왘 Push or pull on the upper edge of the head restraint cushion to the desired position.


1 Head restraint side adjustment 2 Head restraint fore and aft adjustment


Warning!


When folding back the side cushions, never reach between the side cushion and the mounting post. You could otherwise be trapped.


To adjust the head restraint sides: 왘 Pull or push sides 1 into desired posi-


tion.


44


Steering wheel


Warning!


Steering wheel adjustment The steering wheel adjustment stalk is lo- cated on the lower left of the steering col- umn.


Do not adjust the steering wheel while driv- ing. Adjusting the steering wheel while driv- ing could cause the driver to lose control of the vehicle.


When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle.


Even with the SmartKey or the SmartKey with KEYLESS-GO* removed from the start- er switch or the SmartKey with KEYLESS-GO* removed from the vehicle, the steering wheel adjustment feature can be operated when the driver’s door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised access to a vehicle could result in an accident and/or serious personal injury.


1 Adjusting steering column, in or out 2 Adjusting steering column, up or down 왘 Switch on the ignition (컄 page 37). or 왘 Open the driver’s door. i The memory function (컄 page 138) lets you store the settings for the steering wheel together with the settings for the exterior rear view mir- rors and the driver’s seat position.


Getting started Adjusting


Adjusting steering column in or out 왘 Move stalk in direction of arrows 1


until a comfortable steering wheel posi- tion is reached with your arms slightly bent at the elbow.


Adjusting steering column up or down 왘 Move stalk in direction of arrows 2. Make sure your legs can move freely and all the displays (incl. malfunction and indicator lamps) on the instrument cluster are clearly visible.


45


Getting started Adjusting


Easy-entry/exit feature This feature allows for easier entry into and exit from the vehicle. When entering and exiting the vehicle, the steering wheel is in its uppermost position. The easy-entry/exit feature can be activat- ed or deactivated in the Convenience sub- menu of the control system (컄 page 181). With the easy-entry/exit feature activated, the steering wheel will return to its last set position when you: 앫 close the driver’s door with the ignition


Do not leave children unattended in the ve- hicle, or with access to an unlocked vehicle. Children could open the driver’s door and unintentionally activate the easy-entry/exit feature, which could result in an accident and/or serious personal injury.


Warning!


You must make sure no one can become trapped or injured by the moving steering wheel when the easy-entry/exit feature is activated.


To stop steering wheel movement, do one of the following: 앫 Move steering wheel adjustment stalk. 앫 Press one of the memory position


buttons (컄 page 139).


switched on or


앫 insert the SmartKey into the starter


switch or press the KEYLESS-GO* start/stop button (컄 page 39) once with the driver’s door closed


i The last set steering wheel position is stored when 앫 the ignition is switched off (컄 page 63) 앫 the position is stored in memory


(컄 page 139)


46


With the easy-entry/exit feature activated, the steering wheel tilts upwards when you: 앫 remove the SmartKey from the starter


switch or


앫 open the driver’s door with the


SmartKey in starter switch position 0 or 1 or the KEYLESS-GO* start/stop button (컄 page 39) in position 1


i If the current position for the steering wheel is in the uppermost tilt position, the steering wheel will no longer be able to move upward when the easy-entry/exit feature is activated. The adjustment procedure is briefly interrupted when the engine is started.


Warning!


Mirrors


Let the system complete the adjustment procedure before setting the vehicle in mo- tion. All steering wheel adjustment must be completed before setting the vehicle in mo- tion. Driving off with the steering wheel still adjusting could cause the driver to lose con- trol of the vehicle.


Adjust the interior and exterior rear view mirrors before driving so that you have a good view of the road and traffic condi- tions.


Getting started Adjusting


Interior rear view mirror 왘 Manually adjust the interior rear view


mirror.


For more information, see “Rear view mir- rors” (컄 page 200).


Warning!


Exterior rear view mirrors
