Operator’s Manual E-Class Wagon


Ê5/t3g/Ë


2115841971


Order No. 6515 1158 13 Part No. 211 584 19 71 USA Edition B 2006


E 350
E 350 4MATIC E 500 4MATIC E 55 AMG


Our company and staff congratulate you on the purchase of your new Mercedes-Benz. Your selection of our product is a demon- stration of your trust in our company name. Furthermore, it exemplifies your de- sire to own an automobile that will be as easy as possible to operate and provide years of service. Your Mercedes-Benz represents the ef- forts of many skilled engineers and crafts- men. To help assure your driving pleasure, as well as your and your passengers' safe- ty, we ask you to make a small investment of time:


앫 Please read this manual carefully, then return it to your vehicle where it will be handy for your reference.


앫 Please follow the recommendations


contained in this manual. They are de- signed to assist you with the operation of your Mercedes-Benz.


앫 Please pay attention to the warnings


and cautions contained in this manual. They are designed to help improve the safety of the vehicle operator and oc- cupants.


We extend our best wishes for many miles of safe, pleasurable driving. Mercedes-Benz USA, LLC A DaimlerChrysler Company


At a glance .......................................... 21

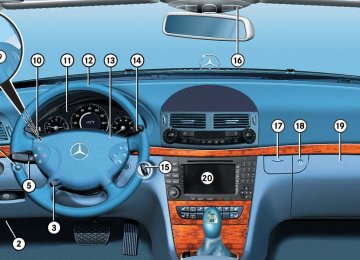

Cockpit................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 26
Center console ..................................... 27
Upper part ...................................... 27
Lower part ...................................... 28
Overhead control panel ........................ 29
Storage compartments......................... 30
Door control panel................................ 32


Introduction.......................................... 9
Product information................................ 9
Operator’s Manual............................... 10
Service and warranty information .. 10
Important notice for California retail buyers and lessees of Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the USA or Canada......................... 13
Where to find it.................................... 14
Symbols............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle.................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
Vehicle data recording......................... 19


Information regarding electronic recording devices........................... 19


Contents


Getting started................................... 33
Unlocking ............................................. 34
Unlocking with the SmartKey ......... 34
Unlocking with KEYLESS-GO*......... 35
Starter switch positions.................. 36
Adjusting .............................................. 40
Seats .............................................. 40
Steering wheel................................ 42
Mirrors............................................ 45
Driving.................................................. 47
Fastening the seat belts ................. 47
Starting the engine ......................... 50
Parking brake ................................. 52
Driving ............................................ 53
Switching on headlamps................. 54
Turn signals .................................... 54
Windshield wipers........................... 55
Rear window wiper/washer............ 57
Problems while driving.................... 58
Parking and locking.............................. 59
Parking brake ................................. 60
Switching off headlamps................. 61
Turning off engine........................... 61
Releasing seat belts........................ 62
Locking ........................................... 62


Contents


Safety and Security ........................... 65
Occupant safety................................... 66
Air bags .......................................... 67
Seat belts ....................................... 72
Active head restraints .................... 76
Children in the vehicle.................... 77
Blocking of rear door window operation........................... 89
Panic alarm.......................................... 90
Activating ....................................... 90
Deactivating ................................... 90
Driving safety systems......................... 91
ABS ................................................ 91
BAS ................................................ 93
ESP® .............................................. 93
Electrohydraulic brake system ....... 96
Four wheel electronic traction system (4MATIC) with the ESP®..... 99
Anti-theft systems.............................. 101
Immobilizer................................... 101
Anti-theft alarm system................ 101
Tow-away alarm ........................... 103


Controls in detail ............................. 105
Locking and unlocking....................... 106
SmartKey ..................................... 106
SmartKey with KEYLESS-GO* ...... 111
Opening the doors from the inside............................. 119
Opening the tailgate..................... 120
Closing the tailgate ...................... 122
Automatic central locking ............ 127
Locking and unlocking from the inside............................. 128
Seats ................................................. 129
Front seat active head restraints . 129
Rear seat head restraints ............. 129
Lumbar support............................ 133
Drive-Dynamic seat* with multicontour features................... 133
Seat heating*............................... 135
Seat ventilation* .......................... 136
Folding bench seat in cargo compartment ............................... 137


Memory function ............................... 140
Storing positions into memory..... 141
Recalling positions from memory. 141
Storing exterior rear view mirror parking position ................ 141
Lighting ............................................. 143
Exterior lamp switch .................... 143
Combination switch ..................... 147
Hazard warning flasher ................ 147
Interior lighting in the front .......... 148
Door entry lamps ......................... 150
Interior lighting in the rear ........... 150
Instrument cluster ............................. 151
Instrument cluster illumination .... 151
Coolant temperature indicator..... 152
Trip odometer .............................. 153
Tachometer.................................. 153
Outside temperature indicator..... 153


Control system .................................. 155
Multifunction display.................... 155
Multifunction steering wheel........ 156
Menus .......................................... 158
Standard display menu ................ 161
AUDIO menu ................................ 161
NAV* menu.................................. 163
Distronic* menu........................... 163
Vehicle status message memory menu.............................. 164
Settings menu.............................. 165
Trip computer menu..................... 180
TEL menu* ................................... 181
Automatic transmission..................... 184
Gear selector lever position ......... 186
Driving tips................................... 187
Gear ranges ................................. 188
Automatic shift program .............. 189
Gear selector lever one-touch gearshifting .................................. 190
Steering wheel gearshift control one-touch gearshifting E 55 AMG 191
Manual shift program E 55 AMG .. 193
Emergency operation (Limp Home Mode) ...................... 196


Good visibility ..................................... 197
Headlamp cleaning system* ......... 197
Rear view mirrors.......................... 197
Sun visors ..................................... 199
Roller sunblind* in the rear doors. 200
Rear window defroster.................. 200


Dual-zone automatic climate control (USA only) .......................................... 202


Deactivating the climate control system .......................................... 206
Operating the climate control system in automatic mode............ 206
Setting the temperature................ 207
Adjusting air distribution............... 208
Adjusting air volume ..................... 209
Front defroster.............................. 209
Air recirculation mode .................. 210
Air conditioning............................. 212
Rear passenger compartment adjustable air vents....................... 213


Contents


4-zone automatic climate control*..... 214


Deactivating the climate control system.......................................... 219
Operating the climate control system in automatic mode ........... 220
Setting the temperature ............... 221
Adjusting air distribution .............. 222
Adjusting air volume ..................... 223
Front defroster ............................. 223
Maximum cooling MAX COOL....... 224
Air recirculation mode .................. 224
Air conditioning ............................ 227
Residual heat and ventilation (Canada only)................................ 228
Rear climate control ..................... 229
Power windows .................................. 231


Opening and closing the windows ................................. 231
Synchronizing power windows...... 233
Summer opening feature .............. 234
Convenience closing feature......... 234
Power tilt/sliding sunroof* ................ 236


Opening and closing the power tilt/sliding sunroof........................ 236
Synchronizing the power tilt/sliding sunroof........................ 238


Contents


Driving systems ................................. 239
Cruise control............................... 239
Distronic*..................................... 243
Airmatic DC (Dual Control)*......... 255
Loading .............................................. 260
Split rear bench seat .................... 260
Expanding the cargo compartment................................ 262
Loading instructions..................... 263
Cargo tie-down rings .................... 264
Cargo management system* (Canada only) ............................... 265
Storage box in cargo compartment (Canada only) ......... 268
Twin roller blind............................ 269
Useful features .................................. 272
Storage compartments................. 272
Cup holders.................................. 274
Ashtrays ....................................... 277
Cigarette lighter ........................... 278
Power outlet................................. 279
Heated steering wheel* ............... 279
Floormats ..................................... 280
Telephone*................................... 281
Tele Aid ........................................ 282
Garage door opener ..................... 290


Operation ......................................... 299
The first 1000 miles (1500 km)......... 300
Driving instructions............................ 301
Drive sensibly – save fuel............. 301
Drinking and driving ..................... 301
Pedals .......................................... 301
Power assistance ......................... 302
Brakes.......................................... 302
Driving off .................................... 304
Parking......................................... 304
Tires ............................................. 305
Hydroplaning................................ 305
Tire traction.................................. 306
Tire speed rating .......................... 306
Winter driving instructions ........... 307
Standing water............................. 308
Passenger compartment .............. 309
Driving abroad.............................. 309
Control and operation of radio transmitter ................................... 309
Catalytic converter....................... 310
Emission control .......................... 310
Coolant temperature.................... 311


At the gas station .............................. 312
Refueling...................................... 312
Check regularly and before a long trip ......................... 313
Engine compartment ......................... 315
Hood ............................................ 315
Engine oil ..................................... 316
Transmission fluid level................ 320
Coolant level ................................ 321
Batteries ...................................... 322
Windshield washer system and headlamp cleaning system*......... 323
Tires and wheels................................ 324
Important guidelines .................... 324
Tire care and maintenance........... 325
Direction of rotation..................... 327
Loading the vehicle ...................... 327
Recommended tire inflation pressure....................................... 333
Checking tire inflation pressure ... 335
MOExtended system* .................. 340
Tire labeling ................................. 340
Load identification ....................... 344
DOT, Tire Identification Number (TIN) ............................................. 345
Maximum tire load ....................... 346


Contents


Maximum tire inflation pressure .. 347
Uniform Tire Quality Grading Standards (U.S. vehicles) ............. 348
Tire ply material ........................... 350
Tire and loading terminology........ 350
Rotating tires ............................... 353
Winter driving .................................... 355
Winter tires .................................. 355
Block heater* (Canada only) ........ 356
Snow chains................................. 356
Maintenance...................................... 358


Maintenance service indicator message....................................... 358
Calling up the maintenance service indicator display............... 360
Resetting the maintenance service indicator........................... 361
Vehicle care....................................... 362
Cleaning and care of vehicle ........ 362


Practical hints .................................. 371
What to do if … ................................... 372
Lamps in instrument cluster ......... 372
Lamp in center console................. 381
Vehicle status messages in the multifunction display..................... 383
Where will I find ...? ............................ 419
First aid kit.................................... 419
Vehicle tool kit, jack and spare wheel .................................. 419
Unlocking/locking in an emergency... 424
Unlocking the vehicle.................... 424
Locking the vehicle ....................... 425
Fuel filler flap emergency release . 425
Manually unlocking the gear selector lever ................................ 426
Opening/closing in an emergency ..... 427
Power tilt/sliding sunroof* ........... 427
Resetting activated head restraints.... 428
Replacing SmartKey batteries ............ 429
SmartKey ...................................... 429
SmartKey with KEYLESS-GO* ....... 430


Replacing bulbs.................................. 431
Bulbs............................................. 431
Replacing bulbs for front lamps .... 434
Replacing bulbs for rear lamps ..... 436
Replacing wiper blades ...................... 437
Removing front wiper blades ........ 437
Installing front wiper blades ......... 438
Removing rear wiper blade ........... 438
Installing rear wiper blade ............ 439
Flat tire............................................... 440
Preparing the vehicle .................... 440
Sealing tires with TIREFIT ............. 440
Mounting the spare wheel ............ 445
MOExtended system* ................... 451
Batteries............................................. 452
Disconnecting the battery ............ 453
Removing the battery ................... 454
Charging and reinstalling the battery .......................................... 454
Reconnecting the battery ............. 455
Jump starting...................................... 456
Towing the vehicle.............................. 458
Installing towing eye bolt.............. 461


Contents


Fuses ................................................. 462
Aids for replacing fuses................ 462
Main fuse box in passenger compartment................................ 463
Fuse box in cargo compartment... 463


Technical data.................................. 465
Parts service ...................................... 466
Warranty coverage............................. 467


Loss of Service and Warranty Information Booklet...................... 467
Identification labels............................ 468
Layout of poly-V-belt drive ................. 469
E 350/E 350 4MATIC................... 469
E 500/E 500 4MATIC................... 469
E 55 AMG ..................................... 469
Engine................................................ 470
Rims and tires.................................... 472
Same size tires............................. 474
Mixed size tires ............................ 476
MOExtended tires*....................... 477
Spare wheel ................................. 478
Electrical system................................ 479


Technical terms............................... 491


Index................................................. 497


Main dimensions and weight ............. 480
Main dimensions .......................... 480
Weight.......................................... 481
Fuels, coolants, lubricants etc. .......... 482
Capacities .................................... 482
Engine oils.................................... 485
Engine oil additives ...................... 485
Air conditioning refrigerant .......... 485
Brake fluid.................................... 485
Premium unleaded gasoline ......... 486
Gasoline additives........................ 486
Fuel requirements ........................ 487
Coolants....................................... 487
Windshield and headlamp washer system ............................. 490


Introduction Product information


Product information


왔 Please observe the following in your own best interest: We recommend using Genuine Mercedes-Benz parts as well as conversion parts and accessories explicitly approved by us for your vehicle model. We have tested these parts to determine their reliability, safety and special suitability for Mercedes-Benz vehicles.


We are unable to make an assessment for other products and therefore cannot be held responsible for them, even if in indi- vidual cases an official approval or authori- zation by governmental or other agencies should exist. Use of such parts and acces- sories could adversely affect the safety, performance or reliability of your vehicle. Please do not use them.


Genuine Mercedes-Benz parts as well as conversion parts and accessories approved by us are available at your authorized Mercedes-Benz Center where you will receive comprehensive informa- tion, also on permissible technical modifi- cations, and where proper installation will be performed.


Introduction Operator’s Manual


This Operator’s Manual contains a great deal of useful information. We urge you to read it carefully and familiarize yourself with the vehicle before driving. For your own safety and longer service life of the vehicle, we urge you to follow the in- structions and warnings contained in this manual. Ignoring them could result in dam- age to the vehicle or personal injury to you or others. Vehicle damage caused by fail- ure to follow instructions is not covered by the Mercedes-Benz Limited Warranty. Your vehicle may have some or all of the equipment described in this manual. Therefore, you may find explanations for optional equipment not installed in your vehicle. If you have any questions about the operation of any equipment, your au- thorized Mercedes-Benz Center will be glad to demonstrate the proper proce- dures.


We continuously strive to improve our product, and ask for your understanding that we reserve the right to make changes in design and equipment. Therefore, infor- mation, illustrations and descriptions in this Operator’s Manual might differ from your vehicle. Optional equipment is also described in this manual, including operating instruc- tions wherever necessary. Since they are special-order items, the descriptions and illustrations herein may vary slightly from the actual equipment of your vehicle. If there are any equipment details that are not shown or described in this Operator’s Manual, your authorized Mercedes-Benz Center will be glad to inform you of correct care and operating procedures.The Opera- tor’s Manual and Maintenance Booklet are important documents and should be kept with the vehicle.


Service and warranty information


The Service and Warranty Information Booklet contains detailed information about the warranties covering your Mercedes-Benz, including: 앫 New Car Limited Warranty 앫 Emission System Warranty 앫 Emission Performance Warranty 앫 California, Maine, Massachusetts, and


Vermont Emission Control System Warranty (California, Maine, Massachusetts, and Vermont only)


앫 State Warranty Enforcement Laws


(Lemon Laws)


10


(1) the same substantial defect or mal-


function results in a condition that is likely to cause death or serious bodily injury if the vehicle is driven, that de- fect or malfunction has been subject to repair two or more times, and you have directly notified Mercedes-Benz USA, LLC in writing of the need for its repair,


(2) the same substantial defect or mal-


function of a less serious nature than category (1) has been subject to repair four or more times and you have direct- ly notified us in writing of the need for its repair, or


Important notice for California retail buyers and lessees of Mercedes-Benz automobiles


Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price or lease price, if Mercedes-Benz USA, LLC and/or its au- thorized repair or service facilities fail to fix one or more substantial defects or mal- functions in the vehicle that are covered by its express warranty after a reasonable number of repair attempts. During the pe- riod of 18 months from original delivery of the vehicle or the accumulation of 18000 miles (approximately 29000 km) on the odometer of the vehicle, whichever occurs first, a reasonable number of repair attempts is presumed for a retail buyer or lessee if one or more of the following oc- curs:


Introduction Operator’s Manual


(3) the vehicle is out of service by reason of repair of the same or different sub- stantial defects or malfunctions for a cumulative total of more than 30 calendar days.


Written notification should be sent to us, not a dealer, at Mercedes-Benz USA, LLC, Customer Assistance Center, One Mercedes Drive, Montvale, NJ 07645-0350.


11


Introduction Operator’s Manual


Maintenance


Roadside Assistance


Change of address or ownership


The Maintenance Booklet describes all the necessary maintenance work which should be performed at regular intervals. Always have the Maintenance Booklet with you when you take the vehicle to your au- thorized Mercedes-Benz Center for ser- vice. The service advisor will record each service in the booklet for you.


The Mercedes-Benz Roadside Assistance Program provides factory trained technical help in the event of a breakdown. Calls to the toll-free Roadside Assistance number 1-800-FOR-MERCedes (in the USA) 1-800-387-0100 (in Canada) will be answered by Mercedes-Benz Customer Assistance Representatives 24 hours a day, 365 days a year. For additional information refer to the Mercedes-Benz Roadside Assistance Pro- gram brochure in your vehicle literature portfolio.


If you change your address, be sure to send in the “Change of Address Notice” found in the Service and Warranty Informa- tion Booklet, or simply call the Mercedes-Benz Customer Assistance Center (in the USA) at 1-800-FOR-MERCedes, or Customer Ser- vice (in Canada) at 1-800-387-0100. It is in your own interest that we can contact you should the need arise. If you sell your Mercedes, please leave all literature with the vehicle to make it avail- able to the next operator. If you bought this vehicle used, be sure to send in the “Notice of Purchase of Used Car” found in the Service and Warranty In- formation Booklet, or call the Mercedes-Benz Customer Assistance Cen- ter (in the USA) at 1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100.


12


Operating your vehicle outside the USA or Canada


If you plan to operate your vehicle in for- eign countries, please be aware that: 앫 service facilities or replacement parts


may not be readily available,


앫 unleaded gasoline for vehicles with cat- alytic converters may not be available; the use of leaded fuels will damage the catalysts,


앫 gasoline may have a considerably low- er octane rating, and improper fuel can cause engine damage.


Certain Mercedes-Benz models are avail- able for delivery in Europe under our Euro- pean Delivery Program. For details, consult your authorized Mercedes-Benz Center or write to: In the USA: Mercedes-Benz USA, LLC European Delivery Department One Mercedes Drive Montvale, NJ 07645-0350
In Canada: Mercedes-Benz Canada, Inc. European Delivery Department 98 Vanderhoof Avenue Toronto, Ontario M4G 4C9


Introduction Operator’s Manual


13


Introduction Where to find it


This Operator’s Manual is designed to pro- vide comprehensive support information for you, the vehicle operator. Each section has its own reference color.


At a glance Here you will find an overview of all the controls that can be operated from the driver’s seat.


Getting started Here you will find all the information you need for your first drive. You should read this section first if this is your first Mercedes-Benz vehicle or if you are rent- ing or borrowing this vehicle.


Safety and Security Here you will find descriptions of the safety and security features of your vehicle.


14


Controls in detail Here you will find detailed information about the equipment installed in your vehi- cle. This section expands on the “Getting started” section and also describes techni- cal innovations. If you are already familiar with the basic functions of your vehicle, this section will be of particular interest to you.


Operation Here you will find all the information you need for the proper operation of your vehi- cle.


Practical hints This section provides fast assistance for dealing with problems you may encounter.


Technical data All important technical data for your vehi- cle can be found in this section.


Indexes The glossary provides explanations of the most important technical terms. The table of contents and the index are de- signed to help you find information quickly and easily. The following publications are part of your vehicle documentation: 앫 this Operator’s Manual 앫 the Maintenance Booklet Separate operating instructions will be provided as required depending on the equipment options installed in your vehi- cle.


왔 Symbols Registered trademarks®: 앫 ESP® is a registered trademark of


DaimlerChrysler.


앫 HomeLink® is a registered trademark of Prince, a Johnson Controls Compa- ny.


The following symbols are found in this Operator’s Manual:


Optional equipment is identified with an asterisk. Since standard equipment varies between models, the descriptions and illustrations in this manual may differ slightly from the actual equipment of your vehi- cle.


Introduction Symbols


Warning!


왘 This symbol points to instructions for


you to follow.


Warning notices draw your attention to haz- ards that may endanger your health or life, or the health or life of others.


왘 A number of these symbols appearing in succession indicates a multiple-step procedure.


Highlights hazards that may result in damage to your vehicle.


컄 Page


컄컄


Helpful hints or further information you may find useful.


->


This symbol tells you where to look for further information on a topic. This continuation symbol marks an interrupted procedure which will be continued on the next page. In the glossary of technical terms, this symbol is used to in- dicate cross-references to term definitions.


Display Words appearing in the multi- function display are printed in the type shown here.


15


Introduction Operating safety


Warning!


Warning!


Proper use of the vehicle


Work improperly carried out on electronic components and associated software could cause them to cease functioning. Because the vehicle’s electronic components are in- terconnected, any modifications made may produce an undesired effect on other sys- tems. Electronic malfunctions could seri- ously impair the operating safety of your vehicle.


See your authorized Mercedes-Benz Center for repairs or modifications to electronic components.


Other improper work or modifications on the vehicle could also have a negative impact on the operating safety of the vehicle.


Some safety systems only function while the engine is running. You should therefore nev- er turn off the engine while driving.


Heavy blows against the vehicle underbody or tires/wheels, for example when running over an obstacle, road debris or a pothole, may cause serious damage to and impair the operating safety of your vehicle. If you feel a sudden strong vibration or ride disturbance, or you suspect that damage to your vehicle has occurred, you should turn on your haz- ard warning flashers, carefully slow down, and drive with caution to an area which is a safe distance from the road.


Inspect the vehicle underbody and tires/wheels for possible damage. If the ve- hicle appears unsafe, have it towed to the nearest authorized Mercedes-Benz Center or other qualified maintenance or repair fa- cility for further inspection or repairs.


Proper use of the vehicle requires that you are familiar with the following information and rules: 앫 the safety precautions in this manual 앫 the “Technical data” section in this


manual


앫 traffic rules and regulations 앫 motor vehicle laws and safety stan-


dards


Warning!


Various warning labels are attached to your vehicle. These warning labels are intended to make you and others aware of various risks. You should not remove any of these warning labels unless explicitly instructed to do so by information on the label itself. Re- moval of any of these labels may cause you and others to be unaware of certain risks which may result in an accident and/or per- sonal injury.


16


Introduction Problems with your vehicle


왔 Problems with your vehicle If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to immediately contact an authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is not handled to your satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if necessary contact us at one of the following addresses: In the USA: Customer Assistance Center Mercedes-Benz USA, LLC One Mercedes Drive Montvale, NJ 07645-0350
In Canada: Customer Relations Department Mercedes-Benz Canada, Inc. 98 Vanderhoof Avenue Toronto, Ontario M4G 4C9


17


Introduction Reporting safety defects


For the USA only: The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the “National Traffic and Motor Vehicle Safety Act of 1966.”


Reporting safety defects


If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Mercedes-Benz USA, LLC. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor ve- hicle safety from the Hotline.


18


Introduction Vehicle data recording


왔 Vehicle data recording Information regarding electronic recording devices


(Including notice pursuant to California Code § 9951) Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system, may transmit some data in certain accidents. This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety. DaimlerChrysler may access the information and share it with others 앫 for safety research or vehicle diagnosis purposes 앫 with the consent of the vehicle owner or lessee 앫 in response to an official request by law enforcement or other government agency 앫 for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or 앫 as otherwise required or permitted by law. Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted via that system.


19


20


At a glance Cockpit


Instrument cluster


Multifunction steering wheel


Center console


Overhead control panel


Storage compartments


Door control panel


21


At a glance Cockpit


22


Item


1 Parking brake pedal 2 Hood lock release 3 Steering wheel adjustment


stalk Heated steering wheel*


4 Parking brake release 5 Combination switch


앫 Turn signals 앫 Windshield wipers 앫 High beam


6 Door control panel 7 Exterior lamp switch


Page 52, 60
315
43


279
52


54
55
54
32
143


Page 197
191


239
243
24, 151
26, 156


Item


8 Headlamp washer button* 9 Steering wheel gearshift


control (E55 AMG only)


a Cruise control lever


앫 Cruise control 앫 Distronic*


b Instrument cluster


c Multifunction steering


wheel d Horn e Lever for voice control sys-


tem*, see separate operating instructions


At a glance Cockpit


Item


f Starter switch g Overhead control panel h Mobile phone/Glasses box j Glove box lid release, glove


box lock


k Glove box l Center console


Page 36
29
272
272


272
27


23


At a glance Instrument cluster


24


Item


Page


Item


Page


1 L Left turn signal indicator lamp


2 v ABS/ESP® warning


373


lamp


155
377


3 Speedometer 4 Multifunction display 5 l Distance warning lamp Vehicles without Distronic*: Warning lamp without func- tion. It illuminates when the ignition is on. It should go out when the engine is running.


6 K Right turn signal


indicator lamp


7 Coolant temperature


indicator with: • Coolant temperature


152


376


warning lamp


8 Tachometer with:


1 Supplemental


380


Restraint System (SRS) indicator lamp


- Antilock Brake System


372


(ABS) indicator lamp


< Seat belt telltale B Low beam headlamp


377
54


indicator lamp


A High beam headlamp


147


indicator lamp 9 Main odometer with: 앫 Gear selector lever


position


앫 Program mode


a Clock with:


; Brake warning lamp,


USA only


3 Brake warning lamp,


Canada only


50


189
170
374


374


At a glance Instrument cluster


Item ú Engine malfunction


Page 375


indicator lamp, USA only


± Engine malfunction


375


indicator lamp, Canada only


H Combination low tire pressure/TPMS mal- function telltale*


378


b Fuel display with:


A Fuel reserve warning


377


lamp


c Reset button for:


앫 Resetting trip odometer 앫 Adjusting instrument


cluster illumination


앫 Confirming new time


settings


153
151


170


25


At a glance Multifunction steering wheel


26


Page


Page 155


156


Item


4 Menu systems:


Press button è for next menu ÿ for previous menu


5 Moving within a menu:


Press button j for next display k for previous display


Item


1 Multifunction display in


speedometer Operating control system 2 Selecting the submenu or


setting the volume: Press button æ up/to increase ç down/to decrease


3 Telephone*: Press button s to take a call to dial a call t to end a call


to reject an incoming call


왔 Center console Upper part


At a glance Center console


Item


1 Dual-zone automatic


climate control, USA only 4-zone automatic climate control*


2 COMAND system, see sepa- rate operating instructions 3 Seat heating*, front passen-


ger side Seat ventilation*, front pas- senger side


4 Electronic Stability Program


(ESP®) control switch 5 Central locking switch


Page 202


214


135


136
95


Item


6 Opening/closing button for


storage tray or CD chang- er*, see separate operating instructions


7 Rear seat head restraints


switch, folding down


8 Rear window wiper 9 Seat heating*, driver’s side Seat ventilation*, driver’s side


a Hazard warning flasher


switch


128


b Front passenger front air


bag off indicator lamp


Page 272


129


57
135
136


147


84


27


Item


1 Ashtray 2 KEYLESS-GO* start/stop


button


3 Gear selector lever for automatic transmission


4 Adaptive Damping System


(ADS)* switch


Page 277
38


50, 184
255


Item


5 Vehicle level control


switch*


6 Thumbwheel for setting distance for Distronic*


Page 256


251


7 Distance warning function*


252


on/off switch


8 Program mode selector


189


switch for automatic transmission


At a glance Center console


Lower part


28


왔 Overhead control panel


At a glance Overhead control panel


Item


1 Rear interior lighting on/off 2 Automatic interior lighting 3 Front interior lighting on/off 4 Temperature sensor 5 Right reading lamp on/off 6 Tilt/sliding sunroof* 7 Tele Aid (emergency call


system) button


Page 150
148
148


149
236
282


Item


8 Rear view mirror 9 Reading lamps a Garage door opener b Tow-away alarm button c Ambient lighting d Interior lighting e Left reading lamp on/off


Page 197
148
290
103
174


149


29


At a glance Storage compartments


30


Item


1 Glove box 2 Front passenger seat storage compartment with first aid kit


3 Door pocket 4 Ashtray 5 Ruffled storage bag 6 Door pocket 7 Door pocket 8 Ruffled storage bag 9 Ashtray a Door pocket b Driver’s seat storage compart-


ment


c Sun visor card clip d Storage tray or CD changer*


Page 272
419


278
273


273
278


419


272


Item


e Ashtray with cigarette lighter f Mobile phone/Glasses box g Parcel net in front passenger


footwell


Page 278
272
274


h Storage compartment with


275


cup holders


j Rear storage compartment in


273


the rear center console


276
268


k Cup holder in the rear armrest l Storage box, Canada only m Storage compartment* n Luggage box (Vehicles without foldable third row, E 55 AMG only)


o Storage compartment*


At a glance Storage compartments


31


Item


1 Door handle 2 Seat adjustment 3 Memory function (for stor-


ing seat, exterior mirror and steering wheel settings)


Page 119
41
140


4 Exterior rear view mirror ad-


45


justment


5 Switches for opening/clos- ing front and rear side win- dows, rear window override switch


6 Remote tailgate release switch, Tailgate opening system*


231


121


At a glance Door control panel


32


Getting started Unlocking


Adjusting


Driving


Parking and locking


33


Getting started Unlocking


The “Getting started” section provides an overview of the vehicle’s most basic functions. If you are already familiar with the basic functions described here, the “Controls in detail” section will provide you with further information. The corresponding page references are located at the end of each segment.


34


Unlocking with the SmartKey


SmartKey with remote control 1 ‹ Lock button 2 Š Unlock button for tailgate* 3 Œ Unlock button 4  Panic button (컄 page 90)


Warning!


When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsuper- vised use of vehicle equipment may cause an accident and/or serious personal injury.


왘 Press unlock button Œ on the


SmartKey. 앫 All turn signal lamps flash once. 앫 An acoustic signal sounds once


(if equipped and feature activated). For more information, see “Factory setting” (컄 page 108).


앫 The locking knobs in the doors


move up.


앫 The anti-theft alarm system is dis-


armed.


Warning!


When leaving the vehicle, always take the SmartKey with KEYLESS-GO with you, and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle. Unsupervised use of vehi- cle equipment may cause an accident and/or serious personal injury.


The electrohydraulic brake system is activated (컄 page 96).


왘 Get in the vehicle and insert the SmartKey in the starter switch.


For more information, see “Locking and unlocking” (컄 page 106).


Unlocking with KEYLESS-GO*


With the KEYLESS-GO function, you can lock and unlock the vehicle without using the remote control buttons on the SmartKey and start the engine without in- serting the SmartKey in the starter switch.


To unlock the vehicle, the SmartKey with KEYLESS-GO must be outside the vehicle, no further than approximately 3 feet (1 meter) away from the door.


Getting started Unlocking


왘 Pull an outside door handle.


앫 All turn signal lamps flash once. 앫 An acoustic signal sounds once


(if equipped and feature activated). For more information, see “Factory setting” (컄 page 114).


앫 The locking knobs in the doors


move up.


앫 The anti-theft alarm system is dis-


armed.


The electrohydraulic brake system is activated (컄 page 96).


왘 Get in the vehicle. For more information, see “SmartKey with KEYLESS-GO*” (컄 page 111).


35


Getting started Unlocking


Starter switch positions


SmartKey


Warning!


When leaving the vehicle, always remove the SmartKey or SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle. Unsupervised use of vehi- cle equipment may cause an accident and/or serious personal injury.


Starter switch 0 For removing SmartKey 1 Power supply for some electrical con-


sumers, such as seat adjustment


2 Ignition (power supply for all electrical


consumers) and driving position. All lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indica- tor lamps unless activated) in the instrument cluster come on. If a lamp in the instrument cluster fails to come on when the ignition is switched on, have it checked and replaced if neces- sary. If a lamp in the instrument cluster remains on after starting the engine or comes on while driving, refer to “Lamps in instrument cluster” (컄 page 372).


3 Starting position


36


Getting started Unlocking


When you switch on the ignition, the in- dicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless acti- vated) in the instrument cluster come on. The indicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps if activated) should go out when the en- gine is running. This indicates that the respective systems are operational.


The SmartKey can only be removed from the starter switch with the gear selector lever in position P.


If the SmartKey cannot be turned in the starter switch, the starter battery may not be sufficiently charged. 앫 Check the battery and charge it if


necessary (컄 page 429).


앫 Get a jump start (컄 page 456). To prevent accelerated battery dis- charge or a completely discharged bat- tery, always remove the SmartKey from the starter switch when the engine is not in operation.


SmartKey with KEYLESS-GO* Pressing the KEYLESS-GO start/stop but- ton on the gear selector lever corresponds to turning the SmartKey to the various starter switch positions. If you firmly depress the brake pedal dur- ing pressing the KEYLESS-GO start/stop button, the engine starts automatically.


The function of the SmartKey overrules the KEYLESS-GO function.


For information on starting the engine using the SmartKey, see “Starting with the SmartKey” (컄 page 50).


37


Getting started Unlocking


KEYLESS-GO start/stop button 1 USA only 2 Canada only The SmartKey with KEYLESS-GO must be located in the vehicle. 왘 Make sure the gear selector lever is set


to P.


왘 Do not depress the brake pedal.


38


Position 0
Before you press the KEYLESS-GO start/ stop button, the vehicle’s on-board elec- tronics have status 0 (as with SmartKey removed).


Position 1 왘 Press KEYLESS-GO start/stop button


once. This supplies power for some electrical consumers, such as seat adjustment.


If you now press the KEYLESS-GO start/stop button 앫 once again, the ignition (position 2)


is switched on.


앫 twice, the power supply is again


switched off.


Ignition (or position 2) 왘 Press KEYLESS-GO start/stop button


twice. This supplies power for all electrical consumers. All lamps in the instrument cluster (except low beam headlamp in- dicator lamp, high beam headlamp indicator lamp, and turn signal indica- tor lamps unless activated) come on. If a lamp in the instrument cluster fails to come on when the ignition is switched on, have it checked and replaced if nec- essary. If a lamp in the instrument clus- ter remains on after starting the engine or comes on while driving, see “Lamps in instrument cluster” (컄 page 372).


If you now press the KEYLESS-GO start/stop button once, the power sup- ply is again switched off.


i When you switch on the ignition, the in- dicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless acti- vated) in the instrument cluster come on. The indicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps if activated) should go out when the en- gine is running. This indicates that the respective systems are operational.


For information on starting the engine us- ing the KEYLESS-GO start/stop button, see “Starting with KEYLESS-GO*” (컄 page 51).


Getting started Unlocking


39


Getting started Adjusting


Warning!


All seat, head restraint, steering wheel, and rear view mirror adjustments, as well as fas- tening of seat belts, must be done before the vehicle is put into motion.


Seats


Warning!


Do not adjust the driver’s seat while driving. Adjusting the seat while driving could cause the driver to lose control of the vehicle.


Never ride in a moving vehicle with the seat backrest in an excessively reclined position as this can be dangerous. You could slide under the seat belt in a collision. If you slide under it, the belt would apply force at the ab- domen or neck. That could cause serious or fatal injuries. The seat back and seat belts provide the best restraint when the wearer is in a nearly upright position and belts are properly positioned on the body.


40


Your seat must be adjusted so that you can correctly fasten your seat belt (컄 page 47). Never place hands under the seat or near any moving parts while a seat is being ad- justed.


Warning!


When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle.


Even with the SmartKey or the SmartKey with KEYLESS-GO* removed from the start- er switch or the SmartKey with KEYLESS-GO* removed from the vehicle, the power seats can be operated when the respective door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsu- pervised use of vehicle equipment may cause an accident and/or serious personal injury.


Warning!


According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats. Re- gardless of seating position, children 12 years old and under must be seated and properly secured in an appropriate infant or toddler restraint, or booster seat recom- mended for the size and weight of the child. For additional information, see “Children in the vehicle” (컄 page 77). A child’s risk of serious or fatal injuries is significantly increased if the child restraints are not properly secured in the vehicle and the child is not properly secured in the child restraint.


Seat adjustment The seat adjustment switches are located on the front doors.


1 Head restraint height 2 Seat height 3 Seat cushion tilt 4 Seat fore and aft adjustment 5 Backrest tilt 왘 Switch on the ignition (컄 page 36).


or


왘 Open the respective door.


The memory function (컄 page 140) lets you store the settings for the seat posi- tion together with the settings for the steering wheel and the exterior rear view mirrors.


Seat fore and aft adjustment 왘 Press the switch forward or backward


in direction of arrow 4. Adjust a comfortable seating position that still allows you to reach the accel- erator/brake pedal safely. The position should be as far to the rear as possible, consistent with ability to properly oper- ate controls.


When moving the seat, make sure there are no items in the footwell or be- hind the seats. Otherwise you could damage the seats.


Getting started Adjusting


Seat cushion tilt 왘 Press the switch up or down in direc- tion of arrow 3 until your upper legs are lightly supported.


Backrest tilt 왘 Press the switch forward or backward in direction of arrow 5 until your arms are slightly angled when holding the steering wheel.


Seat height 왘 Press the switch up or down in direc-


tion of arrow 2.


41


Getting started Adjusting


Head restraint height 왘 Press the switch up or down in direc-


tion of arrow 1.


Adjust the head restraint in such a way that it is as close to the head as possi- ble.


Warning!


For your protection, drive only with properly positioned head restraints.


Adjust head restraint so that the center of the head restraint supports the back of the head at eye level. This will reduce the poten- tial for injury to the head and neck in the event of an accident or similar situation.


Do not drive the vehicle without the seat head restraints. Head restraints are intend- ed to help reduce injuries during an acci- dent.


42


Head restraint tilt


Steering wheel


Warning!


Do not adjust the steering wheel while driv- ing. Adjusting the steering wheel while driv- ing could cause the driver to lose control of the vehicle.


When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle.


Even with the SmartKey or the SmartKey with KEYLESS-GO* removed from the start- er switch or the SmartKey with KEYLESS-GO* removed from the vehicle, the steering wheel adjustment feature can be operated when the driver’s door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsupervised use of vehicle equip- ment may cause an accident and/or serious personal injury.


Manually adjust the angle of the head re- straint. 왘 Push or pull on the lower edge of the


head restraint cushion.


Adjust the head restraint in such a way that it is as close to the head as possi- ble.


For more information on seats, see the “Controls in detail” section (컄 page 129).


Steering wheel adjustment The stalk for steering wheel adjustment is located on the lower left of the steering column.


1 Adjusting steering column, in or out 2 Adjusting steering column, up or down 왘 Switch on the ignition (컄 page 36). or 왘 Open the driver’s door.


Getting started Adjusting


Adjusting steering column in or out 왘 Move stalk in direction of arrows 1


until a comfortable steering wheel posi- tion is reached with your arms slightly bent at the elbow.


Adjusting steering column up or down 왘 Move stalk in direction of arrows 2. Make sure your legs can move freely and all the displays (incl. malfunction and indicator lamps) on the instrument cluster are clearly visible.


The memory function (컄 page 140) lets you store the settings for the steering wheel together with the settings for the exterior rear view mirrors and the driver’s seat position.


Easy-entry/exit feature This feature allows for easier entry into and exit from the vehicle. When entering and exiting the vehicle, the steering wheel is in its uppermost position. The easy-entry/exit feature can be activat- ed or deactivated in the Convenience sub- menu of the control system (컄 page 177).


Warning!


You must make sure no one can become trapped or injured by the moving steering wheel when the easy-entry/exit feature is activated.


To stop steering wheel movement, do one of the following: 앫 Move steering column stalk. 앫 Press one of the memory buttons or the


memory button M (컄 page 140).


컄컄


43


Getting started Adjusting


컄컄


Do not leave children unattended in the ve- hicle, or with access to an unlocked vehicle. Children could open the driver’s door and unintentionally activate the easy-entry/exit feature, which could result in an accident and/or serious personal injury.


With the easy-entry/exit feature activated, the steering wheel will return to its last set position when you: 앫 close the driver’s door with the ignition


switched on, or


The last set steering wheel position is stored when 앫 the ignition is switched off 앫 the position is stored in memory


(컄 page 140)


With the easy-entry/exit feature activated, the steering wheel tilts upwards when you: 앫 remove the SmartKey from the starter


switch, or


앫 insert the SmartKey into the starter


switch or press the KEYLESS-GO* start/stop button (컄 page 38) once with the driver’s door closed


앫 open the driver’s door with the


SmartKey in starter switch position 0 or 1 or the KEYLESS-GO* start/stop button (컄 page 38) in position 1.


If the current position for the steering wheel is in the uppermost tilt position, the steering wheel will no longer be able to move upward when the easy-entry/exit feature is activated. The adjustment procedure is briefly in- terrupted when the engine is started.


Warning!


Let the system complete the adjustment procedure before setting the vehicle in mo- tion. All steering wheel adjustment must be completed before setting the vehicle in mo- tion. Driving off with the steering wheel still adjusting could cause the driver to lose con- trol of the vehicle.


44


Getting started Adjusting


Mirrors


Adjust the interior and exterior rear view mirrors before driving so that you have a good view of the road and traffic condi- tions.


Interior rear view mirror 왘 Manually adjust the interior rear view


The buttons are located on the driver’s door.


mirror.


For more information, see “Rear view mir- rors” (컄 page 197).


Warning!


Exterior rear view mirrors


Warning!


Exercise care when using the passenger-side exterior rear view mirror. The mirror surface is convex (outwardly curved surface for a wider field of view). Ob- jects in mirror are closer than they appear. Check your interior rear view mirror or glance over your shoulder before changing lanes.


1 Passenger-side exterior rear view mir-


ror button


2 Adjustment button 3 Driver’s side exterior rear view mirror


button


In case of an accident, liquid electrolyte may escape the mirror housing if the mirror glass breaks.


Electrolyte has an irritating effect. Do not al- low the liquid to come into contact with eyes, skin, clothing, or respiratory system. In case it does, immediately flush affected area with water, and seek medical help if necessary.


Electrolyte drops coming into contact with the vehicle paint finish can only be completely removed while in their liq- uid state and by applying plenty of wa- ter.


45


Getting started Adjusting


왘 Switch on the ignition (컄 page 36). 왘 Press button 3 for the driver’s side ex- terior rear view mirror or button 1 for the passenger-side exterior rear view mirror.


왘 Push adjustment button 2 up, down,


left or right according to the desired setting.


46


For more information, see “Activating exte- rior rear view mirror parking position” (컄 page 198). For more information, see “Rear view mir- rors” (컄 page 197).


If an exterior rear view mirror was forc- ibly pushed forward (hit from the rear) or forcibly pushed rearward (hit from the front), reposition it by applying firm pressure until it snaps into place. The mirror housing is now properly posi- tioned and you can adjust the mirror normally.


The memory function (컄 page 140) lets you store the setting for the seat posi- tion together with the setting for the steering wheel and the exterior rear view mirrors. At low ambient temperatures, the exte- rior rear view mirrors will be heated au- tomatically.


왔 Driving


Warning!


Do not lay any objects in the driver’s foot- well. Be careful that floor mats or carpets in the driver’s footwell have sufficient clear- ance for the pedals.


During sudden driving or braking maneuvers the objects could get caught between the pedals. You could then no longer brake or accelerate.


Fastening the seat belts


Warning!


Always fasten your seat belt before driving off. Always make sure all of your passengers are properly restrained, even those sitting in the rear and pregnant women.


Getting started Driving


Failure to wear and properly fasten and position your seat belt greatly increases your risk of injuries and their likely severity in an accident. You and your passengers should always wear seat belts.


If you are ever in an accident, your injuries can be considerably more severe without your seat belt properly buckled. Without your seat belt buckled, you are much more likely to hit the interior of the vehicle or be ejected from it. You can be seriously injured or killed.


In the same crash, the possibility of injury or death is lessened if you are wearing your seat belt. The air bags can only provide the protection they were designed to afford if the occupants are using their seat belts (컄 page 72).


Warning!


Loading...
x
