2012 Honda Civic Hybrid Owners Manual

CIVIC IMA_KAKC-31TR2600.book 0 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Contents

2012 Civic Hybrid

QRG

This owner’s manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of the Civic Hybrid. You may find descriptions of equipment and features that are not on your particular model.

2 Safe Driving P. 27
For Safe Driving P. 28

Seat Belts P. 32

Airbags P. 39

2 Instrument Panel P. 69
Indicators P. 70

Gauges and Multi-Information Display P. 82

2 Controls P. 101
Setting the Clock P. 102
Operating the Switches Around the Steering Wheel P. 117
Interior Lights/Interior Convenience Items P. 131

Locking and Unlocking the Doors P. 103

Images throughout this owner’s manual (including the front cover) represent features and equipment that are available on some, but not all, models. Your particular model may not have some of these features.

2 Features P. 141
Audio System P. 142
Bluetooth® HandsFreeLink® P. 167

Audio System Basic Operation* P. 145

This owner's manual is for vehicles sold in the United States and Canada.

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.

Navigation Key

2 Driving P. 191
Before Driving P. 192
Refueling P. 222

Towing a Trailer P. 197
Fuel Economy P. 225

2 Maintenance P. 227
Before Performing Maintenance P. 228 Maintenance Minder™ P. 231
Checking and Maintaining Wiper Blades P. 252
Climate Control System Maintenance P. 265

Index

Home

QRG Quick Reference Guide

TOC

Chapter Table of Contents

2 Handling the Unexpected P. 271
Tools P. 272
Overheating P. 283

If a Tire Goes Flat P. 273
Indicator, Coming On/Blinking P. 285

Index

Index

Home Book Table of Contents

2 Information P. 293
Specifications P. 294
Emissions Testing P. 299

Identification Numbers P. 296
Warranty Coverages P. 301

* Not available on all models

Online Reference Owner's Manual00X31-TR2-6000 © 2011 American Honda Motor Co., Inc - All Rights ReservedCIVIC IMA_KAKC-31TR2600.book 1 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Child Safety P. 54

Exhaust Gas Hazard P. 66

Safety Labels P. 67

Opening and Closing the Trunk P. 110
Adjusting the Mirrors P. 125
Climate Control System P. 137

Security System P. 113

Opening and Closing the Windows P. 115
Adjusting the Seats P. 126

Audio Error Messages P. 162

General Information on the Audio System P. 164

When Driving P. 198
Accessories and Modifications P. 226

Braking P. 213

Parking Your Vehicle P. 217

Contents 2012 Civic Hybrid Quick Reference Guide P. 2

Safe Driving P. 27

Instrument Panel P. 69

Controls P. 101

Features P. 141

Driving P. 191

Maintenance P. 227

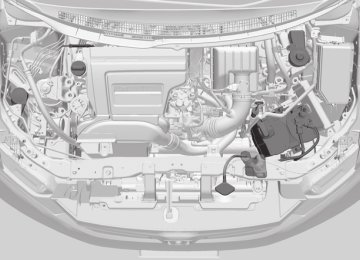

Maintenance Under the Hood P. 235
Checking and Maintaining Tires P. 254
Cleaning P. 266

Replacing Light Bulbs P. 247
12 Volt Battery P. 263

Remote Transmitter Care P. 264

Handling the Unexpected P. 271

Engine Does Not Start P. 279
Fuses P. 289

Jump Starting P. 280
Emergency Towing P. 292

Shift Lever Does Not Move P. 282

Devices that Emit Radio Waves P. 297
Authorized Manuals P. 303

Reporting Safety Defects P. 298
Customer Service Information P. 304

Information P. 293

Index P. 305

CIVIC IMA_KAKC-31TR2600.book 2 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Quick Reference Guide Visual Index

QRG

Index

Home

❙ ECON Button (P 123)

❙ System Indicators (P 70) ❙ Gauges (P 82) ❙ Multi-Information Display (P 83)

❙ Hazard Warning Button

❙ Audio System * (P 142) ❙ Navigation System * () See Navigation System Manual ❙ Climate Control System (P 137) ❙ Rear Window Defogger (P 123) ❙ Heated Mirror Button * (P 123)

❙ Seat Heater Switches * (P136) ❙ Ignition Switch (P 117) ❙ Steering Wheel Adjustments (P 124)

❙

(Vehicle Stability Assist (VSA®)

System OFF) Button (P 209)

* Not available on all models

CIVIC IMA_KAKC-31TR2600.book 3 ページ ２０１１年２月１５日　火曜日　午前９時２４分

QRG

❙ Headlights/Turn Signals (P 118)

❙ Km/Mile Change Knob (P 82) ❙ CLOCK Knob * (P 102) ❙ ❙ Brightness Control (P 122)

(SEL/RESET) Knob (P 83)

(Display/Information) Button (P 83)

❙ ❙ Wipers/Washers (P 121)

❙ Cruise Control Buttons (P 205)

❙ Horn (Press an area around

.)

❙ Navigation System Voice Control Buttons * () See Navigation System Manual ❙ Bluetooth Voice Control Buttons * (P 167)

® HandsFreeLink® System

❙ MENU Button (P 90) ❙ SOURCE Button (P 90) ❙

−

Buttons (P 90)

Index

Home

* Not available on all models

CIVIC IMA_KAKC-31TR2600.book 4 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Visual Index

QRG

Index

Home

❙ Hood Release Handle (P 236) ❙ Trunk Release (P 110) ❙ Fuel Fill Door Release Handle (P 223) ❙ Driver’s Pocket

❙ Power Window Switches (P 115) ❙ Power Door Lock Master Switch (P 108) ❙ Door Mirror Controls (P 125) ❙ Rearview Mirror (P 125) ❙ Interior Fuse Box (P 290) ❙ Driver's Front Airbag (P 42) ❙ Passenger's Front Airbag (P 42) ❙ Parking Brake (P 213) ❙ Auxiliary Input Jack (P 144)

❙ Glove Box (P 132) ❙ Accessory Power Socket (P 134)

❙ Shift Lever Automatic Transmission (CVT) (P 203)

CIVIC IMA_KAKC-31TR2600.book 5 ページ ２０１１年２月１５日　火曜日　午前９時２４分

❙ Seat Belt (Installing a Child Seat) (P 61) ❙ Seat Belt to Secure a Child Seat (P 63) ❙ Side Curtain Airbags (P 49) ❙ Coat Hook (P 135) ❙ Grab Handle ❙ Ceiling Light (P 131) ❙ Seat Belts (P 32)

❙ Map Lights (P 131)

❙ Sun Visors ❙ Vanity Mirrors

❙ USB Adapter Cable (P 143) ❙ Accessory Power Socket * (P 134)

❙ Front Seat (P 126) ❙ Side Airbags (P 46)

❙ Rear Seat ❙ LATCH to Secure a Child Seat (P 59)

QRG

Index

Home

* Not available on all models

CIVIC IMA_KAKC-31TR2600.book 6 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Visual Index

QRG

Index

Home

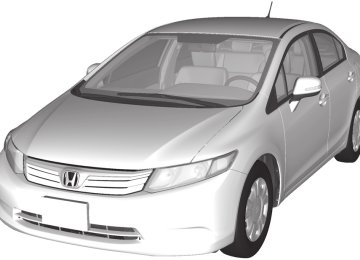

❙ Maintenance Under the Hood (P 235) ❙ Windshield Wipers (P 121) ❙ Door Mirrors (P 125) ❙ Side Turn Signal Lights (P 118)

(P 252)

(P 249)

❙ Door Lock/Unlock Control (P 105)

❙ Headlights (P 118) ❙ Front Turn Signal/Parking/ Side Marker Lights (P 118)

(P 247)

(P 249)

❙ Tires (P 254)

(P 273)

CIVIC IMA_KAKC-31TR2600.book 7 ページ ２０１１年２月１５日　火曜日　午前９時２４分

QRG

❙ How to Refuel (P 223)

❙ High-Mount Brake Light (P 251)

❙ Opening/Closing the Trunk (P 110) ❙ Emergency Trunk Release Lever (P 112) ❙ Rear License Plate Light (P 251)

❙ Brake/Taillights (P 250) ❙ Back-Up Lights (P 250) ❙ Rear Turn Signal Lights (P 250) ❙ Rear Side Marker Lights (P 250)

Index

Home

CIVIC IMA_KAKC-31TR2600.book 8 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Eco Assist System

QRG

Ambient Meter ● Changes color to reflect your driving

style. Green: Fuel efficient driving Blue green: Moderate acceleration/ deceleration Blue: Aggressive acceleration/ deceleration

● The ambient meter color changes in

accordance with your brake or accelerator pedal operation.

ECON Button (P123) Helps maximize fuel economy. ECON Mode Indicator (P78) Comes on when the ECON mode is on.

The message is displayed for a few seconds when the ECON mode is on.

Index

Home

CIVIC IMA_KAKC-31TR2600.book 9 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Drive Cycle Score/Lifetime Points ● Comes on when the ignition switch is in LOCK (0.

Drive Cycle Score

QRG

Advancing to Second Stage

Advancing to Third Stage

Receding to First Stage

Receding to Second Stage

Real Time Score (represents your current trip) (P87) ● Each time you turn the ignition switch to ON (w, the Eco Guide screen starts without any leaves on the plants. Leaves accumulate

Lifetime Points

or diminish based on your driving style during the current trip.

First Stage

Second Stage

Eco Guide Feedback with Eco Drive Bar (P88) ● Keep the bar from extending too much to the left or right side. The shorter the bar is while driving, the higher the fuel economy becomes.

The bar extends to the right when you press the accelerator pedal.

Slow, steady acceleration/ Maximizes fuel economy

Third Stage

Moderate acceleration

Aggressive/Inconsistent acceleration

The bar extends to the left when you press the brake pedal.

Slow deceleration/ Maximizes fuel economy

Moderate deceleration

Aggressive deceleration

Index

Home

CIVIC IMA_KAKC-31TR2600.book 10 ページ ２０１１年２月１５日　火曜日　午前９時２４分

The Honda IMA System

The main power source for the Honda IMA system is the gasoline engine. The electric motor assists the engine to improve fuel economy, based on current operating conditions.

QRG

Low speed cruise ● Only IMA motor is

powering the vehicle and IMA battery is discharging.

Start-up/Low speed cruise/ Aggressive acceleration ● The electric motor assists the

engine.

Vehicle Speed

IMA System

Time

Electric Motor Assist

IMA Battery

Engine

ON

Fuel

IMA System

Electric Motor Assist

IMA Battery

Engine

OFF

Fuel

Tips to Improve Fuel Economy To help your vehicle’s fuel economy: ● Avoid aggressive acceleration/braking ● Monitor the ambient meter and the Eco drive bar

Slow acceleration/High speed cruise ● Only the engine powers

the vehicle.

displayed on the multi-information display. It reflects your driving style. (P8)

(P87)

Deceleration ● The IMA system charges

the IMA battery.

IMA System

Electric Motor OFF

IMA Battery

Engine

ON

Fuel

IMA System

Charging

Engine

OFF

IMA Battery

Fuel

Stop ● Auto Idle Stop is in

operation.

IMA System

Electric Motor OFF

IMA Battery

Engine

OFF

Fuel

Eco Drive Bar Display

Index

Home

10

CIVIC IMA_KAKC-31TR2600.book 11 ページ ２０１１年２月１５日　火曜日　午前９時２４分

To Keep the IMA Battery in Good Condition Drive your vehicle at least once a month for more than 30 minutes. Parking your vehicle for an extended period can cause the IMA battery to weaken or decrease the IMA battery life. Safety Precautions Do not cover the air intake.

Do not touch the Honda IMA System A high voltage current runs through Honda IMA System. Consult your authorized dealer when maintenance or repair is needed.

Air Intake

If the air intake is obstructed during vehicle operation, the IMA battery can become too hot. To protect the battery, the system may start limiting IMA battery output power and cause the IMA system and 12 volt battery charging system indicators to come on.

IMA System Indicator (P87)

12 Volt Battery Charging System Indicator (P71)

If a crash occurs ● Be careful of electric shock hazard.

IMA Battery

IMA Power Cable

u If a crash severely damaged your vehicle, there is a possibility of electrical shock. Do

not touch the IMA system components or their wiring (orange).

● Avoid contact with IMA battery fluid.

u The battery fluid may leak as a result of a crash. Avoid any skin or eye contact with

the fluid. The battery fluid is corrosive. If you accidentally touched it, flush the affected area(s) with a large quantity of water for at least five minutes, and seek medical attention immediately.

● Use a fire extinguisher for an electrical fire.

u Attempting to extinguish an electrical fire with a small quantity of water can be

dangerous.

When the vehicle is disposed ● The IMA battery is a Lithium ion battery. Honda collects and recycles used IMA

batteries – consult with your dealer for proper battery disposal in the event your vehicle is not repairable.

QRG

Index

Home

11

CIVIC IMA_KAKC-31TR2600.book 12 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Safe Driving (P27)

QRG

Index

Home

12

Airbags (P39) ● Your vehicle is fitted with airbags to help protect you and

your passengers during a moderate-to-severe collision.

Child Safety (P54) ● All children 12 and younger should be seated in the rear seat. ● Smaller children should be properly restrained in a forward-facing child seat. ● Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard (P66) ● Your vehicle emits dangerous exhaust gases that contain carbon

monoxide. Do not run the engine in confined spaces where carbon monoxide gas can accumulate.

Seat Belts (P32) ● Fasten your seat belt and sit upright well

back in the seat.

● Check that your passengers are wearing

Before Driving Checklist (P192) ● Before driving, check that the front seats, head restraints, steering wheel, and mirrors have been properly adjusted.

their seat belts correctly.

Fasten your lap belt as low as possible.

CIVIC IMA_KAKC-31TR2600.book 13 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Instrument Panel (P69) Gauges (P82)/Multi-Information Display (P83)/System Indicators (P70)

System Indicators

Security System Alarm Indicator

Ambient Meter

Lights Reminders

Low Fuel Indicator

Electric Power Steering (EPS) Indicator

Immobilizer System Indicator

U.S. models only Low Tire Pressure/ TPMS Indicator

VSA® OFF Indicator

Vehicle Stability Assist (VSA®) System Indicator Door Open Indicator

Trunk Open Indicator

High Temperature Indicator

Low Temperature Indicator

ECON Mode Indicator

Low Oil Pressure Indicator

Fuel Gauge

Speedometer

Instant Fuel Economy Gauge

Lights On Indicator

High Beam Indicator

System Indicators

Turn Signal and Hazard Warning Indicators System Message Indicator Cruise Main Indicator Cruise Control Indicator Seat Belt Reminder Indicator Supplemental Restraint System Indicator

Side Airbag Off Indicator

12 Volt Battery Charging System Indicator Auto Idle Stop Indicator

Tachometer

Shift Lever Position Indicator

System Indicators

System Indicators

Parking Brake and Brake System Indicator (Red)

Brake System Indicator (Amber)

U.S.

Canada

U.S.

Canada

U.S.

Canada

Anti-lock Brake System (ABS) Indicator

Malfunction Indicator Lamp

IMA System Indicator

QRG

Index

Home

13

CIVIC IMA_KAKC-31TR2600.book 14 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Controls (P101) Turn Signals (P118)

Lights (P118)

Turn Signal Control Lever

Light Control Switches

Right

Left

High Beam

Low Beam

Flashing

Wipers and Washers (P121)

Wiper/Washer Control Lever

Adjustment Ring

: Long Delay : Short Delay

Pull toward you to spray washer fluid.

MIST OFF INT: Low speed with intermittent LO: Low speed wipe HI: High speed wipe

QRG

Index

Home

14

CIVIC IMA_KAKC-31TR2600.book 15 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Steering Wheel (P124) ● To adjust, pull the adjustment lever

towards you, adjust to the desired position, then lock the lever back in place.

Trunk (P110)

Trunk Release

● To unlock and open the trunk: • Pull the trunk release. • Press the trunk release button.

Power Windows (P115) ● With the ignition switch in ON (w, open

and close the power windows.

● If the power window lock button is in the

OFF position, each passenger's window can be opened and closed with its own switch.

● If the power window lock button is in the

ON position (indicator is on), each passenger's window switch is disabled.

Power Window Lock Button

Indicator

Unlocking the Front Doors from the Inside (P107) ● Pull either front door inner handle to unlock and open it at the same time.

Door Mirrors (P125) ● With the ignition switch in ON (w, move

the selector switch to L or R.

● Push the appropriate edge of the

adjustment switch to adjust the mirror.

Window Switch

Selector Switch

Adjustment Switch

QRG

Index

Home

15

CIVIC IMA_KAKC-31TR2600.book 16 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Climate Control System (P137) ● Press the AUTO button to activate the climate control system.

● Press the

button to turn the system on or off.

● Press the

button to defrost the windshield.

On models with navigation system The climate control system is voice operable. See the navigation system manual for complete details.

AUTO Button

(MODE Control) Button

(Windshield Defroster) Button

Temperature Control Bar

(ON/OFF) Button

(Recirculation) Button

(Fresh Air) Button

(Fan Control)

Bar

A/C (Air Conditioning) Button

(Rear Window Defogger/

Heated Mirror *) Button

Air flows from floor and windshield defroster vents.

Air flows from floor vents.

Air flows from floor and dashboard vents.

Air flows from dashboard vents.

Clock (P102)

Models without navigation system

clock adjustment mode screen.

a Press the CLOCK knob to access the b Turn the CLOCK knob to adjust the hours.c Press the CLOCK knob. The display d Turn the CLOCK knob to adjust the e Press the CLOCK knob to complete

switches to minute adjustment.

minutes.

clock adjustment.

Models with navigation system The navigation system receives signals from GPS satellites, updating the clock automatically.

QRG

Index

Home

16

CIVIC IMA_KAKC-31TR2600.book 17 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Features (P141) Audio System* (P142)

For navigation system operation () See Navigation System Manual

● Audio Remote Controls (P146)

−

Button Button

QRG

75°F

002300

miles

Multi- Information Display

Button

CD Slot

SCAN Button

FM Button AM Button (SKIP/SEEK)

Button

PHONE Button

SOURCE Button

●

−

Button

Press and release to adjust the volume up/ down.

● SOURCE Button

Press and release to change the audio mode: FM1/FM2/AM/CD/AUX.

●

Button

Radio:Press and release to change the

preset station. Press and hold to select the next or previous strong station.

CD/USB device:

Press and release to skip to the beginning of the next song or return to the beginning of the current song. Press and hold to change a folder.

(Power)

Button

Preset Buttons (1-6)

(CD Eject)

Button AUX Button CD Button

(SKIP/SEEK)

Button SETUP Button

Selector Knob

Button

* Not available on all models

17

Index

Home

CIVIC IMA_KAKC-31TR2600.book 18 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Driving (P191) Automatic Transmission (CVT) (P203) ● Shift to (P and depress the brake pedal when starting the engine.

● Shifting

Release Button

Shift Lever

Park Turn off or start the engine. Transmission is locked. Reverse Used when reversing. Neutral Transmission is not locked. Drive Normal driving. Drive (S) Used for: ● Better acceleration ● Increased engine braking ● Going up or down hills

Low ● Used to further increase

engine braking

● Used when going up or down

hills

● Used when IMA battery is

low

Depress the brake pedal and press the release button to move out of (P.

Move the shift lever without pressing the release button.

Press the release button to move the shift lever.

QRG

Index

Home

18

CIVIC IMA_KAKC-31TR2600.book 19 ページ ２０１１年２月１５日　火曜日　午前９時２４分

VSA® OFF Button (P209) ● The vehicle stability assist (VSA®) system

helps stabilize the vehicle during cornering, and helps maintain traction while accelerating on loose or slippery road surfaces.

● VSA® comes on automatically every time

you start the engine.

● To turn VSA® on or off, press and hold

the button until you hear a beep. Cruise Control (P205) ● Cruise control allows you to maintain a set speed without keeping your foot on the accelerator pedal.

● To use cruise control, press the CRUISE

button, then press received the desired speed (above 25 mph or 40 km/h).

once you have

−/SET

Tire Pressure Monitoring System (TPMS) (P210) U.S. models only ● TPMS monitors tire pressure.

● TPMS is turned on automatically every

time you start the engine.

Refueling (P222) Fuel recommendation: Unleaded gasoline with a pump octane number 87 or

higher

Fuel tank capacity: 13.2 US gal (50 L)

a Push the fuel fill door

release handle.

b Turn the fuel fill cap

slowly to remove the cap.

c Place the cap in the

holder on the fuel fill door.

d After refueling, screw

the cap back on until it clicks at least once.

QRG

Index

Home

19

CIVIC IMA_KAKC-31TR2600.book 20 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Maintenance (P227) Under the Hood (P235) ● Check engine oil, engine coolant, and windshield washer

fluid. Add when necessary.

● Check brake fluid. ● Check the 12 volt battery regularly.

a Pull the hood release handle under the corner of the

dashboard.

QRG

Index

Home

20

b Locate the hood latch lever, pull the lever up, and lift up

the hood.

c When finished, close the hood and make sure it is firmly

locked in place.

Wiper Blades (P252) ● Replace blades if they leave streaks

across the windshield.

Tires (P254) ● Inspect tires and wheels regularly. ● Check tire pressures regularly. ● Install snow tires for winter driving.

Lights (P247) ● Inspect all lights regularly.

CIVIC IMA_KAKC-31TR2600.book 21 ページ ２０１１年２月１５日　火曜日　午前９時２４分

Handling the Unexpected (P271) Flat Tire (P273) ● Park in a safe location and replace the

Engine Won't Start (P279) ● If the battery is dead, jump start using a

flat tire with the compact spare tire in the trunk.

booster battery.

Overheating (P283) ● Park in a safe location. If you do not see steam under the hood, open the hood, and let the engine cool down.

QRG

Indicators Come On (P285) ● Identify the indicator and consult the

owner's manual.

Blown Fuse (P289) ● Check for a blown fuse if an electrical

device does not operate.

Emergency Towing (P292) ● Call a professional towing service if you

need to tow your vehicle.

Index

Home

21

CIVIC IMA_KAKC-31TR2600.book 22 ページ ２０１１年２月１５日　火曜日　午前９時２４分

What to Do If

QRG

The ignition switch does not turn from (0 to (q. Why?

● The steering wheel may be locked. ● Try to turn the steering wheel left and right

while turning the ignition key.

The ignition switch does not turn from (q to (0 and I cannot remove the key. Why?

The shift lever should be moved to (P.

Why does the brake pedal pulsate slightly when applying the brakes?

This can occur when the ABS activates, and does not indicate a problem. Apply firm, steady pressure on the brake pedal. Never pump the brake pedal.

The rear door cannot be opened from inside the vehicle. Why?

Check if the childproof lock is in the LOCK position. If so, open the rear door with the outside door handle. To cancel this function, push the lever to the UNLOCK position.

Index

Home

22

CIVIC IMA_KAKC-31TR2600.book 23 ページ ２０１１年２月１５日　火曜日　午前９時２４分

If you do not open the doors within 30 seconds, the doors are relocked automatically for security.

QRG

Why do the doors lock after I unlocked the doors using a remote transmitter?

Why does the beeper sound when I open the driver's door?

The beeper sounds when: ● The key is left in the ignition switch. ● The exterior lights are left on. ● The Auto Idle Stop is in operation.

Why does the beeper sound when I start driving?

The beeper sounds when: ● Driver and/or front passenger are not wearing their seat belts. ● The parking brake lever is not fully released.
