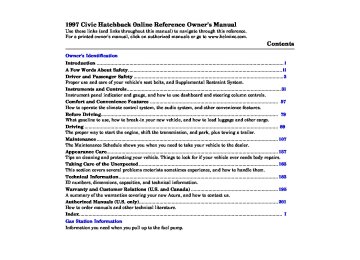

1997 Civic Hatchback(cid:13)(cid:10) Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com.

Contents

Owner's Identification

Introduction ......................................................................................................................................... i A Few Words About Safety.................................................................................................................ii Driver and Passenger Safety ..............................................................................................................3
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System. Instruments and Controls.................................................................................................................31
Instrument panel indicator and gauge, and how to use dashboard and steering column controls. Comfort and Convenience Features .............................................................................................. 57
How to operate the climate control system, the audio system, and other convenience features. Before Driving.................................................................................................................................. 79
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo. Driving .............................................................................................................................................. 89
The proper way to start the engine, shift the transmission, and park, plus towing a trailer. Maintenance.....................................................................................................................................107
The Maintenance Schedule shows you when you need to take your vehicle to the dealer. Appearance Care..............................................................................................................................157
Tips on cleaning and protecting your vehicle. Things to look for if your vehicle ever needs body repairs. Taking Care of the Unexpected......................................................................................................163
This section covers several problems motorists sometimes experience, and how to handle them. Technical Information.....................................................................................................................183
ID numbers, dimensions, capacities, and technical information. Warranty and Customer Relations (U.S. and Canada)................................................................195
A summary of the warranties covering your new Acura, and how to contact us. Authorized Manuals (U.S. only)......................................................................................................201
How to order manuals and other technical literature. Index..................................................................................................................................................... I Gas Station Information Information you need when you pull up to the fuel pump.

Introduction

As you read this manual, you will find information that is preceded by a NOTICE symbol. This information is intended to help you avoid damage to your Honda, other property, or the environment.

Congratulations ! Your selection of a 1997 Honda Civic was a wise investment. It will give you years of driving pleasure.

One of the best ways to enhance the enjoyment of your new Honda is to read this manual. In it, you will learn how to operate its driving controls and convenience items. Afterwards, keep this owner's manual in your vehicle so you can refer to it at any time.

Several warranties protect your new Honda. Read the warranty booklet thoroughly so you understand the coverages and are aware of your rights and responsibilities.

Maintaining your vehicle according to the schedules given in this manual helps to keep your driving trouble-free while it preserves your investment. When your vehicle needs maintenance, keep in mind that your Honda dealer's staff is specially trained in servicing the many systems unique to your Honda. Your Honda dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.

The CX (GOP) model referred in this manual is a CX model sold in Canada with a Group Option Package

Main MenustA Few Words About Safety

Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.

ii

You will find this important safety information in a variety of forms, including:

Safety Labels − Safety Messages

on the vehicle. − three signal words: These signal words mean:

preceded by a safety alert symbol DANGER WARNING

, or

CAUTION

and one of

You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.

You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.

You CAN be HURT if you don’t follow instructions.

such as Important Safety Reminders or Important

Safety Headings − Safety Precautions. Safety Section − Instructions how to use this vehicle correctly and safely. −

such as Driver and Passenger Safety.

This entire book is filled with important safety information carefully.

−

please read it

Main MenustThis section gives you important information about occupant protec- tion. It shows how to use seat belts properly. It explains the Supple- mental Restraint System. And it gives useful information about how to protect infants and children in your car.

Your Occupant Protection System.. 4
The Seat Belt System

and How It Works...................... 5
Why Wear Seat Belts.................... 5

Important Safety Reminders........ 5
Seat Belt System Components..... 6
Lap/Shoulder Belt......................... 6
Lap Belt...........................................7
Wearing Seat Belts Properly........ 7
Wearing a Lap/Shoulder Belt...... 7
Wearing the Lap Belt.................... 9
Advice for Pregnant Women...... 10
Seat Belt Maintenance................ 11
Supplemental Restraint System..... 12
SRS Components......................... 12
What Happens In a Crash........... 12
Important Facts About

Airbags...................................... 13

How the Driver's Airbag

Works........................................ 14

How the Passenger's Airbag

Works........................................ 15

How the SRS Indicator Light

Works........................................ 16
System Service............................. 16
System Service Precautions....... 17
Additional Safety Information........ 18
Seat-back Position........................ 18
Head Restraint Position.............. 18
Door Locks................................... 19

Driver and Passenger Safety

Storing Cargo Safely................... 19
Driving with Pets......................... 19
Child Safety...................................... 20
Where Should Children Sit?....... 20
Important Safety Reminders...... 21
General Guidelines for Restraining Children Under 40 lbs (18 kg)............... 22

Restraining an Infant Who Weighs Less Than 20 lbs (9 kg).......... 22

Restraining a Child Who Weighs Between 20 and 40 lbs (9 and 18 kg)..... 23

Restraining a Child Who Weighs

Over 40 lbs (18 kg).................. 24

Securing a Child Seat with a

Lap/Shoulder Belt................... 24

Using Child Restraints

with Tethers............................. 25
Storing a Child Seat..................... 26
Alcohol and Drugs........................... 27
Carbon Monoxide Hazard.............. 28
Safety Labels.................................... 29

Driver and Passenger Safety

Main MenustYour Occupant Protection System

Your Honda is equipped with seat belts and other features that work together to protect you and your passengers during a crash.

Seat belts are the most important part of your occupant protection system. When worn properly, seat belts can reduce the chance of serious injury or death in a crash.

For added protection during a severe frontal collision, your Honda has a Supplemental Restraint System (SRS), with airbags for the driver and a front seat passenger. The passenger's airbag is not available on the Canadian CX model.

Two indicator lights are also part of your safety system. One reminds you to make sure you and your passen- gers wear seat belts. The other alerts you to a possible problem with your supplemental restraint system (see page 16).

The seats, head restraints and door locks also play a role in occupant safety. For example, reclining the seat-back can decrease the effec- tiveness of your seat belt. Head restraints can help protect your neck and head, especially during rear-end impacts. Door locks help keep your doors from being accidentally opened during a crash.

Driver and Passenger Safety

To get the maximum protection from your occupant protection system, check the following before you drive away:

Everyone in the car is wearing a seat belt properly (see page 7). Infants and small children are properly secured in child safety seats (see page 20). Both doors and the hatch are closed and locked (see page 19). Seat-backs are upright and head restraints are properly adjusted (see pages 18 and 49). There are no loose items that could be thrown around and hurt someone during a crash or sudden stop (see page 19).

By following these guidelines, you can reduce injuries to yourself and your passengers in many crash situations. Remember, however, that no safety system can prevent all injuries or deaths that can occur in severe crashes.

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Why Wear Seat Belts Wearing seat belts, and wearing them properly, is fundamental to your safety and the safety of your passengers.

During a crash or emergency stop, seat belts can help keep you from being thrown against the inside of the car, against other occupants, or out of the car.

Of course, seat belts cannot com- pletely protect you in every crash. But, in most cases, seat belts reduce your chance of serious injury. They can even save your life. That is why many states and all Canadian pro- vinces require you to wear seat belts.

Not wearing a seat belt increases the chance of serious injury or death in a crash.

Be sure you and your passengers always wear seat belts and wear them properly.

Important Safety Reminders Seat belts are designed for adults and larger children. All infants and small children must be properly restrained in child safety seats (see page 20).

A pregnant woman needs to wear a seat belt to protect herself and her unborn child (see page 10).

Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.

Do not place the shoulder portion of a lap/shoulder belt under your arm or behind your back. This could increase the chance of serious injuries in a crash.

Do not put shoulder belt pads or other accessories on seat belts. They can reduce the effectiveness of the belts and increase the chance of injury.

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Seat Belt System Components Your Honda has seat belts in all five seating positions. The front seats and the outside positions of the rear seat have lap/shoulder belts. The center position of the rear seat has a lap belt.

Your seat belt system also includes a light on the instrument panel to remind you to fasten your seat belt, and to make sure your passengers fasten theirs. This light comes on when you turn on the ignition if you have not fastened your seat belt. A beeper also sounds for several seconds (see page 34 ).

The following pages cover more about the seat belt components and how they work.

Driver and Passenger Safety

Lap/Shoulder Belt

The lap/shoulder belt retractor in each passenger seating position has an additional locking mechanism intended to secure a child seat (see page 24). If the shoulder part of the belt is pulled all the way out, this mechanism will engage. The belt will retract, but it will not allow the passenger to move freely. If the belt feels too tight, unlatch it, let it retract fully, then pull it out as far as needed.

This style of seat belt has a single belt that goes over your shoulder, across your chest, and across your hips. Each lap/shoulder belt has an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Wearing a Lap/Shoulder Belt Before putting on the seat belt, move the driver's seat as far back as is practical while still allowing you to maintain full control of the vehicle. Make sure the seat-back is upright (see page 48 ). The front seat passenger should move the seat as far back as possible.

Wearing Seat Belts Properly You can increase the effectiveness of your seat belts if you take a little time to read the following pages and make sure you know how to wear seat belt's properly.

Not wearing a seat belt properly increases the chance of serious injury or death in a crash.

Be sure you and your passengers always wear seat belts and wear them properly.

Lap Belt

BELT END

BUCKLE

LATCH PLATE

The lap belt has one manually- adjusted belt that fits across the hips. It is similar to safety belts used in airplanes.

CONTINUED

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

1. Pull the latch plate across your

body and insert it into the buckle. Tug on the belt to make sure the latch is securely locked.

2. Check that the belt is not twisted.

3. Position the lap portion of the belt

as low as possible across your hips, not across your stomach. This lets your strong pelvic bones take the force of a crash.

4. Pull up on the shoulder part of the

belt to remove any slack. Make sure the belt goes over your collarbone and across your chest.

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Wearing the Lap Belt

5. If the shoulder belt crosses your

neck while you are sitting in one of the outside positions of the rear seat, you need to adjust your seating position. Move toward the center of the seat until the belt fits over your collarbone.

To unlatch the seat belt, push the red PRESS button on the buckle. Guide the belt across your body to the door pillar.

After you exit the vehicle, make sure the seat belt is out of the way and will not get closed in the door.

1. Pull the latch plate across your

hips and insert it into the buckle marked CENTER.

If the belt is too short, hold the latch plate at a right angle, and pull to extend the belt. Insert the latch plate into the buckle.

CONTINUED

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Advice for Pregnant Women

2. Position the belt as low as possible across your hips and pelvic bones, not across your stomach. Pull the loose end of the belt to adjust for a snug but comfortable fit.

To unlatch the belt, push the red PRESS button on the buckle.

Protecting the mother is the best way to protect her unborn child. Therefore, a pregnant woman should wear a properly-positioned seat belt whenever she drives or rides in a car.

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

If possible, use a lap/shoulder seat belt, remembering to keep the lap portion as low as possible (see page 8 ).

Each time you have a check-up, ask your doctor if it's okay for you to drive and how you should position a lap/shoulder seat belt.

Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly.

Pull out each belt fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the lap/shoulder belts retract easily. Any belt not in good condition or not working properly should be replaced.

If a seat belt is worn during a crash, have your dealer replace the belt and inspect the anchors for damage.

For information on how to clean your seat belts, see page 160 .

Driver and Passenger Safety

Main MenuTable of ContentsstSupplemental Restraint System

Your car is equipped with a Supple- mental Restraint System (SRS) to help protect the head and chest of the driver and front seat passenger during a severe frontal collision. The passenger's airbag is not available on the Canadian CX model.

This system does not replace your seat belts. It supplements, or adds to, the protection offered by seat belts and other occupant protection features.

Not wearing a seat belt increases the chance of serious injury or death in a crash, even if you have airbags.

Be sure you and your passengers always wear seat belts and wear them properly.

SRS Components Your supplemental restraint system includes:

One airbag in the steering wheel for the driver and another in the dashboard for the passenger.

Sensors that can detect a severe frontal collision.

A sophisticated electronic system that continually monitors the sensors, control unit, airbag activators, and all related wiring when the ignition is ON (II).

An indicator light on the instru- ment panel to alert you to a possi- ble problem with the system.

Emergency backup power in case your car's electrical system is disconnected in a crash.

What Happens In a Crash If you ever have a severe frontal collision, the sensors will detect rapid deceleration and signal the control unit to instantly inflate the airbags.

During a crash, your seat belts will help to restrain your lower body and torso. The airbags will provide a cushion to absorb crash energy and help keep the head and chest of the driver and front passenger from striking the interior of the car.

After inflating, the airbags will immediately deflate. The entire process, from detection to deflation, takes a fraction of a second. This process occurs so quickly that you may not hear the loud noise created by the airbag inflators, or realize what has happened.

Driver and Passenger Safety

Main MenuTable of ContentsstSupplemental Restraint System

After the crash, you may see what looks like smoke. This is actually powder from the airbag's surface. People with respiratory problems may experience some temporary discomfort from the chemicals used by the airbag's activators.

Important Facts About Airbags Airbags inflate only when needed; in a severe frontal collision. A severe collision would be similar to a crash into a parked vehicle of similar size and weight at 25 mph (40 km/h). Airbags will not inflate in a moderate frontal collision, or during a rear impact, side impact, or rollover — even if the impact is severe.

Frontal Collision Range

Airbags inflate and deflate only once. They cannot protect you during any additional impacts that can occur

during a crash sequence.

Injuries, including fatal injuries, can occur in a severe collision, even if seat belts are worn properly and the airbags inflate. No safety system can provide complete protection in a severe crash.

Just from viewing the vehicle damage after a crash, it is very difficult to accurately determine if the airbags should or should not have inflated. In some cases where the airbag did not inflate, extensive visible damage indicated that the car absorbed much of the crash energy, and the airbags were not needed. In other cases, a severe jolt, such as an impact to the undercarriage, may not cause extensive body damage but may still cause the airbags to inflate.

Driver and Passenger Safety

Main MenuTable of ContentsstSupplemental Restraint System

How the Driver's Airbag Works

To do its job, the airbag inflates with considerable force. So, while it can reduce serious injuries and even save your life, the airbag might cause some facial abrasions or other injuries. To reduce the possibility of injury, you should always sit back as far from the steering wheel as practical while still maintaining full vehicle control.

If you ever have a severe frontal collision, your airbag will instantly inflate to help protect your head and chest.

Driver and Passenger Safety

After the bag completely inflates, it immediately starts deflating so it won't interfere with your visibility, ability to steer, or ability to operate other controls. The total time for inflation and deflation is a fraction of a second. You may not even be aware that the airbag has been fully inflated.

Main MenuTable of ContentsstSupplemental Restraint System

How the Passenger's Airbag Works

The driver's airbag is stored in the center of the steering wheel. For your safety, do not attach any items to the steering wheel. They could interfere with the proper operation of the airbag. Or, if the airbag inflates, they could be propelled inside the car and hurt someone.

If you ever have a severe frontal collision, the passenger's airbag will inflate at the same time as the driver's airbag.

This airbag is quite large and inflates with considerable force. It can seriously hurt a front seat passenger who is not in the proper position and wearing the seat belt properly.

Front seat passengers should move the seat as far back as practical and sit well back in the seat.

We strongly recommend that you do not put an infant seat in the front passenger's seat. If the airbag inflates, it can hit the infant seat with great force. The infant seat can be dislodged or struck with enough force to cause very serious injury to the infant.

If a toddler seat is used in the front passenger's seat, the vehicle seat should be moved as far back as possible. If the passenger's bag inflates, it could seriously hurt a toddler who is not in the proper position or properly restrained.

CONTINUED

Driver and Passenger Safety

Main MenuTable of ContentsstSupplemental Restraint System

The passenger's airbag is stored near the top of the dashboard, under a lid marked SRS. Do not place any objects on top of this lid. If the airbag inflates, those objects can be propelled inside the car and possibly hurt someone.

How the SRS Indicator Light Works

SRS The purpose of the SRS light on your instrument panel is to alert you to a potential problem with your supple- mental restraint system.

Have the system checked if:

The light does not come on when you turn the ignition ON (II).

The light stays on after the engine starts.

The light comes on or flashes while you are driving.

If you see any of these indications, the airbag may not work when needed in an accident. Take the car to your dealer promptly for diagnosis and service.

System Service Your supplemental restraint system is virtually maintenance-free. The only scheduled maintenance is an inspection of the system by the dealer when the car is ten years old. For your convenience, the car's production date is on a label on the driver's doorjamb. If either of the following happens, you must have an authorized Honda dealer service the system. There are no parts you can safely service.

If your airbags ever inflate, the airbags and control unit must be replaced. Do not try to remove or discard the airbags yourself. This must be done by a Honda dealer.

Driver and Passenger Safety

Main MenuTable of ContentsstIf the SRS indicator light alerts you to a problem, have the supplemental restraint system inspected as soon as possible. If you ignore this indication, the airbags might not inflate when you need them.

Supplemental Restraint System

Scrapping an entire car that has uninflated airbags can be dangerous. Get assistance from a Honda dealer if your car must be scrapped.

If you sell your car, please be sure to tell the new owner that the car has a supplemental restraint system. Alert them to the information and precau- tions in this part of the owner's manual.

System Service Precautions Do not modify your steering wheel or any other part of the supplemental restraint system. Modifications could make the system ineffective.

Do not tamper with the system's components or wiring. This could cause the airbags to inflate inadver- tently, possibly injuring someone very seriously.

Tell anyone who works on your car that you have a supplemental restraint system. Failure to follow the procedures and precautions in the official Honda service manual could result in personal injury or damage to the system.

Driver and Passenger Safety

Main MenuTable of ContentsstAdditional Safety Information

The seat belts and airbags are obvi- ously important parts of your occu- pant protection system.

In addition, you should know that sitting upright, adjusting the head restraints properly, locking the doors, and stowing things properly can also increase your safety and possibly even save your life.

Seat-back Position The seat-backs should be in an upright position for you and your passengers to get the most protec- tion from the seat belts.

If you recline a seat-back, you reduce the protective capability of your seat belt. The farther a seat-back is reclined, the greater the risk that you will slide under the belt in a severe crash and be very seriously injured.

For information on how to adjust the seat-back, see page 48 .

Head Restraint Position

Head restraints can help protect you from whiplash and other injuries. For the best protection, adjust the top of the restraint so it is even with the tops of your ears, or as high as possi- ble. For instructions on adjusting the head restraints, see page 49 .

Driver and Passenger Safety

Main MenuTable of ContentsstAdditional Safety Information

Be sure to keep compartment doors closed when the car is moving. If a front passenger hits the door of an open glove box, for example, he could injure his knees.

For information on loading cargo, see page 88 .

Driving with Pets Loose pets can be a hazard while you are driving. An unrestrained pet can interfere with your ability to drive the car. In a crash or sudden stop, loose pets or cages can be thrown around inside the car and hurt you or your passengers. It is also for their safety that pets should be properly restrained in your car.

The recommended way to restrain a medium-sized or larger dog is with a special traveling harness. This har- ness can be secured to the rear seat with a seat belt. Travel harnesses are available at pet stores.

A small dog, cat, or other small animal will be safest in a pet carrier with rigid sides. Choose a style that allows you to secure it to the car's seat by routing a seal belt through the carrier's handle.

For lurther information, contact your veterinarian or local animal protec- tion society.

Door Locks It is not safe to leave your car doors unlocked. A passenger, especially a child, could open a door and acci- dentally fall out. Also, there is a greater chance of being thrown out of the car during a crash when the doors are not locked.

Storing Cargo Safely Before you drive, make sure you first securely store or tie down any items that could be thrown around the car and hurt someone, or interfere with your ability to operate the controls.

DX, Canadian CX and CX (GOP) models Do not put any items on top of the cargo area cover. They can block your rear view, and could be thrown about the interior in a crash.

Driver and Passenger Safety

Main MenuTable of ContentsstChild Safety

Children depend on adults to protect them. To help make sure we do, every state and Canadian province has laws requiring infants and young children to be properly restrained whenever they ride in a car.

Driver and Passenger Safety

An infant or child who is not properly restrained can be killed or seriously injured in a crash.

Be sure any child too small for seat belts is properly secured in a child restraint.

Where Should Children Sit? According to accident statistics, children of all sizes and ages are safer when they are properly restrained in the rear seat rather than the front seat.

We recommend that, whenever possible, you secure your child's infant or toddler seat in the center position of the rear seat with the lap belt.

We strongly recommend that you do not put an infant seat in the front passenger's seat. If the airbag inflates, it can hit the infant seat with great force. The infant seat can be dislodged or struck with enough force to cause very serious injury to the infant.

Main MenuTable of ContentsstChild Safety

Two children should never use the same seat belt. If they do, they could be very seriously injured in a crash.

For their safety, do not leave children alone in your car without adult supervision.

If a toddler seat is used in the front seat of a car equipped with a passen- ger's airbag, the vehicle seat should be moved as far back as possible. If the passenger's bag inflates, it could seriously hurt a toddler who is not in the proper position or properly restrained.

We also recommend that any child who is too large to use an infant or toddler seat ride in one of the out- side positions of the rear seat. The child should then wear the lap/ shoulder belt properly for protection. If the child is not large enough to wear the lap/shoulder belt properly, you should use a booster seat.

Important Safety Reminders Never hold a baby or child on your lap when riding in a car. If you are wearing your seat belt, the violent forces created during a crash will tear the child from your arms. The child could be seriously hurt or killed.

If you are holding a child and not wearing a seat belt in a crash, you could crush the child against the car's interior.

Never put your seat belt over yourself and a child. During a crash, the belt could press deep into the child, causing serious internal injuries.

Driver and Passenger Safety

Main MenuTable of ContentsstChild Safety

General Guidelines for Restraining Children Under 40 lbs (18 kg) Use an approved child seat. The seat must meet Federal Motor Vehicle Safety Standard 213 (FMVSS-213) or Canadian Motor Vehicle Safety Standards. Look for the manufac- turer's statement of compliance on the box and seat.

Use a seat of the right size. Make sure the seat fits your child. Check the seat manufacturer's instructions and labels for height and weight limits.

Secure the child seat to the car. All approved child seats are designed to be secured to the car seat by the lap belt or the lap belt portion of a lap/ shoulder belt. A child whose seat is not properly secured to the car can be endangered in a crash.

Driver and Passenger Safety

Restraining an Infant Who Weighs Less Than 20 lbs (9 kg)

To properly route a seat belt through a child seat, follow the seat maker's instructions. If you use a lap/ shoulder belt, be sure to follow the instructions for securing a child seat with a lap/shoulder belt on page 24 .

Secure the child in the child seat. Make sure the infant or child is firmly secured to the child seat. Use the straps provided, and carefully follow the manufacturer's instructions.

An infant up to about 20 lbs (9 kg) must be restrained in an infant seat or a convertible seat designed for a baby. Because infants must ride in a reclining position, be sure the infant seat always faces the REAR of the car as shown.

Main MenuTable of ContentsstChild Safety

Canadian Models

TOOTHED WASHER

Storing a Child Seat When you are not using an infant seat or other child restraint, either remove it or make sure it is properly secured so it cannot be thrown around the car during a crash.

The anchor plate and mounting- hardware for a top tether are supplied with the car. When install- ing, make sure the toothed washer is on the bottom of the bolt.

The supplied anchor plate is designed only for mounting a child restraint. Do not use it for any other purpose.

Driver and Passenger Safety

Main MenuTable of ContentsstAlcohol and Drugs

Driving a car requires your full at- tention and alertness. Traffic condi- tions change rapidly. You must be able to react just as rapidly. Alcohol or drugs directly affect your alert- ness and ability to react. Even pre- scription and non-prescription medi- cines can have this effect.

There are laws that deal with drunken driving. These laws define how much alcohol it takes in your system to be legally "drunk." How- ever, your judgment and reaction time get worse with every drink— even the first one.

The safest thing you can do is never drink and drive. This can be done if you plan ahead. If you know you are going to be drinking, make plans to ride with a friend who will not be drinking.

If you have no choice but to drive, stop drinking and give yourself lots of time to sober up. Time is the only thing that can make you sober. Things like coffee or a cold shower don't speed up the process.

What if you find that you've been drinking and cannot get a ride from a friend? Find alternative transpor- tation. Call a taxi. Take a bus. Many communities have transportation services devoted to shuttling people who have been drinking.

If you see friends trying to get behind the wheel after drinking, stop them. Drive them yourself or arrange other transportation. If you think you are interfering, remember that your interference will keep them from sharing the road with you.

Driver and Passenger Safety

Main MenuTable of ContentsstCarbon Monoxide Hazard

Your car's exhaust contains carbon monoxide gas. You should have no problem with carbon monoxide entering the car in normal driving if you maintain your car properly. Have the exhaust system inspected for leaks whenever:

The car is raised for an oil change. You notice a change in the sound of the exhaust. The car was in an accident that may have damaged the underside.

Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any enclosed areas or activities that expose you to carbon monoxide.

High levels of carbon monoxide can collect rapidly in enclosed areas, such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move the car out of the garage.

Driver and Passenger Safety

With the hatch open, air flow can pull exhaust gas into your car's interior and create a hazardous condition. If you must drive with the hatch open, open all the windows and set the heating and cooling system as shown below.

If you must sit in your parked car, even in an unconfined area, with the engine running, adjust the heating and cooling system as follows:

1. Select the Fresh Air mode. 2. Select the 3. Turn the fan on high speed. 4. Set the temperature control to a

mode.

comfortable setting.

Main MenuTable of ContentsstThese labels are in the locations shown. They warn you of potential hazards that could cause serious injury. Read these labels carefully and don't remove them.

If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.

BATTERY

Safety Labels

RADIATOR CAP

Driver and Passenger Safety

Main MenuTable of ContentsstThis section gives information about the controls and displays that contribute to the daily operation of your Honda. All the essential controls are within easy reach.

Control Locations............................ 32
Indicator Lights................................ 33
Gauges.............................................. 37
Speedometer................................ 37
Tachometer.................................. 37
Odometer...................................... 37
Trip Meter.................................... 37
Fuel Gauge................................... 38
Temperature Gauge.................... 38
Maintenance Required

Indicator.................................... 39

Controls Near the Steering

Wheel........................................40
Headlights.................................... 41
Daytime Running Lights............. 41
Instrument Panel Brightness..... 42
Turn Signals................................. 42
Windshield Wipers...................... 43
Windshield Washers................... 43
Rear Window Wiper and

Washer...................................... 44
Hazard Warning........................... 44
Rear Window Defogger.............. 44
Keys and Locks................................ 45
Keys............................................... 45
Ignition Switch............................. 46

Instruments and Controls

Door Locks................................... 47
Hatch.............................................47
Seat Adjustments............................. 48
Front Seat Adjustments.............. 48
Head Restraints........................... 49
Rear Seat Access......................... 50
Folding Rear Seat............................ 50
Cargo Area Cover............................ 51
Mirrors.............................................. 51
Parking Brake.................................. 52
Glove Box......................................... 52
Beverage Holder.............................. 53
Accessory Power Socket................ 54
Ashtrays............................................ 54
Interior Light.................................... 55

Instruments and Controls

Main MenustAUDIO SYSTEM, DIGITAL CLOCK (P.66, 71)

HEATING/ COOLING CONTROL (P.58)

Control Locations

HATCH RELEASE HANDLE (P.47)

FUEL FILL DOOR RELEASE (P.82)

HOOD RELEASE HANDLE (P.83)

Instruments and Controls

Main MenuTable of ContentsstThe instrument panel has many indicators to give you important information about your car.

Lamp Check These indicator lights come on when you turn the ignition switch ON (II), allowing you to see that they are working:

SRS Indicator Malfunction Indicator Lamp Charging System Indicator Low Oil Pressure Indicator Anti-lock Brake System Indicator Seat Belt Reminder Light D4 Lamp

If an indicator does not light during this test, it cannot alert you if that system develops a problem. Have the dealer check your car for burned-out bulbs or other problems.

HIGH BEAM INDICATOR

CHARGING SYSTEM INDICATOR

MALFUNCTION INDICATOR LAMP

LOW OIL PRESSURE INDICATOR

Indicator Lights

PARKING BRAKE AND BRAKE SYSTEM INDICATOR*

HATCH-OPEN INDICATOR

LOW FUEL INDICATOR

SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR

ANTI-LOCK BRAKE SYSTEM INDICATOR

SEAT BELT REMINDER LIGHT

* The U.S. instrument panel is shown. Differences for the Canadian model are noted in the text.

Instruments and Controls

Main MenuTable of ContentsstIndicator Lights

HIGH BEAM INDICATOR

CHARGING SYSTEM INDICATOR

LOW OIL PRESSURE INDICATOR

PARKING BRAKE AND BRAKE SYSTEM INDICATOR*

HATCH-OPEN INDICATOR

Seat Belt Reminder Light

This indicator lights when you turn the ignition ON (II). It is a reminder to you and your passengers to protect yourselves by fastening the seat belts. A beeper also sounds if you have not fastened your seat belt.

If you do not fasten your seat belt, the beeper will stop after a few seconds but the light stays on until you do. Both the light and the beeper stay off if you fasten your seat belt before turning on the ignition.

MALFUNCTION INDICATOR LAMP

SEAT BELT REMINDER LIGHT

SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR

Instruments and Controls

* The U.S. instrument panel is shown. Differences for the Canadian model are noted in the text.

Main MenuTable of ContentsstCharging System Indicator

If this light comes on when the engine is running, the battery is not being charged. For complete information, see page 175 .

Low Oil Pressure Indicator

The engine can be severely damaged if this light flashes or stays on when the engine is running. For complete information, see page 174 .

Anti-lock Brake System (ABS) Indicator

ABS Only on cars equipped with ABS (see page 101) This light normally comes on for a few seconds when you turn the ignition ON (II), and when the ignition switch is turned to START (III). If this light comes on at any other time, there is a problem in the ABS. If this happens, take the car to your dealer to have it checked. With the light on, your car still has normal braking ability but no anti-lock.

Supplemental Restraint System Indicator

SRS This indicator lights when you turn the ignition ON (II). If it comes on at any other time, it indicates a problem in the supplemental restraint system. For complete information, see page

16 .

Indicator Lights

Canada Parking Brake

U.S. BRAKE

and Brake System Indicator This light has two functions:

1. It lights as a reminder that you have not released the parking brake. Driving with the parking brake applied can damage the brakes and tires.

2. If it remains lit after you release the parking brake, or comes on while driving, it can indicate that the brake fluid level is low. This is normally due to worn brake pads. Have your dealer check the braking system for worn pads or fluid leaks.

Instruments and Controls

Main MenuTable of ContentsstHigh Beam Indicator

Hatch-open Indicator

This light comes on with the high beam headlights. See page 41 for information on the headlight controls.

On Canadian models, this indicator comes on with reduced brightness when the Daytime Running Lights (DRL) are on (see page 41).

This light comes on if the hatch is not closed tightly.

Low Fuel Indicator

On U.S. DX model only This light comes on as a reminder that you must refuel soon.

Indicator Lights

Malfunction Indicator Lamp

See page 176.

Turn Signal and Hazard Warning Indicators

The left or right turn signal light blinks when you signal a lane change or turn. If the light does not blink or blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 151). Replace the bulb as soon as possible, since other drivers cannot see that you are signalling.

When you turn on the Hazard Warning switch, both turn signal lights blink. All turn signals on the outside of the car should flash.

Instruments and Controls

Main MenuTable of ContentsstTACHOMETER

TRIP METER SPEEDOMETER

FUEL GAUGE TEMPERATURE

GAUGE

ODOMETER

MAINTENANCE REQUIRED INDICATOR

TRIP METER RESET BUTTON

Speedometer U.S. Models This shows your speed in miles per hour (mph). The smaller inner numbers are the speed in kilometers per hour (km/h).

Canadian Models This shows your speed in kilometers per hour (km/h). The smaller inner numbers are the speed in miles per hour (mph).

Tachometer On CX (GOP) models The tachometer shows the engine speed in revolutions per minute (rpm). To protect the engine from damage, never drive with the tachometer needle in the red zone.

Gauges

Odometer The odometer shows the total dis- tance your car has been driven. It measures miles in U.S. models and kilometers in Canadian models. It is illegal under federal law (in the U.S.) and provincial regulations (in Canada) to disconnect, reset, or alter the odometer with the intent to change the number of miles or kilometers indicated.

Trip Meter This meter shows the number of miles (U.S.) or kilometers (Canada) driven since you last reset it. To reset it, push the trip meter reset button.

Instruments and Controls

Main MenuTable of ContentsstGauges

TEMPERATURE GAUGE

TRIP METER

SPEEDOMETER

FUEL GAUGE

ODOMETER

MAINTENANCE REQUIRED

INDICATOR

TRIP METER RESET BUTTON

Fuel Gauge This shows how much fuel you have. It is most accurate when the car is on level ground. It may show slightly more or less than the actual amount when you are driving on curvy or hilly roads.

The gauge stays at the same fuel level reading after you turn off the ignition. When you add fuel, the gauge slowly changes to the new reading after you turn the ignition back ON (II).

Instruments and Controls

Temperature Gauge This shows the temperature of the engine's coolant. During normal operation, the pointer should rise from the bottom white mark to about the middle of the gauge. In severe driving conditions, such as very hot weather or a long period of uphill driving, the pointer may rise to the upper blue zone. If it reaches the red (Hot) mark, pull safely to the side of the road. Turn to page 172 for instructions and precautions on checking the engine's cooling system.

Main MenuTable of ContentsstWhen the distance driven since the last scheduled maintenance nears 7,500 miles (12,000 km), the indicator will turn yellow. If you exceed 7,500 miles (12,000 km), the indicator will turn red. Your dealer will reset the indicator when he performs the scheduled maintenance. If someone else performs the maintenance, reset the indicator by inserting your key in the slot beside the indicator.

Maintenance Required Indicator

SLOT

INDICATOR

U.S. Models This indicator reminds you that it is nearing 7,500 miles (12,000 km) since the last scheduled maintenance. Refer to the Maintenance Schedules for Normal and Severe Driving Conditions on pages 112 — 113.

Gauges

Instruments and Controls

Main MenuTable of ContentsstControls Near the Steering Wheel

INSTRUMENT PANEL BRIGHTNESS

WINDSHIELD WIPERS/WASHERS

HAZARD WARNING LIGHTS

REAR WINDOW DEFOGGER

The two levers on the steering column contain controls for driving features you use most often. The left lever controls the turn signals, headlights, and high beams. The right lever controls the windshield washers and wipers.

The rear window defogger switch is on the dashboard to the right of the center air vents.

Instruments and Controls

HEADLIGHTS/ TURN SIGNALS

HORN BUTTONS

Main MenuTable of ContentsstControls Near the Steering Wheel

Headlights

If you leave the lights on with the ignition switch in ACCESSORY (I) or LOCK (0), you will hear a reminder beeper when you open the driver's door.

" position turns

The rotating switch on the left lever controls the lights. Turning this switch to the " on the parking lights, taillights, instrument panel lights, side-marker lights, and rear license plate lights. Turning the switch to the " position turns on the headlights.

To change between low beams and high beams, pull the turn signal lever until you hear a click, then let go. The blue high beam indicator will light (see page 36).

To flash the high beams, pull the turn signal lever back lightly, then release it. The high beams will come on and go off.

The high beams will stay on for as long as you hold the lever back, no matter what position the headlight switch is in.

Daytime Running Lights (Canadian Models) With the headlight switch off, the high beam headlights come on with reduced brightness when you turn the ignition switch to ON (II) and release the parking brake. They remain on until you turn the ignition off, even if you set the parking brake.

The headlights revert to normal operation when you turn them on with the switch.

Instruments and Controls

Main MenuTable of ContentsstControls Near the Steering Wheel

Instrument Panel Brightness

Turn Signals

To signal a lane change, push lightly on the turn signal lever in the proper direction and hold it. The lever will return to the center position as soon as you release it.

The dial on the dashboard to the left of the instrument panel controls the brightness of the instrument panel lights. Turn the dial to adjust the brightness.

TURN SIGNAL LEVER

Signal a turn or lane change with this lever. Push down on the lever to signal a left turn, and up to signal a right turn. If you push it up or down all the way, the turn signal continues to blink even when you release the lever. It shuts off automatically as you complete the turn.

Instruments and Controls

Main MenuTable of ContentsstWindshield Wipers

Windshield Washers

Controls Near the Steering Wheel

The right lever controls the wind- shield wipers and washers. The rotary switch at the end of the lever has three positions: INT: intermittent

: low speed : high speed

In intermittent, the wipers operate every few seconds. In low speed and high speed, the wipers run continu- ously.

To operate the wipers in mist mode, push the control lever down. The wipers run at high speed until you release the lever. This gives you a quick way to clear the windshield.

To clean the windshield, pull back on the wiper control lever. The washers spray until you release the lever.

On Canadian models The wipers run at low speed while you're pulling the lever, then complete one more sweep of the windshield after you release it.

Instruments and Controls

Main MenuTable of ContentsstControls Near the Steering Wheel

Rear Window Wiper and Washer

Hazard Warning

Rear Window Defogger

On U.S. DX and Canadian models To turn on the rear window wiper, turn the ring clockwise to ON. To also use the rear window washer, turn the ring clockwise past ON. The washer will spray as long as you hold the ring in this position. If you turn the ring counterclockwise from the OFF position, the washer will spray without activating the rear window wiper.

Push the red button to the left of the center vents to turn on the hazard warning lights (four-way flashers). This causes all four outside turn signals and both indicators in the instrument panel to flash. Use the hazard warning lights if you need to park in a dangerous area near heavy traffic, or if your car is disabled.

The rear window defogger will clear fog, frost, and thin ice from the window. Push the defogger button to turn it on and off. The light in the button lights to show the defogger is on. If you do not turn it off, the defogger will shut itself off after about 25 minutes. It also shuts off when you turn off the ignition. You have to turn it on again when you restart the car.

Instruments and Controls

Main MenuTable of ContentsstControls Near the Steering Wheel, Keys and Locks

Make sure the rear window is clear and you have good visibility before starting to drive.

Keys

The defogger wires on the inside of the rear window can be accidentally damaged. When cleaning the glass, always wipe side to side.

You should have received a key number plate with your set of keys. You will need this key number if you ever have to get a lost key replaced. Keep the plate stored in a safe place.

When replacing keys, use only Honda-approved key blanks.

Your car comes with two identical keys. They fit all the locks on your car:

Ignition Doors Hatch

Instruments and Controls

Main MenuTable of ContentsstKeys and Locks

Ignition Switch

LOCK (0) - You can insert or remove the key only in this position. When you turn the key from LOCK to ACCESSORY, you may have to turn the steering wheel to release the anti-theft lock. To switch from ACCESSORY to LOCK, you must push the key in slightly as you turn it. If your car has an automatic trans- mission, it must also be in Park. The anti-theft lock will lock the steering column when you remove the key.

The ignition switch is on the right side of the steering column. It has four positions:

LOCK (0) ACCESSORY (I) ON (II) START (III)

Removing the key from the ignition switch while driving locks the steering. This can cause you to lose control.

Remove the key from the ignition switch only when parked.

Instruments and Controls

ACCESSORY (I) - In this position, you can operate the audio system and the accessory power socket.

ON (II) — This is the normal key position when driving. All features and accessories on the car are usable. Several of the lights on the instru- ment panel come on as a test when you turn the ignition switch from ACCESSORY to ON (see page 33).

START (III) - Use this position only to start the engine. The switch returns to ON (II) when you let go of the key.

You will hear a reminder beeper if you leave the key in the ignition switch in the LOCK (0) or ACCESSORY (I) position and open the driver's door. Remove the key to turn off the beeper.

Main MenuTable of ContentsstDoor Locks

LOCK TAB

Each door has a lock tab next to the inside door handle. Push the tab in to lock the door and pull it out to unlock.

The doors can also be locked and unlocked from the outside with the key.

To lock the passenger's door when getting out of the car, push the lock tab in and close the door. To lock the driver's door, pull the door handle and push the lock tab in. Release the handle, then close the door.

Keys and Locks

Hatch

HATCH RELEASE HANDLE

You can open the hatch in two ways:

Pull the hatch release handle. It is to the left of the driver's seat.

Use the ignition key to open the hatch lock.

Instruments and Controls

Main MenuTable of ContentsstKeys and Locks, Seat Adjustments

Front Seat Adjustments

To close the hatch, press down on the back edge.

Adjust the seat before you start driving.

See page 88 for cargo loading and weight limit information. Keep the hatch closed at all times while driving to avoid damaging the hatch and getting exhaust gas in the interior. See Carbon Monoxide Hazard on page 28 .

To adjust the seat forward and backward, pull up on the lever under the seat cushion's front edge. Move the seat to the desired position and release the lever. Try to move the seat to make sure it is locked in position.

To change the angle of the seat-back, pull up on the lever on the outside of the seat bottom. Move the seat-back to the desired position and release the lever. Let the seat-back latch in the new position.

Instruments and Controls

Main MenuTable of ContentsstHead Restraints

Reclining the seat-back can decrease the protection you get from your seat belt in a crash.

You can slide under the seat belt and be seriously injured.

Adjust the seat-back to an upright position and sit well back in the seat.

RELEASE BUTTON

The front head restraints help protect you and your passenger from whiplash and other injuries. They are most effective when you adjust them so the top of the restraint is even with the top of your ears.

The front head restraints adjust for height. You need both hands to adjust the restraint. Do not attempt to adjust it while driving. To raise it, pull upward. To lower the restraint,

Seat Adjustments

push the release button sideways and push the restraint down.

To remove a head restraint for cleaning or repair, pull it up as far as it will go. Push the release button and pull the restraint out of the seat- back.

Driving your car without head restraints can lead to serious injury to you and your passenger in a crash.

Make sure the head restraints are in place and adjusted properly before driving.

Instruments and Controls

Main MenuTable of ContentsstSeat Adjustments, Folding Rear Seat

Rear Seat Access

Folding Rear Seat

RELEASE LEVER

To lock the seat-back upright, move the seat belt out of the way then push the seat-back firmly against its latch. Tug on the seat-back to make sure it is latched.

Make sure all items in the cargo area are tied down. Loose items can fly forward and cause injury if you have to brake hard. See Loading Cargo on page 88 .

To get into the back seat on the driver's side, pull up on the seat-back adjustment lever.

To tilt the passenger's seat-back out of the way, push forward on the release lever at the base of the seat- back.

The back of the rear seat folds down to give you more cargo space. Each side folds down separately. With only half the seat folded, you can still carry a passenger in the back seat.

To unlatch either side of the seat- back, pull up on the release tab. Move the seat belt out of the way and fold the seat-back down.

Instruments and Controls

Main MenuTable of ContentsstCargo Area Cover

Mirrors

Cargo Area Cover, Mirrors

On DX, Canadian CX and CX (GOP) models The cargo area cover may be re- moved to give you more cargo height.

To remove the cargo area cover, lift the back of the cover and fold it over the front half. Place your hands, palms up, under the front half of the cover near the outside edges and lift it straight up.

To install the cover, line up the mounting rods with the slots then push clown on the cover until it clips into place. Make sure it is securely latched so it will not come loose while you are driving.

TAB

Keep the inside and outside mirrors clean and adjusted for best visibility. Be sure to adjust the mirrors before you start driving.

The inside mirror has day and night positions. The night position reduces glare from headlights behind you. Flip the tab on the bottom edge of the mirror to select the day or night position.

Instruments and Controls

Main MenuTable of ContentsstParking Brake, Glove Box

Parking Brake

NOTICE

Glove Box

PARKING BRAKE LEVER

Driving the car with the parking brake applied can damage the rear brakes and axles.

GLOVE BOX

Open the glove box by pulling the handle. Close it with a firm push.

To apply the parking brake, pull the lever up fully. To release it, pull up slightly, push the button, and lower the lever. The parking brake light on the instrument panel should go out when the parking brake is fully released (see page 35 ).

Instruments and Controls

Main MenuTable of ContentsstGlove Box, Beverage Holder

An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt.

Always keep the glove box closed while driving.

Beverage Holder

Push

To open the beverage holder, push on the top. The beverage holder lid is spring-loaded and will swing open. To close it, push it down until it latches.

Use the beverage holder only when the car is parked. If you place cups in the holder while driving, the liquid may spill when you go over bumps or around corners.

Be careful when you are using the beverage holder. A spilled liquid that is very hot can scald you or your passengers. Spilled liquids can also damage the upholstery, carpeting, and electrical components in the interior.

Instruments and Controls

Main MenuTable of ContentsstAccessory Power Socket, Ashtrays

Ashtrays (Optional) Front and rear ashtrays are available as options. The front ashtray fits in the beverage holder. The rear ashtray fits in the rear of the center console.

Open the rear ashtray by swinging the upper edge down. To remove the ashtray for emptying, open the ashtray and then lift it up and out.

NOTICE

Use the ashtray only for cigarettes, cigars, and other smoking materials. To prevent a possible fire and damage to your car, don't put paper or other things that can burn in the ashtray.

Accessory Power Socket

ACCESSORY POWER SOCKET

To use the accessory power socket, pull down the cover. The ignition switch must be in ACCESSORY (I) or ON (II).

This socket is intended to supply power for 12 volt DC accessories that are rated 120 watts or less (10
amps).

It will not power an automotive type cigarette lighter element.

Instruments and Controls

Main MenuTable of ContentsstDOOR ACTIVATED

OFF

ON

The interior light has a three- position switch. In the OFF position, the light does not come on. In the center position, the interior light comes on when you open either door. In the ON position, the interior light stays on continuously.

Interior Lights

Instruments and Controls

Main MenuTable of ContentsstComfort and Convenience Features

The heating and optional air conditioning systems in your Honda provide a comfortable driving environment in all weather conditions.

The standard audio system has many features. This section de- scribes those features and how to use them. (If you selected an optional audio system, refer to the operating instructions that came with it.)

Heating and Cooling........................ 58
What Each Control Does............ 58
How to Use the System............... 60
To Turn Everything Off............. 65
Audio System................................... 66
Operating the Radio.................... 66
Adjusting the Sound.................... 68
Radio Frequencies....................... 69
Radio Reception........................... 69
Digital Clock................................. 71
Operating the Optional

Cassette Player........................ 72
Tape Search Functions............... 72
Caring for the Cassette Player... 74
Operating the Optional

CD Player/Changer................ 75
Protecting Compact Discs.......... 77
CD Changer Error Indications... 78

Comfort and Convenience Features

Main MenustHeating and Cooling

Proper use of the Heating and Cooling system can make the interior diy and comfortable, and keep the windows clear for best visibility.

If your vehicle does not have air conditioning, it can be installed at any time. Your dealer will install a Genuine Honda air conditioning system that meets Honda's high quality standards and is designed to exactly fit your vehicle. Please contact your dealer for more information.

What Each Control Does

Fan Control Lever Sliding this lever to the right increases the fan's speed, which increases air flow.

Comfort and Convenience Features

MODE BUTTONS

RECIRCULATION BUTTON

AIR CONDITIONING BUTTON

TEMPERATURE CONTROL LEVER

FAN CONTROL LEVER

Temperature Control Lever Sliding this lever to the right increases the temperature of the air flow.

Air Conditioning (A/C) Button This button turns the air condi- tioning ON and OFF. The indicator in the button lights when the A/C is on.

Recirculation Button This button controls the source of the air going into the system. When the indicator in this button is lit, air from the vehicle's interior is sent through the system again (Recircula- tion mode). When the indicator is off, air is brought in from outside the vehicle (Fresh Air mode).

Main MenuTable of ContentsstMode Buttons Use the MODE buttons to select the vents the air flows from.

Air flows from the center

and corner vents in the dashboard.

Air flow is divided between the vents in the dashboard and the floor vents.

Air flows from the floor

vents.

Air flow is divided between

the floor vents and the defroster vents at the base of the windshield.

Air flows from the defroster vents at the base of the windshield.

When you select automatically switches to Fresh Air
