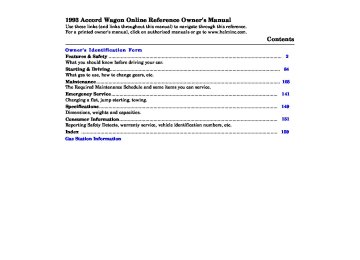

1993 Accord Wagon Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com.

Contents

Owner's Identification Form Features & Safety ............................................................................................................................... 2
What you should know before driving your car. Starting & Driving............................................................................................................................. What gas to use, how to change gears, etc. Maintenance ....................................................................................................................................... 103
The Required Maintenance Schedule and some items you can service. Emergency Service .......................................................................................................................... Changing a flat, jump starting, towing. Specifications ................................................................................................................................... 149
Dimensions, weights and capacities. Consumer Information .................................................................................................................... 151
Reporting Safety Detects, warranty service, vehicle identification numbers, etc. Index ................................................................................................................................................ Gas Station Information

159

141

84

Introduction

This manual contains important information about the safe operation and maintenance of your car. We urge you to read this manual carefully, become familiar with the controls it describes, and follow its recommendations, to help make your driving trouble free and enjoyable. Statements or labels on the product preceded by the following words are of special significance:

indicates severe personal injury or death will

result if instructions are not followed.

indicates a strong possibility of severe personal

injury or death if instructions are not followed.

means hazards or unsafe practices which could cause minor personal injury or product or property damage.

NOTE: gives helpful information.

Break-in Period During the first 600 miles (1,000 km) of driving, avoid full-throttle starts and cruising for extended periods at a constant speed. NOTE:

This break-in procedure also applies to exchanged or overhauled engines. During and after the break-in period, drive the car at moderate speeds until the engine is fully warmed up.

During the first 200 miles (300 km), try to avoid severe braking. Brake misuse during this period will reduce future braking efficiency. Remember, your Honda Automobile dealer knows your car best and should be consulted for service assistance and advice.

Keys and Locks

Remote Access Key (US: EX, Canada: EX-R)

Your car is supplied with a battery-operated remote access key. The battery in the remote access key recharges whenever the key is in the ON (I I) position in the ignition. Use the remote access key as your main ignition key. This will allow the battery to be regularly recharged.

Keyless Entry System (US: EX, Canada: EX-R) Use the remote access key to activate the keyless entry system. The keyless entry system enables you to operate the locks from outside the car without inserting the key in the keyhole.

locks

the door

Using the Remote Access Key (US: EX, Canada: EX-R) To operate from outside the car using the remote access key, aim the key blade at the keyless entry window located to the left of the keyhole in the driver's door or tailgate, and press the button in the key. Keep the key blade within 18
inches (50 cm) and in line with the keyless entry window. When the remote access key is used on the driver's door, all doors and the tailgate will lock; but only the driver's door will unlock.

If the remote access key is used on the tailgate, the tailgate and all doors will lock and unlock.

KEYLESS ENTRY WINDOW

KEYLESS ENTRY WINDOW

Keys and Locks (cont'd)

Master and Valet Keys (All Models) Your car is supplied with a master key that fits the ignition and all locks, and a valet key that fits the ignition and doors, but not the glove box or tailgate. The valet key is provided for times when you must leave the key with a parking attendant or repair person, but still want safely locked-up in the glove box.

valuables

keep

to

VALET KEY

MASTER KEY

Write down the numbers stamped on all of the keys and keep the information in your wallet or purse in case you ever need to have duplicates made. All keys are double-edged so you can insert them into the locks with either side up.

Locking and Unlocking If a key is used to lock the driver's side door, all doors and the tailgate will lock, but the key will only unlock the driver's door. If a key is used in the front passenger door lock, all doors and the tailgate will lock and unlock.

Using the key in the tailgate lock will lock and unlock the tailgate and all doors. To open the tailgate, pull the handle, then lift up.

Lock

Unlock

Unlock

Lock

Care of the Remote Access Key (US: EX, Canada: EX-R) The electronics in your remote access key are sensitive and can be damaged by rough handling. Once a remote access key is damaged, it will not work.

Keep the key out of direct sunlight and areas of high temperature, or high humidity. Avoid dropping the key or placing heavy objects on the key. This key should not be disassembled. Keep the key away from water. If the key gets wet. carefully wipe it with a soft cloth.

Operating Problems If the remote access key does not work, do not try to disassemble it. Check for moisture on the key or dirt on the keyless entry window. Carefully wipe up any damp or soiled areas with a soft cloth.

The key's battery may be discharged from lack of use. The battery in the key will recharge after 15 minutes of driving.

Replacement Key If you lose or damage your remote access key, you can order a replacement from your Honda dealer Inside the key are some expensive electronic parts, therefore replacement can be costly. You will need the five-digit code number on the aluminum plate that came with your key. You will also need the four-digit number on the key blade. Keep these numbers stored in a safe but accessible place.

Keys and Locks (cont'd)

Door Plunger From inside the car, each door and the tailgate can be locked by pushing the plunger down; each door can be unlocked by pulling the plunger up. Pushing down the plunger on the driver's door locks all doors and the tailgate, but pulling up the plunger unlocks only the driver's door. Pushing down on the tailgate plunger locks the tailgate and all doors. The plunger on the tailgate is not designed to be pulled up manually for unlocking.

Unlock

Lock

Unlock

Lock

Power Door Locks All doors and the tailgate can be simultaneously locked and unlocked by operating the master door lock switch on the inside of each front door.

Unlock

Lock

Lockout Prevention Lockout Prevention keeps you from locking the driver's door or the tailgate when the key is in the ignition and the driver's door or tailgate is open. If you try to lock the driver's door by pushing down the plunger, the tailgate plunger and all other door plungers will pop back up. If you push down the tailgate plunger when the key is in the ignition and the tailgate is open, the tailgate plunger and all other door plungers will pop back up. Also, both master door lock switches will not lock the doors if either front door is open and the key is in the ignition. The system can be overridden if the outside or inside door handle is held in the open position while the plunger is pushed down. The lock cycles several times and may lock all doors and the tailgate after the door is closed . Lockout Prevention does not affect the operation of any passenger door lock.

(US: EX, Canada: EX-R) Lockout Prevention does not affect the operation of the Remote Access Key.

Child Proof Door Locks The child proof door locks are designed to prevent accidental opening of the rear doors from inside the car. To activate the locks, push down the lock tabs located on each rear door, then close the doors. When the rear doors are locked in this way, they can only be opened from the outside.

LOCK TAB

Lock

Seats

Front Seat Adjust the seat position by pulling up on the adjustment lever under the front edge of the seat cushion and sliding the seat to the desired position. Then release the lever and make sure the seat is locked in position by moving it back and forth.

Pull up

Pull up

The angle of the seat-back can be changed by pulling up on the lever at the outside edge of the seat and leaning forward or back. Release the lever and let the seat lock into place when it reaches the desired angle. Seat belts are most effective when the driver and passengers are sitting up straight and well back in each seat.

Do not adjust the driver's seat while the car is moving; the seat could move suddenly, causing loss of vehicle control. To reduce the risk of sliding under the seat belts in a collision, the seat-backs should be upright and you should sit well back in the seat.

Driver's Lumbar Support (US: EX, CANADA: EX-R) To adjust for more or less support of the driver's lower seat-back cushion, turn the knob on the inner side of the seat-back.

Do not try to adjust the lumbar support while driving. Make the adjustment while sitting in your normal driving position before driving away.

Head Restraints The head restraints are designed to help reduce injuries due to whiplash. They are located at the top of each seat-back and have several height positions. The restraints can be adjusted by pulling up to the recommended position. To lower them, slide the button next to the restraint's height adjustment bar while pushing the restraint down. Adjust so the top of the restraint is approximately level with the tops of your ears. If a head restraint must be removed (for cleaning, fabric repair, etc.) pull the restraint up to its highest position, then slide the button while pulling the restraint out. To reinstall, reverse the above procedure.

Slide

Do not drive the car with head restraints removed. Do not try to adjust head restraints while driving.

Rear Seat Arm Rest The rear seat arm rest located at the rear seat-back can be used by pulling the tab.

Seats (cont'd)

Folding Rear Seat Each rear seat-back can be folded down to provide more cargo space. Folding both rear seat-backs down will provide maximum cargo space. 1. Pull on the strap at the center of the seat to lift up the seat cushion.

STRAP

2. Remove the head restraint from the rear seat-back by sliding the button next to the head restraint's height adjustment bar and lifting the head restraint out.

Slide

3. Pull up the release knob at the top of the seat-back and fold the seat

forward.

Pull up

4. Store the head restraint in the holes provided in the seat cushion.

Weight limits shown on the label attached to the driver's doorjamb must be observed. The total weight of passengers and cargo must not exceed the total weight limit on the label. Make sure the rear seat-back latches engage securely when the seat-back is returned to its normal position. Always replace the head restraints when the seat-back is returned to its upright position. When transporting luggage or other cargo do not pile it higher than the front seats. This precaution will help prevent such items from becoming dangerous projectiles in an accident. Cargo weight should be distributed as far forward as possible for better vehicle handling.

Loading the Car

The maximum your car can carry, including passengers, cargo, and trailer tongue weight, is 950 Ibs (431 kg). This is the Vehicle Capacity Weight noted on the tire label attached to the driver's doorjamb. To calculate the car's load capacity, start with 950 Ibs (431 kg). First subtract 150 Ibs (68 kg) for each person, including the driver. For example, if there will be five people in the car (750 Ibs, 340 kg), you can carry up to 200 Ibs (91 kg) of cargo. If you are towing a trailer, remember to also subtract the trailer tongue weight (see page 97 ) from the 950 Ibs (431 kg) capacity. After you have determined how much cargo you can carry, remember that where you put cargo is also important. Do not load cargo above the top of the rear seat-back. The maximum you can carry behind the rear seat is 200 Ibs (91 kg). To maintain a better weight distribution, place heavier items toward the center of the car.

CAUTION:

Do not exceed the maximum weight capacity for your car; overloading may affect vehicle handling and tire life. Load cargo so it will not contact the printed defroster wires in the rear window. The wires may be damaged if the cargo rubs against them.

Cargo Area

A passenger should never sit in the open cargo area while the car is mov- ing. They should sit in one of the seats and wear their seat belt. With the rear seats folded, the length of the cargo area is 72 in. (1850 mm). The width at the tailgate opening is 36 in. (915 mm). The width between the wheel wells is 30 in. (775 mm). The height of the rear opening is 28 in. (725 mm).

28 in. (725 mm)

STORAGE COMPARTMENT LOCATIONS

Storage Compartments You can store smaller items in any of the three storage compartments in the cargo area. Two compartments are under the carpet, on either side of the tire compart- ment. The third is in the right side panel.

Tonneau Cover When extended, the tonneau cover con- ceals your parcels and protects them from direct sunlight. To extend the tonneau cover, pull the cover's leading edge out of its housing and slip the brackets over the hooks provided at both sides of the tail- gate opening. To retract the cover, slip the brackets off the hooks and guide the cover so it rolls back fully into its housing. CAUTION: Do not store parcels on the tonneau cover. The tonneau cover may break if weight is placed on it.

TONNEAU COVER

Cargo Area (cont'd)

Package Net The package net is intended to restrain only light, soft items, such as clothing which do not exceed a total weight of 10 Ibs (4.5 kg). Grasp the net's leading edge and pull it out of the tonneau cover housing. Lock the prongs at both ends of the net into either the floor or ceiling latches. To store the net, release both prongs from the latches and let it roll back into the tonneau cover housing.

NET

Depress.

You can select from either of two locations to position the tonneau cover housing unit. One position is directly behind the rear seat and the other is halfway between the rear seat and the tailgate. To remove the housing unit, depress the latch on the right end of the unit and pull the unit out of the bracket, then pull the op- posite end out of its bracket. CAUTION: Make sure all objects in the cargo area are secured, otherwise they may become projectiles in an accident.

HOUSING UNIT LOCATIONS

Secure the tonneau cover housing unit when you are not using it. Use the two straps located in the right side floor storage compartment and strap it to the two floor hooks closest to the tailgate opening in the cargo area. If it is not secured, it may be- come a dangerous projectile in an accident. 1. Take one strap and loop the free

end through a floor hook.

D-RING FLOOR HOOK

STORAGE COMPARTMENT

2. Place the housing unit on the strap and wrap the strap completely

around it.

3. Slip the free end through the "D" rings, then separate the rings and slip the strap over one ring and under the other and pull tight. Repeat this procedure for the other strap and hook.

Your Occupant Protection System

Your Accord is equipped with seat belts and other features that work together to protect you and your passengers during a crash. Seat belts are the most important part of your occupant protection system. When worn properly, seat belts can reduce the chance of serious injury or death in a crash. For added protection during a severe frontal collision, your Accord has a Supplemental Restraint System (SRS) with a driver's airbag. Two indicator lights are also part of your safety system. One reminds you to make sure you and your passengers wear your seat belts. The other alerts you to a possible problem with your supplemental restraint system (see page 27). The seats, head restraints, and door locks also play a role in occupant safety. For example, the effectiveness of your seat belt. Head restraints can help protect your neck and head, especially during rear-end impacts. Door locks help keep your doors from being accidentally opened during a crash. To get the maximum protection from your occupant protection system, check the following before you drive away:

the seat-back can decrease

reclining

Everyone in the car is wearing a seat belt properly (see page 18). Infants and small children are properly secured in child safety seats (see page 31). All doors are closed and locked (see page 30). Seat-backs are upright and head restraints are properly adjusted (see page 29). There are no loose items that could be thrown around and hurt someone during a crash or sudden stop (see page 30).

By following these guidelines, you can reduce injuries to yourself and your passengers in many crash situations. Remember, however, that no safety system can prevent all injuries or deaths that can occur in severe crashes.

The Seat Belt System and How It Works

Why Wear Seat Belts Wearing seat belts, and wearing them properly, is fundamental to your safety and the safety of your passengers. During a crash or emergency stop, seat belts can help keep you from being thrown against the inside of the car, against other occupants, or out of the car. Of course, seat belts cannot completely protect you in every crash. But. in most cases, seat belts reduce your chance of serious injury. They can even save your life. That is why many states and all Canadian provinces require you to wear seat belts.

Not wearing a seat belt increases the chance of being killed or seriously hurt in a crash. Be sure you and your passengers always wear seat belts and wear them properly.

Important Safety Reminders Seat belts are designed for adults and larger children. All infants and small children must be properly restrained in child safety seats (see page 31). A pregnant woman needs to wear a seat belt to protect herself and her unborn child (see page 23). Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash. Do not place the shoulder portion of a lap/shoulder belt under your arm or behind your back. This could increase the chance of serious injuries in a crash. Do not put shoulder belt pads or other accessories on seat belts. They can reduce the effectiveness of the belts and increase the chance of injury.

Seat Belt System Components Your Accord has seat belts in all five seating positions. The front seats and the outside positions of the rear seats have lap/shoulder belts. The center position of the rear seat has a lap belt. Your seat belt system also includes a light on the instrument panel to remind you to fasten your seat belt, and to make sure your passengers fasten theirs. This light comes on when you turn on the ignition if you have not fastened your seat belt. A beeper also sounds for several seconds (see page 43).

The following pages cover more about the seat belt components and how they work.

Lap/Shoulder Belt This style of seat belt has a single belt that goes over your shoulder, across your chest, and across your hips. Each lap/shoulder belt has an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.

SHOULDER PORTION

LATCH PLATE

BUCKLE

UPPER SEAT BELT ANCHOR

To retractor

LAP PORTION

The Seat Belt System & How It Works (cont'd)

Lap Belt The lap belt has one manually-adjusted belt that fits across the hips. It is similar to safety belts used in airplanes.

LATCH PLATE

BUCKLE

Wearing Seat Belts Properly You can increase the effectiveness of your seat belts if you take a little time to read the following pages and make sure you know how to wear seat belts properly.

Not wearing a seat belt properly increases the chance of serious injury or death in a crash. Be sure you and your passengers always wear seat belts and wear them properly.

Wearing a Lap/Shoulder Belt Before putting on a front seat belt, be sure your seat is adjusted forward or backward to a good driving or riding position and the back of your seat is upright (see page 29). 1. Pull the latch plate across your body and insert it into the buckle. Tug

on the belt to make sure the latch is securely locked.

2. Check that the belt is not twisted. 3. Position the lap portion of the belt as low as possible across your hips, not across your stomach. This lets your strong pelvic bones take the force of a crash.

The Seat Belt System & How It Works (cont'd)

4. Pull up on the shoulder part of the belt to remove any slack. Make

sure the belt goes over your collarbone and across your chest.

5.

If the belt crosses your neck, you need to adjust the belt anchor height or your seating position. Front seats: Adjust the belt anchor by squeezing the two buttons and sliding the anchor up or down (it has four positions). Rear seat: Move toward the center of the seat until the belt fits over your collarbone.

RELEASE BUTTON

RELEASE BUTTON

To unlatch the seat belt, push the red PRESS button on the buckle. Guide the belt across your body to the door pillar. If the belt doesn't retract easily, pull it out and check for twists or kinks.

Wearing The Lap Belt 1. Pull the latch plate across your hips and insert it into the buckle

marked CENTER. If the belt is too short, hold the latch plate at a right angle and pull to extend the belt. Insert the latch plate into the buckle.

The Seat Belt System & How It Works (cont'd)

2. Position the belt as low as possible across your hips and pelvic bones, not across your stomach. Pull the loose end of the belt to adjust for a snug but comfortable fit.

To unlatch the belt, push the red PRESS button on the buckle.

Advice For Pregnant Women Protecting the mother is the best way to protect her unborn child. Therefore, a pregnant woman should wear a properly-positioned seat belt whenever she drives or rides in a car. If possible, use a lap/shoulder seat belt, remembering to keep the lap portion as low as possible (see page 19). Each time you have a check-up, ask your doctor if its okay for you to drive and how you should position a lap/shoulder seat belt.

Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly. Pull out each belt fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the lap/shoulder belts retract easily. Any belt not in good condition or not working properly should be replaced. If a seat belt is worn during a crash, have your dealer replace the belt and check the anchors for damage. If your seat belts get dirty, you can use a soft brush to clean them with a mixture of mild soap and warm water. Do not use bleach, dye, or cleaning solvents. They can weaken the belt material. Let the belts air-dry before you use the car.

SEAT BELT ANCHOR

METAL LOOP

Dirt build-up in the metal loops of the seat belt anchors can cause the belts to retract slowly. Wipe the inside of the loops with a clean cloth dampened in mild soap and water.

Supplemental Restraint System

FRONTAL COLLISION RANGE

All Accords are equipped with a Supplemental Restraint System (SRS) to help protect your head and chest during a severe frontal collision. This system does not replace seat belts. It supplements, or adds to, the protection offered by your seat belt.

Not wearing a seat belt increases the chance of serious injury or death in a crash, even if you have an airbag. Be sure you and your passengers always wear seat belts and wear them properly.

SRS

DRIVER'S AIRBAG

SENSOR

SENSOR

SRS CONTROL UNIT

The main components in your SRS are:

An airbag in the steering wheel for the driver. A diagnostic system that when the ignition is ON (I I) continually monitors the sensors, control unit, airbag activator, and all related wiring. An indicator light to warn you of a possible problem with the system. Emergency power backup in case your car's electrical system is disconnected in a crash.

Important Safety Reminder Even with an airbag, you need to wear a seat belt. The reasons are:

Airbags only inflate in severe frontal collisions. They offer no protection in rear impacts, side impacts, rollovers, or moderate frontal collisions. An airbag inflates and deflates very quickly. It cannot protect you during any additional impacts that can occur during a crash. A seat belt helps keep you in the proper position when an airbag inflates. An airbag opens with considerable force, and it can hurt you if you are not in the proper position.

Supplemental Restraint System (cont'd)

How the Airbag Works If you ever have a severe frontal collision, your airbag will instantly inflate to help protect your head and chest. When the airbag inflates, you may hear a fairly loud noise and you might see smoke and powder. This is normal; it is caused by the inflation of the airbag.

To do its job, the airbag inflates with considerable force. So, while it can reduce serious injuries and even save your life, the airbag might cause some facial or other abrasions.

After the bag completely inflates, it immediately starts deflating so it won't interfere with your visibility, ability to steer, or ability to operate other controls.

The airbag is stored in the center of the steering wheel. For safety, do not attach any items to the steering wheel. They could interfere with the proper operation of the airbag. Or, if the airbag inflates, they could be propelled inside the car and hurt someone.

How the SRS Indicator Light Works

SRS

The purpose of the SRS light on your instrument panel is to alert you of a potential problem with your supplemental restraint system. Have the system checked if:

The light does not come on when you turn the ignition ON (I I). The light stays on after the engine starts. The light comes on or flashes while you are driving.

Supplemental Restraint System (cont'd)

System Service Your supplemental restraint system is virtually maintenance free. There are no parts you can safely service. You must have the system serviced by an authorized Honda dealer:

If your airbag ever inflates. The bag must be replaced. Do not try to remove or discard the airbag by yourself. This must be done by a Honda dealer. If the SRS indicator light alerts you of a problem. Have the supplemental restraint system checked as soon as possible. Otherwise, your airbag might not inflate when you need it. When the car is 10 years old. Get the system inspected. The production date is on the left rear doorjamb for your convenience.

System Service Precautions Do not modify your steering wheel or any other part of the supplemental restraint system. Modifications could make the system ineffective. Do not tamper with the system components or wiring. This could cause the airbag to inflate inadvertently, possibly injuring someone very seriously. Tell anyone who works on your car that you have a supplemental restraint system. Failure to follow the procedures and precautions in the official Honda service manual could result in personal injury or damage to the system. Scrapping an entire car that has an uninflated airbag can be dangerous. Get assistance from a Honda dealer if your car must be scrapped. If you sell your car, please be sure to tell the new owner that the car has a supplemental restraint system. Alert them to the information and precautions in this part of the Owner's Manual.

Additional Safety Information

Your seat belt and airbag are obviously important parts of your occupant protection system. In addition, you should know that sitting upright, adjusting the head restraints to the proper positions, locking the doors, and stowing things properly can increase your safety and possibly even save your life.

Seat-back Position The seat-backs should be in an upright position for you and your passengers to get the most protection from the seat belts. If you recline a seat-back, you reduce the protective capability of your seat belt. The farther a seat-back is reclined, the greater the risk that you will slide under the belt in a severe crash and be very seriously injured. For information on how to adjust the seat-back, see page 8.

Head Restraint Position The head restraint can help protect you from whiplash and other injuries. For the best protection, the top of the head rest should be even with the top of your ears, or as high as possible. For instructions on how to adjust the head restraints, see page 9.

Additional Safety Information (cont'd)

Door Locks It is not safe to leave your car doors unlocked. A passenger, especially a child, could open a door and accidentally fall out. Also, there is a greater chance of being thrown out of the car during a crash when the doors are not locked.

Storing Cargo Safely Before you drive, make sure you first securely store or tie down any items that could be thrown around the car and hurt someone, or interfere with your ability to operate the controls. Do not put any items on top of the tonneau cover. They can block your view and they could be thrown about the car in a crash. Be sure to keep compartment doors closed when the car is moving. If a front passenger hits the door of an open glove box, for example, he could injure his knees.

Driving With Pets Loose pets can be a hazard while you are driving. An unrestrained pet can interfere with your ability to drive the car. In a crash or sudden stop, loose pets or cages can be thrown around inside the car and hurt you or your passengers. It is also for their safety that pets should be properly restrained in your car. The recommended way to restrain a medium-sized or larger dog is with a special traveling harness. This harness can be secured to the rear seat with a seat belt. Travel harnesses are available at pet stores. A small dog, cat, or other small animal will be safest in a rigid-sided pet carrier. Choose a style that allows you to secure it to the car's seat by routing a seat belt through the carrier's handle. For further information, contact your veterinarian or local animal protection society.

Child Safety

Child Safety Children depend on adults to protect them. To help make sure we do, every state and Canadian province has laws requiring infants and young children to be properly restrained whenever they ride in a car.

An infant or child who is not properly restrained can be killed or seriously injured in a crash. Be sure any child too small for seat belts is properly secured in a child restraint.

Where Should Children Sit? According to accident statistics, children of all sizes and ages are safer when they are properly restrained in the rear seat rather than the front seat. We recommend that, whenever possible, you secure your child's infant or toddler seat in the center position of the rear seat with the lap belt. We also recommend that any child who is too large to use an infant or toddler seat ride in one of the outside positions of the rear seat. The child should then wear the lap/shoulder belt properly for protection.

Child Safety (cont'd)

Important Safety Reminders Never hold a baby or child on your lap when riding in a car. If you are wearing your seat belt, the violent forces created during a crash will tear the child from your arms. The child could be seriously hurt or killed. If you are holding a child and not wearing a seat belt in a crash, you could crush the child against the inside of the car. Never put your seat belt over yourself and a child. During a crash, the belt could press deep into the child, and cause serious internal injuries. Two children should never use the same seat belt. If they do, they could be very seriously injured in a crash. If you are driving with small children in the car, you should use the childproof door locks to prevent them from opening the rear doors (see page 7).

General Guidelines for Restraining Children Under 40 Pounds Use an approved child seat. The seat must meet Federal Motor Vehicle Safety Standard 213 (FMVSS-213) or Canadian Motor Vehicle Safety Standards. Look for the manufacturer's statement of compliance on the box and seat. Use a seat of the right size. Make sure the seat fits your child. Check the seat manufacturer's instructions and labels for height and weight limits. Secure the child seat to the car. All approved child seats are designed to be secured in the car seat by the lap belt or the lap belt portion of a lap/shoulder belt. A child whose seat is not properly secured to the car can be endangered in a crash. To properly route a seat belt through a child seat, follow the seat maker's instructions. If you use a lap/shoulder belt, be sure you install a locking clip on the belt (see page 36). Secure the child in the child seat. Make sure the infant or child is firmly secured to the child seat. Use the straps provided, and carefully follow the manufacturer's instructions.

Restraining an Infant Who Weighs Less Than 20 Pounds (9kg) An infant up to about 20 pounds (9 kg) must be restrained in an infant seat or a convertible seat designed for a baby. Because infants must ride in a reclining position, be sure the infant seat always faces the REAR of the car as shown. We recommend that, whenever possible, you put the infant seat in the center position of the rear seat and secure it to the car with the lap belt. If you decide to put an infant seat in any other seating position, you must use a locking clip with the car's lap/shoulder belt (see page 36).

Child Safety (cont'd)

Restraining a Child Who Weighs Between 20 and 40 Pounds (9-18 kg)

Toddler seats are designed for children who weigh between 20 and 40
pounds (9-18 kg). The preferred place to put a toddler seat is in the center position of the rear seat. Use the car's lap belt to secure the seat to the car. If you decide to put a toddler seat in any other seating position, you must use a locking clip on the car's lap/shoulder belt (see page 36).

Restraining a Child Who Weighs Over 40 Pounds (18 kg) We recommend that, whenever possible, a child who has outgrown a toddler seat ride in one of the outside positions of the rear seat and use a lap/shoulder belt. Put the lap/shoulder belt on your child and check its fit. The shoulder belt should fit over the collarbone and across the chest. The lap belt should sit low on your child's hips, not across the stomach.

If the shoulder belt crosses the neck, have your child move toward the center of the rear seat until the belt fits properly. If the belt still crosses the child's neck, you should use a booster seat. Several styles of booster seats are available. We recommend a design that allows the child to use the car's lap/shoulder belt. Whichever style you select, follow the booster seat manufacturer's instructions.

Child Safety (cont'd)

Using a Seat Belt Locking Clip Always use a seat belt locking clip when you secure a child seat to your car with a lap/shoulder belt. This helps prevent the child seat from shifting position or overturning. A locking clip is usually included with the child seat. If you need a clip, contact the seat's manufacturer or a store that sells child restraints. To install a locking clip, do the following: 1. Place the child restraint in

the desired position. Route the the restraint according to the seat

lap/shoulder belt through manufacturer's instructions. Insert the latch plate into the buckle. Pull on the shoulder part of the belt to make sure there is no slack in the lap portion.

2.

3. Tightly grasp the belt near the latch plate. Pinch both parts of the belt together so they won't slip through the latch plate. Unbuckle the seat belt.

4.

5.

Install the locking clip as shown. Position the clip as close as possible to the latch plate. Insert the latch plate into the buckle. Push and pull on the child seat to verify that it is held firmly in place. If it is not, repeat these steps until the restraint is secure.

Using Child Restraints With Tethers Your Honda has three attachment points for tether-style child seats. Remove the cover from the desired attachment point, shown the illustration, then install the tether hardware that came with the child seat. Tighten the bolt to:

in

16 lb.ft (22 N.m, 2.2 kg.m)

If you are not sure how to install the bracket, have it installed by your Honda dealer. If you need an anchor plate and mounting hardware, you can obtain them by writing to:

American Honda Motor Co., Inc. Consumer Affairs 1919 Torrance Blvd. Torrance, CA 90501-2746

Canadian Cars The anchor plate and mounting hardware for a top tether are supplied with the car. When installing, make sure the toothed washer is on the bottom of the bolt. The supplied anchor plate is designed only for mounting a child restraint. Do not use it for any other purpose.

TETHER ATTACHMENT POINTS

CHILD SEAT ANCHOR PLATE

Storing a Child Seat When you are not using an infant seat or other child restraint, either remove it or make sure it is properly secured so it cannot be thrown around the car during a crash.

Anti-lock Brake System (ABS)

Anti-lock Brakes (US:EX, Canada: EX-R) Your car is equipped with an Anti-lock Braking System (ABS). This system helps you to maintain stopping and steering control. It does this by helping to prevent the wheels from locking up during hard braking. The ABS is always "ON." It requires no special effort or driving technique. You will feel a pulsation in the brake pedal when the ABS activates. Activation varies with the amount of traction your tires have. On dry pavement, you will need to press on the brake pedal very hard before you feel the pedal pulsation, that means the ABS has activated. However, you may feel the ABS activate immediately if you are trying to stop on snow or ice. Under all conditions, the ABS is helping to prevent the wheels from locking during hard braking so you can maintain steering control. You should continue to press on the brake pedal with the same force. You may feel a slight movement of the brake pedal just after you start the engine. This is the ABS working. The ABS is self-checking. If anything goes wrong, the ABS indicator on the instrument panel comes on (see page 45). This means the Anti-lock function of the braking system has shut down. The brakes still work like a conventional system providing normal stopping ability. You should have the dealer inspect your car as soon as possible. The ABS works by comparing the speed of the wheels. When replacing tires, use the same size originally supplied with the car. Tire size and construction can affect wheel speed and may cause the system to work inconsistently. A car with an ABS may require a longer distance to stop on loose or uneven surfaces than an equivalent car without ABS. The ABS cannot make up for road conditions or bad judgment. It is still your responsibility to drive at reasonable speeds for weather and traffic conditions and to leave a margin of safety. CAUTION: Be careful not to damage the wiring or the speed sensors at the back of each wheel when removing mud or snow from the wheel housings.

ABS

CRUISE CONTROL MASTER SWITCH

WIPER/ WASHER SWITCH

MOONROOF SWITCH

HAZARD WARNING SWITCH

Instrument Panel

DIGITAL CLOCK

REAR WINDOW DEFOGGER SWITCH

IGNITION SWITCH

COIN BOX

FUSE BOX

HOOD RELEASE HANDLE

TILT STEERING ADJUSTMENT LEVER

US Car shown:

TACHOMETER

SPEEDOMETER

FUEL GAUGE

ASHTRAY'

PANEL BRIGHTNESS CONTROL KNOB

HEATING/ COOLING CONTROL PANEL

CIGARETTE LIGHTER

GLOVE BOX

SRS INDICATOR LIGHT

ABS INDICATOR LIGHT

SHIFT LEVER POSITION INDICATOR (Automatic Trans. only)

COOLANT TEMPERATURE GAUGE

MAINTENANCE INDICATOR LIGHT

TRIP METER

MAINTENANCE INDICATOR RESET

ODOMETER

TRIP METER RESET BUTTON

DOOR AND LAMP MONITOR LIGHT

Gauges

Speedometer US Cars: The speed is indicated in miles per hour (outer scale) and kilometers per hour (inner scale). Canada Cars: The speed is indicated in kilometers per hour (outer scale) and miles per hour (inner scale).

Odometer The numbers on the odometer indicate miles (US cars) or kilometers (Canada cars). The odometer registers total distance traveled and serves as your guide for determining when periodic maintenance is due. US Cars: Federal law makes it illegal to alter the odometer of any motor vehicle with the intent to change the number of miles indicated.

Trip Meter The numbers on the trip meter indicate miles (US cars) or kilometers (Canada cars). The trip meter can be returned to zero by pushing in the reset button. Use the trip meter to check fuel consumption or distance traveled per trip.

Tachometer The tachometer indicates engine speed in revolutions per minute. The beginning of the RED ZONE indicates the maximum allowable engine R.P.M. Do not run the engine with the tachometer indicator needle in the RED ZONE.

Fuel Gauge FUEL TANK CAPACITY: Approx. 17.0 US gal (64.5 As a convenience, the gauge continues to show the same fuel level as when the ignition was last on. After refueling, the gauge will slowly change to the new fuel level when the ignition is switched on. When the needle indicates E (empty), a usable reserve of about 1.1 US gal (4

, 0.9 Imp. gal) remains in the tank.

, 14.2 Imp. gal)

Coolant Temperature Gauge

Do not remove the radiator cap when the engine is hot.

The coolant is under pressure and may blow out and scald you. This gauge shows the temperature of the engine coolant. During normal operation, the needle should stay in the middle of the white range. Under severe driving conditions, such as hot weather or driving uphill for a long period, the needle may rise toward the upper section of the white range. If the needle reaches the red line at "H" (Hot), pull safely off the road and stop the engine. Wait until the engine is cool and check the coolant level in the reserve tank on the passenger side of the radiator under the hood (see pages 115-116).

Indicator Lights

US Car Shown:

Shift Lever Position Indicator (Automatic Transmission Only) A lighted indicator between the fuel and water temperature gauges shows which gear you have selected.

D4 Indicator Light (Automatic Transmission Only)

The D4 indicator light in the instrument panel also serves a second function. If the light flashes while driving (in any gear range) it indicates a possible malfunction in the transmission; avoid rapid acceleration and have the transmission checked by an authorized Honda dealer as soon as possible.

Turn Signal/Hazard Indicator Lights

When the turn signal lever is pushed for left or right turns, the appropriate green indicator arrow on the instrument panel will blink along with the signal. Turning on the hazard warning switch makes all turn signals and both arrows blink (see page 53).

Headlight High Beam Indicator Light

This blue indicator light will go on whenever the high beams are switched on (see page 52). Canada Cars: It will also go on with a reduced brightness when Daytime Running Lights (DRL) are on (see pages 45 and 54).

Cruise Control Indicator Light

CRUISE CONTROL When the cruise control system is engaged, this indicator light is on (see page 55).

Low Fuel Light

If the light glows, it means you have about 2.6 US gal (10.0 , 2.2 Imp. gal) or less fuel remaining and should refuel.

US Canada

BRAKE

Parking Brake/Brake Failure Light

Check the brake light every time you start the car. With the parking brake set. the warning light should go on when the ignition switch is turned to the "I I" or "I I I" position. With the parking brake released, the light should go on when the ignition switch is turned to "I I I". If the light goes on at any other time, it means the brake fluid level in the master cylinder reservoir is too low; add fluid (see page 119) and have your dealer check for leaks immediately. Make sure the parking brake is released and the light is off before driving away.

Seat Belt Warning Light

The seat belt warning light comes on when the ignition switch is turned on and the driver's belt is not fastened. The light will turn off only when the driver's belt is fastened.

Low Oil Pressure Light

A severe fluctuation in engine oil pressure will cause this light to flash on and off. The low oil pressure light will come on, and remain on, if there is insufficient oil pressure or when the ignition switch is turned on with the engine not running. If the light should come on while driving pull off the road safely and stop the car. When the engine has cooled down, check the oil level, and add oil if necessary (see page 110).

Even if the oil level is correct, the engine should be checked by a Honda dealer before the car is driven again. CAUTION: Running the engine while the low oil pressure light is on constantly may cause immediate and severe engine damage.

NOTE: The low oil pressure light will only light as a result of low oil pressure. It is not directly an oil level indicator.

Indicator Lights (cont'd)

Charging System Light

The charging system warning light comes on when there is a problem with the electrical charging system or when the ignition switch is turned on with the engine not running. If the light comes on while driving, stop the car, turn off the engine and check the alternator belt for proper tension. With the engine turned off, push down on the middle of the belt as shown; it should have 0.4 - 0.5 in. (10-12 mm) deflection under a force of 22 Ib (98 N).

If the engine has been running, some engine components may be hot enough to burn you. Keep hands away from the radiator fan. The fan may start automatically without warning and run for up to 15 minutes, even after the engine is turned off.

NOTE: If necessary, have the charging system checked by an authorized Honda dealer.

US

Canada

US: Malfunction Indicator Lamp Canada: Check Engine Indicator Light

This light comes on for a couple of seconds each time the ignition is turned on. It will also come on, and remain on, if there is a malfunction in the emission control system. If the light comes on while driving, avoid driving at high speed, and have the system checked by a Honda dealer as soon as possible.

SRS

Supplemental Restraint System Indicator Light

When the key is turned to the "II" position, the SRS indicator light will come on for about six seconds, to show normal system operation, and then turn off. See Supplemental Restraint System section on pages 24 - 27. Canada

DRL

Daytime Running Lights (DRL) Indicator Light

This light comes on when the ignition switch is ON (position 11), the headlight switch OFF and the parking brake set. This indicates that the "Daytime Running Lights" are off. The indicator light goes off when the parking brake is released. If the parking brake is reapplied without switching the ignition off, the indicator light will remain off. See page 54. If the light does not go off when the parking brake is released with the ignition ON, or if it comes on while driving, it indicates a burned out high-beam bulb. Have the bulb checked and replaced by your Honda dealer.

A BS

Anti-lock Brake System (ABS) Light (US: EX, Canada: EX-R)

The ABS warning light will come on, and remain on, if there is a malfunction in the ABS or when the ignition switch is turned on with the engine not running. If the light comes on while driving, stop the car at a safe place and shut off the engine. If the light does not go out or lights again while driving, have the system checked by an authorized Honda dealer as soon as possible. NOTE:

The light does not indicate a failure of the normal brake system. The light only indicates a malfunction in the ABS. In such a case, the ABS is automatically shut down but normal braking capability continues. After jump starting the car, there is a possibility that the ABS warning light may come on due to insufficient battery voltage. After the battery is sufficiently recharged and the engine is turned off and restarted, the ABS warning light should indicate that the ABS is OK, by coming on for a few seconds each time the engine is started. If the light remains on after recharging, have it checked by a Honda dealer.

Indicator Lights (cont'd)

Door and Lamp Monitor Lights

Door and Tailgate Monitor Lights If a door or the tailgate is open when the ignition is switched on, the appropriate indicator will light, and stay lit, until the door or tailgate is closed.

BRAKE LAMP

Brake Lamp Monitor Light

If a brake light does not work, the BRAKE LAMP indicator will go on when you push the brake pedal while the ignition is ON; the indicator will stay on until you have the light repaired or replaced. Have the brake lights checked as soon as possible.

It is dangerous to drive your car with a problem in either the brake electrical or hydraulic systems; have your dealer check both systems if you suspect brake trouble.

Checking the Door and Lamp Monitor Light The door, tailgate, and brake lamp monitor lights should come on for about two seconds when the ignition switch is turned on. If they don't, have the system checked by a Honda dealer.

Maintenance Indicator

the

total mileage of your car approaches

When the specified maintenance interval for engine oil and filter change or other required service, the indicator will change from green to yellow. The indicator will change to red if it is not reset before you reach the mileage interval. The indicator marked MAINTENANCE REQUIRED is to be used as a reminder that there are items in addition to the engine oil and filter that require service each 7,500 miles (12,000 km). See the maintenance schedule on page 106. After the maintenance is done, be sure to reset the indicator by inserting the ignition key in the slot. The color of the indicator will change to green and repeat its cycle.

Do not reset the maintenance indicator while driving;

your hand may impair steering, which can result in an accident.

Tilt Steering

The steering wheel position can be adjusted to suit the driver's preference.

1. Push the lever located under the dash, on the left side of the steering column, all the way down and hold it while adjusting the steering wheel to the desired position.

2. Hold the steering wheel in the desired position and pull the lever all the way up to lock it in place.

Push down

Pull up

Do not adjust the steering wheel position while driving. After adjusting the steering wheel position, make sure it is securely locked in place by "rocking" it up and down slightly.

Windshield Wipers/Washer

Windshield Wipers Turn the switch to INT for intermittent operation; LO for low speed operation and HI for high speed operation. In fog or very light rain, push the lever down to the MIST position for temporary high speed operation of the wipers. The wipers will return to the rest position and the motor will shut off as soon as you release the lever.

Windshield Washer Pull the wiper switch lever toward you to turn on the washer. The windshield wipers will sweep when the washer is operated.

REAR WINDOW WIPER/ WASHER SWITCH

WINDSHIELD WIPER SWITCH

TURN FOR WINDSHIELD WIPER OPERATION

Pull

FRONT WASHER OPERATION ONLY

PUSH DOWN FOR MIST OPERATION

In freezing weather, warm the windshield with the defrosters before using the washer. This will help prevent icing which could seriously impair visibility.

Rear Window Wiper/Washer Turn the switch "ON" to activate the rear windshield wiper. To use the wiper and washer, turn and hold the switch one position up from ON. To use only the washer, turn and hold the switch one position down from OFF. The rear window washer uses the same fluid reservoir as the front washer.

Rear Washer Only

OFF

ON

Rear Wiper Only

Rear Wiper and Washer

Windshield Washer Fluid/Defogger

Check the washer fluid regularly, especially during bad weather, or whenever the washer has been in frequent use. The float in the neck of the reservoir indicates the fluid level.

WINDSHIELD WASHER RESERVOIR CAPACITY: 4.4 US qt (4.2 Use a good quality commercial washer fluid for all-weather cleaning.

,3.7 Imp qt).

WASHER FLUID RESERVOIR

FLOAT

CAUTION:

Do not use radiator antifreeze in the windshield washer; it will damage the paint. Do not use a vinegar/water combination in the windshield washer; it will damage the pump. Prolonged operation of the washer without fluid may damage the pump.

Rear Window Defogger Push the switch to turn the defogger on or off. The indicator will light when the defogger is on.

defogger will

The off automatically 25 minutes after it is turned on.

turn

Push

CAUTION:

When cleaning the inside of the rear window, be careful not to damage the printed heater wires on the rear window. Wipe the window horizontally along the wires, not up and down. Load cargo so it does not contact the printed heater wires on the rear window. The wires may be damaged if cargo rubs against them.

Rearview Mirrors Keep the inside and outside mirrors clean and adjusted for best visibility. Be sure to adjust mirror angles before you start driving. The inside mirror has day and night positions. position reduces glare from the headlights of vehicles behind you. Flip the small tab on the bottom of the mirror forward or backward to select day or night position.

night

The

Mirrors

DAY/NIGHT ADJUSTMENT TAB

Power Mirrors With the ignition switch in the "I I" position, move the main switch to L (for driver's side) or R (for passenger's side), then use the adjustment switch to adjust the outside mirrors to the correct angle. After the mirrors have been adjusted, return the main switch to the center (OFF) position. NOTE: Be sure to adjust mirror angles before you start driving.

MAIN SWITCH

ADJUSTMENT SWITCH

Manual Mirrors (DX) The outside mirrors can be adjusted by moving the knob located on each door (driver's side only for U.S. cars).

Lights

Turn Signals Push the turn signal lever down to signal a left turn, and up for a right turn. The indicator and appropriate signal lights will blink. The lever will return automatically to its original position when the steering wheel is returned to straight ahead. For lane changing you can signal by pushing the lever part way up or down (to the first stop) and holding it there; the lever will return to its original position when you release it. If either turn signal indicator lights up but does not blink, blinks faster than usual or does not light up at all, check for a burned out bulb or fuse.

Headlights Turn the light switch to the first position for taillights, side marker lights, parking lights, and instrument panel lights. Turn to the second position to illuminate the headlights. If the driver's door is opened when the light switch is turned to either "on" position, a chime will sound to remind you to turn off your lights.

High Beam/Low Beam Switch The headlights may be switched between low beam and high beam by pulling the turn signal lever towards you. The blue high beam indicator light in the instrument panel will be on when the high beam is on.

Headlight Flasher To flash the headlights, pull lightly on the turn signal lever and release.

Hazard Warning System This system should be used only when your car is stopped under emergency or hazardous conditions. To activate, push the hazard warning switch ( ). The front and rear turn signals will blink simultaneously and both indicator lights will flash. Push the switch ( system off. CAUTION: Be sure to push the switch all the way off when the hazard warning is no longer required, or the turn signals will not work properly.

) again to turn the

PUSH

Push

Panel Brightness Control The intensity of the instrument lights can be adjusted when the light switch is in either of the two "ON" positions. Push the button so it pops out, then turn the panel brightness control knob.

Ignition Switch Light This light illuminates the switch when the driver's door is opened and remains on for several seconds after the driver's door is closed.

Lights (cont'd)

Interior Light The interior light has a three position switch. The light is off all the time in the OFF position. In the middle position, it goes on only when a door is opened. In the ON position, it is on all the time.

Cargo Area Light The cargo area light has a three position switch. In the "ON" position the light remains on. In the middle position, it goes on only when the tailgate is opened. In the "OFF" position, the light will not come on.

ON

OFF

Daytime Running Lights (Canadian Cars) With the ignition ON (position II) and the headlight switch OFF, the high beam headlights will come on at one-half power when the parking brake is released. This type of lighting is called "Daytime Running Lights" or DRL. The DRL turns off when you turn the ignition switch off. If the parking brake is reapplied without switching the ignition off, the "Daytime Running Lights" will remain on.

Cruise Control

Cruise Control Cruise control allows you to maintain a set speed above 25 mph (40
km/h) without keeping your foot on the accelerator pedal. It is not recommended for conditions such as city driving, winding roads, slippery roads, heavy rain, or bad weather. You should have full control of the car under those conditions.

Improper use of the cruise control can lead to a crash. Use the cruise control only when traveling on open highways in good weather.

CAUTION: The cruise control, as it operates, moves the accelerator pedal. You can damage your car's accelerator mechanism by resting your foot under the pedal and blocking the movement.

To Set the Cruise Control: Push the CRUISE CONTROL master switch to the left of the steering column. The indicator switch will light. Accelerate to the desired cruising speed above 25 mph (40 km/h). Press and hold the SET/decel button on the steering wheel until the CRUISE CONTROL light on the instrument panel comes on. is now This shows activated. The set speed may vary slightly, particularly on hills.

the system

To Change the Set Speed: To increase the set cruising speed:

Press and hold the RESUME/ accel button. The car will accelerate slowly. Release the button when the desired speed is reached. Push on the accelerator pedal. Accelerate desired cruising speed and press the SET/decel button.

the

to

Push

RESUME

Push

SET

Cruise Control

To decrease the set cruising speed:

Press and hold the SET/decel button. The car will decelerate. Release the button when the desired speed is reached. Tap the brake or clutch pedal lightly with your foot. The CRUISE CONTROL light on the instrument panel will go out. When the car slows to the desired speed, press the SET/decel button. The car will then maintain the desired speed.

Even with the cruise control turned on, you can still use the accelerator pedal to speed up for passing. After completing the pass, take your foot off the accelerator pedal. The car will return to the set cruising speed.

Resting your foot on the brake or the clutch pedal will cause the cruise control to cancel.

To Cancel the Cruise Control: Any of these actions cause the cruise control to cancel.

Tap the brake or clutch pedal. Press the SET/decel and RESUME/accel buttons at the same time. Press the Cruise Control Master Switch.

When you tap the brake or clutch pedal, or press the SET and RESUME buttons at the same time, the CRUISE CONTROL light on the instrument panel will go out and the car will begin to slow down. You can use the accelerator pedal in the normal way.

If you use the brake or clutch pedal to cancel cruise control, the system retains the previously-set cruising speed. To return to that speed, accelerate to above 25 mph (40 km/h) and press the RESUME/accel button until the CRUISE CONTROL light comes on. The car will accelerate to the same cruising speed as before.

If you cancel the CRUISE CONTROL by pressing the SET and RESUME buttons at the same time, the previously-set cruising speed is erased. To use the cruise control, accelerate to the desired cruising speed and press the SET/decel button.

Pressing the Cruise Control Master Switch turns the system completely off and erases the previous cruising speed from memory. To use the system again, see page 55.

Hood and Parking Brake

Hood To release the hood latch, pull back on the handle located under the dash on the driver's side.

Pull to release.

The hood latch is spring-loaded, so the hood will pop up slightly. Release the safety catch under the front center of the hood by pushing the rubber-tipped handle up. Lift the hood and prop it open with the support rod. To close, take the support rod down, place it back in its holder, lower the hood until it is approximately one foot (30 cm) from the closed position, then let it drop. Be sure the hood is securely latched before driving away.

SUPPORT ROD

Parking Brake To apply the parking brake, pull up on the lever. To release it, pull up slightly, push the button, and lower the lever; when fully released, the BRAKE(US cars),or (Canadian cars) warning light will go out.

Power Windows

the driver, using

The power windows can be operated when the ignition switch is in the "I I" position. The operation of the windows is controlled by the main switch located in the master control panel on the arm rest of the driver's door. When the main switch is off, only the driver's door window can be opened and closed. When the main switch is on, all door windows can be opened and closed by the appropriate switch in the master control panel, and the passenger windows can be opened and closed by the passengers, using the switch located on each passenger door. When opening or closing a window, push and hold either the "up" or "down" side of the switch until the window reaches the desired position, then release. NOTE: The driver's window can be opened the driver having to hold the switch down, simply by pushing the switch past the first "stop."

fully, without

DRIVER'S WINDOW SWITCH

MAIN SWITCH

Close

Open

PASSENGER'S WINDOW

Power Window Key-Off Operation The power windows can still be operated for about 10 minutes after the ignition is turned from the "I I" to the " I" or "0" position as long as neither front door has been opened.

Be sure, before closing any windows, that all hands, arms and other obstructions are clear of the window frame and glass; severe personal injury could result. Always keep the main switch in the off position when children are in injury may result from unintentional window operation.

the car;

Glove Box and Clock

Glove Box Open by pulling the handle. Close with a firm push. The glove box door can be locked by using the master key or the remote access key (US: EX, Canada: EX-R). The glove box light will go on when the glove box door is opened and the headlights or parking lights are on.

Do not drive the car with the glove box door open; it could cause injury in an accident.

Open

Lock

Pull

Digital Clock The time is displayed continuously when the ignition is switched to "I I" or "I I I" position. At all other times, push in on the lid to display the time. To adjust the time with the key in the "I I" position: 1. Lower the lid. 2. Push the minute button (M) and hold it until the numbers advance to the desired minutes.

3. Push the hour (H) button and hold it until the numbers advance to the desired hour.

LID

4. The RESET button allows you to synchronize your clock to the closest hour. If the time on the clock is before the half hour, pressing the RESET button will return the time to the previous hour. If the time is beyond the half hour, the RESET button will change the time to the next hour.

NOTE: Be careful not to push the H, M, or RESET buttons accidentally. Pushing any of them will change the clock's time setting.

Beverage Holder

Your car is equipped with a beverage holder for use while the car is stopped. Drinking while driving or driving with a beverage in the holder may be hazardous. To open the beverage holder, push on the tray. Do not pull the tray, it will damage the mechanism.

NOTE: Use only lidded cups or containers that fit snugly in the beverage holder.

Spilling even a small amount while driving, especially if the liquid is hot, may distract the driver's attention from the road and could result in a serious collision. Alcohol and driving don't mix. For your safety, and the safety of others, do not drink and drive.

Cigarette Lighter and Ashtrays

Cigarette Lighter

With the ignition in the "II" or "III" position, push the lighter in to heat it up. The lighter will automatically release when the element is hot. DO NOT hold the lighter in while it is heating up, it may overheat and damage the lighter and the heating element.

Front Ashtray Open the ashtray by pulling its bottom edge toward you. To remove it, pull it out further while pushing down on the spring-loaded plate inside.

Rear Ashtray The rear ashtray is located at the rear of the center console. It is opened by pulling out the top edge. To remove it, open the ashtray and release its bottom edge by pulling up, then out. To install, reverse the removal procedure.

To remove, pull up and out.

CAUTION: Do not use the ashtrays as trash containers; use them only for extinguished cigarettes. Putting lit cigarettes or matches in an ashtray with other combustible materials may cause a fire.

Heating and Cooling

The vents, heater and air conditioning (A/C) are combined in one system; adjusting four basic controls to different settings can provide a full range of interior temperatures for safe and comfortable driving.

Ventilation The flow-through ventilation system provides fresh air to the interior when the car is moving even with the windows closed. When the car is stopped, turn on the fan to draw outside air into the car. NOTE: For proper air flow, the flow-through vents must not be covered. Keep the air inlet at the base of the windshield free of leaves or other debris.

AIR INLET

AIR OUTLET

Adjust the panel controls to direct cool or warm outside air throughout the car.

Dash Vents The corner vents can be used for flow-through ventilation when the car is moving or while the heater or air conditioning is turned on. The corner and center vents can be tilted up or down, and their louvers turned right or left, to change the direction of air flow. The amount of air flow from the corner and center vents can be controlled by the dial located beside each vent.

SIDE DEFROSTER VENT

CENTER VENTS

Open Close

SIDE DEFROSTER VENT

Open Close

DASH CORNER VENT

WINDSHIELD DEFROSTER VENT

Open Close

DASH CORNER VENT

Heating and Cooling (cont'd)

What the Controls Do:

FAN SWITCH

TEMPERATURE CONTROL DIAL

FUNCTION BUTTONS AND INDICATOR LIGHTS

FRESH AIR BUTTON

AIR CONDITIONING BUTTON

RECIRCULATION BUTTON

Fan Switch Turning the dial clockwise increases the fan speed. Whenever the fan is switched on, air flows from the dash corner vents regardless of the function button selected.

Function Buttons Push the appropriate button to select air flow from the heater, defroster and dash vents. There is an indicator light above each function button that comes on when the button is pushed.

Temperature Control Dial Turn the dial clockwise to make air warmer.

Air Conditioning Switch With the fan on, push the A/C button to operate the air conditioning. The indicator light will come on. Push the button again to turn off the air conditioning.

) Buttons

) and Recirculation ( button is pushed, the indicator light will go on and

Fresh Air ( When the outside air will be circulated inside the car. When the air is shut off and the air inside the car is recirculated. If the heater or air conditioning is on and you want to warm up or cool down the interior more quickly, or keep smoke or dust out of the car without losing the heat or cool function, simply push the button.

button is pushed, the indicator light comes on, outside

NOTE: The windows may become the off. As soon as the interior is warm, switch to the

in setting for an extended period of time with the air conditioning

the system

fogged

setting.

is

if

How to Use the Controls To Ventilate Turn the temperature control dial counterclockwise and push the buttons. Switch the fan on and outside air will flow through the corner and center vents. To change air distribution, switch to the position and outside air will also flow from the heater ducts at the floor level.

and

Heating and Cooling (cont'd)

To Cool With Air Conditioning (A/C) To cool the car down quickly, start the engine, turn the fan to high, push the A/C button and open the windows briefly. Then close the windows, turn the temperature control dial counterclockwise all the way, select the button on, so inside air will recirculate

position and push the

to the air conditioning for maximum cooling. When the interior has cooled sufficiently, switch the fan to the desired speed, then change to the setting to direct fresh (outside) air to the air conditioning. When using the air conditioning in heavy traffic, or while driving up long hills, watch the coolant temperature gauge: if the needle moves near the "H" end of the scale, turn the air conditioner off by pushing the A/C button; leave it off until the needle goes back into the middle of the scale.

To Heat Switch the fan on. Turn the temperature control dial clockwise, select the

position, and warmed air will begin flowing from the floor outlet.

A small amount of warmed air will also flow from the windshield defroster vent.

To warm up the interior quickly, push in the air will be recirculated to the heater. If the windows begin to fog while heating in the

to allow outside air to enter.

button so the inside

setting, switch to

Heating and Cooling (cont'd)

To Dehumidify With Air Conditioning (A/C) Because air conditioning dehumidifies as it works, you can use it in cool or cold weather to help defog the windows. Just switch the fan on, push the A/C button on, select the desired function and adjust the temperature control dial to a comfortable setting. NOTE: This setting is desirable for most operating conditions in ambient temperatures above approximately 32°F (0°C).

To Defrost To defrost or defog the windshield and door windows, turn the temperature control dial clockwise, select function and switch the fan on. If there is actual frost on the windows, first select the

position.

If the windows are fogged, select the flow from the windshield and side defroster vents.

setting. Warmed air will then

For extra door window defrosting or defogging, select either the

,or

function, switch to the

setting, and turn the fan on.

Air will flow to the side door windows from the vents at each end of the dash when the vertical fins of the dash corner vents are pointed toward the windows, and the horizontal fins are moved upward.

SIDE WINDOW DEFROSTER

VERTICAL FIN ADJUSTMENT CONTROL

DASH CORNER VENT

After the windows are defrosted, you may wish to retain the

or mode for more comfort. Turning the temperature control dial counterclockwise will reduce the temperature of the air exiting the dash corner vents without appreciably affecting the heat to your leg and foot area. Continue to adjust the temperature and fan speed to find the most comfortable setting.

To Turn Everything OFF Turn the temperature control dial counterclockwise all the way, turn the fan switch off and push the NOTE: This setting should be used only for the first few minutes of driving in cold weather to prevent cold air from entering the car. Under normal operating conditions, the fan should always be kept ON to prevent the accumulation of stale air in the system.

button on.

Moonroof (Except US: LX)

The moonroof can be operated with the ignition switch in the "I I" position. To open or close the moonroof, push and hold the switch. Release the switch when the moonroof reaches the desired position. Do not hold the switch on after the moonroof has fully opened or closed, or you may damage the moonroof motor.

POP-UP WIND DEFLlECTOR

Close

Open

Do not allow any part of your body to extend through the moonroof while the vehicle is in motion. In the event of a collision or sudden application of the brakes, severe personal injury could result. To avoid the possibility of injury while closing the moonroof, never allow any part of your body to extend through the opening.

CAUTION: Operating the moonroof in severe cold or when it is covered with snow or ice may cause damage to the moonroof.

Sunshade As well as the moonroof, there is a sliding sunshade which you can adjust to let in light with the roof closed, or to block out light entirely. The sunshade automatically opens as you open the moonroof.

SUNSHADE

If the Moonroof Won't Close The moonroof can be closed manually, if the control switch will not close it. 1. Remove the round plug near the

2.

rear center of the headliner. Insert the moonroof wrench (from the tool kit) into the socket. the wrench until

the the closed

in

moonroof seats position.

3. Turn

Remove plug.

SOCKET

4. Replace the plug.

Maintenance Periodically pour a little water down the drain holes to make sure they are not plugged. If they are free, water should drop on the ground behind each front wheel.

DRAIN HOLE

CAUTION: Do not put weight on the moonroof or force it open or closed, you may damage the mechanism.

Stereo Sound System

Radio Operation (US: EX) (Canada: EX-R)

(US: LX) (Canada: EX)

ON/OFF/VOLUME

To operate the radio, turn the ignition switch to the ACCESSORY (I) or ON (I I) position. Then, turn the On/Off/Volume knob clockwise. The radio will come on and display the frequency to the station it was last tuned to. To turn the system off, turn the knob in a counterclockwise direction. The antenna also retracts automatically if the ignition switch is turned off. To increase the volume, turn the knob further clockwise. To decrease volume, turn the knob counterclockwise.

Fader/Balance

Use the Fader and Balance controls to adjust the sound "direction." The Fader (FAD) control adjusts the sound between the front and rear speakers. The Balance (BAL) control balances the volume between the left and right speakers. To use either the Fader or Balance control, push on the knob to pop the controls out. Turn the outside ring left or right to adjust the front-to-rear sound.

Adjust side-to-side sound balance with the knob.

When the adjustment is complete, push the knob back in to lock-in your settings.

NOTE: The illumination for the radio controls comes on with the instrument panel lights, even if the radio is off. You can use the Balance control to turn off the radio panel illumination even with the radio on. Push the control knob so it pops out, then pull it out slightly further. Check this control if the control panel lights do not come on with the instrument panel lights.

Bass/Treble

Use the Bass (BAS) and Treble (TRE) controls to adjust the tone quality to your liking. Push on the knob to get the controls to pop out. Turn the outside ring left or right to adjust the bass level. To adjust Treble, turn the knob left or right. When the adjustment is completed, push the knob in to lock-in your settings.

Stereo Sound System (cont'd)

Radio Operation (US: EX) (Canada: EX-R)

FREQUENCY DISPLAY

(US: LX) Canada: EX)

FREQUENCY DISPLAY

AM/FM Band Selector

(US: EX, Canada: EX-R) Push the AM button to select the AM Band. FM is selectable in two bands, FM1 and FM2. Push once on the button for FM1; push again for FM2. The corresponding band indicator will light in the display. When switching from the AM band to the FM band, the FM band last selected will be in play. If the station is broadcasting in FM stereo, ST will appear next to the frequency. AM stereo feature is not available.

(US: LX, Canada: EX) Push to select the AM or FM band. The corresponding band indicator will light in the display. If a station is broadcasting in stereo, ST will appear in the display next to the frequency. AM stereo feature is not available.

Tune/Seek (US: EX, Canada: EX-R)

The Tune function changes frequency one increment at a time. Push the TUNE/SEEK switch up to change to the next higher frequency, and down to change to the next lower frequency. To go to a frequency on the band that is farther away, push and hold the switch. You will hear a beep and the display will count rapidly. It will stop when the switch is released. The Seek function searches the band for stations with a strong signal. Depending on which direction the TUNE/SEEK switch is pushed, the system searches up or down from the current frequency. Push the switch until you hear a beep, then release it. The system searches until it finds a station with a strong signal, then stops.

Tune (US: LX, Canada: EX)

The Tune function changes frequency one increment at a time. Push to tune to the next higher frequency or for the next lower frequency.

Seek (US: LX, Canada: EX)

The seek function allows you to seek the stations with the strongest signal. Each time the switch is pushed up or down, the system searches up or down from the current frequency and stops when it finds a station with a strong signal.

Station Preset

1. Make sure the Band Selector is on the band you want. . . AM, FM1, or FM2 (for the US: EX, and Canada: EX-R models); AM or FM (for the US: LX, and Canada: EX models). Then, use the TUNE or SEEK control to find the station you want.

2. Press and hold one of the Preset Buttons. 3.

In a few seconds a beep will sound and the light in the Preset button will come on. The station is now preset in memory. For the US: EX and Canada: EX-R models, you may preset one station per button in the AM, FM1, and FM2 band for a total of 18 preset stations. For the US: LX and Canada: EX models, you may preset one station per button in the AM and FM bands for a total of 12 preset stations.

Stereo Sound System (cont'd)

4. You can tune to a preset station by pushing its corresponding preset

button.
