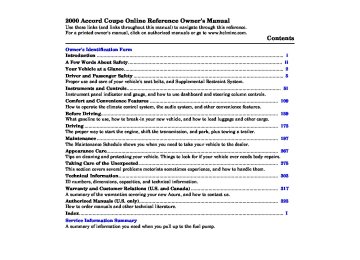

2000 Accord Coupe Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com.


Owner's Identification Form


Introduction ......................................................................................................................................... i A Few Words About Safety................................................................................................................. ii Your Vehicle at a Glance..................................................................................................................... 2 Driver and Passenger Safety .............................................................................................................. 5 Proper use and care of your vehicle's seat belts, and Supplemental Restraint System. Instruments and Controls................................................................................................................. 51 Instrument panel indicator and gauge, and how to use dashboard and steering column controls. Comfort and Convenience Features .............................................................................................. 109 How to operate the climate control system, the audio system, and other convenience features. Before Driving.................................................................................................................................. 159 What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo. Driving .............................................................................................................................................. 173 The proper way to start the engine, shift the transmission, and park, plus towing a trailer. Maintenance..................................................................................................................................... 197 The Maintenance Schedule shows you when you need to take your vehicle to the dealer. Appearance Care.............................................................................................................................. 267 Tips on cleaning and protecting your vehicle. Things to look for if your vehicle ever needs body repairs. Taking Care of the Unexpected...................................................................................................... 275 This section covers several problems motorists sometimes experience, and how to handle them. Technical Information..................................................................................................................... 303 ID numbers, dimensions, capacities, and technical information. Warranty and Customer Relations (U.S. and Canada)................................................................ 317 A summary of the warranties covering your new Acura, and how to contact us. Authorized Manuals (U.S. only)...................................................................................................... 323 How to order manuals and other technical literature. Index...................................................................................................................................................... I Service Information Summary A summary of information you need when you pull up to the fuel pump.


Introduction


NOTICE


As you read this manual, you will find information that is preceded by information is intended to help you avoid damage to your Honda, other property, or the environment.


symbol. This


Congratulations ! Your selection of a 2000 Honda Accord was a wise investment. It will give you years of driving pleasure.


One of the best ways to enhance the enjoyment of your new Honda is to read this manual. In it, you will learn how to operate its driving controls and convenience items. Afterwards, keep this owner's manual in your car so you can refer to it at any time.


Several warranties protect your new Honda. Read the warranty booklet thoroughly so you understand the coverages and are aware of your rights and responsibilities.


Maintaining your car according to the schedules given in this manual helps to keep your driving trouble-free while it preserves your investment. When your car needs maintenance, keep in mind that your Honda dealer's staff is specially trained in servicing the many systems unique to your Honda. Your Honda dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.


stMain Menu A Few Words About Safety


Your safety, and the safety of others, is very important. And operating this car safely is an important responsibility.


To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.


Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your car. You must use your own good judgement.


You will find this important safety information in a variety of forms, including:


Safety Labels — on the car. Safety Messages — preceded by a safety alert symbol


three signal words: DANGER, WARNING, or CAUTION. These signal words mean:


and one of


You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.


You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.


You CAN be HURT if you don't follow instructions.


Safety Headings — such as Important Safety Reminders or Important


Safety Precautions.


Safety Section — such as Driver and Passenger Safety. Instructions — how to use this car correctly and safely.


This entire book is filled with important safety information — please read it carefully.


stMain Menu Your Car at a Glance


DOOR LOCK SWITCH (P.76)


MIRROR CONTROLS (P.99)


AIRBAGS (P.9)


DIGITAL CLOCK (P.101)


HEATING/COOLING CONTROLS (P.110) CLIMATE CONTROL SYSTEM (P.117)


POWER WINDOW SWITCHES (P.96)


FUEL FILL DOOR RELEASE (P.161) TRUNK RELEASE HANDLE (P.81)


HOOD RELEASE HANDLE (P.162)


AUTOMATIC TRANSMISSION (P.178) MANUAL TRANSMISSION (P.177)


AUDIO SYSTEM (P.125, 137)


stMain Menu INSTRUMENT PANEL BRIGHTNESS (P. 64)


WINDSHIELD WIPERS/WASHERS (P. 65, 66)


REAR WINDOW DEFOGGER (P. 67)


Your Car at a Glance


MOONROOF SWITCH (P. 98)


CRUISE CONTROL (P. 69)


HAZARD WARNING LIGHTS (P. 66)


HEADLIGHTS/TURN SIGNALS (P. 62, 64)


REMOTE AUDIO CONTROLS (P. 155) (on EX-V6 model)


CRUISE CONTROL (P. 69)


TILT ADJUSTMENT (P. 68)


HORN (P. 61)


stMain Menu This section gives you important information about how to protect yourself and your passengers. It shows you how to use seat belts properly. It explains your Supple- mental Restraint System. And it tells you how to properly restrain infants and children in your car.


Important Safety Precautions .......... 6
Your Car's Safety Features.............. 7
Seat Belts....................................... 8
Airbags........................................... 9
Seats & Seat-Backs...................... 10
Head Restraints........................... 10
Door Locks................................... 10
Pre-Drive Safety Checklist......... 11
Protecting Adults............................. 12
1. Close and Lock the Doors...... 12
2. Adjust the Front Seats............ 12


3. Adjust the Seat-Backs............. 13
4. Adjust the Head Restraints.... 14
5. Fasten and Position the Seat


Belts...................................... 15
6. Adjust the Steering Wheel..... 16
7. Maintain a Proper Sitting


Position................................. 17
Advice for Pregnant Women...... 18
Additional Safety Precautions.... 18
Protecting Children........................ 20


All Children Must Be


Restrained................................ 20


Children Should Sit in the Back


Seat........................................... 21


The Passenger's Front Airbag


Poses Serious Risks


to Children............................ 21


If You Must Drive with Several


Children.................................... 23


If a Child Requires Close


Attention................................... 23
Additional Safety Precautions.... 23
General Guidelines for Using


Child Seats................................ 24
Protecting Infants........................ 28
Protecting Small Children.......... 32


Driver and Passenger Safety


Protecting Larger Children........ 35
Using Child Seats with


Tethers..................................... 39


Additional Information About Your


Seat Belts.................................. 40
Seat Belt System Components... 40
Lap/Shoulder Belt....................... 40
Seat Belt Maintenance................ 42


Additional Information About Your


Front Airbags........................... 43
SRS Components......................... 43
How Your Front Airbags


Work.......................................... 43


How the SRS Indicator Light


Works........................................ 45


Additional Information About


Your Side Airbags.................... 46
How Your Side Airbags Work.... 46
How The Side Airbag Indicator


Light Works............................. 47


Additional Information About


Your Airbags............................ 48
Airbag Service.............................. 48
Additional Safety Precautions.... 48
Carbon Monoxide Hazard............... 49
Safety Labels..................................... 5 0


Driver and Passenger Safety


stMain Menu Be Aware of Airbag Hazards While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual. (See page


9.)


Don't Drink and Drive Alcohol and driving don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don't drink and drive, and don't let your friends drink and drive, either.


Control Your Speed Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed the greater the risk, but serious accidents can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.


Keep Your Car in Safe Condition Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance. (See page 202 .)


Important Safety Precautions


You'll find many safety recommendations throughout this section, and throughout this manual. The recommendations on this page are the ones we consider to be the most important.


Always Wear Your Seat Belt A seat belt is your best protection in all types of collisions. Airbags supplement seat belts, but airbags are designed to inflate only in a moderate to severe frontal collision. So even though your car is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly. (See page 15.)


Restrain All Children Children are safest when they are properly restrained in the back seat, not the front seat. A child who is too small for a seat belt must be properly restrained in a child safety seat. (See page 20.)


Driver and Passenger Safety


Table of ContentsstMain Menu Your Car's Safety Features


Your car is equipped with many features that work together to protect you and your passengers during a crash.


Some safety features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment; front and rear crush zones that are designed to crumple and absorb energy during a crash; and a collapsible steering column.


These safety features are designed to reduce the severity of injuries in a crash. However, you and your passengers can't take full advantage of these safety features unless you remain sitting in a proper position and always wear your seat belts properly. In fact, some safety features can contribute to injuries if they are not used properly.


Driver and Passenger Safety


(1) Safety Cage (2) Crush Zones (3) Seats & Seat-Backs (4) Head Restraints (5) Collapsible Steering Column (6) Seat Belts (7) Front Airbags (8) Side Airbags* (9) Door Locks


* On all V6 models and the 4-cylinder EX


model with leather interior


Table of ContentsstMain Menu Your Car's Safety Features


Seat Belts For your safety, and the safety of your passengers, your car is equipped with seat belts in all seating positions.


Your seat belt system also includes a light on the


instrument panel to remind you and your passengers to fasten your seat belts.


Why Wear Seat Belts Seat belts are the single most effective safety device for adults and larger children. (Infants and smaller children must be properly restrained in child seats.)


Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your car has airbags.


Driver and Passenger Safety


In addition, most states and all Canadian provinces require you to wear seat belts.


Help keep you from being thrown against the inside of the car and against other occupants.


Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even if you have airbags.


Be sure you and your passengers always wear seat belts and wear them properly.


When properly worn, seat belts:


Keep you connected to the vehicle so you can take advantage of the vehicle's built-in safety features.


Help protect you in almost every type of crash, including frontal, side, and rear impacts and rollovers.


Keep you from being thrown out of the car.


Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag, and allows you to get the best advantage from the airbag.


Of course, seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury.


What you should do: Always wear your seat belt, and make sure you wear it properly.


Table of ContentsstMain Menu Airbags


Your car has a Supplemental Restraint System (SRS) with front airbags to help protect the heads and chests of the driver and a front seat passenger during a moderate to severe frontal collision.


All V-6 models, and the 4-cylinder EX model with leather interior also have side airbags to help protect the upper torso of the driver or a front seat passenger during a moderate to severe side impact.


The most important things you need to know about your airbags are:


Airbags do not replace seat belts. They are designed to supplement


Your Car's Safety Features


the seat belts.


Airbags offer no protection in rear impacts, rollovers, or minor frontal or side collisions.


Airbags can pose serious hazards. To do their job, airbags must inflate with tremendous force and speed. So while airbags help save lives, they can cause minor injuries, or more serious or even fatal injuries if occupants are not properly restrained or sitting properly.


What you should do: Always wear your seat belt properly, and sit upright and as far back as possible from the steering wheel or dashboard.


Driver and Passenger Safety


Table of ContentsstMain Menu What you should do: Move the front seats as far back as possible, and keep adjustable seat-backs in an upright position whenever the car is moving.


Head Restraints Head restraints can help protect you from whiplash and other injuries. For maximum protection, the back of your head should rest against the center of the head restraint.


Door Locks Keeping your doors locked reduces the chance of being thrown out of the car during a crash. It also helps prevent occupants from accidentally opening a door and falling out, and outsiders from unexpectedly opening your doors.


Your Car's Safety Features


Seats & Seat-Backs Your car's seats are designed to keep you in a comfortable, upright position so you can take full advantage of the protection offered by seat belts and the energy absorbing materials in the seats.


How you adjust your seats and seat- backs can also affect your safety. For example, sitting too close to the steering wheel or dashboard increases the risk of you or your passenger being injured by striking the inside of the car, or by an inflating airbag.


Reclining a seat-back too far reduces the seat belt's effectiveness and increases the chance that the seat's occupant will slide under the seat belt in a crash and be seriously injured.


Driver and Passenger Safety


Table of ContentsstMain Menu Pre-Drive Safety Checklist To make sure you and your passengers get the maximum protection from your car's safely features, check the following each time before you drive away:


All adults, and children who have outgrown child safety seats, are wearing their seat belts and wearing them properly (see page 15).


Any infant or small child is properly restrained in a child seat in the back seat (see page 20).


Front seat occupants are sitting upright and as far back as possible from the steering wheel and dashboard (see page 12).


Seat-backs are upright (see page 13).


Head restraints are properly adjusted (see page 14).


All doors are closed and locked (see page 12).


All cargo is properly stored or secured (see page 170 ).


Your Car's Safety Features


The rest of this section gives more detailed information about how you can maximize your safety.


Remember, however, that no safety system can prevent all injuries or deaths that can occur in severe crashes, even when seat belts are properly worn and the airbags deploy.


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Adults


Introduction The following pages provide instructions on how to properly protect the driver and other adult occupants.


These instructions also apply to children who have outgrown child seats and are large enough to wear lap/shoulder belts. (See page 35 for important additional guidelines on how to properly protect larger children.)


1. Close and Lock the Doors After everyone has entered the car, be sure the doors are closed and locked.


Driver and Passenger Safety


2.Adjust the Front Seats


Any driver who sits too close to the steering wheel is at risk of being seriously injured or killed by striking the steering wheel or from being struck by an inflating front airbag during a crash.


Your car has a door monitor light on the instrument panel to indicate when a specific door is not tightly closed.


For safety, locking the doors reduces the chance that a passenger, especially a child, will open a door while the car is moving and accidentally fall out. It also reduces the chance of someone being thrown out of the car during a crash.


For security, locked doors can prevent an outsider from unexpectedly opening a door when you come to a stop.


See page 76 for how to lock the doors.


Table of ContentsstMain Menu To reduce the chance of injury, wear your seat belt properly, sit upright with your back against the seat, and move the seat as far back as possible from the steering wheel while still maintaining full control of the car. Also make sure your front seat passenger moves the seat as far to the rear as possible.


Sitting too close to a front airbag can result in serious injury or death if the front airbags inflate.


Always sit as far back from the front airbags as possible.


Most shorter drivers can get far enough away from the steering wheel and still reach the pedals. However, if you are concerned about sitting too close, we recommend that you investigate whether some type of adaptive equipment may help.


Once your seat is adjusted correctly, rock it back and forth to make sure the seat is locked in position.


See page 87 for how to adjust the front seats.


Protecting Adults


3.Adjust the Seat-Backs


Adjust the driver's seat-back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel. If you sit too close to the steering wheel, you could be injured if the front airbag inflates.


CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Adults


A front passenger should also adjust the seat-back to an upright position, but as far from the dashboard as possible. A passenger who sits too close to the dashboard could be injured if the front airbag inflates.


Reclining a seat-back so that the shoulder part of the belt no longer rests against the occupant's chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, the greater the risk of injury.


Reclining the seat-back too far can result in serious injury or death in a crash.


Adjust the seat-back to an upright position and sit well back in the seat.


See page 87 for how to adjust seat- backs.


4.Adjust the Head Restraints


Before driving, make sure everyone with an adjustable head restraint has properly positioned the head restraint. The restraint should be positioned so the back of the occupant's head rests against the center of the restraint. A taller person should adjust the restraint as high as possible.


Driver and Passenger Safety


Table of ContentsstMain Menu 5.Fasten and Position the Seat


Belts


Insert the latch plate into the buckle, then tug on the belt to make sure the belt is securely latched. Also check that the belt is not twisted, because a twisted belt can cause serious injuries in a crash.


Improperly positioning head restraints reduces their effectiveness and you can be seriously injured in a crash.


Make sure head restraints are in place and positioned properly before driving.


Properly adjusted head restraints will help protect occupants from whiplash and other crash injuries.


See page 92 for how to adjust the head restraints.


Protecting Adults


Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt so the lap part fits snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.


CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Adults


If necessary, pull up on the belt again to remove any slack from the shoulder part, then check that the belt rests across the center of your chest and over your shoulder. This spreads the forces of a crash over the strongest bones in your upper body.


Improperly positioning the seat belts can cause serious injury or death in a crash.


Make sure all seat belts are properly positioned before driving.


Never place the shoulder portion of a lap/shoulder belt under your arm or behind your back. This could cause very serious injuries in a crash.


If a seat belt does not seem to work as it should, it may not protect the occupant in a crash. No one should sit in a seat with an inoperative seat belt. Anyone using a seat belt that is not working properly can be seriously injured or killed. Have your Honda dealer check the belt as soon as possible.


See page 40 for additional information about your seat belt system and how to take care of your belts.


6.Adjust the Steering Wheel


Adjust the steering wheel, if needed, so that the wheel points toward your chest, not toward your face.


Pointing the steering wheel toward your chest provides optimal protection from the airbag.


See page 68 for how to adjust the steering wheel.


Driver and Passenger Safety


Table of ContentsstMain Menu 7.Maintain a Proper Sitting


Position


After all occupants have adjusted their seats and put on seat belts, it is very important that they continue to sit upright, well back in their seats, with their feet on the floor, until the car is parked and the engine is off.


Sitting improperly can increase the chance of injury during a crash. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.


In addition, an occupant who is out of position in the front seat can be seriously or fatally injured by striking interior parts of the car, or by being struck by an inflating front airbag. Being struck by an inflating side airbag can result in possibly serious injuries.


Protecting Adults


Sitting improperly or out of position can result in serious injury or death in a crash.


Always sit upright, well back in the seat, with your feet on the floor.


Remember, to get the best protection from your car's airbags and other safety features, you must sit properly and wear your seat belt properly.


Driver and Passenger Safety


Table of ContentsstMain Menu Pregnant women should also sit upright and as far back as possible from the steering wheel or dashboard. This will reduce the risk of injuries to both the mother and her unborn child that can be caused by a crash or an inflating airbag.


Each time you have a check-up, ask your doctor if it's okay for you to drive.


Additional Safety Precautions


Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.


Do not put any accessories on seat belts. Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt can severely compromise the protective capability of the seat belt and increase the chance of serious injury in a crash.


Protecting Adults


Advice for Pregnant Women


Because protecting the mother is the best way to protect her unborn child, a pregnant woman should always wear a seat belt whenever she drives or rides in a car.


Remember to keep the lap portion of the belt as low as possible across your hips.


Driver and Passenger Safety


Table of ContentsstMain Menu Do not place hard or sharp objects between yourself and a front airbag. Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.


Do not attach or place objects on the front airbag covers. Any object attached to or placed on the covers marked "SRS AIRBAG," in the center of the steering wheel and on top of the dashboard, could interfere with the proper operation of the airbags. Or, if the airbags inflate, the objects could be propelled inside the car and hurt someone.


On models with side airbags, do not attach hard objects on or near a front door. If a side airbag inflates, a cup holder or other hard object attached on or near the door could be propelled inside the car and hurt someone.


Keep your hands and arms away from the airbag covers. If your hands or arms are close to the airbag cover in the center of the steering wheel or on top of the dashboard, they could be injured if the front airbags inflate.


Protecting Adults


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Children


Children depend on adults to protect them. However, despite their best intentions, many parents and other adults may not know how to properly protect young passengers.


So if you have children, or if you ever need to drive with a grandchild or other children in your car, be sure to read this section.


Driver and Passenger Safety


Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash.


Any child too small for a seat belt should be properly restrained in a child seat. A larger child should be properly restrained with a seat belt.


All Children Must Be Restrained Each year, many children are injured or killed in vehicle crashes because they are either unrestrained or not properly restrained. In fact, vehicle accidents are the number one cause of death of children ages 12 and under.


To reduce the number of child deaths and injuries, every state and Canadian province requires that infants and children be restrained whenever they ride in a vehicle.


Any child who is too small to wear a seat belt should be properly restrained in a child seat. (See page 24.)


A larger child should always be restrained with a seat belt. (See page 35.)


Table of ContentsstMain Menu Children Should Sit in the Back Seat According to accident statistics, children of all ages and sizes are safer when they are restrained in the back seat, not the front seat. The National Highway Traffic Safety Administration and Transport Canada recommend that all children ages 12 and under be properly restrained in the back seat.


In the back seat, children are less likely to be injured by striking hard interior parts during a collision or hard braking. Also, children cannot be injured by an inflating airbag when they ride in the back.


The Passenger's Front Airbag Poses Serious Risks to Children Front airbags have been designed to help protect adults in a moderate to severe frontal collision. To do this, the passenger's front airbag is quite large, and it inflates with tremendous speed.


Infants Never put a rear-facing child seat in the front seat of a vehicle equipped with a passenger's front airbag. If the airbag inflates, it can hit the back of the child seat with enough force to kill or very seriously injure an infant.


Protecting Children


Small Children Placing a forward-facing child seat in the front seat of a vehicle equipped with a passenger's front airbag can be hazardous. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, an inflating front airbag can strike the child with enough force to kill or very seriously injure a small child.


Larger Children Children who have outgrown child seats are also at risk of being injured or killed by an inflating passenger's front airbag. Whenever possible, larger children should sit in the back seat, properly restrained with a seat belt. (See page 35 for important information about protecting larger children.)


CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu Canadian Models To remind you of the front airbag hazards, your car has warning labels on the driver's and front passenger's visors. Please read and follow the instructions on these labels.


CAUTION TO AVOID SERIOUS INJURY: FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY BELT. DO NOT INSTALL REARWARD-FACING CHILD SEATS IN ANY FRONT PASSENGER SEAT POSITION. DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE AIR BAG. DO NOT PLACE ANY OBJECTS OVER THE AIR BAG OR BETWEEN THE AIR BAG AND YOURSELF. SEE THE OWNER'S MANUAL FOR FURTHER INFORMATION AND EXPLANATIONS.


PRECAUTION: POUR EVITER DES BLESSURES GRAVES: POUR PROFITER D'UNE PROTECTION MAXIMALE LORS D'UNE COLLISION BOUCLEZ TOUJOURS VOTRE CEINTURE DE SECURITE. N'lNSTALLEZ JAMAIS UN SIEGE POUR ENFANTS FAISANT FACE A L'ARRIERE SUR LE SIEGE DU PASSAGER AVANT. NE VOUS APPUYEZ PAS ET NE VOUS ASSEYEZ PAS PRES DU COUSSIN GONFLABLE. NE DEPOSEZ AUCUN OBJET SUR LE COUSSIN GONFLABLE OU ENTRE LE COUSSIN GONFLABLE ET VOUS. LISEZ LE GUIDE UTILISATEUR POUR DE PLUS AMPLES RENSEIGNEMENTS.


Protecting Children


U.S. Models To remind you of the passenger's front airbag hazards, and that children must be properly restrained in the back seat, your car has warning labels on the dashboard and on the driver's and front passenger's visors. Please read and follow the instructions on these labels.


Driver and Passenger Safety


Table of ContentsstMain Menu If You Must Drive with Several Children Your car has three seating positions in the back seat where children can be properly restrained.


If you ever have to carry more than three children in your car:


Place the largest child in the front seat, provided the child is large enough to wear a seat belt properly (see page 35 ).


Move the vehicle seat as far to the rear as possible (see page 12 ).


Have the child sit upright and well back in the seat (see page 17).


Make sure the seat belt is properly positioned and secured (see page 15).


If a Child Requires Close Attention Many parents say they prefer to put an infant or small child in the front passenger seat so they can watch the child, or because the child requires attention.


Placing a child in the front seat exposes the child to hazards from the passenger's front airbag, and paying close attention to a child distracts the driver from the important tasks of driving, placing both of you at risk.


If a child requires physical attention or frequent visual contact, we strongly recommend that another adult ride with the child in the back seat. The back seat is far safer for a child than the front.


Protecting Children


Additional Safety Precautions


Do not leave children alone in your vehicle. Leaving children without adult supervision is illegal in most states and Canadian provinces, and can be very hazardous. For example, infants and small children left in a vehicle on a hot day can die from heatstroke. And children left alone with the key in the ignition can accidentally set the vehicle in motion, possibly injuring themselves or others.


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Children


General Guidelines for Using Child Seats The following pages give general guidelines for selecting and installing child seats for infants and small children.


Selecting a Child Seat To provide proper protection, a child seat should meet three requirements:


1. The child seat should meet safety standards. The child seat should meet Federal Motor Vehicle Safety Standard 213 (FMVSS 213) or Canadian Motor Vehicle Safety Standard 213 (CMVSS 213). Look for the manufacturer's statement of compliance on the box and seat.


2. The child seat should be of the


proper type and size to fit the child.


Driver and Passenger Safety


Infants: Children up to about one year old should be restrained in a rear-facing, reclining child seat. Only a rear-facing seat provides the proper support to protect an infant's head, neck, and back. See page 28 for additional information on protecting infants.


Table of ContentsstMain Menu Protecting Children


Before purchasing a child seat, we recommend that parents test the child seat in the specific vehicle seating position (or positions) where they intend to use the seat. If a previously purchased child seat does not fit, you may need to buy a different one that will fit.


3. The child seat should fit the vehicle seating position (or positions) where it will be used.


Due to variations in the design of child seats, vehicle seats, and seat belts, all child seats will not fit all vehicle seating positions.


However, Honda is confident that one or more child seat models can fit and be properly installed in all recommended seating positions in your car.


CONTINUED


Driver and Passenger Safety


Small Children: A child who is too large for a rear-facing child seat, and who can sit up without support, should be restrained in a forward- facing child seat. See page 32 for additional information on protecting small children.


Table of ContentsstMain Menu Protecting Children


Placing a Child Seat This page briefly summarizes Honda's recommendations on where to place rear-facing and forward- facing child seats in your car.


Airbags Pose Serious


Risks to Children


The passenger's front airbag inflates with enough force to kill or seriously injure an infant in a rear-facing child seat.


A small child in a forward-facing child seat is also at risk. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, an inflating front airbag can kill or seriously injure the child.


If a small child must ride in the front, follow the instructions provided in this section.


Driver and Passenger Safety


Front Passenger's Seat Infants: Never in the front seat, due


to the front airbag hazard.


Small children: Not recommended, due to the front airbag hazard. If a small child must ride in front, move the vehicle seat to the rear- most position and secure a front- facing child seat with the seat belt (see page 32).


Back Seats Infants: Recommended positions. Secure a rear-facing child seat with the seat belt (see page 28).


Small children: Recommended


positions. Secure a front-facing child seat with the seat belt (see page 32).


Table of ContentsstMain Menu Installing a Child Seat After selecting a proper child seat, and a good position to install the seat, there are three main steps in installing the seat:


To provide security during normal driving maneuvers as well as during a collision, we recommend that parents secure a child seat as firmly as possible.


1. Secure the child seat to the car with a seat belt. All child seats must be secured to the car with the lap part of a lap/shoulder belt. A child whose seat is not properly secured to the car can be endangered in a crash. See pages 29 and 33 for instructions on how to secure child seats in this car.


2. Make sure the child seat is firmly


secured. After installing a child seat, push and pull the seat forward and from side to side to verify that it is secure.


However, a child seat does not need to be "rock solid." In some vehicles or seating positions, it may be difficult to install a child seat so that it does not move at all. Some side-to- side or back-and-forth movement can be expected and should not reduce the child seat's effectiveness.


If the child seat is not secure, try installing it in a different seating position, or use a different style of child seat that can be firmly secured in the desired seating position.


Protecting Children


3. Secure the child in the child seat.


Make sure the child is properly strapped in the child seat according to the child seat maker's instructions. A child who is not properly secured in a child seat can be thrown out of the seat in a crash and seriously injured.


Storing a Child Seat When you are not using a child seat, either remove it and store it in a safe place, or make sure it is properly secured. An unsecured child seat can be thrown around the car during a crash or sudden stop and injure someone.


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Children


Protecting Infants


Child Seat Type Only a rear-facing child seat provides proper support for a baby's head, neck, and back. Infants up to about one year of age must be restrained in a rear-facing child seat.


Two types of seats may be used: a seat designed exclusively for infants, or a convertible seat used in the rear- facing, reclining mode.


Driver and Passenger Safety


Placing a rear-facing child seat in the front seat can result in serious injury or death if the passenger's front airbag inflates.


Always place a rear-facing child seat in the back seat, not the front.


We recommend that an infant be restrained in a rear-facing child seat until the infant reaches the seat maker's weight or height limit and is able to sit up without support.


Rear-Facing Child Seat Placement In this car, a rear-facing child seat can be placed in any seating position in the back seat, but not in the front seat.


Never put a rear-facing child seat in the front seat. If the passenger's front airbag inflates, it can hit the back of the child seat with enough force to kill or seriously injure an infant. If an infant must be closely watched, we recommend that another adult sit in the back seat with the baby.


Do not put a rear-facing child seat in a forward-facing position. If placed facing forward, an infant could be very seriously injured during a frontal collision.


Table of ContentsstMain Menu Protecting Children


Rear-Facing Child Seat Installation The lap/shoulder belts in the back seats have a locking mechanism that must be activated to secure a child seat.


The following pages provide instructions and tips on how to secure a rear-facing child seat with this type of seat belt.


1. With the child seat in the desired


back seating position, route the belt through the child seat according to the seat maker's instructions, then insert the latch plate into the buckle.


2. To activate the lockable retractor, slowly pull the shoulder part of the belt all the way out until it stops, then let the belt feed back into the retractor (you might hear a clicking noise as the belt retracts).


3. After the belt has retracted, tug on it. If the belt is locked, you will not be able to pull it out. If you can pull the belt out, it is not locked and you will need to repeat these steps. CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Children


To deactivate the locking mechanism and remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract.


4. After confirming that the belt is locked, grab the shoulder part of the belt near the buckle and pull up to remove any slack from the lap part of the belt. Remember, if the lap part of the belt is not tight, the child seat will not be secure. To remove slack, it may help to put weight on the child seat, or push on the back of the seat, while pulling up on the belt.


5. Push and pull the child seat


forward and from side to side to verify that it is secure enough to stay upright during normal driving maneuvers. If the child seat is not secure, unlatch the belt, allow it to retract fully, then repeat these steps.


Driver and Passenger Safety


Table of ContentsstMain Menu When properly installed, a rear- facing child seat may prevent the driver or a front-seat passenger from moving the seat as far back as recommended (see page 12). Or it may prevent them from locking the seat-back in the desired upright position (see page 13).


In either case, we recommend that you place the child seat directly behind the front passenger seat, move the front seat as far forward as needed, and leave it unoccupied. Or you may wish to get a smaller child seat that allows you to safely carry a front passenger.


Rear-Facing Child Seat Installation Tips


For proper protection, an infant must ride in a reclined, or semi-reclined position. To determine the proper reclining angle, check with the baby's doctor or follow the seat maker's recommendations.


To achieve the desired reclining angle, it may help to put a rolled up towel under the toe of the child seat, as shown.


Protecting Children


Additional Precautions for Infants Never hold an infant on your lap. If you are not wearing a seat belt in a crash, you could be thrown forward into the dashboard and crush the infant.


If you are wearing a seat belt, the infant can be torn from your arms. For example, if your car crashes into a parked vehicle at 30 mph (48 km/h), a 20-lb (9 kg) infant will become a 600-lb (275 kg) force, and you will not be able to hold on.


Never put a seat belt over yourself and an infant. During a crash, the belt could press deep into the infant and cause very serious injuries.


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Children


Protecting Small Children


Child Seat Type A child who can sit up without support, and who fits within the child seat maker's weight and height limits, should be restrained in a forward-facing, upright child seat.


Of the different seats available, we recommend those that have a five- point harness system as shown.


Driver and Passenger Safety


We also recommend that a small child stay in the child seat as long as possible, until the child reaches the weight or height limit for the seat.


Child Seat Placement In this car, the best place to install a forward-facing child seat is in one of the seating positions in the back seat.


Placing a forward-facing child seat in the front seat of a vehicle equipped with a passenger's front airbag can be hazardous. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, an inflating front airbag can strike the child with enough force to cause very serious or fatal injuries. If a small child must be closely watched, we recommend that another adult sit in the back seat with the child.


Improperly placing a forward- facing child seat in the front seat can result in serious injury or death if the front airbags inflate.


If you must place a forward- facing child seat in front, move the vehicle seat as far back as possible and properly restrain the child.


If it is necessary to put a forward- facing child seat in the front, move the vehicle seat as far to the rear as possible, be sure the child seat is firmly secured to the car, and the child is properly strapped in the seat.


Table of ContentsstMain Menu Protecting Children


Child Seat Installation The lap/shoulder belts in the back and front passenger seating positions have a locking mechanism that must be activated to secure a child seat.


The following pages provide instructions and tips on how to secure a forward-facing child seat with this type of seat belt.


1. With the child seat in the desired


back seating position, route the belt through the child seat according to the seat maker's instructions, then insert the latch plate into the buckle.


2. To activate the lockable retractor, slowly pull the shoulder part of the belt all the way out until it stops, then let the belt feed back into the retractor (you might hear a clicking noise as the belt retracts).


3. After the belt has retracted, tug on it. If the belt is locked, you will not be able to pull it out. If you can pull the belt out, it is not locked and you will need to repeat these steps. CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu Protecting Children


To deactivate the locking mechanism in order to remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract.


5. Push and pull the child seat


forward and from side to side to verify that it is secure enough to stay upright during normal driving maneuvers. If the child seat is not secure, unlatch the belt, allow it to retract fully, then repeat these steps.


4. After confirming that the belt is locked, grab the shoulder part of the belt near the buckle and pull up to remove any slack from the lap part of the belt. Remember, if the lap part of the belt is not tight, the child seat will not be secure. It may help to put weight on the child seat, or push on the back of the seat, while pulling up on the belt.


Driver and Passenger Safety


Table of ContentsstMain Menu Additional Precautions for Small Children


Never hold a small child on your lap. If you are not wearing a seat belt in a crash, you could be thrown forward into the dashboard and crush the child.


If you are wearing a seat belt, the child can be torn from your arms during a crash. For example, if your car crashes into a parked vehicle at 30 mph (48 km/h), a 30-lb (14 kg) child will become a 900-lb (410 kg) force, and you will not be able to hold on.


Never put a seat belt over yourself and a child. During a crash, the belt could press deep into the child and cause very serious injuries.


Protecting Larger Children When a child reaches the recommended weight or height limit for a forward-facing child seat, the child should sit in the back seat and wear a lap/shoulder belt.


If a child is too short for the shoulder part of the belt to properly fit, we recommend that the child use a booster seat until they are tall enough to use the seat belt without a booster.


The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for children who must sit in the front seat.


Protecting Children


Allowing a larger child to sit improperly in the front seat can result in injury or death if the passenger's front airbag inflates.


If a larger child must sit in front, make sure the child moves the seat as far back as possible and wears the seat belt properly.


CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu However, if the belt touches or crosses the child's neck, the child needs to use a booster seat.


Do not let a child wear a seat belt across the neck. This could result in serious neck injuries during a crash.


Do not let a child put the shoulder part of a seat belt behind the back or under the arm. This could cause very serious injuries during a crash. It also increases the chance that the child will slide under the belt in a crash and be injured.


Do not put any accessories on a seat belt. Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt, severely compromise the protective capability of the seat belt and increase the chance of serious injury in a crash.


Two children should never use the same seat belt. If they do, they could be very seriously injured in a crash.


Protecting Children


Checking Seat Belt Fit


To determine if a lap/shoulder belt properly fits a child, have the child put on the seat belt. Follow the instructions on page 15 . Then check how the belt fits.


If the shoulder part of the belt rests over the child's collarbone and against the center of the chest, as shown, the child is large enough to wear the seat belt.


Driver and Passenger Safety


Table of ContentsstMain Menu Using a Booster Seat


A child may continue using a booster seat until the tops of the ears are even with the top of the seat-back. A child of this height should be tall enough to use the lap/shoulder belt without a booster.


When Can a Larger Child Sit in Front The National Highway Traffic Safety Administration and Transport Canada recommend that all children ages 12 and under be properly restrained in a back seat.


Protecting Children


If a child needs a booster seat, we recommend choosing a style that allows the child to use the lap/ shoulder belt directly, without a shield, as shown.


Whichever style you select, follow the booster seat maker's instructions.


The back seat is the safest place for a child of any age or size.


In addition, the passenger's front airbag poses serious risks to children. If the seat is too far forward, or the child's head is thrown forward during a collision, or the child is unrestrained or out of position, an inflating front airbag can kill or seriously injure the child.


The side airbag also poses risks. If any part of a larger child's body is in the path of a deploying airbag, the child could receive possibly serious injuries.


CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu If you decide that a child can safely ride up front, be sure to:


Check that the child's seat belt is properly positioned and secured.


Carefully read the owner's manual and make sure you understand all seat belt instructions and all safety information.


Supervise the child. Even mature children sometimes need to be reminded to fasten the seat belts or sit properly.


Move the vehicle seat to the rear- most position.


Have the child sit up straight, back against the seat, and feet on or near the floor.


Protecting Children


Of course, children vary widely. And while age may be one indicator of when a child can safely ride in the front, there are other important factors you should consider.


Physical Size Physically, a child must be large enough for the lap/shoulder belt to properly fit over the hips, chest, and shoulder (see pages 15 and 36). If the seat belt does not fit properly, the child should not sit in the front.


Maturity To safely ride in front, a child must be able to follow the rules, including sitting properly and wearing the seat belt properly throughout a ride.


Driver and Passenger Safety


Table of ContentsstMain Menu Using Child Seats with Tethers


Protecting Children


Your car has three tether anchorage points on the rear shelf for securing a tether-style child seat to the car.


Since a tether can provide additional security, we recommend using a tether whenever one is required or available.


Attach the tether strap hook to the tether anchorage point and tighten the strap according to the child seat maker's instructions.


Driver and Passenger Safety


Table of ContentsstMain Menu Additional Information About Your Seat Belts


Lap/Shoulder Belt


To unlock the belt, push the red PRESS button on the buckle. Guide the belt across your body to the door pillar. After exiting the car, be sure the belt is out of the way and will not get closed in the door.


This seat belt has a single belt that goes over your shoulder, across your chest and across your hips.


To fasten the belt, insert the latch plate into the buckle, then tug on the belt to make sure the buckle is latched.


Seat Belt System Components Your seat belt system includes lap/ shoulder belts in all five seating positions.


The seat belt system also includes a light on the


instrument panel to remind you and your passengers to fasten your belts. If the driver's seat belt is not fastened before the ignition is turned ON (II), the light will come on and a beeper will also sound. The beeper will stop after a few seconds, but the light will stay on until the driver's seat belt is fastened.


Driver and Passenger Safety


Table of ContentsstMain Menu Additional Information About Your Seat Belts


See page 15 for instructions on how to wear the lap/shoulder belt properly.


All seat belts have an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.


The seat belts in all seating positions except the driver's have an additional locking mechanism that must be activated to secure a child seat. (See pages 29 and 33 for instructions on how to secure child seats with this type of seat belt.)


If the shoulder part of the belt is pulled all the way out, the locking mechanism will activate. The belt will retract, but it will not allow the passenger to move freely.


To deactivate the locking mechanism, unlatch the buckle and let the seat belt fully retract. To refasten the belt, pull it out only as far as needed.


Driver and Passenger Safety


Table of ContentsstMain Menu Additional Information About Your Seat Belts


Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.


Check your seat belts regularly and have any problem corrected as soon as possible.


If a seat belt is worn during a crash, you should have your dealer inspect the belt, and replace it if necessary. A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash. The dealer should also inspect the anchors for damage and replace them if needed.


For information on how to clean your seat belts, see page 271.


Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly.


Pull each belt out fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and that the lap/shoulder belts retract easily. Any belt not in good condition or not working properly will not provide good protection and should be replaced as soon as possible.


U.S. Models Honda provides a lifetime warranty on seat belts. Honda will repair or replace any seat belt component that fails to function properly during normal use. Please see your Honda Warranty Information booklet for details.


Driver and Passenger Safety


Table of ContentsstMain Menu SRS Components Your Supplemental Restraint System (SRS) includes:


Two front airbags. The driver's airbag is stored in the center of the steering wheel; the front passenger's airbag is stored in the dashboard. Both are marked "SRS AIRBAG."


Sensors that can detect a moderate to severe frontal collision.


A sophisticated electronic system that continually monitors and records information about the sensors, the control unit, the airbag activators, driver and passenger seat belt use, and all related wiring when the ignition is ON (II).


Additional Information About Your Front Airbags


How Your Front Airbags Work


An indicator light on the instrument panel that alerts you to a possible problem with the system (see page 45).


Emergency backup power in case your car's electrical system is disconnected in a crash.


If you ever have a moderate to severe frontal collision, the sensors will detect the vehicle's rapid deceleration. If the rate of deceleration is high enough, the control unit will instantly inflate the front airbags.


CONTINUED


Driver and Passenger Safety


Table of ContentsstMain Menu Additional Information About Your Front Airbags


During a frontal crash, your seat belts help restrain your lower body and torso. Your airbag provides a cushion to help restrain and protect your head and chest.


Since both airbags use the same sensors, both airbags normally inflate at the same time. However, it is possible for only one airbag to inflate.


This can occur when the severity of a collision is at the margin, or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide sufficient protection, and the supplemental protection offered by the airbag would be minimal.


Driver and Passenger Safety


After inflating, the front airbags immediately deflate, so they won't interfere with the driver's visibility, or the ability to steer or operate other controls.


The total time for inflation and deflation is approximately one-tenth of a second, so fast that most occupants are not aware that the airbags deployed until they see them lying in their laps.


After a crash, you may see what looks like smoke. This is actually powder from the airbag's surface. Although the powder is not harmful, people with respiratory problems may experience some temporary discomfort. If this occurs, get out of the car as soon as it is safe to do so.


U.S. Owners For additional information on how your airbags work, see the booklet titled SRS: What You Need to Know About Airbags that came with your owner's manual.


Canadian Owners For additional information on how your airbags work, ask your dealer for a copy of the booklet titled SRS: What You Need to Know About Airbags.


Table of ContentsstMain Menu


The purpose of the SRS indicator light is to alert


How the SRS Indicator Light Works SRS you to a potential problem with your front airbags. On all V-6 models and the 4-cylinder EX model with leather interior, this light will also alert you to a potential problem with your side airbags or passenger's side airbag automatic cutoff system (see page 47).


When you turn the ignition ON (II), this indicator will light up briefly then go out. This tells you that the system is working properly.


Additional Information About Your Front Airbags


Ignoring the SRS indicator light can result in serious injury or death if the airbags or cutoff system do not work properly.


Have your vehicle checked by a dealer as soon as possible if the SRS light alerts you to a potential problem.


However, if the light comes on at any other time, you should have the system checked by your dealer. For example:


If the SRS indicator light does not come on after you turn the ignition ON (II).


If the light stays on after the engine starts.


If the light comes on or flashes on and off while you drive.


If you see any of these indications, your front or side airbags may not deploy, or your passenger's side airbag automatic cutoff system may not work properly. See your Honda dealer as soon as possible.


Driver and Passenger Safety


Table of ContentsstMain Menu Additional Information About Your Side Airbags


On all V6 models and the 4-cylinder EX model with leather interior Your car is equipped with side airbags for the driver and a front seat passenger. The airbags are stored in the outer edges of the front seat-backs, and both are marked "SIDE AIRBAG."


How Your Side Airbags Work


To get the best protection from the side airbags, front seat occupants should wear their seat belts and sit upright and well back in their seats.


If you ever have a moderate to severe side impact, the sensors will detect rapid deceleration and signal the control unit to instantly inflate either the driver's or the passenger's side airbag.


Only one airbag will deploy during a side impact. If the impact is on the passenger's side, the passenger's side airbag will deploy even if there is no passenger.


Driver and Passenger Safety


Table of ContentsstMain Menu How The Side Airbag Indicator Light Works


The purpose of this light is to alert you if the


SIDE AIRBAG passenger's side airbag has been automatically shut off.


Although Honda does not encourage children to ride in the front, to help prevent injury, your car has an automatic cutoff system for the passenger's side airbag. This system is designed to shut off the airbag if a child leans sideways and the child's head is in the deployment path of the side airbag.


The side airbag may also shut off if a small adult leans sideways, or a larger adult slouches and leans sideways, and the adult's head is in the deployment path of the airbag.


Additional Information About Your Side Airbags


The SRS indicator light will come on if there is a


SRS problem with your side airbags or the automatic cutoff system (see page 45).


A front seat passenger should not use a cushion or other object as a backrest. It may prevent the cutoff system from working properly.


If this light comes on, you should have the passenger sit upright. Once the passenger is out of the deployment path of the side airbag, the airbag will turn on and the light will go out.


When you turn the ignition ON (II), the indicator light should light up briefly and go out (see page 55). If it doesn't light, or it stays on or comes on without a passenger in the front seat, have the system checked.


Driver and Passenger Safety


Table of ContentsstMain Menu Additional Information About Your Airbags


Do not cover or replace front seat- back covers without consulting a Honda dealer. Improperly replacing or covering front seat- back covers can prevent your side airbags from inflating during a collision.


See page 169 for further information and precautions relating to your airbags.


Additional Safety Precautions • Do not attempt to deactivate your


airbags. Together, airbags and seat belts provide the best protection.


Do not tamper with airbag components or wiring for any reason. Tampering could cause the airbags to deploy, possibly causing very serious injury.


Do not expose the front seat-backs to water. If rain or spilled water soaks into a seat-back, it can prevent the side airbag system from working properly.


Airbag Service Your front and side airbag systems (if equipped) are virtually maintenance-free, and there are no parts you can safely service. However, you must have your car serviced if:


Your airbags ever inflate. Any airbag that has deployed must be replaced along with the control unit and other related parts. Do not try to remove or replace any airbag by yourself. This must be done by a Honda dealer or a knowledgeable body shop.


The SRS indicator light alerts you to a problem. Take your car to an authorized Honda dealer as soon as possible. If you ignore this indication, the airbags might not inflate when you need them.


Driver and Passenger Safety


Table of ContentsstMain Menu Your car's exhaust contains carbon monoxide gas. You should have no problem with carbon monoxide entering the car in normal driving if you maintain your car properly. Have the exhaust system inspected for leaks whenever:


The car is raised for an oil change. You notice a change in the sound of the exhaust. The car was in an accident that may have damaged the underside.


Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.


Avoid any enclosed areas or activities that expose you to carbon monoxide.


High levels of carbon monoxide can collect rapidly in enclosed areas, such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move the vehicle out of the garage.


Carbon Monoxide Hazard


With the trunk lid open, air flow can pull exhaust gas into your car's interior and create a hazardous condition. If you must drive with the trunk lid open, open all the windows and set the heating and cooling system/climate control system as shown below.


If you must sit in your parked car, even in an unconfined area, with the engine running, adjust the heating and cooling system/climate control system as follows:


1. Select the Fresh Air mode. 2. Select the 3. Turn the fan on high speed. 4. Set the temperature control to a


mode.


comfortable setting.


Driver and Passenger Safety


Table of ContentsstMain Menu SUN VISOR U.S. models


Canadian models


Safety Labels


These labels are in the locations shown. They warn you of potential hazards that could cause serious injury. Read these labels carefully.


Loading...
x
