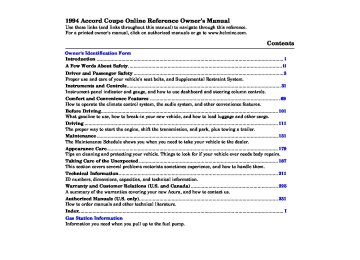

1994 Accord Coupe Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com.


Contents


Owner's Identification Form Introduction ......................................................................................................................................... i A Few Words About Safety.................................................................................................................ii Driver and Passenger Safety ..............................................................................................................3 Proper use and care of your vehicle's seat belts, and Supplemental Restraint System. Instruments and Controls.................................................................................................................31
Instrument panel indicator and gauge, and how to use dashboard and steering column controls. Comfort and Convenience Features .............................................................................................. .69
How to operate the climate control system, the audio system, and other convenience features. Before Driving..................................................................................................................................101
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo. Driving ..............................................................................................................................................111
The proper way to start the engine, shift the transmission, and park, plus towing a trailer. Maintenance.....................................................................................................................................131
The Maintenance Schedule shows you when you need to take your vehicle to the dealer. Appearance Care..............................................................................................................................179
Tips on cleaning and protecting your vehicle. Things to look for if your vehicle ever needs body repairs. Taking Care of the Unexpected......................................................................................................187
This section covers several problems motorists sometimes experience, and how to handle them. Technical Information.....................................................................................................................211
ID numbers, dimensions, capacities, and technical information. Warranty and Customer Relations (U.S. and Canada)................................................................225
A summary of the warranties covering your new Acura, and how to contact us. Authorized Manuals (U.S. only)......................................................................................................231
How to order manuals and other technical literature. Index...................................................................................................................................................... I Gas Station Information Information you need when you pull up to the fuel pump.


Introduction


Congratulations ! Your selection of a 1994 Honda Accord was a wise investment. It will give you years of driving pleasure.


To enhance the enjoyment of your new car, take time to study this manual. In it, you will learn about your car's many conveniences and useful features. Following the service interval and maintenance recommendations will help keep your driving trouble-free while preserving your investment.


Keep this owner's manual in your car so you can refer to it at any time. Please make sure the manual stays with the car if you sell it. The next owner will find it just as helpful.


Several warranties protect your Honda. We suggest you read the warranty booklets carefully to fully understand the coverages and the responsibilities of ownership.


When your car needs scheduled maintenance, keep in mind that your Honda dealer's service staff is specially-trained in the service and maintenance of the many systems unique to your Honda. Your Honda dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.


Preface


Safety Messages


Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on the vehicle. Please read these messages carefully.


A safety message alerts you to potential hazards that could hurt you or others. Each safety message is preceded by a safety alert symbol one of three words, DANGER, WARMING or CAUTION. These mean:


and


You will also see another important symbol:


NOTICE


Your Honda or other properly can be damaged if you don't follow instruc- tions.


You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.


You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.


You CAN be HURT if you don't follow instructions.


Each safety message tells you what the hazard is, what can happen and what you can do to avoid or reduce injury.


Preface


This section gives you important information about occupant protec- tion. It shows how to use seat belts properly. It explains the Supple- mental Restraint System. And it gives useful information about how to protect infants and children in your car.


Your Occupant Protection System.. 4
The Seat Belt System and How It


Works.......................................... 5
Why Wear Seat Belts.................... 5


Seat Belt System Components..... 6
Lap/Shoulder Belt......................... 6
Lap Belt........................................... 6
Wearing Seat Belts Properly........ 7
Wearing a Lap/Shoulder Belt...... 7
Wearing the Lap Belt.................... 9
Advice for Pregnant Women...... 10
Seat Belt Maintenance................ 10
Supplemental Restraint System..... 11
Important Safety Reminder........ 12
How the Driver's Airbag


Works........................................ 13


How the Passenger's Airbag


Works........................................ 14


How the SRS Indicator Light


Works....................................... 15
System Service............................. 15
System Service Precautions....... 16
Additional Safety Information........ 17
Seat-back Position........................ 17
Head Restraint Position.............. 17


Driver and Passenger Safety


Door Locks................................... 18
Storing Cargo Safely................... 18
Driving with Pets......................... 18
Child Safety...................................... 19
Where Should Children Sit?....... 19
Important Safety Reminders...... 20
General Guidelines for Restraining Children Under 18 kg (40 Ibs) ............... 21


Restraining an Infant Who Weighs Less Than 9 kg (20 Ibs).......... 21


Restraining a Child Who Weighs Between 9 and 18 kg (20 and 40 Ibs)..... 22


Restraining a Child Who Weighs


Over 18 kg (40 Ibs).................. 23
Using a Seat Belt Locking Clip.. 23
Using Child Restraints


with Tethers............................. 24
Storing a Child Seat..................... 25
Alcohol and Drugs........................... 26
Carbon Monoxide Hazard.............. 27
Safety Labels.................................... 28


Driver and Passenger Safety


Your Occupant Protection System


Your Honda is equipped with seat belts and other features that work together to protect you and your passenger during a crash.


Seat belts are the most important part of your occupant protection system. When worn properly, seat belts can reduce the chance of serious injury or death in a crash.


For added protection during a severe frontal collision, your Accord has a Supplemental Restraint System (SRS) with airbags for the driver and a front seat passenger.


Two indicator lights are also part of your safety system. One reminds you to make sure you and your passengers wear seat belts. The other alerts you to a possible problem with your supplemental restraint system (see page 15 ).


The seats, head restraints, and door locks also play a role in occupant safety. For example, reclining the seat-back can decrease the effec- tiveness of your seat belt. Head restraints can help protect your neck and head, especially during rear-end impacts. Door locks help keep your doors from being accidentally opened during a crash.


Driver and Passenger Safety


To get the maximum protection from your occupant protection system, check the following before you drive away:


Everyone in the car is wearing a seat belt properly (see page 7 ). Infants and small children are properly secured in child safety seats (see page 19 ). Both doors are closed and locked (see page 18). Seat-backs are upright and head restraints are properly adjusted (see pages 17 and 54). There are no loose items that could be thrown around and hurt someone during a crash or sudden stop (see page 18 ).


By following these guidelines, you can reduce injuries to yourself and your passengers in many crash situations. Remember, however, that no safety system can prevent all injuries or deaths that can occur in severe crashes.


The Seat Belt System and How It Works


Why Wear Seat Belts Wearing seat belts, and wearing them properly, is fundamental to your safety and the safety of your passengers.


During a crash or emergency stop, seat belts can help keep you from being thrown against the inside of the car, against other occupants, or out of the car.


Of course, seat belts cannot com- pletely protect you in every crash. But, in most cases, seat belts reduce your chance of serious injury. They can even save your life. That is why many states and all Canadian pro- vinces require you to wear seat belts.


Not wearing a seat belt in- creases the chance of being killed or seriously hurt in a crash.


Be sure you and your passen- gers always wear seat belts and wear them properly.


Important Safety Reminders Seat belts are designed for adults and larger children. All infants and small children must be properly restrained in child safety seats (see page 19).


A pregnant woman needs to wear a seat belt to protect herself and her unborn child (see page 10).


Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.


Do not place the shoulder portion of a lap/shoulder belt under your arm or behind your back. This could increase the chance of serious injuries in a crash.


Do not put shoulder belt pads or other accessories on seat belts. They can reduce the effectiveness of the belts and increase the chance of injury.


Driver and Passenger Safety


The Seat Belt System and How It Works


Seat Belt System Components Your Honda has seat belts in all five seating positions. The front seats and the outside positions of the rear seat have lap/shoulder belts. The center position of the rear seat has a lap belt.


Your seat belt system also includes a light on the instrument panel to remind you to fasten your seat belt, and to make sure your passengers fasten theirs. This light comes on when you turn on the ignition if you have not fastened your seat belt. A beeper also sounds for several seconds (see page 34).


The following pages cover more about the seat belt components and how they work.


Driver and Passenger Safety


Lap/Shoulder Belt


Lap Belt


SHOULDER PORTION


UPPER SEAT BELT ANCHOR


To retractor


LAP PORTION


LATCH PLATE


BUCKLE


This style of seat belt has a single belt that goes over your shoulder, across your chest, and across your hips. Each lap/shoulder belt has an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.


LATCH PLATE


BUCKLE


The lap belt has one manually- adjusted belt that fits across the hips. It is similar to safety belts used in airplanes.


Wearing Seat Belts Properly You can increase the effectiveness of your seat belts if you take a little time to read the following pages and make sure you know how to wear seat belts properly.


Not wearing a seat belt pro- perly increases the chance of serious injury or death in a crash.


Be sure you and your passen- gers always wear seat belts and wear them properly.


The Seat Belt System and How It Works


Wearing a Lap/Shoulder Belt


Before putting on a front seat belt, be sure your seat is adjusted forward or backward to a good driving or riding position and the back of your seat is upright (see page 54).


1. Pull the latch plate across your


body and insert it into the buckle. Tug on the belt to make sure the latch is securely locked.


2. Check that the belt is not twisted.


3. Position the lap portion of the belt


as low as possible across your hips, not across your stomach. This lets your strong pelvic bones take the force of a crash.


CONTINUED


Driver and Passenger Safety


The Seat Belt System and How It Works


5. If the shoulder belt crosses your


neck while you are sitting in one of the outside positions of the rear seat, you need to adjust your seating position. Move toward the center of the seat until the belt fits over your collarbone.


4. Pull up on the shoulder part of the


belt to remove any slack. Make sure the belt goes over your collarbone and across your chest.


To unlatch the seat belt, push the red PRESS button on the buckle. Guide the belt across your body to the door pillar. If the belt doesn't retract easily, pull it out and check for twists or kinks.


Driver and Passenger Safety


Wearing the Lap Belt


The Seat Belt System and How It Works


1. Pull the latch plate across your


hips and insert it into the buckle marked CENTER.


If the belt is too short, hold the latch plate at a right angle and pull it to extend the belt while sliding the tail toward the latch. Insert the latch plate into the buckle.


2. Position the belt as low as possible across your hips and pelvic bones, not across your stomach. Pull the loose end of the belt to adjust for a snug but comfortable fit.


To unlatch the belt, push the red PRESS button on the buckle.


Driver and Passenger Safety


The Seat Belt System and How It Works


Advice for Pregnant Women


If possible, use the lap/shoulder seat belt, remembering to keep the lap portion as low as possible (see page 7 ).


Each time you have a check-up, ask your doctor if it's okay for you to drive and how you should position a lap/shoulder seat belt.


Protecting the mother is the best way to protect her unborn child. Therefore, a pregnant woman should wear a properly-positioned seat belt whenever she drives or rides in a car.


Driver and Passenger Safety


Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly.


Pull out each belt fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the lap/shoulder belts retract easily. Any belt not in good condition or not working properly should be replaced.


If a seat belt is worn during a crash, have your dealer replace the belt and inspect the anchors for damage.


For information on how to clean your seat belts, see page 184 .


Your Honda is equipped with a Supplemental Restraint System (SRS) to help protect your head and chest during a severe frontal collision. This system does not replace your seat belt. It supplements, or adds to, the protection offered by your seat belt.


Not wearing a seat belt in- creases the chance of serious injury or death in a crash, even if you have an airbag.


Be sure you and your passen- gers always wear seat belts and wear them properly.


Supplemental Restraint System


DRIVER'S AIRBAG


PASSENGER'S AIRBAG


INDICATOR


S R S


CONTROL UNIT


SENSORS


The main components in your SRS are:


One airbag in the steering wheel for the driver and another in the dashboard for the passenger.


A diagnostic system that, when the ignition is ON (II), continually monitors the sensors, control unit, airbag activator, and all related wiring.


CONTINUED


Driver and Passenger Safety


Supplemental Restraint System


An indicator light to warn you of a possible problem with the system.


Emergency power backup in case your car's electrical system is disconnected in a crash.


Important Safety Reminder


Frontal collision range


An airbag inflates and deflates very quickly. It cannot protect you during any additional impacts that can occur during a crash.


A seat belt helps keep you in the proper position when an airbag inflates. An airbag opens with considerable force and can hurt you if you are not in the proper position.


Even with an airbag, you need to wear a seat belt. The reasons are:


Airbags only inflate in severe frontal collisions. They offer no protection in rear impacts, side impacts, rollovers, or moderate frontal collisions.


Driver and Passenger Safety


Supplemental Restraint System


How the Driver's Airbag Works


To do its job, the airbag inflates with considerable force. So, while it can reduce serious injuries and even save your life, the airbag might cause some facial abrasions or other injuries. For this reason, you should always sit as far back from the steering wheel as comfortable while still maintaining control.


If you ever have a severe frontal collision, your airbag will instantly inflate to help protect your head and chest.


When the airbag inflates, you may hear a fairly loud noise and you might see smoke or powder. This is normal; it is caused by the inflation of the airbag.


After the bag completely inflates, it immediately starts deflating so it won't interfere with your visibility, ability to steer, or ability to operate other controls. The total time for inflation and deflation takes less than a fraction of a second. You may not even be aware that the airbag has been fully inflated.


CONTINUED


Driver and Passenger Safety


Supplemental Restraint System


How the Passenger's Airbag Works


The airbag is stored in the center of the steering wheel. For your safety, do not attach any items to the steering wheel. They could interfere with the proper operation of the airbag. Or, if the airbag inflates, they could be propelled inside the car and hurt someone.


If you ever have a severe frontal collision, the passenger's airbag will inflate at the same time as the driver's airbag.


This airbag is quite large and inflates with considerable force. It can seriously hurt a front seat passenger who is not in the proper position and wearing the seat belt properly. Front seat passengers should move the seat as far back as practical and sit well back in the seat.


Because of the airbag, we strongly recommend that you do not put an infant seat in the front passenger's seat. If the airbag inflates, it can dislodge the infant seat and seriously injure the infant.


If a toddler seat is used in the front passenger's seat, the vehicle seat should be moved as far back as possible. If the passenger's bag inflates, it could seriously hurt a toddler who is not in the proper position or properly restrained.


Driver and Passenger Safety


Supplemental Restraint System


The passenger's airbag is stored near the top of the dashboard, under a lid marked SRS. Do not place any objects on top of this lid. If the airbag inflates, those objects can be propelled inside the car and possibly hurt someone.


How the SRS Indicator Light Works


S R S The purpose of the SRS light on your instrument panel is to alert you of a potential problem with your supple- mental restraint system.


System Service Your supplemental restraint system is virtually maintenance-free. There are no parts you can safely service. You must have the system serviced by an authorized Honda dealer:


Have the system checked if:


The light does not come on when you turn the ignition ON (II).


The light stays on after the engine starts.


The light comes on or flashes while you are driving.


If your airbag ever inflates. The airbag must be replaced. Do not try to remove or discard the airbag by yourself. This must be done by a Honda dealer.


If the SRS indicator light alerts you of a problem. Have the supplemental restraint system checked as soon as possible. Otherwise, the airbags might not inflate when you need it.


When the car is ten years old. Have the dealer inspect the system. The production date is on the driver's door jamb for your convenience.


Driver and Passenger Safety


Supplemental Restraint System


Scrapping an entire car that has an uninflated airbag can be dangerous. Get assistance from a Honda dealer if your car must be scrapped.


If you sell your car, please be sure to tell the new owner that the car has a supplemental restraint system. Alert them to the information and precautions in this part of the owner's manual.


System Service Precautions Do not modify your steering wheel or any other part of the supplemental restraint system. Modifications could make the system ineffective.


Do not tamper with the system's components or wiring. This could cause the airbags to inflate inadver- tently, possibly injuring someone very seriously.


Tell anyone who works on your car that you have a supplemental restraint system. Failure to follow the procedures and precautions in the official Honda service manual could result in personal injury or damage to the system.


Driver and Passenger Safety


Additional Safety Information


The seat belts and airbags are obvi- ously important parts of your occu- pant protection system.


In addition, you should know that sitting upright, adjusting the head restraint properly, locking the doors, and stowing things properly can also increase your safety and possibly even save your life.


Seat-back Position The seat-backs should be in an upright position for you and your passengers to get the most protec- tion from the seat belts.


If you recline a seat-back, you reduce the protective capability of your seat belt. The farther a seat-back is reclined, the greater the risk that you will slide under the belt in a severe crash and be very seriously injured.


For information on how to adjust the seat-back, see page 54 .


Head Restraint Position


Head restraints can help protect you from whiplash and other injuries. For the best protection, adjust the top of the restraint so it is even with the tops of your ears, or as high as possi- ble. For instructions on adjusting the head restraints, see page 56.


Driver and Passenger Safety


Be sure to keep compartment doors closed when the car is moving. If a passenger hits the door of an open glove box, for example, he could injure his knees.


For information on loading cargo, see page 110.


Driving with Pets Loose pets can be a hazard while you are driving. An unrestrained pet can interfere with your ability to drive the car. In a crash or sudden stop, loose pets or cages can be thrown around inside the car and hurt you or your passengers. It is also for their safety that pets should be properly restrained in your car.


The recommended way to restrain a medium-sized or larger dog is with a special traveling harness. This har- ness can be secured to the rear seat with a seat belt. Travel harnesses are available at pet stores.


A small dog, cat, or other small animal will be safest in a pet carrier with rigid sides. Choose a style that allows you to secure it to the car's seat by routing a seat belt through the carrier's handle.


For further information, contact your veterinarian or local animal protec- tion society.


Additional Safety Information


Door Locks It is not safe to leave your car doors unlocked. A passenger, especially a child, could open a door and acci- dentally fall out. Also, there is a greater chance of being thrown out of the car during a crash when the doors are not locked.


Storing Cargo Safely Before you drive, make sure you first securely store or tie down any items that could be thrown around the car and hurt someone, or interfere with your ability to operate the controls.


Do not put any items on top of the rear shelf. They can block your view and they could be thrown about the car in a crash.


Driver and Passenger Safety


An infant or child who is not properly restrained can be killed or seriously injured in a crash.


Be sure any child too small for seat belts is properly secured in a child restraint.


Children depend on adults to protect them. To help make sure we do, every state and Canadian province has laws requiring infants and young children to be properly restrained whenever they ride in a car.


Child Safety


Where Should Children Sit? According to accident statistics, children of all sizes and ages are safer when they are properly restrained in the rear seat rather than the front seat.


We recommend that, whenever possible, you secure your child's infant or toddler seat in the center position of the rear seat with the lap belt.


We strongly recommend that you do not put an infant seat in the front passenger seat. If the airbag inflates, it can hit the seat with great force. The infant seat can be dislodged and the baby seriously injured.


CONTINUED


Driver and Passenger Safety


Two children should never use the same seat belt. If they do, they could be very seriously injured in a crash.


Child Safety


If a toddler seat is used in the front passenger's seat, the vehicle seat should be moved as far back as possible. If the passenger's bag inflates, it could seriously hurt a toddler who is not in the proper position or properly restrained.


We also recommend that any child who is too large to use an infant or toddler seat ride in one of the out- side positions of the rear seat. The child should then wear the lap/ shoulder belt properly for protection.


Important Safety Reminders Never hold a baby or child on your lap when riding in a car. If you are wearing your seat belt, the violent forces created during a crash will tear the child from your arms. The child could be seriously hurt or killed.


If you are holding a child and not wearing a seat belt in a crash, you could crush the child against the car's interior.


Never put your seat belt over yourself and a child. During a crash, the belt could press deep into the child, causing serious internal injuries.


Driver and Passenger Safety


To properly route a seat belt through a child seat, follow the seat maker's instructions. If you use a lap/ shoulder belt, be sure you install a locking clip on the belt (see page 23).


Secure the child in the child seats Make sure the infant or child is firmly secured to the child seat. Use the straps provided, and carefully follow the manufacturer's instructions.


General Guidelines for Restraining Children Under 18
kg (40 Ibs) Use an approved child seat. The seat must meet Federal Motor Vehicle Safety Standard 213 (FMVSS-213) or Canadian Motor Vehicle Safety Standards. Look for the manufac- turer's statement of compliance on the box and seat.


Use a seat of the right size. Make sure the seat fits your child. Check the seat manufacturer's instructions and labels for height and weight limits.


Secure the child seat to the car. All approved child seats are designed to be secured to the car seat by the lap belt or the lap belt portion of a lap/ shoulder belt. A child whose seat is not properly secured to the car can be endangered in a crash.


Child Safety


Restraining an Infant Who Weighs Less Than 9 kg (20 Ibs)


An infant up to about 9 kg (20 Ibs) must be restrained in an infant seat or a convertible seat designed for a baby. Because infants must ride in a reclining position, be sure the infant seat always faces the REAR of the car as shown.


CONTINUED


Driver and Passenger Safety


Restraining a Child Who Weighs Between 9 and 18 kg (20 and 40
Ibs)


Toddler seats are designed for children who weigh between 9 and 18 kg (20 and 40 Ibs).


The preferred place to put a toddler seat is in the center position of the rear seat. Use the car's lap belt to secure the seat to the car.


If you decide to put a toddler seat in any other seating position, you must use a locking clip on the car's lap/' shoulder belt (see page 23).


If a toddler seat is used in the front passenger's seat, the vehicle seat should be moved as far back as possible. If the passenger's bag inflates, it could seriously hurt a toddler who is not. in the proper position or properly restrained.


Child Safety


We recommend that, whenever possible, you put the infant seat in the center position of the rear seat and secure it to the car with the lap belt


If you decide to put an infant seat in any other seating position, you must use a locking clip on the car's lap/ shoulder belt (see page 23).


We strongly recommend that you do not put an infant seat in the front passenger's seat. In a severe frontal collision, the inflating airbag can hit- the infant seat with considerable force. The infant seat can be dislodged, causing serious injury to the infant.


Driver and Passenger Safety


Restraining a Child Who Weighs Over 18 kg (40 lbs)


Put the seat belt on your child and check its fit. The shoulder belt should fit over the collarbone and across the chest. The lap belt should sit low on your child's hips, not across the stomach.


Using a Seat Belt Locking Clip Always use a seat belt locking clip when you secure a child seat to your car with a lap/shoulder belt. This helps prevent the seat from shifting position or overturning,


Child Safety


If the shoulder belt crosses the neck, have your child move toward the center of the rear seat until the belt fits properly. If the belt still crosses the child's neck, you should use a booster seat.


Several styles of booster seats are available. We recommend a design that allows the child to use the car's lap/shoulder belt.


Whichever style you select, follow the booster seat manufacturer's instructions.


We recommend that, whenever possible, a child who has outgrown a toddler seat ride In one of the outside positions of the rear seat and use a lap/shoulder belt.


A locking clip is usually included with the child seat. If you need a clip, contact the seat's manufacturer or a store that sells child restraints.


CONTINUED


Driver and Passenger Safety


Child Safety


To install a locking clip, do the following:


1. Place the child restraint in the


desired position. Route the lap/ shoulder belt through the restraint according to the seat manufac- turer's instructions.


2. Insert the latch plate into the


buckle. Pull on the shoulder part of the belt to make sure there is no slack in the lap portion.


3. Tightly grasp the belt near the


latch plate. Pinch both parts of the belt together so they won't slip through the latch plate. Unbuckle the seat belt.


Driver and Passenger Safety


Using Child Restraints with Tethers


121 mm (4.8 in)


306 mm (12.0 in)


4. Install the locking clip as shown.


Position the clip as close as possible to the latch plate.


5. Insert the latch plate into the


buckle. Push and pull on the child seat to verify that it is held firmly in place. If it is not, repeat these steps until the restraint is secure.


340 mm (13.4 in)


Your Honda has three attachment points for tether-style child seat. They are located on the rear shelf.


U.S. Models Use the dimensions in the illustra- tion to locate either of the outside attachment points you want to use. Cut a 22 mm (7/8 inch) diameter hole in the rear shelf.


Canadian Models Select the attachment point you want to use and remove the plug with a small flat-tipped screwdriver or fingernail file.


Install the tether hardware that came with the child seat. Tighten to: 22 N.m(2.2 kg-m , 16 Ib-ft)


If you are not sure how to install the bracket, have it installed by your Honda dealer.


If you need an anchor plate and mounting hardware, you can obtain them by writing to:


American Honda Motor Co., Inc. Consumer Affairs 1919 Torrance Blvd. Torrance, CA 90501-2746


Child Safety


Canadian Cars


TOOTHED WASHER


Storing a Child Seat When you are not using an infant seat or other child restraint, either remove it or make sure it is properly secured so it cannot be thrown around the car during a crash.


The anchor plate and mounting hardware for a top tether are supplied with the car. When installing, make sure the toothed washer is on the bottom of the bolt.


The supplied anchor plate is designed only for mounting a child restraint. Do not use it for any other purpose.


Driver and Passenger Safety


The safest thing you can do is never drink and drive. This can be done if you plan ahead. If you know you are going to be drinking, make plans to ride with a friend who will not be drinking.


If you have no choice but to drive, stop drinking and give yourself lots of time to sober up. Time is the only thing that can make you sober. Things like coffee or a cold shower don't speed up the process.


What if you find that you've been drinking and cannot get a ride from a friend? Find alternative transpor- tation. Call a taxi. Take a bus. Many communities have transportation services devoted to shuttling people who have been drinking.


If you see friends trying to get behind the wheel after drinking, stop them. Drive them yourself or arrange other transportation. If you think you are interfering, remember that your interference will keep them from sharing the road with you.


Alcohol and Drugs


Driving a car requires your full at- tention and alertness. Traffic condi- tions change rapidly. You must be able to react just as rapidly. Alcohol or drugs directly affect your alert- ness and ability to react. Even pre- scription and non-prescription medi- cines can have this effect.


There are laws that deal with drunken driving. These laws define how much alcohol it takes in your system to be legally "drunk." How- ever, your judgment and reaction time get worse with every drink — even the first one.


Driver and Passenger Safety


Your car's exhaust contains carbon monoxide gas. You should have no problem with carbon monoxide entering the car in normal driving if you maintain your car properly. Have the exhaust system inspected for leaks whenever:


High levels of carbon monoxide can collect rapidly in enclosed areas, such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move the car out of the garage.


The car is raised for an oil change. You notice a change in the sound of the exhaust. The car was in an accident that may have damaged the underside.


With the trunk lid open, air flow can pull exhaust gas into your car's interior and create a hazardous condition. If you must drive with the trunk lid open, open all the windows and set the heating and cooling system as follows.


Carbon monoxide gas is toxic. Breathing it can cause uncon- sciousness and can even kill you.


Avoid any enclosed areas or activities that expose you to carbon monoxide.


Carbon Monoxide Hazard


If you must sit in your parked car, even in an unconfined area, with the engine running, adjust the heating and cooling system as follows:


1. Push the 2. Select the 3. Turn the fan on high speed. 4. Set the temperature control to a


button. mode.


comfortable setting.


Driver and Passenger Safety


Safety Labels


RADIATOR CAP


These labels are in the locations shown. They warn you of potential hazards that could cause serious injury. Read these labels carefully and don't remove them.


If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.


BATTERY


Driver and Passenger Safety


This section gives information about the controls and displays that contribute to the daily operation of your Honda. All the essential controls are within easy reach.


Control Locations............................ 32
Indicator Lights................................ 33
Gauges.............................................. 37
Speedometer................................ 37


Tachometer.................................. 37
Odometer...................................... 37
Trip Meter.................................... 37
Temperature Gauge.................... 38
Fuel Gauge................................... 38
Maintenance Required


Indicator.................................... 38


Controls Near the Steering


Wheel...................................... 39
Headlights.................................... 40
Daytime Running Lights............. 40
Instrument Panel Brightness..... 41
Turn Signals................................. 41
Windshield Wipers...................... 42
Windshield Washers................... 43
Hazard Warning........................... 43
Rear Window Defogger.............. 43
Steering Wheel Adjustment....... 44
Steering Wheel Controls ................ 46
Cruise Control.............................. 46
Horn.............................................. 49
Keys and Locks................................ 49
Keys............................................. 49
Ignition Switch............................. 50
Door Locks................................... 51
Power Door Locks....................... 51


Instruments and Controls


Trunk........................................... 52
Glove Box..................................... 53
Seat Adjustments............................. 54
Front Seat Adjustments.............. 54
Driver's Seat Power Height


Adjustment............................... 55
Driver's Lumbar Support............ 55
Rear Seat Access......................... 55
Head Restraints........................... 56
Folding Rear Seat............................ 57
Power Windows............................... 58
Moonroof.......................................... 59
Sunshade....................................... 60
Mirrors.............................................. 60
Manual Door Mirrors.................. 61
Adjusting the Power Mirrors..... 61
Parking Brake.................................. 62
Digital Clock..................................... 63
Beverage Holder.............................. 64
Console Compartment.................... 64
Coin Box........................................... 65
Vanity Mirror................................... 65
Cigarette Lighter............................. 66
Ashtrays............................................ 66
Interior Lights.................................. 67


Instruments and Controls


Control Locations


DOOR LOCK SWITCH (P.51)


POWER WINDOW SWITCH (P.58)


FUEL FILL DOOR RELEASE (P.104)


MIRROR CONTROLS (P.61)


DIGITAL CLOCK (P.63)


HEATING/COOLING CONTROL (P.70)


AUDIO SYSTEM (P.77)


TRUNK RELEASE HANDLE (P.52)


HOOD RELEASE HANDLE (P.105)


Instruments and Controls


Indicator Lights


HIGH BEAM INDICATOR


SEAT BELT REMINDER LIGHT


CRUISE CONTROL INDICATOR


SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR


PARKING BRAKE AND BRAKE SYSTEM INDICATOR*


CHARGING SYSTEM INDICATOR


LOW OIL PRESSURE INDICATOR


The instrument panel has many indicators to give you important information about your car.


Lamp Check Many of the indicator lights come on when you turn the ignition switch ON (II), allowing you to see that they are working. The instrument panel should look like the illustration. If an indicator does not light during this test, it cannot alert you if that system develops a problem. Have the dealer check your car for burned-out bulbs or other problems.


* The U.S. instrument panel is shown. Differences for the Canadian model are noted in the text.


DOOR AND BRAKE LAMP MONITOR


LOW FUEL INDICATOR


MALFUNCTION INDICATOR LAMP/ CHECK ENGINE LIGHT*


ANTI-LOCK BRAKE SYSTEM INDICATOR*


Instruments and Controls


Indicator Lights


Seat Belt Reminder Light


This indicator lights when you turn the ignition ON (II). It is a reminder to you and your passengers to protect yourselves by fastening the seat belts. A beeper also sounds if you have not fastened your seat belt.


If you do not fasten your seat belt, the beeper will stop after a few seconds but the light stays on until you do. Both the light and the beeper stay off if you fasten your seat belt before turning on the ignition.


Instruments and Controls


Low Oil Pressure Indicator


This indicator lights when the oil pressure in the engine drops low enough to cause damage. It should light when the ignition is ON (II) and go out after the engine starts. If this light comes on when the engine is running, there is a possibility of serious engine damage. Safely pull to the side of the road and shut off the engine as soon as you can. Turn to page 200 for instructions and precautions on checking the engine.


Charging System Indicator


This light indicates the battery is not being charged. It should come on when the ignition is ON (II), and go out after the engine starts. If this light comes on while driving, the battery is not being charged. Turn to page 201 for information about what to do.


US


Canada


BRAKE


Parking Brake and Brake System Indicator This light has two functions:


1. It lights as a reminder that you


have set the parking brake. Driving with the parking brake set can damage the brakes and tires, and cause the Anti-lock brake system to turn off (see page 122 ).


2. It can indicate the brake fluid level


is low if it remains lit after you release the parking brake or comes on while driving. This is normally due to worn brake pads. Have your dealer check the braking system for worn pads or fluid leaks.


Supplemental Restraint System Indicator


S R S The SRS light normally comes on for a few seconds when you turn the ignition ON (II). If it doesn't, or it stays on after the engine starts, something is wrong with the Supplemental Restraint System. It may also flash on and off to indicate a problem. If you see any of these indications, the airbag may not work when needed in an accident. Take the car to your dealer promptly for diagnosis and service.


US


A B S


Canada


Anti-lock Brake System (ABS) Indicator


Only on cars equipped with ABS (see page 122) This light normally comes on when you turn the ignition ON (II) and


goes off after the engine starts. If it comes on at any other time, there is a problem in the ABS. If this happens, take the car to your dealer to have it checked. With the light on, your car still has normal braking ability but no anti-lock.


US


Canada


Malfunction Indicator Lamp


Check Engine Light


This light comes on for a few seconds when you turn the ignition switch ON (II). If it comes on at any other time, it indicates one of the engine's emission control systems may have a problem. Turn to page 202 for information about what to do.


Indicator Lights


Door and Brake Lamp Monitor


The appropriate light comes on in this display if the trunk or either door is not closed tightly. If a brake light does not work, the BRAKE LAMP indicator comes on when you push the brake pedal with the ignition switch ON (II). A burned out brake light is a hazard when drivers behind you cannot tell you are braking. Have your brake lights repaired right away. All the lights in the monitor display come on for a few seconds when you turn the ignition switch ON (II).


Instruments and Controls


Indicator Lights


Turn Signal and Hazard Warning Indicators


The left or right turn signal light blinks when you signal a lane change or turn. If the light does not blink or blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 170 ). Replace the bulb as soon as possible, since other drivers cannot see that you are signalling.


When you turn on the Hazard Warning switch, both turn signal lights blink. All turn signals on the outside of the car should flash.


"Daytime Running Lights" Indicator


D R L Canadian models only This indicator lights when you turn the ignition to ON (II) with the headlight switch off and the parking brake set. It should go off if you turn on the headlights or release the parking brake. If it comes on at any


Instruments and Controls


other time, it means there is a problem with the DRL. There may also be a problem with the high beam headlights.


High Beam Indicator


This light comes on with the high beam headlights. See page 40 for information on the headlight controls.


Cruise Control Indicator


CRUISE CONTROL Only on cars equipped with Cruise Control System This lights when you set the cruise control. See page 46 for information on operating the cruise control.


Low Fuel Indicator


This light comes on as a reminder that you must refuel soon.


Shift Lever Position Indicator (Automatic Transmission only)


This indicator between the tacho- meter and speedometer shows which shift position the shift lever is in. The "D4" indicator comes on for a few seconds when you turn the ignition switch ON (II). If it flashes while driving (in any shift position), it indicates a possible problem in the transmission. Avoid rapid acceler- ation and have the transmission checked by an authorized Honda dealer as soon as possible.


TEMPERATURE GAUGE


TACHOMETER


ODOMETER


SPEEDOMETER FUEL GAUGE


MAINTENANCE REQUIRED INDICATOR


TRIP METER TRIP METER


RESET BUTTON


Speedometer U.S. Models This shows your speed in miles per hour (mph). The smaller inner numbers are the speed in kilometers per hour (km/h).


Tachometer The tachometer shows the engine speed in revolutions per minute (rpm). To protect the engine from damage, never drive with the tachometer needle in the red zone.


Canadian Models This shows your speed in kilometers per hour (km/h). The smaller inner numbers are the speed in miles per hour (mph).


Gauges


Odometer The odometer shows the total dis- tance your car has been driven. It measures miles in U.S. models and kilometers in Canadian models. It is illegal under federal law (in the U.S.) and provincial regulations (in Canada) to disconnect, reset, or alter the odometer with the intent to change the number of miles or kilometers indicated.


Trip Meter This meter shows the number of miles (U.S.) or kilometers (Canada) driven since you last reset it. To reset it, push the trip meter reset button.


Instruments and Controls


Gauges


Temperature Gauge This shows the temperature of the engine's coolant. During normal operation, the pointer should rise from the bottom white mark to about the middle of the gauge. In severe driving conditions, such as very hot weather or a long period of uphill driving, the pointer may rise to the upper white mark. If it reaches the red (Hot) mark, pull safely to the side of the road. Turn to page 198 for instructions and precautions on checking the engine's cooling system.


Fuel Gauge This shows how much fuel you have. It is most accurate when the car is on level ground. It may show slightly more or less than the actual amount when you are driving on curvy or hilly roads.


The gauge stays at the same fuel level reading after you turn off the ignition. When you add fuel, the gauge slowly changes to the new reading after you turn the ignition back ON (II).


Instruments and Controls


Maintenance Required Indicator


INDICATOR


SLOT


The indicator reminds you when it is time for scheduled maintenance. When it nears 12,000 km (7,500
miles) since the last maintenance, the indicator will turn yellow. If you exceed 12,000 km (7,500 miles), the indicator will turn red. Your dealer will reset the indicator when he performs the scheduled maintenance. If someone else performs the maintenance, reset the indicator by inserting your key in the slot below the indicator.


Controls Near the Steering Wheel


INSTRUMENT PANEL BRIGHTNESS


REAR WINDOW DEFOGGER


WINDSHIELD WIPERS/WASHERS


MOONROOF


The two levers on the steering column contain controls for driving features you use most often. The left lever controls the turn signals, headlights, and high beams. The right lever controls the windshield wipers.


The rear window defogger switch is on the dashboard to the right of the steering column.


The controls under the left air vent are for the moonroof, cruise control and instrument panel brightness.


The lever on the underside of the steering column allows you to tilt the steering wheel.


CRUISE CONTROL


HEADLIGHTS/ TURN SIGNALS


TILT ADJUSTMENT


HAZARD WARNING


Instruments and Controls


Controls Near the Steering Wheel


Headlights


If you leave the lights on with the ignition switch in ACCESSORY (I) or LOCK (0), you will hear a reminder chime when you open the driver's door.


The rotating switch on the left lever controls the lights. Turning this switch to the first position " " turns on the parking lights, tail lights, instrument panel lights, side-marker lights, and rear license plate lights. Turning the switch to the second position "


" turns on the headlights.


To change between low beams and high beams, pull back on the turn signal lever until you hear a click, then let go. The blue high beam indicator will light (see page 36).


Instruments and Controls


To flash the high beams, pull back and hold the turn signal lever. Release the lever and the high beams will go off.


The high beams will stay on for as long as you hold the lever, no matter what position the headlight switch is in.


Daytime Running Lights (Canadian Models) With the headlight switch off, the high beam headlights come on with reduced brightness when you turn the ignition switch to ON (II) and release the parking brake. They remain on until you turn the ignition off, even if you set the parking brake.


The headlights revert to normal operation when you turn them on with the switch.


Instrument Panel Brightness


Turn Signals


Controls Near the Steering Wheel


To signal a lane change, push lightly on the turn signal lever in the proper direction and hold it. The lever will return to the center position as soon as you release it.


The knob on the dashboard to the left of the instrument panel controls the brightness of the instrument panel lights. Push the knob to get it to pop out. Turn the knob to adjust the brightness.


TURN SIGNAL LEVER


Signal a turn or lane change with this lever. Push down on the lever to signal a left turn, and up to signal a right turn. If you push it up or clown all the way, the turn signal continues to blink even when you release the lever. It shuts off automatically as you complete the turn.


Instruments and Controls


Controls Near the Steering Wheel


Windshield Wipers


In intermittent, the wipers operate every few seconds. In low speed and high speed, the wipers run continu- ously.


The right lever controls the wind- shield wipers and washers. The rotary switch at the end of the lever has three positions: INT — intermittent LO—low speed HI — high speed


Instruments and Controls


To operate the wipers in mist mode, push the control lever down. The wipers run at high speed until you release the lever. This gives you a quick way to clear the windshield.


Windshield Washers


Hazard Warning


Rear Window Defogger


Controls Near the Steering Wheel


To clean the windshield, pull back on the wiper control lever. The washers spray until you release the lever. The wipers run at low speed while you're pulling the lever, then complete one more sweep of the windshield after you release it.


Push the red button to the left of the clock to turn on the hazard warning lights (four-way flashers). This causes all four outside turn signals and both indicators in the instrument panel to flash. Use the hazard warning lights if you need to park in a dangerous area near heavy traffic, or if your car is disabled.


The rear window defogger will clear fog, frost, and thin ice from the window. Push the defogger button to turn it on and off. The light in the button lights to show the defogger is on. If you do not turn it off, the defogger will shut itself off after about 25 minutes. It also shuts off when you turn off the ignition. You have to turn it on again when you restart the car.


CONTINUED


Instruments and Controls


Controls Near the Steering Wheel


Make sure the rear window is clear and you have good visibility before starting to drive.


The defogger wires on the inside of the rear window can be accidentally damaged. When cleaning the glass, always wipe side to side.


Steering Wheel Adjustment You can adjust the steering wheel height to suit your preference. Do this before you begin driving.


Adjusting the steering wheel position while driving may cause you to lose control of the car and be seriously injured in a crash.


Adjust the steering wheel only when the car is stopped.


Instruments and Controls


1. Adjust the seat so you are a


comfortable distance from the pedals and can operate them safely.


2. The lever to tilt the steering wheel


is under the steering column to the left. Push this lever all the way down.


Controls Near the Steering Wheel


3. Move the steering wheel up or


down to the desired position. Position the wheel so you can see all the instrument panel gauges and warning lights. Push the lever up to lock the steering wheel in that position.


4. Make sure you have securely


locked the steering wheel in place by trying to move it up and down.


Instruments and Controls


Steering Wheel Controls


Cruise Control Except for DX model in the U.S. Cruise control allows you to maintain a set speed above 25 mph (40 km/h) without keeping your foot on the accelerator pedal. It is for cruising on straight, open highways. It is not recommended for conditions such as city driving, winding roads, slippery roads, heavy rain, or bad weather. You should have full control of the car under those conditions.


Instruments and Controls


Using the Cruise Control


CRUISE CONTROL MASTER SWITCH


Improper use of the cruise control can lead to a crash.


Use the cruise control only when traveling on open high- ways in good weather.


1. Push in the Cruise Control Master


Switch to the left of the steering column. The indicator in the switch will light.


2. Accelerate to the desired cruising


speed above 25 mph (40 km/h).


Changing the Set Speed You can increase the set cruising speed in either of two ways:


RESUME/ accel


Press and hold the RESUME/ accel button. The car will acceler- ate slowly. When you reach the desired cruising speed, release the button.


Push on the accelerator pedal. Ac- celerate to the desired cruising speed and press the SET/decel button.


SET/decel


3. Press and hold the SET/decel


button on the steering wheel until the CRUISE CONTROL light next to the speedometer comes on. This shows the system is now activated.


The set speed may vary slightly, particularly on hills.


Steering Wheel Controls


You can decrease the set cruising speed in either of two ways:


Press and hold the SET/decel button. The car will decelerate. Release the button when you reach the desired speed.


Tap the brake or clutch pedal lightly with your foot. The CRUISE CONTROL light on the instrument panel will go out. When the car slows to the desired speed, press the SET/decel button. The car will then maintain the desired speed.


CONTINUED


Instruments and Controls


Steering Wheel Controls


Even with the cruise control turned on, you can still use the accelerator pedal to speed up for passing. After completing the pass, take your foot off the accelerator pedal. The car will return to the set cruising speed.


Resting your foot on the brake or clutch pedal will cause the cruise control to cancel.


Instruments and Controls


Cancelling the Cruise Control Any of these actions cause the cruise control to cancel.


Tap the brake or clutch pedal.


Press the SET/decel and RE- SUME/accel buttons at the same time.


Press the Cruise Control Master Switch.


When you tap the brake or clutch pedal, or press the SET and RE- SUME buttons at the same time, the CRUISE CONTROL light on the instrument panel will go out and the car will begin to slow down. You can use the accelerator pedal in the normal way.


If you use the brake or clutch pedal to cancel cruise control, the system retains the previously-set cruising speed. To return to that speed, ac- celerate to above 25 mph (40 km/h) and press the RESUME/accel button until the CRUISE CONTROL light comes on. The car will accelerate to the same cruising speed as before.


If you cancel cruise control by pressing the SET and RESUME buttons at the same time, the previously-set cruising speed is erased. To use the cruise control, accelerate to the desired cruising speed and press the SET/decel button.


Pressing the Cruise Control Master Switch turns the system completely off and erases the previous cruising speed from memory. To use the system again, refer to Using the Cruise Control


Steering Wheel Controls, Keys and Locks


Horn


HORN BUTTONS


Keys


KEY NUMBER PLATE


VALET KEY


MASTER KEY


Press either of the buttons on the steering wheel spokes to sound the horn.


Your car comes with two kinds of keys: a master key and a valet key. The master key fits all locks on your car:


Ignition Doors Trunk Trunk release handle Rear seat trunk access Glove box


The valet key only works the ignition and the door locks. You can keep the trunk, trunk release handle, rear seat trunk access and glove box locked when you leave your car and valet key at a parking facility.


You should have received a key number plate with your set of keys. You will need this key number if you ever have to replace a lost key. Store this plate in a safe place. When replacing keys, use only Honda approved key blanks.


Instruments and Controls


Keys and Locks


Ignition Switch


The ignition switch is on the right side of the steering column. It has four positions: LOCK (0), ACCES- SORY (I), ON(II), and START (III).


Instruments and Controls


LOCK (0) — You can insert or remove the key only in this position. When you turn the key from LOCK to ACCESSORY, you may have to turn the steering wheel to release the anti-theft lock. To switch from ACCESSORY to LOCK, you must push the key in slightly as you turn it. If your car has an automatic trans- mission, it must also be in Park. The anti-theft lock will lock the steering column when you remove the key.


Removing the key from the ignition switch while driving locks the steering. This can cause you to lose control.


Remove the key from the igni- tion switch only when parked.


ACCESSORY (I) — In this position, you can operate the audio system and cigarette lighter.


ON (II) — This is the normal key position when driving. All features and accessories on the car are usable. Several of the lights on the instru- ment panel come on as a test when you turn the ignition switch from ACCESSORY to ON (see page 33 ).


START (III) — Use this position only to start the engine. The switch returns to ON when you let go of the key.


You will hear a reminder beeper if you open the driver's door with the key in the LOCK or ACCESSORY position. Remove the key to turn it off.


Door Locks


LOCK TAB


The doors can also be locked and unlocked from the outside with the key.


Power Door Locks


MASTER DOOR LOCK SWITCH


Keys and Locks


Each door has a lock tab next to the inside door handle. Push the tab in to lock the door and pull it out to unlock.


To lock the passenger's door when getting out of the car, push the lock tab in and close the door. To lock the driver's door, pull the door handle and push the lock tab in. Release the handle then close the door.


Available on LX and EX models in the U.S. and EX-R model in Canada Each door has a master door lock switch. Either switch locks and unlocks both doors. Push the switch down to lock and up to unlock.


CONTINUED


Instruments and Controls


Keys and Locks


Trunk


Both doors lock when you push the lock tab on the driver's door. In addition, both doors lock when you use the key to lock either door from the outside. Both doors unlock immediately if you use the key to unlock the passenger's side door. To unlock the doors from the driver's side, turn the key clockwise and hold it there for several seconds.


TRUNK RELEASE HANDLE


MASTER KEY


You can open the trunk in two ways:


Pull the trunk release handle to the left of the driver's seat.


Use the master key to open the trunk lock. The valet key does not work in this lock.


To close the trunk, press down on the trunk lid.


See page 110 for cargo loading and weight limit information. Keep the trunk lid closed at all times while driving to avoid damaging the lid and getting exhaust gas in the interior. See Carbon Monoxide Hazard on page 27.


Instruments and Controls


Glove Box


Keys and Locks


An open glove box can cause serious injury to your passen- ger in a crash, even if the pas- senger is wearing the seat belt.


Always keep the glove box closed while driving.


MASTER KEY


GLOVE BOX


To protect items in the trunk when you need to give the key to someone else:


1. Lock the trunk release handle


with the master key.


2. Give the person the valet key.


Open the glove box by pulling the bottom of the handle. Close it with a firm push. Lock or unlock the glove box with the master key.


The glove box light comes on only when the instrument panel lights are on.


Instruments and Controls


Seat Adjustments


Front Seat Adjustments


Loading...
x
