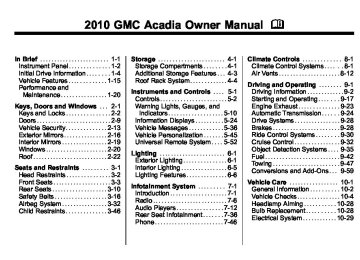

2010 GMC Acadia Owner Manual M


In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information . . . . . . . . 1-4
Vehicle Features . . . . . . . . . . . . . 1-15
Performance and


Maintenance . . . . . . . . . . . . . . . . 1-20


Keys, Doors and Windows . . . 2-1
Keys and Locks . . . . . . . . . . . . . . . 2-2
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Vehicle Security. . . . . . . . . . . . . . 2-13
Exterior Mirrors . . . . . . . . . . . . . . . 2-16
Interior Mirrors . . . . . . . . . . . . . . . . 2-19
Windows . . . . . . . . . . . . . . . . . . . . . 2-20
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22


Seats and Restraints . . . . . . . . . 3-1
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats . . . . . . . . . . . . . . . . . . . . 3-3
Rear Seats . . . . . . . . . . . . . . . . . . . 3-10
Safety Belts . . . . . . . . . . . . . . . . . . 3-16
Airbag System . . . . . . . . . . . . . . . . 3-32
Child Restraints . . . . . . . . . . . . . . 3-46


Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storage Compartments . . . . . . . . 4-1
Additional Storage Features . . . 4-3
Roof Rack System . . . . . . . . . . . . . 4-4


Instruments and Controls . . . . 5-1
Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and


Indicators . . . . . . . . . . . . . . . . . . . 5-10
Information Displays . . . . . . . . . . 5-24
Vehicle Messages . . . . . . . . . . . . 5-36
Vehicle Personalization . . . . . . . 5-45
Universal Remote System . . . . 5-52


Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exterior Lighting . . . . . . . . . . . . . . . 6-1
Interior Lighting . . . . . . . . . . . . . . . . 6-5
Lighting Features . . . . . . . . . . . . . . 6-6


Infotainment System . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . 7-1
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Audio Players . . . . . . . . . . . . . . . . 7-12
Rear Seat Infotainment . . . . . . . 7-36
Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-46


Climate Controls . . . . . . . . . . . . . 8-1
Climate Control Systems . . . . . . 8-1
Air Vents . . . . . . . . . . . . . . . . . . . . . 8-12


Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-2
Starting and Operating . . . . . . . 9-17
Engine Exhaust . . . . . . . . . . . . . . 9-23
Automatic Transmission . . . . . . 9-24
Drive Systems . . . . . . . . . . . . . . . . 9-28
Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-28
Ride Control Systems . . . . . . . . 9-30
Cruise Control . . . . . . . . . . . . . . . . 9-32
Object Detection Systems . . . . 9-35
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-42
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-47
Conversions and Add-Ons . . . 9-59


Vehicle Care . . . . . . . . . . . . . . . . . 10-1
General Information . . . . . . . . . . 10-2
Vehicle Checks . . . . . . . . . . . . . . . 10-4
Headlamp Aiming . . . . . . . . . . . 10-28
Bulb Replacement . . . . . . . . . . 10-28
Electrical System . . . . . . . . . . . . 10-29


2010 GMC Acadia Owner Manual M


Wheels and Tires . . . . . . . . . . . 10-36
Jump Starting . . . . . . . . . . . . . . . 10-79
Towing . . . . . . . . . . . . . . . . . . . . . . 10-83
Appearance Care . . . . . . . . . . . 10-86


Service and Maintenance . . . 11-1
General Information . . . . . . . . . . 11-1
Scheduled Maintenance . . . . . . 11-2
Recommended Fluids,


Lubricants, and Parts . . . . . . . 11-8
Maintenance Records . . . . . . . 11-11


Technical Data . . . . . . . . . . . . . . . 12-1
Vehicle Identification . . . . . . . . . 12-1
Vehicle Data . . . . . . . . . . . . . . . . . . 12-2


Customer Information . . . . . . . 13-1
Customer Information . . . . . . . . 13-1
Reporting Safety Defects . . . . 13-14
Vehicle Data Recording and


Privacy. . . . . . . . . . . . . . . . . . . . 13-16
Index . . . . . . . . . . . . . . . . . . . . . i-1


Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for GMC wherever it appears in this manual. Keep this manual in the vehicle for quick reference.


Introduction


iii


Canadian Vehicle Owners


Propriétaires Canadiens A French language copy of this manual can be obtained from your dealer/retailer or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante: Helm, Incorporated P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
Numéro de poste 6438 de langue française www.helminc.com


GENERAL MOTORS, GM, the GM Emblem, GMC, the GMC Emblem, and the name ACADIA, are registered trademarks of General Motors. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual.


Litho in U.S.A. Part No. 25851640 B Second Printing


©2009 General Motors. All Rights Reserved.


iv


Introduction


Using this Manual To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.


Danger, Warnings, and Cautions Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death.


{ WARNING


These mean there is something that could hurt you or other people.


Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.


A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this” or “Do not let this happen.”


Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information.


Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls or OnStar® $ : Brake System Warning Light " : Charging System


I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps # : Fog Lamps . : Fuel Gauge + : Fuses i : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure


Introduction


} : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor F : Traction Control M : Windshield Washer Fluid


vi


Introduction


2 NOTES


In Brief


1-1


Performance and Maintenance StabiliTrak® . . . . . . . . . . . . . . . . . . 1-20
Tire Pressure Monitor . . . . . . . . 1-20
Tire Sealant and


Compressor Kit . . . . . . . . . . . . . 1-20
Engine Oil Life System . . . . . . 1-21
Driving for Better Fuel


Economy . . . . . . . . . . . . . . . . . . . 1-21


Roadside Assistance


Program . . . . . . . . . . . . . . . . . . . . 1-22
OnStar® . . . . . . . . . . . . . . . . . . . . . 1-22


In Brief


Instrument Panel


Instrument Panel . . . . . . . . . . . . . . 1-2


Initial Drive Information


Initial Drive Information . . . . . . . . 1-4
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 1-4
Remote Vehicle Start . . . . . . . . . 1-5
Door Locks . . . . . . . . . . . . . . . . . . . 1-5
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Windows . . . . . . . . . . . . . . . . . . . . . . 1-6
Seat Adjustment . . . . . . . . . . . . . . 1-7
Second Row Seats . . . . . . . . . . . 1-7
Third Row Seats . . . . . . . . . . . . . . 1-8
Heated Seats . . . . . . . . . . . . . . . . . 1-8
Heated and Ventilated


Seats . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Head Restraint Adjustment . . . . 1-8


Safety Belt . . . . . . . . . . . . . . . . . . . . 1-9
Sensing System for Passenger


Airbag . . . . . . . . . . . . . . . . . . . . . . . 1-9
Mirror Adjustment . . . . . . . . . . . . 1-10
Steering Wheel


Adjustment . . . . . . . . . . . . . . . . . 1-11
Interior Lighting . . . . . . . . . . . . . . 1-11
Exterior Lighting . . . . . . . . . . . . . 1-12
Windshield Wiper/Washer . . . . 1-12
Climate Controls . . . . . . . . . . . . . 1-13


Vehicle Features


Radio(s) . . . . . . . . . . . . . . . . . . . . . 1-15
Satellite Radio . . . . . . . . . . . . . . . 1-16
Portable Audio Devices . . . . . . 1-16
Bluetooth® . . . . . . . . . . . . . . . . . . . 1-17
Steering Wheel Controls . . . . . 1-17
Navigation System . . . . . . . . . . . 1-18
Cruise Control . . . . . . . . . . . . . . . 1-18
Storage Compartments . . . . . . 1-18
Power Outlets . . . . . . . . . . . . . . . 1-19
Sunroof . . . . . . . . . . . . . . . . . . . . . . 1-19


1-2


In Brief

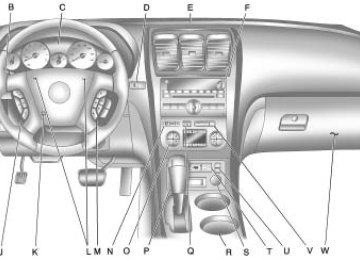

Instrument Panel


A. Air Vents on page 8‑12. B. Windshield Wiper/Washer on


C.


page 5‑4 . Instrument Cluster on page 5‑11 .


D. Head-Up Display (HUD) on


page 5‑32 (If Equipped).


E. Solar Sensor. See Dual


Automatic Climate Control System on page 8‑4.


F. AM-FM Radio on page 7‑6 .


Navigation/Radio System (If Equipped). See Navigation System manual.


G. Exterior Lamp Controls on


page 6‑1 .


H. Hood Release. See Hood on


page 10‑5 .


I.


Instrument Panel Illumination Control on page 6‑5 .


J. Cruise Control on page 9‑32. K. Steering Wheel Adjustment on


page 5‑2 .


L. Horn on page 5‑4. M. Steering Wheel Controls on


page 5‑2 .


N. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) (With DIC Buttons) on page 5‑24 or Driver Information Center (DIC) (Without DIC Buttons) on page 5‑29 .


O. Dual Automatic Climate Control


System on page 8‑4.


In Brief


1-3


P. Center Console Shift Lever


(If Equipped). See “Console Shift Lever” under Shifting Into Park on page 9‑21 .


Q. Hazard Warning Flashers on


page 6‑3 .


R. Cupholders on page 4‑1. S. Power Outlets on page 5‑8. T. Rear Window Wiper/Washer on


page 5‑5 .


U. Heated Front Seats on


page 3‑9 (If Equipped). V. Passenger Airbag Status


Indicator on page 5‑15
(If Equipped).


W. Glove Box on page 4‑1.


1-4


In Brief


Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual.


Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 feet) away from the vehicle.


Lock and unlock feedback can be personalized. To open or close the liftgate, press and hold & until the liftgate begins to move. Press L and release to locate the vehicle. Press L and hold for more than two seconds to sound the panic alarm. Press L again to cancel the panic alarm. See Remote Keyless Entry (RKE) System Operation on page 2‑3.


Press K to unlock the driver door. Press K again within five seconds to unlock all remaining doors. Press Q to lock all doors.


Remote Vehicle Start


Starting the Vehicle With this feature the engine can be started from outside of the vehicle. 1. Aim the RKE transmitter at the


vehicle. 2. Press Q. 3.


Immediately after completing Step 2, press and hold / until the parking lamps flash.


When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on.


The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once. Canceling a Remote Start To cancel a remote start: . Aim the RKE transmitter at the vehicle and press and hold / until the parking lamps turn off. Turn on the hazard warning flashers. Turn the ignition switch on and then off.


See Remote Vehicle Start on page 2‑5 .


In Brief


1-5


Door Locks To lock or unlock a door manually:


From the inside use the door lock knob on the window sill. From the outside turn the key toward the front or rear of the vehicle, or press the Q or " button on the Remote Keyless Entry (RKE) transmitter.


Power Door Locks On vehicles with power door locks, the controls are located on the front doors. " (Unlock): Press to unlock the doors. Q (Lock): Press to lock the doors. See Power Door Locks on page 2‑8 .


1-6


In Brief


Liftgate To open the liftgate the vehicle must be in P (Park). Press the touchpad under the liftgate handle. To close the liftgate, use the pull cup or pull strap as an aid. Power Liftgate On vehicles with a power liftgate, the vehicle must be in P (Park) to operate it. . Press and hold the liftgate button & on the Remote Keyless Entry (RKE) transmitter.


Windows


. Press the liftgate button on the


center console.


. Press the touchpad switch on


the outside liftgate handle.


For more information see Liftgate on page 2‑9 .


On vehicles with power windows, the switches are on the driver door armrest. Each passenger door has a switch that controls only that window. Press the switch to lower the window. Pull the switch up to raise it. For more information, see Power Windows on page 2‑20.


Seat Adjustment


Manual Seats 1. Pull the handle under the seat to


unlock the seat.


2. Slide the seat to the desired


position and release the handle. Try to move the seat to be sure it is locked in place. Power Seats


Move the seat forward or rearward by moving the control (A) forward or rearward. Raise or lower the entire seat by moving the control (A) up or down. See Power Seat Adjustment on page 3‑4 . To raise or recline the seatback, tilt the top of the control (B) forward or rearward. See Reclining Seatbacks on page 3‑7 . Press the front or rear of the control (C) to increase or decrease lumbar support. See Lumbar Adjustment on page 3‑6 .


In Brief


1-7


Second Row Seats


To access the third row, pull the sliding seat lever forward so that the seat cushion folds and the entire seat slides forward. See Rear Seats on page 3‑10.


A. Power Seat Adjustment Control B. Reclining Seatbacks C. Lumbar Adjustment


1-8


In Brief


Third Row Seats The third row seats can be folded forward or removed.


Pull up on the release lever located on the back of the seat and push the seatback forward. For detailed procedures see Third Row Seats on page 3‑13.


Heated Seats


Heated Front Seats The heated seat controls are located on the center console. The engine must be running to operate them. I: Press to turn on the heated seatback. J: Press to turn on or off the heated seat and seatback. For more information see Heated Front Seats on page 3‑9.


Heated and Ventilated Seats On vehicles with this feature, the controls are on the front doors near the handle. H : Press to ventilate the seat. z : Press to heat the seat. For more information see Heated and Ventilated Front Seats on page 3‑10 .


Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. For more information see Head Restraints on page 3‑2.


In Brief


1-9


The driver airbag, seat‐mounted side impact airbags, and roof‐rail airbags are not affected by the passenger sensing system. The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started. See Passenger Sensing System on page 3‑39 for more information.


Safety Belt


Sensing System for Passenger Airbag


United States


Canada


The passenger sensing system will turn off the right front passenger frontal airbag under certain conditions.


Refer to the following sections for important information on how to use safety belts properly. . Safety Belts on page 3‑16. . How to Wear Safety Belts


Properly on page 3‑19. Lap-Shoulder Belt on page 3‑25. Lower Anchors and Tethers for Children (LATCH System) on page 3‑55 .


1-10


In Brief


Mirror Adjustment


Exterior Mirrors


Controls for the outside power mirrors are located on the driver door armrest. 1. Press (A) or (B) to select the


driver or passenger side mirror.


2. Press one of the four arrows located on the control pad to adjust the mirror.


3. Press either (A) or (B) again to


deselect the mirror.


Folding Mirrors For vehicles with outside power foldaway mirrors: 1. Press (C) to fold the mirrors out


to the driving position.


2. Press (D) to fold the mirrors in to


the folded position.


If equipped, manually fold the mirrors inward to prevent damage when going through an automatic car wash. To fold, push the mirror toward the vehicle. Push the mirror outward to return it to the original position.


Interior Mirror If equipped, a manual inside rearview mirror can be adjusted so that the driver can see behind the vehicle more clearly. Hold the mirror in the center to move it up or down and side to side. Use the day/night adjustment to help prevent glare from the headlamps behind you. Move the lever located at the base of the mirror, to the right for nighttime use and to the left for daytime use. For vehicles with an automatic dimming rearview mirror, the mirror will move automatically to reduce the glare from the headlamps of the vehicle behind. The dimming feature comes on and the indicator light illuminates each time the ignition is turned to start. See Automatic Dimming Rearview Mirror on page 2‑19.


Interior Lighting


Dome Lamps The dome lamps are located in the overhead console and above the rear seat passengers. The dome lamps automatically come on when a door is opened, unless the dome lamp override button is pressed in. To manually turn them on, turn the instrument panel brightness control clockwise to the farthest position.


In Brief


1-11


Dome Lamp Override The dome lamp override button is next to the exterior lamps control. E: Press the button in and the dome lamps remain off when a door is opened. Press the button again to return it to the extended position so that the dome lamps come on when a door is opened.


Reading Lamps Press the button near each lamp to turn them on or off. For more information, see: . Dome Lamps on page 6‑5.


Instrument Panel Illumination Control on page 6‑5.


Steering Wheel Adjustment


1. Pull the lever down to adjust the


steering wheel.


2. Move the steering wheel up or down or backward or forward into a comfortable position. 3. Pull the lever up to lock the


steering wheel in place.


See Steering Wheel Adjustment on page 5‑2 .


1-12


In Brief


Exterior Lighting


The exterior lamps control is located on the instrument panel, to the left of the steering wheel. 9 : Turns the automatic light control on or off. AUTO: Automatic operation of the headlamps at normal brightness and other exterior lamps.


;: Manual operation of the parking lamps and other exterior lamps. 2: Manual operation of the headlamps and other exterior lamps. # (If Equipped): Push the fog lamp button in to turn on the fog lamps. For more information, see: . Exterior Lamp Controls on


page 6‑1 .


. Daytime Running Lamps (DRL)/ Automatic Headlamp System on page 6‑3 . Fog Lamps on page 6‑4.


Windshield Wiper/Washer The windshield wiper/washer lever is located on the left side of the steering column.


Turn the band with the wiper symbol to control the windshield wipers. 8 : Use for a single wiping cycle. 9 : Turns the wipers off.


6 : Delays wiping cycle. Turn the band up for more frequent wipes or down for less frequent wipes. 1: Slow wipes. 2: Fast wipes.


Windshield Washer J : Press the button at the end of the turn signal/lane change lever to spray washer fluid on the windshield. See Windshield Wiper/Washer on page 5‑4 .


Climate Controls


In Brief


1-13


A. Fan Control B. Temperature Control C. Air Delivery Mode Control D. Air Conditioning


E. REAR (Rear Climate Control) F. Air Recirculation G. Rear Window Defogger


1-14


In Brief


A. Fan Control B. AUTO C. Defrost D. Air Recirculation E. REAR (Rear Climate Control) F. Air Delivery Mode Control G. Driver Side Temperature Control


H. Display I. Power (On/Off) J. Rear Window Defogger K. Air Conditioning L. PASS (Passenger) M. Passenger Side Temperature


Control


See Climate Control Systems on page 8‑1 or Dual Automatic Climate Control System on page 8‑4 (If Equipped). For more information about the rear climate control, see Rear Climate Control System (Rear Climate Control Only) on page 8‑10 or Rear Climate Control System (Rear Climate with Rear Seat Audio) on page 8‑11.


Vehicle Features Radio(s)


Radio with CD, DVD, and USB Port


O : Press to turn the system on and off. Turn to increase or decrease the volume. BAND: Press to choose between FM, AM, or XM™, if equipped.


f : Select radio stations. © ¨ : Seek or scan stations.


In Brief


1-15


4 : Change the display between the radio station frequency and the time, if equipped. While the ignition is off, press 4 to display the time. For more information about these and other radio features, see Operation on page 7‑2. Storing a Favorite Station A maximum of 36 stations can be stored as favorites using the six softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to go through up to six pages of favorites, each having six favorite stations available per page. Each page of favorites can contain any combination of AM, FM, or XM stations. See AM-FM Radio on page 7‑6.


1-16


In Brief


Setting the Clock To set the time and date for the radio with CD, DVD, and USB Port: 1. Turn the ignition key to


ACC/ACCESSORY or ON/RUN, then press O , to turn the radio on.


2. Press G to display HR, MIN, MM, DD, YYYY (hour, minute, month, day, and year).


3. Press the pushbutton located


under any one of the labels to be changed.


4. To increase or decrease the time


or date, turn f clockwise or counter‐clockwise.


For detailed instructions on setting the clock for the vehicles specific audio system, see Clock on page 5‑8 .


Satellite Radio Vehicles with an XM™ Satellite Radio tuner and a valid XM Satellite Radio subscription can receive XM programming. XM Satellite Radio Service XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. A fee is required to receive the XM service. For more information refer to: . www.xmradio.com or call


1-800-929-2100 (U.S.). . www.xmradio.ca or call


1-877-438-9677 (Canada).


See Satellite Radio on page 7‑8.


Portable Audio Devices This vehicle may have an auxiliary input located on the radio faceplate and a USB port located in the center console. External devices such as iPod®, laptop computers, MP3
players, CD changers, USB storage device, etc. can be connected to the auxiliary port using a 3.5 mm (1/8 in) input jack or the USB port depending on the audio system. See Auxiliary Devices on page 7‑34 .


Bluetooth® The in-vehicle Bluetooth system allows users with a Bluetooth-enabled cell phone to make and receive hands-free calls using the vehicle’s audio system, microphone and controls. The Bluetooth-enabled cell phone must be paired with the in-vehicle Bluetooth system before it can be used in the vehicle. Not all phones will support all functions. See Bluetooth on page 7‑46.


Steering Wheel Controls


w / x : Press to change favorite radio stations, select tracks on a CD/DVD, or to navigate tracks or folders on an iPod® or USB device. b g : Press to silence the vehicle speakers only. Press again to turn the sound on. Press and hold longer than two seconds to interact with OnStar® or Bluetooth systems.


In Brief


1-17


Increases or decreases


+ e − e : volume. c : Press to reject an incoming call, or to end a call. SRCE: Press to switch between the radio, CD, and for vehicles with, DVD, front auxiliary, and rear auxiliary. ¨ : Press to seek the next radio station, the next track or chapter while sourced to the CD or DVD slot, or to select tracks and folders on an iPod® or USB device. For more information, see Steering Wheel Controls on page 5‑2.


1-18


In Brief


Navigation System The vehicle's navigation system provides detailed maps of most major freeways and roads throughout the United States and Canada. After a destination has been set, the system provides turn-by-turn instructions for reaching the destination. In addition, the system can help locate a variety of points of interest (POI), such as banks, airports, restaurants, and more. See the vehicle's Navigation System manual for more information.


Cruise Control


Storage Compartments


T : On/Off. + RES: Press to accelerate or resume speed. SET– : Press to set speed or decrease speed. [ : Press to cancel cruise control. See Cruise Control on page 9‑32.


For vehicles with a second row center console, open each area to access the storage compartment inside.


Power Outlets The vehicle has three 12‐volt accessory power outlets which can be used to plug in electrical equipment, such as a cellular telephone. The power outlets are located: . On the instrument panel below


the climate controls.


. At the rear of the center floor


console. In the rear cargo area.


To use the outlets, remove the cover. See Power Outlets on page 5‑8.


Sunroof The ignition must be in ON/RUN or ACC/ACCESSORY to operate the sunroof and power sunshade. See Retained Accessory Power (RAP) on page 9‑19.


In Brief


1-19


The switch to operate the front sunroof is on the headliner above the rearview mirror. Vent: Press the front or rear of the switch to vent or close the sunroof. Express-open/Express-close: From the closed position, press and release the rear or front of the switch to express-open or express-close the sunroof. For more information see Sunroof on page 2‑22 .


Press the buttons (B, C) on the front of the consoles to access the upper and lower storage areas. Increase the storage area by folding the top of the console forward. Lift up on rear console handle (A) and pull forward. See Floor Console Storage on page 4‑2 .


1-20


In Brief


Performance and Maintenance


StabiliTrak® The traction control system limits wheel spin and the StabiliTrak system assists with directional control of the vehicle in difficult driving conditions. Both systems turn on automatically every time the vehicle is started.


To turn off the traction control part of StabiliTrak, press and release 5 located on the instrument panel below the climate controls. F illuminates and the appropriate DIC message is displayed. See Vehicle Messages on page 5‑36 . The StabiliTrak system remains on.


For more information, see StabiliTrak System on page 9‑30.


Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System (TPMS).


The Tire Pressure Monitor System alerts you when a significant reduction in pressure occurs in one or more of your vehicle’s tires by illuminating the low tire pressure warning light on the instrument cluster. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the tire loading information label located on the driver side center pillar (B pillar). See Vehicle Load Limits on page 9‑12 . The warning light will remain on until the tire pressure is corrected.


You may notice during cooler conditions that the low tire pressure warning light will appear when the vehicle is first started and then turn off as you drive. This may be an early indicator that your tire pressures are getting low and the tires need to be inflated to the proper pressure. Note: The Tire Pressure Monitor System can alert you about low tire pressure, but it does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures. See Tire Pressure Monitor System on page 10‑44 and Tire Pressure Monitor Operation on page 10‑46.


Tire Sealant and Compressor Kit This vehicle may come with a jack and spare tire or a tire sealant and compressor kit. The kit can be used to seal small punctures in the tread area of the tire.


See Tire Sealant and Compressor Kit on page 10‑59 for complete operating information.


Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and displays the “Change Engine Oil Soon” message when it is time to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.


Resetting the Oil Life System 1. Turn the ignition to ON/RUN,


2.


with the engine off. If the vehicle has Driver Information Center (DIC) buttons: Press the vehicle information button until “Oil Life Remaining” displays. If the vehicle does not have Driver Information Center (DIC) buttons: The vehicle must be in P (Park) to access this display.


3.


Press the trip odometer reset stem until “Oil Life Remaining” displays. If the vehicle has Driver Information Center (DIC) buttons: Press and hold the set/reset button until “100%” is displayed. Three chimes sound and the “Change Engine Oil Soon” message goes off. If the vehicle does not have Driver Information Center (DIC) buttons: Press and hold the trip odometer reset stem until “Oil Life Remaining” shows “100%.” Three chimes sound and the “Change Engine Oil Soon” message goes off.


4. Turn the key to LOCK/OFF. See Engine Oil Life System on page 10‑9 .


In Brief


1-21


Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. . Avoid fast starts and accelerate


smoothly.


. Brake gradually and avoid


abrupt stops.


. Avoid idling the engine for long


periods of time.


. When road and weather


conditions are appropriate, use cruise control, if equipped.


. Always follow posted speed


limits or drive more slowly when conditions require.


. Keep vehicle tires properly


inflated.


. Combine several trips into a


single trip.


1-22


In Brief


. Replace the vehicle's tires with


the same TPC Spec number molded into the tire's sidewall near the size. Follow recommended scheduled maintenance.


Roadside Assistance Program U.S.: 1-800-GMC-8782 (462-8782) TTY Users: 1-888-889-2438
Canada: 1-800-268-6800
As the owner of a new GMC, you are automatically enrolled in the Roadside Assistance program. This program provides technically trained advisors who are available 24 hours a day, 365 days a year, minor repair information or towing arrangements.


Roadside Assistance and OnStar If you have a current OnStar subscription, press the OnStar button and the current GPS location will be sent to an OnStar Advisor who will assess your problem, contact Roadside Assistance, and relay exact location to get you the help you need.


Online Owner Center The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges and more. Sign up today at: www.gmownercenter.com/gmc (U.S.) or www.gm.ca (Canada).


OnStar®


OnStar® uses several innovative technologies and live advisors to provide a wide range of safety, security, navigation, diagnostics, and calling services.


Automatic Crash Response In a crash, built in sensors can automatically alert an OnStar advisor who is immediately connected to the vehicle to see if you need help.


How OnStar Service Works Q : This blue button connects you to a specially trained OnStar advisor to verify your account information and to answer questions. ] : Push this red emergency button to get priority help from specially trained OnStar emergency advisors. X : Push this button for hands‐free, voice‐activated calling and to give voice commands for turn‐by‐turn navigation. Crisis Assist, Stolen Vehicle Assistance, Vehicle Diagnostics, Remote Door Unlock, Roadside Assistance, Turn‐by‐Turn Navigation and Hands‐Free Calling are available on most vehicles. Not all OnStar services are available on all vehicles. For more information see the OnStar Owner's Guide or visit www.onstar.com (U.S.) or www.onstar.ca (Canada), contact OnStar at 1-888-4-ONSTAR (1‐888‐466‐7827) or TTY


1‐877‐248‐2080, or press Q to speak with an OnStar advisor 24 hours a day, 7 days a week. For a full description of OnStar services and system limitations, see the OnStar Owner's Guide in the glove box. OnStar service is subject to the OnStar terms and conditions included in the OnStar Subscriber Information. OnStar service cannot work unless the vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area. OnStar service also cannot work unless the vehicle is in a place where the wireless service provider OnStar has hired for that area has coverage, network capacity and reception when the service is needed, and technology that is compatible with the OnStar service. Not all services are available everywhere, particularly in remote or enclosed areas, or at all times.


In Brief


1-23


The OnStar system can record and transmit vehicle information. This information is automatically sent to an OnStar call center when Q is pressed, ] is pressed, or if the airbags or ACR system deploy. This information usually includes the vehicle's GPS location and, in the event of a crash, additional information regarding the crash that the vehicle was involved in (e.g. the direction from which the vehicle was hit). When the virtual advisor feature of OnStar hands-free calling is used, the vehicle also sends OnStar the vehicle's GPS location so they can provide services where it is located. Location information about the vehicle is only available if the GPS satellite signals are unobstructed and available.


1-24


In Brief


The vehicle must have a working electrical system, including adequate battery power, for the OnStar equipment to operate. There are other problems OnStar cannot control that may prevent OnStar from providing OnStar service at any particular time or place. Some examples are damage to important parts of the vehicle in a crash, hills, tall buildings, tunnels, weather or wireless phone network congestion.


OnStar Steering Wheel Controls This vehicle may have a Talk/Mute button that can be used to interact with OnStar hands-free calling. See Steering Wheel Controls on page 5‑2 for more information. On some vehicles, the mute button can be used to dial numbers into voice mail systems, or to dial phone extensions. See the OnStar Owner's Guide for more information.


Your Responsibility Increase the volume of the radio if the OnStar advisor cannot be heard. If the light next to the OnStar buttons is red, the system may not be functioning properly. Press Q and request a vehicle diagnostic. If the light appears clear (no light is appearing), your OnStar subscription has expired and all services have been deactivated. Press Q to confirm that the OnStar equipment is active.


Keys, Doors and Windows


Keys and Locks


Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 2-2


Remote Keyless Entry (RKE)


System Operation . . . . . . . . . . . 2-3
Remote Vehicle Start . . . . . . . . . 2-5
Door Locks . . . . . . . . . . . . . . . . . . . 2-7
Power Door Locks . . . . . . . . . . . . 2-8
Delayed Locking . . . . . . . . . . . . . . 2-8
Automatic Door Locks . . . . . . . . . 2-8
Lockout Protection . . . . . . . . . . . . 2-8
Safety Locks . . . . . . . . . . . . . . . . . . 2-8


Keys, Doors and Windows


2-1


Windows


Windows . . . . . . . . . . . . . . . . . . . . . 2-20
Power Windows . . . . . . . . . . . . . 2-20
Sun Visors . . . . . . . . . . . . . . . . . . . 2-22


Roof


Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-22


Doors


Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 2-9


Vehicle Security


Vehicle Security . . . . . . . . . . . . . . 2-13
Anti-Theft Alarm System . . . . . 2-13
Immobilizer . . . . . . . . . . . . . . . . . . 2-14
Immobilizer Operation . . . . . . . 2-14


Exterior Mirrors


Convex Mirrors . . . . . . . . . . . . . . 2-16
Power Mirrors . . . . . . . . . . . . . . . . 2-17
Folding Mirrors . . . . . . . . . . . . . . . 2-17
Heated Mirrors . . . . . . . . . . . . . . . 2-18
Park Tilt Mirrors . . . . . . . . . . . . . . 2-18


Interior Mirrors


Manual Rearview Mirror . . . . . . 2-19
Automatic Dimming Rearview


Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-19


2-2


Keys, Doors and Windows


Keys and Locks


Keys


{ WARNING


Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window. Do not leave the keys in a vehicle with children.


Notice: If you ever lock your keys in the vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys. If you are locked out of the vehicle, call the Roadside Assistance Center. See Roadside Assistance Program on page 13‑6 .


Remote Keyless Entry (RKE) System See Radio Frequency Statement on page 13‑17 for information regarding Part 15 of the Federal Communications Commission (FCC) Rules and RSS-210/211 of Industry Canada. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.


The key is used for the ignition and all door locks. The key has a bar-coded key tag that the dealer/retailer or qualified locksmith can use to make new keys. Store this information in a safe place, not in the vehicle. See your dealer/retailer if a replacement key or additional key is needed.


Keys, Doors and Windows


2-3


If there is a decrease in the RKE operating range: . Check the distance.


The transmitter may be too far from the vehicle.


. Check the location. Other vehicles or objects may be blocking the signal.


. Check the transmitter's battery.


See “Battery Replacement” later in this section. If the transmitter is still not working correctly, see your dealer/retailer or a qualified technician for service.


Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions work up to 60 m (195 feet) away from the vehicle.


There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2‑2.


With Remote Start and Power Liftgate Shown, Without Similar


/ (Remote Vehicle Start): For vehicles with this feature, see Remote Vehicle Start on page 2‑5
for additional information. Q (Lock): Press to lock all the doors.


If enabled through the Driver Information Center (DIC), the parking lamps flash once to indicate locking has occurred. If enabled through the DIC, the horn sounds when Q is pressed again within five seconds. See Vehicle Personalization (With DIC Buttons) on page 5‑45 for additional information. Pressing Q may arm the content theft‐deterrent system. See Anti-Theft Alarm System on page 2‑13 . K (Unlock): Press once to unlock only the driver door. If K is pressed again within five seconds, all remaining doors unlock. The interior lamps come on and stay on for 20 seconds or until the ignition is turned on.


2-4


Keys, Doors and Windows


If enabled through the DIC, the parking lamps flash twice to indicate unlocking has occurred. See Vehicle Personalization (With DIC Buttons) on page 5‑45 . Pressing K on the RKE transmitter disarms the content theft‐deterrent system. See Anti-Theft Alarm System on page 2‑13. & (Power Liftgate): Press and hold until the liftgate begins to move to open or close the liftgate. The taillamps flash and a chime sounds to indicate when the liftgate is opening or closing. L (Vehicle Locator/Panic Alarm): Press and release to locate the vehicle. The parking lamps flash and the horn sounds three times.


Press and hold L for more than two seconds to activate the panic alarm. The parking lamps flash and the horn sounds repeatedly for 30 seconds. The alarm turns off when the ignition is moved to ON/RUN or L is pressed again. The ignition must be in LOCK/OFF for the panic alarm to work. The vehicle comes with two transmitters. Each transmitter will have a number on it, "1" or "2". These numbers correspond to the driver of the vehicle. For example, the memory seat position for driver 1 will be recalled when using the transmitter labeled "1", if enabled through the vehicle personalization. See “Memory Seat and Mirrors” under Power Seat Adjustment on page 3‑4 and “Memory Seat Recall” under Vehicle Personalization (With DIC Buttons) on page 5‑45 for more information.


Programming Transmitters to the Vehicle Only RKE transmitters programmed to this vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer/retailer. When the replacement transmitter is programmed to this vehicle using the DIC, all remaining transmitters must also be reprogrammed. Any lost or stolen transmitters will no longer work once the new transmitter is programmed. Each vehicle can have up to eight transmitters programmed to it. See “Relearn Remote Key” under Driver Information Center (DIC) (With DIC Buttons) on page 5‑24
or Driver Information Center (DIC) (Without DIC Buttons) on page 5‑29 for instructions on how to program transmitters to this vehicle.


Battery Replacement Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC. Notice: When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter.


1. Separate the transmitter with a flat, thin object inserted into the notch on the side.


2. Remove the old battery. Do not


use a metal object.


Keys, Doors and Windows


2-5


3.


Insert the new battery, positive side facing down. Replace with a CR2032 or equivalent battery.


4. Snap the transmitter back


together.


Remote Vehicle Start This vehicle may have a remote starting feature that starts the engine from outside of the vehicle. / (Remote Start): This button is located on the RKE transmitter if the vehicle has remote start. Laws in some communities may restrict the use of remote starters. For example, some laws may require a person using the remote start to have the vehicle in view when doing so. Check local regulations for any requirements on remote starting of vehicles. Do not use the remote start feature if the vehicle is low on fuel. The vehicle could run out of fuel.


If the vehicle has the remote start feature, the RKE transmitter functions have an increased range of operation. However, the range may be less while the vehicle is running. There are other conditions which can affect the performance of the transmitter, see Remote Keyless Entry (RKE) System on page 2‑2
for additional information. Starting the Engine Using Remote Start To start the vehicle: 1. Aim the RKE transmitter at the


vehicle.


2. Press Q on the RKE transmitter. 3.


Immediately after completing Step 2, press and hold / until the parking lamps flash. If the vehicle's lights can not be seen, press and hold / for at least four seconds.


2-6


Keys, Doors and Windows


When the vehicle starts the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system will operate automatically if the vehicle has the automatic system, or at the same setting as when the vehicle was last turned off. If the vehicle has an automatic climate control system and heated seats, the heated seats turn on during colder outside temperatures and shut off when the key is turned to ON/RUN. See Heated Front Seats on page 3‑9 or Heated and Ventilated Front Seats on page 3‑10 for more information. The rear window defogger and heated mirrors, if the vehicle has them, turn on during colder outside temperatures and turn off when the key is turned to ON/RUN. After entering the vehicle during a remote start, insert and turn the key to the ON/RUN position to drive the vehicle.


If the vehicle is left running it automatically shuts off after 10 minutes unless a time extension has been done. Extending Engine Run Time To extend the engine run time by 10 minutes, repeat Steps 1 though 3
while the engine is still running. The engine run time can only be extended if it is the first remote start since the vehicle has been driven. Remote start can be extended one time. If the remote start procedure is used again before the first 10 minute time frame has ended, the first 10 minutes will immediately expire and the second 10 minute time frame will start. For example, if the lock button and then the remote start buttons are pressed again after the vehicle has been running for five minutes, 10 minutes are added, allowing the engine to run for a total of 15 minutes.


A maximum of two remote starts or remote start attempts are allowed between ignition cycles. After the vehicle's engine has been started two times using the remote start button, the ignition must be turned on and then back off before the remote start procedure can be used again. Shutting the Engine Off After a Remote Start To manually shut off a remote start: . Aim the RKE transmitter at the vehicle and press / until the parking lamps turn off. Turn on the hazard warning flashers. Turn the ignition switch on and then off.


Keys, Doors and Windows


2-7


Door Locks


{ WARNING Unlocked doors can be dangerous.


. Passengers, especially


children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked. So, all passengers should wear safety belts properly and the doors should be locked whenever the vehicle is driven.


(Continued)


WARNING (Continued)


. Young children who get into


unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock the vehicle whenever leaving it.


. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening.


To lock or unlock a door, use the key from the outside or the door lock from the inside.


Conditions in Which the Remote Start Will Not Work The vehicle cannot be started using the remote start feature if the key is in the ignition, the hood is open, or if there is an emission control system malfunction. The engine turns off during a remote start if the coolant temperature gets too high or if the oil pressure gets low. Vehicles that have the remote vehicle start feature are shipped from the factory with the remote vehicle start system enabled. The system may be enabled or disabled through the DIC if the vehicle has DIC buttons. See “REMOTE START” under Vehicle Personalization (With DIC Buttons) on page 5‑45 for additional information. If the vehicle does not have DIC buttons, see your dealer/retailer to enable or disable the remote start system.


2-8


Keys, Doors and Windows


Power Door Locks The power door lock switches are located on the front doors. " (Unlock): Press to unlock the doors. Q (Lock): Remove the key from the ignition and press to lock the doors.


Delayed Locking When locking the doors with the power lock switch and a door or the liftgate is open, the doors will lock five seconds after the last door is closed. You will hear three chimes to signal that the delayed locking feature is in use. Pressing the power lock switch twice or the lock button on the RKE transmitter twice will override the delayed locking feature and immediately lock all the doors.


This feature will not operate if the key is in the ignition. This feature can be programmed by using the Driver Information Center (DIC). See “DELAY DOOR LOCK” under Vehicle Personalization (With DIC Buttons) on page 5‑45 .


Automatic Door Locks Vehicles with an automatic lock/unlock feature enable you to program the vehicle's power door locks. This feature can be programmed through the Driver Information Center (DIC). See Vehicle Personalization (With DIC Buttons) on page 5‑45 for more information.


Lockout Protection This feature protects you from locking the key in the vehicle when the key is in the ignition and a front door is open. If the driver side power door lock switch is pressed when the driver's door is open and the key is in the ignition, all of the doors will lock and then the driver door will unlock. If the passenger side power door lock switch is pressed when the front passenger door is open and the key is in the ignition, all of the doors will lock and then the front passenger door will unlock.


Safety Locks The vehicle has rear door security locks to prevent passengers from opening the rear doors from the inside.


Keys, Doors and Windows


2-9


Doors


Liftgate


Manual Liftgate Operation


{ WARNING


Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. If the vehicle must be driven with the liftgate, or trunk/hatch open:


. Close all of the windows. . Fully open the air outlets


on or under the instrument panel.


(Continued)


WARNING (Continued)


. Adjust the Climate Control


system to a setting that brings in only outside air and set the fan speed to the highest setting. See Climate Control System in the Index. . If the vehicle is equipped with


a power liftgate, disable the power liftgate function. For more information about carbon monoxide, see Engine Exhaust on page 9‑23.


To unlock the liftgate, use the power door lock switch or press the door unlock button on the Remote Keyless Entry (RKE) transmitter twice. See Remote Keyless Entry (RKE) System Operation on page 2‑3 .


Open the rear doors to access the security locks on the inside edge of each door. To set the locks, insert a key into the slot and turn it to the horizontal position. The door can only be opened from the outside with the door unlocked. To return the door to normal operation, turn the slot to the vertical position.


2-10


Keys, Doors and Windows


To open the liftgate, press the touchpad on the underside of the liftgate handle. The vehicle must be in P (Park) to open the liftgate. To close the liftgate, use the pull cup or strap. The liftgate has an electric latch. If the battery is disconnected or has low voltage, the liftgate will not open. The liftgate will resume operation when the battery is reconnected and charged. If the battery is properly connected and has adequate voltage, and the liftgate still will not function, the vehicle should be taken to a dealer/retailer for service.


Power Liftgate Operation


{ WARNING


Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. If the vehicle must be driven with the liftgate, or trunk/hatch open:


. Close all of the windows. . Fully open the air outlets on


or under the instrument panel.


(Continued)


WARNING (Continued)


. Adjust the Climate Control


system to a setting that brings in only outside air and set the fan speed to the highest setting. See Climate Control System in the Index. . If the vehicle is equipped with


a power liftgate, disable the power liftgate function. For more information about carbon monoxide, see Engine Exhaust on page 9‑23.


The vehicle may have a power liftgate. The vehicle must be in P (Park) to use this feature. The taillamps will flash and a chime will sound when the power liftgate is used.


Keys, Doors and Windows


2-11


{ WARNING


You or others could be injured if caught in the path of the power liftgate. Make sure there is no one in the way of the liftgate as it is opening and closing.


Notice: If you open the liftgate without checking for overhead obstructions such as a garage door, you could damage the liftgate or the liftgate glass. Always check to make sure the area above and behind the liftgate is clear before opening it. The power liftgate can be power opened and closed in the following ways: . Press and hold the power liftgate


button on the RKE transmitter until the liftgate starts moving.


Power Liftgate Button on Center


Power Liftgate Button near


Console


Liftgate Latch


. Press the liftgate button on the


center console.


. Press the touchpad switch on


the outside liftgate handle.


Pressing the buttons or touchpad switch a second time while the liftgate is moving reverses the direction.


The liftgate can also be closed by pressing the power liftgate button next to the liftgate latch. Press the button a second time during liftgate operation to reverse the operation. The power liftgate may be temporarily disabled under extreme temperatures or under low battery conditions. If this occurs, the liftgate can still be operated manually.


2-12


Keys, Doors and Windows


If the vehicle is shifted out of P (Park) while the power function is in progress, the liftgate power function will continue to completion. If the vehicle is shifted out of P (Park) and the vehicle accelerates before the power liftgate latches closed, the liftgate may reverse to the open position. Cargo could fall out of the vehicle. The power liftgate must be closed and latched before driving. If the liftgate is power opened and the support struts have lost pressure, the lights will flash and a chime will sound. The liftgate will stay open temporarily, then slowly close. See your dealer/retailer for service before using the liftgate if this occurs.


Obstacle Detection Features A warning chime will sound and the liftgate will automatically reverse direction to the full closed or open position if the liftgate encounters an obstacle during a power open or


close cycle. After removing the obstruction, the power liftgate operation can be used again. If the liftgate comes across more obstacles on the same power cycle, the power function deactivates, and you must manually open or close the liftgate. A message displays, LIFTGATE OPEN, to indicate that the liftgate is open. See Driver Information Center (DIC) (With DIC Buttons) on page 5‑24 or Driver Information Center (DIC) (Without DIC Buttons) on page 5‑29 for more information. After removing the obstructions, manually open the liftgate to the full open position or close the liftgate to the fully closed and latched position. The liftgate resumes normal power operation. Pinch sensors are located on the side edges of the liftgate. If an object is caught between the liftgate and the vehicle and presses against this sensor, the liftgate will reverse direction and open fully. The liftgate will remain open until it is activated


again or closed manually. Do not force the liftgate open or closed during a power cycle. Manual Operation of Power Liftgate


To change the liftgate to manual operation, press the switch on the center console to OFF. With the power liftgate disabled and all of the doors unlocked, the liftgate can be manually opened and closed.


Keys, Doors and Windows


2-13


To open the liftgate, press the touchpad on the handle on the outside of the liftgate and lift the gate open. To close the liftgate, use the pull cup to lower the liftgate and close. The liftgate latch will power close. Always close the liftgate before driving. If the RKE button or the power close button on the liftgate is pressed while power operation is disabled, the lights will flash three times, but the liftgate will not move. It is not recommended that you drive with the liftgate open. However, if you must drive with the liftgate open, the liftgate should be set to manual operation by pressing the OFF switch on the center console.


Vehicle Security Vehicle theft is big business, especially in some cities. This vehicle has theft-deterrent features, however, they do not make it impossible to steal.


Anti-Theft Alarm System On vehicles with an anti-theft alarm system, to activate the system: . Press Q on the Remote Keyless


Entry (RKE) transmitter or the power door lock switch when any door is open.


The security light flashes. When the door is closed, the security light stops flashing and stays on solid for approximately


30 seconds. The content theft deterrent alarm is not armed until the security light goes off. If the delayed locking feature is active, the alarm is not activated until all doors are closed and the security light goes off.


. Press Q when the driver door is closed. The security light comes on solid for approximately 30 seconds and then goes off. The content theft deterrent alarm is not armed until the security light goes off.


The theft-deterrent system will not activate if the doors are locked with the vehicle's key or the manual door lock. If a locked door is opened without using the RKE transmitter, a ten second pre-alarm occurs. The horn chirps and the lights flash.


2-14


Keys, Doors and Windows


If the key is not placed in the ignition and turned to START or the door is not unlocked by pressing Q during the ten second pre-alarm, the alarm goes off. The headlamps flash and the horn sounds for about 30 seconds, then turns off to save the battery power. The vehicle can be started with the correct ignition key if the alarm has

Loading...
x
