2005 Ford Taurus Owners Manual

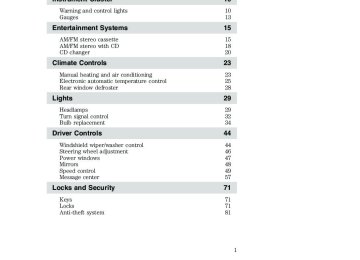

Table of Contents

10

10
13
15

15
18
20
23

23
25
28
29

29
32
34
44

44
46
47
48
49
57
71

71
71
81

Introduction

Instrument Cluster

Warning and control lights Gauges

Entertainment Systems

AM/FM stereo cassette AM/FM stereo with CD CD changer

Climate Controls

Manual heating and air conditioning Electronic automatic temperature control Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Message center

Locks and Security

Keys Locks Anti-theft system

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

86

86
91
107
116
129

130
131
134
139
149
155
158
159

159
163
165
167
172

172
173
173
175
182
187
189

197
198

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire Information Tire Inflation Changing tires Lug Nut Torque Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Traction control Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

Cleaning

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Maintenance and Specifications

Engine compartment Engine oil Battery Engine Coolant Fuel information Part numbers Refill capacities Lubricant specifications

Accessories

Index

Table of Contents

204

206
209
213
215
220
236
237
238
245

247

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2004 Ford Motor Company

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford Motor Company product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Mexico: www.ford.com.mx • In Australia: www.ford.com.au Additional owner information is given in separate publications. This vehicle’s Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this vehicle’s Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SPECIAL NOTICES

Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger air bag.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Low tire warning

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

10

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

BRAKE

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

ABS

Anti-lock brake system (if equipped): If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Charging system: Illuminates when the battery is not charging properly.

11

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Traction Control娂 active (if equipped): Flashes when the Traction Control娂 is active. If the light remains on a malfunction has been detected; have the system serviced immediately, refer to the Driving chapter for more information. Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated. Securilock娂 Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated. Refer to Securilock娂 Passive Anti-theft System in the Locks and Security chapter. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

CRUISE

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

12

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

GAUGES

Instrument Cluster

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

13

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. Odometer: Registers the total miles (kilometers) of the vehicle. Note: When the odometer shows over 10,000 miles the tenths drop off the display. Refer to Message Center in the Drivers Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press and hold the RESET button for three seconds to reset.

14

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM STEREO CASSETTE/MACH姞 AUDIO SYSTEM WITH AM/FM STEREO CASSETTE (IF EQUIPPED)

1. Tape: Insert the cassette with the opening to the right. If a tape is already inserted into the system, press TAPE to begin tape play. 2. Clock: To set the hour, press and hold the H control. When the desired hour appears, release the control. To set the minute, press and hold the M control. When the desired minute appears, release the control.

3. CD: Press to play the CD (if equipped). Note: This system is CDDJ compatible, but CDDJ is an option with limited availability as defined in the order guide. 4. Bass: Press decrease/increase the bass output.

to

BASS

5. Treble: Press decrease/increase the treble output.

to

TREB

15

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

BAL

FADE

Entertainment Systems

6. Balance: Press sound to the left/right speakers.

to shift

7. Fade: Press to shift sound to the rear/front speakers.

8. Scan: Press SCAN to hear a brief sampling of all listenable radio stations, tape or CD selections. Press again to stop. 9. Shuffle: Press to play CD tracks in random order.

10. COMP (compression): While playing a CD, press to bring soft and loud passages together for a more consistent listening level. Dolby威 noise reduction: 11. Reduces tape noise and hiss while playing a tape, press to activate/deactivate. 12. Side 1–2: Press to change tape direction.

13. FF (fast forward): Press to advance the tape or CD.

14. REW (rewind): Press to rewind the tape or reverse the CD.

15. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns.

16

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

16. Tune: Works in radio mode or to change CD mode. Press frequency down/up or previous/next disc. 17. Cassette door: Insert a cassette into the cassette door.

for previous/next

18. Seek: Press and release listenable radio station, tape selection or CD track. 19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

20. AM/FM: Press to choose a frequency band in radio mode (AM/FM1/FM2).

21. EJ (Eject): Press to eject a tape.

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

VOL PUSH ON

AM

FM

17

Entertainment Systems

AUDIO SYSTEM WITH AM/FM STEREO/SINGLE CD PLAYER (IF EQUIPPED)

16

17

15

14

13

12

11

10

1. Clock: To set the hour, press and hold the H control. When the desired hour appears, release the control. To set the minute, press and hold the M control. When the desired minute appears, release the control.

BASS

TREB

BAL

FADE

2. Bass: Press decrease/increase the bass output.

to

3. Treble: Press decrease/increase the treble output.

to

4. Balance: Press sound to the left/right speakers.

to shift

5. Fade: Press to shift sound to the rear/front speakers.

18

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

6. Scan: Press to hear a brief sampling of all listenable radio stations or CD tracks. Press again to stop. 7. CD: Press to play a CD. Press again to toggle between single CD mode and CD Changer mode (if equipped). 8. Shuffle: Press to play CD tracks in random order.

9. COMP (compression): Press to bring soft and loud passages together for a more consistent listening level. 10. FF (fast forward): Press and hold until desired selection is reached. 11. REW (rewind): Press and hold until desired selection is reached.

12. Memory preset buttons: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Tune: Press to change radio frequency down/up. With CD changer (if equipped), press to select the previous/next CD. 14. Seek: Press and release listenable radio station or previous/next CD track. 15. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

for previous/next

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

VOL PUSH ON

19

Entertainment Systems

16. EJ (Eject): Press to eject a CD.

17. AM/FM: Press to choose a frequency band (AM/FM1/FM2).

AM

FM

CD CHANGER (IF EQUIPPED) Your CD changer is either located in the trunk, the center console or the right side cargo area storage compartment (wagon only). 1. Slide the door to access the CD changer magazine. 2. Press

to eject the magazine.

3. Turn the magazine (A) over. 4. Using the disc holder release knob (C), pull the disc holder (B) out of the magazine.

Do not pull too hard on the disc holder as the disc holder may come completely out of the magazine. If this happens, reinsert the disc holder back into the magazine while pressing on the lever.

20

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. Line up the CD with the groove of the disc holder. Ensure that the label on the CD faces downwards. 6. Press the disc holder until it locks securely into the magazine.

Ensure that the disc holder is evenly inserted and at the same level as the magazine (A). The unit will not operate if the disc holder is not inserted at the same level (B).

RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

weaker the signal and the weaker the reception.

RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE Do: • Use only cassettes that are 90 minutes long or less.

21

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

and turning the hub.

Entertainment Systems • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

22

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Temperature selection: Controls the temperature of the airflow in the vehicle. 2. Passenger airbag indicator light: Indicates whether the Passenger front air bag is currently ON or OFF. Refer to Front passenger sensing system in the Seating and Safety Restraints chapter. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Distributes recirculated air through the instrument panel registers to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. A/C: Distributes outside air through the instrument panel vents to cool the vehicle.

: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the climate system is turned off. : Distributes air through the instrument panel and floor vents. : Distributes air through the floor vents. : Distributes air through the windshield defroster vents and floor

vents.

: Distributes outside air through the windshield defroster vents. Can

be used to clear the windshield of fog and thin ice. 4. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 5. Rear defroster control: Press to activate/deactivate the rear window defroster. For more information, refer to Rear window defroster later in this chapter.

23

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

OPERATING TIPS • To reduce fog build up on the windshield during humid weather, place • To reduce humidity buildup within the cabin, do not drive with the

the air flow selector in the

position.

selector in the OFF or MAX A/C position when outside temperature is below 40°F (3°C). • To improve A/C cool down, drive with the windows slightly open for the first 2–3 minutes after starting the vehicle or until the vehicle has “aired out.” • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • For best cooling results when using the MAX A/C mode, move the temperature control to full cold and initially set the fan to highest speed, then adjust the temperature and fan to maintain comfort.

airflow to the back seats.

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

24

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

AUTOMATIC TEMPERATURE CONTROL SYSTEM (IF EQUIPPED)

Climate Controls

(defrost) and

(floor/defrost)

1. OFF: Outside air is shut out and the climate control system is turned off. 2. A/C: Press to activate/deactivate air conditioning. Use with the recirculated air to improve cooling performance and efficiency. Engages automatically in the AUTO, F modes. 3. Passenger airbag off: Indicates whether the front airbag is ON or OFF. Refer to Front passenger sensing system in the Seating and Safety Restraints chapter. Recirculated air: Press to activate/deactivate air circulation in 4. cabin. Recirculated air may reduce the amount of time to cool down the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any airflow selection except F (defrost). Recirculation may turn off automatically in all airflow selections. 5. Temperature control: Press to increase or decrease the temperature in the cabin. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

25

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

6. AUTO: Press to engage full automatic operation, and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 7. Fan Speed: Press to manually increase/decrease fan speed. To return to automatic fan operation, select AUTO. 8. Manual override controls: Allows you to change the system operation. To return to full automatic control, press AUTO. : Distributes outside air 9. F through the windshield defroster vents. Can be used to clear thin ice or fog from the windshield. (Rear defroster): Press 10. R to activate/deactivate rear window defroster. For more information, refer to Rear window defroster in this chapter. 11. vents. 12. equipped). 13. front and rear seat floor vents. 14. Fahrenheit/Celsius temperature: Press A/C and F same time, to toggle between Fahrenheit and Celsius temperature. The set point temperatures in Celsius will be displayed in one degree increments.

: Distributes air through the instrument panel registers and the

: Distributes air through the floor and rear seat floor vents (if

: Distributes air through the windshield defroster vents and floor

: Distributes air through the instrument panel registers.

controls at the

26

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

position.

the air flow selector in the

airflow selector in the OFF position, or with engaged without A/C engaged as well.

OPERATING TIPS • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the (recirculated air) • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • For maximum cooling in the AUTO mode, press AUTO and set to

airflow to the back seats.

the windshield.

desired temperature; do not press A/C or the manual override mode, press temperature to 60°F (16°C) and the fan to the highest setting.

and A/C, then set the • To improve the A/C cool down of the vehicle cabin, drive with the windows slightly open for the first 2–3 minutes after starting the vehicle or until the vehicle has “aired out.”

(recirculated air). In

To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

27

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. Press the rear defroster control to clear the rear window of thin ice and fog. • A small LED will illuminate when

the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster. The defroster turns off automatically after 10 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 10 minutes have passed, push the control again. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty. Activating the rear window defroster will also activate the heated mirrors (if equipped). For more information refer to Heated outside mirrors in the Driver Controls chapter.

CABIN AIR FILTER Your vehicle is equipped with a cabin air filter. The particulate air filtration system is designed to reduce the concentration of airborne particles such as dust, spores and pollen in the air being supplied to the interior of the vehicle. The particulate filtration system gives the following benefits to customers: • Improves the customer’s driving comfort by reducing particle • Improves the interior compartment cleanliness • Protects the climate control components from particle deposits The filter is located just in front of the windshield under the cowl grille on the passenger side of the vehicle. For more information, or to replace the filter, see your Ford or Lincoln Mercury dealer.

concentration

28

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for a fixed period of time after the ignition switch is turned to OFF. • To turn autolamps on, rotate the control counterclockwise to • To turn autolamps off, rotate the control clockwise to

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position, • the headlamp control is in the OFF or parking lamp position and • the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

29

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.

30

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

ground

Vertical aim adjustment 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4
meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. 4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted.

31

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other. 5. Locate the vertical adjuster on each headlamp. Using a 4 mm wrench, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line. 6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE. 7. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

INTERIOR LAMPS

Map lamps/dome lamp The map lamp controls are located on the dome lamp. Press the controls on either side of each lens on each map lamp to activate the lamps. The dome lamp will illuminate whenever any door is opened, and

32

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

the lamp will remain on for 25 seconds after the door is shut. If any other door has been opened from the inside, the lamp will shut off immediately after the door is closed. To turn on the dome lamp manually, move the panel dimmer control to the full upright position, past detent.

Map lamps (with moon roof) The map lamps are located on the moon roof control panel. Press the controls on either side of each map lamp to activate the lamps. The map lamps will illuminate whenever any door is opened, and the lamp will remain on for 25 seconds after the door is shut.

Rear dome lamp (wagon only) The dome lamp lights when: • any door is opened with the control in the middle position. • the instrument panel dimmer

switch is held up until the courtesy lamps come on.

• any of the remote entry controls are pressed and the ignition is OFF.

• the lamp control is moved to the driver side position.

33

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

BULB REPLACEMENT

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Replacing exterior bulbs Check the operation of all the bulbs frequently.

3457 AK (amber)

9007 QL (9007 LL optional)

Number of bulbs Trade number

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. Function Front park/turn lamp Headlamp Tail lamp/brake/turn lamp Tail lamp/brake lamp (wagon) Rear turn lamp (wagon) Backup lamp Backup lamp (wagon) License plate lamp High-mount brake lamp (wagon) High-mount brake lamp (sedan)

Must replace the hi-mount brake lamp assembly

3157K

3057K

3456K

3156

912

921

168

34

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

35

578

194

Number of bulbs Trade number

Function Rear side marker lamp (wagon) Cargo lamp (wagon) Dome lamp Dome/map lamp Visor vanity lamp (passenger/driver) Luggage compartment lamp Ashtray lamp Glove box lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.

161
161

12V6W

212–2

578

DE 3021

Replacing headlamp bulbs To remove the headlamp bulb: 1. Make sure headlamp switch is in OFF position and open the hood. 2. Remove the bolt (1) from the headlamp housing. 3. At the back of the headlamp, pry up and remove the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

4. Remove the protective dust shield from the housing by turning the dust shield counterclockwise (when viewed from the rear).

5. Disconnect the electrical connector from the bulb by pulling rearward.

6. Remove the bulb retaining ring by rotating it counterclockwise.

7. Remove the old bulb from the lamp assembly by pulling it straight out of the lamp assembly.

36

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

To install the new bulb:

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

1. Install the new bulb in lamp assembly by pushing straight in with the flat surface of the bulb’s plastic base facing upward. You may need to turn the bulb slightly to align the grooves in the plastic base with the tabs in the lamp assembly. 2. Install the bulb retaining ring over the plastic base and lock the ring by rotating clockwise until it snaps into place. 3. Connect the electrical connector to the bulb. 4. Install the protective dust shield and lock the shield by rotating it clockwise until it locks into position. 5. Carefully position the headlamp assembly onto the vehicle. 6. Hold the headlamp assembly snugly against the vehicle and install the retainer pins straight down to lock the lamp into place. 7. Before reinstalling the bolt, make sure the retainer pins are fully seated, and install bolt on headlamp housing. 8. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

37

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing front parking lamp/turn signal/cornering lamp bulbs 1. Make sure the headlamp control is in the OFF position and open the hood. 2. Remove the bolt (1) from the headlamp housing. 3. At the back of the headlamp, pry up and remove the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward. 4. Rotate the bulb socket counterclockwise and remove it from the lamp assembly.

5. Carefully pull bulb straight out of the socket and push in the new bulb. 6. Install the bulb socket into the lamp assembly by rotating it clockwise. 7. Carefully position the headlamp assembly onto the vehicle. 8. Hold the headlamp assembly snugly against the vehicle and install the retainer pins straight down to lock the lamp into place. 9. Before reinstalling the bolt, make sure the retainer pins are fully seated, and install bolt on headlamp housing. 10. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

38

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing high-mount brakelamp assembly — Sedan only To change the high-mount brake lamp assembly: 1. Pry the light assembly away from its housing and push rearward to disengage it from the retaining clips. 2. Lift the front of the light assembly from the parcel shelf. 3. Disconnect the light assembly wiring and replace the light assembly. Replacing high-mount brakelamp bulbs — Wagon only 1. Open liftgate. 2. Remove two screw covers, screws and handle from liftgate. 3. Remove two screws and the lower trim panel from the liftgate. 4. Remove the upper trim panel.

5. Remove the rubber plug from the lower access hole in the upper portion of the liftgate.

39

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

6. Remove four nuts from the lamp assembly.

7. Carefully lift the lamp assembly away from the liftgate. 8. Remove the bulb socket by rotating it counterclockwise and pulling it out from the lamp assembly. 9. Carefully pull the bulb straight out of the socket and push in the new bulb. 10. To complete installation, follow the removal procedure in reverse order. Replacing high-mount brakelamp bulbs — Decklid spoiler Your vehicle may be equipped with a decklid spoiler that has a high mount stop lamp module containing integral multiple light emitting diodes (LED). If one or more LEDs burn out, the complete lamp module has to be replaced. See your dealer for the replacement LED module. To replace the LED module: 1. Remove the two outboard grommets from the inside of the decklid. 2. On the inside of the decklid, remove the three nuts that hold the spoiler on and remove the spoiler.

40

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

3. On the underside of the spoiler, remove the two decorative screw covers (on the LED module). 4. Remove the two screws that are holding the LED module in place. 5. Remove the wiring harness grommet and disengage the electrical connector. 6. Replace the LED module. 7. To complete installation, follow the removal procedure in reverse order. Replacing license plate lamp bulbs Wagon 1. Make sure headlamp switch is in OFF position and remove screw and the license plate lamp assembly from liftgate. 2. Remove bulb socket by turning counterclockwise. 3. Carefully pull the bulb out from the socket and push in the new bulb. 4. Install the lamp assembly on liftgate with screw.

Sedan 1. Make sure headlamp switch is in OFF position and open trunk lid. 2. Carefully twist and pull the socket from the lamp housing. 3. Carefully pull the bulb from the socket and push in the new bulb. 4. Reinstall the socket in the lamp housing and twist to secure.

41

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing tail/brake/turn signal/backup lamp bulbs Sedan The tail lamp, brake lamp, turn signal lamp and backup lamp bulbs are located in the same portion of the tail lamp assembly. Follow the same steps to replace either bulb. 1. Make sure headlamp switch is in OFF position and open trunk and remove two plastic mushroom nuts, five push pins and the plastic cover from inside the trunk to access the lamp assembly. 2. Carefully pull the carpet away to expose the lamp assembly hardware. 3. Remove three nut and washer assemblies and the lamp assembly from the vehicle.

4. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 5. Pull the bulb from the socket and push in the new bulb. 6. Install the bulb socket into the lamp assembly by rotating it clockwise. 7. Install the lamp assembly on the vehicle with three nut and washer assemblies ensuring the washers on the nuts are flush with the body to prevent water from entering the trunk. 8. Carefully push the carpet back in to place and install the plastic cover inside the trunk with five push pins and two plastic mushroom nuts.

42

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Lights

Wagon The tail lamp/turn lamp bulbs/brake/backup are located in the same portion of the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb: 1. Make sure headlamp switch is in OFF position and open the liftgate to expose the lamp assemblies. 2. Remove the two bolts from the tail lamp assembly. 3. Carefully pull the lamp assembly outwards from the body side panel. When pulling you will feel a slight resistance at the forward edge of the lamp from a hidden snap attachment holding the lamp to the body side panel; pull the lamp outwards firmly to release the attachment. 4. Twist the bulb socket counterclockwise and remove from lamp assembly. 5. Pull the bulb straight out of the socket and push in the new bulb. 6. Install bulb socket in lamp assembly by turning clockwise. 7. Carefully install the tail lamp assembly on the body side panel and secure it with two bolts.

43

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Windshield washer: Push the end of the stalk: • briefly: causes a single swipe of the wipers without washer fluid. • a quick push and hold: the wipers

will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for

up to ten seconds.

Rear window wiper and washer (wagon only) The rear wiper control is located under the headlamp controls. Press the wiper control to activate the rear wiper. Press again to turn off the wiper.

44

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Press the washer control to activate the rear washer. The wiper will come on when the washer control is pressed, if it is not already on.

Changing the wiper blades 1. Pull the wiper arm away from the vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm. 2. Attach the new wiper to the wiper arm and press it into place until a click is heard. Replace wiper blades at least once per year for optimum performance. Poor wiper quality can sometimes be improved by cleaning the wiper blades, refer to Windows and wiper blades in the Cleaning chapter. To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers. The layer of ice has many sharp edges and can damage the micro edge of the wiper rubber element.

45

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

TILT STEERING WHEEL To adjust the steering wheel: 1. Pull and hold the steering wheel release control toward you. 2. Move the steering wheel up or down until you find the desired location. 3. Release the steering wheel release control. This will lock the steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED) Lift the mirror cover to turn on the visor mirror lamp.

AUXILIARY POWER POINT (12VDC) Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet for this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. The auxiliary power point is located on the instrument panel below the optional cigarette lighter (if equipped). Do not use the power point for operating the cigarette lighter element (if equipped). To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running.

46

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Always keep the power point caps closed when not being used. Cigar/Cigarette lighter (if equipped) Do not plug optional electrical accessories into the cigarette lighter socket. Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used. Improper use of the lighter can cause damage not covered by your warranty.

POWER WINDOWS

Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure

themselves.

When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in

the proximity of the window openings.

Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.

One touch down Allows the driver’s window to open fully without holding the control down. Press completely down on AUTO and release quickly. Press again to stop.

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

47

Driver Controls

Window lock The window lock feature allows only the driver to operate the power windows. To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

Accessory delay With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until the driver’s door is opened.

MIRRORS

Automatic dimming inside rear view mirror (if equipped) Your vehicle may be equipped with an inside rear view mirror with an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare. The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up. Do not block the sensor on the backside of the inside rear view mirror since this may impair proper mirror performance.

48

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Power side view mirrors To adjust your mirrors: 1. Select L to adjust the left mirror or R to adjust the right mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to disable the adjust function.

(if equipped)

Heated outside mirrors Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated. Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

SPEED CONTROL With speed control set, you can maintain a speed of 30 mph (48 km/h) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 30 mph (48 km/h).

Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release it. 2. Accelerate to the desired speed.

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

49

Driver Controls

3. Press the SET ACC control and release it. 4. Take your foot off the accelerator pedal. 5. The CRUISE indicator light on the instrument cluster will turn on.

steep hill.

Note: • Vehicle speed may vary momentarily when driving up and down a • If the vehicle speed increases above the set speed on a downhill, you • If the vehicle speed decreases more than 10 mph (16 km/h) below • If the vehicle speed decreases to 30 mph (48 km/h) or less, your

your set speed on an uphill, your speed control will disengage.

may want to apply the brakes to reduce the speed.

speed control will disengage

Disengaging speed control To disengage the speed control: • Depress the brake pedal Disengaging the speed control will not erase previous set speed. Resuming a set speed Press the RES (resume) control and release it. This will automatically return the vehicle to the previously set speed. The RES control will not work if the vehicle speed is not faster than 30 mph (48 km/h).

50

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Increasing speed while using speed control There are three ways to set a higher speed: • Press and hold the SET ACC control until you get to the desired speed, then release the control. • Press and release the SET ACC control to operate the Tap-Up function. Each tap will increase the set speed by 1 mph (1.6 km/h).

• Use the accelerator pedal to get to the desired speed. When the

vehicle reaches that speed press and release the SET ACC control.

Reducing speed while using speed control There are three ways to reduce a set speed: • Press and hold the CST control until you get to the desired speed, then release the control.

• Press and release the CST control to operate the Tap-Down function. Each tap will decrease the set speed by 1 mph (1.6 km/h). • Depress the brake pedal until the desired vehicle speed is reached, press the SET ACC control.

51

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Turning off speed control There are two ways to turn off the speed control: • Depress the brake pedal. This will

not erase your vehicle’s previously set speed.

• Press the speed control OFF

control.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

MOON ROOF (IF EQUIPPED) You can move the glass panel of the moon roof back to open or tilt up to ventilate the vehicle. To open the moon roof: The moon roof is equipped with an automatic, one-touch, express opening feature. Press and release the rear portion of the control. To close: Press and hold the front portion of the control. To vent: To tilt the moon roof into the vent position (when the glass panel is closed), press and hold the front portion of the control. To close from the vent position, press and hold the rear portion of the control until the glass panel stops moving. The moon roof has a sliding shade that can be opened or closed when the glass panel is shut. To close the shade, pull it toward the front of the vehicle

Before operating the moonroof you should verify that it is free of obstructions and ensure that children and/or pets are not in the

proximity of moon roof opening.

Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt themselves.

52

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

HOMELINK姞 WIRELESS CONTROL SYSTEM (IF EQUIPPED) The HomeLink威 Wireless Control System, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting.

When programming your HomeLink威 Wireless Control System to a garage door or gate, be sure that people and objects are out of

the way to prevent potential harm or damage.

Do not use the HomeLink威 Wireless Control System with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLink威 at: www.homelink.com or 1–800–355–3515. Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLink威 equipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed Homelink威 buttons be erased for security purposes, refer to Programming in this section.

Programming Do not program HomeLink威 with the vehicle parked in the garage. Note: Your vehicle may require the ignition switch to be turned to the ACC position for programming and/or operation of the HomeLink威. It is also recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink威 for quicker training and accurate transmission of the radio-frequency signal.

53

2005 Taurus (tau) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

1. Press and hold the two outside buttons releasing only when the indicator light begins to flash after 20 seconds. Do not repeat Step 1
to program additional hand-held transmitters to the remaining two HomeLink威 buttons. This will erase previously programmed hand-held transmitter signals into HomeLink威. 2. Position the end of your hand-held transmitter 1–3 inches (2–8 cm) away from the HomeLink威 button you wish to program (located on your visor) while keeping the indicator light in view. 3. Simultaneously press and hold both the HomeLink威 and hand-held transmitter button. Do not release the buttons until Step 4 has been completed. Some entry gates and garage door openers may require you to replace Step 3 with procedures noted in the “Gate Operator and Canadian Programming” in this section for Canadian residents. 4. The indicator light will flash slowly and then rapidly. Release both buttons when the indicator light flashes rapidly. (The rapid flashing light indicates acceptance of the hand-held transmitters’ radio frequency signals.) 5. Press and hold the just-trained HomeLink威 button and observe the indicator light. If the light is constant, programming is complete and your device should activate when the HomeLink威 button is pressed and released. Note: To program the remaining two HomeLink威 buttons, begin with Step 2 in the “Programming” section — do not repeat Step 1. Note: If the indicator light blinks rapidly for two seconds and then turns
