2004 Ford F 250 Owners Manual

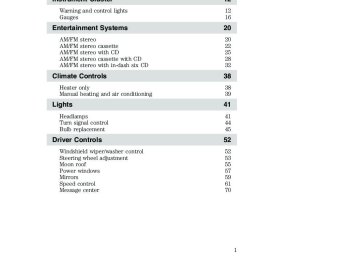

Table of Contents

Table of Contents

12

12
16
20

20
22
25
28
32
38

38
39
41

41
44
45
52

52
53
55
57
59
61
70

Introduction

Instrument Cluster

Warning and control lights Gauges

Entertainment Systems

AM/FM stereo AM/FM stereo cassette AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with in-dash six CD

Climate Controls

Heater only Manual heating and air conditioning

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Moon roof Power windows Mirrors Speed control Message center

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

75

75
75
77
85

85
92
105
114
125

125
130
133
161
164
188
192

192
193
193
194
200
212
217
219

228

Table of Contents

Locks and Security

Keys Locks Anti-theft system

Seating and Safety Restraints

Seating Safety restraints Air bags Child restraints

Driving

Starting Brakes Transmission operation Vehicle loading Trailer towing Recreational towing

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Cleaning

Maintenance and Specifications

Engine compartment Engine oil Battery Fuel information Air filter(s) Tire Information Part numbers Refill capacities Lubricant specifications

Accessories

Index

Table of Contents

229

236

238
239
242
250
267
269
283
284
287
302

305

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2004 Ford Motor Company

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle for at least 500 miles (800 km) before towing a trailer or snowplowing. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger air bag.

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

Notice to owners of diesel-powered vehicles Read the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and maintenance of your Diesel-powered light truck.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter.

Using your vehicle with a snowplow For more information and guidelines for using your vehicle with a snowplow, refer to the Driving chapter.

Using your vehicle as an ambulance If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Certification label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 6.0L Diesel engine equipped vehicles.

Using your vehicle as a stationary power source (PTO) Refer to the Driving chapter for more information and guidelines for operating a vehicle equipped with an aftermarket power take-off system.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Traction Control

AdvanceTrac娂

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Low tire warning

11

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

Instrument Cluster

WARNING LIGHTS AND CHIMES Standard instrument cluster

80

60

00

40

20

km/h

MPH

20

40

60

LOW RANGE

4x4

THEFT

RPMX1000

SELECT RESET

TRANS TEMP

CHECK GAGE

P RN D 2

BRAKE

Harley—Davidson instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could

12

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

is high.

Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Check gage: Illuminates when any CHECK of the following conditions has GAGE occurred: • The engine coolant temperature • The engine oil pressure is low. • The fuel gauge is at or near empty. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

13

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Charging system: Illuminates when the battery is not charging properly.

Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Transmission Tow/Haul Feature (5R110W 5–speed automatic transmission) (if equipped-Diesel engines only): Illuminates when the Tow/Haul feature has been activated. Refer to the Driving chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, damage to the transmission could occur.

14

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

LOW RANGE

4x4

Four wheel drive low (if equipped): Illuminates when four-wheel drive low is engaged.

Four wheel drive indicator (if equipped): Illuminates when four-wheel drive is engaged. Anti-theft system (if equipped): Flashes when the Securilock娂 Passive Anti-theft System has been activated. Door ajar: Illuminates when the ignition is in the ON position and any door is open.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Parking brake ON warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5
Km).

15

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

GAUGES

80

60

00

40

20

km/h

MPH

20

40

60

THEFT

RPMX1000

SELECT RESET

TRANS TEMP

CHECK GAGE

P RN D 2

BRAKE

LOW RANGE

4x4

Speedometer: Indicates the current vehicle speed. Standard instrument cluster

Harley—Davidson instrument cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

16

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle.

Trip odometer: Registers the miles (kilometers) of individual journeys. Press the control once to switch from the odometer to the trip odometer. To reset the trip, press the control again until the trip reading is 0.0 miles. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

P RN D 2

Battery voltage gauge (manual transmission only): Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible.

17

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Transmission fluid temperature gauge (automatic transmission only): If the gauge is in the: White area (normal) - the transmission fluid is within the normal operating temperature (between “H” and “C”).

18

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

Yellow area (warning) — the transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (i.e. snowplowing, towing or off road use). Refer to Special Operating Conditions in the Scheduled Maintenance Guide for instructions. Operating the transmission for extended periods of time with the gauge in the yellow area may cause internal transmission damage. Altering the severity of the driving conditions is recommended to lower the transmission temperature into the normal range. Red area (over temperature) — the transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range.

If the gauge is operating in the Yellow or Red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. If the gauge continues to show high temperatures, see your Ford dealer.

19

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

Entertainment Systems

AM/FM STEREO (IF EQUIPPED)

VOL PUSH ON

TONE

CLK

TONE VOL

ST DX FM

12

SEEK

TUNE

AM/FM

to find the

1. Seek: Press next strong station down/up the frequency band. 2. Tune: Press change radio frequency down/up.

to manually

3. AM/FM: Press to choose a frequency band in radio mode.

AM/FM

4. Memory preset buttons: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

20

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

5. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

CLK

TONE

VOL PUSH ON

6. Tone: Press TONE until the desired level — Bass, Treble, Fade appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left or the front to back (if equipped). 7. CLK (Clock): To set the hour, press and hold CLK until CLOCK SET appears in the display. Press SEEK to decrease increase To set the minute, press and hold CLK until CLOCK set appears in the display. Press TUNE to decrease

the minutes.

or increase

the hours.

or

TONE

CLK

21

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

AM/FM STEREO CASSETTE (IF EQUIPPED)

12

13

14 15 16 17

VOL - PUSH ON

AM

FM

BASS

TREB

FM1

ST

BAL

FADE

CLK

TAPE AMS

SIDE REW

1 - 2
FF

11

10

SEEK

TUNE

SCAN

EJ

1. Balance: Press to shift sound to the left/right speakers.

2. Fade: Press to shift sound to the rear/front speakers.

3. CLK: To set the hour, press and hold CLK. Then press SEEK to decrease hours. To set the minute, press and hold CLK and press TUNE to decrease or increase

the minutes.

or increase

the

CLK

22

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

TAPE AMS

4. Tape AMS: In tape mode, press and hold to activate Automatic Music Search (allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection). Then, press REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape MUST have a blank section of at least four seconds duration between programs. 5. Side 1–2: Press to change tape direction.

SIDE

1 - 2

6. REW (rewind): Press to rewind the tape.

FF (fast forward): Press to advance the tape.

REW

FF

Dolby威 noise reduction: Works in tape mode only. Reduces tape

7. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. 8. noise and hiss; press to activate/deactivate. 9. Scan: Press SCAN to hear a brief sampling of all listenable radio stations or all tape selections. Press again to stop. 10. Tune: Works in radio mode only. Press TUNE frequency down/up 11. Seek: Press and for previous/next release strong station, selection or track.

to change

23

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

12. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

13. AM/FM: Press to choose a frequency band in radio mode.

14. Bass: Press decrease/increase the bass output.

to

15. Treble: Press decrease/increase the treble output.

to

16. EJ (Eject): Press to eject a tape.

EJ

17. Cassette door: Insert a cassette into the cassette door.

24

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

AM/FM STEREO / SINGLE CD RADIO (IF EQUIPPED)

Entertainment Systems

13

14 15 16 17 18

VOL - PUSH ON

12

11

SEEK

TUNE

AM FM

CD

BASS

TREB

FM1

ST

BAL

FADE

DISC

SCN

CLK

EJ

COMP

CD

CD

SHUFFLE

10

1. Balance: Press sound to the left/right speakers.

to shift

2. Fade: Press sound to the front/rear speakers.

to shift

3. SCN (Scan): Press to hear a brief sampling of all listenable stations or CD tracks. Press again to stop. 4. CLK: To set the hour, press and hold CLK and press SEEK to decrease hours.

or increase

the

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

CLK

25

Entertainment Systems

To set the minute, press and hold CLK and press TUNE to decrease or increase 5. EJ (eject): Press to eject a CD.

the minutes.

SHUFFLE

SHUFFLE

CD

CD

Press and hold until

6. COMP (Compression): In CD mode, press to bring louder and softer levels into more comfortable listening level. The compression icon (c) will appear in the display. 7. Shuffle: Press to listen to the tracks on the CD in random order. Press again to turn off. 8. Memory presets: To set a station: Select frequency band AM/FM; tune to a station. Press and hold a preset button until sound returns. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1 and six in FM2). 9. CD: desired point of a selection is reached. 10. desired point of a selection is reached. 11. Tune: In radio mode, press to move up or down the frequency band in individual increments. 12. Seek: Press and release for previous/next SEEK strong station, selection or track. 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

CD: Press and hold until

26

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

14. CD: Press to enter CD mode or to play a CD already loaded into the system. 15. AM/FM: Press to choose a frequency band in radio mode.

16. Bass: Press increase/decrease the bass output.

to

17. Treble: Press increase/decrease the treble output.

to

DISC

18. CD slot: Insert a CD printed side up. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

27

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD (IF EQUIPPED)

1. Power/volume: Press to turn ON/OFF; turn to increase/decrease volume.

SCAN

2. Scan: Press to hear a brief sampling of all listenable stations, tape selections or CD tracks. Press again to stop. 3. CD slot: Insert a CD with the label side up. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should

28

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information. 4. Cassette door: Insert the cassette with the opening to the right.

5. Eject: Press to eject the cassette/CD. The radio will resume playing.

6. Tape: Press to start tape play. Press to stop tape during rewind/fast forward. CD: Press to start CD play. With the dual media audio, press CD to toggle between single CD and CD changer play (if equipped). 7. Mute: Press to MUTE playing media; press again to return to the playing media.

8. Auto: Press to set first six strongest stations (if available) into AM, FM1 or FM2 memory buttons; press again to return to normal stations.

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

29

Entertainment Systems

SEEK to decrease hours or to increase hours. Press TUNE to decrease minutes

9. Clock: Press to toggle between station mode and clock mode. Press and hold to set the clock. Press the SEEK the or TUNE this control will not function. 10. Balance: Press BAL; then press SEL left/right speakers.

to shift sound to the

to increase minutes. If your vehicle has a stand alone clock

Fade: Press FADE; then press SEL rear/front speakers.

to shift sound to the

11. Memory preset buttons: To set a station: Select frequency band AM/FM, tune to a station, press and hold a preset button until sound returns. 12. Shuffle (CD): Press to play tracks in random order. Press again to disable.

13. Compression (CD): Press to bring soft and loud passages together for a more consistent listening level. A small “c” will appear in the display to indicate that compression is enabled. Press again to disable. Dolby威 noise reduction: 14. Works in tape mode only. Reduces tape noise and hiss; press to activate/deactivate.

30

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. 15. Side 1–2: Works in tape mode only. Press to play reverse side of the tape.

FF

16. Fast Forward (FF): In CD mode, press for a slow advance, press and hold for a fast advance. In TAPE mode, press FF to enable Fast Forward feature. Press FF or TAPE to resume tape play. 17. Rewind (REW): In CD mode, press for a slow reverse, press and hold for a fast reverse. In TAPE mode, press REW to enable the rewind feature. Press REW or TAPE to resume tape play. 18. Select (SEL): Use with Bass, Treble, Balance and Fade controls.

REW

SEL

19. Bass: Press BASS; then press to decrease/increase SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

to decrease/increase

20. Tune: Works in radio mode only. Press TUNE frequency down/up.

to change

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

SEEK

TUNE

31

Entertainment Systems

21. Seek: Press and release for previous/next SEEK strong station, selection or track.

22. AM/FM: Press to select AM/FM1/FM2 frequency band.

SEEK

TUNE

PREMIUM IN-DASH SIX CD SOUND SYSTEM (IF EQUIPPED)

1. Seek: Press and release for previous/next SEEK strong station, or track of current disc. 2. Rewind: Press for a slow rewind, press and hold for a fast rewind.

Fast forward: Press for a slow advance, press and hold for a fast advance.

32

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

3. Comp (Compression): In CD mode, press to adjust the soft and loud passages together for a more consistent listening level. Press the COMP control until COMP ON is displayed. 4. Mute: Press to MUTE playing media; press again return to playing media. In CD mode, MUTE acts as a pause feature. 5. Eject: Press to eject a CD. EJECTING # (desired selection) will appear on the display. When the CD appears in the CD slot for removal, the display reads REMOVE CD # (desired selection). Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.

to decrease/increase

to decrease/increase

7. Select: Use with Bass, Treble, Balance and Fade controls to adjust levels. Use with MENU to set the clock and engage RDS. 8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press MENU and SEL to access clock mode, RDS on/off, Traffic, Program type, Show type and Compression modes. Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets.

to shift sound to the

33

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

) or decrease (

FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Show TYPE: Displays the station’s call letters and format. Compression: In CD mode, press to bring soft and loud CD passages together for a more consistent listening level. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS ) the is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode. 10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. In CD mode, press to move between CDs. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1
and six in FM2). 11. CD: Press to select CD mode. Seamless play: In CD mode, the transition between the end of one CD and the beginning of another will not contain delay time unless SEEK or a preset control is pressed. 12. AM/FM: Press to select a frequency band in radio mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM. AUTOSET will flash on the display. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press again to disengage. 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

34

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

14. Load: Press to load a CD. SELECT SLOT will appear in the display. Select from 1–6 on the memory presets. MOVING TO # and then LOAD CD# will appear in the display. Insert the CD into the system, label side up. Press and hold to load up to six discs. 15. Shuffle: In CD mode, press to play tracks in random order. Press SHUF to cycle through SHUF TRAC, SHUF DISC or SHUF OFF. 16. Scan: Press to hear a brief sampling of all listenable stations or CD tracks. Press again to stop. 17. Disc/Tune: Radio: Press or the frequency band. CD: Press 18. CD door: Insert a CD label side up.

to select the previous or next CD.

to manually tune down or up

or

RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

weaker the signal and the weaker the reception.

RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

35

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

CASSETTE/PLAYER CARE

and turning the hub.

Do:• Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to play commercially pressed 12 cm (4.75
in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

36

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

37

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control: : Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle during cold or warm weather, do not drive or leave the vehicle parked with the air flow selector in the OFF position.

• Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of

flow to the rear seats.

position.

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select 2. Modulate the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

38

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of

air flow selector in the OFF or with recirculated air engaged.

airflow to the rear seats.

position.

the windshield.

39

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls • To improve the A/C cool down, drive with the windows slightly open

for 2–3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance (MAX A/C) in MAX A/C mode: • Move the temperature control to the coolest setting. • Set the fan to the highest speed initially, then adjust in order to

maintain comfort.

For maximum cooling performance in panel ( modes: • Move the temperature control to the coolest setting. • Select A/C and recirculated air . Use recirculated air with A/C to • Set the fan to the highest speed initially, then adjust in order to

provide a cooler airflow.

) and panel/floor (

maintain comfort.

To allow side window defogging and demisting while warming up the vehicle cabin: 1. Select 2. Select A/C. 3. Set the temperature control to maintain comfort. 4. Set the fan speed to highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

40

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for approximately 20
seconds after the ignition switch is turned to OFF. To change the delay time of the autolamp feature, do the following: 1. Start with the ignition in OFF and the autolamps selected. 2. Deselect the autolamps. 3. Put the ignition in RUN. 4. Put the ignition in OFF. 5. Select the autolamps. Steps 2 through 5 must be performed within a 10 second period. At this point, the headlamps and parking lamps will turn on. 6. Deselect the autolamps after the desired autolamp delay time (maximum of 3 minutes). At this point, the headlamps and parking lamps will turn off.

41

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Lights

or

Foglamp control (if equipped) The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp control is in the position and the high beams are not turned on. In autolamp mode, the foglamps won’t be operational until lighting conditions warrant the activation of the headlamp/parklamp lighting. Pull headlamp control towards you to turn foglamps on. The foglamp indicator light parklamps are on.

will illuminate when the switch is pulled and the

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position, • the headlamp control is in the OFF or parking lamp position and • the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate with your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

42

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Lights

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

43

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Lights

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

COURTESY/READING LAMPS (IF EQUIPPED) The dome lamp lights when any door is not completely closed, the instrument panel switch is pushed past the detent and when any of the remote entry controls are pressed while the ignition is off. The reading lamps can be turned on by pressing the rocker controls next to each lamp.

44

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

MAP LAMPS (IF EQUIPPED) With trip computer

Lights

Without trip computer

To turn on the map lamps, press the control next to each lamp.

BULBS

Replacing exterior bulbs Check the operation of all the bulbs frequently.

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

45

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Function

Number of

bulbs

Trade number

3157 AK

194

9007

H6054

3157 K 3156K

Headlamps (aerodynamic) Headlamps (sealed beam) Park/turn Sidemarker Tail/stop/turn/sidemarker Backup High-mount stoplamp Foglamp License plate lamp Cargo lamp Roofmarker Rear fender clearance* Interior visor lamp (if equipped) Rear identification All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer * Dual rear wheels or if equipped. (a) Replace entire lamp assembly; bulb is not serviceable.

922
9145
194
906
194
(a)

194

194

Replacing headlamp bulbs (aerodynamic) 1. Make sure that the headlamp control is in the OFF position and open the hood. 2. Disconnect the electrical connector from the bulb by pulling rearward.

46

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Lights

3. Remove bulb retainer ring by turning it counterclockwise, then slide the ring off the plastic base. 4. Pull bulb out of headlamp assembly.

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Install the new bulb(s) in reverse order. Replacing headlamp bulbs (sealed beam) 1. Make sure headlamp switch is in OFF position and open the hood. 2. Remove the two screws and the parking lamp/side marker assembly by pulling gently. 3. Disconnect the electrical connectors from the parking lamp/side marker assembly and remove.

4. Remove the four bolts and headlamp bezel.

47

2004 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA English (fus)

Lights

5. Remove the four screws and the headlamp retaining ring from headlamp. 6. Disconnect the electrical connector and remove headlamp.

Install the new bulb(s) in reverse order. Replacing front parking/turn signal bulbs 1. Make sure headlamp switch is in OFF position and open the hood. 2. Remove the two screws and carefully disengage parking lamp/turn signal assembly from the vehicle. 3. Disconnect the electrical
