2007 Ford F 250 Owners Manual

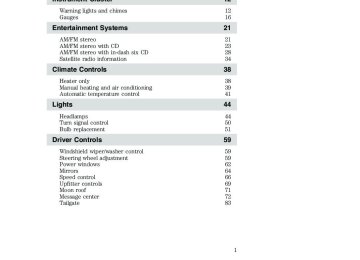

Table of Contents

12

12
16
21

21
23
28
34
38

38
39
41
44

44
50
51
59

59
59
62
64
66
69
71
72
83

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo AM/FM stereo with CD AM/FM stereo with in-dash six CD Satellite radio information

Climate Controls

Heater only Manual heating and air conditioning Automatic temperature control

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Upfitter controls Moon roof Message center Tailgate

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

85

85
85
94

94
101
113
121
133

136
137
153
160
164
170
172

172
177
182
208

208
210
210
211
220
232
233
238
240

246
247

Table of Contents

Locks and Security

Keys Locks

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Vehicle loading Trailer towing Trailer brake controller-integrated Recreational towing

Driving

Starting Brakes Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug nut torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Cleaning

Maintenance and Specifications

Hood Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Refill capacities

Accessories

Index

Table of Contents

248

256

257
258
261
265
267
273
291
293
294
301

304

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2006 Ford Motor Company

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE During the first 1,000 miles (1,600 km) of driving, maintain speeds below 70 mph (112 km/h) and vary speeds frequently. This is recommended to give the moving parts a chance to break-in. Do not tow a trailer or use your vehicle to snowplow until it has been driven at least 500 miles (800 km). Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information on towing a trailer and Snowplowing in the Driving chapter. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, Ford Motor Company, S.A. de C.V. and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company, Ford of Canada and Ford Motor Company, S.A. de C.V. do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company, Ford of Canada and Ford Motor Company, S.A. de C.V. Vehicle Modification Data Recording Some aftermarket products may cause severe engine and/or transmission damage; refer to the What is not covered section in The new vehicle

brake pedal;

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

limited warranty for your vehicle chapter of your vehicle’s Warranty Guide for more information. Some vehicles are equipped with Powertrain Control Systems that can detect and store information about vehicle modifications that increase horsepower and torque output; this information cannot be erased and will stay in the system’s memory even if the modification is removed. When a dealer or repair facility works on your vehicle, it may be necessary for them to access the information in the Powertrain Control System. This information will likely identify if any unauthorized modifications have been made to the system and may be used to determine if repairs will be covered by warranty.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to

follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to

avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Notice to owners of diesel-powered vehicles Read the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and maintenance of your Diesel-powered light truck.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off-road with truck and utility vehicles in the Driving chapter.

Using your vehicle with a snowplow For more information and guidelines for using your vehicle with a snowplow, refer to Snowplowing in the Driving chapter.

Using your vehicle as an ambulance If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures.

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Safety Compliance Certification Label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 6.0L Diesel engine equipped vehicles.

Using your vehicle as a stationary power source (PTO) Refer to the Driving chapter for more information and guidelines for operating a vehicle equipped with an aftermarket power take-off system.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag-Front

Airbag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

11

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES Standard instrument cluster (manual transmission)

Standard instrument cluster (automatic transmission)

Harley-Davidson instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions.

12

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, have the respective system inspected immediately. If your vehicle is equipped with a diesel engine, it has a unique cluster; refer to Starting the engine in your 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Electronic throttle control: Illuminates when the engine has defaulted to a ’limp-home’ operation. Report the fault to an authorized dealer at the earliest opportunity. On vehicles equipped with a message center, “ENGINE FAILSAFE MODE” will be displayed, refer to Message Center in the Driver Controls chapter.

13

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

BRAKE

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing authorized dealer.

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer immediately.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A BeltMinder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the BeltMinder威 chime feature.

14

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Charging system: Illuminates when the battery is not charging properly.

Transmission Tow/Haul Feature (automatic transmission): Illuminates when the Tow/Haul feature has been activated. Refer to the Driving chapter for transmission function and operation. If the remains on, have the system serviced immediately, damage to the transmission could occur. Four wheel drive low: Illuminates when four-wheel drive low is engaged.

LOW RANGE

Four wheel drive high: Illuminates when four-wheel drive high is engaged. Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

4x4

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF, LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Parking brake ON warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km).

15

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed. Standard instrument cluster

Harley-Davidson instrument clusters

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

16

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Odometer: Registers the total miles (kilometers) of the vehicle. Refer to Message Center in the Drivers Controls chapter on how to switch the display from Metric to English. • With Mini Message Center

• With Full Message Center

Trip odometer: Registers the miles (kilometers) of individual journeys. • With Mini Message Center Press and release the SELECT/RESET button on the cluster to toggle between odometer and trip odometer display. To reset, press and hold for less than 2
seconds. • With Full Message Center Press and release the message center INFO button until TRIP mode appears in the display. Press the RESET button to reset.

Engine hour meter: Registers the accumulated time the engine has been running. • With Mini Message Center Press the SELECT/RESET button until the engine hours display. • With Full Message Center Press and release the message center INFO button until ENG HRS XXXX.X appears in the display. Press the RESET button to reset.

17

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. Standard instrument cluster

Harley-Davidson instrument cluster

Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

18

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Battery voltage gauge (manual transmission only): Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible.

Transmission fluid temperature gauge (automatic transmission only): If the gauge is in the: Normal area (normal) - the transmission fluid is within the normal operating temperature (between “H” and “C”).

Yellow area (warning) — the transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (i.e. snowplowing, towing or off road use). Refer to Special Operating Conditions in the scheduled maintenance information for instructions. Operating the transmission for extended periods of time with the gauge in the yellow area may cause internal transmission damage. Altering the severity of the driving conditions is recommended to lower the transmission temperature into the normal range. Red area (over temperature) — the transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range.

19

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

If the gauge is operating in the Yellow or Red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. If the gauge continues to show high temperatures, see your authorized dealer.

20

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo system (if equipped)

The AM/FM stereo system does not contain rear speakers; only front driver side and passenger side speakers. Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches and radio may be used for up to ten minutes after the ignition is turned off or until either front door is opened. 1. frequency. Press and hold for a fast advance through radio frequencies. Also use in AUDIO mode to gain access to various settings. 2. AUDIO: Press AUDIO repeatedly to gain access to the following settings.

(Tuner): Press to manually go up or down the radio

TREB (Treble): Press AUDIO to reach the treble setting. Use

SEEK

21

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

BASS (Bass): Press AUDIO to reach the bass setting. Use

SEEK

BAL (Balance): Press AUDIO to reach the balance setting. Use

to adjust between the left and right speakers.

SEEK

to

SEEK

3. SEEK: Press access the previous/next strong station. 4. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You may store up to six stations in each frequency band for a total of 18. 5. AM/FM: Press AM/FM to select AM/FM1/FM2 frequency band.

6. ON/OFF/Volume: Press VOL - PUSH to turn ON/OFF. Turn VOL - PUSH to increase/decrease volume.

7. CLK (Clock): Press CLK to toggle between the clock and radio frequency. Setting the clock: Press and hold CLK until the hours begin to flash. Press manually increase/decrease the hours. Press CLK again to the set the to manually increase/decrease the minutes using minutes. Allow 10 seconds to pass to confirm that the time has been set.

SEEK

SEEK

to

22

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM stereo/single CD with satellite compatible sound system (if equipped)

(Tuner): Press to

1. manually go up or down the radio frequency. Press and hold for a fast advance through radio frequencies. Also use in MENU mode to select various settings:

In satellite radio mode (if equipped), press to enter TEXT MODE and scroll through the current song title, artist, channel category and SIRIUS Long Channel Name. In TEXT MODE, sometimes the display text requires additional text to be displayed. When the “>” indicator is active, press SEEK the additional display text. When the “<” is displayed, press view the previous display text. In CATEGORY MODE, press available SIRIUS channel categories (Pop, Rock, News, etc). Refer to CATEGORY under MENU for further information. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability

to scroll through the list of

to view SEEK to

23

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

: Press to mute the

2. MUTE/ playing media. Press again to return to the playing media. 3. MENU: Press MENU repeatedly to gain access to the following settings:

SEEK, SEEK

SEEK, SEEK

CATEGORY (satellite radio, if equipped): Press MENU until the currently active category appears in the display (CATEGORY MODE). In to scroll through the lists of available CATEGORY MODE, press SIRIUS channel categories (Pop, Rock, News, etc). or SCAN to select the category. After a Press to search for that category is selected, press specific category of channels only (i.e. ROCK). To select a different category, press MENU until the category appears in the display. to select a different category. You may also select Press CATEGORY ALL to seek all available SIRIUS categories and channels. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability AUTOSET: Press MENU until display reaches autoset. Use the Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. TREB (Treble): Press MENU to reach the treble setting. Use

SEEK, SEEK

SEEK, SEEK

to adjust.

to set.

BASS (Bass): Press MENU to reach the bass setting. Use

SEEK, SEEK to adjust.

BAL (Balance): Press MENU to reach the balance setting. Use and right speakers.

SEEK, SEEK

to adjust the audio between the left

24

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK, SEEK

FADE (Fade): Press MENU to reach the fade setting. Use and rear speakers. SPEEDVOL (Speed sensitive volume) (if equipped): Press MENU to reach the SPEEDVOL setting. Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Use the

to adjust the audio between the front

SEEK, SEEK

to adjust.

SEEK, SEEK

The default setting is off; increasing your vehicle speed will not change the volume level. Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3; level 0 turns the feature off and level 7 is the maximum setting. Setting the clock: Press MENU to reach SELECT HOUR or SELECT MINS. Use MENU again to disengage clock mode. 4. AUX: Press the AUX button to toggle between FES/DVD (if equipped), and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). If no auxiliary sources are available, NO AUX AUDIO will be displayed. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability 5. SEEK: In radio mode, press the

to adjust the hours/minutes. Press

SEEK, SEEK

button to access the previous/next strong station. In CD mode, press previous/next track. In satellite radio mode (if equipped), press seek to the previous/next channel. If a specific category is selected, to seek to the (Jazz, Rock, News, etc.), press previous/next channel in the selected category. Press and hold

button access the

SEEK, SEEK

SEEK, SEEK

SEEK, SEEK

to

SEEK, SEEK

to fast seek through the previous/next channels.

25

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

In TEXT MODE, press previous/additional display text.

SEEK, SEEK

to view the

In CATEGORY MODE, press

SEEK, SEEK

to select a category.

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability 6. SHUFFLE: In CD mode, press SHUFFLE to play tracks in random order. 7. COMPRESS (Compression): In CD mode, press COMPRESS to bring soft and loud CD passages together for a more consistent listening level. 8. REPEAT: In CD mode, press REPEAT to repeat the current CD track. 9. FF (Fast forward): In CD mode, press FF to manually advance in a CD track. 10. REW (Rewind): In CD mode, press REW to manually reverse in a CD track. 11. Memory presets: Each number has a specific preset frequency. To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 12. SCAN: Press SCAN for a brief sampling of radio stations or CD tracks. Press again to stop. In satellite mode (if equipped), press to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability

26

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

13. AM/FM: Press AM/FM to select AM/FM1/FM2.

14. ON/OFF/Volume: Press VOL - PUSH to turn ON/OFF. Turn VOL - PUSH to increase/decrease volume. Note: If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition is turned back on. 15. CD: Press CD to enter CD mode. If a CD is already loaded into the system, the CD play will begin where it ended last. 16. eject a CD.

(CD eject): Press

to

17. CD slot: Insert a CD with label side up in the CD slot.

27

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Premium in-dash six CD/satellite compatible sound system (if equipped)

(Tuner/Disc selector):

1. In radio mode, press to manually go up or down the radio frequency. Press and hold for a fast advance through radio frequencies. In CD mode, press hold for a fast advance through all loaded discs. Also use in MENU mode to select various settings: In satellite radio mode (if equipped), press to enter TEXT MODE and scroll through the current song title, artist, channel category and SIRIUS Long Channel Name. In TEXT MODE, sometimes the display text requires additional text to be displayed. When the “>” indicator is active press SEEK the additional display text. When the “<” indicator is active press

to select a desired disc (1–6). Press and

to view

SEEK to view to the previous display text.

In CATEGORY MODE, press available SIRIUS channel categories (Pop, Rock, News, etc.). Refer to Category Mode under MENU for further information.

to scroll through the list of

28

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK, SEEK

Satellite radio is available only in the continental United States with a valid SIRIUS radio subscription. : Press mute button to 2. MUTE/ mute playing media. Press again to return to the playing media. 3. MENU: Press the MENU button to gain access to various settings: CATEGORY (satellite radio, if equipped): Press MENU until the currently active category appears in the display (CATEGORY MODE). In to scroll through the lists of available CATEGORY MODE, press SIRIUS channel categories (Pop, Rock, News, etc.). or SCAN to select the category. After a Press to search for that category is selected, press specific category of channels only (i.e. ROCK). To select a different category, press MENU until the category appears in the display. to select a different category. You may also select Press CATEGORY ALL to seek all available SIRIUS categories and channels. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability AUTOSET: Press MENU until display reaches autoset. Use the Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. TREB (Treble): Press MENU to reach the treble setting. Use

SEEK, SEEK

SEEK, SEEK

SEEK, SEEK

to adjust.

to set.

BASS (Bass): Press MENU to reach the bass setting. Use

SEEK, SEEK to adjust.

BAL (Balance): Press MENU to reach the balance setting. Use and right speakers.

SEEK, SEEK

to adjust the audio between the left

29

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK, SEEK

FADE (Fade): Press MENU to reach the fade setting. Use and rear speakers. SPEEDVOL (Speed sensitive volume) (if equipped): Press MENU to reach the SPEEDVOL setting. Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Use the

to adjust the audio between the front

SEEK, SEEK

to adjust.

The default setting is off; increasing your vehicle speed will not change the volume level. Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3; level 0 turns the feature off and level 7 is the maximum setting. Setting the clock: Press MENU to reach SELECT HOUR or SELECT MINS. Use MENU again to disengage clock mode. 4. AUX: Press the AUX button to toggle between FES/DVD (if equipped), and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). If no auxiliary sources are available, NO AUX AUDIO will be displayed. 5. SEEK: In radio mode, press the

to adjust the hours/minutes. Press

SEEK, SEEK

SEEK, SEEK

button to

SEEK, SEEK

access the previous/next strong station. In CD mode, press previous/next track. In satellite radio mode (if equipped), press to seek to the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press previous/next channel in the selected category. Press and hold

button access the

to seek to the

SEEK, SEEK

SEEK, SEEK

SEEK

to fast seek through the previous/next channels.

In TEXT MODE, press previous/additional display text.

SEEK, SEEK

to view the

30

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

In CATEGORY MODE, press

SEEK, SEEK

to select a category.

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability 6. SHUFFLE: In CD mode, press SHUFFLE to play tracks in random order. 7. COMPRESS (Compression): In CD mode, press COMPRESS to bring soft and loud CD passages together for a more consistent listening level. 8. REPEAT: In CD mode, press REPEAT to repeat the current CD track. 9. FF (Fast forward): In CD mode, press FF to manually advance in a CD track. 10. REW (Rewind): In CD mode, press REW to manually reverse in a CD track. 11. Memory presets: Each number has a specific preset frequency. To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 12. SCAN: Press SCAN for a brief sampling of radio stations or CD tracks. Press again to stop. In satellite mode (if equipped), press to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability 13. AM/FM: Press AM/FM to select AM/FM1/FM2.

31

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

14. ON/OFF/Volume: Press VOL - PUSH to turn ON/OFF. Turn VOL - PUSH to increase/decrease volume. Note: If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition is turned back on. 15. CD: Press CD to enter CD mode. If a CD is already loaded into the system, the CD play will begin where it ended last. 16. LOAD: Press LOAD to load a CD, then select a slot number using the radio presets 1 through 6. If you don’t select a slot within 5 seconds, the radio shall choose the first available slot for you. Note: Press and hold for two seconds to autoload up to six CDs. 17. and then the correct memory preset to eject a specific CD from slots 1–6. Note: Press and hold 18. CD slot: Insert a CD with label side up in the CD slot.

for two seconds to autoeject up to six CDs.

(CD eject): Press

GENERAL AUDIO INFORMATION Radio frequencies AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the

weaker the signal and the weaker the reception.

32

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD/CD player care Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing.

Clean only with an approved CD cleaner and wipe from the center out. • Wipe discs from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to only play commercially manufactured, round (4.75 in / 12 cm) audio compact discs. Due to technical incompatibility, certain homemade compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached.

33

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your authorized dealer.

Satellite radio information (if equipped) Satellite radio channels: Satellite radio frequencies are established by the Federal Communications Commission (FCC). SIRIUS Satellite Radio broadcasts within a frequency range of 2320.0 MHz-2332.5 MHz. This frequency range is sub-divided into over 120 channels of music, news, sports, weather and traffic programming. For a complete set of SIRIUS Satellite Radio channels, visit www.sirius.com or call SIRIUS at 1–888–539–7474. For a quick reference of the SIRIUS Satellite Radio channel guide, refer to the Sirius Welcome Kit. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna Obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway

overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

34

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

sale or lease of the vehicle.

SIRIUS satellite radio service: SIRIUS Satellite Radio is a continental U.S. based satellite radio service that broadcasts over 120 channels of music, sports, news and entertainment coast-to-coast. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include: • Hardware and limited subscription term, which begins on the date of • SIRIUS online media player access: providing access to all 100% commercial-free music channels over the internet. Call SIRIUS at 1–888–539–7474 to obtain login instructions and your password. For information on extended subscription terms, contact SIRIUS at 1–888–539–7474. Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12 digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously. Action Required No action required. This message should

Radio Display

ACQUIRING

Condition

Radio requires more than two seconds to produce audio for the

disappear shortly.

If this message does

not clear within a short period of time, or with an ignition key cycle, your receiver may have

a fault. See your

authorized dealer for

service.

35

SAT FAULT

selected channel. Internal module or

system failure

present.

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

INVALID CHNL

Condition

Channel no longer

available.

UNSUBSCRIBED

Subscription not available for this

channel.

Action Required

This previously

available channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button.

Contact SIRIUS at 1–888–539–7474 to

subscribe to the

channel, or tune to another channel.

NO TEXT

Artist information not

available.

Artist information not available at this time on

NO TEXT

Song title information

not available.

NO TEXT

Category information

not available.

this channel. The system is working

properly.

Song title information not available at this time on this channel. The system is working

properly.

Category information not available at this time on this channel. The system is working

properly.

36

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display

Condition

NO SIGNAL

Loss of signal from

the SIRIUS satellite or SIRIUS tower to the

vehicle antenna.

Action Required You are in a location that is blocking the SIRIUS signal (i.e., tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When you move into an open area, the signal should

return.

UPDATING

CALL SIRIUS 1–888–539–7474

Update of channel programming in

No action required. The process should take no

progress.

Satellite service has been deactivated by

SIRIUS Satellite

Radio.

longer than one

minute.

Call SIRIUS at

1–888–539–7474 to re-activate or resolve subscription issues.

37

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control: : Distributes outside air through the instrument panel vents. : Distributes outside air through the instrument panel vents and the

floor vents. O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents,

floor vents and demister vents.

: Distributes outside air through the windshield defroster vents and

demister vents. Can be used to clear windshield of fog and thin ice.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle during cold or warm

the air flow selector in the

position.

weather, do not drive with the air flow selector in the O (OFF) position.

• Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of

flow to the rear seats.

the windshield.

38

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather: 1. Select 2. Modulate the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Distributes recirculated air through the instrument panel vents and center console vents (if equipped) to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. The temperature selection control will not adjust airflow temperature when in MAX A/C mode. A/C: Distributes outside air through the instrument panel vents to cool the vehicle.

39

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

: Distributes outside air through the instrument panel vents and

center console vents (if equipped).

: Distributes outside air through the instrument panel vents, floor

vents and center console vents (if equipped). O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents,

floor vents and demister vents.

: Distributes outside air through the windshield defroster vents and

demister vents.

position.

the air flow selector in the

air flow selector in the O (OFF) position.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open

airflow to the rear seats.

the windshield.

for 2–3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance (MAX A/C) in MAX A/C mode: • Move the temperature control to the coolest setting. • Set the fan to the highest speed initially, then adjust in order to

maintain comfort.

To aid in side window defogging and demisting in cold weather: 1. Select 2. Select A/C. 3. Set the temperature control to maintain comfort. 4. Set the fan speed to highest setting. 5. Direct the outer instrument panel vents towards the side windows.

40

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

AUTOMATIC TEMPERATURE CONTROL SYSTEM (IF EQUIPPED)

A/C

AUTO

EXT TEMP

AUTO

OFF

(floor/defrost).

(floor/defrost) controls at the same time and

Press the AUTO and hold for one second to switch between Fahrenheit and Celsius. 1. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, (defrost), and 2. Recirculated air: Press to activate/deactivate air recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except in all airflow selections. 3. Defrost: Distributes outside air through the windshield defroster vents and demister vents. Can be used to clear windshield of fog and thin ice.

(defrost). Recirculation may turn off automatically

41

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

(Floor/defrost): Distributes air through the instrument panel

(Panel): Distributes air through the instrument panel vents and

(Floor): Distributes air through the floor vents. (Panel/floor): Distributes air through the instrument panel vents,

4. Fan speed: Press the respective control in order to manually increase or decrease the fan speed. To return to automatic fan operation, press AUTO. 5. vents, floor vents and demister vents. 6. 7. floor vents and center console vents (if equipped). 8. center console vents (if equipped). 9. OFF: Outside air is shut out and the climate control system is turned off. 10. Manual override controls: The manual override controls allow you to change the system operation. To return to full automatic control, press AUTO. Refer to controls 5–8
for a brief description of each mode. 11. AUTO: Press to engage full automatic operation, and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 12. EXT Control (if equipped): Press EXT TEMP to display outside temperature. Press again to display cabin temperature settings. 13. Temperature controls: Press to increase or decrease the temperature in the vehicle cabin. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

42

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

position.

the air flow selector in the

air flow selector in OFF or with recirculated air engaged.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open

airflow to the rear seats.

the windshield.

for 2–3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance in AUTO mode: • Press AUTO control and set to desired temperature. For maximum cooling performance using manual override modes: • Press

(panel), A/C, with recirculated air. Set the temperature to

60°F (16°C) and the fan to the highest setting.

To aid in side window defogging and demisting in cold weather: 1. Select 2. Select A/C. 3. Set the temperature control to maintain comfort. 4. Set the fan speed to highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

43

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for approximately 20
seconds after the ignition switch is turned to OFF. To change the delay time of the autolamp feature, do the following: 1. Start with the ignition in OFF and the autolamps selected. 2. Deselect the autolamps. 3. Put the ignition in 4 (ON). 4. Put the ignition in 3 (OFF). 5. Select the autolamps. Steps 2 through 5 must be performed within a 10 second period. At this point, the headlamps and parking lamps will turn on. 6. Deselect the autolamps after the desired autolamp delay time (maximum of 3 minutes). At this point, the headlamps and parking lamps will turn off.

44

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Lights

or

Foglamp control (if equipped) The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp control is in the position and the high beams are not turned on. In autolamp mode, the foglamps won’t be operational until lighting conditions warrant the activation of the headlamp/parklamp lighting. Pull headlamp control towards you to turn foglamps on. The foglamp will illuminate when the switch is pulled and the indicator light parklamps are on.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position, • the headlamp control is in the OFF or parking lamp position and • the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

45

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Lights

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.

46

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Lights

AIMING THE HEADLAMPS Your vehicle may be equipped with a sealed beam or aerodynamic headlamp system. Sealed beam headlamps may be aimed in the vertical (up/down) and the horizontal (left/right) directions using the procedures following. The aerodynamic headlamps can only be aimed in the vertical direction (up/down) using the following procedures. The headlamps on your vehicle are properly aimed at the assembly plant and should not normally need adjusting.

Vertical and horizontal aim adjustment (sealed beam headlamps) The headlamps on your vehicle are intended to be aimed using mechanical aimers. If mechanical aimers are used and the cross-car sight line is in any way blocked, set the legs of the universal adaptor all to the same setting, such that the cross-car sight line is no longer blocked, per the instructions for the brand of mechanical aimer used. You can also aim the headlamps visually using the procedure below. To adjust the headlamps: 1. Park your vehicle on a level surface about 25 feet (7.6 meters) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line • (5) Center of headlamps • (6) Center line of the vehicle 2. The center of the headlamp is marked either on the lens (a circle or cross marker) or on the bulb shield, internal to the lamp (mark or feature). Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the wall or screen (1) at this height (masking tape works well).

ground

47

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Lights

3. Turn on the low beam headlamps and open the hood. 4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust it. 5. Locate the vertical adjuster (2) for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust up) or counterclockwise (to adjust down). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen. 7. On the wall or screen, locate the high intensity area of the beam pattern. The left edge of the high intensity area should be even with the vertical line corresponding to the headlamp under adjustment. If the left edge of the high intensity area is not even with the vertical line, follow the next step to adjust it. 8. Locate the horizontal adjuster (1) for each headlamp. Turn it clockwise or counterclockwise, to place the left edge of the high intensity area even with the vertical line corresponding to the headlamp under adjustment.

48

2007 F-250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA (fus)

Lights

Vertical aim adjustment (aerodynamic headlamps) The headlamps on your vehicle can only be vertically adjusted. Your vehicle does not require horizontal aim adjustments. To adjust the headlamps: 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to ground • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height from the center of your headlamp (indicated
