2005 Ford F 250 Owners Manual

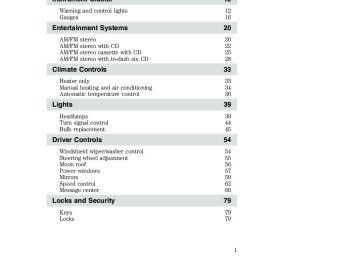

Table of Contents

Table of Contents

12

12
16
20

20
22
25
28
33

33
34
36
39

39
44
45
54

54
55
56
57
59
62
66
79

79
79

Introduction

Instrument Cluster

Warning and control lights Gauges

Entertainment Systems

AM/FM stereo AM/FM stereo with CD AM/FM stereo cassette with CD AM/FM stereo with in-dash six CD

Climate Controls

Heater only Manual heating and air conditioning Automatic temperature control

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Moon roof Power windows Mirrors Speed control Message center

Locks and Security

Keys Locks

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

89

89
96
107
116
128

132
133
137
148
160
167
171
177
178

178
183
187
213

213
214
214
215
224
229
231

239
240

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Air bags Child restraints

Tires, Wheels and Loading

Tire Information Tire Inflation Changing tires Wheel lug nut torque Vehicle loading Trailer towing Trailer Brake Controller-Integrated Recreational towing

Driving

Starting Brakes Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

Cleaning

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Maintenance and Specifications

Engine compartment Engine oil Battery Engine Coolant Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications

Accessories

Index

Table of Contents

247

249
251
255
257
263
280
282
283
286
299

302

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2004 Ford Motor Company

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle for at least 500 miles (800 km) before towing a trailer or snowplowing. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

SPECIAL NOTICES

Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel.

brake pedal;

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Vehicle Modification Data Recording Some aftermarket products may cause severe engine and/or transmission damage; refer to the What is not covered section in The new vehicle limited warranty for your vehicle chapter of your vehicle’s Warranty Guide for more information. Some vehicles are equipped with Powertrain Control Systems that can detect and store information about vehicle modifications that increase horsepower and torque output; this information cannot be erased and will stay in the system’s memory even if the modification is removed. When a dealer or repair facility works on your vehicle, it may be necessary for them to access the information in the Powertrain Control System. This information will likely identify if any unauthorized modifications have been made to the system and may be used to determine if repairs will be covered by warranty. Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific

warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger air bag.

Notice to owners of diesel-powered vehicles Read the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and maintenance of your Diesel-powered light truck. Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter.

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

Using your vehicle with a snowplow For more information and guidelines for using your vehicle with a snowplow, refer to the Driving chapter.

Using your vehicle as an ambulance If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires. If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Certification label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 6.0L Diesel engine equipped vehicles.

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

Using your vehicle as a stationary power source (PTO) Refer to the Driving chapter for more information and guidelines for operating a vehicle equipped with an aftermarket power take-off system.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Low tire warning

11

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Instrument Cluster

Instrument Cluster

WARNING LIGHTS AND CHIMES Standard instrument cluster (manual transmission)

Standard instrument cluster (automatic transmission)

Harley—Davidson instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions.

12

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Instrument Cluster

Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, have the respective system inspected immediately. If your vehicle is equipped with a Diesel engine, it has a unique cluster, refer to Starting the engine in your 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Electronic throttle control: Illuminates when the engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity. On vehicles equipped with a message center, “ENGINE FAILSAFE MODE” will be displayed, refer to Message Center in the Driver Controls chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

BRAKE

13

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Instrument Cluster

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

ABS

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Charging system: Illuminates when the battery is not charging properly.

Transmission Tow/Haul Feature (automatic transmission): Illuminates when the Tow/Haul feature has been activated. Refer to the Driving chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, damage to the transmission could occur.

14

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Instrument Cluster

LOW RANGE

4x4

Four wheel drive low: Illuminates when four-wheel drive low is engaged.

Four wheel drive indicator: Illuminates when four-wheel drive is engaged. Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF, LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Parking brake ON warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km).

15

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed. Standard instrument cluster

Harley—Davidson instrument cluster

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

16

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Odometer: Registers the total miles (kilometers) of the vehicle. • With Mini Message Center

Instrument Cluster

• With Full Message Center Refer to Message Center in the Drivers Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • With Mini Message Center Press and release the SELECT/RESET button on the cluster to toggle between odometer and trip odometer display. To reset, press and hold for less than 2
seconds. • With Full Message Center Press and release the message center INFO button until TRIP mode appears in the display. Press the RESET button to reset.

Engine hour meter: Registers the accumulated time the engine has been running. • With Mini Message Center Press the SELECT/RESET button until the engine hours display. • With Full Message Center Press and release the message center INFO button until ENG HRS XXXX.X appears in the display. Press the RESET button to reset.

17

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. Battery voltage gauge (manual transmission only): Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible.

18

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Instrument Cluster

Transmission fluid temperature gauge (automatic transmission only): If the gauge is in the: Normal area (normal) - the transmission fluid is within the normal operating temperature (between “H” and “C”).

Yellow area (warning) — the transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (i.e. snowplowing, towing or off road use). Refer to Special Operating Conditions in the Scheduled Maintenance Guide for instructions. Operating the transmission for extended periods of time with the gauge in the yellow area may cause internal transmission damage. Altering the severity of the driving conditions is recommended to lower the transmission temperature into the normal range. Red area (over temperature) — the transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range.

If the gauge is operating in the Yellow or Red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. If the gauge continues to show high temperatures, see your Ford dealer.

19

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

Entertainment Systems

AM/FM STEREO SYSTEM (IF EQUIPPED)

Tuner: Press to

1. manually go up or down the radio frequency. Also use in menu mode to select various settings.

2. Audio: Press to access select various settings.

Treble: Press to adjust the treble setting. Use SEEK

SEEK,

Bass: Press to adjust the bass setting. Use SEEK Balance: Press to adjust the audio between the left and right speakers. Use

SEEK, SEEK

SEEK,

Fade: Press to adjust the audio between the front and rear speakers. Use

SEEK, SEEK

20

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

3. Seek: Press to access the next/previous strong station or track. 4. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 5. AM/FM: Press to select AM/FM frequency band.

6. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 7. CLK (Clock): Press to toggle between the clock and radio display. To set the clock: Press and hold CLK until the hours begin to flash. Press again to set the minutes. When this audio is used in cargo vans where no rear speakers are installed in the vehicle, fading to the rear speakers will result in no audio output.

to manually decrease / increase the hours. Press CLK

21

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

AM/FM STEREO/ SINGLE CD SOUND SYSTEM (IF EQUIPPED)

18

17

16

15

14

13

11

12

COMPRESS

10

Tuner: Press to

1. manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. Menu: Press to toggle through the following modes:

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

to set.

SEEK

Bass: Press to adjust the bass setting. Use

SEEK

22

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

Treble: Press to adjust the treble setting. Use

SEEK

Balance: Press to adjust the audio between the left and right speakers. Use

SEEK

Fade: Press to adjust the audio between the front and rear speakers. Use

SEEK

Speed sensitive volume (if equipped): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU to access and use

to adjust.

SEEK

to manually increase/decrease Press

Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use MENU again to disengage clock mode. 4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. 5. Seek: Press to access the next strong station or track.

6. Shuffle: Press to play tracks in random order.

7. Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 8. Repeat: Press to repeat the current CD track.

9. Fast forward: Press to manually advance in a CD track.

10. Rewind: Press to manually reverse in a CD track.

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

23

Entertainment Systems

11. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 12. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. 13. Seek: Press to access the previous strong station or track.

14. AM/FM: Press to select AM/FM frequency band.

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 17. CD eject: Press to eject a CD.

18. CD slot: Insert a CD label side up.

24

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

AM/FM STEREO CASSETTE/SINGLE CD SOUND SYSTEM (IF EQUIPPED)

19

20

21

18

17

16

15

13

12

14

DOLBY B NR

COMPRESS

11

10

Tuner: Press to

1. manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Seek: Press to access the next strong station or track.

3. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 4. Menu: Press to toggle through the following modes:

Treble: Press to adjust the treble setting. Use

Bass: Press to adjust the bass setting. Use

SEEK

SEEK

25

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

Balance: Press to adjust the audio between the left and right speakers. Use

SEEK

Fade: Press to adjust the audio between the front and rear speakers. Use

SEEK

Speed sensitive volume (if equipped): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU to access and use

to adjust.

SEEK

SEEK

SEEK

to set.

to adjust the

Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Press hours/minutes. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Dolby noise reduction: In tape mode, this feature reduces tape noise to cycle ON/OFF. The Dolby noise and hiss. Press reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby and double-D are registered trademarks of Dolby Laboratories Licensing Corporation. 5. AUX: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. To return to radio mode, press AM/FM. 6. Tape eject: Press to eject a tape.

SEEK

7. Shuffle: Press to play CD tracks in random order.

8. Compress (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level.

26

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

9. Repeat: Press to repeat the current CD track.

10. Fast forward: Press to manually advance in a CD track or cassette. 11. Rewind: Press to manually reverse in a CD track or cassette.

12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Tape: Insert a tape facing to the right.

14. Tape direction: Press to enter tape mode. Press while in play mode to change which side of the tape is playing. 15. AM/FM: Press to select AM/FM frequency band.

16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 18. CD eject: Press to eject a CD.

27

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

19. CD slot: Insert a CD label side up.

20. Seek:Press to access the previous strong station or track.

21. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. When this radio is used in cargo vans where no rear speakers are installed in the vehicle, fading to the rear speakers will result in no audio output.

PREMIUM IN-DASH SIX CD SOUND SYSTEM (IF EQUIPPED)

18

19

LOAD

12

COMPRESS

10

17

16

15

14

13

11

Tuner: Press to

1. manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media.

28

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

3. Menu: Press to toggle through the following modes:

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

to set.

SEEK

Bass: Press to adjust the bass setting. Use

Treble: Press to adjust the treble setting. Use

SEEK

SEEK

Balance: Press to adjust the audio between the left and right speakers. Use

SEEK

Fade: Press to adjust the audio between the front and rear speakers. Use

SEEK

Speed sensitive volume (if equipped): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU to access and use

to adjust.

SEEK

SEEK

Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Press hours/minutes. 4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. 5. Seek: Press to access the next strong station or track.

to adjust the

6. Shuffle: Press to play tracks in random order.

29

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

7. Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 8. Repeat: Press to repeat the current CD track.

9. Fast forward: Press to manually advance in a CD track.

10. Rewind: Press to manually reverse in a CD track.

11. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 12. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. 13. Seek: Press to access the previous strong station or track.

14. AM/FM: Press to select AM/FM frequency band.

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last.

30

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems

17. LOAD: Press to load a CD, then select a slot number using the radio presets 1 through 6. If you don’t select a slot within 5 seconds, the radio shall choose the first available slot for you. Press and hold for 2 seconds to auto load up to six CDs. 18. CD eject: Press to eject a CD, then select the desired CD slot using the radio presets 1 through 6. If a slot is not selected within 5 seconds, the radio shall eject the current disc. Press and hold for 2 seconds to auto eject all CDs present in the radio mechanism. 19. CD slot: Insert a CD label side up.

RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

weaker the signal and the weaker the reception.

RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes.

and turning the hub.

31

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Entertainment Systems • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

32

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED)

Climate Controls

1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control: : Distributes outside air through the instrument panel vents. : Distributes outside air through the instrument panel vents and the

floor vents. O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents,

floor vents and demister vents.

: Distributes outside air through the windshield defroster vents and

demister vents. Can be used to clear windshield of fog and thin ice.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle during cold or warm

the air flow selector in the

position.

weather, do not drive with the air flow selector in the O (OFF) position.

• Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of

flow to the rear seats.

the windshield.

33

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Temperature selection: Controls the temperature of the airflow in the vehicle. 3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Distributes recirculated air through the instrument panel vents and center console vents (if equipped) to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. The temperature selection control will not adjust airflow temperature when in MAX A/C mode.

: Distributes outside air through the instrument panel vents and

center console vents (if equipped).

34

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Climate Controls

: Distributes outside air through the instrument panel vents, floor

vents and center console vents (if equipped). O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents,

floor vents and demister vents.

: Distributes outside air through the windshield defroster vents and

demister vents.

position.

the air flow selector in the

air flow selector in the O (OFF) position.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open

airflow to the rear seats.

the windshield.

for 2–3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance (MAX A/C) in MAX A/C mode: • Move the temperature control to the coolest setting. • Set the fan to the highest speed initially, then adjust in order to

maintain comfort.

To aid in side window defogging and demisting in cold weather: 1. Select 2. Select A/C. 3. Set the temperature control to maintain comfort. 4. Set the fan speed to highest setting. 5. Direct the outer instrument panel vents towards the side windows.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

35

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Climate Controls

AUTOMATIC TEMPERATURE CONTROL SYSTEM (IF EQUIPPED)

A/C

AUTO

EXT TEMP

AUTO

OFF

(floor/defrost).

(floor/defrost) controls at the same time and

Press the AUTO and hold for one second to switch between Fahrenheit and Celsius. 1. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, (defrost), and 2. Recirculated air: Press to activate/deactivate air recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except in all airflow selections. 3. Defrost: Distributes outside air through the windshield defroster vents and demister vents. Can be used to clear windshield of fog and thin ice. 4. Fan speed: Press the respective control in order to manually increase or decrease the fan speed. To return to automatic fan operation, press AUTO.

(defrost). Recirculation may turn off automatically

36

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Climate Controls

(Floor/defrost): Distributes air through the instrument panel

(Panel): Distributes air through the instrument panel vents and

(Floor): Distributes air through the floor vents. (Panel/floor): Distributes air through the instrument panel vents,

5. vents, floor vents and demister vents. 6. 7. floor vents and center console vents (if equipped). 8. center console vents (if equipped). 9. OFF: Outside air is shut out and the climate control system is turned off. 10. Manual override controls: The manual override controls allow you to change the system operation. To return to full automatic control, press AUTO. Refer to controls 5–8
for a brief description of each mode. 11. AUTO: Press to engage full automatic operation, and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 12. EXT Control (if equipped): Press EXT TEMP to display outside temperature. Press again to display cabin temperature settings. 13. Temperature controls: Press to increase or decrease the temperature in the vehicle cabin. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the • Do not put objects under the front seats that will interfere with the

air flow selector in the OFF or with recirculated air engaged.

position.

airflow to the rear seats.

37

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Climate Controls • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open

the windshield.

for 2–3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance in AUTO mode: • Press AUTO control and set to desired temperature. For maximum cooling performance using manual override modes: • Press

(panel), A/C, with recirculated air. Set the temperature to

60°F (16°C) and the fan to the highest setting.

To aid in side window defogging and demisting in cold weather: 1. Select 2. Select A/C. 3. Set the temperature control to maintain comfort. 4. Set the fan speed to highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

38

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Lights

Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for approximately 20
seconds after the ignition switch is turned to OFF. To change the delay time of the autolamp feature, do the following: 1. Start with the ignition in OFF and the autolamps selected. 2. Deselect the autolamps. 3. Put the ignition in RUN. 4. Put the ignition in OFF. 5. Select the autolamps. Steps 2 through 5 must be performed within a 10 second period. At this point, the headlamps and parking lamps will turn on. 6. Deselect the autolamps after the desired autolamp delay time (maximum of 3 minutes). At this point, the headlamps and parking lamps will turn off.

39

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

or

Foglamp control (if equipped) The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp control is in the position and the high beams are not turned on. In autolamp mode, the foglamps won’t be operational until lighting conditions warrant the activation of the headlamp/parklamp lighting. Pull headlamp control towards you to turn foglamps on. The foglamp will illuminate when the switch is pulled and the indicator light parklamps are on.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position, • the headlamp control is in the OFF or parking lamp position and • the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

40

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.

AIMING THE HEADLAMPS Your vehicle may be equipped with a sealed beam or aerodynamic headlamp system. Sealed beam headlamps may be aimed in the vertical (up/down) and the horizontal (left/right) directions using the procedures following. The aerodynamic headlamps can only be aimed in the vertical direction (up/down) using the procedures following. The headlamps on your vehicle are properly aimed at the assembly plant and should not normally need adjusting.

41

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

ground

Vertical and horizontal aim adjustment (sealed beam headlamps) The headlamps on your vehicle are intended to be aimed using mechanical aimers. If mechanical aimers are used and the cross-car sight line is in any way blocked, set the legs of the universal adaptor all to the same setting, such that the cross-car sight line is no longer blocked, per the instructions for the brand of mechanical aimer used. You can also aim the headlamps visually using the procedure below. To adjust the headlamps: 1. Park your vehicle on a level surface about 25 feet (7.6 meters) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line • (5) Center of headlamps • (6) Center line of the vehicle 2. The center of the headlamp is marked either on the lens (a circle or cross marker) or on the bulb shield, internal to the lamp (mark or feature). Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the wall or screen (1) at this height (masking tape works well). 3. Turn on the low beam headlamps and open the hood. 4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust it.

42

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

5. Locate the vertical adjuster (2) for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust up) or counterclockwise (to adjust down). 6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen. 7. On the wall or screen, locate the high intensity area of the beam pattern. The left edge of the high intensity area should be even with the vertical line corresponding to the headlamp under adjustment. If the left edge of the high intensity area is not even with the vertical line, follow the next step to adjust it. 8. Locate the horizontal adjuster (1) for each headlamp. Turn it clockwise or counterclockwise, to place the left edge of the high intensity area even with the vertical line corresponding to the headlamp under adjustment. Vertical aim adjustment (aerodynamic headlamps) The headlamps on your vehicle can only be vertically adjusted. Your vehicle does not require horizontal aim adjustments. To adjust the headlamps: 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height from the center of your headlamp (indicated by a 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4
meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

ground

43

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. Cover one of the headlamps so no light hits the wall. 4. On the wall or screen you will observe a light pattern with a distinct horizontal edge towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted so the edge is at the same height as the horizontal reference line. 5. Locate the vertical adjuster on each headlamp, then use a E5 Torx socket to turn the adjuster either counterclockwise (to adjust down) or clockwise (to adjust up) aligning the upper edge of the light pattern up to the horizontal line. 6. Repeat step 3–5 for the other headlamp. 7. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

44

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

COURTESY/READING LAMPS (IF EQUIPPED) The dome lamp lights when any door is not completely closed, the instrument panel switch is pushed past the detent and when any of the remote entry controls are pressed while the ignition is off. The reading lamps can be turned on by pressing the rocker controls next to each lamp.

MAP LAMPS (IF EQUIPPED) To turn on the map lamps, press the control next to each lamp.

BULBS

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

45

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

Replacing exterior bulbs Check the operation of all the bulbs frequently. Number of

Function

bulbs

Trade number

H13/9008

H6054

3157AK or 3157A

4157K/3157

4157K/3157

3156K or 3156

194

Headlamps (aerodynamic) Headlamps (sealed beam) Park lamp with aerodynamic headlamp Park lamp with sealed beam headlamp Sidemarker Tail/stop/turn/sidemarker Backup High-mount stoplamp Foglamp License plate lamp Cargo lamp Roofmarker Rear fender clearance* Interior visor lamp (if equipped) Rear identification All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer * Dual rear wheels, or if equipped.

922
9145
194
906
194
W5W 194

194

Replacing headlamp bulbs (aerodynamic) 1. Make sure that the headlamp control is in the OFF position and open the hood.

46

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

2. Remove the four screws from the top and bottom front of the headlamp assembly. 3. Press the retaining clip at the top of the headlamp assembly while pulling the assembly straight out. If removing the lamp is difficult, removing the four screws along the top of the grill will help provide more clearance. 4. Disconnect the electrical connector by squeezing the release tab and pushing the connector forward and then pulling it reward.

5. Remove the bulb assembly by turning it counterclockwise and pulling it straight out.

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Install the new bulb(s) in reverse order.

47

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights

Replacing park/turn and sidemarker lamp bulbs (aerodynamic) 1. Make sure that the headlamp control is in the OFF position and open the hood. 2. Remove the four screws from the top and bottom front of the headlamp assembly. 3. Press the retaining clip at the top of the headlamp assembly while pulling the assembly straight out. If removing the lamp is difficult, removing the four screws along the top of the grill will help provide more clearance.

4. Remove the bulb assembly, (1) sidemarker or (2) park/turn by turning it counterclockwise and pulling it straight out. 5. Pull the old bulb out from the socket.

Install the new bulb(s) in reverse order.

48

2005 F250/350/450/550 (f23) Owners Guide (post-2002-fmt) USA_English (fus)

Lights
