Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (1,1)

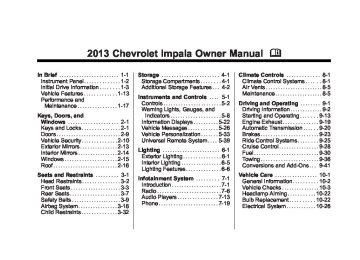

2013 Chevrolet Impala Owner Manual M


In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information . . . . . . . . 1-3
Vehicle Features . . . . . . . . . . . . . 1-13
Performance and


Maintenance . . . . . . . . . . . . . . . . 1-17


Keys, Doors, and


Windows . . . . . . . . . . . . . . . . . . . . 2-1
Keys and Locks . . . . . . . . . . . . . . . 2-1
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Vehicle Security. . . . . . . . . . . . . . 2-10
Exterior Mirrors . . . . . . . . . . . . . . . 2-13
Interior Mirrors . . . . . . . . . . . . . . . . 2-14
Windows . . . . . . . . . . . . . . . . . . . . . 2-15
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16


Seats and Restraints . . . . . . . . . 3-1
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats . . . . . . . . . . . . . . . . . . . . 3-3
Rear Seats . . . . . . . . . . . . . . . . . . . . 3-7
Safety Belts . . . . . . . . . . . . . . . . . . . . 3-9
Airbag System . . . . . . . . . . . . . . . . 3-18
Child Restraints . . . . . . . . . . . . . . 3-32


Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storage Compartments . . . . . . . . 4-1
Additional Storage Features . . . 4-2


Instruments and Controls . . . . 5-1
Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and


Indicators . . . . . . . . . . . . . . . . . . . . 5-8
Information Displays . . . . . . . . . . 5-22
Vehicle Messages . . . . . . . . . . . . 5-26
Vehicle Personalization . . . . . . . 5-33
Universal Remote System . . . . 5-39


Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exterior Lighting . . . . . . . . . . . . . . . 6-1
Interior Lighting . . . . . . . . . . . . . . . . 6-5
Lighting Features . . . . . . . . . . . . . . 6-6


Infotainment System . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . 7-1
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Audio Players . . . . . . . . . . . . . . . . 7-13
Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-19


Climate Controls . . . . . . . . . . . . . 8-1
Climate Control Systems . . . . . . 8-1
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 8-5
Maintenance . . . . . . . . . . . . . . . . . . . 8-5


Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-2
Starting and Operating . . . . . . . 9-13
Engine Exhaust . . . . . . . . . . . . . . 9-19
Automatic Transmission . . . . . . 9-20
Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-23
Ride Control Systems . . . . . . . . 9-25
Cruise Control . . . . . . . . . . . . . . . . 9-28
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-30
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-36
Conversions and Add-Ons . . . 9-41


Vehicle Care . . . . . . . . . . . . . . . . . 10-1
General Information . . . . . . . . . . 10-2
Vehicle Checks . . . . . . . . . . . . . . . 10-3
Headlamp Aiming . . . . . . . . . . . 10-22
Bulb Replacement . . . . . . . . . . 10-22
Electrical System . . . . . . . . . . . . 10-26


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (2,1)


2013 Chevrolet Impala Owner Manual M


Wheels and Tires . . . . . . . . . . . 10-31
Jump Starting . . . . . . . . . . . . . . . 10-61
Towing . . . . . . . . . . . . . . . . . . . . . . 10-63
Appearance Care . . . . . . . . . . . 10-65


Service and Maintenance . . . 11-1
General Information . . . . . . . . . . 11-1
Maintenance Schedule . . . . . . . 11-3
Special Application


Services . . . . . . . . . . . . . . . . . . . . 11-8


Additional Maintenance


and Care . . . . . . . . . . . . . . . . . . . . 11-9


Recommended Fluids,


Lubricants, and Parts . . . . . . 11-12
Maintenance Records . . . . . . . 11-14


Technical Data . . . . . . . . . . . . . . . 12-1
Vehicle Identification . . . . . . . . . 12-1
Vehicle Data . . . . . . . . . . . . . . . . . . 12-2


Customer Information . . . . . . . 13-1
Customer Information . . . . . . . . 13-1
Reporting Safety Defects . . . . 13-12
Vehicle Data Recording and


Privacy. . . . . . . . . . . . . . . . . . . . 13-13


OnStar . . . . . . . . . . . . . . . . . . . . . . . 14-1
OnStar Overview . . . . . . . . . . . . . 14-1
OnStar Services . . . . . . . . . . . . . . 14-2
OnStar Additional


Information . . . . . . . . . . . . . . . . . . 14-5
Index . . . . . . . . . . . . . . . . . . . . . i-1


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (3,1)


This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name "General Motors of Canada Limited" for Chevrolet Motor Division wherever it appears in this manual. Keep this manual in the vehicle for quick reference.


Introduction


iii


Canadian Vehicle Owners


Propriétaires Canadiens A French language manual can be obtained from your dealer, at www.helminc.com, or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse savant: Helm, Incorporated Attention: Customer Service 47911 Halyard Drive Plymouth, MI 48170


The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CHEVROLET, the CHEVROLET Emblem, IMPALA, and the IMPALA Emblem are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors.


Litho in U.S.A. Part No. 22800553 B Second Printing


©2012 General Motors LLC. All Rights Reserved.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (4,1)


iv


Introduction


Using this Manual To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.


Danger, Warnings, and Cautions Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death.


{ WARNING


These mean there is something that could hurt you or other people.


Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.


A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.”


Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (5,1)


Introduction


Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the Index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) % : Audio Steering Wheel Controls or OnStar® $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps


# : Fog Lamps . : Fuel Gauge + : Fuses 3 : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure } : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor d : Traction Control/StabiliTrak® M : Windshield Washer Fluid


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (6,1)


vi


Introduction


2 NOTES


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (1,1)


In Brief


1-1


In Brief


Instrument Panel


Instrument Panel . . . . . . . . . . . . . . 1-2


Initial Drive Information


Initial Drive Information . . . . . . . . 1-3
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 1-3
Remote Vehicle Start . . . . . . . . . 1-4
Door Locks . . . . . . . . . . . . . . . . . . . 1-5
Trunk Release . . . . . . . . . . . . . . . . 1-5
Windows . . . . . . . . . . . . . . . . . . . . . . 1-5
Seat Adjustment . . . . . . . . . . . . . . 1-6
Second Row Seats . . . . . . . . . . . 1-7
Head Restraint Adjustment . . . . 1-7
Safety Belts . . . . . . . . . . . . . . . . . . . 1-7
Passenger Sensing System . . . 1-8
Mirror Adjustment . . . . . . . . . . . . . 1-8
Steering Wheel Adjustment . . . 1-9
Interior Lighting . . . . . . . . . . . . . . . 1-9
Exterior Lighting . . . . . . . . . . . . . 1-10
Windshield Wiper/Washer . . . . 1-10
Climate Controls . . . . . . . . . . . . . 1-11


Vehicle Features


Radio(s) . . . . . . . . . . . . . . . . . . . . . 1-13
Satellite Radio . . . . . . . . . . . . . . . 1-14
Portable Audio Devices . . . . . . 1-14
Bluetooth® . . . . . . . . . . . . . . . . . . . 1-14
Steering Wheel Controls . . . . . 1-15
Cruise Control . . . . . . . . . . . . . . . 1-15
Power Outlets . . . . . . . . . . . . . . . 1-16
Universal Remote System . . . 1-16
Performance and Maintenance


Traction Control


System (TCS) . . . . . . . . . . . . . . 1-17


Electronic Stability


Control (ESC) . . . . . . . . . . . . . . 1-17
Tire Pressure Monitor . . . . . . . . 1-17
Engine Oil Life System . . . . . . 1-18
Fuel E85 (85% Ethanol) . . . . . 1-18
Driving for Better Fuel


Economy . . . . . . . . . . . . . . . . . . . 1-18


Roadside Assistance


Program . . . . . . . . . . . . . . . . . . . . 1-19
OnStar® . . . . . . . . . . . . . . . . . . . . . 1-19


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (2,1)


1-2


In Brief


Instrument Panel


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (3,1)


In Brief


1-3


Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual.


Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 ft) away from the vehicle.


A. Air Vents on page 8‑5. B. Remote Trunk Release Button.


See Trunk on page 2‑9.


C. Turn and Lane‐Change Lever.


See Turn and Lane-Change Signals on page 6‑4. Instrument Cluster on page 5‑9.


D. E. Hazard Warning Flashers on


page 6‑3.


F. Driver Information Center (DIC)


on page 5‑22.


G. Passenger Airbag Status


H. I.


J.


Indicator on page 5‑13. Infotainment on page 7‑1. Exterior Lamp Controls on page 6‑1. Instrument Panel Illumination Control on page 6‑5. Dome Lamp Control. See Dome Lamps on page 6‑5.


K. Traction Control System (TCS)


on page 9‑25 (If Equipped).


L. Steering Wheel Adjustment on


page 5‑2.


M. Cruise Control on page 9‑28. N. Hood Release. See Hood on


page 10‑4.


O. Data Link Connector (DLC) (Out


of View). See Malfunction Indicator Lamp on page 5‑14.


P. Horn on page 5‑3. Q. Steering Wheel Controls on


page 5‑2 (If Equipped). Ignition Positions on page 9‑13.


R. S. Climate Control Systems on


page 8‑1.


T. Power Outlets on page 5‑7. U. Center Console Shift Lever (If


Equipped). See Shifting Into Park on page 9‑17.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (4,1)


1-4


In Brief


Press L and hold for more than two seconds to sound the panic alarm. Press L again to cancel the panic alarm. See Keys on page 2‑1 and Remote Keyless Entry (RKE) System Operation on page 2‑2.


Remote Vehicle Start With this feature the engine can be started from outside of the vehicle. Starting the Vehicle 1. Aim the RKE transmitter at the


vehicle.


2. Press and release Q. 3.


Immediately after completing Step 2, press and hold / for at least two seconds or until the turn signal lamps flash.


Press K to unlock the driver door. Press again within five seconds to unlock all remaining doors. Press Q to lock all doors. Lock and unlock feedback can be personalized. See Vehicle Personalization on page 5‑33 for additional information. Press and hold V for approximately one second to open the trunk. Press L and release to locate the vehicle.


When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on. The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once. Canceling a Remote Start To cancel a remote start, do one of the following: . Aim the RKE transmitter at the vehicle and press and hold / until the parking lamps turn off. Turn on the hazard warning flashers. Turn the vehicle on and then back off.


See Remote Vehicle Start on page 2‑4.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (5,1)


Door Locks


Manual Locks From outside the vehicle, use the key in the door or the Remote Keyless Entry (RKE) transmitter to lock or unlock the vehicle. From the inside, pull up or push down on the manual door lock knobs. See Door Locks on page 2‑6. Power Door Locks Power door lock switches are located on the front doors near the handle. Q : Press the bottom of the switch to lock all doors. K : Press the top of the switch to unlock all doors. For more information, see: . Power Door Locks on page 2‑7. . Delayed Locking on page 2‑7.


In Brief


1-5


Windows


Trunk Release To open the trunk from the outside, press V on the RKE transmitter. See Remote Keyless Entry (RKE) System Operation on page 2‑2. Or, use the key in the lock cylinder, if equipped.


To open the trunk from the inside, press V. See Trunk on page 2‑9.


The power window switches are on the driver door armrest. Each passenger door has a switch that controls only that window. To lower the window, press and hold the front of the switch to the first position until the window is at the desired level. To raise the window, pull up and hold the front of the switch. For more information, see Power Windows on page 2‑15.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (6,1)


1-6


In Brief


Seat Adjustment


Manual Seats


To adjust the seatback, see “Manual Reclining Seatbacks” under Reclining Seatbacks on page 3‑5. Power Seats


See Power Seat Adjustment on page 3‑4. Power Reclining Seatback


To adjust a manual seat: 1. Lift the bar under the front edge


of the seat cushion to unlock the seat.


2. Slide the seat to the desired position and release the bar.


3. Try to move the seat back and


forth to be sure the seat is locked in place.


See Seat Adjustment on page 3‑3.


To adjust a power seat, if equipped: . Move the seat forward or


rearward by sliding the control forward or rearward.


. Raise or lower the front or rear of the seat cushion by moving the front or rear of the control up or down.


To adjust a power seatback, if equipped:


Tilt the top of the control rearward to recline. Tilt the top of the control forward to raise.


See “Power Reclining Seatbacks” under Reclining Seatbacks on page 3‑5.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (7,1)


Manual Lumbar


Move the lever up or down to increase or decrease lumbar support. See Lumbar Adjustment on page 3‑4.


Second Row Seats On vehicles with the flip and fold feature, the bottom seat cushions can be flipped forward and the seatback folded down to create an extended cargo area. The vehicle also has an under seat storage area. See Rear Seats (Split Folding) on page 3‑7.


Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. To achieve a comfortable seating position, change the seatback recline angle as little as necessary while keeping the seat and the head restraint height in the proper position. See Head Restraints on page 3‑2
and Seat Adjustment on page 3‑3.


In Brief


1-7


Safety Belts


Refer to the following sections for important information on how to use safety belts properly. . Safety Belts on page 3‑9. . How to Wear Safety Belts


Properly on page 3‑10. Lap-Shoulder Belt on page 3‑11. Lap Belt on page 3‑15. Lower Anchors and Tethers for Children (LATCH System) on page 3‑39.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (8,1)


1-8


In Brief


Passenger Sensing System The passenger sensing system will turn off the right front passenger frontal airbag under certain conditions. The driver airbags, seat‐ side impact airbags, and roof‐rail airbags are not affected by this. The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started.


United States


Canada


See Passenger Sensing System on page 3‑25 for important information.


Mirror Adjustment


Exterior Mirrors


Controls for the outside power mirrors are on the driver door armrest. Press the left or right side of the selector located above the control pad to adjust the driver or passenger mirror. Then press the control pad to move the mirror in the desired direction. See Power Mirrors on page 2‑13.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (9,1)


Interior Mirror Vehicles with a manual rearview mirror can be adjusted by holding the mirror in the center to move it for a clearer view behind the vehicle. Adjust the mirror to avoid glare from the headlamps behind. Pull the lever, located at the bottom of the mirror for nighttime use. Return the lever to its original position for the day position. See Manual Rearview Mirror on page 2‑14. On vehicles with an automatic dimming rearview mirror. The mirror will automatically adjust to reduce the glare of lights from behind the vehicle. See Automatic Dimming Rearview Mirror on page 2‑14.


Steering Wheel Adjustment


In Brief


1-9


Do not adjust the steering wheel while driving.


Interior Lighting


Dome Lamp The center mounted dome lamp overhead comes on when a door is opened. This lamp can also be turned on by turning the instrument panel brightness control clockwise.


Reading Lamps


The tilt wheel lever is located on the left side of the steering column. To adjust the steering wheel: 1. Hold the wheel and pull the lever


toward you.


2. Move the steering wheel up


or down.


3. Release the lever to lock the


steering wheel in place.


The vehicle has reading lamps that also act as the dome lamp. Press the button near each lamp to turn them on and off.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (10,1)


1-10


In Brief


Map Lamps The vehicle has map lamps on the rearview mirror. Push the button near each lamp to turn the map lamps on and off. For more information on interior lighting, see:


Instrument Panel Illumination Control on page 6‑5.


. Courtesy Lamps on page 6‑5.


Exterior Lighting


See: . Exterior Lamp Controls on


page 6‑1


. Daytime Running Lamps (DRL)/ Automatic Headlamp System on page 6‑2
Fog Lamps on page 6‑4


Windshield Wiper/Washer


P : Turns off the automatic headlamps and Daytime Running Lamps (DRL). Turning the headlamp control to the off position again will turn the automatic headlamps or DRL back on. For vehicles first sold in Canada, the off position only works when the vehicle is shifted into the P (Park) position. AUTO: Automatically operates the headlamps and other exterior lamps at normal brightness. ; : Turns on the parking lamps, instrument panel lights, taillamps, and license plate lamps. 2 : Turns on the headlamps and other exterior lamps. # : (If Equipped) Turns on the fog lamps.


The exterior lamp control is on the instrument panel to the left of the steering wheel.


The lever is located on the left side of the steering column.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (11,1)


8 : Single wipe, turn to 8 , then release. Several wipes, hold the band on 8 longer. 9 : Turns the windshield wipers off. 6 : Turn the band up for more frequent wipes or down for less frequent wipes. 6 : Slow wipes. ? : Fast wipes. Windshield Washer Push the paddle L at the top of the lever to spray washer fluid on the windshield. See Windshield Wiper/Washer on page 5‑3.


In Brief


1-11


Climate Controls


This vehicle may have a dual or single climate control system. The heating, cooling, defrost, defog, and ventilation can be controlled with either of these systems.


Dual Zone with Optional Heated Seat Controls


A. Fan Control B. Outside Air C. Recirculation D. Air Delivery Mode Control E. Air Conditioning


F. Driver and Passenger Heated


Seats (If Equipped)


G. Driver and Passenger Temperature Controls


H. Rear Window Defogger


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (12,1)


1-12


In Brief


A. Fan Control B. Outside Air C. Temperature Control D. Recirculation E. Air Delivery Mode Control


Single Zone


F. Air Conditioning G. Rear Window Defogger See Climate Control Systems on page 8‑1.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (13,1)


Vehicle Features Radio(s)


Radio with CD (Base)


O : Press to turn the system on and off. Turn to increase or decrease the volume.


BAND: Press to choose between FM1, FM2, AM, or XM™ (if equipped) on the Radio with CD (Base).


In Brief


1-13


f : Select radio stations. © ¨ : Seek or scan stations. 4 : For vehicles with RDS, press to display additional text information related to the current FM-RDS or XM station; or CD, MP3, or WMA song. If information is available during XM or CD playback, the song title information displays on the top line of the display and artist information displays on the bottom line. When information is not available, “No Info” displays. For more information about these and other radio features, see Infotainment on page 7‑1. Storing a Favorite Station Depending on which radio the vehicle has, radio stations are stored as either favorites or presets. For radios with a FAV button, a maximum of 36 stations can be stored as favorites using the 6 softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (14,1)


1-14


In Brief


go through up to 6 pages of favorites, each having 6 favorite stations available per page. Each page of favorites can contain any combination of AM, FM, or XM stations. For radios without a FAV button, up to 18 stations (6 FM1, 6 FM2, and 6 AM), can be programmed on the 6
numbered buttons. See Operation on page 7‑2. Setting the Clock To set the time for the Radio with CD (Base): 1. Press the H button until the hour


begins flashing on the display. Press H a second time and the minutes begin flashing on the display.


2. To increase or decrease the time, do one of the following while the hours or minutes are flashing:


Turn the f knob.


Press ¨ SEEK or © SEEK. Press \ FWD or s REV. 3. Press the H button again until the clock display stops flashing to set the currently displayed time, or wait five seconds until the flashing stops and the current time displayed is automatically set.


For detailed instructions on setting the clock for your specific audio system, see Clock on page 5‑6.


Satellite Radio SiriusXM® is a satellite radio service based in the 48 contiguous United States and 10 Canadian provinces. SiriusXM satellite radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound. A fee is required to receive the SiriusXM service.


For more information, refer to: . www.siriusxm.com or call


1-866-635-2349 (U.S.) . www.xmradio.ca or call


1-877-209-0079 (Canada)


See Satellite Radio on page 7‑8.


Portable Audio Devices This vehicle may have an auxiliary input jack, located on the audio faceplate. External devices such as iPods®, MP3 players, etc. can be connected to the auxiliary input jack using a 3.5 mm (1/8 in) input jack cable. See “Using the Auxiliary Input Jack” under Auxiliary Devices on page 7‑18.


Bluetooth® For vehicles with a Bluetooth system, it allows users with a Bluetooth-enabled cell phone to make and receive hands-free calls using the vehicle’s audio system and controls.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (15,1)


The Bluetooth-enabled cell phone must be paired with the Bluetooth system before it can be used in the vehicle. Not all phones will support all functions. For more information, see www.gm.com/bluetooth and Bluetooth on page 7‑19.


Steering Wheel Controls


If equipped, these controls are located on the right side of the steering wheel.


w : Press to go to the next radio station stored as a favorite, or the next track if a CD is playing. b / g : Press to silence the vehicle speakers only. Press again to turn the sound on. Press and hold longer than two seconds to interact with the OnStar® or Bluetooth systems, if equipped. c / x : Press to go to the previous radio station stored as a favorite, the next track if a CD is playing, reject an incoming call, or end a current call. SRCE: Press to choose between the radio, CD, and auxiliary input jack.


+ e − e : Press to increase or decrease volume. ¨ : Press to go to the next radio station while in AM, FM, or XM. Press to go to the next track or chapter while sourced to the CD. For more information, see Steering Wheel Controls on page 5‑2.


In Brief


1-15


Cruise Control


The cruise control buttons are located on the left side of the steering wheel. J : Press to turn cruise control on and off. The indicator is lit when cruise control is on. +RES: Press briefly to make the vehicle resume to a previously set speed, or press and hold to accelerate.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (16,1)


1-16


In Brief


SET−: Press to set the speed and activate cruise control or make the vehicle decelerate. [ : Press to disengage cruise control without erasing the set speed from memory. For more information, see Cruise Control on page 9‑28.


Power Outlets The vehicle has three 12‐volt outlets which can be used to plug in electrical equipment, such as a cell phone or MP3 player. On vehicles with a center console, one outlet is located inside the center floor console and two outlets are located at the front of the console bin under the instrument panel.


On vehicles without a center console, two are located under the climate controls and another outlet for the rear seat passengers is at the rear of the center front seat. Remove the cover to access and replace when not in use. See Power Outlets on page 5‑7.


Universal Remote System


This system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices. Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person assist with programming the transmitter. See Universal Remote System on page 5‑39.


Vehicles with the Universal Remote System will have these buttons located in the headliner.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (17,1)


Performance and Maintenance


Traction Control System (TCS) The vehicle may have a traction control system which limits wheel spin. The system turns on automatically every time the vehicle is started.


For vehicles with traction control, press and release the ESC OFF button Y located on the instrument panel to turn off traction control. The appropriate DIC message displays. See Ride Control System Messages on page 5‑30.


. Press and release the ESC OFF


button Y again to turn on traction control.


For more information, see Traction Control System (TCS) on page 9‑25.


Electronic Stability Control (ESC) The Electronic Stability Control system assists with directional control of the vehicle in difficult driving conditions. The system turns on automatically every time the vehicle is started.


To turn off both traction control and ESC, press and hold the ESC OFF button Y located on the instrument panel until g illuminates and the appropriate DIC messages display. See Ride Control System Messages on page 5‑30.


. Press and release the ESC OFF button Y again to turn on both systems.


For more information, see Electronic Stability Control (ESC) on page 9‑26.


In Brief


1-17


Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System (TPMS).


The low tire pressure warning light alerts to a significant loss in pressure of one of the vehicle's tires. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the Tire and Loading Information label. See Vehicle Load Limits on page 9‑9. The warning light will remain on until the tire pressure is corrected.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (18,1)


1-18


In Brief


The low tire pressure warning light may come on in cool weather when the vehicle is first started, and then turn off as the vehicle is driven. This may be an early indicator that the tire pressures are getting low and the tires need to be inflated to the proper pressure. The TPMS does not replace normal monthly tire maintenance. Maintain the correct tire pressures. See Tire Pressure Monitor System on page 10‑40.


Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and displays a DIC message when it is necessary to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.


Resetting the Oil Life System 1. Display OIL LIFE REMAINING


on the DIC.


2. Press and hold the SET/RESET button on the DIC for more than five seconds. The oil life will change to 100%.


See Engine Oil Life System on page 10‑8.


Fuel E85 (85% Ethanol) Vehicles that have a yellow fuel cap can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). See Fuel E85 (85% Ethanol) on page 9‑33. For all other vehicles, use only the unleaded gasoline described under Recommended Fuel on page 9‑31.


Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible.


. Avoid fast starts and accelerate


smoothly.


. Brake gradually and avoid


abrupt stops.


. Avoid idling the engine for long


periods of time.


. When road and weather


conditions are appropriate, use cruise control.


. Always follow posted speed


limits or drive more slowly when conditions require.


. Keep vehicle tires properly


inflated.


. Combine several trips into a


single trip.


. Replace the vehicle's tires with


the same TPC Spec number molded into the tire's sidewall near the size. Follow recommended scheduled maintenance.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (19,1)


In Brief


1-19


OnStar® If equipped, this vehicle has a comprehensive, in-vehicle system that can connect to a live Advisor for Emergency, Security, Navigation, Connection, and Diagnostic Services. See OnStar Overview on page 14‑1.


Roadside Assistance Program U.S.: 1-800-243-8872
TTY Users (U.S. Only): 1-888-889-2438
Canada: 1-800-268-6800
As the owner of a new Chevrolet, you are automatically enrolled in the Roadside Assistance program. See Roadside Assistance Program on page 13‑5.


Roadside Assistance and OnStar If the vehicle has an active OnStar subscription, contact OnStar and the vehicle’s current GPS location will be sent to an OnStar advisor to assess the situation, contact Roadside Assistance, and relay the exact location to send help.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (20,1)


1-20


In Brief


2 NOTES


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (1,1)


Keys, Doors, and Windows


Keys and Locks


Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 2-2


Remote Keyless Entry (RKE)


System Operation . . . . . . . . . . . 2-2
Remote Vehicle Start . . . . . . . . . 2-4
Door Locks . . . . . . . . . . . . . . . . . . . 2-6
Power Door Locks . . . . . . . . . . . . 2-7
Delayed Locking . . . . . . . . . . . . . . 2-7
Automatic Door Locks . . . . . . . . . 2-7
Lockout Protection . . . . . . . . . . . . 2-8
Safety Locks . . . . . . . . . . . . . . . . . . 2-8


Doors


Trunk . . . . . . . . . . . . . . . . . . . . . . . . . 2-9


Keys, Doors, and Windows


2-1


Vehicle Security


Vehicle Security . . . . . . . . . . . . . . 2-10
Vehicle Alarm System . . . . . . . 2-10
Immobilizer . . . . . . . . . . . . . . . . . . 2-11
Immobilizer Operation . . . . . . . . 2-11


Exterior Mirrors


Convex Mirrors . . . . . . . . . . . . . . 2-13
Power Mirrors . . . . . . . . . . . . . . . . 2-13
Heated Mirrors . . . . . . . . . . . . . . . 2-14


Interior Mirrors


Manual Rearview Mirror . . . . . . 2-14
Automatic Dimming Rearview


Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-14


Windows


Windows . . . . . . . . . . . . . . . . . . . . . 2-15
Power Windows . . . . . . . . . . . . . 2-15
Sun Visors . . . . . . . . . . . . . . . . . . . 2-16


Roof


Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-16


Keys and Locks


Keys


{ WARNING


Leaving children in a vehicle with the ignition key is dangerous and children or others could be seriously injured or killed. They could operate the power windows or other controls or make the vehicle move. The windows will function with the keys in the ignition, and children or others could be caught in the path of a closing window. Do not leave children in a vehicle with the ignition key.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (2,1)


2-2


Keys, Doors, and Windows


If you are locked out of your vehicle, contact Roadside Assistance. See Roadside Assistance Program on page 13‑5 for more information. With an active OnStar subscription, an OnStar Advisor may remotely unlock the vehicle. See OnStar Overview on page 14‑1.


Remote Keyless Entry (RKE) System See Radio Frequency Statement on page 13‑15 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310. If there is a decrease in the RKE operating range: . Check the distance. The


transmitter may be too far from the vehicle.


. Check the location. Other vehicles or objects may be blocking the signal.


. Check the transmitter's battery.


See “Battery Replacement” later in this section. If the transmitter is still not working correctly, see your dealer or a qualified technician for service.


Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions work up to 60 m (195 ft) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2‑2.


The key can be used for the ignition and the driver door. If the vehicle is a taxi model, the key can also be used in the trunk. If it becomes difficult to turn the key in a vehicle lock, inspect the key blade for debris. Periodically clean with a brush or pick. See your dealer if a replacement key or additional key is needed.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (3,1)


Keys, Doors, and Windows


2-3


five seconds. See Vehicle Personalization on page 5‑33 for additional information. Pressing Q may arm the content theft-deterrent system. See Vehicle Alarm System on page 2‑10. K (Unlock): Press once to unlock the driver door. If K is pressed again within five seconds, all remaining doors unlock. The interior lamps come on and stay on for 20 seconds or until the ignition is turned on. If enabled through the DIC, the parking lamps flash twice to indicate unlocking has occurred. See Vehicle Personalization on page 5‑33. Pressing K on the RKE transmitter disarms the content theft-deterrent system. See Vehicle Alarm System on page 2‑10. V (Remote Trunk Release): Press and hold for about one second to open the trunk. The transmission must be in P (Park).


L (Vehicle Locator/Panic Alarm): Press and release to locate the vehicle. The turn signal lamps flash and the horn sounds three times. Press and hold L for more than two seconds to activate the panic alarm. The turn signal lamps flash and the horn sounds repeatedly for 30 seconds. The alarm turns off when the ignition is turned to ON/RUN or L is pressed again. The ignition must be in LOCK/OFF for the panic alarm to work. Programming Transmitters to the Vehicle Only RKE transmitters programmed to the vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer. When the replacement transmitter is programmed to the vehicle, all remaining transmitters must also be programmed. Any lost or stolen transmitters no longer work once the new transmitter is programmed.


With Remote Start Shown, Without


Remote Start Similar


/ (Remote Vehicle Start): For vehicles with this feature, press to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start on page 2‑4 for additional information. Q (Lock): Press to lock all the doors. If enabled through the Driver Information Center (DIC), the parking lamps flash once to indicate locking has occurred. If enabled through the DIC, the horn chirps when Q is pressed again within


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (4,1)


2-4


Keys, Doors, and Windows


Each vehicle can have up to eight transmitters programmed to it. See your dealer to program new transmitters. Battery Replacement Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC. See “REPLACE BATTERY IN REMOTE KEY” under Key and Lock Messages on page 5‑29 for additional information. Notice: When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter.


2. Remove the old battery. Do not


3.


use a metal object. Insert the new battery, positive side facing down. Replace with a CR2032 or equivalent battery.


4. Snap the transmitter back


together.


Remote Vehicle Start Your vehicle may have a remote starting feature that allows you to start the engine from outside the vehicle. It may also start the vehicle's heating or air conditioning systems and rear window defogger. When the remote start system is active and the vehicle has an automatic climate control system, it will automatically regulate the inside temperature. Normal operation of these systems will return after the ignition key is turned to ON/RUN.


To replace the battery: 1. Separate the transmitter with a


flat, thin object, such as a flat head screwdriver.


Carefully insert the tool into the notch located along the parting line of the transmitter. Do not insert the tool too far. Stop as soon as resistance is felt. Twist the tool until the transmitter is separated.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (5,1)


Keys, Doors, and Windows


2-5


Laws in some communities may restrict the use of remote starters. For example, some laws may require a person using remote start to have the vehicle in view when doing so. Check local regulations for any requirements on remote starting of vehicles. Do not use the remote start feature if your vehicle is low on fuel. Your vehicle may run out of fuel. The RKE transmitter range may be less while the vehicle is running. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2‑2. / (Remote Start): This button will be on the RKE transmitter if you have remote start. To start the vehicle using the remote start feature: 1. Aim the transmitter at the


vehicle.


2. Press and release Q , then


immediately press and hold / for two to four seconds or until the vehicle's turn signal lamps flash. The doors will lock. When the vehicle starts, the parking lamps turn on and remain on while the engine is running.


The remote start feature provides two separate starts per ignition cycle, each with 10 minutes of engine running time, or one start with a time extension. The first start must expire or be canceled to get two separate 10-minute starts. If it is the first remote start since the vehicle has been driven, repeat the previous steps, while the engine is still running, to extend the engine running time by 10 minutes from the time you repeat the steps for remote starting. The remote start running time can be extended one time and only after the first remote start.


After entering the vehicle during a remote start, insert and turn the key to ON/RUN to drive the vehicle. The engine will shut off automatically after 10 minutes, unless a time extension has been done or the vehicle's key is inserted into the ignition switch and turned to ON/RUN. To manually shut off a remote start, do any of the following. . Aim the RKE transmitter at the


vehicle and press and release /. Turn on the hazard warning flashers. Turn the ignition switch out of LOCK/OFF and then back to LOCK/OFF.


After the engine has been started two times, or one time with a time extension, the vehicle's ignition must be turned to ON/RUN using the key before the remote start procedure can be used again. See


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (6,1)


2-6


Keys, Doors, and Windows


Ignition Positions on page 9‑13 for information regarding the ignition positions on your vehicle. The remote vehicle start feature will not operate if any of the follow occur:


The vehicle's key is in the ignition. The vehicle's hood is open. The hazard warning flashers are on. The check engine light is on. See Malfunction Indicator Lamp on page 5‑14. The engine coolant temperature is too high. The oil pressure is low. The content theft-deterrent alarm has been activated. Two remote vehicle starts, or one start with a time extension, have already been provided for that ignition cycle.


Door Locks


{ WARNING Unlocked doors can be dangerous.


. Passengers, especially


children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked. So, all passengers should wear safety belts properly and the doors should be locked whenever the vehicle is driven.


. Young children who get into


unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent


(Continued)


WARNING (Continued)


injuries or even death from heat stroke. Always lock the vehicle whenever leaving it.


. Outsiders can easily enter through an unlocked door when you slow down or stop the vehicle. Locking the doors can help prevent this from happening.


From the outside, use the key in the driver door or use the Remote Keyless Entry (RKE) transmitter to lock and unlock the vehicle. From the inside, use the manual or power door locks. To lock or unlock the driver side door from the outside with the key, insert the key and turn it clockwise or counterclockwise. To lock or unlock the door from the inside, push or pull the manual lock knob.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (7,1)


Power Door Locks


A power door lock switch is located on both front doors next to the door handle. Press the top of the switch to unlock all doors or press the bottom of the switch to lock all doors. If the vehicle has the optional content theft-deterrent system and it is armed, the power door lock switches will be disabled. You must use the RKE transmitter or the key


Keys, Doors, and Windows


2-7


to unlock the doors when the system is armed. See Vehicle Alarm System on page 2‑10.


Delayed Locking This feature allows the driver to delay the actual locking of the doors. When the driver power door lock switch is pressed with the key removed from the ignition, and the driver door open, a chime will sound three times to signal that the delayed locking system is active. When all doors have been closed, the doors will lock automatically after several seconds. If any door is opened before this, the timer will reset itself once all the doors have been closed again. Pressing the driver or passenger power door lock switch again or the RKE transmitter button will override this feature.


Personal Choice Programming The delayed locking feature can be turned on or off, using the Driver Information Center (DIC) to program this feature. See “DELAY DOOR LOCK” under Vehicle Personalization on page 5‑33.


Automatic Door Locks The doors will automatically lock when the shift lever is moved out of P (Park). The automatic door locking feature cannot be disabled. Programmable Automatic Door Unlock The vehicle is programmed so that when the shift lever is moved into P (Park) all doors will unlock. With the vehicle stopped and the engine running, door unlocking can be programmed through prompts displayed on the Driver Information Center (DIC). These prompts allow the driver to choose various unlock


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (8,1)


2-8


Keys, Doors, and Windows


settings. For programming information, see Vehicle Personalization on page 5‑33.


Lockout Protection This feature helps prevent you from locking the doors while the key is in the ignition. Always remember to take your key with you when exiting the vehicle. If the lock switch is pressed on the door that is open and the key is in the ignition, all of the doors will lock and then the open door will unlock. A chime sounds continuously until the driver door is closed.


Safety Locks Rear door security locks prevent passengers from opening the rear doors from the inside. The rear door security locks are located on the inside edge of each rear door. The rear doors must be opened to access them.


To assist in finding the lock, the vehicle has the following:


To use the lock: 1.


Insert the key into the security lock slot and turn it so the slot is in the horizontal position.


2. Close the door. 3. Do the same for the other


rear door.


To open a rear door when the security lock is on, do the following: 1. Unlock the door by using the Remote Keyless Entry (RKE) transmitter, if the vehicle has one, by pressing the power door lock switch, or by lifting the rear door manual lock.


2. Open the door from the outside. To cancel the rear door security lock: 1. Unlock the door and open it from


2.


the outside. Insert the key into the security lock slot and turn it so the slot is in the vertical position.


3. Do the same for the other


rear door.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (9,1)


Keys, Doors, and Windows


2-9


Doors


Trunk


{ WARNING


Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. If the vehicle must be driven with the liftgate, or trunk/hatch open:


. Close all of the windows. . Fully open the air outlets on


or under the instrument panel.


(Continued)


WARNING (Continued)


. Adjust the Climate Control


system to a setting that brings in only outside air and set the fan speed to the highest setting. See “Climate Control Systems” in the Index.


. If the vehicle is equipped with


a power liftgate, disable the power liftgate function. For more information about carbon monoxide, see Engine Exhaust on page 9‑19.


Trunk Release To open the trunk from the outside, press V on the RKE transmitter. See Remote Keyless Entry (RKE) System Operation on page 2‑2. Or, use the key in the lock cylinder, if equipped.


Remote Trunk Release


To open the trunk from the inside, press V. See Trunk on page 2‑9. The trunk can also be opened by lowering the rear seat and pulling the emergency trunk release handle located inside the trunk. See Rear Seats (Split Folding) on page 3‑7
and “Emergency Trunk Release Handle” following.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (10,1)


2-10


Keys, Doors, and Windows


Emergency Trunk Release Handle Notice: Do not use the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk as it could damage the handle. The emergency trunk release handle is only intended to aid a person trapped in a latched trunk, enabling them to open the trunk from the inside.


Vehicle Security This vehicle has theft-deterrent features; however, they do not make the vehicle impossible to steal.


Vehicle Alarm System Your vehicle may have the optional content theft-deterrent alarm system. To activate the theft-deterrent system: 1. Open the door. 2. Lock the door with the power


door lock switch or the Remote Keyless Entry (RKE) transmitter. If you are using the RKE transmitter, the door does not need to be open.


3. Close all doors.


There is a glow-in-the-dark trunk release handle located on the latch inside the trunk . This handle will glow following exposure to light. Pull the release handle to open the trunk from the inside.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (11,1)


Keys, Doors, and Windows


2-11


Once armed, the alarm will go off if someone tries to enter the vehicle without using the RKE transmitter or a key or turns the ignition on with an incorrect key. The horn will sound and the turn signal lamps will flash for about 30 seconds. When the alarm is armed, the trunk may be opened with the RKE transmitter. The power door lock switches are disabled and the doors remain locked. You must use your RKE transmitter or your key to unlock the doors when the system is armed. Arming with the Power Lock Switch The alarm system will arm when you use either power lock switch to lock the doors while any door is open and the key is removed from the ignition. The alarm system will not arm if the trunk is open when you use either power lock switch to lock the doors.


Arming with the RKE Transmitter The alarm system will arm when the RKE transmitter is used to lock the doors, if the key is not in the ignition. Disarming with the RKE Transmitter The alarm system will disarm when the RKE transmitter is used to unlock the doors. The first time a remote unlock command is received, three flashes will be seen and three horn chirps heard to indicate an alarm condition has occurred since last arming. Disarming with the Key The alarm system will disarm when the key is inserted in the ignition and turn it from the LOCK/OFF position.


Immobilizer See Radio Frequency Statement on page 13‑15 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310.


Immobilizer Operation This vehicle has PASS-Key® III+ (Personalized Automotive Security System) theft-deterrent system. PASS-Key III+ is a passive theft-deterrent system. The system is automatically armed when the key is removed from the ignition. The system is automatically disarmed when the key is turned to ON/RUN, ACC/ACCESSORY, or START from the LOCK/OFF position. You do not have to manually arm or disarm the system.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (12,1)


2-12


Keys, Doors, and Windows


The security light will come on if there is a problem with arming or disarming the theft-deterrent system. When the PASS-Key III+ system senses that someone is using the wrong key, it prevents the vehicle from starting. Anyone using a trial-and-error method to start the vehicle will be discouraged because of the high number of electrical key codes. If the engine does not start and the security light on the instrument panel cluster comes on when trying to start the vehicle, there may be a problem with the theft-deterrent system. Turn the ignition off and try again. If the engine still does not start, and the key appears to be undamaged, try another ignition key. At this time,


you may also want to check the fuse. See Fuses and Circuit Breakers on page 10‑27. If the engine still does not start with the other key, the vehicle needs service. If the vehicle does start, the first key may be faulty. See your dealer who can service the PASS-Key III+ to have a new key made. It is possible for the PASS-Key III+ decoder to learn the transponder value of a new or replacement key. Up to 10 keys may be programmed for the vehicle. The following procedure is for programming additional keys only. If all the currently programmed keys are lost or do not operate, you must see your dealer or a locksmith who can service PASS-Key III+ to have keys made and programmed to the system.


See your dealer or a locksmith who can service PASS-Key III+ to get a new key blank cut exactly as the ignition key that operates the system. To program the new additional key:


1. Verify that the new key has a 1


2.


stamped on it. Insert the original, already programmed key in the ignition and start the engine. If the engine will not start, see your dealer for service.


3. After the engine has started, turn


the key to LOCK/OFF, and remove the key.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (13,1)


4.


Insert the new key to be programmed and turn it to the ON/RUN position within five seconds of turning the ignition to the LOCK/OFF position in Step 3. The security light will turn off once the key has been programmed.


5. Repeat Steps 1 through 4 if


additional keys are to be programmed.


If you lose or damage your PASS-Key III+ key, see your dealer or a locksmith who can service PASS-Key III+ to have a new key made. Do not leave the key or device that disarms or deactivates the theft-deterrent system in the vehicle.


Keys, Doors, and Windows


2-13


Exterior Mirrors


Power Mirrors


Convex Mirrors


{ WARNING


A convex mirror can make things, like other vehicles, look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on the right. Check the inside mirror or glance over your shoulder before changing lanes.


The passenger side mirror is convex shaped. A convex mirror's surface is curved so more can be seen from the driver seat.


Controls for the outside power mirrors are located on the driver door armrest. 1. Press the left or right side of the


selector switch located above the control pad, to select the driver or passenger mirror.


Chevrolet Impala Owner Manual - 2013 - crc - 8/27/12


Black plate (14,1)


2-14


Keys, Doors, and Windows


2. Press one of the four buttons located on the control pad to move the mirror to the desired direction.


3. Adjust each outside mirror so


that a little of the vehicle and the area behind it can be seen. Keep the selector switch in the center position when not adjusting either outside mirror.


Heated Mirrors For vehicles with heated mirrors: = (Rear Window Defogger): Press to heat the outside rearview mirrors. See “Rear Window Defogger” under Climate Control Systems on page 8‑1 for more information.


Interior Mirrors


Manual Rearview Mirror

Loading...
x
