2012 Toyota Matrix Owners Manual

step

On

Off

60 seconds

30 seconds

120 seconds

On

On

On On

Off

Off

Off Off

485

6-2. Customization

Item

Function

Default setting

Customized

setting

Door lock (vehicles with power door lock system) (→P. 31)

Driver's door unlocked in one step, all doors unlocked in two

steps

Off

On

On

Unlocking using a key

Opening driver's door unlocks all doors Shifting gears to P unlocks all doors. (vehi- cles with an automatic transmission) Shifting gears to posi- tion other than P locks all doors. (vehicles with an automatic transmis- sion)

All doors

unlocked in one

step

On

Off

Off

Time elapsed before lights turn off

15 seconds

7.5 seconds

30 seconds

Illumination (→P. 296)

Seat belt reminder (→P. 416)

Operation when the doors are unlocked (vehicles with power door lock system) Operation after the engine switch is turned to the “LOCK” position Vehicle speed linked seat belt reminder buzzer

On

On

On

Off

Off

Off

486

6-3. Initialization Items to initialize

The following items must be initialized for normal system operation in cases such as after maintenance is performed on the vehicle.

Item

Maintenance data (U.S.A. only)

Tire pressure warning system (if equipped)

When to initialize

Reference

After the maintenance is performed

P. 337

• When rotating the tires on vehicles differing with front and rear tire infla- tion pressure. • When changing the tire size.

P. 366

487

6-3. Initialization

488

Reporting safety defects for U.S. owners

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA can- not become involved in individual problems between you, your dealer, or Toyota Motor Sales, U.S.A., Inc. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://www.safercar.gov.

490

Seat belt instructions for Canadian owners (in French)

The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English.

Utilisation correcte des ceintures de sécurité

● Déroulez la sangle diagonale de telle sorte qu'elle passe bien sur l'épaule, sans pour autant être en contact avec le cou ou glisser de l'épaule.

● Placez la sangle abdominale le plus bas possible sur les hanches.

● Réglez la position du dossier de siège. Asseyez-vous le dos le plus droit possible et calez- vous bien dans le siège.

● Ne vrillez pas la ceinture de

sécurité.

491

Entretien et soin

■ Ceintures de sécurité

Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède. Vérifiez régulièrement que les ceintures ne sont pas effilochées, entaillées ou exagérément usées.

ATTENTION

■ Détérioration et usure des ceintures de sécurité

Inspectez les ceintures de sécurité périodiquement. Contrôlez qu'elles ne sont pas entaillées, effilochées et que leurs ancrages ne sont pas desserrés. Ne pas utiliser une ceinture de sécurité défectueuse avant qu'elle ne soit remplacée. Une ceinture de sécurité défectueuse n'apporte aucune garantie de protection de l'occupant en cas d'accident.

492

SRS airbag instructions for Canadian owners (in French)

The following is a French explanation of SRS airbag instructions

extracted from the SRS airbag section in this manual.

See the SRS airbag section for more detailed SRS airbag instructions in English.

Sacs de sécurité gonflables frontaux Sacs de sécurité gonflables conducteur et passager avant Participent à la protection de la tête et du thorax du conducteur et du passager contre les chocs avec les éléments de l'habitacle. Sacs de sécurité gonflables latéraux et rideau Sacs de sécurité gonflables latéraux Participent à la protection du thorax des occupants des sièges avant. Sacs de sécurité gonflables rideau Participent principalement à la protection de la tête des occupants assis dans les sièges des places extérieures.

493

Composition du système de sacs de sécurité gonflables

Capteurs de sacs de sécurité gonflables frontaux Système de classification de l'occupant du siège passager avant (ECU et capteurs) Sac de sécurité gonflable passager avant Sacs de sécurité gonflables latéraux Prétensionneurs de ceintures de sécurité et limiteurs de force Capteurs de sacs de sécurité gonflables latéraux et rideau Sacs de sécurité gonflables rideau

494

Témoins indicateurs “AIR BAG ON” et “AIR BAG OFF” Témoin d'alerte SRS Contacteur de boucle de ceinture sécurité de passager avant Boîtier électronique de sacs de sécurité gonflables Capteurs de sécurité gonflables rideau Sac de sécurité gonflable conducteur Contacteur de boucle de ceinture sécurité conducteur Capteur de position du siège conducteur

sacs de

de

Votre véhicule est équipé de ADVANCED AIRBAGS conçus selon les normes de sécurité américaines applicables aux véhicules à moteur (FMVSS208). Le boîtier électronique (ECU) des sacs de sécurité gonflables régule le déploiement de ces derniers sur la base des informations qu'il reçoit des capteurs, etc. indiqués ci-dessus dans le schéma les composants du système. Parmi ces informations figurent la gravité du choc et l'occupation du véhicule par les passagers. Le déploiement rapide des airbags est obtenu au moyen d'une réaction chimique dans les dispositifs pyrotechniques, qui produit un gaz inoffensif permettant d'amortir le mouvement des occupants.

illustrant

495

ATTENTION

■ Précautions avec les sacs de sécurité gonflables SRS

Respectez les précautions suivantes concernant les airbags. À défaut, des blessures graves, voire mortelles, pourraient s'ensuivre. ●Le conducteur et tous les passagers à bord du véhicule doivent porter leur

ceinture de sécurité correctement. Les sacs de sécurité gonflables SRS sont des dispositifs de protection complémentaires aux ceintures de sécurité.

●L'airbag SRS conducteur se déploie avec une violence considérable, qui peut être très dangereuse voire mortelle si le conducteur se trouve très près de l’airbag. L’autorité fédérale chargée de la sécurité routière aux États-Unis, la NHTSA (National Highway Traffic Safety Administration) conseille:

Sachant que la zone de danger pour l’airbag conducteur se trouve dans les premiers 2 à 3 in. (50 à 75 mm) de déploiement, vous disposez d’une marge de sécurité confortable en vous plaçant à 10 in. (250 mm) de votre airbag conducteur. Cette distance est à mesurer entre le moyeu du volant et le sternum. Si vous êtes assis à moins de 10 in. (250 mm), vous pouvez changer votre position de conduite de différentes façons:

• Reculez votre siège le plus possible, de manière à pouvoir encore

atteindre confortablement les pédales.

• Inclinez légèrement le dossier du siège.

Bien que les véhicules puissent être différents les uns des autres, la plupart des conducteurs peuvent s'asseoir à une distance de 10 in. (250 mm), même avec le siège conducteur complètement avancé, en inclinant simplement un peu le dossier du siège. Si vous avez des difficultés à voir la route après avoir incliné votre siège, utilisez un coussin ferme et antidérapant pour vous rehausser ou, si votre véhicule est équipé du réglage en hauteur du siège, remontez-le.

• Si votre volant est réglable, inclinez-le vers le bas. Cela a pour effet d'orienter l’airbag en direction de votre poitrine plutôt que de votre tête et de votre cou.

Réglez votre siège selon ces recommandations de la NHTSA, tout en conservant le contrôle des pédales, du volant et la vue des commandes du tableau de bord.

496

ATTENTION

■ Précautions avec les sacs de sécurité gonflables SRS

●Si vous attachez une rallonge de ceinture de sécurité aux boucles de ceinture de sécurité avant, mais pas au pêne de la ceinture de sécurité, les airbags SRS frontaux détectent que le conducteur et le passager avant ont attaché leur ceinture de sécurité, alors même que ce n'est pas le cas. Dans ce cas, il se peut que les airbags SRS frontaux pas correctement en cas d'accident, et vous risquez d'être tué ou grièvement blessé. Veillez à porter la ceinture de sécurité avec la rallonge de ceinture de sécurité.

déploient

ne

se

●L’airbag SRS passager avant se déploie également avec une violence considérable, qui peut être très dangereuse voire mortelle si le passager avant se trouve très près de l’airbag. Éloignez le siège passager avant au maximum de l’airbag et réglez le dossier de siège de sorte à être assis bien droit dans le siège.

●Les nourrissons et les enfants qui ne sont pas correctement assis et/ou protégés peuvent être grièvement blessés ou tués par le déploiement d'un airbag. Installez dans un siège de sécurité enfant les enfants trop jeunes pour pouvoir utiliser la ceinture de sécurité. Toyota recommande vivement que les nourrissons et les jeunes enfants soient installés sur le siège arrière du véhicule et convenablement attachés. Les sièges arrière sont les plus sûrs pour les nourrissons et les enfants.

●N’installez jamais un siège de sécurité enfant type dos à la route sur le siège passager avant, même si le témoin indicateur “AIR BAG OFF” est allumé. En cas d'accident, le déploiement de l’airbag passager avant est si rapide et violent que l'enfant risquerait d'être blessé grièvement, voire mortellement, si le siège de sécurité enfant type dos à la route est installé sur le siège passager avant.

497

ATTENTION

■ Précautions avec les sacs de sécurité gonflables SRS

●Ne pas s'asseoir sur le bord du siège et ne pas s'appuyer contre la planche de bord.

●Ne laissez pas un enfant rester debout devant l’airbag SRS passager avant ou bien s'asseoir sur les genoux du passager avant.

●Ne conduisez pas le véhicule lorsque le conducteur ou le passager avant a quelque chose de posé sur les genoux. ●Ne vous appuyez pas contre la porte, contre le rail latéral de toit ou contre les montants avant, latéraux et arrière.

●Interdisez à quiconque de s'agenouiller sur le siège passager en appui contre la porte ou de sortir la tête ou les mains à l'extérieur du véhicule.

498

ATTENTION

■ Précautions avec les sacs de sécurité gonflables SRS

●Ne fixez ni ne posez aucun objet sur la la garniture

planche de bord ou centrale du volant de direction. Au déploiement des sacs de sécurité gonflables SRS conducteur et passager avant, risque de se transformer en projectile.

tout objet

●Ne rien fixer aux portes, à la vitre du pare-brise, aux vitres latérales, aux montants avant et arrière, au rail latéral de toit et à la poignée de maintien.

●Ne

suspendez aux

crochets à vêtements aucun cintre nu ni aucun objet dur. En cas de déploiement des airbag rideau SRS, tous ces objets pourraient se transformer en projectiles et vous causer des blessures graves, voire mortelles.

●N'utilisez aucun accessoire de siège venant recouvrir les zones de déploiement des airbags SRS latéraux, car il risquerait d'en gêner le déploiement.

●Ne pas faire subir de chocs ou de pressions excessives aux parties

renfermant les composants des sacs de sécurité gonflables SRS ((cid:111)P. 494). En effet, cela pourrait entraîner un mauvais fonctionnement des sacs de sécurité gonflables SRS.

●Ne touchez aucun composant du système immédiatement après le déclenchement (gonflage) des airbags SRS, car ils sont alors encore très chauds.

499

ATTENTION

■ Précautions avec les sacs de sécurité gonflables SRS

●Si vous avez des difficultés à respirer après le déploiement de l’airbag SRS, ouvrez une porte ou une vitre pour faire entrer de l'air frais, ou bien descendez du véhicule si cela ne présente pas de danger. Essuyez tout résidu dès que possible afin d'éviter d'éventuelles irritations de la peau.

●Si les parties renfermant les airbags SRS, telles que la garniture du volant et les garnitures de montants avant et arrière, apparaissent abîmées ou craquelées, faites-les remplacer par votre concessionnaire Toyota.

■ Modification et mise au rebut des éléments du système de sacs de

sécurité gonflables SRS

Consultez impérativement votre concessionnaire Toyota si vous avez besoin d'intervenir sur votre véhicule ou de procéder à l'une des modifications suivantes. Les airbags SRS risquent de ne pas fonctionner correctement ou de se déployer (gonfler) accidentellement, provoquant ainsi des blessures graves, voire mortelles. ●Installation, dépose, démontage et réparations des airbags SRS. ●Réparations, modifications, démontage ou remplacement du volant, du tableau de bord, de la planche de bord, des sièges ou de leur garnissage, des montants avant, latéraux et arrière ou du rail latéral de toit.

●Réparations ou modifications des ailes avant, du bouclier avant ou des

flancs de l'habitacle.

●Installation de chasse-neige, de treuils, etc., sur la calandre (pare-buffle,

pare-kangourou, etc.).

●Modification du système de suspension du véhicule. ●Installation d'appareils électroniques, tels qu'un radioémetteur/récepteur

ou d'un lecteur CD.

●Aménagements du véhicule visant à permettre sa conduite par une

personne atteinte d'un handicap physique.

500

What to do if... What to do if...

A tire punctures

P. 424 If you have a flat tire

The engine does not start

P. 438 If the engine will not start P. 68 Engine immobilizer system P. 441 If the battery is discharged

The shift lever cannot be moved out

P. 439 If the shift lever cannot be shifted

from P

The engine coolant temperature gauge enters the red zone

Steam can be seen coming from under the hood

P. 446 If your vehicle overheats

The key is lost

P. 440 If you lose your keys

The battery runs out

P. 441 If the battery is discharged

The doors cannot be locked

P. 31 Doors

The vehicle is stuck in mud or sand

P. 449 If the vehicle becomes stuck

A warning light or indicator light comes on

P. 413 If a warning light turns on or a

warning buzzer sounds...

514

What to do if...

■Warning lights

or

or

or

Brake system warning light

P. 413

Charging system warn- ing light P. 414

Low engine oil pressure warning light P. 414

Malfunction indicator lamp

P. 414

SRS warning light

P. 414

ABS warning light

P. 414

Electric power steering sys- tem warning light P. 414

Active Torque Control 4WD sys- tem warning light P. 414

Maintenance required reminder light P. 416

Tire pressure warning light P. 416

Low windshield washer fluid level warning light

P. 416

Slip indicator light

P. 414

Cruise control indicator light* P. 414

Open door warning light P. 416

Low fuel level warning light P. 416

Driver’s seat belt reminder light

P. 416

Front passenger’s seat belt reminder light P. 416

*: The light flashes to indicate a malfunction.

515

GAS STATION INFORMATION

Auxiliary catch lever

P. 346

Fuel filler door

P. 64

Hood lock release lever

Fuel filler door opener

Tire inflation pressure

P. 346

P. 64

P. 467

Fuel tank capacity (Reference) Fuel type Cold tire inflation pressure

13.2 gal. (50 L, 10.9 Imp. gal.)

Unleaded gasoline only

P. 65, 458
P. 467

1.8 L 4-cylinder (2ZR-FE) engine 2.4 L 4-cylinder (2AZ-FE) engine

Engine oil capacity (Drain and refill ⎯ reference)

Engine oil type

With filter Without filter

qt. (L, Imp. qt.) 4.4 (4.2, 3.7) 4.1 (3.9, 3.4)

With filter Without filter

4.0 (3.8, 3.3) 3.8 (3.6, 3.2)

P. 459

516

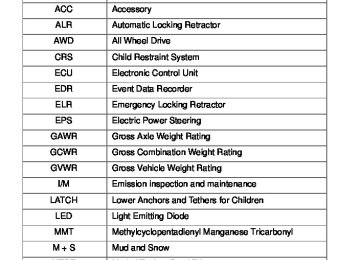

Abbreviation list Abbreviation/Acronym list

ABBREVIATIONS MEANING

2WD 4WD A/C ABS ACC ALR AWD CRS ECU EDR ELR EPS GAWR GCWR GVWR

I/M

LATCH LED MMT M + S MTBE OBD SRS TIN TPMS TRAC TWR

502

2 Wheel Drive 4 Wheel Drive Air Conditioning Anti-lock Brake System Accessory Automatic Locking Retractor All Wheel Drive Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Gross Axle Weight Rating Gross Combination Weight Rating Gross Vehicle Weight Rating Emission inspection and maintenance Lower Anchors and Tethers for Children Light Emitting Diode Methylcyclopentadienyl Manganese Tricarbonyl Mud and Snow Methyl Tertiary Butyl Ether On Board Diagnostics Supplemental Restraint System Tire Identification Number Tire Pressure Warning System Traction Control Trailer Weight Rating

Abbreviation list

ABBREVIATIONS MEANING

VIN VSC

Vehicle Identification Number Vehicle Stability Control

503

For your information

Main Owner’s Manual

Please note that this manual covers all models and all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that these parts are not covered by Toyota warranty and that Toyota is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

18

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle may affect electronic systems such as the multi-port fuel injection system/sequen- tial multi-port fuel injection system, cruise control system, anti-lock brake system, SRS airbag system or seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instruc- tions regarding installation.

Vehicle control and operation data recording

Your Toyota is equipped with sophisticated computers that record certain information about your vehicle’s operation, such as: • Engine speed • Accelerator status • Brake status • Vehicle speed • Shift position (vehicles with an automatic transmission) The data recorded varies according to the grade level and options the vehi- cle is equipped with. The computers do not record conversations, sound or pictures. ● Data usage Toyota may use the data recorded in these computers to diagnose malfunc- tions, conduct research and development, and improve quality. Toyota will not disclose the recorded data to a third party except: • With the consent of the vehicle owner or with the consent of the lessee if

•

the vehicle is leased In response to an official request by the police, a court of law or a govern- ment agency

• For research purposes where the data is not tied to a specific vehicle or

vehicle owner

19

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main pur- pose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating; • Whether or not the driver and passenger safety belts were buckled/fas-

tened;

pedal; and,

• How far (if at all) the driver was depressing the accelerator and/or brake

• How fast the vehicle was traveling. These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ- ation occurs; no data are recorded by the EDR under normal driving condi- tions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

20

● Disclosure of the EDR data Toyota will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’s owner (or the lessee for a leased vehicle)

•

is obtained In response to an official request by the police, a court of law or a govern- ment agency

• For use by Toyota in a law suit However, if necessary, Toyota may: • Use the data for research on vehicle safety performance • Disclose the data to a third party for research purposes without disclosing

information about the specific vehicle or vehicle owner

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These compo- nents may include airbags, seat belt pretensioners, and wireless remote con- trol batteries.

21

CAUTION

■General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury. Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. Driver distraction: Always give your full attention to driving. Anything that dis- tracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, or other features of the vehicle. In addi- tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

22

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause death or injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol The symbol of a circle with a slash through means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices. Indicates the outcome of an operation (e.g. a lid opens).

23

24

TABLE OF CONTENTS

1 Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

2 When driving

Driving, stopping and safe-driving information.

3 Interior fea-

tures

Air conditioning and audio systems, as well as other in- terior features for a comfortable driving experience.

4 Maintenance

and care

Cleaning and protecting your vehicle, performing do-it- yourself maintenance, and maintenance information.

5 When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

6 Vehicle

specifications

Detailed vehicle information.

7 For owners

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual.

1-1. Key information Keys

The following keys are provided with the vehicle.

Vehicles without wireless remote control Keys Key number plate

Vehicles with wireless remote control

Keys Operating the wireless remote control function (→P. 28) Key number plate

■Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 440)

■When riding in an aircraft

When bringing a wireless remote control key onto an aircraft, make sure you do not press any buttons on the wireless remote control key while inside the aircraft cabin. If you are carrying the wireless remote control key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Press- ing a button may cause the wireless remote control key to emit radio waves that could interfere with the operation of the aircraft.

26

1-1. Key information

NOTICE

■To prevent key damage

●Do not subject the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

●Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

●Do not disassemble the key.

27

1-2. Opening, closing and locking the doors Wireless remote control∗

The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle.

Locks all doors Sounds an alarm (press and hold) Unlocks doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

■Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

■Door lock buzzer

If a door is not fully closed, a buzzer sounds continuously for 10 seconds if an attempt to lock the door is made. Fully close the door to stop the buzzer, and lock the vehicle once more.

■Panic mode

is pressed for longer When than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, press any button on the wireless remote control.

28

∗: If equipped

1

1-2. Opening, closing and locking the doors

■Key battery depletion

If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 383)

■Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■Conditions affecting operation

The wireless remote control function may not operate normally in the follow- ing situations. ●Near a TV tower, radio station, electric power plant, airport or other facil-

ity that generates strong radio waves

●When carrying a portable radio, cellular phone or other wireless commu-

nication devices

●When multiple wireless keys are in the vicinity ●When the wireless key has come into contact with, or is covered by, a

metallic object

●When a wireless key (that emits radio waves) is being used nearby ●When the wireless key has been left near an electrical appliance such as

a personal computer

●When the wireless key battery is depleted ●If window tint with a metallic content or metallic objects are attached to

the rear window

■Customization that can be configured at Toyota dealer

Settings (e.g. operation signal) can be changed. (Customizable features →P. 485)

29

1-2. Opening, closing and locking the doors

■Certification for wireless remote control

For vehicles sold in the U.S.A.

NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For vehicles sold in Canada

NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.

30

1-2. Opening, closing and locking the doors Doors

The vehicle can be locked and unlocked using the wireless remote control, key or door lock switch. ■ Wireless remote control (if equipped)

→P. 28

■ Key

Locks the door Unlocks the door Vehicles with power door lock system: Turning the key locks and unlocks all doors. In the driver’s door lock, turning the key once unlocks the driver’s door. Turning the key again within 3 seconds unlocks the other doors.

Locks all doors Unlocks all doors

■ Door lock switch (if equipped)

31

1-2. Opening, closing and locking the doors

■ Inside lock button

Rear door child-protector lock

Unlocks the door Locks the door The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

The door cannot be opened from inside the vehicle when the locks are set. Unlock Lock These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

32

1-2. Opening, closing and locking the doors

Automatic door locking and unlocking systems (vehicles with power door lock system)

The following functions can be set or cancelled:

Function

Shift position linked door locking function* Shift position linked door unlocking func- tion*

Operation

Shifting the shift lever out of P locks all doors.

Shifting the shift lever to P unlocks all doors.

All doors are unlocked when the driver's door is opened within 10 seconds after turning the engine switch to “ACC” or “LOCK”.

Driver's door linked door unlocking function *: Vehicles with an automatic transmission only The shift position linked door locking function works when all doors are closed.

33

1-2. Opening, closing and locking the doors

■ Setting and canceling the functions

To switch between set and canceled, follow the procedure below:

STEP 1

Close all the doors and switch the engine switch to the “ON” position. (Perform step 2 within 10 seconds.)

STEP 2

Shift the shift lever to P or N, and press and hold the driver's door lock switch ( ) for approximately 5 seconds and then release.

or

to

corresponding

The shift lever and switch posi- tions the desired function to be set are shown as follows. Use the same procedure to can- cel the function.

Function

Shift lever position

Switch position

Shift position linked door lock- ing function* Shift position linked door unlocking function* Driver's door linked door unlock- ing function *: Vehicles with an automatic transmission only When the setting or canceling operation is complete, all doors are locked and then unlocked.

34

1-2. Opening, closing and locking the doors

■When all the doors are locked with the wireless remote control or key

The doors cannot be unlocked with the door lock switch. The door lock switch can be reset by unlocking all the doors with the wire- less remote control or key.

■The doors cannot be locked when

The key is in the engine switch and either of the front door is open.

■Customization that can be configured at Toyota dealer

Settings (e.g. unlocking function using a key) can be changed. (Customizable features →P. 485)

CAUTION

■To prevent an accident

Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. ●Always use a seat belt. ●Always lock the doors. ●Ensure that all doors are properly closed. ●Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehi- cle and it may result in serious injury or death. Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked position.

●Set the rear door child protector locks when children are seated in the rear

seat.

35

1-2. Opening, closing and locking the doors Back door

The back door can be locked and unlocked using the wireless remote control or key.

Wireless remote control (if equipped) →P. 28
Key

Locks the back door Unlocks the back door Opens the back door

■Back door handle

Use the back door handle when closing.

36

1

1-2. Opening, closing and locking the doors

CAUTION

■Caution while driving

●Keep the back door closed while driving.

If the back door is left open, it may hit nearby objects while driving or lug- gage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard. Make sure to close the back door before driving.

●Before driving the vehicle, make sure that the back door is fully closed. If the back door is not fully closed, it may open unexpectedly while driving, causing an accident.

●Never let anyone sit in the luggage compartment. In the event of sudden

braking or a collision, they are susceptible to death or serious injury.

■When children are in the vehicle Observe the following precautions. Failure to do so may result in death or serious injury. ●Do not leave children alone in the luggage compartment.

If a child is accidentally locked in the luggage compartment, they could have heat exhaustion.

●Do not allow a child to open or close the back door.

Doing so may cause the back door to operate unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing back door, which may result in death or serious injury of the child.

■Operating the back door

Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in seri- ous injury. ●Remove any heavy loads, such as snow and ice, from the back door before opening it. Failure to do so may cause the back door to fall closed again after it is opened.

37

1-2. Opening, closing and locking the doors

CAUTION

●When opening or closing the back door, thoroughly check to make sure

the surrounding area is safe.

●If anyone is in the vicinity, make sure they are safe and let them know that

the back door is about to open or close.

●Use caution when opening or closing the back door in windy weather as it

may move abruptly in strong wind.

●The back door may fall if it is not opened fully. It is more difficult to open or close the back door on an incline than on a level surface, so beware of the back door unexpectedly opening or closing by itself. Make sure that the back door is fully open and secure before using the luggage compartment. ●When closing the back door, take extra care to prevent your fingers etc. from being caught.

●When closing the back door, make sure to press it lightly on its outer surface. If the back door handle is used to fully close the back door, it may result in hands or arms being caught.

●Do not pull on the back door damper stay to close the back door, and do

not hang on the back door damper stay. Doing so may cause hands to be caught or the back door damper stay to break, causing an accident.

●Do not attach any accessories other than genuine Toyota parts to the back door. Such additional weight on the back door may cause the back door to fall closed again after it is opened.

38

1

1-2. Opening, closing and locking the doors

NOTICE

■Back door damper stays

The back door is equipped with damper stays that hold the back door in place. Observe the following precautions. Failure to do so may cause damage to the back door damper stay, resulting in malfunction.

●Do not attach any foreign objects, such as stickers, plastic sheets, or adhesives to the damper stay rod.

●Do not touch the damper stay rod with

gloves or other fabric items.

●Do not attach any accessories other than genuine Toyota parts to the back door.

●Do not place your hand on the damper

stay or apply lateral forces to it.

39

1-3. Adjustable components (seats, mirrors, steering wheel) Front seats

Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (driver’s side only)

Folding down the front passenger's seat (vehicles with seatback table)

STEP 1

Move the seat rearward.

40

STEP 2

STEP 3

Active head restraints

1-3. Adjustable components (seats, mirrors, steering wheel)

Lower the head restraint and fix the seatback at the most upright lock position.

Pull up either seatback lock release knob beside the seat- back and the seatback down.

fold

When the occupant’s back presses against the seatback during a rear-end collision, the head restraint moves slightly for- ward to help reduce the risk of whiplash on the seat occupant.

41

1-3. Adjustable components (seats, mirrors, steering wheel)

■Active head restraints

Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may appear the head restraint inner structure. These do not indicate problems.

Inner structure

During rear-end collision

CAUTION

■Seat adjustment

●Be careful that the seat does not hit passengers or luggage. ●Do not recline the seat more than necessary when the vehicle is in motion

to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

●After adjusting the seat, make sure that the seat is locked in position.

42

1

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■After returning the seatback to the upright position (vehicles with seat-

back table) Make sure the seatback is securely locked by pressing forward and rear- ward on the top of the seatback. Failure to do so will prevent seat belt from operating properly.

■Caution while driving (vehicles with seatback table) Do not sit on or place anything on the folded seatback.

43

1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats

The seatbacks of the rear seats can be folded down.

Stow the rear outside seat belt buckles and move the rear center seat belt buckle as shown.

Lower the head restraints to the lowest position.

Fold the seatback down while pulling lock release knob.

the seatback

STEP 1

STEP 2

STEP 3

44

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■After returning the seatback to the upright position

Observe the following precautions. Failure to do so may result in death or serious injury.

●Make sure

that

the seatback

is securely locked in position by lightly rocking it back and forth. If the seatback is not securely locked, the red marking will be visible on the seatback lock release knob. Make sure that the red marking is not visi- ble.

●Check that the seat belts are not twisted or caught in the seatback.

■Caution while driving

Do not sit on the folded seatback.

45

1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints

Head restraints are provided for all seats.

Up Pull the head restraints up. Down Push the head restraint down while pushing the lock release button.

Lock release button

■Removing the head restraints

Pull the head restraint up while pushing the lock release button.

■Installing the head restraints

Align the head restraint with the installa- tion holes and push it down while press- ing the lock release button.

46

1-3. Adjustable components (seats, mirrors, steering wheel)

■Adjusting the height of the head restraints

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

■Adjusting the rear center seat head restraint

Always raise the head restraint one level from the stowed position when using.

CAUTION

■Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. ●Use the head restraints designed for each respective seat. ●Adjust the head restraints to the correct position at all times. ●After adjusting the head restraints, push down on them and make sure

they are locked in position.

●Do not drive with the head restraints removed.

47

1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts

Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. ■ Correct use of the seat belts

● Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoul- der.

● Position the lap belt as low

as possible over the hips.

● Adjust the position of the seatback. Sit up straight and well back in the seat. ● Do not twist the seat belt.

■ Fastening and releasing the seat belt

Fastening the belt Push the tab into the buckle until a clicking sound is heard. Releasing the belt Press the release button.

Release button

48

1

1-3. Adjustable components (seats, mirrors, steering wheel)

■ Adjusting the height of the belt (front seats)

Push the seat belt shoulder anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed.

Seat belt pretensioners (front seats)

The pretensioner helps the seat belt to quickly restrain the occu- pant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal collision.

The pretensioner may not acti- vate in the event of a minor frontal impact, a side impact or a rear impact.

■Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

■Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (→P. 94)

49

1-3. Adjustable components (seats, mirrors, steering wheel)

■Pregnant women

Obtain medical advice and wear the seat belt in the proper way. (→P. 48) Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occu- pants. Extend the shoulder belt com- pletely over the shoulder and position the belt across the chest. Avoid belt contact over the rounding of the abdominal area. If the seat belt is not worn properly, not only a pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

■People suffering illness

Obtain medical advice and wear the seat belt in the proper way.

■Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size. ●Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle's seat belt. (→P. 90) ●When the child becomes large enough to properly wear the vehicle's seat

belt, follow the instructions on P. 48 regarding seat belt usage. ■Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent colli- sions.

■Seat belt extender

If your seat belts cannot be fastened securely because long enough, a personalized seat belt extender is available from your Toyota dealer free of charge.

they are not

50

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failing to do so may cause death or severe injury. ■Wearing a seat belt

●Ensure that all passengers wear a seat belt. ●Always wear a seat belt properly. ●Each seat belt should be used by one person only. Do not use a seat belt

for more than one person at once, including children.

●Toyota recommends that children be seated in the rear seat and always

use a seat belt and/or an appropriate child restraint system.

●Do not recline the seat any more than necessary to achieve a proper seat- ing position. The seat belt is most effective when the occupants are sitting up straight and well back in the seats.

●Do not wear the shoulder belt under your arm. ●Always wear your seat belt low and snug across your hips.

■Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident. (→P. 49)

■Child restraint lock function belt

Do not allow children to play with the child restraint lock function belt. If the belt becomes twisted around a child’s neck, it will not be possible to pull the belt out leading to choking or other serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.

51

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■Seat belt pretensioners

●Do not place anything, such as a cushion, on the front passenger's seat. Doing so will disperse the passenger's weight, which prevents the sensor from detecting the passenger's weight properly. As a result, the seat belt pretensioner for the front passenger's seat may not activate in the event of a collision.

●If the pretensioner has activated, the SRS warning light will come on. In that case, the seat belt cannot be used again and must be replaced at your Toyota dealer.

■Seat belt damage and wear

●Do not damage the seat belts by allowing the belt, plate, or buckle to be

jammed in the door.

●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from death or serious injury.

●Ensure that the belt and tab are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Toyota dealer.

●Replace the seat assembly, including the belts, if your vehicle has been

involved in a serious accident, even if there is no obvious damage.

●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by your Toyota dealer. Inappropriate handling of the pretensioner may prevent it from operating properly resulting in death or serious injury.

■Using a seat belt extender

●Do not wear the seat belt extender if you can fasten the seat belt without

the extender.

●Do not use the seat belt extender when installing a child restraint system because the belt will not securely hold the child restraint system, increas- ing the risk of death or serious injury in the event of an accident.

●The personalized extender may not be safe on another vehicle, when used by another person, or at a different seating position other than the one originally intended.

52

1-3. Adjustable components (seats, mirrors, steering wheel)

NOTICE

■When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.

53

1-3. Adjustable components (seats, mirrors, steering wheel) Steering wheel

The steering wheel can be adjusted to a comfortable position.

STEP 1

STEP 2

Hold the steering wheel and press the lever down.

Adjust to the ideal position by moving the steering wheel horizontally and vertically.

After adjustment, pull the lever up the steering wheel.

to secure

CAUTION

■Caution while driving

Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and cause an acci- dent, resulting in death or serious injury.

■After adjusting the steering wheel

Make sure that the steering wheel is securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an accident and resulting in death or serious injury.

54

1-3. Adjustable components (seats, mirrors, steering wheel) Anti-glare inside rear view mirror
