Download PDF Manual

remind you


the reminder


light and buzzer


This buckle up the driver’s seat belt. Once the ignition key is turned to “ON” or “START”, light and buzzer come on if the driver’s seat belt is not fastened. Unless the belt, the light stays on and the buzzer stops after about 4 to 8 seconds. (c) Discharge Warning Light This light warns that the battery is being discharged. If it comes on while you are driving, there is a problem somewhere in the charging system. The engine ignition will continue to oper- the battery ate, however, until is dis- charged. Turn off the air conditioning, blower, radio, etc., and drive directly to the nearest authorized Toyota CNG dealer or repair shop.


(d) Malfunction Indicator Lamp This lamp warns that there is a problem somewhere in your engine or automatic transmission electrical system. If it comes on while you are driving, have your vehicle checked/repaired by your au- thorized Toyota CNG dealer as soon as possible. (e) Low Fuel Level Warning Light This light comes on when the amount of natural gas remaining in the tank drops to about 1/5. If you continue to drive the vehicle after the low fuel level warning light comes on, the light will begin to blink, and at the same time you will not be able to drive at speeds over 80 km/h (50 mph). When is below −30°C (−22°F), the fuel gauge may indi- cate an amount less than actual amount and the indicator may come on.


the outside


temperature


NOTICE


Do not continue driving if the engine drive belt is broken or loose.


CAUTION


If the engine does not start and the low fuel level warning light is blink- ing, fuel may be leaking. Contact your authorized Toyota CNG dealer immedi- ately.


2000 CAMRY CNG (OM33519U)


67


’00CAMRY CNG (L/O9908)


NOTICE


If the low fuel warning light begins to blink, tank will soon be empty. Move to a safe place as soon as possible.


fuel


the


(f) Low Oil Pressure Warning Light This light warns that the engine oil pres- sure is too low. If it flickers or stays on while you are driving, pull off the road to a safe place and stop the engine immediately. Call your authorized Toyota CNG dealer or qualified repair shop for assistance. The flicker when the engine is idling or it may come on briefly after a hard stop. There is no cause for concern if it then goes out when the engine is accelerated slightly. The light may come on when the oil level is extremely is not designed to indicate low oil level, and the oil level must be checked using the level dipstick.


light may occasionally


low. It


NOTICE


Do not drive the warning light on—even for one block. It may ruin the engine.


the vehicle with


if


the


few seconds. Thereafter,


(g) “ABS” Warning Light The light comes on with the ignition key turned to “ON”. If the anti−lock brake sys- light goes out tem works properly, after a the system malfunctions, the light comes on. When the “ABS” warning light is on (and the brake system warning light is off), the anti−lock brake system does not operate, but the brake system still operates con- ventionally. When the “ABS” warning light is on (and the brake system warning light is off), the anti−lock brake system does not operate so that the wheels could lock up during a sudden braking or braking on slippery road surfaces. If the following conditions occur, this indicates a malfunction somewhere in the parts monitored by the warning light system. Contact your authorized Toyota CNG dealer as soon as possible to service the vehicle. D The light does not come on with the ignition key turned to “ON”, or remains on.


D The light comes on while driving.


If the light lit during driving goes out and does not come on again, it is a normal operation. (h) Open Door Warning Light This light remains on until all the doors are completely closed. (i) Rear Light Failure Warning Light If this light comes on when the headlight switch is turned on (at the first or second clickstop), it indicates that one or more of the tail lights are burned out. If it comes on when the brake pedal is depressed, one or more stop lights are burned out. Have defective bulbs replaced as soon as possible. (j) SRS Warning Light This light will come on when the igni- tion key is turned to the “ACC” or “ON” position. After about 6 seconds, the light will go off. This means the systems of the airbag and front seat belt pretensioner are operating properly. The warning light system monitors the air- bag sensor assembly, front airbag sen- sors, seat belt pretensioner assemblies, inflators, warning light, interconnecting wir- ing and power sources.


68


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


If either of the following conditions occurs, this indicates a malfunction somewhere in the parts monitored by the warning light system. Contact your authorized Toyota CNG dealer as soon as possible to ser- vice the vehicle. D The light does not come on when the ignition key is turned to the “ACC” or “ON” position or remains on.


D The light comes on or flashes while


driving.


(k) Low Windshield Washer Fluid Level


Warning Light


The light warns that the windshield washer fluid level is too low. Add washer fluid at your earliest opportunity. (For instructions, see “Adding washer fluid” in Section 7−3.) (l) Key Reminder Buzzer This buzzer reminds you to remove the key when you open the driver’s door with the ignition key in the “ACC” or “LOCK” position.


light


SERVICE


CHECKING REMINDER INDICATORS (except the low fuel level warning low windshield washer fluid level warning light) 1. Apply the parking brake. 2. Open one of the doors.


and


The open door warning come on.


light should


3. Close the door.


The open door warning light should go off.


4. Turn the ignition key to “ACC”.


The SRS warning light should come on. It goes off after about 6 seconds.


5. Turn the ignition key to “ON”, but do


not start the engine. All the service reminder indicators ex- cept the open door warning light and SRS warning light should come on. The “ABS” warning light goes off after a few seconds.


If any service reminder indicator or warn- ing buzzer does not function as described above, either the bulb is burned out or the circuit it checked by your authorized Toyota CNG dealer as soon as possible.


repair. Have


in need of


is


2000 CAMRY CNG (OM33519U)


69


’00CAMRY CNG (L/O9908)


70


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


SECTION 1− 6


OPERATION OF INSTRUMENTS AND CONTROLS Ignition switch, Transmission and Parking brake


Ignition switch with steering lock


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


72


Automatic transmission


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


73


Parking brake


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


77


Cruise control


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


77


2000 CAMRY CNG (OM33519U)


71


’00CAMRY CNG (L/O9908)


Ignition switch with steering lock


You must push in the key to turn the key from “ACC” to the “LOCK” position. The selector lever must be put in the “P” posi- tion before pushing the key. When starting the engine, the key may seem stuck at the “LOCK” position. To free it, first be sure the key is pushed all the way in, and then rock the steering wheel slightly while turning the key gently.


NOTICE


leave the key


Do not in the “ON” position if the engine is not running. The battery will discharge and the ignition could be damaged.


2000 CAMRY CNG (OM33519U)


“START”—Starter motor on. The key will return to the “ON” position when released. For starting tips, see Section 3. “ON”—Engine on and all accessories on. This is the normal driving position. “ACC”—Accessories such as the radio operate, but the engine is off. the “ACC” or If you “LOCK” position and open the driver’s door, a buzzer will remind you to remove the key. “LOCK”—Engine is off and the steering wheel is locked. The key can be re- moved only at this position. 72


the key


leave


in


’00CAMRY CNG (L/O9908)


Automatic transmission


Lock release button To prevent misshifting


Selector lever


With the brake pedal depressed, shift while holding the lock release button in. (The ignition switch must be in “ON” position.)


Overdrive switch


Shift while holding the lock release button in.


Shift normally.


Your automatic transmission has a shift lock system to minimize the possibility of incorrect operation. This means you can only shift out of “P” position when the brake pedal is depressed (with the ignition switch in “ON” position and the lock re- lease button depressed). (a) Selector lever The shift position is also displayed on the instrument cluster. P: Parking, engine starting and


key removal


R: Reverse N: Neutral D: Normal driving (with overdrive on) 2: Stronger engine braking L: Maximum engine braking


2000 CAMRY CNG (OM33519U)


73


’00CAMRY CNG (L/O9908)


3. Release the parking brake and brake the accelerator pedal


pedal. Depress slowly for smooth starting.


(d) Using engine braking To use engine braking, you can downshift the transmission as follows: D Push the overdrive switch. The “O/D OFF” indicator light will come on and the transmission will downshift to the third gear.


D Shift into the “2” position. The trans- the second mission will downshift gear when the vehicle speed drops down to or lower than 106 km/h (66
mph), and stronger engine braking will be enabled.


to


D Shift into the “L” position. The trans- mission will downshift to the first gear when the vehicle speed drops down to or lower than 47 km/h (29 mph), and maximum engine braking will be en- abled.


Vehicles with cruise control—When the cruise control is being used, even if you downshift the transmission by pushing and releasing the overdrive switch, engine braking will not be applied because the cruise control is not cancelled. For ways to decrease the vehicle speed, see “Cruise control” in this section. (c) Normal driving 1. Start the engine as instructed in “How to start the engine” in Section 3. The transmission must be in “P” or “N”.


2. With your foot holding down the brake


pedal, shift the selector lever to “D”.


When the lever is in the “D” position, the automatic transmission system will select the most suitable gear for running condi- tions such as normal cruising, hill climb- ing, hard towing, etc. Always turn the overdrive on for better fuel economy and quieter driving. If the engine coolant the transmission will not shift into overdrive gear even with the overdrive on.


temperature


low,


is


CAUTION


Never put your foot on the accelera- tor pedal while shifting.


(b) Overdrive switch You can select either a third gear (with overdrive off) or fourth gear (with over- drive on) by pushing this switch. To turn the overdrive off, push the switch. The “O/D OFF” indicator light should come on. To turn the overdrive on again, push the switch again. The “O/D OFF” indicator light should go off. Always drive your vehicle with the over- drive on fuel economy and quieter driving. If the engine is turned off when the over- drive is off and restarted, the overdrive will be on automatically.


for better


74


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


Vehicles with cruise control—When the cruise control is being used, even if you downshift the transmission by pushing and releasing the overdrive switch, engine braking is not applied because the cruise control is not cancelled. For ways to decrease the vehicle speed, see “Cruise control” in this section.


NOTICE


z Be careful not to overrev the en- gine. Watch the tachometer to keep engine rpm from going into the red zone. The approximate maximum al- lowable speed for each position is given below for your reference:


(g) Parking 1. Bring the vehicle to a complete stop. 2. Pull the parking brake lever up fully to


securely apply the parking brake.


3. With


the brake pedal pressed down, shift the selector lever to the “P” posi- tion.


CAUTION


Be careful when downshifting on a slippery shifting could cause the vehicle to spin or skid.


surface. Abrupt


(e) Using “2” and “L” positions The “2” and “L” positions are used for strong engine braking as described pre- viously. With the selector lever in “2” or “L”, you can start the vehicle in motion as with the lever in “D”. With the selector lever in “2”, the vehicle will start in the first gear and automatical- ly shift to second gear. With the selector lever in “L”, the trans- mission is engaged in first gear.


“2” “L”


. . . . . . . . . . . . . . . . . . . .


119 km/h (74 mph) 66 km/h (41 mph) z Do not continue hill climbing or hard towing for a long time in the “2” or “L” position. This may cause severe automatic transmission dam- age from overheating. To prevent such damage, “D” position should be used in hill climbing or hard towing.


(f) Backing up 1. Bring the vehicle to a complete stop. 2. With the brake pedal held down with your foot, shift the selector lever to the “R” position.


NOTICE


Never shift into reverse while the ve- hicle is moving.


CAUTION


Never attempt to move the selector lever into “P” position under any cir- cumstances while the vehicle is mov- ing. Serious mechanical damage and loss of vehicle control may result.


(h) Good driving practice D If the transmission repeatedly shifts up and down between the third gear and overdrive when climbing a gentle slope, the overdrive should be turned off. Be sure to turn the switch on immediately afterward.


D When towing a trailer, in order to main- tain engine braking efficiency, do not use overdrive.


2000 CAMRY CNG (OM33519U)


75


’00CAMRY CNG (L/O9908)


CAUTION


Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping.


NOTICE


Do not hold the vehicle on an up- grade with the accelerator pedal. It can cause the transmission to over- heat. Always use the brake pedal or parking brake.


(i) Rocking your vehicle if stuck


CAUTION


If your vehicle becomes stuck in snow, mud, sand, etc., then you may attempt to rock your vehicle free by moving it forward and backward. Do not attempt this procedure if people or objects are anywhere near the ve- hicle. During the rocking operation the vehicle may suddenly move for- ward or backward as it becomes un- stuck, causing injury or damage to nearby people or objects.


NOTICE


z If your vehicle remains stuck after rocking the vehicle several times, consider other ways such as tow- ing.


(j)


If you cannot shift the selector le- ver out of “P” position


If you cannot shift the selector lever from “P” position even though the brake pedal is depressed, use the shift lock override button. For instructions, see “If you cannot shift automatic transmission selector lever” in Section 4.


to


the


If you rock your vehicle, observe the following precautions to prevent dam- age transmission and other parts. z Do not depress the accelerator ped- al while shifting the selector lever or before the transmission is com- pletely shifted to forward or reverse gear.


z Do not race the engine and avoid


spinning the wheels.


76


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


Parking brake


CAUTION


Before driving, be sure the parking brake is fully released and the park- ing brake reminder light is off.


it while setting


When parking, firmly apply the parking brake to avoid inadvertent creeping. To set: Pull up the lever. For better hold- ing power, first depress the brake pedal and hold the parking brake. To press the thumb button, and lower. To remind you that the parking brake is set, the parking brake reminder light in the instrument panel remains on until you release the parking brake.


release: Pull up


lever slightly,


the


Cruise control The cruise control allows you to cruise the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off the accelerator pedal. Your cruising speed can be maintained up or down grades within the limits of engine performance, although a slight speed change may occur when driving up or down the grades. On steeper hills, a greater speed change will occur so it is better to drive without the cruise control.


CAUTION


D To help maintain maximum control of your vehicle, do not use the cruise control when driving in heavy or varying traffic, or on slip- pery (rainy, icy or snow−covered) or winding roads.


If


D Avoid vehicle speed increases when driving downhill. the vehicle speed is too fast in relation to the cruise control set speed, cancel the cruise control then downshift the transmission to use engine braking to slow down.


2000 CAMRY CNG (OM33519U)


77


’00CAMRY CNG (L/O9908)


If you need acceleration—for example, when passing—depress the accelerator pedal enough for the vehicle to exceed the set speed. When you release it, the vehicle will return to the speed set prior to the acceleration. CANCELLING THE PRESET SPEED You can cancel the preset speed by: a. Pulling the lever in the “CANCEL” di-


rection and releasing it. b. Depressing the brake pedal.


If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto- matically cancel out. If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset speed will also automatically cancel out. If the preset speed automatically cancels out other than for the above cases, have your vehicle checked by your authorized Toyota CNG dealer at the earliest opportu- nity. RESETTING TO A FASTER SPEED Push the lever up in the “RES/ACC” direc- tion and hold it. Release the lever when the desired speed is attained. While the lever is held up, the vehicle will gradually gain speed.


SETTING AT A DESIRED SPEED The transmission must be in “D” before you set the cruise control speed. Bring your vehicle to the desired speed, push the lever down in the “SET/COAST” direction and release it. This sets the ve- hicle at that speed. If the speed is not satisfactory, tap the lever up for a faster speed, or tap it down for a slower speed. Each tap changes the set speed by 1.6
km/h (1.0 mph). You can now take your foot off the accelerator pedal.


TURNING ON THE SYSTEM To operate the cruise control, press the “CRUISE ON−OFF” button. This turns the system on. The the instrument panel shows that you can now set the vehicle at a desired cruising speed. Another press will turn the system completely off.


indicator


light


in


CAUTION


To avoid accidental cruise control en- gagement, keep the “CRUISE ON− OFF” switch off when not using the cruise control.


78


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


However, a faster way to reset is to ac- celerate the vehicle and then push the lever down in the “SET/COAST” direction. RESETTING TO A SLOWER SPEED Push the lever down in the “SET/COAST” direction and hold it. Release the lever when the desired speed is attained. While the lever is held down, the vehicle speed will gradually decrease. However, a faster way to reset is to de- press the brake pedal and then push the lever down in the “SET/COAST” direction. Even if you turn off the overdrive switch, with the cruise control on, engine braking will not be applied because the cruise control is not cancelled. To decrease the vehicle speed, reset to a slower speed with the cruise control lever or depress the brake pedal. the brake pedal, cruise control is cancelled. RESUMING THE PRESET SPEED If the preset speed is cancelled by pulling the control the brake pedal or clutch pedal, pushing the lever up in the “RES/ACC” direction will restore the speed set prior to cancellation. However, once the vehicle speed falls be- low about 40 km/h (25 mph), the preset speed will not be resumed.


lever or by depressing


If you use


in


the


light


indicator


“CRUISE”


CRUISE CONTROL FAILURE WARNING If the instrument cluster flashes when using the cruise control, press the “CRUISE ON− OFF” button to turn the system off and then press it again to turn it on. If any of the following conditions then oc- curs, there is some trouble in the cruise control system. D The indicator light does not come on. D The indicator light flashes again. D The


light goes out after


indicator


it


comes on.


If this is the case, contact your authorized Toyota CNG dealer and have your vehicle inspected.


2000 CAMRY CNG (OM33519U)


79


’00CAMRY CNG (L/O9908)


80


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


SECTION 1− 7


OPERATION OF INSTRUMENTS AND CONTROLS Car audio system Reference Using your audio system Car audio system operating hints


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


82
82
90


2000 CAMRY CNG (OM33519U)


81


Reference


AM·FM ETR radio/cassette player/compact disc player/compact disc auto changer controller


’00CAMRY CNG (L/O9908)


Using your audio system— —Some basics This section describes some of the basic features on Toyota audio systems. Some information may not pertain to your sys- tem. Your audio system works when the ignition key is in the “ACC” or “ON” position. TURNING THE SYSTEM ON AND OFF Push “PWR·VOL” to turn the audio system on and off. Push “AM”, “FM1·2”, “TAPE” or “CD” to turn on function without pushing “PWR·VOL”. You can turn on each player by inserting a cassette tape or compact disc. You can turn off each player by ejecting the cassette tape or compact disc. If the audio system was previously off, then the entire audio system will be turned off when you eject the cassette tape or com- pact disc. If the another function was pre- viously playing, it will come on again. SWITCHING BETWEEN FUNCTIONS Push “AM”, “FM1·2”, “TAPE” or “CD” if the system to switch from one function to another.


is already on but you want


that


TONE AND BALANCE For details about your system’s tone and balance controls, see the description of your own system. Tone How good an audio program sounds to you is largely determined by the mix of the treble, midrange, and bass levels. In fact, different kinds of music and vocal programs usually sound better with differ- ent mixes of treble, midrange, and bass. Balance A good balance of the left and right stereo channels and of the front and rear sound levels is also important. Keep in mind that if you are listening to a stereo recording or broadcast, changing the right/left balance will increase the vol- ume of one group of sounds while de- creasing the volume of another.


82


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


YOUR RADIO ANTENNA


NOTICE


Attaching the film (especially conduc- tive or metallic the rear glass will noticeably reduce the sensi- tivity of the radio.


type) on


YOUR CASSETTE PLAYER When you insert a cassette, the exposed tape should be to the right.


NOTICE


Do not oil any part of the player and do not insert anything other than cas- sette tapes into the slot, or the tape player may be damaged.


YOUR COMPACT DISC PLAYER When you insert a disc, gently push it in with the label side up. (The player will automatically eject a disc if the label side is down.) The compact disc player will play from track 1 through the end of the disc. Then it will play from track 1 again. On models with the compact disk auto changer, next disc will be played from track 1.


NOTICE


Never try to disassemble or oil any part of the compact disc player. Do not insert anything except a compact disc into the slot.


The player is intended for use with 12 cm (5 in.) discs only.


2000 CAMRY CNG (OM33519U)


83


’00CAMRY CNG (L/O9908)


—Controls and features


Details of specific buttons, controls and features are described in the alphabetical listing that follows.


84


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


to preset and


1 2 3 4 5 6 (Preset buttons) These buttons are used tune in radio stations. To preset a station to a button: Tune in the desired station (see “TUNE” knob or “SEEK” button). Push and hold down the button until you hear a beep—this will set the station to the button. The button num- ber will appear on the display. To tune in to a preset station: Push the button for the station you want. The but- ton number and station frequency will ap- pear on the display. These systems can store one AM and two FM stations for each button (The display will show “AM”, “FM1” or “FM2” when you push “AM” “FM1·2”).


(Eject button) the cassette


Push tape eject button to eject a cassette. Push the compact disc eject button to eject a compact disc. After you turn the ignition to “LOCK”, you will be able to eject a cassette or disc but you will not be able to reinsert it.


(Program)


Push “ ” to select the other side of a cassette tape. The display indicates which side is currently selected (“ ” indicates top side, “ Auto−reverse the cassette player reaches the end of a tape side, it automatically reverses and begins to play the other side. This is true whether the cassette was playing or fast forwarding.


” indicates bottom side). feature: After


(Reverse/Fast forward buttons)


Cassette Player Push the fast forward button to fast for- ward a cassette tape. “FF” will appear on the display. Push the reverse button to rewind a tape. “REW” will appear on the display. To stop the tape while it is fast forward- ing, push forward button or “TAPE”; to stop the tape while it is re- winding, push reverse button or “TAPE”.


fast


the


the


If a tape side rewinds completely, the cas- sette player will stop and then play that same side. If a tape fast forwards com- pletely, the cassette player will play the other side of the tape, using the auto−re- verse feature. Compact Disc Player If you want to fast forward or reverse through a compact disc track, push and hold in the fast forward or reverse button. When you release the button, the compact disc player will resume playing. AM Push “AM” to turn on the radio and select the AM band. “AM” will appear on the display. If the audio system is off, you can turn on the radio by pushing “AM”. Also, push “AM” to switch from cassette or compact disc operation to radio operation.


2000 CAMRY CNG (OM33519U)


85


’00CAMRY CNG (L/O9908)


time you push “CD”,


CD (Compact Disc) Push “CD” to switch from radio or cas- sette operation to compact disc operation. If the audio system is off, you can turn on the compact disc player by pushing “CD”. In both cases, a disc must already be loaded in the player. When the audio is set into compact disc operation, the display shows the track or, track and disc number currently being played. Each the system changes to the automatic changer. If the player malfunctions, your audio sys- tem will display one of the six following error messages. If “WAIT” appears on the display, it indi- cates that the inside of the player unit may be too hot due to the very high ambi- ent temperature. Remove the disc or mag- azine from the player and allow the player to cool down. If “Err 1” appears on the display, it indicates the disc is dirty, damaged, or it was the disc or insert it correctly. If “Err 2” appears on the display, indicates no disc magazine. Insert a disc.


inserted up−side down. Clean


loaded


inside


it the


is


If “Err 3” or “Err 4” appears on the display, it indicates there is a trouble in- side the system. Eject the disc or maga- zine. Set the disc or magazine again. If “OPEn” appears on the display, it indicates the compact disc auto changer lid is open. Close the compact disc auto changer lid. If the malfunction is not rectified, take your vehicle to your authorized Toyota CNG dealer. CONTROL / MODE (Audio control and mode adjustment) Manual tone adjustment function— This knob the manually. tone adjustment, push For “CONTROL repeatedly until “BAS” appears on the display. Then turn the knob to suit your preference. The display will show “BAS −5” to “BAS 5”. For middle−pitch tone adjustment, push “CONTROL / MODE” repeatedly until “MId” appears on the knob to suit your preference. The display will show the range from “MId −5” to “MId 5”.


the display. Then


/ MODE”


to adjust


low−pitch


is used


range


from


turn


tone


the


86


2000 CAMRY CNG (OM33519U)


the


from


range


to adjust


/ MODE”


is also used


tone adjustment, push For high−pitch “CONTROL repeatedly until “TRE” appears on the display. Then turn the knob to suit your preference. The display will show “TRE −5” to “TRE 5”. Sound balance adjustment function— This knob the sound balance between the front and rear, and the right and left speakers. For front/rear adjustment, push “CONTROL / MODE” repeatedly until “FAD” appears on to turn adjust the front/rear balance. The display will show the “FAD−F7” to “FAD−R7”. For left/right adjustment, push “CONTROL / MODE” repeatedly until “BAL” appears on turn to adjust the left/right balance. The display will show “BAL−L7” to “BAL−R7”.


the display. Then


the display. Then


the knob


the knob


range


range


from


from


the


’00CAMRY CNG (L/O9908)


B NR∗


DISC ƝƜ Compact disc auto changer only— By using this button, you can select a disc you wish to listen to. Push either side of the button until the number of the disc you want to listen to appears on the display. Dolbyr If you are listening to a tape that was recorded with Dolbyr B Noise Reduction, push the button marked with the double−D symbol. The double−D symbol will appear on the display. Push the button again to turn off Dolbyr B NR. The Dolby NR mode reduces tape noise by about 10 dB. For best sound reproduc- tion, play your tapes with this button on or off according to the mode used for recording the tape. ∗ : Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double D symbol are trademarks of Dolby Laboratories Licensing Corporation. FM1·2
Push “FM1·2” to turn on the radio and select the FM band. “FM1” or “FM2” will appear on the display. This system allows you to set twelve FM stations, two for each button.


If the audio system is off, you can turn on the radio by pushing “FM1·2”. Also, push “FM1·2” to switch from cassette or compact disc operation to radio operation. PWR·VOL (Power and Volume) Push “PWR·VOL” to turn the audio system on and off. Turn “PWR·VOL” to adjust the volume. RAND (Random) There are two random features—you can either listen to the tracks on all the com- pact discs in the magazine in random or- der, or only tracks on a specific compact disc in random order. To randomly play the tracks on a disc: ” Quickly push and release “ will appear on the display. The disc you are listening to will play in random order. If you hear a beep, you held the button too long, and the player will play all the tracks in the magazine in random order. To turn off the random feature, push this button again.


listen


the


”. “


to


in the


Compact disc auto changer only— To randomly play all the tracks magazine: ” until you hear a Push and hold “ ” will appear on the dis- beep. “ play and the player will perform all the tracks on all the discs in the magazine in random order. To turn off the random fea- ture, push this button again. RPT (Repeat) Cassette Player ” while the track is playing. Push “ ” will appear on the display. When “ the track ends, it will automatically be rewound and replayed. This process will be continued until you push the button again to turn off the repeat feature. There must be at least 3 seconds of blank space between tracks in order for the re- peat feature to work correctly.


2000 CAMRY CNG (OM33519U)


87


’00CAMRY CNG (L/O9908)


Compact Disc Player There are two repeat features—You can either replay a disc track or a whole com- pact disc. Repeating a track: ” while the Quickly push and release “ track is playing. “ ” will appear on the display. If you hear a beep, you held the button too long, and the player will repeat the whole disc. When the track ends, it will automatically be replayed. This pro- cess will be continued until you push the button again to turn off the repeat feature. Compact disc auto changer only— Repeating a disc: ” until you hear a Push and hold “ beep. “ ” will appear on the display. The player will repeat all the tracks on the disc you are listening to. When the disc ends, the player will automatically go back to the top track of the disc and replay. This process will be continued until you push the button again to turn off the re- peat feature.


SCAN Radio You can either scan all the frequencies on a band or scan only the preset stations for that band. To scan the preset stations: Push and hold “SCAN” until you hear a beep. The radio will tune in the next pres- et station up the band, stay there for 5
seconds, and then move to the next pre- set station. To select a station, push “SCAN” again. To scan all the frequencies: Quickly push and release “SCAN”. If you hear a beep, you held the button too long, and the radio will scan the preset sta- tions. The radio will find the next station up the station band, stay there for 5 se- conds, and then scan again. To select a station, push “SCAN” again.


88


2000 CAMRY CNG (OM33519U)


Compact disc player There are two scan features—you can ei- ther scan the tracks on a specific disc or scan the first tracks of all the discs in the magazine. Scanning the tracks on a disc: Quickly push and release “SCAN”. “SCAN” will appear on the display and the player will scan all the tracks on the disc you are listening to. If you hear a beep, you held the button too long, and the player will scan the first track of all the discs in the magazine. To select a track, push “SCAN” again. If the player scanned all the tracks on the disc, it will stop scan- ning. Compact disc auto changer only— Scanning the first track of all the discs in the magazine: “SCAN” until you hear a beep. Push the display “ and the player will perform the first track of the next disc. To select a disc, push the the player has scanned all the discs, it will stop scan- ning.


·SCAN” will appear on


“SCAN” again.


If


’00CAMRY CNG (L/O9908)


the seek mode,


the radio finds and the next station up or down the


SEEK (Seeking) Radio In plays station band. To seek a station, quickly push and re- lease the “Ɯ” or “Ɲ” under the “SEEK”. Do this again to find another station. Cassette Player By using this button, you can skip up or down to a different track. You can skip up to nine tracks at a time. Push the up or down side of the button. “FF 1” or “REW 1” will appear on the display. Next, push either side of the track button until the number on the display reaches the number of tracks you want to skip. If you push the button ten times, the skip feature will be turned off. When counting the number of tracks you want to rewind, remember to count the current track as well. For example, if you want to rewind to a song that is two be- fore the song you are listening to, push on the down side of the button until “REW 3” appears on the display.


If you have pushed the track button more than you wanted to, push the other side of the button. The track number will be reduced. The track number you select is not valid if it is higher than the number of tracks remaining on the current cassette side. D After tape


the beginning of


is the player will automatically


reached, start playing the same side.


the


D After the end of the tape is reached, the player will automatically reverse sides and start playing the other side. There must be at least 3 seconds of blank space between tracks for the track button to work correctly. In addition, the feature may not work well with some spoken word, live, or classical recordings. ST (Stereo reception) display Your radio automatically changes to stereo reception when a stereo broadcast is re- ceived. “ST” appears on the display. If the signal becomes weak, the radio reduces the amount of channel separation to prev- ent the weak signal from creating noise. If the signal becomes extremely weak, the radio switches from stereo to mono recep- tion.


TAPE Push “TAPE” to switch from radio or com- pact disc operation to cassette operation. If the audio system is off, you can turn on the cassette player by pushing “TAPE”. In both cases, a cassette must already be loaded in the player. TRACK (Track up/down button): Compact disc player By using this button, you can skip up or down to a different track. Push either side of the track button until the number of the track you want to listen to appears on the display. If you want to return the current track, push the down side of the button one time, quickly. TUNE (Tuning) Your Toyota has an electronic tuning radio (ETR). Turn the knob clockwise to step up the frequency. Turn the knob counterclock- wise to step down the frequency.


the beginning of


to


2000 CAMRY CNG (OM33519U)


89


’00CAMRY CNG (L/O9908)


Car audio system operating hints


NOTICE


To ensure the correct audio system operation: z Be careful not to spill beverages


over the audio system.


z Do not put anything other than a cassette tape or Compact Disc into the slot.


z The use of cellular phone inside or near the vehicle may cause a noise from the speakers of the audio sys- tem which you are to. However, this does not indicate a malfunction.


listening


RADIO RECEPTION Usually, a problem with radio reception does not mean there is a problem with your radio—it is just the normal result of conditions outside the vehicle. For example, nearby buildings and terrain can interfere with FM reception. Power lines or telephone wires can interfere with AM signals. And of course, radio signals have a limited range. The farther you are from a station, the weaker its signal will be. conditions change constantly as your vehicle moves.


In addition,


reception


signals are


Here are some common reception prob- lems that probably do not indicate a prob- lem with your radio: FM Fading and drifting stations—Generally, the effective range of FM is about 40 km (25
miles). Once outside this range, you may notice fading and drifting, which increase with the distance from the radio transmit- ter. They are often accompanied by distor- tion. Multi−path—FM reflective, making it possible for two signals to reach your antenna at the same time. If this happens, the signals will cancel each oth- er out, causing a momentary flutter or loss of reception. Static and fluttering—These occur when signals are blocked by buildings, trees, or other large objects. Increasing the bass level may reduce static and fluttering. the FM signal you Station swapping—If are interrupted or weak- is ened, and there is another strong station nearby on the FM band, your radio may tune in the second station until the origi- nal signal can be picked up again.


listening to


they can


AM Fading—AM broadcasts are reflected by the upper atmosphere—especially at night. These reflected signals can interfere with those received directly from the radio sta- tion, causing the radio station to sound alternately strong and weak. Station interference—When a reflected sig- nal and a signal received directly from a radio station are very nearly the same frequency, interfere with each other, making it difficult to hear the broad- cast. Static—AM is easily affected by external sources of electrical noise, such as high tension power lines, lightening, or electri- cal motors. This results in static. CARING FOR YOUR CASSETTE PLAYER AND TAPES For the best performance for your cas- sette player and tapes: Clean the tape head and other parts regu- larly. D A dirty


tape head or tape path can decrease sound quality and tangle your cassette to clean them is by using a cleaning tape. (A wet type is recommended.)


tapes. The easiest way


90


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


D If moisture gets into your compact disc player, you may not hear any sound even though your compact disc player appears the disc from the player and wait until it dries.


to be working. Remove


Use high−quality cassettes. D Low−quality cassette tapes can cause many problems, including poor sound, inconsistent and constant auto−reversing. They can also get stuck or tangled in the cassette player.


playing


speed,


D Do not use a cassette if it has been damaged or tangled or if its label is peeling off.


D Do not leave a cassette in the player if you are not listening to it, especially if it is hot outside.


D Store cassettes in their cases and out


of direct sunlight.


D Avoid using cassettes with a total play- ing time longer than 100 minutes (50
minutes per side). The tape used in these cassettes is thin and could get stuck or tangled in the cassette player.


CARING FOR YOUR COMPACT DISC PLAYER AND DISCS D Use only compact discs


labeled as


shown.


D Extremely high temperatures can keep your compact disc player from working. On hot days, use the air conditioning to cool the vehicle interior before you listen to a disc.


D Bumpy roads or other vibrations may


make your compact disc player skip.


2000 CAMRY CNG (OM33519U)


91


’00CAMRY CNG (L/O9908)


CAUTION


Compact disc players use an invisible laser beam which could cause hazard- ous if directed outside the unit. Be sure to operate the player correctly.


radiation exposure


D Your compact disc player cannot play special shaped or low−quality compact discs such as those shown here. Do not use them as the player could be damaged.


inserting


D Handle compact discs carefully, espe- them. cially when you are them on the edge and do not Hold bend fingerprints them. Avoid getting on them, particularly on the shiny side. D Dirt, scrapes, warping, pin holes, or other disc damage could cause the player to skip or to repeat a section of a track. (To see a pin hole, hold the disc up to the light.)


D Remove discs from the compact disc


them. Store


player when you are not listening to their plastic cases away from moisture, heat, and direct sunlight.


them


in


To clean a compact disc: Wipe it with a soft, lint−free cloth that has been damp- ened with water. Wipe in a straight line from the center to the edge of the disc (not in circles). Dry it with another soft, lint−free cloth. Do not use a conventional record cleaner or anti−static device.


92


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


SECTION 1− 8


OPERATION OF INSTRUMENTS AND CONTROLS Air conditioning system Controls Air flow selector settings Operating tips Side vents


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


94
97
97
99


2000 CAMRY CNG (OM33519U)


93


Controls


’00CAMRY CNG (L/O9908)


1. “A/C” Button 2. Air Intake Selector 3. Air Flow Selector 4. Temperature Selector 5. Fan Speed Selector


94


2000 CAMRY CNG (OM33519U)


Fan speed selector Turn the knob to adjust the fan speed—to the right to increase, to the left to de- crease. Temperature selector Turn the knob to adjust the temperature— to the right to warm, to the left to cool.


’00CAMRY CNG (L/O9908)


If you want to return the setting to RECIRCULATE mode, press the air in- take selector button once again. Press the “A/C” button for dehumidified heating or cooling. This setting clears the front view more quickly.


5. Windshield—Air flows mainly from the


windshield vents. Turning the Air Flow Selector to the windshield position turns on the defog- ging function with the purpose of clear- ing the front view. This position allows the air intake to select FRESH automatically. This is to clean up the front view more quickly. If you want to return the setting to RECIRCULATE mode, press the air in- take selector button once again. Press the “A/C” button for dehumidified heating or cooling. This setting clears the front view more quickly.


For details about air flow selector settings, see the illustration after “A/C” button.


Air flow selector Turn the knob to select the vents used for air flow. 1. Panel—Air


flows mainly


from


the


instrument panel vents.


2. Bi−level—Air flows from both the floor vents and the instrument panel vents. 3. Floor—Air flows mainly from the floor


vents.


the


4. Floor/Windshield—Air


flows mainly floor vents and windshield


from vents. This position allows the air intake to select FRESH automatically. This is to clean up the front view more quickly.


2000 CAMRY CNG (OM33519U)


95


’00CAMRY CNG (L/O9908)


Air intake selector The air intake selector button is used to switch the air intake FRESH mode that the system and draws outside air into RECIRCULATED mode that recirculates the air inside vehicle. To turn the air source to RECIRCULATED mode, press the button. The indicator will come on. To turn the air source to FRESH mode, press the button again. The indica- tor will go off. To prevent fogging up of the windshield, the air intake mode may change automati- cally to FRESH depending on the condi- tion of the air conditioning system. “A/C” button To turn on the air conditioning, press the “A/C” button. The “A/C” button indicator will come on. To turn the air conditioning off, press the button again. If the “A/C” button indicator flashes, there is a problem in the air conditioning system and the air conditioning automatically shuts off. If this happens, take your ve- hicle to your authorized Toyota CNG deal- er for service.


96


2000 CAMRY CNG (OM33519U)

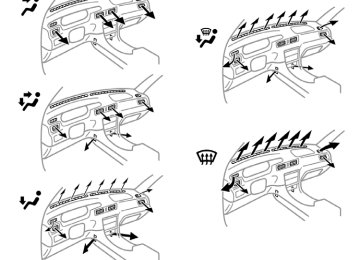

Air flow selector settings


’00CAMRY CNG (L/O9908)


Operating tips D To cool off your Toyota after


it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly.


D Make sure the air intake grilles in front of the windshield are not blocked (by leaves or snow, for example).


D On humid days, do not blow cold air on the windshield. The windshield could fog up because of the difference in air temperature on the inside and outside of the windshield.


D Keep the area under the front seats clear to allow air to circulate through- out the vehicle.


D On cold days, move the fan speed to “HI” for a minute to help clear the in- take ducts of snow or moisture. This can reduce the amount of fogging on the windows.


D When driving on dusty roads, close all windows. If dust thrown up by the ve- hicle is still drawn into the vehicle after closing the windows, it is recommended that the air intake selector be set to FRESH and the fan speed selector to any setting except “OFF”.


2000 CAMRY CNG (OM33519U)


97


’00CAMRY CNG (L/O9908)


D If following another vehicle on a dusty road, or driving in windy and dusty conditions, it is recommended that the air intake selector be temporarily set to RECIRCULATE, which will close off the outside passage and prevent outside air and dust from entering the vehicle interior.


Heating For best results, set controls to:


Air conditioning For best results, set controls to:


Fan speed—Any setting except “OFF” Temperature—Towards WARM


Fan speed—Any setting except “OFF” Temperature—Towards COLD


(red zone)


Air intake—FRESH (outside air) Air flow—FLOOR Air conditioning—OFF


(blue zone)


Air intake—FRESH (outside air) Air flow—PANEL Air conditioning—ON


for a


few minutes. To keep


D For quick heating, select recirculated air the windows from fogging, select fresh af- ter interior has been warmed.


the vehicle


D Press the “A/C” button on for dehumidi-


fied heating.


D Choose floor/windshield air flow to heat the vehicle interior while defrosting or defogging the windshield.


98


2000 CAMRY CNG (OM33519U)


D For quick cooling, select recirculated


air for a few minutes.


Ventilation For best results, set controls to:


Fan speed—Any setting except “OFF” Temperature—Towards COLD


(blue zone)


Air intake—FRESH (outside air) Air flow—PANEL Air conditioning—OFF


’00CAMRY CNG (L/O9908)


Defogging The inside of the windshield For best results, set controls to:


Defrosting The outside of the windshield For best results, set controls to:


Fan speed—Any setting except “OFF” Temperature—Towards WARM


Fan speed—Any setting except “OFF” Temperature—Towards WARM


Side vents


(red zone) to heat; COLD (blue zone) to cool


Air intake—FRESH (outside air) Air flow—WINDSHIELD


turns on


Turning the Air Flow Selector to the wind- shield position the defogging function with the purpose of clearing the front view. When turning the air flow control knob to windshield position, the air intake selects FRESH automatically. This is to clean up the front view more quickly. Press for dehumidified heating or cooling. This setting clears the front view more quickly. D On humid days, do not blow cold air on the windshield—the difference be- tween the outside and inside tempera- tures could make the fogging worse.


the “A/C” button


(red zone)


Air intake—FRESH (outside air) Air flow—WINDSHIELD


turns on


Turning the Air Flow Selector to the wind- shield position the defrosting function with the purpose of clearing the front view. When turning the air flow control knob to windshield position, the air intake selects FRESH automatically. This is to clean up the front view more quickly. Press for dehumidified heating. This setting clears the front view more quickly. D To heat the vehicle interior while de- choose


the “A/C” button


windshield,


frosting floor/windshield air flow.


the


If air flow control is not satisfactory, check the side vents. The side vents may be opened or closed as shown.


2000 CAMRY CNG (OM33519U)


99


’00CAMRY CNG (L/O9908)


100


2000 CAMRY CNG (OM33519U)


’00CAMRY CNG (L/O9908)


SECTION 1− 9


OPERATION OF INSTRUMENTS AND CONTROLS Other equipment


Clock


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


102


Outside temperature gauge


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


102


Cigarette lighter and ashtrays


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


103


Power outlet


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


103


Glove box


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


104


Garage door opener box


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


104


Auxiliary box


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


108


Cup holder


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


108


Floor mat


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


109


2000 CAMRY CNG (OM33519U)


101


’00CAMRY CNG (L/O9908)


Clock


Outside temperature gauge


2. Outside


temperature


gauge (°C)—Shows the outside air tempera- ture in Celsius. The displayed temperature ranges from −30°C to 50°C.


When you return the key to the “ACC” position, the display returns to clock. If there is a problem with the connection to the outside air temperature sensor, “−−” will appear on the display. Contact your authorized Toyota CNG dealer. When lights are instrument panel turned on, the brightness of the tempera- ture indicator is reduced.


the


indi-


The outside temperature gauge cates the outside air temperature. The key must be in the “ON” position. To change the display from clock to out- side temperature gauge, push and release “MODE”. The display changes in order from clock to outside temperature gauge (°F) to outside temperature gauge (°C), then back to clock each time you push. (See “Clock” in this section.) 1. Outside temperature


gauge (°F)—Shows outside air temperature in Fahrenheit. The displayed temperature ranges from −22°F to 122°F.


2000 CAMRY CNG (OM33519U)


The digital clock indicates the time. The key must be in the “ACC” or “ON” position. To reset the hour: Push the “H” button. To reset the minutes: Push the “M” button. If the electrical power source has been disconnected from the clock, the time dis- play will automatically be set to 1:00 (one o’clock). When lights are turned on, the brightness of the time indi- cator will be reduced. Push the “MODE” button to change the display from clock to outside temperature gauge. (See “Outside temperature gauge” in this section.) 102


instrument panel


the


’00CAMRY CNG (L/O9908)


Cigarette lighter and ashtrays


Power outlet


Cigarette lighter and front ashtray


CIGARETTE LIGHTER To use the cigarette lighter, press it in. When it becomes heated, it automatical- ly pops out ready for use. If the engine is not running, the key must be in the “ACC” position. Do not hold the cigarette lighter pressed in. Use a Toyota genuine cigarette lighter or equivalent for replacement. ASHTRAYS To use the ashtray, pull it out. When finished with your cigarette, thor- oughly extinguish it in the ashtray to pre- vent other cigarette butts from catching fire. After using the ashtray, push it back in completely. To remove the ashtray, press down on the lock spring plate and pull out.


CAUTION


To reduce the chance of in case of an accident or sudden stop while driving, always push the ash- tray back in completely after use.


injury


The power outlet is designed for power supply for car accessories. The key must be in the “ACC” or “ON” position for the power outlet to be used.


NOTICE


the


fuse


z To prevent

Loading...
x
