2005 Nissan Titan Owners Manual

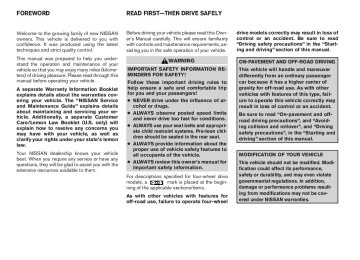

FOREWORD

READ FIRST(cid:151)THEN DRIVE SAFELY

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you under- stand the operation and maintenance of your vehicle so that you may enjoy many miles (kilome- ters) of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Booklet explains details about the warranties cov- ering your vehicle. The (cid:147)NISSAN Service and Maintenance Guide(cid:148) explains details about maintaining and servicing your ve- hicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state(cid:146)s lemon law. Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.

Before driving your vehicle please read this Own- er(cid:146)s Manual carefully. This will ensure familiarity with controls and maintenance requirements, as- sisting you in the safe operation of your vehicle.

drive models correctly may result in loss of control or an accident. Be sure to read (cid:147)Driving safety precautions(cid:148) in the (cid:147)Start- ing and driving(cid:148) section of this manual.

WARNING

IMPORTANT SAFETY INFORMATION RE- MINDERS FOR SAFETY! Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers! c NEVER drive under the influence of al-

cohol or drugs.

c ALWAYS observe posted speed limits and never drive too fast for conditions. c ALWAYS use your seat belts and appropri- ate child restraint systems. Pre-teen chil- dren should be seated in the rear seat.

c ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.

c ALWAYS review this owner(cid:146)s manual for

important safety information.

For descriptions specified for four-wheel drive models, a mark is placed at the begin- ning of the applicable sections/items. As with other vehicles with features for off-road use, failure to operate four-wheel

ON-PAVEMENT AND OFF-ROAD DRIVING This vehicle will handle and maneuver differently from an ordinary passenger car because it has a higher center of gravity for off-road use. As with other vehicles with features of this type, fail- ure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read (cid:147)On-pavement and off- road driving precautions(cid:148), and (cid:147)Avoid- ing collision and rollover(cid:148), and (cid:147)Driving safety precautions(cid:148), in the (cid:147)Starting and driving(cid:148) section of this manual.

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modi- fication could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems result- ing from modifications may not be cov- ered under NISSAN warranties.

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WHEN READING THE MANUAL

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle. All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and with- out obligation. IMPORTANT INFORMATION ABOUT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moder- ate personal injury or damage to your ve- hicle. To avoid or reduce the risk, the pro- cedures must be followed carefully.

CALIFORNIA PROPOSITION 65
WARNING

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth de- fects or other reproductive harm. In addi- tion, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

' 2005 NISSAN NORTH AMERICA, INC.

GARDENA, CALIFORNIA

All rights reserved. No part of this Owner(cid:146)s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc., Gar- dena, California.

APD1005
If you see this symbol, it means (cid:147)Do not do this(cid:148) or (cid:147)Do not let this happen.(cid:148)

If you see a symbol similar to these in an illustra- tion, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to these indicate movement or action.

Arrows in an illustration that are similar to these call attention to an item in the illustration.

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WELCOME TO THE WORLD OF NISSAN

NISSAN pioneered the use of electronics and com- puters in automobiles, and has led the industry in improving both performance and fuel efficiency through new engine designs and the use of syn- thetic materials to reduce vehicle weight. The com- pany has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and (cid:151) most importantly (cid:151) through an awareness that people are the central element in quality control. From the time the parts arrived from our suppliers until you took delivery of your new NISSAN, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. NISSAN also takes great care to ensure that when you take your NISSAN to your dealer for maintenance, the service technician will perform his work according to the quality standards that have been established by NISSAN. Safety has also been built into your NISSAN. As you know, seat belts are an integral part of the safety systems that will help protect you and your passen- gers in the event of a sudden stop or an accident. We urge you to use the seat belts every time you drive the vehicle. The NISSAN story of growth and achievement re- flects our major goal: to provide you, our customer, with a vehicle that is built with quality and craftsman- ship (cid:151) a product that we can be proud to build and you can be proud to own.

Your new NISSAN is the result of our dedication to produce the finest in safe, reliable and economical transportation. Your vehicle is the product of a suc- cessful worldwide company that manufactures cars and trucks in over 17 countries and distributes them in 170 nations. NISSAN vehicles are designed and manufactured by NISSAN Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and NISSAN affiliates world- wide, collectively growing to become the fifth largest automaker in the world. In addition to cars and trucks, NISSAN also makes forklift trucks, marine engines, boats and other diversified products. NISSAN has made a substantial and growing in- vestment in North America. NISSAN(cid:146)s commitment is over $6 billion dollars in capital investments in facilities across the continent. Some of the facilities include the NISSAN Manufacturing facilities in Can- ton, Mississippi and in Smyrna, Tennessee, vehicle

WFW0014
styling design at NISSAN Design America, Inc. in San Diego, California, and engineering at NISSAN Technical Center North America in Farmington Hills, Michigan. Additionally, NISSAN employs more than 21,000 people throughout the United States, Canada, and Mexico. An additional 60,000 people work for the 1,250 NISSAN and INFINITI dealers across North America. NISSAN is also a substantial contributor to the Canadian economy. NISSAN Canada Inc., its sup- pliers and over 150 dealers employ approximately 4,500 people. These include company employees and the staffs of NISSAN dealers all across Canada. In addition, many Canadians work for companies that supply NISSAN and NISSAN dealers with ma- terials and services ranging from the operation of port facilities and transportation services, to the supply of lubricants, parts and accessories.

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES . . . Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Con- sumer Affairs Department using our toll-free number: For U.S. customers 1-800-NISSAN-1
(1-800-647-7261)

For Canadian customers

1-800-387-0122

The Consumer Affairs Department will ask for the following information: (cid:150) Your name, address, and telephone number (cid:150) Vehicle identification number (attached to the top of the instrument panel on the driver(cid:146)s side)

(cid:150) Date of purchase (cid:150) Current odometer reading (cid:150) Your NISSAN dealer(cid:146)s name (cid:150) Your comments or questions OR

You can write to NISSAN with the information at: For U.S. customers

Nissan North America, Inc. Consumer Affairs Department P.O. Box 191
Gardena, California 90248-0191

For Canadian customers

Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

Table of Contents

Illustrated table of contents

Safety(cid:151)Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Display screen, heater, air conditioner and audio systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

10

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

0 Illustrated table of contents

Airbags, seat belts and child restraints . . . . . . . . . . . . . . . 0-2
Exterior front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-3
Exterior rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-4
Passenger compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-5

Instrument panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-6
Engine compartment check locations . . . . . . . . . . . . . . . . 0-8
Warning/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-9

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

AIRBAGS, SEAT BELTS AND CHILD RESTRAINTS

1. 2.

3. 4.

2nd row seat belts (P. 1-12) Supplemental curtain side-impact and rollover air bags (if so equipped) (P. 1-42) Front seat belts (P. 1-12) Supplemental front impact air bags (P. 1-42) Seats (P. 1-2)

5. 6. Occupant classification sensor

7. 8.

9.

(weight sensor) (P. 1-52) Seat belt pre-tensioners (P. 1-56) Supplemental side-impact air bag (if so equipped) (P. 1-42) LATCH (Lower Anchors and Tethers for CHildren) (P. 1-29)

10. Top tether strap anchor point (P. 1-30) See the page number indicated in paren- theses for operating details.

0-2 Illustrated table of contents

LII0028

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

EXTERIOR FRONT

Engine hood (P. 3-10)

1. 2. Windshield wiper and washer switch

(P. 2-22)

3. Windshield (P. 8-18) 4. 5. 6.

Sunroof (if so equipped) (P. 2-47) Power windows (P. 2-43) Door locks, keyfob, keys (P. 3-3, 3-7, 3-2) 7. Mirrors (P. 3-14) 8. 9. 10. Tire chains (P. 8-36) 11. Replacing bulbs (P. 8-27) 12. Headlight and turn signal switch

Tire pressure (P. 9-12) Flat tire (P. 6-2)

(P. 2-24)

13. Fog light switch (P. 2-28) 14. Tow hooks (P. 6-13) See the page number indicated in paren- theses for operating details.

LII0030

Illustrated table of contents 0-3

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

EXTERIOR REAR

1.

2. 3. 4.

5. 6. 7.

Rear sliding window (if so equipped) (P. 2-46) Vehicle loading (P. 9-13) Tailgate/Truckbox (P. 3-18) Trailer hitch/Towing (if so equipped) (P. 9-23) Replacing bulbs (P. 8-27) Bedside storage compartment (P. 2-43) Fuel filler cap, fuel recommendation (P. 3-10, P. 9-3) Fuel filler door (P. 3-10)

8. 9. Child safety rear door lock

(Crew Cab models only) (P. 3-6)

See the page number indicated in paren- theses for operating details.

0-4 Illustrated table of contents

LII0027

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

PASSENGER COMPARTMENT

1.

DVD entertainment system (if so equipped) (P. 4-39) Sunroof (if so equipped) (P. 2-47)

2. 3. Map lights (P. 2-50) 4. Sun visors (P. 3-13) 5. HomeLinkT (P. 2-50) 6. Glove box (P. 2-37) 7. Cup holders (P. 2-40) 8. 9. See the page number indicated in paren- theses for operating details.

Front seats (P. 1-2) Folding rear bench seat (P. 1-10)

LII0029

Illustrated table of contents 0-5

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

INSTRUMENT PANEL

1. 2. 3.

4.

5.

Ventilators (P. 4-12) Instrument brightness control (P. 2-27) Headlight/fog light (if so equipped)/turn signal switch (P. 2-24) Steering wheel switch for audio control (if so equipped) (P. 4-36) Driver supplemental air bag/horn (P. 1-42, P. 2-29)

6. Meters, gauges and warning/indicator

7.

lights (P. 2-4, 2-12) Cruise control main/set switches (if so equipped) (P. 5-17)

8. Windshield wiper/washer switch

(P. 2-22) Ignition switch (P. 5-7)

9. 10. Navigation system* (if so equipped)

(P. 4-2)

11. Navigation system* controls

(if so equipped) (P. 4-2)

12. Audio system controls (P. 4-20) 13. Front passenger supplemental air bag

(P. 1-42)

14. Glove box (P. 2-37) 15. Climate controls (P. 4-13) 16. Aux jack (P. 4-35) 17. Heated seat switch (if so equipped)

0-6 Illustrated table of contents

WIC0852

(P. 2-29)

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

*: Refer to the separate Navigation System Own- er(cid:146)s Manual (if so equipped). See the page number indicated in paren- theses for operating details.

18. Power outlet/Cigarette lighter (accessory) (P. 2-32/P. 2-34)

19. Vehicle dynamic control (VDC) off

switch (if so equipped) (P. 2-30)

20. Tow mode switch (P. 2-32) 21. Electronic locking rear differential

(E-Lock) system switch (if so equipped) (P.2-30)

22. Shift selector lever (console)

(if so equipped) (P. 5-10)

23. Power outlet (P. 2-32) 24. Front passenger air bag status light

(P. 2-17)

25. Hazard lights (P. 2-28) 26. 4WD shift switch (if so equipped)

(P. 5-20)

27. Shift selector lever (column)

(if so equipped) (P. 5-10) Instrument brightness control (P. 2-27)

28. 29. Tilt steering wheel control (P. 3-12) 30. Cargo lamp switch (P. 2-29) 31. Rear sonar system off switch

(if so equipped) (P. 2-31)

32. Pedal position adjustment switch

(if so equipped) (P. 3-12)

33. Rear power window switch

(if so equipped) (P. 2-46)

Illustrated table of contents 0-7

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

ENGINE COMPARTMENT CHECK LOCATIONS

Battery (P. 8-13) Fuse/fusible link box (P. 8-20) Transmission dipstick (P. 8-11) Engine oil filler cap (P. 8-8) Brake fluid reservoir (P. 8-12)

1. 2. 3. 4. 5. 6. Windshield washer fluid reservoir

(P. 8-12) Air cleaner (P. 8-16) Radiator cap (P. 8-7) Power steering fluid reservoir (P. 8-11)

7. 8. 9. 10. Engine oil dipstick (P. 8-8) 11. Engine coolant reservoir (P. 8-7) See the page number indicated in paren- theses for operating details.

0-8 Illustrated table of contents

WDI0413

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

WARNING/INDICATOR LIGHTS

Warning

light

Name

Anti-lock brake warning light

or

Automatic transmission check warning light

Automatic transmission park warning light ( model)

Page

2-13

2-13

2-13

Brake warning light

2-13

or

Charge warning light

2-14

Warning

light

Name

Page

Warning

light

Name

Door open warning light

Engine oil pres- sure low/engine coolant tem- perature high warning light

4WD warning light ( model)

Low fuel warn- ing light

Low tire pres- sure warning light

Low windshield washer fluid warning light

2-14

2-14

2-14

2-15

2-15

2-16

Seat belt warn- ing light and chime

Supplemental air bag warning light

Indicator

light

Name

Automatic transmission position indica- tor light

Cruise main switch indicator light

Page

2-16

2-16

Page

2-17

2-17

Illustrated table of contents 0-9

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

Indicator

light

Name

Cruise set switch indicator light

Electronic lock- ing rear differ- ential (E-Lock) system on indi- cator light (if so equipped)

4WD shift indi- cator light model)

Front passenger air bag status light

or

Page

2-17

2-17

2-17

2-17

0-10 Illustrated table of contents

Indicator

light

Name

High beam in- dicator light (Blue)

Malfunction indicator lamp (MIL)

Security indica- tor light (NVIS) (if so equipped)

Slip indicator light for models with ABLS (if so equipped)

Slip indicator light for models with VDC (if so equipped)

Page

2-19

2-19

2-19

Indicator

light

Name

Transfer 4LO position indica- tor light model)

Turn signal/hazard indicator lights

Vehicle dy- namic control off indicator light (if so equipped)

Page

2-18

2-18

2-18

2-19

2-19

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

1 Safety(cid:151)Seats, seat belts and supplemental restraint system

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Front manual captain(cid:146)s chair seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Front manual bench seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Front power seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Head restraint adjustment . . . . . . . . . . . . . . . . . . . . . . . 1-6
Active head restraint (front seats). . . . . . . . . . . . . . . . . 1-7
Armrests (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . 1-8
Flexible seating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Precautions on seat belt usage. . . . . . . . . . . . . . . . . . 1-12
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Injured persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Three-point type seat belt with retractor . . . . . . . . . . 1-16
Two-point type seat belt without retractor (center of the front bench seat) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21

Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
Precautions on child restraints . . . . . . . . . . . . . . . . . . 1-22
Child restraint installation on rear bench seat . . . . . 1-23
LATCH (Lower Anchors and Tethers for CHildren) system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
Top tether strap child restraint . . . . . . . . . . . . . . . . . . 1-30
Child restraint installation on front passenger seat outboard position . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
Child restraint installation on front bench passenger seat center position. . . . . . . . . . . . . . . . . . 1-35
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-38
Precautions on booster seats . . . . . . . . . . . . . . . . . . . 1-38
Booster seat installation on rear seat center or outboard positions . . . . . . . . . . . . . . . . . . . . . . . . . . 1-40
Booster seat installation on right front passenger seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-41
Supplemental restraint system . . . . . . . . . . . . . . . . . . . . . 1-42

Precautions on supplemental restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-42
Supplemental air bag warning labels. . . . . . . . . . . . . 1-58
Supplemental air bag warning light . . . . . . . . . . . . . . 1-58

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/28/05—tbrooks X

SEATS

FRONT MANUAL CAPTAIN(cid:146)S CHAIR SEAT ADJUSTMENT (if so equipped)

WARNING

c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.

c After adjustment, gently rock in the seat

to make sure it is securely locked.

WARNING

c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

ARS1152

c For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat properly. See (cid:147)Precautions on Seat Belt Usage(cid:148) later in this section.

1-2 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WARNING

After adjustment, gently rock in the seat to make sure it is securely locked. FRONT MANUAL BENCH SEAT ADJUSTMENT (if so equipped)

WARNING

c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.

c After adjustment, gently rock in the seat

to make sure it is securely locked.

LRS0419

LRS0420

Forward and backward Pull the lever up and hold it while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position.

Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. See (cid:147)Precautions on seat belt usage(cid:148) later in this section. Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-3

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WARNING

After adjustment, gently rock in the seat to make sure it is securely locked.

LRS0426

LRS0427

Forward and backward Pull the lever up and hold it while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position.

Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be re- clined to allow occupants to rest when the ve- hicle is stopped.

1-4 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

Forward and backward Moving the switch forward or backward will slide the seat forward or backward to the desired position. Reclining Move the recline switch backward until the de- sired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward. The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be re- clined to allow occupants to rest when the ve- hicle is stopped.

FRONT POWER SEAT ADJUSTMENT (if so equipped)

WARNING

c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.

c Do not leave children unattended inside the vehicle. They could unknowingly ac- tivate switches or controls. Unattended children could become involved in seri- ous accidents.

WRS0276

Operating tips c The power seat motor has an auto-reset overload protection circuit. the motor stops during operation, wait 30 seconds, then reactivate the switch.

If

c Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.

See (cid:147)Automatic drive positioner (if so equipped)(cid:148) in (cid:147)Pre-driving checks and adjustments(cid:148) for auto- matic drive positioner operation.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-5

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WRS0277

LRS0278

LRS0286

Seat lifter (if so equipped for driver(cid:146)s seat) Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.

Lumbar support (driver(cid:146)s seat) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area.

HEAD RESTRAINT ADJUSTMENT To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down.

The head restraints on the rear bench seat are removable. The front seat head restraints are not removable.

1-6 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WARNING

Head restraints should be adjusted prop- erly as they may provide significant pro- tection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.

WRS0134
Adjust the head restraint so the center is level with the center of your ears.

SPA1025

ACTIVE HEAD RESTRAINT (front seats)

WARNING

c Always adjust the head restraints prop- erly as specified in the previous section. Failure to do so can reduce the effec- tiveness of the active head restraint.

c Active head restraints are designed to supplement other safety systems. Al- ways wear seat belts. No system can prevent all injuries in any accident.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-7

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

c Do not attach anything to the head re- straint stalks. Doing so could impair active head restraint function.

The head restraint moves forward utilizing the force that the seatback receives from the occu- pant in a rear-end collision. The movement of the head restraint helps support the occupant(cid:146)s head by reducing its backward movement and helping absorb some of the forces that may lead to whip- lash type injuries. Active head restraints are effective for collisions at low to medium speeds in which it is said that whiplash injury occurs most. Active head restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions. Properly adjust the active head restraints as de- scribed earlier in this section.

WRS0368

LRS0425

Type A

Type B

ARMRESTS (if so equipped) To use the armrests on the captain(cid:146)s chairs (type A, if so equipped), pull them down to the resting position. To use the center armrest on the bench seat (type B, if so equipped), pull on the tab in the center of the seat and fold it down to the resting position.

1-8 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

Folding the front passenger(cid:146)s seatback flat (if so equipped) To fold the front passenger(cid:146)s seatback flat for extra storage length when transporting long items: s1 Slide the seat to the rear-most position. Then lift up on the recline lever, located on the outside of the seat, and fold the seatback forward as far as it will go.

c Do not fold down the rear seats when occupants are in the rear seat area or any luggage is on the rear seats.

c Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Always replace and adjust them prop- erly if they have been removed for any reason.

c If the head restraints are removed for any reason, they should be securely stored to prevent them from causing injury to passengers or damage to the vehicle in case of sudden braking or an accident.

c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.

c Properly secure all cargo to help pre- vent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury.

LRS0341

FLEXIBLE SEATING

WARNING

c Never allow anyone to ride in the cargo area or on the rear seats when they are in the fold-down position. In a collision, people riding in these areas without proper restraints are more likely to be seriously injured or killed.

c Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. Be sure everyone in your vehicle is in a seat and using a seat belt properly.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-9

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WARNING

c If you fold the front passenger(cid:146)s seat- back flat forward to carry longer ob- jects, be sure this cargo is properly se- cured and not near an air bag. In a crash, an inflating air bag might force that object toward a person. This could cause severe injury or even death. Se- cure objects away from the area in which an air bag would inflate. See (cid:147)Precautions on supplemental restraint system(cid:148) later in this section.

c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.

LRS0398

Folding the rear bench seat To fold the rear bench seat up for storage capac- ity behind the front seats or to remove the jacking tools from the storage area: s1

Lift up on the lever, located on the side of the seat, while lifting the front of the seat cushion up.

s2

LRS0342
Lift up on the latch located on the upper corner of the seatback to release the back of the seat. This will enable you to fold the front passenger seatback flat over the seat cush- ion.

3. To return the front passenger(cid:146)s seat to a seating position lift up on the seatback and push it up to an upright position. Then pull up on the recline lever and lean the seatback to a proper seating position. Release the lever to lock the seatback in position.

1-10 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WARNING

c When the vehicle is being used to carry cargo, properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seat- backs. In a sudden stop or collision, unsecured cargo could cause personal injury.

c Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. Be sure everyone in your vehicle is in a seat and using a seat belt properly. Never ride in the rear seat unless the seat bottom cushions are in place and latched.

c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.

LRS0399
s2 Fold the bottom of the seat cushion toward the back of the vehicle until it locks in place.

LRS0400
s3 Repeat this process to raise and secure the seat cushion on the other side of the vehicle for maximum storage capacity.

To return the rear bench seat to a seating position reverse the process. Make sure to properly push the seat cushion down into place.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-11

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

SEAT BELTS

LRS0392

Folding the rear bench seat down The rear bench seatback can be tilted forward to access the child restraint anchor point locations. To tilt the seatback forward, pull the strap up s1
and tilt the seatback. The child restraint anchor points s2 can be accessed behind the rear bench seatback.

WARNING

Never allow anyone to ride in the cargo area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could result in se- rious injury in an accident or sudden stop.

PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly ad- justed and you are sitting upright and well back in your seat, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position in- cludes a supplemental air bag. Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven.

1-12 Safety(cid:151)Seats, seat belts and supplemental restraint system

SSS0136

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WARNING

c Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be properly re- strained in the rear seat and, if appro- priate, in a child restraint.

SSS0134

SSS0016

WARNING

c The seat belt should be properly ad- justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an acci- dent. Serious injury or death can occur if the seat belt is not worn properly.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-13

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

c Be sure the seat belt tongue is securely

fastened to the proper buckle.

c Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.

c Do not allow more than one person to

use the same seat belt.

c Never carry more people in the vehicle

than there are seat belts.

c If the seat belt warning light glows con- tinuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indicate a mal- function in the system. Have the system checked by a NISSAN dealer.

c Once the pre-tensioner seat belt has activated, it cannot be reused and must be replaced together with the retractor. See your NISSAN dealer.

c Removal and installation of the pre- tensioner seat belt system components should be done by a NISSAN dealer.

SSS0014

WARNING

c Always route the shoulder belt over your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder. c Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.

1-14 Safety(cid:151)Seats, seat belts and supplemental restraint system

and

attaching

c All seat belt assemblies, including re- tractors hardware, should be inspected after any collision by a NISSAN dealer. NISSAN recom- mends that all seat belt assemblies in use during a collision be replaced un- less the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted. c All child restraints and attaching hard- ware should be inspected after any col- lision. Always follow the restraint manufacturer(cid:146)s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.

CHILD SAFETY Children need adults to help protect them. They need to be properly restrained.

In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

There are three basic types of child restraint systems: c Rear facing child restraint c Front facing child restraint c Booster seat The proper restraint depends on the child(cid:146)s size. Generally, infants up to about 1 year and less than 20 pounds (9 kg) should be placed in rear facing child restraints. Front facing child re- straints are available for children who outgrow rear facing child restraints and are at least one year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a front facing child restraint.

WARNING

Infants and children need special protec- tion. The vehicle(cid:146)s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fit- ting seat belt could cause serious or fatal injury. Always use appropriate child restraints.

All U.S. states and Canadian provinces or terri- tories require the use of approved child restraints

for infants and small children. See (cid:147)Child Re- straints(cid:148) later in this section.

Also, there are other types of child restraints available for larger children for additional protec- tion. NISSAN recommends that all pre-teens and children be restrained in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. This is especially important because your vehicle has a supplemental restraint sys- tem (Air bag system) for the right front passenger. See (cid:147)Supplemental restraint system(cid:148) later in this section. Infants Infants up to at least 1 year old should be placed in a rear facing child restraint. NISSAN recom- mends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manu- facturer(cid:146)s instructions for installation and use. Small Children Children that are over one year old and weigh between 20 lbs (9 kg) and 40 lbs (18 kgs) can be

placed in a forward facing child restraint. Refer to the manufacturer(cid:146)s instructions for minimum and maximum weight and height recommendations. NISSAN recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Mo- tor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer(cid:146)s instructions for instal- lation and use. Larger children Children who are too large for child restraints should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 feet 9 inches (142.5 cm) tall and weighs between 40 lbs (18
kg) and 80 lbs (36 kg). A booster seat should be used to obtain proper seat belt fit. NISSAN recommends that a child be placed in a commercially available booster seat if the shoul- der belt in the child(cid:146)s seating position fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle por- tion of the shoulder and the lap belt is low on the hips. A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and Safety(cid:151)Seats, seat belts and supplemental restraint system 1-15

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

THREE-POINT TYPE SEAT BELT WITH RETRACTOR

WARNING

c Every person who drives or rides in this vehicle should use a seat belt at all times.

c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

c For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat belt properly.

have a label certifying that it complies with Fed- eral Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.

WARNING

Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop. PREGNANT WOMEN NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as pos- sible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations. INJURED PERSONS NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations.

1-16 Safety(cid:151)Seats, seat belts and supplemental restraint system

LRS0419

Manual front seat shown

Fastening the seat belts 1. Adjust the seat. See (cid:147)Seats(cid:148) earlier in this

section.

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

retracted. Once retracted, the seat belt is in the emergency locking mode. See (cid:147)Child restraints(cid:148) later in this section for more information. The automatic locking mode should be used only for child restraint installation. During normal seat belt use by a passen- ger, the locking mode should not be acti- vated. If it is activated it may cause uncom- fortable seat belt It can also change the operation of the front passen- ger air bag. See (cid:147)Front passenger air bag and status light(cid:148) later in this section.

tension.

WARNING

When fastening the seat belts, be certain that the seatbacks are completely se- cured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

WRS0137
s2 Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage.

c The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.

c If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.

WRS0138
s3 Position the lap belt portion low and snug

on the hips as shown.

s4 Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.

The right front passenger seat and the rear seat- ing positions three-point seat belts have a locking mechanism for child restraint installation. It is referred to as the automatic locking mode or child restraint mode. When automatic locking mode is activated the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-17

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

To increase your confidence in the seat belts, check the operation as follows. c Grasp the shoulder belt and pull forward quickly. The retractor should lock and re- strict further belt movement.

If the retractor does not lock during this check or if you have any questions about seat belt opera- tion, see a NISSAN dealer.

WRS0139

Unfastening the seat belts s1 To unfasten the seat belt, press the button on the buckle. The seat belt automatically re- tracts.

Checking seat belt operation Seat belt retractors are designed to lock seat belt movement by two separate methods: c When the seat belt is pulled quickly from the

retractor.

c When the vehicle slows down rapidly.

1-18 Safety(cid:151)Seats, seat belts and supplemental restraint system

Front seats

LRS0242

Shoulder belt height adjustment (front outboard seats) The shoulder belt anchor height should be ad- justed to the position best for you. (See (cid:147)Precau- tions on seat belt usage(cid:148) earlier in this section.) To adjust, pull outs1 the adjustment button and move the shoulder belt anchors2 to the desired position, so the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off your shoulder. Re- lease the adjustment button to lock the shoulder belt anchor into position.

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WARNING

c After adjustment, release the adjust- ment button and try to move the shoul- der belt anchor up and down to make sure it is securely fixed in position.

c The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effec- tiveness of the entire restraint system and increase the chance or severity of injury in an accident.

WRS0190

WRS0445

TWO-POINT TYPE SEAT BELT WITHOUT RETRACTOR (center of the front bench seat) (if so equipped)

Fastening the belts s1

Insert the tongue into the buckle until you hear and feel the latch engage.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-19

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

WRS0446
s2 Tighten the belt by pulling the free end of the

belt away from the tongue.

WRS0447
s3 Position the lap belt low and snug on the

hips as illustrated.

s4

WRS0448
Loosen the belt by holding the tongue at a right angle to the belt, then pull on the belt.

1-20 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

c Periodically check to see that the seat belt and the metal components, such as buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt as- sembly should be replaced.

WARNING

c Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.

c Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.

c Never use seat belt extenders to install child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sud- den stop.

SEAT BELT MAINTENANCE c To clean the seat belt webbing, apply a mild soap solution or any solution recom- mended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.

c If dirt builds up in the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

WRS0201

Unfastening the seat belts To unfasten the seat belt, press the button on the buckle. SEAT BELT EXTENDERS If, because of body size or driving position, it is not possible to properly fit the three-point lap- shoulder belt and fasten it, an extender is avail- able which is compatible with the installed seat belts. The extender adds approximately 8 inches (200 mm) of length and may be used for either the driver or right front passenger seating posi- tion. See a NISSAN dealer for assistance if an extender is required.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-21

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

CHILD RESTRAINTS

c Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front seat. An in- flating supplemental front air bag could seriously injure or kill your child. A rear- facing child restraint must only be used in the rear seat.

c NISSAN recommends that the child re- straint be installed in the rear seat. Ac- cording to accident statistics, children are safer when properly restrained in the rear seat than in the front seat.

c An improperly installed child restraint could lead to serious injury or death in an accident.

In general, child restraints are designed to be installed with the lap portion of a lap/shoulder seat belt. In addition, this vehicle is equipped with a universal child restraint lower anchor system, referred to as the LATCH (Lower Anchors and Tethers for CHildren) system. Some child re- straints include two rigid or webbing-mounted attachments that can be connected to these lower anchors. For details, see the (cid:147)LATCH (Lower Anchors and Tethers for CHildren) sys- tem(cid:148) later in this section.

Child restraints for infants and small children of various sizes are offered by several manufactur-

ARS1098

WRS0256

PRECAUTIONS ON CHILD RESTRAINTS

WARNING

c Infants and small children should al- ways be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can re- sult in serious injury or death.

WARNING

c Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.

1-22 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

ers. When selecting any child restraint, keep the following points in mind: c Choose only a restraint with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

c Check the child restraint in your vehicle to be sure it is compatible with the vehicle(cid:146)s seat and seat belt system.

c If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child(cid:146)s height and weight. Always follow all recommended procedures. All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.

WARNING

c Improper use of a child restraint can increase the risk or severity of injury for both the child and other occupants of the vehicle.

c Follow all of the child restraint manu- facturer(cid:146)s instructions for installation and use. When purchasing a child re- straint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.

c If the child restraint is not anchored properly, the risk of a child being in- jured in a collision or a sudden stop greatly increases.

c Adjustable seatbacks should be posi- tioned to fit the child restraint, but as upright as possible.

c After attaching the child restraint, test it before you place the child in it. Push it from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. The child restraint should not move more than 1 inch (25
mm). If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

c If you must install a front facing child restraint in the front seat, see (cid:147)Child restraint installation on front passenger seat(cid:148) later in this section.

c When your child restraint is not in use, keep it secured with a seat belt to pre- vent it from being thrown around in case of a sudden stop or accident.

CAUTION

Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.

CHILD RESTRAINT INSTALLATION ON REAR BENCH SEAT

WARNING

c The three-point seat belt in your vehicle is equipped with an automatic locking mode retractor which must be used when installing a child restraint.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-23

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

c Failure to use the retractor(cid:146)s locking mode will result in the child restraint not being properly secured. The re- straint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.

c When installing a child restraint system in the rear center position, both the center seat belt connector tongue and buckle tongue must be secured.

Front Facing (outboard) (cid:151) step 1

Front Facing (center) (cid:151) step 1

LRS0402

LRS0401

Front facing When you install a child restraint on the rear bench seat, follow these steps:

1-24 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

s1 Position the child restraint on the seat. Ad- just the head restraint to its highest position. Always follow the restraint manufacturer(cid:146)s instructions. The back of the child restraint should be secured against the vehicle seat back. If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. See (cid:147)Head restraint adjustment(cid:148) earlier in this section. If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the child restraint is removed. If the seating position does not have an adjustable head restraint and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

WRS0250

LRS0458

Front Facing (cid:151) step 2

s2 Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer(cid:146)s instructions for belt routing.

Front Facing (cid:151) step 3

s3 Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts back to emergency locking mode when the seat belt is fully retracted.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-25

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

6. Check that the retractor is in the automatic locking mode by trying to pull more seat belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the retractor is in the automatic locking mode.

7. Check to make sure that the child restraint is properly secured prior to each use. If the belt is not locked, repeat steps 3 through 6.

After the child restraint is removed and the seat belt is fully retracted, the automatic locking mode (child restraint mode) is canceled.

LRS0457

WRS0252

Front Facing (cid:151) step 4

s4 Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

Front Facing (cid:151) step 5

s5 Before placing the child in the child restraint, use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 inch (25 mm). If it does move more than 1 inch (25 mm), pull again on the shoulder belt to further tighten the child restraint. If unable to properly secure the restraint move the restraint to another rear seating position and try again , or try a different child restraint. Not all child re- straints fit in all types of vehicles.

1-26 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

LRS0403

LRS0404

LRS0408

Rear Facing (outboard) (cid:151) step 1

Rear Facing (center) (cid:151) step 1

Rear facing When you install a child restraint on the rear bench seat, follow these steps: s1 Position the child restraint on the seat. Al- ways follow the restraint manufacturer(cid:146)s in- structions.

Rear Facing (cid:151) step 2

s2 Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu- facturer(cid:146)s instructions for belt routing.

Safety(cid:151)Seats, seat belts and supplemental restraint system 1-27

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

LRS0409

LRS0410

LRS0411

Rear Facing (cid:151) step 3

s3 Pull on the shoulder belt until all of the belt is fully extended. At this time, the seat belt retractor is in the automatic locking mode (child restraint mode). It reverts to emer- gency locking mode when the seat belt is fully retracted.

Rear Facing (cid:151) step 4

s4 Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

Rear Facing (cid:151) step 5

s5 Before placing the child in the child restraint, use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 inch (25 mm). If it does move more than 1 inch (25 mm), pull again on the shoulder belt to further tighten the child restraint. If unable to properly secure the restraint move the restraint to another rear seating position and try again , or try a different child restraint. Not all child re- straints fit in all types of vehicles.

1-28 Safety(cid:151)Seats, seat belts and supplemental restraint system

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

6. Check that the retractor is in the automatic locking mode by trying to pull more seat belt out of the retractor. If you cannot pull any more seat belt webbing out of the retractor, the retractor is in the automatic locking mode.

7. Check to make sure that the child restraint is properly secured prior to each use. If the belt is not locked, repeat steps 3 through 6.

After the child restraint is removed and the seat belt fully retracted, the automatic locking mode (child restraint mode) is canceled.

LRS0429
LATCH system anchor point locations rear

bench seat

LATCH (Lower Anchors and Tethers for CHildren) SYSTEM

WARNING

LRS0395
LATCH anchor point labels rear bench seat c The LATCH system anchors are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstance are they to be used for adult seat belts or harnesses.

c Attach LATCH system compatible child restraints only at the locations shown. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.

Some child restraints include two rigid or webbing-mounted attachments that can be con- nected to two anchors located at certain seating positions in your vehicle. This system is known as the LATCH (Lower Anchors and Tethers for CHil- dren) system. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle Safety(cid:151)Seats, seat belts and supplemental restraint system 1-29

Z REVIEW COPY—2005 Titan (tzw) Owners Manual—USA_English (nna) 02/26/05—tbrooks X

seat belt to secure the child restraint. Your vehicle is equipped with special anchor points that are used with LATCH system compatible child re- straints. Check your child restraint for a label stating that it is compatible with the LATCH sys- tem. This information may also be in the child restraint owner(cid:146)s manual. If you have such a child restraint, refer to the illustration for the seating positions equipped with LATCH system anchors which can be used to secure the child restraint.

The LATCH system anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH system anchors.

LATCH child restraints generally require the use of a top tether strap. See (cid:147)Top tether strap child restraint(cid:148) later in this section for installation in- structions.

When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint.

When you install a LATCH system compatible child restraint to the lower anchor attachments, follow these steps:

WARNING

Inspect the lower anchors by inserting your fingers into the lower anchor area and feeling to make sure there are no obstructions over the LATCH system an- chors, such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the LATCH sys- tem anchors are obstructed.

insert

1. To install the LATCH system compatible child restraint, the child restraint LATCH system anchor attachments into the anchor points on the seat. If the child re- straint is equipped with a top tether, see (cid:147)Top tether strap child restraint(cid:148) later in this section for installation instructions.

2. After attaching the child restraint and before placing the child in it, use force to push the child restraint from side to side and tug it forward to make sure that the child restraint is securely held in place. It should not move more than 1 inch (25 mm) .

3. Check to make sure that the child restraint is

properly secured prior to each use.

1-30 Safety(cid:151)Seats, seat belts and supplemental restraint system

TOP TETHER STRAP CHILD RESTRAINT If your child restraint has a top tether strap, it must be secured to the anchor point provided behind its position.

WARNING

c Child restraint anchor points are de- signed to withstand only those loads imposed by correctly fitted child re- straints. Under no circumstances are they to be used for adult seat belts or
