2004 Nissan Titan Owners Manual

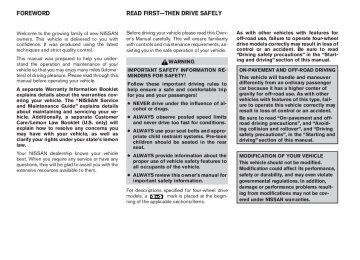

FOREWORD

READ FIRST(cid:151)THEN DRIVE SAFELY

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you under- stand the operation and maintenance of your vehicle so that you may enjoy many miles (kilome- ters) of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Booklet explains details about the warranties cov- ering your vehicle. The (cid:147)NISSAN Service and Maintenance Guide(cid:148) explains details about maintaining and servicing your ve- hicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state(cid:146)s lemon law. Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.

Before driving your vehicle please read this Own- er(cid:146)s Manual carefully. This will ensure familiarity with controls and maintenance requirements, as- sisting you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION RE- MINDERS FOR SAFETY! Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers! c NEVER drive under the influence of al-

cohol or drugs.

c ALWAYS observe posted speed limits and never drive too fast for conditions. c ALWAYS use your seat belts and appro- priate child restraint systems. Pre-teen children should be seated in the rear seat.

c ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.

c ALWAYS review this owner(cid:146)s manual for

important safety information.

For descriptions specified for four-wheel drive models, a mark is placed at the begin- ning of the applicable sections/items.

As with other vehicles with features for off-road use, failure to operate four-wheel drive models correctly may result in loss of control or an accident. Be sure to read (cid:147)Driving safety precautions(cid:148) in the (cid:147)Start- ing and driving(cid:148) section of this manual.

ON-PAVEMENT AND OFF-ROAD DRIVING This vehicle will handle and maneuver differently from an ordinary passenger car because it has a higher center of gravity for off-road use. As with other vehicles with features of this type, fail- ure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read (cid:147)On-pavement and off- road driving precautions(cid:148), and (cid:147)Avoid- ing collision and rollover(cid:148), and (cid:147)Driving safety precautions(cid:148), in the (cid:147)Starting and driving(cid:148) section of this manual.

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems result- ing from modifications may not be cov- ered under NISSAN warranties.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WHEN READING THE MANUAL

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle. All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and with- out obligation. IMPORTANT INFORMATION ABOUT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moder- ate personal injury or damage to your ve- hicle. To avoid or reduce the risk, the pro- cedures must be followed carefully.

CALIFORNIA PROPOSITION 65
WARNING

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth de- fects or other reproductive harm. In addi- tion, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

' 2004 NISSAN NORTH AMERICA, INC.

GARDENA, CALIFORNIA

All rights reserved. No part of this Owner(cid:146)s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc., Gar- dena, California.

APD1005
If you see this symbol, it means (cid:147)Do not do this(cid:148) or (cid:147)Do not let this happen.(cid:148)

If you see a symbol similar to these in an illustra- tion, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to these indicate movement or action.

Arrows in an illustration that are similar to these call attention to an item in the illustration.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WELCOME TO THE WORLD OF NISSAN

NISSAN pioneered the use of electronics and com- puters in automobiles, and has led the industry in improving both performance and fuel efficiency through new engine designs and the use of syn- thetic materials to reduce vehicle weight. The com- pany has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and (cid:151) most importantly (cid:151) through an awareness that people are the central element in quality control. From the time the parts arrived from our suppliers until you took delivery of your new NISSAN, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. NISSAN also takes great care to ensure that when you take your NISSAN to your dealer for maintenance, the service technician will perform his work according to the quality standards that have been established by NISSAN. Safety has also been built into your NISSAN. As you know, seat belts are an integral part of the safety systems that will help protect you and your passen- gers in the event of a sudden stop or an accident. We urge you to use the seat belts every time you drive the vehicle. The NISSAN story of growth and achievement re- flects our major goal: to provide you, our customer, with a vehicle that is built with quality and craftsman- ship (cid:151) a product that we can be proud to build and you can be proud to own.

Your new NISSAN is the result of our dedication to produce the finest in safe, reliable and economical transportation. Your vehicle is the product of a suc- cessful worldwide company that manufactures cars and trucks in over 17 countries and distributes them in 170 nations. NISSAN vehicles are designed and manufactured by Nissan Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and NISSAN affiliates world- wide, collectively growing to become the fifth largest automaker in the world. In addition to cars and trucks, NISSAN also makes forklift trucks, marine engines, boats and other diversified products. NISSAN has made a substantial and growing in- vestment in North America. NISSAN(cid:146)s commitment is over $6 billion dollars in capital investments in facilities across the continent. Some of the facilities include the Nissan Manufacturing facilities in Can- ton, Mississippi and in Smyrna, Tennessee, vehicle

WFW0014
styling design at Nissan Design America, Inc. in San Diego, California, and engineering at Nissan Tech- nical Center North America in Farmington Hills, Michigan. Additionally, NISSAN employs more than 21,000 people throughout the United States, Canada, and Mexico. An additional 60,000 people work for the 1,250 NISSAN and INFINITI dealers across North America. NISSAN is also a substantial contributor to the Canadian economy. Nissan Canada Inc., its suppli- ers and over 150 dealers employ approximately 4,500 people. These include company employees and the staffs of NISSAN dealers all across Canada. In addition, many Canadians work for companies that supply NISSAN and NISSAN dealers with ma- terials and services ranging from the operation of port facilities and transportation services, to the supply of lubricants, parts and accessories.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES . . . Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or ques- tions, please contact the NISSAN Consumer Affairs Department using our toll-free number: For U.S. customers 1-800-NISSAN-1
(1-800-647-7261)

For Canadian customers

1-800-387-0122

The Consumer Affairs Department will ask for the following information: (cid:150) Your name, address, and telephone number

(cid:150) Vehicle identification number (attached to the top of the instrument panel on the driver(cid:146)s side)

(cid:150) Date of purchase (cid:150) Current odometer reading (cid:150) Your NISSAN dealer(cid:146)s name (cid:150) Your comments or questions OR

You can write to NISSAN with the information at: For U.S. customers

Nissan North America, Inc. Consumer Affairs Department P.O. Box 191
Gardena, California 90248-0191

For Canadian customers

Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

Table of Contents

Illustrated table of contents

Safety(cid:151)Seats, seat belts and supplemental air bags

Instruments and controls

Pre-driving checks and adjustments

Display screen, heater, air conditioner and audio systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

10

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

0 Illustrated table of contents

Airbags, seat belts and child restraints . . . . . . . . . . . . . . . 0-2
Exterior front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-3
Exterior rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-4
Passenger compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-5

Instrument panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-6
Engine compartment locations . . . . . . . . . . . . . . . . . . . . . . 0-8
Warning/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-9

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/11/04—debbie X

AIRBAGS, SEAT BELTS AND CHILD RESTRAINTS

1. 2.

3. 4.

2nd row seat belts (P. 1-28) Supplemental curtain side-impact and rollover air bags (P. 1-12) Front seat belts (P. 1-28) Supplemental front impact air bags (P. 1-12) Seats (P. 1-2)

5. 6. Occupant classification sensor

7. 8.

9.

(weight sensor) (P. 1-21) Seat belt pretensioners (P. 1-25) Supplemental side impact air bag (if so equipped) (P. 1-12) LATCH (Lower Anchors and Tethers for CHildren) (P. 1-44)

10. Top tether strap anchor point (P. 1-46) See the page number indicated in paren- theses for operating details.

0-2 Illustrated table of contents

LII0028

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

EXTERIOR FRONT

Engine hood (P. 3-11)

1. 2. Windshield wiper and washer switch

(P. 2-22)

3. Windshield (P. 8-18) 4. 5. 6.

Sunroof (if so equipped) (P. 2-46) Power windows (P. 2-43) Door locks, keyfob, keys (P. 3-3, 3-7, 3-2) 7. Mirrors (P. 3-16) 8. 9. 10. Tire chains (P. 8-34) 11. Replacing bulbs (P. 8-26) 12. Headlight and turn signal switch

Tire pressure (P. 9-11) Flat tire (P. 6-2)

(P. 2-24)

13. Fog light switch (P. 2-27) 14. Tow hooks (P. 6-13) See the page number indicated in paren- theses for operating details.

LII0030

Illustrated table of contents 0-3

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

EXTERIOR REAR

1.

2. 3. 4.

5. 6. 7.

Rear sliding window (if so equipped) (P. 2-46) Vehicle loading (P. 9-12) Tailgate/Truckbox (P. 3-19) Trailer hitch/Towing (if so equipped) (P. 9-22) Replacing bulbs (P. 8-26) Bedside storage compartment (P. 2-43) Fuel filler cap, fuel recommendation (P. 3-11, P. 9-3) Fuel filler door (P. 3-11)

8. 9. Child safety rear door lock (Crew Cab

models only) (P. 3-6)

See the page number indicated in paren- theses for operating details.

0-4 Illustrated table of contents

LII0027

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

PASSENGER COMPARTMENT

1.

DVD entertainment system (if so equipped) (P. 4-38) Sunroof (if so equipped) (P. 2-46)

2. 3. Map lights (P. 2-50) 4. Sun visors (P. 3-14) 5. HomeLinkT (P. 2-50) 6. Glove box (P. 2-37) 7. Cup holders (P. 2-40) 8. 9. See the page number indicated in paren- theses for operating details.

Front seats (P. 1-2) Folding rear bench seat (P. 1-10)

LII0029

Illustrated table of contents 0-5

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

INSTRUMENT PANEL

1.

2. 3.

4.

5.

Driver, center and passenger vents (P. 4-11) Instrument brightness control (P. 2-27) Headlight and turn signal switch (P. 2-24) Steering wheel switch for audio control (if so equipped) (P. 4-36) Driver supplemental air bag/horn (P. 1-12, P. 2-29)

6. Meters, gauges and warning/indicator

7.

lights (P. 2-3, 2-12) Cruise control main/set switches (if so equipped) (P. 5-17)

8. Windshield wiper/washer switch

(P. 2-22) Ignition switch (P. 5-7)

9. 10. Navigation system* (if so equipped)

(P. 4-2)

11. Navigation system* controls

(if so equipped) (P. 4-2)

12. Audio system controls (P. 4-19) 13. Front passenger supplemental air bag

(P. 1-12)

14. Glove box (P. 2-37) 15. Climate controls (P. 4-12) 16. Aux jack (P. 4-35)

0-6 Illustrated table of contents

WIC0730

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

*: Refer to the separate Navigation System Own- er(cid:146)s Manual (if so equipped). See the page number indicated in paren- theses for operating details.

17. Heated seat switch (if so equipped)

(P. 2-29)

18. Power outlet/Cigarette lighter (accessory) (P. 2-32, P. 2-34)

19. Vehicle dynamic control (VDC) off

switch (if so equipped) (P. 2-30)

20. Tow mode switch (P. 2-32) 21. Electronic locking rear differential

(E-Lock) system switch (if so equipped) (P. 2-30)

22. Shift selector lever (console)

(if so equipped) (P. 5-9)

23. Power outlet (P. 2-32) 24. Passenger air bag status light (P. 2-18) 25. Hazard lights (P. 2-28) 26. 4WD shift switch (if so equipped)

(P. 5-20)

27. Shift selector lever (column)

(if so equipped) (P. 5-9) Instrument brightness control (P. 2-27)

28. 29. Tilt steering wheel control (P. 3-13) 30. Cargo lamp switch (P. 2-28) 31. Rear sonar system off switch

(if so equipped) (P. 2-31)

32. Pedal position adjustment switch

(if so equipped) (P. 3-13)

Illustrated table of contents 0-7

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

ENGINE COMPARTMENT LOCATIONS

Battery (P. 8-13) Fuse/fusible link box (P. 8-21) Transmission dipstick (P. 8-11) Engine oil filler cap (P. 8-8) Brake fluid reservoir (P. 8-12)

1. 2. 3. 4. 5. 6. Windshield washer fluid reservoir

(P. 8-12) Air cleaner (P. 8-16) Radiator cap (P. 8-7) Power steering fluid reservoir (P. 8-11)

7. 8. 9. 10. Engine oil dipstick (P. 8-8) 11. Engine coolant reservoir (P. 8-7) See the page number indicated in paren- theses for operating details.

0-8 Illustrated table of contents

WDI0413

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING/INDICATOR LIGHTS

Warning

light

Name

Anti-lock brake warning light

or

Automatic transmission check warning light

Automatic transmission park warning light ( model)

Page

2-13

2-13

2-13

Brake warning light

2-13

or

Warning

light

Name

Page

Warning

light

Name

Charge warning light

Door open warning light

Engine oil pres- sure low/engine coolant tem- perature high warning light

4WD warning light ( model)

Low fuel warn- ing light

Low tire pres- sure warning light

2-14

2-14

2-14

2-15

2-15

2-15

Low windshield washer fluid warning light

Seat belt warn- ing light and chime

Supplemental air bag warning light

Indicator

light

Name

Automatic transmission position indica- tor light

Page

2-16

2-16

2-16

Page

2-17

Illustrated table of contents 0-9

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

Page

2-17

2-17

2-17

2-17

Indicator

light

Name

or

Active brake limited slip (if so equipped)

Cruise main switch indicator light

Cruise set switch indicator light

Electronic lock- ing rear differ- ential (E-Lock) system on indi- cator light (if so equipped)

0-10 Illustrated table of contents

Indicator

light

Name

or

4WD shift indi- cator light model)

Front passenger air bag status light

High beam in- dicator light (Blue)

Malfunction indicator lamp (MIL)

Security indica- tor light (NVIS) (if so equipped)

Page

2-17

2-18

2-18

2-18

2-18

Page

2-19

2-19

2-19

2-19

Indicator

light

Name

Slip indicator light (if so equipped)

Transfer 4LO position indica- tor light model)

Turn signal/hazard indicator lights

Vehicle dy- namic control off indicator light (if so equipped)

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

1 Safety(cid:151)Seats, seat belts and supplemental air bags

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Front manual captain(cid:146)s chair seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Front manual bench seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Front power seat adjustment (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Head restraint adjustment . . . . . . . . . . . . . . . . . . . . . . . 1-6
Armrests (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . 1-7
Flexible seating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Supplemental restraint system . . . . . . . . . . . . . . . . . . . . . 1-12

Precautions on supplemental restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Supplemental air bag warning labels. . . . . . . . . . . . . 1-26
Supplemental air bag warning light . . . . . . . . . . . . . . 1-27
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
Precautions on seat belt usage. . . . . . . . . . . . . . . . . . 1-28
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-30

Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
Injured persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
Three-point type seat belt with retractor . . . . . . . . . . 1-32
Two-point type seat belt without retractor (center of the front bench seat) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-36
Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
Precautions on child restraints . . . . . . . . . . . . . . . . . . 1-37
Installation on rear bench seat . . . . . . . . . . . . . . . . . . 1-39
LATCH (Lower Anchors and Tethers for CHildren) system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-44
Top tether strap child restraint . . . . . . . . . . . . . . . . . . 1-46
Installation on front passenger seat outboard position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-47
Installation on front bench passenger seat center position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-50

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/11/04—debbie X

FRONT MANUAL CAPTAIN(cid:146)S CHAIR SEAT ADJUSTMENT (if so equipped)

WARNING

c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.

c After adjustment, gently rock in the seat

to make sure it is securely locked.

SEATS

WARNING

c Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

ARS1152

c For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat properly. See (cid:147)Precautions on Seat Belt Usage(cid:148) later in this section.

1-2 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING

After adjustment, gently rock in the seat to make sure it is securely locked. FRONT MANUAL BENCH SEAT ADJUSTMENT (if so equipped)

WARNING

c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.

c After adjustment, gently rock in the seat

to make sure it is securely locked.

LRS0419

LRS0420

Forward and backward Pull the lever up and hold it while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position.

Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be re- clined to allow occupants to rest when the ve- hicle is stopped.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-3

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING

After adjustment, gently rock in the seat to make sure it is securely locked.

LRS0426

LRS0427

Forward and backward Pull the lever up and hold it while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position.

Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be re- clined to allow occupants to rest when the ve- hicle is stopped.

1-4 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

Forward and backward Moving the switch forward or backward will slide the seat forward or backward to the desired position. Reclining Move the recline switch backward until the de- sired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward. The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see (cid:147)Precautions on seat belt usage(cid:148) later in this section). Also, the seatback can be re- clined to allow occupants to rest when the ve- hicle is stopped.

FRONT POWER SEAT ADJUSTMENT (if so equipped)

WARNING

c Do not adjust the driver(cid:146)s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of con- trol of the vehicle.

c Do not leave children unattended inside the vehicle. They could unknowingly ac- tivate switches or controls. Unattended children could become involved in seri- ous accidents.

WRS0276

Operating tips c The power seat motor has an auto-reset overload protection circuit. the motor stops during operation, wait 30 seconds, then reactivate the switch.

If

c Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.

See (cid:147)Automatic drive positioner (if so equipped)(cid:148) in (cid:147)Pre-driving checks and adjustments(cid:148) for auto- matic drive positioner operation.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-5

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WRS0277

LRS0278

LRS0286

Seat lifter (if so equipped for driver(cid:146)s seat) Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.

Lumbar support (driver(cid:146)s seat) The lumbar support feature provides lower back support to the driver. Move the lever up or down to adjust the seat lumbar area.

HEAD RESTRAINT ADJUSTMENT To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down.

The head restraints on the rear bench seat are removable. The front seat head restraints are not removable.

1-6 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING

Head restraints should be adjusted prop- erly as they may provide significant pro- tection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.

WRS0134
Adjust the head restraint so the center is level with the center of your ears.

WRS0368

Type A

ARMRESTS (if so equipped) To use the armrests on the captain(cid:146)s chairs (type A, if so equipped), pull them down to the resting position. To use the center armrest on the bench seat (type B, if so equipped), pull on the tab in the center of the seat and fold it down to the resting position.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-7

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

c Do not fold down the rear seats when occupants are in the rear seat area or any luggage is on the rear seats.

c Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Always replace and adjust them prop- erly if they have been removed for any reason.

c If the head restraints are removed for any reason, they should be securely stored to prevent them from causing injury to passengers or damage to the vehicle in case of sudden braking or an accident.

c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.

c Properly secure all cargo to help pre- vent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury.

Type B

LRS0425

FLEXIBLE SEATING

LRS0341

WARNING

c Never allow anyone to ride in the cargo area or on the rear seats when they are in the fold-down position. In a collision, people riding in these areas without proper restraints are more likely to be seriously injured or killed.

c Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. Be sure everyone in your vehicle is in a seat and using a seat belt properly.

1-8 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

Folding the front passenger(cid:146)s seatback flat (if so equipped) To fold the front passenger(cid:146)s seatback flat for extra storage length when transporting long items: s1 Slide the seat to the rear-most position. Then lift up on the recline lever, located on the outside of the seat, and fold the seatback forward as far as it will go.

WARNING

c If you fold the front passenger(cid:146)s seat- back flat forward to carry longer ob- jects, be sure this cargo is properly se- cured and not near an air bag. In a crash, an inflating air bag might force that object toward a person. This could cause severe injury or even death. Se- cure objects away from the area in which an air bag would inflate. See (cid:147)Precautions on supplemental restraint system(cid:148) later in this section.

c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.

s2

LRS0342
Lift up on the latch located on the upper corner of the seatback to release the back of the seat. This will enable you to fold the front passenger seatback flat over the seat cush- ion.

3. To return the front passenger(cid:146)s seat to a seating position lift up on the seatback and push it up to an upright position. Then pull up on the recline lever and lean the seatback to a proper seating position. Release the lever to lock the seatback in position.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-9

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

LRS0398

Folding the rear bench seat To fold the rear bench seat up for storage capac- ity behind the front seats or to remove the jacking tools from the storage area: s1

Lift up on the lever, located on the side of the seat, while lifting the front of the seat cushion up.

LRS0399
s2 Fold the bottom of the seat cushion toward the back of the vehicle until it locks in place.

LRS0400
s3 Repeat this process to raise and secure the seat cushion on the other side of the vehicle for maximum storage capacity.

To return the rear bench seat to a seating position reverse the process. Make sure to properly push the seat cushion down into place.

1-10 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING

Never allow anyone to ride in the cargo area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury in an acci- dent or sudden stop.

WARNING

c When the vehicle is being used to carry cargo, properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seat- backs. In a sudden stop or collision, unsecured cargo could cause personal injury.

c Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. Be sure everyone in your vehicle is in a seat and using a seat belt properly. Never ride in the rear seat unless the seat bottom cushions are in place and latched.

c When returning the seatbacks to the upright position, be certain they are completely secured in the latched posi- tion. If they are not completely secured, passengers may be injured in an acci- dent or sudden stop.

LRS0392

Folding the rear bench seat down The rear bench seatback can be tilted forward to access the child restraint anchor point locations. To tilt the seatback forward, pull the strap up s1
and tilt the seatback. The child restraint anchor points s2 can be accessed behind the rear bench seatback.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-11

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

SUPPLEMENTAL RESTRAINT SYSTEM

In a rollover both curtain air bags are designed to inflate and remain inflated for a short time. These supplemental restraint systems are de- signed to supplement the crash protection pro- vided by the seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable dis- tance away from the steering wheel, instrument panel and door finishers. See (cid:147)Seat belts(cid:148) later in this section for instructions and precautions on seat belt usage. The supplemental air bags operate only when the ignition switch is in the ON or START position. After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7
seconds if the system is operational.

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM This Supplemental Restraint System (SRS) sec- tion contains important information concerning the driver and passenger supplemental front air bags (NISSAN Advanced Air Bag System), supplemental side air bags, curtain side-impact and rollover air bags and pre-tensioner seat belts. Supplemental front impact air bag system: The NISSAN advanced air bag system can help cushion the impact force to the head and chest of the driver and right front, passenger in certain frontal collisions. Supplemental side-impact air bag system (if so equipped): This system can help cushion the impact force to the chest area of the driver and right front, passenger in certain side impact collisions. The supplemental side air bag is de- signed to inflate on the side where the vehicle is impacted. Supplemental curtain side-impact and roll- over air bag system: This system can help cushion the impact force to the head of occu- pants in front and rear outboard seating positions in certain side impact or rollover collisions. In a side impact, the curtain air bags are designed to inflate on the side where the vehicle is impacted. 1-12 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING

c The supplemental front air bags ordi- narily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Also, the right front passenger air bag will not inflate if the passenger air bag status light is lit. See (cid:147)Front passenger air bag and status light(cid:148) later in this section. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

WRS0031

c The seat belts and the supplemental front air bags are most effective when you are sitting well back and upright in the seat. The front air bags inflate with great force. Even with the NISSAN ad- vanced air bag system, if you are unre- strained, leaning forward, sitting side- ways or out of position in any way, you are at greater risk of injury or death in a crash. You may also receive serious or fatal injuries from the supplemental front air bag if you are up against it when it inflates. Always sit back against

the seatback and as far away as practi- cal from the steering wheel or instru- ment panel. Always use the seat belts. c The driver and right front passenger seat belt buckles are equipped with sensors that detect if the seat belts are fastened. The advanced air bag system monitors the severity of a collision and seat belt usage then inflates the air bags. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

c The right

front passenger seat

is equipped with an occupant classifica- tion sensor (weight sensor) that turns the right front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be properly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See (cid:147)Front Pas- senger air bag and status light(cid:148) later in this section.

c Keep hands on the outside of the steer- ing wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental front air bag inflates.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-13

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

1-14 Safety(cid:151)Seats, seat belts and supplemental air bags

ARS1133

ARS1041

WARNING

c Never let children ride unrestrained or extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

ARS1042

ARS1043

ARS1044

WARNING

c Children may be severely injured or killed when the supplemental front air bags, side air bags or curtain side- impact and rollover air bags inflate if they are not properly restrained. Pre- teens and children should be properly restrained in the rear seat, if possible.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-15

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

ARS1045

WARNING

WRS0256

WRS0431
Do not lean against doors or windows.

c Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front seat. An in- flating supplemental front air bag could seriously injure or kill your child. See (cid:147)Child restraints(cid:148) later in this section for details.

1-16 Safety(cid:151)Seats, seat belts and supplemental air bags

WARNING

Supplemental side air bag (if so equipped) and curtain side-impact and rollover air bag: c The supplemental side air bag and cur- tain side-impact and rollover air bag ordinarily will not inflate in the event of a frontal impact, rear impact, or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

LRS0396
Do not lean against doors or windows.

SSS0162
Do not lean against doors or windows.

WARNING

c The seat belts, the supplemental side air bags and curtain side-impact and rollover air bags are most effective when you are sitting well back and up- right in the seat. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the window or lean against the door. Some examples of dangerous riding positions are shown in the previ- ous illustrations.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-17

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

LRS0421

SSS0159

WARNING

c When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.

c Do not use seat covers on the front seatbacks. They may interfere with supplemental side air bag inflation.

1-18 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

1.

2.

SRS curtain side-impact and rollover air bag modules SRS curtain side-impact and rollover air bag Diagnosis sensor unit Supplemental front air bag modules

3. 4. 5. Crash zone sensor 6. Occupant classification system control

unit

Seat belt buckle switches Pre-tensioner retractor

7. Occupant classification sensor 8. 9. 10. Satellite sensors 11. Supplemental side air bag modules

(if so equipped)

NISSAN Advanced Air Bag System (front seats) This vehicle is equipped with the NISSAN ad- vanced air bag system for the driver and right front passenger seats. This system is designed to meet certification requirements under U.S. regu- lations. It is also permitted in Canada. However, all of the information, cautions and warn- ings in this manual still apply and must be followed.

WRS0405

The driver supplemental front air bag is located in the center of the steering wheel. The passenger Safety(cid:151)Seats, seat belts and supplemental air bags 1-19

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

to help protect the front occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to, or is against, the front air bag module during inflation. The front air bags deflate quickly after a collision. The supplemental front air bags operate only when the ignition switch is in the ON or START position. After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7
seconds if the system is operational.

supplemental front air bag is mounted in the dashboard above the glove box. The supplemen- tal front air bags are designed to inflate in higher severity frontal collisions, although they may in- flate if the forces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental front air bag system operation.

status light(cid:148) later in this section for further details. One front air bag inflating does not indicate im- proper performance of the system.

If you have any questions about your air bag system, please contact NISSAN or your NISSAN dealer. If you are considering modification of your vehicle due to a disability, you may also contact NISSAN. Contact information is contained in the beginning of this Owner(cid:146)s Manual. When a supplemental front air bag inflates, a fairly loud noise may be heard, followed by the release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken to not inhale it, as it may cause irritation and chok- ing. Those with a history of a breathing condition should get fresh air promptly. Supplemental front air bags, along with the use of seat belts, help to cushion the impact force on the face and chest of the driver and right front passenger. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body. Even with NISSAN advanced air bags, seat belts should be correctly worn and the driver and pas- senger seated upright as far as practical away from the steering wheel or instrument panel. The supplemental front air bags inflate quickly in order

The NISSAN advanced air bag system has dual stage inflators. It also monitors information from the crash zone sensor, the diagnosis sensor unit, seat belt buckle sensors, occupant classification sensor (weight sensor) and right front passenger seat belt tension sensor. Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the right front passenger, it additionally monitors the weight of an occupant or object on the seat and seat belt tension. Based on information from the sensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, depending on the weight detected on the passenger seat and how the seat belt is used. If the front passenger air bag is OFF, the passenger air bag status light will be illuminated. See (cid:147)Front passenger air bag and 1-20 Safety(cid:151)Seats, seat belts and supplemental air bags

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

Front passenger air bag

The right front passenger air bag is designed to automatically turn OFF when the vehicle is oper- ated under some conditions as described below in accordance with U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags in your vehicle are not part of this system.

The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants, such as children, by requiring the air bag to be auto- matically turned OFF. Certain sensors are used to meet the requirements.

One sensor used is the occupant classification sensor (weight sensor). It is in the bottom of the right front passenger seat cushion and is de- signed to detect an occupant and objects on the right front seat by weight. It works together with seat belt sensors described later. For example, if a child is in the right front passenger seat, the advanced air bag system is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, its weight and the child(cid:146)s weight can be detected and cause the air bag to turn OFF. Weight sensor operation can vary depending on the right front passenger seat belt sensors.

Front passenger air bag and status light

Status light

LRS0351

LRS0316

WARNING

The right front passenger air bag is de- signed to automatically turn OFF under some conditions. Read this section care- fully to learn how it operates. Proper use of the seat, seat belt and child restraints is necessary for most effective protection. Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity of injury in an accident.

front passenger air bag status or is located under the climate

The right light controls. The light operates as follows: c Unoccupied passenger seat or when other conditions are met as outlined in this sec- tion: The illuminates to indi- cate that the front passenger air bag is OFF and will not inflate in a crash.

or

c Occupied passenger seat and the passen- ger meets the conditions outlined in this section: The light is OFF to indicate that the front passenger air bag is ON.

or

Safety(cid:151)Seats, seat belts and supplemental air bags 1-21

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

in a rear seat. If this is not possible, the weight sensor and seat belt sensors are designed to operate as described above to turn the front passenger air bag OFF for specified child re- straints as required by the regulations. Failing to properly secure child restraints and to use the automatic locking mode (child restraint mode) may allow the restraint to tip or move in an acci- dent or sudden stop. This can also result in the passenger air bag inflating in a crash instead of being OFF. See (cid:147)Child restraints(cid:148) later in this section for proper use and installation.

If the right front passenger seat is not occupied and the seat belt is not buckled, the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object(cid:146)s weight detected by the weight sensor. Other conditions could also result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you and all vehicle occupants are seated and restrained properly.

The right front passenger seat belt sensors are designed to detect if the seat belt is buckled and the amount of tension on the seat belt, such as when it is in the automatic locking mode (child restraint mode). Based on the weight on the seat detected by the weight sensor and the belt ten- sion detected on the seat belt, the advanced air bag system determines whether the front pas- senger air bag should be automatically turned OFF as required by the regulations. Right front passenger seat adult occupants who are properly seated and using the seat belt as outlined in this manual should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF. Also, if the occupant takes his/her weight off the seat cushion (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sen- sor to turn the air bag OFF. In addition, if the occupant improperly uses the right front seat belt in the automatic locking mode (child restraint mode), this could cause the air bag to be turned OFF. Always be sure to be seated and wearing the seat belt properly for the most effective pro- tection by the seat belt and supplemental air bag. NISSAN recommends that pre-teens and chil- dren be properly restrained in a rear seat. NISSAN also recommends that appropriate child restraints and booster seats be properly installed 1-22 Safety(cid:151)Seats, seat belts and supplemental air bags

Using the passenger air bag status light, you can monitor when the front passenger air bag is au- tomatically turned OFF. The light will illuminate (indicating the air bag is OFF and will not inflate) when the right front passenger seat is not occu- pied.

If an adult occupant is in the right front seat and the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person is a small adult, or is not sitting on the seat or using the right front seat belt properly. If a child restraint must be used in the right front seat, but the status light is not lit (indicating that the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. If such situations happen, properly position and restrain the occupant or child re- straint. Otherwise reposition the occupant or child restraint in a rear seat.

If a malfunction occurs in the front passenger air bag system, the passenger air bag status light or , located under the climate controls, will illuminate and the supplemental air bag warning light , located in the meter and gauges area in the center of the instrument panel, will blink. Have the system checked by a NISSAN dealer. Other supplemental front air bag precau- tions

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING

c Do not place any objects on the steer- ing wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such ob- jects may become dangerous projec- tiles and cause injury if the supplemen- tal front air bag inflates.

c Immediately after

inflation, several front air bag system components will be hot. Do not touch them; you may se- verely burn yourself.

c No unauthorized changes should be made to any components or wiring of the supplemental air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.

c Do not make unauthorized changes to your vehicle(cid:146)s electrical system, sus- pension system or front end structure. This could affect proper operation of the supplemental front air bag system.

c Tampering with the supplemental front air bag system may result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing trim material around the air bag system.

additional

c Modifying or tampering with the front passenger seat may result in serious personal injury. For example, do not change the front seats by placing mate- rial on the seat cushion or by installing additional trim material, such as seat covers, on the seat that are not specifi- cally designed to assure proper air bag operation. Additionally, do not stow any objects under the front passenger seat or the seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classifica- tion system (weight sensor).

c No unauthorized changes should be made to any components or wiring of the seat belt system. This may affect the supplemental front air bag system. Tampering with the seat belt system may result in serious personal injury.

c Work on and around the supplemental front air bag system should be done by a NISSAN dealer. Installation of electri- cal equipment should also be done by a NISSAN dealer. The Supplemental Re- straint System (SRS) wiring should not be modified or disconnected. Unautho- rized electrical test equipment and probing devices should not be used on the air bag system.

c A cracked windshield should be re- placed immediately by a qualified re- pair facility. A cracked windshield could affect inflation of the supplemental air bag system.

c The SRS wiring harness connectors are easy

orange

for

yellow and identification.

When selling your vehicle, we request that you inform the buyer about the supplemental front air bag system and guide the buyer to the appropri- ate sections in this Owner(cid:146)s Manual.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-23

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

inflate in higher severity side collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions.

Curtain side-impact and rollover air bags are also designed to inflate in certain types of rollover collisions or near rollovers.

Vehicle damage (or lack of it) is not always an indication of proper supplemental side air bag and curtain air bag operation.

When the supplemental side air bag and curtain air bags inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Supplemental side air bags, along with the use of seat belts, help to cushion the impact force on the chest of the front occupants. Curtain side- impact and rollover air bags help to cushion the impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries. How- ever, an inflating side air bag, or curtain air bag may cause abrasions or other injuries.

WRS0422

Supplemental side-impact air bag (if so equipped) and curtain side-impact and rollover air bags system The supplemental side-impact air bags are lo- cated in the outside of the seatback of the front seats. The supplemental curtain side-impact and rollover air bags are located in the side roof rails. These systems are designed to meet voluntary guidelines to help reduce the risk of injury to out-of-position occupants. However, all of the information, cautions and warnings in this manual still apply and must be followed. The supplemental side air bags and curtain side- impact and rollover air bags are designed to 1-24 Safety(cid:151)Seats, seat belts and supplemental air bags

The seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the supplemental side air bag. Rear seat passengers should be seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain air bag inflate quickly in order to help protect the occupants. Because of this, the force of the side air bag and curtain air bag inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bag and curtain air bag will deflate after the collision is over. The supplemental side air bags and curtain side-impact and rollover air bags operate only when the ignition switch is in the ON or START positions.

After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7
seconds if the system is operational.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

WARNING

c Do not place any objects near the seat- back of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if the supplemental side air bag inflates.

c Right after inflation, several side air bag and curtain side-impact and rollover air bag system components will be hot. Do not touch them; you may severely burn yourself.

c No unauthorized changes should be made to any components or wiring of the side air bag and curtain air bag system. This is to prevent accidental inflation of the side air bag and curtain air bag or damage to the side air bag and curtain air bag system.

c Do not make unauthorized changes to your vehicle(cid:146)s electrical system, sus- pension system or side panel. This could affect proper operation of the supplemental curtain air bag system.

c Tampering with the supplemental side air bag system may result in serious personal injury. For example, do not change the front seats by placing mate- rial near the seatback or by installing additional trim material, such as seat covers, around the side air bag.

c Work around and on the curtain air bag system should be done by a NISSAN dealer. Installation of electrical equip- ment should also be done by a NISSAN dealer. The SRS wiring harnesses* should not be modified or discon- nected. Unauthorized electrical test equipment and probing devices should not be used on the side air bag or cur- tain air bag system.

* The SRS wiring harness or connectors are yellow or orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the supplemental side air bag and curtain air bag system and guide the buyer to the appropriate sections in this Owner(cid:146)s Manual.

Pre-tensioner seat belt system (Front seats)

WARNING

c The pre-tensioner seat belt cannot be reused after activation. It must be re- placed together with the retractor and buckle as a unit.

c If the vehicle becomes involved in a frontal collision but the pre-tensioner is not activated, be sure to have the pre- tensioner system checked and, if nec- essary, your NISSAN dealer.

replaced by

c No unauthorized changes should be made to any components or wiring of the pre-tensioner seat belt system. This is to prevent accidental activation of the pre-tensioner seat belt or damage to the pre-tensioner seat belt operation. Tampering with the pre-tensioner seat belt system may result in serious per- sonal injury.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-25

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

c Work around and on the pre-tensioner system should be done by a NISSAN dealer. Installation of electrical equip- ment should also be done by a NISSAN dealer. Unauthorized electrical test equipment and probing devices should not be used on the pre-tensioner seat belt system.

c If you need to dispose of the pre- tensioner or scrap the vehicle, contact a NISSAN dealer. Correct pre-tensioner disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

The driver and right front passenger seat belts include a pre-tensioner seat belt system that activates in conjunction with the supplemental air bag systems. Working with the seat belt retrac- tor, it helps tighten the seat belt when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.

The pre-tensioner is encased with the seat belt(cid:146)s retractor. These seat belts are used the same as conventional seat belts.

fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly. After the pre-tensioner seat belts have activated, load limiters allow the seat belt to release web- bing (if necessary) to reduce forces against the chest. If any abnormality occurs in the pre-tensioner system, the supplemental air bag warning will not come on, will flash intermit- light tently or will turn on for 7 seconds and remain on after the ignition key has been turned to the ON or START position. In this case, the pre-tensioner seat belt may not function properly. They must be checked and repaired. Take your vehicle to the nearest NISSAN dealer. When selling your vehicle, we request that you inform the buyer about the pre-tensioner seat belt system and guide the buyer to the appropriate sections in this Owner(cid:146)s Manual.

When the pre-tensioner seat belt activates, smoke is released and a loud noise may be heard. This smoke is not harmful and does not indicate a 1-26 Safety(cid:151)Seats, seat belts and supplemental air bags

LRS0397

1. 2.

SRS Air bag warning labels SRS Side air bag warning label (if so equipped)

SUPPLEMENTAL AIR BAG WARNING LABELS Warning labels about the supplemental front air bags and supplemental side air bags are placed in the vehicle as shown in the illustration.

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

LRS0100

SUPPLEMENTAL AIR BAG WARNING LIGHT air bag warning light, The supplemental displaying in the instrument panel, moni- tors the circuits of the supplemental front air bag, supplemental side air bag and curtain side- impact and rollover air bag and pre-tensioner seat belt systems. The circuits monitored by the supplemental air bag warning light are the diag- nosis sensor unit, crash zone sensor, satellite sensors, rollover sensor, front air bag modules, side air bag modules, curtain air bag modules, pre-tensioner seat belts and all related wiring.

When the ignition key is in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.

the following conditions occur,

If any of the supplemental front air bag, supplemental side air bag, curtain air bag and pre-tensioner seat belt systems need servicing: c The supplemental air bag warning light re-

mains on after approximately 7 seconds.

c The supplemental air bag warning light

flashes intermittently.

c The supplemental air bag warning light does

not come on at all.

Under these conditions, the supplemental front air bag, supplemental side air bags and curtain air bag or pre-tensioner seat belt systems may not operate properly. It must be checked and re- paired. Take your vehicle to the nearest NISSAN dealer.

WARNING

If the supplemental air bag warning light is on, it could mean that the supplemental front air bag, supplemental side air bag, curtain air bag systems and/or pre- tensioner seat belt systems will not oper- ate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a NISSAN dealer as soon as possible.

Repair and replacement procedure The supplemental front air bags, supplemental side air bags, curtain air bags and pre-tensioner seat belts are designed to inflate on a one-time- only basis. As a reminder, unless it is damaged, the supplemental air bag warning light remains illuminated after inflation has occurred. Repair and replacement of these supplemental air bag systems should be done only by a NISSAN dealer. When maintenance work is required on the ve- hicle, the supplemental front air bags, supple- mental side air bags, curtain air bags, pre- tensioner seat belts and related parts should be pointed out to the person performing the mainte- nance. The ignition key should always be in the LOCK position when working under the hood or inside the vehicle.

Safety(cid:151)Seats, seat belts and supplemental air bags 1-27

Z REVIEW COPY—2004 Titan (tzw) Owners Manual (owners)—USA_English (nna) 06/09/04—debbie X

SEAT BELTS

WARNING

c Once a supplemental front air bag, supplemental side air bag or curtain air bag has inflated, the air bag module will not function again and must be re- placed. Additionally, the supplemental front air bags inflate, the activated pre-tensioner seat belts must also be replaced. The air bag module and pre-tensioner seat belt system should be replaced by a NISSAN dealer. The air bag module and pre-tensioner seat belt system cannot be repaired.

if any of

c The supplemental front air bag, side air bag and curtain air bag systems, and the pre-tensioner seat belt system should be inspected by a NISSAN dealer if there is any damage to the front end or side portion of the vehicle. c If you need to dispose of the supple- mental air bag, pre-tensioner seat belt system or scrap the vehicle, contact a NISSAN dealer. Correct supplemental air bag and pre-tensioner seat belt sys- tem disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly ad- justed and you are sitting upright and well back in your seat, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position in-
