2010 Hyundai Sonata Owners Manual

OWNER'S MANUAL

Operation Maintenance Specifications

All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out.

This manual applies to all Hyundai models and includes descriptions and expla- nations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle.

F1

A070A01A-AAT

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation and other federal or state agencies.

A080A01S-AAT

TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION

Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer's instruc- tions or consult your Hyundai dealer for precautionary measures or special instructions if you choose to install one of these devices.

F2

A090A01A-AAT

SAFETY AND VEHICLE DAMAGE WARNING

This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following:

This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning.

WARNING:

CAUTION:

This indicates that a condition may result in damage to your vehicle or its equipment if the caution is not heeded. Follow the advice provided with the caution.

NOTE: This indicates that interesting or helpful information is being provided.

F3

A110A01A-AAT

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle's systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

o How various systems in your vehicle were operating; o Whether or not the driver and passenger safety belts were buckled/fastened;

These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

F4

A040A01A-AAT

FOREWORD

Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who drive Hyundais. The advanced engineering and high-quality construction of each Hyundai we build is something of which we're very proud.

Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.

The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may be required.

A050A07A-AAT

HYUNDAI MOTOR AMERICA

Note: Because future owners will also need the information included in this manual, if you sell this Hyundai,

please leave the manual in the vehicle for their use. Thank you.

CAUTION:

Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appear in the Service Station Information on the back cover of the Owner's Manual.

Copyright 2009 Hyundai Motor America. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor America.

F5

A100A03A-AAT

Guide to Hyundai Genuine Parts 1. What are Hyundai Genuine Parts?

Hyundai Genuine Parts are the same parts used by Hyundai Motor Company to manufacture vehicles. They are de- signed and tested for the optimum safety, performance, and reliability to our cus- tomers.

2. Why should you use genuine parts? Hyundai Genuine Parts are engineered and built to meet rigid manufacturing requirements. Using imitation, counter- feit or used salvage parts is not covered under the Hyundai New Vehicle Lim- ited Warranty or any other Hyundai

warranty. In addition, any damage to or failure of Hyundai Genuine Parts caused by the installation or failure of an imita- tion, counterfeit or used salvage part is not covered by any Hyundai Warranty.

3. How can you tell if you are purchasing

Hyundai Genuine Parts? Look for the Hyundai Genuine Parts Logo on the package (see below).

Hyundai Genuine Parts exported to the United States are packaged with labels written only in English.

Hyundai Genuine Parts are only sold through Hyundai Dealerships.

authorized

To find the closest authorized dealer call 1-800-826-CARS

A100A03L

A100A01L

A100A02L

A100A04L

F6

SECTION

TABLE OF CONTENTS

FEATURES OF YOUR HYUNDAI

DRIVING YOUR HYUNDAI

WHAT TO DO IN AN EMERGENCY

CORROSION PREVENTION & APPEARANCE CARE

VEHICLE MAINTENANCE REQUIREMENTS

DO-IT-YOURSELF MAINTENANCE

EMISSION CONTROL SYSTEMS

CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS

VEHICLE SPECIFICATIONS

INDEX

10

F7

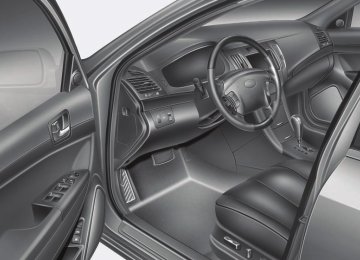

INSTRUMENTS AND CONTROLS (I)

B250A01NF-AAT

F8

ONF018001N

1. Door lock/unlock button 2. Outside rearview mirror control switch* 3. Central door lock switch* 4. Power window lock switch* 5. Power window switches* 6. Trunk lid release lever 7. Fuel filler lid opener button 8. Panel Brightness Control Knob (Rheostat Switch) 9. Electronic Stability Control (ESC) Switch

10. Power Adjustable Pedals Switch* 11. Steering wheel tilt 12. Hood release lever 13. Brake pedal 14. Accelerator pedal 15. Clutch pedal* 16. Fuse box * : if installed

CAUTION:

When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately.

F9

INSTRUMENTS AND CONTROLS (II)

B250B01NF-AAT

F10

ONF018002N

1. Driver’s air bag 2. Light control / Turn signals 3. Instrument cluster 4. Wiper/Washer 5. Cruise control switch* 6. Ignition switch 7. "PASSENGER AIR BAG OFF" Indicator 8. Digital clock* 9. Audio controls* 10. Heating/Air conditioning control panel*

11. Hazard warning flasher switch 12. Seat warmer* 13. Shift lever 14. Cigarette lighter 15. Power outlet 16. Ashtray 17. Passenger’s air bag 18. Vent controls 19. Glove box * : if installed

CAUTION:

When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately.

F11

YOUR VEHICLE AT A GLANCE

B255A02NF-AAT

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER

SRS (Airbag) Warning Light

Low Fuel Level Warning Light

Turn Signal Indicator Lights

Check Engine - Malfunction Indicator Light (MIL)

Seat Belt Reminder Light and Chime

ABS Service Reminder Indicator (If Installed)

High Beam Indicator Light

Electronic Stability Control (ESC) Indicator Lights

Front Fog Light Indicator Light (If Installed)

Cruise Indicator Light

Low Oil Pressure Warning Light

Cruise SET Indicator Light

Parking Brake/Low Brake Fluid Level Warning Light

Charging System Warning Light

Trunk Lid Open Warning Light

Door Ajar Warning Light

Low Windshield Washer Fluid Level Warning Light

Low Tire Pressure Telltale (If Installed)

TPMS (Tire Pressure Monitoring System) Malfunction Telltale (If Installed)

* More detailed explanations of these items will be found beginning on page 1-52.

F12

!

PROPOSITION 65 WARNING: Items contained in motor vehicles or emitted from them are known to the State of California to cause cancer and birth defects or reproductive harm. These include: o Gasoline and its vapors o Engine exhaust o Used engine oil o Interior passenger compartment

components and materials

o Component parts which are subject

to heat and wear

In addition, battery posts, terminals and related accessories contain lead, lead compounds and other chemicals known to the State of California to cause cancer and reproductive harm.

F13

FEATURES OF YOUR HYUNDAI

Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai ..................................... 1-3
Keys .............................................................................. 1-3
Door Locks ................................................................... 1-4
Theft-Alarm System ...................................................... 1-8
Windows ..................................................................... 1-11
Seats ........................................................................... 1-14
Seat Belts.................................................................... 1-22
Child Restraint System ............................................... 1-27
Advanced Supplemental Restraint (AIRBAG) System (SRS) ........................................................... 1-35
Instrument Cluster and Indicator Lights ...................... 1-50
Warning and Indicator Lights ...................................... 1-52
Trip Computer ............................................................. 1-61
Multi-Function Light Switch ......................................... 1-63
Windshield Wiper and Washer Switch ........................ 1-66
Sunroof ....................................................................... 1-72
Mirror ........................................................................... 1-77
Homelink Mirror ........................................................... 1-79
Hood Release ............................................................. 1-89
Cruise Control ............................................................. 1-92
Manual Heating and Cooling Control System ............. 1-96
Automatic Heating and Cooling Control System ....... 1-104
Antenna ..................................................................... 1-110
Stereo Sound System ............................................... 1-112
Audio System ............................................................ 1-115

1FEATURES OF YOUR HYUNDAI

FUEL RECOMMENDATIONS

B010A02NF-AAT

Use Unleaded Gasoline

UNLEADED FUEL ONLY

B010A01NF-A Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or higher must be used in your Hyundai.

matically shuts off when refueling.

o Do not "top off" after the nozzle auto-

WARNING:

o Tighten the cap until it clicks, otherwise " check engine light will

the " illuminate.

o Always check that the fuel cap is installed securely to prevent fuel spillage in the event of an accident.

B010B01A-AAT

What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine develops driveability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol, should not be used.

B010C01A-AAT

that

recommends

Use of MTBE Hyundai fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight) should not be used in your Hyundai. Fuel containing MTBE over 15.0% vol. (Oxygen Content 2.7% weight) may reduce vehicle performance and produce vapor lock or hard starting.

B010D01A-AAT

Do Not Use Methanol Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage components of the fuel system.

CAUTION:

Your Hyundai's New Vehicle Limited War- ranty may not cover damage to the fuel system and any performance problems that are caused by the use of fuels con- taining methanol or fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight.)

B010E01A-AAT

Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you use gasolines treated with detergent additives, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance perfor- mance of the Emission Control System.

B010F01A-AAT

Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:

o Observe all regulations regarding reg-

istration and insurance.

o Determine that acceptable fuel is

available.

FEATURES OF YOUR HYUNDAI

BREAKING IN YOUR NEW HYUNDAI

B020A01S-AAT

During the First 1,200 Miles (1,931
Km) No formal "break-in" procedure is required with your new Hyundai. However, you can contribute to the economical operation and durability of your Hyundai by observing the following recommendations during the first 1,200 miles (1,931 km).

KEYS

B030A01NF-GAT

Sub key

o Don't drive faster than 55 MPH (88 km/

h).

o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.

o Use moderate acceleration. Don't start quickly or depress the accelerator pedal fully.

o For the first 200 miles (322 km), try to

avoid hard stops.

o Don't lug the engine (in other words, don't drive so slowly in too high a gear that the engine "bucks":shift to a lower gear).

o Whether going fast or slow, vary your

speed from time to time.

o Don't let the engine idle longer than 3

minutes at one time.

o Don't tow a trailer during the first 1,200

miles (1,931 km) of operation.

Master key

B030A01NF-A For greater convenience, your Hyundai has two master keys and a sub key. The master keys will open all locks on your vehicle. The sub key will only function in the ignition and the door locks.

Leaving your sub key with a parking atten- dant will ensure that the glove box com- partment may not be unlocked in your absence.

1FEATURES OF YOUR HYUNDAI

B030B01NF-GAT

Record Your Key Number

B030C01JM-AAT

ILLUMINATED IGNITION SWITCH

B030B01NF-A A code number is attached on the number tag that came with the keys to your Hyundai. This key number tag should not be left with the keys but kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number.

B030C01E Whenever either front door is opened, the ignition switch will be illuminated for your convenience, provided the ignition switch is not in the "ON" position. The light will go off approximately 10
seconds after closing the door or when the ignition switch is turned on.

DOOR LOCKS

B040A01A-AAT

WARNING:

o Unlocked doors can be dangerous. Before you drive away (especially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be opened from the inside. This helps ensure that the doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an accident.

o Before opening the door, always look

for and avoid oncoming traffic.

B040B01NF-AAT

Locking, unlocking front doors with a key

B040C02Y-AAT

Locking from the Outside

B040D01NF-AAT

Locking from the Inside

FEATURES OF YOUR HYUNDAI

UNLOCK

LOCK

ONF048005
o The door can be locked or unlocked

with a key.

o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear.

NOTE: The driver's door can be unlocked by turning the key once toward the rear. If you wish to unlock all doors, turn the key again toward the rear within 4 seconds.

UNLOCK

LOCK

ONF048007N To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position.

NOTE: o When the door is locked, the red mark

on the switch is not visible.

o The driver's and front passenger's doors can be opened by pulling the inside door handle even if the inside lock switch is pushed to the "LOCK" position.

ONF048006N The doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch (1) to the "LOCK" position, so that the red mark on the switch is not visible, then close the door. The door will not lock if the key is left in the ignition switch when the front doors are closed. This is normal operation.

NOTE: o When locking the door this way, be careful not to lock the door with the key left in the vehicle.

o To discourage theft, always remove the ignition key, close all windows and lock all doors when leaving your ve- hicle unattended.

1FEATURES OF YOUR HYUNDAI

WARNING:

Be careful not to pull the inside door handle while driving. If you pull the inside door handle, the door can be opened and you may be ejected from the vehicle and can be injured or killed.

B040E04A-AAT

Child-Protector Rear Door Lock

B040G02NF-AAT

Central Door Locks Driver's side

LOCK

UNLOCK

Front passenger's side

ONF048008N-2

LOCK

UNLOCK

HNF2011-1
Your Hyundai is equipped with left and right side "child-protector" rear door locks. When the lock mechanism is engaged, the rear door cannot be opened from the inside. Its use is recommended whenever there are small children in the rear seat. To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protector lever to the " " position and close the door. Move the lever to the " " position when normal door operation is desired. To open the door from the outside, pull the outside door handle.

ONF048008N-1
The central door locking switch is located on the driver's and front passenger's armrest. It is operated by depressing the door lock switch. If any door is open when the switch is depressed to the "LOCK" position, the door will remain locked when closed.

NOTE: o When depressing the front portion of the driver's or front passenger's door lock switch, all vehicle doors will lock. o When depressing the rear portion of these switches, all vehicle doors will unlock.

o The driver's and front passenger's doors can be opened by pulling the inside door handle even if the front portion of the driver's or front passenger's central door locking switch has been depressed to lock the doors.

o If the door is locked/unlocked mul- tiple times in rapid succession with either the vehicle key or door lock switch, the system may stop operat- ing temporarily in order to protect the circuit and prevent damage to sys- tem components.

! WARNING:

Be careful not to pull the inside door handle while driving. If you pull the inside door handle, the door can be opened and you may be ejected from the vehicle and can be injured or killed.

FEATURES OF YOUR HYUNDAI

B070F02NF-AAT

KEYLESS ENTRY SYSTEM

D050400ANF

Auto door lock/unlock feature (If Installed) o All doors will be automatically locked when shifting the transaxle shift lever out of P(Park).

o All doors will be automatically unlocked when shifting the transaxle shift lever into P(Park).

NOTE: An authorized Hyundai dealer can acti- vate or deactivate the auto door lock/ unlock features. If you want to activate or deactivate the auto door lock/unlock features, consult an authorized Hyundai dealer.

ONF048011L

NOTE: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

1FEATURES OF YOUR HYUNDAI

Locking doors 1. Close all doors. 2. Push the "LOCK (1)" button on the trans-

mitter.

3. At the same time, all doors lock and the turn signal lights will blink once to indicate that the system is armed.

Unlocking doors 1. Push the "UNLOCK (2)" button on the

transmitter.

2. At the same time, the driver's door unlocks and the turn signal lights will blink twice to indicate that the system is disarmed.

NOTE: If you wish to unlock all the doors, press the "UNLOCK" button on the transmitter again within 4 seconds.

Releasing the trunk lid Push the trunk lid release button (3) on the transmitter for longer than 1 second.

NOTE: The transmitter will not work if any of following occur: - The ignition key is in ignition switch. - You exceed the operating distance

limit (10 m).

- The battery in the transmitter is weak. - Other vehicles or objects may be

blocking the signal.

- The weather is extremely cold. - The transmitter is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the transmitter. When the transmitter does not work cor- rectly, open and close the door with the ignition key. If you have a problem with the transmitter, contact an authorized Hyundai Dealer.

NOTE: Keep the transmitter away from water or any liquid. If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer vehicle warranty.

THEFT-ALARM SYSTEM

B070A01A-AAT This system is designed to provide protection from unauthorized entry into the car. This system is operated in three stages : the first is the "Armed" stage, the second is the "Alarm" stage and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turn signal lights.

B070B02NF-AAT

Armed Stage

HMR

Park the car and stop the engine. Arm the system as described below.

1) Remove the ignition key from the ignition

switch.

B070C01NF-AAT

Alarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.

1) A front or rear door is opened without using the transmitter or the ignition key. 2) The trunk lid is opened without using

the transmitter or the ignition key.

3) The engine hood is opened.

The alarming horn will sound and the turn signal lights will blink continuously for 27
seconds (This will repeat 2 times). To turn off the system, unlock the door or trunk lid with the transmitter or the ignition key.

CAUTION:

Avoid trying to start the engine while the system is armed.

2) Make sure that the engine hood and

trunk lid are closed and latched.

3) Lock the doors using the transmitter of

the keyless entry system or key.

After completion of the steps above, the turn signal lights will blink once and the system will be armed. The system can also be armed by locking the doors with the key; however, the turn signal lights are not operated. If any door, trunk lid or engine hood is not opened or the ignition key is not inserted in the ignition switch within 30 seconds, the system will be rearmed.

NOTE: 1) If any door, trunk lid or engine hood remains open, the system will not be armed.

2) If this happens, rearm the system as

previously described.

NOTE: Do not arm the system until all passen- gers have left the car. If the system is armed while a passenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.

FEATURES OF YOUR HYUNDAI

B075D01CM-AAT

Disarmed Stage If the following conditions are met, the system will be disarmed. o When the doors are unlocked with the

transmitter or the ignition key. After depressing unlock button, you must open the doors within 30 seconds or all doors will automatically lock again and theft-alarm system will be armed. o When the ignition switch is in the "ON"

position.

The turn signal lights will blink twice when the door is unlocked with the transmitter. The alarm will be deactivated when: o The lock/unlock button on the transmit-

ter is pressed.

tion key.

o The doors are unlocked with the igni-

o The ignition switch is in the "ON" posi-

tion for 30 seconds.

NOTE: When the system is disarmed while the "DOOR" button of the interior light is depressed, the interior light will illumi- nate for 30 seconds.

1FEATURES OF YOUR HYUNDAI 10

B070E01NF-AAT

Panic Warning

B070E02NF-GAT

Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible.

Battery type : CR2032

Replacement instructions:

7B070E02NF-A

1. Push the "PANIC" button on the backside

of the transmitter.

2. At the same time, the alarm horn will sound and the turn signal lights will blink continuously for 30 seconds.

3. To turn off the system, push the "PANIC" button again on the backside of the transmitter.

1. Carefully separate the case with a coin

as shown in the illustration.

ONF048120

Battery

HNF2005
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing up), then insert it in the transmitter.

CAUTION:

An inappropriately disposed battery can be harmful to the environment and hu- man health. Dispose the battery according to your local law(s) or regulation.

WINDOWS

B060D01NF-GAT

FEATURES OF YOUR HYUNDAI

11

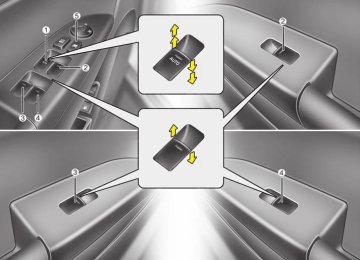

1. Driver's door power window switch 2. Front passenger's door power window

switch

3. Rear passenger's door power window

switch (left side)

4. Rear passenger's door power window

switch (right side)

5. Window lock switch

ONF048012N-1

1FEATURES OF YOUR HYUNDAI 12

B060A02NF-GAT

POWER WINDOWS

Close

Open

ONF048014N-1
The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate window switch and closed by pulling up the switch. To open the win- dow on the driver's side, press the switch halfway down. The window moves as long as the switch is operated.

NOTE: While driving with the rear windows down or with the sunroof in an open (or partially open position), your vehicle may dem- onstrate a wind buffeting or pulsation noise. This noise is a normal occurrence and can be reduced or eliminated by taking the following actions. If the noise occurs with one or both of the rear win- dows down, partially lower both front windows approximately one inch. If you experience the noise with the sunroof open, slightly reduce the size of the sunroof opening.

Auto Up/Down Window (Driver's side) The auto up/down window is controlled by the main switch on the driver's armrest. To fully open the window automatically, press the switch fully down. To fully close the window automatically, pull the switch fully up. In automatic operation, the win- dow will fully open or close even if you let go of the switch. To stop the window at the desired position while the window is in operation, pull up or depress and release the switch to the opposite direction of the movement. NOTE: If the battery has been recharged or disconnected, the auto up/down window system must be reset as follows;

1. Turn the ignition key to "ON" position. 2. Pull up the driver's window switch until the window is fully closed and continue pulling up the driver's win- dow switch for at least 0.2 second.

If the auto up/down window is not reset, the feature may not operate properly.

FEATURES OF YOUR HYUNDAI

13

! WARNING:

o Passengers can be injured if their head, hands or other body parts are trapped by a closing window. Always check for obstructions before raising any window.

o NEVER leave the ignition key in the

vehicle.

o NEVER leave any child unattended in the vehicle. Even very young children may inadvertently cause the vehicle to move, entangle themselves in the windows, or otherwise injure themselves or others.

o Do not attempt to operate the main switch on the driver's door and a switch on another door in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.

Window lock (Driver's side)

B060C02NF-AAT

Automatic Reverse Window (Driver's side) If the upward movement of the window is blocked by an object or part of the body, the window will detect the resistance and will stop upward movement. The window will then lower approximately 11.8 in.(30cm) to allow the object to be cleared.

WARNING:

o The automatic reverse feature for the driver’s window is only active when the “auto up” feature is used by fully pulling up the switch. The automatic reverse feature will not operate if the window is raised using the halfway position on the power window switch. o Always check for obstructions before raising any window to avoid injuries or vehicle damage. If an object less than 0.16 in. (4 mm) in diameter is caught between the window glass and the upper window channel, the automatic reverse window may not detect the resistance and will not stop and reverse direction.

ONF048015L In order to prevent operation of the pas- senger front and rear windows, a window lock switch is provided on the armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to normal operation, press the win- dow lock switch a second time.

NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK" posi- tions, or removed from the ignition switch. If the front doors are opened during this 30 second period, the power windows can no longer be operated without the ignition key turned to the "ON" position.

1FEATURES OF YOUR HYUNDAI 14

SEATS

B080A02A-AAT

ADJUSTABLE FRONT SEATS

WARNING:

o Never adjust the driver’s seat while the vehicle is moving. Any sudden or unexpected movement of the seat could cause you to lose control of the vehicle resulting in an accident. Only adjust the driver’s seat when the vehicle is stationary.

o Do not sit or lean unnecessarily close to the airbag. Position the seat so that you can sit as far back as possible from the airbag and still comfortably reach all controls.

B080B03A-AAT

Adjusting Seat Forward and Rearward

WARNING:

After adjusting the seat, always check that it is securely locked into place by attempting to move the seat forward or rearward without using the lock release lever. Sudden or unexpected movement of the driver's seat could cause you to lose control of the vehicle resulting in an accident.

B080C02A-AAT

Adjusting Seatback Angle

ONF038002
To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.

ONF038003

To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved.

To lock the seatback into position, release the recliner control lever.

B080E01CM-AAT

Headrest

B080D02JM-AAT

Adjustable Headrests

FEATURES OF YOUR HYUNDAI

15

WARNING:

Riding with a reclined seatback in- creases your chance of serious or fatal injuries in the event of a collision or sudden stop. The protection of your restraint system (seat belts and airbags) is greatly reduced by reclining your seat. Seat belts must be snug against your hips and chest to work properly. The more the seatback is reclined, the greater the chance that an occupant's hips will slide under the lap belt or the occupant's neck will strike the shoulder belt. Drivers and passengers should always sit well back in their seats, properly belted, and with the seatbacks upright.

Lock knob

OMG038400

B080D01NF

The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort. The headrest not only provides comfort for the driver and front passenger, but also helps protect the head and neck in the event of a collision.

Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower the headrest, push it down while pressing the lock knob. To remove the headrest, raise it as far as it can go then press the lock knob while pulling upward. This should only be done when the seat is not occupied.

1FEATURES OF YOUR HYUNDAI 16

WARNING:

B080D01JM o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the head- rest is at the same height of the center of gravity of an occupant's head. Gen- erally, the center of gravity of most people's head is similar with the height of the top of their eyes. Also, adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.

B082D01CM-AAT

Removal

o Do not operate the vehicle with the headrests removed as injury to the occupants may occur in the event of an accident. Headrests may provide protection against neck injuries when properly adjusted.

o Do not adjust the headrest position of the driver's seat while the vehicle is in motion.

ONF039041

To remove the headrest, raise it as far as it can go then press the release button (1) while pulling the headrest up (2). To reinstall the headrest, put the headrest poles (3) into the holes while pressing the release button (1). Then adjust it to the appropriate height.

WARNING:

Make sure the headrest locks in position after adjusting it to properly protect the occupants.

B083D01NF-AAT

Active Headrests

B080E01Y-AAT

Lumbar Support Control (Driver's Seat Only) (If Installed)

B080F01NF-GAT

Seat Height Adjustment (Driver's Seat Only)

FEATURES OF YOUR HYUNDAI

17

HNF2041-1
The active headrest is designed to move forward and upward during a rear impact. This helps to prevent the driver's and front passenger's head from moving backward and thus helps prevent neck injuries.

ONF038006
To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever toward the rear.

1. Minimum support 2. Maximum support

ONF038004
To raise or lower the seat, raise or lower the control lever to the desired seat height.

B090A02Y-AAT

POWER DRIVER'S SEAT (If Installed) The driver's seat can be adjusted by using the control knobs on the left side of the seat. Before driving, adjust the seat to the proper position so as to easily control the steering wheel, pedals and switches on the instrument panel.

CAUTION:

Do not operate two knobs at the same time.

1FEATURES OF YOUR HYUNDAI 18

WARNING:

o Never adjust a driver’s seat while the vehicle is moving. Any sudden or unexpected movement of the seat could cause you to lose control of the vehicle resulting in an accident. Only adjust the driver’s seat when the vehicle is stationary.

o Do not sit or lean unnecessarily close to the airbag. Position the seat so that you can sit as far back as possible from the airbag and still comfortably reach all controls.

Pull the control knob forward or rearward to move the seat forward or rearward to the desired position. Release the control knob and the seat will remain at that position.

B090D01NF-AAT

Adjusting Seatback Angle

B090C01Y-AAT

Seat Cushion Height Adjustment

HNF2037
Pull the upper portion of the control knob forward or rearward to recline the seatback to the desired position. Release the control knob and the seatback will remain in that position.

B090B01NF-GAT

Adjusting Seat Forward and Rear- ward

HNF2038
Move the front portion of the control knob up or down to raise or lower the front part of the seat cushion. Move the rear portion of the control knob up or down to raise or lower the rear part of the seat cushion.

HNF2036

! WARNING:

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop. The protection of your restraint system (seat belts and airbags) is greatly reduced by reclining your seat. Seat belts must be snug against your hips and chest to work properly. The more the seatback is reclined, the greater the chance that an occupant's hips will slide under the lap belt or the occupant's neck will strike the shoulder belt. Drivers and passengers should always sit well back in their seats, properly belted, and with the seatbacks upright.

FEATURES OF YOUR HYUNDAI

19

B100A01NF-AAT

SEAT WARMER (If Installed)

o The seat warmer defaults to the OFF position whenever the ignition switch is turned on.

NOTE: o The seat warmer may not operate if

the ambient temperature is warm.

o If the seat warmer doesn't operate when the ambient temperature is lower than 75°F (24°C), it must be checked at an authorized dealer.

! WARNING:

Do not turn on the seat warmers, if the seat is occupied by someone who cannot monitor the temperature and turn off the seat warmer, if it becomes too warm. The seat warmers should not be turned on when children, the elderly, ill people, and sleeping people occupy the seat.

ONF038007
The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" position, push either of the switches to warm the driver's seat or the front passenger's seat. During mild weather or under conditions where the operation of the seat warmer is not needed, keep the switches in the "OFF" position. o Each time you push the button, the temperature setting of the seat is changed as follows: OFF → HIGH ( →

) → LOW (

1FEATURES OF YOUR HYUNDAI 20

B085E01CM-AAT

Rear Seat Headrest

B085D02CM-AAT

Adjusting the height up and down

B085F01CM-AAT

Removal

ONF039401
The rear seat(s) is equipped with head- rests in all the seating positions for the occupant's safety and comfort. The headrest not only provides comfort for passengers, but also helps protect the head and neck in the event of a collision.

HNF2045
To raise the headrest, pull it up to the desired position (1). To lower the head- rest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

ONF029046
To remove the headrest, raise it as far as it can go then press the release button (1) while pulling the headrest up (2). To reinstall the headrest, put the headrest poles (3) into the holes while pessing the release button (1). Then adjust it to the appropriate height.

! WARNING:

Make sure the headrest locks in position after adjusting it to properly protect the occupants.

FEATURES OF YOUR HYUNDAI

21

! WARNING:

The purpose of the folding rear seatbacks is to allow you to carry longer objects than could otherwise be accommodated. Do not allow passengers to sit on top of the folded down seatback, while the car is moving as this is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop. Objects carried on the folded down seatback should not extend higher than the top of the front seats. This could allow cargo to slide forward and cause injury or damage during sudden stops.

! WARNING:

B110A01NF-GAT

FOLDING REAR SEATBACKS

B110A01NF o To unlock the seatback, pull the seatback release lever, then pull for- ward on the seatback panel.

o When you return the seatback to its upright position, always be sure it has locked into position by pulling and pushing on the top of the seatback.

B080D02TG-1
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the head- rest is at the same height of the center of gravity of an occupant's head. Gen- erally, the center of gravity of most people's head is similar with the height of the top of their eyes. Also, adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended. o Do not operate vehicle with the head- rests removed as injury to the occu- pants may occur in the event of an accident. Headrests may provide pro- tection against neck injuries when properly adjusted.

1FEATURES OF YOUR HYUNDAI 22

B140A01S-AAT

REAR SEAT WARNING

B140A01NF-A For the safety of all passengers, luggage or other cargo should not be piled higher than the top of the seatback. In addition, do not place objects on the rear shelf as they may move forward during braking or in an accident and may strike and injure vehicle passengers.

SEAT BELTS

B150A02S-AAT

SEAT BELT PRECAUTIONS

WARNING:

All occupants of the vehicle must wear their seat belts at all times. Seat belts and child restraints reduce the risk of serious or fatal injuries for all occupants in the event of a collision or sudden stop. Without a seat belt, occupants could be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle. Properly worn seat belts greatly reduce these hazards. Even with advanced airbags, unbelted occupants can be severely injured by a deploying airbag. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual.

B150B04Y-AAT

Infant or Small Child All 50 states have child restraint laws. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. Information about the use of these restraints begins on page 1-27.

WARNING:

Every person in your vehicle needs to be properly restrained at all times, including infants and children. Never hold a child in your arms or lap when riding in a vehicle. The violent forces created during a crash will tear the child from your arms and throw the child against the interior. Always use a child restraint appropriate for your child's height and weight, see page 1-27.

NOTE: Small children are best protected from injury in an accident when properly re- strained in the rear seat by a child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards. Before buying any child restraint system, make sure that it has a label certifying that it meets Federal Motor Vehicle Safety Standard 213. The restraint must be appropriate for your child's height and weight. Check the label on the child restraint for this information. See information beginning on page 1-29.

FEATURES OF YOUR HYUNDAI

23

WARNING:

Riding with a reclined seatback in- creases your chance of serious or fatal injuries in the event of a collision or sudden stop. The protection of your restraint system (seat belts and airbags) is greatly reduced by reclining your seat. Seat belts must be snug against your hips and chest to work properly. The more the seatback is reclined, the greater the chance that an occupant's hips will slide under the lap belt causing serious internal injuries or the occupant's neck could strike the shoulder belt. Drivers and passengers should always sit well back in their seats, properly belted (see page 1-25), and with the seatbacks up- right.

B150C02A-AAT

Larger Children Children who are too large for child restraint systems should always occupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hips and as low as possible. Check belt fit periodically. A child's squirming could put the belt out of position. Children are afforded the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained by the available lap/shoulder belt and the seat should be placed in the rearmost position. Children under the age of 13 should be restrained securely in the rear seat. NEVER place a child under the age of 13 in the front seat. NEVER place a rear facing child seat in the front seat of a vehicle.

B150D01A-AAT

Pregnant Women The use of a seat belt is recommended for pregnant women to lessen the chance of injury in an accident. When a seat belt is used, the lap belt portion should be placed as low and snugly as possible on the hips, not across the abdomen. For specific recommendations, consult a physician.

B150E01A-AAT

Injured Person A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommendations.

B150F01A-AAT

One Person Per Belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.

B150G02A-AAT

Do Not Lie Down To reduce the chance of injuries in the event of an accident and to achieve maximum effectiveness of the restraint system, all passengers should be sitting up and the front seats should be in an upright position when the car is moving. A seat belt cannot provide proper protection if the person is lying down in the rear seat or if the front seat is in a reclined position.

1FEATURES OF YOUR HYUNDAI 24

B160A02A-AAT

CARE OF SEAT BELTS Seat belt systems should never be disas- sembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.

B160C01A-AAT

Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.

B170A02NF-AAT

HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT

WARNING:

When you return the rear seatback to its upright position after the rear seatback was folded down, be careful not to damage the seat belt webbing or buckle. Be sure that the webbing or buckle does not get caught or pinched in the rear seat. A seat belt with damaged webbing or buckle will not be as strong and could possibly fail during a collision or sudden stop, resulting in serious injury.

B160B01A-AAT

Periodic Inspection It is recommended that all seat belts be inspected periodically for wear or damage of any kind. Parts of the system that are damaged should be replaced as soon as possible.

B160D01A-AAT

When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional questions concerning seat belt operation should be directed to your Hyundai Dealer.

HNF2049-A You can adjust the height of the shoulder belt anchor to one of 4 positions for maximum comfort and safety. If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection. The shoulder portion should be adjusted so that it lies across your chest and midway over your shoulder nearest the door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position. To raise the height adjuster, pull it up. To lower it, push it down while pressing the height adjuster button.

Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.

B180A02NF-AAT

SEAT BELT-Driver's 3-Point System with Emergency Locking Retractor To Fasten Your Belt

! WARNING:

o Adjust the shoulder belt height when

you sit well back in the seat.

o When adjusting the shoulder belt height, grip the height adjuster button securely and slide the height adjuster up or down.

FEATURES OF YOUR HYUNDAI

25

NOTE: o If you are not able to pull out the seat belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly.

o If the driver's seat belt is not fastened when the ignition key is turned from the "OFF" position to the "ON" or "START" position, the seat belt warn- ing light will blink and the warning chime will sound for approximately six seconds to remind the driver to fasten the driver's seat belt.

WARNING:

o Verify the shoulder belt anchor is locked into position at the appropriate height. Never position the shoulder belt across your neck or face. Improperly positioned seat belts can cause serious injuries in an accident. o Failure to replace seat belts after an accident could leave you with damaged seat belts that will not provide protection in the event of another collision leading to personal injury or death. Replace your seat belts after being in an accident as soon as possible.

B180A01NF To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. The seat belt automatically adjusts to the proper length only after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly.

1FEATURES OF YOUR HYUNDAI 26

B190A02NF-AAT

SEAT BELTS-Front Passenger and Rear Seat 3-Point System with Combination Locking Retractor To Fasten Your Belt Combination retractor type seat belts are installed in the rear seat positions to help accommodate the installation of child restraint systems. Although a combination retractor is also installed in the front passenger seat position, Hyundai strongly recommends that children always be seated in the rear seat. NEVER place any infant restraint system in the front seat of the vehicle. This type of seat belt combines the features of both an emergency locking retractor seat belt and an automatic locking retractor seat belt. To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (Emergency Locking Retractor Type). It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly around your hips. When the seat belt is fully extended from the retractor to allow the installation of a child restraint system, the seat belt operation changes to allow the belt to retract, but not to extend (Automatic Locking Retractor Type). See page 1-32.

NOTE: o Although the combination retractor provides the same level of protection for seated passengers in either emergency or automatic locking modes, it is recommended that seated passengers use the emergency locking feature for improved convenience. The automatic locking function is intended to facilitate child restraint installation. To convert from the automatic locking feature to the emergency locking operation mode, allow the unbuckled seat belt to fully retract.

o The front passenger's seat belt warning light on the center fascia panel blinks until the front passenger's seat belt is fastened to remind the front passenger to fasten the front passenger's seat belt, when the ignition key is turned from the "OFF" position to "the "ON" or "START" position.

WARNING:

o For maximum restraint system pro- tection, the seat belts must always be used whenever the car is moving.

o Seat belts are most effective when seatbacks are in the upright position. o Children age 12 and younger must always be properly restrained in the rear seat. Never allow children to ride in the front passenger seat. If a child over 13 must be seated in the front seat, he/she must be properly belted and the seat should be moved as far back as possible.

o Never wear the shoulder belt under your arm or behind your back. An improperly positioned shoulder belt can cause serious injuries in a crash. The shoulder belt should be positioned midway over your shoulder across your collarbone.

o Avoid wearing twisted seat belts. A twisted belt can't do its job as well. In a collision, it could even cut into you. Be sure the belt webbing is straight and not twisted.

o Be careful not to damage the belt web- bing or hardware. If the belt webbing or hardware is damaged, replace it.

B200A01A-AAT

Adjusting Your Seat Belt

B210A01A-AAT

To Release the Seat Belt

B210A01NF The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.

B200A01NF

WARNING:

You should place the lap belt portion as low as possible and snugly across your hips, not on your waist. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision. Both arms should not be under or over the belt. Rather, one should be over and the other under, as shown in the illustration. Never wear the seat belt under the arm nearest the door.

FEATURES OF YOUR HYUNDAI

CHILD RESTRAINT SYSTEM

27

B230A01NF-AAT Children riding in the car should sit in the rear seat and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to accident statistics provided by the National Highway Traffic Safety Administration (NHTSA), children are safer when properly restrained in the rear seats than in the front seat. Larger children not in a child restraint should use one of the seat belts provided. All 50 states have child restraint laws. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. You must use a commercially available child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards (FMVSS). Child restraint systems are designed to be secured in vehicle seats by lap belts or the lap belt portion of a lap/ shoulder belt, or by a tether anchor and/or LATCH anchors (if installed). Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car seat and seat belts, and fits your child. Follow all the instructions provided by the manufacturer when installing the child restraint system.

1FEATURES OF YOUR HYUNDAI 28

! WARNING:

o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat. Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Thus only use a child restraint in the rear seat of your vehicle.

o A safety belt or child restraint system can become very hot if it is left in a closed vehicle on a sunny day, even if the outside temperature does not feel hot. Be sure to check the seat cover and buckles before placing a child there.

o When the child restraint system is not in use, store it in the trunk or fasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or an accident.

o Children may be seriously injured or killed by an inflating airbag. All children, even those too large for child restraints, must ride in the rear seat.

WARNING:

To reduce the chance or serious or fatal injuries: o Children of all ages are safer when re- strained in the rear seat. A child riding in the front passenger seat can be force- fully struck by an inflating airbag result- ing in serious or fatal injuries.

o Always follow the instructions for instal- lation and use of the child restraint maker. o Always make sure the child seat is se- cured properly in the car and your child is securely restrained in the child seat. o Never hold a child in your arms or lap when riding in a vehicle. The violent forces created during a crash will tear the child from your arms and throw the child against the car’s interior.

o Never put a seat belt over yourself and a child. During a crash, the belt could press deep into the child causing seri- ous internal injuries.

o Never leave children unattended in a vehicle – not even for a short time. The car can heat up very quickly, resulting in serious injuries to children inside. Even very young children may inadvertently cause the vehicle to move, entangle themselves in the windows, or lock them- selves or others inside the vehicle.

WARNING:

o Never allow two children, or any two persons, to use the same seat belt. o Children often squirm and reposition themselves improperly. Never let a child ride with the shoulder belt under their arm or behind their back. Always properly position and secure children in rear seat.

o Never allow a child to stand-up or kneel on the seat or floor of a moving vehicle. During a collision or sudden stop, the child can be violently thrown against the vehicle's interior, resulting in serious injury.

o Never use an infant carrier or a child safety seat that "hooks" over a seatback, it may not provide adequate security in an accident.

o Seat belts can become very hot, es- pecially when the car is parked in direct sunlight. Always check seat belt buckles before fastening them over a child.

o Always store or secure a child seat, even when it is not in use. During a collision or sudden stop, the child seat could be thrown inside the vehicle.

FEATURES OF YOUR HYUNDAI

29

Rear seat package tray

Child Restraint Hook Holders

B230B01NF-AAT

Using a Child Restraint System For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions. It is further required that the seat be placed in the vehicle's rear seat. Your vehicle is provided with three child restraint hook holders for installing the child seat or infant seat.

B230C05A-AAT

Installing a Child Restraint Seat with the "Tether Anchorage" System Three child restraint hook holders are located on the rear seat package tray.

To install the child restraint seat

Tether Anchor Cover Child Re- straint Hook Holder B230C01NF

1. Open the tether anchor cover on the

rear seat package tray.

Tether Strap

Hook Front of Vehicle

B230C02NF

2. Route the child restraint seat tether strap

over the seatback.

1FEATURES OF YOUR HYUNDAI 30

For vehicles with adjustable headrests, route the tether strap under the head- rest and between the headrest posts, otherwise route the tether strap over the top of the seatback.

3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat.

B230D06E-AAT

Securing the Child Restraint Seat with the "Child Seat Lower Anchor" system

WARNING:

o A child can be seriously injured or killed in a collision if the child restraint is not properly anchored. Always follow the child seat manufacturer’s instructions for installation and use. o Never mount more than one child re- straint to a single tether or to a single lower anchorage point. The increased load caused by multiple seats may cause the tethers or anchorage points
