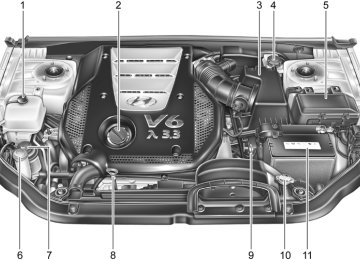

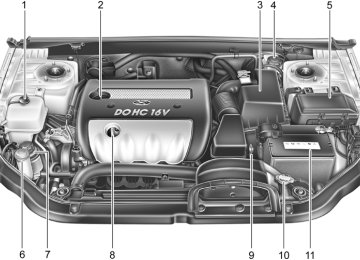

2005 Hyundai Sonata Owners Manual

Download PDF Manual
2005 A010A02A-AAT WARRANTIES FOR YOUR HYUNDAI VEHICLE o New Vehicle 60 Months/60,000 Miles Limited Warranty o New Vehicle 120 Months/100,000 Miles Limited Powertrain Warranty (original owner only) o Anti-Perforation Limited Warranty o Emission Defect Warranty - Federal Vehicle o California Emission Control System Warranty (if applicable) o Emission Performance Warranty - Federal Vehicle o Replacement Parts and Accessories Limited Warranty NOTE: Detailed warranty information is provided in your Hyundai Owner's Handbook. A020A01A-AAT RESPONSIBILITY FOR MAINTENANCE The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations. Maintenance requirements for severe operating conditions are also included in Section 5. OWNER'S MANUAL A030A01NF-AAT Operation Maintenance Specifications All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out. This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle. A030A01NF-A A070A01A-AAT CAUTION: MODIFICATIONS TO YOUR HYUNDAI Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation and other federal or state agencies. A080A01S-AAT TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundai dealer for precautionary measures or special instructions if you choose to install one of these devices. A040A01A-AAT FOREWORD Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who drive Hyundais. The advanced engineering and high-quality construction of each Hyundai we build is something of which we're very proud. Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car. The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may be required. A050A04A-AAT HYUNDAI MOTOR COMPANY Note : Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave the manual in the vehicle for their use. Thank you. CAUTION: Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifica- tions listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appear in the Service Station Information on the back cover of the Owner's Manual. Copyright 2005 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor Company. A090A01A-AAT SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following: WARNING: CAUTION: This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning. This indicates that a condition may result in damage to your vehicle or its equipment if the caution is not heeded. Follow the advice provided with the caution. NOTE: This indicates that interesting or helpful information is being provided. TABLE OF CONTENTS FEATURES OF YOUR HYUNDAI DRIVING YOUR HYUNDAI WHAT TO DO IN AN EMERGENCY CORROSION PREVENTION & APPEARANCE CARE VEHICLE MAINTENANCE REQUIREMENTS DO-IT-YOURSELF MAINTENANCE EMISSION CONTROL SYSTEMS CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS VEHICLE SPECIFICATIONS INDEX 10 SECTION INSTRUMENTS AND CONTROLS (I) B250A01NF-AAT B250A01NF-A 1. Electronic Stability Control (ESC) Switch 2. Power Adjustable Pedals Switch (If Installed) 3. Panel Brightness Control Knob (Rheostat Switch) 4. Hood Release Lever 5. Steering Wheel Tilt Lever (If Installed) 6. Front Seat Warmer (If Installed) 7. Power Outlet 8. Ashtray 9. Cigarette Lighter 10.Digital Clock 11."PASSENGER AIR BAG OFF" Indicator 12.Hazard Warning Switch CAUTION: When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. INSTRUMENTS AND CONTROLS (II) B250B01NF-AAT B250A02NF-A Instrument Cluster 1. Fuse Box 2. Multi Box 3. 4. Multi-Function Light/Front Fog Light Switch 5. Audio Remote Control Switch (If Installed) 6. Horn and Driver's Airbag 7. Windshield Wiper/Washer Switch 8. Cruise Control Switch 9. Audio System (If Installed) 10. Passenger's Airbag 11. Glove Box 12. Heating/Air Conditioning Control Panel 13. Shift Lever 14. Parking Brake Lever 15. Drink Holder 16. Center Console CAUTION: When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. B255A01NF-AAT INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER SRS (Airbag) Warning Light Door Ajar Warning Light Turn Signal Indicator Lights Low Fuel Level Warning Light YOUR VEHICLE AT A GLANCE Seat Belt Reminder Light Check Engine - Malfunction Indicator Light (MIL) High Beam Indicator Light ABS Service Reminder Indicator (If Installed) Front Fog Light Indicator Light Electronic Stability Control (ESC) Indicator Lights (If Installed) Low Oil Pressure Warning Light Cruise Indicator Light Parking Brake/Low Brake Fluid Level Warning Light Cruise SET Indicator Light Charging System Warning Light Low Windshield Washer Fluid Level Warning Light Trunk Lid Open Warning Light * More detailed explanations of these items will be found beginning on page 1-52. A100A03A-AAT Guide to Hyundai Genuine Parts 1. What are Hyundai Genuine Parts? Hyundai Genuine Parts are the same parts used by Hyundai Motor Company to manu- facture vehicles. They are designed and tested for the optimum safety, performance, and reliability to our customers. 2. Why should you use genuine parts? Hyundai Genuine Parts are engineered and built to meet rigid manufacturing require- ments. Using imitation, counterfeit or used salvage parts is not covered under the Hyundai New Vehicle Limited Warranty or any other Hyundai warranty. In addition, any damage to or failure of Hyundai Genuine Parts caused by the installation or failure of an imitation, counterfeit or used salvage part is not covered by any Hyundai Warranty. To find the closest authorized dealer call 1-800-826-CARS 3. How can you tell if you are purchasing Hyundai Genuine Parts? Look for the Hyundai Genuine Parts Logo on the package (see below). Hyundai Genuine Parts exported to the United States are packaged with labels written only in English. Hyundai Genuine Parts are only sold through authorized Hyundai Dealerships. A100A03L A100A01L A100A02L A100A04L FEATURES OF YOUR HYUNDAI Fuel Recommendations ....................................................1-2 Breaking in Your New Hyundai .........................................1-3 Keys ...................................................................................1-3 Door Locks ........................................................................1-4 Theft-Alarm System ..........................................................1-8 Windows ..........................................................................1-11 Seats ................................................................................1-14 Seat Belts ........................................................................1-21 Child Restraint System ....................................................1-28 Advanced Supplemental Restraint (AIRBAG) System (SRS) ................................................................1-36 Instrument Cluster and Indicator Lights .........................1-50 Warning and Indicator Lights ..........................................1-52 Trip Computer .................................................................1-58 Multi-Function Light Switch .............................................1-61 Windshield Wiper and Washer Switch ............................1-64 Sunroof ............................................................................1-70 Mirror ...............................................................................1-77 Homelink Mirror ...............................................................1-79 Hood Release ..................................................................1-89 Cruise Control..................................................................1-93 Heating and Cooling Control ...........................................1-96 Stereo Sound System .................................................. 1-113 Audio System................................................................ 1-115 Antenna ........................................................................ 1-130 1FEATURES OF YOUR HYUNDAI FUEL RECOMMENDATIONS B010A01NF-AAT Use Unleaded Gasoline B010B01A-AAT What About Gasohol? B010D01A-AAT Do Not Use Methanol Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine devel- ops driveability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol, should not be used. B010C01A-AAT Use of MTBE Hyundai recommends that fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight) should not be used in your Hyundai. Fuel containing MTBE over 15.0% vol. (Oxygen Content 2.7% weight) may reduce vehicle per- formance and produce vapor lock or hard starting. UNLEADED FUEL ONLY B010A01NF-A Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or higher must be used in your Hyundai. CAUTION: o Do not "TOP-OFF" after the first nozzle shut off when refueling. o The fuel cap must be tightened until cap clicks, otherwise " " light will illuminate. Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage components of the fuel system. CAUTION: Your Hyundai's New Vehicle Limited War- ranty may not cover damage to the fuel system and any performance problems that are caused by the use of fuels containing methanol or fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxy- gen Content 2.7% weight.) BREAKING IN YOUR NEW HYUNDAI KEYS FEATURES OF YOUR HYUNDAI B010E01A-AAT Gasolines for Cleaner Air B020A01S-AAT During the First 1,200 Miles (2,000 Km) B030A01NF-GAT To help contribute to cleaner air, Hyundai rec- ommends that you use gasolines treated with detergent additives, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance per- formance of the Emission Control System. No formal "break-in" procedure is required with your new Hyundai. However, you can contrib- ute to the economical operation and durability of your Hyundai by observing the following recom- mendations during the first 1,200 miles (2,000 km). B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to: o Observe all regulations regarding registra- tion and insurance. o Determine that acceptable fuel is available. o Don't drive faster than 55 MPH (88 km/h). o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm. o Use moderate acceleration. Don't start quickly or depress the accelerator pedal fully. o For the first 200 miles (300 km), try to avoid hard stops. o Don't lug the engine (in other words, don't drive so slowly in too high a gear that the engine "bucks":shift to a lower gear). o Whether going fast or slow, vary your speed o Don't let the engine idle longer than 3 minutes from time to time. at one time. o Don't tow a trailer during the first 1,200 miles (2,000 km) of operation. Sub key Master key B030A01NF For greater convenience, your Hyundai has two master keys and a sub key. The master keys will open all locks on your vehicle. The sub key will only function in the ignition and the door locks. Leaving your sub key with a parking attendant will ensure that your vehicle's trunk, trunk lid release, glove box compartment and rear trunk access may not be unlocked in your absence. NOTE: Before leaving your sub key with a parking attendant, make sure that the lock knobs of the rear seatback lock and the trunk lid lock are switched to the "LOCK" position. 1FEATURES OF YOUR HYUNDAI B030B01NF-GAT Record Your Key Number B030C01JM-AAT ILLUMINATED IGNITION SWITCH B030B01NF B030C01E A code number is attached on the number tag that came with the keys to your Hyundai. This key number tag should not be left with the keys but kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number. Whenever either front door is opened, the igni- tion switch will be illuminated for your conve- nience, provided the ignition switch is not in the "ON" position. The light will go off approximately 10 seconds after closing the door or when the ignition switch is turned on. DOOR LOCKS B040A01A-AAT WARNING: o Unlocked doors can be dangerous. Be- fore you drive away (especially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be opened from the inside. This helps ensure that the doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an accident. o Before opening the door, always look for and avoid oncoming traffic. FEATURES OF YOUR HYUNDAI B040B01JM-AAT Locking, unlocking front doors with a key B040C02Y-AAT Locking from the Outside B040D01NF-AAT Locking from the Inside UNLOCK LOCK UNLOCK LOCK HNF2007 o The door can be locked or unlocked with a key. o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear. NOTE: The driver's door can be unlocked by turn- ing the key once toward the rear. If you wish to unlock all doors, turn the key again toward the rear within 4 seconds. The passenger's side will lock or unlock all doors with just one rotation. B040C01NF-A The doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch to the "LOCK" position, so that the red mark on the switch is not visible, then close the door. The door will not lock if the key is left in the ignition switch when the front doors are closed. This is normal. NOTE: o When locking the door this way, be care- ful not to lock the door with the key left in the vehicle. o To discourage theft, always remove the ignition key, close all windows and lock all doors when leaving your vehicle un- attended. HNF2008 To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. NOTE: o When the door is locked, the red mark on the switch is not visible. o The driver's and front passenger's doors can be opened by pulling the inside door handle even if the inside lock switch is pushed to the "LOCK" position. 1FEATURES OF YOUR HYUNDAI WARNING: Be careful not to pull the inside door handle while driving. If you pull the inside door handle, the door can be opened and you may be ejected from the vehicle and can be injured or killed. B040E04A-AAT Child-Protector Rear Door Lock B040G01NF-AAT Central Door Locks Driver's side UNLOCK LOCK Front passenger's side LOCK UNLOCK HNF2011-1 Your Hyundai is equipped with left and right side "child-protector" rear door locks. When the lock mechanism is engaged, the rear door cannot be opened from the inside. Its use is recommended whenever there are small children in the rear seat. To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protector lever to the " " position and close the door. Move the lever to the " " position when normal door operation is desired. To open the door from the outside, pull the outside door handle. B040G01NF The central door locking switch is located on the driver's and front passenger's armrest. It is operated by depressing the door lock switch. If any door is open when the switch is depressed to the "LOCK" position, the door will remain locked when closed. NOTE: o When depressing the front portion of the driver's or front passenger's door lock switch, all vehicle doors will lock. o When depressing the rear portion of these switches, all vehicle doors will unlock. B070F01NF-AAT KEYLESS ENTRY SYSTEM NOTE: This device complies with Part 15 of the FCC rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful in- terference, and (2) this device must accept any interference received, including inter- ference that may cause undesired opera- tion. CAUTION: Changes or modifications not expressly approved by the party responsible for com- pliance could void the user's authority to operate the equipment. o The driver's and front passenger's doors can be opened by pulling the inside door handle even if the front portion of the driver's or front passenger's central door locking switch has been depressed to lock the doors. WARNING: Be careful not to pull the inside door handle while driving. If you pull the inside door handle, the door can be opened and you may be ejected from the vehicle and can be injured or killed. B040H02NF-GAT Speed Sensing Auto Door Locking (If Installed) When the speed of the vehicle keeps above the specific speed for 1 second, it will automatically lock all doors for driver and passenger's safety. For further information, contact an authorized Hyundai dealer. FEATURES OF YOUR HYUNDAI Locking doors 1. Close all doors. 2. Push the "LOCK ( )" button on the trans- mitter. 3. At the same time, all doors lock and the turn signal lights will blink once to indicate that the system is armed. Unlocking doors 1. Push the "UNLOCK ( )" button on the transmitter. 2. At the same time, the driver's door unlocks and the turn signal lights will blink twice to indicate that the system is disarmed. NOTE: If you wish to unlock all the doors, press the "UNLOCK" button on the transmitter again within 4 seconds. Releasing the trunk lid Push the trunk lid release button ( ) on the transmitter for longer than 1 second. 1FEATURES OF YOUR HYUNDAI THEFT-ALARM SYSTEM B070A01A-AAT This system is designed to provide protection from unauthorized entry into the car. This sys- tem is operated in three stages : the first is the "Armed" stage, the second is the "Alarm" stage and the third is the "Disarmed" stage. If trig- gered, the system provides an audible alarm with blinking of the turn signal lights. B070B01NF-AAT Armed Stage Lock Unlock Trunk Unlock B070B01NF-A Park the car and stop the engine. Arm the system as described below. 1) Remove the ignition key from the ignition switch. 2) Make sure that the engine hood and trunk lid are closed and latched. 3) Lock the doors using the transmitter of the keyless entry system. After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed. NOTE: 1) If any door, trunk lid or engine hood remains open, the system will not be armed. 2) If this happens, rearm the system as previously described. NOTE: Do not arm the system until all passengers have left the car. If the system is armed while a passenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car. B070C01NF-AAT Alarm Stage B070C01NF-A The alarm will be activated if any of the following occurs while the car is parked and the system is armed. 1) A front or rear door is opened without using the transmitter or the ignition key. 2) The trunk lid is opened without using the transmitter or the ignition key. 3) The engine hood is opened. The alarming horn will sound and the turn signal lights will blink continuously for 27 seconds (This will repeat 3 times). To turn off the system, unlock the door or trunk lid with the transmitter or the ignition key. B070E01NF-AAT Panic Warning B070E01NF-GAT Replacing the battery FEATURES OF YOUR HYUNDAI When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible. Battery type : CR2032 Replacement instructions: B070E02NF-A 1. Push the "PANIC" button on the backside of the transmitter. 2. At the same time, the alarming horn will sound and the turn signal lights will blink continuously for 30 seconds. 3. To turn off the system, push the "PANIC" button again on the backside of the transmit- ter. 1. Carefully separate the case with a coin as shown in the illustration. B070E01NF CAUTION: Avoid trying to start the engine while the system is armed. B070D01NF-AAT Disarmed Stage The system will be disarmed by using the transmitter or the ignition key. Only the driver's door is unlocked by depress- ing once the "UNLOCK ( )" button on the transmitter. If you wish to unlock all doors, press the "UNLOCK ( )" button on the transmitter again within 4 seconds. Whenever the step above is completed, the turn signal lights will blink twice to indicate that the system is disarmed. If any door, trunk lid or engine hood is not opened or the ignition key is not inserted in the ignition switch within 30 seconds, the system will be rearmed. NOTE: When the system is disarmed while the "DOOR" button of the interior light is de- pressed, the interior light will illuminate for 30 seconds. 1FEATURES OF YOUR HYUNDAI 10 Battery HNF2005 2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing up), then insert it in the transmitter. WINDOWS B060D01NF-GAT FEATURES OF YOUR HYUNDAI 11 1. Driver's door power window switch 2. Front passenger's door power window switch 3. Rear passenger's door power window switch (left side) 4. Rear passenger's door power window switch (right side) 5. Window lock switch HNF2017-1 1FEATURES OF YOUR HYUNDAI 12 B060A01NF-GAT POWER WINDOWS Open Close B060A01NF The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be opened by de- pressing the appropriate window switch and closed by pulling up the switch. To open the window on the driver's side, press the switch halfway down. The window moves as long as the switch is operated. Auto Up/Down Window (Driver's side) The auto up/down window is controlled by the main switch on the driver's armrest. To fully open the window automatically, press the switch fully down. To fully close the window automatically, pull the switch fully up. In auto- matic operation, the window will fully open or close even if you let go of the switch. To stop the window at the desired position while the window is in operation, pull up or depress and release the switch to the opposite direction of the move- ment. NOTE: If the battery has been recharged or discon- nected, the auto up/down window system must be reset as follows; 1. Turn the ignition key to "ON" position. 2. Pull up the driver's window switch until the window is fully closed and continue pulling up the driver's window switch for at least 0.2 second. If the auto up/down window is not reset, it may not operate properly. Window lock (Driver's side) HNF2019-A In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on the armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to normal operation, press the window lock switch a second time. FEATURES OF YOUR HYUNDAI 13 WARNING: o Be careful that someone's head, hands and body are not trapped by a closing window. o Never try to operate the main switch on the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed. o Do not leave children alone in the car. o Never leave the ignition key in the car. NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK" positions, or removed from the ignition switch. If the front doors are opened during this 30 second period, the power windows can no longer be operated without the ignition key turned to the "ON" position. B060C01NF-AAT Automatic Reverse Window (Driver's side) If the upward movement of the window is blocked by an object or part of the body, the window will detect the resistance and will stop upward movement. The window will then lower approxi- mately 11.8 in.(30cm) to allow the object to be cleared. Close Open HNF2018 WARNING: o The automatic reverse window will only operate when the automatic up window operation feature is used. The automatic reverse feature of the window will not operate if the window is raised using the halfway position on the power window switch. o If an object less than 0.16 in.(4 mm) in diameter is caught between the window glass and the upper window channel, the automatic reverse window may not detect the resistance and will not stop and reverse direction. Therefore, always check for any obstructions before rais- ing any window. 1FEATURES OF YOUR HYUNDAI 14 SEATS B080A01A-AAT ADJUSTABLE FRONT SEATS B080B02A-AAT Adjusting Seat Forward and Rearward B080C01A-AAT Adjusting Seatback Angle WARNING: Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury, or property damage. HNF2032 HNF2033 To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further. To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever. WARNING: To ensure the seat is locked securely, at- tempt to move the seat forward or rearward without using the lock release lever. ! WARNING: To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passenger seatbacks should always be in an upright position while the vehicle is in motion. The protection pro- vided by the seat belts and airbags may be reduced significantly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seat back is reclined. FEATURES OF YOUR HYUNDAI 15 B080D02JM-AAT Adjustable Headrests WARNING: Lock knob B080D01NF Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob. To remove the headrest, raise it as far as it can go then press the lock knob while pulling upward. This should only be done when the seat is not occupied. B080D01JM o For maximum effectiveness in case of an accident the headrest should be ad- justed so the middle of the headrest is at the same height as the top of the occupant's eyes. For this reason, the use of a cushion that holds the body away from the seatback is not recom- mended. o Do not operate the vehicle with the head- rests removed as injury to the occupants may occur in the event of an accident. Headrests may provide protection against neck injuries when properly adjusted. o Do not adjust the headrest height while the vehicle is in motion. 1FEATURES OF YOUR HYUNDAI 16 B081D01LZ-AAT Tilting Headrest Forward and Rearward B083D01NF-AAT Active Headrests (If Installed) B080E01Y-AAT Lumbar Support Control (Driver's Seat Only) (If Installed) B081D01NF The headrest may be tilted forward to three different positions by pulling the headrest for- ward. To adjust the headrest rearward, pull it fully forward to the farthest position and release it. Adjust the headrest so that it properly sup- ports the head and neck. HNF2041-1 The active headrest is designed to move for- ward and upward during a rear impact. This helps to prevent the driver's and front passenger's head from moving backward and thus helps prevent neck injuries. HNF2039 To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever toward the rear. 1. Minimum support 2. Maximum support B080F01NF-GAT Seat Height Adjustment (Driver's Seat Only) B090A01Y-AAT POWER DRIVER'S SEAT (If Installed) B090B01NF-GAT Adjusting Seat Forward and Rearward The driver's seat can be adjusted by using the control knobs on the left side of the seat. Before driving, adjust the seat to the proper position so as to easily control the steering wheel, pedals and switches on the instrument panel. FEATURES OF YOUR HYUNDAI 17 CAUTION: Do not operate two knobs at the same time. To raise or lower the seat, raise or lower the control lever to the desired seat height. HNF2034 WARNING: o Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident causing death, serious injury, or property dam- age. o Do not sit or lean unnecessarily close to the airbag. HNF2036 Pull the control knob forward or backward to move the seat forward or backward to the desired position. Release the control knob and the seat will remain at that position. 1FEATURES OF YOUR HYUNDAI 18 B090C01Y-AAT Seat Cushion Height Adjustment B090D01NF-GAT Adjusting Seatback Angle HNF2038 Move the front portion of the control knob up or down to raise or lower the front part of the seat cushion. Move the rear portion of the control knob up or down to raise or lower the rear part of the seat cushion. HNF2037 Pull the upper portion of the control knob forward or backward to recline the seatback to the desired position. Release the control knob and the seatback will remain in that position. WARNING: To minimize the risk of personal injury in the event of a collision or a sudden stop, both the driver's and passenger's seatback should remain in an upright position while the car is in motion. The protection pro- vided by the seat belts and airbags may be reduced significantly when the seatbacks are reclined. There is a greater risk that the seat occupants will slide under the belt resulting in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seatback is reclined. FEATURES OF YOUR HYUNDAI 19 B110A01NF-GAT FOLDING REAR SEATBACKS B100A01NF-AAT SEAT WARMER (If Installed) WARNING: Do not turn on the seat warmers, if the seat is occupied by someone who cannot moni- tor the temperature and turn off the seat warmer, if it becomes too warm. The seat warmers should not be turned on when children, the elderly, ill people, and sleep- ing people occupy the seat. B100A01NF The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" position, push either of the switches to warm the driver's seat or the front passenger's seat. During mild weather or under conditions where the operation of the seat warmer is not needed, keep the switches in the "OFF" position. B110A01NF-A o To unlock the seatback, pull the seatback release lever, then pull forward on the seatback panel. o When you return the seatback to its upright position, always be sure it has locked into position by pulling and pushing on the top of the seatback. NOTE: o The seat warmer may not operate if the ambient temperature is warm. o If the seat warmer doesn't operate when the ambient temperature is lower than 75.2°F (24°C), it must be checked at an authorized dealer. 1FEATURES OF YOUR HYUNDAI 20 WARNING: The purpose of the folding rear seatbacks is to allow you to carry longer objects than could otherwise be accommodated. Do not allow passengers to sit on top of the folded down seatback, while the car is moving as this is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop. Objects carried on the folded down seatback should not extend higher than the top of the front seats. This could allow cargo to slide for- ward and cause injury or damage during sudden stops. B120A01NF-GAT REAR SEATBACK SAFETY LOCK B140A01S-AAT REAR SEAT WARNING B120A01NF-A If the rear seatback lock knob (located on the backside of the rear seatback) is in the "LOCK" position when the rear seatbacks are upright and closed, it will not be possible to fold the rear seatback by using the seatback release lever. In this instance, move the lock knob to the "UNLOCK" position and fold the rear seatback. The rear seatback lock knob is designed to provide protection from unauthorized entry into the trunk. B140A01NF-A For the safety of all passengers, luggage or other cargo should not be piled higher than the top of the seatback. In addition, do not place objects on the rear shelf as they may move forward during braking or in an accident and may strike and injure vehicle passengers. SEAT BELTS B150A01S-AAT SEAT BELT PRECAUTIONS WARNING: All occupants of the vehicle must wear their seat belts at all times. Note that this vehicle is equipped with a Supplemental Restraint (Airbag) System as discussed beginning on page 1-36. The seat belts must be used in conjunction with the supplemental airbag system. State laws require that some or all occupants of the vehicle use seat belts. The possibility of increased injury or severity of injury in an accident will be increased if this elementary safety precau- tion is not observed. In addition, follow the other instructions provided in this section. B150B03Y-AAT Infant or Small Child All 50 states have child restraint laws. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. Information about the use of these restraints begins on page 1-28. WARNING: Every person in your vehicle needs to be properly restrained at all times, including infants and children. In a collision, an unre- strained child can become a "missile" in- side the car. The force required to hold a child on your lap could be so great that you could not hold the child. Any child riding in the vehicle should always be in a proper restraint in the rear seat of the vehicle. NOTE: Small children are best protected from in- jury in an accident when properly restrained in the rear seat by a child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards. Before buying any child restraint system, make sure that it has a label certifying that it meets Federal Motor Vehicle Safety Stan- dard 213. The restraint must be appropriate for your child's height and weight. Check the label on the child restraint for this information. See page 1-28. FEATURES OF YOUR HYUNDAI 21 B150C02A-AAT Larger Children Children who are too large for child restraint systems should always occupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hips and as low as possible. Check belt fit periodically. A child's squirming could put the belt out of posi- tion. Children are afforded the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained by the available lap/shoulder belt and the seat should be placed in the rearmost position. Children under the age of 13 should be restrained securely in the rear seat. NEVER place a child under the age of 13 in the front seat. NEVER place a rear facing child seat in the front seat of a vehicle. B150D01A-AAT Pregnant Women The use of a seat belt is recommended for pregnant women to lessen the chance of injury in an accident. When a seat belt is used, the lap belt portion should be placed as low and snugly as possible on the hips, not across the abdo- men. For specific recommendations, consult a physician. 1FEATURES OF YOUR HYUNDAI 22 B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is nec- essary, you should consult a physician for recommendations. B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident. B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident and to achieve maximum effective- ness of the restraint system, all passengers should be sitting up and the front seats should be in an upright position when the car is moving. A seat belt cannot provide proper protection if the person is lying down in the rear seat or if the front seat is in a reclined position. WARNING: Sitting in a reclined position or lying down when your vehicle is in motion can be dangerous. Even if you buckle up, your seat belts can't do their job when you're re- clined. The shoulder belt can't do its job because it won't be against your body. Instead, it will be in front of you. In a crash, you could go into it with great force, receiv- ing serious neck or other injuries. The lap belt can't do its job either. In a crash, the belt could go up over your abdomen. The belt forces would be applied there, not at your strong pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit back in the seat and wear your seat belt properly. See page 1-24. B160A01A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse. WARNING: When you return the rear seatback to its upright position after the rear seatback was folded down, be careful not to damage the seat belt webbing or buckle. Be sure that the webbing or buckle does not get caught or pinched in the rear seat. B160B01A-AAT Periodic Inspection It is recommended that all seat belts be in- spected periodically for wear or damage of any kind. Parts of the system that are damaged should be replaced as soon as possible. B160C01A-AAT Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric. B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional ques- tions concerning seat belt operation should be directed to your Hyundai Dealer. FEATURES OF YOUR HYUNDAI 23 B170A01NF-GAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position. WARNING: o The height adjuster must be in the locked position when the vehicle is moving. o The misadjustment of height of the shoulder belt could reduce the effective- ness of the seat belt in a crash. HNF2049 You can adjust the height of the shoulder belt anchor to one of 3 positions for maximum comfort and safety. If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection. The shoulder portion should be adjusted so that it lies across your chest and midway over your shoulder nearest the door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appro- priate position. To raise the height adjuster, pull it up. To lower it, push it down while pressing the height ad- juster button. 1FEATURES OF YOUR HYUNDAI 24 B180A01NF-AAT SEAT BELT-Driver's 3-Point System with Emergency Locking Retractor To Fasten Your Belt NOTE: If the driver's seat belt is not fastened when the ignition key is turned from the "OFF" position to the "ON" or "START" position, the seat belt warning light will blink and the warning chime will sound for approximately six seconds to remind the driver to fasten the driver's seat belt. B180A01NF To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. The seat belt automatically adjusts to the proper length only after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly. B190A01NF-AAT SEAT BELTS-Front Passenger and Rear Seat 3-Point System with Combination Locking Retractor To Fasten Your Belt Combination retractor type seat belts are in- stalled in the rear seat positions to help accom- modate the installation of child restraint systems. Although a combination retractor is also installed in the front passenger seat position, Hyundai strongly recommends that children always be seated in the rear seat. NEVER place any infant restraint system in the front seat of the vehicle. This type of seat belt combines the features of both an emergency locking retractor seat belt and an automatic locking retractor seat belt. To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (Emergency Locking Retrac- tor Type). It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly around your hips. When the seat belt is fully extended from the retractor to allow the instal- lation of a child restraint system, the seat belt operation changes to allow the belt to retract, but not to extend (Automatic Locking Retractor Type). See page 1-32. NOTE: o Although the combination retractor pro- vides the same level of protection for seated passengers in either emergency or automatic locking modes, it is recom- mended that seated passengers use the emergency locking feature for improved convenience. The automatic locking function is intended to facilitate child restraint installation. To convert from the automatic locking feature to the emergency locking operation mode, al- low the unbuckled seat belt to fully re- tract. o The front passenger's seat belt warning light on the center fascia panel blinks until the front passenger's seat belt is fastened to remind the front passenger to fasten the front passenger's seat belt, when the ignition key is turned from the "OFF" position to "the "ON" or "START" position. WARNING: o For maximum restraint system protec- tion, the seat belts must always be used whenever the car is moving. o Seat belts are most effective when seatbacks are in the upright position. o Children must always be seatbelted in the rear seats. Never allow children to ride in the front passenger seat. o The shoulder belt should be positioned midway over the shoulder nearest the door for the most effective protection. Never wear the seat belt under the arm nearest the door. Wearing the belt under the arm nearest the door could cause serious or fatal injuries in an accident. o Avoid wearing twisted seat belts. A twisted belt can't do its job as well. In a collision, it could even cut into you. Be sure the belt webbing is straight and not twisted. o Be careful not to damage the belt web- bing or hardware. If the belt webbing or hardware is damaged, replace it. FEATURES OF YOUR HYUNDAI 25 B200A01A-AAT Adjusting Your Seat Belt B200A01NF WARNING: You should place the lap belt portion as low as possible and snugly across your hips, not on your waist. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision. Both arms should not be under or over the belt. Rather, one should be over and the other under, as shown in the illustration. Never wear the seat belt under the arm nearest the door. 1FEATURES OF YOUR HYUNDAI 26 B210A01A-AAT To Release the Seat Belt B200A01NF-AAT SEAT BELTS - Rear Seat Center 3-Point System With Combination Locking Re- tractor B210A01NF The seat belt is released by pressing the re- lease button in the locking buckle. When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again. B220A02NF-A 3. After confirming that (a) and (b) are latched, pull the seat belt out of the retractor and insert the metal tab (c) into the buckle (d). B220A01NF-A 1. Pull the seat belt out of the rear seat package tray. 2. Before fastening the rear seat center belt, confirm the metal tab (a) and buckle (b) are latched together. ! WARNING: o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will increase the chance of injury in the event of collision. o Never unlock the metal tab (a) and the buckle (b) with the following excep- tions. (1) In case of folding rear seatbacks down. (2) If transporting an object on the rear seat may cause damage to the rear seat center belt. FEATURES OF YOUR HYUNDAI 27 WARNING: o Lock the metal tab (a) and the buckle (b) immediately after folding rear seatbacks up. B220A03NF-A o To disconnect the metal tab (a) from the buckle (b), insert a narrow-ended tool into the groove located on the buckle (b). B180A01NF-E There will be an audible "click" when the tab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly. 1FEATURES OF YOUR HYUNDAI 28 B220C02A-GAT To Release the Seat Belt B220C02NF-A When you want to release the seat belt, press the button in the locking buckle. WARNING: When fastening the outboard seat belts or the center seat belt, make sure they are inserted into the correct buckles to obtain maximum protection from the seat belt system and assure proper operation. CHILD RESTRAINT SYSTEM B230A03Y-AAT Children riding in the car should sit in the rear seat and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to acci- dent statistics provided by the National High- way Traffic Safety Administration (NHTSA), children are safer when properly restrained in the rear seats than in the front seat. Larger children not in a child restraint should use one of the seat belts provided. All 50 states have child restraint laws. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. You must use a commercially available child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards (FMVSS). Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car seat and seat belts, and fits your child. Follow all the instructions provided by the manufac- turer when installing the child restraint system. WARNING: o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat. Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Thus only use a child restraint in the rear seat of your vehicle. o A safety belt or child restraint system can become very hot if it is left in a closed vehicle on a sunny day, even if the out- side temperature does not feel hot. Be sure to check the seat cover and buckles before placing a child there. o When the child restraint system is not in use, store it in the trunk or fasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or an accident. o Children who are too large to be in a child restraint should sit in the rear seat and be restrained with the available lap/shoul- der belts. Never allow children to ride in the front passenger seat. ! WARNING: o Never allow a child to be held in a person's arms while they are in a moving vehicle, as this could result in serious injury to the child in the event of an accident or a sudden stop. Holding a child in a moving vehicle does not provide the child with any means of protection during an acci- dent, even if the person holding the child is wearing a seat belt. FEATURES OF YOUR HYUNDAI 29 B230B01NF-AAT Using a Child Restraint System For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions. It is further required that the seat be placed in the vehicle's rear seat. Your vehicle is provided with three child restraint hook holders for installing the child seat or infant seat. WARNING: o Always make sure that the shoulder belt portion of the lap/shoulder belt is posi- tioned midway over the shoulder and never across the neck or behind the back. Moving the child closer toward the seat belt buckle may help provide a good shoulder belt fit. The lap belt portion of the lap/shoulder belt must always be positioned as low as possible on the child's hips, and as snug as possible. o If the seat belt will not properly fit the child, Hyundai recommends the use of an approved booster seat in the rear seat in order to raise the child's seating height so that the seat belt will properly fit the child. Before purchasing a booster seat, make sure that it meets applicable Federal Motor Vehicle Safety Standards (FMVSS) and that it is satisfactory for use with this vehicle. o Never allow a child to stand up or kneel on the seat. o Never use an infant carrier or a child safety seat that "hooks" over a seatback; it may not provide adequate security in an accident. 1FEATURES OF YOUR HYUNDAI 30 B230C04A-AAT Installing a Child Restraint Seat with the "Tether Anchorage" System Three child restraint hook holders are located on the rear seat package tray. To install the child restraint seat Rear seat package tray Child Restraint Hook Holders For vehicles with adjustable headrests, route the tether strap under the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback. 3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat. WARNING: Do not mount more than one child restraint to a single tether or to a child restraint lower anchorage point. The improper increased load may cause the anchorage points or tether anchor to break, causing serious injury or death. Tether Anchor Cover Child Restraint Hook Holder 1. Open the tether anchor cover on the rear seat package tray. B230C01NF Tether Strap Hook Front of Vehicle B230C02NF 2. Route the child restraint seat tether strap over the seatback. B230D03E-AAT Securing the Child Restraint Seat with the "ISOFIX" system B230D01NF Some child seat manufacturers make safety seats that are labeled as ISOFIX or ISOFIX- compatible child seats. These seats include two rigid or webbing mounted attachments that connect to two ISOFIX anchors at specific seating positions in your vehicle. This type of child seat eliminates the need to use seat belts to attach the child seat for forward-facing child seats. ISOFIX anchors have been provided in your vehicle. The ISOFIX anchors are located in the left and right outboard rear seating positions. Their locations are shown in the illustration. There is no ISOFIX anchor provided for the center rear seating position. WARNING: o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only provided for the left and right out- board rear seating positions. Do not misuse the ISOFIX anchors by attempt- ing to attach a child safety seat in the middle of the rear seat position to the ISOFIX anchors. In a crash, the child seat ISOFIX attachments may not be strong enough to secure the child restraint seat properly in the center of the rear seat and may break, causing serious injury or death. o Do not mount more than one child re- straint to a single tether or to a child restraint lower anchorage point. The improper increased load may cause the anchorage points or tether anchor to break, causing serious injury or death. o Attach the ISOFIX or ISOFIX-compatible child seat only to the appropriate loca- tions shown. o Always follow the installation and use instructions provided by the manufac- turer of the child restraint. FEATURES OF YOUR HYUNDAI 31 ISOFIX Anchor Position Indicator ISOFIX Anchor B230D02NF-A The ISOFIX anchors are located between the seatback and the seat cushion of the rear seat left and right outboard seating positions. B230D03NF-A 1FEATURES OF YOUR HYUNDAI 32 Follow the child seat manufacturer's instruc- tions to properly install safety seats with ISOFIX or ISOFIX-compatible attachments. B230G03Y-AAT Installation on Rear Seats On rear seat center position Once you have installed the ISOFIX child re- straint seat, assure that the seat is properly attached to the ISOFIX and tether anchors. Also, test the safety seat before you place the child in it. Tilt the seat from side to side. Also try to tug the seat forward. Check to see if the anchors hold the seat in place. ! WARNING: If the child restraint seat is not anchored properly, the risk of a child being seriously injured or killed in a collision greatly in- creases. On outboard rear seats B235G02NF-A B230G01NF-A To install a child restraint system in the rear seats, extend the shoulder/lap belt entirely from its retractor until a "click" is felt. This will engage the seat belt retractor automatic locking feature, which allows the seat belt to retract but not extend. Install the child restraint system, buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap portion of the belt is tight around the child restraint system and the shoulder portion of the belt is positioned so that it cannot interfere with the child's head or neck. Also, double check to be sure that the retractor has engaged the Automatic Locking feature by trying to extend webbing out of the retractor. If the retractor is in the Automatic Locking mode, the belt will be locked. After installation of the child restraint system, try to move it in all directions to be sure the child restraint system is securely installed. If you need to tighten the belt, pull more webbing toward the retractor. When you unbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normal seated passenger Emergency Locking usage condition. NOTE: o Before installing the child restraint sys- tem in any seating position, read the instructions supplied by the child re- straint system manufacturer. o If the seat belt does not operate as de- scribed, have the system checked imme- diately by your authorized Hyundai dealer. ! WARNING: o If the retractor is not in the Automatic Locking mode, the child restraint sys- tem can move when your vehicle turns or stops abruptly. o Do not install any child restraint system in the front passenger seat. Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rear seat of your vehicle. B180B01NF-AAT Pre-tensioner Seat Belt tensioner (which is installed in the buckle) will also pull the seat belt into the buckle. FEATURES OF YOUR HYUNDAI 33 CAUTION: Do not put anything near the buckle. Plac- ing objects near the buckle can adversely affect the buckle pre-tensioner and may increase the risk of personal injury in the event of a collision. If the system senses excessive seat belt ten- sion on the driver or passenger's seat belt when the pre-tensioner activates, the load limiter inside the pre-tensioner will release some of the pressure on the affected seat belt. The seat belt pre-tensioner system consists mainly of the following components. Their loca- tions are shown in the illustration: HXG229 Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal collisions. The pre-tensioner seat belts can be activated alone or, where the frontal collision is severe enough, together with the airbags. When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position. In certain frontal collisions, the pre-tensioner will activate and pull the seat belt into tighter contact against the occupant's body. The buckle pre- 1FEATURES OF YOUR HYUNDAI 34 Driver's airbag Passenger's airbag B180B01NF 1. SRS airbag warning light 2. Retractor pre-tensioner assembly 3. SRS control module 4. Buckle pre-tensioner assembly WARNING: To obtain maximum benefit from a pre- tensioner seat belt: 1. The seat belt must be worn correctly. 2. The seat belt must be adjusted to the correct position. 3. Be sure you and your passengers always wear seat belts and wear them properly. NOTE: o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certain frontal collisions. The pre- tensioner seat belts can be activated alone or, where the frontal collision is severe enough, together with the airbags. The pre-tensioners will not be activated if the seat belts are not being worn at the time of the collision. o When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger com- partment. These are normal operating conditions and are not hazardous. o Although it is harmless, the fine dust may cause skin irritation and should not be breathed for prolonged periods. Wash all exposed skin areas thoroughly after an accident in which the pre-tensioner seat belts were activated. CAUTION: o Because the sensor that activates the SRS airbag is connected with the pre- tensioner seat belt, the SRS airbag warn- ing light on the instrument panel will illuminate for approximately 6 seconds after the ignition key has been turned to the "ON" position, and then it should turn off. AIR BAG o If the pre-tensioner seat belt is not work- ing properly, this warning light will illu- minate even if there is no malfunction of the SRS airbag. If the SRS airbag warning light does not illuminate when the igni- tion key is turned to "ON", or if it blinks for a second and remains illuminated after illuminating for approximately 6 seconds, or if it illuminates while the vehicle is being driven, please have an authorized Hyundai dealer inspect the pre-tensioner seat belt or SRS airbag system as soon as possible. FEATURES OF YOUR HYUNDAI 35 WARNING: o Pre-tensioners are designed to operate only one time. After activation, pre- tensioner seat belts must be replaced. All seat belts, of any type, should always be replaced after they have been worn during a collision. o The pre-tensioner seat belt assembly mechanisms become hot during activa- tion. Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated. o Do not attempt to inspect or replace the pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer. o Do not strike the pre-tensioner seat belt assemblies. o Do not attempt to service or repair the pre-tensioner seat belt system in any manner. o Improper handling of the pre-tensioner seat belt assemblies, and failure to heed
