2004


A010A02A-AAT


WARRANTIES FOR YOUR HYUNDAI VEHICLE


o New Vehicle 60 Months/60,000 Miles Limited Warranty o New Vehicle 120 Months/100,000 Miles Limited Powertrain Warranty (original owner only) o Anti-Perforation Limited Warranty o Emission Defect Warranty - Federal Vehicle o California Emission Control System Warranty (if applicable) o Emission Performance Warranty - Federal Vehicle o Replacement Parts and Accessories Limited Warranty


NOTE: Detailed warranty information is provided in your Hyundai Owner's Handbook.


A020A01A-AAT


RESPONSIBILITY FOR MAINTENANCE


The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations. Maintenance requirements for severe operating conditions are also included in Section 5.


OWNER'S MANUAL


A030A03E-AAT


Operation Maintenance Specifications


All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out.


This manual applies to all Hyundai ELANTRA models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle.


HXDFL280


A040A01A-AAT


FOREWORD


Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who drive Hyundais. The advanced engineering and high-quality construction of each Hyundai we build is something of which we're very proud.


Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.


The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may be required.


A050A05A-AAT


HYUNDAI MOTOR COMPANY


Note : Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave


the manual in the vehicle for their use. Thank you.


CAUTION:


Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifica- tions listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appear in the Service Station Information on the back cover of the Owner's Manual.


Copyright 2003 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor Company.


A070A01A-AAT


CAUTION: MODIFICATIONS TO YOUR HYUNDAI


Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation and other federal or state agencies.


A080A01S-AAT


TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION


Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundai dealer for precautionary measures or special instructions if you choose to install one of these devices.


A090A01A-AAT


SAFETY AND VEHICLE DAMAGE WARNING


This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following:


WARNING:


CAUTION:


This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning.


This indicates that a condition may result in damage to your vehicle or its equipment if the caution is not heeded. Follow the advice provided with the caution.


NOTE: This indicates that interesting or helpful information is being provided.


A100A03A-AAT Guide to Hyundai Genuine Parts 1. What are Hyundai Genuine Parts?


Hyundai Genuine Parts are the same parts used by Hyundai Motor Company to manu- facture vehicles. They are designed and tested for the optimum safety, performance, and reliability to our customers.


2. Why should you use genuine parts?


Hyundai Genuine Parts are engineered and built to meet rigid manufacturing require- ments. Using imitation, counterfeit or used salvage parts is not covered under the Hyundai New Vehicle Limited Warranty or any other Hyundai warranty. In addition, any damage to or failure of Genuine Hyundai Parts caused by the installation or failure of


an imitation, counterfeit or used salvage part is not covered by any Hyundai Warranty.


To find the closest authorized dealer call 1-800-826-CARS


3. How can you tell if you are purchasing


Hyundai Genuine Parts?


Look for the Hyundai Genuine Parts Logo on the package (see below).


Hyundai Genuine Parts exported to the United States are packaged with labels written only in English.


Hyundai Genuine Parts are only sold through authorized Hyundai Dealerships.


A100A03L


A100A01L


A100A02L


A100A04L


TABLE OF CONTENTS


FEATURES OF YOUR HYUNDAI DRIVING YOUR HYUNDAI


WHAT TO DO IN AN EMERGENCY


CORROSION PREVENTION & APPEARANCE CARE


VEHICLE MAINTENANCE REQUIREMENTS


DO-IT-YOURSELF MAINTENANCE


EMISSION CONTROL SYSTEMS


CONSUMER INFORMATION & REPORTING SAFETY


DEFECTS


VEHICLE SPECIFICATIONS


INDEX


10


SECTION


B250A03E-AAT


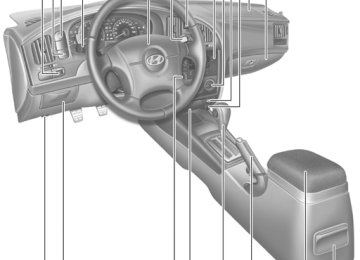

INSTRUMENTS AND CONTROLS


HXDFL002-A


1. Panel Brightness Control Knob (If installed) 2. TCS Switch (If installed) 3. Trip Computer Switch (If installed) 4. Multi-Function Light Switch 5. Horn and Driver's Airbag (If installed) 6. Windshield Wiper/Washer Switch 7. Digital Clock 8. Audio System (If installed) 9. Heating/Air Conditioning Control Panel 10.Cigarette Lighter


11.Power Outlet 12.Passenger's Airbag 13.Glove Box 14.Hood Release Lever 15.Multi Box 16.Cruise Control Switch (If installed) 17.Front Ashtray 18.Shift Lever (If installed) 19.Parking Brake 20.Console Box (If installed) 21.Rear Ashtray


CAUTION:


When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately.


YOUR VEHICLE AT A GLANCE


B255A01E-AAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL


SRS (Airbag) Service Reminder Indicator


ABS Service Reminder Indicator


Trunk Lid /Tail Gate Open Warning Light


Door Ajar Warning Light and Chime


Turn Signal Indicator Lights


Low Fuel Level Warning Light


High Beam Indicator Light


Cruise Indicator Light (If Installed)


Low Oil Pressure Warning Light


Set Indicator Light (If Installed)


Parking Brake/Low Brake Fluid Level Warning Light


Front Fog Indicator Light (If Installed)


Charging System Warning Light


Malfunction Indicator Light


Seat Belt Warning Light


Traction Control Indicator Light (If Installed)


* More detailed explanations of these items will be found beginning on page 1-45.


FEATURES OF YOUR HYUNDAI


Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai ..................................... 1-3
Keys .............................................................................. 1-3
Door .............................................................................. 1-4
Theft-Aalarm System .................................................... 1-8
Window ....................................................................... 1-11
Seat ............................................................................. 1-12
Seat Belts.................................................................... 1-18
Child Restraint System ............................................... 1-24
Advanced Supplemental Restraint (AIRBAG) System 1-32
Instrument Cluster and Indicator ................................. 1-41
Warning and Indicator Lights ...................................... 1-45
Multi-Function Light Switch ......................................... 1-54
Windshield Wiper/Washer Switch ............................... 1-56
Sunroof ....................................................................... 1-63
Mirror ........................................................................... 1-67
Hood Release ............................................................. 1-71
Cruise Control ............................................................. 1-77
Heating and Cooling Control ....................................... 1-80
Stereo Sound System ................................................. 1-98
Audio System ............................................................ 1-100
Antenna ..................................................................... 1-127


1 FEATURES OF YOUR HYUNDAI


FUEL RECOMMENDATIONS


B010A02A-AAT Use Unleaded Gasoline


CAUTION:


o Do not "TOP-OFF" after the first nozzle


shut off when refueling.


o The fuel cap must be tightened at least 3 clicks, otherwise " " light may illu- minate.


B010B01A-AAT What About Gasohol?


Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine devel- ops driveability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol, should not be used.


UNLEADED FUEL ONLY


B010A03E


Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or higher must be used in your Hyundai.


If leaded gasoline is used, it will cause the catalytic converter to become ineffective and the emission control system to malfunction. This can also result in increased maintenance expense.


To avoid accidental use of leaded fuel, the larger nozzle used with leaded gasoline at service stations cannot be inserted into the fuel tank opening of your Hyundai.


B010C01A-AAT Use of MTBE


Hyundai recommends that fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight) should not be used in your Hyundai. Fuel containing MTBE over 15.0% vol. (Oxygen Content 2.7% weight) may reduce vehicle per- formance and produce vapor lock or hard starting.


B010D01A-AAT Do Not Use Methanol


Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage components of the fuel system.


CAUTION:


Your Hyundai's New Vehicle Limited War- ranty may not cover damage to the fuel system and any performance problems that are caused by the use of fuels containing methanol or fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxy- gen Content 2.7% weight.).


BREAKING IN YOUR NEW HYUNDAI


KEYS


FEATURES OF YOUR HYUNDAI


B010E01A-AAT Gasolines for Cleaner Air


B020A01S-AAT During the First 1,200 Miles (2,000 Km)


B030A01A-AAT


To help contribute to cleaner air, Hyundai rec- ommends that you use gasolines treated with detergent additives, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance per- formance of the Emission Control System.


No formal "break-in" procedure is required with your new Hyundai. However, you can contrib- ute to the economical operation and durability of your Hyundai by observing the following recom- mendations during the first 1,200 miles (2,000
km).


B010F01A-AAT Operation in Foreign Countries


If you are going to drive your Hyundai in another country, be sure to:


o Observe all regulations regarding registra- tion and insurance. o Determine that acceptable fuel is available.


o Don't drive faster than 55 MPH (88 km/h). o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000
rpm and 4,000 rpm.


o Use moderate acceleration. Don't start quickly or depress the accelerator pedal fully.


o For the first 200 miles (300 km), try to avoid


hard stops.


o Don't lug the engine (in other words, don't drive so slowly in too high a gear that the engine "bucks"-shift to a lower gear).


o Whether going fast or slow, vary your speed


o Don't let the engine idle longer than 3 minutes


from time to time.


at one time.


o Don't tow a trailer during the first 1,200 miles


(2,000 km) of operation.


B030A01E For greater convenience, the same key oper- ates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in case you accidentally lock one key inside the car.


1 FEATURES OF YOUR HYUNDAI


ILLUMINATED IGNITION SWITCH


DOOR


B030B01A-AAT Record Your Key Number


B030C01Y-AAT (If Installed)


B040A01A-AAT DOOR LOCKS


WARNING:


o Unlocked doors can be dangerous. Be- fore you drive away (especially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be opened from the inside. This helps ensure that the doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an accident.


o Before opening the door, always look for


and avoid oncoming traffic.


B030B01E A code number is stamped on the number plate that came with the keys to your Hyundai. This key number plate should not be left with the keys but kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency.


If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number.


B030C01E-1


Whenever a door is opened, the ignition switch will be illuminated for your convenience, pro- vided the ignition switch is not in the "ON" position. The light will go off approximately 10 seconds after closing the door or when the ignition switch is turned on.


B040B01A-AAT Locking and Unlocking Front Doors With a Key


B040C01O-AAT Locking From the Outside (Driver's side)


UNLOCK


LOCK


FEATURES OF YOUR HYUNDAI


NOTE: o When pushing the lock switch of the driver's door to the "LOCK", only the driver's door can be locked.


o When locking the door this way, be care- ful not to lock the door with the ignition key left in the vehicle.


o To prevent theft, always remove the ig- nition key, close all windows, and lock all doors when leaving your vehicle unat- tended.


HXDFL2003


o The door can be locked or unlocked with a


key.


o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear.


NOTE: The driver's door can be unlocked by turn- ing the key once toward the rear. If you wish to unlock all doors, turn the key toward the rear within 4 seconds once more.


B040C01E The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is not visible, then close the door. The door will not lock if the key is left in the ignition switch when the front doors are closed. This is normal.


1 FEATURES OF YOUR HYUNDAI


B040D01E-AAT Locking From the Inside (Driver's side)


B045C01O-AAT Locking From the Outside (Passenger's side)


UNLOCK


LOCK


HXD530
o To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor the passenger's inside door handles can be used.


o The driver's door can be opened by pulling the inside door handle even if the lock switch is depressed.


B040C01E-R


The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position, so that the red mark on the switch is not visible, then close the door. The door will not lock if the key is left in the ignition switch when the front doors are closed. This is normal.


NOTE: o When pushing the lock switch of the driver's door to the "LOCK", only the driver's door can be locked.


o When the door is locked, the red mark on


the switch is not visible.


NOTE: o When pushing the lock switch of the passenger's door to the "LOCK", all doors can be locked.


o When locking the door this way, be care- ful not to lock the door with the ignition key left in the vehicle.


o To prevent theft, always remove the ig- nition key, close all windows, and lock all doors when leaving your vehicle unat- tended.


B045D01O-AAT Locking From the Inside (Passenger's side)


LOCK


UNLOCK


HXD530-R


To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor the passenger's inside door handles can be used.


NOTE: o When pushing the lock switch of the passenger's door to the "LOCK", all doors can be locked.


o When the door is locked, the red mark on


the switch is not visible.


B040E03A-AAT Child-Protector Rear Door Lock


B040E01E


Your Hyundai is equipped with a "child-protec- tor" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened from the inside. Its use is recommended whenever there are small children in the rear seat.


To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protector lever to the " " position and close the door. Move the lever to the opposite direction of the " " position when normal door operation is desired.


If you wish to be able to open the door from the outside, the outside door handle will function normally.


FEATURES OF YOUR HYUNDAI


CENTRAL DOOR LOCK


B040G02O-AAT (If installed)


B040G02E The central door locking switch is located on the driver's arm rest. It is operated by depressing either the "LOCK" or "UNLOCK" of the door lock switch.


NOTE: o When pushing the "LOCK" of the driver's door lock switch, all vehicle doors will lock. If any door is open when the switch is depressed, the door will remain locked when closed.


o When pushing the "UNLOCK" of the


switch, all vehicle doors will unlock.


1 FEATURES OF YOUR HYUNDAI


THEFT-ALARM SYSTEM


B070A01A-AAT (If Installed)


B070B01E-GAT Armed Stage


This system is designed to provide protection from unauthorized entry into the car. This sys- tem is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If trig- gered, the system provides an audible alarm with blinking of the turn signal lights.


UNLOCK


LOCK


HXD200


Park the car and stop the engine. Arm the system as described below.


NOTE: 1) If any door, trunk lid (4 door)/ tail gate (5 door) or engine hood remains open, the system will not be armed.


2) If this happens, rearm the system as


described above.


3) Once the system is armed, only the trunk lid (4 door) may be unlocked using the key without disarming the system.


CAUTION:


Do not arm the system until all passengers have left the car. If the system is armed while a passenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.


1) Remove the ignition key from the ignition


switch.


2) Make sure that the engine hood and trunk


lid(4 door)/ tail gate (5 door) are locked.


3) Lock the doors using the transmitter of the


keyless entry system.


After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed.


FEATURES OF YOUR HYUNDAI


CAUTION:


Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is necessary to take the following steps;


B070C02E-AAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.


B070D02E-AAT Disarmed Stage


UNLOCK


1) A door and tail gate (5 door) are opened


without using the transmitter.


2) The trunk lid (4 door) is opened without using


the key.


3) The engine hood is opened.


The siren will sound and the turn signal lights will blink continuously for 30 seconds (This hap- pens 3 times). To turn off the system, unlock the door or tail gate (5 door) with the transmitter.


CAUTION:


Avoid trying to start the engine while the system is armed.


1. Unlock the door with the key, which will


cause, the alarm to be activated. Insert the key in the ignition key cylinder and turn the ignition key to "ON" posi- tion.


2.


3. Wait for 30 seconds.


After completing the steps above, the sys- tem will be disarmed.


3A9BA21


The system will be disarmed when the following step is taken:


The driver's or passenger's door is unlocked by depressing the "UNLOCK" button on the trans- mitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed.


1 FEATURES OF YOUR HYUNDAI


10


B070F01O-AAT KEYLESS ENTRY SYSTEM (If installed) Locking doors


1. Close all doors. 2. Push the "LOCK" button on the transmitter. 3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.


Unlocking doors


B070E02HP-GAT Replacing the battery


When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible.


Battery type : CR2032


Replacement instructions:


1. Push the "UNLOCK" button on the transmit-


ter.


2. At the same time the driver's door unlocks, the turn signal lights will blink twice to indicate that the system is disarmed.


NOTE: If you wish to unlock all doors, press the "UNLOCK" button on the transmitter again within 4 seconds.


Screwdriver


1. Separate the case with a blade screwdriver


as shown in the illustration.


MSO-0048-1


Case


Battery


MSO-0048-2
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter.


WINDOW


B050A01A-AAT WINDOW GLASS


B060A01E-AAT POWER WINDOWS (If Installed)


FEATURES OF YOUR HYUNDAI


11


(1)


Open


Close


B060A01E The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be opened by de- pressing the appropriate window switch and closed by pulling up the switch. To open the window on the driver's side, press the switch(1) down. The window moves as long as the switch is operated.


B060B01E In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on the armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to normal operation, press the window lock switch a second time.


Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired position push the switch again.


To raise or lower the window, turn the window regulator handle clockwise or counterclock- wise.


B050A01E


WARNING:


When opening or closing the windows, make sure your passenger's arms, hands and body are safely out of the way.


1 FEATURES OF YOUR HYUNDAI


12


SEAT


WARNING:


1) Be careful that someone's head, hands and body are not trapped by a closing window.


2) Never try to operate the main switch on the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.


3) Do not leave children alone in the car. Always remove the ignition key for their safety.


B080A01A-AAT ADJUSTABLE FRONT SEATS


B080B02A-AAT Adjusting Seat Forward and Rearward


WARNING:


Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury, or property damage.


B080B01E To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.


! WARNING:


To ensure the seat is locked securely, at- tempt to move the seat forward or rearward without using the lock release lever.


WARNING:


To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passenger seatbacks should always be in an upright position while the vehicle is in motion. The protection pro- vided by the seat belts and airbags in a frontal collision may be reduced signifi- cantly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seat back is reclined.


FEATURES OF YOUR HYUNDAI


13


B080D02A-AAT Adjustable Headrests


Lock Knob


HXDFL114


Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob.


B080C01A-AAT Adjusting Seatback Angle


B080C01E


To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever.


1 FEATURES OF YOUR HYUNDAI


14


WARNING:


o For maximum effectiveness in case of an accident, the headrest should be ad- justed so the top of the headrest is at the same height as the top of the occupant's ears. The use of a cushion that holds the body away from the seatback is not recommended.


o Do not operate the vehicle with the head- rests removed as severe injury to an occupant may occur in the event of an accident. Headrests may provide pro- tection against severe neck injuries when properly adjusted.


B080E01O-AAT Lumbar Support Control (Driver's Seat Only) (If Installed)


B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)


B080E01E To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever toward the rear.


B080F01E


To raise or lower the front part of the seat cushion, turn the front knob forward or rear- ward. To raise or lower the rear part of the seat cushion, turn the rear knob forward or rear- ward.


1. Minimum support 2. Maximum support


FEATURES OF YOUR HYUNDAI


15


WARNING:


The purpose of the fold-down rear seatbacks is to allow you to carry longer objects than could otherwise be accommo- dated. Never allow passengers to sit on top of the folded down seat back while the car is moving as this is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop. Objects carried on the folded down seatback should not extend higher than the top of the front seats. This could allow cargo to slide forward and cause injury or damage during sudden stops.


B110A02E-GAT Folding Rear Seatbacks (If Installed)


WARNING:


When you return the rear seatback to its upright position after being folded down, be careful not to damage the seat belt webbing or buckle. In addition, do not allow the seat belt webbing or buckle to get caught or pinched in the rear seat.


B110A01E


The rear seatbacks may be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.


o To unlock the seatback, pull up the seatback locking knob, then push forward on the seatback panel.


o When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.


B110B01E


1 FEATURES OF YOUR HYUNDAI


16


B080G01E-AAT Folding Rear Seatback and Seat Cushion (5 DOOR)


Strap


B080G01E


For greater convenience, the entire seat cush- ion may be folded forward and the entire seatback folded down.


1. Remove the headrest. 2. Pull the strap of the seat cushion (A) upward


to fold up the seat cushion.


3. Pull the seatback locking knob (B) on the


seatback to fold-down the seatback.


B080H01E-AAT Returning The Rear Seatback to an Upright Position (5 DOOR)


Warning label


Red color


B080H01E-1


4. Then, pull forward on the seatback panel.


CAUTION:


After folding the rear seatback and seat cushion, store the headrests in the luggage room so that they will not be thrown for- ward in the case of a sudden stop or an accident.


B080J01E


When you return the seatback to its upright position, always be sure it has locked into position by pulling and pushing on the top of the seatback. If the seatback is locked completely, the red color in the seatback locking knob is not visible.


FEATURES OF YOUR HYUNDAI


REAR SEAT WARNING


B140A01S-AAT


17


B140A01E


For the safety of all passengers, luggage or other cargo should not be piled higher than the top of the seatback. In addition, do not place objects on the rear shelf as they may move forward during braking or in an accident and strike vehicle passengers.


WARNING:


o The purpose of the fold down rear seat back and the fold forward rear seat cush- ion is to increase cargo space. Do not allow passengers to sit in the cargo area while the car is moving. This is not a proper seating position and no seat belts are available for use when the seat back is folded down. Passengers who are not properly seated and wearing seat belts could sustain serious injuries or death in case of an accident or a sudden stop. o Objects should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops. o When you return the folded down seat back to its upright position, always be sure to place the rear seat belt buckles on the seat cushion below the seatback.


o When you return the folded down seatback to its upright position, always be sure to install the headrests in their proper positions. Headrests are impor- tant to the safety of occupants in a rear collision. If the headrests are not in- stalled in their proper position, serious injury or death could result if a rear end collision occurs.


Buckle clips


B080I01E


WARNING:


o Before folding the seatback, place the rear seat belt buckles in the buckle clips on the seatback. This will prevent the seat belt buckles from becoming cov- ered by the seat cushion when it is returned to the seating position.


o When you return the folded down seat back to its upright position, make sure the seat belts are in position to be acces- sible and to function properly.


o WARNING LABEL: When returning the seat cushion to the seating position, place the seat belt buckles on top of the cushion.


1 FEATURES OF YOUR HYUNDAI


18


SEAT BELTS


B150A01S-AAT SEAT BELT PRECAUTIONS


WARNING:


All occupants of the vehicle must wear their seat belts at all times. Note that this vehicle is equipped with a Supplemental Restraint (Airbag) System as discussed beginning on page 1-32. The seat belts must be used in conjunction with the supplemental airbag system. State laws may require that some or all occupants of the vehicle use seat belts. The possibility of increased in- jury or severity of injury in an accident will be increased if this elementary safety pre- caution is not observed. In addition, the following recommendations are made:


B150B03Y-AAT Infant or Small Child All 50 states have child restraint laws. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. Information about the use of these restraints begins on page 1-24.


WARNING:


Every person in your vehicle needs to be properly restrained at all times, including infants and children. In a collision, an unre- strained child can become a "missile" in- side the car. The force required to hold a child on your lap could be so great that you could not hold the child. Any child riding in the vehicle should always be in a proper restraint in the rear seat of the vehicle.


NOTE: Small children are best protected from in- jury in an accident when properly restrained in the rear seat by a child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards. Before buying any child restraint system, make sure that it has a label certifying that it meets Motor Vehicle Safety Standard 213. The restraint must be appropriate for your child's height and weight. Check the label on the child restraint for this information. See page 1-24.


B150C03A-AAT Larger Children


Children who are too large for child restraint systems should always occupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hips and as low as possible. Check belt fit periodically. A child's squirming could put the belt out of posi- tion. Children are afforded the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained by the available lap/shoulder belt and the seat should be placed in the rearmost position. Children under the age of 13 should be restrained securely in the rear seat. Never


place a child under the age of 13 in the front seat. NEVER place a rear facing child seat in the front seat of a vehicle.


B150D01S-AAT Pregnant Women


The use of a seat belt is recommended for pregnant women to lessen the chance of injury in an accident. When a seat belt is used, it should be placed as low and snugly as possible on the hips, not across the abdomen. For specific recommendations, consult a physician.


B150E01A-AAT Injured Person


A seat belt should be used when an injured person is being transported. When this is nec- essary, you should consult a physician for recommendations.


B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.


B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident and to achieve maximum effective- ness of the restraint system, all passengers should be sitting up and the front seats should be in an upright position when the car is moving. A seat belt cannot provide proper protection if the person is lying down in the rear seat or if the front seat is in a reclined position.


WARNING:


Sitting in a reclined position or lying down when your vehicle is in motion can be dangerous. Even if you buckle up, your seat belts can't do their job when you're re- clined. The shoulder belt can't do its job because it won't be against your body. Instead, it will be in front of you. In a crash you could go into it with great force , receiving serious neck or other injuries. The lap belt can't do its job either. In a crash the belt could go up over your abdomen. The belt forces would be applied there, not at your strong pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit back in the seat and wear your seat belt properly. See page 1-21.


FEATURES OF YOUR HYUNDAI


19


B160A01A-AAT CARE OF SEAT BELTS


Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.


WARNING:


When you return the rear seatback to its upright position after the rear seatback was folded down, be careful not to damage the seat belt webbing or buckle. Be sure that the webbing or buckle does not get caught or pinched in the rear seat.


B160B01A-AAT Periodic Inspection


It is recommended that all seat belts be in- spected periodically for wear or damage of any kind. Parts of the system that are damaged should be replaced as soon as possible.


1 FEATURES OF YOUR HYUNDAI


20


B160C01A-AAT Keep Belts Clean and Dry


Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.


B160D01A-AAT When to Replace Seat Belts


entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional ques- tions concerning seat belt operation should be directed to your Hyundai Dealer.


B170A04A-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT (If Installed)


Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into the position.


WARNING:


o The height adjuster must be in the locked


position when the vehicle is moving.


o The misadjustment of height of the shoulder belt could reduce the effective- ness of the seat belt in a crash.


B170A01E


You can adjust the height of the shoulder belt anchor to one of the 4 positions for maximum comfort and safty. If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection. The shoulder portion should be adjusted so that it lies across your chest and midway over your shoulder nearest the door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appro- priate position. To raise the height adjuster, pull it up. To lower it, push it down while pressing the height adjuster button.


B180A01L-AAT SEAT BELT-Driver's 3-Point System with Emergency Locking Retractor: To Fasten Your Belt


To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. The seat belt automatically adjusts to the proper length only after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly. Check to make sure that the belt is properly locked and that the belt is not twisted.


NOTE: If the driver's seat belt is not fastened when the ignition key is in the "ON" position, the seat belt warning light will come on and the warning chime will sound for about 6 sec- onds.


B190A01Y-AAT SEAT BELTS-Front Passenger and Rear Seat 3-Point System with Combination Locking Retractor To Fasten Your Belt


B180A01L


Combination retractor type seat belts are in- stalled in the rear seat outboard positions to help accommodate the installation of child restraint systems. Although a combination retractor is also installed in the front passenger seat posi- tion, Hyundai strongly recommends that chil- dren always be seated in the rear seat. NEVER place any infant restraint system in the front seat of the vehicle.


FEATURES OF YOUR HYUNDAI


21


This type of seat belt combines the features of both an emergency locking retractor seat belt and an automatic locking retractor seat belt. To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (Emergency Locking Retrac- tor Type). It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly around your hips. When the seat belt is fully extended from the retractor to allow the instal- lation of a child restraint system, the seat belt operation changes to allow the belt to retract, but not to extend. (Automatic Locking Retractor Type). See page 1-28.


NOTE: Although the combination retractor pro- vides the same level of protection for seated passengers in either emergency or auto- matic locking modes, it is recommended that seated passengers use the emergency locking feature for improved convenience. The automatic locking function is intended to facilitate child restraint installation. To convert from the automatic locking feature to the emergency locking operation mode, allow the unbuckled seat belt to fully re- tract.


1 FEATURES OF YOUR HYUNDAI


22


WARNING:


o For maximum restraint system protec- tion, seat belts must always be used whenever the car is moving.


o Seat belts are most effective when


seatbacks are in the upright position.


o Children must always be seatbelted in the rear seats. Never allow children to ride in the front passenger seat.


o The shoulder belt should be positioned midway over the shoulder nearest the door for the most effective protection. Never wear the seat belt under the arm nearest the door. Wearing the belt under the arm nearest the door could cause serious or fatal injuries in an accident. o Avoid wearing twisted seat belts. A twisted belt can't do its job as well. In a collision, it could even cut into you. Be sure the belt webbing is straight and not twisted.


o Be careful not to damage the belt web- bing or hardware. If the belt webbing or hardware is damaged, replace it.


B200A01A-AAT Adjusting Your Seat Belt


B210A01A-AAT To Release the Seat Belt


B200A01L


B210A01L


The seat belt is released by pressing the re- lease button in the locking buckle. When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.


WARNING:


You should place the lap belt portion as low as possible and snugly across your hips, not on your waist. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision. Both arms should not be under or over the belt. Rather, one should be over and the other under, as shown in the illustration. Never wear the seat belt under the arm nearest the door.


B220A02E-AAT SEAT BELTS - Center Rear Seat 3-Point System With Combination Locking Retractor


motion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.


(c)


(a)


(b)


(d)


B220A01E 1. Before fastening the rear seat center belt, confirm the metal tab (a) and buckle (b) are latched together.


2. After confirming that (a) and (b) are latched, pull the seat belt out of the retractor and insert the metal tab (c) into the buckle (d).


There will be an audible "click" when the tab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy


B220A02Y


FEATURES OF YOUR HYUNDAI


23


WARNING:


o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will increase the chance of injury in the event of collision.


o Never unlock the metal tab (a) and the buckle (b) with the following excep- tions. 1) In case of folding rear seatbacks


down.


2) If transporting an object on the rear seat may cause damage to the rear seat center belt.


o Lock the metal tab (a) and the buckle (b) immediately after folding rear seatbacks up.


o To disconnect the metal tab (a) from the buckle (b), insert a sharp-ended tool into the groove located on the buckle (b). (4 DOOR only)


1 FEATURES OF YOUR HYUNDAI


24


B220C01Y-AAT To Release the Seat Belt


When you want to release the seat belt, press the button in the locking buckle.


B220C01E


WARNING:


The rear seat center belt latching mecha- nism is different from those for the out- board rear seat shoulder belts. When fas- tening the outboard rear seat shoulder belts or the rear seat center belt, make sure they are inserted into the correct buckles to obtain maximum protection from the seat belt system and assure proper operation.


CHILD RESTRAINT SYSTEM


B230A02A-AAT Children riding in the car should sit in the rear seat and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to acci- dent statistics provided by the National High- way Traffic Safety Administration (NHTSA), children are safer when properly restrained in the rear seats than in the front seat. Larger children not in a child restraint should use one of the seat belts provided. All 50 states have child restraint laws. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. You must use a commercially available child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards (FMVSS). Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car and seat belts, and fits your child. Follow all the instructions provided by the manufacturer when installing the child restraint system.


WARNING:


o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat. Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in the rear seat of your vehicle.


o Since a safety belt or child restraint sys- tem can become very hot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing a child there.


o When the child restraint system is not in use, store it in the trunk or fasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or an accident.


o Children who are too large to be in a child restraint should still sit in the rear seat and be restrained with the available lap/ shoulder belts. Never allow children to ride in the front passenger seat.


!


WARNING:


o Never allow a child to be held in a person's arms while they are in a moving vehicle, as this could result in serious injury to the child in the event of an accident or a sudden stop. Holding a child in a moving vehicle does not provide the child with any means of protection during an acci- dent, even if the person holding the child is wearing a seat belt.


WARNING:


o Always make sure that the shoulder belt portion of the lap/shoulder belt is posi- tioned midway over the shoulder, never across the neck or behind the back. Moving the child closer to the center of the vehicle may help provide a good shoulder belt fit. The lap belt portion of the lap/shoulder belt or the center seat lap belt must always be positioned as low as possible on the child's hips and as snug as possible.


o If the seat belt will not properly fit the child, Hyundai recommends the use of an approved booster seat in the rear seat in order to raise the child's seating height so that the seat belt will properly fit the child. Before purchasing a booster seat, make sure that it meets applicable Fed- eral Motor Vehicle Safety Standards (FMVSS) and that it is satisfactory for use with this vehicle.


o Never allow a child to stand up or kneel


on the seat.


o Never use an infant carrier or child safety seat that "hooks" over a seatback; it may not provide adequate security in an ac- cident.


FEATURES OF YOUR HYUNDAI


25


B230B02A-AAT Using a Child Restraint System with the "Tether Anchorage" System


Bolt, Holder (5/16"-22 mm)


Washer, Conical Spring


Holder, Child Restraint Hook


Retainer Washer


HSM386


For small children and babies, the use of a child seat or infant seat is required and may be required in your state. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions. It is further re- quired that the seat be placed in the vehicle's rear seat since this can make an important contribution to safety. Your vehicle is provided with three child restraint hook holders for install- ing the child seat or infant seat.


1 FEATURES OF YOUR HYUNDAI


26


B230C03A-GAT Installing a Child Restraint System with "Tether Anchorage" System(4 Door)


Three child restraint hook holders are located on the rear seat package tray.


REAR SEAT PACKAGE TRAY


Child restraint hook holders


2. Route the child restraint seat strap over the


seatback. For vehicles with adjustable headrest, route the tether strap under the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback. 3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat.


Tether anchor cover


Child Restraint Hook Holder


G230C02E


1. Open the tether anchor cover on the rear


seat package tray.


Tether strap hook


Front of Vehicle


B230C01E


B230E03E-GAT Installing a Child Restraint System with "Tether Anchorage" System (5 Door)


Three child restraint hook holders are located on the rear luggage compartment floor.


This symbol indicates the location of user ready tether anchorage.


B230E03E


Tether anchor cover


Child Restraint Hook Holder


G230C02E-1


1. Open the tether anchor cover on the rear


luggage compartment floor.


FEATURES OF YOUR HYUNDAI


27


REAR LUGGAGE COMPARTMENT FLOOR


Child restraint hook holders


Tether strap hook


Front of Vehicle


B230C02E-2


2. Route the child restraint seat strap over the


seatback.


1 FEATURES OF YOUR HYUNDAI


28


For vehicles with adjustable headrest, route the tether strap under the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback. 3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat.


B230G03Y-AAT Installation on Rear Seats


B230G01E


To install a child restraint system in the rear seats, extend the shoulder/lap belt entirely from its retractor until a "click" is felt. This will engage the seat belt retractor automatic locking feature, which allows the seat belt to retract but not extend. Install the child restraint system, buckle


the seat belt and allow the seat belt to take up any slack. Make sure that the lap portion of the belt is tight around the child restraint system and the shoulder portion of the belt is positioned so that it can not interfere with the child's head or neck. Also, double check to be sure that the retractor has engaged the Automatic Locking feature by trying to extend webbing out of the retractor. If the retractor is in the Automatic Locking mode, the belt will be locked. After installation of the child restraint system, try to move it in all directions to be sure the child restraint system is securely installed. If you need to tighten the belt, pull more webbing toward the retractor. When you unbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normal seated passenger Emergency Locking usage condi- tion.


NOTE: o Before installing the child restraint sys- tem in any seating position, read the instructions supplied by the child re- straint system manufacturer.


o If the seat belt does not operate as de- scribed, have the system checked imme- diately by your authorized Hyundai dealer.


WARNING:


o If the retractor is not in the Automatic Locking mode, the child restraint sys- tem can move when your vehicle turns or stops abruptly.


o Do not install any child restraint system in the front passenger seat. Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rear seat of your vehicle.


B230D03E-AAT Securing the child Restraint seat with the "ISOFIX" system


B230F01E


Some child seat manufacturers make safety seats that are labeled as ISOFIX or ISOFIX- compatible child seats. These seats include two rigid or webbing mounted attachments that connect to two ISOFIX anchors at specific seating positions in your vehicle. This type of child seat eliminates the need to use seat belts to attach the child seat for forward-facing child seats. ISOFIX anchors have been provided in your vehicle. The ISOFIX anchors are located in the left and right outboard rear seating positions. Their locations are shown in the illustration.


There is no ISOFIX anchor provided for the center rear seating position.


WARNING:


o Do not install a child safety seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only provided for the left and right out- board rear seating positions. Do not misuse the ISOFIX anchors by attempt- ing to attach a child sefety seat in the middle of the rear seat position to the ISOFIX anchors. In a crash, the child seat ISOFIX attachments may not be strong enough to secure the child restraint seat properly in the center of the rear seat and may break, causing serious injury or death.


o Do not mount more than one child re- straint to a single tether or to a child restraint lower anchorage point. the improper increased load may cause the anchorage points or tether anchor to break, causing serious injury or death. o Attach the ISOFIX or ISOFIX-compatible child seat only to the appropriate loca- tions shown.


o Always follow the installation and use instructions provided by the manufac- turer of the child restraint.


FEATURES OF YOUR HYUNDAI


29


ISOFIX Anchor


ISOFIX Anchor Position Indicator


B230D02E


The ISOFIX anchors are located between the seatback and the seat cushion of the rear seat left and right outboard seating positions. Follow the child seat manufacturer's instruc- tions to properly install safety seats with ISOFIX or ISOFIX-compatible attachments.


Once you have installed the ISOFIX child re- straint seat, assure that the seat is properly attached to the ISOFIX and tether anchors. Also, test the safety seat before you place the child in it. Tilt the seat from side to side. Also try to tug the seat forward. Check to see if the anchors hold the seat in place.


1 FEATURES OF YOUR HYUNDAI


30


WARNING:


If the child restraint seat is not anchored properly, the risk of a child being seriously injured or killed in a collision greatly in- creases.


Driver's airbag


Passenger's airbag


B180C01E-AAT Pre-Tensioner Seat Belt


Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal collisions. The pre-tensioner seat belts can be activated alone or, where the frontal collision is severe enough, together with the airbags.


HXG229


B180B01E


When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position. In certain frontal collisions, the pre-tensioner will activate and pull the seat belt into tighter contact against the occupant's body.


The seat belt pre-tensioner system consists mainly of the following components. Their loca- tions are shown in the illustration.


1. SRS airbag warning light 2. Seat belt pre-tensioner assembly 3. SRS control module


!


WARNING:


To obtain maximum benefit from a pre- tensioner seat belt: 1. The seat belt must be worn correctly. 2. The seat belt must be adjusted to the


correct position.


3. Be sure you and your passengers always wear seat belts and wear then properly.


NOTE: o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certain frontal collisions. The pre- tensioner seat belts can be activated alone or, where the frontal collision is severe enough, together with the airbags. The pre-tensioners will not be activated if the seat belts are not being worn at the time of the collision.


o When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger com- partment. These are normal operating conditions and are not hazardous.


o Although it is harmless, the fine dust may cause skin irritation and should not be breathed for prolonged periods. Wash your hands and face thoroughly after an accident in which the pre-tensioner seat belts were activated.


CAUTION:


o The sensor that activates the SRS airbag is connected with the pre-tensioner seat belt. The SRS airbag warning light on the instrument panel will blink for ap- proximately 6 seconds after the ignition key has been turned to the "ON" posi- tion, and then it should turn off.


AIR BAG


o If the pre-tensioner seat belt is not work- ing properly, this warning light will illu- minate even if there is no malfunction of the SRS airbag system. If the SRS airbag warning light does not illuminate when the ignition key is turned to "ON", or if it remains illuminated after blinking for approximately 6 seconds, or if it illuminates while the vehicle is being driven, please have an authorized Hyundai dealer inspect the pre-tensioner seat belts and SRS airbag system as soon as possible.


FEATURES OF YOUR HYUNDAI


31


WARNING:


o Pre-tensioners are designed to operate only one time. After activation, pre- tensioner seat belts must be replaced. All seat belts, of any type, should always be replaced after they have been worn during a collision.


o The pre-tensioner seat belt assembly mechanisms become hot during activa- tion. Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated.


o Do not attempt to inspect or replace the pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer.


o Do not strike the pre-tensioner seat belt


assemblies.


o Do not attempt to service or repair the pre-tensioner seat belt system in any manner.


o Improper handling of the pre-tensioner seat belt assemblies, and failure to heed the warnings to not strike, modify, in- spect, replace, service or repair the pre- tensioner seat belt assemblies may lead to improper operation or inadvertent activation and serious injury.


o Always wear the seat belts when driving


or riding in a motor vehicle.


1 FEATURES OF YOUR HYUNDAI


32


ADVANCED SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM (SRS)


B240A01E-AAT


Driver's Airbag


B240A01E


Your Hyundai is equipped with an Advanced Supplemental Restraint (Airbag) System. The indications of the system's presence are the letters "SRS AIRBAG" embossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.


The Hyundai SRS consists of airbags installed under the pad covers in the center of the steering wheel and the passenger's side front panel above the glove box. The purpose of the SRS is to provide the vehicle's driver and/or the front passenger with additional protection than


that offered by the seat belt system alone, in case of a frontal impact of sufficient severity. The advanced SRS uses a collection of sen- sors to gather information about the driver's and front passenger's seat position, the driver's and front passenger's seat belt usage and impact severity. The driver's and front passenger's seat position sensors, which are installed on the seat track, determine if the seats are fore or aft of a reference position. Similarly, the seat belt usage sensors determine if the driver and front passenger's seat belts are fastened. These sensors provide the ability to control the SRS deployment's pressure based on how close the driver's seat is to the steering wheel, how close the passenger's seat is to the instrument panel and whether or not the seat belts are fastened, and how severe is impact.


The advanced airbags offer the ability to control the airbag inflation with two pressure levels. A first stage pressure level is provided for mod- erate-severity impacts. A second stage pres- sure level is provided for more severe impacts.


Your Hyundai is equipped with an Occupant Classification® system in the front passenger's seat. The Occupant Classification® system de- tects the presence of a passenger in the front passenger's seat and will turn off the front passenger's airbag under certain conditions. For more detail, see page 1-37.


CAUTION:


AIR BAG


If the seat position sensor is not working properly, the SRS airbag warning light on the instrument panel will illuminate even if there is no malfunction of the SRS airbag system because the SRS airbag is con- nected with the seat position sensor. If the SRS airbag warning light does not illumi- nate when the ignition key is turned to the "ON" position, if it remains illuminated after blinking for approximately 6 seconds, or if it illuminates while the vehicle is being driven, have an authorized Hyundai dealer inspect the seat position sensor and the SRS airbag system as soon as possible.


WARNING:


o Modification to the seat structure can adversely affect the seat position sensor and cause the airbag to deploy at a different pressure level than should be provided.


o Do not place any objects that may cause magnetic fields near the front seat. These can cause a malfunction of the seat position sensor.


NOTE: o Be sure to read information about the SRS on the labels provided on the back- side of the sun visor and in the glove box. o Advanced airbags are combined with pre-tensioner seat belts to help provide enhanced occupant protection in fron- tal crashes. Front airbags are not in- tended to deploy in light collisions in which protection can be provided by the

Loading...
x
