WARRANTIES FOR YOUR HYUNDAI VEHICLE


Please consult your Owner's Handbook & Warranty Information booklet for your vehicle's spe- cific warranty coverage.


RESPONSIBILITY FOR MAINTENANCE


The maintenance requirements for your new Hyundai are found in Section 7. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent main- tenance is required for some operations. Maintenance requirements for severe operating conditions are also included in Section 7.


OWNER'S MANUAL


Operation Maintenance Specifications


All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out.


This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehi- cle.


CAUTION: MODIFICATIONS TO YOUR HYUNDAI


Your Hyundai should not be modified in any way. Such modifications may adversely affect the per- formance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations estab- lished by the U.S. Department of Transportation and other federal or state agencies.


TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION


Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer's instruc- tions or consult your Hyundai dealer for precautionary measures or special instructions if you choose to install one of these devices.


SAFETY AND VEHICLE DAMAGE WARNING


This manual includes information titled as WARNING, CAUTION and NOTICE. These titles indicate the following:


WARNING


This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning.


CAUTION


This indicates that a condition may result in damage to your vehicle or its equipment if the caution is not heeded.Follow the advice provided with the caution.


✽✽ NOTICE This indicates that interesting or helpful information is being provided.


FOREWORD


Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who drive Hyundais. The advanced engineering and high-quality construction of each Hyundai we build is something of which we're very proud.


Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it care- fully because the information it contains can contribute greatly to the satisfaction you receive from your new car.


The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai deal- er. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may be required.


HYUNDAI MOTOR COMPANY


Note : Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave the man-


ual in the vehicle for their use. Thank you.


CAUTION


Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications.You must always use high quality fuels and lubricants that meet the specifications listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appear in the Service Station Information on the back cover of the Owner's Manual.


Copyright 2006 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor Company.


Guide to Hyundai Genuine Parts 1. What are Hyundai Genuine Parts?


Hyundai Genuine Parts are the same parts used by Hyundai Motor Company to manufacture vehicles. They are designed and tested for the optimum safety, performance, and reli- ability to our customers.


2. Why should you use genuine parts? Hyundai Genuine Parts are engi- neered and built to meet rigid manu- facturing requirements. Using imita- tion, counterfeit or used salvage parts is not covered under the Hyundai New Vehicle Limited Warranty or any other Hyundai warranty.


In addition, any damage to or failure of Hyundai Genuine Parts caused by the installation or failure of an imitation, counterfeit or used salvage part is not covered by any Hyundai Warranty.


To find the closest authorized dealer call 1-800-826-CARS


3. How can you tell if you are purchas-


ing Hyundai Genuine Parts? Look for the Hyundai Genuine Parts Logo on the package (see below). Hyundai Genuine Parts exported to the United States are packaged with labels written only in English. Hyundai Genuine Parts are only sold through Hyundai Dealerships.


authorized


A100A03L


A100A01L


A100A02L


A100A04L


table of contents


Introduction


Your vehicle at a glance


Safety system of your vehicle


Features of your vehicle


Driving your vehicle


What to do in an emergency


Maintenance


Consumer information


Specifications


Index


Introduction


How to use this manual / 1-2
Fuel requirements / 1-3
Vehicle break-in process / 1-5
Vehicle data collection and event data


recorders / 1-6


Indicator symbols on the instrument cluster / 1-7


Introduction


HOW TO USE THIS MANUAL We want to help you get the greatest possible driving pleasure from your vehi- cle. Your Owner’s Manual can assist you in many ways. We strongly recommend that you read the entire manual. In order to minimize the chance of death or injury, you must read the WARNING and CAU- TION sections spread throughout the manual. Illustrations complement the words in this manual to best explain how to enjoy your vehicle. By reading your manual, you learn about features, important safety information, and driving tips under vari- ous road conditions.


The general layout of the manual is pro- vided in the Table of Contents. A good place to start is the index; it has an alpha- betical listing of all information in your manual. Sections: This manual has nine sections plus an index. Each section begins with a brief list of contents so you can tell at a glance if that section has the information you want.


21


find


You’ll various WARNING’s, CAUTION’s, and NOTICE’s in this manu- al. These were prepared to enhance your personal safety.You should carefully read and follow ALL procedures and recom- mendations these WARNING’s, CAUTION’s and NOTICE’s.


provided


in


WARNING


A WARNING indicates a situation in which harm, serious bodily injury or death could result if the warning is ignored.


CAUTION


A CAUTION indicates a situation in which damage to your vehicle could result if the caution is ignored.


✽✽ NOTICE A NOTICE indicates interesting or help- ful information is being provided.


CAUTION


(cid:129) Do not "top off" after the nozzle automatically shuts off when refueling.


(cid:129) Always check that the fuel cap is installed securely to prevent fuel spillage in the event of an acci- dent.


FUEL REQUIREMENTS Gasoline engine Unleaded Your new vehicle is designed to use only unleaded fuel having an Octane Rating of RON (Research Octane Number) 91 / AKI (Anti-Knock Index) 87 or higher.


Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as minimize exhaust emis- sions and spark plug fouling.


CAUTION


NEVER USE LEADED FUEL. The use of leaded fuel is detrimental to the catalytic converter and will damage the engine control sys- tem’s oxygen sensor and affect emission control. Never add any fuel system cleaning agents to the fuel tank other than what has been specified. (Consult an authorized Hyundai dealer for details.)


Introduction


Gasoline containing alcohol and methanol Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol), and gasoline or gasohol containing methanol (also known as wood alcohol) are being marketed along with or instead of leaded or unleaded gasoline. Do not use gasohol containing more than 10% ethanol, and do not use gasoline or gasohol containing any methanol. Either of these fuels may cause drivability prob- lems and damage to the fuel system. Discontinue using gasohol of any kind if drivability problems occur. Vehicle damage or driveability problems may not be covered by the manufactur- er’s warranty if they result from the use of: 1. Gasohol containing more than 10%


ethanol.


2. Gasoline or gasohol containing


methanol.


3. Leaded fuel or leaded gasohol.


CAUTION


Never use gasohol which contains methanol. Discontinue use of any gasohol product which impairs dri- vability.


1 3


Do not use methanol Fuels containing methanol (wood alco- hol) should not be used in your vehicle. This type of fuel can reduce vehicle per- formance and damage components of the fuel system.


CAUTION


Your New Vehicle Limited Warranty may not cover damage to the fuel system and performance problems that are caused by the use of methanol or fuels containing methanol.


Gasolines for cleaner air To help contribute to cleaner air, we rec- ommend that you use gasolines treated with detergent additives, which help pre- vent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the Emission Control System.


Operation in foreign countries If you are going to drive your vehicle in another country, be sure to: (cid:129) Observe all regulations regarding reg-


istration and insurance.


(cid:129) Determine that acceptable fuel is avail-


able.


Introduction


Use of MTBE We recommend that fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight) should not be used in your vehi- cle. Fuel containing MTBE over 15.0% vol. (Oxygen Content 2.7% weight) may reduce vehicle performance and produce vapor lock or hard starting.


CAUTION


Your New Vehicle Limited Warranty may not cover damage to the fuel system and any performance prob- lems that are caused by the use of fuels containing methanol or fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight.)


41


VEHICLE BREAK-IN PROCESS No special break-in period is needed. By following a few simple precautions for the first 600 miles (1,000 km) you may add to the performance, economy and life of your vehicle. (cid:129) Do not race the engine. (cid:129) While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.


(cid:129) Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.


(cid:129) Avoid hard stops, except in emergen- cies, to allow the brakes to seat prop- erly.


(cid:129) Don't let the engine idle longer than 3


minutes at one time.


(cid:129) Don't tow a trailer during the first 1,200


miles (2,000 km) of operation.


Introduction


1 5


Introduction


that help


Additional information is stored only when a crash occurs that results in the deployment of the airbags or seat belt pre-tensioners. This type of data storage is done by devices called event data recorders(EDR).


VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS Your Hyundai vehicle is equipped with many high technology, electronically controlled systems to ensure your vehicle operates properly and provides the performance that you expect. These systems utilize computers to monitor the operation of various systems and components and help to control their operation. These computerized system operations are wide-ranging and involve components to reduce emissions, to continuously evaluate the readiness of the airbag and seat belt pretensioner systems, to determine when the airbag and seat belt pre-tensioner systems should be deployed and then to activate the deployment, and if equipped, to oper- ate anti-lock braking, traction control and electrical stability control to assist the driver to control the vehicle in difficult driving situations. These systems electronically store informa- tion that is useful to service techni- cians when they need to diagnose and repair these systems.


After a crash event, the airbag and seat belt pre-tensioner computer sys- tem, known as the Supplemental Restraint System Control Module (SRSCM) or Airbag Control Unit (ACU), may record some information about the condition of the vehicle and how it was being operated. This infor- mation consists of data related to seat belt usage and if there was diagnostic information in the airbag or seat belt systems at the time that a crash occurred, and if the ACU sensed that a crash of sufficient severity occurred to require seat belt pre-tensioner or airbag deployment.


To retrieve this information, special equipment is needed and access to the vehicle or the device that stores the data is required. Hyundai will not access information about a crash event or share it with others except:


(cid:129) in response to an official request of police or similar government office, or


(cid:129) with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, or


(cid:129) as part of Hyundai’s defense of liti-


gation, or


(cid:129) as required by law.


61


INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER


Introduction


Door ajar warning light


Seat belt warning light


High beam indicator


Malfunction indicator lamp (If equipped)


Air bag warning light (If equipped)


Cruise indicator (If equipped)


Turn signal indicator lights


Cruise SET indicator (If equipped)


Front fog light indicator (If equipped)


Trunk lid open warning light


ESC indicator (If equipped)


Low fuel level warning


ESC OFF indicator (If equipped)


Low washer fluid level warning indicator


ABS warning light (If equipped)


Electronic power steering (EPS) system warning light


ESC


ESC OFF


Parking brake & Brake fluid warning


Engine oil pressure warning


Charging system warning


* For more detailed explanations, refer to section 4, “Instrument cluster”.


1 7


Your vehicle at a glance


Interior overview / 2-2
Instrument panel overview / 2-3


Your vehicle at a glance


INTERIOR OVERVIEW


1. Door lock/unlock button ............................4-8
2. Outside rearview mirror control switch*.....4-37
3. Central door lock switch* ..........................4-9
4. Power window lock switch*.....................4-17

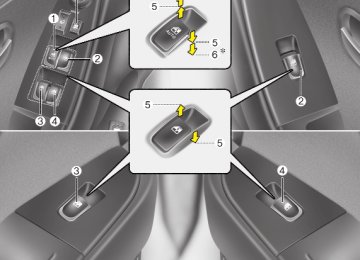

5. Power window switches* ........................4-14
6. Trunk lid release button ..........................4-12
7. Fuse box ..................................................7-46
8. ESC OFF button*....................................5-21
9. Instrument panel illumination..................4-39
10. Steering wheel tilt .................................4-29
11. Hood release lever ...............................4-18
12. Brake pedal ..........................................5-16
13. Accelerator pedal....................................5-6
14. Parking brake lever...............................5-18
* : if equipped


22


OHD006001L


INSTRUMENT PANEL OVERVIEW


Your vehicle at a glance


1. Driver’s air bag................................3-37
2. Light control / Turn signals ..............4-51
3. Instrument cluster ...........................4-38
4. Wiper/Washer..................................4-54
5. Auto cruise controls* .......................5-26
6. Ignition switch ...................................5-4
7. Steering wheel ................................4-28
8. Digital clock ........................................4-85
9. Audio controls* .......................4-88, 4-92
10. Climate control system* ................4-60
11. Hazard warning flasher switch......4-50
12. Seat warmer* ..................................3-6
13. Shift lever ........................................5-7
14. Cigar lighter...................................4-82
15. Power outlet ..................................4-84
16. Ashtray ..........................................4-82
17. Passenger’s air bag ......................3-38
18. Storage compartment ...................4-80
19. Vent controls .................................4-63
20. Glove box ......................................4-80
* : if equipped


OHD006002N


2 3


Seat / 3-2
Seat belts / 3-12
Child restraint system / 3-21
Airbag-advanced supplemental restraint system / 3-29


Safety system of your vehicle


Safety system of your vehicle

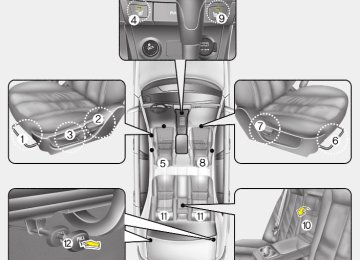

SEAT


Front seat (1) Forward and backward (driver seat) (2) Seatback angle (driver seat) (3) Seat cushion height (driver seat)* (4) Seat warmer (driver seat)* (5) Headrest (driver seat) (6) Forward and backward (passenger


seat)


(7) Seatback angle (passenger seat) (8) Headrest (passenger seat) (9) Seat warmer (passenger seat)*


Rear seats (10) Center armrest* (11) Headrest (12) Seatback folding lever


* if equipped


23


OHD036001


WARNING - Loose objects Loose objects in the driver’s foot area could interfere with the opera- tion of the foot pedals, possibly causing an accident. Do not place anything under the front seats.


WARNING - Uprighting


seat


When you return the seatback to its upright position, hold the seatback and return it slowly and be sure there are no other occupants around the seat. If the seatback is returned without being held and controlled, the back of the seat could spring forward resulting in accidental injury to a person struck by the seatback.


WARNING - Driver’s seat


(cid:129) Never attempt to adjust seat while the vehicle is moving. This could result in loss of control, and an accident causing death, serious injury, or property dam- age.


(cid:129) Do not allow anything to interfere with the normal position of the seatback. Storing items against a seatback or in any other way interfering with proper locking of a seatback could result in serious or fatal injury in a sudden stop or collision.


(cid:129) Always drive and ride with your seatback upright and the lap por- tion of the seat belt snug and low across the hips. This is the best position to protect you in case of an accident.


(cid:129) In order to avoid unnecessary and perhaps severe air bag injuries, always sit as far back as possible from the steering wheel while maintaining comfortable control of the vehicle. It is recom- mended that your chest is at least 10 inches (250 mm) away from the steering wheel.


Safety system of your vehicle


OHD036002


Front seat adjustment Forward and backward To move the seat forward or backward: 1. Pull the seat slide adjustment lever under the front edge of the seat cush- ion up and hold it.


2. Slide the seat to the position you


desire.


3. Release the lever and make sure the


seat is locked in place.


WARNING


After adjusting the seat, always check that it is securely locked into place by attempting to move the seat forward or reverse without using lever. Sudden or unexpected movement of the driver's seat could cause you to lose control of the vehicle result- ing in an accident.


lock release


the


3 3


WARNING - Driver respon- sibility for front seat pas- senger


Riding in a vehicle with a front seat- back reclined could lead to serious or fatal injury in an accident. If a front seat is reclined during an accident, the occupant’s hips may slide under the lap portion of the seat belt applying great force to the unprotected abdomen. Serious or fatal internal injuries could result. The driver must advise the front passenger to keep the seatback in an upright position whenever the vehicle is in motion.


OHD036004
Seat cushion height (for driver’s seat) To change the height of the seat cushion, push the lever up or down located on the outside of the seat cushion. • To lower the seat cushion, push down


the lever several times.


(cid:129) To raise the seat cushion, pull up the


lever several times.


Safety system of your vehicle


OHD036003


Seatback angle To recline the seatback: 1. Lean forward slightly and lift up on the seatback recline lever located on the outside of the seat at the rear.


2. Carefully lean back on the seat and adjust the seatback of the seat to the position you desire.


3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)


43


Headrest


WARNING


(cid:129) For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the headrest is at the same height as the top of the occu- pant's eyes. Also adjust the head- rest so its distance from the head is as wide as your fist. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.


(cid:129) Do not operate the vehicle with the headrests removed as severe injury to the occupants may occur in the event of an accident. Headrests may provide protec- tion against neck injuries when properly adjusted.


(cid:129) Do not adjust the headrest height


while the vehicle is in motion.


Safety system of your vehicle


HNF2041-1


OHD036005


Active headrest (if equipped) The active headrest is designed to move forward and upward during a rear impact. This helps to prevent the driver's and front passenger’s head from moving backward and thus helps prevent neck injuries.


Forward and backward adjustment (if equipped) The headrest may be adjusted forward to three different positions by pulling the headrest forward. To adjust the headrest backward, pull it fully forward to the far- thest position and release it. Adjust the headrest so that it properly supports the head and neck.


3 5


Safety system of your vehicle


OHD036006


OHD036007


OHD036008


Adjusting the height up and down To raise the headrest, pull it up to the desired position (1). To lower the head- rest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).


Removal To remove the headrest, raise it as far as it can go then press the release button (1) while pulling upward (2).


Seat warmer (if equipped) The seat warmer is provided to warm the front seats during cold weather. With the ignition switch in the ON position, push either of the switches to warm the driver's seat or the front passenger's seat. During mild weather or under conditions where the operation of the seat warmer is not needed, keep the switches in the "OFF" position.


✽✽ NOTICE With the seat warmer switch in ON position, the heating system in the seat turns off or on automatically depending on the seat temperature.


63


CAUTION


(cid:129) When cleaning the seats, do not use an organic solvent such as thinner, benzene, alcohol and gasoline. Doing so may damage the surface of the heater or seats. (cid:129) To prevent overheating the seat warmer, do not place blankets, cushions or seat covers on the seats while the seat warmer is in operation.


(cid:129) Do not place heavy or sharp objects on seats equipped with seat warmers.Damage to the seat warming components could occur.


WARNING - Seat warmer


burns


Passengers should use extreme caution when using seat warmers due to the possibility of excess heating or burns. In particular, the driver must exercise extreme care for the following types of passen- gers: 1. Infants, children, elderly or hand- icapped persons, or hospital out- patients


2. Persons with sensitive skin or


those that burn easily


3. Fatigued individuals 4. Intoxicated individuals 5. Individuals taking medication that can cause drowsiness or sleepiness (sleeping pills, cold tablets, etc.)


Safety system of your vehicle


OHD036009


Seatback pocket The seatback pocket is provided on the back of the front passenger’s and driver’s seatbacks.


WARNING - Seatback pockets


Do not put heavy or sharp objects in the seatback pockets. In an acci- dent they could come loose from the pocket and injure vehicle occu- pants.


3 7


Safety system of your vehicle


WARNING


For proper operation of the occu- pant classification system: (cid:129) Do not place any items cumula- tively weighing over 2.2 lbs (1 kg) in the seatback pocket or on the seat.


(cid:129) Do not hang onto the front pas-


senger seat.


83


OHD036011


OHD036012


Removal To remove the headrest, raise it as far as it can go then press the release button (1) while pulling upward (2).


Rear seat adjustment Headrest The headrest not only provides comfort for passengers, but also helps to protect the head and neck in the event of a colli- sion. Adjusting the height up and down To raise the headrest, pull it up to the desired position (1). To lower the head- rest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).


WARNING


(cid:129) For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height as the top of the occu- pant's eyes. The use of a cushion that holds the body away from the seatback is not recommend- ed.


(cid:129) Do not operate the vehicle with the headrests removed as severe injury to an occupant may occur in the event of an accident. Headrests may provide protec- tion against severe neck injuries when properly adjusted.


OHD036010


Armrest (if equipped) To use the armrest, pull it forward from the seatback.


Safety system of your vehicle


CAUTION


(cid:129) Make sure the engine is off, the transaxle is in P and the parking brake is applied whenever load- ing or unloading cargo. Vehicle may move if shift lever is inadver- tently moved to another position. (cid:129) Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.


(cid:129) When cargo is loaded through the rear passenger seats,ensure the cargo is properly secured to pre- vent it from moving while driving. Unsecured cargo in the passen- ger compartment can cause dam- age to the vehicle or injury to it’s occupants.


3 9


Safety system of your vehicle


Folding the rear seat The rear seatbacks may be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.


WARNING


The purpose of the fold-down rear seatbacks is to allow you to carry longer objects than could other- wise be accommodated. Never allow passengers to sit on top of the folded down seatback while the car is moving as this is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop. Objects carried on the folded down seatback should not extend higher than the top of the front seats. This could allow cargo to slide forward and cause injury or damage during sudden stops.


10


OHD036025


To fold down the rear seatback: 1. Set the front seatback to the upright position and if necessary, slide the front seat forward.


2. Lower the rear headrests to the lowest


position.


3. Pull out the seatback locking knob in the trunk, then fold the seat toward the front of the vehicle.


OHD036123L 4. For center shoulder belt, insert the belt webbing in the right side rear shoulder belt guide to prevent the belt from being trapped under the seat.


5. When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.


WARNING


When you return the rear seatback to its upright position after being folded down: Be careful not to damage the seat belt webbing or buckle. Do not allow the seat belt webbing or buckle to get caught or pinched in the rear seat. Ensure that the seat- back is completely locked into its upright position by pushing on the top of the seaback. Otherwise, in an accident or sudden stop, the seat could fold down and allow cargo to enter the passenger compartment, which could result in serious injury or death.


OHD036124L


CAUTION - Rear seat belts When returning the rear seatbacks to the upright position, remember to return the rear center shoulder belt to its proper position.


Safety system of your vehicle


WARNING - Cargo


Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and caus- ing injury to the vehicle occupants. Special care should be taken of objects placed in the rear seats, since those may hit the front seat occupants in a frontal collision.


WARNING - Cargo loading Make sure the engine is off, the transaxle is in P and the parking brake is applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if shift lever is inadvertent- ly moved to another position.


3 11


Safety system of your vehicle


SEAT BELTS Seat belt restraint system


WARNING


(cid:129) For maximum restraint system protection, the seat belts must always be used whenever the car is moving.


(cid:129) Seat belts are most effective the


when seatbacks are upright position.


in


be


always


(cid:129) Children age 12 and younger must properly restrained in the rear seat. Never allow children to ride in the front passenger seat. If a child over 13
must be seated in the front seat, he/she must be properly belted and the seat should be moved as far back as possible.


(cid:129) Never wear the shoulder belt under your arm or behind your back. An improperly positioned shoulder belt can cause serious injuries in a crash. The shoulder belt should be positioned midway over your shoulder across your collarbone.


(Continued)


12


(Continued) (cid:129) Avoid wearing twisted seat belts. A twisted belt can't do its job as well. In a collision, it could even cut into you. Be sure the belt webbing is straight and not twist- ed.


(cid:129) Be careful not to damage the belt webbing or hardware. If the belt webbing or hardware is dam- aged, replace it.


1GQA2083


Seat belt warning Seat belt warning light If the driver's seat belt is not fastened when the ignition key is turned ON, the seat belt warning light blinks for approxi- mately 6 seconds. And if the vehicle speed exceeds 10km/h with the seat belt unfastened, the seat belt warning light blinks with the pattern of 6 seconds on and 24 seconds off for 11 times.The seat belt warning light will stop if the seat belt is fastened or the vehicle speed is reduced to below 5km/h.


Seat belt warning chime If the driver's seat belt is not fastened when the ignition key is turned ON, the seat belt warning chime sounds for approximately 6 seconds. And if the vehi- cle speed exceeds 10km/h with the seat belt unfastened, the seat belt warning chime sounds with the pattern of 6 sec- onds on and 24 seconds off for 11
times.The seat belt warning chime will stop if the seat belt is fastened or the vehicle speed is reduced to below 5km/h.


Safety system of your vehicle


B180A01NF


Seat belt - Driver’s 3-point system with emergency locking retractor To fasten your seat belt: To fasten your seat belt, pull it out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle. The seat belt automatically adjusts to the proper length only after the lap belt por- tion is adjusted manually so that it fits snugly around your hips. If you lean for- ward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly.


OHD036019
You can adjust the height of the shoulder belt anchor to one of 4 positions for max- imum comfort and safety. If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection. The shoul- der portion should be adjusted so that it lies across your chest and midway over your shoulder nearest the door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position.


3 13


Safety system of your vehicle


To raise the height adjuster, pull it up (1). To lower it, push it down (3) while press- ing the height adjuster button (2). Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.


WARNING


(cid:129) Verify the shoulder belt anchor is locked into position at the appro- priate height. Never position the shoulder belt across your neck or face. Improperly positioned seat belts can cause serious injuries in an accident.


(cid:129) Failure to replace seat belts after an accident could leave you with damaged seat belts that will not provide protection in the event of another collision leading to per- sonal injury or death. Replace your seat belts after being in an accident as soon as possible.


14


Seat belts - Front passenger and rear seat 3-point system with combination locking retractor To fasten your seat belt Combination retractor type seat belts are installed in the rear seat positions to help accommodate the installation of child restraint systems. Although a combina- tion retractor is also installed in the front passenger seat position, we strongly rec- ommend that children always be seated in the rear seat. NEVER place any infant restraint system in the front seat of the vehicle. This type of seat belt combines the fea- tures of both an emergency locking retractor seat belt and an automatic lock- ing retractor seat belt. To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (Emergency Locking Retractor Type). It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly around your hips.


B200A01NF


WARNING


You should place the lap belt por- tion as low as possible and snugly across your hips, not on your waist. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision. Both arms should not be under or over the belt. Rather, one should be over and the other under, as shown in the illustration. Never wear the seat belt under the arm nearest the door.


When the seat belt is fully extended from the retractor to allow the installation of a child restraint system, the seat belt oper- ation changes to allow the belt to retract, but not to extend (Automatic Locking Retractor Type). Refer to “Using a child restraint system” in this section.


✽✽ NOTICE Although the combination retractor provides the same level of protection for seated passengers in either emergency or automatic locking modes, it is recom- mended that seated passengers use the emergency locking feature for improved convenience. The automatic locking function is intended to facilitate child restraint installation. To convert from the automatic locking feature to the emergency locking operation mode, allow the unbuckled seat belt to fully retract.


Safety system of your vehicle


B210A01NF


OMG035300


To release the seat belt: The seat belt is released by pressing the release button (1) in the locking buckle. When it is released, the belt should auto- matically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.


Pre-tensioner seat belt Your vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal collisions. The pre-tensioner seat belts can be activated, where the frontal collision is severe enough, together with the air bags.


3 15


Safety system of your vehicle


When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position. In certain frontal collisions, the pre-tensioner will activate and pull the seat belt into tighter contact against the occupant's body. If the system senses excessive seat belt tension on the driver or passenger's seat belt when the pre-tensioner activates, the load limiter inside the pre-tensioner will release some of the pressure on the affected seat belt.


WARNING


To obtain maximum benefit from a pre-tensioner seat belt: 1. The seatbelt must be working correctly and adjusted to the proper position. Please read and follow all of the important infor- mation and precautions about your vehicle’s occupant safety features – including seat belts and air bags – that are provided in this manual.


2. Be sure you and your passen- gers always wear seat belts and wear them properly.


1LDE3100
The seat belt pre-tensioner system con- sists mainly of the following components. Their locations are shown in the illustra- tion: 1. SRS air bag warning light 2. Retractor pre-tensioner assembly 3. SRS control module


16


✽✽ NOTICE • Both the driver's and front passen- ger's pre-tensioner seat belts will be activated in certain frontal collisions. The pre-tensioner seat belts can be activated where the frontal collision is severe enough, together with the air bags. The pre-tensioners will not be activat- ed if the seat belts are not being worn at the time of the collision.


• When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compartment. These are normal oper- ating conditions and are not haz- ardous.


• Although it is harmless, the fine dust may cause skin irritation and should not be breathed for prolonged peri- ods. Wash all exposed skin areas thor- oughly after an accident in which the pre-tensioner seat belts were activat- ed.


Safety system of your vehicle


CAUTION


(cid:129) Because the sensor that activates the SRS air bag is connected with the pre-tensioner seat belt, the SRS air bag warning light on the instrument panel will illumi- nate for approximately 6 seconds after the ignition key has been turned to the "ON" position, and then it should turn off.


AIR BAG


(cid:129) If the pre-tensioner seat belt is not working properly, this warning light will illuminate even if there is no malfunction of the SRS air bag. If the SRS air bag warning light does not illuminate when the igni- tion key is turned to "ON",or if it remains illuminated after illumi- nating for approximately 6 sec- onds,or if it illuminates while the vehicle is being driven, please have an authorized Hyundai deal- er inspect the pre-tensioner seat belt or SRS air bag system as soon as possible.


WARNING


(cid:129) Pre-tensioners are designed to operate only one time. After acti- vation, pre-tensioner seat belts must be replaced. All seat belts, of any type, should always be replaced after they have been worn during a collision.


(cid:129) The pre-tensioner seat belt assembly mechanisms become hot during activation. Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated.


(cid:129) Do not attempt to inspect or replace the pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer. (cid:129) Do not strike the pre-tensioner


seat belt assemblies.


(cid:129) Do not attempt to service or repair the pre-tensioner seat belt system in any manner.


(Continued)


3 17


Safety system of your vehicle


(Continued) (cid:129) Improper handling of the pre-ten- sioner seat belt assemblies, and failure to heed the warnings not to strike, modify, inspect, replace, service or repair the pre-tension- er seat belt assemblies may lead to improper operation or inadver- tent activation and serious injury. (cid:129) Always wear the seat belts when driving or riding in a motor vehi- cle.


Seat belt precautions


WARNING


All occupants of the vehicle must wear their seat belts at all times. Seat belts and child restraints reduce the risk of serious or fatal injuries for all occupants in the event of a collision or sudden stop. Without a seat belt, occupants could be shifted too close to a deploying air bag, strike the interior structure or be thrown from the vehicle. Properly worn seat belts greatly reduce these hazards. Even with advanced air bags, unbelted occupants can be severe- ly injured by a deploying air bag. Always the precautions about seat belts, air bags and occu- pant seat contained in this manual.


follow


Infant or small child All 50 states have child restraint laws.You should be aware of the specific require- ments in your state. Child and/or infant seats must be properly placed and installed in the rear seat. For more infor- mation about the use of these restraints, refer to “Child restraint system” in this section.


WARNING


Every person in your vehicle needs to be properly restrained at all times, including infants and chil- dren. Never hold a child in your arms or lap when riding in a vehi- cle. The violent forces created dur- ing a crash will tear the child from your arms and throw the child against the interior. Always use a child restraint appropriate for your child's height and weight.


18


Safety system of your vehicle


✽✽ NOTICE Small children are best protected from injury in an accident when properly restrained in the rear seat by a child restraint system that meets the require- ments of the the Federal Motor Vehicle Safety Standards. Before buying any child restraint system, make sure that it has a label certifying that it meets Federal Motor Vehicle Safety Standard 213. The restraint must be appropriate for your child's height and weight. Check the label on the child restraint for this information. Refer to “Child restraint system” in this section.


Larger children Children who are too large for child restraint systems should always occupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hips and as low as possible. Check belt fit periodically. A child's squirming could put the belt out of position. Children are afforded the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained by the available lap/shoulder belt and the seat should be placed in the rearmost position. Children under the age of 13 should be restrained securely in the rear seat. NEVER place a child under the age of 13 in the front seat. NEVER place a rear facing child seat in the front seat of a vehicle.


If the shoulder belt portion slightly touch- es the child’s neck or face, try placing the child closer to the center of the vehicle. If the shoulder belt still touches their face or neck they need to be returned to a child restraint system. In addition, after- market devices are available from inde- pendent manufacturers which help pull the shoulder belt down and away from the child’s face or neck.


WARNING - Shoulder belts on small children


(cid:129) Never allow a shoulder belt to be in contact with a child’s neck or face while the vehicle in motion.


is


(cid:129) If seat belts are not properly worn and adjusted on children, there is a risk of death or serious injury.


3 19


Safety system of your vehicle


Pregnant women The use of a seat belt is recommended for pregnant women to lessen the chance of injury in an accident. When a seat belt is used, the lap belt portion should be placed as low and snugly as possible on the hips, not across the abdomen. For specific recommendations, consult a physician.


Injured person A seat belt should be used when an injured person is being transported. When this is necessary, you should con- sult a physician for recommendations.


One person per belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.


20


Care of seat belts Seat belt systems should never be disas- sembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.


WARNING


When you return the rear seatback to its upright position after the rear seatback was folded down, be care- ful not to damage the seat belt web- bing or buckle. Be sure that the webbing or buckle does not get caught or pinched in the rear seat. A seat belt with damaged webbing or buckle will not be as strong and could possibly fail during a colli- sion or sudden stop, resulting in serious injury.


Do not lie down To reduce the chance of injuries in the event of an accident and to achieve max- imum effectiveness of the restraint sys- tem, all passengers should be sitting up and the front seats should be in an upright position when the car is moving. A seat belt cannot provide proper protec- tion if the person is lying down in the rear seat or if the front seat is in a reclined position.


WARNING


Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a col- lision or sudden stop. The protec- tion of your restraint system (seat belts and air bags) is greatly reduced by reclining your seat. Seat belts must be snug against your hips and chest to work proper- ly. The more the seatback is reclined, the greater the chance that an occupant's hips will slide under the lap belt causing serious internal injuries or the occupant's neck could strike the shoulder belt. Drivers and passengers should always sit well back in their seats, properly belted, and with the seat- backs upright.


Periodic inspection It is recommended that all seat belts be inspected periodically for wear or dam- age of any kind. Parts of the system that are damaged should be replaced as soon as possible.


Keep belts clean and dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.


When to replace seat belts Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional questions concern- ing seat belt operation should be directed to an authorized Hyundai dealer.


CHILD RESTRAINT SYSTEM Children riding in the car should sit in the rear seat and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to accident statis- tics, children are safer when properly restrained in the rear seats than in the front seat. Larger children not in a child restraint should use one of the seat belts provided. You should be aware of the specific requirements in your state. Child and/or infant safety seats must be properly placed and installed in the rear seat. You must use a commercially available child restraint system that meets the require- ments of the Federal Motor Vehicle Safety Standards (FMVSS). Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car seat and seat belts, and fits your child. Follow all the instructions provided by the man- ufacturer when the child restraint system.


installing


Safety system of your vehicle


WARNING


(cid:129) A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat. Should an accident occur and cause the passenger side air bag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Thus only use a child restraint in the rear seat of your vehicle.


(cid:129) A seat belt or child restraint sys- tem can become very hot if it is left in a closed vehicle on a sunny day, even if the outside tempera- ture does not feel hot. Be sure to check the seat cover and buckles before placing a child there.


(cid:129) When the child restraint system is not in use, store it in the trunk or fasten it with a seat belt so that it will not be thrown forward in the case of a sudden stop or an accident.


(cid:129) Children may be seriously injured or killed by an inflating air bag. All children, even those too large for child restraints, must ride in the rear seat.


3 21


(Continued) (cid:129) Never use an infant carrier or a child safety seat that "hooks" over a seatback, it may not pro- vide adequate security in an acci- dent.


(cid:129) Seat belts can become very hot, especially when the car is parked in direct sunlight. Always check seat belt buckles before fasten- ing them over a child.


(cid:129) Always store or secure a child seat, even when it is not in use. During a collision or sudden stop, the child seat could be thrown inside the vehicle.


Safety system of your vehicle


WARNING


To reduce the chance or serious or fatal injuries: (cid:129) Children of all ages are safer when restrained in the rear seat. A child riding in the front passen- ger seat can be forcefully struck by an inflating air bag resulting in serious or fatal injuries.


(cid:129) Always follow the instructions for installation and use of the child restraint maker.


(cid:129) Always make sure the child seat is secured properly in the car and your child is securely restrained in the child seat.


(cid:129) Never hold a child in your arms or lap when riding in a vehicle. The violent forces created during a crash will tear the child from your arms and throw the child against the car’s interior.


(cid:129) Never put a seat belt over your- self and a child. During a crash, the belt could press deep into the child causing serious internal injuries.


(Continued)


22


resulting


(Continued) (cid:129) Never leave children unattended in a vehicle – not even for a short time. The car can heat up very quickly, in serious injuries to children inside. Even very young children may inadver- tently cause the vehicle to move, entangle themselves in the win- dows, or lock themselves or oth- ers inside the vehicle.


(cid:129) Never allow two children, or any two persons, to use the same seat belt.


(cid:129) Children often squirm and repo- sition themselves improperly. Never let a child ride with the shoulder belt under their arm or behind their back. Always proper- ly position and secure children in rear seat.


(cid:129) Never allow a child to stand-up or kneel on the seat or floorboard of a moving vehicle. During a colli- sion or sudden stop, the child can be violently thrown against the vehicles interior, resulting in serious injury.


(Continued)


Safety system of your vehicle


Rearward-facing child restraint system


Forward-facing child restraint system


CRS


HNF1008


Using a child restraint system For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the man- ufacturer's instructions. It is further required that the seat be placed in the vehicle's rear seat. Your vehicle is provid- ed with child restraint hook holders for installing the child seat or infant seat.


E2MS103005


Placing a passenger seat belt into the auto lock mode The use of the auto lock mode will ensure that the normal movement of the child in the vehicle does not cause the seat belt to be pulled out and loosen the firmness of its hold on the child restraint system. To secure a child restraint sys- tem, use the following procedure. To install a child restraint system on the outboard or center rear seats, do the fol- lowing: 1. Place the child restraint system in the seat and route the lap/shoulder belt around or through the restraint, follow- ing restraint manufacturer’s instructions. Be sure the seat belt web- bing is not twisted.


the


E2BLD310
2. Fasten the lap/shoulder belt latch into the buckle. Listen for the distinct “click” sound.


Position the release button so that it is easy to access in case of an emergency.


WARNING


A child can be seriously injured or killed in a collision if the child restraint is not properly anchored to the car and the child is not prop- erly restrained in the child restraint. Always follow the child seat manu- facturer’s instructions for installa- tion and use.


3 23


Safety system of your vehicle


MMSA3028
3. Pull the shoulder portion of the seat belt all the way out. When the shoulder portion of the seat belt is fully extend- ed, it will shift the retractor to the “Auto Lock” (child restraint) mode.


MMSA3029
4. Slowly allow the shoulder portion of the seat belt to retract and listen for an audible “clicking” or “ratcheting” sound. This indicates that the retractor is in the “Auto Lock” mode. If no distinct sound is heard, repeat steps 3 and 4.


MMSA3030
5. Remove as much slack from the belt as possible by pushing down on the child restraint system while feeding the shoulder belt back into the retractor.


6. Push and pull on the child restraint system to confirm that the seat belt is holding it firmly in place. If it is not, release the seat belt and repeat steps 2 through 6.


7. Double check that the retractor is in the “Auto Lock” mode by attempting to pull more of the seat belt out of the retractor. If you cannot, the retractor is in the “Auto Lock” mode.


To remove the child restraint, press the release button on the buckle and then pull the lap/shoulder belt out of the restraint and allow the seat belt to retract fully.


24


WARNING - Auto lock


mode


The lap/shoulder belt automatically returns to the “emergency lock mode” whenever the belt is allowed to retract fully. Therefore, the pre- ceding seven steps must be fol- lowed each time a child restraint is installed. If the retractor in the Automatic Locking mode, the child restraint can move when your vehi- cle turns or stops suddenly. A child can be seriously injured or killed if the child restraint is not properly anchored to the car, including set- ting the retractor to the Automatic Locking mode.


is not


When the seat belt is allowed to retract to its fully stowed position, the retractor will automatically switch from the “Auto Lock” mode to the emergency lock mode for normal adult usage.


Safety system of your vehicle


1JBA3052


Securing a child restraint seat with “Tether Anchor”system Child restraint hook holders are located on the shelf behind the rear seats.


2GHA3300
1. Route the child restraint seat strap


over the seatback. For vehicles with adjustable headrest, route the tether strap under the head- rest and between the headrest posts, otherwise route the tether strap over the top of the seatback.


2. Connect the tether strap hook to the appropriate child restraint hook holder and tighten to secure the seat.


3 25


Safety system of your vehicle


WARNING


When using the vehicle's "Tether Anchor" system to install a child restraint system in the rear seat, all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of unretracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the unretracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint.


26


WARNING - Child restraint anchorage


(cid:129) Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circum- stances are they to be used for adult seat belts or harnesses or for attaching other items or equipment to the vehicle.


(cid:129) The tether strap may not work properly if attached somewhere other than the correct tether anchor.


WARNING - Tether strap


(cid:129) A child can be seriously injured or killed in a collision if the child restraint properly anchored. Always follow the child seat manufacturer’s instructions for installation and use.


not


is


(cid:129) Never mount more than one child restraint to a single tether or to a single lower anchorage point.The increased load caused by multi- ple seats may cause the tethers or anchorage points to break, causing serious injury or death.


WARNING - Child restraint


check


Check that the child restraint sys- tem is secure by pushing and pulling it in different directions. Incorrectly fitted child restraints may swing, twist, tip or separate causing death or serious injury.


B230D01NF


Child seat lower anchors Some child seat manufacturers make child restraint seats that are labeled as International Standards Organization Fixed (ISOFIX) or ISOFIX-compatible child restraint seats. These seats include two rigid or webbing mounted attach- ments that connect to two ISOFIX anchors at specific seating positions in your vehicle. This type of child restraint seat eliminates the need to use seat belts to attach the child seat for forward- facing child restraint seats in the rear seats.


B230D03NF ISOFIX anchors have been provided in your vehicle. The ISOFIX anchors are located in the left and right outboard rear seating positions. Their locations are shown in the illustration. There is no ISOFIX anchor provided for the center rear seating position. The located between the seatback and the seat cush- ion of the rear seat left and right outboard seating positions.


ISOFIX anchors are


Safety system of your vehicle


Follow the child seat manufacturer’s instructions to properly install child restraint seats with ISOFIX or ISOFIX- compatible attachments. Once you have installed the ISOFIX child restraint, assure that the seat is properly attached to the ISOFIX and tether anchors. Also, test the child restraint seat before you place the child in it. Tilt the seat from side to side. Also try to tug the seat forward. Check to see if the anchors hold the seat in place.


WARNING


When using the vehicle's "ISOFIX" system to install a child restraint system in the rear seat, all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of unretracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the unretracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint.


3 27


WARNING


Install the child restraint seat fully rearward against the seatback with the seatback in a vertical position, not reclined.


Safety system of your vehicle


WARNING - ISOFIX


Anchors


(cid:129) A child can be seriously injured or killed in a collision if the child restraint properly anchored. Always follow the child seat manufacturer’s instructions for installation and use.


not


is


(cid:129) Never install a child restraint using the ISOFIX anchors at the center position of the rear seat. In a crash, the ISOFIX anchors may break if a car seat is improperly placed in the center position resulting in serious or fatal injuries. Only place a ISOFIX or ISOFIX-compatible child seat in the left or right out-board rear seating positions (as shown) to the appropriate ISOFIX anchors provided.


(cid:129) Never mount more than one child restraint to a single tether or to a single lower anchorage point.The increased load caused by multi- ple seats may cause the tethers or anchorage points to break, causing serious injury or death.


28


AIR BAG - ADVANCED SUPPLEMENTAL RESTRAINT SYSTEM (IF EQUIPPED)


Driver’s air bag


Front passenger’s air bag


Side impact air bag*


Curtain Air bag*


Safety system of your vehicle


Side impact sensor*


Front impact sensor


Occupant classi- fication system


Driver seat position sensor


SRS control module


* : if equipped


OHD036026/OHD036023/OHD036024/OUN026109/OUN026110/OHD036125/OHD036030/OHD036029/OVQ036096N/OVQ036095N/OHD036028


3 29


Safety system of your vehicle


SRS components and functions The SRS consists of the following com- ponents: 1. Front Impact Sensors 2. “PASSENGER AIR BAG OFF” Indicator (Front passenger’s seat only)


3. SRS "AIR BAG" warning light 4. Passenger's Air bag Module 5. Driver's Air Bag Module 6. SRS Control Module (SRSCM) 7. Occupant Classification System


(Front passenger's seat only)


8. Driver's Seat Track Position Sensor 9. Driver's and Front Passenger's Seat


Belt Buckle Sensors


10. Side Impact Sensors* 11. Retractor Pre-tensioner Assemblies 12. Side Air Bag Modules* 13. Curtain Air bag Modules* * : If equipped


The SRSCM continually monitors all SRS components while the ignition switch is ON to determine if a crash impact is severe enough to require air bag deployment or pre-tensioner seat belt deployment.


The SRS AIR BAG warning light on the instrument panel will illuminate for about 6 seconds after the ignition switch is turned to the ON position, after which the AIR BAG warning light should go out. If any of the following conditions occurs, this indicates a malfunetion of the SRS. Have an authorized Hyundai dealer inspect the air bag system as soon as possible. (cid:129) The light does not turn on briefly when


you turn the ignition ON.


(cid:129) The light stays on after illuminating for


approximately 6 seconds.


(cid:129) The light comes on while the vehicle is


in motion.


Driver’s front air bag (1)


B240B01L The air bag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags.


30


Driver’s front air bag (2)


Driver’s front air bag (3)


Passenger’s front air bag


Safety system of your vehicle


B240B02L Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the air bags. Further opening of the covers

Loading...
x
