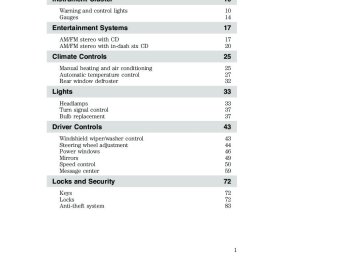

Table of Contents
10
10
14
1717
20
2525
27
32
3333
37
37
4343
44
46
49
50
59
7272
72
83Introduction
Instrument Cluster
Warning and control lights Gauges
Entertainment Systems
AM/FM stereo with CD AM/FM stereo with in-dash six CD
Climate Controls
Manual heating and air conditioning Automatic temperature control Rear window defroster
Lights
Headlamps Turn signal control Bulb replacement Driver Controls
Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Message center
Locks and Security
Keys Locks Anti-theft system
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
88
88
95
109
122
133133
135
138
145
155
161
164
165165
169
171
172
185185
186
186
187
194
199
201209
210Table of Contents
Seating and Safety Restraints
Seating Safety restraints Airbags Child restraints
Tires, Wheels and Loading
Tire Information Tire Inflation Changing tires Lug Nut Torque Vehicle loading Trailer towing Recreational towing
Driving
Starting Brakes Traction control Transmission operation
Roadside Emergencies
Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Jump starting Wrecker towing
Customer Assistance
Reporting safety defects (U.S. only)
Cleaning
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Maintenance and Specifications
Engine compartment Engine oil Battery Engine Coolant Fuel information Part numbers Refill capacities Lubricant specifications
Accessories
Index
Table of Contents
216
218
219
223
225
231
245
246
248
254256
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2005 Ford Motor Company
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
SPECIAL NOTICES
Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.
Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
brake pedal;
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.
Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger air bag.
MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Air Bag-Front
Air Bag-Side
Child Seat
Child Seat Installation Warning
Child Seat Tether Anchor
Anti-Lock Brake System
Child Seat Lower Anchor
Brake System
Brake Fluid - Non-Petroleum Based
Powertrain Malfunction
Speed Control
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield Defrost/Demist
Rear Window Defrost/Demist
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Vehicle Symbol Glossary
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release Symbol
Panic Alarm
Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot
Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas
Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
MAX MIN
Emission System
Engine Air Filter
Passenger Compartment Air Filter
Jack
Check fuel cap
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, have the respective system inspected immediately. Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
10
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your servicing dealership.
BRAKE
Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.
ABS
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected.
11
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.
Charging system: Illuminates when the battery is not charging properly.
Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant level: Illuminates when the engine coolant is low. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.
Never remove the coolant reservoir cap while the engine is running or hot.
Traction Control娂 active: Illuminates when the Traction Control娂 is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).
12
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.
Low washer fluid: Illuminates when the windshield washer fluid is low.
Door ajar: Illuminates when the ignition is in the ON position and any door or decklid is open.
Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated.
Throttle Control/Transmission: Illuminates when a powertrain fault or an AWD fault (if equipped) has been detected. Contact your dealer as soon as possible. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Turn signal warning chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 1/2 mile (0.8 km).
13
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Parking brake ON: Sounds when the parking brake is left ON and driven. If the warning stays on after the park brake is off, contact your dealer as soon as possible.
GAUGES
Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Never remove the coolant reservoir cap while the engine is running or hot.
14
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Odometer: Registers the total miles (kilometers) of the vehicle. • Without Message Center
• With Message Center Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • Without Message Center To reset, tap on the ODO/TRIP button to toggle the display between the trip and the odometer. Holding the ODO/TRIP button for two seconds or more will reset the trip odometer to zero.
15
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster • With Message Center To reset, select the TRIP function from the INFO menu. Depressing the RESET control for approximately one second will reset the trip odometer to zero.
Note: The following is for vehicles without a message center. For vehicles with a message center, refer to Message Center in the Driver Controls chapter. Oil Life/Oil Change: OIL LIFE displayed when the engine oil life remaining is 10 percent and again when the engine oil life remaining is between 5% and 1%. When oil life left reaches 0%, the OIL CHANGE message will be displayed. An oil change is required whenever indicated by the display and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS. To reset the oil monitoring system to 100% after each oil change [approximately 5,000 miles (8,000 km) or 180 days] perform the following: 1. Tap on the ODO/TRIP button to toggle the display between the odometer and trip odometer. 2. Tap on the ODO/TRIP button again to toggle the display between the trip odometer and OIL LIFE XX% display. 3. Press and hold the ODO/TRIP button for 2 seconds or more to display OIL LIFE 100%. Your oil life is now reset. 4. Tap on the ODO/TRIP button to return the display to odometer.
16
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
AM/FM STEREO/ SINGLE CD SOUND SYSTEM (IF EQUIPPED)
19
18
17
16
15
14
12
13
COMPRESS
11
10
Tuner: Press to
1. manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. Menu: Press to toggle through the following modes:
Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Bass: Press to adjust the bass setting. Useto set.
SEEK
SEEK
Treble: Press to adjust the treble setting. Use
SEEK
17
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Balance: Press to adjust the audio between the left and right speakers. Use
SEEK
Fade: Press to adjust the audio between the front and rear speakers. Use
SEEK
SEEK
Speed sensitive volume (if equipped): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind to adjust. noise. Press MENU to access and use Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use MENU again to disengage clock mode. If your vehicle is equipped with an in-dash clock, refer to “Setting the clock” in the Driver Controls chapter. 4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. 5. Seek: Press to access the next strong station or track.
to manually increase/decrease. Press
6. Text: This control is not operational.
7. Shuffle: Press to play tracks in random order.
8. Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 9. Repeat: Press to repeat the current CD track.
18
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
10. Fast forward: Press to manually advance in a CD track.
11. Rewind: Press to manually reverse in a CD track.
12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. 14. Seek: Press to access the previous strong station or track.
15. AM/FM: Press to select AM/FM frequency band.
16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 18. CD eject: Press to eject a CD.
19. CD slot: Insert a CD label side up.
19
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
PREMIUM/AUDIOPHILE IN-DASH SIX CD/MP3 SOUND SYSTEM (IF EQUIPPED)
Tune/Disc selector: 1. Press to manually go up or down the radio frequency or to select a desired disc. Also use in menu mode to select various settings. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. Menu: Press to toggle through the following modes:
Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.to turn on/off.
SEEK
20
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Bass: Press to adjust the bass setting. Use
Treble: Press to adjust the treble setting. Use
SEEK
SEEK
Balance: Press to adjust the audio between the left and right speakers. Use
, SEEK
Fade: Press to adjust the audio between the front and rear speakers. Use
, SEEK
SEEK
select and optimize sound for ALL SEATS,
Occupancy mode: (Available on Audiophile radios only): Use DRIVERS SEAT or REAR SEATS. Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Use turns the feature off and level 7 is the maximum setting. Setting the clock: Press until SELECT HOUR or SELECT MINS is displayed. Press to adjust the hours/minutes.
to adjust. Recommended level is 1–3. Level 0
SEEK
SEEK
If your vehicle is equipped with an in-dash clock, refer to “Setting the clock” in the Driver Controls chapter. Track/Folder Mode: Available only on MP3 discs in CD mode. In Track Mode, pressing will scroll through all tracks on the disc. SEEK In Folder mode, pressing SEEK will scroll only through tracks within the selected folder. Compression: Available only in CD mode, brings soft and loud CD passages together for a more consistent listening level. Repeat: Available only in CD mode. Press to repeat the current CD track. RDS (Available on Audiophile radios only): Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, Top 40. RDS (only available in FM mode) must be activated to access Find and Show functions. To activate, press and hold MENU until RDS (ON/OFF) appears in the display. Press MENU repeatedly to scroll through Find, Show and RDS. Use will not be able to access Find and Show functions.
to toggle RDS ON/OFF. When RDS is Off, you
SEEK
21
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Find: Allows you to search RDS-equipped stations for the desired music category. Use SEEK Show: Allows you to display the name of the radio station or program type. Use
to find the desired program type, then use
or SCAN to begin the search.
to show type, name or none.
SEEK
4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. 5. Seek: Press to access the next strong station or track.
6. Text: In CD mode, this feature reads and displays track song title, artist name and album title. 7. Shuffle: Press to play the tracks in random order.
8. FOLDER: Press to access next folder on MP3 discs, if folders are available. 9. FOLDER: press to access the previous folder on MP3 discs, if folders are available. 10. Fast forward: Press to manually advance in a CD track.
11. Rewind: Press to manually reverse in a CD track.
12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop.
22
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
14. Seek: Press to access the previous strong station or track.
15. AM/FM: Press to select AM/FM frequency band.
16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 18. LOAD: Press to load a CD. Press LOAD and a memory preset to load to a specific slot. Press and hold to autoload up to six CDs.
19. CD eject: Press to eject a CD. Press and hold to auto eject all CDs present in the system. If there is no CD present, the display will read NO CD. 20. CD slot: Insert a CD label side up.
RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz
23
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
weaker the signal and the weaker the reception.
RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
of time.
Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
24
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Temperature selection: Controls the temperature of the airflow in the vehicle. 2. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control setting: MAX A/C: Distributes recirculated air through the instrument panel vents only to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.
: Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents and floor vents.
O (OFF): Outside air is shut out and the climate system is turned off.
: Distributes air through the floor vents. Note: You may notice a
small amount of air flowing from the demister and defroster vents.
: Distributes air through the windshield defroster vents, demisters
and floor vents.
: Distributes outside air through the windshield defroster vents and
demister vents and can be used to clear the windshield of fog and thin ice. 3. Rear defroster: Press to activate/deactivate rear window defroster. Refer to Rear window defroster in this section for more information. Recirculated air: Press to activate/deactivate air recirculation 4. in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections except MAX A/C. 5. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically. Cannot be disabled in MAX A/C mode. 6. Fan speed adjustment: Controls the volume of air circulated in the vehicle.
25
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
position.
airflow to the back seats.
the air flow selector in the
airflow selector in the O (OFF) or with recirculated air engaged.
Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • For maximum cooling performance (MAX A/C): In the MAX A/C mode: • Move the temperature control selector to the coldest setting. • Set the fan to the highest speed initially, then adjust to maintain
the windshield.
passenger comfort.
and
modes:
In the • Move the temperature control selector to the coldest setting. • Select A/C and recirculated air • Set the fan to the highest speed initially, then adjust to maintain
colder airflow.
. Use
with A/C to provide
passenger comfort.
In extremely cold temperatures, to maximize overall heater performance it is suggested to not operate the auxiliary system (if so equipped) until the engine temperature gauge crosses into the normal operating range. To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Set the temperature control to full heat. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
26
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED)
Climate Controls
Recirculated air: Press to activate/deactivate air recirculation
Defrost: Distributes outside air through the windshield defroster 1. and demister vents. Can be used to clear ice or fog from the windshield. 2. Passenger temperature control: Press to increase/decrease the airflow temperature for the passenger in the front of the vehicle. Rear defroster: Press to activate/deactivate rear window 3. R defroster. Refer to Rear window defroster in this section for more information. 4. in the cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections. 5. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, defrost and floor/defrost. 6. floor vents.
: Distributes air through the windshield defroster, demister and
27
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
: Distributes air through the floor vents. Note: You may notice a
7. small amount of air flowing from the demister and defroster vents. 8.
: Distributes air through the instrument panel and floor vents.
: Distributes air through the instrument panel vents.
Front fan speed control: Press to manually increase or
9. 10. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO. 11. decrease the fan speed. To return to automatic fan operation, press AUTO. 12. EXT: Press to display outside temperature. Press again to display cabin temperature settings. 13. F/C (Temperature conversions): Press to switch temperature display between ° Fahrenheit and ° Celsius. 14. OFF: Outside air is shut out and the climate control system is turned off. 15. Driver temperature control: Press to increase/decrease the temperature on the driver side of the cabin. Sets the passenger side temperature also when DUAL is disengaged. Recommended temperature range is 72° to 75° Fahrenheit. Dual temperature control: Press and hold the AUTO button to engage-disengage separate passenger side temperature control. 16. Auto: To engage automatic temperature control, press AUTO and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
28
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED SEATS (IF EQUIPPED)
Climate Controls
Passenger heated seat control: Press once to activate high heat
Defrost: Distributes outside air through the windshield defroster 1. and demister vents. Can be used to clear ice or fog from the windshield. 2. Passenger temperature control: Press to increase/decrease the airflow temperature for the passenger in the front of the vehicle. Rear defroster: Press to activate/deactivate rear window 3. R defroster. Refer to Rear window defroster in this section for more information. 4. DUAL (Dual temperature control): Press to engage/disengage separate passenger side temperature control. 5. setting (2 indicator lights), press again to activate low heat setting (1
indicator light), and press again to deactivate the passenger heated seat. Recirculated air: Press to activate/deactivate air recirculation 6. in the cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections. 7. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, defrost and floor/defrost.29
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
8. Airflow direction control: Press to toggle through the air distribution modes listed below. The selected mode will be shown in the display.
: Distributes air through the instrument panel and center console
vents (if equipped).
: Distributes air through the instrument panel, floor and center
console vents (if equipped).
: Distributes air through the floor vents. Note: You may notice a
small amount of air flowing from the demister and defroster vents.
: Distributes air through the windshield defroster, demister and floor
Front fan speed control: Press to manually increase or
Driver heated seat control: Press to heat the driver seat. Press
vents. 9. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO. 10. once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the driver heated seat. 11. decrease the fan speed. To return to automatic fan operation, press AUTO. 12. EXT: Press to display outside temperature. Press again to display cabin temperature settings. 13. F/C (Temperature conversions): Press to switch temperature display between ° Fahrenheit and ° Celsius. 14. OFF: Outside air is shut out and the climate control system is turned off. 15. Driver temperature control: Press to increase/decrease the temperature on the driver side of the cabin. Sets the passenger side temperature also when DUAL is disengaged. Recommended temperature range is 72° to 75° Fahrenheit. 16. AUTO: Press to engage automatic temperature control. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
30
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
position.
airflow to the back seats.
the air flow selector in the
airflow selector in the OFF or with recirculated air engaged.
OPERATING TIPS • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • For maximum cooling performance (MAX A/C): In AUTO mode, press AUTO control and set to desired temperature. , A/C and recirculated In manual override control, select and set the temperature to 60°F (16°C). Set the fan to the air highest speed initially, then adjust to maintain passenger comfort. • To improve the A/C cool down, drive with the windows slightly open
the windshield.
or
for 2–3 minutes after starting the vehicle or until the vehicle has “aired out.”
In extremely cold temperatures, to maximize overall heater performance it is suggested to not operate the auxiliary system (if so equipped) until the engine temperature gauge crosses into the normal operating range. To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan to the highest speed. 5. Direct the outer instrument panel vents towards the side windows.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
31
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
REAR WINDOW DEFROSTER R The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice. The ignition must be in the 3 (RUN) position to operate the rear window defroster. The defroster turns off automatically after 10 minutes or when the ignition is turned to the 1 (LOCK) position. To manually turn off the defroster before 10 minutes have passed, push the control again. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.
32
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. • To turn autolamps on, rotate the • To turn autolamps off, rotate the
control counterclockwise to
control clockwise to
The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to LOCK. You can change the amount of time the lamps stay on by using the programming procedure that follows: Autolamps - Programmable exit delay Programmable exit delay allows the length of the autolamp exit delay to be changed. To program the auto lamp exit time delay: 1. Start with the ignition in the LOCK position and the headlamp control in the autolamp position. 2. Turn the headlamp switch to 3. Turn the ignition switch to RUN and then back to LOCK. 4. Turn the headlamp switch to the autolamp position. The headlamps will turn on.
33
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
5. Wait the desired amount of time for the exit delay you want (up to . The headlamps three minutes), then turn the headlamp switch to will turn off.
Foglamp control (if equipped) With the ignition on, the foglamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions: • Parking lamps • Low beams • Autolamps (when active) The foglamps will not operate when the high beams are active.
Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position, • the headlamp control is in the OFF, autolamps or parking lamp • the transmission must be out of the Park position.
position and
Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system
does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
34
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
High beams Pull the lever towards you, to the second detent, to activate. Pull the lever towards you again to deactivate.
Flash to pass Pull toward you, to the first detent, to activate and release to deactivate.
PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.
AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.
35
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
ground
Vertical aim adjustment 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.5
meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other. 4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted using the next step.5. Locate the vertical adjuster on each headlamp. Using a Phillips #2
screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line. 6. Close the hood and turn off the lamps. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.36
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn
turn signal.
signal.
INTERIOR LAMPS
Dome lamps and map lamps The map lamps are located on the overhead console. Press the controls on either side of each map lamp to turn on the lamps.
Your vehicle may also have reading lamps within the rear dome lamp(s). Press the switches on either side of the dome lamp to turn on the lamps.
BULB REPLACEMENT
Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.
37
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.
Function
Number of bulbs
Headlamp high beam Headlamp low beam
Front park/turn lamp
Side marker lamp
Tail lamp/brake/turn signal Redundant tail lamp Backup lamp License plate lamp High-mount brake lamp Foglamp (if equipped) Map lamp Dome/reading lamps All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.
Trade number
9005
90063157AK or
3157A (amber)
194A
(amber) 4057K
916
3156
168
9219145 (H10)
12V6W
578
Replacing headlamp (low beam) bulbs 1. Make sure headlamp switch is in the OFF position, then open the hood. 2. Reach in behind the headlamp assembly to access the bulbs and connectors.
38
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
3. Locate the outboardmost top electrical connector and remove it by releasing the locking tab and pulling it straight down. 4. Remove the bulb socket by turning it counterclockwise and pulling it straight out.
Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Install the new bulb(s) in reverse order. Replacing headlamp (high beam) bulbs 1. Make sure headlamp switch is in the OFF position, then open the hood. 2. Reach in behind the headlamp assembly to access the bulb sockets and connectors. 3. Locate the inboardmost electrical connector and remove it by releasing the locking tab and pulling it straight down. 4. Remove the bulb socket by turning it counterclockwise and pulling it straight out.
Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Install the new bulb(s) in reverse order.
39
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing front parking lamp/turn signal bulbs 1. Make sure headlamp switch is in the OFF position, then open the hood. 2. Reach up from the underside of the fascia to access the bulb sockets and connectors. 3. Locate the parking/turn signal lamp electrical connector and remove it by pulling it straight off. 4. Remove the bulb socket by turning it counterclockwise and pulling it straight out. 5. To remove the bulb, pull it straight out of the bulb socket.
Install the new bulb(s) in reverse order. Replacing tail lamp/brake lamp/backup lamp/turn signal lamp bulbs The tail lamp, brake lamp, backup lamp and turn signal lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb. 1. Backup lamp 2. Brake/tail/turn lamp 3. Tail lamp
40
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
1. Make sure the headlamp switch is in the OFF position and open the trunk. 2. Carefully pull the carpet away to expose the backside of the tail lamp assembly. 3. Remove the nut and washer assemblies, then pull the lamp assembly away from the vehicle. 4. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 5. Pull the bulb straight from the socket.
Install new bulb(s) in reverse order. Replacing high-mount brake lamp bulbs 1. Make sure the ignition control is in the OFF position. 2. Open the trunk and reach under the decklid. 3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 4. Pull the bulb straight from the socket.
Install new bulb(s) in reverse order.
41
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the OFF position. 2. Remove the two screws from the license plate lamp assembly. 3. Remove bulb socket by turning counterclockwise. 4. Carefully pull the bulb out from the socket. Install new bulb(s) in reverse order. Replacing foglamp bulbs 1. Make sure the foglamp switch is in the OFF position. 2. Remove the bulb socket from the foglamp by turning counterclockwise. 3. Disconnect the electrical connector. Install the new bulb in reverse order.
42
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
MULTI-FUNCTION LEVER Windshield wiper: For intermittent operation, move control up one position. Adjust the rotary control to the desired speed setting. Mist function: To activate mist, push control down from the OFF position and release to get one wipe.
For normal or low speed wiper operation, move control up two positions from OFF. For high speed wiper operation, move control up three positions from OFF.
Windshield washer: Pull the end of the stalk towards you: • briefly: causes a single swipe of the wipers without washer fluid. • a quick pull and hold: the wipers
will swipe three times with washer fluid.
• a long pull and hold: the wipers and washer fluid will be activated for
up to ten seconds.
43
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Changing the wiper blades 1. Pull the wiper arm away from the vehicle. Turn the blade 90 degrees from the wiper arm and remove it from the arm. 2. Attach the new wiper to the wiper arm by turning it 90 degrees it into place. Replace wiper blades at least once per year for optimum performance. Poor wiper quality can sometimes be improved by cleaning the wiper blades, refer to Windows and wiper blades in the Cleaning chapter. To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers. The layer of ice has many sharp edges and can damage the micro edge of the wiper rubber element.
TILT STEERING WHEEL To adjust the steering wheel: 1. Pull down and hold the steering wheel release control. 2. Move the steering wheel up or down until you find the desired location. 3. Pull the steering wheel release control up. This will lock the steering wheel in position.
Never adjust the steering wheel when the vehicle is moving.
44
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
ILLUMINATED VISOR MIRROR Lift the mirror cover to turn on the visor mirror lamp. The visor will slide back and forth on the rod for increased sunlight coverage.
STORAGE COMPARTMENT Press the latch to open the storage compartment. The door will open slightly and can be moved to full open. The storage compartment may be used to secure sunglasses or a similar object.
CLOCK (IF EQUIPPED) Press and release the button to adjust forward. Press and hold to fast forward.
INSTRUMENT PANEL STORAGE COMPARTMENT The storage compartment may be used to secure sunglasses or similar sized objects. Press the control to open the storage compartment.
45
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
AUXILIARY POWER POINT (12VDC) Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. The auxiliary power points are located on the instrument panel and in the center console utility compartment. Do not use the power point for operating the cigarette lighter element (if equipped). To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running. Always keep the power point caps closed when not being used. Cigar/Cigarette lighter (if equipped) Do not plug optional electrical accessories into the cigarette lighter socket. Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used. Improper use of the lighter can cause damage not covered by your warranty.
POWER WINDOWS
Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure
themselves.
When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
46
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Press and pull the window switches to open and close windows. • Push down (to the first detent) • Pull up (to the first detent) and
and hold the switch to open.
hold the switch to close.
Driver Controls
AUTO
One touch up or down This feature is present on the driver’s window only. To operate ONE TOUCH DOWN: • Press the switch completely down to the second detent and release quickly. The driver’s window will open fully. Momentarily press the switch to any position to stop the window operation.
If the switch is pressed and held to the normal close or ONE TOUCH UP position during a ONE TOUCH DOWN event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal close or ONE TOUCH UP. To operate ONE TOUCH UP: • Pull the switch completely up to the second detent and release quickly. The driver’s window will close fully. Momentarily press the switch to any position to stop the one touch up.
If the switch is pressed and held to the normal open or ONE TOUCH DOWN position during a ONE TOUCH UP event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal open or ONE TOUCH DOWN.
47
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Window lock The window lock feature allows only the driver to operate the power windows. To lock out all the window controls except for the driver’s press the right side of the control. Press the left side to restore the window controls.
Bounce-Back (Driver’s window only) When an obstacle has been detected in the window opening as the window is moving upward, the window will automatically reverse direction and move down. This is known as “bounce-back”. If the ignition is turned OFF (without accessory delay being active) during bounce-back, the window will move down until the bounce back position is reached.
Security Override If during a bounce-back condition, the switch is released to the neutral position, then held in the one touch up position within two seconds after the window reaches the bounce-back position, the window will travel up with no bounce-back protection. If the switch is released before the window reaches fully closed or the ignition is turned OFF (without accessory delay being active), the window will stop. Security override can be used if the window movement is restricted in some way, for example, if there is ice on the window or seals.
Accessory delay With accessory delay, the radio, Family Entertainment DVD System (if equipped), power windows, and moonroof (if equipped) operate for up to ten minutes after the ignition switch is turned from the ON to the OFF position or until one of the front doors are opened.
48
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
MIRRORS
Power side view mirrors To adjust your mirrors: 1. Rotate the control clockwise to adjust the right mirror and rotate the control counterclockwise to adjust the left mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to lock mirrors in place. Fold-away mirrors Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.
Automatic dimming inside rear view mirror (if equipped) Your vehicle may be equipped with an inside rear view mirror with an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare. The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up. Do not block the sensor on the backside of the inside rear view mirror since this may impair proper mirror performance.
49
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED) The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position. Press and hold the rocker control (located on the instrument panel) to adjust accelerator and brake pedal. • Press the top of the control to • Press the bottom of the control to adjust the pedals towards you. The adjustment allows for approximately 2.8 inches (73 mm) of maximum travel.
adjust the pedals away from you.
Never adjust the accelerator and brake pedal with feet on the pedals while the vehicle is moving.
SPEED CONTROL With speed control set, you can maintain a speed of 30 mph (48 km/h) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 30 mph (48 km/h).
Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.
OFF
ON
CNCL
RSM
SET
SET
Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release it. 2. Accelerate to the desired speed.
50
2005 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
3. Press the SET + control and release it. 4. Take your foot off the accelerator pedal. 5. The indicator instrument cluster will turn on.
light on the
Driver Controls
OFF
ON
CNCL
RSM
SET
SET
steep hill.
Note: • Vehicle speed may vary momentarily when driving up and down a • If the vehicle speed increases above the set speed on a downhill, you • If the vehicle speed decreases more than 10 mph (16 km/h) below
may want to apply the brakes to reduce the speed.
your set speed on an uphill, your speed control will disengage.
Disengaging speed control To disengage the speed control: • Depress the brake pedal or press CNCL (Cancel). Disengaging the speed control will not erase previous set speed. Resuming a set speed Press the RES control and release it. This will automatically return the vehicle to the previously set speed. The RES control will not work if the vehicle speed is not faster than 30
mph (48 km/h).CNCL
RSM
OFF
ON
SET
