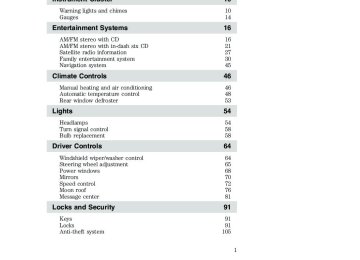

Table of Contents
10
10
14
1616
21
27
30
45
4646
48
53
5454
58
58
6464
65
68
70
72
76
81
9191
91
105Introduction
Instrument Cluster
Warning lights and chimes Gauges
Entertainment Systems
AM/FM stereo with CD AM/FM stereo with in-dash six CD Satellite radio information Family entertainment system Navigation system Climate Controls
Manual heating and air conditioning Automatic temperature control Rear window defroster
Lights
Headlamps Turn signal control Bulb replacement Driver Controls
Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Moon roof Message center
Locks and Security
Keys Locks Anti-theft system
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
110
110
117
131
145
158158
160
174
179
181
182182
185
188
189
202202
203
204
204
210
217
217
223
225231
232
233Table of Contents
Seating and Safety Restraints
Seating Safety restraints Airbags Child restraints
Tires, Wheels and Loading
Tire information Tire inflation Vehicle loading Trailer towing Recreational towing
Driving
Starting Brakes Traction Control™ Transmission operation
Roadside Emergencies
Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug nut torque Jump starting Wrecker towing
Customer Assistance
Reporting safety defects (U.S. only) Reporting safety defects (Canada only)
Cleaning
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Table of Contents
Maintenance and Specifications
Engine compartment Engine oil Battery Engine coolant Fuel information Part numbers Maintenance product specifications and capacities Engine data Accessories
Index
240
242
244
248
250
256
271
272
274
277279
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2006 Ford Motor Company
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
PERCHLORATE MATERIAL Certain components of this vehicle such as air bag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES
New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.
Please read the section Airbag supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to
follow the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.
Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel.
brake pedal;
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Airbag - Front
Airbag - Side
Child Seat
Child Seat Installation Warning
Child Seat Tether Anchor
Anti-Lock Brake System
Child Seat Lower Anchor
Brake System
Brake Fluid - Non-Petroleum Based
Powertrain Malfunction
Speed Control
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield Defrost/Demist
Rear Window Defrost/Demist
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Vehicle Symbol Glossary
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release Symbol
Panic Alarm
Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot
Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas
Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
MAX MIN
Emission System
Engine Air Filter
Passenger Compartment Air Filter
Jack
Check Fuel Cap
Low Tire Pressure Warning
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Check Engine⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Check Engine⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.
10
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer.
BRAKE
Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.
ABS
11
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Charging system: Illuminates when the battery is not charging properly.
Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Engine coolant level: Illuminates when the engine coolant is low. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.
Never remove the coolant reservoir cap while the engine is running or hot.
Traction Control娂 active (if equipped): Illuminates when the Traction Control娂 is active. If the light remains on, it indicates a Traction Control or an AWD Fault. Have the system serviced immediately, refer to the Driving chapter for more information.
12
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.
Low washer fluid (if equipped): Illuminates when the windshield washer fluid is low.
Door ajar (if equipped): Illuminates when the ignition is in the ON position and any door or decklid is open. Anti-theft system: Flashes when the SecuriLock娂 Passive Anti-theft System has been activated.
Throttle Control/Transmission: Illuminates when a powertrain fault has been detected. Contact your authorized dealer as soon as possible. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.
13
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.
GAUGES
Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Never remove the coolant reservoir cap while the engine is running or hot.
14
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Odometer: Registers the total miles (kilometers) of the vehicle. Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • To reset, select the TRIP function from the INFO menu. Depressing the RESET control for approximately one second will reset the trip odometer to zero.
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
15
Entertainment Systems
AUDIO SYSTEMS
AM/FM stereo/ single CD Satellite Compatible Sound System (if equipped)
19
18
17
16
15
14
12
13
COMPRESS
11
10
Tuner: Press to
Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches and radio may be used for up to ten minutes after the ignition is turned off or either front door is opened. 1. manually go up or down the radio frequency. Also use in menu mode to select various settings. In Satellite Radio mode (if equipped), press next/previous channel. In CATEGORY MODE, press available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media.
to scroll through the list of
to tune to the
16
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
3. Menu: Press to toggle through the following modes:
SEEK
to scroll through the list of available
Setting the clock: Press MENU until SELECT HOUR or SELECT MINS to manually increase/decrease. is displayed. Use Press MENU again to disengage clock mode. If your vehicle is equipped with an in-dash clock, refer to Clock in the Driver Controls chapter. CATEGORY (Satellite Radio if equipped): Press MENU until the currently active category appears in the display (CATEGORY MODE). In CATEGORY MODE, press SIRIUS channel Categories (Pop, Rock, News, etc.) Press or SCAN to select the category. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). To select a different category, press MENU until the category appears in the to select a different category. You may also select display. Press CATEGORY ALL to seek all available SIRIUS categories and channels. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.to set.
SEEK
SEEK
Bass: Press to adjust the bass setting. Use
Treble: Press to adjust the treble setting. Use
SEEK
SEEK
Balance: Press to adjust the audio between the left and right speakers. Use
SEEK
Fade: Press to adjust the audio between the front and rear speakers. Use
SEEK
17
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
to
SEEK
to access the
Speed sensitive volume (if equipped): Radio volume automatically changes slightly with vehicle speed to compensate for road and wind to adjust. noise. Press MENU to access and use Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. 4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. If equipped with Satellite Radio, press AUX to cycle through SAT 1, SAT2 and SAT3 modes. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 5. Seek: In radio mode, press access the next strong station. In CD mode, press next CD track. In Satellite Radio mode (if equipped), press SEEK next channel. If a specific category is selected, (Jazz, Rock, News, etc.), SEEK and hold SEEK In TEXT MODE, press SEEK In CATEGORY MODE, press SEEK Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 6. Text: In CD mode, press and release to display track title, artist name, and disc title and file name (if available). In Satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK additional display text. When the “<” indicator is active, press to view the previous display text.
to seek to the next channel in the selected category. Press
to fast seek through the next channels.
to view the additional display text.
to view the SEEK
to select a category.
to seek to the
18
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
7. Shuffle: Press to play tracks in random order.
8. Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 9. Repeat: Press to repeat the current CD track.
10. Fast forward: Press to manually advance in a CD track.
11. Rewind: Press to manually reverse in a CD track.
12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns and PRESET SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2. In Satellite Radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. In Satellite Radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. 14. Seek: In radio mode, press to access the previous strong station. In CD mode, press
to access the previous CD track.
19
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
to seek to the previous channel in the selected category.
SEEK to fast seek through the previous channels.
In Satellite Radio mode (if equipped), press SEEK to seek to the previous channel. If a specific category is selected, (Jazz, Rock, News, etc.), press Press and hold In TEXT MODE, press In CATEGORY MODE, press Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 15. AM/FM: Press to select AM/FM frequency band.
SEEK to view the previous display text.
SEEK to select a category.
16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. 18. CD eject: Press to eject a CD.
19. CD slot: Insert a CD label side up.
20
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Premium/Audiophile In-Dash Six CD/MP3 Satellite Compatible Sound System (if equipped)
Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches and radio may be used for up to ten minutes after the ignition switch is turned off or until either front door is opened. Tune/Disc selector: 1. Press to manually go up or down the radio frequency or to select a desired disc. Also use in menu mode to select various settings. Press and hold for a fast advance through radio frequencies or all loaded discs. Also use in menu mode to select various settings.
In Satellite Radio mode (if equipped), press next/previous channel. In CATEGORY MODE, press available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.
to scroll through the list of
to tune to the
21
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. Menu: Press to toggle through the following modes:
SEEK
to adjust the hours/minutes.
to scroll through the list of available
Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press Press MENU again to disengage clock mode. If your vehicle is equipped with an in-dash clock, refer to “Setting the clock” in the Driver Controls chapter. CATEGORY (Satellite Radio if equipped): Press MENU until the currently active category appears in the display (CATEGORY MODE). In CATEGORY MODE, press SIRIUS channel Categories (Pop, Rock, News, etc.) Press or SCAN to select the category. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). To select a different category, press MENU until the category appears in the display. Press to select a different category. You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.to turn on/off.
SEEK
SEEK
Bass: Press to adjust the bass setting. Use
Treble: Press to adjust the treble setting. Use
SEEK
SEEK
Balance: Press to adjust the audio between the left and right speakers. Use
SEEK
Fade: Press to adjust the audio between the front and rear speakers. Use
SEEK
22
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
SEEK
SEEK
to adjust. Recommended level is 1–3. Level 0
select and optimize sound for ALL SEATS,
Occupancy mode: (Available on Audiophile radios only): Use DRIVERS SEAT or REAR SEATS. Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Use turns the feature off and level 7 is the maximum setting. Track/Folder Mode: Available only on MP3 discs in CD mode. In Track Mode, pressing will scroll through all tracks on the disc. SEEK In Folder mode, pressing SEEK will scroll only through tracks within the selected folder. Compression: Available only in CD mode, brings soft and loud CD passages together for a more consistent listening level. Repeat: Available only in CD mode. Press to repeat the current CD track. RDS (Available on Audiophile radios only): Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, Top 40. RDS (only available in FM mode) must be activated to access Find and Show functions. To activate, press and hold MENU until RDS (ON/OFF) appears in the display. Press MENU repeatedly to scroll through Find, Show and RDS. Use will not be able to access Find and Show functions. Find: Allows you to search RDS-equipped stations for the desired music category. Use
to find the desired program type, then use
to toggle RDS ON/OFF. When RDS is Off, you
SEEK
SEEK
or SCAN to begin the search.
Show: Allows you to display the name of the radio station or program type. Use
to show type, name or none.
SEEK
4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. To return to radio mode, press AM/FM. If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.23
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
to
to access the
to seek to the
to select a category.
to view the additional display text.
to fast seek through the next channels.
to seek to the next channel in the selected category. Press
5. Seek: In radio mode, press access the next strong station. In CD mode, press next CD track. In Satellite Radio mode (if equipped), press SEEK next channel. If a specific category is selected, (Jazz, Rock, News, etc.), SEEK and hold SEEK In TEXT MODE, press SEEK In CATEGORY MODE, press SEEK Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 6. Text: In CD mode, press and release to display track title, artist name, and disc title and file name (if available). In Satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK additional display text. When the “<” indicator is active, press to view the previous display text. 7. Shuffle: Press to play the tracks in random order.
to view the SEEK
8. FOLDER: Press to access next folder on MP3 discs, if folders are available. 9. FOLDER: press to access the previous folder on MP3 discs, if folders are available. 10. Fast forward: Press to manually advance in a CD track.
24
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
11. Rewind: Press to manually reverse in a CD track.
12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns and PRESET SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2. In Satellite Radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. 13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop. In Satellite Radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. 14. Seek: In radio mode, press to access the previous strong station. 15. AM/FM: Press to select AM/FM frequency band.
16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last.
25
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
18. LOAD: Press to load a CD. Press LOAD and a memory preset to load to a specific slot. Press and hold to autoload up to six CDs.
19. CD eject: Press to eject a CD. Press and hold to auto eject all CDs present in the system. If there is no CD present, the display will read NO CD. 20. CD slot: Insert a CD label side up.
GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
weaker the signal and the weaker the reception.
CD/CD player care Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
of time.
Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. 26
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
Satellite radio information (if equipped) Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.
• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.
27
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include: • Hardware and limited subscription term, which begins on the date of • Online media player providing access to all 65 SIRIUS music channels
sale or lease of the vehicle.
over the internet (U.S. customers only).
For information on extended subscription terms, contact SIRIUS at 1–888–539–7474. Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously. Action Required No action required. This message should
Radio Display
ACQUIRING
Condition
Radio requires more than two seconds to produce audio for the
disappear shortly.
If this message does
not clear within a short period of time, or with an ignition key cycle, your receiver may have
a fault. See your
authorized dealer for
service.
SAT FAULT
selected channel. Internal module or
system failure
present.
28
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Radio Display
INVALID CHNL
Condition
Channel no longer
available.
UNSUBSCRIBED
Subscription not available for this
channel.
Action Required
This previously
available channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button.
Contact SIRIUS at 1–888–539–7474 to
subscribe to the channel or tune to another channel.
NO TEXT
Artist information not
available.
Artist information not available at this time on
NO TEXT
Song title information
not available.
NO TEXT
Category information
not available.
this channel. The system is working
properly.
Song title information not available at this time on this channel. The system is working
properly.
Category information not available at this time on this channel. The system is working
properly.
29
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Radio Display
Condition
NO SIGNAL
Loss of signal from
the SIRIUS satellite or SIRIUS tower to the
vehicle antenna.
Action Required You are in a location that is blocking the SIRIUS signal (i.e., tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When you move into an open area, the signal should
return.
UPDATING
CALL SIRIUS 1–888–539–7474
Update of channel programming in
No action required. The process may take up to
progress.
Satellite service has been deactivated by
SIRIUS Satellite
Radio.
three minutes. Call SIRIUS at
1–888–539–7474 to re-activate or resolve subscription issues.
FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a Family Entertainment DVD System which allows you to play commercial DVDs, CDs and also most CD R/W, DVD R/W, VCD, and MP3 media. You can also plug in and play auxiliary media devices such as video game systems and MP3 players. Please review this material to become familiar with the Family Entertainment System (FES) features and safety information.
30
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
DVD player controls
Entertainment Systems
on the DVD, or to go up in cursor mode.
1. MAIN control • NEXT — Press to access the next track on the CD, the next chapter • PREV — Press to access the previous track on the CD, the previous • REV — Press to reverse within the active CD track or DVD chapter in
chapter on the DVD, or to go down in cursor mode.
play mode. Also press to move the cursor left in the menu active mode.
• FWD — Press to advance within the active CD track or DVD chapter in play mode. Also press to move the cursor right in the menu active mode.
2. PLAY/PAUSE control Press to playback or pause the DVD. 3. DIM control Press (+) to increase or (-) to decrease the brightness on the screen. 4. ENTER control Press to select the function highlighted on the active menu. ENTER may also be used by some user interactive discs during movie play. 5. MENU control Press to bring up the disc menu.
31
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
6. AUX control Press to switch DVD player from play mode to auxiliary mode. 7. Auxiliary jacks Input jacks for standard video/audio media device. 8. STOP/EJECT control Press once to stop a disc from playing. Press a second time to eject the disc. (If a disc is not playing, but is present in the system, pressing eject will eject the disc). 9. DISPLAY (DISP) control Press to enable the on screen display of the player’s menu and user’s display adjustments. Double click the DISP button to change the format of the display. If the DVD disc format is NORMAL, it can be changed to full screen by selecting WIDE SCREEN. Use the NEXT and PREV button to scroll through the different format of the display. Please note that the screen quality will degrade if the display mode is changed to “Zoom.” DVD control features
REV
NEXT
PREV
FWD
REV
NEXT
PREV
FWD
Menu control Press the MENU control to enter the DVD menu. This allows you to navigate and select within the DVD generated menu structure. Once in MENU mode: • Press the NEXT control to move the cursor one position upward
• Press the PREV control to move the cursor one position downward
32
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
• Press the REV control to move
the cursor left one position
• Press the FWD control to move
the cursor right one position
REV
NEXT
PREV
FWD
REV
NEXT
PREV
FWD
REV
FWD
NEXT
PREV
Next/Previous control The NEXT (up) and PREV (down) controls allows you to access the next or previous track on a CD or chapter on a DVD. When pressed, the playing audio will mute momentarily while the next chapter is accessed. Press and hold to advance or reverse multiple tracks or chapters. REV/FWD control Press the REV/FWD control during playback mode to reverse or advance at a normal speed. Press the REV/FWD control again to cancel the reverse/advance action and return to normal playback mode Enter control The ENTER control allows you to select highlighted items when in MENU mode.
ENTER
PREV
NEXT
FWD
REV
33
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
CD play mode Press NEXT during CD play to advance to the next track. If you press NEXT while the last track is playing, the system will wrap around to the first track and begin play.
REV
NEXT
PREV
FWD
Slow play mode To enter slow play mode, press the PLAY/PAUSE control. This will pause the disc playing. Once the system is in pause mode, press the FWD or REV control for slow motion playback. Three different speeds in forward and one speed in reverse are available depending on how long the control is held. Slow reverse only has one speed. Press the control once for slow motion playback. Press the control again to disengage slow motion playback. Press the PLAY/PAUSE control to return to normal playback mode. User menu mode To adjust the display setting, press DISP once and the player menu will appear. Press DISP again to adjust the display setting. Use the arrow controls and the ENTER controls to select the various screen settings. (Available screen selections are 16x9, 4x3 and Zoom). The DVD player will read the disc type and configure the display accordingly. Some movies have a wide screen movie format to fit a normal 4x3 screen. In this case, the movie will have black bars on the top and bottom. When shown on the screen, it may appear as a small screen within the wide screen. It may be desirable to view this type of movie in zoom mode. To enter zoom mode, press DISP once for the player menu and again to adjust the display setting. Select zoom from the screen settings by using the arrow and ENTER controls.
DISP
34
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Remote control
Entertainment Systems
1. REV (REVERSE) control Press to reverse the direction of the DVD movie. 2. FWD (FORWARD) control Press to advance the direction of the DVD movie. 3. PLAY/STOP control When playing, press PLAY/STOP to stop the disc. When stopped, press PLAY/STOP to play the disc. 4. SEEK control Press to reverse ( track of the CD. 5. DISP (DISPLAY) control Press to enable the on screen display of the player’s menu and display settings. Once the display is on, use SEEK to highlight the desired screen setting. 6. ENTER /MEMORY control In DVD playback mode, press the control to select a highlighted item from the menu. In stop mode, press the control to select the next audio memory preset.
) the chapter of the DVD or the
) or advance (
35
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
7. MENU/MODE control In DVD playback mode, press to access the disc menu. In stop mode, press to change media types (e.g. AM, FM, CD . . . ) 8. VOL (VOLUME) control Press (+) to increase or (-) to decrease the volume level. Dual play mode Press the radio preset controls 2
and 4 at the same time to enable or disable dual play. During dual play, the rear vehicle speakers will be deactivated and the wireless headphones will become active. Please note that the infrared headphones are active only when the Family Entertainment System is playing a movie. During dual play mode, two different medias can be played in the vehicle: 1. The driver can choose, and control, a source on the main radio face (radio, CD or DVD) and listen to it using the front speakers. 2. Passengers in the rear can listen to the DVD player or AUX input via the wireless headphones. Single play mode When the ignition is turned on, the radio will be in Single Play Mode. Single play mode allows one media selection (FM/AM, CD, DVD or AUX) to be heard on all the vehicle speakers. If radio is in Dual Play Mode, with a DVD playing in the rear, and another media (FM/AM, CD) playing on front speakers, changing to single play will turn the DVD player off. When radio is powered off and back on, it will be in Single Play mode, even if upon power off the radio was in Dual play mode.36
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Battery replacement
Entertainment Systems
Batteries are provided with the remote control unit. Since all batteries have a limited shelf life, replace them when the remote control fails to control the DVD player. There is a LED indicator light on the remote control that will illuminate when any control is pressed. Slide the battery cover off as shown on the remote control to access the batteries. The remote control unit uses two AAA batteries. Parental control Simultaneously press the preset controls 3 and 5 to enable or disable the rear seat controls, the controls on your Family Entertainment DVD system including the remote control, and the DVD screen (if equipped).
37
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Wireless headphone operation To operate the headphones: • Press the ON/OFF button on the
earpiece to turn on the headphones. A red LED (indicator light) will illuminate indicating the headphones are powered ON. Press ON/OFF again to turn the headphones off. • Adjust the headphones to comfortably fit your head using the headband adjustment. • Adjust the volume control to the
desired listening level.
Note: The volume level of the wireless headphones can only be controlled by the thumbwheel. Neither the remote control nor the rear seat controls will affect the volume output of the wireless headphones. When not using the headphones, turn them off to preserve battery life. The headphones will automatically turn off after five minutes if they have not received an infrared audio signal from the Family Entertainment System (FES). Note: Ensure that the line of sight between the headphone and infrared transmitter (mounted on the DVD housing) is not obstructed for optimal performance.
38
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Liquid Crystal Display (LCD) flip-down screen
Entertainment Systems
The LCD screen rotates down and can be adjusted to your desired viewing angle. When not in use, rotate the screen up into the storage housing. Note: Ensure that the screen is securely latched into the housing when stored.
1. 7.0” (diagonal) active matrix liquid crystal display (LCD). 2. Display housing. 3. Dimmer switch. Press +/- to increase/decrease the brightness of the display. Playback and format • The DVD player of your Family Entertainment DVD System can only
be used in the “playback” mode. (The DVD player does not offer a record feature.) • The system plays standard CDs, DVDs and also plays most CD R/W,
DVD R/W, VCD and MP3 media.
Saving MP3 files • Your Family Entertainment System supports discs containing up to
255 files. Discs containing more than 255 files will not play.
39
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems • Always save MP3 files with the .mp3 extension. The player recognizes an MP3 file by the .mp3 extension, so MP3 files saved with different extensions will not be played. Never save a non-MP3 file with the .mp3 extension as the file will not play properly.
• The player supports multi session discs. However, be sure to import
the previous session of the disc before you add new files. If you do not import the previous session, only the last session will be played. • When burning a disc, ensure that you close/finalize the disc before playback, or the disc may not play properly or an error message may appear.
• Some CD-RW discs may operate inconsistently and may cause an error message to appear. We recommend burning MP3 files onto CD-R discs.
Family Entertainment DVD System protection circuits High temperature sensor circuit • Excessively high temperatures may cause damage to the DVD player. • When the temperature of the DVD player becomes too hot, the high
temperature sensor circuit stops machine operation. DVD/CD HOT will be displayed on the radio display.
• The DVD player will remain disabled until it cools to a normal
operating temperature. The length of time for the system to cool will vary depending on the climate and operating conditions.
performance and to maintain battery life.
Operating • Only use the system when the vehicle is started for optimal • If the Family Entertainment System (FES) is playing and the ignition is turned OFF, the system will turn off, and suspend playback. When the ignition is turned on again, playback will begin from the last selected media source when the play control is pressed.
• To disable the DVD player rear controls, simultaneously press the 3
and 5 memory presets on the radio face. To enable the DVD player rear controls again, press the 3 and 5 presets simultaneously. • The DVD player is only capable of reading the bottom side of a disc. When inserting a single sided disc, the label should be up. For a multi-sided disc, the desired play side should be down when the disc is inserted into the player. • DVDs are formatted by regions. This DVD system can only play region1 DVDs (DVDs manufactured for U.S. and Canada).
40
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
This unit is designed to play commercially pressed 4.75 (12 cm) audio compact discs and DVDs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford DVD/CD players. Irregular shaped discs, discs with a scratch protection film attached, and discs with homemade paper (adhesive) labels should not be inserted into the player. The label may peel and cause the disc to become jammed. It is recommended that homemade discs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage discs. Please contact your dealer for further information.
Inserting a CD/DVD With the ignition ON, inserting a CD/DVD into the DVD player automatically turns ON the FES and playback should begin immediately. The counter is automatically reset to 0:00:00 when any disc is inserted into the FES.
Removing a CD/DVD (while playing) 1. Press the STOP/EJECT control to stop playback if a disc is playing. 2. Press the STOP/EJECT control again to eject the CD/DVD. If the CD/DVD is not removed within the allotted time, the system will pull the CD/DVD back into the system for safety purposes. If the CD/DVD will not eject from the system, press and hold the EJECT control for approximately 2 seconds. The disc should eject whether the vehicle ignition is ON or OFF. Playing an auxiliary device 1. Connect the video line from your video device to the YELLOW auxiliary input jack. 2. Connect the left and right audio lines to the WHITE (left) and RED (right) auxiliary input jacks respectively. 3. Press the MODE control repeatedly until DVD/CD AUX (no disc in player) or DVD/CD play (disc in player) illuminates in the radio display. If a disc is in the system, playback should begin. To enable the aux inputs, press the STOP control or press the AUX control on the DVD player.
41
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
On-screen indicators
Each time a control is pressed, the operational status of the DVD player is shown on the screen. The following are some possible indicators: 1. DVD/ CD STATUS (PLAY/FWD/REV/PAUSE) 2. CD track number / DVD title 3. DVD chapter number 4. MEDIA COUNTER — displays current viewing time of desired media. (HOURS:MINUTES:SECONDS) 5. Viewing angle (of picture) - Adjustable with cursor controls and ENTER control. 6. Subtitles (specific language type - English, Spanish or French, dependent on disc capability and ON/OFF selection.) 7. AUDIO OUTPUT (not changeable) 8. AUDIO VERSION — (01 ENG., etc.) 9. DISPLAY SETTING (4x3, Zoom, 16x9) 10. STATUS ICON (FWD, x4, x8, x32, REV, x4, x8, x32, etc.)
Safety information Read all the safety and operating instructions before operating the system and retain for future reference. • Do not attempt to service, repair or modify the Family Entertainment DVD System. See your Ford or Lincoln Mercury dealer. • Do not insert foreign objects into the DVD compartment.
42
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
The front glass on the flip-down liquid crystal display (LCD) may break when hit with a hard surface. If the glass breaks, do not
touch the liquid crystalline material. In case of contact with skin, wash immediately with soap and water.
Do not expose the flip-down liquid crystal display (LCD) to direct sunlight or intensive ultraviolet rays for extensive periods of time. Ultraviolet rays deteriorate the liquid crystal. • Ensure that you review User Manuals for video games and video game
equipment when used as auxiliary inputs for your Family Entertainment DVD System.
• Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments.
• Disconnect video games and video equipment power cords and/or • Avoid touching auxiliary input jacks with your fingers. Do not blow on • Do not clean any part of the DVD player with benzene, paint thinner
them or allow them to get wet or dirty.
cables when not in use.
or any other solvent.
Federal Communication Commission (FCC) Compliance Changes or modifications not approved by Ford or Lincoln Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions, the Family Entertainment System (FES) may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, (which can be determined by turning the equipment off and on), the user is encouraged to consult the dealer or an experienced radio/TV technician for help.
43
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Care and service of the DVD player Environmental extremes DVD players that are subjected to harsh environmental conditions may be damaged or perform at less than optimal capability. To avoid these outcomes, whenever possible avoid exposing your DVD player to: • extremely hot or cold temperatures. • direct sunlight. • high humidity. • a dusty environment. • locations where strong magnetic fields are generated. Temperature extremes When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system. Humidity and moisture condensation Moisture in the air will condense in the DVD player under extremely humid conditions or when moving from a cold to a warm location. If moisture condensation occurs, do not insert a CD or DVD into the player. If one is already in the player, remove it and turn the DVD player ON to dry the moisture before inserting a DVD. This could take an hour or more depending on the amount of moisture. Cleaning the liquid crystal display (LCD) flip-down screen Clean the display screen by applying a small amount of water or any ammonia-based household glass cleaner directly to a soft cloth. Rub the screen gently until the dust, dirt or fingerprints are removed. Do not spray the screen directly with water or glass cleaning solvents. Overspray from these fluids could drip down into the internal electronics of the screen and cause damage. Do not apply excessive pressure while cleaning the screen.
44
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Foreign substances Exercise care to prevent dirt and foreign objects from entering the DVD player compartment. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician. Cleaning compact discs Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not wipe in a circular motion. Cleaning the DVD player Clean the exterior of the DVD player with a damp cloth. Do not use CD cleaning kits or CDs intended to clean the interior of your DVD player. Use of these products may damage your system.
NAVIGATION SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a Navigation System. Refer to the Navigation supplement for further information.
45
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Temperature selection: Controls the temperature of the airflow in the vehicle. 2. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control setting: MAX A/C: Distributes recirculated air through the instrument panel vents only to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.
: Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents and floor vents.
O (OFF): Outside air is shut out and the climate system is turned off.
: Distributes air through the floor vents. Note: You may notice a
small amount of air flowing from the demister and defroster vents.
: Distributes air through the windshield defroster vents, demisters
and floor vents.
: Distributes outside air through the windshield defroster and
select another mode.
demister vents. Can be used to clear thin ice or fog from the windshield. To exit 3. Rear defroster: Press to activate/deactivate rear window defroster. Refer to Rear window defroster in this section for more information. Recirculated air: Press to activate/deactivate air recirculation 4. in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections except MAX A/C. 5. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C, Cannot be disabled in MAX A/C mode.
(floor/defrost).
(defrost) and
46
2007 Five Hundred (500) Owners Guide (post-2002-fmt) USA (fus)
6. Fan speed adjustment: Controls the volume of air circulated in the vehicle.
Climate Controls
