2007 Ford Escape Owners Manual

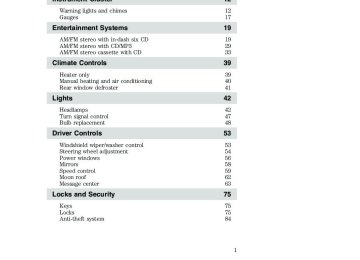

Table of Contents

12

12
17
19

19
29
33
39

39
40
41
42

42
47
48
53

53
54
56
58
59
62
63
75

75
75
84

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo with in-dash six CD AM/FM stereo with CD/MP3
AM/FM stereo cassette with CD

Climate Controls

Heater only Manual heating and air conditioning Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Moon roof Message center

Locks and Security

Keys Locks Anti-theft system

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

89

89
98
111
126
138

140
143
156
160
166
171
172

172
175
179
197

197
198
199
199
205
217
217
223
225

231
232
233

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug nut torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only) Reporting safety defects (Canada only)

Cleaning

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Maintenance and Specifications

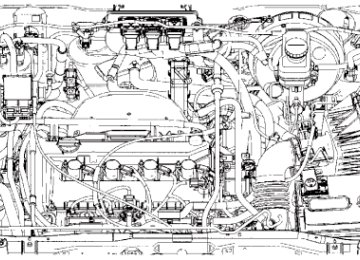

Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories

Index

240

242
245
249
251
257
272
274
275
278
281

283

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2006 Ford Motor Company

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel.

brake pedal;

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter.

Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to

avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

10

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

11

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

12

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Without message center

With message center

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

BRAKE

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.

13

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

ABS

Anti-lock brake system: Illuminates indicating an ABS fault. If the lamp stays on for more than a few seconds, then an ABS fault is indicated, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A BeltMinder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the BeltMinder威 chime feature. Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). Without message center

14

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

With message center

Instrument Cluster

O/D OFF

Overdrive off (automatic transmission): Illuminates when the overdrive function of the transmission has been turned off. Refer to the Driving chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, or damage to the transmission could occur. Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3
seconds to ensure the bulb is working. If the light does not turn ON, have the system inspected by your authorized dealer. For more information on this system, refer to Understanding Your Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter. Four wheel drive indicator (if equipped): Illuminates when ignition is first turned ON to check bulb. Blinking indicator indicates system has been disabled. If the light remains on have the system serviced. Without message center

With message center Displays when four-wheel drive system requires service.

Anti-theft system: Flashes when the SecuriLock娂 Passive Anti-theft System has been activated.

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

15

Instrument Cluster

Speed control (if equipped): Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Door ajar: Illuminates when the ignition is in the ON position and any door is open. Without message center

With message center Displays which door, liftgate or liftgate glass is open.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Turn signal warning chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 2 miles (3.3 km).

16

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

GAUGES

Instrument Cluster

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle.

17

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Trip odometer: Registers the miles (kilometers) of individual journeys. To reset, tap on the trip reset button to toggle the display between the trip and the odometer. Holding the reset button for one or two seconds will reset the trip odometer to zero. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

18

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS

Premium Satellite Compatible AM/FM Stereo In-Dash Six CD/MP3
Radio (if equipped)

19

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Audiophile Satellite Compatible AM/FM Stereo In-Dash Six CD/MP3
Radio (if equipped)

for previous/next

1. SEEK: Press and release SEEK strong station or track. 2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous button press to proceed to the next/last text display.) TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability.

20

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

3. AUX: This function is not operational. 4. MUTE: Press to MUTE playing media; press again to return to playing media. 5. EJ: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.

to decrease/increase

to decrease/increase

7. Select: Use with Bass, Treble, Balance, Fade and other menu functions. 8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers.

to shift sound to the

Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press to access the following features: RDS (if equipped): Press and hold MENU to access RDS on/off. Use SEL to toggle RDS on/off. Press MENU again to access Traffic mode, Program Type mode or Show Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode). The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio

21

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press and hold MENU until RDS XX is shown in the display. Press MENU until FIND appears in the display. Use SEL to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Displays the station’s call letters or music format. Press and hold MENU until RDS XX is shown in the display Press MENU until SHOW appears in the display. Use SEL to select NAME or TYPE. Occupancy mode: (Available on Audiophile systems only.) Press MENU until occupancy mode appears in the display. Press SEL to select ALL SEATS, DRIVER SEAT or REAR SEATS occupancy mode. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Speed sensitive volume (if equipped): Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU until SPEED VOL X appears in the display. Then press SEL to increase ( appear in the display.

) the volume setting. The level will

) or decrease (

22

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

) or decrease (

Setting the clock: Press MENU until SELECT HOUR or SELECT MINS ) the is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode. Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE. 10. REPEAT: Repeats current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status. 11. SHUFFLE: Plays CD/MP3
tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status. 12. FOLDER the next MP3 directory.

: Press to access

13. FOLDER the previous MP3 directory.

: Press to access

14. FF(Fast forward): In CD mode, press until desired selection is reached. 15. REW(Rewind): In CD mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability. 17. BAND: Press to toggle between AM/FM1/FM2 frequency band.

23

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

18. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. 19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

20. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific disc slot. Press and hold to load up to six discs. 21. CD: Press to enter CD mode.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop. 23. Disc/Tune: Press to manually tune down/up the radio frequency band, or to listen to the previous/next CD. CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability.

or

24

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 24. CD slot: Insert a CD, label side up.

AM/FM stereo in-dash six CD modular audio (if equipped)

1. CD: To begin CD play, press LOAD. When the system is ready to accept a disc, IN will appear on the radio display. You may then insert a CD. The system will load the CD and begin play after a short pause. The disc number and track number will illuminate in the display. If a CD is already loaded into the system, press CD to enter CD mode and select the desired CD to play. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should

25

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information. 2. AUTO — SCAN:AUTO: Auto memory tuning allows you to set strong radio stations without loosing your original manually set preset stations. Press the AM or FM1/2 control to select a frequency. Press and momentarily hold the AUTO-S control. The system will beep. When the first six strong stations are filled, the strongest station will start playing. Press AUTO-S to select from the stored stations. One stored station will be selected and played each time the control is pressed. The frequency and the channel number will be displayed. SCAN: Scan works in radio and CD mode. Press SCAN to hear a brief sampling of all listenable stations on the frequency band or the first ten seconds of each track. Press SCAN again to stop. 3. Eject: Press to eject the CD currently playing. Press CD plus the preset number to eject a specific CD. Press and hold to eject all CDs. 4. TUNE — MENU: Press to enter Menu mode. Press repeatedly to scroll through the following options: Bass: Press the control until BASS appears in the display. Turn the control to increase/decrease the level of bass. Mid-range (if equipped): Press the control until MID appears in the display. Turn the control to increase/decrease the level of mid-range. Treble: Press the control until TREB appears in the display. Turn the control to increase/decrease the level of treble. Fade: Press the control until FADE appears in the display. Turn the control to adjust the sound between the rear and front speakers. Balance: Press the control until BAL appears in the display. Turn the control to adjust the sound between the left and right speakers.

26

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. CLK (Clock): Press to alternate between clock display and audio display. Note: If the audio operation is selected while the clock mode is on, the selected audio mode will be displayed for ten seconds, then the display will revert to the clock mode. Setting the clock: Press and hold CLK for approximately two seconds until a beep is heard. The clock’s current time will flash. Press SCAN on the minute set control (M) to set the minutes. Press AUTO-S on the hour set control (H) to adjust the hours. Press CLK again to disengage clock mode. 6. FF (Fast forward): In CD mode, press and hold to advance through a track at high speed. 7. REW (Rewind): In CD mode, press and hold to reverse through a track at high speed. 8. SHUF (Shuffle): Press to play all tracks on the current CD in random order. 9. RPT (Repeat): Press to repeat the current CD track. The track will repeat continuously until RPT is pressed again. 10. DISC to the beginning of the next CD.

: Press to skip forward

: Press to skip back to

11. DISC the beginning of the previous CD. 12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Volume/ON/OFF: Press to turn ON/OFF. Turn to increase/decrease the level of volume.

27

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

14. LOAD: The load feature allows you to load up to six single CDs into the audio system. Press LOAD. “In” will appear in the display when the system is ready. Insert the CD. Autoload: To load up to six CDs into the system: Press and hold LOAD until a beep is heard. When “In” is displayed, insert the desired CD. When “In” is displayed again, insert the next CD. Continue until all six are loaded (if desired). 15. SEEK — TRACK: In radio mode, press to find the next ( or previous ( on the frequency band. In CD mode, press to listen the next ( 16. CD door: Insert CDs label side up.

) listenable station

) or previous (

) track.

17. FM 1/2: Press to enter FM mode. Press to toggle between FM1
and FM2. 18. AM: Press to enter AM mode.

28

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Satellite Compatible AM/FM Stereo In-Dash Single CD/MP3 Radio (if equipped)

for previous/next

1. SEEK: Press and release SEEK strong station or track. 2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within 3
seconds of the previous press to proceed to the next/last text display. The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability.

29

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

3. AUX: This control is not operational.

4. MUTE: Press to MUTE playing media; press again to return to playing media. 5. EJ: Press to eject a CD.

to decrease/increase

6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.

to decrease/increase

7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.

8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press MENU and SEL to access AUTOSET, Speed sensitive volume and Setting the clock.

to shift sound to the

Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase (

) or decrease ) the hours/minutes. Press MENU again to disengage clock mode.

30

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Folder/Track mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE. 10. REPEAT: Press to repeat the current CD/MP3 track.

11. SHUFFLE: Press to play the CD/MP3 tracks on the current disc in random order. 12. FOLDER the next MP3 directory.

: Press to access

FOLDER: Press to access

13. the previous MP3 directory.

14. FF(Fast forward): In CD/MP3
mode, press until desired selection is reached. 15. REW(Rewind): In CD/MP3
mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability. 17. BAND: Press to toggle between AM/FM1/FM2 frequency band.

18. Memory presets: To set a station: Select frequency band; tune to a station, press and hold a preset button until sound returns.

31

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

20. CD: Press to enter CD mode.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 21. COMP(Compression): Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press COMP to turn the feature ON/OFF. 22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop. 23. CAT/Tune: Press to manually tune down/up the radio frequency band. CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 24. CD slot: Insert a CD with the label side up.

or

32

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Premium Satellite Compatible AM/FM Stereo/Cassette/Single CD/MP3 (if equipped)

23

22
21
20
19
18

VOL-PUSH ON

DISC

BAND

SEEK TUNE CAT

REW

DOLBY B NR

SCAN

BASS

TREB

FF

FOLDER

TEXT SEL

FOLDER

EJ

TAPE 1-2

CD

BAL

FADE

EJ

MUTE

AUX

MENU

SHUFFLE

REPEAT

17

16

15

14

13

12

11

10

1. CD slot: Insert a CD with the label side up. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 2. CD Eject: Press to eject a CD. The radio will resume playing.

33

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

3. Mute: Press to MUTE playing media; press again to return to the playing media.

4. Tape Eject: Press to eject the cassette. The radio will resume playing. 5. Tape 1–2/CD: Press to begin tape play. If a cassette is already playing, press to change playing sides. CD: If a CD is loaded in the radio, pressing CD will cause the CD to begin playing. 6. AUX: Press to toggle between the current playing media and DVD (if equipped).

7. MENU: Press to access the following functions:

SEL

to decrease/ increase hours or minutes.

Clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Press Compression: In CD mode, press to bring soft and loud passages together for a more consistent listening level. Press MENU until COMPRESS is displayed. Use SEL to toggle on/off. Dolby: In tape mode, press MENU until DOLBY B XX appears in the display. Press SEL to toggle ON/OFF. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disk are accessible) MODE.

34

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle on/off. Allows you to set the strongest local stations without losing your original memory preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. 8. REPEAT: Press to repeat the current CD/MP3 track. Press to show repeat status. Press again to toggle status. 9. Balance: Press BAL; then press to shift sound to the SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

to shift sound to the

10. SHUFFLE: In CD/MP3 mode, press to play tracks in random order. Press to show shuffle status. Press again to toggle status. 11. TEXT/SEL: The filename, song title, artist text or album text may be viewed while playing an MP3
selection. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within three seconds of the previous button press to proceed to the next/last text display. ) The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Check with your authorized dealer for availability. Select: Use with Bass, Treble, Balance, Fade and other menu selections.

35

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

12. FOLDER the next MP3 directory folder.

: Press to access

FOLDER: Press to access 13. the previous MP3 directory folder.

14. Bass: Press BASS; then press to decrease/increase SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

to decrease/increase

FF

REW

15. Fast Forward (FF): In CD mode, press and hold to fast forward. In tape mode, press to activate fast forward. Press FF again to return to play. 16. Rewind (REW): In CD mode, press and hold to reverse CD. In tape mode, press to rewind. Press REW again to return to play. 17. Memory preset buttons: To set a station: Press BAND to select the frequency band (AM/FM1/FM2) tune to a station, press and hold a preset button until sound returns. 18. Scan: Press to hear a brief sampling of all listenable stations, tape selections or CD tracks. Press again to stop. 19. Tune/CAT: TUNE: Works in radio mode only. Press TUNE down/up. CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite

to change frequency

36

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

instructions are included with the dealer installed kit. Check with your authorized dealer for availability. 20. Seek: Press and release SEEK strong station, tape selection or CD track. 21. BAND: Press to toggle through AM/FM1/FM2 frequency bands.

for previous/next

22. Cassette door: Insert the cassette with the opening to the right. 23. Power/volume: Press to turn ON/OFF; turn to increase/decrease volume.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

the signal and the weaker the reception.

Cassette/player care: Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes.

and turning the hub.

37

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after

cold to reach a moderate temperature before playing.

10–12 hours of play to maintain good sound/operation.

Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being

played.

CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

Accessory delay With accessory delay, the window switches, moon roof (if equipped) and audio system may be used for up to ten minutes after the ignition switch is turned off or until either front door is opened.

38

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control.

: Distributes outside air through the instrument panel vents. : Distributes outside air through the instrument panel vents and the

floor vents. O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

3. Temperature selection: Controls the temperature of the airflow in the vehicle.

the air flow selector in the

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle during cold or warm weather, do not drive with the air flow selector in the OFF position. • Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of

flow to the rear seats.

position.

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

39

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Fan speed adjustment: Controls the volume of air circulated in the vehicle. 2. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

: Distributes outside air through the instrument panel vents.

O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents. : Distributes outside air through the windshield defroster vents and floor vents. The air conditioner will automatically turn on to dehumidify the air.

: Distributes outside air through the windshield defroster vents. The

air conditioner will automatically turn on to dehumidify the air. 3. Temperature selection: Controls the temperature of the airflow in the vehicle.

Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the

the air flow selector in the

position.

air flow selector in the O (OFF) or MAX A/C position.

40

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls • Under normal weather conditions, do not leave the air flow selector in

MAX A/C or O (OFF) when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of

airflow to the back seats.

the windshield.

To aid in side window defogging/demisting in cold weather: 1. Select A/C. 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to 4. 4. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. Press to clear the rear window of thin ice and fog. The small LED will illuminate when activated. Ensure that the ignition is in the 3 (RUN) position in order to operate the rear window defroster. The defroster turns off automatically after 15 minutes or when the ignition is turned to the 1 (LOCK) position. To manually turn off the defroster before 15 minutes have passed, push the control a second time.

41

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL Rotate the headlamp control to the first position parking lamps. Rotate to the second position headlamps.

to also turn on the

to turn on the

Headlamp battery saver The battery saver will shut off the exterior lamps 10 minutes after the ignition switch has been turned off if the headlamp control is in the headlamp control is in the

position. The system will not shut off the parking lamps if the

position.

Autolamp control (if equipped) The autolamp system sets the headlamps to turn on and off automatically. The autolamp control, located on the headlamp switch, will: • turn on the lamps automatically • turn off the lamps automatically • keep the lamps on for up to three minutes after the key is turned to

during the daylight

at night

OFF.

See Autolamp delay system (if equipped) to set the auto headlamp off delay time.

42

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

Autolamp delay system (if equipped) If your vehicle has an autolamp delay feature, you can set the delay time to keep the headlights on for up to three minutes after the key is turned OFF. The delay time is set to 20 seconds at the factory, but the delay time may be changed by following the steps below (Steps 1 through 6
must be done within 10 seconds): 1. Turn the key to the 1 (LOCK) position. 2. Rotate the headlamp control to the autolamp position. 3. Rotate the headlamp control to the OFF position. 4. Turn the key to the 3 (RUN) position. 5. Turn the key back to the 1
(LOCK) position. 6. Turn the headlamp control to the autolamp position (the headlights should turn on). 7. Turn the headlamp control to the OFF position when the desired delay time (up to 3 minutes) has been reached.

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

43

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

Flash to pass Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped) Turns the lowbeam headlamps on with a reduced output. To activate: • the ignition must be in the 3 (RUN) position. • the headlamp control must be in the OFF, parking lamps or autolamp • the parking brake must be released.

position.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

Smart park lamps (if equipped) If your vehicle is equipped with the DRL and autolamp features, your park lamps will turn on automatically when lighting conditions are dark and DRLs are activated (the headlamp control is in the OFF position).

44

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

Foglamp control (if equipped) Press the foglamp control, located on the instrument panel, to activate the foglamps. The foglamp indicator will illuminate when the foglamps are on. Press the foglamp control to deactivate the foglamps. The foglamps will only operate with the parking lamps or headlamps on. When the highbeams are activated, the foglamps will not operate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel. • Push and hold top of control to

brighten.

• Push and hold bottom of control

to dim.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

45

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

ground

Lights • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height from the center of your headlamp to the ground and mark an 8 foot (2.4
meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a 3.0 mm circle on the headlamp lens. 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. Cover the left-hand headlamp with an opaque cloth. 4. On the wall or screen you will observe a light pattern with a distinct horizontal edge of high intensity light towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted.

5. Locate the vertical adjuster on the headlamp, then use a 4 mm socket to turn the adjuster either counterclockwise (to adjust down) or clockwise (to adjust up) aligning the upper edge of the light pattern to the horizontal line. 6. Move the opaque cloth to cover the right-hand headlamp and repeat Steps 4 and 5 for the left-hand headlamp. 7. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE. 8. Close the hood and turn off the lamps.

46

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

INTERIOR LAMPS

Dome lamps and map lamps The front dome lamp is located overhead between the driver and passenger seats. The dome lamp control has three positions: • OFF: In this position, the lamp • DOOR: In this position, the dome lamp will illuminate only when a door is opened and will remain illuminated for 25 seconds after the door is shut.

will not illuminate.

• ON: In this position, the lamp will remain illuminated. The map lamp controls (without moon roof) are located on the dome lamp. Press the button on either side of each map lamp to illuminate the lamps. Push the button again to turn off the lamps.

47

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

For models equipped with a moon roof, the map lamps are located on the moon roof control panel. Press the button on either side of each map lamp to illuminate the lamps. Push the button again to turn off the lamps. The map lamps will illuminate whenever a door is opened. After the door is shut, the lamps will remain illuminated for 25 seconds.

Cargo and dome lamp Rear cargo lamp equipped with an ON/OFF/DOOR control will light when: • the doors are closed and the control is in the ON position. • the control is in the DOOR

position and any door is open.

When the control is in the OFF position, it will not illuminate when you open the doors.

Interior lighting battery saver The dome and/or cargo lamps will automatically extinguish after 10
minutes when the ignition key is OFF, a door has been left open and the dome and/or cargo lamp controls are in the DOOR position. Otherwise, interior lamps including the dome and/or cargo lamps will automatically extinguish after 30 minutes when the ignition key is OFF.

BULB REPLACEMENT

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

48

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

Trade number

3157 AK (amber)

Number of bulbs

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. Function Park/turn lamps (front) Headlamps (low beams) Headlamps (high beams) Rear stop/tail/sidemarker Rear turn lamps Backup lamp Foglamp (front) Center High-mount stop lamp Rear license plate lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer

3157K or 4157K

3156
3156

PS24WFF

W5W

W5W

H11

H7

Replacing the interior bulbs Check the operation of all bulbs frequently.

Replacing exterior bulbs Check the operation of all the bulbs frequently. Replacing headlamp bulbs 1. Make sure that the headlamp control is in the OFF position and open the hood.

49

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

2. Press down on the wire retainer to release it and access the back of the headlamp assembly.

Lowbeam bulb replacement 3. Locate the outboard most bulb, turn it a 1⁄4 turn to the inside of the vehicle and pull the bulb socket straight out to remove the bulb.

Highbeam bulb replacement 4. Locate the bulb that is the most center in the vehicle, rotate the socket counterclockwise and pull the bulb socket straight out to remove the bulb. 5. Pull the bulb straight out of the socket and push in the new bulb. 6. To complete installation, follow the removal procedure in reverse order. Note: The bulb’s metal base gets very hot during headlamp operation. Be sure the bulb base is cool before handling. Note: If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used. To complete installation, follow the removal procedure in reverse order.

50

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing brake/tail/turn/backup lamp bulbs The brake/tail/turn/backup lamp bulbs are located in the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb: 1. Make sure the headlamp switch is in the OFF position and then open the liftgate to expose the lamp assemblies. 2. Remove the two screws from the lamp assembly. 3. Carefully remove the lamp assembly by pulling it rearward to disengage snap features on the outward side of the lamp. 4. Twist the bulb socket counterclockwise and remove from lamp assembly.

5. Pull the bulb straight out of the socket and push in the new bulb. 6. To complete installation, follow the removal procedure in reverse order.

Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the OFF position and then pry the license plate lamp assembly (located above the license plate) from the liftgate. 2. Remove bulb socket from lamp assembly by turning counterclockwise.

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

51

Lights

3. Pull the bulb out from the socket and push in the new bulb. 4. Install the bulb socket in lamp assembly turning it clockwise. 5. To install, press the lamp assembly into liftgate. Replacing high-mount brake lamp bulbs To remove the lamp assembly: 1. Remove the two screws and move the lamp assembly away from the liftgate.

2. Remove the bulb holder from the lamp assembly by depressing the snaps.

3. Pull the bulb straight out of the socket and push in the new bulb. To complete installation, follow the removal procedure in reverse order.

Replacing front parking lamp/turn signal bulbs For bulb replacement, see your authorized dealer. Replacing foglamp bulbs For bulb replacement, see your authorized dealer.

52

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

MULTI-FUNCTION LEVER Windshield wiper: For intermittent operation, move control down one position. Adjust the rotary control to the desired speed setting.

For normal or low speed wiper operation, move control down two positions from OFF. For high speed wiper operation, move control down three positions from OFF.

Mist function: To activate mist, push control up from the OFF position and release to get one wipe.

Windshield washer: To activate the windshield washer, pull control toward you. Release control to stop washer fluid spray.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

53

2007 Escape (204) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls
