2002 Ford Escape Owners Manual

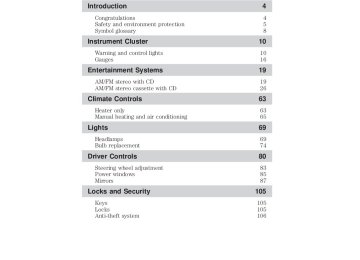

Introduction

Congratulations Safety and environment protection Symbol glossary

Instrument Cluster

Warning and control lights Gauges

Entertainment Systems

AM/FM stereo with CD AM/FM stereo cassette with CD

Climate Controls

Heater only Manual heating and air conditioning

Lights

Headlamps Bulb replacement Driver Controls

Steering wheel adjustment Power windows Mirrors

Locks and Security

Keys Locks Anti-theft system

Table of Contents

10

10
16
19

19
26
63

63
65
69

69
74
80

83
85
87
105

105
105
106

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Air bags Child restraints

Driving

Starting Brakes Transmission operation Vehicle loading Trailer towing Recreational towing

Roadside Emergencies

Hazard flasher switch Fuses and relays Changing tires Jump starting Wrecker towing

Customer Assistance

The dispute settlement board Utilizing the mediation/arbitration Getting assistance outside the U.S. and Canada Ordering additional owner’s literature Reporting safety defects (U.S. only)

Cleaning

Cleaning your vehicle Underbody preservation

115

115
127
139
147
157

157
161
165
180
183
187
188

189
191
199
203
209
211

214
217
217
218
220
221

221
227

Maintenance and Specifications

Hood Engine compartment Engine oil Battery Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications Engine data Vehicle dimensions

Accessories

Index

Table of Contents

229

230
232
234
238
245
259
265
265
268
270
270
274

277

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2001 Ford Motor Company

Introduction

The following warning may be required by California law: CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: In the United States: www.ford.com In Canada: www.ford.ca In Australia: www.ford.com.au In Mexico: www.ford.com.mx Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply

to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Introduction

Fuel pump shut-off switch In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE There are no particular guidelines for breaking-in your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

Introduction

SPECIAL NOTICES

Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

By operating other electronic equipment (e.g. mobile telephone without exterior aerial) electromagnetic fields can occur which

can cause malfunctions of the vehicle electronics. Therefore you should observe the instructions of the equipment manufacturers.

Please read the section Air bag in the Seating and safety restraints chapter. Failure to follow the specific warnings and

instructions could result in personal injury.

Front seat mounted rear facing child or baby seats should NEVER be used in front of a passenger side air bag unless the

air bag can be and is turned OFF.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Introduction

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner Guide for all other required information and warnings.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchorage

Brake System

Anti-Lock Brake System

Brake Fluid - Non-Petroleum Based

Traction Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Rear Window Defrost/Demist

Power Window Lockout

Windshield Defrost/Demist

Power Windows Front/Rear

Introduction

Vehicle Symbol Glossary

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Low tire warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

CHECK FUEL CAP

BRAKE

THEFT

4x4

O/D OFF

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.

Service engine soon Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The RUN position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. Whatyoushoulddoifthe Light turns on solid: This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your

indicator light illuminates when the ignition is first turned to the

lightilluminates

light to illuminate.

10

Instrument Cluster

Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel. 3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required. If the available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

light remains on, have your vehicle serviced at the first

light should turn off.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to START position, the light will momentarily illuminate prior to reaching the START position). It also illuminates if the parking brake is engaged. If the brake system warning light does not illuminate as described, seek service immediately. Illumination after the parking brake is released indicates low brake fluid level or a brake system malfunction and the brake system should be serviced immediately by a qualified technician. Refer to Brakes in the Driving chapter for more information.

BRAKE

11

Instrument Cluster

ABS

Anti-lock brake system (ABS) (if equipped) To confirm the anti-lock brake system (ABS) warning light is functional it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to the START position, the light will momentarily illuminate just prior to reaching the START position). If the light remains on, continues to flash or fails to illuminate, have the ABS serviced immediately. If the ABS light remains on, it means the anti-lock brake system has malfunctioned and is disabled, however, the normal brake system will still function unless the brake warning light also remains illuminated and parking brake is off. Refer to Brakes in the Driving chapter for more information.

Safety belt Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Air bag readiness Illuminates to confirm that the air bags (front and side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Charging system Illuminates when the battery is not charging properly.

12

Instrument Cluster

Engine oil pressure Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and specifications chapter.

Low fuel Illuminates when the fuel level in the fuel tank is at, or near, empty (refer to Fuel gauge in this chapter for more information).

Speed control Illuminates when the speed control is activated.

O/D off (if equipped) Illuminates when the overdrive function has been turned OFF using the Transmission Control Switch (TCS) on end of gearshift. If the light does not come on or the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

O/D OFF

Turn signals Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

13

Instrument Cluster

High beams Illuminates when the high beam headlamps are turned on.

Door ajar Illuminates when any door, liftgate or liftgate window is open.

Anti-theft system Refer to SecuriLock娂 passive anti-theft system in the Locks and Security chapter.

THEFT

Low coolant (if equipped) Illuminates when the coolant level in the coolant reservoir is low and more needs to be added. For more information on adding engine coolant, refer to Engine coolant in the Maintenance and specifications chapter.

14

Instrument Cluster

CHECK FUEL CAP

Check fuel cap Illuminates when the fuel cap is not installed correctly. Check the fuel cap for proper installation. When the fuel filler cap is properly re-installed, the light(s) will turn off after a period of normal driving. Continuing to operate the vehicle with the check fuel cap light on, can activate the Service Engine Soon/Check Engine warning light. It may take a long period of time for the system to detect an improperly installed fuel filler cap. For more information, refer to Fuel filler cap in the Maintenance and specifications chapter.

Four wheel drive indicator (if equipped) Illuminates when the four-wheel drive is engaged. If the light continues to flash have the system serviced.

Safety belt warning chime Sounds to remind you to fasten your safety belts.

4x4

BeltMinder chime Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Key-in-ignition warning chime Sounds when the key is left in the ignition and the door, liftgate or liftgate window is opened.

Headlamps on warning chime Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

15

Instrument Cluster

GAUGES

CHECK FUEL CAP

BRAKE

THEFT

4x4

O/D OFF

Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and specifications chapter.

Never remove the coolant reservoir cap while the engine is running or hot. Steam and scalding liquid from a hot cooling

system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

16

Instrument Cluster

Fuel gauge Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel. The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located.

Speedometer Indicates the current vehicle speed.

60

80

100 120

40

80

60

40

20

20
MPH

Odometer Registers the total kilometers (miles) of the vehicle.

R D 2 1

ODO

140

100

160

180
km/h 120

17

R D 2 1

ODO

Instrument Cluster

Trip odometer Registers the kilometers (miles) of individual journeys. Press and hold the button for 1 or more seconds to reset. Press and release the button in less than 1 second to toggle between odometer and trip odometer.

Tachometer Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

18

AM/FM STEREO / SINGLE CD RADIO

Entertainment Systems

VOL - PUSH ON

SEEK

TUNE DISCS

AM FM

CD

BASS

TREB

FM1

ST

BAL

FADE

DISC

SCN

CLK

EJ

COMP

CD

CD

SHUFFLE

Volume/power control Press the control to turn the audio system on or off.

VOL - PUSH ON

Turn the control to raise or lower volume.

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

19

Entertainment Systems

AM/FM select The AM/FM select control works in radio and CD modes.

AM FM

CD

AM/FMselectinradiomode The AM/FM control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectinCDorCDchangermode(ifequipped) The AM/FM control to stop CD play and begin radio play.

Tune adjust The tune control works in radio mode. Tuneadjustinradiomode • Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

SEEK

TUNE DISCS

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

to move to the previous

TuneadjustinCDchangermode(ifequipped) • Press • Press

disc. Hold for quick movement. to move to the next disc. Hold for quick movement.

SEEK

TUNE DISCS

Seek function The seek function control works in radio, CD or CD changer mode (if equipped).

20

Seekfunctioninradiomode • Press

to find the next listenable station down the frequency band.

• Press

to find the next

Entertainment Systems

SEEK

TUNE DISCS

listenable station up the frequency band.

SeekfunctioninCDorCDchangermode(ifequipped) • Press • Press

to listen to the next selection on the current disc.

to listen to the previous

TUNE DISCS

SEEK

selection on the current disc.

Scan function The scan function works in radio or CD mode.

SCN

Scanfunctioninradiomode Press the SCN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCN control again to stop the scan mode. ScanfunctioninCDorCDchangermode(ifequipped) Press the SCN control to hear a short sampling of all selections on the current CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

Radio station memory preset The radio is equipped with four or six station memory preset controls. These controls can be used to select up to four or six preset AM stations and eight or twelve FM stations (four to six in FM1 and four to six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station.

21

Entertainment Systems

3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the control again.

AUTO SET

SCN

Bass adjust The bass adjust control allows you to increase or decrease the audio system’s bass output.

BASS

22

Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers.

Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers.

CD select To begin CD play (if CD[s] are loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Press the control again to begin CD changer play (if equipped).

Entertainment Systems

TREB

BAL

FADE

AM FM CD

23

Entertainment Systems

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Rewind The rewind control works in CD and CD changer (if equipped) modes. To rewind in CD mode press the CD control (preset 1). Pressing the control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

CD

Fast forward The fast forward control works in CD mode. To fast forward in CD mode, press the CD control (preset 2). Pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

CD

Eject function Press the control to stop and eject a CD.

EJ

Compression feature Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust.

COMP

24

Entertainment Systems

Shuffle feature The shuffle feature operates in CD changer mode (if equipped) and plays all tracks on the current disc in random order. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

SHUFFLE

Setting the clock Press CLK to toggle between listening frequencies and clock mode while in radio mode. To set the hour, press and hold the CLK control.

Press the SEEK control: • •

to decrease hours and to increase hours.

To set the minute, press and hold the CLK control.

Press the TUNE control: • •

to decrease minutes and to increase minutes.

SCN

CLK

SEEK

TUNE DISCS

SCN

CLK

SEEK

TUNE DISCS

25

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD

VOL PUSH ON

DISC

FM 1
AMC

BL

ST

RF

DOLBY B NR

EJ

TAPE

CD

AM

FM

SEEK

TUNE

REW

SCAN

BASS

TREB

FF

SIDE 1-2

SEL

EJ

MUTE

AUTO

CLK

BAL

FADE

COMP

SHUFFLE

VOL - PUSH ON

Volume/power control Press the control to turn the audio system on or off. Audio power can also be turned on by pressing the AM/FM select control or the TAPE/CD select control.

Turn control to raise or lower volume.

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

26

Entertainment Systems

AM/FM select The AM/FM select control works in radio, tape and CD modes.

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play. AM/FMselectinCDorCDchangermode(ifequipped) Press this control to stop CD play and begin radio play.

Tune adjust The tune control works in radio or CD changer mode. Tuneadjustinradiomode • Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next

frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

TuneadjustforCDchanger(ifequipped) • Press

to select the previous

disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the remaining discs.

• Press

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

27

Entertainment Systems

Seek function The seek function control works in radio, tape or CD mode. Seekfunctioninradiomode • Press

to find the next listenable station down the frequency band.

to find the next

listenable station up the frequency band.

• Press

Seekfunctionintapemode • Press to listen to the previous selection on the tape. • Press to listen to the next selection on the tape. SeekfunctionforCDorCDchanger(ifequipped) • Press

to seek to the previous

track of the current disc. If a selection has been playing for three seconds or more and you , the CD changer will press replay that selection from the beginning.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scan function The scan function works in radio, tape or CD mode.

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode. Scanfunctionintapemode Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

28

Entertainment Systems

ScanfunctioninCDorCDchangermode(ifequipped) Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

Radio station memory preset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

AM

FM

REW

FF

SIDE 1-2

COMP

SHUFFLE

Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

29

Entertainment Systems

AUTO

Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner as your original presets. To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

CLK

Bass adjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the BASS control then press: • to decrease the bass output •

to increase the bass output.

and

BASS

TREB

SEL

Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output.

BASS

TREB

30

Press the TREB control then press: • to decrease the treble output •

to increase the treble output.

and

Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control then press: • •

to shift sound to the left and to shift sound to the right.

Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control then press: • •

to shift the sound to the

to shift the sound to the rear.

front and

Entertainment Systems

SEL

BAL

FADE

SEL

BAL

FADE

SEL

31

Entertainment Systems

Tape/CD select • To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press again during rewind or fast forward to stop the rewind or fast forward function.

TAPE

CD

• To begin CD play (if CD(s) are loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

TAPE

CD

Press the CD control to toggle between single CD and CD changer play (if equipped). Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached. • In CD mode, pressing the REW control rewinds the CD within the

Rewind The rewind control works in tape and CD modes. • In tape mode, radio play will

current track.

Fast forward The fast forward control works in tape and CD modes. • In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

32

• In CD mode, pressing the control fast forwards the CD within the

current track.

REW

FF

Entertainment Systems

Tape direction select Press SIDE 1–2 to play the alternate side of a tape.

Eject function Press the EJ control to stop and eject a tape.

Press the EJ control to stop and eject a CD.

SIDE 1-2

EJ

EJ

Dolby姞 noise reduction Dolby威 noise reduction operates in tape mode. Dolby威 noise reduction reduces the amount of hiss and static during tape playback. Press the reduction. Dolby威 noise reduction is manufactured under license from Dolby威 Laboratories Licensing Corporation. “Dolby威” and the double-D symbol Corporation.

control to activate (and deactivate) the Dolby威 noise

are registered trademarks of Dolby威 Laboratories Licensing

Compression adjust Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust.

COMP

33

Entertainment Systems

Shuffle feature The shuffle feature operates in CD mode (if equipped) and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

SHUFFLE

AUTO

CLK

AUTO

CLK

Setting the clock To set the hour, press and hold the CLK control and press SEEK:

• •

to decrease hours and to increase hours.

To set the minute, press and hold the CLK control and press TUNE:

to decrease minutes and to increase minutes.

• • If your vehicle has a separate clock, (other than the digital radio display), the CLK control will not function in the above manner.

34

Entertainment Systems

AUTO

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10
seconds, when the radio is turned on, and then revert to clock information. Any time that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

CLK

Mute mode Press the MUTE control to mute the playing media. Press the MUTE control again to return to the playing media.

EJ

MUTE

MACH姞 AUDIO SYSTEM WITH AM/FM STEREO/CASSETTE/SINGLE CD

VOL - PUSH ON

DISC

FM1

ST

EJ

MUTE

AM

FM

SEEK

TUNE

REW

DOLBY B NR

EJ

TAPE

CD

AUTO

SCAN

BASS

TREB

FF

SIDE 1-2

SEL

BAL

FADE

RDS

COMP

SHUFFLE

35

Entertainment Systems

Volume/power control Press the control to turn the audio system on or off.

VOL - PUSH ON

Turn control to raise or lower volume.

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. If you wish to maintain your preset volume level, turn the audio system off with the power control before switching off the ignition.

AM/FM select The AM/FM select control works in radio, tape and CD modes.

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play. AM/FMselectinCDmode Press this control to stop CD play and begin radio play.

36

Entertainment Systems

Tune adjust The tune control works in radio or CD mode. Tuneadjustinradiomode • Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

to move to the next

frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

• Press

TuneadjustforCDchanger(ifequipped) • Press

to select the previous

disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.

to select the next disc

• Press

SEEK

TUNE

SEEK

TUNE

in the CD changer. Hold the control to fast-forward through the remaining discs.

Seek function The seek function control works in radio, tape or CD mode. Seekfunctioninradiomode • Press

to find the next listenable station down the frequency band.

to find the next

listenable station up the frequency band.

• Press

SEEK

TUNE

SEEK

TUNE

37

Entertainment Systems

Seekfunctionintapemode • Press • Press SeekfunctionforCDchanger(ifequipped) • Press

to listen to the previous selection on the tape. to listen to the next selection on the tape.

to seek to the previous

track of the current disc. If a selection has been playing for three seconds or more and you , the CD changer will press replay that selection from the beginning.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scan function The scan function works in radio, tape or CD mode.

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode. Scanfunctionintapemode Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again. ScanfunctioninCDmode Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

38

Entertainment Systems

Radio station memory preset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

AM

FM

COMP

REW

SIDE 1-2

FF

SHUFFLE

Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

AUTO

RDS

39

Entertainment Systems

Bass adjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the BASS control then press: • to decrease bass output and • to increase bass output.

BASS

TREB

SEL

Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output. Press the TREB control then press: • to decrease treble output and • to increase treble output.

BASS

TREB

SEL

Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control then press: • •

to shift sound to the left and to shift sound to the right.

BAL

FADE

SEL

40

Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control then press: • •

to shift sound to the front

to shift sound to the rear.

and

Entertainment Systems

BAL

FADE

SEL

Tape/CD/CD changer (if equipped) select • To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

TAPE

CD

• To begin CD play (if CD(s) are loaded), press the CD control. The first track of the disc will begin playing. After that CD play will begin where it stopped last.

TAPE

CD

If equipped with a CD changer, press the CD control to toggle between single CD and CD changer play. Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

41

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached. • In CD mode, pressing the REW control for less than three seconds

results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Entertainment Systems

Rewind The rewind control works in tape and CD modes. • In tape mode, radio play will

Fast forward The fast forward control works in tape and CD modes. • In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

REW

FF

• In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Tape direction select Press SIDE 1–2 to play the alternate side of a tape.

Eject function Press the control to stop and eject a tape.

Press the control to stop and eject a CD.

SIDE 1-2

EJ

EJ

42

Entertainment Systems

Dolby姞 noise reduction Dolby威 noise reduction operates only in tape mode. Dolby威 noise reduction reduces the amount of hiss and static during tape playback. Press the reduction. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby威 Labratories Licensing Corporation.

control to activate (and deactivate) Dolby威 noise

Compression adjust Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust.

COMP

Shuffle feature The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

SHUFFLE

43

Entertainment Systems

Setting the clock Press the clock/RDS control until SELECT HOUR is displayed and press:

• •

to decrease hours and to increase hours.

To set the minute, press the clock/RDS control until SELECT MIN is displayed and press:

to decrease minutes and to increase minutes.

• •

44

AUTO

RDS

SEL

AUTO

RDS

SEL

Entertainment Systems

Radio Data System (RDS) feature This feature allows your audio system to receive text information from RDS-equipped FM radio stations. Press and hold the control for three seconds to turn the feature on or off. Press the control to scroll through the following selections:

RDStrafficannouncement • Press the RDS control until

TRAFFIC is displayed.

• Use the SELECT control to select ON or OFF. With the feature ON, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

AUTO

RDS

AUTO

RDS

SEL

45

Entertainment Systems

RDSselectprogramtype • Press the RDS control until FIND

program type is displayed.

• Use the SEL control to select the program type. With the feature on, use the SEEK or AUTOSET or SCAN control to find the desired program type from the following selections:

• Classic • Country • Info • Jazz/R&B • Religious • Rock • Soft • Top 40
RDSshow • With the RDS menu enabled, press the RDS control until SHOW is displayed.

46

AUTO

RDS

SEL

AUTO

RDS

Entertainment Systems

• Use the SEL control to select TYPE, NAME, TEXT or NONE. When your radio is turned to a RDS station, RDS station TYPE, station NAME, or TEXT message will be displayed along with the frequency. Press SEL in order to scroll through the text messages.

Mute mode Press the control to mute the playing media. Press the control again to return to the playing media.

SEL

EJ

MUTE

AUDIOPHILE AM/FM STEREO IN DASH SIX CD RADIO

SHUF

SCAN

DISC TUNE

SEEK

REW

FF

DSP

MUTE

EJ

LOAD

PUSH ON

AM FM

CD

BASS

BAL

SEL

TREB

FADE

MENU

47

Entertainment Systems

Volume/power control Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

AM/FM select The AM/FM select control works in radio and CD modes.

AM FM

CD

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectinCDmode Press this control to stop CD play and begin radio play.

Tune adjust The tune control works in radio or CD mode.

48

Entertainment Systems
