2009 Ford Escape Owners Manual

Download PDF Manual

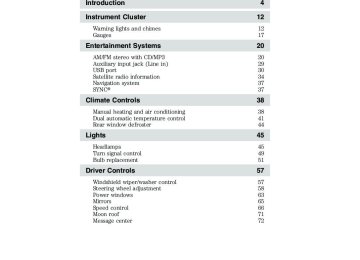

Table of Contents 12 12 17 20 20 29 30 34 37 37 38 38 41 44 45 45 49 51 57 57 58 63 65 66 71 72 Introduction Instrument Cluster Warning lights and chimes Gauges Entertainment Systems AM/FM stereo with CD/MP3 Auxiliary input jack (Line in) USB port Satellite radio information Navigation system SYNC威 Climate Controls Manual heating and air conditioning Dual automatic temperature control Rear window defroster Lights Headlamps Turn signal control Bulb replacement Driver Controls Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Moon roof Message center 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) 85 85 87 98 102 102 113 127 142 160 162 165 178 183 189 194 196 196 201 204 211 217 226 226 227 228 228 235 246 247 253 Table of Contents Locks and Security Keys Locks Anti-theft system Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing Driving Starting Brakes AdvanceTrac威 Transmission operation Reverse sensing system Roadside Emergencies Getting roadside assistance Hazard flasher control Fuel pump shut-off switch Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Table of Contents Customer Assistance Reporting safety defects (U.S. only) Reporting safety defects (Canada only) Cleaning Maintenance and Specifications Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories Index 255 261 262 263 271 273 277 281 283 288 303 305 306 309 312 314 All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 2009 Ford Motor Company 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle. WARNING: Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter. SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed. 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction Warning symbols on your vehicle When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. CALIFORNIA Proposition 65 Warning WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. PERCHLORATE MATERIAL Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. SPECIAL NOTICES New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide. Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls. WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury. WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag. Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information. 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction buckled; and/or the brake pedal; Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were • how far (if at all) the driver was depressing the accelerator • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Please note that once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of electronically or verbally disclosing to 911 operators the vehicle location, and/or other details about the vehicle or crash to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the feature. See your SYNC威 supplement for more information. 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction Notice to owners of pickup trucks and utility type vehicles WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles. Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package. Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package. Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios. WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so. 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction Export unique (Non–United States/Canada) vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings. 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag - Front Airbag - Side Child Seat Tether Anchor Child Seat Lower Anchor Brake System Anti-Lock Brake System Parking Brake System Brake Fluid - Non-Petroleum Based Parking Aid System Stability Control System Speed Control Master Lighting Switch Hazard Warning Flasher Fog Lamps-Front Fuse Compartment Fuel Pump Reset Windshield Wash/Wipe Windshield Defrost/Demist Rear Window Defrost/Demist 10 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Introduction Vehicle Symbol Glossary Power Windows Front/Rear Child Safety Door Lock/Unlock Power Window Lockout Interior Luggage Compartment Release Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, or Sparks Battery Acid Explosive Gas Fan Warning Power Steering Fluid Maintain Correct Fluid Level MAX MIN Service Engine Soon Engine Air Filter Passenger Compartment Air Filter Jack Check Fuel Cap Low Tire Pressure Warning 11 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Instrument Cluster WARNING LIGHTS AND CHIMES Standard instrument cluster Optional instrument cluster Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the 12 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Instrument Cluster bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer. WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire. Check fuel cap fill inlet (if equipped): Illuminates when the fuel fill inlet may not be properly closed. Continued driving with this light on may cause the Service engine soon warning light to come on, refer to Easy Fuel “no cap” fuel system in the Maintenance and Specification chapter. If “CHECK FUEL FILL INLET” is displayed in the message center, refer to Message center in the Driver Controls chapter for more information. 13 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Instrument Cluster BRAKE Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer. WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury. ABS Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound when there is a malfunction in the indicator light. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature. 14 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Instrument Cluster Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component. Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. AdvanceTrac威/Traction Control™: Illuminates when the AdvanceTrac威/Traction Control™ is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter. Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged. 15 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Instrument Cluster Overdrive cancel and grade assist: Illuminates when the overdrive function of the transmission has been turned off and the grade assist function has been turned on, refer to the Driving chapter. Anti-theft system: Flashes when the SecuriLock威 Passive Anti-theft System has been activated. Throttle control/Powertrain: Illuminates when a powertrain fault has been detected. Contact your authorized dealer as soon as possible. Door ajar: Illuminates when the ignition is in the on position and any door is open. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Parking brake on chime: Sounds when the parking brake is left on and the vehicle is driven. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible. Message center activation chime (if equipped): Sounds when a warning message (except PARKING BRAKE ENGAGED while parked) appears in the message center display for the first time. 16 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) GAUGES Standard instrument cluster gauges Instrument Cluster Optional instrument cluster gauges 17 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Instrument Cluster Speedometer: Indicates the current vehicle speed. Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. WARNING: Never remove the coolant reservoir cap while the engine is running or hot. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. 18 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Instrument Cluster Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. Odometer: Registers the total miles (kilometers) of the vehicle. If equipped with a message center, refer to Message center in the Driver Controls chapter on how to switch the display from Metric to English. Trip odometer: Registers the miles (kilometers) of individual journeys. • Standard instrument cluster: Press the SELECT/RESET control once to switch from the odometer to the TRIP A feature. Press the control again to select the TRIP B feature. To reset the trip, press and hold the control again until the trip reading resets. • Optional instrument cluster: Press and release the message center INFO button until “TRIP A” appears in the display (this represents the trip mode). Press the control again to select Trip B. Press and hold the RESET button for two seconds to reset. 19 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems AUDIO SYSTEMS AM/FM/single CD or in-dash CD6/MP3 satellite compatible sound system WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so. Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and other electrical accessories may be used for up to ten minutes after the ignition is turned off or until either front door is opened. Note: Your vehicle is equipped with a unique audio system. If your display shows six small circles in the display, your audio system is a CD6 system. If not, your system is a Single CD system. Setting the clock To set the time, press CLOCK. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes. The clock will then begin from that time. 20 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems AM/FM Radio / VOL (Power/Volume): Press to turn the radio on/off. Turn the knob to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a nominal listening level when the ignition is turned back on. AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band. TUNE: Turn the knob to go up/down the frequency band in individual increments. DIRECT: Press DIRECT and then select the desired radio frequency (i.e. 93.9) using the memory preset numbers (0–9). SEEK/TRACK: Press SEEK/TRACK to access the previous/next strong radio station. SCAN: Press for a brief sampling of all strong radio stations. MEMORY PRESETS (0–9): When tuned to any station, press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2. Saving presets automatically (Autoset)– Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. 21 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems to SEEK/TRACK SEEK/TRACK To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use toggle AUTO PRESET to ON, and either wait five seconds for the search to initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate; the 10 strongest stations will be filled and the station stored in preset 1 will begin playing. If there are fewer then 10 strong stations, the system will store the last one in the remaining presets. RDS Radio Available only in FM mode. This feature allows you to search RDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc. To activate: Press MENU repeatedly until RDS (ON/OFF) appears in the display. Use to toggle RDS ON/OFF. When RDS is OFF, you will not be able to search for RDS equipped stations or view the station name or type. CAT/FOLD(Category/Folder): This feature allows you to select from various music categories. To change RDS categories: Press MENU repeatedly until RBDS ON/OFF appears in the display. Use PRESS UP OR DOWN TO CHANGE RDS CATEGORY will appear in the display. Press desired category appears in the display, press find the next station playing that selection or press SCAN for a brief sampling of all stations playing that category of music. CD/MP3 Player CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display. LOAD: For a single CD system– This control is not operational. To load a CD, simply insert the disc, label side up, into the CD slot. For a CD6 system– Press LOAD. When the display reads SELECT SLOT, choose the desired slot number using memory presets 1–6. When the display reads LOAD CD #, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play. 22 to scroll through all possible categories. When the to toggle RDS to ON. Press CAT. SEEK/TRACK to 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems To auto load up to six discs– Press and hold LOAD until the display reads AUTOLOAD #. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in preset #1 will begin to play. Press the number preset buttons (1–6) to choose the disc you want to play. EJECT: For a single CD system– press EJECT to eject the CD. For a CD6 system– press EJECT and select the desired CD slot by pressing the corresponding memory preset number. The display will read EJECTING #. When the system has ejected the CD, the display will read REMOVE CD #. Remove the CD. If you do not remove the CD, the system will reload the disc. To auto eject all loaded discs– Press and hold EJECT. The system will eject all discs and prompt you when to remove them. Play/Pause: Press to play/pause a track when playing a CD. SEEK/TRACK: Press SEEK/TRACK previous/next track. to access the CAT (Category) / FOLD (Folder): In MP3 mode only– Press CAT/FOLD and then press SEEK/TRACK to access the previous/next folder. SCAN: Press for a brief sampling of all tracks on the current disc or MP3 folder. DIRECT: In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track. 23 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific folder. TEXT: In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available. In TEXT MODE– Sometimes the display requires additional text to be displayed. When the < / > indicator is active, press TEXT and then press to view the additional display text. SEEK/TRACK COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use ON/OFF. When COMPRESSION is ON, the system will bring the soft and loud CD passages together for a more consistent listening level. SHUFFLE: Press SHUFFLE to toggle on/off and begin/stop random play. The system will only shuffle the disc currently playing. to toggle between SEEK/TRACK Satellite Radio (if equipped) Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. SIRIUS: Press to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes. TUNE/OK: Turn the knob to go to the next / previous available SIRIUS satellite station. DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station. 24 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems SEEK/TRACK: Press SEEK/TRACK to seek to the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press SEEK/TRACK to seek to the previous/next channel in the selected category. Press and hold SEEK/TRACK to fast seek through the previous/next channels. SCAN: Press SCAN for a brief sampling of all available SIRIUS satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS satellite channels within the selected category. MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns. TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA). In TEXT MODE: Sometimes the display requires additional text to be displayed. When the < / > indicator is active, press TEXT and then press CAT (Category) / FOLD (Folder): Press to toggle between turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display. Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category. to view the additional display text. SEEK/TRACK 25 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu. Press • CATEGORY MENU- Press OK to enter category mode. Press to cycle through the following options: to scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the to search for that display. After a category is selected, press specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu. • SONG SEEK MENU- Press OK to enter song seek menu. to scroll through the following options: Press a. SAVE THIS SONG: Press OK to save the currently playing song’s title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the to cycle through the saved titles. When saved titles and press the song title appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display. b. DELETE A SONG: Press OK to delete a song from the system’s to cycle through the saved songs. When the memory. Press song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to delete the currently listed song, press RETURN or CANCEL. Note: If there are no songs presently saved, the display will read NO SONGS. c. DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS. to select either 26 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems d. DISABLE ALERTS/ENABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu. • CHANNEL LOCKOUT MENU- Press OK to enter the Channel to scroll through the following Lockout menu. Press the options: a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN number (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: you must be tuned to the specific channel you want to lock/unlock when using this feature. b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN number and when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display. c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOU SURE. Press OK again to automatically reset the PIN number to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu. Sound Adjustments Press SOUND repeatedly to cycle through the following features: BASS: Press to adjust the level of bass. SEEK/TRACK TREBLE: Press SEEK/TRACK to adjust the level of treble. BALANCE: Press the left (L) and right (R) speakers. SEEK/TRACK to adjust the audio between 27 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems to adjust the audio between the FADE: Press SEEK/TRACK back (B) and front (F) speakers. SPEED COMPENSATED VOLUME (if equipped): With this feature on, radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise. The default setting is off. SEEK/TRACK to adjust between SPEED OFF and levels Use 1–7: Increasing the level from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting. ALL SEATS (Occupancy mode, if equipped): Press SOUND repeatedly to reach the Occupancy mode setting. Press SEEK/TRACK to select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. Extra Features AUX: Press repeatedly to cycle through LINE IN (auxiliary audio mode), and SYNC威 (if equipped). For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter. If your vehicle is equipped with SYNC威, refer to the SYNC威 information included with your vehicle for further information. TUNE/OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. Refer to the SYNC威 information included with your vehicle for further information. (Phone): If your vehicle is equipped with SYNC威, press to access SYNC PHONE features. Refer to the SYNC威 information included with your vehicle for further information. If your vehicle is not equipped with SYNC威, the display will read NO PHONE. 28 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems Auxiliary input jack (Line in) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so. Your vehicle is equipped with an Auxiliary Input Jack (AIJ). The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary input jack section in the Audio features chapter of your Navigation system supplement. Required equipment: 1. Any portable music player designed to be used with headphones 2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end To play your portable music player using the auxiliary input jack: 1. Begin with the vehicle parked and the radio turned off. 2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off. 3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle. 29 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems 4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level. 5. Turn the portable music player on and adjust the volume to 1/2 the volume. 6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low. 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls. Troubleshooting: 1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control. 2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume. 3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player. 4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player. 5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion. USB port (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so. 30 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems Your vehicle may be equipped with a USB port located on the instrument panel. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC威 supplement or Navigation System supplement. GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed. weaker the signal and the weaker the reception. 31 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems CD/CD player care Do: • Handle discs by their edges only. (Never touch the playing surface). • Inspect discs before playing. • Clean only with an approved CD cleaner. • Wipe discs from the center out. of time. Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached. 32 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician. MP3 track and folder structure Your MP3 system recognizes MP3 individual tracks and folder structure as follows: • There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section. • MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present. • MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255. • Creating discs with only one level of folders will help with navigation through the disc files. 33 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems Sample MP3 structure If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system. .mp3 .mp3 .mp3 .mp3 .mp3 .mp3 .mp3 .doc .ppt .xls In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder. Satellite radio information (if equipped) Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474. Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible. 34 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems • Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute. Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference. SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include: • Hardware and limited subscription term, which begins on the date of • Use of online media player providing access to all SIRIUS music channels over the internet using any computer connected to the internet (U.S. customers only). sale or lease of the vehicle. For information on extended subscription terms, contact SIRIUS at 1–888–539–7474. Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes. Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously. 35 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems Radio Display ACQUIRING SAT FAULT Condition Radio requires more than two seconds to produce audio for the selected channel. Internal module or system failure present. Action Required No action required. This message should disappear shortly. If this message does not clear within a short period of time, or with an ignition key cycle, your receiver may have a fault. See your authorized dealer for service. INVALID CHNL Channel no longer This previously available available. UNSUBSCRIBED Subscription not available for this channel. channel is no longer available. Tune to another channel. If the channel was one of your presets, you may choose another channel for that preset button. Contact SIRIUS at 1–888–539–7474 to subscribe to the channel or tune to another channel. Artist information Artist information not not available. available at this time on this channel. The system is working properly. Song title Song title information not information not available at this time on this available. channel. The system is working properly. NO TEXT NO TEXT 36 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Entertainment Systems Radio Display NO TEXT Condition Category Action Required Category information not information not available at this time on this NO SIGNAL available. Loss of signal from the SIRIUS satellite or SIRIUS tower to the vehicle antenna. channel. The system is working properly. You are in a location that is blocking the SIRIUS signal (i.e., tunnel, under an overpass, dense foliage, etc). The system is working properly. When you move into an open area, the signal should return. UPDATING CALL SIRIUS 1–888–539–7474 Update of channel programming in No action required. The process may take up to progress. Satellite service has been deactivated by SIRIUS Satellite Radio. three minutes. Call SIRIUS at 1–888–539–7474 to re-activate or resolve subscription issues. NAVIGATION SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a navigation system. Refer to the Navigation System supplement for further information. SYNC姞 (IF EQUIPPED) Your vehicle may be equipped with SYNC威, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC威 supplement or to the SYNC威 section in the Navigation System supplement (if equipped). 37 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Climate Controls MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) Fan speed adjustment: Turn to select fan speed. 1. 2. R Rear defroster: Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information. Defrost: Distributes outside air through the windshield defroster 3. vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection. : Distributes air through the windshield defroster vents, demister 4. vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging. 5. When the system is off, outside air is prevented from entering the vehicle through the vents. 6. 7. vents, floor vents and rear seat floor vents (if equipped). 8. seat floor vents (if equipped). 38 : Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents, demister : Distributes air through the demister vents, floor vents and rear Power: Press to activate/deactivate the climate control system. 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Climate Controls Passenger heated seat control (if equipped): Press to Recirculated air: Press to activate/deactivate air recirculation 9. Temperature control: Controls the temperature of the airflow in the vehicle. 10. activate/deactivate the passenger heated seat. See Heated seats in the Seating and Safety Restraints chapter. 11. in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in (defrost). Recirculated air may turn off any airflow mode except automatically in all airflow modes except MAX A/C. When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is either Recirculation may turn off automatically in some airflow modes to reduce fog potential. 12. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation. 13. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C, (floor/defrost). (defrost) and (panel/floor). (panel) or Driver heated seat control (if equipped): Press to 14. activate/deactivate the driver heated seat. See Heated seats in the Seating and Safety Restraints chapter. Outside temperature (if equipped): The outside temperature will appear in the display and is labeled EXT TEMP. To change the display between Fahrenheit and Celsius, see Message center in the Instrument Cluster chapter. 39 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Climate Controls Operating tips • To reduce fog build up on the windshield during humid weather, select (defrost) or (floor/defrost). • To reduce humidity build up inside the vehicle, do not drive with the system off or with (recirculated air) engaged and A/C off. airflow to the back seats. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the time to reach comfort in hot weather, drive with the the windshield. windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.” During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the P (Park) gear position (automatic transmission only) to continue to receive cool air from your A/C system. For maximum cooling performance in MAX A/C mode: 1. Select MAX A/C. 2. Select the coolest temperature setting. 3. Set the fan to the highest speed initially. As the interior starts to cool down, adjust the fan speed to maintain comfort. To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. 40 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) DUAL AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED) Climate Controls 1. AUTO/Driver temperature: Press to engage full automatic operation. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. Turn to increase/decrease the temperature on the driver side of the vehicle. The control also adjusts the passenger side temperature when PASS TEMP is disengaged. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The driver side temperature setting will appear in the upper left corner of the display. 2. R Rear defroster: Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information. Defrost: Distributes outside air through the windshield defroster 3. vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection. Press AUTO to return to full automatic control. : Distributes air through the windshield defroster vents, demister 4. vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging. Press AUTO to return to full automatic control. 41 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Climate Controls Power/ : Press to activate/deactivate the climate control Passenger heated seat control (if equipped): Press to : Distributes air through the instrument panel vents, demister : Distributes air through the demister vents, floor vents and rear : Distributes air through the instrument panel vents. Press AUTO 5. system. When the system is off, outside air is prevented from entering the vehicle through the vents. Turn to manually increase/decrease the fan speed. The manual fan speed setting will appear on the left side of the display. Press AUTO to return to full automatic control. 6. to return to full automatic control. 7. vents, floor vents and rear seat floor vents. Press AUTO to return to full automatic control. 8. seat floor vents. Press AUTO to return to full automatic control. 9. Pass Temp (passenger temperature): Press to engage/disengage separate passenger side temperature control. Turn to increase/decrease the temperature on the passenger side of the vehicle. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The passenger side temperature setting will appear in the upper right corner of the display. 10. activate/deactivate the passenger heated seat. See Heated seats in the Seating and Safety Restraints chapter. 11. in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except (defrost). Recirculated air may turn off automatically in some airflow modes to reduce fog potential. When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is either AUTO, (panel/floor). 12. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation. 13. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C, 42 Recirculated air: Press to activate/deactivate air recirculation (floor/defrost). (defrost) and (panel) or 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Climate Controls Driver heated seat control (if equipped): Press to 14. activate/deactivate the driver heated seat. See Heated seats in the Seating and Safety Restraints chapter. Outside temperature: The outside temperature will appear in the display and is labeled EXT TEMP. Temperature conversion: To switch between Fahrenheit and Celsius: If your vehicle is equipped with a message center, refer to Setup menu in the Message center section of the Driver Controls chapter. select (defrost) or (floor/defrost). system OFF or with Operating tips • To reduce fog build up on the windshield during humid weather, • To reduce humidity build up inside the vehicle, do not drive with the (recirculated air) engaged and A/C off. • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.” airflow to the back seats. the windshield. During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the PARK gear position (automatic transmission only) to continue to receive cool air from your A/C system. For maximum cooling performance: • Automatic operation: 1. Press AUTO for full automatic operation. 2. Do not override A/C or 3. Set the temperature to 60°F (16°C). • Manual operation: 1. Select MAX A/C. 2. Select (recirculated air). or 3. Select (recirculated air) to provide colder airflow. 43 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Climate Controls 4. Set the temperature to 60°F (16°C). 5. Set highest fan setting initially, then adjust to maintain comfort. To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. to turn the rear window defroster on. An indicator light on the REAR WINDOW DEFROSTER R The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice. The engine must be running to operate the rear window defroster. Press R button will illuminate when active. The rear window defroster turns off automatically after a predetermined amount of time, if a low battery condition is detected or when the ignition is turned off or to the accessory position. To manually turn off the rear window defroster at any time, press the control again. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both. Refer to Heated outside mirrors in the Driver Controls chapter. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside or the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty. 44 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Lights to turn on the HEADLAMP CONTROL Rotate the headlamp control to the first position parking lamps. Rotate to the second position turn on the headlamps. Rotate back to headlamps off. to turn the to Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The autolamp system is factory programmed to keep the lights on for 20 seconds after the ignition switch is turned to off. This delay can be programmed, using the procedure listed below, to any value up to 180 seconds. If equipped, this delay can also be programmed through the message center • To turn autolamps on, rotate the control counterclockwise. • To turn autolamps off, rotate the control clockwise to the off position. Note: If the vehicle is equipped with autolamps it will have the headlamps on with windshield wipers feature. If the windshield wipers are turned on for a brief period of time, the exterior lamps will turn on with the headlamp control in the autolamp position. 45 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Lights Autolamp delay system (if equipped) If your vehicle is equipped with autolamps, you can set the delay time to keep the headlights on for up to three minutes after the key is turned off. The delay time is set to 20 seconds at the factory, but the delay time may be changed by following the steps below (Steps 1 through 6 must be done within 10 seconds): 1. Turn the key to the off position. 2. Rotate the headlamp control to the autolamp position. 3. Rotate the headlamp control to the off position. 4. Turn the key to the on position. 5. Turn the key back to the off position. 6. Turn the headlamp control to the autolamp position (the headlights should turn on). 7. Turn the headlamp control to the off position when the desired delay time (up to 3 minutes) has been reached. Fog lamp control (if equipped) The headlamp control also operates the fog lamps. The fog lamps can be turned on when the headlamp control is in the positions and the high beams are not turned on. Pull the headlamp control towards you to turn the fog lamps on. The fog lamp indicator light illuminate. will or High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate. 46 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Flash to pass Pull toward you slightly to activate and release to deactivate. Lights Daytime running lamps (DRL) (if equipped) Turns the lowbeam headlamps on with a reduced output. To activate: • the ignition must be in the on position. • the headlamp control must be in the off, parking lamps or autolamp • with automatic transmission, the transmission is not in P (Park), • with manual transmission, the parking brake must be released. position. WARNING: Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision. PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps. Rotate to full down position (past detent) to prevent interior lamps from illuminating when the doors are opened. 47 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Lights Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full Dome/ON position to reset. This will ensure that your displays are visible under all lighting conditions. AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, the alignment of your headlamps should be checked by your authorized dealer. ground Vertical aim adjustment 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height from the center of your headlamp to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a 3.0 mm circle on the headlamp lens. 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. Cover the left-hand headlamp with an opaque cloth. 4. On the wall or screen you will observe a light pattern with a distinct horizontal edge of high intensity light towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted. 48 2009 Escape (204) Owners Guide (own2002), 3rd Printing USA (fus) Lights 5. Locate the vertical adjuster on the headlamp, then turn the adjuster either clockwise (to adjust up) or counterclockwise (to adjust down) aligning the upper edge of the light pattern to the horizontal line. 6. Move the opaque cloth to cover the right-hand headlamp and repeat
