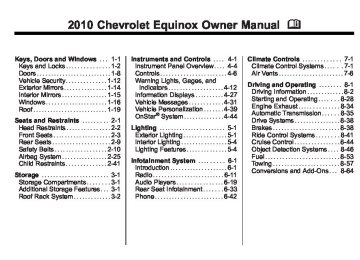

2010 Chevrolet Equinox Owners Manual

2010 Chevrolet Equinox Owner Manual M

Keys, Doors and Windows . . . 1-1
Keys and Locks . . . . . . . . . . . . . . . 1-2
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Vehicle Security. . . . . . . . . . . . . . 1-12
Exterior Mirrors . . . . . . . . . . . . . . . 1-14
Interior Mirrors . . . . . . . . . . . . . . . . 1-15
Windows . . . . . . . . . . . . . . . . . . . . . 1-16
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19

Seats and Restraints . . . . . . . . . 2-1
Head Restraints . . . . . . . . . . . . . . . 2-2
Front Seats . . . . . . . . . . . . . . . . . . . . 2-3
Rear Seats . . . . . . . . . . . . . . . . . . . . 2-9
Safety Belts . . . . . . . . . . . . . . . . . . 2-10
Airbag System . . . . . . . . . . . . . . . . 2-25
Child Restraints . . . . . . . . . . . . . . 2-41

Storage . . . . . . . . . . . . . . . . . . . . . . . 3-1
Storage Compartments . . . . . . . . 3-1
Additional Storage Features . . . 3-1
Roof Rack System . . . . . . . . . . . . . 3-2

Instruments and Controls . . . . 4-1

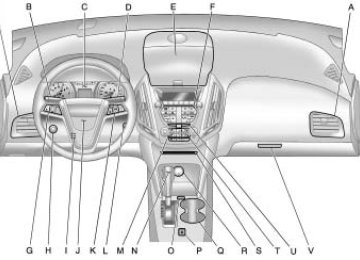

Instrument Panel Overview . . . . 4-4
Controls . . . . . . . . . . . . . . . . . . . . . . . 4-6
Warning Lights, Gages, and

Indicators . . . . . . . . . . . . . . . . . . . 4-12
Information Displays . . . . . . . . . . 4-27
Vehicle Messages . . . . . . . . . . . . 4-31
Vehicle Personalization . . . . . . . 4-39
OnStar® System . . . . . . . . . . . . . . 4-44

Lighting . . . . . . . . . . . . . . . . . . . . . . . 5-1
Exterior Lighting . . . . . . . . . . . . . . . 5-1
Interior Lighting . . . . . . . . . . . . . . . . 5-4
Lighting Features . . . . . . . . . . . . . . 5-4

Infotainment System . . . . . . . . . 6-1
Introduction . . . . . . . . . . . . . . . . . . . . 6-1
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Audio Players . . . . . . . . . . . . . . . . 6-19
Rear Seat Infotainment . . . . . . . 6-33
Phone . . . . . . . . . . . . . . . . . . . . . . . . 6-42

Climate Controls . . . . . . . . . . . . . 7-1
Climate Control Systems . . . . . . 7-1
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 7-6

Driving and Operating . . . . . . . . 8-1
Driving Information . . . . . . . . . . . . . 8-2
Starting and Operating . . . . . . . 8-28
Engine Exhaust . . . . . . . . . . . . . . 8-34
Automatic Transmission . . . . . . 8-35
Drive Systems . . . . . . . . . . . . . . . . 8-38
Brakes . . . . . . . . . . . . . . . . . . . . . . . 8-38
Ride Control Systems . . . . . . . . 8-41
Cruise Control . . . . . . . . . . . . . . . . 8-44
Object Detection Systems . . . . 8-46
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 8-53
Towing . . . . . . . . . . . . . . . . . . . . . . . 8-57
Conversions and Add-Ons . . . 8-64

2010 Chevrolet Equinox Owner Manual M

Technical Data . . . . . . . . . . . . . . . 11-1
Vehicle Identification . . . . . . . . . . 11-1
Vehicle Data . . . . . . . . . . . . . . . . . . 11-2

Customer Information . . . . . . . 12-1
Customer Information . . . . . . . . 12-1
Reporting Safety Defects . . . . 12-13
Vehicle Data Recording and

Privacy. . . . . . . . . . . . . . . . . . . . 12-15
Index . . . . . . . . . . . . . . . . . . . . . i-1

Vehicle Care . . . . . . . . . . . . . . . . . . 9-1
General Information . . . . . . . . . . . . 9-2
Vehicle Checks . . . . . . . . . . . . . . . . 9-4
Headlamp Aiming . . . . . . . . . . . . 9-31
Bulb Replacement . . . . . . . . . . . . 9-33
Electrical System . . . . . . . . . . . . . 9-37
Wheels and Tires . . . . . . . . . . . . . 9-43
Jump Starting . . . . . . . . . . . . . . . . 9-74
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-78
Appearance Care . . . . . . . . . . . . . 9-81

Service and Maintenance . . . 10-1
General Information . . . . . . . . . . 10-1
Scheduled Maintenance . . . . . . 10-2
Recommended Fluids,

Lubricants, and Parts . . . . . . . 10-7
Maintenance Records . . . . . . . 10-10

Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division wherever it appears in this manual. Keep this manual in the vehicle for quick reference.

Introduction

iii

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.

GENERAL MOTORS, GM, the GM Emblem, CHEVROLET, the CHEVROLET Emblem, the name Equinox and the Equinox Emblem are registered trademarks of General Motors. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual.

Litho in U.S.A. Part No. 25798562 B Second Printing

©2009 General Motors. All Rights Reserved.

iv

Introduction

limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Copyright 1992-1997 Dolby Laboratories. All rights reserved. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other

“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

Canadian Vehicle Owners

Propriétaires Canadiens A French language copy of this manual can be obtained from your dealer/retailer or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante: Helm, Incorporated P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
Numéro de poste 6438 de langue française www.helminc.com

Using this Manual To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

Danger, Warnings, and Cautions Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death.

{ WARNING

These mean there is something that could hurt you or other people.

Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.

A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this” or “Do not let this happen.”

Introduction

Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gage, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information.

vi

Introduction

Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls or OnStar® $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps

# : Fog Lamps . : Fuel Gage + : Fuses i : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure } : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor F : Traction Control M : Windshield Washer Fluid

Keys, Doors and Windows

1-1

Exterior Mirrors

Convex Mirrors . . . . . . . . . . . . . . 1-14
Power Mirrors . . . . . . . . . . . . . . . . 1-14
Heated Mirrors . . . . . . . . . . . . . . . 1-15
Park Tilt Mirrors . . . . . . . . . . . . . . 1-15

Interior Mirrors

Manual Rearview Mirror . . . . . . 1-15
Automatic Dimming Rearview

Mirror . . . . . . . . . . . . . . . . . . . . . . . 1-16

Windows

Windows . . . . . . . . . . . . . . . . . . . . . 1-16
Power Windows . . . . . . . . . . . . . 1-17
Sun Visors . . . . . . . . . . . . . . . . . . . 1-18

Roof

Sunroof . . . . . . . . . . . . . . . . . . . . . . 1-19

Keys, Doors and Windows

Keys and Locks

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Remote Keyless Entry (RKE)

System . . . . . . . . . . . . . . . . . . . . . . 1-3

Remote Keyless Entry (RKE)

System Operation . . . . . . . . . . . 1-3
Remote Vehicle Start . . . . . . . . . 1-5
Door Locks . . . . . . . . . . . . . . . . . . . 1-6
Power Door Locks . . . . . . . . . . . . 1-7
Safety Locks . . . . . . . . . . . . . . . . . . 1-7

Doors

Liftgate (Manual) . . . . . . . . . . . . . . 1-8
Liftgate (Power) . . . . . . . . . . . . . . . 1-9

Vehicle Security

Vehicle Security . . . . . . . . . . . . . . 1-12
Anti-Theft Alarm System . . . . . 1-12
Immobilizer . . . . . . . . . . . . . . . . . . 1-13
Immobilizer Operation . . . . . . . 1-13

1-2

Keys, Doors and Windows

Keys and Locks

Keys

{ WARNING

Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window. Do not leave the keys in a vehicle with children.

The key, that is part of the Remote Keyless Entry (RKE) transmitter, can be used for the ignition and all locks.

Press the button on the RKE transmitter to extend the key. Press the button and the key blade to retract the key. See your dealer/retailer if a new key is needed. Notice: If you ever lock your keys in the vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys. If you are locked out of the vehicle, see Roadside Assistance Program on page 12‑6 or OnStar® System on page 4‑44 .

Keys, Doors and Windows

1-3

Remote Keyless Entry (RKE) System See Radio Frequency Statement on page 12‑16 for information regarding Part 15 of the Federal Communications Commission (FCC) Rules and RSS-210/211 of Industry and Science Canada. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment. If there is a decrease in the RKE operating range: . Check the distance. The

transmitter may be too far from the vehicle.

. Check the location. Other vehicles or objects may be blocking the signal.

. Check the transmitter's battery.

See “Battery Replacement” later in this section. If the transmitter is still not working correctly, see your dealer/retailer or a qualified technician for service.

Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter will work up to 60 m (195 feet) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 1‑3.

RKE without Remote Start Shown The following may be available: Q (Lock): Press to lock all doors. The turn signal indicators may flash and/or the horn may sound to indicate locking, see “Remote Lock Feedback” under Vehicle Personalization on page 4‑39 . If a passenger door is open when Q is pressed, all doors lock. If the driver door is open when Q is pressed, all doors lock except the driver door. These settings can be modified.

1-4

Keys, Doors and Windows

See “Unlocked Door Anti Lock Out” under Vehicle Personalization on page 4‑39 . Pressing Q may also arm the theft-deterrent system. See Anti-Theft Alarm System on page 1‑12 . K (Unlock): Press to unlock the driver door or all doors, see “Remote Door Unlock” under Vehicle Personalization on page 4‑39 . The turn signal indicators flash to indicate unlocking has occurred. For more information see “Remote Unlock Light Feedback” under Vehicle Personalization on page 4‑39 . Pressing K may also disarm the theft-deterrent system. See Anti-Theft Alarm System on page 1‑12 .

V (Remote Liftgate Release): First press K , then press and hold V to unlock the liftgate. For vehicles with the power liftgate, press and hold V until the liftgate begins to move to open the liftgate. 7 (Vehicle Locator/Panic Alarm): Press and release one time to locate the vehicle. The exterior lamps flash and the horn chirps. Press and hold 7 for at least two seconds to sound the panic alarm. The horn sounds and the turn signals flash until 7 is pressed again or the key is placed in the ignition and turned to ON/RUN. / (Remote Vehicle Start): For vehicles with this feature, first press Q then press and hold / to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start on page 1‑5
for additional information.

Programming Transmitters to the Vehicle Only RKE transmitters programmed to this vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer/retailer. When the replacement transmitter is programmed to this vehicle, all remaining transmitters must also be reprogrammed. Any lost or stolen transmitters will no longer work once the new transmitter is programmed. Battery Replacement Replace the battery if the “Replace Battery in Remote Key” message displays in the DIC. See “Replace Battery in Remote Key” under Key and Lock Messages on page 4‑35. The battery is not rechargeable. See your dealer/retailer to replace the battery.

Keys, Doors and Windows

1-5

Remote Vehicle Start The vehicle may have this feature that allows you to start the engine from outside the vehicle. / (Remote Vehicle Start): This button will be on the RKE transmitter if the vehicle has remote start. To enable and disable remote start, see “Remote Vehicle Start” under Vehicle Personalization on page 4‑39 . Vehicles with an automatic climate control system will default to a heating or cooling mode depending on the outside temperature during a remote start. Once the key is turned to ON/RUN, the system will turn on at the setting the vehicle was last set to. Laws in some local communities may restrict the use of remote starters. For example, some laws require a person using remote start to have the vehicle in view. Check local regulations for any requirements.

There are other conditions which can affect the performance of the transmitter, see Remote Keyless Entry (RKE) System on page 1‑3
for additional information.

Starting the Engine Using Remote Start To start the engine using the remote start feature: 1. Press Q on the RKE transmitter. 2. Press and hold / for about

two seconds. The turn signal lamps will briefly flash to confirm the vehicle has been started. The parking lamps will turn on and remain on as long as the engine is running. The vehicle's doors will be locked.

3. The key must be inserted and

turned to ON/RUN before driving. The engine will shut off after 10 minutes unless a time extension is done or the key is inserted and turned to ON/RUN.

Extending Engine Run Time For a 10-minute extension, repeat Steps 1 and 2 while the engine is still running. The remote start can be extended once. When the remote start is extended, the second 10 minutes will start immediately. For example, if the engine has been running for five minutes, and 10 minutes are added, the engine will run for a total of 15 minutes. A maximum of two remote starts or remote start attempts are allowed between ignition cycles. The vehicle's ignition switch must be turned to ON/RUN and then back to LOCK/OFF using the key, before the remote start procedure can be used again.

1-6

Keys, Doors and Windows

Shutting the Engine Off After a Remote Start To shut off the engine: . Press / until the parking lamps

turn off. Turn on the hazard warning flashers. Insert the key and turn it to ON/RUN and then back to LOCK/OFF.

Conditions in Which Remote Start Will Not Work The remote vehicle start feature will not operate if:

The key is in the ignition. The hood or doors are not closed. The hazard warning flashers are on. There is an emission control system malfunction. The engine coolant temperature is too high.

The oil pressure is low. Two remote vehicle starts have already been used. The vehicle is not in P (Park).

Door Locks

{ WARNING Unlocked doors can be dangerous.

. Passengers, especially

children, can easily open the doors and fall out of a moving vehicle. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked. So, all passengers should wear safety belts properly and the doors should be locked whenever the vehicle is driven.

(Continued)

WARNING (Continued)

. Young children who get into

unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock the vehicle whenever leaving it.

. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening.

To lock or unlock a door from the outside of the vehicle, use the Remote Keyless Entry (RKE) transmitter. Pull the handle once from the inside to unlock the door, and a second time to open it.

Keys, Doors and Windows

1-7

Safety Locks Rear door security locks prevent passengers from opening the rear doors from the inside. Press (C) to activate the safety locks. Once activated, the LED light, changes to amber. Pressing the button again deactivates the safety locks. See Power Door Locks on page 1‑7 .

When locking the doors with the power lock switch and a door or the liftgate is open, the doors will lock five seconds after the last door is closed. You will hear three chimes to signal that the delayed locking feature is in use. Pressing the power lock switch twice or Q on the RKE transmitter twice will override the delayed locking feature and immediately lock all the doors. This feature will not operate if the key is in the ignition. This feature can be programmed. See “Delayed Door Lock” under Vehicle Personalization on page 4‑39 .

Power Door Locks

A. Door Unlock B. Door Lock C. Safety Lock The power door lock switches are located on the instrument panel. . Press (A) to unlock the doors. . Remove the key from the

ignition and press (B) to lock the doors.

1-8

Keys, Doors and Windows

Doors

Liftgate (Manual)

{ WARNING

Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. (Continued)

WARNING (Continued)

If the vehicle must be driven with the liftgate, or trunk/hatch open:

. Close all of the windows. . Fully open the air outlets on

or under the instrument panel.

. Adjust the Climate Control

system to a setting that brings in only outside air and set the fan speed to the highest setting. See Climate Control System in the Index.

For more information about carbon monoxide, see Engine Exhaust on page 8‑34.

Notice: If you open the liftgate without checking for overhead obstructions such as a garage door, you could damage the liftgate or the liftgate glass. Always check to make sure the area above and behind the liftgate is clear before opening it. Press the touchpad located in the handle of the liftgate, above the license plate, and lift up to open. Do not press the touchpad while closing the liftgate. This will cause the liftgate to be unlatched. Always close the liftgate before driving.

Liftgate (Power)

Power Liftgate Operation

{ WARNING

Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. If the vehicle must be driven with the liftgate, or trunk/hatch open:

. Close all of the windows. . Fully open the air outlets on

or under the instrument panel.

(Continued)

Keys, Doors and Windows

1-9

WARNING (Continued)

. Adjust the Climate Control

system to a setting that brings in only outside air and set the fan speed to the highest setting. See Climate Control System in the Index. . If the vehicle is equipped with

a power liftgate, disable the power liftgate function. For more information about carbon monoxide, see Engine Exhaust on page 8‑34.

On vehicles with a power liftgate, the switch is located on the overhead console. The vehicle must be in P (Park) to use the power feature. The taillamps flash when the power liftgate moves.

{ WARNING

You or others could be injured if caught in the path of the power liftgate. Make sure there is no one in the way of the liftgate as it is opening and closing.

Notice: If you open the liftgate without checking for overhead obstructions such as a garage door, you could damage the liftgate or the liftgate glass. Always check to make sure the area above and behind the liftgate is clear before opening it. The power liftgate has three modes of operation. Mode selection is controlled by the interior mode switch.

1-10

Keys, Doors and Windows

such as a garage door or roof mounted cargo during power operation. The liftgate can still be fully opened manually. OFF: The liftgate only operates manually in this position. Manual operation of a liftgate that also has power operation requires more effort than with a standard manual liftgate. In either the MAX or the 3/4 mode, the liftgate can be power opened and closed by:

First pressing K and then pressing and holding V on the Remote Keyless Entry (RKE) transmitter until the liftgate starts moving. See Remote Keyless Entry (RKE) System Operation on page 1‑3 .

. Pressing the power liftgate

button on the center of the mode switch, located on the overhead console.

. Pressing the touchpad switch on

the liftgate outside handle to open the liftgate.

Press and release & on the liftgate adjacent to the latch to close the liftgate.

Choose the power liftgate mode by turning the dial on the switch until the indicator lines up with the desired position. The vehicle must be in P (Park). The three modes are: MAX : The liftgate power opens to the full open height. 3/4 : The liftgate power opens to a reduced open height that can be set by the vehicle operator. Use this setting to prevent the liftgate from opening into overhead obstructions

Keys, Doors and Windows

1-11

Pressing any button, or the touchpad switch while the liftgate is moving stops it. Pressing the button or RKE switch again reverses the direction. The touch pad switch will stop the liftgate from moving. There is a minimum distance that the power liftgate must already be open for the system to hold it open. If movement is stopped below that minimum the liftgate closes. Do not force the liftgate open or closed during a power cycle. The power liftgate may be temporarily disabled under extreme temperatures or low battery conditions. If this occurs, the liftgate can still be operated manually. If you shift the transmission out of P (Park) while the power function is in progress, the liftgate power function will continue to completion. If you shift the transmission out of P (Park) and accelerate before the power liftgate latch is closed, the liftgate may reverse to the open

position. Cargo could fall out of the vehicle. Always make sure the power liftgate is closed and latched before you drive away. If you power open the liftgate and the liftgate support struts have lost pressure, the turn signals flash and a chime sounds. The liftgate stays open temporarily, then slowly closes. See your dealer/retailer for service before using the liftgate. Obstacle Detection Features If the liftgate encounters an obstacle during a power open or close cycle, a warning chime will sound and the liftgate will automatically reverse direction to the full closed or open position. After removing the obstruction, the power liftgate operation can be used again. If the liftgate encounters multiple obstacles on the same power cycle, the power function will deactivate. The “Manually Close Power Liftgate” warning message in the Driver Information Center (DIC)

will display. After removing the obstructions, the liftgate will resume normal power operation. Your vehicle has pinch sensors located on the side edges of the liftgate. If an object is caught between the liftgate and the body and presses against this sensor, the liftgate will reverse direction and open fully. The liftgate will remain open until it is activated again or closed manually. Setting the Power Liftgate 3/4 Mode To change the liftgate stop position: 1. Turn the liftgate switch to the 3/4 mode position and power open the liftgate.

2. Stop the liftgate movement at the desired height by pressing any switch.

3. Press and hold the button on the liftgate adjacent to the latch until the turn signals flash and a beep sounds to indicate that the new setting is recorded.

1-12

Keys, Doors and Windows

When power opened with the 3/4 mode selected, the liftgate stops at the new set position. There is a minimum that the power liftgate must already be open for the system to hold it open. The liftgate cannot be set to stop below that minimum. Manual Operation of Power Liftgate To change the liftgate to manual operation, turn the mode switch to the OFF position. With the power liftgate disabled and all of the doors unlocked, the liftgate can be manually opened and closed. Manual operation of a liftgate that also has power operation requires more effort than with a standard manual liftgate.

To open the liftgate, press the touchpad on the handle on the outside of the liftgate, and lift the gate open. To close the liftgate, use the pull cup to lower the liftgate and close. With the power liftgate disabled the liftgate electric latch will still power latch once contact is made with the striker. Always close the liftgate before driving. If the RKE button is pressed while power operation is disabled, the turn signals flash and the liftgate will not move. The liftgate has an electric latch. If the battery is disconnected or has low voltage, the liftgate will not open. The liftgate will resume operation when the battery is reconnected and charged.

Vehicle Security Vehicle theft is big business, especially in some cities. This vehicle has theft-deterrent features, however, they do not make it impossible to steal.

Anti-Theft Alarm System This vehicle has an anti-theft alarm system. Arming the System To arm the system, either: . Press Q on the RKE transmitter. . Or, lock the vehicle using the

key in the driver door.

The alarm automatically arms after about 30 seconds. The security light, located on the instrument panel, flashes. Press V on the RKE transmitter to open the liftgate without setting off the alarm. The system rearms when the liftgate is closed.

Keys, Doors and Windows

1-13

Disarming the System To disarm the system, do one of the following: . Press K on the RKE transmitter.

Turn the ignition to ON/RUN.

. Allow the alarm to time out after

about 30 seconds and reset itself.

The alarm automatically disarms. If the system is armed and any door is unlocked without pressing K on the RKE transmitter the alarm sounds. How to Detect a Tamper Condition If K is pressed and the horn sounds, an attempted break-in has occurred while the system was armed.

If the alarm has been activated, the “Theft Attempted” message will appear on the DIC. See Key and Lock Messages on page 4‑35 for additional information.

Immobilizer See Radio Frequency Statement on page 12‑16 for information regarding Part 15 of the Federal Communications Commission (FCC) Rules and RSS-210/211 of Industry and Science Canada.

Immobilizer Operation This vehicle has a passive theft-deterrent system. The system does not have to be manually armed or disarmed. The vehicle is automatically immobilized when the key is removed from the ignition. The system is automatically disarmed when the vehicle is started with the correct key.

The key uses a transponder that matches an immobilizer control unit in the vehicle and automatically disarms the system. Only the correct key starts the vehicle. The vehicle may not start if the key is damaged.

The security light, located in the instrument panel cluster, comes on if there is a problem with arming or disarming the theft-deterrent system. When trying to start the vehicle, the security light comes on briefly when the ignition is turned on. If the engine does not start and the security light stays on there is a problem with the system. Turn the ignition off and try again.

1-14

Keys, Doors and Windows

If the engine still does not start, and the key appears to be undamaged or the light continues to stay on, try another ignition key. If the engine does not start with the other key, the vehicle needs service. If the vehicle does start, the first key may be damaged. See your dealer/retailer who can service the theft-deterrent system and have a new key made. Do not leave the key or device that disarms or deactivates the theft deterrent system in the vehicle.

Exterior Mirrors

Power Mirrors

Convex Mirrors

{ WARNING

A convex mirror can make things, like other vehicles, look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on the right. Check the inside mirror or glance over your shoulder before changing lanes.

The passenger side mirror is convex shaped. A convex mirror's surface is curved so more can be seen from the driver seat.

Controls for the outside power mirrors are located on the driver door. To adjust the mirrors: 1. Move the selector switch to

L (left) or R (right) to choose the driver or passenger mirror.

2. Press the arrows on the control pad to move each mirror to the desired direction.

3. Adjust each outside mirror so

that the side of the vehicle and the area behind are seen.

4. Return the selector switch to the

middle position.

Heated Mirrors For vehicles with heated mirrors: < (Rear Window Defogger): Press to heat the mirrors. See “Rear Window Defogger” under Automatic Climate Control System on page 7‑3 for more information.

Keys, Doors and Windows

1-15

Park Tilt Mirrors If the vehicle has the memory package, the outside mirrors have a park tilt feature. This feature autiomatically tilts the outside mirrors to a preselected position when the vehicle is in R (Reverse). This allows the driver to view the curb for parallel parking. The passenger and driver mirrors return to their original position when the vehicle is shifted out of R (Reverse), or the ignition is turned off or to OFF/LOCK. This feature can be turned on or off through the Driver Information Center (DIC). See Vehicle Personalization on page 4‑39 for more information.

Interior Mirrors

Manual Rearview Mirror Hold the inside rearview mirror in the center to move it for a clearer view of behind your vehicle. Adjust the mirror to avoid glare from the headlamps behind you. Push the tab forward for daytime use and pull it for nighttime use. Vehicles with OnStar® have three additional control buttons located at the bottom of the mirror. See your dealer/retailer for more information on the system and how to subscribe to OnStar. See OnStar® System on page 4‑44 for more information about the services OnStar provides.

1-16

Keys, Doors and Windows

Automatic Dimming Mirror Operation Automatic dimming reduces the glare from the headlamps of the vehicle behind you. The dimming feature comes on and the indicator light comes on each time the vehicle is started. Cleaning the Mirror Do not spray glass cleaner directly on the mirror. Use a soft towel dampened with water.

Windows

{ WARNING

Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.

Automatic Dimming Rearview Mirror The vehicle may have an automatic dimming inside rearview mirror. Vehicles with OnStar® have three additional control buttons located at the bottom of the mirror. See your dealer/retailer for more information on the system and how to subscribe to OnStar. See OnStar® System on page 4‑44 for more information about the services OnStar provides. O : Press to turn automatic dimming on or off. If the vehicle has a rear vision camera (RVC) the O button for turning the automatic dimming feature on or off will not be available. See Rear Vision Camera (RVC) on page 8‑49 for more information.

Keys, Doors and Windows

1-17

Power Windows

{ WARNING

Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function and they could be seriously injured or killed if caught in the path of a closing window. Do not leave keys in a vehicle with children. When there are children in the rear seat use the window lockout button to prevent unintentional operation of the windows.

Uplevel shown, base similar

The power window controls are located on each of the side doors. The driver door also has switches that control the passenger and rear windows. The power windows work when the ignition is in ACC/ACCESSORY, ON/RUN or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 8‑29 . Press or pull on the switch to lower or raise the window.

1-18

Keys, Doors and Windows

Express Down Windows Windows that have the express‐down feature allow the windows to be lowered without holding the switch. Press the window switch fully and release it to activate the express‐down feature. The express mode can be canceled at any time by briefly pressing, or pulling the switch. Programming the Power Windows Programming the power windows may be necessary if the vehicle's battery has been disconnected or discharged.

To program the window: 1. Close all doors with the ignition

in the ACC/ACCESSORY, ON/RUN position, or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 8‑29.

2. Press and continue to hold the window switch until the window is fully open.

3. Pull up and hold the window switch to close the window. Continue to hold it briefly after the window is fully closed.

Window Lockout o (Window Lockout): The window lockout switch is located on the driver door. This feature prevents the rear passenger windows from operating, except from the driver position. Press the switch to turn the lockout feature on or off. An indicator light shows the feature is on.

Sun Visors Pull the sun visor down to block glare. Detach the sun visor from the center mount and slide it along the rod from side-to-side to cover the driver or passenger side of the front window. Swing the sun visor to the side to cover the side window. It can be moved along the rod from side-to-side in this position also.

Keys, Doors and Windows

1-19

Roof

Sunroof On vehicles with a sunroof, the switches used to operate it are located on the headliner above the rearview mirror. The ignition must be in ON/RUN, ACC/ACCESSORY, or in Retained Accessory Power (RAP) to operate the sunroof. See Ignition Positions on page 8‑28 and Retained Accessory Power (RAP) on page 8‑29 .

. Press and hold the front or

rear of the driver side switch to open or close the sunroof. The sunshade automatically opens with the sunroof, but must be closed manually.

. Press and hold the front of the passenger side switch to vent the sunroof. Press and hold the rear of the switch to close.

Express-open/Express-close Press and release the front or rear of the driver side switch to express-open or express-close the sunroof. Anti-Pinch Feature If an object is in the path of the sunroof when it is closing, the anti-pinch feature detects the object and stops the sunroof from closing at the point of the obstruction. The sunroof then returns to the full-open position.

1-20

Keys, Doors and Windows

2 NOTES

Seats and Restraints

2-1

Child Restraints

Older Children . . . . . . . . . . . . . . . 2-41
Infants and Young

Children . . . . . . . . . . . . . . . . . . . . 2-43
Child Restraint Systems . . . . . 2-46
Where to Put the Restraint . . . 2-48
Lower Anchors and Tethers

for Children (LATCH System) . . . . . . . . . . . . . . . . . . . . 2-50

Replacing LATCH System

Parts After a Crash . . . . . . . . . 2-55

Securing Child Restraints

(Rear Seat ) . . . . . . . . . . . . . . . . 2-56

Securing Child Restraints

(Front Passenger Seat) . . . . 2-58

Seats and Restraints

Head Restraints

Head Restraints . . . . . . . . . . . . . . . 2-2

Front Seats

Seat Adjustment . . . . . . . . . . . . . . 2-3
Power Seat Adjustment . . . . . . . 2-4
Lumbar Adjustment . . . . . . . . . . . 2-6
Reclining Seatbacks . . . . . . . . . . 2-6
Heated Front Seats . . . . . . . . . . . 2-8

Rear Seats

Rear Seats . . . . . . . . . . . . . . . . . . . . 2-9

Safety Belts

Safety Belts . . . . . . . . . . . . . . . . . . 2-10
How to Wear Safety Belts

Properly . . . . . . . . . . . . . . . . . . . . 2-13
Lap-Shoulder Belt . . . . . . . . . . . 2-19
Safety Belt Use During

Pregnancy . . . . . . . . . . . . . . . . . . 2-23
Safety Belt Extender . . . . . . . . . 2-23

Safety System Check . . . . . . . . 2-24
Safety Belt Care . . . . . . . . . . . . . 2-24
Replacing Safety Belt System

Parts After a Crash . . . . . . . . . 2-24

Airbag System

Airbag System . . . . . . . . . . . . . . . 2-25
Where Are the Airbags? . . . . . 2-27
When Should an Airbag

Inflate? . . . . . . . . . . . . . . . . . . . . . 2-29

What Makes an Airbag

Inflate? . . . . . . . . . . . . . . . . . . . . . 2-31

How Does an Airbag

Restrain? . . . . . . . . . . . . . . . . . . . 2-31

What Will You See After an

Airbag Inflates? . . . . . . . . . . . . 2-32

Passenger Sensing

System . . . . . . . . . . . . . . . . . . . . . 2-33

Servicing the Airbag-Equipped

Vehicle . . . . . . . . . . . . . . . . . . . . . 2-38

Adding Equipment to the

Airbag-Equipped Vehicle . . . 2-38
Airbag System Check . . . . . . . . 2-40
Replacing Airbag System

Parts After a Crash . . . . . . . . . 2-40

2-2

Seats and Restraints

Head Restraints The vehicle's front and rear seats have head restraints in all outboard seating positions.

{ WARNING

With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/ spinal injury in a crash. Do not drive until the head restraints for all occupants are installed and adjusted properly.

Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head. This position reduces the chance of a neck injury in a crash.

1. Pull the head restraint up to

raise it. To lower the head restraint, press the release button, located on the head restraint post on the top of the seatback, while you push the head restraint down.

2. Push down on the head restraint

after the button is released to make sure that it is locked in place.

The vehicle's rear seat head restraints are not adjustable.

Front Seats

Seat Adjustment

Seats and Restraints

2-3

To adjust the seat position: 1. Pull the handle located at the

front of the seat.

2. Move the seat forward or

backward to adjust the seat position.

3. Release the handle to stop the

seat from moving.

{ WARNING You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving.

2-4

Seats and Restraints

Power Seat Adjustment

Driver Seat with Power Seat

Control, Power Recline,

and Power Lumbar shown

A: Memory Seat Adjustment B: Power Seat Adjustment C: Power Recline Adjustment D: Power Lumbar Adjustment

Driver Seat with Power Seat

Control, Power Lumbar,

and Manual Recline shown

D: Power Lumbar Adjustment E: Power Seat Adjustment F: Manual Recline Adjustment On vehicles with power seats, the controls are located on the outboard side of the seats.

Adjust the power seat by moving the control (B) forward or rearward, up or down, or by pressing the top or bottom of control (E). Adjust the seatback by moving the control (C) forward or rearward. See Reclining Seatbacks on page 2‑6 for more information. Adjust the lumbar support by using the control (D). See Lumbar Adjustment on page 2‑6 for more information. Memory Seats The vehicle may have a memory seat allowing saved and recalled seat settings. Controls (A) are located on the outboard side of the seat.

Seats and Restraints

2-5

Memory Seat recall may stop if the seat is blocked. Remove the obstruction and then press the memory button again. If the memory function does not work properly, see your dealer/retailer for service. Easy Exit Seat If the easy exit seat feature is on in the Driver Information Center (DIC), automatic adjustment occurs when the ignition is turned to LOCK/OFF and the driver door is opened. The driver seat moves back. See Vehicle Personalization on page 4‑39 for more information.

Entry using the Remote Keyless Entry (RKE) transmitter with the remote recall feature on automatically adjusts the seat and mirrors. There is no adjustment when the position has not been changed by another seating position. When the remote recall feature is on, the seat and mirror position will be stored when the ignition is turned to LOCK/OFF. It is stored according to the RKE transmitter used to start the vehicle. To stop recall movement of the RKE remote recall feature, press one of the power seat controls, memory buttons, or power mirror buttons.

To save: 1. Adjust the driver seat, including the seatback recliner, and both outside mirrors, to a comfortable position.

2. Press and hold the MEM button

and button 1 at the same time until a beep indicates the position is stored.

A second seating and mirror position can be programmed by repeating the above steps and pressing button 2. To recall the memory positions, the vehicle must be in P (Park). Press and hold either button 1 or button 2
corresponding to the desired driving position. The seat, outside mirrors and pedals, if available move to the stored position. Releasing the button before the stored position is reached cancels the recall.

2-6

Seats and Restraints

Lumbar Adjustment

Reclining Seatbacks

Power Lumbar Seats with power lumbar have controls located on the outboard side of the seat. See Power Seat Adjustment on page 2‑4 for more information. Adjust lumbar support by using the rocker switch (D) on the outboard side of the driver seat. Release the switch when the seatback reaches the desired level of lumbar support.

Manual Reclining Seatbacks

{ WARNING You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving.

{ WARNING

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.

Vehicles with manual reclining seatbacks have a lever on the outboard side of the seat. Lift the lever and move the seatback to the desired position, then release the lever. The seatback should not move when pushed or pulled.

Power Reclining Seatbacks

{ WARNING

Seats and Restraints

2-7

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the safety belts cannot do their job when reclined like this. The shoulder belt cannot do its job because it will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries. The lap belt cannot do its job either. In a crash, the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the safety belt properly.

On vehicles with power reclining seatbacks, the switch is located on the outboard side of the seat. See Power Seat Adjustment on page 2‑4 for more information. Move the switch forward or rearward to adjust the seatback.

Do not have a seatback reclined if your vehicle is moving.

2-8

Seats and Restraints

Heated Front Seats { WARNING

If you cannot feel temperature change or pain to the skin, the seat heater may cause burns even at low temperatures. To reduce the risk of burns, people with such a condition should use care when using the seat heater, especially for long periods of time. Do not place anything on the seat that insulates against heat, such as a blanket, cushion, cover or similar item. This may cause the seat heater to overheat. An overheated seat heater may cause a burn or may damage the seat.

On vehicles with heated front seats, the controls are located near the climate controls. To operate the heated seats the ignition must be in ON/RUN.

lower setting, and then the off setting. The lights indicate three for the highest setting and one for the lowest. The passenger seat may take longer to heat up. When Remote Keyless Entry (RKE) transmitter is used to remote start the vehicle, the front heated seats will heat to the highest setting if it is cold outside. When the ignition is turned on with the key the heated seat feature turns off. Press the button to turn the feature back on. See Remote Vehicle Start on page 1‑5 .

Press the button L to heat the seat cushion and seatback. Press the button once for the highest setting. With each press, the heated seat will change to the next

Rear Seats

Split Folding Seatbacks With this feature, either side of the rear seatback can be folded down for more cargo space.

{ WARNING

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.

{ WARNING

A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash.

(Continued)

WARNING (Continued)

The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat. 1. To fold the seatback down:

The rear safety belts must be unbuckled and the front seatbacks are not reclined.

Seats and Restraints

2-9

2. Lift the lever located on the top

of the seatback.

3. Fold the seatback forward. Keep the seat in the upright locked position when not in use. To recline the seatback: 1. Lift and hold the lever located on

top of the seatback.

2. Tilt the seatback rearward, then

release the lever when the seatback is in the desired position.

2-10

Seats and Restraints

Safety Belts This section of the manual describes how to use safety belts properly. It also describes some things not to do with safety belts.

{ WARNING

Do not let anyone ride where a safety belt cannot be worn properly. In a crash, if you or your passenger(s) are not wearing safety belts, the injuries can be much worse. You can hit things inside the vehicle harder or be ejected from the vehicle. You and your passenger(s) can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passenger(s) are restrained properly too.

{ WARNING

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

This vehicle has indicators as a reminder to buckle the safety belts. See Safety Belt Reminders on page 4‑15 for additional information.

In most states and in all Canadian provinces, the law requires wearing safety belts. Here is why: You never know if you will be in a crash. If you do have a crash, you do not know if it will be a serious one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without safety belts they could have been badly hurt or killed. After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot!

Seats and Restraints

2-11

Put someone on it.

Get it up to speed. Then stop the vehicle. The rider does not stop.

Why Safety Belts Work When you ride in or on anything, you go as fast as it goes.

Take the simplest vehicle. Suppose it is just a seat on wheels.

2-12

Seats and Restraints

The person keeps going until stopped by something. In a real vehicle, it could be the windshield...

or the instrument panel...

or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.

Q: If I am a good driver, and I never drive far from home, why should I wear safety belts?

A: You may be an excellent driver, but if you are in a crash — even one that is not your fault — you and your passenger(s) can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers. Most accidents occur within 40 km (25 miles) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 65 km/h (40 mph). Safety belts are for everyone.

Seats and Restraints

2-13

How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on page 2‑41 or Infants and Young Children on page 2‑43 . Follow those rules for everyone's protection. It is very important for all occupants to buckle up. Statistics show that unbelted people are hurt more often in crashes than those who are wearing safety belts. Occupants who are not buckled up can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

Questions and Answers About Safety Belts Q: Will I be trapped in the vehicle after a crash if I am wearing a safety belt?

A: You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted. And you can unbuckle a safety belt, even if you are upside down.

Q: If my vehicle has airbags, why

should I have to wear safety belts?

A: Airbags are supplemental

systems only; so they work with safety belts — not instead of them. Whether or not an airbag is provided, all occupants still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions.

2-14

Seats and Restraints

First, before you or your passenger(s) wear a safety belt, there is important information you should know.

Sit up straight and always keep your feet on the floor in front of you. The lap part of the belt should be worn low and snug on the hips, just

Q: What is wrong with this?

touching the thighs. In a crash, this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force on your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash.

A: The shoulder belt is too loose.

It will not give as much protection this way.

{ WARNING

Q: What is wrong with this?

{ WARNING

Seats and Restraints

2-15

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit snugly against your body.

You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen. This could cause serious or even fatal injuries. The lap belt should be worn low and snug on the hips, just touching the thighs.

A: The lap belt is too loose. It will

not give nearly as much protection this way.

2-16

Seats and Restraints

Q: What is wrong with this?

{ WARNING

Q: What is wrong with this?

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

A: The belt is buckled in the wrong

buckle.

A: The belt is over an armrest.

{ WARNING

Q: What is wrong with this?

{ WARNING

Seats and Restraints

2-17

You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests.

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen. The shoulder belt should go over the shoulder and across the chest.

A: The shoulder belt is worn under the arm. It should be worn over the shoulder at all times.

2-18

Seats and Restraints

Q: What is wrong with this?

{ WARNING

Q: What is wrong with this?

You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury. You might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest.

A: The belt is behind the body.

A: The belt is twisted across

the body.

{ WARNING

You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to fix it.

Lap-Shoulder Belt All seating positions in the vehicle have a lap-shoulder belt. The following instructions explain how to wear a lap-shoulder belt properly. 1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index.

2. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged. If this happens, let the belt go back all the way and start again.

Seats and Restraints

2-19

4.

If equipped with a shoulder belt height adjuster, move it to the height that is right for you. See “Shoulder Belt Height Adjustment” later in this section for instructions on use and important safety information.

3. Push the latch plate into the

buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 2‑23 . Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.

5. To make the lap part tight, pull

up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants.

2-20

Seats and Restraints

To unlatch the belt, push the button on the buckle. For outboard seating positions, slide the latch plate up the safety belt webbing when the safety belt is not in use. The latch plate should rest on the stitching on the safety belt, near the guide loop.

Before a door is closed, be sure the safety belt is out of the way. If a door is slammed against a safety belt, damage can occur to both the safety belt and the vehicle. Shoulder Belt Height Adjuster The vehicle has a shoulder belt height adjuster for the driver and right front passenger seating positions. Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off the shoulder. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash.

Move the height adjuster up to the desired position by pushing up on the height adjuster. After the height adjuster is set to the desired position, try to move it up or down without pressing the release button (A) to make sure it has locked into position. Press the release button to lower the height adjuster.

Rear Safety Belt Comfort Guides This vehicle may have rear shoulder belt comfort guides. If not, they are available through your dealer/ retailer. The guides may provide added safety belt comfort for older children who have outgrown booster
