Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (1,1)

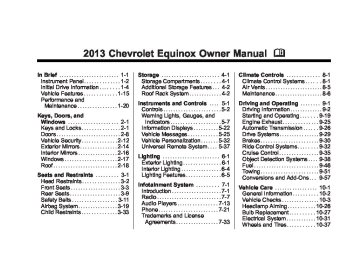

2013 Chevrolet Equinox Owner Manual M


In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information . . . . . . . . 1-4
Vehicle Features . . . . . . . . . . . . . 1-15
Performance and


Maintenance . . . . . . . . . . . . . . . . 1-20


Keys, Doors, and


Windows . . . . . . . . . . . . . . . . . . . . 2-1
Keys and Locks . . . . . . . . . . . . . . . 2-1
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Vehicle Security. . . . . . . . . . . . . . 2-12
Exterior Mirrors . . . . . . . . . . . . . . . 2-14
Interior Mirrors . . . . . . . . . . . . . . . . 2-16
Windows . . . . . . . . . . . . . . . . . . . . . 2-17
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18


Seats and Restraints . . . . . . . . . 3-1
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats . . . . . . . . . . . . . . . . . . . . 3-3
Rear Seats . . . . . . . . . . . . . . . . . . . . 3-9
Safety Belts . . . . . . . . . . . . . . . . . . 3-11
Airbag System . . . . . . . . . . . . . . . . 3-19
Child Restraints . . . . . . . . . . . . . . 3-33


Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storage Compartments . . . . . . . . 4-1
Additional Storage Features . . . 4-2
Roof Rack System . . . . . . . . . . . . . 4-2


Climate Controls . . . . . . . . . . . . . 8-1
Climate Control Systems . . . . . . 8-1
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 8-5
Maintenance . . . . . . . . . . . . . . . . . . . 8-6


Instruments and Controls . . . . 5-1
Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and


Indicators . . . . . . . . . . . . . . . . . . . . 5-7
Information Displays . . . . . . . . . . 5-22
Vehicle Messages . . . . . . . . . . . . 5-25
Vehicle Personalization . . . . . . . 5-32
Universal Remote System . . . . 5-37


Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exterior Lighting . . . . . . . . . . . . . . . 6-1
Interior Lighting . . . . . . . . . . . . . . . . 6-4
Lighting Features . . . . . . . . . . . . . . 6-5


Infotainment System . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . 7-1
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Audio Players . . . . . . . . . . . . . . . . 7-13
Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-21
Trademarks and License


Agreements . . . . . . . . . . . . . . . . . 7-33


Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-2
Starting and Operating . . . . . . . 9-19
Engine Exhaust . . . . . . . . . . . . . . 9-25
Automatic Transmission . . . . . . 9-26
Drive Systems . . . . . . . . . . . . . . . . 9-29
Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-30
Ride Control Systems . . . . . . . . 9-32
Cruise Control . . . . . . . . . . . . . . . . 9-35
Object Detection Systems . . . . 9-38
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-46
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-51
Conversions and Add-Ons . . . 9-57


Vehicle Care . . . . . . . . . . . . . . . . . 10-1
General Information . . . . . . . . . . 10-2
Vehicle Checks . . . . . . . . . . . . . . . 10-3
Headlamp Aiming . . . . . . . . . . . 10-26
Bulb Replacement . . . . . . . . . . 10-27
Electrical System . . . . . . . . . . . . 10-31
Wheels and Tires . . . . . . . . . . . 10-37


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (2,1)


2013 Chevrolet Equinox Owner Manual M


OnStar . . . . . . . . . . . . . . . . . . . . . . . 14-1
OnStar Overview . . . . . . . . . . . . . 14-1
OnStar Services . . . . . . . . . . . . . . 14-2
OnStar Additional


Information . . . . . . . . . . . . . . . . . . 14-5
Index . . . . . . . . . . . . . . . . . . . . . i-1


Jump Starting . . . . . . . . . . . . . . . 10-66
Towing . . . . . . . . . . . . . . . . . . . . . . 10-69
Appearance Care . . . . . . . . . . . 10-72


Service and Maintenance . . . 11-1
General Information . . . . . . . . . . 11-1
Maintenance Schedule . . . . . . . 11-2
Special Application


Services . . . . . . . . . . . . . . . . . . . . 11-8


Additional Maintenance


and Care . . . . . . . . . . . . . . . . . . . . 11-9


Recommended Fluids,


Lubricants, and Parts . . . . . . 11-12
Maintenance Records . . . . . . . 11-15


Technical Data . . . . . . . . . . . . . . . 12-1
Vehicle Identification . . . . . . . . . 12-1
Vehicle Data . . . . . . . . . . . . . . . . . . 12-2


Customer Information . . . . . . . 13-1
Customer Information . . . . . . . . 13-1
Reporting Safety Defects . . . . 13-12
Vehicle Data Recording and


Privacy. . . . . . . . . . . . . . . . . . . . 13-13


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (3,1)


Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division wherever it appears in this manual. Keep this manual in the vehicle for quick reference.


Introduction


iii


Canadian Vehicle Owners


Propriétaires Canadiens A French language manual can be obtained from your dealer, at www.helminc.com, or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse savant: Helm, Incorporated Attention: Customer Service 47911 Halyard Drive Plymouth, MI 48170


Using this Manual To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.


The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CHEVROLET, the CHEVROLET Emblem, and EQUINOX are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual.


Litho in U.S.A. Part No. 20960970 B Second Printing


©2012 General Motors LLC. All Rights Reserved.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (4,1)


iv


Introduction


Danger, Warnings, and Cautions Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death.


{ WARNING


These mean there is something that could hurt you or other people.


Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.


Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the Index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps # : Fog Lamps . : Fuel Gauge + : Fuses 3 : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp


A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.”


Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (5,1)


Introduction


: : Oil Pressure J : OnStar® } : Power / : Remote Vehicle Start > : Safety Belt Reminders % : Steering Wheel Controls 7 : Tire Pressure Monitor d : Traction Control/StabiliTrak® M : Windshield Washer Fluid


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (6,1)


vi


Introduction


2 NOTES


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (1,1)


In Brief


1-1


In Brief


Instrument Panel


Instrument Panel . . . . . . . . . . . . . . 1-2


Initial Drive Information


Initial Drive Information . . . . . . . . 1-4
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 1-4
Remote Vehicle Start . . . . . . . . . 1-4
Door Locks . . . . . . . . . . . . . . . . . . . 1-5
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Windows . . . . . . . . . . . . . . . . . . . . . . 1-6
Seat Adjustment . . . . . . . . . . . . . . 1-7
Memory Features . . . . . . . . . . . . . 1-8
Heated Seats . . . . . . . . . . . . . . . . . 1-9
Head Restraint Adjustment . . . . 1-9
Safety Belts . . . . . . . . . . . . . . . . . . 1-10
Passenger Sensing


System . . . . . . . . . . . . . . . . . . . . . 1-10
Mirror Adjustment . . . . . . . . . . . . 1-10


Steering Wheel


Adjustment . . . . . . . . . . . . . . . . . 1-11
Interior Lighting . . . . . . . . . . . . . . 1-11
Exterior Lighting . . . . . . . . . . . . . 1-12
Windshield Wiper/Washer . . . . 1-12
Climate Controls . . . . . . . . . . . . . 1-13
Parking Brake . . . . . . . . . . . . . . . 1-14
Transmission . . . . . . . . . . . . . . . . 1-15


Vehicle Features


Radio(s) . . . . . . . . . . . . . . . . . . . . . 1-15
Satellite Radio . . . . . . . . . . . . . . . 1-16
Portable Audio Devices . . . . . . 1-16
Bluetooth® . . . . . . . . . . . . . . . . . . . 1-17
Steering Wheel Controls . . . . . 1-17
Cruise Control . . . . . . . . . . . . . . . 1-17
Infotainment System . . . . . . . . . 1-18
Driver Information


Center (DIC) . . . . . . . . . . . . . . . 1-18


Forward Collision Alert (FCA)


System . . . . . . . . . . . . . . . . . . . . . 1-18


Lane Departure


Rear Vision


Warning (LDW) . . . . . . . . . . . . . 1-19


Camera (RVC) . . . . . . . . . . . . . 1-19
Ultrasonic Parking Assist . . . . 1-19
Roof Rack System . . . . . . . . . . . 1-19
Power Outlets . . . . . . . . . . . . . . . 1-20
Universal Remote System . . . 1-20
Performance and Maintenance


Traction Control


System (TCS) . . . . . . . . . . . . . . 1-20
StabiliTrak® System . . . . . . . . . 1-21
Tire Pressure Monitor . . . . . . . . 1-21
Engine Oil Life System . . . . . . 1-21
Fuel E85 (85% Ethanol) . . . . . 1-22
Driving for Better Fuel


Economy . . . . . . . . . . . . . . . . . . . 1-22


Roadside Assistance


Program . . . . . . . . . . . . . . . . . . . . 1-22
OnStar® . . . . . . . . . . . . . . . . . . . . . 1-23


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (2,1)


1-2


In Brief


Instrument Panel


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (3,1)


In Brief


1-3


1. Air Vents on page 8‑5. 2. Turn and Lane-Change Lever.


See Turn and Lane-Change Signals on page 6‑3. Exterior Lamp Controls on page 6‑1. Fog Lamps on page 6‑3 (If Equipped). Instrument Cluster on page 5‑8.


3. 4. Windshield Wiper/Washer on


page 5‑3. Rear Window Wiper/Washer on page 5‑4.


5. Power Door Locks on page 2‑7. 6.


Instrument Panel Storage on page 4‑1 (If Equipped). Forward Collision Alert (FCA) Display (If Equipped). See Forward Collision Alert (FCA) System on page 9‑38. Lane Departure Warning (LDW) Indicator (If Equipped). See Lane Departure Warning (LDW) on page 9‑44.


7. Touchscreen (If Equipped). 8. Safety Locks on page 2‑8. 9. Infotainment on page 7‑1. Navigation System (If Equipped). See Infotainment Manual.


10. Hood Release. See Hood on


page 10‑4.


11. Data Link Connector (DLC)


(Out of View). See Malfunction Indicator Lamp on page 5‑13. 12. Cruise Control on page 9‑35. Forward Collision Alert (FCA) Button (If Equipped). See Forward Collision Alert (FCA) System on page 9‑38. Lane Departure Warning (LDW) Button (If Equipped). See Lane Departure Warning (LDW) on page 9‑44. Instrument Panel Illumination Control on page 6‑4.


13.


16. Steering Wheel Controls on


17.


page 5‑2. Ignition Positions on page 9‑19.


18. Climate Control Systems on


page 8‑1 (If Equipped). Automatic Climate Control System on page 8‑3 (If Equipped).


19. Shift Lever. See Shifting Into


Park on page 9‑23.


20. Fuel Economy Mode on page 9‑29 (If Equipped).


21. StabiliTrak® System on


page 9‑33.


22. Power Outlets on page 5‑6. 23. CD Player on page 7‑13. 24. Driver Information Center


Buttons (If Equipped). See Driver Information Center (DIC) on page 5‑22.


14. Steering Wheel Adjustment on


25. Hazard Warning Flashers on


page 5‑2.


15. Horn on page 5‑3.


page 6‑3.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (4,1)


1-4


In Brief


Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual.


Remote Keyless Entry (RKE) System The Remote Keyless Entry (RKE) transmitter may work up to 60 m (195 ft) away from the vehicle.


V : For vehicles with the power liftgate, press and hold V until the liftgate begins to move. 7 : Press and release to initiate vehicle locator. Press and hold for at least three seconds to sound the panic alarm. Press 7 again to cancel the panic alarm. See Keys on page 2‑1 and Remote Keyless Entry (RKE) System Operation on page 2‑3.


Remote Vehicle Start With this feature the engine can be started from outside of the vehicle. Starting the Vehicle 1. Press and release Q on the


Remote Keyless Entry transmitter.


Press this button to extend the key. The key can be used for the ignition and all locks. K : Press to unlock the driver door or all doors. For vehicles with the manual liftgate, press K twice within 5 seconds, to unlock the liftgate. Q : Press to lock all doors. Lock and unlock feedback can be personalized.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (5,1)


In Brief


1-5


2.


Immediately press and hold / for at least two seconds or until the signal lamps flash. The parking lamps will turn on and remain on as long as the engine is running. The vehicle's doors will be locked.


3. The key must be inserted and


turned to ON/RUN before driving.


The engine will shut off after 10 minutes unless a time extension is done or the key is inserted and turned to ON/RUN. Canceling a Remote Start To cancel a remote start, do one of the following: . Press / until the parking lamps


turn off. Turn on the hazard warning flashers. Insert the key and turn it to ON/ RUN and then back to LOCK/OFF.


See Remote Vehicle Start on page 2‑4.


Door Locks To lock or unlock the vehicle from the outside, press Q or K on the Remote Keyless Entry (RKE) transmitter.


Base Radio Shown, Uplevel


Similar


There is a power door lock switch on the instrument panel.


There are power door lock switches on the front door panels. Q : Press to lock the doors. K : Press to unlock the doors. See Door Locks on page 2‑6. To manually unlock a door from inside the vehicle, pull once on the door handle to unlock it, and a second time to open it.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (6,1)


1-6


In Brief


Do not press the touch pad while closing the liftgate. This may cause the liftgate to be unlatched. Power Liftgate Operation


See Liftgate on page 2‑8.


Windows


Base Radio Shown, Uplevel


Similar


{ : Press for Safety Locks. See Safety Locks on page 2‑8.


Liftgate


Manual Liftgate Operation Unlock the vehicle before opening the liftgate. To open the liftgate, press the touch pad under the liftgate handle and lift up.


On vehicles with a power liftgate, the vehicle must be in P (Park) to use the power feature. The taillamps flash when the power liftgate moves. Choose the power liftgate mode by turning the dial on the switch to either the 3/4 or MAX position. Press 8 to open or close the liftgate.


Press the front of the switch to lower the window. Pull the switch up to raise it. Pushing or pulling the switch part of the way will open or close the window as long as the switch is operated. See Power Windows on page 2‑17.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (7,1)


Seat Adjustment


Four-Way Power Seat


See Power Seat Adjustment on page 3‑4. Eight-Way Power Seat


See Power Seat Adjustment on page 3‑4. Lumbar Adjustment


In Brief


1-7


1. Seat Position Handle 2. Height Adjustment Control To adjust the seat, if equipped: . Move the seat forward or


rearward using the handle under the front of the seat cushion (1). See Seat Adjustment on page 3‑3.


. Raise or lower the entire seat by


moving the control (2) up or down.


To adjust a power seat, if equipped: . Move the seat forward or


rearward by sliding the control forward or rearward.


. Raise or lower the front part of the seat cushion by moving the front of the control up or down.


. Raise or lower the entire seat by moving the rear of the control up or down.


Eight-Way Power Seat Shown,


Four-Way Similar


If available, press and hold the front or rear of the switch to increase or decrease lumbar support. Release the switch when the seatback reaches the desired level of lumbar support. See Lumbar Adjustment on page 3‑5.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (8,1)


1-8


In Brief


Reclining Seatbacks


Manual Reclining Seatbacks


To return the seatback to the upright position: 1. Lift the lever fully without applying pressure to the seatback, and the seatback will return to the upright position.


2. Push and pull on the seatback to


make sure it is locked.


Power Reclining Seatbacks


Tilt the top of the control forward to raise.


See Reclining Seatbacks on page 3‑5.


Memory Features


To recline a manual seatback: 1. Lift the lever. 2. Move the seatback to the desired position, and then release the lever to lock the seatback in place.


3. Push and pull on the seatback to


make sure it is locked.


To adjust a power seatback, if available:


Tilt the top of the control rearward to recline.


If available, the “1,” “2,” and MEM (Memory) buttons on the outboard side of the driver seat are used to manually save and recall the driver seat and outside mirror positions. These manually stored positions are referred to as Button Memory positions.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (9,1)


In Brief


1-9


Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. To achieve a comfortable seating position, change the seatback recline angle as little as necessary while keeping the seat and the head restraint height in the proper position. See Head Restraints on page 3‑2
and Seat Adjustment on page 3‑3.


Heated Seats


The vehicle will also automatically save driver seat and outside mirror positions to the current driver Remote Keyless Entry (RKE) transmitter when the ignition is turned off. These automatically stored positions are referred to as RKE Memory positions. See Memory Seats on page 3‑6 and Vehicle Personalization on page 5‑32.


Uplevel Climate Control System


Shown, Base Similar


If available, the buttons are near the climate controls. To operate, the ignition must be in ON/RUN. Press z or J to heat the driver or passenger seat cushion and seatback. Indicator lights on the button show the temperature setting. See Heated Front Seats on page 3‑8.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (10,1)


1-10


In Brief


Safety Belts


Passenger Sensing System


United States


is started. See Passenger Sensing System on page 3‑26 for more information.


Mirror Adjustment


Exterior


Refer to the following sections for important information on how to use safety belts properly: . Safety Belts on page 3‑11. . How to Wear Safety Belts


Properly on page 3‑12. Lap-Shoulder Belt on page 3‑13. Lower Anchors and Tethers for Children (LATCH System) on page 3‑40.


Canada


The passenger sensing system will turn off the right front passenger frontal airbag under certain conditions. The driver airbag, seat‐ mounted side impact airbags, and roof‐rail airbags are not affected by the passenger sensing system. The passenger airbag status indicator will be visible on the overhead console when the vehicle


To adjust the mirrors: 1. Move the selector switch to L


(Left) or R (Right) to choose the driver or passenger mirror.


2. Press the arrows on the control pad to move each mirror in the desired direction.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (11,1)


3. Return the selector switch to the


middle position.


See Power Mirrors on page 2‑14. Interior


Adjustment Adjust the rearview mirror to clearly view the area behind the vehicle.


Manual Rearview Mirror For vehicles with a manual rearview mirror, push the tab forward for daytime use and pull it rearward for nighttime use to avoid the glare of the headlamps from behind. See Manual Rearview Mirror on page 2‑16.


Automatic Dimming Rearview Mirror Vehicles with an automatic dimming inside rearview mirror automatically reduce the glare of the headlamps from behind. The dimming feature comes on when the vehicle is started. See Automatic Dimming Rearview Mirror on page 2‑16.


Steering Wheel Adjustment


To adjust the steering wheel: 1. Pull the lever down. 2. Move the steering wheel up


or down.


3. Pull or push the steering wheel


closer or away from you.


4. Pull the lever up to lock the


steering wheel in place.


Do not adjust the steering wheel while driving.


In Brief


1-11


Interior Lighting


Reading Lamps These lamps are located on the overhead console. These lamps come on automatically when any door is opened. For manual operation, press the button next to each lamp to turn it on or off.


Dome Lamps There are front and rear dome lamps. The dome lamp controls are located in the overhead console. To change the settings, press the following: * : Turns the lamp off, even when a door is open. 1 : The lamps come on automatically when a door is opened. + : Turns the dome lamps on. The dome lamps can also be turned on and off by pressing the buttons next to the lamps.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (12,1)


1-12


In Brief


For more information on interior lighting, See Instrument Panel Illumination Control on page 6‑4.


Exterior Lighting


The exterior lamp control is on the turn signal lever. O : Turn to operate the exterior lamps. O : Briefly turn to this position to turn the automatic light control off or on again. AUTO: Turns the exterior lamps on and off automatically depending on the exterior light. ; : Turns on the parking lamps, together with the sidemarker lamps, taillamps, license plate lamps, and instrument panel lights.


5 : Turns on the headlamps, together with the parking lamps, sidemarker lamps, taillamps, license plate lamps, and instrument panel lights. See: . Exterior Lamp Controls on


page 6‑1


. Daytime Running Lamps (DRL)


on page 6‑2
Fog Lamps on page 6‑3


Windshield Wiper/Washer


The windshield wiper/washer lever is located on the right side of the steering column. With the ignition in ACC/ACCESSORY or ON/RUN/ START, move the windshield wiper lever to select the wiper speed.


HI: Use for fast wipes. LO: Use for slow wipes. INT: Move the lever up to INT for intermittent wipes, then turn the 3 INT band up for more frequent wipes or down for less frequent wipes.


OFF: Use to turn the wipers off. 8 : For a single wipe, briefly move the wiper lever down. For several wipes, hold the wiper lever down. n L FRONT: Pull the windshield wiper lever toward you to spray windshield washer fluid and activate the wipers.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (13,1)


Rear Window Wiper/Washer The rear wiper controls are on the end of the windshield wiper lever.


Climate Controls


The vehicle's heating, cooling, defrosting, and ventilation can be controlled with these systems.


Climate Control System


In Brief


1-13


ON: Press the upper portion of the button for continuous rear window wipes. OFF: The rear wiper turns off when the button is returned to the middle position. INT: Press the lower portion of the button to set a delay between wipes. m = REAR: Push the windshield wiper lever forward to spray washer fluid on the rear window. See Windshield Wiper/Washer on page 5‑3 and Rear Window Wiper/ Washer on page 5‑4.


1. Fan Control 2. Air Delivery Mode Controls 3. Temperature Control 4. Outside Air


5. Front Defrost 6. Rear Window Defogger 7. Recirculation 8. Air Conditioning


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (14,1)


1-14


In Brief


Automatic Climate Control System


Parking Brake


1. Fan Control 2. AUTO (Automatic Operation) 3. Air Delivery Mode Controls 4. Front Defrost 5. Recirculation 6. Temperature Control 7. Power


8. Driver and Passenger Heated


Seats


9. Rear Window Defogger 10. Air Conditioning See Climate Control Systems on page 8‑1 (If Equipped) or Automatic Climate Control System on page 8‑3
(If Equipped).


To set the parking brake, hold the regular brake pedal down, then push the parking brake pedal down. If the ignition is on, the brake system warning light will come on. See Brake System Warning Light on page 5‑16. To release the parking brake, hold the regular brake pedal down, then push down momentarily on the parking brake pedal until you feel the pedal release. Slowly pull your foot up off the park brake pedal.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (15,1)


See Parking Brake on page 9‑31.


Transmission


Electronic Range Select (ERS) Mode ERS or manual mode allows for the selection of the range of gear positions. Use this mode when driving down hill or towing a trailer to limit the top gear and vehicle speed. To use this feature: 1. Move the shift lever to


M (Manual Mode).


2. Press the plus/minus button on


the shift lever, to increase or decrease the gear range available.


See Manual Mode on page 9‑28 for more information.


Fuel Economy Mode Vehicles with a 2.4L engine have a Fuel Economy Mode. When engaged, fuel economy mode can improve the vehicle's fuel economy.


Press the “eco” (economy) button by the shift lever to turn this feature on or off. The “eco” light in the instrument cluster will come on when engaged, and a Driver Information Center (DIC) message “ECO MODE ON” displays. See Fuel Economy Mode on page 9‑29.


In Brief


1-15


Vehicle Features


Radio(s) VOL/ O : Press to turn the system on and off. Turn to increase or decrease the volume. RADIO/BAND: Press to choose between FM and AM. MENU/SEL: Turn to select radio stations. Press to show available information about the current station or track. g SEEK: Press to seek the previous station or track. l SEEK: Press to seek the next station or track. Buttons 1–6: Press to save and select favorite stations For more information about these and other radio features, see Operation on page 7‑4.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (16,1)


1-16


In Brief


Storing a Favorite Station Stations from all bands can be stored in the favorite lists in any order. Up to six stations can be stored in each favorite page and the number of available favorite pages can be set. To store the station to a position in the list, press the corresponding numeric button 1-6 until the station can be heard again. For more information, see “Storing and Retrieving Favorites” in AM-FM Radio on page 7‑7. Setting the Clock For detailed instructions on setting either clock, see Clock on page 5‑5. To set the time: 1. Press H to enter the menu


options. Turn the MENU/SEL knob to scroll through the available setup features.


2. Press + or − to decrease or


increase the Hours and Minutes displayed on the clock.


12/24 HR Format: Press the 12 HR screen button for standard time; press the 24 HR screen button for military time. Day + or Day −: Press the Day + and Day − display buttons to increase or decrease the day. Display: Press the Display to turn the display of the time on the screen on or off.


coast, and in digital-quality sound. A fee is required to receive the SiriusXM service. Refer to: . www.siriusxm.com or call


1-866-635-2349 (U.S.). . www.xmradio.ca or call


1-877-209-0079 (Canada).


See Satellite Radio on page 7‑9.


Satellite Radio Vehicles with a SiriusXM® satellite radio tuner and a valid SiriusXM satellite radio subscription can receive SiriusXM programming. SiriusXM Satellite Radio Service SiriusXM is a satellite radio service based in the 48 contiguous United States and 10 Canadian provinces. SiriusXM satellite radio has a wide variety of programming and commercial-free music, coast to


Portable Audio Devices Some vehicles have a 3.5 mm (1/8 in) auxiliary input and a USB port in the center console bin. External devices such as iPods®, laptop computers, MP3 players, CD changers, and USB drives may be connected, depending on the audio system. See Auxiliary Devices on page 7‑17.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (17,1)


In Brief


1-17


_ SRC ^ : Press to select an audio source. Toggle up or down to select the next or previous favorite radio station, CD, or MP3 track. + VOL −: Press + to increase the volume; press − to decrease the volume. For more information, see Steering Wheel Controls on page 5‑2.


Cruise Control


Bluetooth® The Bluetooth® system allows users with a Bluetooth-enabled mobile phone to make and receive hands-free calls using the vehicle audio system and controls. The Bluetooth-enabled mobile phone must be paired with the in-vehicle Bluetooth system before it can be used in the vehicle. Not all phones will support all functions. See Bluetooth (Overview) on page 7‑21 or Bluetooth (Infotainment Controls) on page 7‑23 or Bluetooth (Voice Recognition) on page 7‑27.


Steering Wheel Controls


Some audio steering wheel controls can be adjusted at the steering wheel. b / g : Press to interact with the available Bluetooth or OnStar systems. > / i : Press to silence the vehicle speakers only. Press again to turn the sound on. For vehicles with OnStar or Bluetooth systems, press to reject an incoming call, or end a current call.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (18,1)


1-18


In Brief


ON/OFF 5 CRUISE: Press to turn the cruise control system on and off. * CANCEL: Press to disengage cruise control without erasing the set speed from memory. RES/+: Move the thumbwheel up to make the vehicle resume to a previously set speed or to accelerate. SET/−: Move the thumbwheel down toward SET/- to set a speed and activate cruise control, or to make the vehicle decelerate. See Cruise Control on page 9‑35.


Infotainment System See the infotainment manual for information on the radio, audio players, phone, navigation system, and voice or speech recognition. There is also information on settings and downloadable applications (if equipped).


Driver Information Center (DIC) The DIC display is located in the center of the instrument panel cluster. It shows the status of many vehicle systems.


The DIC buttons are located below the climate control system. MENU: Press this button to get to the Trip/Fuel Menu and the Vehicle Information Menu.


Q or R : Use these buttons to scroll through the items in each menu. A small marker will move along the page as you scroll through the items. This shows where each page is in the menu. SET/CLR: Use this button to set or clear the menu item when it is displayed. For more information, see Driver Information Center (DIC) on page 5‑22.


Forward Collision Alert (FCA) System For vehicles with FCA, this system is intended to help avoid or reduce the harm caused by front-end crashes. FCA provides a flashing visual alert and beeps when approaching a vehicle directly ahead too quickly. FCA also provides a visual alert if following another vehicle much too closely. The forward-looking FCA camera sensor is on the windshield ahead of the rearview mirror. FCA detects


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (19,1)


vehicles within a distance of approximately 60 m (197 ft) and operates at speeds above 40 km/h (25 mph). See Forward Collision Alert (FCA) System on page 9‑38 for more information.


Lane Departure Warning (LDW) For vehicles with LDW, it is intended to help avoid unintentional lane departures. It may provide a warning if the vehicle is crossing a lane without using a turn signal. LDW uses a camera sensor to detect the lane markings. It only operates at speeds of 56 km (35 mph) or greater. The LDW indicator, @ , appears green if a lane marking is detected. It changes to amber, flashes, and sounds three chimes if the vehicle crosses a detected lane marking without using the turn signal.


To turn LDW on and off, press the LANE DEPART button, located on the steering wheel. See Lane Departure Warning (LDW) on page 9‑44 for more information.


Rear Vision Camera (RVC) If available, the RVC displays a view of the area behind the vehicle when the vehicle is shifted into R (Reverse). The display will appear on the radio screen.


In Brief


1-19


To clean the camera lens above the license plate, rinse it with water and wipe it with a soft cloth. See Rear Vision Camera (RVC) on page 9‑41.


Ultrasonic Parking Assist If available, this system uses sensors on the rear bumper to assist with parking and avoiding objects while in R (Reverse). It operates at speeds less than 8 km/h (5 mph). URPA uses audible beeps to provide distance and system information. Keep the sensors on the vehicle's rear bumper clean to ensure proper operation. See Ultrasonic Parking Assist on page 9‑40.


Roof Rack System The roof rack cross rails can be locked in four positions along the roof rack side rails. Lift the lever to release and move the cross rail.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (20,1)


1-20


In Brief


Push the lever down to completely engage into the side rail holes. Slide the cross rails back and forth until the lock pins engage in the holes and a click is heard. When the roof rack is not in use, lock one cross rail at the furthest forward position and lock the other cross rail at the furthest rearward position to reduce wind noise. See Roof Rack System on page 4‑2.


Power Outlets The accessory power outlets can be used to connect electrical equipment, such as a cell phone or MP3 player. There are four accessory power outlets in the following locations: below the CD slot, inside the center console storage, on the rear of the center console storage, and in the rear cargo compartment. To use the outlets, remove the cover and close when not in use. See Power Outlets on page 5‑6.


Universal Remote System


This system, in the overhead console, provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices. Read the instructions completely before attempting to program the Universal Remote system. Because of the steps involved, it may be helpful to have another person available to assist with programming the Universal Remote system. See Universal Remote System on page 5‑37.


Performance and Maintenance


Traction Control System (TCS) The traction control system limits wheel spin. The system is on when the vehicle is started.


To turn off traction control, press and release g on the console. i illuminates and the appropriate DIC message displays. See Vehicle Messages on page 5‑25.


. Press and release g again to turn traction control back on.


See Traction Control System (TCS) on page 9‑32.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (21,1)


StabiliTrak® System The StabiliTrak system assists with directional control of the vehicle in difficult driving conditions. The system is on when the vehicle is started.


To turn off both Traction Control and StabiliTrak, press and hold g until g and i illuminate and the appropriate DIC message displays. See Vehicle Messages on page 5‑25.


. Press g again to turn on both


systems.


See StabiliTrak® System on page 9‑33.


Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System (TPMS).


The low tire pressure warning light alerts to a significant loss in pressure of one of the vehicle's tires. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the Tire and Loading Information label. See Vehicle Load Limits on page 9‑14. The warning light will remain on until the tire pressure is corrected. The low tire pressure warning light may come on in cool weather when the vehicle is first started, and then turn off as the vehicle is driven. This may be an early indicator that the tire pressures are getting low and the tires need to be inflated to the proper pressure.


In Brief


1-21


The TPMS does not replace normal monthly tire maintenance. Maintain the correct tire pressures. See Tire Pressure Monitor System on page 10‑45.


Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and displays the CHANGE ENGINE OIL SOON message when it is time to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.


Resetting the Oil Life System 1. Turn the ignition to ON/RUN,


with the engine off.


2. Press the DIC MENU button to


display the Vehicle Information menu.


3. Press either the up or down arrows to view REMAINING OIL LIFE.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (22,1)


1-22


In Brief


4. Press the SET/CLR button until


100% is displayed.


5. Turn the key to LOCK/OFF. Or: 1. Turn the ignition to ON/RUN with


the engine off.


2. Fully press and release the


accelerator pedal three times within five seconds.


See Engine Oil Life System on page 10‑11.


Fuel E85 (85% Ethanol) Vehicles with a yellow fuel cap can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). See Fuel E85 (85% Ethanol) on page 9‑48. For all other vehicles, use only the unleaded gasoline described under Recommended Fuel on page 9‑46.


Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. . Avoid fast starts and accelerate


smoothly.


. Brake gradually and avoid


abrupt stops.


. Avoid idling the engine for long


periods of time.


. When road and weather


conditions are appropriate, use cruise control.


. Always follow posted speed


limits or drive more slowly when conditions require.


. Keep vehicle tires properly


inflated.


. Combine several trips into a


single trip.


. Replace the vehicle's tires with


the same TPC Spec number molded into the tire's sidewall near the size. Follow recommended scheduled maintenance.


Roadside Assistance Program U.S.: 1-800-243-8872
TTY Users (U.S. Only): 1-888-889-2438
Canada: 1-800-268-6800
As the owner of a new Chevrolet, you are automatically enrolled in the Roadside Assistance program. See Roadside Assistance Program on page 13‑5.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (23,1)


In Brief


1-23


OnStar® If equipped, this vehicle has a comprehensive, in-vehicle system that can connect to a live Advisor for Emergency, Security, Navigation, Connection, and Diagnostic Services. See OnStar Overview on page 14‑1.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (24,1)


1-24


In Brief


2 NOTES


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (1,1)


Keys, Doors, and Windows


2-1


Heated Mirrors . . . . . . . . . . . . . . . 2-15
Blind Spot Mirrors . . . . . . . . . . . 2-15
Park Tilt Mirrors . . . . . . . . . . . . . . 2-16


Interior Mirrors


Manual Rearview Mirror . . . . . . 2-16
Automatic Dimming Rearview


Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-16


Windows


Windows . . . . . . . . . . . . . . . . . . . . . 2-17
Power Windows . . . . . . . . . . . . . 2-17
Sun Visors . . . . . . . . . . . . . . . . . . . 2-18


Roof


Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-18


Keys and Locks


Keys


{ WARNING


Leaving children in a vehicle with the ignition key is dangerous and children or others could be seriously injured or killed. They could operate the power windows or other controls or make the vehicle move. The windows will function with the keys in the ignition, and children or others could be caught in the path of a closing window. Do not leave children in a vehicle with the ignition key.


Keys, Doors, and Windows


Keys and Locks


Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 2-2


Remote Keyless Entry (RKE)


System Operation . . . . . . . . . . . 2-3
Remote Vehicle Start . . . . . . . . . 2-4
Door Locks . . . . . . . . . . . . . . . . . . . 2-6
Power Door Locks . . . . . . . . . . . . 2-7
Safety Locks . . . . . . . . . . . . . . . . . . 2-8


Doors


Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 2-8


Vehicle Security


Vehicle Security . . . . . . . . . . . . . . 2-12
Vehicle Alarm System . . . . . . . 2-12
Immobilizer . . . . . . . . . . . . . . . . . . 2-13
Immobilizer Operation . . . . . . . 2-13


Exterior Mirrors


Convex Mirrors . . . . . . . . . . . . . . 2-14
Power Mirrors . . . . . . . . . . . . . . . . 2-14


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (2,1)


2-2


Keys, Doors, and Windows


With an active OnStar subscription, an OnStar Advisor may remotely unlock the vehicle. See OnStar Overview on page 14‑1.


Remote Keyless Entry (RKE) System See Radio Frequency Statement on page 13‑15 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310. If there is a decrease in the RKE operating range: . Check the distance. The


transmitter may be too far from the vehicle.


. Check the location. Other vehicles or objects may be blocking the signal.


. Check the transmitter's battery.


See “Battery Replacement” later in this section.


The key that is part of the Remote Keyless Entry (RKE) transmitter can be used for the ignition and all locks.


Press the button on the RKE transmitter to extend the key. Press the button and the key blade to retract the key. See your dealer if a new key is needed. If the vehicle has an ignition and it becomes difficult to turn the key, inspect the key blade for debris. Periodically clean with a brush or pick. If locked out of the vehicle, see Roadside Assistance Program on page 13‑5.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (3,1)


Keys, Doors, and Windows


2-3


If the transmitter is still not working correctly, see your dealer or a qualified technician for service.


Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter may work up to 60 m (195 ft) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2‑2.


See “Unlocked Door Anti Lock Out” under Vehicle Personalization on page 5‑32. Pressing Q may also arm the theft-deterrent system. See Vehicle Alarm System on page 2‑12. K (Unlock): Press to unlock the driver door or all doors. See “Remote Door Unlock” under Vehicle Personalization on page 5‑32. The turn signal indicators flash to indicate unlocking has occurred. For more information see “Remote Unlock Light Feedback” under Vehicle Personalization on page 5‑32. Pressing K may also disarm the theft-deterrent system. See Vehicle Alarm System on page 2‑12. For vehicles with the manual liftgate, press K twice within 5 seconds to unlock the liftgate. V (Remote Liftgate Release): For vehicles with the power liftgate, press and hold V until the liftgate begins to move.


RKE With Remote Start Shown,


Without Similar


The following may be available: Q (Lock): Press to lock all doors. The turn signal indicators may flash and/or the horn may sound to indicate locking. See “Remote Lock Feedback” under Vehicle Personalization on page 5‑32. If a passenger door is open when Q is pressed, all doors lock. If the driver door is open when Q is pressed, all doors lock except the driver door. These settings can be modified.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (4,1)


2-4


Keys, Doors, and Windows


7 (Vehicle Locator/Panic Alarm): Press and release one time to initiate vehicle locator. The exterior lamps flash and the horn chirps three times. Press and hold 7 for at least three seconds to sound the panic alarm. The horn sounds and the turn signals flash until 7 is pressed again or the key is placed in the ignition and turned to ON/RUN. / (Remote Vehicle Start): For vehicles with this feature, first press Q then press and hold / to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start on page 2‑4
for additional information. The buttons on the keys are disabled when there is a key in the ignition. Programming Transmitters to the Vehicle Only RKE transmitters programmed to this vehicle will work. If a transmitter is lost or stolen, a


replacement can be purchased and programmed through your dealer. When the replacement transmitter is programmed to this vehicle, all remaining transmitters must also be reprogrammed. Any lost or stolen transmitters will no longer work once the new transmitter is programmed. Battery Replacement Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC. See “Replace Battery in Remote Key” under Key and Lock Messages on page 5‑28. The battery is not rechargeable. To replace the battery: 1. Push the button on the


transmitter to extend the key. 2. Remove the battery cover by


prying with a finger.


3. Remove the battery by pushing


on the battery and sliding it toward the key blade.


4.


Insert the new battery, positive side facing up. Push the battery down until it is held in place. Replace with a CR2032 or equivalent battery.


5. Snap the battery cover back on


to the transmitter.


Remote Vehicle Start The vehicle may have this feature that allows you to start the engine from outside the vehicle. / (Remote Vehicle Start): This button will be on the RKE transmitter if the vehicle has remote start. The climate control system will use the previous settings during a remote start. The rear defog may come on during remote start based on cold ambient conditions. The rear defog indicator light does not come on during remote start.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (5,1)


If the vehicle has heated seats, they may come on during a remote start. See Heated Front Seats on page 3‑8 for more information. Laws in some local communities may restrict the use of remote starters. For example, some laws require a person using remote start to have the vehicle in view. Check local regulations for any requirements. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2‑2 for additional information.


Starting the Engine Using Remote Start To start the engine using the remote start feature: 1. Press and release Q on the


RKE transmitter.


Keys, Doors, and Windows


2-5


2.


Immediately press and hold / for at least two seconds or until the turn signal lamps flash. The turn signal lamps flashing confirms the request to remote start the vehicle has been received. The parking lamps will turn on and remain on as long as the engine is running. The vehicle's doors will be locked.


3. The key must be inserted and


turned to ON/RUN before driving. The engine will shut off after 10 minutes unless a time extension is done or the key is inserted and turned to ON/RUN.


Extending Engine Run Time For a 10-minute extension, repeat Steps 1 and 2 while the engine is still running. The remote start can be extended once. When the remote start is extended, the second 10 minutes will start immediately.


For example, if the engine has been running for 5 minutes, and 10 minutes are added, the engine will run for a total of 15 minutes. A maximum of two remote starts or remote start attempts are allowed between ignition cycles. The vehicle's ignition switch must be turned to ON/RUN and then back to LOCK/OFF using the key, before the remote start procedure can be used again.


Shutting the Engine Off After a Remote Start To shut off the engine: . Press / until the parking lamps


turn off. Turn on the hazard warning flashers. Insert the key and turn it to ON/ RUN and then back to LOCK/OFF.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (6,1)


2-6


Keys, Doors, and Windows


Conditions in Which Remote Start Will Not Work The remote vehicle start feature will not operate if:


The key is in the ignition. The hood or doors are not closed. The hazard warning flashers are on. There is an emission control system malfunction. The engine coolant temperature is too high. The oil pressure is low. Two remote vehicle starts have already been used. The vehicle is not in P (Park).


Remote Start Ready If the vehicle does not have the remote vehicle start feature, it may have the remote start ready feature. This feature allows your dealer to add the manufacturer's remote vehicle start feature. See your


dealer to add the manufacturer's remote vehicle start feature to the vehicle.


Door Locks


{ WARNING Unlocked doors can be dangerous.


. Passengers, especially


children, can easily open the doors and fall out of a moving vehicle. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked. So, all passengers should wear safety belts properly and the doors should be locked whenever the vehicle is driven.


. Young children who get into


unlocked vehicles may be unable to get out. A child can be overcome by extreme heat (Continued)


WARNING (Continued)


and can suffer permanent injuries or even death from heat stroke. Always lock the vehicle whenever leaving it.


. Outsiders can easily enter through an unlocked door when slowing or stopping the vehicle. Lock the doors to help prevent this from happening.


To lock or unlock a door from the outside of the vehicle, use the Remote Keyless Entry (RKE) transmitter. Pull the handle once from the inside to unlock the door, and a second time to open it.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (7,1)


Power Door Locks


Keys, Doors, and Windows


2-7


Pressing the power lock switch twice or Q on the RKE transmitter twice will override the delayed locking feature and immediately lock all doors. This feature can be programmed. See “Delayed Door Lock” under Vehicle Personalization on page 5‑32.


Base Radio Shown, Uplevel


Similar


There is a power door lock switch on the instrument panel.


There are power door lock switches on the front door panels. Q : Press to lock the doors. K : Press to unlock the doors. When locking the doors with a power door lock switch and a door or the liftgate is open, the doors will lock five seconds after the last door is closed. Three chimes sound to signal the delayed locking feature is in use.


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (8,1)


2-8


Keys, Doors, and Windows


Press { to activate the safety locks. When activated, the indicator light in the switch changes to amber. Press { again to deactivate the safety locks. If a rear door handle is pulled when the safety lock is deactivated, that door will remain locked and the indicator light may flash. Release the handle, then press the safety lock twice to deactivate the safety locks.


Safety Locks


Base Radio Shown, Uplevel


Similar


The rear door safety locks switch is on the instrument panel. Rear door safety locks prevent passengers from opening the rear doors from inside the vehicle.


Doors


Liftgate


{ WARNING


Exhaust gases can enter the vehicle if it is driven with the liftgate or trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains carbon monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. If the vehicle must be driven with the liftgate or trunk/hatch open:


. Close all of the windows. . Fully open the air outlets on


or under the instrument panel.


(Continued)


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (9,1)


Keys, Doors, and Windows


2-9


{ WARNING


You, or others, could be injured if caught in the path of the power liftgate. Make sure there is no one in the way of the liftgate as it is opening and closing.


The power liftgate has three modes of operation. Mode selection is controlled by the interior mode switch.


(RKE) transmitter twice. See Remote Keyless Entry (RKE) System Operation on page 2‑3. To open the liftgate, press the touch pad under the liftgate handle and lift up. Use the pull cup to lower and close the liftgate. Do not press the touch pad while closing the liftgate. This may cause the liftgate to be unlatched. Always close the liftgate before driving. Power Liftgate On vehicles with a power liftgate, the vehicle must be in P (Park) to operate. The taillamps flash when the power liftgate moves.


WARNING (Continued)


. Adjust the climate control


system to a setting that brings in only outside air and set the fan speed to the highest setting. See “Climate Control Systems” in the Index.


. If the vehicle is equipped with


a power liftgate, disable the power liftgate function.


See Engine Exhaust on page 9‑25.


Notice: To avoid damage to the liftgate or liftgate glass, make sure the area above and behind the liftgate is clear before opening it. Manual Liftgate To unlock the liftgate, press the power door lock switch or press K on the Remote Keyless Entry


Chevrolet Equinox Owner Manual - 2013 - crc2 - 9/21/12


Black plate (10,1)


2-10


Keys, Doors, and Windows


Loading...
x
