’01 Tacoma U (L/O 0009)

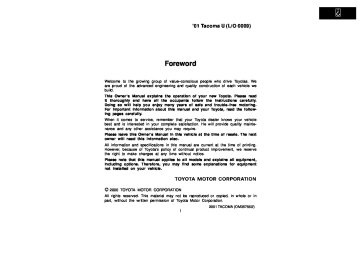

Foreword

Welcome to the growing group of value–conscious people who drive Toyotas. We are proud of the advanced engineering and quality construction of each vehicle we build. This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble–free motoring. For important information about this manual and your Toyota, read the follow- ing pages carefully. When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete satisfaction. He will provide quality mainte- nance and any other assistance you may require. Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also. All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of continual product improvement, we reserve the right to make changes at any time without notice. Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

 2000 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation.

i

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



Important information about this manual

Safety and vehicle damage warnings

Safety symbol

Throughout this manual, you will see safety and vehicle dam- age warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows:

CAUTION

This is a warning against something which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk to yourself and other people.

NOTICE

This is a warning against something which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

the safety symbol When you see shown above, it means: “Do not...”; “Do not do this”; or “Do not let this happen”.

ii

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



Important information about your Toyota

New vehicle warranty

Your new vehicle limited warranties:

is covered by

the

following Toyota

(cid:1) New vehicle warranty (cid:1) Emission control systems warranty (cid:1) Others further

information, please refer

Information Booklet” or

For Warranty Supplement”.

to the “Owner’s “Owner’s Manual

Your responsibility for maintenance

It is the owner’s responsibility to make sure that the specified maintenance is performed. Section 6 gives de- tails of these maintenance requirements. Also included in Section 6 is general maintenance. For scheduled maintenance information, please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.

Accessories, spare parts and modification of your Toyota

A wide variety of non–genuine spare parts and accesso- ries for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their perfor- mance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non–genuine Toyota products. Modification with non–genuine Toyota products could affect its performance, safety or durabili- ty, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

iii

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



Spark ignition system of your

Scrapping of your Toyota

Toyota

The spark ignition system in your Toyota meets all re- quirements of the Canadian Interference–Causing Equip- ment Standard.

Installation of a mobile two–way radio system

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you dis- pose of your vehicle.

fuel

injection system/sequential multiport

As the installation of a mobile two–way radio system in your vehicle could affect electronic systems such as multiport fuel injection system, cruise control system, anti–lock brake system, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

iv

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



On–pavement and off–road

driving tips

(4WD models and Pre Runner)

This vehicle will handle and maneuver differently from an ordinary passenger car because it is designed for off–road use also. It has a significantly higher rollover rate than other types of vehicles. In addition, this ve- hicle has a higher ground clearance and center of gravi- ty than that of an ordinary passenger car. This vehicle design feature causes this type of vehicle to be more likely to rollover. Failure to operate this vehicle correctly may result in loss of control, accidents or vehicle rol- lover causing death or serious injury. Be sure to read “Off–road vehicle precautions” in Section 2 and “Off– road driving precautions” in Section 3.

v

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



vi

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



SECTION 1– 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 4 6

2001 TACOMA (OM35766U)

1

’01 Tacoma U (L/O 0009)

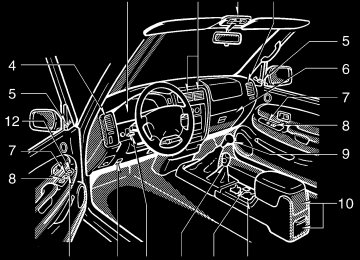

Instrument panel overview

1. Instrument cluster 2. Center vents 3. Personal lights or interior light 4. Side vents 5. Rear view mirror remote control levers 6. Glove box 7. Power door lock switches 8. Power window switches 9. Manual transmission gear shift lever or

automatic transmission selector lever

10. Rear console box 11. Cup holder 12. Power rear view mirror control switch 13. Front drive control lever 14. Tilt steering lock release lever 15. Hood lock release lever 16. Window lock switch

2

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



1. Headlight and turn signal switch 2. Wiper and washer switches 3. Emergency flasher switch 4. Passenger airbag manual on–off switch 5. Air conditioning controls 6. Car audio 7. Ashtray 8. Cigarette lighter 9. Power outlets 10. Clock 11. Parking brake lever 12. Ignition switch 13. Cruise control switch 14. Rear differential lock switch 15. Instrument panel light control knob 16. Clutch start cancel switch

(manual transmission) or driving pattern selector button (automatic transmission)

2001 TACOMA (OM35766U)

3

’01 Tacoma U (L/O 0009)



Instrument cluster overview (cid:1)With tachometer

1. Engine coolant temperature gauge 2. Tachometer 3. Service reminder indicators and

indicator lights

4. Speedometer 5. Fuel gauge 6. Trip meter reset knob

7. Odometer and two trip meters

4

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



(cid:1)Without tachometer

1. Engine coolant temperature gauge 2. Service reminder indicators and

3. Speedometer 4. Odometer

indicator lights

5. Fuel gauge

2001 TACOMA (OM35766U)

5

’01 Tacoma U (L/O 0009)



Indicator symbols on the instrument panel

Brake system warning light* 1

SRS warning light* 1

Seat belt reminder light* 1

Discharge warning light* 1

Low oil pressure warning light* 1

Malfunction indicator lamp* 1

Low fuel level warning light* 1

or

Anti–lock brake system warning light* 1

Unengaged “Park” warning light* 1

Automatic transmission fluid temperature warning light* 1

Low windshield washer light* 1

fluid

level warning

Turn signal indicator lights

Headlight high beam indicator light

Overdrive–off indicator light

Driving pattern (POWER mode) indicator light

6

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



Four–wheel drive indicator light

Rear differential lock indicator light

Cruise control indicator light* 2

* 1: For details, see “Service reminder indicators and warning

buzzers” in Section 1–5.

* 2: If this light flashes, see “Cruise control” in Section 1–6.

2001 TACOMA (OM35766U)

7

’01 Tacoma U (L/O 0009)



8

2001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)



SECTION 1– 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Side doors Power windows Quarter windows Rear window Tailgate Hood Fuel tank cap Detachable moon roof Detachable sun shade

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 10 12 14 14 15 15 16 18 21

2001 TACOMA (OM35766U)

9

’01 Tacoma U (L/O 0009)



Keys This key works in every lock. Since the doors can be locked without a key, you should always carry a spare key in case you accidentally lock your key inside the vehicle.

Side doors

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend you to write down the key number and keep it in safe place.

LOCKING AND UNLOCKING WITH KEY
