2007 Toyota Matrix Owners Manual

Oil type:

Gear oil API GL−4 or GL−5

Recommended oil viscosity:

SAE 75W−90

AUTOMATIC TRANSAXLE Fluid capacity (drain and refill), L (qt., Imp. qt.):

Up to 3.0 (3.2, 2.6)

Fluid type:

Toyota Genuine ATF Type T−IV

in

listed

Guide”

is necessary

Change automatic transmission fluid only as necessary. Generally, to change it automatic transmission fluid only if your vehicle is driven under one of the Special Operating Conditions your “Scheduled Maintenance or “Owner’s Manual Supplement”. When changing the automatic transmission fluid, use only “Toyota Genuine ATF Type T−IV” to aid (ATF JWS3309 or NWS6500) in assuring optimum transaxle performance. Notice: Using automatic transmission fluid other than “Toyota Genuine ATF Type T−IV” may cause deterioration in shift quality, locking up of your trans- mission accompanied by vibration, and ultimately damage the automatic trans- mission of your vehicle. Please contact your Toyota dealer for fur- ther details.

BRAKES Minimum pedal clearance when depressed with the force of 294 N (30 kgf, 66 lbf) with the engine running, mm (in.): Without anti−lock brake system

78 (3.07)

With anti−lock brake system

76 (2.99)

Pedal free play, mm (in.):

1—6 (0.04—0.24)

Pad wear limit, mm (in.):

1.0 (0.04)

Lining wear limit, mm (in.):

1.0 (0.04)

Parking brake adjustment when pulled with the force of 196 N (20 kgf, 44 lbf):

5—8 clicks

Fluid type:

SAE J1703 or FMVSS No.116 DOT 3

STEERING Wheel free play:

Less than 30 mm (1.2 in.)

Power steering fluid type:

Automatic transmission fluid DEXRON(cid:2)II or III

299

Tires Tire size and cold tire inflation pressure: Front and rear

Tire size P205/55R16 89H P215/50ZR17
P215/50R17 90H

Spare

Tire size T135/70R16
T135/80R16

Front

220 (2.2, 32) 220 (2.2, 32) 220 (2.2, 32)

Rear

220 (2.2, 32) 220 (2.2, 32) 220 (2.2, 32)

kPa (kgf/cm2 or bar, psi)

420 (4.2, 60) 420 (4.2, 60)

Wheel size 16 (cid:1) 4T 16 (cid:1) 4T

Wheel nut torque, N·m (kgf·m, ft·lbf):

103 (10.5, 77)

kPa (kgf/cm2 or bar, psi)

Wheel size

16 (cid:1) 6 1/2JJ

17 (cid:1) 7 JJ 17 (cid:1) 7 JJ

NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pres-

sure” through “Aluminum wheel precautions”, pages 272 through 280, in Section 7−2.

300

Fuses

Engine compartment

Instrument panel

Fuses (type A) 1. FOG 15 A: Front fog lights 2. HEAD LH UPR 10 A: Left−hand head-

light (high beam)

3. HEAD RH UPR 10 A: Right−hand headlight (high beam), headlight high beam indicator light

4. SPARE 30 A: Spare fuse 5. SPARE 15 A: Spare fuse 6. SPARE 10 A: Spare fuse 7. ETCS 10 A: Electronic throttle control

system

8. AMP 30 A: Audio system

9. MAIN 30 A: Starting system, “AM2”

fuse

10. DOME 15 A: Audio system, clock, per- sonal lights, interior lights, open door warning light, wireless remote control system

11. HORN 10 A: Horn 12. HAZARD 10 A: Emergency

flashers,

turn signal lights

13. EFI 20 A: Multiport fuel injection sys- injection system,

tem/sequential multiport system, “EFI2” fuse

fuel control

emission

14. ALT−S 5 A: Charging system 15. HEAD LH LWR 10 A: Left−hand head-

light (low beam)

16. HEAD RH LWR 10 A: Right−hand

headlight (low beam)

17. EFI2 15 A: Multiport fuel injection sys- injection

tem/sequential multiport system, emission control system

fuel

18. TAIL 15 A: Tail

lights, lights, instrument panel ment cluster lights, clock

license plate lights, instru-

19. OBD 7.5 A: On−board diagnosis sys-

tem

20. WIPER 25 A: Windshield wipers

301

39. HTR 40 A: Air conditioning system 40. DEF 30 A: Rear window defogger,

“M−HTR/DEF I−UP” fuse

41. POWER 30 A: Power windows, electric

moon roof

Fuses (type C) 42. ALT 100 A: “ABS NO.1”, “ABS NO.2”, “RDI FAN”, “AM1”, “POWER”, “DOOR”, “ECU−B”, “TAIL”, “STOP”, “P/POINT”, “INV” and “OBD” fuses, charging system

“FOG”,

“HTR”,

21. AM2 15 A: Charging system, multiport fuel injection system/sequential multi- port fuel injection system, starting sys- tem, SRS airbag system

22. STOP 15 A: Stop lights, high mounted stoplight, anti−lock brake system, shift lock control system, multiport fuel in- jection system/sequential multiport fuel injection system, cruise control system 23. DOOR 25 A: Power door lock system,

glass hatch opener switch

24. AM1 25 A: “CIG” fuse 25. ECU−IG 10 A: Electric cooling

fan, anti−lock brake system, traction control system, vehicle stability control system, brake assist system, shift lock control system, cruise control system

26. RR WIPER 15 A: Rear window wiper 27. A/C 10 A: Air conditioning system 28. INV 15 A: Power outlet (115 VAC) 29. P/POINT 15 A: Power outlet (12 VDC/

in the rear console box)

30. ECU−B 10 A: Daytime running

light

system

31. CIG 15 A: Power outlet (12 VDC/on the instrument panel) or cigarette light- er, audio system, clock, shift lock con- trol system

302

32. GAUGE 10 A: Gauges and meters, air conditioning system, daytime running light system, charging system, auto anti−glare inside rear view mirror, pow- er windows, cruise control system, rear window defogger, back−up lights, front passenger’s seat belt reminder light, emergency flasher

33. WASHER 15 A: Windshield washer,

rear window washer

34. M−HTR/DEF I−UP 10 A: Engine control

system

Fuses (type B) 35. ABS NO.1 30 A: Anti−lock brake sys- tem, traction control system, vehicle stability control system, brake assist system

36. RDI FAN 40 A: Electric cooling fan 37. ABS NO.2 40 A (without vehicle sta- bility control system): Anti−lock brake system ABS NO.2 50 A (with vehicle stability control system): Anti−lock brake sys- tem, traction control system, vehicle stability control system, brake assist system

38. HEAD MAIN 40 A: “HEAD LH UPR”, “HEAD RH UPR”, “HEAD LH LWR” and “HEAD RH LWR” fuses

SECTION 9

REPORTING SAFETY DEFECTS FOR U.S. OWNERS Reporting safety defects for U.S. owners Reporting safety defects for U.S. owners

. . . . . . . . . . . . . . . . . . . . . .

304

303

Safety Hotline

the To contact NHTSA, you may call Vehicle at toll−free 1−888−327−4236 (TTY: 1−800−424−9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also information about motor obtain other vehicle from http://www.safercar.gov.

safety

Reporting safety defects for U.S. owners If you believe that your vehicle has a de- fect which could cause a crash or could cause injury or death, you should immedi- ately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll−free: 1−800−331−4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot be- come involved in individual problems be- tween you, your dealer, or Toyota Motor Sales, U.S.A., Inc.

304

’07 MATRIX_U (L/O 0608)

Foreword

Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and quality construction of each vehicle we build. This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For important information about this manual and your Toyota, read the following pages carefully. When it comes to service, remember that your Toyota dealer knows your vehicle very well and is interested in your complete satisfaction. Your Toyota dealer will provide quality maintenance and any other assistance you may require. If there is not a Toyota dealer near you, please call the following number: U.S. OWNERS:

(cid:1) When traveling in the U.S. mainland or Canada:

Toyota Customer Experience Center

Toll−free:1−800−331−4331

(cid:1) Hawaii:

Servco Automotive Customer Services

Toll−free:1−888−272−5515

CANADIAN OWNERS:

(cid:1) When traveling in Canada or the U.S. mainland:

Toyota Canada Customer Interaction Centre

Toll−free:1−888−TOYOTA−8 or 1−888−869−6828
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also. All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of continual product improvement, we reserve the right to make changes at any time without notice. Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle. Please access our websites for further information. (cid:1) The U.S. mainland (cid:1) Hawaii (cid:1) Canada

www.toyota.com www.toyotahawaii.com www.toyota.ca

 2006 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation.

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

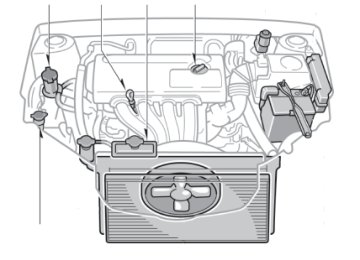

qU-2

Quick index (cid:1) If a service reminder indicator or warning buzzer comes on (cid:1) If your vehicle will not start (cid:1) If your engine stalls while driving (cid:1) If your vehicle overheats (cid:1) If you have a flat tire (cid:1) If your vehicle needs to be towed (cid:1) Tips for driving during break−in period (cid:1) How to start the engine (cid:1) General maintenance (cid:1) Complete index Gas station information Fuel type:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

105
222
225
226
227
239
180
208
255
NO TAG

UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91) or higher See page 180 for detailed information.

Fuel tank capacity:

50 L (13.2 gal., 11.0 Imp. gal.)

Engine oil:

ILSAC multigrade engine oil is recommended. See page 268 for detailed information.

Tire information: See pages 272 through 280. Tire inflation pressure: See page 300.

Publication No. OM12B33U Part No. 01999-12B33
Printed in Japan 01−0612−00 C

( U)

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

Important information about this manual

Safety and vehicle damage warnings

Safety symbol

Throughout this manual, you will see safety and vehicle dam- age warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows:

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

the safety symbol When you see shown above, it means: “Do not...”; “Do not do this”; or “Do not let this happen”.

ii

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

Important information about your Toyota

Occupant restraint systems

Toyota encourages you and your family to take the time to read Section 1−3 of this Owner’s Manual carefully. In terms of helping you understand how you can receive the maximum benefit of the occupant restraint systems this vehicle provides, Section 1−3 of this Owner’s Manual is the most important Section for you and your family to read. Section 1−3 describes the function and operation concern- ing seats, seat belts, SRS airbags and child restraint sys- tems of this vehicle and some potential hazards you should be aware of. These systems work together along with the overall structure of this vehicle in order to provide occupant restraint in the event of a crash. The effect of each system is enhanced when it is used properly and together with other systems. No single occupant restraint system can, by itself, provide you or your family with the equal level of restraint which these systems can provide when used together. That is why it is important for you and your family to understand the purpose and proper use of each of these systems and how they relate to each other.

The purpose of all occupant restraint systems is to help reduce the possibility of death or serious injury in the event of a collision. None of these systems, either individ- ually or together, can ensure that there is no injury in the event of collision. However, the more you know about these systems and how to use them properly, the greater your chances become of surviving an accident without death or serious injury.

Seat belts provide the primary restraint to all occupants of the vehicle, and every occupant of the vehicle should wear seat belts properly at all times. Children should always be secured in child restraint systems that are appropriate for their age and size. SRS (Supplemental Restraint System) airbags are, as their names imply, designed to work with, and be supplemental to, seat belts and are not substitutes for them. SRS airbags can be very effective in reducing the risk of head and chest injuries by preventing contact of the head and chest with interior portions of the vehicle.

iii

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

In order to be effective, the SRS airbags must deploy with tremendous speed. The rapid deployment of the SRS air- bags makes the SRS airbags themselves potential sources of serious injury if an occupant is too close to an airbag, or if an object or some part of his or her body has been placed between the occupant and the airbag at the time of deployment. This is just one example of how the instruc- tions in Section 1−3 of this Owner’s Manual will help en- sure proper use of the occupant restraint systems, and increase the safety they can provide to you and your fami- ly in the event of an accident.

Toyota recommends you to read the provisions in Section 1−3 carefully and refer to them as needed during your time of ownership of this vehicle.

’07 MATRIX_U (L/O 0608)

Event data recorder

Your vehicle has computers that monitor and control cer- tain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance. Be- sides storing data useful for troubleshooting, there is a system to record data in a crash or a near car crash event. This is called an Event Data Recorder (EDR).

The SRS airbag sensor assembly contains the EDR. In a crash or a near car crash event, this device may record some or all of the following information:

(cid:1) Engine speed (cid:1) Whether the brake pedal was applied or not (cid:1) Vehicle speed (cid:1) To what extent the accelerator pedal was depressed (cid:1) Position of the transmission selector lever (cid:1) Whether the driver and front passenger wore the seat

belts or not

(cid:1) Driver’s seat position (cid:1) Front passenger’s occupant classification (cid:1) SRS airbag deployment data

iv

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

(cid:1) SRS airbag system diagnostic data

If your vehicle is equipped with a vehicle stability control (VSC) system, its Electronic Control Unit (ECU) may con- tain another EDR. There are a variety of driving situations which include activating the VSC under which the VSC EDR will record certain information. The VSC EDR may record some or all of the following information:

(cid:1) Behavior of the vehicle (cid:1) Steering wheel angle (cid:1) Vehicle speed (cid:1) To what extent the accelerator pedal was depressed (cid:1) To what extent the brake pedal was applied (cid:1) To what extent the ECU controlled the condition of

the 4 wheels

(cid:1) Vehicle stability control system diagnostic data

The information above is intended to be used for the purpose of improving vehicle safety performance. Unlike general data recorders, the EDR does not record sound data such as conversation between passengers.

Toyota will not disclose the data recorded in an EDR to a third party except when:

(cid:1) An agreement from the vehicle’s owner (or the leas-

ing company for a leased vehicle) is obtained

(cid:1) Officially requested by the police or other authorities (cid:1) Used as a defense for Toyota in a law suit (cid:1) Ordered by the court

However, if necessary Toyota will:

(cid:1) Use the data for research on Toyota vehicle safety

performance

(cid:1) Disclose the data to a third party for research pur- poses without disclosing details of the vehicle owner, and only when it is deemed necessary

(cid:1) Disclose summarized data cleared of vehicle identifi- for

to a non−Toyota organization

information cation research purposes

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

New vehicle warranty

Your new vehicle is covered by the following Toyota limited warranties:

(cid:1) New vehicle warranty (cid:1) Emission control systems warranty (cid:1) Others

further

For Warranty Supplement”.

information, please refer

Information Booklet” or

to the “Owner’s “Owner’s Manual

Your responsibility for

maintenance

It is the owner’s responsibility to make sure that the speci- fied maintenance is performed. Section 6 gives details of these maintenance requirements. Also included in Section 6 is general maintenance. For scheduled maintenance in- formation, please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.

vi

’07 MATRIX_U (L/O 0608)

Important health and safety

information about your Toyota

CAUTION

(cid:1) WARNING: Engine exhaust, some of its constitu- ents, and a wide variety of automobile compo- nents contain or emit chemicals known to the State of California to cause cancer and birth de- fects and other reproductive harm. In addition, oils, fuels and fluids contained in vehicles as well as waste produced by component wear con- tain or emit chemicals known to the State of California to cause cancer and birth defects or

other reproductive harm.

(cid:1) Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling. Used engine oil contains chemicals that have caused cancer in laboratory animals. Always protect your skin by washing

thoroughly with soap and water.

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

Accessories, spare parts and modification of your Toyota

Spark ignition system of your

Toyota

A wide variety of non−genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these prod- ucts and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non−genuine Toyota products. Modification with non−genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addi- tion, damage or performance problems resulting from the modification may not be covered under warranty.

The spark ignition system in your Toyota meets all require- ments of the Canadian Interference−Causing Equipment Standard.

Installation of a mobile two−way radio system

fuel

injection system/sequential multiport

As the installation of a mobile two−way radio system in your vehicle could affect electronic systems such as multiport fuel injection system, electronic throttle control system, cruise control system, anti−lock brake system, traction control system, vehicle stability control system, SRS airbag sys- tem and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

vii

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

Tires and loading on your

Toyota

Underinflated or overinflated tire pressure and the excess load may result in the deterioration of steering ability and braking ability, leading to an accident. Check the tire inflation pressure periodi- cally and be sure to keep the load limits given in this Owner’s Manual. For details about tire inflation pressure and load limits, see pages 202 and 272.

Scrapping of your Toyota

If

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. is scrapped with the airbags and pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt preten- sioner removed and disposed of by the qualified service shop or by your Toyota dealer before you dispose of your vehicle.

the vehicle

viii

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

Leak detection pump

This pump performs fuel evaporation leakage check. This check is done approximately five hours after the engine is turned off. So you may hear sound coming from under- neath the luggage compartment for several minutes. It does not indicate a malfunction.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These components may include airbag, seat belt preten- sioners, and wireless remote control batteries.

ix

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

You should know as much about the quality and importance of proper maintenance of your new vehicle as the people who built it.

The Toyota authorized Repair Manual tells you how to maintain your vehicle and enables you to correctly perform your own maintenance.

The best way to keep your new vehicle in top running order is to maintain it properly from the moment you drive it off the showroom floor. The Toyota authorized Repair Manual is packed with literally everything you need to know to perform your own maintenance in virtually every area of your new vehicle.

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

Maintenance procedures for the engine, chassis, body, electrical system, and more, are clearly explained and illustrated.

Periodic maintenance and tune-up

Periodic maintenance and tune-up helps to prevent small problems from growing into larger ones later on. The repair manual outlines exactly what maintenance is required and clearly explains how to do the work yourself step-by-step. Areas covered include such things as spark plug re› placement, valve clearance adjustment and engine oil and filter replacement.

Where to obtain the

Repair Manual

The repair manual for COROLLA MATRIX may be purchased from any Toyota dealer or the Mate› rial Distribution Center. To purchase the repair manual, please contact your Toyota dealer or call the Material Distribution Center toll-free at 1-800-622-2033.

2007MY COROLLA MATRIX from Oct. ’06 Prod. (OM12B33U)

’07 MATRIX_U (L/O 0608)

WE REALLY CARE ABOUT YOU (cid:1) PLEASE BUCKLE UP

Toyota has made a special effort to encourage use of seat belts.

Toyota belts are:

(cid:1) Comfortable (cid:1) Easy to use (cid:1) Convenient

We encourage you to use your belts every time you drive.
