2005 Toyota ECHO Owners Manual

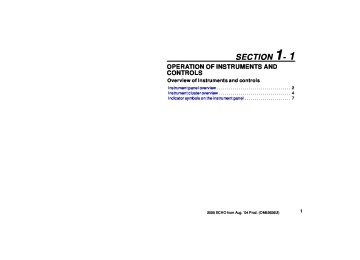

SECTION 1- 1

OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Instrument panel overview

SU11001a

1. Side vents

2. Instrument cluster

3. Center vents

4. Rear view mirror remote control levers

5. Auxiliary box

6. Power door lock switches

(with power windows)

7. Power window switches

8. Glove box

9. Automatic transmission selector lever or

manual transmission gear shift lever

10. Parking brake lever

11. Power door lock switch (without power windows)

12. Hood lock release lever

13. Window lock switch

2005 ECHO from Aug. ’04 Prod. (OM52636U)

1. Headlight and turn signal switches

2. Wiper and washer switches

3. Rear window defogger switch

4. Emergency flasher switch

5. Clock

6. Air conditioning controls

7. Security

indicator

light/Front passen-

ger’s seat belt reminder light

SU11002a

8. Audio system

9. Cigarette lighter/Power outlet

10. Ashtray/Coin box

11. Ignition switch

12. Tilt steering lock release lever

13. Power rear view mirror control switches

14. Instrument panel light control knob

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Instrument cluster overview (cid:1)Type A

SU11015

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Fuel gauge

5. Trip meter reset knob

4. Odometer and two trip meters

2005 ECHO from Aug. ’04 Prod. (OM52636U)

(cid:1)Type B

SU11014

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Fuel gauge

5. Trip meter reset knob

4. Odometer and two trip meters

2005 ECHO from Aug. ’04 Prod. (OM52636U)

(cid:1)Type C

SU11009b

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Extinction canceling button

4. Odometer and two trip meters

6. Trip meter reset button

5. Fuel gauge

7. Tachometer

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Indicator symbols on the instrument panel

or

Brake system warning light* 1

Driver’s seat belt reminder light* 1

Front passenger’s seat belt reminder light* 1

Discharge warning light* 1

Malfunction indicator lamp* 1

Low engine oil pressure warning light* 1

or

Anti-lock brake system warning light* 1

Open door warning light* 1

SRS warning light* 1

Low fuel level warning light* 1 (type A)

Low fuel level indicator light* 1 (type B)

Low windshield washer fluid level warning light* 1

Turn signal indicator lights

Headlight high beam indicator light

Overdrive- off indicator light

Low engine coolant temperature indicator light (in blue)* 2
High engine coolant temperature warning light (in red)* 1

* 1: For details, see “Service reminder indicators and warning

buzzers” on page 90 in Section 1- 6.

* 2: For details, see “Engine coolant temperature indicator and

warning light” on page 87 in Section 1- 6.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

8

2005 ECHO from Aug. ’04 Prod. (OM52636U)

SECTION 1- 10

OPERATION OF INSTRUMENTS AND CONTROLS Other equipment Clock Cigarette lighter and ashtray Power outlet Glove box Auxiliary boxes Cup holders Floor mat

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

140
140
141
142
142
143
144

2005 ECHO from Aug. ’04 Prod. (OM52636U)

139

Clock

Cigarette lighter and ashtray

If the electrical power source has been disconnected from the clock, the time dis- play will automatically be set to 1:00 (one o’clock). When lights are turned on, the brightness of the time in- dication will be reduced.

instrument panel

the

SY19008a

To reset the hour: Push the “H” button. To reset the minutes: Push the “M” button. The key must be in the “ACC” or “ON” position. If quick adjustment to a full hour is de- sired, push the “:00” button. if the “:00” button is de- For example, is between pressed when 1:01—1:29, the time will change to 1:00. If the time is between 1:30—1:59, the time will change to 2:00.

time

the

SU19002

CIGARETTE LIGHTER To use the cigarette lighter, press it in. After it finishes heating up, it automati- cally pops out ready for use. If the engine is not running, the key must be in the “ACC” position to use the light- er. Do not hold the cigarette lighter pressed in. Use a Toyota genuine cigarette lighter or equivalent for replacement.

140

2005 ECHO from Aug. ’04 Prod. (OM52636U)

ASHTRAY To use the ashtray, open out. finished with your cigarette, thor- When oughly extinguish it in the ashtray to pre- vent other cigarette butts from catching fire. After using the ashtray, push it back in completely. To remove the ashtray, press down on the lock spring plate and pull out.

CAUTION

To reduce the chance of in case of an accident or sudden stop while driving, always completely close the ashtray after use.

injury

Power outlet (without cigarette lighter)

SU19011

(cid:1) Close the power outlet lid when the power outlet is not in use. Inserting anything other than an appropriate plug that fits the outlet, or allowing any liquid to get into the outlet may cause electrical failure or short cir- cuits.

The power outlet is designed for power supply for car accessories. The key must be in the “ACC” or “ON” position for the power outlet to be used.

NOTICE

(cid:1) To prevent the fuse from being blown, do not use the electricity over the total vehicle capacity of 12V/120W.

(cid:1) To prevent the battery from being discharged, do not use the power outlet longer than necessary when the engine is not running.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

141

Glove box

Auxiliary boxes

SU19003

SU19004

SU19005

To open the glove box door, pull the lever.

CAUTION

To reduce the chance of in case of an accident or a sudden stop, always keep the glove box door closed while driving.

injury

Instrument panel

Passenger’s seat

To use the box, pull on the handle. This auxiliary box can be used to store the first- aid kit.

To use the box, slightly lift up the box and pull it out as shown in the illustra- tion.

CAUTION

in To reduce the chance of case of an accident or a sudden stop, always keep the auxiliary box closed while driving.

injury

142

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Cup holders

NOTICE

Instrument panel: During hot weather, the interior of the vehicle becomes very hot. Do not leave anything flam- mable or deformable such as a light- er, glasses, etc. inside.

SZ19005

SU19008

Front

SZ19006

Rear (center)

Rear (2- door models: for right and left sides)

The cup holder is designed for holding cups or drink- cans securely its holes.

in

CAUTION

Do not place anything else other than cups or drink- cans in the cup holder, as such items may be thrown about and possibly injure people in the ve- hicle during sudden braking or in an accident.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

143

Floor mat

SX19001

SP19003

Use a floor mat of the correct size. If the floor carpet and floor mat have two holes, then it is designed for use with a locking clip. Fix the floor mat with locking clip into the holes in the floor carpet.

CAUTION

Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and the movement of the pedals during driv- ing, it may cause an accident.

interferes with

144

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

SECTION 1- 2

OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Wireless remote control Side doors Power windows Trunk lid Hood Theft deterrent system Fuel tank cap

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10
11
15
17
19
21
23
24

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

Keys (type A)

Keys (type B)

SU12062

SU12063

SU12002

These keys work in every lock. 1. Master keys—These keys work in ev-

ery lock.

the doors and

Since lid can be locked without a key, you should always carry a spare key in case you accidentally lock your keys inside the vehicle.

trunk

Your vehicle is supplied with two kinds of key. 1. Master keys—These keys work in ev-

ery lock.

2. Sub key—This key will not work in the

trunk.

leave

To protect items locked in the trunk when using valet parking, the sub key with the attendant. Since lid can be locked without a key, you should always carry a spare master key in case you accidentally lock your keys inside the ve- hicle.

the doors and

trunk

KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.

10

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

Wireless remote control—

—Locking and unlocking doors

SU12072

to

lock or unlock all

1. “LOCK” switch 2. “UNLOCK” switch 3. “PANIC” switch The wireless remote control system is designed the doors, or activate the “PANIC” mode from a distance within approximately 1
m (3 ft.) of the vehicle. When you operate any switch, push slowly and securely. The wireless remote control transmitter is an electronic component. Observe the fol- lowing instructions in order not to cause damage to the transmitter.

it

(cid:1) Do not leave the transmitter in places the temperature becomes high

where such as on the dashboard.

(cid:1) Do not disassemble it. (cid:1) Avoid knocking

it hard against other

objects or dropping it.

for

transmitters

(cid:1) Avoid putting it in water. You can use up to 2 wireless remote con- the same vehicle. trol Contact your Toyota dealer for detailed information. If the wireless remote control transmitter does not actuate the doors or alarm, or operate from a normal distance: (cid:1) Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.

SU12023a

Locking operation

(cid:1) The battery may have been consumed. Check the battery in the transmitter. To replace the battery, see “—Replacing transmitter battery” on page 13.

If you lose your wireless remote control transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an accident. (See “If you lose your wireless remote control transmitter” on page 200 in Section 4.)

SU12024a

Unlocking operation

2005 ECHO from Aug. ’04 Prod. (OM52636U)

11

04 07.14

if

is

the key

To lock and unlock all the doors, push the switches of the transmitter slowly and securely. To lock: Push the “LOCK” switch. All the doors are locked simultaneously. At this time, parking lights, side marker lights and tail lights flash. Check to see that the doors are securely locked. If any of the doors is not securely closed, in the ignition switch, or locking cannot be performed by the “LOCK” switch. “UNLOCK” switch To unlock: Push once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the doors simultaneously. At this time, parking lights, side marker lights and tail lights flash twice. You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the doors will be automatically locked again. If the “LOCK” or “UNLOCK” switch is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push again.

the

12

—Activating panic mode

The “PANIC” mode does not work when the key is inserted in the ignition switch.

SU12026

flashes

to break

Pushing the “PANIC” switch blows the horn intermittently and the headlights and tail lights. The “PANIC” switch is used to deter ve- hicle theft when you witness anyone at- tempting into or damage your vehicle. The alarm will last for one minute. To stop this midway, push “PANIC” switch once again, unlock any door with the key or transmitter, open the trunk with the key or turn the ignition key from the “LOCK” to “ON” position. To cancel the “PANIC” mode, unlock any door with the key or wireless remote con- trol transmitter, or open the trunk with the key from the “LOCK” to “ON” position.

the

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

—Replacing transmitter battery For replacement, use a CR2016 lithium battery or equivalent.

CAUTION

Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.

NOTICE

(cid:1) When replacing the transmitter bat- tery, be careful not to lose the com- ponents.

(cid:1) Replace only with the same or equivalent type recommended by a Toyota dealer.

(cid:1) Dispose of used battery according

to the local laws.

Replace the transmitter battery by follow- ing these procedures:

SU12051a

SU12058a

1. Using a coin or equivalent, open the

transmitter case.

2. Remove the discharged transmitter bat- tery by ballpoint pen. Insert the tip of ballpoint pen at the guide groove and lift as shown in the above illustration.

NOTICE

Do not bend the terminals.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

13

04 07.14

SU12059a

3. Put in a new transmitter battery with

positive (+) side up.

Close the transmitter case securely.

NOTICE

(cid:1) Make sure the positive side and negative side of the transmitter bat- tery are faced correctly.

(cid:1) Do not replace the battery with wet hands. Water may cause unexpected rust.

(cid:1) Do not touch or move any compo- nents inside the transmitter, or it may interfere with proper operation.

(cid:1) Be careful not to bend the electrode when inserting the transmitter bat- tery and that dust or oils do not adhere to the transmitter case.

(cid:1) Close the transmitter case securely.

After replacing the battery, check that the transmitter operates properly. if the trans- mitter still does not operate properly, con- tact your Toyota dealer. If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an acci- dent. (See “If you lose your wireless re- mote control transmitter” in Section 4.) For vehicles sold in U.S.A.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interfer- ence interference that may cause undesired operation.

received,

including

interference

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interfer- ence by one or more of the following measures: (cid:1) Reorient or relocate the receiving an-

to radio or

tenna.

(cid:1) Increase the separation between the

equipment and receiver.

(cid:1) Connect the equipment into an outlet to

on a circuit different which the receiver is connected.

from

that

14

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

(cid:1) Consult the dealer or an experienced

radio / TV technician for help.

FCC WARNING: Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.

For vehicles sold in Canada

(1)

Operation is subject to the following two conditions: this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Side doors

SY12008

SY12009

LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. Vehicles with power door lock system—All the doors lock and unlock simultaneously with either front door. In the driver’s door lock, turning the key once will unlock the driver’s door and twice in succession will unlock all the doors simultaneously.

LOCKING AND UNLOCKING WITH INSIDE LOCK BUTTON Move the lock button. To lock: Push the knob down. To unlock: Pull the knob up. Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the ve- hicle. Vehicles with power door sys- tem—Doors cannot be locked when either front door is open and the key is in the ignition.

lock

2005 ECHO from Aug. ’04 Prod. (OM52636U)

15

04 07.14

SU12075

SY12011

lock: Push the switch down on the

Vehicles without power windows— To “LOCK” side. To unlock: Push the switch down on the “UNLOCK” side. All the doors lock or unlock simultaneous- ly.

Vehicles with power windows side)

(driver’s

Vehicles without power windows

SU12076

LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch. Vehicles with power windows— To front side. To unlock: Push the switch down on the rear side.

lock: Push the switch down on the

Vehicles with power windows ger’s side)

(passen-

16

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

SU12030

Power windows

SU12077

CAUTION

Before driving, be sure that the doors are closed and locked, especially when small children are in the ve- hicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the ve- hicle during an accident. It also helps prevent the doors from being opened unintentionally.

to

the

lock

lever

DOOR

the “LOCK”

CHILD- PROTECTORS

REAR (4- door models only) Move position as shown on the label. When the child- protector is locked, you cannot open the rear door by the inside door handle. We recommend using this feature whenever small children are in the vehicle.

The windows can be operated with the switch on each door. The power windows work when the ignition switch is in the “ON” position. OPERATING THE DRIVER’S WINDOW Use the switch on the driver’s door. Normal operation: The window moves as long as you hold the switch. To open: Lightly push down the switch. To close: Pull up the switch.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

17

04 07.14

Window lock switch

SU12078

SU12079

Automatic operation (to open only): Push the switch completely down and then release it. The window will fully open. To stop the window partway, lightly pull the switch up and then release it.

THE

PASSENGERS’

OPERATING WINDOWS Use the switches on the passengers’ doors. The driver’s door also has switches that control the passengers’ windows. The window moves as long as you hold the switch. To open: Push down the switch. To close: Pull up the switch. If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated.

SU12080

18

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

CAUTION

To avoid serious personal injury, you must do the following. (cid:1) Before you close the power win- dows, always make sure there is nobody around the power windows. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get caught it could result injury. When anyone closes the power win- dows, make sure he or she oper- ates the windows safely.

in a closing window,

in a serious

the vehicle.

inside

(cid:1) When small children are in the ve- hicle, never let them use the power window switches without supervi- sion. Use the window lock switch to prevent from making unex- pected use of the switches.

them

Trunk lid—

SU12013

(cid:1) Be sure to remove the ignition key or turn the ignition switch to the “LOCK” position when you leave your vehicle.

(cid:1) Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the power window switches and get in a window. Unat- tended person (particularly a small child) can be involved in a serious accident.

trapped

To open the trunk lid from the outside, insert the master key and turn it clock- wise. See “Cargo and luggage” on page 167 in Section 2 for precautions to observe when loading luggage. To close the trunk lid, lower it and press down on it. After closing the trunk lid, try pulling it up to make sure it is securely closed.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

19

04 07.14

—Lock release lever

—Internal trunk release handle

CAUTION

(cid:1) Keep

the

trunk

lid closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle.

SU12014a

SU12061a

(cid:1) Always lock the trunk lid and all doors, and keep away the vehicle keys out of children’s reach.

(cid:1) Never leave children unattended in the vehicle. Unsupervised children may lock themselves in the vehicle or trunk and suffer serious injuries or death.

To open the trunk lid from the driver’s seat, pull up on the lock release lever.

inside of trunk

If a person is locked in the trunk, he/ she can pull down the phosphorescent handle on the lid to open the trunk lid. The (glow- in- the- dark) handle will continue to glow for a time after the trunk lid is closed. Exposing the handle to stronger light will cause it to glow longer.

phosphorescent

20

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

—Luggage security system

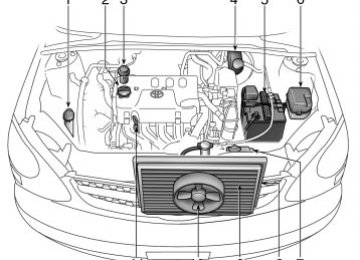

Hood

SU12055c

SU12056a

SU12016a

This system deactivates the lock re- lease lever so that things locked in the trunk can be protected. 1. Push down the security lock levers

to lock the rear seatbacks.

On vehicles with built- in child restraint, only the left seatback has a lock lever and can be lowered. The right seatback cannot be folded down. After locking the rear seatbacks, try fold- ing them down to make sure they are securely locked, otherwise someone could get into the trunk by folding down a rear seat.

2. After closing the trunk lid, insert the master key and turn it counterclock- wise to deactivate the lock release lever.

After closing the trunk lid, try pulling it up to make sure it is securely locked.

To open the hood: 1. Pull the hood lock release lever. The

hood will spring up slightly.

CAUTION

Before driving, be sure that the hood is closed and securely locked. Other- wise, the hood may open unexpected- ly while driving and an accident may occur.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

21

04 07.14

SU12017c

SU12054c

2. In front of the vehicle, pull up the the

lever and

lift

auxiliary catch hood.

3. Hold the hood open by inserting the

support rod into the slot.

To insert the support rod into the slot, move it straight up. If it is moved to the side or toward the inside of the vehicle, it may become detached. Before closing the hood, check to see that you have not forgotten any tools, rags, etc. and return the support rod to its clip- this prevents rattles. Then lower the hood and make sure it locks into place. If nec- essary, press down gently on the front edge to lock it.

CAUTION

After inserting the support rod into the slot, make sure the rod supports the hood security from falling down on to your head or body.

NOTICE

Be sure to return the support rod to its clip before closing the hood. Clos- ing the hood with the support rod up could cause the hood to bend.

22

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

Theft deterrent system

SU12028

SU12020

To deter vehicle theft, the system is designed to sound an alarm if any of the doors, trunk or hood is forcibly un- locked or the battery terminal is discon- nected and then reconnected when the vehicle is locked. The alarm blows the horn intermittently and flashes the headlights and tail lights.

SETTING THE SYSTEM 1. Turn

the ignition key position and remove it.

to the “LOCK”

The indicator light will start flashing when the key ignition switch. 2. Have all passengers get out of

removed

from

the

the

is

vehicle.

3. Close and lock all the doors, trunk and

hood.

The indicator light will come on when all the doors, trunk and hood are closed and locked.

The system will automatically be set after 30 seconds. When the system is set, the indicator light will start flashing again. 4. After making sure

light starts flashing, you may leave the ve- hicle.

indicator

the

Never leave anyone in the vehicle when you set the system, because unlocking from the inside will activate the system. WHEN THE SYSTEM IS SET Activating the system The system will sound the alarm under the following conditions: (cid:1) If any of the doors is unlocked or if the trunk or hood is forcibly opened without the key

(cid:1) If the battery terminal is disconnected

and then reconnected

The indicator light will come on when the system is activated.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

23

04 07.14

If any of the doors are unlocked without the key and the key is not in the ignition switch, all the doors will be automatically locked again. After one minute, the alarm will automati- cally stop and the indicator light will starts flashing again. Reactivating the alarm Once set, the system automatically resets the alarm after the alarm stops. The alarm will activate again under the circumstances same in “Activating the system”. Stopping the alarm The alarm will be stopped by the following three ways: (cid:1) Turn the ignition key from the “LOCK”

described

to “ON” position.

(cid:1) Unlock any of the doors with the key. (cid:1) Open the trunk with the key.

the

CANCELLING THE SYSTEM The system will be cancelled by above mentioned 3 ways. If the tail lights come on for 2 seconds, theft deterrent system has been the alarmed. Check is any abnormality with your vehicle. TESTING THE SYSTEM 1. Open all the windows. 2. Set

the system as described above. The doors should be locked with the key. Be sure to wait until the indicator light goes off or starts flashing.

to see

there

if

3. Unlock any door from the inside. The

system should activate the alarm.

for

this operation

4. Stop the alarm as described above. 5. Repeat

the other doors, trunk and hood. When testing the hood, also check that the system is activated when the battery terminal is disconnected and then reconnected. the system does not work properly,

If have it checked by your Toyota dealer.

Fuel tank cap

SU12057

Type A

Type B

SF12004

24

2005 ECHO from Aug. ’04 Prod. (OM52636U)

04 07.14

This indicates that the fuel filler door is on the left side of your vehicle.

SU12021a

SU12031a

1. To open the fuel filler door, pull the

lever up. When refueling, turn off the engine.

CAUTION

(cid:1) Do not smoke, cause sparks or al- flames when refueling.

low open The fumes are flammable.

(cid:1) When opening the cap, do not re- move the cap quickly. In hot weath- er, fuel under pressure could cause injury by spraying out of the filler neck is suddenly re- moved.

the cap

if

2. To remove the fuel tank cap, turn the cap slowly counterclockwise, then pause slightly before removing it. After removing the cap, hang it on the cap hanger.

the cap clockwise

It is not unusual to hear a slight swoosh when the cap is opened. When installing, turn till you hear a click. If the cap is not tightened securely, the malfunction lamp comes on. Make sure the cap is tightened securely.

indicator

2005 ECHO from Aug. ’04 Prod. (OM52636U)

25

04 07.14

The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible.

CAUTION

(cid:1) Make sure the cap is installed se- in

curely to prevent fuel spillage the event of an accident.

(cid:1) Use only a genuine Toyota fuel tank cap for replacement. It is designed to regulate fuel tank pressure.

26

2005 ECHO from Aug. ’04 Prod. (OM52636U)

SECTION 1- 3

OPERATION OF INSTRUMENTS AND CONTROLS Occupant restraint systems Seats Front seats Fold- down rear seat Head restraints Seat belts SRS driver and front passenger airbags SRS side airbags Child restraint

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28
28
32
34
35
43
50
56

2005 ECHO from Aug. ’04 Prod. (OM52636U)

27

Seats While the vehicle is being driven, all ve- hicle occupants should have the seatback upright, sit well back in the seat and prop- erly wear the seat belts provided.

CAUTION

(cid:1) Do not drive the vehicle unless the occupants are properly seated. Do not allow any passengers to sit on top of a folded- down seatback, or in the luggage compartment or car- go area. Persons not properly seated and/or not properly re- strained by seat belts can be se- verely injured in the event of emer- gency braking or a collision.

(cid:1) During driving, do not allow any passengers to stand up or move around between seats. Otherwise, severe the event of emergency braking or a collision.

injuries can occur

in

Front seats— —Front seat precautions Driver seat

CAUTION

The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag. The National Highway Traffic Safety Administration (“NHTSA”) advises: Since the risk zone for driver airbag is the first 50—75 mm (2—3 in.) of inflation, placing yourself 250 mm (10
in.) from your driver airbag provides you with a clear margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 250
mm in.) away now, you can change your driving position in sever- al ways: (cid:1) Move your seat to the rear as far as you can while still reaching the pedals comfortably.

(10

(cid:1) Slightly recline

the back of

the seat. Although vehicle designs vary, many drivers can achieve the 250
mm (10 in.) distance, even with the driver seat all the way forward, sim- ply by reclining the back of the seat somewhat. If reclining the back of your seat makes it hard to see the road, raise yourself by using a firm, non- slippery cushion, or raise the seat if your vehicle has that feature.

(cid:1) If your steering wheel is adjustable, tilt it downward. This points the air- bag toward your chest instead of your head and neck.

The seat should be adjusted as rec- ommended by NHTSA above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

28

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Front passenger seat

Front seats (with SRS side airbags)

CAUTION

CAUTION

The SRS front passenger airbag also deploys with considerable force, and can cause death or serious injury es- pecially if the front passenger is very close to the airbag. The front passen- ger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.

The SRS side airbags are installed in the driver and front passenger seats. Observe the following precautions. (cid:1) Do not lean against the front door when the vehicle is in use, since the side airbag inflates with consid- erable speed and force. Otherwise, you may be killed or seriously in- jured.

(cid:1) Do not use seat accessories which cover the area where the side air- bags inflate. Such accessories may prevent the side airbags from acti- vating correctly causing death or serious injury.

(cid:1) Do not modify or replace the seats or upholstery of the seats equipped with side airbags. Such change may prevent the side airbag system from activating correctly, disable the sys- tem or cause the side airbags to inflate accidentally, in death or serious injury.

resulting

—Seat adjustment precautions

CAUTION

(cid:1) Do not adjust the seat while the ve- hicle is moving as the seat may un- expectedly move and cause the driver to lose control of the vehicle. (cid:1) Be careful that the seat does not hit a passenger, luggage or the rear seat.

(cid:1) After adjusting the seat position, re- lease the lever and try sliding the seat forward and backward to make sure it is locked in position.

(cid:1) After adjusting the seatback, push your body back against the seat to make sure the seat in position.

locked

is

interfere with

(cid:1) Do not put objects under the seats except for putting them in the auxil- the objects iary box. Otherwise, may the seat- lock mechanism or unexpectedly push up the seat position adjusting lever and the seat may suddenly move, causing the driver to lose control of the vehicle.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

29

—Adjusting front seats

(cid:1) While adjusting the seat, do not put your hands under the seat or near the moving parts. Otherwise, your hands or fingers may be caught and injured.

1. SEAT POSITION ADJUSTING LEVER Hold the center of the lever and pull it up. Then slide the seat to the desired position with slight body pressure and release the lever. 2. SEATBACK

ADJUSTING

ANGLE

LEVER

SU13001b

lever up. lean back to the desired angle

Lean forward and pull the Then and release the lever.

CAUTION

the driver and

To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maxi- mum protection in a frontal or rear collision when the front passenger are sitting up straight and well back in the seats. If he/she is reclined, the lap belt may slide past his/her hips and apply restraint forces directly to the abdomen. In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury.

30

2005 ECHO from Aug. ’04 Prod. (OM52636U)

—Tilting driver’s seatback for rear seat entry (2- door models)

—Moving passenger’s seat for rear seat entry (2- door models)

CAUTION

SU13116

SU13117

(cid:1) After putting back

try pushing the seat forward and rear- ward to make sure it is secured in place.

the seat,

(cid:1) Never allow anyone to rest their foot on the release pedal while the vehicle is moving.

release

the seatback

Lift seatback will tilt forward. This allows passengers to get into or out of the rear seat easily. After passengers are in, lift up on the seatback.

lever—the

For easy access to the rear seat: 1. Lift the seatback angle adjusting lever the seat-

the pedal behind

or press back. The seat will slide forward.

CAUTION

After putting back the seatback, try pushing forward and rearward to make sure it is secured in place.

the seatback

2. Move the seat to the front- most posi-

tion.

After passengers are in, lift up the seat- back and return the seat until it locks.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

31

Fold- down rear seat

SU13109a

SU13004

(A) FOLDING DOWN REAR SEAT 1. Pull up the seatback security lock

lever 1 to the unlock position.

2. Pull up the lock release button 2. 3. Fold down the seatback. Each seatback may be folded separately.

This will enlarge the trunk as far as the seatbacks. See “Cargo and luggage” on page 167 for precautions to observe for loading luggage.

NOTICE

Make sure the luggage loaded in the enlarged trunk will not damage the webbing of the rear center seat belt when the left seatback is folded down.

CAUTION

When returning the seatback to the upright position, observe the follow- ing in precautions order to prevent personal injury in a collision or sud- den stop: (cid:1) Make sure the seatback is securely locked by pushing forward and rear- ward on the top of the seatback. Failure to do so will prevent the seat belt from operating properly.

(cid:1) Make sure the seat belts are not twisted or caught in the seatback and are arranged the proper position and are ready to use.

in

32

2005 ECHO from Aug. ’04 Prod. (OM52636U)

SU13110a

CAUTION

Disconnect the rear center seat belt only under the above mentioned cir- cumstances; do not disconnect it in other circumstances.

SU13122a

(B) PREVENTING DAMAGE TO REAR

CENTER SEAT BELT WEBBING

in

loaded

luggage

When folding down the left seatback, the the enlarged trunk will damage the webbing of the rear center seat belt. Disconnect the rear center seat belt to prevent damage. Insert the key into the hole (light gray) on the buckle to release tab 1 (light gray), and allow the belt to retract.

(C) BEFORE RETURNING REAR SEAT Before returning the seatback to the upright position, make sure to correctly connect the center seat belt for ready use. Insert tab 2 into the buckle 3. You will hear a click when the tab locks into the buckle.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

33

CAUTION

(cid:1) Be careful not to mix up the proper match of tab and buckle. Do not insert tab 1 (light gray) into other buckle than the one with light gray buckle release button. (See “Seat belts” in this Section for proper matching of the buckles and tabs.) (cid:1) After inserting the tab, make sure

the tab and buckle are locked.

(cid:1) Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle.

(cid:1) Make sure the belt is not twisted or caught in the seatback and that it is arranged in the proper position for ready use.

(cid:1) If the seat belt does not function normally, immediately contact your Toyota dealer.

Head restraints

SY13011

Front seat

SU13007

Rear seat

For your safety and comfort, adjust the head restraint before driving. To raise: Pull it up. To lower: Push it down while pressing the lock release button. The head restraint is most effective when it is close to your head. Therefore, using a cushion on the seatback is not recom- mended.

CAUTION

(cid:1) Adjust the center of the head re- straint so that it is closest to the top of your ears.

(cid:1) After adjusting the head restraint, make sure it is locked in position. the head re-

(cid:1) Do not drive with

straints removed.

34

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Do not allow any children to stand up or kneel on either rear or front seats. An unrestrained child could suffer serious in- jury or death during emergency braking or a collision. Also, do not let the child sit on your lap. Holding a child in your arms does not provide sufficient restraint. Pregnant woman. Toyota recommends the use of a seat belt. Ask your doctor for specific lap belt should be worn securely and as low as possible over the hips and not on the waist. Injured person. Toyota recommends the use of a seat belt. Depending on the inju- ry, first check with your doctor for specific recommendations.

recommendations. The

Seat belts— —Seat belt precautions Toyota strongly urges that the driver and passengers in the vehicle be properly re- strained at all times with the seat belts provided. Failure to do so could increase the chance of injury and/or the severity of injury in accidents. The seat belts provided for your vehicle are designed for people of adult size, large enough to properly wear them. Child. Use a child restraint system ap- propriate for the child until the child be- comes large enough to properly wear the vehicle’s seat belts. See “Child restraint” on page 56 for details. If a child is too large for a child restraint system, the child should sit in the rear seat and must be restrained using the vehicle’s seat belt. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat. If a child must sit in the front seat, the seat belts should be worn properly. If an accident occurs and the seat belts are not worn properly, the force of the rapid infla- tion of the airbag may cause death or serious injury to the child.

CAUTION

the vehicle

in their seats Persons should ride their seat belts properly wearing whenever is moving. Otherwise, they are much more likely to suffer serious bodily injury or death in the event of sudden braking or a collision. When using the seat belts, observe the following: (cid:1) Use the belt for only one person at a time. Do not use a single belt for two or more people—even children. (cid:1) To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maximum protection in a frontal or rear collision when the driver and the front passenger are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen. In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

35

(cid:1) Be careful not to damage the belt webbing or hardware. Take care that they do not get caught or pinched in the seat or doors.

(cid:1) Inspect the belt system periodically. Check for cuts, fraying, and loose parts. Damaged parts should be re- placed. Do not disassemble or modify the system.

(cid:1) Keep the belts clean and dry.

If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive clean- ers, or allow them to come into contact with the belt—they may se- verely weaken (See interior” on page “Cleaning the 205.)

the belts.

(cid:1) Replace the belt assembly (includ- ing bolts) if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious.

—Fastening front and rear seat belts

SU13239

Tab Buckle

tab

the

into

insert

Adjust the seat as needed and sit up straight and well back in the seat. To fasten your belt, pull it out of the re- tractor and the buckle. You will hear a click when the tab locks into the buckle. The seat belt length automatically adjusts to your size and the seat position. The retractor will lock the belt during a sudden stop or on impact. It also may lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend, and you can move around freely.

is

then

When a passenger’s shoulder belt is com- pletely extended and retracted even slightly, the belt is locked in that position and cannot be extended. This fea- ture is used to hold the child restraint system securely. (For details, see “Child restraint” on page 56.) To free the belt again, fully retract the belt and then pull the belt out once more. If the seat belt cannot be pulled out of the retractor, firmly pull the belt and release it. You will then be able to smoothly pull the belt out of the retractor.

CAUTION

(cid:1) After inserting the tab, make sure the tab and buckle are locked and that the belt is not twisted.

(cid:1) Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle.

(cid:1) If the seat belt does not function normally, immediately contact your Toyota dealer. Do not use the seat until the seat belt is fixed, because it cannot protect an adult occupant or your child from injury.

36

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Take up Take up slack slack

Too high

SY13016

Keep as low on hips as possible

CAUTION

(cid:1) Both high- positioned lap belts and loose- fitting belts could cause seri- ous injuries due to sliding under the lap belt during a collision or other unintended event. Keep the lap belt positioned as low on hips as possible.

(cid:1) Do not place the shoulder belt un-

der your arm.

the

lap and

the position of

Adjust shoulder belts. Position the lap belt as low as possible on your hips—not on your waist, then ad- just it to a snug fit by pulling the shoulder portion upward through the latch plate.

SZ13014

Seat belts with an adjustable shoulder anchor (4- door models)— Adjust the shoulder anchor position to your size. To raise: Slide the anchor up. To lower: Push in the lock release button and slide the anchor down. After adjustment make sure the anchor is locked in position.

2005 ECHO from Aug. ’04 Prod. (OM52636U)

37

CAUTION

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause serious injuries in a collision.

SY13017

SU13012

To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it re- tracts.

CAUTION

Do not separate the buckle with light gray buckle release button. Otherwise, the seat belt may not work properly. See the information in the following columns.

(WITH

REAR CENTER SEAT BELT FOLD- DOWN SEAT) The rear center seat belt is a 3- point type restraint with 2 buckles. Both seat belt buckles must be correctly located and se- curely latched for proper operation Make sure buckle 1 light gray buckle- release button) is securely latched for ready use of the center seat belt. Buckle 1 should be separated when the rear left seatback is folded down. Other- wise, the luggage loaded in the enlarged trunk will damage the webbing of the rear center seat belt. (See “Fold- down rear seat” in this Section for the instruction of how to correctly connect the seat belt.)

(with

38

2005 ECHO from Aug. ’04 Prod. (OM52636U)

SU13013a

CAUTION

located and securely

Make sure the both buckles are cor- rectly latched. Failure to properly match the buckle and tab may cause severe injury in case of an accident or a collision.

SU13014

Two buckles and tabs for rear center seat belt The two buckles for the rear center seat belt are distinguished with colors of the buckle release button. Also the two tabs have different shape for its end so that the belt is not buckled in the wrong place. Buckle 1—Properly matches with light gray tab Buckle 2—Properly matches with interi- or color tab
