2005 Pontiac Grand PRIX Owners Manual

Download PDF Manual

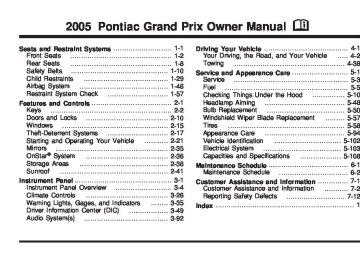

2005 Pontiac Grand Prix Owner Manual M Seats and Restraint Systems ........................... 1-1 Front Seats ............................................... 1-2 Rear Seats ............................................... 1-8 Safety Belts ............................................. 1-10 Child Restraints ....................................... 1-29 Airbag System ......................................... 1-48 Restraint System Check ............................ 1-57 Features and Controls ..................................... 2-1 ........................................................ 2-2 ...................................... 2-10 ................................................. 2-15 ............................ 2-17 ........... 2-21 .................................................... 2-35 ...................................... 2-36 ......................................... 2-38 .................................................. 2-41 Instrument Panel ............................................. 3-1 .......................... 3-4 ...................................... 3-26 ........ 3-35 .................. 3-49 ....................................... 3-92 Keys Doors and Locks Windows Theft-Deterrent Systems Starting and Operating Your Vehicle Mirrors OnStar® System Storage Areas Sunroof Instrument Panel Overview Climate Controls Warning Lights, Gages, and Indicators Driver Information Center (DIC) Audio System(s) Your Driving, the Road, and Your Vehicle Towing Driving Your Vehicle ....................................... 4-1 ..... 4-2 ................................................... 4-38 Service and Appearance Care .......................... 5-1 Service ..................................................... 5-3 Fuel ......................................................... 5-5 Checking Things Under the Hood ............... 5-10 Headlamp Aiming ..................................... 5-48 Bulb Replacement .................................... 5-50 Windshield Wiper Blade Replacement ......... 5-57 Tires ...................................................... 5-58 Appearance Care ..................................... 5-94 Vehicle Identiﬁcation ............................... 5-102 Electrical System .................................... 5-103 Capacities and Speciﬁcations ................... 5-108 Maintenance Schedule ..................................... 6-1 ................................ 6-2 Customer Assistance and Information .............. 7-1 ........... 7-2 ........................... 7-12 Index ................................................................ 1 Customer Assistance and Information Reporting Safety Defects Maintenance Schedule Canadian Owners A French language copy of this manual can be obtained from your dealer or from: Helm, Incorporated P.O. Box 07130 Detroit, MI 48207 GENERAL MOTORS, GM, the GM Emblem, PONTIAC, the PONTIAC Emblem, and the name GRAND PRIX are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without notice. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Pontiac Division whenever it appears in this manual. Keep this manual in the vehicle, so it will be there if it is needed while you are on the road. If the vehicle is sold, leave this manual in the vehicle. How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things. Index A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. Litho in U.S.A. Part No. 05GRANDPRIX A First Edition ©2004 General Motors Corporation. All Rights Reserved. ii Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. {CAUTION: These mean there is something that could hurt you or other people. In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you do not, you or others could be hurt. You will also ﬁnd a circle with a slash through it in this book. This safety symbol means “Do Not,” “Do Not do this” or “Do Not let this happen.” iii Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly. But the notice will tell what to do to help avoid the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words. There are also warning labels on the vehicle. They use the same words, CAUTION or NOTICE. Vehicle Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a speciﬁc component, control, message, gage, or indicator. If you need help ﬁguring out a speciﬁc name of a component, gage, or indicator, reference the following topics: (cid:127) Seats and Restraint Systems in Section 1 Features and Controls in Section 2 Instrument Panel Overview in Section 3 (cid:127) Climate Controls in Section 3 (cid:127) Warning Lights, Gages, and Indicators in Section 3 (cid:127) Audio System(s) in Section 3 (cid:127) Engine Compartment Overview in Section 5 iv (cid:127) (cid:127) These are some examples of symbols that may be found on the vehicle: ✍ NOTES vi Section 1 Seats and Restraint Systems Front Seats ......................................................1-2 Manual Seats ................................................1-2 Power Seat ...................................................1-3 Power Lumbar ...............................................1-3 Heated Seats .................................................1-4 Reclining Seatbacks ........................................1-4 Head Restraints .............................................1-6 Passenger Folding Seatback ............................1-6 Rear Seats .......................................................1-8 Split Folding Rear Seat ...................................1-8 Safety Belts ...................................................1-10 Safety Belts: They Are for Everyone ................1-10 Questions and Answers About Safety Belts ......1-15 How to Wear Safety Belts Properly .................1-16 Driver Position ..............................................1-16 Shoulder Belt Height Adjustment .....................1-22 Safety Belt Use During Pregnancy ..................1-23 Right Front Passenger Position .......................1-23 Rear Seat Passengers ..................................1-23 Rear Safety Belt Comfort Guides for Children and Small Adults ..........................1-26 Safety Belt Pretensioners ...............................1-28 Safety Belt Extender .....................................1-28 Child Restraints .............................................1-29 Older Children ..............................................1-29 Infants and Young Children ............................1-32 Child Restraint Systems .................................1-35 Where to Put the Restraint .............................1-38 Top Strap ....................................................1-38 Top Strap Anchor Location .............................1-40 Lower Anchorages and Top Tethers for Children (LATCH System) ...........................1-40 Securing a Child Restraint Designed for the LATCH System ....................................1-42 Securing a Child Restraint in a Rear Seat Position ....................................1-43 Securing a Child Restraint in the Right Front Seat Position ....................................1-45 Airbag System ...............................................1-48 Where Are the Airbags? ................................1-50 When Should an Airbag Inﬂate? .....................1-53 What Makes an Airbag Inﬂate? .......................1-54 How Does an Airbag Restrain? .......................1-54 What Will You See After an Airbag Inﬂates? .....1-55 Servicing Your Airbag-Equipped Vehicle ...........1-56 Restraint System Check ..................................1-57 Checking Your Restraint Systems ...................1-57 Replacing Restraint System Parts After a Crash ...1-57 1-1 Front Seats Manual Seats {CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver’s seat only when the vehicle is not moving. 1-2 Lift the bar located under the front seat cushion to unlock the seat. Slide the seat to the desired position and release the bar. Try to move the seat back and forth to make sure it is locked in place. Power Seat If the vehicle has this feature, the control is located on the outboard side of the driver’s seat. To adjust the seat do the following: (cid:127) Move the seat forward or rearward by sliding the control toward the front or rear of the vehicle. (cid:127) Raise or lower the seat cushion by sliding the control up or down. (cid:127) Raise or lower the front portion of the seat by sliding the front part of the control up or down. (cid:127) Raise or lower the rear portion of the seat by sliding the rear part of the control up or down. Power Lumbar If the vehicle has this feature, the power lumber control lets the driver adjust the amount and position of the support in the lower seatback. The four-way control is located on the outboard side of the driver’s seat cushion. To increase or decrease lumbar support, press and hold the front or rear of the control. To raise or lower the lumbar support, press and hold the top or bottom of the control. 1-3 Heated Seats If the vehicle has this feature, the buttons to activate the heat on each front seat cushion are located on the climate control panel. Reclining Seatbacks The recliner levers for the driver’s and passenger’s front seatbacks are located on the outboard side of each front seat cushion. The button for the driver’s seat is located on the bottom left side of the climate control panel. The button for the passenger’s seat is on the bottom right of the climate control panel. Push the button once to activate a high heat setting. Both indicator lights next to the button will come on. Push the button again to select a lower temperature setting. Only the bottom indicator light will come on. Press the button a third time to turn the heat off. This feature only works when the ignition is turned on. 1-4 Lift the lever to release the seatback, then move the seatback to the desired position. Release the lever to lock the seatback in place. Pull up on the lever without pushing on the seatback, and the seatback will return to an upright position. But do not have a seatback reclined if the vehicle is moving. {CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job because it will not be against your body. Instead, it will be in front of you. In a crash you could go into it, receiving neck or other injuries. The lap belt can not do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly. 1-5 Head Restraints Passenger Folding Seatback {CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person. This could cause severe injury or even death. Secure objects away from the area in which an airbag would inﬂate. For more information, see Where Are the Airbags? on page 1-50 and Loading Your Vehicle on page 4-33. Push the release button, located under the head restraint to slide it up or down. Adjust the head restraint so that the top of the restraint is closest to the top of the occupant’s head in each front seat. This position reduces the chance of a neck injury in a crash. 1-6 {CAUTION: Things you put on this seatback can strike and injure people in a sudden stop or turn, or in a crash. Remove or secure all items before driving. If the vehicle has this feature, the front passenger seat can be folded ﬂat for more cargo space. Used with the split folding rear seat, additional cargo space is gained. See Split Folding Rear Seat on page 1-8. To fold the front passenger seat ﬂat, pull up on the lever located in the middle of the seatback. Lift up on the seatback and push it forward to lock it in place. To unlock the seat and return it to the normal seating position, pull the lever in the middle of the seatback and raise the seatback. Push and pull on the seatback to make sure it is locked. 1-7 Rear Seats Split Folding Rear Seat Both sides of the rear seatback can be folded down in the vehicle. Make sure the front seat is not reclined. If it is, the rear seatback may not fold down all the way. To lower the rear seatback, follow these steps: 2. Pull forward on the seatback tab located on the outboard side of the rear seat cushion to fold the seatback down. This gives direct access to the trunk. {CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. 1. Disconnect the rear center lap-shoulder belt latch by using a pointed object to press the release button. 1-8 {CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted. To raise the rear seatback, follow these steps: 1. Raise the seatback up and make sure it latches. Push and pull on the seatback to be sure it is locked in position. 2. Reconnect the center safety belt latch plate to the buckle. Make sure the safety belt label is pointing to the release button, and that both are facing the front of the vehicle. Make sure the belt is not twisted. Push and pull on the latch plate to be sure it is secure. When the seat is not in use, the seatback should be kept in the upright, locked position. 1-9 Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. {CAUTION: Do not let anyone ride where he or she can not wear a safety belt properly. If you are in a crash and you are not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too. {CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly. Your vehicle has a light that comes on as a reminder to buckle up. See Safety Belt Reminder Light on page 3-38. In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. 1-10 Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed. After more than 30 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter...a lot! Take the simplest vehicle. Suppose it is just a seat on wheels. 1-11 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop. 1-12 The person keeps going until stopped by something. In a real vehicle, it could be the windshield... or the instrument panel... 1-13 With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. or the safety belts! 1-14 Q: If I am a good driver, and I never drive far from home, why should I wear safety belts? A: You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers. Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone. Questions and Answers About Safety Belts Q: Will I be trapped in the vehicle after an accident if I am wearing a safety belt? A: You could be — whether you are wearing a safety belt or not. But you can unbuckle a safety belt, even if you are upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted. Q: If my vehicle has airbags, why should I have to wear safety belts? A: Airbags are in many vehicles today and will be in most of them in the future. But they are supplemental systems only; so they work with safety belts — not instead of them. Every airbag system ever offered for sale has required the use of safety belts. Even if you are in a vehicle that has airbags, you still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions. 1-15 How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-29 or Infants and Young Children on page 1-32. Follow those rules for everyone’s protection. First, you will want to know which restraint systems your vehicle has. We will start with the driver position. Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 1-16 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-28. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt. 6. This safety belt has a feature that will reduce the tension of the safety belt on the occupant’s shoulder. To set this feature, gently pull on the belt, or lean forward and then sit back. The belt will retract and rest lightly against the occupant. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there is a sudden stop or crash, or if you pull the belt very quickly out of the retractor. 1-17 Q: What is wrong with this? {CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. A: The shoulder belt is too loose. It will not give nearly as much protection this way. 1-18 Q: What is wrong with this? {CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you. A: The belt is buckled in the wrong place. 1-19 Q: What is wrong with this? {CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen. A: The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-20 Q: What is wrong with this? {CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it. A: The belt is twisted across the body. 1-21 Shoulder Belt Height Adjustment Before you begin to drive, move the shoulder belt adjuster to the height that is right for you. To move it down, pull the release button out and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide. After you move the adjuster to where you want it, try to move it down without pulling the release button to make sure it has locked into position. Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder. To unlatch the belt, just push the button on the buckle. The tension reducer will release and the belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle. 1-22 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy. The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-16. The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature. If this happens, just let the belt go back all the way and start again. Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts. 1-23 Lap-Shoulder Belt All rear seat positions have lap-shoulder belts. Here is how to wear one properly. 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see Safety Belt Extender on page 1-28. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 1-24 3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part. {CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. To unlatch the belt, just push the button on the buckle. 1-25 Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head. There is one guide for each outside passenger position in the rear seat. To provide added safety belt comfort for children who have outgrown child restraints and booster seats and for smaller adults, the comfort guides may be installed on the shoulder belts. Here is how to install a comfort guide and use the safety belt: 1-26 1. Pull the elastic cord out from between the edge of the seatback and the interior body to remove the guide from its storage clip. 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 1-27 Safety Belt Pretensioners Your vehicle has safety belt pretensioners. They are on the buckle end of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe frontal and near frontal crash. Pretensioners work only once. If they activate in a crash, you will need to get new ones, and probably other new parts for your safety belt system. See Replacing Restraint System Parts After a Crash on page 1-57. Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer will order you an extender. It is free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. To help avoid personal injury, do not let someone else use it, and use it only for the seat it is made to ﬁt. The extender has been designed for adults. Never use it for securing child seats. To wear it, just attach it to the regular safety belt. For more information, see the instruction sheet that comes with the extender. 4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-23. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides. Pull the guide upward to expose its storage clip, and then slide the guide onto the clip. Turn the guide and clip inward and in between the seatback and the interior body, leaving only the loop of the elastic cord exposed. 1-28 Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. Q: What is the proper way to wear safety belts? A: If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash. Accident statistics show that children are safer if they are restrained in the rear seat. In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly. 1-29 Q: What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? A: If the child is sitting in a seat next to a window, move the child toward the center of the vehicle. If the child is sitting in the center rear seat position, move the child toward the safety belt buckle. In either case, be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. If the child is sitting in a rear seat outside position, see Rear Safety Belt Comfort Guides for Children and Small Adults on page 1-26 {CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. 1-30 {CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries. The lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash. 1-31 Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle. Every time infants and young children ride in vehicles, they should have the protection provided by appropriate restraints. Young children should not use the vehicle’s adult safety belts alone, unless there is no other choice. Instead, they need to use a child restraint. {CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint. 1-32 {CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Q: What are the different types of add-on child restraints? A: Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used. 1-33 {CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure. This alone could cause serious or fatal injuries. Young children always should be secured in appropriate child restraints. For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards. The restraint manufacturer’s instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs. {CAUTION: Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders. Infants always should be secured in appropriate infant restraints. 1-34 Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle. A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-35 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window. 1-36 When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system or the LATCH system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury. When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer. Q: How do child restraints work? A: A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner. For many years, add-on child restraints have used the adult belt system in the vehicle. To help reduce the chance of injury, the child also has to be secured within the restraint. The vehicle’s belt system secures the add-on child restraint in the vehicle, and the add-on child restraint’s harness system holds the child in place within the restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps and a crotch strap. A shield may take the place of hip straps. A T-shaped shield has shoulder straps that are attached to a ﬂat pad which rests low against the child’s body. A shelf- or armrest-type shield has straps that are attached to a wide, shelf-like shield that swings up or to the side. 1-37 Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat. Never put a rear-facing child restraint in the front passenger seat. Here is why: {CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Always secure a rear-facing child restraint in a rear seat. If you need to secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. 1-38 Wherever you install it, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle — even when no child is in it. Top Strap Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored. Others require the top strap always to be anchored. Be sure to read and follow the instructions for your child restraint. If yours requires that the top strap be anchored, do not use the restraint unless it is anchored properly. If the child restraint does not have a top strap, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available. In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. Anchor the top strap to an anchor point speciﬁed in Top Strap Anchor Location on page 1-40. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed. {CAUTION: Each top tether bracket is designed to anchor only one child restraint. Attaching more than one child restraint to a single bracket could cause the anchor to come loose or even break during a crash. A child or others could be injured if this happens. To help prevent injury to people and damage to your vehicle, attach only one child restraint per bracket. Once you have the top strap anchored, you will be ready to secure the child restraint itself. Tighten the top strap when and as the child restraint manufacturer’s instructions say. 1-39 Top Strap Anchor Location The vehicle has top strap anchors already installed for the rear seating positions. They are located on the ﬁller panel above the rear seats. Open the covers to access the anchors. 1-40 Do not secure a child restraint with a top strap in the right front passenger’s position if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored. There is no place to anchor the top strap in this position. If the child restraint is equipped with the LATCH system, see “Lower Anchorages and Top Tethers for Children (LATCH System)” following. Lower Anchorages and Top Tethers for Children (LATCH System) The vehicle has the LATCH system. The anchors for the LATCH system are located in the rear seating positions. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. Instead, it uses vehicle anchors and child restraint attachments to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether strap. A. Lower Anchorage B. Lower Anchorage C. Top Tether A. Lower Anchorage B. Lower Anchorage In order to use the LATCH system in the vehicle, you need a child restraint designed for that system. 1-41 To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback at each lower anchor position. The labels are located near the base of all three rear seating positions. {CAUTION: If a LATCH-type child restraint is not attached to its anchorage points, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchorage points, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual. 1-42 Securing a Child Restraint Designed for the LATCH System 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-40. 2. Put the child restraint on the seat. 3. Attach and tighten the LATCH attachments on the child restraint to the LATCH anchorages in the vehicle. The child restraint instructions will show you how. 4. If the child restraint is forward-facing, attach and tighten the top tether to the top tether anchorage. The child restraint instructions will show you how. Also see Top Strap on page 1-38. 5. Push and pull the child restraint in different directions to be sure it is secure. To remove the child restraint, simply unhook the top tether from the top tether anchorage and then disconnect the LATCH attachments from the LATCH anchorages. Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-40. See Top Strap on page 1-38 if the child restraint has one. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Put the child restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 1-43 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt. 6. Push and pull the child restraint in different directions to be sure it is secure. To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. 1-44 Securing a Child Restraint in the Right Front Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-40. See Top Strap on page 1-38 if your child restraint has one. There is no top strap anchor in the right front passenger’s position. Do not secure a child seat in this position if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored. Your vehicle has a right front passenger airbag. Never put a rear-facing child restraint in this seat. Here is why: {CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Always secure a rear-facing child restraint in a rear seat. A rear seat is a safer place to secure a forward-facing child restraint. 1-45 You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Because your vehicle has a right front passenger’s airbag, always move the seat as far back as it will go before securing a forward-facing child restraint. See Manual Seats on page 1-2. 2. Put the child restraint on the seat. 3. Pick up the latch plate and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 1-46 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. You may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt. 7. Push and pull the child restraint in different directions to be sure it is secure. To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. 1-47 Airbag System Your vehicle has a frontal airbag for the driver and another frontal airbag for the right front passenger. Your vehicle may also have roof mounted side impact airbags. Roof mounted side impact airbags are available for the driver and the passenger seated directly behind the driver and for the right front passenger and the passenger seated directly behind that passenger. If your vehicle has side impact airbags, the words AIR BAG will appear on the airbag covering on the ceiling near the driver’s and right front passenger’s window. Frontal airbags are designed to help reduce the risk of injury from the force of an inﬂating frontal airbag. But these airbags must inﬂate very quickly to do their job and comply with federal regulations. Here are the most important things to know about the airbag system: 1-48 {CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Airbags are “supplemental restraints” to the safety belts. All airbags are designed to work with safety belts but do not replace them. Frontal airbags for the driver and right front passenger are designed to deploy only in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear or low-speed frontal crashes, or in many side crashes. And, for some unrestrained occupants, frontal airbags may provide less protection in frontal crashes than more forceful airbags have provided in the past. The roof-mounted side impact airbags are designed to inﬂate only in moderate to severe crashes where something hits the CAUTION: (Continued) CAUTION: (Continued) {CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see Older Children on page 1-29 or Infants and Young Children on page 1-32. side of your vehicle. They are not designed to inﬂate in frontal, in rollover or in rear crashes. Everyone in your vehicle should wear a safety belt properly — whether or not there is an airbag for that person. {CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash. Always wear your safety belt even with frontal airbags. The driver should sit as far back as possible while still maintaining control of the vehicle. Occupants should not lean on or sleep against the door. 1-49 There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. Where Are the Airbags? The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-38 for more information. The driver’s airbag is in the middle of the steering wheel. 1-50 The right front passenger’s airbag is in the instrument panel on the passenger’s side. The side impact airbag for the driver and the person seated directly behind the driver is in the ceiling above the side windows. 1-51 {CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering. And, if your vehicle has side impact airbags, never secure anything to the roof of your vehicle by routing the rope or tiedown through any door or window opening. If you do, the path of an inﬂating side impact airbag will be blocked. The path of an inﬂating airbag must be kept clear. The side impact airbag for the right front passenger and the person seated directly behind that passenger is in the ceiling above the side windows. 1-52 When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help restrain the occupants. Whether your frontal airbags will or should deploy is not based on how fast your vehicle is traveling. It depends largely on what you hit, the direction of the impact and how quickly your vehicle slows down. In addition, your vehicle has “dual stage” frontal airbags, which adjust the restraint according to crash severity. Your vehicle is equipped with electronic frontal sensors which help the sensing system distinguish between a moderate frontal impact and a more severe frontal impact. For moderate frontal impacts, these airbags inﬂate at a level less than full deployment. For more severe frontal impacts, full deployment occurs. If the front of your vehicle goes straight into a wall that does not move or deform, the threshold level for the reduced deployment is about 12 to 16 mph (19 to 26 km/h), and the threshold level for a full deployment is about 18 to 24 mph (29 to 38.5 km/h). (The threshold level can vary, however, with speciﬁc vehicle design, so that it can be somewhat above or below this range.) Airbags may inﬂate at different crash speeds. For example: If the vehicle hits a stationary object, the airbag could inﬂate at a different crash speed than if the object were moving. If the object deforms, the airbag could inﬂate at a different crash speed than if the object does not deform. If the vehicle hits a narrow object (like a pole) the airbag could inﬂate at a different crash speed than if the vehicle hits a wide object (like a wall). If the vehicle goes into an object at an angle the airbag could inﬂate at a different crash speed than if the vehicle goes straight into the object. Frontal airbags (driver and right front passenger) are not intended to inﬂate during vehicle rollovers, rear impacts, or in many side impacts because inﬂation would not likely help the occupants. Side impact airbags are designed to inﬂate in moderate to severe side crashes. A side impact airbag will inﬂate if the crash severity is above the system’s designed “threshold level.” The threshold level can vary with speciﬁc vehicle design. Side impact airbags are not designed to inﬂate in frontal or near-frontal impacts, rollovers or rear impacts, because inﬂation would not likely help the occupant. A side impact airbag will only deploy on the side of the vehicle that is struck. 1-53 (cid:127) (cid:127) (cid:127) (cid:127) In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. For frontal airbags, inﬂation is determined by the angle of the impact and how quickly the vehicle slows down in frontal or near-frontal impacts. For side impact airbags, inﬂation is determined by the location and severity of the impact. What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. For both frontal and side impact airbags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag. The inﬂator, airbag, and related hardware are all part of the airbag modules inside the steering wheel and in the instrument panel in front of the right front passenger. For vehicles with side impact airbags, the airbag modules are located in the ceiling of the vehicle, near the side windows. How Does an Airbag Restrain? In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle. The airbag supplements the protection provided by safety belts. Airbags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But the frontal airbags would not help you in many types of collisions, including rollovers, rear impacts, and many side impacts, primarily because an occupant’s motion is not toward the airbag. Side impact airbags would not help you in many types of collisions, including frontal or near frontal collisions, rollovers, and rear impacts, primarily because an occupant’s motion is not toward those airbags. Airbags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions for the driver’s and right front passenger’s frontal airbags, and only in moderate to severe side collisions for side impact airbags. 1-54 What Will You See After an Airbag Inﬂates? After an airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Some components of the airbag module — the steering wheel hub for the driver’s airbag, the instrument panel for the right front passenger’s bag or the ceiling of your vehicle near the side windows — will be hot for a short time. The parts of the bag that come into contact with you may be warm, but not too hot to touch. There will be some smoke and dust coming from the vents in the deﬂated airbags. Airbag inﬂation does not prevent the driver from seeing or being able to steer the vehicle, nor does it stop people from leaving the vehicle. {CAUTION: When an airbag inﬂates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can not get out of the vehicle after an airbag inﬂates, then get fresh air by opening a window or a door. If you experience breathing problems following an airbag deployment, you should seek medical attention. In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. (cid:127) Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system. If you do not get them, the airbag system will not be there to help protect you in another crash. A new system will include airbag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts. 1-55 (cid:127) Your vehicle is equipped with a crash sensing and diagnostic module which records information after a crash. See Vehicle Data Collection and Event Data Recorders on page 7-10. Let only qualiﬁed technicians work on your airbag system. Improper service can mean that your airbag system will not work properly. See your dealer for service. If you damage the covering for the driver’s Notice: or the right front passenger’s airbag, or the side impact airbag covering on the ceiling near the side windows, the airbag may not work properly. You may have to replace the airbag module in the steering wheel, both the airbag module and the instrument panel for the right front passenger’s airbag, or side impact airbag module and ceiling covering for the roof-mounted side impact airbag. Do not open or break the airbag coverings. 1-56 Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-13. {CAUTION: For up to 10 seconds after the ignition key is turned off and the battery is disconnected, an airbag can still inﬂate during improper service. You can be injured if you are close to an airbag when it inﬂates. Avoid yellow connectors. They are probably part of the airbag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualiﬁed to do so. The airbag system does not need regular maintenance. (cid:127) Restraint System Check Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away. Also look for any opened or broken airbag covers, and have them repaired or replaced. (The airbag system does not need regular maintenance.) Replacing Restraint System Parts After a Crash {CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible. If you have had a crash, do you need new belts or LATCH system parts? After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new parts. 1-57 If the LATCH system was being used during a more severe crash, you may need new LATCH system parts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system was not being used at the time of the collision. If an airbag inﬂates, you will need to replace airbag system parts. See the part on the airbag system earlier in this section. If the frontal airbags inﬂate, you will also need to replace the driver’s and right front passenger’s safety belt buckle assembly. Be sure to do so. Then the new buckle assembly will be there to help protect you in a collision. After a crash you may need to replace the driver and front passenger’s safety belt buckle assemblies, even if the frontal airbags have not deployed. The driver and front passenger’s safety belt buckle assemblies contain the safety belt pretensioners. Have your safety belt pretensioners checked if your vehicle has been in a collision, or if your airbag readiness light stays on after you start your vehicle or while you are driving. See Airbag Readiness Light on page 3-38. 1-58 Section 2 Features and Controls Keys ...............................................................2-2 Remote Keyless Entry System .........................2-4 Remote Keyless Entry System Operation ...........2-5 Doors and Locks ............................................2-10 Door Locks ..................................................2-10 Power Door Locks ........................................2-11 Delayed Locking ...........................................2-11 Programmable Automatic Door Locks ..............2-12 Lockout Protection ........................................2-12 Trunk ..........................................................2-13 Windows ........................................................2-15 Power Windows ............................................2-16 Sun Visors ...................................................2-16 Theft-Deterrent Systems ..................................2-17 Content Theft-Deterrent .................................2-17 PASS-Key® III ..............................................2-18 PASS-Key® III Operation ...............................2-19 Starting and Operating Your Vehicle ................2-21 New Vehicle Break-In ....................................2-21 Ignition Positions ..........................................2-22 Retained Accessory Power (RAP) ...................2-22 Starting Your Engine .....................................2-23 Engine Coolant Heater ..................................2-24 Automatic Transaxle Operation .......................2-25 Parking Brake ..............................................2-30 Shifting Into Park (P) .....................................2-31 Shifting Out of Park (P) .................................2-32 Parking Over Things That Burn .......................2-33 Engine Exhaust ............................................2-33 Running Your Engine While You Are Parked .......2-34 Mirrors ...........................................................2-35 Manual Rearview Mirror .................................2-35 Manual Rearview Mirror with OnStar® ..............2-35 Outside Power Mirrors ...................................2-35 Outside Convex Mirror ...................................2-36 OnStar® System .............................................2-36 Storage Areas ................................................2-38 Glove Box ...................................................2-38 Cupholder(s) ................................................2-38 Overhead Console ........................................2-39 Front Seat Storage Net .................................2-40 Center Console Storage Area .........................2-40 Assist Handles .............................................2-40 Convenience Net ..........................................2-40 Sunroof .........................................................2-41 2-1 Keys {CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children. 2-2 The key can be used for the ignition, as well as the driver’s door lock and storage compartments. The key comes with a bar coded tag attached to the key ring. Keep this bar coded tag and give it to your dealer if a new key needs to be made. The vehicle has the PASS-Key® III vehicle theft system. The key has a transponder in the key head that matches a decoder in the vehicle’s instrument panel. The key will have PK3 stamped on it. If a replacement key or an additional key is needed, it must be purchased from your dealer. Any new PASS-Key® III key must be programmed before it will start the vehicle. See PASS-Key® III on page 2-18 for more information on programming a new key. In an emergency, contact Pontiac Roadside Assistance. See Roadside Assistance Program on page 7-6 for more information. Notice: you may have to damage the vehicle to get in. Be sure you have spare keys. If the vehicle has the OnStar ® system with an active subscription, and the keys are locked inside the vehicle, OnStar ® may be able to send a command to unlock the vehicle. See OnStar® System on page 2-36 for more information. If you ever lock your keys in your vehicle, 2-3 Remote Keyless Entry System Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation of the device. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes or modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment. At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: (cid:127) Check the distance. You may be too far from your vehicle. You may need to stand closer during rainy or snowy weather. (cid:127) Check the location. Other vehicles or objects may be blocking the signal. Take a few steps to the left or right, hold the transmitter higher, and try again. (cid:127) Check to determine if battery replacement is necessary. See “Battery Replacement” under Remote Keyless Entry System Operation on page 2-5. If you are still having trouble, see your dealer or a qualiﬁed technician for service. 2-4 (cid:127) Remote Keyless Entry System Operation The vehicle’s doors can be locked and unlocked, the trunk can be unlatched from about 3 feet (1 m) up to 60 feet (18 m) away with the remote keyless entry transmitter. There are other conditions which may affect the performance of the transmitter, see Remote Keyless Entry System on page 2-4 for more information. / (Remote Start): If your vehicle has this feature, it may be started from outside the vehicle using the Remote Keyless Entry transmitter. Your remote keyless entry transmitter with the remote start button provides an increased range of operation. You can start your vehicle from an average range of 492 feet (150 m) away. However the range may be less while the vehicle is running. As a result, you may need to be closer to your vehicle to turn it off, than you were to turn it on. See “Remote Vehicle Start” following for more detailed information. Q (Lock): Press the lock button to lock all the doors. If enabled through the Driver Information Center (DIC), the parking lamps may ﬂash once and the horn may chirp to indicate locking has occurred. Pressing the lock button may arm the content theft-deterrent system. See Content Theft-Deterrent on page 2-17 for more information. Remote Keyless Entry with Remote Start Remote Keyless Entry without Remote Start 2-5 " (Unlock): Press the unlock button one time to unlock the driver’s door. Press the unlock button again within ﬁve seconds to unlock the other doors. The interior lights will come on and stay on for 20 seconds or until the ignition is turned on. If enabled through the DIC, the parking lamps will ﬂash once to indicate unlocking has occurred. Pressing the lock button on the remote keyless entry transmitter will disarm the content-theft deterrent system. See Content Theft-Deterrent on page 2-17 for more details. V (Trunk Release): Press this button to release the trunk lid. The transaxle must be in PARK (P) for this feature to operate. L (Remote Alarm): Press the remote alarm button to activate an alarm. The ignition must be in off or accessory for the remote alarm to work. When the remote alarm button is pressed the headlamps will ﬂash and the horn will sound repeatedly for two minutes. The alarm will turn off when the ignition is moved to run or the remote alarm button is pressed again. The vehicle may have Remote Lock/Unlock Conﬁrmation. This feature provides feedback that a command has been received by the vehicle. The headlamps will ﬂash and the horn may sound brieﬂy. See “Remote Lock Feedback” under DIC Controls and Displays (Base Level DIC) on page 3-49 or DIC Controls and Displays (Uplevel DIC with Trip Computer) on page 3-57 for programming information. Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is uniquely coded to prevent another transmitter from unlocking the vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any additional transmitters so they can also be re-coded to match the new transmitter. Once your dealer has coded the new transmitter, the lost transmitter cannot unlock the vehicle. The vehicle can have a maximum of four transmitters coded to it. 2-6 Battery Replacement Under normal use, the battery in the remote keyless entry transmitter should last about four years. If the battery is weak the transmitter will not work within its normal range. It is probably time to change the battery if you have to be very close to the vehicle before the transmitter works. Notice: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter. To replace the battery do the following: 1. Insert a ﬂat object with a thin edge into the notch, located below the trunk release button, and pry the front and back apart. 2. Remove the old battery, but do not use a metal object to do this. 3. Slide the new battery into the transmitter with the positive side of the battery facing up. Use a type CR2032 battery, or equivalent type. 4. Snap the front and the back of the transmitter together. 5. Test the operation of the transmitter with the vehicle. 2-7 Remote Vehicle Start Your vehicle may have a remote starting feature. This feature allows you to start the engine from outside of the vehicle. It also starts up the vehicle’s heating or air conditioning systems and rear window defogger. When the remote start system is active and the vehicle has an automatic climate control system, it will automatically regulate the inside temperature. Normal operation of the system will return after the key is turned to the on position. Laws in some communities may restrict the use of remote starters, for example, requiring a person using remote start to have the vehicle in view when doing so. Check local regulations for any requirements on remote starting of vehicles. Do not use the remote start feature if your vehicle is low on fuel. Your vehicle may run out of fuel. / (Remote Start): Press the lock button and then press this button to use the remote start feature. To start the vehicle using the remote start feature, do the following: 1. Aim the transmitter at the vehicle. 2. Press the transmitter’s lock button, release it and then immediately press and hold the transmitter’s remote start button until the vehicle’s turn signal lights ﬂash or for at least four seconds. The vehicle’s doors will be locked. 3. When the vehicle starts, the parking lamps will turn on and remain on while the vehicle is running, and the DIC will display REMOTE START ACTIVE PRESS HAZARD SWITCH TO CANCEL when the vehicle starts. 4. If it is your ﬁrst remote start since last driving, repeat these steps while the engine is still running for a 10 minute time extension. When you enter the vehicle during a remote start, and the engine is still running, turn the key to the RUN position to drive the vehicle. 2-8 The remote start feature will not operate if the key is in the ignition, a door is open or the hood is not closed. The remote start feature will not operate if there is an emission control system malfunction. Also, the engine will turn off during a remote vehicle start if the coolant temperature gets too high or the oil pressure gets low. If a remote start is attempted and unsuccessful, the Driver Information Center (DIC) will display REMOTE START DISABLED. If the vehicle is left running it will automatically shut off after 10 minutes unless a time extension has been done. To manually shut off a remote start, do any of the following: (cid:127) Aim the remote keyless entry transmitter at the vehicle and press the remote start button until the parking lamps turn off. Turn on the hazards warning ﬂashers. Turn the ignition switch on and then off. The remote start feature provides two separate starts, each with 10 minutes of engine running, or it provides one start with 10 minutes of engine running which may be extended by 10 more minutes. If you press and release the transmitter lock button and then press and hold the remote start button, on the keyless entry transmitter, again before the ﬁrst 10 minutes of the engine running time has expired, 10 minutes are added to the remaining minutes. For example, if the lock and then the remote start buttons are pressed again after ﬁve minutes of the engine run time, 10 minutes are added and you now have 15 minutes of the engine running. The added 10 minutes is considered a second start. Once two remote starts or a single start with a time extension have been provided, the vehicle must be started normally with the ignition key to get more remote starts. 2-9 (cid:127) (cid:127) There are several ways to lock and unlock the vehicle. From the outside, use the key or remote keyless entry transmitter. From the inside, use the manual or power door locks. To manually lock or unlock the doors from inside the vehicle, push down or pull up on the door lock pin located on the top of each door panel. Doors and Locks Door Locks {CAUTION: Unlocked doors can be dangerous. (cid:127) Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked. So, wear safety belts properly and lock the doors whenever you drive. (cid:127) Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock your vehicle whenever you leave it. (cid:127) Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening. 2-10 Power Door Locks To lock or unlock all doors from inside the vehicle, use the power door lock switch located on either front door. Driver’s Side Move the switch on the driver’s door to the right to lock or to the left to unlock the doors. Move the switch on the passenger’s door to the left to lock or to the right to unlock the doors. If the vehicle has the content theft-deterrent system, the vehicle may be programmed to arm the system with the power door lock switch. See “Lock Switch Arm” under DIC Controls and Displays (Base Level DIC) on page 3-49 or DIC Controls and Displays (Uplevel DIC with Trip Computer) on page 3-57 for more information on programming the system. Delayed Locking This feature delays the locking of the vehicle’s doors for ﬁve seconds after the last door is closed. Two chimes will sound when the power door lock switch or the LOCK button on the remote keyless entry transmitter is pressed when a door is open. The chimes indicate that the delayed locking feature is on. The doors can be locked immediately by pressing the power door lock switch or the LOCK button on the transmitter a second time. The delayed locking feature will not activate when the ignition is in RUN or ACC. You can program this feature on or off through the Driver Information Center (DIC), if equipped. See “Personal Programming Mode Screens” under DIC Controls and Displays (Base Level DIC) on page 3-49 or DIC Controls and Displays (Uplevel DIC with Trip Computer) on page 3-57. 2-11 Programmable Automatic Door Locks The vehicle’s doors are programmed from the factory to lock when the shift lever is moved out of PARK (P), except in REVERSE (R), and to unlock while the shift lever is moved into PARK (P). If someone needs to get in or out of the vehicle after the doors have been locked, place the shift lever into PARK (P). You may also unlock all doors using the power door lock switch or unlock one door using the inside manual door lock. To program other door locking/unlocking combinations, see “Personal Programming Mode Screens” under DIC Controls and Displays (Base Level DIC) on page 3-49 or DIC Controls and Displays (Uplevel DIC with Trip Computer) on page 3-57. Lockout Protection The lockout protection feature makes it more difficult to lock the key in the vehicle. If the driver’s door is open while the key is in the ignition, the door cannot be locked with the power door lock switch. This feature cannot guarantee that you will never be locked out of the vehicle. If the key is not left in the ignition, or, if the manual door lock pin is used, the key could still be locked inside the vehicle. Always remember to take the key with you. To turn this feature on or off see “Personal Programming Mode Screens” under DIC Controls and Displays (Base Level DIC) on page 3-49 or DIC Controls and Displays (Uplevel DIC with Trip Computer) on page 3-57. 2-12 Trunk Lock To unlock the trunk from the outside, insert the key into the lock on the trunk and turn it clockwise. If the battery is dead or extremely low, the trunk can not be opened with the remote keyless entry transmitter or remote trunk release. The open trunk symbol on the transmitter can also be used. See Remote Keyless Entry System Operation on page 2-5 for more information. The ignition must be off, or the transaxle must be in PARK (P), in order for the trunk to open. Trunk {CAUTION: It can be dangerous to drive with the trunk lid open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk lid: (cid:127) Make sure all other windows are shut. (cid:127) Turn the fan on your heating or cooling system to its highest speed and select the control setting that will force outside air into your vehicle. See Climate Control System in the Index. If you have air outlets on or under the instrument panel, open them all the way. See Engine Exhaust on page 2-33. 2-13 (cid:127) Remote Trunk Release This feature is used to unlock the trunk from inside the vehicle using the power door lock switch. Press and hold the driver’s side power door lock switch to the left, or the passenger’s side power door lock switch to the right to unlock the trunk. Driver’s Side The vehicle must be in PARK (P) to release the trunk lid. 2-14 Emergency Trunk Release Handle Notice: Using the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk may damage it. Use the emergency trunk release handle only to help you open the trunk lid. There is a glow-in-the-dark emergency trunk release handle located on the trunk latch of the trunk lid. This handle will glow following exposure to light. If ever needed, pull the emergency trunk release handle to open the trunk from the inside. Windows {CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather. 2-15 Power Windows Use the switches on the driver’s door armrest to operate each of the windows. Push the switch rearward or forward to open or close the window. The top switches operate the front windows, and the bottom switches operate the rear windows. Each passenger door also has a switch that operates that window. The power window switches only work if the ignition is on or in ACC, or while Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 2-22 for more information. 2-16 Express-Down Window The driver’s window switch has an express-down feature. Tap the switch rearward, and the driver’s window will open a small amount. If the switch is fully depressed rearward and released, the window will go all the way down. To stop the window while it is lowering, press the front of the switch. To raise the window, press and hold the front of the switch. Window Lock-Out The driver’s window switch includes a lock-out feature located above the power window switches on the driver’s door armrest. Move the switch to the right to prevent the passengers sitting in the rear from using their window switches. The driver can still control all the windows with the lock on. Move the switch to the left to disengage the lock-out feature. Sun Visors To help block out glare, pull the sun visors down. Pull on the inside edges of the sun visors to swing them from the front windshield to the side window.
