1997 Pontiac Grand PRIX Owners Manual

I- 2 0

The 1997 Pontiac Grand Prix Owner’s Manual

1-1

2- 1

3- 1

4- 1

5-1

6- 1

7-1

8- 1

9-1

“SRS” system.

Seats and Restraint Systems This section tells you how to use your seats and safety belts properly. It also explains the Features and Controls This section explains how to start and operate your Pontiac. Comfort Controls and Audio Systems This section tells you how to adjust the ventilation and comfort controls and how to operate your audio system. Your Driving and the Road Here you’ll find helpful information and tips about the road and how Problems on the Road This section tells what to do Service and Appearance Care Here the manual tells you how to keep your Pontiac running properly and looking good. Maintenance Schedule This section tells you when to perform vehicle maintenance and what fluids and lubricants to use. Customer Assistance Information This section tells you how to contact Pontiac for assistance and how to get service and owner publications. It also gives you information on “Reporting Safety Defects” on page 8-10. Index Here’s an alphabetical listing of almost every subject in this manual. You can use it to quickly find something you want to read.

if you have a problem while driving, such as a flat tire or overheated engine, etc.

to drive under different conditions.

GENERAL MOTORS, GM, the GM Emblem, PONTIAC, the PONTIAC Emblem and the name GRAND PRIX are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes in the product after that time without further notice. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Pontiac Division whenever it appears in this manual, Please keep this manual in your Pontiac, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it,

We supp’ort voluntary technician certification.

WE SUPPORT

VOLUNTARY TECHNICIAN CERTIFICATION THROUGH

National Institute for

A U T O M O T I V E

S E R V I C E

E X C E L L E N C E

For Canadian Owners Who Prefer a French Language Manual: Aux propribtaires canadiens: Vous pouvez vous procurer un exemplaire de ce guide en frarqais chez votre concessionaire ou au:

DGN Marketing Services Ltd. 15800 Bonhill Rd. Mississauga, Ontario L5T IC7

Litho in U.S.A. .. Part No, 10405301 A Third Edition

‘Copyright General Motolrs Corporation 1996 A€€ Rights Reserved

How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly. Index A good place to look for what you need is the Index in the back of the manual. It’s an alphabetical list of all that’s in the manual, and the page number where you’ll find it. Safety Warnings and Symbols You will find a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning.

I These mean there is something that ( dd hurt

you or other people.

In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you or others could be hurt.

k You will also find a circle with a slash through it in this book. This safety symbol means “Don’t,’’ “Don’t do this,” or “Don’t let this happen.’’

iii

I

avoid

In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly. But the notice will tell you what to do to the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different collors or in different words. You’ll also see warning labels on your vehicle. They use the same words, CAUTION or NOTICE.

help

Vehicle Damage Warnings

1, in this book you will find these notices:

I NOTICE:

These mean there is something that could damage your vehicle.

iv

Vehicle Symbols These are some of the symbols you may find on your vehicle.

For example, these symbols are used on an original battery:

These symbols are important for you and your passengers whenever your vehicle is driven:

These symbols have to do with your lamps:

These symbols are on some of your controls:

These symbols are used on warning and indicator lights:

Here are some other symbols you may see:

SIGNALS e

TURN

PARKING LAMPS

WINDSHIELD WIPER

WINDSHIELD DEFROSTER

COOLANT TEMP

BATTERY CHARGING SYSTEM

BRAKE

FASTEN SEAT BELTS

,\[I,

q 4

AIR BAG p\

FOG LAMPS

WINDOW DEFOGGER

$0

VENTILATING FAN

COOLANT

~3

ENGINE OIL w, ANTI-LOCK (@)

PRESSURE

BRAKES

FUSE P LIGHTER m (0) HORN )cr SPEAKER b la

FUEL

CAUTION POSSIBLE INJURY

PROTECT EYES BY SHIELDING

CAUSTIC

BURNS

AVOID SPARKS OR FLAMES

SPARK OR FLAME COULD EXPLODE BATTERY

vi

7

Section 1 Seats and Restraint Systems

Here you'll find information about the seats in your Pontiac and how to use your safety belts properly. learn about some things you should not do with air bags and safety belts.

You can also

1-2 1-2 1-3 1-5 1-1 1-9 1-12

1-14 1-21

Seats and Controls Manual Seats Power Seats Reclining Front Seatbacks Seatback Latches Why Safety Belts Work Questions Many People Ask About Safety Belts How to Wear Safety Belts Properly Safety Belt Use During Pregnancy

1-24 1-33 1-36 1-38 1-52

1-53 1-63 1-63 1-64

Questions and Answers About Air Bags Rear Safety Belt 'Comfort Guides How to Use Child Restraints How to Use the Built-In Child Restraint Important Information for Buckling Children in Child Restraints Child Restraint Top Straps How to Obtain a Safety Belt Extender Checking Your Restraint Systems Replacing Parts After a Crash

1-1

6-Way Power Driver’s Seat (If Equipped)

This switch is designed to mimic the movements of your seat cushion. It is located on the left side of the driver’s seat cushion. To move the seat forward or rearward, push the switch forward or rearward. To raise or lower the seat, push the switch up or down. To raise or lower the front portion of your seat, push the front of the switch up or down. To raise or lower the rear portion of your seat, push the rear of the switch up or down.

1-3

2-Way Manual Lumbar (If Equipped)

4-Way Power Lumbar Driver’s Seat (If Equipped)

The knob that controls this feature is located on the right side of the driver’s seat, about half of the way down the seatback. Turn the knob clockwise to increase lumbar support. Turn the knob counterclockwise to decrease lumbar support.

If you have this option, there will be a toggle switch on the left side of the driver’s seat cushion, just in front of the reclining seatback lever. To increase or decrease lumbar support, push the switch forward or rearward, To adjust the lumbar support up or down, push the switch up or down.

1-4

Heated Seat (If Equipped)

Reclining Front Seatbacks

If your vehicle has this option, the switch is on the center console, just behind the open storage bin,

Press LO to warm the seat to a lower temperature. Press HI to warm the seat to a higher temperature. To turn this feature off, place the switch in the center position.

Lift the lever to release the seatback, then move the seatback to where you want it. Release the lever to lock the seatback in place. Pull up on the lever without pushing on the seatback, and the seatback will move forward.

Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it wonst be against your body. Instead, it will be in front of you. In a crash you could go into it, receiving neck or other injuries. The lap belt canst do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

But don’t have a seatback reclined if your vehicle is moving.

1-6

Head Restraints Slide the head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of a neck injury in a crash. Seatback Latches (2-Door Models)

After someone gets into the rear seat area, move the right front seatback to its original position. Then move the seat rearward until it locks. To get out, tilt the seatback fully forward.

If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.

On two-door models, the right front seat is designed to make it easy to get in and out of the rear seat. Tilt the right seatback fully forward, the whole seat will now slide forward. If the seat will not tilt, lift the seatback latch, located on the back of the seat, to tilt the seatback forward.

1-7

’ A CAUTION:

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Safety Belts: They’re for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. And it explains the Supplemental Restraint System (SRS), or air bag system.

Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.

1-8

Your vehicle has a light that comes on as a reminder to buckle up. (See “Safety Belt Reminder Light” in the Index.)

Why Safety Belts Work When you ride in or on anything, you go as fast as it goes.

In most states and Canadian provinces, the law says to wear safety belts. Here’s why: They work. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed. After more than 25 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot!

Take the simplest vehicle. Suppose it’s just a seat on wheels.

1-9

Put someone on it.

Get it up to speed. Then stup the vehicle. The rider doesn’t stop.

1-10

The person keeps going until stopped by something. in a real vehicle, it could be the windshield ...

or the instrument panel ...

1-11

Here Are Questions Many People Ask About Safety Belts -- and the Answers Q; Won’t I be trapped in the vehicle after an

accident if I’m wearing a safety belt?

A: You could be -- whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.

or the safety belts ! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.

1-12

If my vehicle has air bags, why should I have to wear safety belts?

A: Air bags are in many vehicles today and will be in

most of them in the future. But they are supplemental systems only; so they work with safety belts -- not instead of them. Every air bag system ever offered for sale has required the use of safety belts. Even if you’re in a vehicle that has air bags, you still have to buckle up to get the most protection. That’s true not only in frontal collisions, but especially in side and other collisions.

If I’m a good driver, and I never drive far from home, why should I wear safety belts?

A: You may be an excellent driver, but if you’re in an accident -- even one that isn’t your fault -- you and your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers. Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone.

1-13

How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your Pontiae, see the part of this manual called “Children.” Follow those rules for everyone’s protection. First, you’ll want to know which restraint systems your vehicle has. We’ll start with the driver position. Driver Position This part describes the driver’s restraint system. Lap-Shoulder Belt The driver has a lap-shoulder belt. Here’s how to wear it properly. I. Close and lock the door. 2. Adjust the seat (to see how, see “Seats” in the Index)

so you can sit up straight.

1-14

3. Pick up the latch plate and pull the belt across you.

Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

4. Push the latch plate into the buckle until it clicks.

Pull up on the latch plate to make sure it is secure. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

-4

5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt.

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining foxes. The safety belt locks if there’s a sudden stop or crash, or if you pull the belt very quickly out of the retractor.

1-15

Shoulder Belt Height Adjuster (4-DOOr Models) Before you begin to drive, move the shoulder belt adjuster to the height that is right for you.

To move it down, squeeze the release lever and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide. After you move the adjuster to where you want it, try to move it down without squeezing the release lever to make sure it has locked into position. Adjust the height so that the shoulder portion of the belt is centered on your shoulder, The belt should be away from your face and neck, but not falling off your shoulder.

1-16

&: What’s wrong with this?

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.

A: The shoulder belt is too loose. It won’t give nearly

as much protection this way.

1-17

&: What’s wrong with this?

A CAUTION:

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

A: The belt is buckled in the wrong place.

1-18

Q.' What's wrong with this?

A: The shoulder belt is worn under the arm. It should

be worn over the shoulder at all times.

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which woul'd increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren't as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.

1-19

&: What's wrong with this?

A CAUTION:

You can be seriously injured by a twisted belt. In a crash, you wouldn't have the full width of the belt to spread impact force's. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.

A: The belt is twisted across the body.

1-20

Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts.

To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.

A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

1-21

The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely khat the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. Right Front Passenger Position The right front passenger’s safety belt works the sarne way a,s the driver’s safety belt. See “Driver Position,” earlies in this section. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. supplemental Restraint System (SRS) This part explains the Supplemental Restraint System (SRS) or air bag system. Your Pontiac has two air bags -- one air bag for the driver and another air bag for the right front passenger.

Here are the most important things to know about the air bag system:

You can be s’everely injured or killed in a crash if

A CAUTION: you aren’t wearing your safety belt -- even if you have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Air bags are “supplemental restraints” to the safety belts. All air bags are designed to work with safety belts, but don’t replace them. Air bags are 1 designed to work only in moderate to severe crashes where the front of your vehicle hits something. They aren’t designed to inflate at all in rollover, rear, side or low-speed frontal safety belt properly -- whether or not there’s an crashes. Everyone in your vehicle should wear a air bag for that person.

1-22

I A CAUTION:

Air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, it could seriously injure you. Safety belts help keep you in position before and during a crash. Always wear your safety belt, even with air bags. The driver should sit as far back as possible while still maintaining control of the vehicle.

An inflating air bag can seriously injure small children. Always secure children properly in your vehicle. To read how, see the part of this manual called Whildren” and the caution label on the right front passenger’s safety belt.

There is an air bag readiness light on the instrument panel, which shows SRS AIR BAG.

SRS AIR BAG

The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See “Air Bag Readiness Light” in the Index for more information.

1-23

How the Air Bag System Works

Where are the air bags? The driver's air bag is in the middle of the steering wheel.

1-24

The right front passenger's air bag is in the instrument panel on the passenger's side.

If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any air bag covering.

When should an air bag inflate? An air bag is designed to inflate in a moderate to severe frontal or near-frontal crash. The air bag will inflate only if the impact speed is above the system’s designed “threshold level.’’ If your vehicle goes straight into a wall that doesn’t move or deform, the threshold level is about 9 to 15 mph (14 to 24 km/h). The threshold level can vary, however, with specific vehicle design, so that

it can be somewhat above or below this range. If your vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The air bag is not designed to inflate in rollovers, side impacts or rear impacts, because inflation would not help the occupant. In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. Inflation is determined by the angle of the impact and how quickly the vehicle slows down in frontal or near-frontal impacts. What makes an air bag inflate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inflator, which inflates the air bag. The inflator, air bag and related hardware are all part of the air bag modules inside the steering wheel and in the instrument panel in front of the right front passenger.

1-25

How does an air bag restrain? In moderate to severe frontal or near-frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. Air bags supplement the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper bady, stopping the occupant more gradually. But air bags would not help you in many types of collisions, including rollovers, rear impacts and side impacts, primarily because an occupant’s motion is not toward those air bags. Air bags should never be regarded as anything more than a supplement tn safety belts, and then only in moderate to severe front:.- ~r newfrontal collisions. What will you see after an air bag inflates? After an air bag inflates, it quickly deflates, so quickly that some people may not even realize the air bag inflated. Some components o’f the air bag module -- the steering wheel hub for the driver’s air bag, or the instrument panel for the right front passenger’s bag -- will be hot for a short time. The parts of the bag that come into contact with you may be warm, but not too hot to touch. There will be some smoke and dust coming from vents in the deflated air bags. Air bag inflation doesn’t prevent the driver from seeing or from being able to steer the vehicle, nor does it stop people from leaving the vehkle. 1-26

When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or door.

In many crashes severe enough ta inflate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag.

Air bags are designed to inflate only once. After they inflate, you’ll need some new parts for your air bag system. If you don’t get them, the air bag system won’t be there to help protect you in another crash. A new system will include air bag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.

0 Your vehicle is equipped with a crash sensing and

diagnostic module, which records information about the air bag system. The module records information about the readiness of the system, when the sensors are activated and driver’s safety belt usage at deployment. Let only qualified technicians work on your air bag system. Improper service can mean that your air bag system won’t work properly. See your dealer for service.

NOTICE:

If you aarnage the cover for the driver’s or the right front passenger’s air bag, the bag may not work properly. You may have to replace the air bag module in the steering wheel or both the air bag module and the instrument panel for the right front passenger’s air bag. Do not open or break the air bag covers.

Servicing Your Air Bag-Equipped Pontiac Air bags affect how your Pontiac should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inflate while someone is working on your vehicle. Your Pontiac dealer and the Grand Prix Service Manual have information about servicing your vehicle and the air bag system. To purchase a service manual, see’ “Service and Owner Publications” in the Index.

th gn. )n: y is

r up to 10 1 nutes af

turned off and the battery is disconnected, an air bag can still inflate during improper service. You can be injured if you are close to an air bag when it inflates. Avoid wires wrapped with yellow tape or yellow connectors. They are probably part of the air bag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.

The air bag system does not need regular maintenance.

1-27

Center Passenger Position

Lap Belt If your vehicle has a bench seat, someone can sit in the center position.

1-28

When you sit in a center seating position, you have a lap safety belt, which has no retra'ctor. To make the belt longer, tilt the latch plate and pull it along the belt.

I

To make the belt shorter, pull its free end as shown until the belt is snug.

Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender’’ at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

1-29

Rear Seat Outside Passenger Positions

Lap-Shoulder Belt The positions next to the windows have lap-shoulder belts. Here’s how to wear one properly.

1-30

1. Pick up the latch plate and pull the belt across you.

Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.

When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part.

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

1-31

The safety belt locks if there’s a sudden stop or a crash, or if you pull the belt very quickly out of the retractor.

Yon can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.

To unlatch the belt, just push the button on the buckle.

1-32

Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for children who have outgrown child restraints and for small adults. When installed on a shoulder belt, the comfort guide pulls the belt away from the neck and head. There is one guide for each outside passenger position in the rear seat. To provide added safety belt comfort for children who have outgrown child restraints and for smaller adults, the comfort guides may be installed on the shoulder belts. Here’s how to install a comfort guide and use the safety belt: 1. Pull the elastic cord out from between the edge of the seatback and the interior body to remove the guide from its storage clip.

1-33

2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide.

3. Be sure that the belt is not twisted and it lies flat.

The elastic cord must be under the belt and the guide on top.

4. Buckle, position and release the safety belt as

described in “Rear Seat Outside Passenger Positions” earlier in this section. Make sure that the shoulder belt crosses the shoulder.

To remove and store the comfort guides, squeeze the belt edges together so that you can take them out from the guides. Pull the guide upward to expose its storage clip, and then slide the guide onto the clip. Rotate the guide and clip inward and in between the seatback and the interior body, leaving only the loop of elastic cord exposed.

1-35

Children Everyone in a vehicle needs protection! That includes infants and all children smaller than adult size. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

Smaller Children and Babies

Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, as it should. Instead, the belt will likely be over the child’s abdomen. In a crash, the belt would apply forcle right on the child’s abdomen, which could cause serious or fatal injuries. So, be sure that any child small enough for one is always properly restrained in a child or infant restraint.

1-36

CAUTION: (Continued)

at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on your arms. The baby would be almost impossible to hold. Secure the baby in an infant restraint.

A CAUTION: vehicle. A baby doesn’t weigh much -- until a Never hold a baby in your arms while riding in a

crash. During a crash a baby will become so heavy you can’t hold it. For example, in a crash

CAUTION: (Continued)

1-37

Built-in Child Restraint (Option)

The child should also be at least one year old. It is important to use a rear-facing infant restraint until the child is about a year old. A rear-facing restraint gives the infant’s head, neck and body the support they would need in a crash. See “Child Restraints” later in this section €or more information.

If your vehicle has this option, there’s a built-in child restraint in the center rear seat position. This child Federal restraint system conforms to all applicable Motor Vehicle Safety Standards. This child restraint is designed for use only by children who weigh between 22 and 60 pounds (10 and 27 kg) and whose height is between 33.5 and 51 inches (850 and 1 295 mm) and who are capable of sitting upright alone. 1-38

With this built-in child restraint, YOU can adjust the height of the harness. Depending on the seated height of the child, you can route it through the upper pair of slots (A), the middle pair of slots (B) or the lower pair of slots (C).

&: Which slots should I use for my A: With the child seated on the child restraint cushion, use the pair of slots that is at or just above the top of the child’s shoulders.

ild?

the highest pair of slots?

&: What if the top of my child’s shoulders is above A: A child whose shoulders are above the highest slots shouldn’t use this child restraint. Instead, the child should sit on the vehicle’s seat cushion and use the vehicle’s safety belts.

/!\ CAUTION:

For the child shown here, the harness should go through the middle pair of slots (B).

MAKE SURE THE TOP OF THE CHILD’S SHOULDERS IS BELOW THE SLOTS THAT THE HARNESS GOES THROUGH. A CHILD WHOSE SHOULDERS ARE ABOVE THOSE SLOTS COULD BE IN JURED DURING A SUDDEN STOP OR CRASH. IF THE TOP OF THE CHILD’S SHOULDERS IS ABOVE THE SLOTS, DON’T USE THIS CHILD RESTRAINT. INSTEAD, THE CHILD SHOULD SIT ON THE VEHICLE’S REGULAR SEAT AND USE THE REGULAR SAFETY BELTS.

1-39

Adjusting the Harness Height

1. Lower the child restraint cushion.

2. If the left and right halves of the shoulder harness

clip are fastened together, separate them.

1-40

3. If the lap-shoulder harness is buckled, unlatch it by

pushing the button on the buckle.

4. Pull down the seatback part of the pad (D).

1-41

5. Select one side of the harness. Add some slack to the

shoulder part by pulling up on the lap part. You’ll keep most of this slack until you finish Step 9.

6. Feed a small amount of harness slack back into

the slot.

7. Twist the harness slightly to remove it from the slot.

1-42

8. Move the harness up or down to the correct slot. The correct slot is the one that will be at or just above the top of the child’s shoulder.

9. Twist the hamess slightly to ruute it through the 10. Pull on the harness. Make sure it is properly routed

correct slot.

and isn’t twisted or flipped over.

11. Repeat Steps 5 through 10 for the other side of the harness. Be sure both sides are adjusted to the same height.

1-43

12. Move the pad back against the child restraint

seatback. Make sure the harness goes through the slots in the pad that match the height adjustment slots being used.

13, Press the upper edge of the pad against the

Securing a Child in the Built-in Child Restraint

fastener strip.

Now that the harness is adjusted to the correct height for your child, you’re ready to use the child restraint’s harness (E) to secure your child.

Don’t use the vehicle’s safety belts.

Using the vehicle’s regular safety belts on a child seated on the child restraint cushion can cause serious injury to the child in a sudden stop or cra,sh. If a child is the proper size for the built-in child restraint, secure the child using the child restraint’s harness. But children who are too large for the built-in child restraint should sit on the vehicle’s regular seat and use the regular safety belts.

WARNING! FAILURE TO FOLLOW THE MANUFACTURER’S INSTRUCTIONS ON THE USE OF THIS CHILD RESTRAINT SYSTEM CAN RESULT IN YOUR CHILD STRIKING THE VEHICLE’S INTERIOR DURING A SUDDEN STOP OR CRASH. SNUGLY ADJUST THE BELTS PROVIDED WITH THIS CHILD RESTRAINT AROUND YOUR CHILD.

1. If the left and right halves of the shoulder harness

clip are fastened together, separate them.

2. If the lap-shoulder harness is buckled, unlatch it by

pushing the button on the buckle.

3. Place the child on the child restraint cushion.

1-45

1-46

7 . Push the latch plate into the buckle until it clicks.

Pull on both latch plates to make sure they are secure. A green indicator will show in each latch plate window (G). If the harness locks before the latch plate reaches the buckle, let the harness go all the way back so it will move freely again. Then repeat Steps 6 and 7 . Be sure to keep the harness pulled all the way out until you buckle it. Once both sides of the lap-shoulder harness are pulled out of the retractor and buckled, the harness will lock.

1-47

An unfastened shoulder harness clip won’t help keep the harness in place on the ‘child’s shoulders. If the harness isn’t on the child’s shoulders, it won’t be able to restrain the child’s upper body in a sudden stop or crash. The child could be is seriously injured. Make sure the harness clip properly fastened.

8. Now fasten the left and right halves of the shoulder harness clip together. The indicator window (H) on the clip will show green when the two halves are fastened together. The purpose of this clip is to help keep the harness positioned on th’e child’s shoulders.

1-48

9. On both sides of the harness, pull up on the lap part a

little to be sure it’s locked. If the harness isn’t locked, or if it becomes too tight, unfasten the harness clip. Then unlatch the harness by pushing the button on the buckle, and let both sides of the harness go all the way back so they will move freely again. Then, repeat Steps 4 through 8. If the harness still doesn’t lock, don’t use the child restraint. See your dealer to have the built-in child restraint serviced.

10. Adjust the position of the harness on the child’s

shoulders by moving the clip up or down along the harness. On each side of the harness, the shoulder part should be centered on the child’s shoulder. The harness should be away from the child’s face and neck, but not falling off the child’s shoulders.

1-49

Removing the Child from the Built-in Child Restraint

1. Unfasten the shoulder harness clip.

1-50

2. Unlatch the harness by pushing the button on the

buckle.

3. Move one side of the harness off the child’s

shoulder, and let the harness go all the way back. 4. Move the other side of the harness off the child’s

shoulder, and let it go all the way back.

5. Remove the child from the child restraint cushion.

Storing the Built-in Child Restraint Always properly store the built-in child restraint before using the vehicle’s lap belt in the center rear seat position. 1. Buckle the harness and fasten the harness clip.

2. Fold the child restraint cushion and leg rest up

into the seatback.

3. Press the child restraint cushion firmly into

the seatback.

4. Then press the leg rest firmly into the seatback, and

secure it by pressing the upper corners against the fastener strips on the seatback.

Just like the other restraint systems in your vehicle, your built-in child restraint needs to be periodically checked and may need to have parts replaced after a crash. See “Checking Your Restraint Systems” and “Replacing Seat and Restraint System Parts After a Crash” in the Index.

1-51

Child Restraints Be sure the child restraint is designeld to be used in a vehicle. If it is, it will have a label saying that it meets Federal Motor Vehicle Safety Standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury, The instructions that come with the infant or child restraint will show you how to dol that. Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We at General Motors therefore recommen'd that you put your child restraint in the rear seat. Never gut a rear-facing child restraint in the front passenger seat. Here's why:

A child in a rear-facing child restraint can be seriously injured if the right front passenger's air bag inflates. This is because the back of a rear-facing child restraint would be very close to the inflating air bag. Always secure a rear-facing child restraint in the rear seat. You may, however, secure a forward-facing child restraint in the right front seat. Before you secure a forward-facing child restraint, always move the front passenger seat as far back as it secure the child restraint in the rear seat.

will go. Or,

1-52

Top Strap

A child in a child restraint in the center front seat can be badly injured by the right front passenger air bag if it inflates. Never secure a child restraint in the center front seat. It’s always better to secure a child restraint in the rear seat. You may, however, secure a forward-facing child restraint in the right front passenger seat, but only with th’e seat moved all the way back.

the child

Wherever you install it, be sure to secure restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle -- even when no child is in it.

If your child restraint has a top strap, it should be anchored. If you need to have an anchor installed, you can ask your Pontiac dealer to put it in for you. If you want to install an anchor yourself, your dealer can tell you how to do it. For cars first sold in Canada, child restraints with a top strap must be anchored according to Canadian law.

1-53

Your dealer can obtain the hardware kit and install it for you, or you may install it yourself using the instructions provi’ded in the kit. Use the tether hardware kit available from the dealer. The hardware and installation instructions were specifically designed for this vehicle. Securing a Child Restraint in a Rear Outside Seat Position

3. Pick up the latch plate, and run the lap and shoulder

portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.

You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. 1. Put the restraint on the seat. Follow the instructions

for the child restraint.

2. Secure the child in the child restraint as the

instructions say.

4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

5. Pull the rest of the shoulder belt all the way out of

the retractor to set the lock.

6. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint.

7. Push and pull the child restraint in different

directions to be sure it is secure.

To remove the child restraint, just unbuckle the vehicle's safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.

1-55

Securing a Child Restraint in the Center Rear Seat Position

See the earlier part about the top strap if the child restraint has one.

You'll be using the 1aD belt.

- A C N JTION:

~~~~~~

~~~~~

~~~

A child in a child restraint in the center front seat can be badly injured by the right front passenger air bag if it inflates. Never secure a child restraint in the center front seat. It's always better to secure a child restraint in the rear seat. You may, however, secure a forward-facing child restraint in the right front passenger seat, but only with the seat moved all the way back.

1-56

1. Make the belt as long as possible by tilting the latch

plate and pulling it along the belt.

2. Put the restraint on the seat. Follow the instructions

for the child restraint.

3. Secure the child in the child restraint as the

instructions say.

4. Run the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

6. To tighten the belt, pull its free end while you push

down on the child restraint.

7 , Push and pull the child restraint in different

directions to be sure it is secure. If it isn’t, secure the restraint in a different place in the vehicle and contact the child restraint maker for their advice about how to attach the child restraint properly.

To remove the child restraint, just unbuckle the vehicle’s safety belt. It will be ready to work for an adult or larger child passenger.

5. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

1-57

You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. 1.. Because your vehicle has a right front passenger air

bag, always move the s’eat as far back as it will go before securing a forward-facing child restraint. (See “Seats” in the Index.)

2. Put the restraint on the seat. Follow the instructions

for the child restraint.

3. Secure the child in the child restraint as the

instructions say.

4. Pick up the latch plate, and run the lap and shoulder

portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.

Securing a Child Restraint in the Right Front Seat Position

Your vehicle has a right front passenger air bag. Never put a rear-facing child restraint in this seat. Here’s why:

A child in a rear-facing child restraint can be seriously injured if the right front passenger’s air bag inflates. This is because the back of a rear-facing child restraint would be very close to the inflating air bag. Always secure a rearfacing child restraint in the rear seat.

1-58

5. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

6, Pull the rest of the shoulder belt all the way out of

the retractor to set the lock.

1-59

Larger Children

7. To tighten the belt, feed the shoulder belt back the retractor while you push down on the child restraint.

into

8. Push and pull the child restraint in different

directions to be sure it is secure.

To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. 1-60

Children who have outgrown child restraints should wear the vehicle’s safety belts. If you have the choice, a child should sit next to a window so the child can wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.

Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly.

Children who aren’t buckled up can be thrown out in a crash.

0 Children who aren’t buckled up can strike other

people who are.

Never do this. Here two children are wearing the same belt. The b’elt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. Q.” What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? A: Move the child toward the center of the vehicle, but

be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. If the child is sitting in a rear seat outside position, see “Rear Safety Belt Comfort Guides” in the Index. If the child is sitting in a rear outside position of a four-door model, see “Rear Safety Belt Comfort Guides” in the Index. If the child is so small that the shoulder belt is still very close to the child’s face or neck, you might want to place the child in the center seat position, the one that has only a lap belt.

1-61

Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.

Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.

1-62

Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. The extender will be just for you, and just for the seat in your vehicle that you choose. Don’t let someone else use it, and use it only for the seat it is made to fit. To wear it, just attach it to the regular safety belt.

Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. If your vehicle has a built-in child restraint, also periodically make sure the harness straps, latch plates, buckle, clip, retractors and anchorages are working properly. Look for any other loose or damaged safety belt and built-in child restraint system parts. If you see anything that might keep a safety belt or built-in child restraint system from doing its job, have it repaired. Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away. If your vehicle has the built-in child restraint, torn or frayed harness straps can rip apart under impact forces just like torn or frayed safety belts can. They may not protect a child in a crash. If a harness strap is torn or frayed, get a new harness right away. Also look for any opened or broken air bag covers, and have them repaired or replaced. (The air bag system does not need regular maintenance.)

1-63

Replacing Restraint System Parts After a Crash If you’ve had a crash, do you need new safety belts or built-in child restraint parts? After a very minor collision, nothing may be necessary. But if the safety belts or built-in child restraint harness straps were stretched, as they would be if worn during a more severe crash, then you need new safety belts or harness straps.

If safety belts or built-in child restraint harness straps are cut or darnaged, replace them. Collision damage also may mean you will need to have safety belt, built-in child restraint or seat parts repaired or replaced. New parts and repairs may be necessary even if the safety belt or built-in child restraint wasn’t beine used at the time of the collision. If an air bag inflates, you’ll need to replace ais bag system parts. See the part on the air bag system earlier in this section.

b NOTES

1-65

b%) NOTES

1-66

v Section 2 Features and Controls

Here you can learn about the many standard and optional features on your Pontiac, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly -- and what to do if you have a problem.

2-2 2-4 2-8 2- 10 2-12 2-15 2-15 2- 16 2-18 2-19 2-24 2-29 2-30 2-3 1

Important Information About Keys Door Locks Remote Keyless Entry Battery Replacement for RKE Preventing Theft of Your Vehicle New Vehicle “Break-In” Ignition Positions Tips on Starting Your Engine Using the Engine Coolant Heater Automatic Transaxle Operation Parking Brake Guidelines Important Information on Engine Exhaust Operation of Your Windows Adjusting the Tilt Steering Wheel

2-32 2-33

2-33 2-35 2-3 8 2-39 2-40 2-5 3 2-54 2-62 2-64 2-78 2-83

Functions of the Multifunction Lever How to Use the HighLow Beam Headlamp Changer Windshield Wipers and Fluid Using Cruise Control Exterior Lamps Daytime Running Lamps (DRL) Interior Lamps Rearview Mirrors Storage Compartments Instrument Panel Overview All About Your Warning Lights and Gages Driver Information Center Head-Up Display

2-1

Keys

Leaving young children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate power windows or other controls or even make the vehicle move. Don’t leave the keys in a vehicle with young children.

2-2

The master key can be used for the ignition, as well as all door locks and storage compartments.

The valet key can be used for the ignition and the two side doors only. It will not open the trunk, glove box or fold down rear seat trunk access panel (if equipped).

When a new Pontiac is delivered, it will come with a bar coded tag attached to the key ring. This tag has a code on it that tells your dealer or a qualified locksmith how to make extra keys. Keep the code in a safe place. If you lose your keys, you’ll be able to have new ones made easily using this code. If you need a new master key, contact your Pontiac dealer who can obtain the correct key code, or, in an emergency, call Pontiac Roadside Assistance at 1-800-ROADSIB or 1-800-762-3743. I NOTICE: Your Pontiac has a number of features that can help prevent theft. But you can have a lot of trouble getting into your vehicle if you ever lock your keys inside. You may even have to damage your vehicle to get in. So be sure you have extra keys.

2-3

Front Door To unlock either front door from outside the vehicle with your key, insert it fully into the door key cylinder and turn it toward the front. You can lock either front door from outside the vehicle with your key by inserting it fully into the rear door key cylinder and turning it toward the rear.

Door Locks

Unlocked doors can be dangerous.

Passengers -- especially children -- can easily

open the doors and fall out. When a door is locked, the inside handle won’t open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked. Wear safety belt: properly, lock your doors, and you will be far better off whenever you drive your vehicle.

There are several ways to lock and unlock your vehicle.

2-4

To unlock either front door from inside the vehicle, rotate the lock lever back. To lock either front door from inside the vehicle, slide the lock lever forward.

Rear Door(s) To unlock either rear door from inside the vehicle, rotate the lock lever back. To lock either rear door from inside the vehicle, slide the lock lever forward. Power Door Locks

To unlock all doors from inside the vehicle, press the fiont of the power door lock switch on either front door. If your vehicle is equipped with a Content Theft-Deterrent system, the power door lock switch will not unlock the doors until the system is disarmed. See “Content Theft-Deterrent” in the Index for more details.

You can lock all doors from inside the vehicle by pressing the rear of the power lock switch on either door. If your vehicle is equipped with a Content Theft-Deterrent system, the power lock switch may cause the system to arm see “Content Theft-Deterrent” in the Index for more details. To unlock any door from outside the vehicle with your key, insert it fully into the key cylinder and turn it to the unlock position. This will cause only the door you are operating to be unlocked. If equipped with content theft-deterrent, you can unlock all doors by holding the key cylinder in the unlock position for one second. Lockout Deterrent The Lockout Deterrent feature makes it difficult for you to lock your keys in your vehicle. If the driver’s door is open while the keys are in the ignition, you will not be able to to use your power door locks. This feature cannot guarantee that you’ll never be locked out of your vehicle. If you don’t leave the keys in the ignition, or if you used the manual door lock, you could still lock your keys inside your vehicle. Always remember to take your keys with you. To turn this feature on or off, see “Locks and Lighting Choices” in the Index.

2-5

Last Door Closed Locking The Last Door Closed Locking makes it more convenient €or you to use your power door lo’cks to lock all doors when leaving your vehicle. When any door is open, the first time you attempt to lock the doors using the power door lock switch or key chain transmitter will result in three chimes to signal that Last Door Closed Locking is being used. All doors can be opened for any reason for five seconds from the time the last door has been closed. Five seconds after the last door is closed, all doors will lock. You can lock the doors immediately by using the power door lock switch or the key chain transmitter to lock again. The Last Door Closed Locking feature will not occur and d’oors will not be locked as a result of this feature when the ignition switch is in the RUN or ACCESSORY position. The Last Door Closed Locking feature is not enabled from the factory. To turn the Last Door Closed Locking feature on or off, see “Locks and Lighting Choices” in the Index.

2-6

Automatic Door Locks

Unlocked doors can be dangerous.

Passengers -- especially children -- can easily

open the doors and fall out. When a door is locked, the inside handle won’t open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked. Wear safety belts properly, lock your doors, and you will be far better off whenever you drive your vehicle.

All of the doors will lock automatically when you move your shift lever out of PARK (P). All doors will. unl’ock automatically when the ignition is turned off while the shift lever is in PARK (P). If you prefer to have your doors unlocked automatically at any time, see “Locks and Lighting Choices” in the Index.

It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Don’t leave your vehicle when the engine is running unless you have to. If you’ve left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle won’t move, even when you’re on fairly level ground, always set your parking brake and move the shift lever to PARK (P).

If someone needs to get in or out of the vehicle after the doors have been automatically locked, place the shift lever into PARK (P). Unlock all doors by using the power door lock switch or unlock just the door you want by using the inside lever. If you have programmed your automatic door locks (see ”Locks and Lighting choices” in the Index.) to unlock the doors when the shift lever is shifted into PARK (P), the doors will be automatically unlocked for you. The doors will be automatically locked when you move your shift lever out of PARK (P) with the ignition on.

If you don’t want the doors to unlock automatically when you turn the ignition off, see “Locks and Lighting Choices” in the Index. Rear Door Security Locks (4-DoOr Models)

Your Pontiac is equipped with rear door security locks that help prevent passengers from opening the rear doors of your vehicle from the inside. To use one of these locks: 1. Open one of the rear doors. 2. On the inside of the rear door will be a lock. Insert your master key into this lock and rotate it upward. This will engage the safety lock.

2-7

3. Close the door. 4. Do the same thing to the other rear door lock. The rear doors of your vehicle cannot be opened from the insid'e when this feature is in use. If you want to open the rear door when the security lock is on, unlock the door from the inside and then open the door from the outside. Leaving Your Vehicle If you are leaving the vehicle, take your keys, open your door and set the locks from inside. Then get out and close the door. Keyless Entry (If Equipped) If your Pontiac has this option, you can lock and unlock your doors or unlock your trunk from up to 30 feet (9 m) away using the key chain transmitter supplied with your vehicle. Your Keyless Entry System operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry and Science Canada Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2-8

This device complies with RSS-210 of Industry and Science Canada. Operations is subject to the following two conditions: (I) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This system has a range of about 3 geet (1 m) up to 30 feet (9 m). At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for th'e transmitter to work, try this:

Check to determine if battery replacement is necessary. See the instructions that follow. Check the distance. You may be too far from your vehicle. You may need to stand closer during rainy or snowy weather. Check the location. Other vehicles or objects may be blocking the signal. Take a few steps to the left or right and try again. If you're still having trouble, see your Pontiac dealer or a qualified technician for service.

Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.

Operation

3-Button Key Fob

4-Button Key Fob

Remote All Door Lock To lock all doors, press LOCK on the key chain transmitter (see “Power Door Locks” in the Index for more details on power door lock features). If your vehicle is equipped with the Content Theft-Deterrent system, the LOCK button may arm the system (see “Content Theft-Deterrent” in the Index for more details).

Remote Driver’s Door and All Door Unlock When you press UNLOCK on the key chain transmitter, only the driver’s door will unlock. If you press UNLOCK again within five seconds, all the doors will unlock. If you would like all doors to unlock the first time you press UNLOCK, see “Locks and Lighting Choices” in the Index. If your vehicle is equipped with the Content Theft-Deterrent system, the UNLOCK button on the key chain transmitter will disarm the system (see “Content Theft-Deterrent” in the Index for more details). Remote Trunk Release Press the trunk symbol on your key chain transmitter to open your trunk. The transaxle must be in PARK (P) for this feature to operate. Remote Alarm (If Equipped) When you press the horn button on the key chain transmitter, your vehicle’s headlamps will flash and the horn will sound. This will allow you to attract attention, if needed. Remote Lock/Unlock Confirmation (If Equipped) This feature provides feedback to the holder of the key chain transmitter that a command has been received by

2-9

the Remote Lock Control receiver. To signal that a command has been received, the headlamps will flash and the horn will sound briefly. To program the various modes available, see “Locks and Lighting Choices” in the Index. Matching Transmitter(s) To Your Vehicle Each key chain transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can ble purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your vehicle. Each vehicle can have only four transmitters matched to it, Battery Replacement Under normal use, the battiry in your remote keyless entry transmitter should last about two years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before probably time to change the battery.

the transmitter works, it’s

2-10

To replace your battery: 1.

Insert a flat object like a dime into the slot ‘on the side of the trmsdtter md twist to separate the halves. Gently pry the battery out of the transmitter. Do not use metal flanges to “pop out” the battery. Put the new battery into the transmitter as shown on the transmitter (use a type CR2032 battery). Rleassemblle the transmitter. Make sure the halves are snapped together tightly so water will not get in, Check the transmitter operation. If needed, follow the instructions on resynchronizing your remote transmi~r.

2.

3.

4.

5,

I NOTICE:

Trunk

When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter.

Resynchronizing Your Remote Keyless Entry Transmitter Your Keyless Entry System uses a continually changing code for increased security. Normally, the receiver in your vehicle will keep track of this changing code. 0 Loss of synchronization will occur if the transmitter is activated more than 256 times while out of range of the vehicle. Loss of synchronization will occur after battery replacement if the transmitter is immediately activated more than 16 times while Out of range of the vehicle.

If your key chain transmitter has stopped working, you may need to resynchronize the transmitter to the vehicle receiver. To do this, press the LOCK and UNLOCK buttons together and hold for at least seven seconds, or until the horn sounds when equipped with Content Theft-Deterrent. Check transmitter.

It can be dangerous to drive with the trunk open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk:

Make sure all windows are shut. Turn the fan on your heating or cooling system to its highest speed with the setting on VENT. That will force outside air into your vehicle. See “Comfort Controls” in the Index. If you have air outlets on or under the instrument panel, open them all the way.

See “Engine Exhaust” in the Index.

2-11

Trunk Lock

To unlock the trunk from the outside, insert the master key and turn it. You can also use the Remote Keyless Entry transmitter, if your vehicle has this option.

Remote Trunk Release (If Equipped)

Press the button behind the glove box door to unlock the trunk from inside your vehicle. Your transaxle shift lever must be in PARK (P).

Theft Vehicle theft is big business, especially in some cities. Although your Pontiac has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help. Key in the Ignition If you leave your vehicle with the keys inside, it’s an easy target for joy riders or professional thieves -- so don’t do it. When you park your Pontiac and open the driver’s door, you’ll hear a chime reminding you to remove your key from the ignition and take it with you. Always do this. Your steering wheel will be locked, and so will your ignition and transaxle. And remember to lock the doors.

2-12

Parking at Night Park in a lighted spot, close all windows and lock your vehicle. Remember to keep your valuables out of sight. Put them in a storage area, or take them with you. Parking Lots If you park in a lot where someone will be watching your vehicle, it’s best to lock it up and take your keys. But what if you have to leave your ignition key? What if you have to leave something valuable in your vehicle? Put your valuables in a storage area, like your trunk or glove box.

0 Lock the glove box. 0 Lock all doors except the driver’s. 0 Give the valet key to the valet. Then take the master

key with you.

Content Theft-Deterrent (If Equipped) If your Grand Prix has this option, it has a theft-deterrent alarm system.

A red light located on top of your instrument panel (near the center of the vehicle, next to the windshield) will flash slowly when the system is armed. While armed, the doors will not unlock with the power lock switch. The alarm will go off if someone damages the vehicle, tampers with the trunk lock, enters the vehicle (without using the key chain transmitter or key to unlock the doors), or turns the ignition on. Your horn will sound and your headlamps will flash for up to two minutes. The system will also cut off the fuel supply, preventing the vehicle from being driven.

2-13

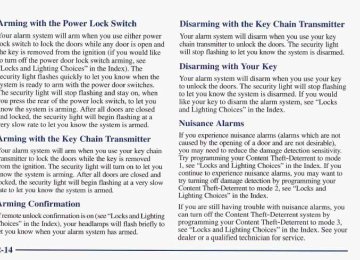

Arming with the Power Lock Switch Your alarm system will arm when you use either power lock switch to lock the doors while any door is open and the key is removed from the ignition (if you would like to turn off the power door lock switch arming, see “Locks and Lighting Choices” in the Index). The security light flashes quickly to let you know when the system is ready to arm with the power door switches. The security light will stop flashing and stay on, when you press the rear of the power lock switch, to let you know the system is arming. After all doors are closed and locked, the security light will begin flashing at a very slow rate to let you know the system is armed. Arming with the Key Chain Transmitter Your alarm system will arm when you use your key chain transmitter to lock the doors while the key is removed from the ignition. The security light will turn on to let you know the system is arming. After all doors are closed and locked, the security light will begin flashing at a very slow rate to let you know the system is armed. Arming Confirmation If remote unlock confirmation is on (see “Locks and Lighting Choices” in the Index), your headlamps will flash briefly to let you know when your alarm system has armed.

Disarming with the Key. Chain Transmitter Your alarm system will disarm when you use your key chain transmitter to unlock the doors. The security light will stop flashing to let you know the system is disarmed. Disarming with Your Key Your alarm system will disarm when you use your key to unlock the doors. The security light will stop flashing to let you know the system is disarmed. If you would like your key to disarm the alarm system, see “Locks and Lighting Choices” in the Index. Nuisance Alarms If you experience nuisance alarms (alarms which are not caused by the opening of a door and are not desirable), you may need to reduce the damage detection sensitivity. Try programming your Content Theft-Deterrent to mode 1, see “Locks and Lighting Choices” in the Index. If you continue to experience nuisance alarms, you may want to try turning off damage detection by programming your Content Theft-Deterrent to mode 2, see “Locks and Lighting Choices” in the Index. If you are still having trouble with nuisance alarms, you can turn off the Content Theft-Deterrent system by programming your Content Theft-Deterrent to mode 3, see “Locks and Lighting Choices” in the Index. See your dealer or a qualified technician for service.

2-14

New Vehicle “Break-In”

Ignition Positions

NOTICE:

Your modern Pontiac doesn’t need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines:

Don’t drive at any one speed -- fast or slow -- for the first 500 miles (805 km). Don’t make full-throttle starts.

0 Avoid making hard stops for the first

200 miles (322 km) or so. During this time your new brake linings aren’t yet broken in. Hard stops with new linings can mean premature wear and earlier replacement. Follow this breaking-in guideline every time you get new brake linings. Don’t tow a trailer during break-in. See “Towing a Trailer’’ in the Index for more information.

With the ignition key in the ignition switch, you can turn the switch to five positions: ACCESSORY (A): This position lets you use things like the radio and windshield wipers when the engine is off. To use ACCESSORY, push in the key and turn it toward you. Your steering wheel will stay locked. LOCK (B): Before you put the key into the ignition switch, the switch is in LOCK. It’s also the only position in which you can remove your key. This position locks your ignition, steering wheel and transaxle. It’s a theft-deterrent feature.

2-15

Starting Your Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position -- that’s a safety feature. To restart when you’re already moving, use NEUTRAL (N) only.

NOTICE:

Don’t try to shift to PARK (P) if your Pontiac is moving. If you do, you could, damage the transaxle. Shift to PARK (P) only when your vehicle is stopped.

1. Without pushing the accelerator pedal, turn your

ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm.

OFF (C): This position lets you turn off the engine but still turn the steering wheel. It doesn’t lock the steering wheel like LOCK. Use OFF if you must have your vehicle pushed or towed. RUN (D): This position is where the key returns after you start your vehicle. With the engine off, you can use RUN to display some of your warning and indicator lights. START (E): This position starts your engine. A warning chime will sound if you open the driver’s door when the ignition is in OFF, LOCK or ACCESSORY and the key is in the ignition,

NOTICE:

~~

If your key seems stuck in LOCK and you can’t turn it, be sure your are using the correct key; if so is it all the way in? If it is, then turn the steering wheel left and right while yon turn the key hard. But turn the key only with your hand. Using a tool to force it could break the key or the ignition switch. If none of this works, then your vehicle needs service.

2-16

NOTICE:

NOTICE:
