2014 VE RSA NOTE

OWNER’S MANUAL

For your safety, read carefully and keep in this vehicle.

® FOREWORD

READ FIRST—THEN DRIVE SAFELY

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control. This manual was prepared to help you under- stand the operation and maintenance of your vehicle so that you may enjoy many miles (kilome- ters) of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Booklet explains details about the warranties cov- ering your vehicle. The “NISSAN Service and Maintenance Guide” explains details about maintaining and servicing your ve- hicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law. Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them. In addition to factory-installed options, your ve- hicle may also be equipped with additional ac- cessories installed by NISSAN or by your NISSAN dealer prior to delivery. It is important that you familiarize yourself with all disclosures,

warnings, cautions and instructions concerning proper use of such accessories prior to operating the vehicle and/or accessory. See a NISSAN dealer for details concerning the particular ac- cessories with which your vehicle is equipped.

Before driving your vehicle, please read this Owner’s Manual carefully. This will ensure famil- iarity with controls and maintenance require- ments assisting you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION RE- MINDERS FOR SAFETY! Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers! ● NEVER drive under the influence of al-

cohol or drugs.

● ALWAYS observe posted speed limits and never drive too fast for conditions. ● ALWAYS give your full attention to driving and avoid using vehicle features or taking other actions that could distract you.

● ALWAYS use your seat belts and appro- priate child restraint systems. Preteen children should be seated in the rear seat. ● ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.

● ALWAYS review this Owner’s Manual

for important safety information.

could

affect

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modification its performance, safety or durability, and may governmental regulations. In addition, damage or per- formance problems resulting from modi- fications may not be covered under NISSAN warranties.

violate

even

WHEN READING THE MANUAL

This manual includes information for all features and equipment available on this model. Features and equipment in your vehicle may vary depend- ing on model, trim level, options selected, order, date of production, region or availability. There- fore, you may find information about features or equipment that are not included or installed on your vehicle. All information, specifications and illustrations in this manual are those in effect at the time of print- ing. NISSAN reserves the right to change specifi- cations, performance, design or component sup- pliers without notice and without obligation. From time to time, NISSAN may update or revise this manual to provide Owners with the most accurate information currently available. Please carefully read and retain with this manual all revision up- dates sent to you by NISSAN to ensure you have access to accurate and up-to-date information re- garding your vehicle. Current versions of vehicle Owner’s Manuals and any updates can also be found in the Owner section of the NISSAN website at https://owners.nissanusa.com/nowners/ navigation/manualsGuide. If you have ques- tions concerning any information in your Owner’s Manual, contact NISSAN Consumer Affairs. See the NISSAN CUSTOMER CARE PROGRAM page in this Owner’s Manual for contact informa- tion.

IMPORTANT INFORMATION ABOUT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moder- ate personal injury or damage to your ve- hicle. To avoid or reduce the risk, the pro- cedures must be followed carefully.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of Cali- fornia to cause cancer and birth defects or other reproductive harm. In addition, cer- tain fluids contained in vehicles and cer- tain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth de- fects or other reproductive harm. CALIFORNIA PERCHLORATE ADVISORY Some vehicle parts, such as lithium batter- ies, may contain perchlorate material. The following advisory is provided: “Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate/”.

BLUETOOTH® is a trademark owned by Bluetooth SIG, Inc. and licensed to Visteon and Bosch.

SiriusXM® Satellite Radio requires subscription, sold separately. Not available in Alaska, Hawaii or Guam. For more information, visit www.siriusxm.com.

© Nissan Mexicana, S. A. de C. V.

All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Mexicana, S. A. de C. V.

APD1005 If you see this symbol, it means “Do not do this” or “Do not let this happen.”

If you see a symbol similar to these in an illustra- tion, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to these indicate movement or action.

Arrows in an illustration that are similar to these call attention to an item in the illustration.

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES . . . Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs. However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Con- sumer Affairs Department using our toll-free number: For U.S. customers 1-800-NISSAN-1 (1-800-647-7261)

Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003 or via e-mail at: [email protected]

– Vehicle identification number (attached to the top of the instrument panel on the driver’s side)

You can write to NISSAN with the information at: For U.S. customers

The Consumer Affairs Department will ask for the following information:

– Your name, address, and telephone number

– Date of purchase

For Canadian customers

– Current odometer reading

– Your NISSAN dealer’s name

– Your comments or questions

OR

Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5 or via e-mail at: [email protected]

If you prefer, visit us at: www.nissanusa.com (for U.S. customers) or www.nissan.ca (for Canadian customers)

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

For Canadian customers

1-800-387-0122

Table of Contents

Illustrated table of contents

Safety—Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Monitor, climate, audio, phone and voice recognition systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

0

1

2

3

4

5

6

7

8

9

10

0 Illustrated table of contents

Air bags, seat belts and child restraints . . . . . . . . . . . . . . 0-2 Exterior front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-3 Exterior rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-4 Passenger compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-5

Instrument panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-6 Engine compartment check locations . . . . . . . . . . . . . . . . 0-7 Warning/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-8

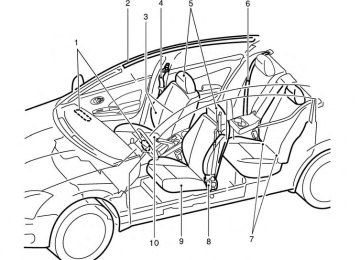

AIR BAGS, SEAT BELTS AND CHILD RESTRAINTS

1. Supplemental front-impact air bag

modules (P. 1-39)

2. Roof-mounted curtain side-impact

supplemental air bag (P. 1-39)

3. Front seat-mounted side-impact

supplemental air bag (P. 1-39)

4. Front seat belts (P. 1-9) 5. Head restraints/headrests (P. 1-5) 6. Rear seat belts (P. 1-9) 7. LATCH (Lower Anchors and Tethers for

CHildren) system (P. 1-22)

8. Seat belt with pretensioner (P. 1-52) 9. Seats (P. 1-2) 10. Occupant classification sensor

(pressure sensor) (P. 1-39)

See the page number indicated in paren- theses for operating details.

0-2 Illustrated table of contents

LII2073

EXTERIOR FRONT

Engine hood (P. 3-24)

1. 2. Windshield wiper and washer switch

(P. 2-19)

3. Windshield (P. 8-17) 4. 5.

Power windows (P. 2-33) Fuel-filler door, fuel-filler cap, fuel rec- ommendation (P. 3-26, 3-27, 9-22) Door locks, NISSAN Intelligent Key® (if so equipped), keys (P. 3-5, 3-3, 3-2)

6.

7. Mirrors, side camera (if so equipped)

(P. 3-30, 4-15) Tire pressure (P. 8-29) Flat tire (P. 6-3)

8. 9. 10. Tire chains (P. 8-36) 11. Headlight and turn signal switch

(P. 2-21)

12. Replacing bulbs (P. 8-24) 13. Fog light switch (if so equipped)

(P. 2-21)

14. Front camera (if so equipped) (P. 4-15) See the page number indicated in paren- theses for operating details.

LII2071

Illustrated table of contents 0-3

EXTERIOR REAR

1.

2. 3.

Rear window wiper and washer switch (P. 2-20) Rear window washer nozzle (P. 2-20) Rear window and rear window defroster (P. 2-20)

4. Mirrors and outside mirror defroster

(if so equipped) (P. 3-30)

5. Child safety rear door lock (P. 3-7) 6. 7. 8. 9.

Replacing bulbs (P. 8-24) Rear hatch opener (P. 3-25) Interior hatch release (P. 3-26) Rear hatch opener switch, NISSAN Intelligent Key,™ rearview camera (if so equipped) (P. 3-25, 3-14, 4-15)

See the page number indicated in paren- theses for operating details.

0-4 Illustrated table of contents

LII2134

PASSENGER COMPARTMENT

1. Cargo cover (if so equipped) (P. 2-30) Rear seat (P. 1-4) 2. Interior lights (P. 2-36) 3. Front seat (P. 1-2) 4. 5. Sun visors (P. 3-29) 6. Map lights (P. 2-37) 7. Glove box (P. 2-29) 8. 9. See the page number indicated in paren- theses for operating details.

Parking brake (P. 5-20) Rear armrest (if so equipped) (P. 1-5)

LII2074

Illustrated table of contents 0-5

INSTRUMENT PANEL

1.

2.

Headlight/fog light (if so equipped)/turn signal switch (P. 2-21) Driver’s supplemental air bag/horn (P. 1-39, 2-23)

3. Meters and gauges (P. 2-3)

0-6 Illustrated table of contents

LIC2533
