FORD FUSION Owner's Manual
The information contained in this publication was correct at the time of going to print. In the interest of development the right is reserved to change specifications, design or equipment at any time without notice and without incurring any obligations. This publication, or part thereof, may not be reproduced nor translated without our approval. Errors and omissions excepted. © Ford Motor Company 2011
All rights reserved. Part Number: (CG3441en) 03/2011 20110408104927
Table of Contents
Introduction About This Manual...........................................5
Symbols Glossary.............................................5
Parts and Accessories.....................................5
At a Glance At a Glance..........................................................8
Child Safety Child Seats.........................................................15
Booster Seats...................................................16
Child Seat Positioning....................................17
Child Safety Locks..........................................19
Occupant protection Principle of Operation..................................20
Fastening the seat belts...............................22
Seat belt height adjustment......................22
Using seat belts during pregnancy..........23
Disabling the passenger airbag.................23
Keys and Remote Controls General Information on Radio Frequencies..................................................25
Programming the remote control............25
Changing the remote controlbattery............................................................26
Locks Locking and Unlocking.................................27
Engine immobiliser Principle of Operation..................................29
Coded keys.......................................................29
Arming the engine immobiliser................29
Disarming the engine immobiliser...........29
Alarm Arming the alarm...........................................30
Disarming the alarm.....................................30Steering Wheel Adjusting the Steering Wheel.....................31
Audio Control....................................................31
Wipers and Washers Windscreen Wipers.......................................33
Windscreen Washers....................................34
Rear Window Wiper and Washers...........34
Checking the Wiper Blades........................35
Changing the Wiper Blades........................35
Lighting Lighting Control...............................................37
Front Fog Lamps............................................38
Rear Fog Lamps..............................................38
Headlamp Levelling......................................39
Hazard Warning Flashers............................39
Direction Indicators.......................................40
Interior Lamps.................................................40
Removing a Headlamp.................................41
Changing a Bulb.............................................42
Bulb Specification Chart.............................46
Windows and Mirrors Power Windows..............................................47
Exterior Mirrors................................................47
Electric exterior mirrors................................47
Instrument Cluster Gauges...............................................................49
Warning Lamps and Indicators................50
Information Displays General Information......................................53
Personalised Settings..................................54
Information Messages..................................55
Climate Control Principle of Operation..................................58Table of Contents
Air Vents............................................................58
Manual Climate Control..............................58
Automatic Climate Control.......................60
Heated Windows and Mirrors....................62
Auxiliary Heater...............................................62
Sunroof..............................................................62
Seats Sitting in the Correct Position...................64
Manual Seats..................................................64
Rear Seats........................................................65
Head Restraints..............................................66
Heated Seats...................................................67
Front Seat Armrest.......................................68
Convenience features Cigar Lighter.....................................................69
Glove Box..........................................................69
Storage compartments...............................69
Rear Seat Armrest...........................................71
Floor Mats...........................................................71
Starting and Stopping theEngine
General Information......................................72
Ignition Switch.................................................72
Starting a Petrol Engine...............................72
Starting a Diesel Engine...............................73
Switching Off the Engine.............................74
Fuel and Refuelling Safety Precautions.........................................75
Fuel Quality - Petrol......................................75
Fuel Quality - Diesel......................................75
Catalytic Converter........................................75
Fuel filler flap...................................................76
Refuelling..........................................................76
Fuel Consumption.........................................76
Technical Specifications..............................76Transmission Manual Transmission...................................78
Automatic Transmission - Vehicles With:4-Speed Automatic Transmission (4F27E)..........................................................79
Brakes Principle of Operation..................................82
Hints on Driving With Anti-LockBrakes.............................................................82
Parking Brake...................................................82
Stability Control Principle of Operation..................................83
Using Stability Control.................................83
Parking Aids Principle of Operation..................................84
Using the Parking Aid...................................84
Load Carrying General Information.....................................86
Luggage Covers..............................................86
Roof Racks and Load Carriers..................86
Towing Towing a Trailer..............................................88
Tow Ball.............................................................88
Driving Hints General Driving Points..................................92
Running-In........................................................92
Cold Weather Precautions..........................92
Driving Through Water.................................92
Roadside Emergencies First Aid Kit.......................................................93
Warning Triangle............................................93Table of Contents
Status after a collision Fuel Cut-Off Switch......................................94
Fuses Changing a Fuse.............................................96
Fuse Labels......................................................96
Fuse Box Locations.......................................98
Vehicle recovery Towing Points..................................................99
Towing the Vehicle on Four Wheels.......99
Maintenance General Information...................................100
Opening and Closing the Bonnet............101

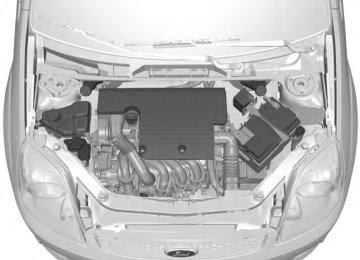

Under Bonnet Overview - 1.25LDuratec-16V (Sigma)/1.4L Duratec-16V (Sigma)/1.6L Duratec-16V (Sigma).............................102
Under Bonnet Overview - 1.4L
Duratorq-TDCi (DV) Diesel..................104

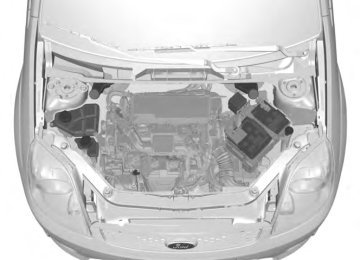

Under Bonnet Overview - 1.6L
Duratorq-TDCi (DV) Diesel..................105
Engine Oil Dipstick - 1.25L Duratec-16V
(Sigma)/1.4L Duratec-16V (Sigma)/1.6L Duratec-16V (Sigma).......................................................106
Engine Oil Dipstick - 1.4L Duratorq-TDCi
(DV) Diesel.................................................106
Engine Oil Dipstick - 1.6L Duratorq-TDCi
(DV) Diesel.................................................107
Engine Oil Check...........................................107
Engine Coolant Check................................107
Power Steering Fluid Check.....................108
Brake and Clutch Fluid Check.................108
Washer Fluid Check....................................109
Technical Specifications...........................109
Vehicle care Cleaning the Exterior....................................112
Cleaning the Interior.....................................112
Repairing Minor Paint Damage.................113Vehicle battery Jump-Starting the Vehicle.........................114
Wheels and Tyres General Information.....................................116
Changing a Road Wheel.............................116
Tyre Repair Kit.................................................121
Tyre Care..........................................................124
Using Winter Tyres.......................................124
Using Snow Chains......................................124
Technical Specifications............................125
Vehicle identification Vehicle Identification Plate.......................126
Vehicle Identification Number.................126
Engine number..............................................126
Capacities and Specific-ations
Dimensions......................................................127
Audio introduction Important audio information....................131
Audio unit overview Audio unit overview......................................132
Audio system security Security code.................................................136
Lost security code........................................136
Entering a security code.............................136
Incorrect security code...............................136
Audio unit clock and dateSetting the clock and date on the audio
displays unit..................................................................137
Audio unit operation On/off control................................................138Table of Contents
Bass/treble control......................................138
Balance/fade control..................................138
Audio menu control.....................................138
Station preset buttons................................141
Waveband button.........................................141
Autostore control..........................................141
Traffic information control.........................141
Station tuning control.................................143
Audio unit menus Automatic volume control........................145
Digital signal processing (DSP)..............145
Audio distortion reduction (CLIP)..........145
Alternative frequencies..............................146
Regional mode (REG)................................146
News broadcasts..........................................147
Compact disc player Loading compact discs..............................148
Track selection..............................................148
Compact disc playback.............................149
Compact disc selection.............................149
Fast forward/reverse...................................149
Shuffle/random............................................149
Compact disc track compression..........150
Compact disc track scanning..................150
Ejecting compact discs..............................150
Repeat compact disc tracks......................151
Ending compact disc playback................151
Ejecting multiple compact discs .............151
Auxiliary input (AUX IN)socket
Auxiliary input (AUX IN) socket...............152
Audio troubleshooting Audio troubleshooting................................153Telephone General Information....................................155
Telephone setup...........................................155
Bluetooth setup............................................156
Telephone controls......................................157
Using the telephone - Vehicles Without:Navigation System..................................158
Using the telephone - Vehicles With:
Travel Pilot EX.............................................161
Voice control Principle of Operation.................................163
Using voice control......................................163
Audio unit commands................................164
Telephone commands...............................168
Navigation system commands................173
Climate control commands......................173
Appendices Electromagnetic compatibility................176
Type approvals...............................................177Introduction
ABOUT THIS MANUAL Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.
WARNING
Always drive with due care and attention when using and operating the controls and features on your
vehicle.
Note: This manual describes product features and options available throughout the range, sometimes even before they are generally available. It may describe options not fitted to your vehicle. Note: Some of the illustrations in this manual may be used for different models, so may appear different to your vehicle. However, the essential information in the illustrations is always correct. Note: Always use and operate your vehicle in line with all applicable laws and regulations. Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle. This vehicle has received the endorsement of TÜV, the accredited international testing organisation, for its allergy-friendly properties. All materials used in the manufacture of the interior of this vehicle meet strict requirements of the TÜV TOXPROOF Criteria Catalogue for Vehicle Interiors by TÜV Produkt and Umwelt GmbH and are designed to minimize the risk of allergic reactions.
Additionally an efficient pollen filter protects the passengers against allergen particles in the outdoor air. For more information, contact TÜV at www.tuv.com. SYMBOLS GLOSSARY Symbols in this handbook
WARNING
You risk death or serious injury to yourself and others if you do not follow the instructions highlighted
by the warning symbol.
CAUTION
You risk damaging your vehicle if you do not follow the instructions highlighted by the caution symbol.
Symbols on your vehicle
When you see these symbols, read and follow the relevant instructions in this handbook before touching or attempting adjustment of any kind. PARTS AND ACCESSORIES Now you can be sure that your Ford parts are Ford parts Your Ford has been built to the highest standards using high quality Ford Original Parts. As a result, you can enjoy driving it for many years.
Introduction
Should the unexpected occur and a major part needs replacing, we recommend that you accept nothing less than Ford Original Parts. The use of Ford Original Parts ensures that your vehicle is repaired to its pre-accident condition and maintains its maximum residual value. Ford Original Parts match Ford's stringent safety requirements and high standards of fit, finish and reliability. Quite simply, they represent the best overall repair value, including parts and labour costs. Now it is easier to tell if you have really been given Ford Original Parts. The Ford logo is clearly visible on the following parts if they are Ford Original Parts. If your vehicle has to be repaired, look for the clearly visible Ford branding and make sure that only Ford Original Parts have been used. Look for the Ford logo on the following parts Sheet metal • Bonnet • Wings • Doors •
Tailgate
Front and rear bumper
Bumper and radiator grille • Radiator grille • Glass • Rear window • • Windscreen
Side glass
E89937 Lighting • Rear lamps • Headlamp
Introduction
E89939E89940 At a Glance
AT A GLANCE Instrument panel overview Left-hand drive
AVTRMNOPQSUBDFGHEKJILCE89017 At a Glance
Right-hand drive
Window demister. Air vent. See Air Vents (page 58). Luggage compartment release. Main beam, direction indicators, headlamp flasher and information display controls. See Lighting Control (page 37). See General Information (page 53). Instrument cluster. See Gauges (page 49). Wiper lever. See Wipers and Washers (page 33). Heated windscreen switch. See Heated Windows and Mirrors (page 62). Heater rear window switch. See Heated Windows and Mirrors (page 62). Storage tray. Hazard warning flasher switch. See Hazard Warning Flashers (page 39). Stability control switch or coin holder. See Stability Control (page 83).
KMORVUTPQSNLIHDEGBCFAJE102295 At a Glance
Airbag deactivated warning lamp or coin holder. See Disabling the passenger airbag (page 23). Audio or navigation unit. See separate handbook. Climate controls. See Climate Control (page 58). Interior temperature sensor. Ignition switch. See Ignition Switch (page 72). Horn. Steering wheel adjustment lever. See Adjusting the Steering Wheel (page 31). Audio controls. See Audio Control (page 31). Storage compartment. Headlamp levelling control. See Headlamp Levelling (page 39). Lighting controls. See Lighting (page 37).
Adjusting the steering wheel
WARNING
Never adjust the steering wheel when the vehicle is moving.
See Adjusting the Steering Wheel (page 31). Engine idle speed after starting The engine may idle at a higher speed than normal immediately after starting from cold. See Starting and Stopping the Engine (page 72).
10
122E951783E95179 At a Glance
Information displays
Recommended settings for heating
Press the button to scroll through the displays and hold the button to reset, select a submenu or change a setting. The information display will tell you whether a short press of the button or long press of the button is required for the various options. See Information Displays (page 53). Manual climate control Recommended settings for cooling
Close the centre air vents and open the side air vents. Direct the side air vents toward the side windows. See Manual Climate Control (page 58). Automatic climate control Recommended settings for cooling
Open the centre and side air vents. Direct the centre air vents upwards and the side air vents toward the side windows.
Set the temperature to 22°C (72°F). Open the centre and side air vents. Direct the centre air vents upwards and the side air vents toward the side windows.
11
E70436E116251E116252E116173 At a Glance
Unlocking the luggage compartment lid Press button C twice within three seconds. See Locking and Unlocking (page 27). Audio unit Automatic volume control (AVC) When available, automatic volume control (AVC) adjusts the volume level to compensate for engine noise and road speed noise. 1. Press the MENU button repeatedly
until an AVC display appears.
2. Use the left or right arrow button, to
adjust the AVC setting.
Changing the date and time 1. Press the CLOCK button to display the
date and time.
2. Use the left or right arrow button to
select the date or time value that you wish to change. The selected value will flash in the display.
3. Turn the volume control to change the
selected date or time value.
4. Use the left or right arrow button to select additional date or time values that you wish to change.
5. Turn the volume control to change the
selected date or time value.
6. Press the CLOCK button to exit and
save the new date and time.
Recommended settings for heating
Set the temperature to 22°C (72°F). Open the centre and side air vents. Direct the centre air vents upwards and the side air vents toward the side windows. See Automatic Climate Control (page 60). Locking and unlocking the doors with the remote control
Unlock Lock Luggage compartment lid unlock
Locking the doors Press button B once. Double locking the doors Press button B twice within three seconds.
12
E72153E87379ABC Autolamps
At a Glance
See Lighting (page 37). Autowipers
High sensitivity Low sensitivity
See Windscreen Wipers (page 33). Electric folding mirrors
Automatic folding The mirrors will fold automatically when you lock the vehicle with the remote control. The mirrors will unfold when you unlock the vehicle with the key or the remote control. See Electric exterior mirrors (page 47).
Note: If you have switched autolamps on, you can only switch the main beam on when autolamps has switched the headlamps on. The headlamps will come on and go off automatically depending on the ambient light. See Lighting (page 37). Home safe lighting Vehicles without autolamps Switch the headlamps on and then switch them off within two seconds. Vehicles with autolamps a. Switch autolamps on and then switch
them off within two seconds.
b. Switch autolamps off and then switch
them on within two seconds.
See Lighting (page 37). Welcome lighting The side and tail lamps will come on when you unlock the doors with the remote control. They will switch off automatically after a short time.
13
E72162E721732E72184 At a Glance
Creating a level load floor
1. Lift the seat cushion. 2. Pull the locking lever and push the
seatback forwards.
3. Press the rear of the seatback
downwards.
See Rear Seats (page 65).
14
E91009123 CHILD SEATS
Child Safety
WARNINGS
Do not leave unattended children in your vehicle. If your vehicle has been involved in an accident, have the child restraints checked by properly trained
technicians.
Note: Mandatory use of child restraints varies from country to country. Only child restraints certified to ECE-R44.03 (or later) have been tested and approved for use in your vehicle. A choice of these are available from your Dealer. Child restraints for different mass groups Use the correct child restraint as follows: Baby safety seat
WARNINGS
Secure children that are less than 150 centimetres (59 inches) tall in a suitable, approved child restraint, in
the rear seat.
of it!
Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an air bag in front
Read and follow the manufacturer’s instructions when you are fitting a child restraint. Do not modify child restraints in any way. Do not hold a child on your lap when the vehicle is moving.
15
Secure children that weigh less than 13
kilograms (29 pounds) in a rearward facing baby safety seat (Group 0+) in the rear seat.E133140E68916E68918 Child safety seat
Child Safety
CAUTION
When using a child seat on a rear seat, make sure that the child seat rests tightly against the vehicle seat. It may be necessary to lift or remove the head restraint. See Head Restraints (page 66). Booster seat (Group 2)
Secure children that weigh between 13 and 18 kilograms (29 and 40 pounds) in a child safety seat (Group 1) in the rear seat. BOOSTER SEATS
WARNINGS
Do not install a booster seat or a booster cushion with only the lap strap of the seat belt. Do not install a booster seat or a booster cushion with a seat belt that is slack or twisted. Do not put the seat belt under your child’s arm or behind its back. Do not use pillows, books or towels to boost your child’s height. Make sure that your children sit in an upright position. Secure children that weigh more than 15 kilograms (33 pounds) but are less than 150 centimetres (59
inches) tall in a booster seat or a booster cushion.
We recommend that you use a booster seat that combines a cushion with a backrest instead of a booster cushion only. The raised seating position will allow you to position the shoulder strap of the adult seat belt over the centre of your child’s shoulder and the lap strap tightly across its hips.
16
E68920E70710 Child Safety
Booster cushion (Group 3)
CHILD SEAT POSITIONING
WARNINGS
Please consult your Dealer for the latest details relating to Ford recommended child seats.
WARNINGS
Original text according to ECE R94.01: Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an air bag in front of it!
When using a child seat with a support leg, the support leg must rest securely on the floor. When using a child seat with a seat belt, make sure that the seat belt is not slack or twisted.
CAUTION
The child seat must rest tightly against the vehicle seat. It may be necessary to lift or remove the head restraint. See Head Restraints (page 66).
Note: When using a child seat on a front seat, always adjust the front passenger seat to its fully rearwards position. If it proves difficult to tighten the lap section of the seat belt without slack remaining, adjust the seatback to the fully upright position and raise the height of the seat. See Manual Seats (page 64).
Mass group categories
Seating positions
0+
Up to 10 kg
Up to 13 kg
9 - 18 kg
15 - 25 kg
22 - 36 kg
Front passenger seat with airbag ON Front passenger seat with airbag OFF Rear seats X Not suitable for children in this mass group. U Suitable for universal category child seats approved for use in this mass group.
UF¹
UF¹
U¹
U¹
U¹
U¹
UF¹
U¹
17
E68924 Child Safety
U¹ Suitable for universal category child seats approved for use in this mass group. However, we recommend that you secure children in a government approved child seat, in the rear seat. UF¹ Suitable for universal category forward facing child seats approved for use in this mass group. However, we recommend that you secure children in a government approved child seat, in the rear seat.
18
Child Safety
CHILD SAFETY LOCKS
WARNING
You cannot open the doors from inside if you have put the child safety locks on.
Lock Unlock
19
E73697AB Occupant protection
• • • •
• • • •
side airbags curtain airbags a driver seat belt pretensioner a front passenger seat belt pretensioner crash sensors an airbag warning lamp a seat belt reminder an electronic control and diagnostic unit.
You can also have your vehicle fitted with: • • Driver and front passenger airbags
an airbag deactivation switch an airbag deactivation warning lamp.
The driver and front passenger airbags will deploy during significant frontal collisions or collisions that are up to 30 degrees from the left or the right. The airbags will inflate within a few thousandths of a second and deflate on contact with the occupants, thus cushioning forward body movement. During minor frontal collisions, overturns, rear collisions and side collisions, the driver and front passenger airbags will not deploy.
PRINCIPLE OF OPERATION Airbags
WARNINGS
Do not modify the front of your vehicle in any way. This could adversely affect deployment of the
airbags.
Original text according to ECE R94.01: Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an airbag in front of it! Wear a seat belt and keep sufficient distance between yourself and the steering wheel. Only when you use the seat belt properly, can it hold you in a position that allows the airbag to achieve its optimum effect. See Sitting in the Correct Position (page 64).
Have repairs to the steering wheel, steering column, seats, airbags and seat belts carried out by properly
trained technicians.
Keep the areas in front of the airbags free from obstruction. Do not affix anything to or over the airbag covers. Do not poke sharp objects into areas where airbags are fitted. This could damage and adversely affect
deployment of the airbags.
Use seat covers designed for seats with side airbags. Have these fitted by properly trained technicians.
Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal. Note: Only wipe airbag covers with a damp cloth. The restraint system comprises: • •
a driver airbag a front passenger airbag
20
E74302 Occupant protection
The curtain airbags will deploy during significant lateral collisions. Only the airbag on the side affected by the collision will deploy. The airbag will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing protection for the head. During minor lateral collisions, front collisions, rear collisions, or overturns the curtain airbags will not deploy. Seat belts
WARNINGS
Wear a seat belt and keep sufficient distance between yourself and the steering wheel. Only when you use the seat belt properly, can it hold you in a position to achieve its optimum effect. See Sitting in the Correct Position (page 64).
Never use a seat belt for more than one person. Use the correct buckle for each seat belt. Do not use a seat belt that is slack or twisted. Do not wear thick clothing. The seat belt must fit tightly around your body to achieve its optimum effect. Position the shoulder strap of the seat belt over the centre of your shoulder and position the lap strap
tightly across your hips.
The driver and front passenger seat belt retractors are fitted with a seat belt pretensioner. Seat belt pretensioners have a lower deployment threshold than the airbags. During minor collisions, it is possible that only the seat belt pretensioners will deploy.
Side airbags
Side airbags are fitted inside the seatback of the front seats. A label indicates that side airbags are fitted to your vehicle. The side airbags will deploy during significant lateral collisions. Only the airbag on the side affected by the collision will deploy. The airbags will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing protection for the chest and shoulder areas. During minor lateral collisions, overturns, front collisions and rear collisions, the side airbags will not deploy. Curtain airbags
Curtain airbags are fitted inside the trim panels over the front and rear side windows. Moulded badges in the B-pillar trim panels indicate that curtain airbags are fitted to your vehicle.
21
E72658E75004 Occupant protection
Status after a collision WARNING
Seat belts subjected to strain, as a result of an accident, should be renewed and the anchorages
checked by a properly trained technician. FASTENING THE SEAT BELTS
WARNING
Insert the tongue into the buckle until you hear a distinct click. You have not fastened the seat belt properly
if you do not hear a click.
Pull the belt out steadily. It may lock if you pull it sharply or if the vehicle is on a slope. Press the red button on the buckle to release the belt. Let it retract completely and smoothly. SEAT BELT HEIGHT ADJUSTMENT
Note: Lifting the slider slightly while pressing the locking button makes it easier to release the locking mechanism. To raise or lower, press the locking button on the adjuster and move as necessary.
22
E74124E85817E87511 Occupant protection
USING SEAT BELTS DURING PREGNANCY
WARNING
Position the seat belt correctly for your safety and that of your unborn child. Do not use only the lap strap
or the shoulder strap.
Position the lap strap comfortably across your hips and low beneath your pregnant abdomen. Position the shoulder strap between your breasts, above and to the side of your pregnant abdomen. DISABLING THE PASSENGER AIRBAG
WARNING
Make sure that the passenger airbag is disabled when using a rearward facing child restraint on the front
passenger seat.
Fitting the passenger airbag deactivation switch WARNING
If you need to fit a child restraint on a seat protected by an operational airbag in front of it, have a passenger airbag deactivation switch fitted. Ask your dealer for further information.
Note: The key switch is located in the glove compartment with an airbag deactivation lamp in the instrument panel. If the airbag warning lamp illuminates or flashes when you are driving, this indicates a malfunction. See Warning Lamps and Indicators (page 50). Remove the child restraint and have the system checked immediately. Disabling the passenger airbag
Disabled Enabled
23
E68587E71313ABE71312 Occupant protection
Turn the switch to position A. When you switch the ignition on, check that the passenger airbag deactivation warning lamp illuminates. Enabling the passenger airbag
WARNING
Make sure that the passenger airbag is enabled when you are not using a child restraint on the front passenger
seat.
Turn the switch to position B.
24
Keys and Remote Controls
GENERAL INFORMATION ON RADIO FREQUENCIES
CAUTIONS
The radio frequency used by your remote control can also be used by other short distance radio
transmissions (e.g. amateur radios, medical equipment, wireless headphones, remote controls and alarm systems). If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key. Check your vehicle is locked before leaving it unattended. This will safeguard against any potential
malicious frequency blocking.
Note: You could unlock the doors if you press the buttons on the remote control unintentionally. The operating range between your remote control and your vehicle varies depending on the environment. PROGRAMMING THE REMOTE CONTROL A maximum of four remote controls (including the ones supplied with the vehicle) can be programmed.
To programme a new remote control: •
Turn the ignition key to position II four times within six seconds. Switch off the ignition. A tone sounds to indicate that it is now possible to programme a new remote control. • Press any button on a new remote
•
control. A tone will sound as confirmation. Repeat this last step for all of your remote controls, including the original. Switch the ignition back on or wait for ten seconds without programming another remote control to end remote control programming. Only the remote controls which you have just programmed are now able to lock and unlock your vehicle.
•
Re-programming the unlocking function You can change the unlocking function so that pressing the unlock button once deactivates the central locking or double locking, disarms the anti-theft alarm system and unlocks the driver’s door. Pressing the unlock button twice within three seconds also unlocks the passengers’ doors. If you want the tailgate to be locked while driving, press the locking button on the driver’s door to activate central locking.
25
E72191E72190 Keys and Remote Controls
• Open the transmitter unit by separating the retaining clips on the sides with the flat object.
• Carefully prise out the battery with the flat object. Fit the new battery between the contacts with the + sign facing downwards. Reassemble the transmitter unit in reverse order.
In order to re-programme the function, press and hold the unlock and lock buttons simultaneously for at least four seconds with the ignition switched off. The direction indicators will flash twice to indicate that the unlocking function has been successfully re-programmed. Pressing and holding both buttons simultaneously for at least four seconds again will change the function back. CHANGING THE REMOTE CONTROL BATTERY
Make sure that you dispose of old batteries in an environmentally friendly way.
Seek advice from your local authority regarding recycling. If the range of the transmitter in the key decreases gradually, the battery (type 3V CR 2032) should be replaced.
• Carefully separate the transmitter unit from the key using a flat object (e.g. a screwdriver) at the recess on the back. • Carefully prise out the battery with the flat object. Fit the new battery between the contacts with the + sign facing downwards. Reassemble the transmitter unit in reverse order.
26
E107998E68726E68727E68729 Locks
LOCKING AND UNLOCKING Central locking You can only centrally lock the doors if they are all closed. Double locking
WARNINGS
Do not activate double locking when persons or animals are inside the vehicle. You will not be able to unlock the doors from the inside if you have double locked them.
Double locking is a theft protection feature that prevents someone from opening the doors from the inside. You can only double lock the doors if they are all closed. Locking and unlocking confirmation When you unlock the doors, the direction indicators will flash once. When you lock the doors, the direction indicators will flash twice. Note: If your vehicle has double locking, the direction indicators will only flash twice once you have activated double locking.
Locking and unlocking the doors with the key
Unlock Lock
Double locking the doors with the key Turn the key to the unlock position and then the lock position within two seconds.
27
BE71962ABA Locks
Locking and unlocking the doors with the remote control
Unlock Lock Luggage compartment lid unlock
Locking the doors with the remote control Press button B once. Double locking the doors with the remote control Press button B twice within three seconds. Unlocking the luggage compartment lid Press button C twice within three seconds. Automatic relocking The doors will relock automatically if you do not open a door within 45 seconds of unlocking the doors with the remote control. The door locks and the alarm will return to their previous state. Reprogramming the unlocking function You can reprogram the unlocking function so that only the driver's door is unlocked or all doors are unlocked. Press the lock and unlock buttons on the remote control at the same time for four seconds with the ignition switched off. The direction indicators will flash twice as confirmation.
28
E87379ABC Engine immobiliser
If the indicator illuminates constantly for one minute or flashes for approximately one minute and then repeatedly at irregular intervals, the system did not recognise the key code or a system fault is present. Remove the key and try again. If the engine does not start, a system malfunction has occurred. Have the system checked by an expert immediately.
PRINCIPLE OF OPERATION The engine immobiliser is a theft protection system that prevents someone from starting the engine with an incorrectly coded key. CODED KEYS Note: Do not shield your keys with metal objects. This may prevent the receiver from recognising your key as a valid one. Note: Have all of your remaining keys erased and recoded if you lose a key. Ask your dealer for further information. Have replacement keys recoded together with your existing keys. If you lose a key, you can obtain a replacement from your Ford Dealer. If possible, provide them with the key number from the tag provided with the original keys. You can also obtain additional keys from your Ford Dealer. ARMING THE ENGINE IMMOBILISER The engine immobiliser is armed automatically a short time after you have switched the ignition off. The indicator in the instrument cluster will flash to confirm that the system is operating. DISARMING THE ENGINE IMMOBILISER Switching on the ignition disarms the system if the correct code is recognised. The indicator illuminates for approximately three seconds and then extinguishes.
29
Alarm
ARMING THE ALARM The system is armed as soon as the vehicle is locked and acts as a deterrent to unauthorised persons who attempt to open the doors, bonnet or luggage compartment, or remove the audio system. Automatic arming delay The 20 seconds arming delay begins when the bonnet, luggage compartment and all doors are closed and locked. Alarm The alarm sounds for 30 seconds if an unauthorised person opens a door, the load compartment or the bonnet. The hazard warning flashers will flash for five minutes. Any attempt to start the engine or to remove the audio system sounds the alarm again. DISARMING THE ALARM Disarm and silence the alarm by unlocking either of the front doors or luggage compartment with the key.
30
Steering Wheel
ADJUSTING THE STEERING WHEEL
WARNING
Never adjust the steering wheel when the vehicle is moving.
Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position (page 64).
WARNING
Make sure that you fully engage the locking lever when returning it to its original position. AUDIO CONTROL Select radio, CD or cassette mode on the audio unit. The following functions can be operated with the remote control: Volume
Volume up: Pull the VOL+ switch towards the steering wheel. Volume down: Pull the VOL− switch towards the steering wheel.
31
122E951783E95179E70361 Seek
Steering Wheel
•
•
•
In radio mode, this will locate the next pre-set radio station. In CD mode, this will select the next CD if a CD changer is fitted. In all modes to abort a traffic message during broadcasting.
Press and hold the button on the side: •
In radio mode, to change the waveband.
Move the SEEK switch towards the steering wheel or the instrument panel: •
In radio mode, this will locate the next radio station up or down the frequency band. In CD mode, it will select the next or previous track.
•
Mode
Briefly press the button on the side:
32
E70362E70363 Wipers and Washers
WINDSCREEN WIPERS
Autowipers
WARNINGS
In icy conditions, make sure that the windscreen has been fully defrosted before selecting autowipers. Switch off the autowipers feature before entering a car wash. Replace the wiper blades as soon as they begin to leave bands of water and smears or when they do not
completely remove water from the windscreen. If the blades are not replaced, the rain sensor will continue to detect water on the windscreen. This will result in the wipers continuing to operate although the majority of the windscreen is dry.
Note: The autowipers feature is intended for use during wet weather conditions only and is very sensitive to anything which touches the windscreen near to the rain sensor. Objects such as dirt, mist or flies hitting the windscreen in this location may cause the wipers to wipe even though the windscreen is mostly dry. Note: The autowipers feature should not be selected when it is snowing, foggy or when the roads have been salted. In these weather conditions, select an alternative position if necessary. When autowipers is selected, the wipers will cycle once regardless of whether the windscreen is wet or dry. Thereafter, or when the ignition is switched on with autowipers selected, the wipers will not cycle until water is detected on the windscreen. Alternatively, move the lever to another position and then select autowipers, or operate the washer.
Single wipe Intermittent wiping or autowipers Normal wiping High speed wiping
Intermittent wiping
Select wipe interval with rotary switch: 1 = Short time interval. 6 = Extended time interval.
33
ABCDE72172E721732 Wipers and Washers
The rain sensor will continuously measure the amount of water on the windscreen and adjust the speed of the front wipers automatically (single wipe, intermittent, normal or high speed wiping).
REAR WINDOW WIPER AND WASHERS Intermittent wiping
Pull the lever towards the steering wheel. Reverse gear wipe The rear wiper will be activated automatically when selecting reverse gear, if •
the rear wiper is not already switched on, the wiper lever is in position C, or D in position B and the front wipers are operating.
• •
The rear wiper will follow the front wiper interval (at intermittent or normal speed).
The sensitivity of the rain sensor is set using the rotary control: 1 = High sensitivity: The wipers will wipe even if only a small amount of water is detected on the windscreen. 6 = Low sensitivity: The wipers will only wipe when a larger amount of water is detected on the windscreen. WINDSCREEN WASHERS
WARNING
Do not operate the windscreen washer for more than 10 seconds or when the reservoir is empty.
34
E721732E72174E72175 Wipers and Washers
Washer
CHECKING THE WIPER BLADES
WARNING
Do not operate the washer for more than 10 seconds at a time, and never when the reservoir is empty.
Pull the lever fully towards the steering wheel and hold it to operate the washer. The washer will operate in conjunction with the wipers. The washer jet for the rear window is located on the roof above the rear window.
Run the tip of your fingers over the edge of the blade to check for roughness. Clean the wiper blade lips with water applied with a soft sponge. CHANGING THE WIPER BLADES
35
E72176E66644E6664552431 Wipers and Washers
Lift the wiper arm and position the wiper blade at a right angle to the wiper arm. To remove, press the retaining clip in the direction of the arrow, disengage the wiper blade and pull it off the arm in the opposite direction.
36
LIGHTING CONTROL Lighting control positions
Off Side and tail lamps Headlamps
Autolamps
Lighting
The headlamps will come on and go off automatically depending on the ambient light. Home safe lighting You can switch home safe lighting on up to 10 minutes after you have switched the ignition off. Vehicles without autolamps Switch the headlamps on and then switch them off within two seconds. Vehicles with autolamps a. Switch autolamps on and then switch
them off within two seconds.
b. Switch autolamps off and then switch
them on within two seconds.
Welcome lighting The side and tail lamps will come on when you unlock the doors with the remote control. They will switch off automatically after a short time. Main/dipped beam
Note: If you have switched autolamps on, you can only switch the main beam on when autolamps has switched the headlamps on.
Pull the lever fully towards the steering wheel to switch between main and dipped beam.
37
ABCE72161E72162E72168 Lighting
Headlamp flasher
REAR FOG LAMPS
WARNING
The rear fog lamps may only be used when visibility is restricted to less than 50 m and must not be used
when it is raining or snowing.
Note: On vehicles not equipped with front fog lamps the control switch can be pulled out only one position. Note: It is not possible to switch on the rear fog lamps when the lighting switch is set to AUTO. To switch on the rear fog lamps, switch off the autolamps feature. Switch on the exterior lamps 1 and pull out the control two positions 2.
Pull the lever slightly towards the steering wheel. FRONT FOG LAMPS
Note: It is not possible to switch on the front fog lamps when the lighting switch is set to AUTO. To switch on the front fog lamps, switch off the autolamps feature. Switch on the headlamps 1 and pull out the control switch one position 2. The front fog lamps should be used only when visibility is considerably restricted by fog, snow or rain.
38
E72168E7216312E72164 Lighting
HEADLAMP LEVELLING
You can adjust the level of the headlamp beams according to the vehicle load.
Switch position
1.5
Recommended headlamp levelling switch positions Load in luggage compartment
Load
Front seats
Second row seats
1-2
1-2
1-2Max1
Max11 See Vehicle Identification Plate (page 126).
HAZARD WARNING FLASHERS Note: Depending on applicable laws and regulations in the country for which your vehicle was originally built, the hazard warning flashers may flash if you brake heavily.
For item location: See At a Glance (page 8).
39
E65990E71943 Lighting
DIRECTION INDICATORS
INTERIOR LAMPS Courtesy lamp
Briefly tap the lever up or down and the direction indicators will flash three times.
Off Door contact On
Off Door contact On
40
E72167CBAE71945E91006ABCABC Lighting
If you set the switch to position B, the courtesy lamp will come on when you unlock or open a door or the tailgate. If you leave a door open with the ignition switch off, the courtesy lamp will go off automatically after some time to prevent the vehicle battery from discharging. To switch it back on, switch on the ignition for a short time. The courtesy lamp will also come on when you switch off the ignition. It will go off automatically after a short time or when you start or restart the engine. If you set the switch to position C with the ignition switch off, the courtesy lamp will come on. It will go off automatically after a short time to prevent the vehicle battery from discharging. To switch it back on, switch on the ignition for a short time. Reading lamps
Off On
REMOVING A HEADLAMP 1. Open the bonnet. See Opening and
Closing the Bonnet (page 101).
2. Remove the screws.
41
E71946ABE72900E9059245123 Lighting
CAUTIONS
Do not touch the glass of the bulb.
Only fit bulbs of the correct specification. See Bulb Specification Chart (page 46).
Note: The following instructions describe how to remove the bulbs. Fit replacement in the reverse order unless otherwise stated. Headlamp main and dipped beam 1. Remove the headlamp. See
Removing a Headlamp (page 41).
CAUTION
Do not pull the bumper more than 10
mm from its original position.3. Carefully pull the bumper towards the
front of the vehicle and remove the screw.
4. Disconnect the electrical connector
and remove the headlamp.
CAUTION
When fitting the headlamp, take care not to damage the locating points.
Note: When fitting the headlamp, make sure that you fully engage the headlamp in the fixing points. CHANGING A BULB WARNINGS
Switch the lights and the ignition off.
Let the bulb cool down before removing it.
42
2. Remove the cover. 3. Disconnect the electrical connector. 4. Release the clip and remove the bulb. Side lamps 1. Remove the headlamp. See
Removing a Headlamp (page 41).
3E90593E91017 Lighting
Side repeaters
2. Remove the cover. 3. Carefully prise out the bulb holder. 4. Remove the bulb. Front direction indicators 1. Remove the headlamp. See
Removing a Headlamp (page 41).
1. Carefully remove the side repeater. 2. Hold the bulb holder, turn the housing
anticlockwise and remove it.
3. Remove the bulb. Front fog lamps
2. Turn the bulb holder anticlockwise and
remove it.
3. Gently press the bulb into the bulb
holder, turn it anticlockwise and remove it.
1. Disconnect the electrical connector. 2. Turn the bulb holder anticlockwise and
remove it. Rear lamps 1. Open the tailgate.
43
E91018E91016213E78869E91019 Lighting
5. Gently press the bulbs into the bulb holder, turn them anticlockwise and remove them.
Central high mounted stop lamp
2. From inside the luggage compartment, remove the wing nut on the back of the rear lamp.
3. Remove the screws and remove the
rear lamp assembly.
4. Release the clips and remove the bulb
holder.
1. Open the tailgate. 2. Remove the rubber grommet. 3. Release the clips using a flat-bladed
screwdriver and remove the lamp.
4. Unclip the bulb holder and remove the
bulb.
44
E91020ABCDE91021234E90600 Number plate lamp
Lighting
1. Carefully prise out the lamp. 2. Remove the lens. 3. Remove the bulb. Reading lamps
1. Loosen the screws and remove the
lamp.
2. Remove the bulb. Interior lamp
1. Carefully prise out the lamp. 2. Turn the bulb holder anticlockwise and
remove it.
3. Remove the bulb.
45
E90601E7309112E730923E7393812E739393 Lighting
Luggage compartment lamp
1. Carefully prise out the lamp. 2. Remove the bulb.
BULB SPECIFICATION CHART
Bulb
Front direction indicator Side lamp Headlamp Side repeater Front fog lamp Brake and tail lamp Rear direction indicator Reversing lamp Rear fog lamp Central high mounted stop lamp Number plate lamp Interior lamp Reading lamp Luggage compartment lamp
Specification
PY21W
H4
H11
P21/5W P21W P21W P21W
ZW5
46
Rating (watt)
21
55/60
55
21
21
21
1610
E72784 Windows and Mirrors
POWER WINDOWS WARNING
Do not operate the electric windows unless they are free from obstruction.
Note: If you operate the switches often during a short period of time, the system might become inoperable for a certain time to prevent damage due to overheating.
Manual folding mirrors Folding Push the mirror towards the door window glass. Unfolding Make sure that you fully engage the mirror in its support when returning it to its original position. ELECTRIC EXTERIOR MIRRORS
Left-hand mirror Off Right-hand mirror
Electric exterior mirrors are fitted with a heating element that will defrost or demist the mirror glass. They will switch on automatically when you switch the heated rear window on.
Switch on the ignition to operate the electric windows. To open the driver’s window automatically Press the switch to the second action point and release it. Press it again to stop the window. EXTERIOR MIRRORS
WARNING
Do not overestimate the distance of the objects that you see in the convex mirror. Objects seen in
convex mirrors will appear smaller and further away than they actually are.
47
E93505E66485ABC Windows and Mirrors
Mirror tilting positions
up right down left
Electric folding mirrors
Automatic folding The mirrors will fold automatically when you lock the vehicle with the remote control. The mirrors will unfold when you unlock the vehicle with the key or the remote control.
48
E66486E72184 Instrument Cluster
GAUGES
Tachometer Engine coolant temperature gauge Fuel gauge Speedometer Information display
Engine coolant temperature gauge All vehicles Shows the temperature of the engine coolant. At normal operating temperature, the needle will remain in the centre section.
49
CAUTION
Do not restart the engine until the cause of overheating has been resolved.
If the needle enters the red section, the engine is overheating. Stop the engine, switch the ignition off and determine the cause once the engine has cooled down.
E89015BACDE Instrument Cluster
Airbag warning lamp
If it illuminates when you are driving, this indicates a malfunction. Have the system checked by a properly trained technician. Brake system lamp
It illuminates when the parking brake is engaged. WARNING
Reduce your speed gradually and stop your vehicle as soon as it is safe to do so. Use your brakes with care.
If it illuminates when you are driving, check that the parking brake is not engaged. If the parking brake is not engaged, this indicates a malfunction. Have the system checked by a properly trained technician immediately. Direction indicator
Flashes during operation. A sudden increase in the rate of flashing warns of a failed indicator bulb. See Changing a Bulb (page 42). Door open warning lamp
Illuminates when the ignition is switched on and remains on if any door, the bonnet or the luggage compartment is not closed properly.
Vehicles with an information display In addition, a warning message will appear in the display. Fuel gauge The arrow adjacent to the fuel pump symbol tells you on which side of your vehicle the fuel filler cap is located. WARNING LAMPS AND INDICATORS The following warning lamps and indicators illuminate when the ignition is switched on: • ABS • Airbag • • Door open • • • • Oil pressure • Power steering • Powertrain • If a warning or indicator lamp does not illuminate when the ignition is switched on, it indicates a malfunction. Have the system checked by properly trained technician. ABS warning lamp
Stability control (ESP).
Engine Frost Ignition
Brake system
If it illuminates when you are driving, this indicates a malfunction. You will continue to have normal braking (without ABS). Have the system checked by a properly trained technician as soon as possible.
50
Instrument Cluster
Engine warning lamp
Low fuel level warning lamp
If it illuminates with the engine running, this indicates a malfunction. If it flashes when you are driving, reduce the speed of your vehicle immediately. If it continues to flash, avoid heavy acceleration or deceleration. Have the system checked by a properly trained technician immediately. Front fog lamp indicator
It will illuminate when you switch the front fog lamps on.
Frost warning lamp
It will illuminate and glow amber when the outside air temperature is between 4ºC (39ºF) and 1°C (34°F). It will glow red when the temperature is below 1°C (34°F). Glow plug indicator
See Starting a Diesel Engine (page 73).
Headlamp indicator
It will illuminate when you switch the headlamp dipped beam or the side and tail lamps on.
Ignition warning lamp
If it illuminates when you are driving, this indicates a malfunction. Switch off all
unnecessary electrical equipment. Have the system checked by a properly trained technician immediately.
If it illuminates, refuel as soon as possible.
Main beam indicator
It will illuminate when you switch the headlamp main beam on. It will flash when you use the
headlamp flasher. Oil pressure warning lamp
CAUTION
Do not resume your journey if it illuminates despite the level being correct. Have the system checked by a properly trained technician immediately.
If it stays on after starting or illuminates when driving, this indicates a malfunction. Stop your vehicle as soon as it is safe to do so and switch the engine off. Check the engine oil level. See Engine Oil Check (page 107). Overdrive indicator
It will illuminate when you switch overdrive off.
Power steering warning lamp
Illuminates to indicate a malfunction of the power steering system. Full steering will be maintained but you will need to exert greater force on the steering wheel. Have the system checked by a properly trained technician as soon as possible.
51
Instrument Cluster
Stability control (ESP) warning lamp
While driving, it flashes during activation of the system. After switching on the ignition, if it
does not illuminate or illuminates continuously while driving, this indicates a
