Introduction


Instrument Cluster


Warning and control lights Gauges


Entertainment Systems


AM/FM stereo AM/FM stereo cassette AM/FM stereo with CD AM/FM stereo with in-dash six CD Rear seat entertainment system


Climate Controls


Heater only Manual heating and air conditioning


Lights


Headlamps Turn signal control Bulb replacement Driver Controls


Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control


Locks and Security


Keys Locks


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


80


80
86
96
100
116


116
120
123
130
133
145
146


146
147
147
149
157
166
172
173


181
182


186


Table of Contents


Seating and Safety Restraints


Seating Safety restraints Air bags Child restraints


Driving


Starting Brakes Transmission operation Vehicle loading Trailer towing Recreational towing


Roadside Emergencies


Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Jump starting Wrecker towing


Customer Assistance


Reporting safety defects (U.S. only)


Cleaning


Underbody preservation


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Maintenance and Specifications


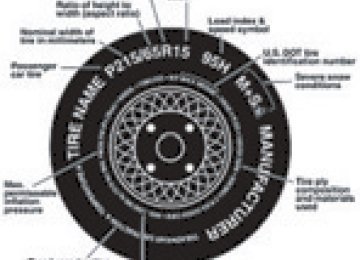

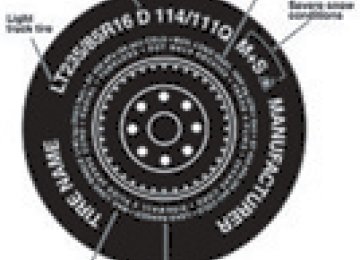

Engine compartment Engine oil Battery Fuel information Air filter(s) Tire Information Part numbers Refill capacities Lubricant specifications


Accessories


Index


Table of Contents


188


190
191
194
202
217
219
232
233
238
248


251


All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.


Copyright © 2004 Ford Motor Company


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


Introduction


CALIFORNIA Proposition 65 Warning


WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to


the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.


CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.


Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the


engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


SAFETY AND ENVIRONMENT PROTECTION


Warning symbols in this guide


How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.


Warning symbols on your vehicle


When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.


Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.


BREAKING-IN YOUR VEHICLE During the first 1,000 miles (1,600 km) of driving, maintain speeds below 70 mph (110 km/h) and vary speeds frequently. This is recommended to give the moving parts a chance to break in. Do not tow a trailer during this break-in period. For more information regarding trailer towing, refer to Trailer towing in the Driving chapter.


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


SPECIAL NOTICES


Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.


Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.


brake pedal;


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.


Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.


Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger air bag.


Notice to owners of diesel-powered vehicles Read the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and maintenance of your Diesel-powered light truck.


Notice to owners of pickup trucks and utility type vehicles


Utility vehicles have a significantly higher rollover rate than other types of vehicles.


Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


Using your vehicle as an ambulance If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires. If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Certification label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 6.0L Diesel engine equipped vehicles.


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


Notice to owners of natural gas fueled vehicles Before you drive your vehicle, be sure to read the Dedicated Natural Gas Vehicle supplement. This book contains important operation and maintenance information.


Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


These are some of the symbols you may see on your vehicle.


Vehicle Symbol Glossary


Safety Alert


See Owner’s Guide


Fasten Safety Belt


Air Bag-Front


Air Bag-Side


Child Seat


Child Seat Installation Warning


Child Seat Tether Anchor


Anti-Lock Brake System


Child Seat Lower Anchor


Brake System


Brake Fluid - Non-Petroleum Based


Traction Control


AdvanceTrac娂


Master Lighting Switch


Hazard Warning Flasher


Fog Lamps-Front


Fuse Compartment


Fuel Pump Reset


Windshield Wash/Wipe


Windshield Defrost/Demist


Rear Window Defrost/Demist


10


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Introduction


Vehicle Symbol Glossary


Power Windows Front/Rear


Child Safety Door Lock/Unlock


Power Window Lockout


Interior Luggage Compartment Release Symbol


Panic Alarm


Engine Oil


Engine Coolant


Engine Coolant Temperature


Do Not Open When Hot


Battery


Avoid Smoking, Flames, or Sparks


Battery Acid


Explosive Gas


Fan Warning


Power Steering Fluid


Maintain Correct Fluid Level


MAX MIN


Emission System


Engine Air Filter


Passenger Compartment Air Filter


Jack


Check fuel cap


11


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Instrument Cluster


Instrument Cluster


WARNING LIGHTS AND CHIMES


Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.


Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.


Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service Engine Soon warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter.


12


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Instrument Cluster


Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.


Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may


occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.


ABS


Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated. Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.


Charging system: Illuminates when the battery is not charging properly.


13


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Instrument Cluster


Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).


is high.


CHECK GAGE


Check gauge: Illuminates when any of the following conditions has occurred: • The engine coolant temperature • The engine oil pressure is low. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.


OVERDRIVE


Transmission control indicator light (TCIL): Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur. Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.


14


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


GAUGES


Instrument Cluster


Speedometer: Indicates the current vehicle speed.


Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.


Never remove the coolant reservoir cap while the engine is running or hot.


15


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Instrument Cluster


Odometer: Registers the total miles (kilometers) of the vehicle.


Trip odometer: Registers the miles (kilometers) of individual journeys. Press the SELECT/RESET control once to switch from the odometer to the trip odometer. Press the control again to select Trip A and Trip B features. To reset the trip, press and hold the control again until the trip reading is 0.0 miles. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.


Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.


16


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Instrument Cluster


Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.


17


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Entertainment Systems


AM/FM STEREO (IF EQUIPPED)


1. Seek: Press to find the next listenable station down/up the frequency band. 2. Tune: Press to manually adjust the radio frequency down/up.


3. AM/FM: Press to choose a frequency band in radio mode.


4. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns.


AM/FM


18


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


5. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.


VOL PUSH ON


CLK


TONE


VOL PUSH ON


6. Tone: Press TONE until the desired level — Bass, Treble, Fade appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left or the front to back (if equipped). 7. CLK (Clock): To set the hour, press and hold CLK until CLOCK SET appears in the display. Press SEEK to decrease increase To set the minute, press and hold CLK until CLOCK SET appears in the display. Press TUNE to decrease


the minutes.


or increase


the hours.


or


TONE


CLK


19


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


AM/FM STEREO CASSETTE (IF EQUIPPED)


12


13


14 15 16 17


VOL - PUSH ON


AM


FM


BASS


TREB


FM1


ST


BAL


FADE


CLK


TAPE AMS


SIDE REW


1 - 2
FF


11


10


SEEK


TUNE


SCAN


EJ


1. Balance: Press to shift sound to the left/right speakers.


2. Fade: Press to shift sound to the rear/front speakers.


3. CLK: To set the hour, press and hold CLK. Then press SEEK to decrease hours. To set the minute, press and hold CLK and press TUNE to decrease or increase


the minutes.


or increase


the


CLK


20


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


TAPE AMS


4. Tape AMS: In tape mode, press and hold to activate Automatic Music Search (allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection). Then, press REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape MUST have a blank section of at least four seconds duration between programs. 5. Side 1–2: Press to change tape direction.


SIDE


1 - 2


6. REW (rewind): Press to rewind the tape.


FF (fast forward): Press to advance the tape.


REW


FF


Dolby威 noise reduction: Works in tape mode only. Reduces tape


7. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. 8. noise and hiss; press to activate/deactivate. 9. Scan: Press SCAN to hear a brief sampling of all listenable radio stations or all tape selections. Press again to stop. 10. Tune: Works in radio mode only. Press TUNE frequency down/up 11. Seek: Press and for previous/next release strong station, selection or track. 12. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.


to change


21


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


13. AM/FM: Press to choose a frequency band in radio mode.


14. Bass: Press decrease/increase the bass output.


to


15. Treble: Press decrease/increase the treble output.


to


16. EJ (Eject): Press to eject a tape.


EJ


17. Cassette door: Insert a cassette into the cassette door.


AM/FM STEREO / SINGLE CD RADIO (IF EQUIPPED)


13


14 15 16 17 18


VOL - PUSH ON


12


11


SEEK


TUNE


AM FM


CD


BASS


TREB


FM1


ST


BAL


FADE


DISC


SCN


CLK


EJ


COMP


CD


CD


SHUFFLE


10


22


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


1. Balance: Press sound to the left/right speakers.


to shift


2. Fade: Press sound to the front/rear speakers.


to shift


3. SCN (Scan): Press to hear a brief sampling of all listenable stations or CD tracks. Press again to stop. 4. CLK: To set the hour, press and hold CLK and press SEEK to decrease hours. To set the minute, press and hold CLK and press TUNE to decrease or increase 5. EJ (eject): Press to eject a CD.


the minutes.


or increase


the


CLK


6. COMP (Compression): In CD mode, press to bring louder and softer levels into more comfortable listening level. The compression icon (c) will appear in the display. 7. Shuffle: Press to listen to the tracks on the CD in random order. Press again to turn off. 8. Memory presets: To set a station: Select frequency band AM/FM; tune to a station. Press and hold a preset button until sound returns. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1 and six in FM2). 9. CD: desired point of a selection is reached.


Press and hold until


CD


CD


SHUFFLE


SHUFFLE


23


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


CD: Press and hold until


10. desired point of a selection is reached. 11. Tune: In radio mode, press to move up or down the frequency band in individual increments. 12. Seek: Press and release for previous/next SEEK strong station, selection or track. 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.


14. CD: Press to enter CD mode or to play a CD already loaded into the system. 15. AM/FM: Press to choose a frequency band in radio mode.


16. Bass: Press increase/decrease the bass output.


to


17. Treble: Press increase/decrease the treble output.


to


DISC


18. CD slot: Insert a CD printed side up. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent


24


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.


PREMIUM IN-DASH SIX CD SOUND SYSTEM (IF EQUIPPED)


15


16


17


SHUF


SCAN


DISC TUNE


SEEK


REW


FF


COMP


14


13


LOAD


PUSH ON


MUTE


EJ


BASS


BAL


SEL


TREB


FADE


AM FM


CD


MENU


12


11


10


for previous/next


1. Seek: Press and release SEEK strong station, or track of the current disc. 2. Rewind: Press and hold until the desired point of a selection is reached. Fast forward: Press and hold until the desired point of a selection is reached. 3. Comp (Compression): The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level. Press the COMP control until COMP ON is displayed. 4. Mute: Press to MUTE the playing media. Press again return to playing media.


25


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


5. Eject: Press to eject a CD. Press and hold to eject all loaded discs. If disc is not removed, it will reload into the system. Works with the ignition on or off. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.


to decrease/increase


to decrease/increase


to shift sound to the


7. Select: Use with Bass, Treble, Balance and Fade controls to adjust levels. Use with MENU to set the clock and RDS function on/off. 8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press MENU and SEL to access clock mode, RDS on/off, Traffic announcement mode, Program type mode, Shuffle and Compression mode. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data).Traffic information is not available in most U.S. markets. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40.


26


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Show TYPE: Displays the station’s call letters format. Shuffle: With a CD playing, press to play tracks in a random order. Press MENU until SHUF appears in the display. Use SEL to select SHUF DISC, SHUF TRAC or SHUF OFF. Compression: With a CD playing, this feature brings soft and loud CD passages together for a more consistent listening level. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS ) the is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode. 10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 11. CD: Press to select CD mode.


) or decrease (


12. AM/FM: Press to select AM/FM1/FM2 frequency band. In CD mode, press to begin radio play. Autostet: Stores the six strongest stations without erasing your current presets. To activate, press and momentarily hold AM/FM. AUTOSET will flash in the display. The six strongest stations will fill the memory preset buttons for AM/FM1/FM2 if enough stations are available. If not, stations will be repeated. Press again to deactivate. 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.


14. Load: Press LOAD to load a CD in the system. The display will read SELECT SLOT. Select the desired memory preset slot (1–6). The display will then read LOAD CD. Partially


27


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


load the CD label side up and the system will pull the CD in. LOADING CD# will appear in the display. Press and hold LOAD to autoload up to six discs at once. 15. Shuffle: Press to play tracks in random order.


16. Scan: Press SCAN to move up the radio frequency band. SCAN automatically finds a station, plays it for five seconds, then moves to the next station. Press again to stop. CD: Press SCAN for a brief sampling of CD tracks. Press again to stop. 17. Disc tune: Radio: Press or the radio frequency band. CD: Press


to select the previous/next CD.


to manually tune down or up


RADIO FREQUENCIES AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz


weaker the signal and the weaker the reception.


RADIO RECEPTION FACTORS There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.


CASSETTE/PLAYER CARE Do: • Use only cassettes that are 90 minutes long or less. • Tighten very loose tapes by inserting a finger or pencil into the hole


and turning the hub.


28


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


• Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after


cold to reach a moderate temperature before playing.


10–12 hours of play to maintain good sound/operation.


Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being


played.


CD/CD PLAYER CARE Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner


and wipe from the center out.


of time.


Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Insert more than one disc into each slot of the CD changer magazine. • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.


AUDIO SYSTEM WARRANTY AND SERVICE Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.


29


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


REAR SEAT ENTERTAINMENT SYSTEM (IF EQUIPPED)


Quick Start — How to get going


To operate the system: 1. Your AutoVision威 system is automatically activated when the vehicle ignition and the audio system are ON. Note: The VCP will not generate sound if the vehicle’s audio system isn’t turned on. 2. If a movie is desired, insert a VHS cassette into the VCP and the video should start playing. 3. Press the MEDIA control to toggle to any other desired media source.


30


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


To play a video game: 1. Connect the video line from your game device to the VIDEO jack. 2. Connect the left and right audio cables to the left (L) and right (R) audio jacks. 3. Ensure that the system is in AUX mode. The LCD screen will turn on and the AUX indicator will illuminate. 4. If desired, press the control and plug a 3.5mm headphone into the headphone jack. With the headphones ON, the rear speakers will not operate. Your AutoVision威 System allows you to watch movie rentals and your favorite home videocassettes. It also allows you to plug in and play a variety of standard video games. Please review this user manual to become familiar with the AutoVision威 features and controls as well as the very important safety information. Should you have any questions regarding your AutoVision威 System, please feel free to call the toll free assistance hotline at 1 (877) 848–6434.


Safety information Read all of the safety and operating instructions before operating the system and retain for future reference. Do not attempt to service, repair or modify the AutoVision威 System. See your Ford or Lincoln Mercury dealer.


31


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Do not insert foreign objects into the videocassette player (VCP) tape cassette compartment.


The front glass on the liquid crystal display may break when hit with a hard surface. If the glass breaks, do not touch the liquid


crystalline material. In case of contact with skin, wash immediately with soap and water.


The driver must not attempt to operate any function of the floor console mounted VCP while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road and park in a safe place before inserting or extracting video tapes from the VCP. A remote control is included in the system to allow the rear seat occupants to operate the VCP functions without distracting the driver.


Be sure to review User Manuals for video games and video game equipment when used as auxiliary inputs for your AutoVision威 System. Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments. Disconnect video games and video equipment power cords and/or cables when not in use. Avoid touching auxiliary input jacks with your fingers. Do not blow on them or allow them to get wet or dirty. Do not clean any part of the AutoVision威 system with benzene, paint thinner or any other solvent. Federal Communication Commission (FCC) Compliance Changes or modifications not approved by Ford Lincoln Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference and radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference


32


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.


Care of the videocassette player (VCP) Environmental extremes Videocassette players subjected to harsh environmental conditions may be damaged or perform at less than maximum capability. To avoid these outcomes, avoid leaving the VCP: • in extremely hot or cold temperatures. • in direct sunlight. • in high humidity. • in a dusty environment. • in locations where strong magnetic fields are generated. • on a surface that is instable or subject to vibrations. Temperature extremes When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system. High/low temperature sensor circuit • Excessively high or low temperatures may cause damage to the VCP. • When the temperature of the VCP becomes too high or low, the temperature sensor circuit stops machine operation, ejects the cassette and the WAIT indicator illuminates. The lamp will remain illuminated until the system has returned to a safe operating temperature.


Humidity and moisture condensation Moisture in the air will condense in the VCP under extremely humid conditions or when moving from a cold place to a warm one. Moisture condensation on the tape playback head drum may damage the videocassette and/or drum. If moisture condensation occurs, do not insert a videocassette into the player. If a videocassette is already in the player, remove it. Turn the VCP power ON to dry the moisture before inserting a videocassette. This could take an hour or more. Dew sensor circuit • Under high moisture (dewed) conditions, the tape heads and cassette


tape may be damaged if the VCP is operated.


33


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems • When the vehicle’s cabin temperature is very low and then is heated quickly, or the humidity is very high within the vehicle, the inside of the windows most likely will be fogged. Under these conditions, the inside of the VCP most likely is dewed. • When a dewed condition exists, the dew sensor circuit stops machine operation, ejects the cassette and the WAIT indicator illuminates. The lamp will remain illuminated until the system is dry enough to operate safely.


Cleaning video heads Magnetic video heads convert the videocassette into pictures on the screen during playback. Over a period of time, particles rub off the tape and are left on the heads. Using an old or poor quality tape together with dust and air particles, high temperature and humidity cause dirty heads. Dirty heads generally cause “snowy” pictures and, in some severe cases, blurred or interrupted pictures. It is suggested that the heads be cleaned after every 10–15 hours of use. A variety of products are available to clean tape heads. Use these products sparingly, and ensure that you use products which are labeled as “non-abrasive”. If normal head cleaning procedures do not resolve the problem, have the system checked by a service technician. Foreign substances Exercise care to prevent dirt and foreign objects from entering the VCP compartment. Be especially careful not to spill liquids of any kind onto the media controls or into the videocassette player. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician.


AutoVision姞 system Features • 2–head hi-fi playback • AutoPlay feature • Digital auto tracking • Dual stereo headphone with electric volume control • Self docking connection for easy mobile installation • Latching system for secure safety • Carrying handle for portability • Water resistant tape door 34


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


• On screen display • Protection circuits Playback and format • The videocassette player of your AutoVision威 system can only be used in the “playback” mode. You are not able to record with your system. • The system plays standard videocassettes marked “VHS” (or “S-VHS).


VCP protection circuits


Tape protection circuit • When the system is in PAUSE mode, the tape mechanism will • When the VCP is in still playback, FFWD (fast forward) or REW


continue to create tension on the tape.


(reverse) mode for more than five minutes, the tape protection circuit automatically returns the system to PLAY mode to avoid damage to the tape.


Your AutoVision System is also equipped with a Dew sensor circuit and a High/low temperature sensor circuit. For more information on these circuits, please refer to Humidity and moisture condensation and Temperature extremes in this chapter.


35


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


VCP controls


1. LED display The display lamp will light up in green when power is supplied to the videocassette player. 2. POWER key Press to toggle between ON/OFF. When the power is ON, other keys (PLAY, FF, REW, STOP) will illuminate. 3. PLAY key Press to playback a videocassette tape. 4. REWIND/REVIEW button Press to enter the reverse picture mode when in PLAYBACK mode. If in STOP mode, the tape will rewind at a high speed. 5. FAST FORWARD/CUE button Press to enter forward picture search mode when in PLAYBACK mode. If in STOP mode, the tape will fast-forward at a high speed. 6. STOP button Press to stop the tape. 7. HEADPHONE VOLUME UP/DOWN KEYS button For home use only, please refer to the In-Home Use section. 8. EJECT button Located inside the videocassette cover. Press to eject the tape.


36


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Remote control


Entertainment Systems


10


1. POWER button Press to turn the videocassette player (VCP) ON or OFF. 2. ENCORE button Press to reverse the casssette for 5 seconds. Normal playback will then resume when in PLAYBACK mode. 3. STILL/ADVANCE (frame advance button) Press to temporarily suspend playback. Press again to make the tape advance one frame at a time. 4. RETRACKING button Press to activate Auto Tracking in the playback mode. 5. TRACKING + button Press for manual tape tracking. 6. TRACKING — button Press for manual tape tracking. 7. PLAY button Press to play the tape.


37


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


8. REW button Press to rewind the tape. 9. FF button Press to fast forward the tape. 10. STOP button Press to stop the tape. Battery replacement


Batteries are supplied with the remote control unit. However, they are simply for operation check and will only work for a short time. Slide battery cover off as shown on remote control to access the batteries. The remote control unit uses two AAA batteries. The need for battery replacement is usually indicated if the remote control only functions at extremely close distances to the entertainment center or not at all. When replacing batteries, use two new batteries (alkaline recommended) and install with correct orientation (+ and − polarities). Ensure that you use only new batteries of the same brand. If you will not be using the remote control for a considerably long time, remove the batteries.


38


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


AutoVision姞 controls


Entertainment Systems


The AutoVision威 controls allow the rear seat passengers to operate the radio, tape, CD or CD DJ(if equipped). Parental control Your AutoVision威 system allows you to have control over the rear seat controls. The system is automatically activated when the ignition is ON. This enables rear seat passengers to play a videocassette or listen to any of the available media sources. Once the headphone mode is activated, the Press the memory preset controls 3
and 5 simultaneously on the front audio controls to disable the AutoVision威 controls. They will remain disabled until the front seat passengers “enable” them again by simultaneously pressing the 3 and 5 preset controls. The settings of the front seat controls will always override those of the rear seat controls.


symbol will appear in the radio display.


39


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Adjusting the volume This control allows the rear seat passengers to adjust the volume level of the audio system. Press the + control to increase the volume. Press the — control to decrease the volume.


From the AutoVision威 controls, the speaker volume cannot be set higher than the current volume radio setting. When in headphone mode, the AutoVision威 controls can change the volume setting to any desired level. Using headphones/Personal Audio Feature The Personal Audio Feature allows the rear seat passengers to listen to one media source (radio, TAPE, CD, CDDJ, VCP, or AUX) while the front seat passengers listen to another. To activate, press the control and plug a 3.5mm headphone into the headphone jack. With the headphones ON, the rear speakers will not operate. Press the MEDIA control to toggle to the desired media source. Use the SEEK, VOLUME and MEM controls to make any desired adjustments.


Press the deactivate the Personal Audio Feature.


control again to engage the rear speakers and


40


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Speakers ON/OFF mode With the speakers ON, you can adjust the audio output to all system speakers — front and rear together (headphones are disabled in this mode). The rear seat passengers can not raise the volume of the system above the level on the front radio bezel. With the speakers OFF, the headphones are enabled. The rear seat passengers have control over the desired volume levels. Media select Press the MEDIA control to toggle between AM, FM1, FM2, TAPE, CD, CDDJ, VCP and AUX modes. When selected, the media source will illuminate.


• AM — AM radio frequency band • FM1, FM2 — FM radio frequency bands • TAPE — cassette tape (if equipped) • CD — single cd player (if equipped) • CDDJ — compact disc changer (if equipped) • VCP — video cassette player • AUX — auxiliary jack input


41


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Memory preset control In radio mode, press the MEM (Memory) control successively to scroll through the memory presets in AM, FM1 or FM2. In CDDJ mode, press the MEM (Memory) control to select the next disc in the compact disc changer. Play will begin with the first track.


Seek function The SEEK control has varying functions depending on which mode is enabled. In radio mode (AM, FM1, FM2): control to find the Press the next listenable station down the frequency band. Press the next listenable station up the frequency band. In tape mode, press the SEEK control to access the previous ( or the next (


control to find the


) selection.


In CD mode, press the SEEK control to access the previous ( next (


) track.


) or the


In CDDJ mode, press the SEEK control to access the previous ( the next (


) track of the currently selected disc.


) or


42


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Flip-down screens


Entertainment Systems


The screens rotate down to view and up into the housing to store when not in use. Ensure that the screens are latched into the housing when being stored.


1. 6.4” (diagonal) color liquid crystal display (LCD) screen. 2. Screen housing. 3. Dimmer switch. Rotate to increase/decrease the brightness of the screen. General operation • When the engine is not running, use the system sparingly otherwise it • Do not leave the videocassette in the VCP overnight or for long • When the ignition is turned ON, audio is through the headphones as


will run the battery down.


periods of time.


LOW volume. Press the (+) control to increase volume. To listen through the vehicle’s speaker system, press the speaker button ( on the media control panel.


43


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Inserting/removing cassette Inserting cassette • Open the AutoVision威 console cover. • Insert the videocassette into the cassette compartment. Inserting a videocassette into the VCP automatically turns the power ON (the indicator lamp will illuminate) and the tape will begin playback. If the vehicle is traveling over rough terrain, it may be difficult to insert the cassette because the machine attempts to hold the cassette firmly to prevent vibration. If this condition is encountered, either press firmly or remove the cassette and insert it again. The system will not allow a cassette to be inserted in the wrong position. • Once the cassette is completely inserted, close the VCP and console


covers.


Removing cassette 1. Open the console cover and press the STOP button. 2. Open the VCP cover and press the EJECT button. 3. Press the EJECT button. Do not insert any foreign substances into the cassette compartment. After removing the cassette from the VCP, close the door. When the engine is turned OFF, the cassette is ejected from the compartment. To play a video game 1. Connect the video line from your video game device to the YELLOW jack. 2. Connect the left and right audio cables to the WHITE and RED jacks respectively. 3. Ensure that the system is in AUX mode. The LCD screen will turn on and the AUX indicator will illuminate. On-screen indicators Playback operation 1. Press the POWER control on the VCP. 2. Insert a videocassette into the VCP. 3. The videocassette should automatically begin playback, and the picture will appear within approximately nine seconds.


44


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


4. Press the STOP control to stop playback or press EJECT to remove the cassette. Fast-forward or rewind (no picture) 1. Press the FF/REW control on the VCP. 2. Press the STOP control to stop or press EJECT to remove the cassette. The tape will fast forward or rewind until it has reached the end or the beginning. Fast-forward or rewind (with picture) 1. While in playback mode, momentarily press the FF/REW key. The VCP will search the playback direction five times faster than normal playback mode. 2. Press the PLAY key to resume normal playback. Special effects playback


Still playback/Frame-to-frame playback (on remote control) 1. Press the STILL/F.ADV key while in playback mode. The playback picture becomes still. 2. Press the STILL/F.ADV key again. Each time the control is pressed, the pictures are played back one frame at a time. The still playback feature can also be used in REW (reverse) mode. If still playback/or frame-to-frame playback is engaged for five minutes or longer, the VCP will automatically begin playback to protect the tape. Automatic tracking is automatically activated the moment the VCP is turned ON or a cassette is inserted. If a videocassette is in poor shape (i.e., badly recorded), any tracking adjustment may result in failure. The VCP will eject the videocassette. Encore (on remote control) • Press the ENCORE control while in playback mode. The VCP will reverse to the previous five seconds of the selection and then operate at normal playback mode.


45


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Auxiliary input jacks The auxiliary input jacks on the AutoVision威 control panel accepts video and audio connectors for all standard video games (Nintendo威, PlayStation威, etc.) Other compatible devices such as DVD players, camcorders and portable CD players can also be connected to the auxiliary jacks. The auxiliary jack is color-coded for identification purposes. They are as follows: • YELLOW (1)— video input • WHITE (2)— left channel audio • RED (3)— right channel audio


input


input


Press the MEDIA control until AUX is illuminated in the control panel. This will allow you to view the video and listen to the audio from the auxiliary input. To listen to another audio source while viewing video from the auxiliary input, press the MEDIA control until the desired media source is illuminated.


46


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Video source selection The MEDIA control determines which video (VCP or Auxiliary input) is seen on the AutoVision威 screen. When the vehicle ignition is ON and the system is not in VCP mode, the AutoVision威 selects the Auxiliary input as the video source. (If there is not a video source connected to the Auxiliary input jack, the screen will be blank.)


AutoPlay feature Your AutoVision威 system is equipped with an AutoPlay Feature. When a video cassette is inserted into the player, video and audio sources are automatically switched to VCP. This will override any other selections currently made.


Indications on the VCP The operation and status of the VCP can be checked by the indications appearing on the LED display. 1. The Power indicator flashes on during POWER ON and will blink when in emergency mode. 2. The HI-FI indicator illuminates when a HI-FI tape is loaded. 3. The HP1 indicator illuminates when the headphone jack 1 is plugged in. 4. The HP2 indicator illuminates when the headphone jack 2 is plugged in. 5. The Operation indicators illuminate when the system is powered ON, a HIFI tape is being played, or headphones are being used.


47


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


The following are some possible messages that may illuminate on your LED display and their meanings. Illuminates when there is a videocassette in the system during power off.


Illuminates when there is a videocassette in the system during power on.


Illuminates when a videocassette is ejected from the system.


Flashes during emergency mode.


Illuminates during power on when there is not a videocassette present in the system.


Illuminates during power off when there is not a cassette present in the system.


Illuminates when the videocassette is in REW (rewind) mode.


Illuminates when the videocassette is in FF (fast forward) mode.


48


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


Illuminates when the videocassette is in STIL (pause) mode.


Illuminates when the videocassette is in PLAY mode.


Illuminates when the videocassette is in REV (review) mode.


Illuminates when the videocassette is in CUE mode.


Flashes separately when the videocassette is in ENCORE mode.


Displays when: • the thermostat detects an


extremely high or low temperature, or


• the dew sensor is activated for high humidity In-home use Your AutoVision威 system is UL registered for in-home use. This system has the unique feature of also being completely portable and able to be used in your home. To remove your AutoVision威 system from your vehicle, depress the lever on the center console labeled VCP RELEASE. This will release the VCP and enable you to remove the system from the vehicle. If pressing the lever does not release your system, please contact your dealer.


49


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


To re-install the VCP in your vehicle, insert the VCP into the console and push lightly until the VCP clicks into place. To use the AutoVision威 system in your home, you will need: • a DC 12V power converter rated for 1.5 amps/min and • Patch cords with RCA style connectors These parts are available in your local electronics store or call toll free 1 (877) 848–6434 for assistance. Auxiliary jacks for home use 1. VIDEO OUT


Connect this terminal to the VIDEO IN terminal of your display (LCD, TV). 2. DC jack in


Connect this jack to the DC source (DC 12V). 3. AUDIO OUT LR


Connect these terminal(s) to the AUDIO IN terminals of your display (LCD, TV).


50


2004 Econoline (eco) Owners Guide (post-2002-fmt) USA English (fus)


Entertainment Systems


1. VIDEO IN


Connect this terminal to the AUDIO OUT terminal of your

Loading...
x
