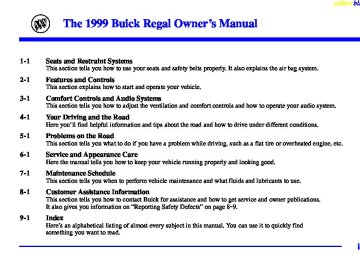

The 1999 Buick Regal Owner’s Manual

yellowblue

1-1

2-1

3-1

4-1

5-1

6-1

7-1

8-1

9-1

Seats and Restraint Systems This section tells you how to use your seats and safety belts properly. It also explains the air bag system. Features and Controls This section explains how to start and operate your vehicle. Comfort Controls and Audio Systems This section tells you how to adjust the ventilation and comfort controls and how to operate your audio system. Your Driving and the Road Here you’ll find helpful information and tips about the road and how to drive under different conditions. Problems on the Road This section tells you what to do if you have a problem while driving, such as a flat tire or overheated engine, etc. Service and Appearance Care Here the manual tells you how to keep your vehicle running properly and looking good. Maintenance Schedule This section tells you when to perform vehicle maintenance and what fluids and lubricants to use. Customer Assistance Information This section tells you how to contact Buick for assistance and how to get service and owner publications. It also gives you information on “Reporting Safety Defects” on page 8-9. Index Here’s an alphabetical listing of almost every subject in this manual. You can use it to quickly find something you want to read.

yellowblue

We support voluntary technician certification.

GENERAL MOTORS, GM, the GM Emblem, BUICK, the BUICK Emblem and the name REGAL are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes in the product after that time without further notice. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Buick Motor Division whenever it appears in this manual. Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it.

For Canadian Owners Who Prefer a French Language Manual: Aux propriétaires canadiens: Vous pouvez vous procurer un exemplaire de ce guide en français chez votre concessionaire ou au:

DGN Marketing Services Ltd. 1577 Meyerside Dr. Mississauga, Ontario L5T 1B9

Litho in U.S.A. Part No. 10416925 A First Edition ii

ECopyright General Motors Corporation 1998
All Rights Reserved

yellowblue

How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly. Index A good place to look for what you need is the Index in back of the manual. It’s an alphabetical list of what’s in the manual, and the page number where you’ll find it. Safety Warnings and Symbols You will find a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning.

CAUTION:

These mean there is something that could hurt you or other people.

In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you or others could be hurt.

You will also find a circle with a slash through it in this book. This safety symbol means “Don’t,” “Don’t do this” or “Don’t let this happen.”

iii

yellowblue

Vehicle Damage Warnings Also, in this book you will find these notices:

NOTICE:

These mean there is something that could damage your vehicle.

In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly. But the notice will tell you what to do to help avoid the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words. You’ll also see warning labels on your vehicle. They use the same words, CAUTION or NOTICE.

iv

Vehicle Symbols These are some of the symbols you may find on your vehicle.

yellowblue

These symbols have to do with your lamps:

These symbols are on some of your controls:

These symbols are used on warning and indicator lights:

Here are some other symbols you may see:

For example, these symbols are used on an original battery:

CAUTION POSSIBLE INJURY

PROTECT EYES BY SHIELDING

CAUSTIC BATTERY ACID COULD CAUSE BURNS

AVOID SPARKS OR FLAMES

SPARK OR FLAME COULD EXPLODE BATTERY

These symbols are important for you and your passengers whenever your vehicle is driven:

DOOR LOCK UNLOCK

FASTEN SEAT BELTS

POWER WINDOW

MASTER LIGHTING SWITCH

TURN SIGNALS

PARKING LAMPS

HAZARD WARNING FLASHER

DAYTIME RUNNING LAMPS

AIR BAG

FOG LAMPS

WINDSHIELD WIPER

WINDSHIELD WASHER

WINDSHIELD DEFROSTER

REAR WINDOW DEFOGGER

VENTILATING FAN

ENGINE COOLANT TEMP

BATTERY CHARGING SYSTEM

BRAKE

FUSE

LIGHTER

HORN

COOLANT

SPEAKER

ENGINE OIL PRESSURE

ANTI-LOCK BRAKES

FUEL

- NOTES

yellowblue

vi

Section 1 Seats and Restraint Systems

yellowblue

Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts.

1-2
1-6
1-10

1-11
1-12
1-19
1-20
1-20
1-26

Seats and Seat Controls Safety Belts: They’re for Everyone Here Are Questions Many People Ask About Safety Belts -- and the Answers How to Wear Safety Belts Properly Driver Position Safety Belt Use During Pregnancy Right Front Passenger Position Air Bag System Rear Seat Passengers

1-30

1-32
1-34
1-37
1-50
1-53
1-53
1-53

Rear Safety Belt Comfort Guides for Children and Small Adults Center Passenger Position Children Child Restraints Larger Children Safety Belt Extender Checking Your Restraint Systems Replacing Restraint System Parts After a Crash

1-

1-1

2-Way Manual Seat

yellowblue

Lift the bar under the front of the seat using an upward motion. This will unlock the seat. Slide the seat to where you want it and release the bar. Try to move the seat with your body to be sure the seat is locked into place.

Seats and Seat Controls This section tells you how to adjust the seats and explains the reclining seatbacks and head restraints. Manual Front Seat

CAUTION:

You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you don’t want to. Adjust the driver’s seat only when the vehicle is not moving.

1-2

6-Way Power Seat (If Equipped)

yellowblue

You may have a six-way power driver’s seat and a six-way power passenger’s seat (if equipped). This switch is designed to imitate the movements of your seat cushion. The driver’s switch is located on the left side of the driver’s seat cushion. The passenger’s switch is located on the right side of the passenger’s seat cushion. To move the seat forward or rearward, push the switch forward or rearward. To raise or lower the entire seat, push the switch up or down. To raise or lower the front portion of your seat, push the front of the switch up or down. To raise or lower the rear portion of your seat, push the rear of the switch up or down.

1-3

Heated Seats (If Equipped)

Reclining Front Seatbacks

yellowblue

Lift the lever to release the seatback, then move the seatback to where you want it. Release the lever to lock the seatback in place. Pull up on the lever without pushing on the seatback and the seatback will move forward.

If your vehicle is equipped with heated seats, the driver’s side and passenger’s side three-position switches are located on the center console, just behind your automatic transaxle shift lever. Press LO to warm the seat at a lower temperature. Press HI to warm the seat at a higher temperature. To turn this feature off, return the switch to its center position. The button directly in the middle of the heated seat switches is used for traction control (see “Full-Range Traction Control System” or “Traction Control System” in the Index).

1-4

yellowblue

CAUTION:

Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body. Instead, it will be in front of you. In a crash you could go into it, receiving neck or other injuries. The lap belt can’t do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

Head Restraints Slide the head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of a neck injury in a crash.

1-5

But don’t have a seatback reclined if your vehicle is moving.

yellowblue

Safety Belts: They’re for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. And it explains the air bag system.

CAUTION:

Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.

CAUTION:

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Your vehicle has a light that comes on as a reminder to buckle up. (See “Safety Belt Reminder Light” in the Index.)

1-6

yellowblue

Why Safety Belts Work When you ride in or on anything, you go as fast as it goes.

In most states and Canadian provinces, the law says to wear safety belts. Here’s why: They work. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed. After more than 30 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot!

Take the simplest vehicle. Suppose it’s just a seat on wheels.

1-7

yellowblue

Put someone on it.

Get it up to speed. Then stop the vehicle. The rider doesn’t stop.

1-8

The person keeps going until stopped by something. In a real vehicle, it could be the windshield ...

or the instrument panel ...

yellowblue

1-9

yellowblue

Here Are Questions Many People Ask About Safety Belts -- and the Answers Q: Won’t I be trapped in the vehicle after an

accident if I’m wearing a safety belt?

A: You could be -- whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.

Q: If my vehicle has air bags, why should I have to

wear safety belts?

A: Air bags are in many vehicles today and will be in

most of them in the future. But they are supplemental systems only; so they work with safety belts -- not instead of them. Every air bag system ever offered for sale has required the use of safety belts. Even if you’re in a vehicle that has air bags, you still have to buckle up to get the most protection. That’s true not only in frontal collisions, but especially in side and other collisions.

or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.

1-10

yellowblue

Q: If I’m a good driver, and I never drive far from

home, why should I wear safety belts?

A: You may be an excellent driver, but if you’re in an accident -- even one that isn’t your fault -- you and your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers.

Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone.

How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.” Follow those rules for everyone’s protection. First, you’ll want to know which restraint systems your vehicle has. We’ll start with the driver position.

1-11

yellowblue

Driver Position This part describes the driver’s restraint system. Lap-Shoulder Belt The driver has a lap-shoulder belt. Here’s how to wear it properly. 1. Close and lock the door. 2. Adjust the seat (to see how, see “Seats” in the Index)

so you can sit up straight.

3. Pick up the latch plate and pull the belt across you.

Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

4. Push the latch plate into the buckle until it clicks.

1-12

Pull up on the latch plate to make sure it is secure. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

yellowblue

5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt.

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there’s a sudden stop or crash, or if you pull the belt very quickly out of the retractor.

1-13

Shoulder Belt Height Adjuster Before you begin to drive, move the shoulder belt adjuster to the height that is right for you.

yellowblue

To move it down, squeeze the release lever and the shoulder belt guide as shown and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide. After you move the adjuster to where you want it, try to move it down without squeezing the release lever to make sure it has locked into position. Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder.

1-14

Q: What’s wrong with this?

yellowblue

CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.

A: The shoulder belt is too loose. It won’t give nearly

as much protection this way.

1-15

Q: What’s wrong with this?

yellowblue

CAUTION:

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

A: The belt is buckled in the wrong place.

1-16

Q: What’s wrong with this?

yellowblue

CAUTION:

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren’t as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.

A: The shoulder belt is worn under the arm. It should

be worn over the shoulder at all times.

1-17

Q: What’s wrong with this?

yellowblue

CAUTION:

You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.

A: The belt is twisted across the body.

1-18

yellowblue

Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts.

To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.

A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

1-19

yellowblue

The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see “Driver Position” earlier in this section. The right front passenger’s safety belt works the same way as the driver’s safety belt -- except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature. If this happens, just let the belt go back all the way and start again.

Air Bag System This part explains the air bag system. Your vehicle has “Next Generation” frontal air bags -- one air bag for the driver and another air bag for the right front passenger. Next Generation frontal air bags are designed to help reduce the risk of injury from the force of an inflating air bag. But even these air bags must inflate very quickly if they are to do their job and comply with federal regulations. Here are the most important things to know about the air bag system:

1-20

CAUTION:

CAUTION:

yellowblue

Air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, as you would be if you were leaning forward, it could seriously injure you. This is true even with Next Generation frontal air bags. Safety belts help keep you in position before and during a crash. Always wear your safety belt, even with Next Generation air bags. The driver should sit as far back as possible while still maintaining control of the vehicle.

You can be severely injured or killed in a crash if you aren’t wearing your safety belt -- even if you have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Air bags are “supplemental restraints” to the safety belts. All air bags -- even Next Generation air bags -- are designed to work with safety belts, but don’t replace them. Air bags are designed to work only in moderate to severe crashes where the front of your vehicle hits something. They aren’t designed to inflate at all in rollover, rear, side or low-speed frontal crashes. And, for unrestrained occupants, Next Generation air bags may provide less protection in frontal crashes than more forceful air bags have provided in the past. Everyone in your vehicle should wear a safety belt properly -- whether or not there’s an air bag for that person.

1-21

yellowblue

There is an air bag readiness light on the instrument panel, which shows the air bag symbol.

The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See “Air Bag Readiness Light” in the Index for more information.

CAUTION:

Children who are up against, or very close to, any air bag when it inflates can be seriously injured or killed. This is true even though your vehicle has Next Generation frontal air bags. Air bags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see the part of this manual called “Children” and see the caution labels on the sunvisors and the right front passenger’s safety belt.

1-22

How the Air Bag System Works

yellowblue

Where are the air bags? The driver’s air bag is in the middle of the steering wheel.

The right front passenger’s air bag is in the instrument panel on the passenger’s side.

1-23

yellowblue

CAUTION:

If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering.

When should an air bag inflate? An air bag is designed to inflate in a moderate to severe frontal or near-frontal crash. The air bag will inflate only if the impact speed is above the system’s designed “threshold level.” If your vehicle goes straight into a wall that doesn’t move or deform, the threshold level is about 12 to 18 mph (19 to 29 km/h). The threshold level can vary, however, with specific vehicle design, so that it can be somewhat above or below this range. If your vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The air bag is not designed to inflate in rollovers, side impacts or rear impacts, because inflation would not help the occupant. 1-24

In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. Inflation is determined by the angle of the impact and how quickly the vehicle slows down in frontal or near-frontal impacts. What makes an air bag inflate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inflator, which inflates the air bag. The inflator, air bag and related hardware are all part of the air bag modules inside the steering wheel and in the instrument panel in front of the right front passenger. How does an air bag restrain? In moderate to severe frontal or near-frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. Air bags supplement the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But air bags would not help you in many types of collisions, including rollovers, rear impacts and side impacts, primarily because an occupant’s motion is not toward those air bags. Air bags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions.

What will you see after an air bag inflates? After an air bag inflates, it quickly deflates, so quickly that some people may not even realize the air bag inflated. Some components of the air bag module -- the steering wheel hub for the driver’s air bag, or the instrument panel for the right front passenger’s bag -- will be hot for a short time. The parts of the bag that come into contact with you may be warm, but not too hot to touch. There will be some smoke and dust coming from vents in the deflated air bags. Air bag inflation doesn’t prevent the driver from seeing or from being able to steer the vehicle, nor does it stop people from leaving the vehicle.

CAUTION:

When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or door.

yellowblue

In many crashes severe enough to inflate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag. D Air bags are designed to inflate only once. After they

inflate, you’ll need some new parts for your air bag system. If you don’t get them, the air bag system won’t be there to help protect you in another crash. A new system will include air bag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.

D Your vehicle is equipped with a crash sensing and

diagnostic module, which records information about the air bag system. The module records information about the readiness of the system, when the sensors are activated and driver’s safety belt usage at deployment. Some modules also record speed, engine rpm, brake and throttle data.

D Let only qualified technicians work on your air bag system. Improper service can mean that your air bag system won’t work properly. See your dealer for service.

1-25

yellowblue

NOTICE:

CAUTION:

If you damage the covering for the driver’s or the right front passenger’s air bag, the bag may not work properly. You may have to replace the air bag module in the steering wheel or both the air bag module and the instrument panel for the right front passenger’s air bag. Do not open or break the air bag coverings.

Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inflate while someone is working on your vehicle. Your dealer and the Regal Service Manual have information about servicing your vehicle and the air bag system. To purchase a service manual, see “Service and Owner Publications” in the Index.

For up to 10 seconds after the ignition key is turned off and the battery is disconnected, an air bag can still inflate during improper service. You can be injured if you are close to an air bag when it inflates. Avoid yellow connectors. They are probably part of the air bag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.

The air bag system does not need regular maintenance. Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

1-26

Rear Seat Outside Passenger Positions

yellowblue

Lap-Shoulder Belt The positions next to the windows have lap-shoulder belts. Here’s how to wear one properly.

1. Pick up the latch plate and pull the belt across you.

Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.

1-27

When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

yellowblue

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there’s a sudden stop or a crash, or if you pull the belt very quickly out of the retractor.

3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part.

1-28

CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.

yellowblue

To unlatch the belt, just push the button on the buckle.

1-29

yellowblue

1. Pull the elastic cord out from between the edge of

the seatback and the interior body to remove the guide from its storage clip.

Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for children who have outgrown child restraints and for small adults. When installed on a shoulder belt, the comfort guide pulls the belt away from the neck and head. There is one guide for each outside passenger position in the rear seat. To provide added safety belt comfort for children who have outgrown child restraints and for smaller adults, the comfort guides may be installed on the shoulder belts. Here’s how to install a comfort guide and use the safety belt:

1-30

yellowblue

2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide.

3. Be sure that the belt is not twisted and it lies flat.

The elastic cord must be under the belt and the guide on top.

1-31

yellowblue

To remove and store the comfort guides, squeeze the belt edges together so that you can take them out from the guides. Pull the guide upward to expose its storage clip, and then slide the guide onto the clip. Rotate the guide and clip inward and in between the seatback and the interior body, leaving only the loop of elastic cord exposed. Center Passenger Position

4. Buckle, position and release the safety belt as

described in “Rear Seat Outside Passenger Positions” earlier in this section. Make sure that the shoulder belt crosses the shoulder.

1-32

Lap Belt

yellowblue

When you sit in the center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.

To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

1-33

Children Everyone in a vehicle needs protection! That includes infants and all children smaller than adult size. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

yellowblue

Smaller Children and Babies

CAUTION:

Children who are up against, or very close to, any air bag when it inflates can be seriously injured or killed. This is true even though your vehicle has Next Generation frontal air bags. Air bags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle.

1-34

yellowblue

Infants need complete support, including support for the head and neck. This is necessary because an infant’s neck is weak and its head weighs so much compared with the rest of its body. In a frontal crash, an infant in a rear-facing restraint settles into the restraint, so the crash forces can be distributed across the strongest part of the infant’s body, the back and shoulders. A baby should be secured in an appropriate infant restraint. This is so important that many hospitals today won’t release a newborn infant to its parents unless there is an infant restraint available for the baby’s first trip in a motor vehicle.

CAUTION:

Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, as it should. Instead, the belt will likely be over the child’s abdomen. In a crash, the belt would apply force right on the child’s abdomen, which could cause serious or fatal injuries. So, be sure that any child small enough for one is always properly restrained in a child or infant restraint.

1-35

yellowblue

CAUTION: (Continued)

at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on your arms. The baby would be almost impossible to hold. Secure the baby in an infant restraint.

CAUTION:

Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much -- until a crash. During a crash a baby will become so heavy you can’t hold it. For example, in a crash

CAUTION: (Continued)

1-36

Child Restraints Every time infants and young children ride in vehicles, they should have protection provided by appropriate restraints. Q: What are the different types of add-on

child restraints?

A: Add-on child restraints are available in four basic types. When selecting a child restraint, take into consideration not only the child’s weight and size, but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.

yellowblue

An infant car bed (A) is a special bed made for use in a motor vehicle. It’s an infant restraint system designed to restrain or position a child on a continuous flat surface. With an infant car bed, make sure that the infant’s head rests toward the center of the vehicle.

1-37

yellowblue

A rear-facing infant restraint (B) positions an infant to face the rear of the vehicle. Rear-facing infant restraints are designed for infants of up to about 20 lbs. (9 kg) and about one year of age. This type of restraint faces the rear so that the infant’s head, neck and body can have the support they need in a frontal crash. Some infant seats come in two parts -- the base stays secured in the vehicle and the seat part is removable.

1-38

yellowblue

A forward-facing child restraint (C-E) positions a child upright to face forward in the vehicle. These forward-facing restraints are designed to help protect children who are from 20 to 40 lbs. (9 to 18 kg) and about 26 to 40 inches (66 to 102 cm) in height, or up to around four years of age. One type, a convertible restraint, is designed to be used either as a rear-facing infant seat or a forward-facing child seat.

1-39

yellowblue

A booster seat (F, G) is designed for children who are about 40 to 60 lbs., or even up to 80 lbs. (18 to 27 kg, or even up to 36 kg), and about four to eight years of age. A booster seat is designed to improve the fit of the vehicle’s safety belt system. Booster seats with shields use lap-only belts; however, booster seats without shields use lap-shoulder belts. Booster seats can also help a child to see out the window.

1-40

When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury. The instructions that come with the infant or child restraint will show you how to do that. Both the owner’s manual and the child restraint instructions are important, so if either one of these is not available, obtain a replacement copy from the manufacturer. Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We at General Motors therefore recommend that you put your child restraint in the rear seat. Never put a rear-facing child restraint in the front passenger seat. Here’s why:

yellowblue

CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates, even though your vehicle has Next Generation frontal air bags. This is because the back of the rear-facing child restraint would be very close to the inflating air bag. Always secure a rear-facing child restraint in a rear seat. You may secure a forward-facing child restraint in the right front seat, but before you do, always move the front passenger seat as far back as it will go. It’s better to secure the child restraint in a rear seat.

Wherever you install it, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle -- even when no child is in it.

1-41

Top Strap

yellowblue

If your child restraint has a top strap, it should be anchored. If you need to have an anchor installed, your dealer can obtain a kit with anchor hardware and installation instructions specifically designed for this vehicle. The dealer can then install the anchor for you. This work will be done for you free of charge. Or, you may install the anchor yourself using the instructions provided in the kit. Securing a Child Restraint in a Rear Outside Seat Position

Canadian law requires that forward-facing child restraints have a top strap, and that the strap be anchored.

1-42

yellowblue

You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Put the restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder

portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.

3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

1-43

yellowblue

4. Pull the rest of the shoulder belt all the way out of

the retractor to set the lock.

5. To tighten the belt, feed the shoulder belt back into

the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.

6. Push and pull the child restraint in different

directions to be sure it is secure.

1-44

To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. Securing a Child Restraint in the Center Rear Seat Position

yellowblue

You’ll be using the lap belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. See the earlier part about the top strap if the child restraint has one.

1. Make the belt as long as possible by tilting the latch

plate and pulling it along the belt.

2. Put the restraint on the seat. 3. Run the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

1-45

yellowblue

To remove the child restraint, just unbuckle the vehicle’s safety belt. It will be ready to work for an adult or larger child passenger. Securing a Child Restraint in the Right Front Seat Position

Your vehicle has a right front passenger air bag. Never put a rear-facing child restraint in this seat. Here’s why:

4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

5. To tighten the belt, pull its free end while you push

down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.

6. Push and pull the child restraint in different

directions to be sure it is secure.

1-46

CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates, even though your vehicle has Next Generation frontal air bags. This is because the back of the rear-facing child restraint would be very close to the inflating air bag. Always secure a rear-facing child restraint in the rear seat.

Although a rear seat is a safer place, you can secure a forward-facing child restraint in the right front seat.

yellowblue

You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Because your vehicle has a right front passenger air

bag, always move the seat as far back as it will go before securing a forward-facing child restraint. (See “Seats” in the Index.) 2. Put the restraint on the seat. 3. Pick up the latch plate, and run the lap and shoulder

portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.

1-47

yellowblue

4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

5. Pull the rest of the shoulder belt all the way out of

the retractor to set the lock.

1-48

yellowblue

6. To tighten the belt, feed the shoulder belt back into the

retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt. 7. Push and pull the child restraint in different

directions to be sure it is secure.

To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.

1-49

Larger Children

yellowblue

If you have the choice, a child should sit next to a window so the child can wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly. D Children who aren’t buckled up can be thrown out in

a crash.

D Children who aren’t buckled up can strike other

people who are.

Children who have outgrown child restraints should wear the vehicle’s safety belts.

1-50

yellowblue

CAUTION:

Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.

Q: What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?

A: Move the child toward the center of the vehicle, but

be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. If the child is sitting in a rear seat outside position, see “Rear Safety Belt Comfort Guides” in the Index. If the child is so small that the shoulder belt is still very close to the child’s face or neck, you might want to place the child in the center seat position, the one that has only a lap belt.

1-51

yellowblue

CAUTION:

Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.

Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.

1-52

Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. The extender will be just for you, and just for the seat in your vehicle that you choose. Don’t let someone else use it, and use it only for the seat it is made to fit. To wear it, just attach it to the regular safety belt. Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away. Also look for any opened or broken air bag covers, and have them repaired or replaced. (The air bag system does not need regular maintenance.)

yellowblue

Replacing Restraint System Parts After a Crash If you’ve had a crash, do you need new belts? After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new belts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt wasn’t being used at the time of the collision. If an air bag inflates, you’ll need to replace air bag system parts. See the part on the air bag system earlier in this section.

1-53

- NOTES

yellowblue

1-54

Section 2 Features and Controls

yellowblue

Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly -- and what to do if you have a problem.

2-2
2-4
2-7
2-14
2-14
2-15
2-17
2-17
2-19
2-20
2-22
2-27
2-28
2-30
2-32
2-33
2-33
2-34

Keys Door Locks Remote Keyless Entry Trunk Theft PASS-KeyR II New Vehicle “Break-In” Ignition Positions Starting Your V6 Engine Engine Coolant Heater (If Equipped) Automatic Transaxle Operation Parking Brake Shifting Into PARK (P) Shifting Out of PARK (P) Parking Over Things That Burn Engine Exhaust Running Your Engine While You’re Parked Windows

2-

2-35
2-35
2-36
2-42
2-45
2-48
2-50
2-53
2-53
2-54
2-55
2-55
2-56

2-57
2-60
2-75

Horn TILT-WHEELt Adjustable Steering Column Turn Signal/Multifunction Lever Exterior Lamps Interior Lamps Mirrors Storage Compartments Sun Visors Accessory Power Receptacle Auxiliary Power Connection (Power Drop) Astroroof (If Equipped) OnStarR (Option) The Instrument Panel -- Your Information System Instrument Panel Cluster Warning Lights, Gages and Indicators Driver Information Center

2-1

yellowblue

Keys

CAUTION:

Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate power windows or other controls or even make the vehicle move. Don’t leave the keys in a vehicle with children.

2-2

The ignition key is for the ignition only.

The door key is for the doors and all other locks.

yellowblue

The ignition and door keys don’t have plugs. Your dealer or Buick Premium Roadside Assistance has the code for your keys. If you need a new ignition or door key, contact your dealer who can obtain the correct key code, or, in an emergency, call Buick Premium Roadside Assistance at 1-800-252-1112. In Canada, call 1-800-268-6800.

NOTICE:

Your vehicle has a number of features that can help prevent theft. But you can have a lot of trouble getting into your vehicle if you ever lock your keys inside. You may even have to damage your vehicle to get in. So be sure you have extra keys.

2-3

yellowblue

From the inside, to lock or unlock the door manually, push the lever forward to lock the door. To unlock, push the lever rearward.

Door Locks

CAUTION:

Unlocked doors can be dangerous. Passengers -- especially children -- can easily open the doors and fall out. When a door is locked, the inside handle won’t open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked. Wear safety belts properly, lock your doors, and you will be far better off whenever you drive your vehicle.

There are several ways to lock and unlock your vehicle. From the outside, use your door key or remote keyless entry transmitter.

2-4

Power Door Locks

Press the power door lock switch to lock or unlock all doors.

The rear doors do not have power door lock switches. The lever on each rear door works only that door’s lock. It won’t lock or unlock all the doors. Programmable Automatic Power Door Locks Programmable Automatic Power Door Locks is a standard feature that is intended to provide enhanced security and convenience by automatically locking and unlocking doors. This feature provides four operating modes. For your vehicle, you may select and program one of the following four operating modes:

yellowblue

Mode 1: No automatic door lock or unlock. Mode 2: Automatic all-door lock when the transaxle is shifted out of PARK (P); no automatic door unlock. Automatic door relock when any door is unlocked, opened and then all doors are again closed while the vehicle is not in PARK (P) or NEUTRAL (N) and the driver’s foot is on the brake pedal. Mode 3: Automatic all-door lock when the transaxle is shifted out of PARK (P). Automatic all-door unlock when the transaxle is shifted into PARK (P). Automatic door relock when any door is unlocked, opened and then all doors are again closed while the vehicle is not in PARK (P) or NEUTRAL (N) and the driver’s foot is on the brake pedal. Mode 4: Automatic all-door lock when the transaxle is shifted out of PARK (P). Automatic driver’s door only unlock when the transaxle is shifted into PARK (P). Automatic door relock when any door is unlocked, opened and then all doors are again closed while the vehicle is not in PARK (P) or NEUTRAL (N) and the driver’s foot is on the brake pedal.

2-5

The operating mode of the Programmable Automatic Power Door Locks will be changed when the driver performs the following sequence with the engine not running, the doors closed and the ignition key in RUN: 1. Apply your regular brakes. 2. Press and hold the power door lock switch. While holding the door lock switch, move the shift lever out of and back into PARK (P).

After an initial transaxle cycle, each additional cycle will advance the operating mode by one, starting from the current operating mode. During this procedure, the automatic door lock and unlock functions will operate as defined by each mode above, providing the driver with feedback of the current operating mode. If cycled beyond Mode 4, the vehicle will enter operating Mode 1. When the door lock switch is released, the vehicle will remain in the most recent operating mode. Disconnecting the vehicle’s battery for up to a year will not change the programmed mode of the Programmable Automatic Power Door Locks.

2-6

Rear-Door Child Security Locks

yellowblue

Your vehicle is equipped with rear-door child security locks that help prevent passengers from opening the rear doors of your vehicle from the inside. To use one of these locks: 1. Open one of the rear doors.

2. On the inside of the rear door will be a lock. Insert your key into this lock and turn it upward. This will engage the safety lock. To disengage the feature, turn the lock downward.

3. Close the door. 4. Do the same thing to the other rear door lock. The rear doors of your vehicle cannot be opened from the inside when this feature is in use. If you want to open the rear door when the security lock is on, unlock the door from the inside and then open the door from the outside. Lockout Protection Feature This feature prevents a driver who has left the key in the vehicle’s ignition from locking the doors by using the power door locks while any door is open. The feature works by disabling the power door locks when a key is in the ignition and any door is open. You may override the Lockout Protection Feature by holding the power door lock switch in the lock position for more than three seconds while the key is in the ignition and any door is open.

yellowblue

Remember, this feature can’t guarantee that you’ll never be locked out of your vehicle. If you use the manual door lock or if you don’t leave the key in the ignition, you could still lock your keys inside your vehicle. Always remember to take your keys with you. Leaving Your Vehicle If you are leaving the vehicle, take your keys, open your door and set the locks from inside. Then get out and close the door. (Also see “Delayed Locking” in this section for more information.) Remote Keyless Entry You can lock and unlock your doors or unlock your trunk from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter supplied with your vehicle. Your remote keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2-7

This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment. This system has a range of about 3 feet (1 m) up to 30 feet (9 m). At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: D Check to determine if battery replacement is

necessary. See the instructions that follow.

D Check the distance. You may be too far from your vehicle. You may need to stand closer during rainy or snowy weather.

D Check the location. Other vehicles or objects may be

blocking the signal. Take a few steps to the left or right, hold the transmitter higher, and try again.

D If you’re still having trouble, see your dealer or a

qualified technician for service.

2-8

Operation

yellowblue

Press UNLOCK once to unlock the driver’s door and to turn on the interior lamps (see “Illumination on Remote Activation” in the Index for more details).

The perimeter lighting feature will also be activated at night, turning on your headlamps and back-up lamps for 15-25 seconds. (This will light the area around the vehicle.) See “Perimeter Lighting” in the Index. Press UNLOCK again within five seconds to unlock all the doors. To lock all doors, press LOCK. To unlock the trunk, press the trunk symbol on the remote keyless entry transmitter. The trunk will only unlock if your transaxle is in PARK (P).

Instant Alarm This feature allows you to activate an alarm by pressing a button on the remote keyless entry transmitter. Your vehicle’s ignition must be off for the Instant Alarm to work. When you press the horn button on the remote keyless entry transmitter, your vehicle’s headlamps will flash, the horn will honk repeatedly, and your interior lamps will illuminate, attracting attention if you need it. The alarm will continue until: D You press the alarm button on the RKE transmitter a

second time,

D the vehicle’s ignition is in RUN, or D an alarm period of about two minutes has elapsed.

Security Feedback Security Feedback provides audible and/or visible feedback that a remote keyless entry lock or unlock command has been received and executed. Your vehicle’s ignition must be off for this feature to work.

yellowblue

You may select one of four operating modes for reception of a lock command. You may also select one of four operating modes for reception of an unlock command. The selection and programming of the lock and unlock operating modes are independent of each other. The following modes are available for either lock or unlock verification: Mode 1: No Verification Mode 2: Horn Chirp only Mode 3: Headlamp Flash only Mode 4: Horn Chirp and Headlamp Flash The operating mode of the Security Feedback lock feature will be changed when you perform the following sequence with your vehicle’s doors closed and the ignition key in RUN: Press and hold the power door lock switch. While holding the door lock switch, press and release the remote keyless entry (RKE) transmitter lock button. This will start the customization mode. While in the customization mode, the feature will sound the number of chimes corresponding to the current Security Feedback lock mode.

2-9

yellowblue

Each additional press of the RKE transmitter lock button will cause your vehicle to advance the lock mode by one, starting from the current lock mode. If cycled beyond lock Mode 4, the vehicle will enter lock Mode 1. During this procedure, the feature will sound the number of chimes corresponding to the current lock mode, providing you with feedback. When the door lock switch is released, the vehicle will remain in the most recent lock mode. The operating mode of the Security Feedback unlock feature will be changed when you perform the following sequence with your vehicle’s doors closed and the ignition key in RUN: D Press and hold the power door unlock switch. While holding the door unlock switch, press and release the RKE transmitter unlock button. This will start the customization mode.

D While in the customization mode, the feature will sound the number of chimes corresponding to the current unlock mode.

Each additional press of the RKE transmitter unlock button will cause your vehicle to advance the unlock mode by one, starting from the current unlock mode. If cycled beyond unlock Mode 4, the vehicle will enter unlock Mode 1. During this procedure, the feature will sound the number of chimes corresponding to the current unlock mode, providing you with feedback. When the door unlock switch is released, the vehicle will remain in the most recent unlock mode. Disconnecting the vehicle’s battery for up to a year will not change the programmed mode of the lock and unlock Security Feedback features.

Delayed Locking Delayed Locking allows the doors to be locked while passengers are exiting the vehicle. This feature also provides a brief time period after all the doors are closed, but before the doors are locked, in which the doors may be reopened. Delayed Locking is user programmable for enabling or disabling the feature.

2-10

Delayed Locking is activated when a door lock switch is pressed while the key is not in the vehicle’s ignition, and a door is open. The door lock switch may be either the lock switch on the door or on the remote keyless entry transmitter (see “Remote Keyless Entry” later in this section for more details). The doors do not lock when the lock switch is pressed, but instead, three chimes are heard. These chimes indicate that the Delayed Locking function has been activated. You have three actions possible once Delayed Locking is activated: D Cancel the Delayed Locking by pressing the unlock

switch or by fully inserting the key in the ignition. D Override the Delayed Locking feature and lock the

doors immediately by pressing the lock switch a second time.

D Let the Delayed Locking feature complete the

locking of the vehicle.

If you wish to let the Delayed Locking feature complete the locking of the vehicle, no additional action is required. The Delayed Locking feature will lock the doors automatically after all the doors have been closed for a period of five seconds. During this five second period, any door may be reopened, at which time the three possible actions shown above are again available.

yellowblue

You may also customize your vehicle to activate the Delayed Locking feature as described above, or you may choose to completely disable the feature at all times. If disabled, the power door locks will activate immediately when a power door lock switch is pressed. The enabled/disabled state of the Delayed Locking feature will be toggled when you perform the following sequence with the doors closed and the ignition key in RUN: 1. Apply your regular brakes. 2. Press and hold the power door unlock switch. While holding the door unlock switch, move the shift lever out of and back into PARK (P).

After an initial transaxle cycle, each additional cycle will toggle the enable/disable state of the Delayed Locking feature. During this procedure, the chime will sound, providing you with feedback. In Mode1, a single chime will be heard if the Delayed Locking feature is disabled. In Mode 2, two chimes will be heard if the feature is enabled. When the door unlock switch is released, the vehicle will remain in the most recent operating mode. Disconnecting the vehicle battery for up to a year will not change the programmed mode of the Delayed Locking feature.

2-11

yellowblue

Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about three years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.

NOTICE:

When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter.

Illumination on Remote Activation This feature provides interior lighting when a remote keyless entry door unlock command is received and executed by your vehicle. Your vehicle’s ignition must be off for the Illumination on Remote Activation feature to work. The interior lamps will light until your vehicle’s ignition is turned to RUN or for a period of 40
seconds has elapsed. If a door is opened during this period, the timed lighting will be canceled, and the interior lamps will remain on since a door is open. Also see “Perimeter Lighting” in the Index. Matching Transmitter(s) To Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your vehicle. Each vehicle can have only four transmitters matched to it.

2-12

yellowblue

4. Test the operation of the transmitter with your

vehicle. If the transmitter does not work, try resynchronizing the transmitter. (See “Resynchronization” following.)

5. Resynchronize and then test the transmitter.

Resynchronization Resynchronization may be necessary due to the security method used by this remote keyless entry system. The transmitter does not send the same signal twice to the receiver. The receiver will not respond to a signal it has previously been sent. This prevents someone from recording and playing back the signal from the transmitter. To resynchronize the transmitter with the receiver, do the following: 1. Stand close to your vehicle. 2. Simultaneously press and hold the LOCK and

UNLOCK buttons on the transmitter for about seven seconds. The door locks should cycle (lock and unlock) to confirm resynchronization.

If the locks do not cycle, see your dealer for service.

2-13

To replace the battery: 1. Insert a flat object like a dime into the slot on the back of the transmitter. Gently pry apart the front and back.

2. Remove the old battery and replace it with the new

one. (Use type CR2032 or an equivalent.) Make sure the positive (+) side of the battery is facing down. Do not use a metal object to remove the old battery. 3. Snap the top and bottom together, making sure the

halves are together tightly so water won’t get in.

yellowblue

Trunk Lock To unlock the trunk from the outside, insert the door key and turn it. You can also press the car symbol on your remote keyless entry transmitter. Theft Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help. Key in the Ignition If you leave your vehicle with the keys inside, it’s an easy target for joy riders or professional thieves -- so don’t do it. When you park your vehicle and open the driver’s door, you’ll hear a chime reminding you to remove your key from the ignition and take it with you. Always do this. Your steering wheel will be locked, and so will your ignition and transaxle. And remember to lock the doors.

Trunk

CAUTION:

It can be dangerous to drive with the trunk open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk: D Make sure all other windows are shut. D Turn the fan on your heating or cooling

system to its highest speed with the setting on VENT. That will force outside air into your vehicle. See “Comfort Controls” in the Index.

D If you have air outlets on or under the

instrument panel, open them all the way.

See “Engine Exhaust” in the Index.

2-14

Parking at Night Park in a lighted spot, close all windows and lock your vehicle. Remember to keep your valuables out of sight. Put them in a storage area, or take them with you. Parking Lots If you park in a lot where someone will be watching your vehicle, it’s best to lock it up and take your keys. But what if you have to leave your ignition key? D If possible, park in a busy, well lit area. D Put your valuables in a storage area, like your

trunk or glove box. Be sure to close and lock the storage area.

D Close all windows. D Lock the glove box. D Lock all the doors except the driver’s. D Then take the door key and remote keyless entry

transmitter with you.

PASS-KeyR II

yellowblue

Your vehicle is equipped with the PASS-Key II (Personalized Automotive Security System) theft-deterrent system. PASS-Key II is a passive theft-deterrent system. It works when you insert or remove the key from the ignition.

PASS-Key II uses a resistor pellet in the ignition key that matches a decoder in your vehicle. When the PASS-Key II system senses that someone is using the wrong key, it shuts down the vehicle’s starter and fuel systems. For about three minutes, the starter won’t work and fuel won’t go to the engine. If someone tries to start your vehicle again or uses another key during this time, the vehicle will not start. This discourages someone from randomly trying different keys with different resistor pellets in an attempt to make a match.

2-15

yellowblue

The ignition key must be clean and dry before it’s inserted in the ignition or the engine may not start. If the engine does not start and the SECURITY light is flashing, the key may be dirty or wet. Turn the ignition off. Clean and dry the key. Wait about three minutes and try again. If the starter still won’t work, and the key appears to be clean and dry, wait about three minutes and try another ignition key. At this time, you may also want to check the fuse (see “Fuses and Circuit Breakers” in the Index). If the starter won’t work with the other key, your vehicle needs service. If your vehicle does start, the first ignition key may be faulty. See your dealer or a locksmith who can service the PASS-Key II.

If you accidentally use a key that has a damaged or missing resistor pellet, the starter won’t work. The SECURITY light will then come on. But you don’t have to wait three minutes before trying another ignition key. See your dealer or a locksmith who can service the PASS-Key II to have a new key made. If you’re ever driving and the SECURITY light comes on, you will be able to restart your engine if you turn it off. Your PASS-Key II system, however, is not working properly and must be serviced by your dealer. Your vehicle is not protected by the PASS-Key II system. If you lose or damage a PASS-Key II ignition key, see your dealer or a locksmith who can service PASS-Key II to have a new key made. In an emergency, call the Buick Premium Roadside Assistance Center at 1-800-252-1112. In Canada, call 1-800-268-6800.

2-16

yellowblue

New Vehicle “Break-In”

Ignition Positions

NOTICE:

CAUTION:

Your vehicle doesn’t need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: D Don’t drive at any one speed -- fast or slow -- for the first 500 miles (805 km). Don’t make full-throttle starts.

D Avoid making hard stops for the first

Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be injured or even killed. They could operate power windows or other controls or even make the vehicle move. Don’t leave the keys in the vehicle with children.

200 miles (322 km) or so. During this time your new brake linings aren’t yet broken in. Hard stops with new linings can mean premature wear and earlier replacement. Follow this breaking-in guideline every time you get new brake linings.

D Don’t tow a trailer during break-in. See

“Towing a Trailer” in the Index for more information.

2-17

yellowblue

OFF (C): This position lets you turn off the engine but still turn the steering wheel. It doesn’t lock the steering wheel. Use OFF if you must have your vehicle pushed or towed. RUN (D): This position is where the key returns after you start your vehicle. With the engine off, you can use RUN to display some of your warning and indicator lights. START (E): This position starts your engine. A warning chime will sound if you open the driver’s door when the ignition is in OFF, LOCK or ACCESSORY and the key is in the ignition.

With the ignition key in the ignition, you can turn the switch to five positions: ACCESSORY (A): The accessory position lets you use the radio and windshield wipers when the engine is off. To use ACC, push in the key and turn it toward you. Your steering wheel will stay locked. LOCK (B): Before you put the key into the ignition switch, the switch is in LOCK. It’s also the only position from which you can remove your key. This position locks your ignition, steering wheel and transaxle. It’s a theft-deterrent feature.

NOTICE:

If your key seems stuck in LOCK and you can’t turn it, be sure you are using the correct key; if so, is it all the way in? If it is, then turn the steering wheel left and right while you turn the key hard. But turn the key only with your hand. Using a tool to force it could break the key or the ignition switch. If none of this works, then your vehicle needs service.

2-18

yellowblue

Starting Your V6 Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position -- that’s a safety feature. To restart when you’re already moving, use NEUTRAL (N) only.

NOTICE:

Don’t try to shift to PARK (P) if your vehicle is moving. If you do, you could damage the transaxle. Shift to PARK (P) only when your vehicle is stopped.

1. Without pushing the accelerator pedal, turn your

ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm.

NOTICE:

Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor. Wait about 15 seconds between each try to help avoid draining your battery or damaging your starter.

NOTICE:
