The 1996 Buick Regal Owner’s Manual


7-


This section explains how to start and operate your Buick.


This section tells you how to use your seats and safety belts properly. It also explains “SRS” system.


This section tells you how to adjust the ventilation and comfort controls and how to operate your audio system.


Seats and Restraint Systems ............................................................. 1-1 Features and Controls .................................................................. 2-1 Comfort Controls and Audio Systems ..................................................... 3-1 YourDrivingandtheRoad .............................................................. 4-1 Here you’ll find helpful information and tips about the road and how to drive under different conditions. ProblemsontheRoad .................................................................. 5-1 Service and Appearance Care. ........................................................... Maintenanceschedule .................................................................. Customer Assistance Information ........................................................


This section tells you what to do if you have a problem while driving, such as a flat tire or overheated engine, etc.


This section tells you when to perform vehicle maintenance and what fluids and lubricants to use.


Here the manual tells you how to keep your Buick running properly and looking good.


6-1


8-1


7-1


This section tells you how to contact Buick for assistance and how to get service publications. It also gives you information on “Reporting Safety Defects” on page 8-7.


Index ................................................................................ Here’s an alphabetical listing of almost every subject in this manual. You can use it to quickly find something you want to read.


9-1


GEmRAL MOTORS, GM and the GM Emblem, are BUICK, the BUICK Emblem and the name REGAL registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes in the product after that time without further notice. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Buick Motor Division whenever it appears in this manual. Please keep this manual in your Buick, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it owner can use it.


so the new


WE SUPPORT


VOLUNTARY TECHNICIAN CERTIFICATION THROUGH


National Institute for


A U T O M O T I V E


S E R V I C E


E X C E L L E N C E


For Canadian Owners Who Prefer a French Language Manual: Aux propriktaires canadiens: Vous pouvez vous procurer un exemplaire de ce guide en franqais chez votre concessionaire ou au:


DGN Marketing Services Ltd. 1500 Bonhill Rd. Mississauga, Ontario L5T 1C7


Litho in. U.S.A. Part No. 25632198 B First Edition


Walter Marr and Thomas Buick


Buick’s chief engineer, Walter L. Marr (left), and Thomas D. Buick, son of founder David Dunbar Buick, drove the first Flint Buick in a successful Flint-Detroit round trip in July 1904. David Buick was building gasoline engines by 1899, and Man, his engineer, apparently built the first auto to be called a Buick in 1900. However, Buick traditionally dates its beginnings to 1903. That was the year the company was reorganized, refinanced and moved from Detroit to Flint. Buick has always been a product innovator. Buick engineers developed the


William C. (Billy) Durant


Durant also created a racing team that won 500 racing trophies in 1909 and 19 10, including successes at Indianapolis two years before the Tndy 500 began. The success of Buick engines was visible not only on the race track, but in endurance tests across the country and around the world. Buick was the only car to complete a 1,000-mile Chicago-to-New York race in 1906. And a Buick was the first car to travel across South America, driven from Buenos Aires, Argentina, over the Andes to Santiago, Chile in 1914.


,.:. .


Buick drew plenty of attention because it could climb hills and run through mud like no other car. Buick’s endurance and reliability were world famous. During World War I, Buick built Liberty aircraft engines as well as Red Cross ambulances so successfully that one Buick ambulance was awarded the Croix de Guerre by the French government. As a builder of premier automobiles, Buick was hard hit by the Great Depression. However, new General Manager Harlow H. Curtice created popular new models including the Special and the Roadmaster. Buick sales soon flourished.


1911 Model 21 Touring Car on BuickS Test Hill


In World War 11, Buick built aircraft engines, tanks and other military hardware. This post-war period brought great styling and engineering changes which resulted in increased sales. The torque converter automatic transmission, Dynaflow, was introduced in the 1948 Roadmaster. Buick’s Fdmous “portholes” came along in 1949.


A high-compression V-8 engine was introduced in 1953. And Buick’s famous vertical pillar “toothy” grille, (introduced in 1942), became more massive in the post-war era.


1949 Roadmaster


1.953 Skylark


Motor Trend magazine named the 1962 Buick Special “Car of the Year.” The first production V-6 engine was used in the Special.


I962 Buick Special


Built inside the walls of the old buildings in Buick’s former Flint complex, which formed the cornerstone of General Motors, Buick City is a state-of-the-art assembly facility with more than 200 robots and other high-tech equipment. It was completed in the fall of 1985. Buicks are, and will continue to be, premium American motorcars with smooth power, high performance, rich detail and comfortable accommodation.


Ed Mertz, General Manager; Buick Motor Division


Our mission is simple: “Buick will provide Premium American Motorcars backed with services that exceed our customers’ expectations, throughout the purchase, ownership, service and repurchase experience.” Buicks are SUBSTANTIAL. Buicks are DISTINCTIVE. Buicks are POWERFUL. Buicks are MATURE.


How to Use This Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly. Index A good place to look for what you need is the Index in the back of the manual. It’s an alphabetical list of all that’s in the manual, and the page number where you’ll find it. Safety Warnings and Symbols You will find a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning.


These mean there is something that could hurt you or other people.


In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you or others could be hurt.


I You will also find a circle


with a slash through it in this book. This safety symbol means “Don’t,” “Don’t do this,” or “Don’t let this happen.”


Vehicle Damage Warnings Also, in this book you will find these notices:


NOTICE:


These mean there is something that could damage your vehicle.


not be covered by your warranty, and it could be costly. But the notice will tell you what to do to help avoid the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words. You’ll also see warning labels on your vehicle. They use the same words CAUTION or NOTICE.


In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would


ix


Ve hide These are some of the symbols you may find on your vehicle.


bols


For example, these symbols are used on an original battery:


CAUTION POSSIBLE INJURY


PROTECT EYES BY SHIELDING


CAUSTIC


BURNS


AVOID SPARKS OR FLAMES


SPARK OR FLAME COULD EXPLODE BATTERY


,\I/,


These symbols are important for you and your passengers whenever your vehicle is driven:


DOOR LOCK UNLOCK


FASTEN SEAT BELTS


POWER WINDOW


These symbols have to do with your lights:


These symbols are on some of your controls:


SIGNALS e


TURN


WINDSHIELD WIPER


WINDSHIELD DEFROSTER


WINDOW DEFOGGER


DAYTIME ..


RUNNING *


LAMPS . *


# 0


FOG LAMPS


VENTILATING


FAN 1 d J


These symbols are used on warning and indicator lights:


Here are some other symbols you may see:


BAllERY


ENGINE COOLANT TEMP


F- CHARGING I-1 (a)


FUSE t LIGHTER n HORN hs SPEAKER b e, p3


COOLANT


SYSTEM


BRAKE


FUEL


ENGINE OIL PRESSURE


ANTI-LOCK (@)


BRAKES


NOTES


NOTES


xii


Section 1 Seats and Restraint Systems


2-Way Manual Seat


Here you’ll find information about the seats in your Buick and how to use your safety belts properly. You .. can also learn about some things you should not do with air bags and safety belts. Seats and Sest Controls This section tells you how to adjust the seats and explains the reclining seatbacks and head restraints. Manual Front Seat


You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you don’t want to. Adjust the driver’s seat only when the vehicle is not moving.


Lift the bar under the front of the seat to unlock it. Slide the seat to where you want it and release the bar. Try to move the seat with your body to be sure the seat is locked in place.


1-1


Driver’s 4-Way Manual Seat (Option) The driver’s seat may have two levers under the front edge of the seat. Lift the lever near the outer side of the seat to unlock it and slide it forward and back. Lift the lever near the center to tilt the seat up or down. Power Seat (Option)


Reclining Front Seatbacks (2-Door Models)


Lift the lever to release the seatback, then move the seatback to where you want it. Release the lever to lock the seatback in place. Pull up on the lever without pushing on the seatback and the seatback will move forward.


FRONT (A): Raise the front of the seat by holding the switch up. Hold the switch down to lower the front of the seat. CENTER (B): Move the seat forward or backward by holding the control to the front or back. Raise or lower the seat by holding the control up or down. REAR (C): Raise the rear of the seat by holding the switch up. Hold the switch down to lower the rear of the seat. 1-2


1


But don’t have a seatback reclined


if your vehicle is moving.


Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job. In a crash you could go into it, receiving neck or other injuries. The lap belt can’t do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.


1-3


Reclining Front Seatbacks (4-Door


Lift the lever to release the seatback, then move the seatback to where you want it. Release the lever to lock the seatback in place. Pull up on the lever without pushing on the seatback and the seatback will move forward.


But don't have a seatback reclined if your vehicle is moving.


Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle CAUTION: (Continued)


1-4


I


up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body. Instead, it will be in front of you. In a crash you could go into it, receiving neck or other injuries. The lap belt can’t do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.


Head Restraints Slide the head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of a neck injury in a crash.


Seatback Latches (2-Door Models)


The front seat folds forward to let people get into the back seat. Your seatback will move back and forth freely, unless you come to a sudden stop. Then it will lock in place.


If your vehicle is parked facing down a fairly steep hill, the seatback may not fold without some help from you. To fold the locked seatback forward, push the seatback toward the rear and lift this latch. Then the seatback will fold forward. The latch must be down for the seat to work properly.


1-5


Safety Belts: They’re for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. And it explains the Supplemental Restraint System (SRS), or air bag system.


Your vehicle has a light that comes on as a reminder to buckle up. (See “Safety Belt Reminder Light” in the Index.)


Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.


In most states and Canadian provinces, the law says to wear safety belts. Here’s why: They work. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed. I After more than 25 years of safety belts in vehicles, the


facts are clear. In most crashes buckling up does matter ... a lot!


1-6


Why Safety Belts Work When you ride in or on anything, you go as fast as it goes,


Take the simplest vehicle. Suppose it's just a seat on wheels.


1-7


Get it up to speed. Then stop the vehicle. The rider doesn’t stop.


The person keeps going until stopped by something. In a real vehicle, it could be the windshield ...


or the instrument panel ...


or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.


home, why should I wear safety belts?


&.’ If I’m a good driver, and I never drive far from A: You may be an excellent driver, but if you’re in an accident -- even one that isn’t your fault -- you and your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers. Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone.


Here Are Questions Many People Ask About Safety Belts -- and the Answers


Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt?


A: You could be -- whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted. If my vehicle has air bags, why should I have to wear safety belts?


A: Air bags are in many vehicles today and will be in


most of them in the future. But they are supplemental systems only; so they work with safety belts -- not instead of them. Every air bag system ever offered for sale has required the use of safety belts. Even if you’re in a vehicle that has air bags, you still have to buckle up to get the most protection. That’s true not only in frontal collisions, but especially in side and other collisions.


1-10


bw to Wear Safety Belts Properly


Adull This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your Buick, see the part of this manual called “Children.” Follow those rules for everyone’s protection. First, you’ll want to know which restraint systems your vehicle has. We’ll start with the driver position. Driver Position This part describes the driver’s restraint system. Lap-Shoulder Belt The driver has a lap-shoulder belt. Here’s how to wear it properly. 1. Close and lock the door. 2. Adjust the seat (to see how, see “Seats’’ in the Index)


so you can sit up straight.


3. Pick up the latch plate and pull the belt across you.


Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.


1-11


4. Push the latch plate into the buckle until it clicks.


Pull up on the latch plate to make sure it is secure. If the belt isn’t long enou,gh, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there’s a sudden stop or crash, or if you pull the belt very quickly out of the retractor.


5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt.


1-12


:It He at Adjuster (4-DOOr : Idels) Shoulder Before you begin to drive, move the shoulder belt adjuster to the height that is right for you.


To move it down, squeeze the release lever and move the height adjuster to the desired position. You can move the adjuster up just by pushing up on the shoulder belt guide. After you move the adjuster to where you want it, try to move it down without squeezing the release lever to make sure it has locked into position. Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder.


1-13


@ What’s wrong with this?


You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.


A: The shoulder belt is too loose. It won’t give nearly


as much protection this way.


1-14


What’s wrong with this?


A: The belt is buckled in the wrong place.


You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.


11-15


&: What's wrong with this?


You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren't as strong as shoulder bones. You could also severely injure internaI organs like your liver or spleen.


A: The shoulder belt is worn under the arm. It should


be worn over the shoulder at all times.


1-16


&.’ What’s wrong with this?


A : The belt is twisted across the body.


You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.


1-17


Your Buick has two air bags -- one air bag for the driver and another air bag for the right front passenger. Here are the most important things to know about the air bag system:


You can be severely injured or killed in a crash if


you aren’t wearing your safety belt -- even if you


have an air bag. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. The air bag is only a “supplemental restraint.’’ That is, it works with safety belts but doesn’t replace them. Air bags are designed to work only in moderate to severe crashes where the front of your vehicle hits something. They aren’t designed to inflate at all in rollover, rear, side or low-speed frontal crashes. should wear a safety belt properly -- whether or Everyone in your vehicle, including the driver, not there’s an air bag for that person.


To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle. Supplemental Restraint System (SRS) This part explains the Supplemental Restraint System (SRS) or air bag system.


A CAUTION:


Air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, it could seriously injure you. Safety belts help keep you in position for an air bag inflation in a crash. Always wear your safety belt, even with an air bag. The driver should sit as far back as possible while still maintaining control of the vehicle.


There is an air bag readiness light on the instrument panel, which shows AIR BAG.


AIR BAG 0.


The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem. See “Air Bag Readiness Light” in the Index for more information.


An inflating air bag can seriously injure small children. Always secure children properly in your vehicle. To read how, see the part of this manual called “Children” and the caution label on the right front passenger’s safety belt.


1-19


How the Ail


a D Svstem Works


Where is the air bag? The driver’s air bag is in the middle of the steering wheel.


The right front passenger’s air bag is in the instrument panel on the passenger’s sidc.


1-20


Don’t put anything on, or attach anything to, the steering wheel or instrument panel. Also, don’t put anything (such as pets or objects) between any occupant and the steering wheel or instrument panel. If something is between an performance of the air bag -- or worse, it could occupant and an air bag, it could affect the cause injury.


When should an air bag inflate? The air bag is designed to inflate in moderate to severe frontal or near-frontal crashes. The air bag will inflate only if the impact speed is above the system’s designed “threshold level.” If your vehicle goes straight into a wall that doesn’t move or deform, the threshold level is about 9 to 15 mph (14 to 24 km/h). The threshold level can vary, however, with specific vehicle design, so that it can be somewhat above or below this range. If your


vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The air bag is not designed to inflate in rollovers, side impacts or rear impacts, because inflation would not help the occupant. In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. Inflation is determined by the angle of the impact and the vehicle’s deceleration. Vehicle damage is only one indication of this. What makes an air bag inflate? In a frontal or near-frontal impact of sufficient severity, the air bag sensing system detects that the vehicle is suddenly stopping as a result of a crash. The sensing system triggers a chemical reaction of the sodium azide sealed in the inflator. The reaction produces nitrogen gas, which inflates the air bag. The inflator, air bag and related hardware are all part of the air bag modules packed inside the steering wheel and in the instrument panel in front of the right front passenger.

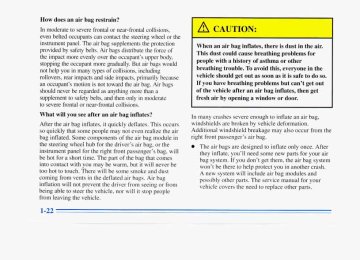

How does an air bag restrain? In moderate to severe frontal or near-frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. The air bag supplements the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But air bags would not help you in many types of collisions, including rollovers, rear impacts and side impacts, primarily because an occupant’s motion is not toward the air bag. Air bags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions. What will you see after an air bag inflates? After the air bag inflates, it quickly deflates. This occurs so quickly that some people may not even realize the air bag inflated. Some components of the air bag module in the steering wheel hub for the driver’s air bag, or the instrument panel for the right front passenger’s bag, will be hot for a short time. The part of the bag that comes into contact with you may be warm, but it will never be too hot to touch. There will be some smoke and dust coming from vents in the deflated air bags. Air bag inflation will not prevent the driver from seeing or from being able to steer the vehicle, nor will it stop people from leaving the vehicle.


When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or door.


In many crashes severe enough to inflate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger’s air bag.


The air bags are designed to inflate only once. After they inflate, you’ll need some new parts for your air bag system. If you don’t get them, the air bag system won’t be there to help protect you in another crash. A new system will include air bag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.


0 Your vehicle is equipped with a crash sensing and


diagnostic module, which records information about the air bag system. The module records information about the readiness of the system, when the sensors are activated and driver’s safety belt usage at deployment. Let only qualified technicians work on your air bag system. Improper service can mean that your air bag system won’t work properly. See your dealer for service


NOTICE:


If you damage the cover for the driver’s or the right front passenger’s air bag, they may not work properly. You may have to replace the air bag module in the steering wheel or both the air bag module and the instrument panel for the right front passenger’s air bag. Do not open or break the air bag covers.


Servicing Your Air Bag-Equipped Buick Air bags affect how your Buick should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inflate while someone is working on your vehicle. Your Buick dealer and the Regal Service Manual have information about servicing your vehicle and the air bag system. To purchase a service manual, see “Service and Owner Publications” in the Index.


A CAUTION - For up to 10 seconds after the ignition key is turned off and the battery is disconnected, an air bag can still inflate during improper service. You can be injured if you are close to an air bag when it inflates. Avoid wires wrapped with yellow tape or yellow connectors. They are probably part of the air bag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.


The air bag system does not need regular maintenance.


1-23


Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts.


The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. Right Front Passenger Position The right front passenger’s safety belt works the same way as the driver’s safety belt. See “Driver Position,” earlier in this section. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. Center Passenger PC zition


A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.


1-24


r i your vehicle has a bench seat, someone can sit in the center position.


r-


When you sit in a center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.


To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts. :ear Seat


senger Bsi tions


lutside


Lap4 bulder Belt (2-Door Models) The positions next to the windows have lap-shoulder belts. Here’s how to wear one properly.


If you have a four-door model, see “Rear Seat Outside Passenger Positions (4-Door Models)” later in this section.


1. Pick up the latch plate and pull the belt across you.


Don’t let it get twisted.


2. Push the latch plate into the buckle until it clicks.


1-26


If the belt stops before it reaches the buckle, tilt the latch plate and keep pulling until you can buckle it. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part.


1-27


The safety belt locks if there’s a sudden stop or a crash.


You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.


The lap part of the belt‘ should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.


To unlatch the belt, just push the button on the buckle.


Rear Seat Outsid (4-Door Models)


ssenger Positions


If you have a two-door model, see “Rear Seat Outside Passenger Positions (2-Door Models)” earlier in this section.


1-29


hol


Dc


[odds


The positions next to the windows have lap-shoulder belts. Here’s how to wear one properly.


The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


1. Pick up the latch plate and pull the belt across you.


Don’t let it get twisted.


1-30


3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part.


The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you'd be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These pcarts of the body are best able to t'ake belt restraining forces.


The safety belt locks if there's a sudden stop or a crash, or if you pull the belt very quickly out of the retractor.


You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.


1-32


To unlatch the belt, just push the button on the buckle.


Rear Safety Belt Comfort Guides for Children and Small Adults (4-DOOr Models) Four-door models may have rear shoulder belt comfort guides. This feature will provide added safety belt comfort for children who have outgrown child restraints and for small adults. When installed on a shoulder belt, the comfort guide pulls the belt away from the neck and head.


1. Pull the elastic cord out from between the edge of the seatback and the interior body to remove the guide from its storage clip.


2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide.


3. Be sure that the belt is not twisted and it lies flat.


The elastic cord must be under the belt and the guide on top.


Children Everyone in a vehicle needs protection! That includes infants and all children smaller than adult size. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.


laller Chilc en and Bat


Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, as it should. Instead, the belt will likely be over the child’s abdomen. In a crash, the belt would apply force right on the child’s abdomen, which could cause serious or fatal injuries. So, be sure that any child small enough for one is always properly restrained in a child or infant restraint.


4. Buckle, position and release the safety belt as


described in “Rear Seat Outside Passenger Positions (4-Door Models)” earlier in this section. Make sure that the shoulder belt crosses the shoulder.


To remove and store the comfort guides, just perform these steps in reverse order. Squeeze the belt edges together so that you can take them out from the guides. Pull the guide upward to expose its storage clip, and then slide the guide onto the clip. Rotate the guide and clip inward and in between the seatback and the interior body, leaving only the loop of elastic cord exposed.


A



heavy you can’t hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 2404b. (110 kg) force on your arms. The baby would be almost impossible to hold. Secure the baby in an infant restraint.


Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much -- until a crash. During a crash a baby will become so


CAUTION: (Continued)


Child Restraints Be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets Federal Motor Vehicle Safety Standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury. The instructions that come with the infant or child restraint will show you how to do that. Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We at General Motors therefore recommend that you put your child restraint in the rear seat. Never put a rear-facing child restraint in the front passenger seat. Here’s why:


iAUTION: -


A child in a rear-facing child restraint can be seriously injured if the right front passenger’s air bag inflates. This is because the back of a rear-facing child restraint would be very close to the inflating air bag. Always secure a rear-facing child restraint in the rear seat. You may, however, secure a forward-facing child restraint in the right front seat. Before you secure a forward-facing child restraint, always move the front passenger seat as far back as it will go. Or, secure the child restraint in the rear seat.


1-37


Strap


If your child restraint has a top strap, it should be anchored. If you need to have an anchor installed, you can ask your Buick dealer to put it in for you. If you want to install an anchor yourself, your dealer can tell you how to do it.


A child in a child restraint in the center front seat can be badly injured by the right front passenger air bag if it inflates. Never secure a child restraint in the center front seat. It’s always better to secure a child restraint in the rear seat. You may, however, secure a forward-facing child restraint in the right front passenger seat, but only with the seat moved all the way back.


Wherever you install it, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle -- even when no child is in it.


1-38


For cars first sold in Canada, child restraints with a top strap must be anchored according to Canadian law. Your dealer can obtain the hardware kit and install it for you, or you may install it yourself using the instructions provided in the kit. Use the tether hardware kit available from the dealer. The hardware and installation instructions were specifically designed for this vehicle. Securing a Child Restraint in a Rear Outside Seat Position (2-Door Models)


You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. 1. Put the restraint on the seat. Follow the instructions


for the child restraint.


2. Secure the child in the child restraint as the


instructions say.


3. Pick up the latch plate, and run the lap and shoulder


portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.


If you have a four-door model, see “Securing a Child Restraint in a Rear Outside Seat Position (4-Door Models)’’ later in this section.


Tilt the latch plate to adjust the belt If the shoulder belt goes in front of the child's face or neck, put it behind the child restraint.


if needed.


4. Buckle the belt. Make sure the release button is


positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


1-40


Securing a Child Restraint in a Rear Outside Seat Position (4-DoOr Models)


If you have a two-door model, see “Securing a Child Restraint in a Rear Outside Seat Position (2-Door Models)” earlier in this section. You’ll be wing the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. 1. Put the restraint on the seat. Follow the instructions


for the child restraint.


2. Secure the child in the child restraint as the


instructions say.


3. Pick up the latch plate, and run the lap and shoulder


portions of the vehicle’s safety belt through or around the restraint, The child restraint instructions will show you how. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.


1-41


5. To tighten the belt, pull up on the shoulder belt while


yodpush down on the child restraint.


6. Push and pull the child restraint in different


duections to be sure it is secure.


To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.


4. Buckle the belt. Make sure the release button is


positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


5. Pull the rest of the shoulder belt all the way out of


the retractor to set the lock.


1-42


Securing a Child Restraint in the Center Rear Seat Position


You’ll be using the lap belt.


6. To tighten the belt, feed the shoulder belt back into the


retractor while you push down on the child restraint.


7. Push and pull the child restraint in different


directions to be sure it is secure.


To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.


A child in a child restraint in the center front seat can be badly injured by the right front passenger air bag if it inflates. Never secure a child restraint in the center front seat. It’s always better to secure a child restraint in the rear seat. You may, however, secure a forward-facing child restraint in the right front passenger seat, but only with the seat moved all the way back.


See the earlier part about the top strap if the child restraint has one.


4. Run the vehicle's safety belt through or around the restraint. The child restraint instructions will show vou how.


1. Make the belt as long as possible by tilting the latch


plate and pulling it along the belt.


2. Put the restraint on the seat. Follow the instructions


for the child restraint.


3. Secure the child in the child restraint as the


instructions say.


5. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


6. To tighten the belt, pull its free end while you push


down on the child restraint.


7. Push and pull the child restraint in different


directions to be sure it is secure. If it isn’t, secure the restraint in a different place in the vehicle and contact the child restraint maker for their advice about how to attach the child restraint properly.


To remove the child restraint, just unbuckle the vehicle’s safety belt. It will be ready to work for an adult or larger child passenger. Securing a Child Restraint in the Right Front Seat Position


A child in a rear-facing child restraint can be seriously injured if the right front passenger’s air bag inflates. This is because the back of a rear-facing child restraint would be very close to the inflating air bag. Always secure a rear-facing child restraint in the rear seat.


Your vehicle has a right front passenger air bag. Never put a rear-facing child restraint in this seat. Here’s why:


2.


3.


4.


You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. 1.


Because your vehicle has a right front passenger air bag, always move the seat as far back as it will go before securing a forward-facing child restraint. (See “Seats” in the Index.) Put the restraint on the seat. Follow the instructions for the child restraint. Secure the child in the child restraint as the instructions say. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.


1-45


If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.


5. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


6. Pull the rest of the shoulder belt all the way out of


the retractor to set the lock.


Larger Children


7. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint.


8. Push and pull the child restraint in different


directions to be sure it is secure.


To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and. be ready to work for an ,adult or larger child passenger.


Children who have outgrown child restraints should wear the vehicle’s safety belts. If you have the choice, a child should sit next to a window so the child can wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.


1-47


Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly.


Children who aren’t buckled up can be thrown out in a crash. Children who aren’t buckled up can strike other people who are.


Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.


e.’ What if a child is wearing a lap-shoulder belt,


but the child is so small that the shoulder belt is very close to the child’s face or neck?


A: Move the child toward the center of the vehicle, but be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. If the child is sitting in a rear outside position of a four-door model, see “Rear Safety Belt Comfort Guides” in the Index. If the child is so small that the shoulder belt is still very close to the child’s face or neck, you might want to place the child in the center seat position, the one that has only a lap belt.


Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.


Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.


1-49


Replacing Restraint System Parts After a Crash If you’ve had a crash, do you need new belts? After a very minor collision, nothing may be h&Wsary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new belts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt wasn’t being used at the time of the collision. If an air bag inflates, you’ll need to replace air bag system parts. See the part on the air bag system earlier in this section.


Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. The extender will be just for you, and just for the seat in your vehicle that you choose. Don’t let someone else use it, and use it only for the seat it is made to fit. To wear it. iust attach it to the regular safety belt. Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away. Also look for any opened or broken air bag covers, and have them repaired or replaced. (The air bag system does not need regular maintenance.)


NOTES


NOTES


1-52


Section 2 Features and Controls


Here you can learn about the many standard and optional features on .your Buick, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly -- and what to do if you have a problem. Keys


Leaving young children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate power windows or other controls or even make the vehicle move. Don’t leave the keys in a vehicle with young children.


The ignition keys are for the ignition only.


The door keys are for the doors and all other locks.


The ignition keys don’t have plugs. Your Buick dealer or Roadside Assistance has the code for your keys. Each plug has a code on it that tells your dealer or a qualified locksmith how to make extra door keys. Keep the plugs in a safe place. If you lose your door keys, you’ll be able to have new ones made easily using these plugs. If you need a new ignition key, contact your Buick dealer who can obtain the correct key code, or, in an emergency, call Buick Roadside Assistance at 1-800-252-1 112.


NOTICE:


Your Buick has a number of features that can help prevent theft. But you can have a lot of trouble getting into your vehicle if you ever lock your keys inside. You may even have to damage your vehicle to get in. So be sure you have extra keys.


When a new Buick is delivered, the dealer removes the plugs from the door keys and gives them to the first owner.


2-2


Door Locks


Unlocked doors can be dangerous.


Passengers -- especially children -- can easily


open the doors and fall out. When a door is locked, the.inside handle won’t open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked. Wear safety belts properly, lock your doors, and you will be far better off whenever you drive your vehicle.


There are several ways to lock and unlock your vehicle. From the outside, use your door key Entry transmitter (if your vehicle has this option). On two-door models, the door lock will light up for about 15 seconds if you pull the door handle. The light can help you find where to put your key when it’s dark outside.


or Remote Keyless


to lock the door.


From the inside, push the lever down To unlock, push the lever-ap. Power Door Locks Press the power door lock switch to lock or unlock all doors. On four-door models, the rear doors do not have power door lock switches. The lever on each rear door works only that door’s lock. It won’t lock or unlock all the doors.


2-3


Just close your doors and turn on the ignition. All of the doors will lock when you move your shift lever out of PARK (P) or NEUTRAL (N). All doors will unlock automatically when the ignition is turned off. If someone needs to get out while the vehicle is running, have that person use the manual or power lock. When the door is closed again, it will lock automatically as long as the shift lever is out of PARK (P) or NEUTRAL (N) and the ignition is on. Note that the door must be opened, then closed, or the door will not automatically relock. If you don’t .want the doors to unlock automatically when you turn the ignition off, you can remove the LOCK CONTROL fuse in the instrument panel fuse block. See “Fuses and Circuit Breakers” in the Index. -,wing Your Vehicle If you are leaving the vehicle, take your keys, open your door and set the locks from inside. Then get out and close the door.


2-4


Remote Keyl. !c Entry (Option) If your Buick has this option, you can lock and unlock your doors or unlock your trunk from up to 30 feet (9 m) away using the key chain transmitter supplied with your vehicle. Your Remote Keyless Entry transmitter operates on a radio frequency subject to Federal Communications Commission (FCC) Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Should interference to this system occur, try this: Check to determine if battery replacement is necessary. See the instructions on battery replacement. Check the distance. You may be too far from your vehicle. This product has a maximum range. Check the location. Other vehicles or objects may be blocking the signal. See your Buick dealer or a qualified technician for service.


Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.


Matching Transmitter(s) To Your Vehicle Each key chain transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once the new transmitter is coded, the lost transmitter will not unlock your vehicle. Each vehicle can have only two transmitters matched to it. Battc Under normal use, the batteries in your key chain transmitter should last about two years. You can tell the batteries are weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the batteries.


ieplacemel


A C


Press UNLOCK once to unlock the driver’s door. Press UNLOCK again within five seconds to unlock all the doors. The interior lamps will come on (see “Illuminated Entry” in the Index for more details). To lock all doors, press DOOR. To unlock the trunk, press the car symbol on the transmitter. The trunk will only unlock if your transaxle is in PARK (P) and your ignition is in LOCK, OFF or ACC.


I


It can be dangerous to drive with the trunk open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk: 0 Make sure all windows are shut. 0 lbrn the fan on your heating or cooling


system to its highest speed with the setting on VENT. That will force outside air into your vehicle. See “Comfort Controls” in the Index. If you have air outlets on or under the instrument panel, open them all the way.


See “Engine Exhaust” in the Index.


To replace your batteries: 1. Insert a flat object like a dime into the slot on the back of the transmitter. Gently pry apart the front and back.


2. Gently pry the batteries out of the transmitter. 3. Put the new batteries into the transmitter as shown


on the transmitter. Use [email protected] batteries, type DL20 16, or equivalent.


4. Put the two halves back together. Make sure the halves are together tightly so water won’t get in.


5. Test the transmitter.


Trunk Lock


To unlock the trunk from the outside, insert the door key and turn it. You can also press the car symbol on your Remote Keyless Entry transmitter (if your vehicle has this option).


Remote Trunk Release (Option)


Press the button behind the glove box door to unlock the trunk from the inside of your vehicle. Your transaxle shift lever must be in PARK (P). Remember that your trunk can be opened at any time using this lock release.


Theft Vehicle theft is big business, especially in some cities. Although your Buick has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help. Key in the Ignition If you leave your vehicle with the keys inside, it’s an easy target for joy riders or professional thieves -- so don’t do it. When you park your Buick and open the driver’s door, you’ll hear a chime reminding you to remove your key from the ignition and take it with you. Always do this. Your steering wheel will be locked, and so will your ignition and transaxle. And remember to lock the doors. Parking at Night Park in a lighted spot, close all windows and lock your vehicle. Remember to keep your valuables out of sight. Put them in a storage area, or take them with you.


2-7


Parking Lots If you park in a lot where someone will be watching your vehicle, it’s best to lock it up and take your keys. But what if you have to leave your ignition key? What if you have to leave something valuable in your vehicle? 0 Put your valuables in a storage area, like your trunk


or glove box. Lock the glove box. Lock all the doors except the driver’s. Then take the door key with you.


Your vehicle is equipped with the PASS-Key I1 (Personalized Automotive Security System) theft-deterrent system. PASS-Key I1 is a passive theft-deterrent system. It works when you insert or remove the key from the ignition.


PASS-Key I1 uses a resistor pellet in the ignition key that matches a decoder in your vehicle. When the PASS-Key I1 system senses that someone is using the wrong key, it shuts down the vehicle’s starter and fuel systems. For about three minutes, the starter won’t work and fuel won’t go to the engine. If someone tries to start your vehicle again or uses another key during this time, the vehicle will not start. This discourages someone from randomly trying different keys with different resistor pellets in an attempt to make a match. The ignition key must be clean and dry before it’s inserted in the ignition or the engine may not start. If the engine does not start and the SECURITY light is on, the key may be dirty or wet. Turn the ignition off. Clean and dry the key. Wait about three minutes and try again. The SECURITY light may remain on during this time. If the starter still won’t work, and the key appears to be clean and dry, wait about three minutes and try another ignition key. At this time, you may also want to check the fuse (see “Fuses and Circuit Breakers” in the Index). If the starter won’t work with the other key, your vehicle needs service. If your vehicle does start, the first ignition key may be faulty. See your Buick dealer or a locksmith who can service the PASS-Key 11.


2-8


If you accidentally use a key that has a damaged or missing resistor pellet, the starter won’t work, and the SECURITY light will flash. But you don’t have to wait three minutes before trying another ignition key. See your Buick dealer or a locksmith who can service the PASS-Key I1 to have a new key made. If you’re ever driving and the SECURITY light comes on, you will be able to restart your engine if you turn it off. Your PASS-Key I1 system, howevcr, is not working properly and must be serviced by your Buick dealer. Your vehicle is not protected by the PASS-Key I1 system. If you lose or damage a PASS-Key I1 ignition key, see your Buick dealer or a locksmith who can service PASS-Key I1 to have a new key made.


New Vehicle CCBreak-InSS


NOTICE:


Your modern Buick doesn’t need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines:


0 Don’t drive at any one speed -- fast or slow -- for the first 500 miles (804 km). Don’t make full-throttle starts. 0 Avoid making hard stops for the first


200 miles (322 km) or so. During this time your new brake linings aren’t yet broken in. Hard stops with new linings can mean premature wear and earlier replacement. Follow this breaking-in guideline every time you get new brake linings.


0 Don’t tow a trailer during break-in.


See “Towing a Trailer’’ in the Index for more information.


C


With the ignition key in the ignition switch, you can turn the switch to five positions. ACC (A): This position lets you use the radio and windshield wipers when the engine is off. To use ACC (Accessory), push in the key and turn it toward you. Your steering wheel will stay locked. LOCK (B): Before you put the key into the ignition switch, the switch is in LOCK. It’s also the only position in which you can remove your key. This position locks


your ignition, steering wheel and transaxle. It’s a theft-deterrent feature. OFF (C): This position lets you turn off the engine but still turn the steering wheel. It doesn’t lock the steering wheel like LOCK. Use OFF if you must have your vehicle pushed or towed. RUN (D): This position is where the key returns after you start your vehicle. With the engine off, you can use RUN to display some of your warning and indicator lights. START (E): This position starts your engine. A warning chime will sound if you open the driver’s door when the ignition is in OFF, LOCK or ACC ,and the key is in the ignition.


- .. - _ - -


NOTICE:


If your key seems stuck in LOCK and you can’t turn it, be sure it is all the way in. If it is, then turn the steering wheel left and right while you turn the key hard. But turn the key only with your hand. Using a tool to force it could break the key or the ignition switch. If none of this works, then your vehicle needs service.


Starting Your Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position -- that’s a safety feature. To restart when you’re already moving, use NEUTRAL (N) only.


I NOTICE:


Don’t try to shift to PARK (P) if your Buick is moving. If you do, you could damage the transaxle. Shift to PARK (P) only when your vehicle is stopped.


Starting Your 3.1 Liter Engine 1. Without pushing the accelerator pedal, turn your


ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm.


NOTICE:


Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor.


2. If your engine won’t start (or starts but then stops), it


could be flooded with too much gasoline. Try pushing your accelerator pedal all the way to the floor and holding it there as you hold the key in START for up to 15 seconds. This clears the extra gasoline from the engine.


NOTICE:


Your engine is designed to work with the electronics in your vehicle. If you add electrical parts or accessories, you could change the way the engine operates. Before adding electrical equipment, check with your dealer. If you don’t, your engine might not perform properly.


(Continued)


2-11


NOTICE: (Continued)


If you ever have to have your vehicle towed, see the part of this manual that tells how to do it without damaging your vehicle. See “Towing Your Vehicle” in the Index.


lr


1. Without pushing the accelerator pedal, turn your


ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm.


NOTICE:


Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor.


2. If it doesn’t start right away, hold your key in


START for about three to five seconds at a time until


2-12


your engine starts. Wait about 15 seconds between each try to help avoid draining your battery.


3. If your engine still won’t start (or starts but then stops),


it could be flooded with too much gasoline. Try pushing your accelerator pedal all the way to the floor and holding it there as you hold the key in START for about three seconds. If the vehicle starts briefly but then stops again, do the same thing, but this time keep the pedal down for five or six seconds. This clears the extra gasoline from the engine. After waiting about 15 seconds, repeat the normal starting procedure.


NOTICE:


Your engine is designed to work with the electronics in your vehicle. If you add electrical parts or accessories, you could change the way the engine operates. Before adding electrical equipment, check with your dealer. If you don’t, your engine might not perform properly. If you ever have to have your vehicle towed, see the part of this manual that tells how to do it without damaging your vehicle. See “Towing Your Vehicle” in the Index.


Engine Coolant Heater (Option)


In very cold weather, 0°F (-1 8°C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up.


Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.


To Use the Coolant Heater I . Turn off the engine. 2. Open the hood and unwrap the electrical cord. 3. Plug it into a normal, grounded 110-volt AC outlet.


Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a fire. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord won’t reach, use a heavy-duty three-prong extension cord rated for at least 15 amps.


4. After you’ve used the coolant heater, be sure to store the cord as it was before to keep it away from moving engine parts. If you don’t, it could be damaged.


How long should you keep the coolant heater plugged in? The answer depends on the outside temperature, the kind of oil you have, and some other things. Instead of trying to list everything here, we ask that you contact your Buick dealer in the area where you’ll be parking your vehicle. The dealer can give you the best advice for that particular area.


Automatic Transaxle Operation


Your automatic transaxle may have a shift lever on the steering column or on the console between the seats. Maximum engine speed is limited on automatic transaxle vehicles when you’re in PARK (P) or NEUTRAL (N) to protect driveline components from improper operation. There are several different positions for your shift lever. PARK (P): This locks your front wheels. It’s the best position to use when you start your engine because your vehicle can’t move easily.


It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Don’t leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle won’t move, even when you’re on fairly level ground, always set your parking brake and move the shift lever to PARK (P). See “Shifting Into PARK (P)” in the Index. If you’re pulling a trailer, see “Towing a Trailer” in the Index.


Make sure the shift lever is fully into PARK (P) range before starting the engine. Your Buick has a brake-transaxle shift interlock. You must fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN. If you cannot shift out of PARK (P), ease pressure on the shift lever by pushing it all the way into PARK (P) while keeping the brake pedal pushed down. Release the shift lever button if you have a console shift. Then move the shift lever out of PARK (P), being sure to press the shift lever button if you have a console shift. See “Shifting Out of PARK (P)” in the Index. REVERSE (R): Use this gear to back up.


NOTICE:


Shifting to REVERSE (R) while your vehicle is moving forward could damage your transaxle. Shift to REVERSE (R) only after your vehicle is stopped.


To rock your vehicle back and forth to get out of snow, ice or sand without damaging your transaxle, see “Stuck: In Sand, Mud, Ice or Snow” in the Index.


NEUTRAL (N): In this position, your engine doesn’t connect with the wheels. To restart when you’re already moving, use NEUTRAL (N) only. Also, use NEUTRAL (N) when your vehicle is being towed.


Shifting out of PARK (P) or NEUTRAL (N) while your engine is “racing” (running at high speed) is dangerous. Unless your foot is firmly on the brake pedal, your vehicle could move very rapidly. You could lose control and hit people or objects. Don’t shift out of PARK (P) or NEUTRAL (N) while your engine is racing.


r Damage to your transaxle caused by shifting out


of PARK (P) or NEUTRAL (N) with the engine racing isn’t covered by your warranty.


I NOTICE:


AUTOMATIC OVERDRIVE (a): This position is for normal driving. It is the overdrive position. If you need more power for passing, and you’re: - Going less than 35 mph (56 kmh), push your


accelerator pedal about halfway down.


- Going about 35 mph (56 kmh) or more, push the


accelerator pedal all the way down.


You’ll shift down to the next gear and have more power.


THIRD (3): This position is also used for normal driving, but it offers more power and lower fuel economy than AUTOMATIC OVERDRIVE (@). Here are some times you might choose THIRD (3) instead of AUTOMATIC OVERDRIVE (@): - When driving on hilly, winding roads. - When towing a trailer, so there is less shifting


between gears.


- When going down a steep hill. - When driving in non-highway scenarios (i.e. city


streets, etc.).


NOTICE:


If your vehicle seems to start up rather slowly, or if it seems not to shift gears as you go faster, something may be wrong with a transaxle system sensor. If you drive very far that way, your vehicle can be damaged. So, if this happens, have your vehicle serviced right away. Until then, you can use SECOND (2) when you are driving less than 35 mph (56 kmh) and AUTOMATIC OVERDRIVE (0) for higher speeds.


SECOND (2): This position gives you more power but lower fuel economy. You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on.


FIRST (1): This position gives you even more power (but lower fuel economy) than SECOND (2). You can use it on very steep hills, or in deep snow or mud. If the shift lever is put in FIRST ( 1 ), the transaxle won’t shift into first gear until the vehicle is going slowly enough.


NOTICE:


NOTICE:


Don’t drive in SECOND (2) for more than 25 miles (41 km), or at speeds over 55 mph (88 km/h), or you can damage your transaxle. Use AUTOMATIC OVERDRIVE (@) or THIRD (3) as much as possible. Don’t shift into SECOND (2) unless you are going slower than 65 mph (105 km/h), or you can damage your engine.


If your front wheels can’t rotate, don’t try to drive. This might happen if you were stuck in very deep sand or mud or were up against a solid object. You could damage your transaxle. Also, if you stop when going uphill, don’t hold your vehicle there with only the accelerator pedal. This could overheat and damage the transaxle. Use your brakes or shift into PARK (P) to hold your vehicle in position on a hill.


2-17


Parking Brake


To set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot.


NOTICE:


Driving with the parking brake on can cause your rear brakes to overheat. You may have to replace them, and you could also damage other parts of your vehicle.


If you are towing a trailer and are parking on any hill, see “Towing a Trailer” in the Index. That section shows what to do first to keep the trailer from moving.


To release the parking brake, hold the regular brake pedal down with your right foot and push the parking brake pedal with your left foot. When you lift your left foot, the parking brake pedal will follow it to the released position.


2-18


Shifting Into PARK (P)


Column Shift 1 . Hold the brake pedal down with your right foot and


set the parking brake with your left foot.


It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle won’t move, even when you’re on fairly level ground, use the steps that follow. If you’re pulling a trailer, see “Towing a Trailer’’ in the Index.


I-


2. Move the shift lever into the PARK (P) position


like this: 0 Pull the lever toward you.


lift


1 . Hold the brake pedal down with your right foot and


set the parking brake with your left foot.


2. Move the shift lever into the PARK (P) position


like this:


3. 4.


0 Move the lever up as far as it will go. Move the ignition key to LOCK. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand, your vehicle is in PARK (P).


Hold in the button on the lever, and push the lever all the way toward the front of your vehicle. 3. Move the ignition key to LOCK. 4. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand, your vehicle is in PARK (P).


Torque Lock If you are parking on a hill and you don’t shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may find it difficult to pull the shift lever out of PARK (P). This is called “torque lock.” To prevent torque lock, set the parking brake and then shift into PARK (P) properly before you leave the driver’s seat. To find out how, see “Shifting Into PARK (P)” in the Index. When you are ready to drive, move the shift lever out of PARK (P) bqfore you release the parking brake. If torque lock does occur, you may need to have another vehicle push yours a little uphill to take some of the pressure from the transaxle, so you can pull .the shift lever out of PARK (P).


Leaving Your Vehicle With the Engine Running


It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake firmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch fire. You or others could be injured. Don’t leave your vehicle with the engine running unless you have to.


If you have to leave your vehicle with the engine running, be sure your vehicle is in PARK (P) and your parking brake is firmly set before you leave it. After you’ve moved the shift lever into the PARK (P) position, hold the regular brake pedal down. Then, see if you can move the shift lever away from PARK (P) without first pulling it toward you (or, if you have the console shift lever, without first pushing the button). If you can, it means that the shift lever wasn’t fully locked into PARK (P).


Shifting Out of PARK (P) Your Buick has a brake-transaxle shift interlock. You must fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN. See “Automatic Transaxle Operation” in the Index. If you cannot shift out of PARK (P), ease pressure on the shift lever by pushing it all the way into PARK (P) while keeping the brake pedal pushed down. Release the shift lever button if you have a console shift. Then move the shift lever out of PARK (P), being sure to press the shift lever button if you have a console shift. If you ever hold the brake pedal down but still can’t shift out of PARK (P), try this: 1. 2 . 3. 4. 5.


Turn the key to OFF. Apply and hold the brake until the end of Step 4. Shift to NEUTRAL (N). Start the engine and shift to the drive gear you want. Have the vehicle fixed as soon as you can.


2-22


Parking Over Things That Burn


Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don’t park over papers, leaves, dry grass or other things that can burn.


Engine Exhaust


Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell, It can cause unconsciousness and death. You might have exhaust coming in if:


Your exhaust system sounds strange or different. Your vehicle gets rusty underneath.


0 Your vehicle was damaged in a collision.


Your vehicle was damaged when driving over high points on the road or over road debris.


0 Repairs weren’t done correctly.


Your vehicle or exhaust system had been modified improperly.


If you ever suspect exhaust is coming into your vehicle: 0 Drive it only with all the windows down to


blow out any CO; and


0 Have your vehicle Tied immediately.


Running Your Engine While You’re Parked It’s better not to park with the engine running. But if you ever have to, here are some things to know.


A CAUTION:


tern control


Idling the engine with the air off could allow dangerous exhaust into your vehicle (see the earlier Caution under “Engine Exhaust”). Also, idling in a closed-in place can let deadly carbon monoxide (CO) into your vehicle even if this can happen is a garage. Exhaust -- with the fan switch is at the highest setting. One place CO -- can come in easily. NEVER park in a garage with the engine running. Another closed-in place can be a blizzard.

Loading...
x
