’04MY CELICA U (L/O 0308)

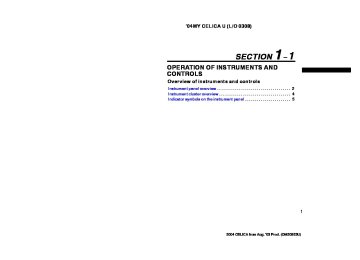

SECTION 1− 1


OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview Instrument cluster overview Indicator symbols on the instrument panel


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Instrument panel overview


1. Side vents 2. Instrument cluster 3. Center vents 4. Electric moon roof switch and/or


interior light


5. Glove box 6. Manual transmission gear shift lever or


automatic transmission selector lever


7. Power window switches 8. Power door lock switch 9. Auxiliary box 10. Parking brake lever 11. Transmission shift switches 12. Hood lock release lever 13. Power rear view mirror control switches


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


1. Instrument panel light control knob 2. Headlight, turn signal and front fog


light switches


3. Wiper and washer switches 4. Emergency flasher switch 5. Clock 6. Auxiliary box 7. Car audio 8. Air conditioning controls 9. Cigarette lighter 10. Ashtray 11. Rear window defogger switch 12. Ignition switch 13. Cruise control switch 14. Tilt steering lock release lever 15. Headlight beam level control dial 16. Window lock switch


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Instrument cluster overview


1. Tachometer 2. Service reminder indicators and


indicator lights


3. Speedometer


4. Fuel gauge 5. Engine coolant temperature gauge 6. Odometer and two trip meters


7. Trip meter reset knob 8. Gear position indicators


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Indicator symbols on the instrument panel


or


Brake system warning light∗1


or


Anti−lock brake system warning light∗1


Driver’s seat belt reminder light∗1


Open door warning light∗1


Front passenger’s seat belt reminder light∗1


SRS warning light∗1


Discharge warning light∗1


Automatic transmission fluid temperature warning light∗1


Low engine oil pressure warning light∗1


Headlight low beam indicator light


Malfunction indicator lamp∗1


Low fuel level warning light∗1


Tail light indicator light


Headlight high beam indicator light


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Turn signal indicator lights


Automatic transmission indicator lights


M mode indicator light∗2


Overdrive−off indicator light


Cruise control indicator light∗3


∗1: For details, see “Service reminder indicators and warning


buzzers” in Section 1−6.


∗2: If this light flashes, see “Automatic transmission” in Section


1−7.


∗3: If this light flashes, see “Cruise control” in Section 1−7.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


SECTION 1− 10


OPERATION OF INSTRUMENTS AND CONTROLS Other equipment Clock Outside temperature display Cigarette lighter and ashtray Glove box Auxiliary boxes Cup holders Tie−down hooks Luggage cover Grocery bag hooks Floor mat


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


126
126
127
128
128
129
129
130
130
130


125


2004 CELICA from Aug. ’03 Prod. (OM20823U)


Clock


Type A


Type B


126


’04MY CELICA U (L/O 0308)


Outside temperature display


the


instrument panel


The digital clock indicates the time. The key must be in the “ACC” or “ON” position. To reset the hour: Push the “H” button. To reset the minutes: Push the “M” button. If the electrical power source has been disconnected from the clock, the time dis- play will automatically be set to 1:00 (one o’clock). When lights are turned on, the brightness of the time indi- cator is reduced. Type A only— If quick adjustment to a full hour is de- sired, push the “:00” button. For example, if the “:00” button is de- pressed when is between 1:01—1:29, the time will change to 1:00. If the time will change to 2:00. Type B only— When in the “ON” position, push the “MODE” button to change the display from clock to outside temperature display. temperature dis- play” in this Section.)


is between 1:30—1:59,


“Outside


the key


(See


time


time


the


the


is


indi-


The outside temperature display cates the outside air temperature. The key must be in the “ON” position. To change the display from clock to out- side temperature display, push and release “MODE”. The display changes from clock to outside temperature display (_C), then back to clock each time you push. (See “Clock” in this Section.) Outside temperature display (_C)—Shows the outside air temperature in Celsius. The displayed −30_C to 50_C. When you return the key to the “ACC” position, to clock mode.


the display


temperature


returns


ranges


from


2004 CELICA from Aug. ’03 Prod. (OM20823U)


If there is a problem with the connection to the outside air temperature sensor, “−−” will appear on the display. Contact your Toyota dealer. When lights are turned on, the brightness of the tempera- ture indicator is reduced.


instrument panel


the


’04MY CELICA U (L/O 0308)


Cigarette lighter and ashtray


CIGARETTE LIGHTER To use the cigarette lighter, press it in. After it finishes heating up, it automati- cally pops out ready for use. If the engine is not running, the key must be in the “ACC” position. Do not hold the cigarette lighter pressed in. Use a Toyota genuine cigarette lighter or equivalent for replacement.


ASHTRAY To use the ashtray, pull out the lid. finished with your cigarette, thor- When oughly extinguish it in the ashtray to pre- vent other cigarette butts from catching fire. After using the ashtray, close the lid completely. To remove the ashtray, pull the lid and pull it out.


CAUTION


To reduce the chance of in case of an accident or sudden stop while driving, always close the lid completely after use.


injury


127


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Glove box


Auxiliary boxes


To use the glove box, do this. To open: Pull the lever. With the instrument panel lights on, the glove box light will come on when the glove box is open. To lock: Insert the master key and turn it clockwise.


CAUTION


To reduce the chance of in case of an accident or a sudden stop, always keep the glove box door closed while driving.


injury


128


Type A (instrument panel)


Type B (rear console)


To use the boxes, open them as shown in the illustrations.


CAUTION


To reduce the chance of in case of an accident or a sudden stop, always keep the auxiliary box closed while driving.


injury


NOTICE


Type A—During hot weather, the inte- rior of the vehicle becomes very hot. Do not leave anything flammable or deformable such as a lighter, glasses, etc. inside.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Cup holders


Tie−down hooks


The cup holders are designed for hold- ing cups or drink−cans securely.


CAUTION


Do not place anything else other than cups or drink−cans in the cup holder, as such items may be thrown about in the compartment and possibly in- jure people in the vehicle during sud- den braking or in an accident.


Front


Rear


To secure your luggage, use the tie− down hooks as shown above. See “—Stowage precautions” in Section 2
for precautions when loading luggage.


CAUTION


To avoid personal injury, keep the tie− down hooks stored under the carpet when not in use.


129


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Luggage cover


Grocery bag hooks


Floor mat


When you open the back door, the lug- gage cover tilt ups for easy access to the luggage compartment. For additional luggage space, unhook the cords and lift the cover out of the retain- ers. Make sure the luggage cover stowed when reinstalling it.


is surely


These hooks are designed things like grocery bags.


to hang


NOTICE


To prevent damage to the hook, avoid hanging heavy loads on it.


Use a floor mat of the correct size. If the floor carpet and floor mat have 2
holes, then they are designed for use with locking clips. Fix the floor mat with lock- ing clips into the holes in the floor carpet.


130


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


CAUTION


Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and the movement of the pedals during driv- ing, it may cause an accident.


interferes with


131


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


132


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


SECTION 1− 2


OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys Side doors Power windows Back door Hood Fuel tank cap Electric moon roof


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


14
16
17
18
20


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Keys


Side doors—


Your vehicle is supplied with two kinds of keys. 1. Master keys—


These keys work in every lock. Since the side doors and back door can be locked without a key, you should always carry a spare master key in case you accidentally lock your keys inside the vehicle.


2. Sub key—


KEY NUMBER PLATE Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle. If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.


This key will not work in the back door and glove box. To protect items locked in the glove box or luggage compartment when us- ing valet parking, leave the sub key with the attendant.


LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it. To lock: Turn the key forward. To unlock: Turn the key backward. Vehicles with a power door lock system— Both side doors and back door lock and unlock simultaneously with either side door. In the driver’s door lock, turning the key once will unlock the driver’s door and twice in succession will unlock both side doors and back door simultaneously.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Vehicles with a power door lock system— When the interior light switch is in the “DOOR” position, and both side doors and back door are unlocked using either the key or wireless remote control transmitter, the interior light will come on and remain on for about 15 seconds before fading out. (For further information, see “Interior light” in Section 1−5.)


LOCKING AND UNLOCKING WITH INSIDE LOCK KNOB Move the lock knob. To lock: Push the knob forward. To unlock: Pull the knob backward. Closing the side door with the lock knob in the lock position will also lock the side door. Be careful not to lock your keys in the vehicle. Vehicles with a power door lock system— Doors cannot be locked when either side door is open and the key is in the igni- tion.


lock: Push the switch down on the


LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch. To front side. To unlock: Push the switch down on the rear side. Both side doors and back door lock or unlock simultaneously.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


—Wireless remote control


CAUTION


Before driving, be sure that the side doors are closed and locked, espe- cially when small children are in the vehicle. Along with the proper use of seat belts, the side doors helps prevent the driver and passen- gers from being thrown out from the vehicle during an accident. It also helps prevent the side doors from be- ing opened unintentionally.


locking


Locking operation


The wireless remote control system is designed to lock or unlock both side doors and back door, or activate the “PANIC” mode from a distance within approximately 1 m (3 ft.) of the vehicle. LOCKING AND UNLOCKING THE SIDE DOORS AND BACK DOOR To lock and unlock both side doors and back door, push the switches of the transmitter slowly and securely. To lock: Push the “LOCK” switch. Both side doors and back door are locked si- multaneously. At this time, parking lights, side marker lights and tail lights flash. Check to see that both side doors and back door are securely locked. If either side doors or back door is not securely closed, or if the key is in the ignition switch, locking cannot be per- formed by the “LOCK” switch. “UNLOCK” switch To unlock: Push once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks both side doors and back door simultaneously. At this time, parking lights, side marker flash twice.


lights and


lights


the


tail


10


Unlocking operation


2004 CELICA from Aug. ’03 Prod. (OM20823U)


When the interior light switch is in the “DOOR” position, and both side doors and back door are unlocked simultaneously us- ing the wireless remote control transmitter, the interior light will come on and remain on for about 15 seconds before fading out, even if the door is not opened. (For further information, see “Interior light” in Section 1−5.) You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, both side doors and back door will be automatically locked again. If the “LOCK” or “UNLOCK” switch is kept pressed in, the locking or unlocking opera- tion is not repeated. Release the switch and then push again.


’04MY CELICA U (L/O 0308)


REMOTE


CONTROL


The “PANIC” mode does not work when the ignition key is in the “ACC” or “ON” position. WIRELESS TRANSMITTER The wireless remote control transmitter is an electronic component. Observe the fol- lowing instructions in order not to cause damage to the transmitter. D Do not leave the transmitter on places the temperature becomes high


where such as on the dashboard.


D Do not disassemble it. D Avoid knocking


it hard against other


objects or dropping it.


for


transmitters


D Avoid putting it in water. You can use up to 4 wireless remote con- the same vehicle. trol Contact your Toyota dealer for detailed information. If the wireless remote control transmitter does not actuate the doors or alarm, or operate from a normal distance: D Check for closeness to a radio trans- mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.


flashes


“PANIC” SWITCH Pushing the “PANIC” switch blows the horn intermittently and the headlights and tail lights. The “PANIC” switch is used to deter ve- hicle theft when you witness anyone at- tempting into or damage your vehicle. The alarm will last for one minute. To stop alarm midway, do the following: D Push the “PANIC” switch once again. D Unlock either side door or back door with the key or wireless remote control transmitter.


to break


D Turn the ignition key from the “LOCK”


to “ACC” or “ON” position.


11


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


interference


NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interfer- ence by one or more of the following measures:


to radio or


D The battery may have been consumed. Check the battery in the transmitter. To replace the battery, see “REPLACING TRANSMITTER BATTERY”.


If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an acci- dent. If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an acci- dent. (See “If you lose your wireless re- mote control transmitter” in Section 4.) For vehicles sold in U.S.A.


This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause unde- sired operation.


12


D Reorient or relocate the receiving an-


tenna.


D Increase the separation between the


equipment and receiver.


D Connect the equipment into an outlet to


on a circuit different which the receiver is connected.


from


that


D Consult the dealer or an experienced


radio/TV technician for help.


FCC WARNING: Changes or modifications not ex- pressly approved by the party respon- sible for compliance could void the user’s authority to operate the equip- ment.


For vehicles sold in Canada


Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference that may cause undesired operation of the device.


interference,


including


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


REPLACING TRANSMITTER BATTERY For replacement, use a CR2016 lithium battery or equivalent.


CAUTION


Special care should be taken to pre- vent small children from swallowing the removed transmitter battery or components.


NOTICE


z During


the


replacing


transmitter battery, do not push the “LOCK” and switches many times.


“UNLOCK”


z When replacing the transmitter bat- tery, be careful not to lose the com- ponents.


z Replace only with


the same or equivalent type recommended by a Toyota dealer.


z Dispose of used batteries according


to the local laws.


Replace the transmitter battery by follow- ing these procedures:


1. Using a coin or equivalent, open the


transmitter case.


2. Remove the discharged transmitter bat- tery by ballpoint pen. Insert the tip of ballpoint pen at the guide groove and lift as shown in the above illustration.


NOTICE


Do not bend the terminals.


13


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Power windows


z Be careful not to bend the electrode of the transmitter battery insertion and that dust or oils do not adhere to the transmitter case.


z Close the transmitter case securely.


After replacing the battery, check that the transmitter operates properly. If the trans- mitter still does not operate properly, con- tact your Toyota dealer.


3. Put a new transmitter battery with posi-


tive (+) side up.


Close the transmitter case securely.


NOTICE


z Make sure


the positive side and negative side of the transmitter bat- tery are faced correctly.


z Do not replace the battery with wet hands. Water may cause unexpected rust.


z Do not touch or move any compo- nents inside of the transmitter, or it may interfere with proper opera- tion.


14


The windows can be operated with the switch on the center console. The power windows work when the ignition switch is in the “ON” position. Key off operation: If both side doors are closed, they work for 43 seconds even after the ignition switch is turned off. They stop working when either side door is opened. OPERATING THE DRIVER’S WINDOW Use the switch on the driver’s side of the center console. Normal operation: The window moves as long as you hold the switch. To open: Lightly push down the switch. To close: Pull up the switch.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Automatic operation (to open only): Push the switch completely down and then release it. The window will fully open. To stop the window partway, lightly pull the switch up and then release it.


THE


PASSENGER’S


OPERATING WINDOW Use the switch on the passenger’s side of the center console. The window moves as long as you hold the switch. To open: Push down the switch. To close: Pull up the switch.


If you push in the window lock switch on the instrument panel, the passenger’s win- dow cannot be operated.


15


2004 CELICA from Aug. ’03 Prod. (OM20823U)


CAUTION


To avoid serious personal injury, you must do the following. D Before you close the power win- dows, always make sure there is nobody around the power windows. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely If someone’s neck, head or hands get caught it could result injury. When anyone closes the power win- dows, make sure he or she oper- ates the windows safely.


in a closing window,


in a serious


the vehicle.


inside


D When small children are in the ve- hicle, never let them use the power window switches without supervi- sion. Use the window lock switch to prevent from making unex- pected use of the switches.


them


D Be sure to remove the ignition key


when you leave your vehicle.


16


’04MY CELICA U (L/O 0308)


Back door


D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the power window switches and get in a window. Unat- tended person (particularly a small child) can be involved in a serious accident.


trapped


Insert the master key into the keyhole and turn it. To lock: Turn the key clockwise. To unlock: Turn the key counterclockwise. To open the back door, pull the lock re- lease lever. Operating the power door lock switch or wireless remote control transmitter simul- taneously locks or unlocks the back door. (See “Side doors” in this Section.) When closing the back door, make sure it is securely closed. See “—Stowage precautions” in Section 2
for precautions when loading luggage.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Hood


When closing the back door, the inside handle can be used to make the reach easier. To close the back door, lower it and press down on it. After closing the back door, try pulling it up to make sure it is secure- ly closed.


CAUTION


Keep the back door closed while driv- ing. This not only keeps the luggage from being thrown out but also pre- vents exhaust gases from entering the vehicle.


To open the hood: 1. Pull the hood lock release lever. The


hood will spring up slightly.


CAUTION


Before driving, be sure that the hood is closed and securely locked. Other- wise, the hood may open unexpected- ly while driving and an accident may occur.


2. In front of the vehicle, pull up the the


lever and


lift


auxiliary catch hood.


17


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Fuel tank cap


NOTICE


Be sure to return the support rod to its clip before closing the hood. Clos- ing the hood with the support rod up could cause the hood to bend.


3. Hold the hood open by inserting the


support rod into the slot.


This indicates that the fuel filler door is on the left side of your vehicle.


Before closing the hood, check to see that you have not forgotten any tools, rags, etc. and return its clip—this prevents rattles. Then lower the hood and make sure it locks into place. If necessary, press down gently on the front edge to lock it.


the support rod


to


CAUTION


After inserting the support rod into the slot, make sure the rod supports the hood securely from falling down on to your head or body.


18


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


CAUTION


D Make sure the cap is tightened se- in


curely to prevent fuel spillage the event of an accident.


D Use only a genuine Toyota fuel tank cap for replacement. It has a built− in check valve to reduce fuel tank pressure.


2. To remove the fuel tank cap, turn the cap slowly counterclockwise, then pause slightly before removing it. After removing the cap, hang the tether as shown in the illustration.


the cap clockwise


It is not unusual to hear a slight swoosh when the cap is opened. When installing, turn till you hear a click. If the cap is not tightened securely, the malfunction lamp comes on. Make sure the cap is tightened securely. The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible.


indicator


19


2004 CELICA from Aug. ’03 Prod. (OM20823U)


1. To open the fuel filler door, pull the


lever up. When refueling, turn off the engine.


CAUTION


D Do not smoke, cause sparks or al- flames when refueling.


low open The fumes are flammable.


D When opening the cap, do not re- move the cap quickly. In hot weath- er, fuel under pressure could cause injury by spraying out of the filler neck is suddenly re- moved.


the cap


if


’04MY CELICA U (L/O 0308)


Electric moon roof


Tilting operation


Sliding operation


20


the


the moon roof, use


To operate switch beside the interior light. The moon roof works when the ignition switch is in the “ON” position. The sun shade can be opened or closed by hand. Tilting operation— To tilt up: Push the switch briefly on the “OPEN” side. The roof will tilt up com- pletely. To stop the roof partway, push the switch either the “OPEN” or “CLOSE” side briefly. The sun shade will open lightly with the moon roof. To open the sun shade com- pletely, pull it back by hand. To lower: Push the switch briefly on the “CLOSE” side. The roof will lower com- pletely. Sliding operation— To open (with the roof tilting up): Push the switch on the “OPEN” side briefly. The roof will open completely. To open (with the roof tilting down): Push the switch on the “OPEN” side for more than 2 seconds. The roof will open com- pletely after tilting up. To stop the roof partway, push the switch either the “OPEN” or “CLOSE” side briefly.


function:


The sun shade will be opened together with the roof. To close: Push the switch briefly on the “CLOSE” side. The roof will close com- pletely. Key off operation: If both side doors are closed, it works for 43 seconds even after the ignition switch is turned off. It stops working when either side door is opened. Jam protection If something gets caught between the moon roof and frame during closing operation, the moon roof stops and opens half way. If the moon roof receives a strong impact, this function may work even if nothing is caught. If the battery is disconnected or run down, the moon roof may not operate automatically and the jam protection func- tion will not function correctly after you reconnect, replace or recharge the battery. In any of these cases, you should normal- ize the moon roof. To normalize moon switch up briefly after reaches and the motor is blocked.


the the roof the completely closed position


the moon roof, close to hold the moon


roof, and continue


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Make sure that the moon roof opens and closes automatically. If the moon roof can- not be operated properly, have it checked by your Toyota dealer. There are cases where malfunctions may activate the jam protection function, which will prevent the roof from closing com- pletely. In this case, pushing and holding the switch on the “CLOSE” side will close the roof completely.


CAUTION


To avoid serious personal injury, you must do the following. D While the vehicle is moving, always keep the heads, hands and other parts of the bodies of all occupants away from the roof opening. Other- wise, they could be seriously in- jured if the vehicle stops suddenly or if the vehicle is involved in an accident.


D Before you close the moon roof, always make sure there is nobody around the moon roof. You must also make sure nobody places his or her head, hands and other parts of the body in the roof opening. If someone’s neck, head or hands get caught in the closing roof, it could result injury. When anyone closes the moon roof, first make sure it is safe to do so.


in a serious


D Be sure to remove the ignition key


when you leave your vehicle.


D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the moon roof switches and get trapped in the roof opening. Unat- tended person (particularly a small child) can be involved in a serious accident.


D Never sit on


top of


the vehicle


around the roof opening.


D Never try jamming any part of your body to activate the jam protection function intentionally. jam protection


function may not work if something gets caught just before the moon roof is fully closed.


D The


NOTICE


There is the possibility that water or rain will get into the vehicle if you operate the moon roof after a rainfall, snowfall or car wash. Wipe the moon roof dry with a cloth before operating it.


21


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


22


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


SECTION 1− 3


OPERATION OF INSTRUMENTS AND CONTROLS Occupant restraint systems Seats Front seats Fold−down rear seat Seat belts SRS driver airbag and front passenger airbag SRS side airbags Child restraint


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


24
24
28
29
36
43
48


23


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Seats While the vehicle is being driven, all ve- hicle occupants should have the seatback upright, sit well back in the seat and prop- erly wear the seat belts provided.


CAUTION


D Do not drive the vehicle unless the occupants are properly seated. Do not allow any passengers to sit on top of a folded−down seatback, or in the luggage compartment or car- go area. Persons not properly seated and/or not properly re- strained by seat belts can be se- verely injured in the event of emer- gency braking or a collision.


D During driving, do not allow any passengers to stand up or move around between seats. Otherwise, severe the event of emergency braking or a collision.


injuries can occur


in


Front seats— —Front seat precautions Driver seat


CAUTION


The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag. The National Highway Traffic Safety Administration (“NHTSA”) advises: Since the risk zone for driver airbag is the first 50—75 mm (2—3 in.) of inflation, placing yourself 250 mm (10
in.) from your driver airbag provides you with a clear margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 250
mm in.) away now, you can change your driving position in sever- al ways: D Move your seat to the rear as far as you can while still reaching the pedals comfortably.


(10


24


D Slightly recline


the back of


the seat. Although vehicle designs vary, many drivers can achieve the 250
mm (10 in.) distance, even with the driver seat all the way forward, sim- ply by reclining the back of the seat somewhat. If reclining the back of your seat makes it hard to see the road, raise yourself by using a firm, non−slippery cushion, or raise the seat if your vehicle has that feature.


D If your steering wheel is adjustable, tilt it downward. This points the air- bag toward your chest instead of your head and neck.


The seat should be adjusted as rec- ommended by NHTSA above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Front passenger seat


Front seats (with SRS side airbags)


CAUTION


CAUTION


The SRS front passenger airbag also deploys with considerable force, and can cause death or serious injury es- pecially if the front passenger is very close to the airbag. The front passen- ger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.


The SRS side airbags are installed in the driver and front passenger seats. Observe the following precautions. D Do not lean against the front door when the vehicle is in use, since the side airbag inflates with consid- erable speed and force. Otherwise, you may be killed or seriously in- jured.


D Do not use seat accessories which cover the area where the side air- bags inflate. Such accessories may prevent the side airbags from acti- vating correctly, causing death or serious injury.


D Do not modify or replace the seats or upholstery of the seats equipped with side airbags. Such change may prevent the side airbag system from activating correctly, disable the sys- tem or cause the side airbag sys- tem to inflate accidentally, resulting in death or serious injury.


—Seat adjustment precautions Adjust the driver’s seat so that the foot pedals, steering wheel and instrument panel controls are within easy reach of the driver.


CAUTION


D Do not adjust the seat while the vehicle is moving as the seat may unexpectedly move and cause the driver to lose control of the vehicle. D Be careful that the seat does not


hit a passenger or luggage.


D After adjusting the seat position, re- lease the lever and try sliding the seat forward and backward to make sure it is locked in position.


D After adjusting the seatback, push your body back against the seat to make sure the seat in position.


locked


is


D Do not put objects under the seats. Otherwise, the objects may interfere with the seat−lock mechanism or unexpectedly push up the seat posi- tion adjusting lever and the seat may suddenly move, causing the driver to lose control of the vehicle.


25


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


—Adjusting front seats


D While adjusting the seat, do not put your hands under the seat or near the moving parts. Otherwise, your hands or fingers may be caught and injured.


26


1. SEAT POSITION ADJUSTING LEVER Hold the center of the lever and pull it up. Then slide the seat to the desired position with slight body pressure and release the lever. 2. SEATBACK


ADJUSTING


ANGLE


LEVER


lever up. lean back to the desired angle


Lean forward and pull the Then and release the lever.


CAUTION


the driver and


To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maxi- mum protection in a frontal or rear collision when the front passenger are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen. In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


3. SEAT CUSHION ANGLE ADJUSTING


KNOB


Turn the knob either way.


’04MY CELICA U (L/O 0308)


—Moving passenger’s seat for rear seat entry


CAUTION


D After putting back


try pushing the seat forward and rear- ward to make sure it is secured in place.


the seat,


For easy access to the rear seat, do this. 1. Lift the seatback angle adjusting lever the seat-


the pedal behind


or press back. The seat will slide forward.


2. Move the seat to the front−most posi-


tion.


After passengers are in, lift up the seat- back and return the seat until it locks.


D Never allow anyone to rest their foot on the release pedal while the vehicle is moving.


27


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Fold−down rear seat


1. Make sure the shoulder belt passes through the hanger when folding the rear seat.


This prevents the shoulder belt from being damaged.


CAUTION


The seat belt must be removed from the hanger when the seat belt is in use.


2. Pull the lock release button and fold


down the seatback.


Each seatback may be folded separately. This will enlarge the luggage compartment as far as the front seatbacks. See “—Sto- wage precautions” in Section 2 for precau- tions when loading luggage.


28


CAUTION


When returning the seatback to the upright position, observe the follow- ing precautions in order to prevent personal injury in a collision or sud- den stop: D Make sure the seatback is securely locked by pushing forward and rear- ward on the top of the seatback and that the red mark at the button on the top of the seatback cannot be seen. Failure to do so will pre- vent the seat belt from operating properly.


D Make sure the seat belts are not twisted or caught in the seatback and are arranged in their proper position and are ready to use.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


Do not allow any children to stand up or kneel on either rear or front seats. An unrestrained child could suffer serious in- jury or death during emergency braking or a collision. Also, do not let the child sit on your lap. Holding a child in your arms does not provide sufficient restraint. Pregnant woman. Toyota recommends the use of a seat belt. Ask your doctor for specific lap belt should be worn securely and as low as possible over the hips and not on the waist. Injured person. Toyota recommends the use of a seat belt. Depending on the inju- ry, first check with your doctor for specific recommendations.


recommendations. The


Seat belts— —Seat belt precautions Toyota strongly urges that the driver and passengers in the vehicle be properly re- strained at all times with the seat belts provided. Failure to do so could increase the chance of injury and/or the severity of injury in accidents. The seat belts provided for your vehicle are designed for people of adult size, large enough to properly wear them. Child. Use a child restraint system ap- propriate for the child until the child be- comes large enough to properly wear the vehicle’s seat belts. See “Child restraint” in this Section for details. If a child is too large for a child restraint system, the child should sit in the rear seat and must be restrained using the vehicle’s seat belt. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat. If a child must sit in the front seat, the seat belts should be worn properly. If an accident occurs and the seat belts are not worn properly, the force of the rapid infla- tion of the airbag may cause death or serious injury to the child.


CAUTION


the vehicle


in their seats Persons should ride their seat belts properly wearing whenever is moving. Otherwise, they are much more likely to suffer serious bodily injury or death in the event of sudden braking or a collision. When using the seat belts, observe the following: D Use the belt for only one person at a time. Do not use a single belt for two or more people—even children. D To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maximum protection in a frontal or rear collision when the driver and the front passenger are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen. In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury.


29


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


—Fastening seat belts


Tab


Buckle


tab


the


into


insert


Adjust the seat as needed and sit up straight and well back in the seat. To fasten your belt, pull it out of the re- tractor and the buckle. You will hear a click when the tab locks into the buckle. The seat belt length automatically adjusts to your size and the seat position. The retractor will lock the belt during a sudden stop or on impact. It also may lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend, and you can move around freely.


D Be careful not to damage the belt webbing or hardware. Take care that they do not get caught or pinched in the seat or side doors.


D Inspect the belt system periodically. Check for cuts, fraying, and loose parts. Damaged parts should be re- placed. Do not disassemble or modify the system.


D Keep the belts clean and dry.


If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive clean- ers, or allow them to come into contact with the belt—they may se- (See verely weaken “Cleaning the in Section 5.)


the belts.


interior”


D Replace the belt assembly (includ- ing bolts) if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious.


30


is


then


When a passenger’s shoulder belt is com- pletely extended and retracted even slightly, the belt is locked in that position and cannot be extended. This fea- ture is used to hold the child restraint system securely. (For details, see “Child restraint” in this Section.) To free the belt again, fully retract the belt and then pull the belt out once more. If the seat belt cannot be pulled out of the retractor, firmly pull the belt and release it. You will then be able to smoothly pull the belt out of the retractor.


CAUTION


D After inserting the tab, make sure the tab and buckle are locked and that the belt is not twisted.


D Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


D If the seat belt does not function normally, immediately contact your Toyota dealer. Do not use the seat until the seat belt is fixed, because it cannot protect an adult occupant or your child from injury.


Take up slack


Too high


CAUTION


D Both high−positioned lap belts and loose−fitting belts could cause seri- ous injuries due to sliding under the lap belt during a collision or other unintended event. Keep the lap belt positioned as low on hips as possible.


D Do not place the shoulder belt un-


der your arm.


Keep as low on hips as possible


the


lap and


the position of


Adjust shoulder belts. Position the lap belt as low as possible on your hips—not on your waist, then ad- just it to a snug fit by pulling the shoulder portion upward through the latch plate.


31


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


—Stowing the front passenger’s seat belt


To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it re- tracts.


The seat belt can be stowed tongue holder when it is not in use.


in the


CAUTION


The seat belt must be removed from the tongue holder when the seat belt is in use.


32


from your Toyota dealer


—Seat belt extender If your seat belts cannot be fastened se- curely because they are not long enough, a personalized seat belt extender is avail- able free of charge. Please contact your local Toyota dealer so that the dealer can order the proper re- quired length for the extender. Bring the heaviest coat you expect to wear for prop- er measurement and selection of length. Additional ordering information is available at your Toyota dealer.


CAUTION


the


When using the seat belt extender, following precautions. observe Failure to follow these instructions could reduce the effectiveness of the seat belt restraint system in case of an accident, increasing the chance of personal injury. D Remember that the extender pro- vided for you may not be safe when used on a different vehicle, for another person, or at a different seating position than the one origi- nally intended.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


D Be sure to wear the seat belt with- out the seat belt extender if you can fasten the seat belt without the extender.


If


installing a child


D Do not use the seat belt extender when restraint system on the front or rear passen- ger seat. installing a child re- straint system with the seat belt extender connected to the seat belt, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of collision.


’04MY CELICA U (L/O 0308)


To connect the extender to the seat belt, insert the tab into the seat belt buckle so that the “PRESS” signs on the buckle release buttons of the ex- tender and the seat belt are both facing outward as shown. You will hear a click when the tab locks into the buckle. When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and extend- er itself. When not and store in the vehicle for future use.


in use, remove the extender


CAUTION


D After inserting the tab, make sure the tab and buckle are locked and that the lap and shoulder portions of the belt and the seat belt extend- er are not twisted.


D Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle.


D If the seat belt does not function normally, immediately contact your Toyota dealer. Do not use the seat until the seat belt is fixed, because it cannot protect an adult occupant or your child from injury.


33


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


—Seat belt pretensioners


The driver and front passenger seat belt pretensioners are designed to be activated in response to a severe fron- tal impact. When the sensor detects a severe frontal impact, the front seat belts are quickly drawn back by the retractors so that the belts snugly restrain the occupants. The seat belt pretensioners are activated even with no passenger in the front seat. The seat belt pretensioners and SRS air- bags may not operate together in case of collisions at a certain speeds and angles.


The seat belt pretensioner system con- sists mainly of the following components and their locations are shown in the il- lustration. 1. Front airbag sensors 2. SRS warning light 3. Seat belt pretensioner assemblies 4. Airbag sensor assembly The seat belt pretensioners are controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sen- sor and airbag sensor.


34


When the seat belt pretensioners are acti- vated, an operating noise may be heard and a small amount of non−toxic gas may be released. This does not indicate that a fire is occurring. This gas is normally harmless. Once been activated, remain locked.


the seat belt pretensioners have the seat belt retractors


CAUTION


Do not modify, remove, strike or open the seat belt pretensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instruc- tions may prevent the seat belt pre- tensioners from activating correctly, cause sudden operation of the system or disable the system, which could result in death or serious injury. Con- sult your Toyota dealer about any re- pair and modification.


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


NOTICE


consulting


Do not perform any of the following changes without your Toyota dealer. Such changes can interfere with proper operation of the seat belt pretensioners in some cases. z Installation of electronic devices such as a mobile two−way radio, cassette tape player or compact disc player


z Repairs on or near the front seat


belt retractor assemblies


z Modification of the suspension sys-


tem


z Modification of the front end struc-


ture


z Attachment of a grille guard (bull bar, kangaroo bar, etc.), snowplow, winches or any other equipment to the front end


z Repairs made on or near the front fenders, front end structure or con- sole


light system monitors


This indicator comes on when the igni- tion key is turned to the “ON” position. It goes off after about 6 seconds. This means the seat belt pretensioners are operating properly. This warning the airbag sensor assembly, front airbag sen- sors, side and curtain shield airbag sen- sors, curtain shield airbag sensors, driv- er’s seat position sensor, driver’s seat belt buckle switch, seat belt pretensioner as- semblies, inflators, warning light, intercon- necting wiring and power sources. (For details, see “Service reminder indicators and warning buzzers” in Section 1−6.)


If any of the following conditions occurs, this indicates a malfunction of the airbags or seat belt pretensioners. Contact your Toyota dealer as soon as possible. D When the ignition key is turned to the “ON” position, the light does not come on, remains on or flashes.


D The light comes on or starts flashing


while driving.


D If any seat belt does not retract or can not be pulled out due to a malfunction or activation of the relevant seat belt pretensioner.


D The seat belt pretensioner assembly or


surrounding area has been damaged.


35


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


SRS driver airbag and front passenger airbag


Your vehicle is equipped with a crash sensing and diagnostic module, which will record the use of the seat belt restraint system by the driver when the SRS front airbags are inflated.


The SRS (Supplemental Restraint Sys- tem) front airbags are designed to pro- vide further protection for the driver and front passenger in addition to the primary safety protection provided by the seat belts. In response to a severe frontal impact, the SRS front airbags work together with the seat belts to help reduce injury by inflating. The SRS front airbags help to reduce injuries mainly to the driver’s or front passenger’s head or chest caused by directly hitting the vehicle interior. The is activated even with no passenger in the front seat. Always wear your seat belt properly.


front passenger airbag


In the following cases, contact your Toyota dealer as soon as possible: D The front of the vehicle (shaded in the illustration) was involved in an accident that was not severe enough to cause the seat belt pretensioners to operate. D Either seat belt pretensioner assembly scratched,


or cracked, or otherwise damaged.


surrounding area


is


36


2004 CELICA from Aug. ’03 Prod. (OM20823U)


’04MY CELICA U (L/O 0308)


restraint


D Improperly seated and/or restrained infants and children can be killed or seriously injured by the deploy- ing airbags. An infant or child who is too small to use a seat belt should be properly secured using a child Toyota strongly recommends in- fants and children be placed in the rear seat of the vehicle and proper- ly restrained. The rear seat is the safest for infants and children. For instructions concerning the installa- tion of a child restraint system, see “Child restraint” in this Section.


that all


system.


CAUTION


D The SRS front airbag system is de- signed only as a supplement to the primary protection of the driver and

Loading...
x
