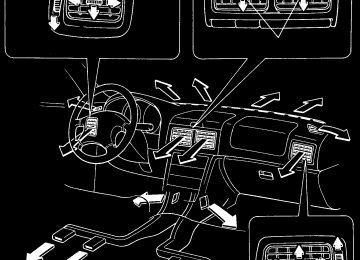

TOKYO. JAPAN December1999 A Issued: Printed in USA A8040BE FORESTER (72F) NA (E) A8040B Climate control Ventilator Heating and air conditioning control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Heater operation Air conditioner operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Operating tips for heater and air conditioner Air filtration system (if equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 4-4 4-6 4-10 4-11 4-12 FORESTER (72F) NA (E) A8040B Move the thumb-wheel up and down or right and left to adjust the air flow direction Oepn Close Move the thumb-wheel up and down or right and left to adjust the air flow direction HS0070 Ventilator Move the thumb-wheel up and down or right and left to adjust the air flow direction Oepn Close 4-2 FORESTER (72F) NA (E) A8040B Climate control B Air flow section HS0081 HS0079 HS0077 HS0075 HS0073 – CONTINUED – 4-3 FORESTER (72F) NA (E) A8040B Heating and air conditioning control system B Control panel HS4001BC 1. Temperature control dial 2. Air inlet selection lever 3. Air flow control dial 4. Air conditioner button (if equipped) 5. Fan speed control lever n Temperature control dial This dial regulates the temperature of air flow from the air outlets over a range from the blue area (cool) to red area (warm). n Fan speed control lever The fan operates only when the ignition switch is turned to the “ON” position. The fan speed control lever is used to select four fan speeds. n Air flow control dial This dial has the following five positions: : Air flows through the instrument panel outlets. : Air flows through the instrument panel outlets and the foot outlets. : Air flows through the foot outlets and some through the wind- shield defroster outlets. 4-4 FORESTER (72F) NA (E) A8040B Climate control : Air flows through the windshield defroster outlets and foot outlets. : Air flows through the windshield defroster outlets. n Air conditioner button (if equipped) HS4003BB The air conditioner operates only when the engine is running. Push the air conditioner button while the fan is in operation to turn on the air conditioner. The indicator light will come on. Push it again to turn off the air conditioner. n Air inlet selection lever WARNING Continued operaton in the “ dows. Switch to the “ dusty condition clears. ” position may fog up the win- ” position as soon as the outside : Interior air is recirculated inside the passenger compartment. : Outside air is drawn into the passenger compartment. – CONTINUED – 4-5 FORESTER (72F) NA (E) A8040B J Heater operation B Defrosting or defogging the windshield HS0072 To direct warm air to the windshield and front door windows: 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3. Turn the temperature control dial all the way to the right. 4. Set the fan speed control lever to the highest speed. ” position. ” position. NOTE Warm air also comes out from the right and left air outlets. To stop warm air flow from these outlets, turn the corresponding thumb-wheel to the “ ” position. 4-6 FORESTER (72F) NA (E) A8040B Climate control B Heating and defrosting HS0074 To direct warm air toward the floor and the windshield: 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3. Set the temperature control dial to the most comfortable level. 4. Set the fan speed control lever to the desired speed. ” position. ” position. NOTE Warm air also comes out from the right and left air outlets. To stop warm air flow from these outlets, turn the corresponding thumb-wheel to the “ ” position. B Heating To direct warm air toward the floor: HS0076 – CONTINUED – 4-7 FORESTER (72F) NA (E) A8040B 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3. Set the temperature control dial to the most comfortable level. 4. Set the fan speed control lever to the desired speed. ” position. ” position NOTE Warm air also comes out from the right and left air outlets. To stop warm air flow from these outlets, turn the corresponding thumb-wheel to the “ ” position. B Bi-level heating HS0078 This setting allows you to direct air of different temperatures from the instrument panel and foot outlets. The air from the foot outlets is slightly warmer than from the instrument panel outlets. 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3. Set the temperature control dial to the desired temperature level. 4. Set the fan speed control lever to the desired speed. ” position. ” position. Setting the temperature control dial fully turned to the red area or blue area decreases the temperature difference between the air from the instrument panel outlets and the air from the foot outlets. 4-8 FORESTER (72F) NA (E) A8040B Climate control B Ventilation WARNING Continued operaton in the “ dows. Switch to the “ dusty condition clears. ” position may fog up the win- ” position as soon as the outside HS0080 To force outside air through the instrument panel outlets: 1. Set the air inlet selection lever to the “ ” position. 2. Set the air flow control dial to the “ 3. Set the temperature control dial all the way left. 4. Set the fan speed control lever to the desired speed. ” position. When driving on a dusty road, set the air inlet selection lever to the “ ” position. – CONTINUED – 4-9 FORESTER (72F) NA (E) A8040B J Air conditioner operation B Cooling or dehumidifying ON position HS0082 For cooling and dehumidification of the passenger compartment, air flows through the instrument panel outlets: 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3. Push the air conditioner button to the “ON” position. 4. Set the temperature control dial to the blue area. 5. Set the fan speed control lever at the highest speed. ” position. ” position. B Defrosting or defogging ON position HS0072 To direct warm air to the windshield and front door windows: 1. Set the air inlet selection lever to the “ ” position. 4-10 FORESTER (72F) NA (E) A8040B Climate control 2. Set the air outlet control dial to the “ ” position. 3. Push the air conditioner button to the “ON” position. 4. Set the temperature control dial to the red area. 5. Set the fan speed control lever at the highest speed. Operating tips for heater and air conditioner B Cleaning ventilator grille Ventilator inlet grille HS0083 Always keep the front ventilator inlet grille free of snow, leaves, or oth- er obstructions to ensure efficient heating and defrosting. Since the condenser is located in front of the radiator, this area should be kept clean because cooling performance is impaired by any accumulation of insects and leaves on the condenser. B Efficient cooling after parking in direct sunlight After parking in direct sunlight, drive with the windows open for a few minutes to allow outside air to circulate into the heated interior. This re- sults in quicker cooling by the air conditioner. Keep the windows closed during the operation of the air conditioner for maximum cooling efficiency. B Lubrication oil circulation in the refrigerant circuit Operate the air conditioner compressor at a low engine speed (at idle or low driving speeds) a few minutes each month during the off-sea- son to circulate its oil. – CONTINUED – 4-11 FORESTER (72F) NA (E) A8040B B Checking air conditioning system before summer season Check the air conditioner unit for refrigerant leaks, hose conditions, and proper operation each spring. This check is best performed by your SUBARU dealer. B Cooling and dehumidifying in high humidity and low tempera- ture weather condition Under certain weather conditions (high relative humidity, low tempera- tures, etc.) a small amount of water vapor emission from the air outlets may be noticed during cooling or dehumidifying. This condition is nor- mal and does not indicate any problem with the air conditioning sys- tem. B Air conditioner compressor shut-off when engine is heavily loaded To improve acceleration and gas mileage, the air conditioner com- pressor is designed to temporarily shut off during air conditioner op- eration whenever the accelerator is fully depressed. Such as during rapid acceleration or when driving on a steep upgrade. B Refrigerant for your climate control system Your air conditioner uses ozone friendly refrigerant HFC134a. There- fore, the method of adding, changing or checking the refrigerant is different from the method for CFC12 (freon). Consult your SUBARU dealer for service. Repairs needed as a result of using the wrong re- frigerant are not covered under warranty. Air filtration system (if equipped) If your vehicle’s air conditioning system is equipped with a optional air filtration system, replace the filter element according to the replacement schedule shown below. This schedule should be followed to maintain the filter’s dust collection ability. Under extremely dusty conditions, the filter should be replaced more frequently. Since the filter element is a viscous type, it is unnecessary to clean or wash the element. It is recommended that you have your filter checked or replaced by your SUBARU dealer. For replacement, use only a genuine SUBARU air filter kit. 4-12 FORESTER (72F) NA (E) A8040B Climate control Replacement schedule: Every 12 months or 7,500 miles (12,000 km) whichever comes first NOTE The filter can influence the air conditioning, heating and defroster performance. B Replacement procedure HS4007BB Old filter HS0254 1. Remove the filter cover from the cooling unit by removing the two (2) clips with a blade screwdriver and unhooking the hinge. The screwdriver must be inserted into the top of the clip. Do not pry the middle on the clip. 2. Remove the old filters. – CONTINUED – 4-13 FORESTER (72F) NA (E) A8040B HS4004BB 3. Insert the front filter assembly in the cooling unit, then install the rear filter assembly. NOTE D Hold the filter tabs to facilitate installation. D The passenger compartment side of each filter is marked with arrows (indicating “UP” and the direction of air flow). Ensure the arrows point in the correct directions. D Ensure each filter assembly’s tongues and grooves fit the cor- responding cooling unit and matching filter tongues and grooves. HS4005BB 4. Reinstall the cover and secure it using the clips. NOTE Ensure no air leaks from the cooling unit through the cover. 4-14 FORESTER (72F) NA (E) A8040B Climate control HS4006BB 5. Fill in the maintenance label with the replacement date and mile- age. 6. Install it on the left hand side of the instrument panel as shown. D The filter must be replaced every 7,500 mile (12,000 km) or 1 year. D The filter may need to be replaced more frequently in dusty areas. 7. Install the caution label on the left hand side of the instrument pan- el next to the maintenance label as shown above. – CONTINUED – 4-15 FORESTER (72F) NA (E) A8040B Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Antenna system Installation of accessories Audio set Type A audio set (if equipped) Type B audio set (if equipped) CD player (if equipped) In-dash 6 CD auto changer (if equipped) Precautions to observe when handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . a compact disc (CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 5-2 5-3 5-5 5-16 5-32 5-34 5-37 FORESTER (72F) NA (E) A8040B Antenna system CAUTION Do not use sharp instruments or window cleaner containing abra- sives to clean the inner surface of the window on which the antenna is printed. Doing so may damage the antenna printed on the window. The antenna is printed on the inside of the left side rear quarter window glass (station wagon). HS5000BB B FM reception Although FM is normally static free, reception can be affected by the surrounding area, atmospheric conditions, station strength and trans- mitter distance. Buildings or other obstructions may cause momentary static, flutter or station interference. If reception continues to be unsat- isfactory, switch to a stronger station. Installation of accessories Always consult your SUBARU dealer before installing a citizen band ra- dio or other transmitting device in your vehicle. Such devices may cause the electronic control system to malfunction if they are incorrectly installed or if they are not suited for the vehicle. 5-2 FORESTER (72F) NA (E) A8040B Audio Audio set Your SUBARU may be equipped with one of the following audio sets. See the pages indicated in this section for operating details. The audio type code number is found on the lid of the cassette slot. B Type A audio set HS5003AA D Radio operation: refer to page 5-5 D Cassette player operation: refer to page 5-8 D CD player control: refer to page 5-10 D CD changer control: refer to page 5-13 B Type B audio set D Radio operation: refer to page 5-16 HS5004AA – CONTINUED – 5-3 FORESTER (72F) NA (E) A8040B D Cassette player operation: refer to page 5-21 D Built in CD changer operation: refer to page 5-24 D CD changer control: refer to page 5-29 B CD player (Optional audio unit — if equipped) D Inserting and removing a disc: refer to page 5-32 B In-dash 6 CD auto changer (Optional audio unit — if equipped) HB5039AA D Inserting and removing a disc or all discs: refer to page 5-34 HB5040AA 5-4 FORESTER (72F) NA (E) A8040B Audio Type A audio set (if equipped) The audio set will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation HS5003BB 1 Power switch/Volume, Tone, Balance, Fader control dial 2 AUDIO button 3 BAND button 4 Tuning buttons 5 Preset buttons 6 SCAN button B Power switch and volume/bass/treble/fader/balance control n Power switch and volume control (PWR/VOL) The dial 1 is used for both power (ON/OFF) and volume control. The radio is turned ON and OFF by pushing the dial and the volume is controlled by turning the dial. n Tone and balance control (AUDIO) The volume control dial 1 normally functions as a volume control. This dial becomes a control for Bass, Treble, Fader or Balance when you select the appropriate tone and balance control mode. – CONTINUED – 5-5 FORESTER (72F) NA (E) A8040B Choose desired volume level for each mode by turning the volume control dial. The control function returns to volume control mode after about 5 seconds. To change control modes: Each brief press of the “AUDIO” button 2 changes control modes in the following sequence starting from vol- ume control mode. (When the radio is first turned on, the control mode is in the volume control.) Volume Balance Treble Fader Bass The “AUDIO” button 2 is used for selecting the following control modes: Display Control mode Turn counterclockwise Turn clockwise HB5036BA BAS TRE FAd Bass control For less bass For more bass Treble control For less treble For more treble Fader control To increase rear speaker volume and decrease front To increase front speaker volume and decrease rear speaker volume speaker volume BAL Balance control To increase left speaker volume and decrease right To increase right speaker volume and decrease left speaker volume speaker volume VOL Volume control For less volume For more volume B Waveband selection Push the “BAND” button 3 to select FM1, FM2 or AM reception. The display indicates which one is currently selected. 5-6 FORESTER (72F) NA (E) A8040B Audio B Stereo indicator The stereo indicator “ST” will come on when an FM stereo broadcast is received. B Tuning (TUNE) n Manual tuning (TUNE) Press the tuning button 4 marked “Y” to increase the tuning frequen- cy and press the tuning button marked “B” to decrease it. Each time the button is pressed, the frequency interval can be changed between 10 kHz in the AM mode and 0.2 MHz in the FM mode. Constant pressure on the button causes a continuous change in the frequency. n Automatic tuning (SCAN) Press the “SCAN” button 6 to change the radio to the SCAN mode. In this mode, the radio scans through the radio band until a station is found. The radio will stop at the station for five seconds while display- ing the frequency, after which scanning will continue until the entire band has been scanned from the low end to the high end. Press the “SCAN” button again to cancel the SCAN mode and to stop on any displayed frequency. When the “SCAN” button is pressed for automatic tuning, stations are scanned in the direction of low frequencies to high frequencies only. Automatic tuning may not function properly if the station reception is weakened by distance from the station or proximity to tall buildings and hills. B Selecting preset stations Presetting a station with a “preset button” 5 allows you to select that station in a single operation. Up to six AM, FM1 and FM2 stations each may be preset. B How to preset stations 1. Press the “BAND” button 3 to select FM1, FM2 or AM reception. 2. Press the “SCAN” button or tune the radio manually until the desired station frequency is displayed. – CONTINUED – 5-7 FORESTER (72F) NA (E) A8040B 3. Press one of the preset buttons for more than 2 seconds to store the frequency. At this time, there will momentarily be no sound from the radio. If the button is pressed for less than 2 seconds, the preced- ing selection will remain in memory. NOTE If the connection between the radio and battery is broken for any reason such as vehicle maintenance or radio removal, all stations stored in the preset buttons are cleared. If this occurs, it is neces- sary to reset the preset buttons. Cassette player operation HS5003CB 7 Cassette slot 8 Eject button 9 TAPE button Q TPS (Tape Program Search) W Repeat button E Fast-forward button R Rewind button T Dolby B NR button Y Program button NOTE D Only use good quality cassettes (cassettes longer than C-90 are not recommended). D Put cassettes back in their boxes immediately after use to protect them from dust and dirt and to prevent the tape from unwinding. 5-8 FORESTER (72F) NA (E) A8040B Audio D Never expose cassettes to heat, direct sunlight or moisture. D Clean the tape head (once or twice a month) using a wet-type cleaning cassette. B Cassette slot Insert a cassette with the exposed tape side facing to the right. After insertion, playback starts. B TAPE button Press the “TAPE button” 9 when the cassette left in the cassette slot is to be played back again. B Tape travel indicators These indicate the direction the cassette tape is moving. " : Indicates that the top side of the cassette is being played back. A : Indicates that the bottom side of the cassette is being played back. B Program button (PROG) When the program button Y is pressed during playback, the tape travel indicators will switch and the player will begin playing back the opposite side of the tape. The same mechanism is automatically acti- vated when the end of the tape is reached. This allows the opposite side of the tape to play, providing continuous playback. B Fast-forward button (FF) To fast-forward the tape, press the “FF” button E. To stop fast-for- warding, lightly press the “ ” 8 button. B Rewind button (REW) To rewind the tape, press the “REW” button R. To stop rewinding, lightly press the “ ” 8 button. ” button 8 is pressed, playback stops and the cassette B Eject button ( When “ tape is ejected. The ejection function is also active when the ignition switch is in the “LOCK” position. Always make certain that you remove the cassette tape. – CONTINUED – 5-9 FORESTER (72F) NA (E) A8040B B Repeat (RPT) Press the “RPT” button W while a song is playing to play the song repeatedly. The “RPT” indicator will come on and the song will be played continuously. To cancel the repeat mode, press the button again. Then the “RPT” indicator goes out, and normal playback mode is restored. B Dolby B NR button ( Press the “ Dolby NR system*. The “ cy noise on the tape will be reduced for clearer sound reproduction. ” button T when playing tapes recorded using the ” indicator will light up and high-frequen- *Noise reduction system manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby” and the double-D Symbol are trade marks of Dolby Laboratories Licensing Corporation. CD player control (If optional CD player is connected) An optional CD player can be connected to this audio unit. See your SUBARU dealer for more information. For procedures for loading and un- loading CDs, refer to “CD player 1” in this chapter. U CD button I RAND (Random) button O RPT (Repeat) button HS5003DB P Track selection buttons A SCAN button 5-10 FORESTER (72F) NA (E) A8040B Audio B To start playback n When CD is not in the CD player Hold a disc with a finger in the center hole while gripping the edge of the disc, then insert it in to the slot (with the label side up) on the CD player and the player will automatically pull the disc into position. After insertion, the CD player mode indicator “CD” will come on and playback will start. n When CD is in the CD player Press the “CD” button U. The “CD” indicator will come on, and the track number will appear on the display and the CD player will start playback. NOTE D If the “CD” button is pressed during a radio broadcast, the disc will interrupt the broadcast. D After playback on the last song finishes, the player will auto- matically return to track 1 (the first song on the disc). B To select a song from its beginning Briefly press the “""❚ ” button P to skip to the beginning of the next track and briefly press the “❚ AA” button to skip to the beginning of the current track. B Fast-forwarding and fast-reverse Press the “""❚ ” button P continuously for more than a half second to fast-forward the disc. Press the “❚ AA” button continuously for more than a half second to fast reverse the disc. Release the button to stop fast forwarding or fast reverse. B Repeat Press the “RPT” button O while a song is playing to play the song repeatedly. The “RPT” indicator will come on and the song will be played continuously. To cancel the repeat mode, press the button again. Then the “RPT” indicator goes out, and normal playback mode is restored. – CONTINUED – 5-11 FORESTER (72F) NA (E) A8040B B Random playback Press the “RAND” button I while a disc is being played back to play all songs on the disc in a random order. The “RAND” indicator will come on and all songs on the disc will be played in a random order. To cancel the random mode, press the button again. Then the “RAND” indicator goes out, and normal playback mode is restored. B Scan (a convenient way to become familiar with a disc) 1. Press the “SCAN” button A. – The display shows “SCAN” and the track number being scanned. – You hear the first 10 seconds of each track. – The operation is automatically cleared after playing all pro- grams. Then, normal playback starts. 2. Press the “SCAN” button again when you hear a track you like. – Normal playback resumes. B To stop playback To stop playback and switch over to the radio mode, press the “BAND” button. To stop playback and switch over to the cassette player mode, press the “TAPE” button. 5-12 FORESTER (72F) NA (E) A8040B Audio CD changer control (If optional in dash CD changer is connected) An optional CD changer can be connected to this audio unit. See your SUBARU dealer for more information. For procedures for loading and un- loading CDs, refer to “In-dash 6 CD auto changer” in this chapter. HS5003EB S CD button D Disc up/down buttons F RAND (Random) button G RPT (Repeat) button H Track selection buttons J SCAN button B To start playback Press the “CD” button S. The “CD” indicator will come on and the disc number will appear on the display and the CD changer will start playback. NOTE D If the “CD” button is pressed during a radio broadcast, the CD changer will interrupt the broadcast. D At the end of the disc, playback automatically continues with the next disc. D After playback on the last disc finishes, the player will auto- matically return to the first disc. – CONTINUED – 5-13 FORESTER (72F) NA (E) A8040B D If you have loaded fewer than 6 discs, any missing disc is automatically skipped. B Selection of a desired disc Briefly press the “Y” button D to skip to the next disc and briefly press the “B” button to skip to the previous disc. n Operation with the in-dash CD changer unit Press the desired “Disc select” button (numbered from 1 to 6) and the disc will begin to play. B To select a song from its beginning Briefly press the “""❚ ” button H to skip to the beginning of the next track and briefly press the “❚ AA” button to skip to the beginning of the current track. B Fast-forwarding and fast-reverse Press the “""❚ ” button H continuously for more than a half second to fast-forward the disc. Press the “❚ AA” button continuously for more than a half second to fast reverse the disc. Release the button to stop fast forwarding or fast reverse. B Repeat Press the “RPT” button G while a song is playing to play the song repeatedly. The “RPT” indicator will come on and the song will be played continuously. To cancel the repeat mode, press the button again. Then the “RPT” indicator goes out, and normal playback mode is restored. B Random playback Press the “RAND” button F while a disc is being played back to play all songs on the disc in a random order. The “RAND” indicator will come on and all songs on the disc will be played in a random order. To cancel the random mode, press the button again. Then the “RAND” indicator goes out, and normal playback mode is restored. 5-14 FORESTER (72F) NA (E) A8040B Audio B Scan (a convenient way to become familiar with a disc) 1. Press the “SCAN” button J. – The display shows “SCAN” and the track number being scanned. – You hear the first 10 seconds of each track. – The operation is automatically cleared after playing all pro- grams. Then, normal playback starts. 2. Press the “SCAN” button again when you hear a track you like. – Normal playback resumes. B To stop playback To stop playback and switch over to the radio mode, press the “BAND” button. To stop playback and switch over to the cassette player mode, press the “TAPE” button. – CONTINUED – 5-15 FORESTER (72F) NA (E) A8040B Type B audio set (if equipped) The radio will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation 1 FM button 2 AM button 3 SCAN button 4 Tuning knob 5 Preset buttons HS5004BB 6 Fader/Balance selection button 7 Power switch, Volume control, Bass/Treble control and Fader/Balance control dial 8 Bass/Treble selection button B Power switch and volume/bass/treble/fader/balance control (PWR/VOL) The dial 7 is used for both power (ON/OFF) and volume control. The radio is turned ON and OFF by pushing the dial and the volume is controlled by turning the dial. This dial is used for bass/treble controls when the “BAS/TRE” button 8 is in the depressed position. It is also used for fader/balance con- 5-16 FORESTER (72F) NA (E) A8040B Audio trols when the “BAL/FAD” button 6 is in the depressed position. Display Control mode Turn counterclockwise Turn clockwise HB5036BA BAS TRE BAL Bass control For less bass For more bass Treble control For less treble For more treble Balance control To increase left speaker volume and decrease right To increase right speaker volume and decrease left speaker volume speaker volume FAd Fader control To increase rear speaker volume and decrease front To increase front speaker volume and decrease rear speaker volume speaker volume VOL Volume control For less volume For more volume n Tone control The volume control dial 7 normally function as volume control. The dial become a control for Bass or Treble when you select the ap- propriate tone control mode. Choose desired level for each mode by turning the volume control dial. The control function returns to volume control mode after about 5 seconds. To change control modes: Each brief press of the “BAS/TRE” button 8 changes control modes in the following sequence starting from bass control mode. (When the radio is first turned on, the control mode is in the volume control.) Bass Treble Volume (BAS) (TRE) (VOL) – CONTINUED – 5-17 FORESTER (72F) NA (E) A8040B n Fader and balance control The volume control dial 7 normally function as volume control. The dial become the controls for Fader or Balance when you select the appropriate fader and balance control mode. Choose desired setting for each mode by turning the volume control dial. The control function returns to volume control mode after about 5 seconds. To change control modes: Each brief press of the “FAD/BAL” button 6 changes control modes in the following sequence starting from fader control mode. (When the radio is turned on, the control mode is in the volume control.) Balance Fader Volume (BAL) (FAd) (VOL) n Display illumination dimness cancellation The brightness of the radio display dims when the light switch is in the “p” or “w” positions. If this makes the display difficult to read, press the volume dial for more than two seconds to return the display to original brightness. B FM/AM selection button Push the “FM” 1 or “AM” 2 button when the radio is off to turn on the radio. Push the “FM” or “AM” button when the radio is on to select FM1, FM2 or AM reception. B Stereo indicator The stereo indicator “ST” will come on when an FM stereo broadcast is received. 5-18 B Manual tuning (TUNE) FORESTER (72F) NA (E) A8040B Audio "" :Increase the tuning AA :Decrease the ""❚ tuning :Increase the seak tuning ❚ AA :Decrease the seak HS5005BA tuning n Manual tuning Turn the tuning knob 4 clockwise and release it immediately to increase the tuning frequency and turn the tuning knob counterclock- wise and release it immediately to decrease the tuning frequency. Each time the knob is turned, the frequency changes 10 kHz in the AM waveband and 0.2 MHz in the FM waveband. n Seek tuning Turn the tuning knob 4 and hold it for more than a half second. Seek tuning will operate and stop automatically on the next station. Continue this operation until you find the desired station. B Automatic tuning (SCAN) Press the “SCAN” button 3 to change the radio to the SCAN mode. In this mode, the radio scans through the radio band until a station is found. The radio will stop at the station for five seconds while display- ing the frequency, after which scanning will continue until the entire band has been scanned from the low end to the high end. Press the “SCAN” button again to cancel the SCAN mode and to stop on any displayed frequency. When the “SCAN” button is pressed for automatic tuning, stations are scanned in the direction of low frequencies to high frequencies only. Automatic tuning may not function properly if the station reception is weakened by distance from the station or proximity to tall buildings and hills. – CONTINUED – 5-19 FORESTER (72F) NA (E) A8040B B Selecting preset stations Presetting a station with a preset button 5 allows you to select that station in a single operation. Up to six AM, FM1 and FM2 stations each may be preset. B How to preset stations 1. Press the “FM/AM” selection button to select AM, FM1 or FM2 re- ception. 2. Press the “SCAN” button 3 or tune the radio manually until the de- sired station frequency is displayed. 3. Press one of the preset buttons 5 for at least 1.5 seconds to store the frequency. The frequency of the station will flash once on the dis- play at this time. If the button is pressed for less than 1.5 seconds, the preceding selection will remain in memory. NOTE If the connection between the radio and battery is broken for any reason such as vehicle maintenance or radio removal, all stations stored in the preset buttons are cleared. If this occurs, it is neces- sary to reset the preset buttons. 5-20 FORESTER (72F) NA (E) A8040B Audio Cassette player operation 9 Cassette slot Q Eject button W Repeat button E TAPE (cassette player selection) button HS5004CB R TPS button T Dolby B NR button Y Fast forward button U Program switching button I Rewind button NOTE D Only use good quality cassettes (cassettes longer than C-90 are not recommended). D Put cassettes back in their boxes immediately after use to protect them from dust and dirt and to prevent the tape from unwinding. D Never expose cassettes to heat, direct sunlight or moisture. D Clean the tape head (once or twice a month) using a wet-type cleaning cassette. B To play back a cassette tape n When cassette tape is not in the player When a cassette is partially inserted, it is automatically drawn in and starts tape playback. – CONTINUED – 5-21 FORESTER (72F) NA (E) A8040B n When cassette tape is in the player When the “TAPE” button E is pressed, the display will show “PLAY” and the player will start playback. B Tape travel indicators These indicate the direction the cassette tape is moving. " : indicates that the top side of the cassette is being played back. A : indicates that the bottom side of the cassette is being played back. B Program switching button (PROG) When the program switching button “PROG” U is pressed during playback, the tape travel indicators will switch and the player will be- gin playing back the opposite side of the tape. The same mechanism is automatically activated when the end of the tape is reached. This allows the opposite side of the tape to play, providing continuous playback. B Fast-forward button (FF) To fast-forward the tape, press the “FF” button Y. The display will show “FF”. To stop fast-forwarding, press the “FF” or “TAPE” E button. B Rewind button (REW) To rewind the tape, press the “REW” button I. The display will indi- cate “REW”. To stop rewinding, press the “REW” or “TAPE” E button. ” button Q is pressed, play back stops and the cassette B Eject button ( When “ tape is ejected. The ejection function also operates when the ignition switch is in the “LOCK” position. Always make certain that you remove the cassette tape. B Tape program sensor button (TPS) n Blank skip When the “TPS” button R is pressed, the “TPS” indicator will come on and the player will automatically skip any blank portion of 15 second or more and play the next program, even if it is on the other side. To cancel blank skip mode, press the “TPS” button again. 5-22 FORESTER (72F) NA (E) A8040B Audio n Blank search Press “TPS” button R during playback to return to the beginning of the current selection or to skip to the beginning of the next selection. To use this function, press the “TPS” button to turn on the “TPS” indi- cator. If the fast-forward button “FF” Y is then pressed, the player ad- vances the tape to the beginning of the next selection and starts play- ing it. If the rewind button “REW” I is pressed instead, the player rewinds the tape to the beginning of the current selection and starts replaying it. The “TPS” function may not operate properly under the following conditions: D When the recording level is low. D When there are long pauses in the middle of a selection. D When the tape contains verbal material such as conversations. D When the blanks between selections are shorter than five seconds. D When there are no blanks between selections (live concerts, etc.). B Repeat button (RPT) Push the “RPT” button W to repeat the piece of music being listened to. To use this function, push the “RPT” button while the piece you want to hear again is being played. “RPT” will be indicated on the dis- play. When the selection ends, the cassette player automatically re- winds to the beginning of the piece and the selection begins again. To cancel the repeat function, push the “RPT” button again. Until the repeat function is cancelled, the same piece of music will be repeated indefinitely. The “RPT” function may not operate properly under the following conditions: D When the recording level is low. D When there are long pauses in the middle of a selection. D When the tape contains verbal material such as conversations. D When the blanks between selections are shorter than five seconds. D When there are no blanks between selections (live concerts, etc). B Dolby B NR button ( Press “ NR system*. The “ noise on the tape will be reduced for clearer sound reproduction. ” button T when playing tapes recorded using the Dolby ” indicator will light up and high-frequency – CONTINUED – 5-23 FORESTER (72F) NA (E) A8040B * Noise reduction system manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby” and the double-D Symbol are trade marks of Dolby Laboratories Licensing Corporation. B Auto metal sensor The cassette player automatically adjusts for metal or CrO2 tape. Built in CD changer operation O LOAD button P SCAN button A Disc slot S CD button D Eject button HS5004DB F Random button G Fast forward/Fast reverse and track UP/DOWN knob H Repeat button J Disc select button NOTE Make sure to always insert a disc with the label side up. If a disc is inserted with the label side down, it might be ejected or the player might shut off. 5-24 FORESTER (72F) NA (E) A8040B Audio B How to insert a CD(s) n Inserting a CD 1. Press “LOAD” button O. If the magazine in the player has an idle position where you can insert a disc, the “DISC” indicator associated with the idle position will blink. If no indicator blinks, it means that there is no idle position in the mag- azine. 2. As soon as the “DISC” indicator begins to blink, the “IN” will ap- pear on display for a period of 15 seconds. Insert a disc during the period. The disc will be then automatically drawn in, and the player will begin to play back the first number of the disc. D To insert more discs in succession, repeat Steps 1 and 2. The magazine will be loaded with discs in the ascending order of position number. If you do not insert any disc in 15 seconds after you have pressed the “LOAD” button, the player will begin to play back the first number of the last disc you have inserted. D The disc indicator steadily lights up if a disc is already inserted in the corresponding position of the magazine. D While the player is in the loading mode, if you press any of the oth- er mode buttons “FM” 2, “AM” 1 and “TAPE” E, the player will enter the standby mode. Press the “CD” button S to start playback. n Inserting a disc in a desired position 1. Press the “LOAD” button. If the magazine in the player has an idle position where you can insert a disc, the “DISC” indicator associated with the idle position will blink. The positions in the magazine the indicator of which steadily lights up are already loaded with discs. 2. Press the “DISC SELECT” button J at the position where you want to insert a disc. The associated “DISC” indicator will blink, and the “IN” will be displayed. 3. If you insert a disc during the 15-second period while the “IN” is on display, the disc will be automatically drawn in, and the player will start playback of the disc, beginning with the first number. D To insert more discs in succession, repeat Steps 1 and 2. – CONTINUED – 5-25 FORESTER (72F) NA (E) A8040B D While the player is in the loading mode, if you press any of the oth- er mode buttons “FM” 2, “AM” 1 and “TAPE” E, the player will enter standby mode. Press the “CD” button to start playback. n Loading all the magazine (Full disc loading mode) 1. If you continue to press the “LOAD” button for more than 1.5 se- conds, the player will produce beep sound and will enter the full disc loading mode. 2. A “DISC” indicator will blink, and the “IN” will be on display for a period of 15 seconds. If a disc is successfully loaded during this peri- od, the “DISC” indicator will stop blinking and will steadily light. 3. When the loading of a disc is complete, the next “DISC” indicator will blink. Then repeat Step 2. 4. When the magazine is filled with discs by repeating Steps 2 and 3, the player will start playback of the discs, beginning with the one in- serted first. If you fail to insert any disc during each 15-second interval, the full disc loading mode will be canceled, and the player will start playback of the disc inserted first. B How to play back a CD or make a pause n When there is no CD inserted: Insert a CD by referring to “How to Insert a CD(s)”. When a CD is loaded, the player will start playback of the CD, begin- ning with the first number. n When there are CDs loaded: Press a desired one of the “DISC SELECT” buttons J the “DISC” indi- cator of which steadily lights up. The player will then start playback of the selected CD, beginning with the first number. 5-26 FORESTER (72F) NA (E) A8040B Audio B To select a song from its beginning and fast forward/fast re- verse :Forward direction ""❚ ❚ AA :Backward direction "" :Fast forward AA :Fast reverse HS5005BA n Forward direction Turn the “FF/FR and UP/DOWN” knob G clockwise and release it immediately to skip to the beginning of the next track. Each time the knob is turned and released, the indicated track number will increase. n Backward direction Turn the “FF/FR and UP/DOWN” knob G counterclockwise and release it immediately to skip to the beginning of the current track. If you continue to turn and release the knob, the indicated truck number will decrease. n Fast forward Turn the “FF/FR and UP/DOWN” knob G clockwise and hold it contin- uously for more than 2 seconds to fast forward the disc. Release the knob to stop fast forwarding. n Fast reverse Turn the “FF/FR and UP/DOWN” knob G counterclockwise and hold it continuously for more than 2 seconds to fast reverse the disc. Release the knob to stop fast reverse. B Repeat playback Press the “RPT” button H while a song is playing to play the song repeatedly. The “RPT” indicator will come on and the song will be – CONTINUED – 5-27 FORESTER (72F) NA (E) A8040B played continuously. To cancel the repeat mode, press the button again. Then the “RPT” indicator goes out, and normal playback mode is restored. B Random playback Press the “RDM” button F while a disc is being played back to play all songs on the disc in a random order. The “RDM” indicator will come on and all songs on the disc will be played in a random order. To cancel the random mode, press the button again. Then the “RDM” indicator goes out, and normal playback mode is restored. B Scan When the “SCAN” button P is pressed while the disc is being played back, you can hear the first 10 seconds of each track to seach for the desired program. To continue listening to the program, press the “SCAN” button again. After all tracks on the disc have been scanned, normal playback mode is restored. B How to unload CDs from the player n Ejecting a CD from the player Of the discs loaded, you can select and remove only one disc. 1. Press the “DISC SELECT” button J of the disc whose “DISC” indi- cator is ON. 2. Press the “EJECT” button D. Then the “DISC” indicator associated with the disc you have selected will blink, and the disc will be ejected. To remove more discs in succession, repeat Steps 1 and 2. n Ejecting all discs from the player (All disc ejection mode) 1. If you continue to press the “EJECT” button D, the player will pro- duce beep sound and will enter the all disc ejection mode. 2. Remove the disc that has been ejected. The other discs loaded will then be ejected one after another. If you do not remove the disc that has been ejected, the “All disc ejection mode” will be canceled. NOTE Avoid driving the vehicle with a CD sticking out, because vibra- tion might make it fall out. 5-28 FORESTER (72F) NA (E) A8040B Audio CD changer control (If optional in dash CD changer is connected) An optional CD changer can be connected to this audio unit. See your SUBARU dealer for more information. For procedures for loading and un- loading CDs, refer to “In-dash 6 CD auto changer” in this chapter. K SCAN button L RPT (Repeat) button Z CD button X RAND (Random) button HS5004EB C Fast forward/Fast reverse and track UP/DOWN knob V Disc select buttons B To start playback Press the “CD” button Z two times. The “CD” indicator will come on and the disc number will appear on the display and the CD changer will start playback. NOTE D If the “CD” button is pressed during a radio broadcast, the CD changer will interrupt the broadcast. D At the end of the disc, playback automatically continues with the next disc. D After playback on the last disc finishes, the player will auto- matically return to the first disc. – CONTINUED – 5-29 FORESTER (72F) NA (E) A8040B D If you have loaded fewer than 6 discs, any missing disc is automatically skipped. B Selection of a desired disc Press the desired “Disc select” buttons V (numbered from 1 to 6) and the disc will begin to play. B To select a song from its beginning and fast forward/fast re- verse :Forward direction ""❚ ❚ AA :Backward direction "" :Fast forward AA :Fast reverse HS5005BA n Forward direction Turn the “FF/FR and UP/DOWN” knob C clockwise and release it immediately to skip to the beginning of the next track. Each time the knob is turned and released, the indicated track number will increase. n Backward direction Turn the “FF/FR and UP/DOWN” knob C counterclockwise and release it immediately to skip to the beginning of the current track. If you continue to turn and release the knob, the indicated truck number will decrease. n Fast forward Turn the “FF/FR and UP/DOWN” knob C clockwise and hold it contin- uously for more than 2 seconds to fast forward the disc. Release the knob to stop fast forwarding. If you continue fast forwarding to the end of the disc, the CD changer will automatically stop fast forwarding and change to the next disc. 5-30 FORESTER (72F) NA (E) A8040B Audio n Fast reverse Turn the “FF/FR and UP/DOWN” knob C counterclockwise and hold it continuously for more than 2 seconds to fast reverse the disc. Release the knob to stop fast reverse. If you continue fast reverse to the beginning of the disc, the CD changer will automatically stop fast reverse and start playback begin- ning with the first track on the current disc. B Repeat Press the “RPT” button L while a song is playing to play the song repeatedly. The “RPT” indicator will come on and the song will be played continuously. To cancel the repeat mode, press the button again. Then the “RPT” indicator goes out, and normal playback mode is restored. B Random playback Press the “RAND” button X while a disc is being played back to play all songs on the disc in a random order. The “RAND” indicator will come on and all songs on the disc will be played in a random order. To cancel the random mode, press the button again. Then the “RAND” indicator goes out, and normal playback mode is restored. B Scan (a convenient way to become familiar with a disc) 1. Press the “SCAN” button K. – The display shows “SCAN” and the track number being scanned. – You hear the first 10 seconds of each track. – The operation is automatically cleared after playing all pro- grams. Then, normal playback starts. 2. Press the “SCAN” button again when you hear a track you like. – Normal playback resumes. B To stop playback To stop playback and switch over to the radio mode, press the “BAND” button. To stop playback and switch over to the cassette player mode, press the “TAPE” button. – CONTINUED – 5-31 FORESTER (72F) NA (E) A8040B CD player (if equipped) 1 Disc slot 2 Disc indicator 3 Eject button HB5039BB CAUTION D Use only music CDs identified by D Do not use CDs listed below which could cause damage to the CD player. mark. D Any disc with a peel-off or seal on it. D Any disc with scratches and/or dust. D Bent disc. D Cleaning disc. D CD accessory. (E.g., 3-inch (8 cm) disc adapter) D Do not insert or remove any disc when the automatic transmis- sion selector lever is in the park position; the selector lever in that position can interfere with disc insertion or removal, causing scratches on the disc surface (for AT vehicles). 5-32 FORESTER (72F) NA (E) A8040B Audio B To insert a disc Be sure to hold a disc with the label side (the side where titles are printed) up. Push the disc into the slot. The disc will be automatically set in position by the auto-loading mechanism and begin playing. The disc indicator will turn on as the CD begins playing. n Disc indicator Lit: A disc is in the slot (When the ignition switch is in the “ON” or “ACC” position). OFF: No disc is loaded or the ignition switch is in the “Lock” position. B To remove disc left in slot Simply press the “Eject button” 3 and the disc will be ejected. This procedures is effective even when the ignition switch is in the “LOCK” position. n Function control Refer to CD player control operating instructions described in the “Type A audio set” section. – CONTINUED – 5-33 FORESTER (72F) NA (E) A8040B In-dash 6 CD auto changer (if equipped) 1 Disc slot 2 Disc indicators (disc No.1 to 6) 3 Disc select buttons (disc No.1 to 6) 4 Eject button HB5040BB CAUTION D Do not attempt to insert two or more discs into the slot at a time. Doing so can cause mechanical damage to the CD changer. D Use only music CDs identified by a D Do not use CDs listed below which could cause damage to the CD player. mark. D 3-inch (8 cm) compact disc. D Any disc with a peel-off or seal on it. D Any disc with scratches and/or dust. D Bent disc. D Cleaning disc. D CD accessory. (E.g., 3-inch (8 cm) disc adapter) D Do not insert or remove any disc when the automatic transmis- sion selector lever is in the park position; the selector lever in that position can interfere with disc insertion or removal, causing scratches on the disc surface (for AT vehicles). 5-34 FORESTER (72F) NA (E) A8040B Audio B To insert a disc 1. Press one of the “Disc select” buttons 3 (numbered from 1 to 6) for which the disc indicator light 2 is “OFF”. The Disc indicator lights are located directly above the corresponding “Disc select” buttons. 2. The indicator will begin blinking. The blinking will last for 15 se- conds. During this period, insert a desired disc, and the disc will begin to play. (If any disc is not inserted during this period, the “Disc slot” 1 door will close. Repeat step 1.) Be sure to hold a disc with the label side (the side where titles are printed) up. 3. To insert another disc, repeat step 1 and 2 choosing a different disc select button. B To insert six discs at a time 1. Press and hold the “Disc select” button number 1 until all disc indi- cators begin blinking (about 1.5 seconds). 2. The indicators will blink for 15 seconds. During this period, insert desired six discs. 3. When all discs are loaded, the first disc will begin to play. (If no disc is inserted within this 15 seconds, the entire disc load sequence will be canceled.) B To remove a disc 1. Press the desired one of the “Disc select” buttons 3 (numbered from 1 to 6) for which the disc indicator light is on. 2. Press the “Eject button” 4. The selected disc will be ejected and the indicator light will begin blinking. 3. To remove another disc, repeat step 1 and 2 choosing a different “Disc select” button. (To remove discs when the ignition switch is in the “Lock” position, press the “Eject” button, and the first disc will be ejected. Press the “Eject” button again, and the next disc will be ejected and so on. At this time, the “Disc select” buttons are disabled.) – CONTINUED – 5-35 FORESTER (72F) NA (E) A8040B B To remove all discs at one time 1. Press and hold the “Eject” button 4 until all “Disc” indicators begin blinking (about 1.5 seconds), and the first disc will be ejected. 2. When the disc is removed, the next one will be ejected, and so on. B To replace a playing disc with another Simply press the desired one of “Disc select” buttons 3 (numbered from 1 to 6) or press the “DISC UP” or “DISC DOWN” button on the radio unit to select the desired disc, and the disc will begin to play. B Disc indicators Lit: when the corresponding storage tray is occupied by a disc. Blinking: Disc player is either in loading, eject or changing mode. OFF: No disc is loaded or the ignition switch is in the “LOCK” position. B Function control Refer to CD player control operating instructions described in the “Type P119 and P120 audio sets” or “Type P121 audio set” section. 5-36 FORESTER (72F) NA (E) A8040B Audio Precautions to observe when handling a compact disc (CD) D To remove a disc from the case, press the center of the case and hold both edges of the disc. If the disc surface is touched directly, contamina- tion could cause poor tone quality. Do not touch the disc surface. D Use a clean disc whenever possible. If there are deposits, wipe the disc surface from the center outward with a dry, soft cloth. Be sure not to use a hard cloth, thinner, benzene, alcohol, etc. D Never use a badly damaged, deformed or cracked disc. Malfunctions or problems might result. D A disc is vulnerable to heat. Never keep it either in places exposed to direct sunlight, near heaters or in vehicles parked in the sun or hot days. OM-4747 – CONTINUED – 5-37 FORESTER (72F) NA (E) A8040B Interior equipment Sun visors Vanity mirror (if equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Storage compartment Glove compartment Center console Overhead console Dashboard storage compartment (if equipped) Door storage compartment Coin tray Cup holder Clock Accessory power socket Cigarette lighter (if equipped) Ashtray Coat hook Interior light Spotlight Cargo area light Luggage cover (if equipped) Shopping bag hook Cargo anchorage eyelets Under floor storage tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 6-2 6-2 6-3 6-3 6-4 6-4 6-5 6-5 6-6 6-8 6-8 6-11 6-13 6-14 6-14 6-15 6-16 6-16 6-18 6-18 6-19 FORESTER (72F) NA (E) A8040B Sun visors HS0088 HS0089 To block out glare, swing down the visors. To use the sun visor at a side window, swing it down and move it sideways. J Vanity mirror (if equipped) To use the vanity mirror, swing down the visor and open the cover. Storage compartment CAUTION D Always keep the storage compartment closed while driving to reduce the risk of injury in the event of sudden stops or an acci- dent. D Do not store spray cans, containers with flammable or corro- sive liquids or any other dangerous items in the storage compart- ment. 6-2 FORESTER (72F) NA (E) A8040B Interior equipment J Glove compartment Unlock Lock HS0090 To open the glove compartment, pull the handle. To close it, push the lid firmly upward. To lock the glove compartment, insert the master key and turn it clock- wise. To unlock it, insert the masterkey and turn it counterclockwise. J Center console To open the lid, pull up the lock release. HS0091 – CONTINUED – 6-3 FORESTER (72F) NA (E) A8040B J Overhead console CAUTION When your vehicle is in the sun or a warm day, the inside of the overhead console heats up. Avoid storing plastic or other heat- vulnerable or flammable articles such as a lighter in the overhead console. Push HS0092 To open the console, push the button and the console lid will automati- cally open. J Dashboard storage compartment (if equipped) Push HS0094 To open the dashboard compartment, push the button and pull up on the 6-4 FORESTER (72F) NA (E) A8040B Interior equipment lid. Be sure to close the compartment fully before driving. J Door storage compartment Push HS0095 Each door is equipped with a door storage compartment. To open the compartment, push the button and pull up on the lid. J Coin tray To open the coin tray, pull the upper edge of the lid. HS0096 – CONTINUED – 6-5 FORESTER (72F) NA (E) A8040B Cup holder CAUTION D When not in use, always keep the holder stored while driving to reduce the risk of injury in the event of a sudden stop or an accident. D Do not pick up a cup from the cup holder or put a cup in the holder while you are driving, as this may distract you and lead to an accident. D Take care to avoid spills. Beverages, if hot, might burn you or your passengers. Spilled beverages may also damage upholstery, carpets or audio equipment. B In instrument panel To use the cup holder, pull it out completely. HS6018BA 6-6 FORESTER (72F) NA (E) A8040B Interior equipment B Front passenger’s cup holder HS0099 HS0100 A front passenger’s cup holder is also built in the lid of the center con- sole. To use the cup holder, open the lid by sliding it forward and un- fold the arm. Adjust the opening area by sliding the lid forward or rearward to fit the cup. When not in use, fold the arm and close the lid. NOTE On models equipped with a center console arm rest extension, the front passenger’s cup holder must be eliminated to provide this feature. B Rear passenger’s cup holder HS0101 HS0102 The rear passenger’s cup holder is located at the back of the center – CONTINUED – 6-7 FORESTER (72F) NA (E) A8040B console. To use the cup holder, open the lid by pulling its upper edge. Clock HS0103 The clock displays the time when the ignition switch is in the “ACC” or “ON” positions. B Setting the clock To set the hour, press the “H” button. To set the minutes, press the “M” button. To reset the minutes to “00” with a radio time signal, push the “S” button. Accessory power socket B Electrical power socket located on the left-lower part of the instrument panel CAUTION The electrical power socket located on the lower part of the instrument panel is designed to use only a SUBARU genuine cig- arette lighter plug. Do not use non-genuine cigarette lighter plugs or any “plug-in” type electrical accessories in the socket. Doing so many cause a short-circuit and overheating, resulting in a fire. Refer to the “Cigarette lighter” section in this chapter. 6-8 FORESTER (72F) NA (E) A8040B Interior equipment B Accessory power socket in the luggage compartment and dual power socket (if equipped) CAUTION D Do not attempt to use a cigarette lighter in the accessory socket or dual power socket. D Do not place any foreign objects, especially metal ones such as coins or aluminum foil, into the accessory socket or dual power socket. That could cause a short circuit. Always put the cap on the accessory socket and dual power socket when it is not in use. D Use only electrical appliances which are designed for 12V DC and which consume less than 120W. Overloading the accessory socket or dual power socket can cause a short circuit. Do not use double adapters or more than one electrical appliance. D If the plug on your electric appliance is either too loose or too tight for the accessory socket or dual power socket, this can result in a poor contact or cause the plug to get stuck. Only use plugs that fit properly. D Use of an electric appliance in the accessory socket or dual power socket for a long period of time while the engine is not running can cause battery discharge. D Before driving your vehicle, make sure that the plug and the cord on your electrical appliance will not interfere with your shift- ing gears and operating the accelerator and brake pedals. If they do, do not use the electrical appliance while driving. – CONTINUED – 6-9 FORESTER (72F) NA (E) A8040B HS6000BA HS6001BA Electrical power (12V DC) from the battery is on tap at the socket when the ignition switch is either in the “ACC” or “ON” position. You can use an in-car use electrical appliance by connecting it to the socket. 6-10 FORESTER (72F) NA (E) A8040B Interior equipment Cigarette lighter (if equipped) CAUTION The electrical power socket located on the lower part of the instrument panel is designed to use only a SUBARU genuine cig- arette lighter plug. Do not use non-genuine cigarette lighter plugs or any “plug-in” type electrical accessories in the socket. Doing so may cause a short-circuit and overheating, resulting in a fire. HS0378 The electrical power socket located on the lower part of the instrument panel can only be used as cigarette lighter socket. A cigarette lighter plug is an optional accessory. It is available from your SUBARU dealer. If smoking is not desired, always put the cap on the socket to prevent any foreign object from entering it. B Cigarette lighter (if equipped) WARNING To avoid being burned, never grasp the lighter by the end with the heating element. Doing so could result in injury and could also damage the heating element. – CONTINUED – 6-11 FORESTER (72F) NA (E) A8040B CAUTION Do not hold the lighter pushed in, because it will overheat. HS0106 The cigarette lighter operates only when the ignition switch is in the “ON” and “ACC” positions. To use the cigarette lighter, push in the knob and wait a few moments. It will automatically spring up when ready for use. 6-12 FORESTER (72F) NA (E) A8040B Interior equipment Ashtray CAUTION Do not use ashtrays as waste receptacles or leave a lighted ciga- rette in an ashtray. This could cause a fire. Fully close the ashtray after using it to help reduce residual smoke. HS0107 HS6002BA B Front ashtray To open the ashtray, pull the lid out. To remove the ashtray for cleaning, open it and pull it out while push- ing the inner plate down. B Rear ashtray (if equipped) To open the ashtray, pull the upper edge of the lid. To remove the ashtray for cleaning, open it and pull it out while push- ing the inner plate down. – CONTINUED – 6-13 FORESTER (72F) NA (E) A8040B Coat hook CAUTION Never hang anything on the coat hook that might obstruct the driver’s view or that could cause injury in sudden stops or in a collision. And do not hang items on the coat hook that weight 2.2 lb (1 kg) or more. The coat hook is attached to the rear passenger’s hand grip behind the driver. HS0109
