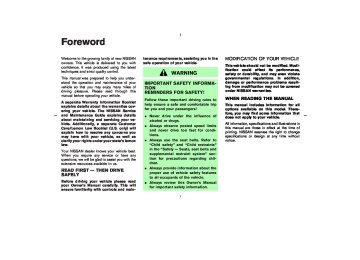

Foreword


Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control.


This manual was prepared to help you under- stand the operation and maintenance of your vehicle so that you may enjoy many miles of driving pleasure. Please read through this manual before operating your vehicle. A separate Warranty Information Booklet explains details about the warranties cov- ering your vehicle. The NISSAN Service and Maintenance Guide explains details about maintaining and servicing your ve- hicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law. Your NISSAN dealer knows your vehicle best. When you require any service or have any questions, we will be glad to assist you with the extensive resources available to us. READ FIRST — THEN DRIVE SAFELY Before driving your vehicle please read your Owner’s Manual carefully. This will ensure familiarity with controls and main-


MODIFICATION OF YOUR VEHICLE This vehicle should not be modified. Modi- fication could affect its performance, safety or durability, and may even violate governmental In addition, damage or performance problems result- ing from modification may not be covered under NISSAN warranties.


regulations.


WHEN READING THE MANUAL This manual includes information for all options available on this model. There- fore, you may find some information that does not apply to your vehicle. All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design at any time without notice.


tenance requirements, assisting you in the safe operation of your vehicle.


WARNING


IMPORTANT SAFETY INFORMA- TION REMINDERS FOR SAFETY! Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers! 쐌 Never drive under the influence of


alcohol or drugs.


쐌 Always observe posted speed limits and never drive too fast for condi- tions.


쐌 Always use the seat belts. Refer to “Child safety” and “Child restraints” in the “Safety — Seats, seat belts and supplemental restraint system” sec- tion for precautions regarding chil- dren.


쐌 Always provide information about the proper use of vehicle safety features to all occupants of the vehicle.


쐌 Always review this Owner’s Manual


for important safety information.


墌 04.8.23/Z33-D/V5.0 墍


IMPORTANT INFORMATION ABOUT THIS MANUAL You will see various symbols in this manual. They are used in the following ways:


WARNING


This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.


CAUTION


If you see this symbol, it means “Do not do this” or “Do not let this happen”.


SIC0697


CALIFORNIA PROPOSITION 65
WARNING


WARNING


Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in ve- hicles and certain products of compo- nent wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other repro- ductive harm.


This is used to indicate the presence of a hazard that could cause minor or moder- ate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.


If you see a symbol similar to these in an illustration, it means the arrow points to the front of the vehicle.


Arrows in an illustration that are similar to these indicate movement or action.


Arrows in an illustration that are similar to these call attention to an item in the illustration.


© 2004 NISSAN MOTOR CO., LTD.


TOKYO, JAPAN


All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Motor Co., Ltd.


墌 04.8.23/Z33-D/V5.0 墍


Welcome To The World Of NISSAN


to the supply of lubricants, parts and accessories.


NISSAN pioneered the use of electronics and computers in automobiles, and has led the industry in improving both performance and fuel efficiency through new engine designs and the use of syn- thetic materials to reduce vehicle weight. The company has also developed ways to build quality into its vehicles at each stage of the production process, both through extensive use of automation and — most importantly — through an awareness that people are the central element in quality control.


From the time the parts arrived from our suppliers until you took delivery of your new NISSAN, dozens of checks were made to ensure that only the best job was being done in producing and delivering your vehicle. NISSAN also takes great care to ensure that when you take your NISSAN to your dealer for maintenance, the service technician will perform his work according to the quality stan- dards that have been established by NISSAN.


Safety has also been built into your NISSAN. As you know, seat belts are an integral part of the safety systems that will help protect you and your passengers in the event of a sudden stop or an accident. We urge you to use the seat belts every time you drive the vehicle.


The NISSAN story of growth and achievement reflects our major goal: to provide you, our cus- tomer, with a vehicle that is built with quality and craftsmanship — a product that we can be proud to build and you can be proud to own.


Your new NISSAN is the result of our dedication to produce the finest in safe, reliable and economical transportation. Your vehicle is the product of a successful worldwide company that manufactures cars and trucks in over 17 countries and distributes them in 170 nations. NISSAN vehicles are designed and manufactured by Nissan Motor Co., Ltd. which was founded in Tokyo, Japan in 1933, and NISSAN affiliates world wide, collectively growing to become the fifth largest automaker in the world. In addition to cars and trucks, NISSAN also makes forklift trucks, marine engines, boats and other diversified prod- ucts. NISSAN has made a substantial and growing investment in North America. NISSAN’s commit- ment is nearly $4 billion dollars in capital invest- ments in facilities across the continent. Some of


WFW0002


the facilities include the Nissan Manufacturing facility in Smyrna, Tennessee, vehicle styling de- sign at Nissan Design America, Inc. in San Diego, California, and engineering at Nissan Technical Center North America in Farmington Hills, Michi- gan. Additionally, NISSAN employs nearly 18,000
people throughout the United States, Canada, and Mexico. An additional 71,000 people work for the 1,500 NISSAN and INFINITI dealers across North America. NISSAN is also a substantial contributor to the Canadian economy. Nissan Canada Inc., its sup- pliers and over 140 dealers employ approximately 4,500 people. These include company employees and the staffs of NISSAN dealers all across Canada. In addition, many Canadians work for companies that supply NISSAN and NISSAN deal- ers with materials and services ranging from op- eration of port facilities and transportation services


墌 04.8.23/Z33-D/V5.0 墍


NISSAN CUSTOMER CARE PROGRAM


NISSAN CARES ... Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.


if


However, there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Consumer Affairs Department using our toll-free number: For U.S. customers 1-800-NISSAN-1
(1-800-647-7261)


For Canadian customers


1-800-387-0122


The Consumer Affairs Department will ask for the following information: — Your name, address, and telephone


number


— Vehicle identification number (attached to the top of the instrument panel on the driver’s side)


— Date of purchase — Current odometer reading — Your NISSAN dealer’s name — Your comments or questions OR


You can write to NISSAN with the information on the left at: For U.S. customers


Nissan North America, Inc. Consumer Affairs Department P.O. Box 191
Gardena, California 90248-0191


For Canadian customers


Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5


We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.


墌 04.8.23/Z33-D/V5.0 墍


Table of Contents


Illustrated table of contents


Safety — Seats, seat belts and supplemental restraint system


Instruments and controls


Pre-driving checks and adjustments


Heater, air conditioner and audio systems


Starting and driving


In case of emergency


Appearance and care


Maintenance and do-it-yourself


Technical and consumer information


Index


墌 04.8.23/Z33-D/V5.0 墍


0 Illustrated table of contents


Exterior front ........................................................................... 0-2
Exterior rear ............................................................................ 0-3
Passenger compartment ...................................................... 0-5
Instrument panel ................................................................... 0-7
Engine compartment check locations ............................. 0-8


墌 04.8.23/Z33-D/V5.0 墍


EXTERIOR FRONT


1. Hood (P.3-9) 2. Windshield wiper and washer


— Switch (P.2-22) — Wiper replacement (P.8-20) Interior light (P.2-40)


3. 4. Power windows (P.2-38) 5. Towing hook installation (P.6-12) License plate installation (P.9-13)


6. Headlight, park and turn signal lights


— Switch (P.2-24) — Bulb replacement (P.8-27)


7. Tires


— Wheels and tires (P.8-31, P.9-9) — Flat tire (P.6-2)


8. Outside mirrors (P.3-18) 9. Doors


— Keys (P.3-2) — Door locks (P.3-2) — Keyfob (P.3-4)


0-2 Illustrated table of contents


SSI0001


墌 04.8.23/Z33-D/V5.0 墍


EXTERIOR REAR


Coupe models 1. Antenna (P.4-26) 2. Rear hatch release switch (P.3-10) 3. Rear window defroster (P.2-23) 4. High-mounted stop light (Bulb) (P.8-28) 5. Rear window wiper and washer


(P.2-22)


6. License plate lights (Bulb replacement)


(P.8-28)


7. Rear hatch release (secondary) (P.3-10) 8. Luggage compartment light (P.2-41, P.8-28) 9. Back-up, Turn signal light (Bulb replacement)


(P.8-28)


10. Side marker, Stop/Tail light (Bulb replace-


ment) (P.8-28)


11. Fuel


— Fuel filler lid (P.3-13) — Fuel recommendation (P.9-3)


SSI0002


Illustrated table of contents 0-3


墌 04.8.23/Z33-D/V5.0 墍


Roadster models 1. Antenna (P.4-26) 2. Trunk lid release switch (P.3-11) 3. Trunk light (P.2-41, P.8-28) 4. High-mounted stop light (Bulb) (P.8-28) 5. Rear window defroster (P.2-23) 6. Soft top (P.3-19) 7. 8. License plate lights (Bulb replacement)


Interior trunk lid release (P.3-12)


(P.8-28)


9. Back-up, Turn signal light (Bulb replacement)


(P.8-28)


10. Side marker, Stop/Tail light (Bulb replace-


ment) (P.8-28)


11. Fuel


— Fuel filler lid (P.3-13) — Fuel recommendation (P.9-3)


0-4 Illustrated table of contents


SSI0003


墌 04.8.23/Z33-D/V5.0 墍


PASSENGER COMPARTMENT


SSI0067


Coupe models 1. Coat hook (P.2-37) 2. Seat belts (P.1-10) 3. Seats - Manual seats adjustment (P.1-3) - Power seats adjustment (P.1-4) 4. Tilt


for passenger seat


lever


(seatback)


5. Power window switch (P.2-38) 6. Outside mirror remote control switch


(P.1-7)


(P.3-18)


Interior light (P.2-40)


Inside mirror (P.3-16)


7. Extension sun visor (P.3-16) 8. 9. Sunglasses holder (P.2-32) 10. - Automatic anti-glare inside mirror* (P.3-17) - HomeLink universal transceiver* (P.2-42) 11. Rear parcel box (P.2-10) 12. Rear parcel box or Navigation system*1
13. Rear floor box (P.2-35) 14. Power outlet (P.2-31) 15. Console box (P.2-34) 16. Parking brake - Operation (P.5-14) - Parking/Parking on hills (P.5-18) - Checking (P.8-21) 17. Driving with automatic transmission (P.5-9) 18. Driving with manual transmission (P.5-12) *: if so equipped *1: Refer to the separate Navigation System


Owner’s Manual.


Illustrated table of contents 0-5


墌 04.8.23/Z33-D/V5.0 墍


Roadster models 1. Seat belts (P.1-10) 2. Seats - Power seats adjustment (P.1-5) - Net seats* (P.1-6). 3. Power seatback tilt switch (P.1-8)/Cancel


switch (P.1-9) for passenger seat


4. Power window switch (P.2-38) 5. Outside mirror remote control switch


(P.3-18)


Interior light (P.2-40) Inside mirror (P.3-16)


6. Soft top latch lever (P.3-22) 7. Safety switch for soft top latch lever (P.3-22) 8. 9. - Automatic anti-glare inside mirror* (P.3-17) - HomeLink universal transceiver* (P.2-42) 10. Rear parcel box (P.2-10) 11. Rear parcel box or Navigation system*1
12. Rear floor box (P.2-35) - Trunk lid cancel switch (P.3-12) - Secondary trunk lid release (P.3-13) 13. Power outlet (P.2-31) 14. Console box (P.2-34) 15. Parking brake - Operation (P.5-14) - Parking/Parking on hills (P.5-18) - Checking (P.8-21) 16. Driving with automatic transmission (P.5-9) 17. Driving with manual transmission (P.5-12) *: if so equipped *1: Refer to the separate Navigation System


Owner’s Manual.


0-6 Illustrated table of contents


SSI0068


墌 04.8.23/Z33-D/V5.0 墍


INSTRUMENT PANEL


11. Side ventilators (P.4-7) 12. VDC (Vehicle dynamic control) OFF switch* (P.2-29) or TCS (Traction control system) OFF switch* (P.2-29)


13. Soft top operating switch (for Roadster


models) (P.3-19)


14. Fuel filler lid opener switch (P.3-13) 15. Hood lock release handle (P.3-9) 16. Fuse box (P.8-22) 17. Tilting steering wheel lock lever (P.3-15) 18. 19. Navigation system display (P.4-2)*1 or In-


Ignition switch (P.5-6)


strument pocket (P.2-32)


20. Rear window and outside mirror defroster


switch (P.2-23)


21. Heater/air conditioner control (P.4-8) 22. Audio system (P.4-11)/Clock (P.2-30) 23. Heated seat switch* (P.2-28) 24. Hazard warning flasher switch (P.2-27) 25. Tray (P.2-33) 26. Power outlet (P.2-31) *: if so equipped *1: Refer to the separate Navigation System


Owner’s Manual.


1. Headlight/turn signal switch (P.2-24) Instrument brightness control switch 2. (P.2-26)


3. Driver supplemental air bag (P.1-29)/Horn


(P.2-27)


4. Meters/gauges (P.2-3)


SIC2268


5. Cruise control main/set switch* (P.5-15) 6. Trip computer mode/setting switch (P.2-8) 7. Windshield wiper/washer switch (P.2-22) 8. Center ventilator (P.4-7) 9. Cup holder (P.2-33) 10. Passenger supplemental air bag (P.1-29)


Illustrated table of contents 0-7


墌 04.8.23/Z33-D/V5.0 墍


ENGINE COMPARTMENT CHECK LOCATIONS


1. Fuse/fusible link holder (P.8-22) 2. Battery (P.8-15) 3. Engine oil filler cap (P.8-10) 4. Brake fluid reservoir (P.8-13) 5. Clutch fluid reservoir (M/T models) (P.8-14) 6. Window washer fluid reservoir (P.8-14) 7. Power steering fluid reservoir (P.8-13) 8. Engine coolant reservoir (P.8-8) 9. Radiator filler cap (P.8-9) 10. Engine oil dipstick (P.8-10) 11. Air cleaner (P.8-18) Do not tamper with the strut tower bar adjustment 쎻A . The strut tower bar has been adjusted to the most suitable posi- tion at the factory.


0-8 Illustrated table of contents


SDI1519


墌 04.8.23/Z33-D/V5.0 墍


1 Safety — Seats, seat belts and supple-


mental restraint system


Seats ........................................................................................ 1-2


Front manual seat adjustment (for Coupe models) ........................................................ 1-3
Front power seat adjustment (for Coupe models — if so equipped) ...................... 1-4
Front power seat adjustment (for Roadster models) .................................................... 1-5
Seat lifter (for driver’s seat) ......................................... 1-7
Tilting and reclining passenger’s seat from driver’s seat ..................................................................................... 1-7
Head restraint adjustment ............................................ 1-9
Seat belts ............................................................................. 1-10
Precautions on seat belt usage ................................ 1-10
Child safety .................................................................... 1-12
Obtaining an air bag ON/OFF switch...................... 1-13
After an air bag ON/OFF switch is installed.......... 1-13
Pregnant women .......................................................... 1-14
Injured persons ............................................................. 1-14
Three-point type seat belt with retractor ............... 1-14


Seat belt extenders ...................................................... 1-16
Seat belt maintenance ................................................ 1-16
Child restraints ................................................................... 1-17
Precautions on child restraints ................................. 1-17
Child restraint installation on front passenger seat.................................................................................... 1-19
Top tether strap child restraint (Coupe models) ............................................................ 1-24
Booster seats ....................................................................... 1-25
Precautions on booster seats .................................... 1-25
Booster seat installation on front passenger seat.................................................................................... 1-28
Supplemental restraint system ....................................... 1-29
Precautions on supplemental restraint system ...... 1-29
Components of the supplemental restraint system .............................................................................. 1-35
Supplemental air bag warning labels ....................... 1-40
Supplemental air bag warning light .......................... 1-40


墌 04.8.23/Z33-D/V5.0 墍


SEATS


SSS0133


쐌 For


the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat belt properly. See “Precautions on seat belt usage” later in this sec- tion.


WARNING


쐌 Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and re- ceive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.


1-2 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


FRONT MANUAL SEAT ADJUSTMENT (for Coupe models)


WARNING


쐌 Do not adjust the driver’s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of control of the vehicle.


쐌 After adjustment, gently rock in the is securely


to make sure it


seat locked.


쎻1 Forward and backward Pull the lever up while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position. When sliding the passenger’s seat backward, be careful not to crush items in the seatback pocket against the rear floor box.


SSS0394


쎻2 Reclining To recline the seatback, pull the lever up and lean back. To bring the seatback forward again, pull the lever and move your body forward. The seatback will move forward. The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “Precautions on seat belt usage” later in this section.) The seatback may also be reclined to allow occupants to rest when the vehicle is parked.


Safety — Seats, seat belts and supplemental restraint system 1-3


墌 04.8.23/Z33-D/V5.0 墍


FRONT POWER SEAT ADJUSTMENT (for Coupe models — if so equipped)


WARNING


쐌 Do not adjust the driver’s seat while driving so full attention may be given to vehicle operation.


쐌 Do not leave children unattended in- side the vehicle. They could unknow- ingly activate switches or controls. Unattended children could become involved in serious accidents.


Operating tips 쐌 The seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.


쐌 Do not operate the power support seat for a long period of time when the engine is off. This will discharge the battery.


쎻1 Forward and backward Moving the sliding switch forward or backward will slide the seat forward or backward to the desired position. When sliding the passenger’s seat backward, be careful not to crush items in the seatback pocket against the rear floor box. 쎻2 Reclining (for driver’s seat) Move the reclining switch backward until the desired angle is obtained. To bring the seatback forward, move the switch forward and move your body forward. The seatback will move forward.


SPA1793


쎻2 Reclining (for passenger’s seat) The passenger’s seat is equipped with a manual lever for reclining. See “Front manual seat ad- justment” earlier in this section. The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “Precautions on seat belt usage” later in this section.) The seatback may also be reclined to allow occupants to rest when the vehicle is parked.


1-4 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


FRONT POWER SEAT ADJUSTMENT (for Roadster models)


WARNING


쐌 Do not adjust the driver’s seat while driving so full attention may be given to vehicle operation.


쐌 Do not leave children unattended in- side the vehicle. They could unknow- ingly activate switches or controls. Unattended children could become involved in serious accidents.


Operating tips 쐌 The seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.


쐌 Do not operate the power support seat for a long period of time when the engine is off. This will discharge the battery.


SSS0271


쎻1 Forward and backward Moving the sliding switch forward or backward will slide the seat forward or backward to the desired position.


When sliding the passenger’s seat backward, be careful not to crush items in the seatback pocket against the rear floor box. 쎻2 Reclining Move the reclining switch backward until the desired angle is obtained. To bring the seatback forward, move the switch forward and move your body forward. The seatback will move forward.


The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “Precautions on seat belt usage” later in this section.) The seatback may also be reclined to allow occupants to rest when the vehicle is parked. Automatic passenger seatback tilt function The passenger seatback will automatically tilt forward and backward during the soft top open/close operation. If you need to cancel this function or when a child restraint is installed in the passenger’s seat, push the seatback tilt Safety — Seats, seat belts and supplemental restraint system 1-5


墌 04.8.23/Z33-D/V5.0 墍


cancel switch to the CANCEL position. For more information about operation conditions, see “Soft top” in the “3. Pre-driving checks and adjustments” section. For the cancel switch, see “Tilting and reclining passenger’s seat from driv- er’s seat” later in this section.


쐌 When using these seats, avoid wear- ing clothing with soft fabrics (wool, etc.). Clothing may be damaged as it rubs against the netted material.


SSS0272


Ventilated net seats (if so equipped) The ventilated net seats are designed for good ventilation while driving. Net cloth is used on the surface of the seatback and the cushion as shown.


CAUTION


쐌 The seat is made of netted materials. Be careful not to snag your jewelry, such as a ring, bracelet or watch, on the seat.


1-6 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


SPA1715


Type A


SEAT LIFTER (for driver’s seat) Type A (except for ventilated net seat) Turn either dial to adjust the angle and height of the seat cushion to the desired position.


SSS0202


Type B


Type B (for ventilated net seat) Turn the dial and adjust the angle of the seat cushion to the desired position.


SSS0203


Coupe models


TILTING AND RECLINING PASSENGER’S SEAT FROM DRIVER’S SEAT The passenger seatback can be adjusted from the driver’s seat to make it easier for the driver to use the rear parcel box or rear floor box, or to help the passenger get in the vehicle. Coupe models (manual type) To tilt or recline the passenger seatback, pull up the lever 쎻A located on the back side of it, and move the seatback forward or backward.


Safety — Seats, seat belts and supplemental restraint system 1-7


墌 04.8.23/Z33-D/V5.0 墍


switch” later in this section.)


쐌 when the passenger seat belt is fastened. 쐌 when the vehicle speed reaches 4 MPH (7


km/h) and more.


The automatic tilting/reclining movement will be stopped: 쐌 when any of the above 4 conditions occur. 쐌 when the power seatback tilt switch (top or


bottom) is pushed again.


쐌 when the seatback is moved with the soft top


open/close operation.


When this interruption occurs, you cannot move the seatback backward from the stopped posi- tion with the power seatback tilt switch. Use the reclining switch (on the seat cushion) to select the seatback position.


SSS0273


Roadster models — Type A


Roadster models (power type) The power seatback tilt switch 쎻B and the seatback tilt cancel switch 쎻C are located on the back side of the passenger seatback as shown. Tilting/reclining operation:


SSS0274


Roadster models — Type B


seatback tilt switch. While the switch is held down, the seatback will move backward to the original position that was last selected using the reclining switch (located on the seat cushion). Release the switch to stop the movement. Operation conditions:


To tilt the passenger seatback forward, push the side) of the power seatback tilt top ( switch 쎻B for more than 0.5 seconds. The seatback will automatically tilt forward. To stop the movement, push the top or bottom of the switch. To tilt or adjust the seatback backward, push and hold the bottom ( side) of the power 1-8 Safety — Seats, seat belts and supplemental restraint system


The power seatback tilt switch does not activate under the following conditions. 쐌 when the passenger seat sliding/reclining switches on the seat cushion are being op- erated.


쐌 when the seat tilt cancel switch is in the CANCEL position. (See “Seatback tilt cancel


墌 04.8.23/Z33-D/V5.0 墍


CAUTION


When a child restraint is installed in the passenger seat, be sure to turn the seat- back tilt cancel switch to the CANCEL position. Otherwise, the child restraint may be damaged.


SSS0275


to


position,


the CANCEL


Seatback tilt cancel switch: When the seatback tilt cancel switch 쎻C is pushed the tilting/reclining operation using the power seat- back tilt switch 쎻B will be cancelled. Only the sliding/reclining switches (located on the seat cushion) are operational. Push the seatback tilt cancel switch to the AUTO position to reactivate the power seatback tilt switch. This cancel switch is linked with the automatic passenger seatback tilt function of the soft top operation. See “Soft top” in the “3. Pre-driving checks and adjustments” section.


SSS0204


HEAD RESTRAINT ADJUSTMENT To raise the head restraint, it up. To lower, push the lock knob 쎻A and push the head restraint down. The ventilated net seats (if so equipped for Roadster models) have non-adjustable head restraints.


just pull


Safety — Seats, seat belts and supplemental restraint system 1-9


墌 04.8.23/Z33-D/V5.0 墍


SEAT BELTS


PRECAUTIONS ON SEAT BELT USAGE If you are wearing your seat belt properly ad- justed and you are sitting upright and well back in your seat, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly en- courages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag. Most states, provinces or territories re- quire that seat belts be worn at all times when a vehicle is being driven.


Adjust the head restraints so the center is level with the center of your ears.


SSS0178A


WARNING


Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Do not remove them. Check the adjust- ment after someone else uses the seat.


1-10 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


SSS0136


WARNING


쐌 Every person who drives or rides in this vehicle should use a seat belt at all times.


쐌 The seat belt should be properly ad- justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in


an accident. Serious injury or death can occur if the seat belt is not worn properly.


쐌 Always route the shoulder belt over your shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.


쐌 Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.


쐌 Be sure the seat belt tongue is se- curely fastened to the proper buckle. 쐌 Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.


쐌 Do not allow more than one person


to use the same seat belt.


쐌 Never carry more people in the ve- hicle than there are seat belts. This vehicle has only two seating posi- tions. Never allow anyone to ride in the luggage area.


쐌 If the seat belt warning light glows continuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indi- cate a malfunction in the system. Have the system checked by a NISSAN dealer.


Safety — Seats, seat belts and supplemental restraint system 1-11


墌 04.8.23/Z33-D/V5.0 墍


쐌 Once the pre-tensioner seat belt has activated, it cannot be reused and must be replaced together with the retractor. See a NISSAN dealer.


쐌 Removal and installation of the pre- tensioner seat belt system compo- nents should be done by a NISSAN dealer.


쐌 All seat belt assemblies,


including retractors and attaching hardware, should be inspected after any colli- sion by a NISSAN dealer. NISSAN recommends that all seat belt as-


SSS0134


SSS0016


semblies in use during a collision be replaced unless the collision was mi- nor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use dur- ing a collision should also be in- spected and replaced if either dam- age or improper operation is noted.


CHILD SAFETY Children need adults to help protect them. They need to be properly restrained.


In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.


There are three basic types of child restraint systems: 쐌 Rear facing child restraint


1-12 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


쐌 Front facing child restraint 쐌 Booster seat


WARNING


쐌 Never let a child 12 or under ride in this vehicle. Do not attempt to hold them in your lap or arms.


쐌 Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop.


Your vehicle is equipped with a supplemental front impact air bag system for the front passen- ger. See “Supplemental restraint system” later in this section. Therefore, children 12 or under should not ride in this vehicle without installing an air bag ON/OFF switch. OBTAINING AN AIR BAG ON/OFF SWITCH If you must transport a child in this vehicle, you may be eligible to have an air bag ON/OFF switch installed. US and Canadian governments


have procedures that allow you to apply for permission to have your vehicle fitted with an air bag ON/OFF switch. Such a switch is available for purchase from NISSAN. If you have ques- tions about the government application proce- dures, contact the NISSAN Consumer Affairs Department listed earlier in this manual. AFTER AN AIR BAG ON/OFF SWITCH IS INSTALLED


WARNING


Infants and children need special pro- tection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fitting seat belt could cause serious or fatal injury. Always use appropriate child restraints.


available for larger children for additional protec- tion. Infants Infants up to at least one year old should be placed in a rear facing child restraint. NISSAN recommends that infants be placed in child restraints that comply with Federal Motor Ve- hicle Safety Standards or Canadian Motor Ve- hicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for instal- lation and use. Small children Children that are over one year old and weigh between 20 lbs (9 kg) and 40 lbs (18 kg) can be placed in a forward facing child restraint. Refer to the manufacturer’s instructions for minimum and maximum weight and height recommenda- tions. NISSAN recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Ca- nadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use. Larger children Children who are too large for child restraint Safety — Seats, seat belts and supplemental restraint system 1-13


All US states and provinces of Canada require the use of approved child restraints for infants and small children. (See “Child restraints” later in this section.)


Also, there are other types of child restraints


墌 04.8.23/Z33-D/V5.0 墍


쐌 For


the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat belt properly.


systems should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 feet 9
inches (142.5 cm) tall and weighs between 40
lbs (18 kg) and 80 lbs (36 kg). A booster seat should be used to obtain proper seat belt fit.


your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations. INJURED PERSONS NISSAN recommends that injured persons use seat belts, depending on the injury. Check with your doctor for specific recommendations. THREE-POINT TYPE SEAT BELT WITH RETRACTOR


WARNING


NISSAN recommends that a child be placed in a commercially available booster seat if the shoul- der belt in the child’s seating position fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle por- tion of the shoulder and the lap belt is low on the hips. A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Ca- nadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat. PREGNANT WOMEN NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across 1-14 Safety — Seats, seat belts and supplemental restraint system


쐌 Every person who drives or rides in this vehicle should use a seat belt at all times.


쐌 Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and re- ceive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.


墌 04.8.23/Z33-D/V5.0 墍


When the locking mechanism is activated the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. For additional information, see “Child restraints” later in this section. The automatic locking mode should be used only for child restraint installation. During normal seat belt use by a passen- ger, the locking mode should not be acti- vated. If it is activated it may cause uncom- fortable seat belt tension.


WARNING


When fastening the seat belts, be cer- tain that the seatbacks are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.


SSS0292A


SSS0020C


Fastening the seat belts 1. Adjust the seat. See “Seats” earlier in this


section.


2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until it clicks.


쐌 The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion will permit the belt to move, and allow you some freedom of movement in the seat.


쐌 If the seat belt cannot be pulled from its fully retracted position, firmly pull the


belt and release it. Then smoothly pull the belt out of the retractor.


3. Position the lap belt portion low and snug


on the hips as shown.


4. Pull


the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.


The front passenger seat belt has a locking mechanism for child restraint installation. It is referred to as the automatic locking mode. (Also remember, if you need to install a child restraint, first obtain an air bag ON/OFF switch and turn the passenger air bag OFF.)


Safety — Seats, seat belts and supplemental restraint system 1-15


墌 04.8.23/Z33-D/V5.0 墍


ward. The retractor should lock and restrict further belt movement.


If the retractor does not lock during this check or if you have any questions about belt operation, see a NISSAN dealer. SEAT BELT EXTENDERS If, because of body size or driving position, it is not possible to properly fit the lap-shoulder belt and fasten it, an extender is available. The ex- tender adds approximately 8 inches (200 mm) of length and may be used for either the driver or passenger seating position. See a NISSAN dealer for assistance if the extender is required.


WARNING


쐌 Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.


쐌 Persons who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.


쐌 Never use seat belt extenders to in- stall child restraints. If the child re- straint is not secured properly, the child could be seriously injured in a collision or a sudden stop. (Also re- member never to use a child restraint unless an air bag ON/OFF switch has been installed and is being used properly.)


SEAT BELT MAINTENANCE 쐌 To clean the seat belt webbings, apply a mild soap solution or any solution recom- mended for cleaning upholstery or carpets. Then brush the webbing, wipe it with a cloth and allow it to dry in the shade. Do not allow the seat belts to retract until they are com- pletely dry.


쐌 If dirt builds up in the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.


쐌 Periodically check to see that the seat belt and the metal components such as flexible wires buckles, tongues, retractors, and anchors work properly. If loose parts, deterioration, cuts or other damage on the


SSS0021A


Unfastening the seat belts To unfasten the belt, press the button 쎻1 on the buckle. The seat belt will automatically retract. Checking seat belt operation Your seat belt retractors are designed to lock belt movement using two separate methods: 쐌 when the belt


is pulled quickly from the


retractor.


쐌 when the vehicle slows down rapidly. You can check their operation as follows: 쐌 grasp the shoulder belt and pull quickly for- 1-16 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


CHILD RESTRAINTS


webbing is found, the entire belt assembly should be replaced.


PRECAUTIONS ON CHILD RESTRAINTS


WARNING


The information in this section is pro- vided only for those owners who have received permission to install an air bag ON/OFF switch and the switch has been installed. See “Obtaining an air bag ON/OFF switch” earlier in this manual. Never let children 12 or under ride in this vehicle unless an air bag ON/OFF switch is installed and it is being prop- erly used.


WARNING


쐌 Infants and small children should al- ways be placed in an appropriate child restraint while riding in the ve- hicle. Failure to use a child restraint can result in serious injury or death. 쐌 Infants and small children should never be carried on your lap. It is not


possible for even the strongest adult to resist the forces of a severe acci- dent. The child could be crushed be- tween the adult and parts of the ve- hicle. Also, do not put the same seat belt around both your child and your- self.


쐌 Never install a child restraint in the front seat unless an air bag ON/OFF switch has been installed and the air bag has been turned OFF. An inflat- ing supplemental air bag could seri- ously injure or kill your child.


쐌 An improperly installed child re- straint could lead to serious injury or death in an accident.


CAUTION


For Roadster models, when installing a child restraint, be sure to turn off the automatic passenger seatback tilt func- tion with the seatback tilt cancel switch (located on the back of the passenger


Safety — Seats, seat belts and supplemental restraint system 1-17


墌 04.8.23/Z33-D/V5.0 墍


seatback). Otherwise, the child restraint may be damaged. See “Tilting and re- clining passenger’s seat from driver’s seat” earlier in this section for detailed information.


In general, child restraints are designed to be installed with the lap portion of a lap/shoulder seat belt. The proper restraint depends on the child’s size. Generally, infants (up to about 1 year and less than 20 lb (9 kg)) should be placed in rear facing child restraints. Front facing child restraints are available for children who outgrow rear facing child restraints. Child restraints for infants and children of various sizes are offered by several manufacturers. When selecting any child restraint, keep the following points in mind: 쐌 choose only a restraint with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.


쐌 check the child restraint in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.


vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is de- signed for your child’s height and weight. Always follow all recommended procedures. All US states and Canadian provinces re- quire that infants and small children be restrained in approved child restraints at all times while the vehicle is being oper- ated.


WARNING


쐌 Improper use of a child restraint can increase the risk or severity of injury for both the child and other occu- pants of the vehicle.


쐌 Follow all of the child restraint manu- facturer’s instructions for installation and use. When purchasing a child restraint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.


쐌 if the child restraint is compatible with your 1-18 Safety — Seats, seat belts and supplemental restraint system


쐌 If the child restraint is not anchored properly, the risk of a child being injured in a collision or a sudden stop greatly increases.


쐌 Adjustable seatbacks should be po- sitioned to fit the child restraint, but as upright as possible.


쐌 After attaching the child restraint, test it before you place the child in it. Push it from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary. You may need to try a different child restraint. Not all child restraints fit in all types of ve- hicles.


쐌 If you install a front facing child re- straint in the front seat, see “Child restraint installation on front passen- ger seat” later in this section.


쐌 When your child restraint is not in use, keep it secured with a seat belt from being thrown to prevent


it


墌 04.8.23/Z33-D/V5.0 墍


around in case of a sudden stop or accident.


CAUTION


Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.


CHILD RESTRAINT INSTALLATION ON FRONT PASSENGER SEAT


WARNING


쐌 Never install a child restraint in the front passenger seat unless an air bag ON/OFF switch has been in- stalled and the air bag has been turned OFF. Supplemental front air bags inflate with great force. A child restraint could be struck by the


SSS0261


supplemental front air bag in a crash and could seriously injure or kill your child.


쐌 The three-point seat belt in your ve- hicle is equipped with an automatic locking mode retractor which must be used when installing a child re- straint.


쐌 Failure to use the retractor’s locking mode will result in the child restraint not being properly secured. The re-


Safety — Seats, seat belts and supplemental restraint system 1-19


墌 04.8.23/Z33-D/V5.0 墍


child. Always follow the restraint manufactur- er’s instructions. The back of the child restraint should be secured against the vehicle seatback. If nec- essary, adjust or remove the head restraint to obtain the correct child restraint fit. See “Head restraint adjustment” earlier in this section. If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the child restraint is If the seating position does not removed. have an adjustable head restraint and it is interfering with the proper child restraint fit, try a different child restraint.


straint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision.


CAUTION


Turn off the automatic passenger seat- back tilt function by turning the seat- back tilt cancel switch to the CANCEL position. (Roadster models)


SSS0301C


Front facing — step 2


Front facing If you must install a child restraint in the front seat, follow these steps:


1. Turn the air bag ON/OFF switch to the OFF


position.


Turn the seatback tilt cancel switch to the CANCEL position. (Roadster models only)


2. Position the child restraint on the front pas- senger seat. Move the seat to the rear- most position. Adjust the head restraint to its highest position (if so equipped). The direction of the child restraint depends on the type of the child restraint and the size of the


1-20 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


SSS0253D


SSS0254D


Front facing — step 3


3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s in- structions for belt routing.


Front facing — step 4


4. Pull on the shoulder belt until all of the belt is fully extended. At this time, the belt retractor is in the automatic locking mode (child re- straint mode). It reverts back to emergency locking mode when the belt is fully retracted.


Front facing — step 5


5. Allow the belt to retract. Pull up on the belt to


remove any slack in the belt.


SSS0331


Safety — Seats, seat belts and supplemental restraint system 1-21


墌 04.8.23/Z33-D/V5.0 墍


8. Check to make sure that the child restraint is properly secured prior to each use. If the lap belt is not locked, repeat steps 4 through 7. After the child restraint is removed and the seat belt is allowed to wind back into the retractor, the automatic locking mode (child restraint mode) is canceled.


SSS0302B


Front facing — step 6


6. Before placing the child in the child restraint, use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 in (25 mm). If it does move more than 1 in (25 mm), pull again on the shoulder belt to further tighten the child restraint. If unable to properly secure the restraint, try a different child restraint. Not all child restraints fit in all types of vehicles.


7. Check that the retractor is in the automatic locking mode by trying to pull more belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the belt is in the automatic locking mode.


1-22 Safety — Seats, seat belts and supplemental restraint system


SSS0211A


Rear facing — step 2


Rear facing When you install a child restraint in the front seat, follow these steps:


1. Turn the air bag ON/OFF switch to the OFF


position.


Turn the seatback tilt cancel switch to the CANCEL position. (Roadster models only)


2. Position the child restraint on the front pas- senger seat. Move the seat to the rearmost position. The direction of the child restraint depends on the type of the child restraint and the size of the child. Always follow the re- straint manufacturer’s instructions.


墌 04.8.23/Z33-D/V5.0 墍


SSS0212A


SSS0213A


SSS0214A


Rear facing — step 3


3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufac- turer’s instructions for belt routing.


Rear facing — step 4


4. Pull on the shoulder belt until all of the belt is fully extended. At this time, the belt retractor is in the automatic locking mode (child re- straint mode). It reverts back to emergency locking mode when the belt is fully retracted.


Rear facing — step 5


5. Allow the belt to retract. Pull up on the belt to


remove any slack in the belt.


Safety — Seats, seat belts and supplemental restraint system 1-23


墌 04.8.23/Z33-D/V5.0 墍


8. Check to make sure that the child restraint is properly secured prior to each use. If the belt is not locked, repeat steps 4 through 7.


After the child restraint is removed and the seat belt is allowed to wind back into the retractor, the automatic locking mode (child restraint mode) is canceled.


SSS0215A


Rear facing — step 6


6. Before placing the child in the child restraint, use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 in (25 mm). If it does move more than 1 in (25 mm), pull again on the shoulder belt to further tighten the child restraint. If unable to properly secure the restraint, try a different child restraint. Not all child restraints fit in all types of vehicles.


7. Check that the retractor is in the automatic locking mode by trying to pull more belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the belt is in the automatic locking mode.


1-24 Safety — Seats, seat belts and supplemental restraint system


SSS0207


TOP TETHER STRAP CHILD RESTRAINT (Coupe models) An anchor for a child restraint with a top tether is provided in this vehicle. However, a child restraint of this type should not be used in this vehicle unless an air bag ON/OFF switch has been installed and is being properly used. See “Obtaining an air bag ON/OFF switch” earlier in this manual. If your child restraint has a top tether strap, it must be secured to the provided anchor point. Secure the child restraint with the seat belt. the head Guide the top tether strap under restraint as illustrated, and secure it to the


墌 04.8.23/Z33-D/V5.0 墍


anchor bracket. Tighten the strap according to manufacturer instructions to remove any slack.


WARNING


Child restraint anchor point is designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstance is it to be used for adult seat belts or harnesses.


BOOSTER SEATS


PRECAUTIONS ON BOOSTER SEATS


WARNING


쐌 The information in this section is pro- vided only for those owners who have received permission to install an air bag ON/OFF switch and the switch has been installed. See “Ob- taining an air bag ON/OFF switch” earlier in this manual. Never let chil- dren 12 or under ride in this vehicle unless an air bag ON/OFF switch is installed and it is being properly used.


쐌 Infants and small children should al- ways be placed in an appropriate child restraint while riding in the ve- hicle. Failure to use a child restraint or booster seat can result in serious injury or death.


쐌 Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe acci-


SPA1644


Anchor point location The anchor point 쎻A is located on the luggage area floor. A flap is provided in the carpet for easy access and is marked with the label shown. If you have any questions when installing a top tether strap child restraint on the pas- senger seat, consult a NISSAN dealer for details.


Safety — Seats, seat belts and supplemental restraint system 1-25


墌 04.8.23/Z33-D/V5.0 墍


to provide the maximum protection dur- ing a collision.


Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind: 쐌 Choose only a booster seat with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.


쐌 Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.


dent. The child could be crushed be- tween the adult and parts of the ve- hicle. Also, do not put the same seat belt around both your child and your- self.


쐌 Never install a booster seat in the front seat unless an air bag ON/OFF switch has been installed and the air bag has been turned OFF. An inflat- ing supplemental air bag could seri- ously injure or kill your child.


쐌 A booster seat must only be installed in a seating position that has a lap/shoulder belt. Failure to use a three-point type seat belt with a booster seat can result in a serious injury in sudden stop or collision.


쐌 An improperly installed booster seat could lead to serious injury or death in an accident.


LRS0455


WARNING


Do not use towels, books, pillows or other items in place of a booster seat. Items such as these may move during normal driving or a collision and result in serious injury or death. Booster seats are designed to be used with a lap/shoulder belt. Booster seats are de- signed to properly route the lap and shoulder portions of the seat belt over the strongest portions of a child’s body


1-26 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


All U.S. states and Canadian provinces re- quire that infants and small children be restrained in an approved child restraint at all times while the vehicle is being oper- ated.


WARNING


쐌 Improper use of a booster seat can increase the risk or severity of injury for both the child and other occu- pants of the vehicle.


쐌 Follow all of the booster seat manu- facturer’s instructions for installation and use. When purchasing a booster seat, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of booster seats in your ve- hicle.


쐌 If the booster seat and seat belt are not used properly, the risk of a child being injured in a collision or a sud- den stop greatly increases.


쐌 Adjustable seatbacks should be po- sitioned to fit the booster seat, but as


SSS0363


LRS0454
쐌 Make sure the child’s head will be properly supported by the booster seat or vehicle seat. The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat 쎻1
is chosen, the vehicle seatback must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat 쎻2 should be used. 쐌 If the booster seat is compatible with your vehicle, place your child in the booster seat and check the various adjustments to be sure the booster seat is compatible with your child. Always follow all recommended proce- dures.


Safety — Seats, seat belts and supplemental restraint system 1-27


墌 04.8.23/Z33-D/V5.0 墍


before placing your child in the booster seat.


upright as possible.


쐌 After placing the child in the booster seat and fastening the seat belt, make sure the shoulder portion of the belt is away from the child’s face and neck and the lap portion of the belt does not cross the abdomen.


쐌 Do not put the shoulder belt behind the child or under the child’s arm. If you must install a booster seat in the front seat, see “Booster seat instal- lation on front passenger seat” later in this section.


쐌 When your booster seat is not in use, keep it secured with a seat belt to prevent it from being thrown around in case of a sudden stop or accident.


CAUTION


Remember that a booster seat left in a closed vehicle can become very hot. Check the seating surface and buckles


BOOSTER SEAT INSTALLATION ON FRONT PASSENGER SEAT


LRS0454


WARNING


쐌 Never install a booster seat in the front passenger seat unless an air bag ON/OFF switch has been in- stalled and the air bag has been turned OFF. Supplemental air bags inflate with great force. A child could be struck by the supplemental air bag


1-28 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


in a crash and could seriously injure or kill your child.


If you must install a booster seat in the front seat, follow these steps: 1. Turn the air bag ON/OFF switch to the OFF


position.


2. Move the seat to the rearmost position. 3. Position the booster seat on the seat. Only place it in a front facing direction. Always follow the booster seat manufacturer’s in- structions.


4. The booster seat should be positioned on the vehicle seat so that it is stable. If necessary, adjust or remove the head restraint to obtain the correct booster seat fit. See “Head re- straint adjustment” earlier in this section. If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the booster seat is removed. If the seating position does not have an adjust- able head restraint and it is interfering with the proper booster seat fit, try a different booster seat.


5. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s in-


structions for adjusting the belt routing.


6. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack. Be sure the shoulder belt is positioned across the top, middle portion of the child’s shoul- der. Be sure to follow the booster seat manu- facturer’s instructions for adjusting the belt routing.


7. Follow the warnings, cautions and instruc- tions for properly fastening a seat belt shown in the “Three-point type seat belt with retrac- tor” earlier in this section.


SUPPLEMENTAL RESTRAINT SYSTEM PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM This Supplemental Restraint System (SRS) sec- tion contains important information concerning the driver and passenger front impact supple- mental air bags, front seat side-impact supple- mental air bags, curtain side-impact air bags and front seat pre-tensioner seat belts. Supplemental front-impact air bag system: This system can help cushion the impact force to the face and chest of the driver and front passenger in certain frontal collisions. Supplemental side-impact air bag system (if so equipped): This system can help cushion the impact force to the chest area of the driver and front passenger in certain side impact colli- sions. The front seat side-impact supplemental air bags are designed to inflate on the side where the vehicle is impacted. Supplemental curtain side-impact air bag system (if so equipped for Coupe models): This system can help cushion the impact force to the head of occupants in certain side impact collisions. The curtain side-impact air bags are designed to inflate on the side where the vehicle is impacted. The supplemental restraint system is designed to supplement the crash protection provided Safety — Seats, seat belts and supplemental restraint system 1-29


墌 04.8.23/Z33-D/V5.0 墍


by the driver and passenger seat belts and is not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steer- ing wheel, instrument panel, door finishers and side roof rails. (See “Seat belts” earlier in this section for instructions and precautions on seat belt usage.) After turning the ignition key to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7
seconds if the systems are operational.


WARNING


쐌 The supplemental front air bags ordi- narily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Al- ways wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.


쐌 The seat belts and the supplemental front air bags are most effective


SSS0131


when you are sitting well back and upright in the seat. Supplemental front air bags inflate with great force. If you are unrestrained, leaning for- ward, sitting sideways or out of posi- tion in any way, you are at greater risk of injury or death in a crash. You may also receive serious or fatal in- juries from the supplemental front air bag if you are up against it when it inflates. Always sit back against the seatback and as far away as practical


1-30 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


from the steering wheel or instru- ment panel. Always use the seat belts.


쐌 The driver and front passenger seat belt buckles are equipped with sen- sors that detect if the seat belts are fastened. The air bag system moni- tors the severity of a collision and then inflates the air bags based on belt usage. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.


쐌 Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental front air bag in- flates.


SSS0132


Safety — Seats, seat belts and supplemental restraint system 1-31


墌 04.8.23/Z33-D/V5.0 墍


SSS0016


SSS0006


SSS0008


1-32 Safety — Seats, seat belts and supplemental restraint system


SSS0007


SSS0009


墌 04.8.23/Z33-D/V5.0 墍


WARNING


쐌 Never let children 12 or under ride in this vehicle. Do not attempt to hold them in your lap or arms. Some ex- amples of dangerous riding positions are shown in the previous illustra- tions.


쐌 Children may be severely injured or killed when the supplemental front air bags or supplemental side and curtain side-impact air bags (if so equipped) inflate.


쐌 Also, never install a child restraint in the front seat. An inflating supple- mental front air bag could seriously injure or kill your child.


쐌 For information about installing an air bag ON/OFF switch in your ve- hicle so children can be transported, see “Obtaining an air bag ON/OFF switch” earlier in this section.


SSS0099


SSS0100


SSS0101


WARNING


Supplemental side air bag and curtain side-impact air bag (if so equipped): 쐌 The supplemental side air bag and curtain side-impact air bag ordinarily will not inflate in the event of a fron- tal impact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.


Safety — Seats, seat belts and supplemental restraint system 1-33


墌 04.8.23/Z33-D/V5.0 墍


SSS0159


SSS0162


쐌 The seat belts, the supplemental side air bags and curtain side-impact air bags are most effective when you are sitting well back and upright in the seat. The side air bag and curtain side-impact air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seat to extend their hand


out of the window or lean against the door. Some examples of dangerous riding positions are shown in the pre- vious illustrations.


쐌 Do not use seat covers on the front seatbacks. They may interfere with supplemental side air bag inflation.


1-34 Safety — Seats, seat belts and supplemental restraint system


墌 04.8.23/Z33-D/V5.0 墍


COMPONENTS OF THE SUPPLEMENTAL RESTRAINT SYSTEM 1. Crash zone sensor 2. Supplemental front air bag modules 3. Supplemental curtain side-impact air bag modules (if so equipped for Coupe models)


4. Diagnosis sensor unit 5. Satellite sensors 6. Seat belt pre-tensioner retractor 7. Supplemental side air bag modules (if so


equipped)


SSS0276


Supplemental front air bag system The driver supplemental air bag is located in the center of the steering wheel; the front passenger supplemental air bag is mounted in the instru- ment panel. These systems are designed to meet optional certification requirements under U.S. regulations. They are also permitted in Canada. The optional certification allows front air bags to be designed to inflate somewhat less forcefully than previously. However, all of the information, cautions and warnings in this manual still apply and must be followed. The front air bags are designed to inflate in higher severity frontal collisions, although they


the forces in another


type of may inflate if collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental air bag operation. The supplemental air bag system has dual stage inflators for both the driver and passenger air bags. The system monitors information from the crash zone sensor, the diagnosis sensor unit and seat belt buckle sensors that detect if the seat belts are fastened, inflator operation is based on the severity of a collision and whether the seat belts are being used. Only one front air bag may inflate in a crash, depending on the crash sever- ity and whether the front occupants are belted or unbelted. This does not indicate improper per- formance of the system. If you have any ques- tions about the performance of your air bag system, contact a NISSAN dealer.


When the supplemental front air bag inflates, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly. Supplemental front air bags, along with the use of seat belts, help to cushion the impact force on Safety — Seats, seat belts and supplemental restraint system 1-35


墌 04.8.23/Z33-D/V5.0 墍


the face and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Supplemental front air bags do not provide restraint to the lower body.

Loading...
x
