2008 Mercedes-benz CLS Class Owners Manual

Download PDF Manual

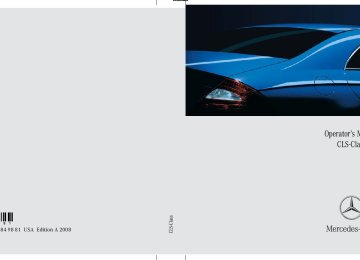

Sommer\ Corporate\ Media\ AG Bild in der Größe 215x70 mm einfügen Operator’s Manual CLS-Class Order No. 6515 1429 13 Part No. 219 584 98 81 USA Edition A 2008 2 1 9 5 8 4 9 8 8 1 CLS 550 CLS 63 AMG Our company and staff congratulate you on the purchase of your new Mercedes-Benz. Your selection of our product is a demon- stration of your trust in our company name. Furthermore, it exemplifies your desire to own an automobile that will be as easy as possible to operate and provide years of service. Your Mercedes-Benz represents the ef- forts of many skilled engineers and crafts- men. To help assure your driving pleasure, and also the safety of you and your passen- gers, we ask you to make a small invest- ment of time: 앫 Please read this manual carefully, then return it to your vehicle where it will be handy for your reference. 앫 Please follow the recommendations contained in this manual. They are de- signed to acquaint you with the opera- tion of your Mercedes-Benz. 앫 Please pay attention to the warnings and cautions contained in this manual. They are designed to help improve the safety of the vehicle operator and oc- cupants. We extend our best wishes for many miles of safe, pleasurable driving. Mercedes-Benz USA, LLC A DaimlerChrysler Company At a glance .......................................... 21 Exterior view......................................... 22 Cockpit................................................. 24 Instrument cluster ................................ 26 Multifunction steering wheel ................ 28 Center console ..................................... 29 Upper part ...................................... 29 Lower part ...................................... 30 Overhead control panel ........................ 31 Storage compartments......................... 32 Door control panel................................ 34 Introduction .......................................... 9 Product information................................ 9 Operator’s Manual............................... 10 Service and warranty information .. 10 Important notice for California retail buyers and lessees of Mercedes-Benz automobiles .......... 11 Maintenance .................................. 12 Roadside Assistance ...................... 12 Change of address or ownership.... 12 Operating your vehicle outside the USA or Canada......................... 13 Where to find it.................................... 14 Symbols............................................... 15 Operating safety .................................. 16 Proper use of the vehicle ............... 16 Problems with your vehicle.................. 17 Reporting safety defects...................... 18 Reporting safety defects ................ 18 Vehicle data recording......................... 19 Information regarding electronic recording devices........................... 19 Contents Getting started................................... 35 Unlocking ............................................. 36 Unlocking with the SmartKey ......... 36 Unlocking with KEYLESS-GO*......... 37 Starter switch positions.................. 38 Adjusting.............................................. 41 Seats .............................................. 41 Steering wheel................................ 44 Mirrors............................................ 47 Driving.................................................. 48 Fastening the seat belts ................. 48 Starting the engine ......................... 51 Parking brake ................................. 53 Driving off ....................................... 53 Switching on headlamps................. 55 Turn signals .................................... 55 Windshield wipers........................... 56 Problems while driving.................... 58 Parking and locking.............................. 59 Parking brake ................................. 59 Switching off headlamps................. 60 Turning off engine........................... 60 Releasing seat belts........................ 61 Locking........................................... 61 Contents Safety and Security ........................... 63 Occupant safety................................... 64 Air bags .......................................... 66 Occupant Classification System..... 71 Seat belts ....................................... 76 Preventive occupant safety (PRE-SAFE®) ................................... 80 Active head restraints .................... 81 Children in the vehicle.................... 82 Blocking of rear door window operation ........... 87 Panic alarm.......................................... 88 Activating ....................................... 88 Deactivating ................................... 88 Driving safety systems......................... 89 ABS ................................................ 89 BAS ................................................ 90 Adaptive Brake ............................... 91 EBP................................................. 92 ESP®............................................... 92 Anti-theft systems................................ 97 Immobilizer..................................... 97 Anti-theft alarm system.................. 97 Controls in detail............................... 99 Locking and unlocking....................... 100 SmartKey ..................................... 100 SmartKey with KEYLESS-GO* ...... 103 Checking batteries in the SmartKey or SmartKey with KEYLESS-GO* .............................. 108 Loss of the SmartKey or SmartKey with KEYLESS-GO* ...... 108 Opening the doors from the inside............................. 108 Opening the trunk ........................ 109 Closing the trunk.......................... 111 Trunk emergency release............. 114 Valet locking ................................ 115 Automatic central locking ............ 116 Locking and unlocking from the inside............................. 116 Seats ................................................ 118 Front seat active head restraints . 118 Rear seat head restraints............. 118 Lumbar support............................ 119 Multicontour seat*....................... 120 Seat heating*............................... 121 Seat ventilation* .......................... 122 Memory function ............................... 123 Storing positions into memory..... 124 Recalling positions from memory. 124 Storing exterior rear view mirror parking position ........................... 125 Lighting ............................................. 126 Exterior lamp switch .................... 126 Combination switch ..................... 130 Corner-illuminating front fog lamps* (CLS 550 with Bi-Xenon* headlamps only).......... 130 Hazard warning flasher ................ 132 Interior lighting in the front.......... 133 Interior lighting in the rear ........... 134 Door entry lamps ......................... 135 Trunk lamp................................... 135 Instrument cluster ............................. 136 Adjusting instrument cluster illumination .................................. 136 Coolant temperature indicator..... 137 Resetting trip odometer............... 137 Tachometer.................................. 138 Outside temperature indicator..... 138 Control system .................................. 139 Multifunction display.................... 139 Multifunction steering wheel........ 140 Contents Menus .......................................... 142 Standard display menu ................ 145 AMG menu ................................... 145 AUDIO menu ................................ 148 NAV* menu.................................. 150 Distronic* menu........................... 151 Vehicle status message memory menu.............................. 151 Settings menu.............................. 152 Trip computer menu..................... 164 TEL* menu ................................... 166 Automatic transmission..................... 169 Gear selector lever....................... 169 Shifting procedure ....................... 170 Gear selector lever positions ....... 171 Driving tips................................... 173 Gear ranges ................................. 174 Automatic shift program .............. 175 Gear selector lever one-touch gearshifting .................................. 176 Steering wheel gearshift control one-touch gearshifting* ............... 177 Manual shift program CLS 63 AMG ................................ 179 Emergency operation (Limp-Home Mode) ...................... 182 Good visibility..................................... 183 Headlamp cleaning system* ......... 183 Rear view mirrors.......................... 183 Sun visors ..................................... 184 Rear window sunshade* ............... 185 Rear window defroster.................. 186 4-zone automatic climate control....... 188 Deactivating the climate control system .......................................... 193 Operating the climate control system in automatic mode............ 194 Setting the temperature................ 195 Adjusting air distribution............... 195 Adjusting air volume ..................... 196 Front defroster.............................. 197 Maximum cooling MAX COOL (USA only)..................................... 198 Air recirculation mode .................. 198 Air conditioning............................. 201 Residual heat and ventilation (Canada only)................................ 201 Rear climate control ..................... 202 Front center console storage compartment ventilation............... 204 Power windows .................................. 205 Opening and closing the windows ................................. 205 Synchronizing power windows...... 207 Summer opening feature .............. 208 Convenience closing feature......... 208 Power tilt/sliding sunroof .................. 210 Opening and closing the power tilt/sliding sunroof........................ 210 Synchronizing the power tilt/sliding sunroof........................ 212 Driving systems.................................. 213 Cruise control ............................... 213 Distronic* ..................................... 217 Airmatic DC (Dual Control) ........... 230 Parktronic system (Parking assist)* ........................... 234 Loading .............................................. 238 Roof rack* .................................... 238 Loading instructions ..................... 238 Ski bag* (Canada only) ................. 239 Cargo tie-down hooks................... 242 Retaining hook.............................. 242 Contents Useful features .................................. 243 Storage compartments................. 243 Cup holders.................................. 246 Ashtrays ....................................... 248 Cigarette lighter ........................... 249 Power outlets ............................... 250 Heated steering wheel (Canada only) ............................... 251 Floormats ..................................... 252 Telephone*................................... 253 Tele Aid ........................................ 256 Garage door opener ..................... 262 Operation ......................................... 269 The first 1000 miles (1500 km)......... 270 Driving instructions............................ 271 Drive sensibly – save fuel............. 271 Drinking and driving ..................... 271 Pedals .......................................... 271 Power assistance ......................... 272 Brakes.......................................... 272 Driving off .................................... 274 Parking......................................... 275 Tires ............................................. 275 Hydroplaning................................ 276 Tire traction.................................. 276 Tire speed rating .......................... 277 Winter driving instructions ........... 278 Standing water............................. 279 Passenger compartment .............. 280 Driving abroad.............................. 280 Control and operation of radio transmitter .......................... 280 Catalytic converter....................... 281 Emission control .......................... 281 Coolant temperature.................... 282 At the gas station .............................. 283 Refueling...................................... 283 Check regularly and before a long trip ....................................... 285 Engine compartment ......................... 286 Hood ............................................ 286 Engine oil ..................................... 287 Transmission fluid level................ 289 Coolant level ................................ 290 Battery ......................................... 291 Washer system and headlamp cleaning system* ......................... 292 Tires and wheels................................ 293 Important guidelines .................... 293 Tire care and maintenance........... 294 Direction of rotation..................... 295 Loading the vehicle...................... 296 Recommended tire inflation pressure....................................... 301 Checking tire inflation pressure ... 303 MOExtended system*.................. 313 Tire labeling ................................. 314 Load identification ....................... 318 DOT, Tire Identification Number (TIN) ............................................. 318 Maximum tire load ....................... 320 Contents Flat tire............................................... 412 Preparing the vehicle .................... 412 Mounting the spare wheel ............ 412 MOExtended system*................... 419 Battery ............................................... 420 Disconnecting the battery ............ 421 Removing the battery ................... 421 Charging and reinstalling the battery .......................................... 422 Reconnecting the battery ............. 422 Jump starting...................................... 423 Towing the vehicle.............................. 425 Installing towing eye bolt.............. 426 Fuses.................................................. 428 Fuse box in passenger compartment................................ 429 Fuse box in trunk.......................... 429 Maximum tire inflation pressure .. 320 Uniform Tire Quality Grading Standards (U.S. vehicles) ............. 321 Tire ply material ........................... 323 Tire and loading terminology........ 323 Rotating tires ............................... 326 Winter driving .................................... 328 Winter tires .................................. 328 Block heater* (Canada only) ........ 329 Snow chains................................. 329 Maintenance...................................... 330 Maintenance service indicator message....................................... 330 Calling up the maintenance service indicator........................... 331 Resetting the maintenance service indicator........................... 332 Vehicle care....................................... 333 Cleaning and care of vehicle ........ 333 Practical hints .................................. 343 What to do if … ................................... 344 Lamps in instrument cluster ......... 344 Lamp in center console................. 356 Vehicle status messages in the multifunction display..................... 358 Where will I find...? ............................. 393 First aid kit.................................... 393 Spare wheel .................................. 393 Vehicle tool kit.............................. 395 Luggage box ................................. 397 Unlocking/locking in an emergency... 398 Unlocking the vehicle.................... 398 Locking the vehicle ....................... 399 Fuel filler flap emergency release . 400 Manually unlocking the gear selector lever ................................ 400 Resetting activated head restraints.... 401 Replacing SmartKey batteries ............ 402 Replacing bulbs .................................. 404 Bulbs............................................. 404 Replacing bulbs for front lamps .... 407 Replacing bulbs for rear lamps ..... 409 Replacing wiper blades....................... 410 Wiper blades ................................. 410 Contents Technical data.................................. 431 Parts service ...................................... 432 Warranty coverage............................. 433 Loss of Service and Warranty Information Booklet...................... 433 Identification labels............................ 434 Layout of poly-V-belt drive ................. 436 CLS 550 ....................................... 436 CLS 63 AMG................................. 436 Engine................................................ 437 Rims and tires.................................... 438 Same size tires............................. 439 Mixed size tires ............................ 441 MOExtended tires*....................... 444 Spare wheel ................................. 445 Electrical system................................ 446 Main dimensions and weights............ 447 Main dimensions .......................... 447 Weights ........................................ 447 Index................................................. 457 Fuels, coolants, lubricants etc. .......... 448 Capacities .................................... 448 Engine oils.................................... 450 Engine oil additives ...................... 450 Air conditioning refrigerant .......... 450 Brake fluid.................................... 450 Premium unleaded gasoline ......... 451 Fuel requirements ........................ 451 Gasoline additives........................ 452 Coolants....................................... 452 Washer system and headlamp cleaning system* ......................... 455 Introduction Product information Product information 왔 Please observe the following in your own best interest: We recommend using Genuine Mercedes-Benz Parts as well as conversion parts and accessories explicitly approved by us for your vehicle model. We have tested these parts to determine their reliability, safety and special suitabili- ty for Mercedes-Benz vehicles. We are unable to make an assessment for other products and therefore cannot be held responsible for them, even if in indi- vidual cases an official approval or authori- zation by governmental or other agencies should exist. Use of such parts and acces- sories could adversely affect the safety, performance or reliability of your vehicle. Please do not use them. Genuine Mercedes-Benz Parts as well as conversion parts and accessories approved by us are available at any authorized Mercedes-Benz Center where you will receive comprehensive informa- tion, also on permissible technical modifi- cations, and where proper installation will be performed. Introduction Operator’s Manual This Operator’s Manual contains a great deal of useful information. We urge you to read it carefully and familiarize yourself with the vehicle before driving. For your own safety and longer service life of the vehicle, we urge you to follow the in- structions and warnings contained in this manual. Ignoring them could result in dam- age to the vehicle or personal injury to you or others. Vehicle damage caused by fail- ure to follow instructions is not covered by the Mercedes-Benz Limited Warranty. Your vehicle may have some or all of the equipment described in this manual. Therefore, you may find explanations for optional equipment not installed in your vehicle. If you have any questions about the operation of any equipment, any authorized Mercedes-Benz Center will be glad to demonstrate the proper proce- dures. We continuously strive to improve our product, and ask for your understanding that we reserve the right to make changes in design and equipment. Therefore, infor- mation, illustrations and descriptions in this Operator’s Manual might differ from your vehicle. Optional equipment is also described in this manual, including operating instruc- tions wherever necessary. Since they are special-order items, the descriptions and illustrations herein may vary slightly from the actual equipment of your vehicle. If there are any equipment details that are not shown or described in this Operator’s Manual, any authorized Mercedes-Benz Center will be glad to inform you of correct care and operating procedures.The Opera- tor’s Manual and Maintenance Booklet are important documents and should be kept with the vehicle. Service and warranty information The Service and Warranty Information Booklet contains detailed information about the warranties covering your Mercedes-Benz, including: 앫 New Car Limited Warranty 앫 Emission System Warranty 앫 Emission Performance Warranty 앫 California, Maine, Massachusetts, and Vermont Emission Control System Warranty (California, Maine, Massachusetts, and Vermont only) 앫 State Warranty Enforcement Laws (Lemon Laws) 10 (1) the same substantial defect or mal- function results in a condition that is likely to cause death or serious bodily injury if the vehicle is driven, that de- fect or malfunction has been subject to repair two or more times, and you have directly notified Mercedes-Benz USA, LLC in writing of the need for its repair, (2) the same substantial defect or mal- function of a less serious nature than category (1) has been subject to repair four or more times and you have direct- ly notified us in writing of the need for its repair, or Important notice for California retail buyers and lessees of Mercedes-Benz automobiles Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price or lease price, if Mercedes-Benz USA, LLC and/or its au- thorized repair or service facilities fail to fix one or more substantial defects or mal- functions in the vehicle that are covered by its express warranty after a reasonable number of repair attempts. During the period of 18 months from original delivery of the vehicle or the accumulation of 18000 miles (approximately 29000 km) on the odometer of the vehicle, whichever occurs first, a reasonable number of repair attempts is presumed for a retail buyer or lessee if one or more of the following occurs: Introduction Operator’s Manual (3) the vehicle is out of service by reason of repair of the same or different sub- stantial defects or malfunctions for a cumulative total of more than 30 calendar days. Written notification should not be sent to a dealer, it should be addressed to Mercedes-Benz USA, LLC Customer Assistance Center One Mercedes Drive Montvale, NJ07645-0350 11 Introduction Operator’s Manual Maintenance Roadside Assistance Change of address or ownership The Maintenance Booklet describes all the necessary maintenance work which should be performed at regular intervals. Always have the Maintenance Booklet with you when you take the vehicle to an authorized Mercedes-Benz Center for service. The service advisor will record each service in the booklet for you. The Mercedes-Benz Roadside Assistance Program provides factory trained technical help in the event of a breakdown. Calls to the toll-free Roadside Assistance number 1-800-FOR-MERCedes (in the USA) 1-800-387-0100 (in Canada) will be answered by Mercedes-Benz Customer Assistance Representatives 24 hours a day, 365 days a year. For additional information refer to the Mercedes-Benz Roadside Assistance Pro- gram brochure in your vehicle literature portfolio. If you change your address, be sure to send in the “Change of Address Notice” found in the Service and Warranty Information Booklet, or simply call the Mercedes-Benz Customer Assistance Center (in the USA) at 1-800-FOR-MERCedes, or Customer Ser- vice (in Canada) at 1-800-387-0100. It is in your own interest that we can contact you should the need arise. If you sell your Mercedes, please leave all literature with the vehicle to make it avail- able to the next operator. If you bought this vehicle used, be sure to send in the “Notice of Purchase of Used Car” found in the Service and Warranty Information Booklet, or call the Mercedes-Benz Customer Assistance Cen- ter (in the USA) at 1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100. 12 Operating your vehicle outside the USA or Canada If you plan to operate your vehicle in for- eign countries, please be aware that: 앫 service facilities or replacement parts may not be readily available, 앫 unleaded gasoline for vehicles with cat- alytic converters may not be available; the use of leaded fuels will damage the catalysts, 앫 gasoline may have a considerably low- er octane rating, and improper fuel can cause engine damage. Certain Mercedes-Benz models are avail- able for delivery in Europe under our Euro- pean Delivery Program. For details, consult an authorized Mercedes-Benz Center or write to: In the USA: Mercedes-Benz USA, LLC European Delivery Department One Mercedes Drive Montvale, NJ 07645-0350 In Canada: Mercedes-Benz Canada, Inc. European Delivery Department 98 Vanderhoof Avenue Toronto, Ontario M4G 4C9 Introduction Operator’s Manual 13 Introduction Where to find it This Operator’s Manual is designed to pro- vide comprehensive support information for you, the vehicle operator. Each section has its own reference color. At a glance Here you will find an overview of your vehi- cle’s interior and exterior main features. Getting started Here you will find all the information you need for your first drive. You should read this section first if this is your first Mercedes-Benz vehicle or if you are rent- ing or borrowing this vehicle. Safety and Security Here you will find descriptions of the safety and security features of your vehicle. 14 Controls in detail Here you will find detailed information about the equipment installed in your vehi- cle. This section expands on the “Getting started” section and also describes techni- cal innovations. If you are already familiar with the basic functions of your vehicle, this section will be of particular interest to you. Operation Here you will find all the information you need for the proper operation of your vehi- cle. Practical hints This section provides fast assistance for dealing with problems you may encounter. Technical data All important technical data for your vehi- cle can be found in this section. Indexes The table of contents and the index are designed to help you find information quickly and easily. The following publications are part of your vehicle documentation: 앫 this Operator’s Manual 앫 the Maintenance Booklet Separate operating instructions will be provided as required depending on the equipment options installed in your vehi- cle. 왔 Symbols Trademarks: 앫 ESP® and PRE-SAFE® are registered trademarks of DaimlerChrysler. 앫 HomeLink® is a registered trademark of Prince, a Johnson Controls Company. The following symbols are found in this Operator’s Manual: Optional equipment is identified with an asterisk. Since standard equipment varies between models, the descriptions and illustrations in this manual may differ slightly from the actual equipment of your vehi- cle. Introduction Symbols Warning! 왘 This symbol points to instructions for you to follow. Warning notices draw your attention to haz- ards that may endanger your health or life, or the health or life of others. 왘 A number of these symbols appearing in succession indicates a multiple-step procedure. ! Highlights hazards that may result in dam- age to your vehicle. i Helpful hints or further information you may find useful. 컄 page 컄컄 컄컄 -> This symbol tells you where to look for further information on a topic. This continuation symbol marks a warning which is continued on the next page. This continuation symbol marks a procedure which is continued on the next page. This symbol is used to indicate cross-references to term defini- tions. Display Words appearing in the multi- function display are printed in the type shown here. 15 Introduction Operating safety Warning! Warning! Proper use of the vehicle Work improperly carried out on electronic components and associated software could cause them to cease functioning. Because the vehicle’s electronic components are interconnected, any modifications made may produce an undesired effect on other systems. Electronic malfunctions could seri- ously impair the operating safety of your ve- hicle. See your authorized Mercedes-Benz Center for repairs or modifications to electronic components. Other improper work or modifications on the vehicle could also have a negative impact on the operating safety of the vehicle. Some safety systems only function while the engine is running. You should therefore nev- er turn off the engine while driving. Heavy blows against the vehicle underbody or tires/wheels, for example when running over an obstacle, road debris or a pothole, may cause serious damage to and impair the operating safety of your vehicle. If you feel a sudden strong vibration or ride disturbance, or you suspect that damage to your vehicle has occurred, you should turn on your haz- ard warning flashers, carefully slow down, and drive with caution to an area which is a safe distance from the road. Inspect the vehicle underbody and tires/wheels for possible damage. If the vehicle appears unsafe, have it towed to the nearest authorized Mercedes-Benz Center or other qualified maintenance or repair fa- cility for further inspection or repairs. Proper use of the vehicle requires that you are familiar with the following information and rules: 앫 the safety precautions in this manual 앫 the “Technical data” section in this manual 앫 traffic rules and regulations 앫 motor vehicle laws and safety stan- dards Warning! Various warning labels are attached to your vehicle. These warning labels are intended to make you and others aware of various risks. You should not remove any of these warning labels unless explicitly instructed to do so by information on the label itself. Removal of any of these labels may cause you and others to be unaware of certain risks which may result in an accident and/or personal injury. 16 Introduction Problems with your vehicle 왔 Problems with your vehicle If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to immediately contact an authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is not handled to your satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if necessary contact us at one of the following addresses: In the USA: Customer Assistance Center Mercedes-Benz USA, LLC One Mercedes Drive Montvale, NJ 07645-0350 In Canada: Customer Relations Department Mercedes-Benz Canada, Inc. 98 Vanderhoof Avenue Toronto, Ontario M4G 4C9 17 Introduction Reporting safety defects For the USA only: The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the “National Traffic and Motor Vehicle Safety Act of 1966”. Reporting safety defects If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Mercedes-Benz USA, LLC. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from http://www.safercar.gov. 18 Introduction Vehicle data recording 왔 Vehicle data recording Information regarding electronic recording devices (Including notice pursuant to California Code § 9951) Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system, may transmit some data in certain accidents. This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety. DaimlerChrysler may access the information and share it with others 앫 for safety research or vehicle diagnosis purposes 앫 with the consent of the vehicle owner or lessee 앫 in response to an official request by law enforcement or other government agency 앫 for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or 앫 as otherwise required or permitted by law. Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted via that system. 19 20 At a glance Exterior view Cockpit Instrument cluster Multifunction steering wheel Center console Overhead control panel Storage compartments Door control panel 21 At a glance Exterior view 22 Item 1 Trunk 앫 Unlocking 앫 Opening and closing 앫 Spare wheel 앫 Vehicle tool kit 2 Rear lamps 3 Rear window, defrosting 4 Fuel filler flap 앫 Fuel requirements 5 Doors 앫 Locking and unlocking 앫 Opening and closing Page Item 100 109 393 395 404 191 283 451 100 108 6 Towing eye bolt 앫 Installing towing eye bolt 7 Rims and tires 앫 Checking tire inflation pressure 앫 Flat tire 8 Front lamps 9 Hood, opening 앫 Engine oil 앫 Coolant a Windshield wipers 앫 Wiper blades, replacing 앫 Wiper blades, cleaning Page 395 425 303 412 404 286 287 290 56 410 338 At a glance Exterior view Item b Window, cleaning c Power tilt/sliding sunroof d Exterior rear view mirrors 앫 Adjusting 앫 Auto-dimming 앫 Parking position e Side marker lamps Page 338 210 47 183 184 404 23 At a glance Cockpit 24 At a glance Cockpit Item Page Item Page Item f Parking brake pedal g Hood lock release h Parking brake release j Exterior lamp switch k Door control panel 1 Combination switch 앫 Turn signals 앫 Windshield wipers 앫 High beam 2 Steering wheel gearshift control* 3 Cruise control lever 앫 Cruise control 앫 Distronic* 4 Multifunction steering wheel 5 Instrument cluster 6 Horn 55 56 55 177 213 217 28, 140 26, 136 7 Lever for Voice Control Sys- tem*, see separate operating instructions 8 Front Parktronic* warning indicator 9 Overhead control panel a Glove box lid release, glove box lock b Glove box c Center console d Starter switch e Steering wheel adjustment stalk Heated steering wheel (Canada only) 234 31 243 243 29 38 45 251 Page 53, 59 286 53 55,126 34 25 At a glance Instrument cluster 26 Page 345 139 351 Item 1 L Left turn signal indicator lamp 2 v ESP® warning lamp 3 Speedometer 4 Multifunction display 5 l Distance warning lamp Vehicles without Distronic*: Warning lamp without func- tion. It illuminates with the ignition on. It should go out when the engine is running. 6 K Right turn signal indicator lamp 7 Coolant temperature indica- tor with: • Coolant temperature 350 warning lamp 8 Tachometer with: < Seat belt telltale 351 Item 1 Supplemental Restraint System (SRS) indicator lamp - Antilock Brake Sys- tem (ABS) indicator lamp B Low beam headlamp 55 indicator lamp, de- pending on vehicle production date A High beam headlamp 130 indicator lamp 9 Main odometer with: 앫 Selector lever position 앫 Program mode a Clock with: ; Brake warning lamp, USA only 51 175 157 347 3 Brake warning lamp, 347 Canada only At a glance Instrument cluster Page 353 Item ú Engine malfunction in- Page 348 dicator lamp, USA only 344 ± Engine malfunction 348 indicator lamp, Cana- da only H Combination low tire pressure/TPMS mal- function telltale, USA only Low tire pressure telltale, Canada only 354 354 b Fuel display with: A Fuel tank reserve 351 warning lamp c Reset button for: 앫 Resetting trip odometer 앫 Adjusting instrument cluster illumination 앫 Confirming new time settings 137 136 157 27 At a glance Multifunction steering wheel 28 Page Page 139 140 Item 4 Menu systems: Press button è for next menu ÿ for previous menu 5 Moving within a menu: Press button j for next display k for previous display Item 1 Multifunction display in speedometer Operating control system 2 Selecting the submenu or setting the volume: Press button æ up/to increase ç down/to decrease 3 Telephone*: Press button s to take a call to dial to redial t to end a call to reject an incoming call 왔 Center console Upper part Item 1 4-zone automatic climate control 2 COMAND system, see sepa- rate operating instructions 3 Seat heating*, front passen- ger side Seat ventilation*, front pas- senger side Page 188 121 122 4 Electronic Stability Program 94 (ESP®) control switch 5 Central locking switch 116 At a glance Center console Item Page 6 Opening/closing button for CD changer, see separate COMAND operating instruc- tions 7 Rear seat head restraints switch, folding down 8 Rear window sunshade* switch 9 Seat heating*, driver’s side Seat ventilation*, driver’s side a Hazard warning flasher switch b Front passenger front air bag off indicator lamp 119 185 121 122 132 75 29 Item 1 Ashtray 2 KEYLESS-GO* start/stop button 3 Gear selector lever for automatic transmission 4 Parking assist (Parktronic system)* deactivation switch Page 248 39 51, 171 234 5 Adaptive Damping System 230 (ADS) switch Item 6 Vehicle level control button 7 Thumbwheel for setting dis- tance in Distronic* Page 231 226 8 Distance warning function* 226 on/off switch 9 Program mode selector 175 switch for automatic trans- mission At a glance Center console Lower part 30 왔 Overhead control panel At a glance Overhead control panel Item 1 Rear interior lighting on/off 2 Automatic interior lighting 3 Front interior lighting on/off 4 Right front reading lamp on/off 5 Power tilt/sliding sunroof switch 6 Tele Aid (emergency call system) button 7 Rear view mirror 8 Front reading lamps Page 133 133 133 133 210 256 183 133 Item 9 Garage door opener a Hands-free microphones for Tele Aid (emergency call system), telephone*, and Voice Control System* (see separate operating instruc- tions) b Ambient lighting c Interior lighting d Left front reading lamp on/off Page 262 161 133 133 31 At a glance Storage compartments 32 Item 1 Glove box 2 Front passenger seat storage compartment with first aid kit 3 Door pocket 4 Ashtray 5 Ruffled storage bag 6 Door pocket 7 Side storage pocket in trunk 8 Luggage box under the trunk floor 9 Door pocket a Ruffled storage bag b Ashtray c Door pocket d Driver’s seat storage compart- ment Page 243 393 249 245 397 245 249 244 Item e Sun visor card clip f CD changer, see separate COMAND operating instruc- tions Page 184 g Parcel net in front passenger 245 footwell h Ashtray with cigarette lighter j Cup holders k Storage compartment/tele- phone* compartment under the center armrest 248 246 243 l Cup holder in the rear center 247 console m Rear storage compartment in 244 the rear center console n Cup holder in the rear armrest o Storage compartment in the 248 244 rear armrest At a glance Storage compartments 33 Item 1 Inside door handle 2 Seat adjustment 3 Memory function (for stor- ing seat, exterior mirror and steering wheel settings) Page 108 42 123 4 Exterior rear view mirror ad- 47 justment 5 Switches for opening/clos- ing front and rear side win- dows, rear window override switch 205 6 Remote trunk release 110 switch, trunk opening/clos- ing system* At a glance Door control panel 34 Getting started Unlocking Adjusting Driving Parking and locking 35 Getting started Unlocking The “Getting started” section provides an overview of the vehicle’s most basic func- tions. First-time Mercedes-Benz owners should pay special attention to the infor- mation given here. If you are already familiar with the basic functions described here, the “Controls in detail” section will provide you with further information. The corresponding page refer- ences are located at the end of each seg- ment. Unlocking with the SmartKey SmartKey with remote control 1 ‹ Lock button 2 Š Opening button for trunk 3 Œ Unlock button 4 Â Panic button 36 Warning! When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child’s un- supervised access to a vehicle could result in an accident and/or serious personal injury. 왘 Press unlock button Œ on the SmartKey. 앫 All turn signal lamps flash once. 앫 An acoustic signal sounds once. 앫 The locking knobs in the doors move up. 앫 The anti-theft alarm system is dis- armed. 왘 Get in the vehicle and insert the SmartKey in the starter switch. i Opening a door causes the window on that door to open slightly. They will return to the up position when the door is closed. ! The side windows will not open or close if the battery is discharged or the windows are cov- ered with ice. As a result, you may no longer be able to properly close the door. Do not attempt to force the door shut. Doing so may damage the door or the side window. Correct the condition that prevents the windows from operating before attempting to close the door. For more information, see “Locking and unlocking” (컄 page 100). Getting started Unlocking Unlocking with KEYLESS-GO* 왘 Pull an outside door handle. With the KEYLESS-GO function, you can lock and unlock the vehicle without using the remote control buttons on the SmartKey and start the engine without in- serting the SmartKey in the starter switch. 앫 All turn signal lamps flash once. 앫 An acoustic signal sounds once. 앫 The locking knobs in the doors move up. 앫 The anti-theft alarm system is dis- Warning! armed. 왘 Get in the vehicle. When leaving the vehicle, always take the SmartKey with KEYLESS-GO with you, and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised ac- cess to a vehicle could result in an accident and/or serious personal injury. i To unlock the vehicle, the SmartKey with KEYLESS-GO must be outside the vehicle, no fur- ther than approximately 3 feet (1 meter) away from the door. i Opening a door causes the window on that door to open slightly. They will return to the up position when the door is closed. ! The side windows will not open or close if the battery is discharged or the windows are cov- ered with ice. As a result, you may no longer be able to properly close the door. Do not attempt to force the door shut. Doing so may damage the door or the side window. Correct the condition that prevents the windows from operating before attempting to close the door. For more information, see “SmartKey with KEYLESS-GO*” (컄 page 103). 37 Getting started Unlocking Starter switch positions SmartKey Warning! When leaving the vehicle, always remove the SmartKey or SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised ac- cess to a vehicle could result in an accident and/or serious personal injury. Starter switch 0 For removing SmartKey 1 Power supply for some electrical con- sumers 2 Ignition (power supply for all electrical consumers) and driving position. All lamps (except high beam headlamp indicator lamp and turn signal indicator lamps unless activated) in the instru- ment cluster come on. If a lamp in the instrument cluster fails to come on when the ignition is switched on, have it checked and replaced if necessary. If a lamp in the instrument cluster re- mains on after starting the engine or comes on while driving, see “Lamps in instrument cluster” (컄 page 344). 3 Starting position i When you switch on the ignition, the indicator and warning lamps (except high beam headlamp indicator lamp and turn signal indica- tor lamps unless activated) in the instrument cluster come on. The indicator and warning lamps (except high beam headlamp indicator lamp and turn signal indicator lamps if activated) should go out when the engine is running. This in- dicates that the respective systems are opera- tional. 38 SmartKey with KEYLESS-GO* If the SmartKey with KEYLESS-GO is inside the vehicle, pressing the KEYLESS-GO start/stop button on the gear selector le- ver corresponds to turning the SmartKey to the various starter switch positions. If you firmly depress the brake pedal dur- ing pressing the KEYLESS-GO start/stop button, the engine starts automatically. i The function of the SmartKey overrules the KEYLESS-GO function. i The SmartKey can only be removed from the starter switch with the gear selector lever in position P. i If the SmartKey is left in starter switch posi- tion 0 for an extended period of time, it can no longer be turned in the switch. In this case, the steering is locked. To unlock, remove SmartKey from the starter switch and reinsert. ! If the SmartKey cannot be turned in the starter switch, the battery may not be sufficient- ly charged. 앫 Check the battery and charge it if necessary (컄 page 420). 앫 Get a jump start (컄 page 423). To prevent accelerated vehicle battery discharge or a completely discharged vehicle battery, al- ways remove the SmartKey from the starter switch when the engine is not in operation. For information on starting the engine with the SmartKey, see “SmartKey” (컄 page 100). Getting started Unlocking KEYLESS-GO start/stop button 1 USA only 2 Canada only The SmartKey with KEYLESS-GO must be located in the vehicle. 왘 Make sure the gear selector lever is set to P. 왘 Do not depress the brake pedal. 39 Getting started Unlocking Position 0 Before you press the KEYLESS-GO start/ stop button, the vehicle’s on-board elec- tronics have status 0 (as with SmartKey re- moved). Position 1 왘 Press KEYLESS-GO start/stop button once. This supplies power for some electrical consumers. i If you now press the KEYLESS-GO start/stop button 앫 once again, the ignition (position 2) is switched on Ignition (or position 2) 왘 Press KEYLESS-GO start/stop button twice. This supplies power for all electrical consumers. All lamps (except high beam headlamp indicator lamp and turn signal indicator lamps unless acti- vated) in the instrument cluster come on. If a lamp in the instrument cluster fails to come on when the ignition is switched on, have it checked and replaced if necessary. If a lamp in the instrument cluster remains on after starting the engine or comes on while driving, see “Lamps in instrument clus- ter” (컄 page 344). 앫 twice, the power supply is again switched off i If you now press the KEYLESS-GO start/stop button once, the power supply is again switched off. i When you switch on the ignition, the indicator and warning lamps (except high beam headlamp indicator lamp and turn signal indica- tor lamps unless activated) in the instrument cluster come on. The indicator and warning lamps (except high beam headlamp indicator lamp and turn signal indicator lamps if activated) should go out when the engine is running. This in- dicates that the respective systems are opera- tional. For information on starting the engine us- ing the KEYLESS-GO start/stop button (컄 page 39). 40 왔 Adjusting Warning! All seat, head restraint, steering wheel, and rear view mirror adjustments, as well as fas- tening of seat belts, must be done before the vehicle is put into motion. Seats Warning! Do not adjust the driver’s seat while driving. Adjusting the seat while driving could cause the driver to lose control of the vehicle. Never ride in a moving vehicle with the seat backrest in an excessively reclined position as this can be dangerous. You could slide under the seat belt in a collision. If you slide under it, the belt would apply force at the abdomen or neck. That could cause serious or fatal injuries. The seat backrest and seat belts provide the best restraint when the wearer is in a position that is as upright as possible and the seat belts are properly po- sitioned on the body. Getting started Adjusting Warning! Your seat must be adjusted so that you can correctly fasten your seat belt (컄 page 48). Observe the following points: 앫 Adjust the backrest until your arms are slightly angled when holding the steer- ing wheel. 앫 Adjust the seat to a comfortable seating position that still allows you to reach the accelerator/brake pedal safely. The po- sition should be as far back as possible with the driver still able to operate the controls properly. 앫 Adjust the head restraint so that it is as close to the head as possible and the center of the head restraint supports the back of the head at eye level. 앫 Never place hands under the seat or near any moving parts while a seat is be- ing adjusted. Failure to do so could result in an accident and/or serious personal injury. 41 Getting started Adjusting Warning! Warning! When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle. Even with the SmartKey or the SmartKey with KEYLESS-GO* removed from the starter switch or the SmartKey with KEYLESS-GO* removed from the vehicle, the power seats can be operated when the respective door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised access to a vehicle could re- sult in an accident and/or serious personal injury. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats whenever possible. Regardless of seating position, children 12 years old and under must be seated and properly secured in an appropriate infant or toddler restraint, or booster seat recommended for the size and weight of the child. For additional informa- tion, see “Children in the vehicle” (컄 page 82). A child’s risk of serious or fatal injuries is significantly increased if the child restraints are not properly secured in the vehicle and the child is not properly secured in the child restraint. 42 Seat adjustment The seat adjustment switches are located on the front doors. 1 Seat fore and aft adjustment 2 Backrest tilt 3 Head restraint height 4 Seat height 5 Seat cushion tilt i The memory function (컄 page 123) lets you store the settings for the seat position together with the settings for the steering wheel and the exterior rear view mirrors. ! When moving the seat, make sure there are no items in the footwell or behind the seats, oth- erwise you could damage the seats. Seat fore and aft adjustment 왘 Press the switch forward or backward in direction of arrow 1. i Depending on the set height of the head re- straint, the seat fore and aft position is automat- ically pre-set. Backrest tilt 왘 Press the switch forward or backward in direction of arrow 2. Head restraint height 왘 Press the switch up or down in direction of arrow 3. Getting started Adjusting Warning! Head restraint adjusting For your protection, drive only with properly positioned head restraints. Adjust the head restraint so that it is as close to the head as possible and the center of the head restraint supports the back of the head at eye level. This will reduce the po- tential for injury to the head and neck in the event of an accident or similar situation. Do not drive the vehicle without the seat head restraints. Head restraints are intended to help reduce injuries during an accident. Seat height 왘 Press the switch up or down in direction of arrow 4. Seat cushion tilt 왘 Press the switch up or down in direction of arrow 5 until your upper legs are lightly supported. Manually adjust the head restraint. 왘 Push or pull on the upper edge of the head restraint cushion. i Adjust the head restraint in such a way that it is as close to the head as possible. 43 Getting started Adjusting Comfort head restraint* adjusting You can individually adjust side cushions 1 of the comfort head re- straints. Adjusting side cushions 왘 Pull or push sides 1 into desired posi- tion. Adjusting forward or backward 왘 Pull or push head restraint in direction of arrow 2. 1 Head restraint side adjustment 2 Head restraint fore and aft adjustment i Adjust the head restraint in such a way that it is as close to the head as possible. Warning! For more information on seats, see “Seats” (컄 page 118). When folding back the side cushions, never reach between the side cushion and the mounting post. You could otherwise be trapped. Steering wheel Warning! Do not adjust the steering wheel while driv- ing. Adjusting the steering wheel while driv- ing could cause the driver to lose control of the vehicle. When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock your vehicle. Even with the SmartKey removed from the starter switch or the SmartKey with KEYLESS-GO* removed from the vehicle, the steering wheel adjustment feature can be operated when the driver’s door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised access to a vehicle could result in an accident and/or serious personal injury. 44 Getting started Adjusting Adjusting steering column up or down 왘 Move stalk in direction of arrows 2. Make sure your legs can move freely and that all the displays (incl. malfunc- tion and indicator lamps) on the instru- ment cluster are clearly visible. i The memory function (컄 page 123) lets you store the setting for the seat position together with the setting for the steering wheel and the exterior rear view mirrors. Easy-entry/exit feature This feature allows for easier entry into and exit from the vehicle. When entering and exiting the vehicle, the steering wheel is in its uppermost position. The easy-entry/exit feature can be activat- ed or deactivated in the Convenience sub- menu of the control system (컄 page 163). Warning! You must make sure no one can become trapped or injured by the moving steering wheel when the easy-entry/exit feature is activated. To stop steering wheel movement, do one of the following: 앫 Move steering wheel adjustment stalk (컄 page 45). 앫 Press one of the memory position but- tons or the memory button M (컄 page 124). Do not leave children unattended in the ve- hicle, or with access to an unlocked vehicle. Children could open the driver’s door and unintentionally activate the easy-entry/exit feature, which could result in an accident and/or serious personal injury. Steering wheel adjustment The stalk for steering wheel adjustment is located on the steering column (lower left). 1 Adjusting steering column, in or out 2 Adjusting steering column, up or down Adjusting steering column in or out 왘 Move stalk in direction of arrows 1 until a comfortable steering wheel posi- tion is reached with your arms slightly bent at the elbow. 45 Getting started Adjusting With the easy-entry/exit feature activated, the steering wheel will return to its last set position when you 앫 close the driver’s door with the ignition switched on or 앫 insert the SmartKey into the starter switch or press the KEYLESS-GO* start/stop button (컄 page 39) once with the driver’s door closed i The last set steering wheel position is stored when 앫 the ignition is switched off 앫 the position is stored in memory (컄 page 123) With the easy-entry/exit feature activated, the steering wheel tilts upwards when you 앫 remove the SmartKey from the starter switch or 앫 open the driver’s door with the SmartKey in starter switch position 0 or 1 or the KEYLESS-GO* start/stop button (컄 page 39) in position 1 i If the current position for the steering wheel is in the uppermost tilt position, the steering wheel will no longer be able to move upward when the easy-entry/exit feature is activated. The adjustment procedure is briefly interrupted when the engine is started. Warning! Let the system complete the adjustment procedure before setting the vehicle in mo- tion. All steering wheel adjustment must be completed before setting the vehicle in mo- tion. Driving off with the steering wheel still adjusting could cause the driver to lose con- trol of the vehicle. 46 Mirrors Adjust the interior and exterior rear view mirrors before driving so that you have a good view of the road and traffic condi- tions. Interior rear view mirror 왘 Manually adjust the interior rear view mirror. For more information, see “Rear view mir- rors” (컄 page 183). Exterior rear view mirrors Warning! Exercise care when using the passen- ger-side exterior rear view mirror. The mirror surface is convex (outwardly curved surface for a wider field of view). Objects in mirror are closer than they appear. Check your interior rear view mirror or glance over your shoulder before changing lanes. The buttons are located on the driver’s door. 1 Passenger-side exterior rear view mir- ror button 2 Adjustment button 3 Driver’s side exterior rear view mirror button
