Operator’s Manual


C-Class AMG


Ê4CtFg;Ë


2035843871


Order No. 6515 0187 13 Part No. 203 584 38 71 USA Edition D 2006


C 55 AMG


Our company and staff congratulate you on the purchase of your new Mercedes-Benz. Your selection of our product is a demon- stration of your trust in our company name. Furthermore, it exemplifies your desire to own an automobile that will be as easy as possible to operate and provide years of service. Your Mercedes-Benz represents the ef- forts of many skilled engineers and crafts- men. To help assure your driving pleasure, and also the safety of you and your passen- gers, we ask you to make a small invest- ment of time:


앫 Please read this manual carefully, then return it to your vehicle where it will be handy for your reference.


앫 Please follow the recommendations


contained in this manual. They are de- signed to acquaint you with the opera- tion of your Mercedes-Benz.


앫 Please pay attention to the warnings


and cautions contained in this manual. They are designed to help improve the safety of the vehicle operator and oc- cupants.


We extend our best wishes for many miles of safe, pleasurable driving. Mercedes-Benz USA, LLC A DaimlerChrysler Company


At a glance .......................................... 21

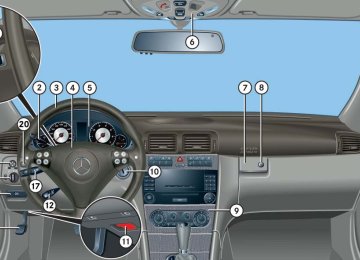

Cockpit................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 26
Center console ..................................... 27
Upper part ...................................... 27
Lower part ...................................... 28
Overhead control panel ........................ 29
Door control panel................................ 30


Introduction.......................................... 9
Product information................................ 9
Operator’s Manual............................... 10
Service and warranty information .. 10
Important notice for California retail buyers and lessees of Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the USA or Canada............................... 13
Where to find it.................................... 14
Symbols............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle.................. 17
Reporting safety defects...................... 18
Reporting Safety Defects ............... 18
Vehicle data recording......................... 19


Information regarding electronic recording devices........................... 19


Contents


Getting started................................... 31
Unlocking ............................................. 32
Unlocking with the SmartKey ......... 32
Starter switch positions.................. 33
Adjusting .............................................. 35
Seats .............................................. 35
Steering wheel................................ 38
Mirrors............................................ 40
Driving.................................................. 42
Fastening the seat belt ................... 42
Starting the engine ......................... 45
Parking brake ................................. 46
Driving ............................................ 47
Switching on headlamps................. 48
Turn signals .................................... 49
Windshield wipers........................... 50
Problems while driving.................... 52
Parking and locking.............................. 54
Parking brake ................................. 54
Switching off headlamps................. 55
Turning off engine........................... 56
Releasing seat belts........................ 56
Locking ........................................... 56


Contents


Safety and Security ........................... 59
Occupant safety................................... 60
Air bags .......................................... 61
Seat belts ....................................... 67
Active head restraint ...................... 71
Children in the vehicle.................... 72
Blocking of rear door window operation........................................ 80
Panic alarm* ........................................ 81
Activating ....................................... 81
Deactivating ................................... 81
Driving safety systems......................... 82
ABS ................................................ 82
BAS ................................................ 84
ESP®............................................... 84
Anti-theft systems................................ 88
Immobilizer..................................... 88
Anti-theft alarm system*................ 88
Tow-away alarm* ........................... 90


Controls in detail ............................... 93
Locking and unlocking......................... 94
SmartKey ....................................... 94
Opening the doors from the inside ....................................... 99
Opening the trunk .......................... 99
Closing the trunk.......................... 101
Trunk emergency release ............. 102
Valet locking ................................ 103
Automatic central locking ............ 103
Locking and unlocking from the inside ..................................... 104
Seats ................................................. 106
Front seat active head restraints . 106
Rear seat head restraints ............. 106
Lumbar support*.......................... 109
Seat heating................................. 110
Memory function ............................... 111
Storing positions into memory ..... 112
Recalling positions from memory. 112
Storing exterior rear view mirror parking position ........................... 113


Lighting ............................................. 114
Exterior lamp switch .................... 114
Combination switch ..................... 118
Hazard warning flasher ................ 119
Interior lighting ............................ 120
Door entry lamps ......................... 121
Trunk lamp................................... 121
Instrument cluster ............................. 122
Instrument cluster illumination .... 122
Coolant temperature gauge ......... 123
Trip odometer .............................. 123
Tachometer.................................. 124
Outside temperature indicator..... 124
Control system .................................. 125
Multifunction display.................... 125
Multifunction steering wheel........ 126
Menus.......................................... 128
Standard display menu ................ 130
AUDIO menu ................................ 131
NAV* menu.................................. 134
Vehicle status message memory menu............................................ 134
Settings menu.............................. 135
Trip computer menu..................... 150
TEL menu* ................................... 152


Contents


Automatic transmission..................... 155
Gear selector lever position ......... 157
Driving tips................................... 158
Gear ranges ................................. 160
Automatic shift program .............. 161
Gear selector lever one-touch gearshifting .................................. 162
Steering wheel gearshift control one-touch gearshifting ................. 163
Manual shift program................... 165
Emergency operation (Limp-Home Mode) ...................... 168
Good visibility .................................... 169
Headlamp cleaning system* ........ 169
Rear view mirrors......................... 169
Sun visors .................................... 171
Rear window sunshade* .............. 172
Rear window defroster................. 173
Climate control.................................. 174


Deactivating the climate control system ......................................... 177
Operating the climate control system in automatic mode........... 177
Setting the temperature............... 178
Adjusting air distribution and volume ......................................... 178


Adjusting air volume ..................... 179
Front defroster.............................. 179
Air recirculation mode .................. 180
Air conditioning............................. 182
Rear passenger compartment adjustable air vents....................... 183


Automatic climate control* (Canada only) ..................................... 184


Deactivating the automatic climate control system ................. 187
Operating the automatic climate control system in automatic mode 187
Setting the temperature................ 188
Adjusting air distribution............... 189
Adjusting air volume ..................... 190
Front defroster.............................. 190
Maximum cooling MAXCOOL........ 191
Air recirculation mode .................. 191
Charcoal filter ............................... 193
Air conditioning............................. 194
Residual heat and ventilation........ 195
Rear passenger compartment adjustable air vents....................... 196


Audio system...................................... 197
Audio and telephone, operation.... 197
Operating safety ........................... 197
Operating and display elements ... 198
Button and soft key operation ...... 200
Operation...................................... 200
Radio operation ............................ 205
Introduction to satellite radio* (USA only)..................................... 209
CD mode....................................... 214
GSM network phones ................... 223
TDMA or CDMA network phones .. 229
Emergency calls “911” ................. 235
Power windows .................................. 238
Opening and closing the windows 238
Synchronizing power windows...... 240
Summer opening feature .............. 241
Convenience closing feature......... 241
Power tilt/sliding sunroof .................. 242


Opening and closing the power tilt/sliding sunroof........................ 242
Synchronizing the power tilt/sliding sunroof........................ 244
Driving systems.................................. 245
Cruise control ............................... 245


Contents


Loading .............................................. 248
Roof rack*.................................... 248
Ski sack (Canada only) ................. 249
Split rear bench seat .................... 252
Loading instructions..................... 254
Cargo tie-down rings* .................. 255
Useful features .................................. 256
Storage compartments................. 256
Cup holders.................................. 258
Ashtrays ....................................... 260
Cigarette lighter ........................... 262
Power outlet................................. 263
Telephone*................................... 263
Tele Aid* ...................................... 264
Garage door opener ..................... 273


Operation ......................................... 281
The first 1000 miles (1500 km)......... 282
Driving instructions............................ 283
Drive sensibly – save fuel............. 283
Drinking and driving ..................... 283
Pedals .......................................... 283
Power assistance ......................... 283
Brakes.......................................... 284
Driving off .................................... 285
Parking......................................... 285
Tires ............................................. 286
Hydroplaning................................ 287
Tire traction.................................. 287
Tire speed rating .......................... 288
Winter driving instructions ........... 288
Standing water............................. 289
Passenger compartment .............. 290
Driving abroad.............................. 290
Control and operation of radio transmitters ................................. 290
Catalytic converter....................... 291
Emission control .......................... 291
Coolant temperature.................... 292


At the gas station .............................. 293
Refueling...................................... 293
Check regularly and before a long trip ....................................... 294
Engine compartment ......................... 297
Hood ............................................ 297
Engine oil ..................................... 298
Transmission fluid level................ 301
Coolant level ................................ 301
Battery ......................................... 303
Windshield washer system and headlamp cleaning system*......... 304
Tires and wheels................................ 305
Important guidelines .................... 305
Tire care and maintenance........... 306
Direction of rotation..................... 308
Loading the vehicle ...................... 308
Recommended tire inflation pressure....................................... 315
Checking tire inflation pressure ... 317
Tire labeling ................................. 321
Load identification ....................... 325
DOT, Tire Identification Number (TIN) ............................................. 326
Maximum tire load ....................... 327
Maximum tire inflation pressure .. 328


Contents


Uniform Tire Quality Grading Standards (U.S. vehicles) ............. 329
Tire ply material ........................... 331
Tire and loading terminology........ 331
Rotating tires ............................... 335
Winter driving .................................... 336
Winter tires .................................. 336
Block heater (Canada only) .......... 337
Snow chains................................. 337
Maintenance...................................... 338


Maintenance service indicator message....................................... 338
Calling up the maintenance service indicator display............... 339
Resetting the maintenance service indicator........................... 340
Vehicle care....................................... 341
Cleaning and care of the vehicle .. 341


Practical hints .................................. 349
What to do if … ................................... 350
Lamps in instrument cluster ......... 350
Lamp in center console................. 357
Vehicle status messages in the multifunction display..................... 358
Where will I find ...? ............................ 380
First aid kit.................................... 380
Vehicle tool kit.............................. 380
Spare wheel .................................. 383
Spare wheel bolts ......................... 385
Unlocking/locking in an emergency... 386
Unlocking the vehicle.................... 386
Locking the vehicle ....................... 387
Manually unlocking the transmission gear selector lever ... 388
Opening/closing in an emergency ..... 389
Power tilt/sliding sunroof ............. 389
Resetting activated head restraints.... 391


Resetting activated head restraints ...................................... 391
Replacing SmartKey batteries ............ 392
SmartKey ...................................... 393


Replacing bulbs.................................. 394
Bulbs............................................. 395
Replacing bulbs for front lamps .... 397
Replacing bulbs for rear lamps ..... 400
Replacing wiper blades ...................... 402


Removing and installing wiper blades........................................... 402
Flat tire............................................... 404
Preparing the vehicle .................... 404
Mounting the spare wheel ............ 404
Battery ............................................... 411
Disconnecting the battery ............ 412
Removing the battery ................... 412
Charging and reinstalling the battery .......................................... 413
Reconnecting the battery ............. 413
Jump starting...................................... 415
Towing the vehicle.............................. 417
Installing towing eye bolt.............. 419
Fuses.................................................. 420
Aids for replacing fuses ................ 420
Main fuse box in passenger compartment ................................ 421
Fuse box in engine compartment . 421
Fuse box in trunk.......................... 422


Contents


Technical data.................................. 423
Parts service ...................................... 424
Warranty coverage............................. 425


Loss of Service and Warranty Information Booklet...................... 425
Identification labels............................ 426
Layout of poly-V-belt drive ................. 427
Engine................................................ 428
Rims and Tires ................................... 429
Same size tires............................. 431
Mixed size tires ............................ 432
Spare wheel (collapsible tire) ....... 433
Electrical system................................ 434
Main dimensions and weights............ 435
Main dimensions .......................... 435
Weights ........................................ 435


Technical terms............................... 443


Index................................................. 449


Fuels, coolants, lubricants, etc. ......... 436
Capacities .................................... 436
Engine oils.................................... 437
Engine oil additives ...................... 437
Air conditioning refrigerant .......... 437
Brake fluid.................................... 437
Premium unleaded gasoline ......... 438
Gasoline additives........................ 438
Fuel requirements ........................ 439
Coolants....................................... 439
Windshield washer and headlamp cleaning system* ......................... 442


Introduction Product information


Product information


왔 Please observe the following in your own best interest: We recommend using Genuine Mercedes-Benz parts as well as conversion parts and accessories explicitly approved by us for your vehicle model. We have tested these parts to determine their reliability, safety and special suitability for Mercedes-Benz vehicles.


We are unable to make an assessment for other products and therefore cannot be held responsible for them, even if in indi- vidual cases an official approval or authori- zation by governmental or other agencies should exist. Use of such parts and acces- sories could adversely affect the safety, performance or reliability of your vehicle. Please do not use them.


Genuine Mercedes-Benz parts as well as conversion parts and accessories approved by us are available at your authorized Mercedes-Benz Center where you will receive comprehensive informa- tion, also on permissible technical modifi- cations, and where proper installation will be performed.


Introduction Operator’s Manual


This Operator’s Manual contains a great deal of useful information. We urge you to read it carefully and familiarize yourself with the vehicle before driving. For your own safety and longer service life of the vehicle, we urge you to follow the in- structions and warnings contained in this manual. Ignoring them could result in dam- age to the vehicle or personal injury to you or others. Vehicle damage caused by fail- ure to follow instructions is not covered by the Mercedes-Benz Limited Warranty. Your vehicle may have some or all of the equipment described in this manual. Therefore, you may find explanations for optional equipment not installed in your vehicle. If you have any questions about the operation of any equipment, your authorized Mercedes-Benz Center will be glad to demonstrate the proper proce- dures.


We continuously strive to improve our product, and ask for your understanding that we reserve the right to make changes in design and equipment. Therefore, infor- mation, illustrations and descriptions in this Operator’s Manual might differ from your vehicle. Optional equipment is also described in this manual, including operating instruc- tions wherever necessary. Since they are special-order items, the descriptions and illustrations herein may vary slightly from the actual equipment of your vehicle. If there are any equipment details that are not shown or described in this Operator’s Manual, your authorized Mercedes-Benz Center will be glad to inform you of correct care and operating procedures. The Operator’s Manual and Maintenance Booklet are important documents and should be kept with the vehicle.


Service and warranty information


The Service and Warranty Information Booklet contains detailed information about the warranties covering your Mercedes-Benz, including: 앫 New Vehicle Limited Warranty 앫 Emission System Warranty 앫 Emission Performance Warranty 앫 California, Maine, Massachusetts, and


Vermont Emission Control System Warranty (California, Maine, Massachusetts, and Vermont only)


앫 State Warranty Enforcement Laws


(Lemon Laws)


10


(1) the same substantial defect or mal-


function results in a condition that is likely to cause death or serious bodily injury if the vehicle is driven, that de- fect or malfunction has been subject to repair two or more times, and you have directly notified Mercedes-Benz USA, LLC in writing of the need for its repair,


(2) the same substantial defect or mal-


function of a less serious nature than category (1) has been subject to repair four or more times and you have direct- ly notified us in writing of the need for its repair, or


Important notice for California retail buyers and lessees of Mercedes-Benz automobiles


Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price or lease price, if Mercedes-Benz USA, LLC and/or its au- thorized repair or service facilities fail to fix one or more substantial defects or mal- functions in the vehicle that are covered by its express warranty after a reasonable number of repair attempts. During the pe- riod of 18 months from original delivery of the vehicle or the accumulation of 18000 miles (approximately 29000 km) on the odometer of the vehicle, whichever occurs first, a reasonable number of repair attempts is presumed for a retail buyer or lessee if one or more of the following occurs:


Introduction Operator’s Manual


(3) the vehicle is out of service by reason of repair of the same or different sub- stantial defects or malfunctions for a cumulative total of more than 30 calendar days.


Written notification should be sent to us, not a dealer, at Mercedes-Benz USA, LLC, Customer Assistance Center, One Mercedes Drive, Montvale, NJ 07645-0350.


11


Introduction Operator’s Manual


Maintenance


Roadside Assistance


Change of address or ownership


The Maintenance Booklet describes all the necessary maintenance work which should be performed at regular intervals. Always have the Maintenance Booklet with you when you take the vehicle to your au- thorized Mercedes-Benz Center for ser- vice. The service advisor will record each service in the booklet for you.


The Mercedes-Benz Roadside Assistance Program provides factory-trained technical help in the event of a breakdown. Calls to the toll-free Roadside Assistance number 1-800-FOR-MERCedes (in the USA) 1-800-387-0100 (in Canada) will be answered by Mercedes-Benz Customer Assistance Representatives 24 hours a day, 365 days a year. For additional information refer to the Mercedes-Benz Roadside Assistance Program Brochure in your vehicle literature portfolio.


If you change your address, be sure to send in the “Change of Address Notice” found in the Service and Warranty Information Booklet, or simply call the Mercedes-Benz Customer Assistance Center (in the USA) at 1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100. It is in your own interest that we can contact you should the need arise. If you sell your Mercedes, please leave all literature with the vehicle to make it avail- able to the next operator. If you bought this vehicle used, be sure to send in the “Notice of Purchase of Used Car” found in the Service and Warranty Information Booklet, or call the Mercedes-Benz Customer Assistance Cen- ter (in the USA) at 1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100.


12


Operating your vehicle outside the USA or Canada


If you plan to operate your vehicle in for- eign countries, please be aware that 앫 service facilities or replacement parts


may not be readily available,


앫 unleaded gasoline for vehicles with cat- alytic converters may not be available; the use of leaded fuels will damage the catalysts,


앫 gasoline may have a considerably low- er octane rating, and improper fuel can cause engine damage.


Certain Mercedes-Benz models are avail- able for delivery in Europe under our European Delivery Program. For details, consult an authorized Mercedes-Benz Center or write to: In the USA: Mercedes-Benz USA, LLC European Delivery Department One Mercedes Drive Montvale, NJ 07645-0350
In Canada: Mercedes-Benz Canada, Inc. European Delivery Department 98 Vanderhoof Avenue Toronto, Ontario M4G 4C9


Introduction Operator’s Manual


13


Introduction Where to find it


This Operator’s Manual is designed to pro- vide comprehensive support information for you, the vehicle operator. Each section has its own reference color.


At a glance Here you will find an overview of all the controls that can be operated from the driver’s seat.


Getting started Here you will find all the information you need for your first drive. You should read this section first if this is your first Mercedes-Benz vehicle or if you are rent- ing or borrowing this vehicle.


Safety and Security Here you will find descriptions of the safety and security features of your vehicle.


14


Controls in detail Here you will find detailed information about the equipment installed in your vehi- cle. This section expands on the “Getting started” section and also describes techni- cal innovations. If you are already familiar with the basic functions of your vehicle, this section will be of particular interest to you.


Operation Here you will find all the information you need for the proper operation of your vehi- cle.


Practical hints This section provides fast assistance for dealing with problems you may encounter.


Technical data All important technical data for your vehi- cle can be found in this section.


Indexes The glossary provides explanations of the most important technical terms. The table of contents and the index are de- signed to help you find information quickly and easily. The following publications are part of your vehicle documentation: 앫 this Operator’s Manual 앫 the Maintenance Booklet Separate operating instructions will be provided as required depending on the equipment options installed in your vehicle.


Introduction Symbols


왔 Symbols Trademarks: 앫 ESP® is a registered trademark of


DaimlerChrysler.


앫 HomeLink® is a registered trademark


of Prince, a Johnson Controls Company.


앫 BabySmartTM is a trademark of


Siemens Automotive Corp.


앫 SIRIUS and related marks are trade-


marks of Sirius Satellite Radio Inc.


The following symbols are found in this Operator’s Manual:


Optional equipment is identified with an asterisk. Since standard equipment varies between models, the descriptions and illustrations in this manual may differ slightly from the actual equipment of your vehi- cle.


Warning!


왘 This symbol points to instructions for


you to follow.


Warning notices draw your attention to haz- ards that may endanger your health or life, or the health or life of others.


왘 A number of these symbols appearing in succession indicates a multiple-step procedure.


Highlights hazards that may result in damage to your vehicle.


컄 Page


컄컄


Helpful hints or further information you may find useful.


->


This symbol tells you where to look for further information on a topic. This continuation symbol marks an interrupted procedure which will be continued on the next page. In the glossary of technical terms, this symbol is used to indicate cross-references to term definitions.


Display Words appearing in the multi- function display and audio dis- play are printed in the type shown here.


15


Introduction Operating safety


Warning!


Warning!


Proper use of the vehicle


Work improperly carried out on electronic components and associated software could cause them to cease functioning. Because the vehicle’s electronic components are interconnected, any modifications made may produce an undesired effect on other systems. Electronic malfunctions could seriously impair the operating safety of your vehicle.


See an authorized Mercedes-Benz Center for repairs or modifications to electronic components.


Other improper work or modifications on the vehicle could also have a negative impact on the operating safety of the vehicle.


Some safety systems only function while the engine is running. You should therefore never turn off the engine while driving.


Heavy blows against the vehicle underbody or tires/wheels, for example when running over an obstacle, road debris or a pothole, may cause serious damage and impair the operating safety of your vehicle. If you feel a sudden significant vibration or ride distur- bance, or you suspect that damage to your vehicle has occurred, you should turn on your hazard warning flashers, carefully slow down, and drive with caution to an area which is a safe distance from the road.


Inspect the vehicle underbody and tires/wheels for possible damage. If the vehicle appears unsafe, have it towed to the nearest authorized Mercedes-Benz Center or other qualified maintenance or repair facility for further inspection or repairs.


Proper use of the vehicle requires that you are familiar with the following information and rules: 앫 the safety precautions in this manual 앫 the “Technical data” section in this


manual


앫 traffic rules and regulations 앫 motor vehicle laws and safety


standards


Warning!


Various warning labels are attached to your vehicle. These warning labels are intended to make you and others aware of various risks. You should not remove any of these warning labels unless explicitly instructed to do so by information on the label itself. Removal of any of these labels may cause you and others to be unaware of certain risks which may result in an accident and/or personal injury.


16


Introduction Problems with your vehicle


왔 Problems with your vehicle If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to immediately contact an authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is not handled to your satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if necessary contact us at one of the following addresses: In the USA: Customer Assistance Center Mercedes-Benz USA, LLC One Mercedes Drive Montvale, NJ 07645-0350
In Canada: Customer Relations Department Mercedes-Benz Canada, Inc. 98 Vanderhoof Avenue Toronto, Ontario, M4G 4C9


17


Introduction Reporting safety defects


For the USA only: The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the “National Traffic and Motor Vehicle Safety Act of 1966”.


Reporting Safety Defects


If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Mercedes-Benz USA, LLC. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from http://www.safercar.gov.


18


Introduction Vehicle data recording


왔 Vehicle data recording Information regarding electronic recording devices


(Including notice pursuant to California Code § 9951) Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system, may transmit some data in certain accidents. This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety. DaimlerChrysler may access the information and share it with others 앫 for safety research or vehicle diagnosis purposes 앫 with the consent of the vehicle owner or lessee 앫 in response to an official request by law enforcement or other government agency 앫 for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or 앫 as otherwise required or permitted by law. Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted via that system.


19


20


At a glance Cockpit


Instrument cluster


Multifunction steering wheel


Center console


Overhead control panel


Door control panel


21


At a glance Cockpit


22


At a glance Cockpit


Item


1 Steering wheel gearshift


control


2 Cruise control lever 3 Multifunction steering


wheel 4 Horn 5 Instrument cluster


6 Overhead control panel


Page 163


245
26, 126


24, 122
29


Item


7 Glove box lid release 8 Glove box lock 9 Center console a Starter switch b Hood lock release c Steering wheel adjustment


lever


Page 256
256
27
33
297
38


Item


g Parking brake release h Combination switch


앫 Turn signals 앫 Windshield wipers 앫 High beam


j Exterior lamp switch


d Remote trunk opening


100


k Exterior rear view mirror


switch


e Parking brake pedal f Door control panel


46, 54
30


adjustment


l Headlamp washer button*


Page 46


49
50
49
48, 114
40, 113
169


23


At a glance Instrument cluster


24


At a glance Instrument cluster


Item


1 Speedometer with:


v Electronic Stability


Program (ESP®) warning lamp


; Brake warning lamp,


USA only


3 Brake warning lamp,


Canada only


B Low beam headlamp


indicator lamp 2 L Left turn signal indicator lamp


3 Multifunction display


with: 앫 Trip odometer 앫 Main odometer 앫 Gear selector lever


position


Page


84, 354


46, 54, 351
46, 54, 351
48, 114
49


125


123
125
45, 125, 157


Item 앫 Program mode 앫 Status indicator (outside


temperature/digital speedometer 앫 Digital clock


4 K Right turn signal


indicator lamp


5 Tachometer with:


- Antilock Brake System (ABS) indicator lamp


ú Engine malfunction


indicator lamp, USA only


± Engine malfunction


indicator lamp, Canada only


1 Supplemental


Restraint System (SRS) indicator lamp


Page 161
124, 139


125
49


124
82, 350


352, 353


352, 353


60, 356


Item < Seat belt telltale


A High beam headlamp


indicator lamp


6 Fuel gauge with:


Fuel reserve warning lamp 4 The arrow indicates that the fuel filler cap is on the rear right-hand side.


7 Coolant temperature gauge 8 Button for:


앫 Resetting trip odometer 앫 Resetting all settings 앫 Instrument cluster


illumination


Page 67, 355
49, 118


354


123
122
123
135
122


25


Page


Item


4 Menu systems:


Press button è for next menu ÿ for previous menu


5 Moving within a menu:


Press button j for next display k for previous display


Item


1 Multifunction display


Operating control system


Page 125
126


2 Telephone*: Press button s to take a call to dial a call t to end a call


to reject an incoming call


3 Selecting the submenu or


setting the volume: Press button æ up/to increase ç down/to decrease


At a glance Multifunction steering wheel


26


왔 Center console Upper part


At a glance Center console


Item


8 Seat heating, passenger


side


9 Front passenger front


air bag off indicator lamp


a Audio system,


or COMAND* (see separate operating instructions)


b Climate control


Automatic climate control* (Canada only) Rear window defroster


Page 110


75, 357
197


174
184


173


Item


1 Seat heating, driver’s side 2 Rear window sunshade


switch*


3 ESP® control switch 4 Hazard warning flasher


switch – switching on/off


5 Central locking switch


Central unlocking switch


6 Switch for folding back rear


seat head restraints


7 Tow-away alarm switch*


(if equipped) Anti-theft alarm system indicator lamp*


Page 110
172


84
119


104
104
108


90


89


27


Item


1 Ashtray


Cigarette lighter


2 Gear selector lever for automatic transmission


3 Cup holder 4 Armrest 5 Program mode selector


switch for automatic transmission


Page 260
262
45, 157
258
257
161


At a glance Center console


Lower part


28


왔 Overhead control panel


At a glance Overhead control panel


Item


1 Rear interior lighting on/off 2 Power tilt/sliding sunroof 3 Right reading lamp on/off 4 Interior lighting control 5 Interior rear view mirror


6 Hands-free microphone for Tele Aid* (emergency call system) and telephone*


7 Garage door opener 8 Left reading lamp on/off 9 Tele Aid* (emergency call


system) button


Page 121
242
121
120
40, 169
152, 223, 264
273
121
264


29


At a glance Door control panel


30


Item


1 Inside door handle 2 Memory function (for


storing seat, exterior mirror and steering wheel settings)


3 Switches for seat


adjustment


4 Switches for


Page 99
111


35, 106
238


opening/closing front door windows


5 Rear door window override


80


switch


6 Switches for


opening/closing rear door windows


238


7 Remote trunk lid switch


100


Getting started Unlocking


Adjusting


Driving


Parking and locking


31


Getting started Unlocking


The “Getting started” section provides an overview of the vehicle’s most basic func- tions. First-time Mercedes-Benz owners should pay special attention to the infor- mation given here. If you are already familiar with the basic functions described here, the “Controls in detail” section (컄 page 94) will provide you with further information. The correspond- ing page references are located at the end of each segment.


Unlocking with the SmartKey


왘 Press unlock button Œ on the


SmartKey. All turn signal lamps flash once. The locking knobs in the doors move up. The anti-theft alarm system* is dis- armed.


왘 Get in the vehicle and insert the SmartKey in the starter switch.


For more information, see “Locking and unlocking” (컄 page 94).


SmartKey with remote control 1 ‹ Lock button 2 Š Opening button for trunk 3 Œ Unlock button 4  Panic button* (컄 page 81)


Canada only: Only vehicles equipped with an anti-theft alarm system* have SmartKeys with integrated panic button 4.


32


Starter switch positions


SmartKey


Warning!


When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsuper- vised use of vehicle equipment may cause an accident and/or serious personal injury.


Starter switch 0 For removing SmartKey


The steering is locked when the SmartKey is removed from the starter switch.


1 Power supply for some electrical


consumers, such as seat adjustment


Getting started Unlocking


2 Ignition (power supply for all electrical


consumers) and driving position. All lamps (except low beam headlamp indicator lamp, high beam headlamp in- dicator lamp, and turn signal indicator lamps unless activated) in the instru- ment cluster come on. If a lamp in the instrument cluster fails to come on when the ignition is switched on, have it checked and replaced if necessary. If a lamp in the instrument cluster re- mains on after starting the engine or comes on while driving, refer to “Lamps in instrument cluster” (컄 page 350).


3 Starting position


33


! If the SmartKey cannot be turned in the starter switch, the battery may not be sufficiently charged. 앫 Check the battery and charge it if


necessary (컄 page 411).


앫 Get a jump start (컄 page 415). To prevent accelerated vehicle battery discharge or a completely discharged battery, always remove the SmartKey from the starter switch when the en- gine is not in operation.


Getting started Unlocking


When you switch on ignition, the indicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless activated) in the instrument cluster come on. The indicator and warning lamps (except low beam headlamp in- dicator lamp, high beam headlamp indi- cator lamp, and turn signal indicator lamps if activated) will go out when the engine is running. This indicates that the respective systems are operational.


The SmartKey can only be removed from the starter switch with the gear selector lever in position P.


34


왔 Adjusting


Warning!


Warning!


Warning!


Getting started Adjusting


All seat, head restraint, steering wheel, and rear view mirror adjustments, as well as fas- tening of seat belts, must be done before the vehicle is put into motion.


Seats


The seats can be adjusted electrically. For more information, see “Seats” (컄 page 106).


Do not adjust the driver’s seat while driving. Adjusting the seat while driving could cause the driver to lose control of the vehicle.


When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle.


Even with the SmartKey removed from the starter switch, the power seats* can be operated when the respective door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsupervised use of vehicle equip- ment may cause an accident and/or serious personal injury.


Never ride in a moving vehicle with the seat back in an excessively reclined position as this can be dangerous. You could slide un- der the seat belt in a collision. If you slide under it, the belt would apply force at the ab- domen or neck. That could cause serious or fatal injuries. The seat back and seat belts provide the best restraint when the wearer is in a nearly upright position and belts are properly positioned on the body. Your seat must be adjusted so that you can correctly fasten your seat belt (컄 page 42). Never place hands under the seat or near any moving parts while a seat is being adjusted.


35


Getting started Adjusting


Warning!


According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats whenever possible. Regardless of seating position, children 12 years old and under must be seated and properly secured in an appropriate infant, or toddler restraint, or booster seat recommended for the size and weight of the child. For additional information, see “Children in the vehicle” (컄 page 72). A child’s risk of serious or fatal injuries is significantly increased if the child restraints are not properly secured in the vehicle and/or the child is not properly secured in the child restraint.


36


When moving the seats, make sure there are no items in the footwell or behind the seat. Otherwise you could damage the seats.


Power seat adjustment The seat adjustment switches are located on the respective front door.


1 Head restraint height 2 Seat height 3 Seat cushion tilt 4 Seat fore and aft adjustment 5 Seat backrest tilt


왘 Switch on the ignition (컄 page 33). or 왘 Open the respective door.


The memory function (컄 page 111) lets you store the settings for the power seat, the steering wheel adjustment and the exterior rear view mirrors.


Seat fore and aft adjustment 왘 Press switch forward or backward in


direction of arrow 4. Adjust seat to a comfortable seating position that still allows you to reach the accelerator/brake pedal safely. The position should be as far rearward as possible, consistent with ability to properly operate controls.


Seat cushion tilt 왘 Press switch up or down in direction of


arrow 3 until your upper legs are lightly supported.


Seat backrest tilt 왘 Press switch forward or backward in direction of arrow 5 until your arms are slightly angled when holding the steering wheel.


Seat height 왘 Press switch up or down in direction of


arrow 2.


Head restraint height 왘 Press switch up or down in direction of


arrow 1.


Adjust the head restraint in such a way that it is as close to the head as possible.


Getting started Adjusting


Warning!


Head restraint tilt


For your protection, drive only with properly positioned head restraints.


Adjust head restraint so that the head re- straint supports the back of the head at eye level. This will reduce the potential for injury to the head and neck in the event of an ac- cident or similar situation.


Do not drive the vehicle without the seat head restraints. Head restraints are intended to help reduce injuries during an accident.


Manually adjust the angle of the head restraint. 왘 Push or pull on the lower edge of the


head restraint cushion.


For more information, see “Seats” (컄 page 106).


37


Getting started Adjusting


Steering wheel


Warning!


Steering wheel adjustment, electrical The lever for the electrical steering wheel adjustment is located on the lower left of the steering column.


Do not adjust the steering wheel while driving. Adjusting the steering wheel while driving, or driving without the steering wheel adjustment feature locked could cause the driver to lose control of the vehicle.


When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle.


Even with the SmartKey removed from the starter switch, the electrical steering wheel adjustment feature* can be operated when the driver’s door is open. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsu- pervised use of vehicle equipment may cause an accident and/or serious personal injury.


38


1 Adjusting steering column, in or out 2 Adjusting steering column, up or down 왘 Switch on the ignition (컄 page 33).


or


왘 Open the driver’s door.


The memory function (컄 page 111) lets you store the settings for the power seat, the steering wheel adjustment and the exterior rear view mirrors.


Adjusting steering column in or out 왘 Move the lever in direction of


arrows 1 until a comfortable steering wheel position is reached with your arms slightly bent at the elbow.


Adjusting steering column up or down 왘 Move the lever in direction of


arrows 2. Make sure your legs can move freely and that all the displays (including mal- function and indicator lamps) on the in- strument cluster are clearly visible.


Easy-entry/exit feature This feature allows for easier entry into and exit from the vehicle. When entering and exiting the vehicle, the steering wheel is in its uppermost position. The easy-entry/exit feature can be activat- ed or deactivated in the Convenience sub- menu of the control system (컄 page 148).


Warning!


You must make sure no one can become trapped or injured by the moving steering wheel when the easy-entry/exit feature is activated.


To cancel steering wheel movement, do one of the following: 앫 Move steering column stalk


(컄 page 38).


앫 Press memory position switch


(컄 page 112).


Do not leave children unattended in the ve- hicle, or with access to an unlocked vehicle.


Children could open the driver’s door and unintentionally activate the easy-entry/exit feature, which could result in an accident and/or serious personal injury.


With the easy-entry/exit feature activated, the steering wheel will return to its last set position when you: 앫 close the driver’s door with the ignition


switched on, or


앫 insert the SmartKey into the starter switch with the driver’s door closed.


The last set steering wheel position is stored when 앫 the ignition is switched off 앫 the position is stored in memory


(컄 page 112)


Getting started Adjusting


With the easy-entry/exit feature activated, the steering wheel tilts upwards when you: 앫 remove the SmartKey from the starter


switch, or


앫 open the driver’s door with the


SmartKey in starter switch position 0 or 1.


If the current position for the steering wheel is in the uppermost tilt position, the steering wheel will no longer be able to move upward when the easy-entry/exit feature is activated. The adjustment procedure is briefly in- terrupted when the engine is started.


39


Getting started Adjusting


Warning!


Mirrors


Let the system complete the adjustment procedure before setting the vehicle in mo- tion. All steering wheel adjustments must be completed before setting the vehicle in mo- tion. Driving off with the steering wheel still adjusting could cause the driver to lose con- trol of the vehicle.


40


Adjust the interior and exterior rear view mirrors before driving so that you have a good view of the road and traffic condi- tions.


Interior rear view mirror 왘 Manually adjust the interior rear view


mirror.


For more information, see “Rear view mir- rors” (컄 page 169).


Warning!


Exterior rear view mirrors


In case of an accident, liquid electrolyte may escape the mirror housing if the mirror glass breaks.


Electrolyte has an irritating effect. Do not al- low the liquid to come into contact with eyes, skin, clothing, or respiratory system. In case it does, immediately flush affected area with water, and seek medical help if necessary.


Warning!


Exercise care when using the passen- ger-side exterior rear view mirror. The mirror surface is convex (outwardly curved surface for a wider field of view). Objects in mirror are closer than they appear. Check your in- terior rear view mirror or glance over your shoulder before changing lanes.


Electrolyte drops coming into contact with the vehicle paint finish can only be completely removed while in their liquid state and by applying plenty of water.


The buttons are located above the exterior lamp switch.


1 Adjustment button 2 Passenger-side exterior rear view


mirror button


3 Driver’s side exterior rear view mirror


button


왘 Switch on the ignition (컄 page 33). 왘 Press button 3 for the driver’s side exterior rear view mirror or button 2 for passenger-side exterior rear view mirror.


왘 Push adjustment button 1 up, down, left, or right according to the desired setting.


Getting started Adjusting


The memory function (컄 page 111) lets you store the settings for the exterior rear view mirrors together with the set- tings for the steering wheel and the driver’s seat position.


For more information, see “Rear view mir- rors” (컄 page 169).


If an exterior rear view mirror was forcibly pushed forward (hit from the rear) or forcibly pushed rearward (hit from the front), reposition it by applying firm pressure until it snaps into place. The mirror housing is now properly positioned and you can adjust the mirror in the usual manner.


At low ambient temperatures, the exterior rear view mirrors will be heated automatically.


41


Getting started Driving


Warning!


Make sure that absolutely no objects are ob- structing the pedals’ range of movement. Keep the driver’s footwell clear of all obsta- cles. If there are any floormats or carpets in the footwell, make sure that the pedals still have sufficient clearance.


During sudden driving or braking maneuvers the objects could get caught between the pedals. You could then no longer brake or accelerate.


Fastening the seat belt


Warning!


Always fasten your seat belt before driving off. Always make sure your passengers are properly restrained, even those sitting in the rear and pregnant women.


42


Failure to wear and properly fasten and po- sition your seat belt greatly increases your risk of injuries and their likely severity in an accident. You and your passengers should always wear seat belts.


If you are ever in an accident, your injuries can be considerably more severe without your seat belt properly buckled. Without your seat belt buckled, you are much more likely to hit the interior of the vehicle or be ejected from it. You can be seriously injured or killed.


In the same crash, the possibility of injury or death is lessened if you are wearing your seat belt. The air bags can only provide the protection they were designed to afford if the occupants are using their seat belts (컄 page 67).


Warning!


According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats. Regardless of seating position, children 12 years old and under must be seated and properly secured in an appropriate infant or toddler restraint, or booster seat recom- mended for the size and weight of the child. For additional information, see “Children in the vehicle” (컄 page 72). A child’s risk of serious or fatal injuries is significantly increased if the child restraints are not properly secured in the vehicle and/or the child is not properly secured in the child restraint.


Warning!


Warning!


왘 With a smooth motion, pull the belt


from the belt outlet.


Getting started Driving


Never let more people ride in the vehicle than there are seat belts available. Be sure everyone riding in the vehicle is correctly restrained with a separate seat belt. Never use a seat belt for more than one person at a time.


Warning!


Never ride in a moving vehicle with the seat backrest in an excessively reclined position as this can be dangerous. You could slide under the seat belt in a collision. If you slide under it, the belt would apply force at the ab- domen or neck. That could cause serious or even fatal injuries. The seat backrest and seat belt provide the best restraint when the wearer is in a nearly upright position and the belt is properly positioned on the body.


Read and observe the additional warning no- tices printed in the “Safety and Security” section (컄 page 64) and (컄 page 67).


왘 Place the shoulder portion of the belt across the top of your shoulder and the lap portion across your hips.


왘 Push latch plate 1 into buckle 3 until


it engages.


왘 If necessary, tighten the lap portion to


a snug fit by pulling shoulder portion up.


1 Latch plate 2 Release button 3 Buckle


43


Getting started Driving


Belt outlet height adjustment


Proper use of seat belts 앫 Do not twist the seat belt when fasten-


ing.


앫 Adjust seat belt so that the shoulder


portion is located as close as possible to the middle of the shoulder (it should not touch the neck). Never pass the shoulder portion of the belt under your arm. For this purpose, you can adjust the height of the belt outlet.


1 Release button 왘 Press release button 1 and move the


seat belt height adjuster upward or downward.


앫 Position the lap belt as low as possible


on your hips (over hip joint) and not across the abdomen.


앫 Place the seat backrest in a nearly


upright position.


앫 Never use a seat belt for more than one


person at a time.


앫 Do not fasten a seat belt around a


person and another object at the same time.


앫 When using a seat belt to secure infant


or toddler restraints or children in booster seats, always follow the child seat manufacturer’s instructions.


앫 Check your seat belt during travel to


make sure that it is properly posi- tioned.


앫 Make sure that the seat belt is always fitted snugly. Take special care of this when wearing loose clothing.


44


Warning!


Do not pass belts over sharp edges. They could tear.


Do not allow the belt to get caught in the door or in the seat adjustment mechanism. This could damage the belt.


Never attempt to make modifications to seat belts. This could impair the effective- ness of the belts.


Do not bleach or dye seat belts as this may severely weaken them. In a crash, they may not be able to provide adequate protection.


Damaged seat belts or belts that were highly stressed in an accident must be replaced. Contact an authorized Mercedes-Benz Center.


Starting the engine


Automatic transmission


Getting started Driving


Warning!


Inhalation of exhaust gas is hazardous to your health. All exhaust gas contains carbon monoxide (CO), and inhaling it can cause un- consciousness and possible death.


Do not run the engine in confined areas (such as garage) which are not properly ven- tilated. If you think that exhaust gas fumes are entering the vehicle while driving, have the cause determined and corrected imme- diately. If you must drive under these condi- tions, drive only with at least one window fully open.


Gearshift pattern for automatic transmission P Park position with gear selector lever


lock


R Reverse gear N Neutral position D Drive position For more information, see “Automatic transmission” (컄 page 155).


45


Getting started Driving


Starting 왘 Place the gear selector lever in


position P.


왘 Do not depress the accelerator. 왘 Turn the SmartKey in the starter switch to position 3 (컄 page 33) and release it again immediately. The engine then starts automatically.


For information on turning off the engine, see “Turning off engine” (컄 page 56).


Starting difficulties If the engine does not start as described, carry out the following steps: 왘 Turn the SmartKey in starter switch to


position 0 and repeat the starting procedure (컄 page 45). Remember that extended starting attempts can drain the vehicle battery.


왘 Get a jump start (컄 page 415). If the engine does not start after several starting attempts, there could be a mal- function in the engine electronics or in the fuel supply system. 왘 Notify an authorized Mercedes-Benz


Center.


Parking brake


Warning!


When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Children could release the parking brake, which could result in an accident and/or serious injury.


46


1 Release handle 2 Parking brake pedal 왘 Release parking brake by pulling on


handle 1. The warning lamp ; (USA only) or 3 (Canada only) in the instrument cluster goes out.


Driving


Warning!


On slippery road surfaces, never downshift in order to obtain braking action. This could result in drive wheel slip and reduced vehi- cle control. Your vehicle’s ABS will not pre- vent this type of loss of control.


If you hear a warning signal and the message Release parking brake ap- pears in the multifunction display when driving off, you have forgotten to re- lease the parking brake.


Simultaneously depressing the acceler- ator pedal and applying the brake re- duces engine performance and causes premature brake and drivetrain wear.


Getting started Driving


Once the vehicle is in motion, the auto- matic central locking system engages and the locking knobs drop down.

Loading...
