2004 Hummer H2 Owners Manual

Download PDF Manual

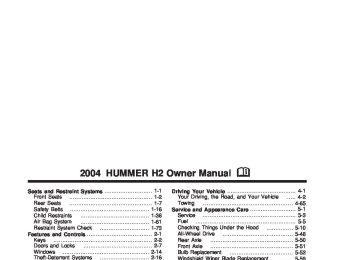

2004 HUMMER H2 Owner Manual M Front Seats Rear Seats Safety Belts Child Restraints Air Bag System Restraint System Check Seats and Restraint Systems ........................... 1-1 ............................................... 1-2 ............................................... 1-7 ............................................. 1-16 ....................................... 1-38 ....................................... 1-61 ............................ 1-73 Features and Controls ..................................... 2-1 ........................................................ 2-2 ....................................... 2-7 ................................................. 2-14 ............................ 2-16 ........... 2-18 .................................................... 2-34 ...................................... 2-40 ............................. 2-42 ......................................... 2-45 .................................................. 2-50 ............................. 2-51 Instrument Panel ............................................. 3-1 .......................... 3-2 ...................................... 3-19 ........ 3-26 .................. 3-44 ....................................... 3-62 Keys Doors and Locks Windows Theft-Deterrent Systems Starting and Operating Your Vehicle Mirrors OnStar® System HomeLink® Transmitter Storage Areas Sunroof Vehicle Personalization Instrument Panel Overview Climate Controls Warning Lights, Gages, and Indicators Driver Information Center (DIC) Audio System(s) Your Driving, the Road, and Your Vehicle Towing Driving Your Vehicle ....................................... 4-1 ..... 4-2 ................................................... 4-65 Service and Appearance Care .......................... 5-1 Service ..................................................... 5-3 Fuel ......................................................... 5-5 Checking Things Under the Hood ............... 5-10 All-Wheel Drive ........................................ 5-48 Rear Axle ............................................... 5-50 Front Axle ............................................... 5-51 Bulb Replacement .................................... 5-52 Windshield Wiper Blade Replacement ......... 5-59 Tires ...................................................... 5-60 Appearance Care ..................................... 5-92 Vehicle Identiﬁcation ............................... 5-101 Electrical System .................................... 5-101 Capacities and Speciﬁcations ................... 5-111 Maintenance Schedule ..................................... 6-1 ................................ 6-2 Customer Assistance and Information .............. 7-1 ........... 7-2 ........................... 7-10 Index ................................................................ 1 Customer Assistance and Information Reporting Safety Defects Maintenance Schedule GENERAL MOTORS, GM, the GM Emblem, HUMMER and the name HUMMER is a registered trademark and H2 is a trademark of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice. For vehicles ﬁrst sold in Canada, subsitute the name “General Motors of Canada Limited” for HUMMER whenever it appears in this manual. Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it. Litho in U.S.A. Part No. S2427 A First Edition ii Canadian Owners You can obtain a French language copy of this manual from your dealer or from: Helm, Incorporated P.O. Box 07130 Detroit, MI 48207 How to Use This Manual Many people read their owner’s manual from beginning to end when they ﬁrst receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you will ﬁnd that pictures and words work together to explain things. Index A good place to look for what you need is the Index in back of the manual. It is an alphabetical list of what is in the manual, and the page number where you will ﬁnd it. ©Copyright General Motors Corporation 08/01/03 All Rights Reserved Safety Warnings and Symbols You will ﬁnd a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning. {CAUTION: These mean there is something that could hurt you or other people. In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you or others could be hurt. You will also ﬁnd a circle with a slash through it in this book. This safety symbol means “Don’t,” “Don’t do this” or “Don’t let this happen.” iii Vehicle Damage Warnings Also, in this book you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice will tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly. But the notice will tell you what to do to help avoid the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words. You’ll also see warning labels on your vehicle. They use the same words, CAUTION or NOTICE. Vehicle Symbols Your vehicle has components and labels that use symbols instead of text. Symbols, used on your vehicle, are shown along with the text describing the operation or information relating to a speciﬁc component, control, message, gage or indicator. If you need help ﬁguring out a speciﬁc name of a component, gage or indicator, reference the following topics: (cid:127) Seats and Restraint Systems in Section 1 Features and Controls in Section 2 Instrument Panel Overview in Section 3 (cid:127) Climate Controls in Section 3 (cid:127) Warning Lights, Gages and Indicators in Section 3 (cid:127) Audio System(s) in Section 3 (cid:127) Engine Compartment Overview in Section 5 iv (cid:127) (cid:127) These are some examples of symbols you may ﬁnd on your vehicle: ✍ NOTES vi Section 1 Seats and Restraint Systems Front Seats ......................................................1-2 Power Seats ..................................................1-2 Power Lumbar ...............................................1-3 Heated Seats .................................................1-4 Reclining Seatbacks ........................................1-5 Head Restraints .............................................1-6 Rear Seats .......................................................1-7 Rear Seat Operation .......................................1-7 Heated Seats .................................................1-8 60/40 Split Bench Seat ...................................1-8 Third Row Seats ...........................................1-10 Safety Belts ...................................................1-16 Safety Belts: They Are for Everyone ................1-16 Questions and Answers About Safety Belts ......1-21 How to Wear Safety Belts Properly .................1-21 Driver Position ..............................................1-22 Safety Belt Use During Pregnancy ..................1-29 Right Front Passenger Position .......................1-30 Rear Seat Passengers ..................................1-30 Rear Safety Belt Comfort Guides for Children and Small Adults .......................................1-34 Safety Belt Extender .....................................1-37 Child Restraints .............................................1-38 Older Children ..............................................1-38 Infants and Young Children ............................1-40 Child Restraint Systems .................................1-44 Where to Put the Restraint .............................1-47 Top Strap ....................................................1-48 Top Strap Anchor Location .............................1-49 Lower Anchorages and Top Tethers for Children (LATCH System) ...........................1-50 Securing a Child Restraint Designed for the LATCH System .........................................1-52 Securing a Child Restraint in a Rear Seat Position ...................................................1-53 Securing a Child Restraint in the Right Front Seat Position ............................................1-55 Air Bag System ..............................................1-61 Where Are the Air Bags? ...............................1-63 When Should an Air Bag Inﬂate? ....................1-65 What Makes an Air Bag Inﬂate? .....................1-65 How Does an Air Bag Restrain? .....................1-65 What Will You See After an Air Bag Inﬂates? ...1-66 Air Bag Off Switch ........................................1-68 Servicing Your Air Bag-Equipped Vehicle .........1-72 Adding Equipment to Your Air Bag-Equipped Vehicle ....................................................1-73 Restraint System Check ..................................1-73 Checking Your Restraint Systems ...................1-73 Replacing Restraint System Parts After a Crash ......................................................1-74 1-1 Horizontal Control: This control adjusts the seat cushion. (cid:127) Raise or lower the front of the seat by raising or lowering the forward edge of the control. Raise or lower the rear of the seat by raising or lowering the rear edge of the control. (cid:127) Move the seat forward or rearward by moving the whole control toward the front or toward the rear of the vehicle. Lower or raise the entire seat cushion by moving the whole control up or down. Vertical Control: This control adjusts the seatback. Move the reclining front seatback rearward or forward by moving the control toward the rear or toward the front of the vehicle. This adjusts the angle of the seatback. For more information on the reclining seatbacks, see Reclining Seatbacks on page 1-5. Your vehicle may have a memory function which allows seat settings to be saved and recalled. See Memory Seat on page 2-51 for more information. Front Seats Power Seats The power seat controls are located on the outboard edge of the front seats. 1-2 (cid:127) Power Lumbar Your vehicle’s seats may be equipped with power lumbar. You can increase or decrease lumbar support in an area of the lower seatback with this control, located on the outboard sides of the front seat(s). To increase support, press and hold the front of the control. To decrease support, press and hold the rear of the control. Let go of the control when the lower seatback reaches the desired level of support. You can also reshape the side wing area of the lower seatback for more lateral support. To increase support, press and hold the top of the control. To decrease support, press and hold the bottom of the control. Let go of the control when the lower seatback reaches the desired level of support. Your vehicle may have a memory function which allows seat settings to be saved and recalled. See Memory Seat on page 2-51 for more information. 1-3 Heated Seats Your vehicle may have heated front seats. The buttons used to control this feature are located on the front doors. The engine must be running for the heated seat feature to work. To heat the entire seat, press the horizontal button with the heated seat symbol. Press the button to cycle through the temperature settings of high, medium and low and to turn the heated seat off. Indicator lights will glow to designate the level of heat selected, three for high, two for medium, and one for low. The low setting warms the seatback and cushion until the seat temperature is near body temperature. The medium and high settings heat the seatback and seat cushion to a slightly higher temperature. You will be able to feel heat in about two minutes. To heat only the seatback, press the vertical button with the heated seatback symbol. An indicator light on the seatback button will glow to designate that only the seatback is being heated. Additional presses of the seatback button will cycle through the heat levels for the seatback only. Press the horizontal button again to heat the whole seat. The heated front seats will shut off automatically when the ignition is turned off. 1-4 Reclining Seatbacks Your vehicle’s front seatbacks have a recline feature which is described earlier. See Power Seats on page 1-2. But don’t have a seatback reclined if your vehicle is moving. {CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job. In a crash, you could go into it, receiving neck or other injuries. The lap belt can’t do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly. 1-5 Head Restraints Pull straight up on the head restraint to raise it and push it down to lower it. The front head restraints can also be tilted forward in addition to being slid up or down. To tilt either of the front head restraints do the following: Pull the head restraint toward you until you hear a click. Then let go. The head restraint will stay in this position unless you pull it forward more until another click is heard. There are four positions available: initial position, ﬁrst click, second click, and third click. After the third position (three clicks) is reached, pulling the head restraint farther will release it back to the normal upright position. The rear head restraints can be slid up or down just as the front head restraints, but they do not tilt. Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. 1-6 Rear Seats Rear Seat Operation Entering or Exiting the Third Row Seats To enter or exit the third row seat (if equipped) you must fold the second row seat down following the instructions later in this section. See “Folding the Seatbacks” under 60/40 Split Bench Seat on page 1-8. If you are exiting the third row seat with no assistance, do the following: Be sure to return the seat to the upright position when ﬁnished. Pull forward and push rearward on the seat to make sure it is locked in place. {CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. 1. Reach over the second row seat and pull up on the strap loop. Then pull the seat cushion up and push it forward. 2. Next, push the seatback forward until it is ﬂat with the ﬂoor. 1-7 Heated Seats If your vehicle has this feature, the buttons used to control this feature are located on the back of the center console. The engine must be running for the heated seat feature to work. Folding the Seatbacks The seatbacks are equipped with rearward folding head restraints. When the seatback is being folded down, the head restraint will automatically fold rearward. To fold the rear seat, do the following: 1. Make sure that nothing is under or in front of the seat. 2. Pull up on the strap loop located at the rear of the seat cushion and pull the seat cushion up and fold it forward. To heat the seat, press the button to cycle through the temperature settings of high and low. Press the button a third time to turn the feature off. An indicator light will glow for each heat setting when the feature is operating. The heated rear seats will shut off automatically when the ignition is turned off. 60/40 Split Bench Seat The 60/40 split bench seats can be folded to give you more cargo space. 1-8 3. Pull the seatback forward and fold it down until it is ﬂat. If the seatback cannot fold ﬂat because it interferes with the cushion, try moving the front seat forward and/or bringing the front seatback more upright. To return the seat(s) to the upright position, do the following: 1. Lift the seatback up and push it rearward all the way. 2. Lower the seat cushion until it latches into position. 3. Pull forward on the seatback and up on the seat cushion to make sure the seat is securely in place. 4. Return the head restraints to the upright position. 5. Check to see that the safety belt buckles on the driver’s side seat are accessible to the outboard and center occupants and are not under the seat cushions. Returning the Seats to an Upright Position {CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. {CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted. 1-9 Third Row Seats If your vehicle has a third row seat, the seatback can be folded and the entire seat tilted or removed from the vehicle. Folding the Seatback To fold the seatback, do the following: 1. Pull up on the release lever, labeled 1, located on the rear of the seatback, and push the seatback forward. Unfolding the Seatback {CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. 1-10 To return the seatback to the passenger position, do the following: 1. Pull up on the release lever labeled 1 and then pull up on the seatback until the seatback locks into the upright position. Tilting the Seat 1. Fold the seatback forward using the instructions listed previously. 2. Unlatch the seat from the ﬂoor by pulling up on the lever labeled 2, located on the rear of the seat. 2. Push forward on the seatback to make sure it is locked into position. 3. Lift the rear of the seat up from the ﬂoor and push it forward until it locks into place. You will not be able to unlatch the seat from the ﬂoor unless the seatback is folded down. The seat will now remain locked in the upright position. 1-11 Returning the Seat to an Upright Position {CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. To return the seatback to an upright position, do the following: 1-12 1. Pull the lever labeled 3 toward you. 2. While still holding lever 3 toward you, grasp the top of the seat and pull it toward you slightly. 3. Let go of lever 3 and pull the seat completely down. 4. Push down on the seat ﬁrmly. Try pulling it up to be sure it is locked into place. 5. Pull up on the release lever labeled 1 and then pull up on the seatback until the seatback locks into the upright position. Removing the Seat To remove the seat, do the following: 1. Open the liftgate. 2. Fold the seatback forward onto the seat cushion by using the lever labeled 1. The seat cannot be removed unless the seatback is folded. 1-13 3. To unlatch the rear of the seat from the ﬂoor, pull up on the release lever labeled 2, at the rear of the seat, and lift the rear of the seat up from the ﬂoor. 4. Squeeze the release handle while pulling the seat out. 5. While holding the rear of the seat up, roll the seat out of the vehicle. 1-14 Replacing the Seat {CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked. {CAUTION: A seat that isn’t locked into place properly can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to lock the seat into place properly when installing it. {CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted. To replace the seat, do the following: 1. While holding the rear of the seat up, slide the front wheels into the slots on the ﬂoor. The front latches should lock into place. If the latches do not lock, try tilting the rear of the seat upwards. 1-15 2. Once the latches are engaged, let the seat drop into place. Release the lever labeled 1 and pull the seatback up to return it to its upright position. Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. 3. Push and pull on the seat to make sure it is locked into place. The seatback cannot be raised to the upright position unless the seat is secured to the ﬂoor. {CAUTION: Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too. 1-16 {CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly. In most states and in all Canadian provinces, the law says to wear safety belts. Here’s why: They work. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person wouldn’t survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed. After more than 30 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter... a lot! Your vehicle has a light that comes on as a reminder to buckle up. See Safety Belt Reminder Light on page 3-28. 1-17 Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels. 1-18 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-19 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense. 1-20 Questions and Answers About Safety Belts Q: Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? A: You could be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted. Q: If my vehicle has air bags, why should I have to wear safety belts? A: Air bags are in many vehicles today and will be in most of them in the future. But they are supplemental systems only; so they work with safety belts – not instead of them. Every air bag system ever offered for sale has required the use of safety belts. Even if you’re in a vehicle that has air bags, you still have to buckle up to get the most protection. That’s true not only in frontal collisions, but especially in side and other collisions. Q: If I’m a good driver, and I never drive far from home, why should I wear safety belts? A: You may be an excellent driver, but if you’re in an accident – even one that isn’t your fault – you and your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers. Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone. How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-38 or Infants and Young Children on page 1-40. Follow those rules for everyone’s protection. First, you’ll want to know which restraint systems your vehicle has. We’ll start with the driver position. 1-21 Driver Position This part describes the driver’s restraint system. Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-37. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 1-22 5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. 1-23 Q: What’s wrong with this? {CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. A: The shoulder belt is too loose. It will not give nearly as much protection this way. 1-24 Q: What’s wrong with this? {CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you. A: The belt is buckled in the wrong place. 1-25 {CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests. Q: What’s wrong with this? A: The belt is over an armrest. 1-26 Q: What’s wrong with this? {CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren’t as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen. A: The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-27 Q: What’s wrong with this? {CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it. A: The belt is twisted across the body. 1-28 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts. To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy. 1-29 The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-22. The right front passenger’s safety belt works the same way as the driver’s safety belt – except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature. If this happens, just let the belt go back all the way and start again. Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts. 1-30 Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here is how to wear one properly. 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see Safety Belt Extender on page 1-37. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 1-31 3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part. 1-32 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there is a sudden stop or a crash. The safety belt also locks if you pull the belt very quickly out of the retractor. {CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. To unlatch the belt, just push the button on the buckle. 1-33 Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head. Comfort guides are provided for each outside passenger in the second row seat and one guide for the single third row seat. To provide added safety belt comfort for children who have outgrown child restraints and booster seats and for smaller adults, the comfort guides may be installed on the shoulder belts. Here is how to install a comfort guide and use the safety belt: 1-34 Second Row Seat 1. For the second row, remove the guide from its storage clip on the trim panel near the side of the seatback. 2. Place the guide over the belt and insert the two edges of the belt into the slots of the guide. Third Row Seat For the third row, remove the guide from its storage clip on the side of the seatback. 1-35 3. Be sure that the belt is not twisted and it lies ﬂat. The guide must be on top of the belt. Second Row Seat 1-36 To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides. For the second row, slide the guide onto its storage clip on the trim panel near the side of the seatback. For the third row, slide the guide onto its storage clip on the side of the seatback. Make sure you remove the comfort guide from the belt before you fold a rear seat down. Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. The extender will be just for you, and just for the seat in your vehicle that you choose. Don’t let someone else use it, and use it only for the seat it is made to ﬁt. To wear it, just attach it to the regular safety belt. 1-37 Third Row Seat 4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-30. Make sure that the shoulder belt crosses the shoulder. Child Restraints Older Children Q: What is the proper way to wear safety belts? A: If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash. Accident statistics show that children are safer if they are restrained in the rear seat. In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly. Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-38 {CAUTION: Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. Q: What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? A: If the child is sitting in a rear seat outside position, move the child toward the center of the vehicle. Also, see Rear Safety Belt Comfort Guides for Children and Small Adults on page 1-34. If the child is sitting in the center position, move the child toward the safety belt buckle. In either case, be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. 1-39 CAUTION: (Continued) this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries. Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash. Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle. Every time infants and young children ride in vehicles, they should have the protection provided by appropriate restraints. Young children should not use the vehicle’s adult safety belts alone, unless there is no other choice. Instead, they need to use a child restraint. {CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in CAUTION: (Continued) 1-40 {CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby doesn’t weigh much -- until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint. 1-41 {CAUTION: Children who are up against, or very close to, any air bag when it inﬂates can be seriously injured or killed. Air bags plus lap-shoulder belts offer outstanding protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Q: What are the different types of add-on child restraints? A: Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used. 1-42 {CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that’s unprotected by any bony structure. This alone could cause serious or fatal injuries. Young children always should be secured in appropriate child restraints. For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards. The restraint manufacturer’s instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs. {CAUTION: Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders. Infants always should be secured in appropriate infant restraints. 1-43 Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle. A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-44 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window. 1-45 When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system or the LATCH system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury. When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer. Q: How do child restraints work? A: A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner. For many years, add-on child restraints have used the adult belt system in the vehicle. To help reduce the chance of injury, the child also has to be secured within the restraint. The vehicle’s belt system secures the add-on child restraint in the vehicle, and the add-on child restraint’s harness system holds the child in place within the restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps and a crotch strap. A shield may take the place of hip straps. A T-shaped shield has shoulder straps that are attached to a ﬂat pad which rests low against the child’s body. A shelf- or armrest-type shield has straps that are attached to a wide, shelf-like shield that swings up or to the side. 1-46 Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat. If you need to secure a child restraint in the right front passenger’s seat, there is a switch on the instrument panel that you can use to turn off the passenger’s air bag. See Air Bag Off Switch on page 1-68 and Securing a Child Restraint in the Right Front Seat Position on page 1-55, for more on this including important safety information. Never put a rear-facing child restraint in the right front passenger seat unless the air bag is off. Here is why: {CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating air bag. Be sure to turn off the air bag before using a rear-facing child restraint in the right front seat position. Even though the air bag off switch is designed to turn off the passenger’s air bag, no system is fail safe, and no one can guarantee that an air bag will not deploy under some unusual circumstance, even though it is turned off. General Motors recommends that rear-facing child restraints be secured in the rear seat, even if the air bag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. 1-47 Wherever you install it, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle — even when no child is in it. Top Strap Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored. Others require the top strap always to be anchored. Be sure to read and follow the instructions for your child restraint. If yours requires that the top strap be anchored, don’t use the restraint unless it is anchored properly. If the child restraint does not have a top strap, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available. 1-48 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. Anchor the top strap to one of the following anchor points. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed. Raise the head restraint and route the top strap under it. Top Strap Anchor Location A child restraint with a top strap should only be used in the second or third row. Don’t use a child restraint with a top strap in the front seat because there’s no place to anchor the top strap. An anchor loop bracket for a top strap is located at the bottom rear of the seat cushion for each seating position in the second row and in the outboard passenger position in the third row. {CAUTION: Each top tether bracket is designed to anchor only one child restraint. Attaching more than one child restraint to a single bracket could cause the anchor to come loose or even break during a crash. A child or others could be injured if this happens. To help prevent injury to people and damage to your vehicle, attach only one child restraint per bracket. Once you have the top strap anchored, you’ll be ready to secure the child restraint itself. Tighten the top strap when and as the child restraint manufacturer’s instructions say. Second Row Seats 1-49 Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors (A) in the center and right side passenger second row seating positions. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. Instead, it uses vehicle anchors (A, B) and child restraint attachements to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether strap (C). Third Row Seat 1-50 In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. 1-51 To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a visible metal anchorage point in the seat where the seatback meets the seat cushion. {CAUTION: If a LATCH-type child restraint is not attached to its anchorage points, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchorage points, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual. Securing a Child Restraint Designed for the LATCH System 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-50. 2. Put the child restraint on the seat. 3. Attach and tighten the LATCH attachments on the child restraint to the LATCH anchorages in the vehicle. The child restraint instructions will show you how. 4. If the child restraint is forward-facing, attach and tighten the top tether to the top tether anchorage. The child restraint instructions will show you how. Also see Top Strap on page 1-48. 5. Push and pull the child restraint in different directions to be sure it is secure. To remove the child restraint, simply unhook the top tether from the top tether anchorage and then disconnect the LATCH attachments from the LATCH anchorages. 1-52 Securing a Child Restraint in a Rear Seat Position If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Put the restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-50. See Top Strap on page 1-48 if the child restraint has one. 1-53 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-54 To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. Securing a Child Restraint in the Right Front Seat Position 5. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt. 6. Push and pull the child restraint in different directions to be sure it is secure. 1-55 If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-50. See Top Strap on page 1-48 if your child restraint has one. Your vehicle has a right front passenger air bag. There is a switch on the instrument panel that you can use to turn off the right front passenger’s air bag when you need to secure a child restraint at the right front passenger’s position. See Air Bag Off Switch on page 1-68 for more on this, including important safety information. 1-56 United States {CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating air bag. Be sure to turn off the air bag before using a rear-facing child restraint in the right front seat position. Even though the air bag off switch is designed to turn off the passenger’s air bag, no system is fail safe, and no one can guarantee that an air bag will not deploy under some unusual circumstance, even though it is turned off. General Motors recommends that rear-facing child restraints be secured in the rear seat, even if the air bag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. 1-57 Canada A rear seat is a safer place to secure a forward-facing child restraint. Never put a rear-facing child restraint in the right front passenger’s seat unless the air bag is off. Here is why: {CAUTION: If the air bag readiness light ever comes on when you have turned off the air bag, it means that something may be wrong with the air bag system. The right front passenger’s air bag could inﬂate even though the switch is off. If this ever happens, don’t let anyone whom the national government has identiﬁed as a member of a passenger air bag risk group sit in the right front passenger’s position (for example, don’t secure a rear-facing child restraint in the right front seat ) until you have your vehicle serviced. See “Air Bag Off Switch.” You will be using a lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Your vehicle has a right front passenger’s air bag. See Air Bag Off Switch on page 1-68. If your child restraint is forward-facing, move the seat as far back as it will go before securing the restraint in this seat. See “Seats” in the Index. If you need to use a rear-facing child restraint in this seat, make sure the air bag is off once the child restraint has been installed. 2. Put the child restraint on the seat. 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 1-58 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-59 To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. If you had turned the air bag off with the switch, remember to be sure to use the air bag off switch to turn on the right front passenger’s air bag when you remove the child restraint from the vehicle unless the person who will be sitting there is a member of the passenger air bag risk group. See Air Bag Off Switch on page 1-68. {CAUTION: If the right front passenger’s air bag is turned off for a person who isn’t in a risk group identiﬁed by the national government, that person won’t have the extra protection of an air bag. In a crash, the air bag wouldn’t be able to inﬂate and help protect the person sitting there. Don’t turn off the passenger’s air bag unless the person sitting there is in a risk group. See ″Air Bag Off Switch″ in the Index for more on this, including important safety information. 6. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt. 7. Push and pull the child restraint in different directions to be sure it is secure. 1-60 Air Bag System This part explains the air bag system. Your vehicle has air bags – one air bag for the driver and another air bag for the right front passenger. Frontal air bags are designed to help reduce the risk of injury from the force of an inﬂating air bag. But these air bags must inﬂate very quickly to do their job and comply with federal regulations. Here are the most important things to know about the air bag system: {CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Air bags are designed to work with safety belts, but do not replace them. Airbags are designed to deploy only in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear or low-speed frontal crashes, or in many side crashes. And, for some unrestrained occupants, air bags may provide less protection in frontal crashes than more forceful air bags have provided in the past. Everyone in your vehicle should wear a safety belt properly — whether or not there is an air bag for that person. 1-61 {CAUTION: {CAUTION: Air bags inﬂate with great force, faster than the blink of an eye. If you’re too close to an inﬂating air bag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position before and during a crash. Always wear your safety belt, even with air bags. The driver should sit as far back as possible while still maintaining control of the vehicle. Anyone who is up against, or very close to, any air bag when it inﬂates can be seriously injured or killed. Air bags plus lap-shoulder belts offer the best protection for adults, butnot for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see Older Children on page 1-38 and Infants and Young Children on page 1-40. 1-62 There is a air bag readiness light on the instrument panel, which shows the air bag symbol. Where Are the Air Bags? The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See Air Bag Readiness Light on page 3-28 for more information. The driver’s air bag is in the middle of the steering wheel. 1-63 {CAUTION: If something is between an occupant and an air bag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering. The right front passenger’s air bag is in the instrument panel on the passenger’s side. 1-64 When Should an Air Bag Inﬂate? An air bag is designed to inﬂate in a moderate to severe frontal, or near-frontal crash. The air bag will inﬂate only if the impact speed is above the system’s designed 'threshold level'. If your vehicle goes straight into a wall that doesn’t move or deform, the threshold level is about 9 to 17 mph (14 to 27 km/h). The threshold level can vary, however, with speciﬁc vehicle design, so that it can be somewhat above or below this range. If your vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The air bag is not designed to inﬂate in rollovers, rear impacts, or in many side impacts because inﬂation would not help the occupant. In any particular crash, no one can say whether an air bag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. Inﬂation is determined by the angle of the impact and how quickly the vehicle slows down in frontal or near-frontal impacts. The air bag system is designed to work properly under a wide range of conditions, including off-road usage. Observe safe driving speeds, especially on rough terrain. As always, wear your safety belt. See Off-Road Driving on page 4-17 for more tips on off-road driving. What Makes an Air Bag Inﬂate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inﬂator, which inﬂates the air bag. The inﬂator, air bag, and related hardware are all part of the air bag modules inside the steering wheel and in the instrument panel in front of the right front passenger. How Does an Air Bag Restrain? In moderate to severe frontal or near-frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. Air bags supplement the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But air bags would not help you in many types of collisions, including rollovers, rear impacts and many side impacts, primarily because an occupant’s motion is not toward those air bags. Air bags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions. 1-65 What Will You See After an Air Bag Inﬂates? After an air bag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the air bag inﬂated. Some components of the air bag module – the steering wheel hub for the driver’s air bag, or the instrument panel for the right front passenger’s bag – will be hot for a short time. The parts of the bag that come into contact with you may be warm, but not too hot to touch. There will be some smoke and dust coming from the vents in the deﬂated air bags. Air bag inﬂation doesn’t prevent the driver from seeing or being able to steer the vehicle, nor does it stop people from leaving the vehicle. {CAUTION: When an air bag inﬂates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inﬂates, then get fresh air by opening a window or a door. If you experience breathing problems following an air bag deployment, you should seek medical attention. 1-66 Your vehicle has a feature that will automatically unlock the doors and turn the interior lamps on when the air bags inﬂate (if battery power is available). You can lock the doors again and turn the interior lamps off by using the door lock and interior lamp controls. In many crashes severe enough to inﬂate the air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag. (cid:127) Air bags are designed to inﬂate only once. After they inﬂate, you’ll need some new parts for your air bag system. If you don’t get them, the air bag system won’t be there to help protect you in another crash. A new system will include air bag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts. (cid:127) Your vehicle is equipped with a crash sensing and diagnostic module, which records information about the air bag system. The module records information about the readiness of the system, when the system commands air bag inﬂation and driver’s safety belt usage at deployment. The module also records speed, engine rpm, brake and throttle data. Let only qualiﬁed technicians work on your air bag system. Improper service can mean that an air bag system won’t work properly. See your dealer for service. If you damage the covering for the driver’s Notice: or the right front passenger’s air bag, the bag may not work properly. You may have to replace the air bag module in the steering wheel or both the air bag module and the instrument panel for the right front passenger’s air bag. Do not open or break the air bag coverings. 1-67 (cid:127) Air Bag Off Switch Your vehicle has a switch on the instrument panel that you can use to turn off the right front passenger’s air bag. Canada United States 1-68 This switch should only be turned to the off position if the person in the right front passenger’s position is a member of a passenger risk group identiﬁed by the national government as follows: Infant.An infant (less than 1 year old) must ride in the front seat because: (cid:127) my vehicle has no rear seat; (cid:127) my vehicle has a rear seat too small to accommodate a rear-facing infant seat; or the infant has a medical condition which, according to the infant’s physician, makes it necessary for the infant to ride in the front seat so that the driver can constantly monitor the child’s condition. Child age 1 to 12.A child age 1 to 12 must ride in the front seat because: (cid:127) my vehicle has no rear seat; although children ages 1 to 12 ride in the rear seat(s) whenever possible, children ages 1 to 12 sometimes must ride in the front because no space is available in the rear seat(s) of my vehicle; or the child has a medical condition which, according to the child’s physician, makes it necessary for the child to ride in the front seat so that the driver can constantly monitor the child’s condition. Medical Condition.A passenger has a medical condition which, according to his or her physician: causes the passenger air bag to pose a special risk for the passenger; and (cid:127) makes the potential harm from the passenger air bag in a crash greater than the potential harm from turning off the air bag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash. {CAUTION: If the right front passenger’s air bag is turned off for a person who isn’t in a risk group identiﬁed by the national government, that person won’t have the extra protection of an air bag. In a crash, the air bag wouldn’t be able to inﬂate and help protect the person sitting there. Don’t turn off the passenger’s air bag unless the person sitting there is in a risk group. 1-69 (cid:127) (cid:127) (cid:127) (cid:127) United States Canada To turn off the right front passenger’s air bag, insert your ignition key into the switch, push in, and move the switch to the off position. The air bag off light will come on to let you know that the right front passenger’s air bag is off. The right front passenger’s air bag will remain off until you turn it back on again, and the air bag off light will stay on to remind you that the air bag is off. 1-70 {CAUTION: If the air bag readiness light ever comes on when you have turned off the air bag, it means that something may be wrong with the air bag system. The right front passenger’s air bag could inﬂate even though the switch is off. If this ever happens, don’t let anyone whom the national government has identiﬁed as a member of a passenger air bag risk group sit in the right front passenger’s position (for example, don’t secure a rear-facing child restraint in the right front seat) until you have your vehicle serviced. United States 1-71 Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag system. To purchase a service manual, see Service Publications Ordering Information on page 7-11. {CAUTION: For up to 2 minutes after the ignition key is turned off and the battery is disconnected, an air bag can still inﬂate during improper service. You can be injured if you are close to an air bag when it inﬂates. Avoid yellow wires, wires wrapped with yellow tape or yellow connectors. They are probably part of the air bag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualiﬁed to do so. The air bag system does not need regular maintenance. Canada To turn the right front passenger’s air bag on again, insert your ignition key into the switch, push in, and move the switch to the on position. 1-72 Adding Equipment to Your Air Bag-Equipped Vehicle Q: Is there anything I might add to the front of the vehicle that could keep the air bags from working properly? A: Yes. If you add things that change your vehicle’s frame, bumper system, front end sheet metal or height, they may keep the air bag system from working properly. Also, the air bag system may not work properly if you relocate any of the air bag sensors. If you have any questions about this, you should contact Customer Assistance before you modify your vehicle. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure on page 7-2. Restraint System Check Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away. Also look for any opened or broken air bag covers, and have them repaired or replaced. (The air bag system does not need regular maintenance.) 1-73 Replacing Restraint System Parts After a Crash {CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible. If you’ve had a crash, do you need new belts or LATCH system parts? After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new parts. If the LATCH system was being used during a more severe crash, you may need new LATCH system parts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system wasn’t being used at the time of the collision. If an air bag inﬂates, you’ll need to replace air bag system parts. See the part on the air bag system earlier in this section. 1-74 Section 2 Features and Controls Keys ...............................................................2-2 Remote Keyless Entry System .........................2-3 Remote Keyless Entry System Operation ...........2-4 Doors and Locks .............................................2-7 Door Locks ....................................................2-7 Power Door Locks ..........................................2-8 Delayed Locking .............................................2-9 Programmable Automatic Door Locks ................2-9 Rear Door Security Locks ..............................2-11 Lockout Protection ........................................2-12 Liftgate ........................................................2-13 Windows ........................................................2-14 Power Windows ............................................2-15 Sun Visors ...................................................2-16 Theft-Deterrent Systems ..................................2-16 Content Theft-Deterrent .................................2-16 Passlock® ....................................................2-18 Starting and Operating Your Vehicle ................2-18 New Vehicle Break-In ....................................2-18 Ignition Positions ..........................................2-19 Starting Your Engine .....................................2-20 Engine Coolant Heater ..................................2-21 Automatic Transmission Operation ...................2-22 All-Wheel Drive ............................................2-25 Parking Brake ..............................................2-29 Shifting Into Park (P) .....................................2-30 Shifting Out of Park (P) .................................2-32 Parking Over Things That Burn .......................2-32 Engine Exhaust ............................................2-33 Running Your Engine While You Are Parked ....2-33 Mirrors ...........................................................2-34 Automatic Dimming Rearview Mirror with Compass and Temperature Display ..............2-34 Outside Power Mirrors ...................................2-37 Outside Convex Mirror ...................................2-38 Outside Heated Mirrors ..................................2-39 Outside Automatic Dimming Mirror with Curb View Assist ..............................................2-39 OnStar® System .............................................2-40 HomeLink® Transmitter ...................................2-42 Programming the HomeLink® Transmitter .........2-42 Storage Areas ................................................2-45 Glove Box ...................................................2-45 Center Overhead Console ..............................2-46 Center Console Storage Area .........................2-46 Luggage Carrier ...........................................2-46 Rear Seat Armrest ........................................2-49 Sunroof .........................................................2-50 Vehicle Personalization ...................................2-51 Memory Seat ...............................................2-51 2-1 Keys {CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children. 2-2 Your vehicle has one double-sided key for the ignition and all door locks. If you ever lose your keys, your dealer will be able to assist you with obtaining replacements. In an emergency contact roadside assistance. See Roadside Assistance Program on page 7-5. If you ever lock your keys in your vehicle, you may be able to have your doors unlocked automatically with the OnStar® system if you have an active OnStar® subscription. For more information see OnStar® System on page 2-40. Remote Keyless Entry System Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation of the device. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes or modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment. 2-3 At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: (cid:127) Check the distance. You may be too far from your vehicle. You may need to stand closer during rainy or snowy weather. (cid:127) Check the location. Other vehicles or objects may be blocking the signal. Take a few steps to the left or right, hold the transmitter higher, and try again. (cid:127) Check to determine if battery replacement is necessary. See “Battery Replacement” under Remote Keyless Entry System Operation on page 2-4. If you are still having trouble, see your dealer or a qualiﬁed technician for service. Remote Keyless Entry System Operation You can lock and unlock your doors from about 3 feet (1 m) up to 100 feet (30 m) away using the remote keyless entry transmitter supplied with your vehicle. K (Unlock): Press this button once to unlock the driver’s door. The interior lamps will come on. Pressing unlock again within three seconds will cause the remaining doors to unlock. You can choose different feedback options for each press of the unlock button. See DIC Operation and Displays on page 3-44 for more information. 2-4 (cid:127) Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about two years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery. Notice: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter. Q (Lock): Press this button once to lock all of the doors. Pressing lock again within three seconds may cause the horn to chirp for lock conﬁrmation. You can choose different feedback options for each press of the lock button. See DIC Operation and Displays on page 3-44 for more information. L (Panic): Press this button to sound the horn and ﬂash the headlamps and taillamps for up to 30 seconds. Panic can be turned off by pressing the button again, by waiting for 30 seconds, or by starting the vehicle. Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your vehicle. Each vehicle can have a maximum of four transmitters matched to it. 2-5 3. Align the covers and snap them together. 4. Resynchronize the transmitter. See “Resynchronization” next. 5. Check the operation of the transmitter. Resynchronization Resynchronization may be necessary due to the security method used by this system. The transmitter does not send the same signal twice to the receiver. The receiver will not respond to a signal that has been sent previously. This prevents anyone from recording and playing back the signal from the transmitter. To resynchronize your transmitter, stand close to your vehicle and press and hold the lock and unlock buttons on the transmitter at the same time for 15 seconds. The door locks should cycle to conﬁrm synchronization. If the locks do not cycle, see your dealer for service. To replace the battery in the keyless entry transmitter, do the following: 1. Insert a thin object, such as a coin, in the slot between the covers of the transmitter housing near the key ring hole. Remove the bottom by twisting the coin. 2. Remove and replace the battery with a three-volt CR2032 or equivalent battery, positive (+) side up. 2-6 Doors and Locks Door Locks {CAUTION: There are several ways to lock and unlock your vehicle. To unlock the door from the outside, use the keyless entry system or the key. To unlock or lock the door from the inside, slide the manual lever forward or rearward. Unlocked doors can be dangerous. (cid:127) Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked. So, wear safety belts properly and lock the doors whenever you drive. (cid:127) Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock your vehicle whenever you leave it. (cid:127) Outsiders can easily enter through an unlocked door when you slow down or
