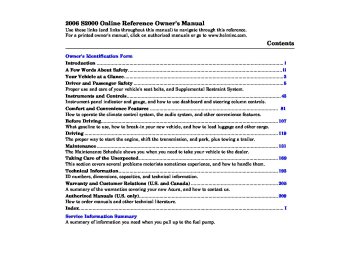

2006 S2000 Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com.


Contents


Owner's Identification Form Introduction ......................................................................................................................................... i A Few Words About Safety.................................................................................................................ii Your Vehicle at a Glance.....................................................................................................................3 Driver and Passenger Safety ..............................................................................................................5 Proper use and care of your vehicle's seat belts, and Supplemental Restraint System. Instruments and Controls.................................................................................................................43 Instrument panel indicator and gauge, and how to use dashboard and steering column controls. Comfort and Convenience Features .............................................................................................. 81 How to operate the climate control system, the audio system, and other convenience features. Before Driving..................................................................................................................................107 What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo. Driving ..............................................................................................................................................119 The proper way to start the engine, shift the transmission, and park, plus towing a trailer. Maintenance.....................................................................................................................................131 The Maintenance Schedule shows you when you need to take your vehicle to the dealer. Taking Care of the Unexpected......................................................................................................169 This section covers several problems motorists sometimes experience, and how to handle them. Technical Information.....................................................................................................................193 ID numbers, dimensions, capacities, and technical information. Warranty and Customer Relations (U.S. and Canada)................................................................205 A summary of the warranties covering your new Acura, and how to contact us. Authorized Manuals (U.S. only)......................................................................................................209 How to order manuals and other technical literature. Index...................................................................................................................................................... I Service Information Summary A summary of information you need when you pull up to the fuel pump.


Accord Value Package Audio System


05/08/29 17:51:36 31S2A660 0002


Congratulations on your selection of the 2006 Honda S2000. We are certain you will be pleased with your purchase of one of the most sophisticated and technologically-advanced sports cars in the world.


One of the best ways to enhance the enjoyment of your new vehicle is to read this manual. In it, you will learn how to operate its driving controls and convenience items. Afterwards, keep this owner’s manual in your vehicle so you can refer to it at any time.


Several warranties protect your new vehicle. Read the warranty booklet thoroughly so you understand the coverages and are aware of your rights and responsibilities.


Maintaining your vehicle according to the messages shown on the information display helps to keep your driving trouble-free while it preserves your investment. When your vehicle needs maintenance, keep in mind that your dealer’s staff is specially trained in servicing the many systems unique to your vehicle. Your Honda dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.


Introduction


As you read this manual, you will find information that is preceded by information is intended to help you avoid damage to your vehicle, other property, or the environment.


symbol. This


California Proposition 65 Warning


This product contains


WARNING: or emits chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.


Event Data Recorders


This vehicle is equipped with one or more recording devices commonly referred to as event data recorders or sensing and diagnostic modules.


Main Menust 05/08/29 17:51:46 31S2A660 0003


A Few Words About Safety


Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility.


To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.


Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.


ii


You will find this important safety information in a variety of forms, including:


Safety Labels − Safety Messages


on the vehicle. − three signal words: These signal words mean:


preceded by a safety alert symbol DANGER WARNING


, or


CAUTION


and one of


You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.


You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.


You CAN be HURT if you don’t follow instructions.


Safety Headings


− Safety Precautions.


such as Important Safety Reminders or Important


Safety Section Instructions −


such as Driver and Passenger Safety.


− how to use this vehicle correctly and safely.


This entire book is filled with important safety information carefully.



please read it


Main Menust 05/08/29 17:52:18 31S2A660 0006


INSTRUMENT PANEL INDICATORS GAUGES


(P.51)


(P.46)


PASSENGER AIRBAG OFF INDICATOR (P.26)


DRIVER’S AIRBAG (P.9, 20)


POWER DOOR LOCK (P.63)


POWER WINDOW SWITCHES (P.68)


MIRROR CONTROLS (P.75)


Your Vehicle at a Glance


PASSENGER’S AIRBAG (P.9, 20)


AUDIO SYSTEM (P.86)


MANUAL TRANSMISSION (P.123)


HAZARD WARNING BUTTON (P.58)


ROOF SWITCH (P.71)


REAR WINDOW DEFOGGER BUTTON (P.59)


Main Menust 05/08/29 17:52:24 31S2A660 0007


Your Vehicle at a Glance


REMOTE AUDIO CONTROLS CLOCK SET (P.101)


BUTTON (P.54)


INSTRUMENT PANEL BRIGHTNESS (P.58)


VEHICLE STABILITY ASSIST (VSA) SYSTEM OFF SWITCH (P.129)


ENGINE START BUTTON (P.122)


HEADLIGHTS/ TURN SIGNALS (P.57)


HOOD RELEASE HANDLE (P.110)


CRUISE BUTTON (P.103)


HEATING AND AIR CONDITIONING (P.82)


WINDSHIELD WIPERS/ WASHERS (P.56)


CRUISE CONTROL (P.103)


HORN


Main Menust 05/08/29 17:52:27 31S2A660 0008


Driver and Passenger Safety


This section gives you important information about how to protect yourself and your passenger. It shows you how to use seat belts. It explains how your airbags work. And it tells you how to properly restrain children in your vehicle.


Seat Belts Airbags


Important Safety Precautions Your Vehicle’s Safety Features


......... ....... ....................................... ........................................... ......... ..... ...................... ............


1. Close and Lock the Doors 2. Adjust the Seats 3. Adjust the Seat-Backs 4. Fasten and Position the


Protecting Adults and Teens


. 6
. 7
. 8
. 9
. 10
. 10
. 10
. 11


Seat Belts


.............................


. 12


5. Maintain a Proper Sitting


Position


. 13
Advice for Pregnant Women . 14
Additional Safety Precautions . 15


................................ ..... ...


Additional Information About


Your Seat Belts


....................... . 16
.. Seat Belt System Components . 16
Lap/Shoulder Belt ...................... . 17
Automatic Seat Belt


Tensioners


Seat Belt Maintenance


............................... ............... Additional Information About Your ..................................... ......


Airbag System Components How Your Front Airbags


Airbags


. 18
. 18


. 20
. 20


Work


.........................................


. 22


.. How the SRS Indicator Works . 25
How the Passenger Airbag Off ...................... ............................. ...


. 26
Airbag Service . 27
Additional Safety Precautions . 27


Indicator Works


Protecting Children



General


Guidelines All Children Must Be


....................................


. 28


Restrained


...............................


. 28


Your Vehicle is Not


Recommended for Child


. 29


Passengers


Serious Risks


Protecting Small Children Selecting a Child Seat Installing a Child Seat Protecting Larger Children


. 29
Additional Safety Precautions . 31
. 32
. 33
. 33
. 36
. 36
. 37


.......................... The Passenger’s Airbag Poses ........................... ... ............. ..................... .................... ........... Checking Seat Belt Fit ............... Using a Booster Seat .................. When Can a Child Ride in This ..................................... ... ............. ...................................


. 38
Additional Safety Precautions . 39
. 40
. 41


Carbon Monoxide Hazard Safety Labels


Vehicle


Main Menust 05/08/29 17:52:38 31S2A660 0009


Important Safety Precautions


You’ll find many safety recommendations throughout this section, and throughout this manual. Therecommendationsonthispage are the ones we consider to be the most important.


Always Wear Your Seat Belt A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with airbags, make sure you and your passenger always wear your seat belts, and wear them properly (see page 12


).


Your Vehicle is Not Recommended for Child Passengers Since all children are safest in the back seat of a vehicle, and your vehicle does not have a back seat, we recommend that you do not carry a child passenger.


Duetothepassenger’sairbaghazard, youshouldnevercarryaninfantina rear-facing child seat in this vehicle. If an older child must ride in this vehicle, follow all child safety instructions and warnings in this manual (see pages


28


40


).



Be Aware of Airbag Hazards While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual.


Don’t Drink and Drive Alcohol and driving don’t mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don’t drink and drive, and don’t let your friends drink and drive, either.


Control Your Speed Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.


Keep Your Vehicle in Safe Condition Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance (see page


139


).


Main MenuTable of Contentsst 05/08/29 17:52:45 31S2A660 0010


(1)


(9)


(8)


(3)


(4)


(7)


(6)


(8)


(2)


(5)


(1) Safety Cage (2) Crush Zones (3) Seats and Seat-Backs (4) Head Restraints (5) Collapsible Steering Column (6) Seat Belts (7) Seat Belt Tensioners (8) Airbags (9) Door Locks


(2)


Your Vehicle’s Safety Features


Your vehicle is equipped with many features that work together to protect you and your passenger during a crash.


Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment; front and rear crush zones, a collapsible steering column; and tensioners that tighten the seat belts in a crash.


However, you and your passenger can’t take full advantage of these features unless you remain sitting in a proper position and alwayswear . In fact, some safety yourseatbelts features can contribute to injuries if they are not used properly.


The following pages explain how you can take an active role in protecting yourself and your passenger.


Main MenuTable of Contentsst 05/08/29 17:52:55 31S2A660 0011


Your Vehicle’s Safety Features


Seat Belts Your vehicle is equipped with seat belts in both seating positions.


Your seat belt system also includes an indicator on the instrument panel to remind you and your passenger to fasten your seat belts.


WhyWearSeatBelts Seat belts have proven to be the single most effective safety device for adults and larger children.


Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.


In addition, most states and all Canadian provinces require you to wear seat belts.


Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.


Be sure you and your passenger always wear seat belts and wear them properly.


When properly worn, seat belts:


Keep you connected to the vehicle so you can take advantage of the vehicle’s built-in safety features.


Help protect you in almost every type of crash, including frontal, side, and rear impacts and rollovers.


Help keep you from being thrown against the inside of the vehicle and against a passenger.


Keep you from being thrown out of the vehicle.


Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag and allows you to get the best advantage from the airbag.


Of course, seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury.


Always wear Whatyoushoulddo: your seat belt, and make sure you wear it properly.


Main MenuTable of Contentsst 05/08/29 17:53:03 31S2A660 0012


Airbags


Your vehicle has a Supplemental Restraint System (SRS) with front airbags to help protect the heads and chests of the driver and a passenger during a moderate to severe frontal collision (see page information on how your airbags work).


for more


22


Your Vehicle’s Safety Features


The most important things you need to know about your airbags are:


Airbagsdonotreplaceseatbelts. They are designed to supplement the seat belts.


Frontairbagsoffernoprotection insideimpacts,rearimpacts, rollovers,orminorcollisions.


Airbagscanposeserioushazards. To do their job, airbags must inflate with tremendous force. So while airbags help save lives, they can cause minor injuries or more serious or even fatal injuries if occupants are not properly restrained or sitting properly.


Always wear


Whatyoushoulddo: your seat belt properly, and sit upright and as far back from the steering wheel as possible while allowing full control of the vehicle. A passenger should move the seat as far back from the dashboard as possible.


The rest of this section gives more detailed information about how you can maximize your safety.


Remember, however, that no safety system can prevent all injuries or deaths that can occur in a severe crash, even when seat belts are properly worn and the airbags deploy.


Main MenuTable of Contentsst 05/08/29 17:53:13 31S2A660 0013


Protecting Adults and Teens


Introduction The following pages provide instructions on how to properly protect the driver, an adult passenger or teenage child large enough and mature enough to drive or ride in your vehicle. See pages 28
how to properly protect a small or larger child.


for important guidelines on


40



Close and Lock the Doors 1. After everyone has entered the vehicle, be sure the doors are closed and locked.


Your vehicle has door and trunk monitor indicators on the instrument panel to indicate when either door or the trunk is not tightly closed.


10


2.


Adjust the Seats


Locking the doors reduces the chance of someone being thrown out of the vehicle during a crash, and it helps prevent a passenger from accidentally opening a door and falling out.


Locking the doors also helps prevent an outsider from unexpectedly opening a door when you come to a stop.


for how to lock the


63


See page doors, and page open indicator works.


47


for how the door-


Adjust the driver’s seat as far to the rear as possible while allowing you to maintain full control of the vehicle. Have a passenger adjust his or her seat as far to the rear as possible.


If you sit too close to the steering wheel or dashboard, you can be seriously injured by an inflating airbag, or by striking the steering wheel or dashboard.


Main MenuTable of Contentsst 05/08/29 17:53:21 31S2A660 0014


Sitting too close to a front airbag can result in serious injury or death if the front airbags inflate.


Always sit as far back from the front airbags as possible.


The National Highway Traffic Safety Administration and Transport Canada recommend that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest.


If you cannot get far enough away from the steering wheel and still reach the controls, we recommend that you investigate whether some type of adaptive equipment may help.


Once your seat is adjusted correctly, rock it back and forth to make sure the seat is locked in position.


See page seats.


67


for how to adjust the


Protecting Adults and Teens


3.


Adjust the Seat-Backs


Adjust the driver’s seat-back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel.


A passenger should also adjust their seat-back to a comfortable, upright position.


CONTINUED


11


Main MenuTable of Contentsst 05/08/29 17:53:27 31S2A660 0015


4.


Fasten and Position the Seat Belts


Insert the latch plate into the buckle, then tug on the belt to make sure the belt is securely latched. Check that the belt is not twisted, because a twisted belt can cause serious injuries in a crash.


Protecting Adults and Teens


Reclining a seat-back so that the shoulder part of the belt no longer rests against the occupant’s chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, the greater the risk of injury.


See page 67
seat-backs.


for how to adjust the


Reclining the seat-back too far can result in serious injury or death in a crash.


Adjust the seat-back to an upright position, and sit well back in the seat.


12


Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of thebeltsothelappartfitssnugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.


Main MenuTable of Contentsst 05/08/29 17:53:35 31S2A660 0016


Protecting Adults and Teens


If a seat belt does not seem to work properly, it may not protect the occupant in a crash.


Nooneshouldsitinaseatwithan Using a seat inoperativeseatbelt. belt that is not working properly can result in serious injury or death. Have your dealer check the belt as soon as possible.


18


for additional


See page information about your seat belts and how to take care of them.


If necessary, pull up on the belt again to remove any slack, then check that the belt rests across the center of your chest and over your shoulder. This spreads the forces of a crash over the strongest bones in your upper body.


Neverplacetheshoulderportionofa lap/shoulderbeltunderyourarmor behindyourback. very serious injuries in a crash.


This could cause


Improperly positioning the seat belts can cause serious injury or death in a crash.


Make sure all seat belts are properly positioned before driving.


5.


Maintain a Proper Sitting Position


After occupants have adjusted their seats and put on seat belts, it is very important that they continue to sit upright, well back in their seats, with their feet on the floor, until the vehicle is parked and the engine is off.


Sitting improperly can increase the chance of injury during a crash. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.


CONTINUED


13


Main MenuTable of Contentsst 05/08/29 17:53:42 31S2A660 0017


Protecting Adults and Teens


In addition, an occupant who is out of position can be seriously or fatally injured in a crash by striking interior parts of the vehicle or being struck by an inflating front airbag.


Sitting improperly or out of position can result in serious injury or death.


Always sit upright, well back in the seat, with your feet on the floor.


14


Advice for Pregnant Women


If you are pregnant, the best way to protect yourself and your unborn child when driving or riding in a vehicle is to always wear a seat belt, and keep the lap part of the belt as low as possible across the hips.


When driving, remember to sit upright and adjust the seat as far back as possible while allowing full control of the vehicle. When riding as a passenger, adjust the seat as far back as possible.


This will reduce the risk of injuries to both you and your unborn child that can be caused by a crash or an inflating front airbag.


Each time you have a checkup, ask your doctor if it’s okay for you to drive.


Main MenuTable of Contentsst 05/08/29 17:53:48 31S2A660 0018


Additional Safety Precautions


Twopeopleshouldneverusethe sameseatbelt. could be very seriously injured in a crash.


If they do, they


Donotputanyaccessoriesonseat Devices intended to improve belts. occupant comfort or reposition the shoulder part of a seat belt can reduce the protective capability of the belt and increase the chance of serious injury in a crash.


Donotplacehardorsharpobjects betweenyourselfandafront Carrying hard or sharp airbag. objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.


Donotattachorplaceobjectson Objects on thefrontairbagcovers. the covers marked ‘‘SRS AIRBAG’’ could interfere with the proper operation of the airbags or be propelled inside the vehicle and hurt someone if the airbags inflate.


Protecting Adults and Teens


Keepyourhandsandarmsaway If your fromtheairbagcovers. hands or arms are close to an airbag cover, they could be injured if the airbag inflates.


15


Main MenuTable of Contentsst 05/08/29 17:53:57 31S2A660 0019


Additional Information About Your Seat Belts


If a passenger does not fasten their seat belt, the indicator will come on about 6 seconds after the ignition switch is turned to the ON (II) position.


If either the driver or passenger does not fasten their seat belt while driving, the beeper will sound and the indicator will flash again at regular intervals.


When no one is sitting in the passenger’s seat, or a small child is riding there, the indicator will not come on and the beeper will not sound.


The seat belts use the same monitoring system as the airbags. The system may not work properly under these conditions:


Placing heavy items on the passenger’s seat.


The passenger is not sitting properly.


Have your vehicle checked by a dealer if the indicator comes on or the beeper sounds when there is no passenger or objects on the seat.


Seat Belt System Components Your seat belt system includes lap/ shoulder belts in both seating positions. The seat belts are also equipped with automatic seat belt tensioners.


The seat belt system includes an indicator on the


instrument panel and a beeper to remind you and your passenger to fasten your seat belts.


This system monitors the seat belts. If you turn the ignition switch to the ON (II) position before your seat belt is fastened, the beeper will sound and the indicator will flash. If your seat belt is not fastened before the beeper stops, the indicator will stop flashing but remain on.


16


Main MenuTable of Contentsst 05/08/29 17:54:03 31S2A660 0020


Additional Information About Your Seat Belts


Lap/Shoulder Belt The lap and shoulder belt goes over your shoulder, across your chest, and across your hips.


To fasten the belt, insert the latch plate into the buckle, then tug on the belt to make sure the buckle is latched (see page for how to properly position the belt).


12


To unlock the belt, press the red PRESSbuttononthebuckle.Guide the belt across your body so that it retracts completely. After exiting the vehicle, be sure the belt is out of the way and will not get closed in the door.


Both seat belts have an emergency retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.


The passenger’s seat belt has an additional locking mechanism that must be activated to secure a forward-facing child seat (see page 34


).


If the shoulder part of the belt is pulled all the way out, the locking mechanism will activate. The belt will retract, but it will not allow the passenger to move freely.


To deactivate the locking mechanism, unlatch the buckle and let the seat belt fully retract. To refasten the seat belt, pull it out only as far as needed.


17


Main MenuTable of Contentsst 05/08/29 17:54:12 31S2A660 0021


Additional Information About Your Seat Belts


Automatic Seat Belt Tensioners


For added protection, the seat belts are equipped with automatic seat belt tensioners. When activated, the tensioners immediately tighten the beltstohelpholdthedriverand a passenger in place.


18


The tensioners are designed to activate primarily in frontal collisions, andtheyshouldactivateinany collision severe enough to cause airbag inflation.


However, the tensioners can be activated during a collision in which the front airbags do not deploy. In this case, the airbags would not be needed, but the additional restraint could be helpful.


When the tensioners are activated, the seat belts will remain tight until they are unbuckled in the normal manner.


If the seat belt tensioners ever activate, they must be replaced, because the belts would no longer retract properly.


Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly.


Pull each belt out fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the belts retract easily. If a belt does not retract easily, cleaning it may correct the problem (see page ). 157
Any belt that is not in good condition or not working properly will not provide good protection and should be replaced as soon as possible.


Honda provides a lifetime warranty on seat belts for U.S. models. See your HondaWarrantyInformation booklet for details.


If a seat belt is worn during a crash, it must be replaced by your dealer. A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash.


Main MenuTable of Contentsst 05/08/29 17:54:16 31S2A660 0022


Additional Information About Your Seat Belts


The dealer should also inspect the anchors for damage and replace them if needed. If the automatic seat belt tensioners activate during a crash, they must be replaced.


Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.


Check your seat belts regularly and have any problem corrected as soon as possible.


19


Main MenuTable of Contentsst 05/08/29 17:54:21 31S2A660 0023


Additional Information About Your Airbags


Airbag System Components


(8)


(2)


(9)


(1)


(1) Driver’s Airbag (2) Passenger’s Airbag (3) Control Unit (4) Front Seat Belt Tensioners (5) Driver’s Seat Position Sensor (6) Passenger’s Weight Sensors (7) Passenger’s Weight Sensor Unit (8) Front Impact Sensors (9) Passenger Airbag Off Indicator


(3)


20


(5)


(6)


(7)


(4)


(4)


(6)


Main MenuTable of Contentsst 05/08/29 17:54:29 31S2A660 0024


Additional Information About Your Airbags


Your airbag system includes:


Two SRS (Supplemental Restraint System) airbags. The driver’s airbag is stored in the center of the steering wheel; the passenger’s airbag is stored in the dashboard. Both are marked ‘‘SRS AIRBAG.’’


Automatic seat belt tensioners (see page


18


).


Sensors that can detect a moderate to severe front impact.


Sensors that can detect whether a child is in the passenger’s airbag path and signal the control unit to turn the airbag off (see page ).


24


A driver’s seat position sensor that monitors the distance of the seat from the airbag. If the seat is too far forward, the airbag will inflate with less force (see page


24


).


Weight sensors and unit that monitor the weight on the passenger’s seat. These automatically turn off the passenger’s airbag if they detect an infant or small child may be in theseat(seepage


). 24


A sophisticated electronic system that continually monitors and records information about the sensors, the control unit, the airbag activators, the seat belt tensioners, and driver and passenger seat belt use when the ignition switch is in the ON (II) position.


An indicator on the instrument panel that alerts you to a possible problem with your airbags, sensors, or seat belt tensioners (see page


25


).


An indicator on the dashboard that alerts you that the passenger’s airbag has been turned off (see page


26


).


Emergency backup power in case your vehicle’s electrical system is disconnected in a crash.


21


Main MenuTable of Contentsst 05/08/29 17:54:37 31S2A660 0025


Additional Information About Your Airbags


How Your Front Airbags Work


If you ever have a moderate to severe frontal collision, sensors will detect the vehicle’s rapid deceleration.


If the rate of deceleration is high enough, the control unit will instantly inflate the driver’s and passenger’s airbags, at the time and with the force needed.


22


During a frontal crash, your seat belt restrains your lower body and torso, and the airbag helps protect your head and chest.


Although both airbags normally inflate within a split second of each other, it is possible for only one airbag to deploy.


This can happen if the severity of a collision is at the margin, or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide sufficient protection, and the supplemental protection offered by the airbag would be minimal.


Only the driver’s airbag will deploy if there is no passenger in the passenger’s seat, or if the advanced airbag system has turned the passenger’s airbag off (see page


24


).


After inflating, the airbags will immediately deflate, so they won’t interfere with the driver’s visibility, or the ability to steer or operate other controls.


The total time for inflation and deflation is one-tenth of a second, so fast that most occupants are not aware that the airbags deployed until they see them lying in their laps.


Main MenuTable of Contentsst 05/08/29 17:54:45 31S2A660 0026


After a crash, you may see what looks like smoke. This is actually powder from the airbag’s surface. Although the powder is not harmful, people with respiratory problems may experience some temporary discomfort. If this occurs, get out of the vehicle as soon as it is safe to do so.


Additional Information About Your Airbags


Dual-StageAirbags Your airbags are dual-stage airbags. This means they have two inflation stages that can be ignited sequentially or simultaneously, depending on crash severity.


Dual-ThresholdAirbags Your airbags are also dual-threshold airbags. Airbags with this feature have two deployment thresholds that depend on whether or not the occupant is wearing a seat belt.


moresevere


In a crash, both stages will ignite simultaneously to provide the quickest and greatest protection.


lesssevere


crash, one stage will


In a ignite first, then the second stage will ignite a split second later. This provides longer airbag inflation time with a little less force.


notlatched


If the occupant’s belt is the airbag will deploy at a slightly lower threshold, because the occupant would need extra protection.


latched


If the occupant’s belt is , the airbag will inflate at a slightly higher threshold, when the airbag would be needed to supplement the protection provided by the seat belt.


23


Main MenuTable of Contentsst 05/08/29 17:54:53 31S2A660 0027


Additional Information About Your Airbags


AdvancedAirbags Your airbags are also advanced airbags. The main purpose of this feature is to help prevent airbag- caused injuries to short drivers and children who ride in the passenger’s seat.


For both advanced airbags to work properly:


Occupants must sit upright and wear their seat belts properly.


Do not spill any liquids on or under the seats, cover the sensors, or put any cargo or metal objects under the seats.


Failure to follow these instructions could damage the sensors or prevent them from working properly.


24


DRIVER’S SEAT POSITION SENSOR


PASSENGER’S SEAT WEIGHT SENSOR


The driver’s advanced airbag system includes a seat position sensor under the seat. If the seat is too far forward, the airbag will inflate with less force, regardless of the severity of the impact.


The passenger’s advanced airbag system has weight sensors and unit under the seat. If the sensors detect an infant or small child may be in the seat, the system will automatically turn the passenger’s airbag off.


If there is a problem with the sensor, the SRS indicator will come on, and the airbag will inflate in the normal manner regardless of the driver’s seating position.


Main MenuTable of Contentsst 05/08/29 17:55:03 31S2A660 0028


Additional Information About Your Airbags


Hanging heavy items on the passenger seat, or placing heavy items in the seat-back pocket.


When the airbag is turned off, an indicator in the center of the dashboard will come on indicating passenger airbag ‘‘OFF’’ (see page 26


).


If there is no passenger in the front seat, the airbag will be off. However, the passenger airbag off indicator will not come on.


To ensure that the passenger’s advanced front airbag system will work properly, donotdoanything thatwouldincreaseordecreasethe weightonthefrontpassenger’sseat. This includes:


Moving the front seat forcibly back against cargo on the seat or floor behind it.


How the SRS Indicator Works The SRS indicator alerts you to a potential problem


with your airbags or seat belt tensioners (see page


18


).


When you turn the ignition switch to the ON (II) position, this indicator comes on briefly then goes off. This tells you the system is working properly.


If the indicator comes on at any other time, or does not come on at all, you should have the system checked by your dealer. For example:


If the SRS indicator does not come on after you turn the ignition switch to the ON (II) position. If the indicator stays on after the engine starts. If the indicator comes on or flashes on and off while you drive.


CONTINUED


25


Main MenuTable of Contentsst 05/08/29 17:55:11 31S2A660 0029


Additional Information About Your Airbags


If you see any of these indications, the airbags and seat belt tensioners may not work properly when you need them.


How the Passenger Airbag Off Indicator Works


Ignoring the SRS indicator can result in serious injury or death if the airbag systems or tensioners do not work properly.


Have your vehicle checked by a dealer as soon as possible if the SRS indicator alerts you to a possible problem.


U. S.


Canada


PASSENGER AIRBAG OFF INDICATOR


This indicator alerts you that the passenger’s airbag has been shut off because weight sensors detect an infant or small child may be in the passenger’s seat. It does notmean there is a problem with the airbag. When you turn the ignition switch to the ON (II) position, this indicator comes on briefly then goes off.


26


If no one is riding in the passenger’s seat, the airbag will be automatically shut off. However, the indicator will not come on.


If the indicator comes on with no passenger in the seat, or with an adult in the seat, there may be a problem with the advanced airbag system. Have the vehicle checked by your dealer as soon as possible.


The passenger airbag off indicator may also come on and off repeatedly if total weight on the seat is near the airbag cutoff threshold.


If this happens, move the seat as far to the rear as possible and have the passenger sit upright and wear the seat belt properly.


Main MenuTable of Contentsst 05/08/29 17:55:18 31S2A660 0030


Additional Information About Your Airbags


Airbag Service Your airbag systems are virtually maintenance free, and there are no parts you can safely service. However, you must have your vehicle serviced if:


Any airbag


Anairbageverinflates. that has deployed must be replaced along with the control unit and other related parts. If a front airbag inflates, the seat belt tensioners must also be replaced.


Do not try to remove or replace any airbag by yourself. This must be done by your dealer or a knowledgeable body shop.


TheSRSindicatoralertsyoutoa Take your vehicle to an problem. authorized dealer as soon as possible. If you ignore this indication, your airbags may not operate properly.


Even if your


Ifyourvehiclehasamoderateto severeimpact. airbags do not inflate, your dealer should inspect the driver’s seat position sensor and the passenger’s weight sensors to make sure they are operating properly.


Additional Safety Precautions


Donotattempttodeactivateyour airbags. seat belts provide the best protection.


Together, airbags and


Donottamperwithairbag componentsorwiringforany Tampering could cause reason. the airbags to deploy, possibly causing very serious injury.


Donotremoveormodifyaseat withoutconsultingyourdealer. This could make the driver’s seat position sensor or the passenger’s weight sensors ineffective. If it is necessary to remove or modify a seat to accommodate a person with disabilities, first contact Honda Automobile Customer Service at (800) 999-1009.


27


Main MenuTable of Contentsst 05/08/29 17:55:25 31S2A660 0031


Protecting Children General Guidelines



All Children Must Be Restrained Each year, many children are injured or killed in vehicle crashes because they are either unrestrained or not properly restrained. In fact, vehicle accidents are the number one cause of the death of children ages 12 and under.


To reduce the number of child deaths and injuries, every state and Canadian province requires that infants and children be properly restrained when they ride in a vehicle.


Anychildwhoistoosmalltoweara seatbeltmustberestrainedinan approvedchildseatthatisproperly securedtothevehicle 33


(see pages


35


).



Alargerchildmustberestrained withalap/shoulderbeltandrideon aboosterseatuntiltheseatbeltfits himorherproperly − 39


(see pages


36


).


Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash.


Any child too small for a seat belt should be properly restrained in a child seat. A larger child should be properly restrained with a seat belt and use a booster seat if necessary.


Children depend on adults to protect them. However, despite their best intentions, many adults do not know how to passengers.


protect child


properly


If you ever need to drive with a child in your vehicle, be sure to read this section. It begins with important general guidelines, then presents special information for infants, small children and larger children.


28


Main MenuTable of Contentsst 05/08/29 17:55:34 31S2A660 0032


Protecting Children General Guidelines



Your Vehicle is Not Recommended for Child Passengers The National Highway Traffic Safety Administration and Transport Canada recommend that all children age 12 and under be properly restrained in a back seat.


The Passenger’s Airbag Pose Serious Risks Airbags have been designed to help protect adults in a moderate to severe frontal collision. To do this, the passenger’s airbag is quite large and it can inflate with enough force to cause very serious injuries.


Since this vehicle does not have a back seat, we strongly recommend that you do not carry any child who is not large enough or mature enough to ride in front (see page


38


).


Even though your vehicle has an advanced airbag system, which can automatically turn the passenger’s airbag off (see page ), please follow the guidelines below.


24


Infants Neverputarear-facingchildseatin If the airbag inflates, it thisvehicle. can hit the back of the child seat with enough force to kill or very seriously injure an infant.


If the vehicle seat is too


SmallChildren Placingaforward-facingchildseatin thepassenger’sseatcanbe hazardous. far forward, or the child’s head is thrown forward during a collision, an inflating passenger’s airbag can strike the child with enough force to kill or very seriously injure a small child.


LargerChildren Childrenwhohaveoutgrownchild seatsarealsoatriskofbeinginjured orkilledbyaninflatingpassenger’s If a larger child must ride in airbag. this vehicle, see page important guidelines on how to decide when a child is ready to ride in and how to properly protect the child.


for


38


29


Main MenuTable of Contentsst 05/08/29 17:55:45 31S2A660 0033


Protecting Children General Guidelines



To remind you of the passenger’s airbag hazards, your vehicle has warning labels on the dashboard (U.S. models) and on the driver’s and passenger’s visors. Please read and follow the instructions on these labels.


U.S.Models Sun Visor


Dashboard


CanadianModels Sun Visor


30


Main MenuTable of Contentsst 05/08/29 17:55:51 31S2A660 0034


Protecting Children General Guidelines



Additional Safety Precautions


Neverholdasmallchildonyour If you are not wearing a seat lap. belt in a crash, you could be thrown forward and crush the child against the dashboard. If you are wearing a seat belt, the child can be torn from your arms and be seriously hurt or killed.


Neverputaseatbeltoveryourself andachild. belt could press deep into the child and cause serious or fatal injuries.


During a crash, the


Neverlettwochildrenusethe If they do, they sameseatbelt. could be very seriously injured in a crash.


Donotleavechildrenaloneina Leaving children without vehicle. adult supervision is illegal in most states and Canadian provinces, and can be very hazardous.


For example, a small child left in a vehicle on a hot day can die from heatstroke. A child left alone with the key in the ignition switch can accidentally set the vehicle in motion, possibly injuring themselves or others.


Lockbothdoorsandthetrunk whenyourvehicleisnotinuse. Children who play in vehicles can accidentally get trapped inside. Teach your children not to play in or around vehicles. Know how to operate the emergency trunk opener and decide if your children should be shown how to use this feature(seepage


). 63


Even very young


Keepvehiclekeysandremote transmittersoutofthereachof children. children learn how to unlock vehicle doors, turn on the ignition switch, and open the trunk, which can lead to accidental injury or death.


31


Main MenuTable of Contentsst 05/08/29 17:55:57 31S2A660 0035


Protecting Small Children


Because an inflating airbag can seriously injure or kill small children, we recommend that you do not carry a small child as a passenger in this vehicle.


If you decide to transport a small child in this vehicle, be sure to move the passenger seat as far to the rear as possible, and follow the instructions and guidelines in the following pages.


A child who is at least one year old, and who fits within the child seat maker’s weight and height limits, should be restrained in a forward- facing, upright child seat.


Of the different seats available, we recommend those that have a five- point harness system as shown.


32


We also recommend that a small child use the child seat until the child reaches the weight or height limit for the seat.


Placing a forward-facing child seat in the passenger’s seat can result in serious injury or death if the airbag inflates.


If you must place a forward- facing child seat in the passenger’s seat, move the vehicle seat as far back as possible and properly restrain the child.


Main MenuTable of Contentsst 05/08/29 17:56:07 31S2A660 0036


Selecting a Child Seat, Installing a Child Seat


Selecting a Child Seat

Loading...
x
